This document is meant to be used for successfully deploying Cisco Prime™ Infrastructure. The assumption is that the basic wired and wireless network is already deployed. Cisco Prime Infrastructure will be used to manage the existing network and modify or enhance it.
Combining the wireless functionality of Cisco Prime Network Control System (NCS) with Cisco Prime LAN Management Solution (LMS), Cisco Prime Infrastructure 1.2 simplifies and automates many of the day-to-day tasks associated with maintaining and managing the end-to-end network infrastructure from a single pane of glass. The new converged solution delivers many of the existing wireless capabilities for RF management, user access, reporting, and troubleshooting along with wired lifecycle functions such as discovery, inventory, configuration and image management, compliance reporting, integrated best practices, and reporting.

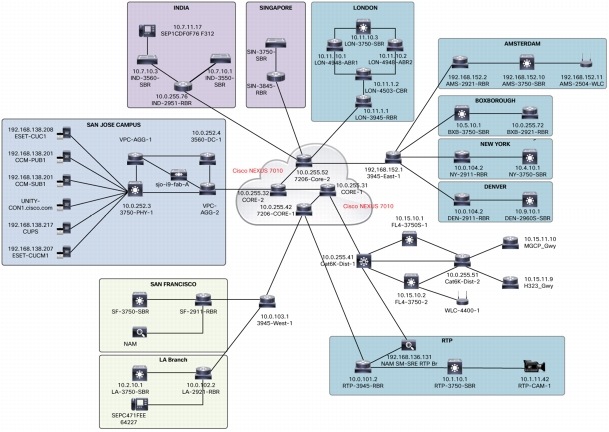

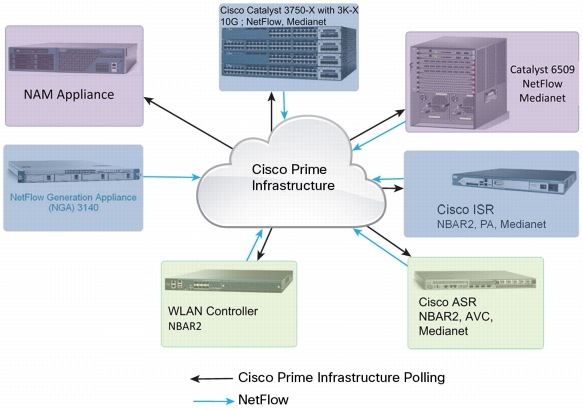

The image above shows a typical network diagram of a global enterprise that has many sites with varying sizes. You may see traffic coming from one site to another, as well as to and from sites to headquarters. How can we measure which site is consuming most of the WAN bandwidth? Which site has the worst user experience from an application point of view? Which site has more wired clients compared to wireless clients? This is just a partial list of questions that a network engineer could have and that can be easily answered with Cisco Prime Infrastructure.
If you have an Assurance add-on license, you should be able to get an aggregated view from all the data sources in your network as shown in the following figure:
As we can see, some of the devices are being polled by Cisco Prime Infrastructure as it listens for NetFlow from other data sources. Cisco Prime Network Analysis Module (NAM), for example, doesn't need to send any NetFlow data to Cisco Prime Infrastructure, but Cisco Prime Infrastructure collects all the information from the NAM natively. On the other hand, the NetFlow Generation Appliance (NGA) sends NetFlow to Cisco Prime Infrastructure. Routers and switches capable of NetFlow and medianet can be enabled and configured by Cisco Prime Infrastructure to get application visibility for the applications that flow through them.
The Cisco Prime Infrastructure software runs on either a dedicated Cisco Prime Appliance (PRIME-NCS-APL-K9) or on a VMware server. The Cisco Prime Infrastructure software image does not support the installation of any other packages or applications on this dedicated platform. The Cisco Prime Infrastructure application comes preinstalled on a physical appliance with various performance characteristics.
Cisco Prime Infrastructure runs on a 64-bit, Red Hat Linux Enterprise Server 5.4 operating system. You cannot install Cisco Prime Infrastructure on a standalone operating system such as Red Hat Linux, as Cisco Prime Infrastructure is shipped as a physical or virtual appliance that comes preinstalled with a secure and hardened version of Red Hat Linux as its operating system.
The recommended deployments for a virtual appliance are ESX and ESXi. The following table shows the resources needed for different sizes of the virtual appliance.
Virtual Appliance Size
Small Virtual Appliance
Version 4.1 or 5.0
4 virtual CPUs (vCPUs)
Medium Virtual Appliance
Version 4.1 or 5.0
Large Virtual Appliance
Extra Large Virtual Appliance
Cisco Prime Appliance comes with the specifications shown in the following table:
Cisco Prime Appliance
The following table shows all the supported browsers that can be used to access Cisco Prime Infrastructure.
8.0 or 9.0
2 GHz or better
Chrome Plug-in is recommended.
2 GHz or better
2 GHz or better
TIP: Although the minimum client memory required is 1 GB of RAM, adding more memory will definitely enhance the end-user experience.
Installing the Cisco Prime Infrastructure Virtual Appliance
Cisco Prime Infrastructure is delivered as a Virtual Appliance a.k.a Open Virtualization Archive (OVA) file. OVA files allow you to easily deploy a prepackaged virtual machine (VM) - an application along with an operating system.
Provisioning the Cisco Prime Infrastructure OVA
Before you begin, make sure the OVA file is downloaded (you can download an evaluation copy of Cisco Prime Infrastructure from http://www.cisco.com/go/nmsevals) and save it to the same server on which the VMware vSphere client is installed. The video at http://youtu.be/XPA0kz6sm5o guides users on how to install Cisco Prime Infrastructure from the OVA file. Alternatively, you can proceed with the following steps in order to install the Cisco Prime Infrastructure virtual appliance using the VMware vSphere client:
Step 1. Launch your VMware vSphere client. (The best way is to point to the ESX host's webpage.)
Step 2. Choose File > Deploy OVF Template.
Step 3. Use the default option of Deploy from file. Click the Browse button and select the OVA file.
Step 4. Click Next and review the settings to make sure Cisco Prime Infrastructure is selected.
Step 5. Specify a name and location for the template that you are deploying. The name must be unique within the inventory folder; it can contain up to 80 characters.
Step 6. Pick the appropriate host, cluster for the virtual machine, resource pool, and data store in the next couple of steps. This information will be unique to each virtual Cisco Prime Infrastructure deployment. Please check with your system administrator for specific information.
TIP: For ESXi versions prior to 5.0, Cisco recommends that the data store on the host have a block size of 4 MB or more; otherwise, the deployment of the OVA might fail. If deployment fails, you can reconfigure the block size. In order to reconfigure the block size, go to the ESX host, choose Configuration > Storage, delete the data stores, and add the storage again to the new data stores with a block size of at least 4 MB. Please make sure you move the VMs out of this data store before making this change.
Step 7. On the Disk Format screen, choose Thick Provisioning (the default for the Cisco Prime Infrastructure OVA).
Step 8. On the Ready to Complete screen, review the virtual appliance settings and click Finish to start uploading the OVA file to the ESX host.
Step 9. This process may take a few minutes to complete. Check the progress bar in the Deploying Virtual Application window to monitor the task status. On successful completion of the deployment task, a Deployment Completed Successfully confirmation window appears.
Installing the Cisco Prime Infrastructure OVA
Step 1. Power on the virtual machine by right-clicking the virtual appliance, and choose Power > Power ON.
Step 2. Click the Console tab, and click the black space to start typing at the prompt.
TIP: You may use the Ctrl+Alt key combination to exit the Console mode if needed.
Step 3. At the local host login prompt, enter setup.
Step 4. The Console prompts you for the following parameters:
A. Hostname: Enter the hostname for Cisco Prime Infrastructure.
B. IP Address: Enter the IP address of the virtual appliance.
C. IP default netmask: Enter the default subnet mask for the IP address.
D. IP default gateway: Enter the IP address of the default gateway.
E. Default DNS domain: Enter the default Domain Name System (DNS) domain name.
F. Primary nameserver: Enter the primary nameserver. You may add or edit this nameserver. To configure multiple nameservers, enter y.
G. Primary NTP server [time.nist.gov]: Point to the corporate Network Time Protocol (NTP) server.
H. Timezone: The default timezone is Coordinated Universal Time (UTC). Timezones could be entered as PST8PDT or US/Pacific.
I. Username: Enter the name of the first administrative user. You can accept the default, which is admin.
J. Password: Enter the password for command-line interface (CLI) access to Cisco Prime Infrastructure.
Once the wizard is complete, configuring the virtual application will begin by opening the interfaces and checks for basic connectivity. Once everything checks out okay, you will be asked a few other questions as part of the postinstallation configuration.
K. Will this server be used as a Secondary for HA? If you are planning to use this as a standalone server or if this is the first or the primary server, enter no.
L. Root password: This password will be used for the web interface for Cisco Prime Infrastructure only.
M. FTP password: Enter the password here to transfer files to and from the Cisco Prime Infrastructure server.
N. Summary: Review the summary, and if all the entered information is good, apply the changes and the installation will continue. The appliance may reboot one more time and will be ready for you to log in through the web interface.
Installing Cisco Prime Infrastructure on a Physical Appliance
Cisco Prime Infrastructure 1.2 comes preinstalled on the PRIME-NCS-APL-K9 physical appliance. The Cisco Prime Infrastructure 1.2 software image does not support the installation of any other packages or applications on this dedicated platform. If for some reason the appliance comes without any software, the application may be installed from the DVD that comes with it. Once the server boots up, the procedure will be similar to the procedure described for a virtual appliance.
Starting/Stopping Cisco Prime Infrastructure Services
In normal circumstances, you will not have to stop or start Cisco Prime Infrastructure services. The Cisco Prime Infrastructure 1.2 server will start automatically once installation is complete, and no manual startup of services is required. If there is a need to restart the services for some reason, the following commands may be executed by the admin user from the CLI:
pi1.cisco.com/admin# ncs stop - Stops the Cisco Prime Infrastructure server
pi1.cisco.com/admin# ncs status - Shows the Cisco Prime Infrastructure server status
pi1.cisco.com/admin# ncs start - Starts the Cisco Prime Infrastructure server
Logging In to Cisco Prime Infrastructure for the First Time
Once the Cisco Prime Infrastructure server has been installed and configured, it is now ready to be accessed from the web. The server URL would be https://server_hostname or https://ip.ad.dr.ess. In Cisco Prime Infrastructure 1.2, the root password is the one that was entered (see Step 4.L in the "Installing the Cisco Prime Infrastructure OVA" section). After the server has been configured, it is advisable to log in with a nonroot user and to keep the root user for system level configurations as and when needed.
After you have installed Cisco Prime Infrastructure for the first time you may access the lifecycle and assurance features using the built-in evaluation license that is available by default. The default evaluation license is valid for 60 days for 100 devices and 150 interfaces. You will need to purchase the base license and the corresponding feature license before the evaluation license expires. Cisco Prime Infrastructure 1.2 can be ordered using the standard Cisco® ordering tools at http://www.cisco.com/go/ordering. More information about getting the license files can be found in the Cisco Prime Infrastructure 1.2 Ordering and Licensing Guide.
Cisco Prime Infrastructure licenses are locked to a specific Cisco Prime Infrastructure instance based on a unique device identifier (UDI) for a physical appliance or a virtual unique device identifier (VUDI) for a virtual appliance (figure above). The identifier can be found within the Cisco Prime Infrastructure user interface under Administration > Licenses. Once you have obtained the license file (.lic), you are now ready to apply it. License files can be added to Cisco Prime Infrastructure by going to Administration > Licenses > Files > License Files. The license files should look like the figure below.
At this point, you do not have any data, but soon you will start accumulating lots of data. It is strongly advisable to configure the backup plan in a more proactive manner. Backup can be configured by navigating to Administration > Background Tasks > Other Background Tasks (Section) > Prime Infrastructure Server Backup. You can either use the default repository, defaultRepo, or create an external backup repository by clicking the Submit button as shown in the figure (below). Enter FTP credentials and other relevant information to create this new remote backup repository.
Software and Device Updates

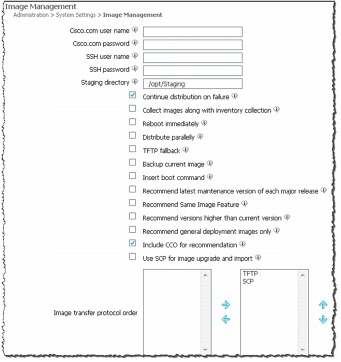

With any other software, it is always a good practice to stay updated with software. In Cisco Prime Infrastructure, you can go to Administration > Software Update. If the Cisco Prime Infrastructure server has access to the cisco.com website, Software Update should be able to pull the updates in a single click as shown in figure below. You should be able to install smaller updates as well.
It is prudent to see whether the updates that you are about to install require a restart or not, as that may need to be scheduled for a downtime.
Advanced System Settings
There are some settings in Cisco Prime Infrastructure that need to be looked at closely before you start to manage the network. Optimal settings are already configured, but you may need to tweak the settings based on the network you are managing. You can access the settings by navigating to Administration > System Settings.
This menu item within system settings allows you to specify how much data is to be stored in Cisco Prime Infrastructure. By default you can store the short-, medium-, and long-term data for 7, 14, and 100 days, respectively. You can increase these numbers based on the hard drive space that is provided to Cisco Prime Infrastructure.
This menu item within system settings allows you to change the data source for a given site. For example, if you have a NAM at the San Francisco branch as well as NetFlow data being sent from that branch, how would Cisco Prime Infrastructure know which source to use? While this can be done automatically, you can override the system and define a specific source for a particular site at this location.
Accessing Cisco Prime Infrastructure Through the CLI
In normal circumstances, you may not need to access the CLI, but if there is a need for access to some service requirements, the Cisco Prime Infrastructure server may be accessed through Secure Shell Protocol Version 2 (SSH2) by the admin user. The admin user is provided with a Cisco IOS® Software-like shell, which is the preferred shell for carrying out most operational tasks. The password for this admin user is configured during the initial installation and configuration, as mentioned in the "Installing the Cisco Prime Infrastructure OVA" section. Please note that the root password that is prompted in the install script is only for web access and not access to the CLI.
How to Enable the CLI Root User in the Cisco Prime Infrastructure Server
The root user is not enabled by default, but you can enable the root user using the root_enable command at the admin console. No other root patch is required in Cisco Prime Infrastructure 1.2 to enable the root.
The Cisco Prime Infrastructure High Availability (HA) implementation allows for up to two primary Cisco Prime Infrastructure systems to failover to one secondary (backup) Cisco Prime Infrastructure system. A second server is required that has sufficient resources (CPU, hard drive, network connection) in order to take over Cisco Prime Infrastructure operation in the event that the primary Cisco Prime Infrastructure system fails. Each database instance on the secondary Cisco Prime Infrastructure is a hot standby for the corresponding primary Cisco Prime Infrastructure instance.
How HA works
The notation that is used to describe primary and secondary systems is N:M, where N = number of primary systems in operation and M = number of secondary systems that are backing up the primary system or systems. In Cisco Prime Infrastructure, the only HA configuration is supported is 1:1 - 1 primary system, 1 secondary system.
The size of the secondary server must be larger than or equal to that of the primary server; for example, if the primary Cisco Prime Infrastructure server is the medium OVA, then the secondary Cisco Prime Infrastructure server must be the medium or large OVA.
The primary and secondary server can be a mix of a physical and a virtual appliance. For example, if the primary Cisco Prime Infrastructure server is a physical appliance, the secondary server can be either a physical appliance or a large OVA virtual appliance; for example, the server configuration and sizing of large OVA is the same as the physical appliance.
The Health Monitor (HM), a new process implemented in Cisco Prime Infrastructure, is the primary component that manages the HA operation of the system. HM is divided into these multiple submodules, each of which handles a specific set of functions:
• Core HM: Responsible for the following tasks:
– Configuration of the overall HA system
– Maintaining the state machine for the HA system
– Starting and stopping the HM and the Cisco Prime Infrastructure Java Virtual Machine (JVM)
– Starting, stopping, and monitoring other submodules within the HM
– Handling registration of the primary/secondary pair
– Authentication of the HM specific session
– Making all decisions about failover and failback
• Heart Beat: The Heart Beat submodule is responsible for maintaining communication between the primary and secondary HMs. Communication occurs over HTTPS (the default port is 8082). The timeout value is 2 seconds. A retry mechanism has been implemented to retry establishing connectivity between the primary HM and secondary HM. If the HM does not receive a response after sending a heartbeat request within the timeout period, it retries establishing communication by sending another heartbeat request. The total number of retries is 3. If communication has not been established after 3 retries, the HMs take appropriate action according to the following defined scenarios:
– Primary server goes down: This is the classic failover case. In this scenario, when the secondary HM does not receive heartbeat requests for 6 seconds (3 retries x 2 seconds), it initiates the failover mechanism on the secondary Cisco Prime Infrastructure HM.
– Secondary server goes down: In this scenario, the primary HM does not receive a heartbeat response from the secondary HM for 6 seconds (3 retries x 2 seconds). When this happens, the primary HM changes its state to PRIMARY_ALONE, raises alarms, and changes into listening mode - waiting to receive any messages from the secondary HM for reestablishing the link between the primary HM and the secondary HM.
• Application Monitor: The Application Monitor submodule is responsible for communication with the Cisco Prime Infrastructure framework (the Cisco Prime Infrastructure JVM) on the local server to retrieve status information. Communication is through Simple Object Access Protocol (SOAP) over HTTPS.
• DB Monitor: The DB Monitor submodule configures the database for replication. It is not responsible for the database replication itself, as this is accomplished through the database proprietary replication protocol.
• File Synchronization: The File Synchronization submodule has four subcomponents:
– File Archiver: Periodically scans directories looking for files that have been modified. It collects any such files and adds them to a TAR archive.
– File Transfer Agent (FTA): Responsible for transferring the compressed TAR archive to the destination (the other server, that is, from primary to secondary or from secondary to primary).
– File Upload Servlet (FUS): Runs on the secondary server and is the counterpart to the FTA. When it receives a file, the FUS streams it directly to the TAR extractor rather than create the file on the local disk (avoids unnecessary disk activity). The FTA and FUS communicate over HTTPS.
– Statistics Collector: Keeps statistics of file transfer operations from the time the server starts.
The Cisco Prime Infrastructure database is the core data storage element of the system and must be replicated between primary and backup systems in real time without data loss. This is fundamental to the operation of Cisco Prime Infrastructure HA. Data is stored in one of two ways:
• Cisco Prime Infrastructure database
• Application data
Application data is a set of flat files that contains the following data:
• Database password file: Replicated in real time (11 seconds)
• Cisco Prime Infrastructure license files: Replicated through batch processing (every 500 seconds)
• All files under the TFTP root directory: Replicated through batch processing (every 500 seconds)
• Scheduled generated reports: Replicated in real time (11 seconds)
Customers must be running the same version of Cisco Prime Infrastructure on both the primary and secondary Cisco Prime Infrastructure servers. The Cisco Prime Infrastructure HA feature is transparent to the wireless controller, that is, there is no software version requirement for the Cisco Wireless LAN Controller (WLC), access points (APs), and the Cisco Mobility Services Engine (MSE).
Only one Cisco Prime Infrastructure server license needs to be purchased. There is no need to purchase a license for the secondary Cisco Prime Infrastructure server. The secondary server will use the license from the primary when a failover occurs. The secondary node will simulate the UDI information of the primary; thus the secondary server will be able to use the synchronized license from the primary server when the secondary server is active. The same Cisco Prime Infrastructure license file resides on both the primary and secondary Cisco Prime Infrastructure servers. Since the Cisco Prime Infrastructure JVM is only running on the primary or secondary (not both), the license file is only active on one system at a given point in time.
Cisco Prime Infrastructure High Availability Setup and Best Practices
Cisco Prime Infrastructure HA can also be deployed with geographic separation of the primary and secondary servers. This type of deployment is also known as Disaster Recovery (DR), or Geographic Redundancy. There are a couple of things to keep in mind when deploying Cisco Prime Infrastructure in this mode:
• Bandwidth: Recommendation is to have 10 Mbps or more; however, we have seen HA used on DSL links as well. Each deployment is unique, so it's better to test out the failover scenario just as a sanity check.
• Latency: There is a continuous heartbeat (every 5 seconds) that happens between the primary and secondary Cisco Prime Infrastructure servers. Latency cannot be higher than this heartbeat interval; otherwise the secondary server is deemed as a failure by the primary server.
There are two HA modes: failover and failback. Let's take a look at each of them in detail.
After initial deployment of Cisco Prime Infrastructure, the entire configuration of the primary Cisco Prime Infrastructure server is replicated to the host of the secondary Cisco Prime Infrastructure server. During normal operation (that is, when the primary Cisco Prime Infrastructure server is operational), the database from the primary server is replicated to the secondary Cisco Prime Infrastructure server. In addition to the database replication, application data files are also replicated to the secondary Cisco Prime Infrastructure server. Replication frequency is 11 seconds (for real‐time files) and 500 seconds (for batch files).
When the issues on the server that host the primary Cisco Prime Infrastructure server have been resolved, failback can be manually initiated. Once this is done, the screen is displayed on the secondary Prime Infrastructure server. When you initiate failback, the Cisco Prime Infrastructure database on the secondary Cisco Prime Infrastructure server and any other files that have changed since the secondary Cisco Prime Infrastructure server took over Cisco Prime Infrastructure operation are synchronized between the secondary and the primary Cisco Prime Infrastructure servers. Once database synchronization has been completed, the primary Cisco Prime Infrastructure JVM is started by the primary HM. When the primary Cisco Prime Infrastructure JVM is running, the following screen is displayed on the secondary HM.
Primary Failure Example - Manual Failover
In this example, the secondary Cisco Prime Infrastructure server was configured with manual failover. For example, the network administrator is notified through email that the primary Cisco Prime Infrastructure server has experienced a down condition. The Health Monitor on the secondary Cisco Prime Infrastructure server detects the failure condition of the primary Cisco Prime Infrastructure server. Because manual failover has been configured, the network administrator needs to manually trigger the secondary Cisco Prime Infrastructure server to take over Cisco Prime Infrastructure functionality from the primary Cisco Prime Infrastructure server. This is done if you log in to the secondary HM. Even though the secondary Cisco Prime Infrastructure server is not running, the secondary HM can be connected to through this syntax:

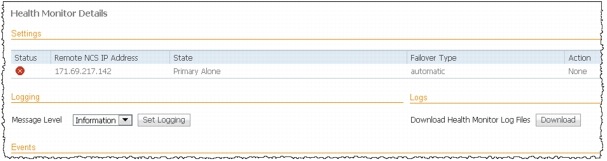

The secondary HM displays messages in regard to events that are seen. Because manual failover has been configured, the secondary HM waits for the system administrator to invoke the failover process. Once manual failover has been chosen, the message is displayed as the secondary Cisco Prime Infrastructure server starts. Once the failover process has been completed, which means that the Cisco Prime Infrastructure database replication process is completed and the secondary Cisco Prime Infrastructure JVM process has started, then the secondary Cisco Prime Infrastructure server is the active Cisco Prime Infrastructure server.
Health Monitor on the secondary Cisco Prime Infrastructure server provides status information on both the primary and secondary Cisco Prime Infrastructure servers. Failback can be initiated through the secondary HM once the primary Cisco Prime Infrastructure server has recovered from the failure condition. The failback process is always initiated manually so as to avoid a flapping condition that can sometimes occur when there is a network connectivity problem.
Automatic failover is a much simpler process. The configuration steps are the same except that automatic failover is selected. Once automatic failover is configured, the network administrator does not need to interact with the secondary HM in order for the failover operation to take place. Only during failback is human intervention required.
Data can be migrated from WCS 7.0, NCS 1.1, or LMS 4.x. More details on migrating data from each of these applications are spelled out in the following sections.
You must upgrade the Cisco WCS server to one of the following releases before you attempt to perform the migration process to Cisco Prime Infrastructure 1.2:
This section provides instructions on how to migrate the WCS on either a Windows or Linux server to Cisco Prime Infrastructure.
Exporting Data from WCS
Export data from WCS 7.x through the CLI. The export userdata CLI command is available in WCS Release 7.x and later, which creates the ZIP file that contains the WCS data file. The CLI does not provide any option to customize what can be exported; all nonglobal user-defined items are exported. Complete these steps in order to export WCS data:
1. Stop the WCS server.
2. Run the export command through the script file and provide the path and export filename when prompted.
3. For Linux, run the export.sh all/data/wcs.zip command.
For Windows, run the export.bat all \data\wcs.zip command.
Importing Data into Cisco Prime Infrastructure
Complete the following steps to migrate data from WCS:
1. Place the WCS export ZIP file (for example, wcs.zip) in a repository or folder (for example, repositories).
2. Log in as the admin user and stop the Cisco Prime Infrastructure server by entering the ncs stop command. Configure the FTP repository on the Cisco Prime Infrastructure appliance using the repository command as shown in configuration snippet below:
4. By default, no WCS events are migrated. Enter the ncs start command in order to start the Cisco Prime Infrastructure server after the upgrade is completed. Log in to the Cisco Prime Infrastructure user interface with the root login and the root password.
The following data is not migrated from WCS to Cisco Prime Infrastructure:
• Subset of reports: AP Image Predownload, AP Profile Status, AP Summary, Client Count, Client Summary, Client Traffic, PCI Report, PCI Compliance Detailed and Summary reports, Preferred Call Network Summary report, Rogue APs, Adhoc Rogues, New Adhoc Rogues and Security Summary reports.
• Dashboard customization.
• Client Station Statistics information is not populated with old WCS data in clients' charts, the client details page, dashboards, and reports.
• Client historical session information does get upgraded.
• Event history stored in the WCS database is not migrated to Cisco Prime Infrastructure.
• RADIUS/TACACS server IP and credentials are not migrated and need to be added again after the migration is complete. You need to copy the latest custom attributes from Cisco Prime Infrastructure and include them in the authentication, authoring, and accounting (AAA) server for user authentication/authorization in TACACS+/RADIUS.
Note: Make sure the RADIUS/TACACS server is enabled as AAA mode in the Administration > AAA > AAA Mode Settings page.
• Only alarms with Root Virtual Domain are migrated from Release 7.0 to Cisco Prime Infrastructure.
• The root password is not migrated from Release 126.96.36.199 or 188.8.131.52 to Cisco Prime Infrastructure Release 1.1.x.x. The user must change the root password during the installation of the application. Nonroot users and their credentials are migrated during migration.
• Alarm categories and subcategories are not restored after migration to Cisco Prime Infrastructure Alarm Summary.
Prerequisites for Upgrading from NCS 1.0/1.1 to Cisco Prime Infrastructure 1.2
You can upgrade the following Cisco Prime Network Control System products to Cisco Prime Infrastructure 1.2:
• Cisco Prime Network Control System 1.0.0 (NCS 1.0 MR2, 184.108.40.206)
• Cisco Prime Network Control System 1.1.0 (NCS 1.1 FCS, 220.127.116.11)
• Cisco Prime Network Control System 1.1.1 (NCS 1.1 K MR1, 18.104.22.168)
• Cisco Prime Network Control System (WAN) 1.1.0 and Cisco Prime Assurance Manager 1.1.0 (NCS-WAN/PA 1.1 FCS, 22.214.171.1244)
• Cisco Prime Network Control System (WAN) 1.1.1 and Cisco Prime Assurance Manager 1.1.1 (NCS-WAN/PA 1.1.1 MR1 FCS, 126.96.36.1996)
Upgrading from NCS 1.0/1.1
You can upgrade using either of the following methods:
• Standard: Upgrades your existing system to version 1.2. All existing data is retained and you will be using the same size OVA at the end; no new licenses are needed after this operation. The existing product will not be operational until the upgrade is complete. This is the normal option for most users. For details, see Performing a Standard Upgrade in the Cisco Prime Infrastructure 1.2 Quick Start Guide.
• Migration: Allows you to back up the data from your existing system, install Cisco Prime Infrastructure 1.2 as a new system, and restore the existing system's data to the new system. You can then decommission the old system. This option is preferred if you want to migrate to a larger OVA, cannot disturb your production system, or have a large network. Please note that a new license needs to be generated after this operation, as the new license creates changes to the VUDI from the older OVA installed. For details, see Performing a Migration Upgrade in the Cisco Prime Infrastructure 1.2 Quick Start Guide.
Cisco Prime LMS features were reevaluated for usefulness, usability, and value. Some features are redesigned and have transitioned, some are on the road map, others are to be determined by customers, and a few are being deprecated.
LMS 2.x has reached its end of life, and that is why upgrading from LMS 2.x to Cisco Prime Infrastructure 1.2 is not supported. Customers could export their device inventory into a comma-separated value (CSV) file for their own records. Alternatively customers can also start using Cisco Prime Infrastructure 1.2 for basic network management features.
LMS 3.x has also reached end of engineering. If you are currently using basic management features such as monitoring, configuration management, inventory management, software image management, and fault management, you should consider upgrading to Cisco Prime Infrastructure 1.2. Although data migration is not possible, you should still be able to manage your network in no time starting with discovery from within Cisco Prime Infrastructure 1.2.
LMS 3.x customers using features like CiscoView, Layer 2 topology, IP service-level agreements (IP SLAs), and VLAN management are recommended to run Cisco Prime Infrastructure 1.2 as a separate server side by side or to wait until all the features have been migrated into Cisco Prime Infrastructure 2.x.
LMS 4.x customers using basic management features like monitoring, syslogs, configuration management, inventory management, software image management, and fault management should consider migrating to Cisco Prime Infrastructure 1.2.
LMS 4.x customers using features like CiscoView, Layer 2 topology, IP SLAs, work centers, and VLAN management are recommended to run Cisco Prime Infrastructure 1.2 as a separate server side by side or to wait until all the features have been migrated into Cisco Prime Infrastructure 2.x.
Exporting from LMS 4.2.2

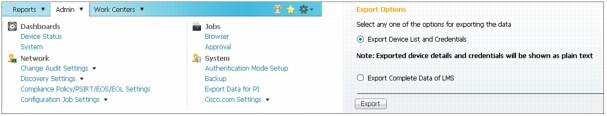

With LMS 4.2.2, there is a way right from the web interface to export the device list with credentials that can be consumed by Cisco Prime Infrastructure. The device list can be exported from Administration > Export Data to Cisco Prime Infrastructure (under System). Then select Export Device List and Credentials from the export options as shown in the preceding figure.
Importing into Cisco Prime Infrastructure 1.2
Once you have the exported device list with credentials from LMS 4.2.2, it can be imported into Cisco Prime Infrastructure 1.2 by navigating to Operation > Device Work Center > Bulk Import as shown in following figure:
Cisco Prime Infrastructure 1.2 introduces a new lifecycle approach to managing your wired and wireless infrastructure. There are five phases in this lifecycle: design, deploy, operate, report, and administer. The details for each of these phases are briefly described below:
In this phase, you can assess, plan, and create configurations required to roll out new network services and technologies. Create templates used for monitoring key network resources, devices, and attributes. Default templates and best practice designs are provided for quick out-of-the-box implementation, automating the work required to use Cisco validated designs and best practices.
In this phase, you can schedule the rollout and implementation of network changes. Changes may include published templates created in the design phase, software image updates, and support for user-initiated ad hoc changes and compliance updates. This accelerates service rollout, minimizes chances for errors, and is highly scalable.
In this phase, you can utilize preconfigured dashboards to provide up-to-date status monitoring on the overall health of the network. Simple one-click workflows and 360-degree views enhance troubleshooting and reduce the time to resolve network issues. Unified alarm displays with detailed forensics provide actionable information and the ability to automatically open service requests with the Cisco Technical Assistance Center (TAC).
In this phase, you can provide a wide variety of preconfigured reports for up-to-date information on the network, including detailed inventory, configuration, compliance, audit, capacity, end of sale, security vulnerabilities, and many more. Reports can be scheduled or run immediately, emailed, or saved as PDFs for future viewing purposes.
In this phase, you can provide an easy-to-use set of workflows that help to maintain the health of the application and keep devices, users, and the software up to date, allowing the IT staff to focus on other important activities.
Creating Groupings and Sites
Cisco Prime Infrastructure provides a very easy way to map each of the devices into its own site. There is also an ability to create groups based on predefined rules or criteria. Let's take a look at how to create sites and groups in Cisco Prime Infrastructure to help visualize applications in an intuitive manner.
There are two way of creating sites. If your access points follow a very consistent naming convention, you can automatically create a site tree map based on the hostname. The image below shows how a device hostname separated by hyphens can be used as a delimiter to create a site map tree automatically.
To create an automatic site hierarchy go to Design > Automatic Hierarchy Creation. Enter the AP Hostname and a suitable regular expression (or generate one as mentioned in the tip below). Click Test to see how the site is created from the hostname. Change the pull-down to map to the appropriate campus, building, floor, device, and so on.
TIP: After entering a sample hostname for an AP, you can click Create basic regex based on delimiter to automatically generate the regular expression.

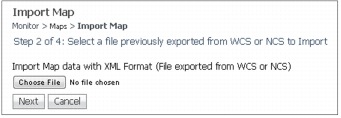

Import/Edit Maps from WCS/NCS to Cisco Prime Infrastructure
If you have already created sites for the wireless network in a previous version of WCS or NCS, you can export from those applications and import the information into Cisco Prime Infrastructure as well. You can go to Design > Site Map Design > Import Maps > Choose File (as shown in figure below).
Once the file has been uploaded, all the sites will be automatically created by Cisco Prime Infrastructure.

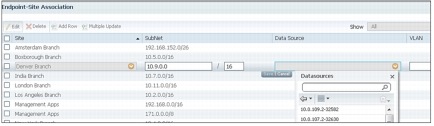

Associate Endpoints to Sites
Now that you have created all the sites where your network equipment is staged, it is time to map those sites to their respective subnets, data sources, and VLANs. This allows Cisco Prime Infrastructure to see the traffic flow, especially when it comes to application performance. In order to create an endpoint, you can go to Design > Endpoint-Site Association. The image below shows how various sites are mapped to their subnets. In addition to the subnet mask, you can also specify the default data source desired for that site in addition to the VLANs for those sites.

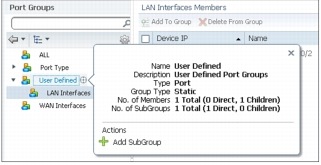

Create Port Groups
The next step in getting started with Cisco Prime Infrastructure is to create groups in addition to the default port groups that come preconfigured. Port groups creation can be accessed from Design > Port Grouping. If a custom port group needs to be created, you can hover over User Defined and click the plus sign icon to access a pop-up menu for adding a new group as shown in image below.
The WAN Interfaces port group is a special preconfigured port group. The interfaces in this group are your WAN interfaces that need to be actively monitored. In order to add WAN interfaces to this group, select all groups and filter the WAN interfaces based on your interfaces type, IP address, interface description, or any other attributes that are used to denote a WAN interface group. It is highly recommended to populate this group with the WAN interface to get the most out of this application.
Users and User Group Management

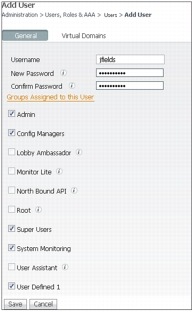

Adding New Users
As noted earlier, it is not advisable to use the root user to log in for normal use. New users and groups can be created by choosing.
Administration > Users, Roles & AAA as shown in preceeding figures. It would help to chalk out what are the various levels at which you want to distribute the users, and to create those roles first. It doesn't really matter whether you create users or groups first. New users can be easily added by going to Administration > Users, Roles & AAA > Users > Add Users (from the drop-down above). Once you get into the add user workflow, fill in the username, password, and local authorization for this user as shown in the figure below.
A virtual domain can also be assigned to the users when you define their roles by selecting the virtual domain on the left side and moving it to the right side as shown in image above.

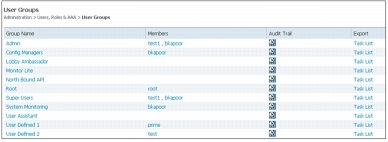

Creating User Groups
User groups are synonymous with roles. All the roles except User Defined # are preconfigured. User-defined groups can be modified by going to Administration > Users, Roles & AAA > User Groups > User Defined #. Other groups and roles cannot be modified, but you can add users to them, see the audit trail, and even export the TACACS+/RADIUS command sets by clicking the task list. User-defined roles can be modified by clicking the User Defined # link in the figure below (left). Once clicked, all the knobs on the user access controls are exposed as shown in the figure below (left). You can select the whole category, for example, Network Configuration, or a few of the options within that category to customize the role. Once the group/role is created, multiple users can then be assigned to that group.
Image Management Settings
There aren't any mandatory settings required for software image management, but a number of knobs can be accessed from Administration > System Settings > Image Management as shown in figure above. These include team shared cisco.com username/password, job failure handling options, image and configuration protocol options, and so on. Users are strongly recommended to glance through this page and set it up initially so that preferred preferences are applied when distributing images on managed devices. Images can easily be added to the local repository by choosing Operate > Software Image Management > Import. Follow the wizard to import images from cisco.com directly. Images can be deployed to devices by going to Operate > Software Image Management. Select the image from the list (once it has been added to the repository) and click Distribute Images. Once the devices are selected to be upgraded/downgraded, a prerun status is shown, which avoids the job failure in the first place. You can also run Upgrade Analysis from the same place to get a report on this.

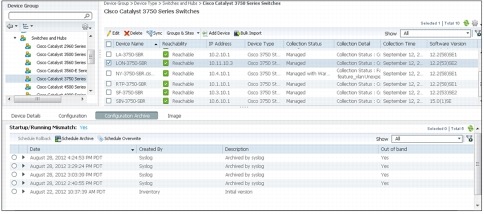

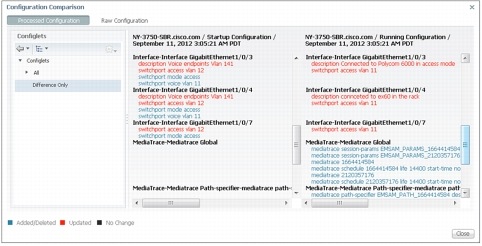

Configuration Archive Settings
The Configuration Archive will be one of the most used portions from a daily operation point of view. It is highly recommended to go to Administration > System Settings > Configuration Archive. The Basic tab allows users to define protocol order, Simple Network Management Protocol (SNMP) timeout, the number of days and the versions to retain, thread pool count, and other such variables. The Advanced Tab allows users to define a command exclude list for each of the device family types. Once this is done, users may view and compare configurations by choosing Operations > Configuration Archives (under the Device Work Center). Browse the device and open up the tree to see all the configuration versions that have been archived for this device as shown in the preceeding figure. When you click Compare there, you quickly see the color-coded configuration differences instantly as shown in same preceeding figure.

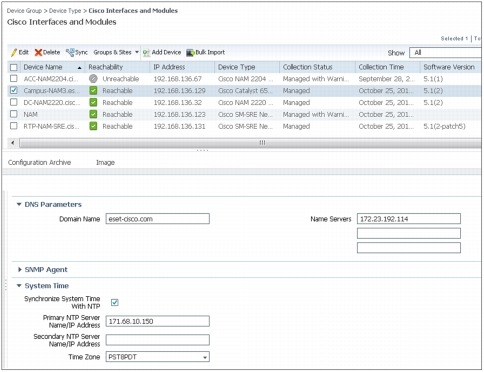

Configuring NTP and DNS for NAMs
It is extremely important to configure NTP and DNS for all the NAMs in your network. You can now configure those without going to the CLI or logging in to the individual NAM web GUIs. From the Cisco Prime Infrastructure Device Work Center, navigate to Device Group > Device Type > Cisco Interfaces and Modules. Click the name of the NAM on which you want to configure NTP/DNS, and then click Configure in the bottom pane. Now click Feature on the left (still in the bottom pane), and you will see a link for "system." Click it to see a form for this NAM that allows you to configure all the system-related information for a given NAM including NTP and DNS. The image below shows where the NTP and DNS can be configured.
Connection to Cisco.com
Cisco.com connection is required for some of the advanced features such as Smart Interactions (TAC service requests, and support forums), importing software images, contract connection, and many others. It is vital for the Cisco Prime Infrastructure server to be able to connect to cisco.com to pull the data for those reasons. There are two parts to making this work: proxy settings and cisco.com user settings.
If Cisco Prime Infrastructure requires a proxy to connect to the Internet, you can enter the proxy information by going to Administration > System Settings > Proxy Settings. You can enable proxy settings and enter all the proxy information there. Authenticating proxies is also supported in Cisco Prime Infrastructure.
Once the proxy settings are configured, you can enter your cisco.com credentials at the following places:
• Administration > System Settings > Image Management
• Administration > System Settings > Support Request Settings
Planning/Preparing the Network
Wireless Planning Tool
The built-in planning tool provides a way for network administrators to determine what is required in the deployment of a wireless network. As part of the planning process, various criteria are input into the planning tool. Complete these steps:
1. Specify the AP prefix and AP placement method (automatic versus manual).
2. Choose the AP type and specify the antenna for both the 2.4 GHz and 5 GHz bands.
3. Choose the protocol (band) and minimum desired throughput per band that is required for this plan.
4. Enable planning mode for advanced options for data, voice, and location. Data and voice provide safety margins for design help. Safety margins help design for certain RSSI thresholds, which is detailed in online help. The location with monitor mode factors in APs that could be deployed to augment location accuracy. The location typically requires a denser deployment than data, and the location check box helps plan for the advertised location accuracy.
5. Both the Demand and Override options allow for planning for any special cases where there is a high density of client presence such as conference rooms or lecture halls.
Generated proposal contains these:
• Floor plan details
• Proposed AP placement
• Coverage and data rate heat map
• Coverage analysis
The following table shows all the ports that are used by Cisco Prime Infrastructure to communicate with devices and with other Cisco Prime Infrastructure servers.
Port Usage Description
Server to endpoints. Endpoint discovery
SSH to Cisco Prime Infrastructure/Assurance server
SCP to Cisco Prime Infrastructure/Assurance server
Network devices to Cisco Prime Infrastructure/Assurance server
FTP to Cisco Prime Infrastructure/Assurance server
Cisco Prime Infrastructure/Assurance server to network devices/NAM
Network devices to Cisco Prime Infrastructure/Assurance server
Network devices to Cisco Prime Infrastructure/Assurance server
AAA server to Cisco Prime Infrastructure/Assurance server
AAA server to Cisco Prime Infrastructure/Assurance server
Browser to Cisco Prime Infrastructure/Assurance server
Network devices/NAMs to Cisco Prime Infrastructure/Assurance server
JMS port open for Automated Deployment Gateway
For successfully managing a device using Cisco Prime Infrastructure, it is crucial that all the essential protocols be defined in the device credential for a given device. The following matrix shows what protocols are needed for various wired and wireless device types.
Medianet-capable routers and switches
Network Analysis Module
These credentials are sufficient to discover wired as well as wireless networks. Let's now focus on how to enable each of these protocols.
SNMP is one of the protocols that Cisco Prime Infrastructure uses when talking to devices for getting basic information. When discovery is initiated, SNMP is used to query what type of device is it. Cisco Prime Infrastructure supports all versions of SNMP: v1, v2c, and v3 (noAuthNoPriv, authNoPriv, authPriv).
Enabling SNMP on Wireless Controllers
From the WLC web GUI, navigate to Management > Communities (under SNMP). Click New to create a new SNMP v1/v2c community. SNMP v3 community can be configured by going to the SNMP v3 User from the left panel menu.
# configure terminal # snmp-server community pu6l1c RO (using "public" is not recommended)
# snmp-server community pr1vat3 RW (using "private" is not recommended)
Enabling Telnet/SSH on Routers/Switches
Cisco Prime Infrastructure can work with Telnet or SSHv2. If you are able to Telnet/SSH into the device, Cisco Prime Infrastructure should be able to do the same. If you have to enter another password to enable this, be sure to enter that in the device credentials. More on how to edit credentials is discussed in the section "Fixing Credential Errors."
Enabling Telnet/SSH on Wireless Controllers
From the WLC web GUI, navigate to Management > Telnet-SSH to open the Telnet-SSH Configuration page. Allow either the Telnet or SSH sessions.
The HTTP protocol is mainly used for a selected few devices as mentioned in the protocol matrix above. HTTP is used by NAM for Representational State Transfer (REST) API calls, as well as for enabling/disabling Mediatrace on medianet-capable devices. For medianet-capable devices, the HTTP user must have a privilege level of 15.
TIP: It is important that APs from your WCS server be added to your Cisco Prime Infrastructure server prior to importing maps, because APs on your WCS maps are also included during the export process. APs that have not been added to your Cisco Prime Infrastructure system, but are present on exported floor maps, result in errors that are displayed when you import those maps into Cisco Prime Infrastructure.
Discovering Your Network
Cisco Prime Infrastructure uses and enhances the discovery mechanisms that were used in Cisco Prime LMS 4.x. Protocols like ping, SNMP (v1, v2c, and v3), Cisco Discovery Protocol (CDP), Link Layer Discovery Protocol (LLDP), Enhanced Interior Gateway Routing Protocol (EIGRP), and Open Shortest Path First (OSPF) are used to discover the network. This section will focus on how best to configure the discovery profile once and to automate the discovery going forward.
It is a very common practice to import the CSV file into the network management application and start managing the devices going forward. This is not a bad idea, but it leaves more chances for human error, especially if the spreadsheet is not updated with newly deployed devices in the network. With discovery, you always get the latest picture of your network.

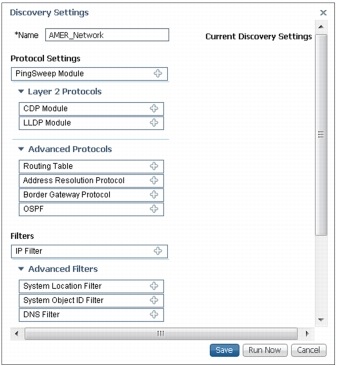

Create A New Discovery Profile
When we create the discovery profile, we are telling Cisco Prime Infrastructure which protocols we want to use from the ones mentioned above to discover the network. Each of them has its own pros and cons, but it's definitely necessary to have them all available at our discretion. Discovery can be easily accessed from the Getting Started Wizard when you log in for the first time or by navigating to Operate > Discovery (under Device Work Center). There are two options here: Quick Discovery and Discovery Settings. Quick Discovery allows you mainly to ping sweep your network followed by SNMP polling to get more details on the devices.
If you are planning to configure the discovery correctly the first time and reuse your configuration, start by clicking Discovery Settings. Now click New in the discovery settings modal pop-up. A window (as shown above) will pop-up, where you can configure all the discovery settings will open. You will observe that the pop-up is broken down into three sections: Protocol Settings, Filters, Credential Settings, and Preferred Management IP (only 3 shown in figure above). You need to select at least one item from Protocol Settings, SNMP and Telnet/SSH from Credential Settings, and Preferred Management IP.
Start by giving the profile a suitable name. Depending on how many protocols you want to enable, start filling in the relevant information. Start by clicking on the "+" icon next to the Ping Sweep Module to open up more settings. You can add your subnets manually or use the Import CSV File button to import all your subnets from a simple CSV file. The CSV file needed for the import will have columns that correspond to the GUI, such as IP Address and Subnet Mask. Similarly you can fill in more protocols as well, but remember that the more protocols you add, the more time it will take to converge the discovery.
TIP: If the majority of your devices are Cisco, or if LLDP is enabled on Cisco/non-Cisco devices, then using LLDP will converge the discovery faster. If the network has a mixture of multivendor network devices, ping sweep should help. Ping sweep will also help with doing a directed discovery, for example, on a 10.1.1.0/24 network.
TIP: If Cisco Discovery Protocol information is desired in the Device Work Center, Cisco Discovery Protocol can be enabled in the discovery. It is not mandatory.

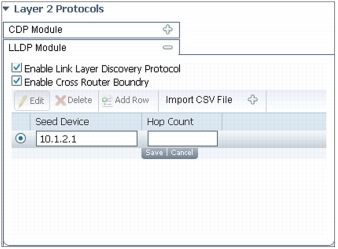

Configuring Cisco Discovery Protocol/LLDP
Configuring Cisco Discovery Protocol and LLDP are very similar in nature. The first check box enables the use of LLDP in the discovery. The second check box enables jumping the router (or Layer 3) boundaries. Cisco Discovery Protocol is a Layer 2 protocol, and if we want the discovery to continue all the way until there are no neighbors available, we need to use this option. Unlike ping sweep, the seed device for a Cisco Discovery Protocol/LLDP discovery is a single device from which the discovery should initiate. If the hop count is left blank, discovery will continue until end of CDP/LLDP neighbor is reached. You can add your subnets manually or use the Import CSV File button to import all of your Cisco Discovery Protocol/LLDP seeds from a simple CSV file. The CSV file needed for the import will have columns that correspond to the GUI, such as Seed Device IP Address and Hop Count.
Other protocols are very similar in nature. Some require the hop counts, while others like Border Gateway Protocol (BGP) and OSFP don't require hop counts.
If you want to discover all of the subnets but would like to have a way to import information on certain devices based on their IP address, system location, type of device, or DNS, you can use filters to do just that.
TIP: If you are running discovery for the first time, pick a smaller range or hop count to begin with. Do not use filters in this discovery. Once the results are what you expect, go back and edit that profile to add filters as needed.
Credentials are also an important part of the discovery. Please refer to the credential matrix from the Protocol Check section and enter the credentials appropriately. If this is not done, devices in the Device Work Center will error out with "Managing with Credential Errors." You can configure multiple community strings for the same network. This really helps to manage multiple devices without having to worry about which community is configured on what device.
For example, in the figure below, you could add another SNMP string for the 10.1.2.* network in addition to the one already configured.
The last thing to configure before we run discovery is the preferred management IP. Once the devices are discovered and added to the inventory, how do you want to manage them? Do you want to see the device list with DNS, loopback IP, or local hostname configured on the devices (aka sysName)? If DNS is not used on your network devices, go ahead and select sysName. If devices have a specific management VLAN and all the devices have loopback configured for that, it would be a good idea to use that. DNS is my last choice as the device names become very long and it clutters up the device selector.
Discover the Network
With Cisco Prime Infrastructure, you can now discover the wired and wireless network in just one discovery. When the discovery profile is saved, select the discovery profile and click the Run Now button as shown in the figure below. The results will be displayed on the same page as the discovery settings. You can refresh the job and watch the status of the discovery in real time.
Scheduling Ongoing Discovery
In addition to running discovery in real time, you can schedule discovery to run when you want it. Select the discovery profile name and click Schedule instead of Run Now. You will get a modal pop-up that looks like the figure below. Scheduling is extremely flexible in Cisco Prime Infrastructure. You can run every x minutes to y years.
Now that we have discovered our wired/wireless network, how can we make sure we are archiving the entire inventory, configuration, and other relevant information? We can start with inventory, as that is where we will know whether Cisco Prime Infrastructure was having issues fetching inventory or configuration information.
Device Work Center

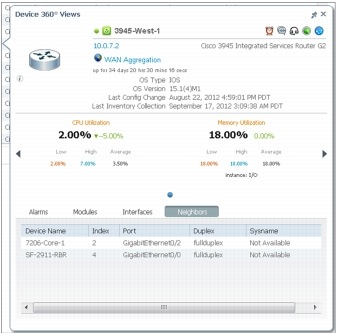

Navigate to Operate > Device Work Center to see the entire inventory that has been discovered. The left pane allows you to filter on devices based on the device types or user-defined group that we can create. The top portion of the Device Work Center allows you to see quick information on the device as shown in the figure above. Once you click the device's name, the bottom pane is populated with more detailed information. Tabs in the bottom pane can be changed to quickly access focused, detailed information as seen in the image below.
Fixing Credential Errors
Most often you will find a few devices that don't have the SNMP strings or the CLI access that you thought they would have. You can either streamline or change the information on the devices, or if you have another set of credentials for a different subnet, you could add that to the CLI section of the discovery profile and rerun the discovery. If you have a handful of changes, you can click the devices with a status of Managed with Warning and then click the Edit button to modify the credentials.
This version of Cisco Prime Infrastructure 1.2 does not have the capability of exporting the device list with credentials from the web interface, but this facility will be added in next release. At that point in time, you can export the device credentials, change them using a spreadsheet application, and import them back.
Importing Devices Manually
If you maintain a spreadsheet that has all the devices and would rather get started with that, you do have this option in Cisco Prime Infrastructure 1.2. If you to go Operate > Device Work Center > Bulk Import, you get an import pop-up as shown in the figure below.
TIP: Export the device template using the first "here" link. Use the exported CSV file to populate the device information. This will make sure your import goes through successfully.

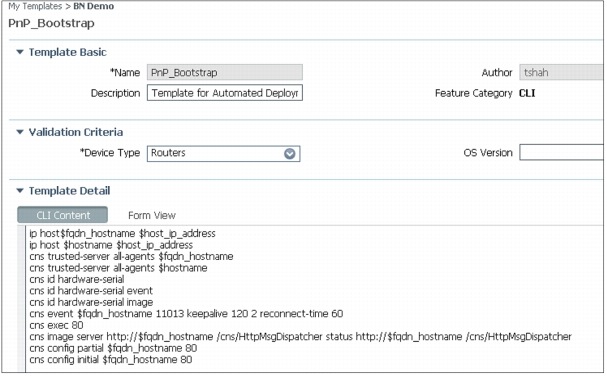

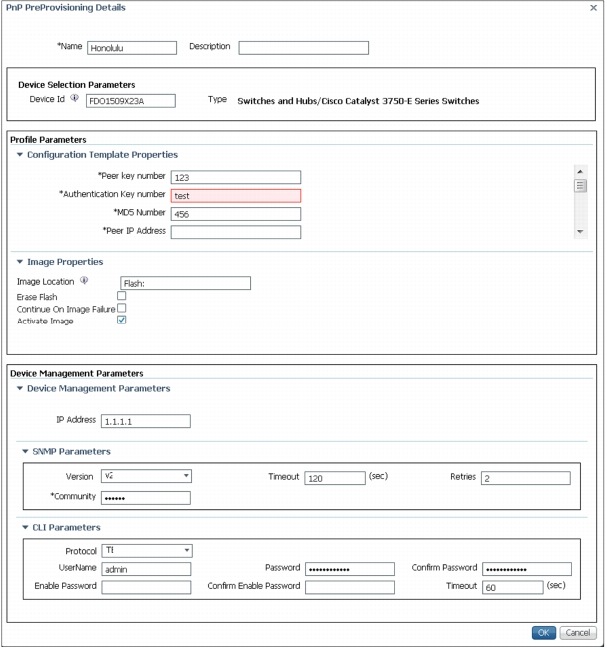

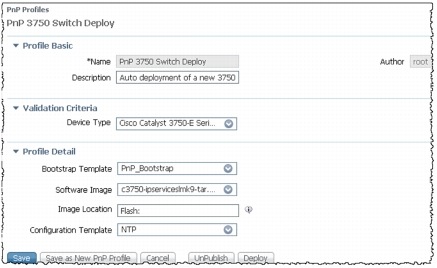

Automating Branch Device Deployment

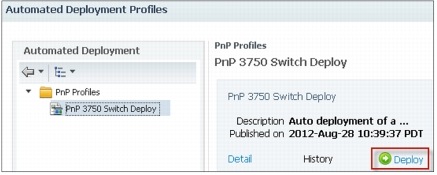

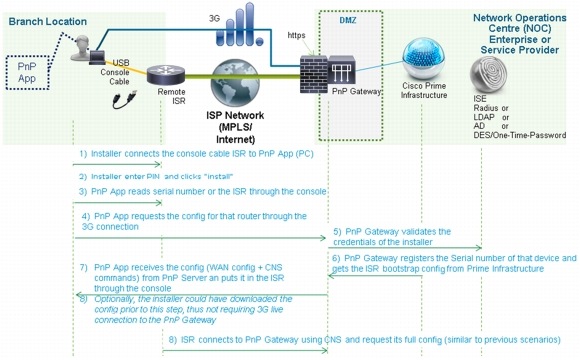

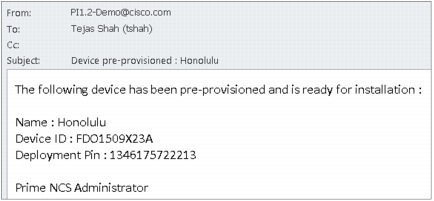

If you have a need to deploy devices in branches from time to time, automated branch deployment can really ease your Day-0 task by empowering you with zero-touch deployment. This is another way of automatically adding devices in Cisco Prime Infrastructure. We will talk about this method in detail in "Advance Configuration Topics."
Deploying Wireless and Advanced Instrumentation
Cisco Prime Infrastructure can really simplify the dreaded task of deploying advance instrumentation like Application Visibility and Control (AVC), NetFlow, Next Generation Network Based Application Recognition (NBAR2), and much more. Cisco Prime Infrastructure uses converged configuration templates to achieve this task. This section will focus on instrumentation that will help visualize some of the common challenges in managing application responses within a corporation.

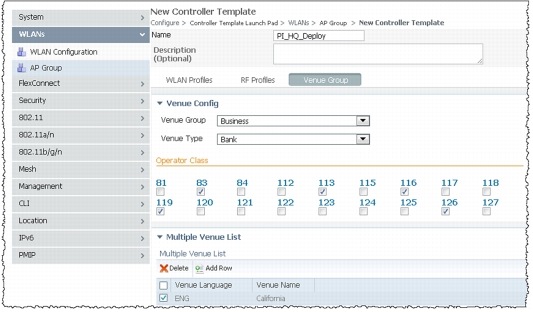

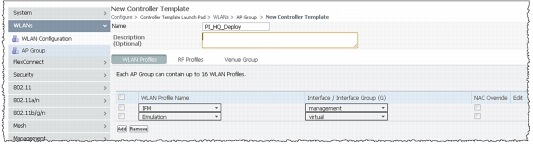

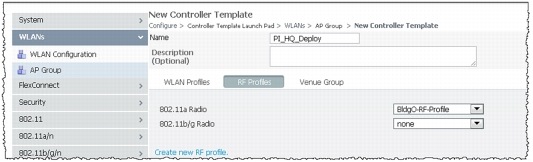

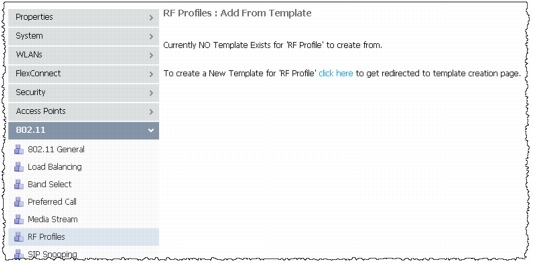

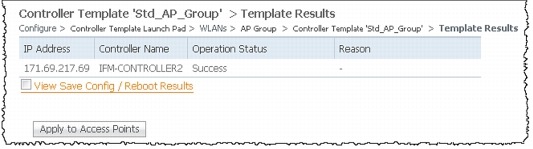

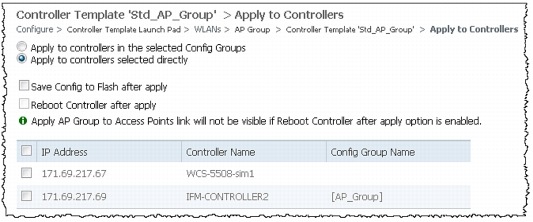

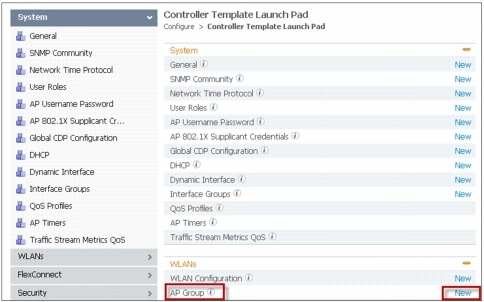

Deploy a WLAN Using a Configuration Template

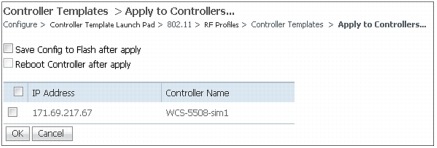

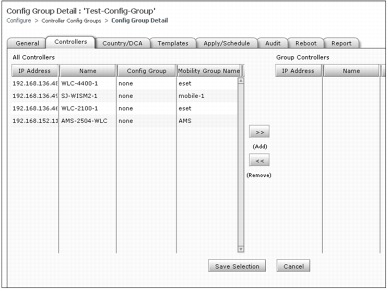

Configuration groups are an easy way to group controllers logically. This feature provides a way to manage controllers with similar configurations. Templates can be extracted from existing controllers to provision new controllers or existing controllers with additional configuration parameters. Configuration groups can also be used to schedule configuration sets from being provisioned. Controller reboots can also be scheduled or cascaded depending on operational requirements. Mobility groups, dynamic channel assignment (DCA), and controller configuration auditing can also be managed using configuration groups.
Configuration groups are used when grouping sites together for easier management (mobility groups, DCA, and regulatory domain settings) and for scheduling remote configuration changes. Configuration groups can be accessed from Design > Wireless Configuration (under Configuration) > Controller Config Groups.
• Adding controllers: Controllers in WCS are presented and can be moved over to the new configuration group.
• Applying templates: Discovered or already present templates can then be applied to the controller.
• Auditing: Make sure that template-based audit is selected in the audit settings and then audit the controllers in the group to make sure that they comply with policies.
NetFlow is an embedded instrumentation within Cisco IOS Software to characterize network operation. Visibility into the network is an indispensable tool for IT professionals. NetFlow gives network managers a detailed view of application flows on the network. Cisco Prime Infrastructure supports Traditional NetFlow (TNF) as well as Flexible NetFlow (FNF). A summarized view of what versions of NetFlow exist, their support, and their implied usage in Cisco Prime Infrastructure can be seen in the following two tables.
Flow Record Type
Cisco Prime Infrastructure Support
Template to Use
Technologies Used By
Traditional NetFlow (TNF)
Cisco Prime Infrastructure 1.2
There is no template for this, but one can be created.
• Network traffic stats
Flexible NetFlow (FNF)
RFC 3954 (v9)
Cisco Prime Infrastructure 1.2
Collecting Traffic Statistics under OOTB (Out of the box) Folder
• Performance Agent (PA)
Cisco Prime Infrastructure 2.0
Not available yet.
IPFix is a protocol developed by the IETF working group. The IETF Working group used NetFlow v9 as the basis for IPFix.
The following table shows further breakdown of NetFlow, and how NetFlow data is used for application visibility.
Export Format Support
Template to Be Used
Basic NetFlow records
Custom template needs to be created
Old platform that does not support Flexible NetFlow or IPFIX yet.
Flexible, extensible flow records. Report application from NBAR2.
Version 9 (IPFIX)
Traffic Statistics under OOTB Folder
• For newer platforms such as
• ISR G2
• ASR 1000
• Report application visibility
Application Response Time (ART)
Version 9 (IPFIX)
Need to develop
• Transaction time
• Per application latency
• Response time
(Available only on ISR G2)
Version 9 (IPFIX)
PerfMon template under OOTB Folder
• Voice/video performance
• Packet loss

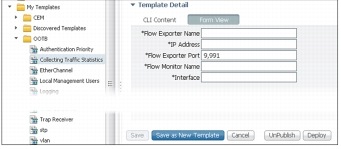

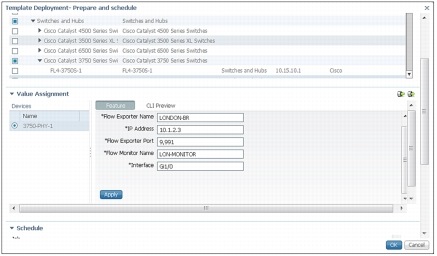

Using Configuration Templates to Enable NetFlow
Deploying TNF is relatively simple, but FNF can be challenging. Cisco Prime Infrastructure greatly simplifies managing NetFlow end to end. You can follow the design, deploy, operate, report model for NetFlow as well. You can design the NetFlow template by going to Design > Configuration Templates > My Templates > OOTB > Collecting Traffic Statistics. This will open the NetFlow v9 templates as shown in the figure below. You can fill in all the meta-data at the top of the template and save as a new template. The next step is to publish the template so that it becomes available for other members to deploy the template. Note that the default port for NetFlow for Cisco Prime Infrastructure 1.2 is 9991 and cannot be changed in this release.
TIP: Samplicator (Not tested nor supported by TAC) may be used to point all devices to send NetFlow to one place. Samplicator can then fork out NetFlow data to multiple Cisco Prime Infrastructure instances as desired.
Now that the template is published, the next task is to deploy the template so that we can configure devices to start sending NetFlow data to Cisco Prime Infrastructure. Go to Deploy > Configuration Templates, find Collecting Traffic Statistics in the list, and click Deploy. You will see the Template Deployment modal pop-up window (see figure above). Select the device or devices, fill in the values, and click Apply to accept the changes. You can fill in values for each device or you can use the export to/import from a spreadsheet option for quick data entry. Click the CLI Properties to see the CLI that is generated from the values provided. Finally, schedule your job to enable NetFlow on the devices.
Check Whether NetFlow Data Are Coming or Not
We have now enabled NetFlow on the devices, but how do we know whether or not Cisco Prime Infrastructure is receiving it? A quick way to tell is to go to Design > Monitoring Templates and see if there are multiple NetFlow instances for each unique NetFlow template. Normally you will see a template (as shown below) as Flexible_NetFlow-nnnnnnnn (where nnnnnnnn is the random number mapped per template). Once you click that template, the right pane will show template details. The bottommost portion (see figure below), Exporting Devices, should tell us which device is using/sending the NetFlow for that template. The middle portion of the same template shows all the attributes sent in that template. You may also run a report by choosing Report > Report Launch Pad > Raw NetFlow Reports and selecting the same NetFlow template. Click New to generate a new report. Specify all the details and run the report to see if you are really getting any data from this device based on what was configured. All NetFlow-pertinent dashlets will also start populating automatically.
The Cisco architecture for medianet is an end-to-end IP architecture that enables pervasive and quality rich-media experiences. Medianet combines a smarter network to smarter endpoints with medianet technology embedded into network elements and endpoints. Cisco Prime Infrastructure simplifies the whole lifecycle for medianet from enablement to reporting.
Enabling medianet does require using the CLI to configure some devices that support medianet. Cisco Prime Infrastructure has predefined templates for enabling medianet. Just as we enabled NetFlow, we can do the same thing for medianet. Navigate to Design > Configuration Templates > My Templates > OOTB. You will see three templates for medianet, as shown in the figure below.
The only difference is that the first one uses HTTPS, while the second one uses regular HTTP. The last one is for enabling medianet PerfMon, which allows you to see the traffic that is flowing through a given interface. The steps for deploying the template remain the same as with any other CLI template. Note that the first two templates for enabling medianet do not have any variables.
TIP: Make sure that a user is defined in the device with privilege level 15 for the Web Services Management Agent (WSMA) to work.
Check Whether Medianet Is Enabled
Once medianet is turned on, there are a few commands that can be executed on the CLI to see whether the devices can show the medianet data. Here are a few commands you can use on the devices:
show mediatrace session statistics
show mediatrace session data
Please refer to the Troubleshooting Guide for details on how to make sure medianet is properly operational. Once medianet is verified to be working, we can see the RTP conversation (see figure below) details dashlets showing sessions.

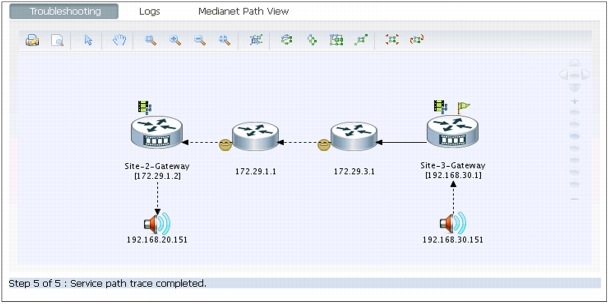

For troubleshooting, simply choose Troubleshoot > Trace Service Path in the same dashlet. This will launch another window where Mediatrace can be visually seen as figure above.

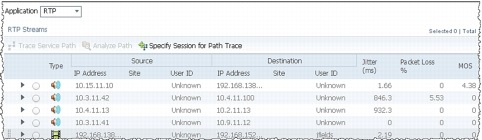

To see the active calls navigate to Operations > Path Trace under Operational Tools. You can then select the audio or video calls with jitter/packet loss for troubleshooting as shown in the figure below.
Cisco Prime Infrastructure provides a very easy and flexible model for monitoring your wired/wireless network. Cisco Prime Infrastructure allows you to define or "design" monitoring templates that dictate how and what you want to monitor. You can then turn on monitoring by deploying the monitoring template. The results are then shown in the form of dashboards, dashlets, and reports.

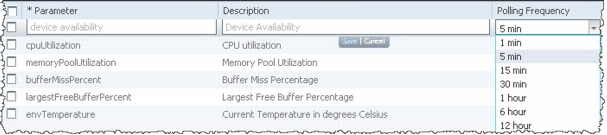

Basic Device Health
The Basic Device Health feature is turned on by default for all devices. This includes device monitoring of availability, CPU, memory, buffers, and environment. Basic Device Health is polled every 5 minutes by default, but you can customize this as well. The template is called Device Health - choose Design > Monitoring Configuration > Features > Metrics > Device Health. The parameters can be changed by clicking the polling value for that row as shown in the figure below.
TIP: Don't forget to save the template after making the changes. The template will need to be republished and redeployed if changes are made.
Interface Statistics are not enabled by default, as monitoring interfaces can get very tricky if not done correctly. Some business-critical device interfaces should be polled more often than others, so there is no one size fits all, when it comes to monitoring interfaces. Interface polling can be very quickly enabled by using a predefined monitoring template. You can navigate to Design > Monitoring Configuration > Features > Metrics > Interface Health (shown below). Follow the same methodology to change the polling interval as mentioned for Device Health. You can see how interface availability is changed to every minute.

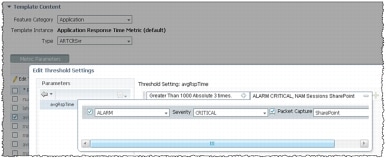

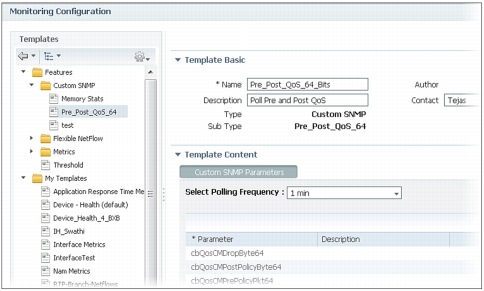

Design Custom Monitoring Templates

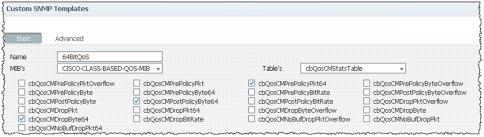

Flexible monitoring templates enable users to customize how they monitor their network. You can create your own templates by navigating to Design > Custom SNMP Templates and selecting the MIB and the table as shown in figure below. You can then see all the variables from the table. Select the ones you are interested in, and they will be now available for polling. If the MIB you are interested in is not available in the drop-down list, you can upload a new MIB by clicking Upload MIB on the same page. Once you save the page after selecting the object identifiers (OIDs), you should see a template created as shown in the figure below.
You can now create a poller from this template. If you now change the metadata and save this template, it will become a deployable monitoring poller and will be visible under My Templates. You are now ready to deploy the template to get monitoring started.
Deploy Custom Monitoring Templates
In order to deploy the monitoring template just created, you can navigate to Deploy > Monitoring Deployment > My Templates. The default view in Cisco Prime Infrastructure 1.2 is Tasklet view. Change that to Table view to see how many devices are being polled using the template in question. Now locate your template, select it, and click Deploy. You will see a modal pop-up list as shown in the figure below. You can either select a device or devices or you can select the Device Groups option to select predefined or user-defined groups or even sites, as shown in the figure at left. Choose the appropriate group, and click Submit. Once back in Table view, you can see that devices are now assigned to the poller we chose in the previous step. This means that Cisco Prime Infrastructure will now be polling the devices based on what was designed in the template.
Data Collection from NAM

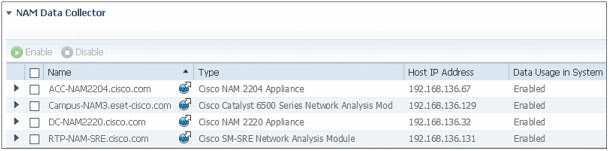

In order for Cisco Prime Infrastructure to manage Network Analysis Module, it needs to have a minimum software version of 5.1.1 plus the latest patches available. We can then make sure that Cisco Prime Infrastructure is enabled to poll the NAM data. You can navigate to Administration > Data Sources. The top portion of the same page shows all the devices that are actively sending NetFlow data to Cisco Prime Infrastructure. The bottom pane of the page shows all the NAMs that have been discovered or added to the inventory. Select the NAM that should be polled by Cisco Prime Infrastructure, and click Enable as shown in the figure below.
Turning on Advanced Monitoring
Cisco Prime Infrastructure consumes a lot of information from various different sources. Some of the sources for data include NAM, NetFlow, NBAR, medianet, PerfMon, and Performance Agent. The following table depicts the sources of the data for the site dashlets as used by Cisco Prime Assurance:
Application Usage Summary
Top N Application Groups
Top N Applications
Top N Applications with Most Alarms
Top N Clients (In and Out)
Top N VLANs
Worst N RTP Streams by Packet Loss
Worst N Clients by Transaction Time
The following table shows how the application-specific dashlets get populated in Cisco Prime Assurance:
Application ART Analysis
App Server Performance
Application Traffic Analysis
Top N Clients (In and Out)
Worst N Clients by Transaction Time
Worst N Sites by Transaction Time
KPI Metric Comparison
Number of Clients Over Time
Top Application Traffic Over Time
Top N Applications
Top N Clients (In and Out)
Average Packet Loss
IP Traffic Classification
Top N Applications
RTP Conversations Details
Top N RTP Streams
Voice Call Statistics
Worst N RTP Streams by Jitters
Worst N RTP Streams by MOS
Worst N Sites by MOS
Worst N Site to Site Connections by KPI
Once we have verified that NetFlow is enabled on devices and directed to Cisco Prime Infrastructure, we are now ready to turn on monitoring for NetFlow. Just as for Device and Interface Health, all it takes is provisioning the appropriate monitoring template and deploying it. You can start out by going to Design > Monitoring Configuration > Features > Flexible NetFlow, choosing the templates based on what was discussed in an earlier NetFlow section, filling out the appropriate details, and saving the template. The template will be instantiated with the new name as specified in the header under My Templates.
You can then navigate to Deploy > Monitoring Deployment. Look for the template you just created. In this case it's called "RTP-Branch-NetFlows". Looking at the figure below, Templates with an orange ball with a right arrow are already deployed, and the templates with a green ball with a right arrow are the ones that are still not deployed. Once the template is deployed, dashlets should start populating the data after a couple of polling cycles.
WAN Optimization - aka Cisco Wide Area Application Services
Once you have deployed your WAAS changes at candidate sites, you can navigate to Operate > WAN Optimization to validate the return on your optimization investment. Cisco Prime Infrastructure also allows you to monitor WAAS-optimized WAN traffic by navigating to Operate > WAN Optimization > Multi-Segment Analysis. Click the Conversations tab to see individual client/server sessions, or the Site to Site tab to see aggregated site traffic. Some of the key dashlets to help with WAAS monitoring are detailed in the following table:
Transaction Time (Client Experience)
Graphs average client transaction times (in milliseconds) for the past 24 hours, with separate lines for optimized traffic and pass-through traffic (in which optimization is turned off). With optimization enabled, you should see a drop in the optimized traffic time when compared to the pass-through time.
Average Concurrent Connections (Optimized versus Pass-through)
Graphs the average number of concurrent client and pass-through connections over a specified time period.
Traffic Volume and Compression Ratio
Graphs the bandwidth reduction ratio between the number of bytes before compression and the number of bytes after compression.
Multisegment Network Time (Client LAN-WAN - Server LAN)
Graphs the network time between the multiple segments.
Average and Maximum Transaction Time
The time between the client request and the final response packet from the server. Transaction time will vary with client uses and application types, as well as with network latency. Transaction time is a key indicator in monitoring client experiences and detecting application performance problems.
Average Client Network Time
The network time between a client and the local switch or router. In WAAS monitoring, client network time from a Wide Area Application Engine (WAE) client data source represents the network round-trip time (RTT) between the client and its edge WAE, while client network time from the WAE server data source represents the WAN RTT (between the edge and core WAEs).
Average WAN Network Time
The time across the WAN segment (between the edge routers at the client and server locations).
Average Server Network Time
The network time between a server and NAM probing point. In WAAS monitoring, server network time from a server data source represents the network time between the server and its core WAE.
Average Server Response Time
The average time it takes an application server to respond to a request. This is the time between the client request arriving at the server and the first response packet being returned by the server. Increases in the server response time usually indicate problems with application server resources, such as the CPU, memory, disk, or I/O.
The volume of bytes per second in each of the client, WAN, and server segments.
Average and Maximum Transaction Time
The time between the client request and the final response packet from the server. Transaction time will vary with client uses and application types, as well as with network latency. Transaction time is a key indicator in monitoring client experiences and detecting application performance problems.
Monitor/Troubleshoot a Wireless Network
RF profiles and groups are supported in NCS version 1.1 for both RF profile creation templates and AP group templates. If you use NCS 1.1 to create the RF profiles through the creation of templates, this gives the administrator a simple way to create and apply templates consistently to groups of controllers. The process flow is the same as was previously discussed in the controller feature set with some minor but important differences.
The process is the same as previously discussed in that you first create RF profiles, and then you apply the profiles through the AP groups. There are differences in how this is done from NCS and in the use of templates for deployment across the network.
Build RF Profile
With Cisco Prime Infrastructure there are two ways that you can approach building or managing an RF profile. Choose Configure > Controllers, then click the IP address of the controller and choose 802.11 > RF Profiles in order to access profiles for an individual controller.

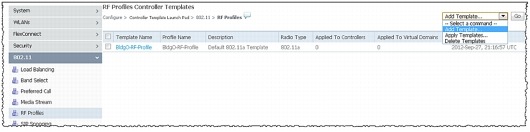

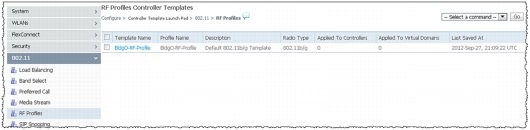

Figure below displays all the RF profiles currently present on the chosen controller and allows you to make changes to profiles or AP group assignments. The same limitation as with the controller GUI is in effect in regard to a profile that is currently applied to an AP group. You have to disable the network or unassign the RF profile from the AP group.
When you create a new profile, Cisco Prime Infrastructure prompts you to choose an existing template. If this is the first time it is being accessed, you are directed to the Template Creation dialogue for an 802.11 controller template.
You may also navigate to Configure > Controller Template Launch Pad > 802.11 > RF Profiles (see figure below) in order to go to the controller template launch pad directly.
In both cases, a new RF profile is created in Cisco Prime Infrastructure through the use of a template. This is a preferred method, since it allows the administrator to use the workflow of Cisco Prime Infrastructure and apply templates and configurations to all or select groups of controllers and reduce configuration errors and mismatches.
Complete these steps:
1. In order to create an RF profile template, choose Add Templates from the pull-down menu at the top right of the screen as shown in the figure below.
2. Configuration of the template/settings is almost identical with the addition of a template name. Make this descriptive for easy recognition in the future. Change settings as needed or required and choose Save as seen in figure below.
NOTE: If you choose a threshold value for Transmit Power Control Version 2 (TPCv2) and it is not the chosen TPC algorithm for the RF group, then this value is ignored.
TIP: A simple setting to change for validation is the minimum TPC power. The minimum power can be raised if you choose a dBm value that is more than the current power level assigned by Radio Resource Management (RRM). This helps to validate the RF profiles operation.
3. Once you click Save the options at the bottom of the screen change as shown in the following figure:
Choose Apply to Controllers and the controller dialogue box appears to display the list of controllers managed by this NCS server as shown in the figure below.
4. From figure below, Select Save Config to Flash box, then select the controller that you wish to have the profile available on, and click on OK.
5. You can see the controller template results as shown in figure below:
6. Now when you view the RF profiles screen, you can see the new template created as shown in figure below.
The previous steps can be repeated in order to create and apply additional templates as required, for example, for 802.11b.
Apply RF Profiles to AP Groups
As with the WLC configuration for RF profiles, newly created profiles can be applied to a controller through the use of AP groups they are assigned to. In order to do this, either a previously saved AP group VLANs template or a newly created template can be used.
Choose Configure > Controller Template Launch Pad and choose AP Group as shown in figure below.
In order to create a new template, choose New and fill in the required information. See figure below.
Choose the RF Profiles tab in order to add RF profiles as shown in figure (below).
In Cisco Prime Infrastructure 1.2, you can choose the Venue Group tab in order to add venue information as well. (See figure above)
If you save the template, a warning message may appear. As stated in the previous message, the change of the interface that the assigned WLAN uses disrupts the VLAN mappings for FlexConnect APs applied in this group. Ensure that the interface is the same before you proceed.
Once you choose OK, the dialogue is replaced with more options. Choose the Apply to Controllers option as shown in the following figure.
Choose the controllers to which the template needs to be applied as shown in figure below.
Cisco Prime Infrastructure responds with operational status (see figure below) on whether the template was successfully applied to the selected controllers.
If the template was not pushed successfully, NCS provides a message that states the reason for the failure. In this example, the RF profile that is applied to the group is not present on one of the controllers to which the template was applied.
Apply the RF profile again, specifically to that controller, and then reapply the AP group in order to generate a successful message.
Once the AP group has been deployed with the RF profiles applied (click the Apply to Access Points button), only access points attached to the controllers where the AP group was deployed successfully are available to select from.
Note: Until this point, no real changes were made to the RF infrastructure, but this changes when APs that contain new RF profiles are moved into the group. When an AP is moved into or out of an AP group, the AP reboots to reflect the new configuration.
Choose the APs you want to add to the AP group and choose OK. A warning message appears. NCS displays the status of the change.
Monitor/Troubleshoot Clients and Users
In NCS 1.0, both wired and wireless monitoring and troubleshooting have been integrated with identity services. Integration between wired/wireless network management has been achieved through three network elements:
• Cisco Wireless LAN Controllers
• Cisco Catalyst® Switch security features: AAA, RADIUS, 802.1x and MAC authentication, MAC notification traps (nonidentity clients), syslog (identity clients only)
• Cisco Identity Services Engine (ISE)
All clients - wired and wireless - are displayed in the Clients and Users page (Monitor > Clients and Users).
Wired clients display AP name as N/A. Switch port information is provided in interfaces column as shown in figure below.
In order to launch the client troubleshooting tool, click the button to the left of the client list item. Once the client is selected, click the Troubleshoot icon in the toolbar, as shown in the following figure:

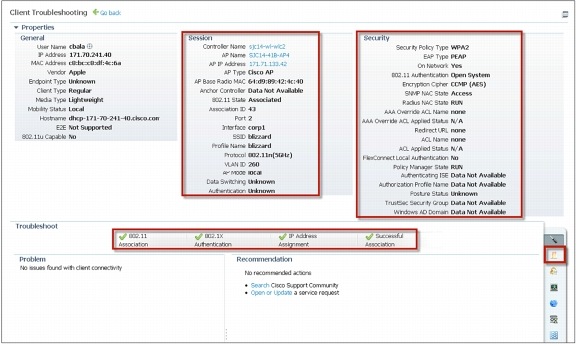

The following window is displayed for the client:

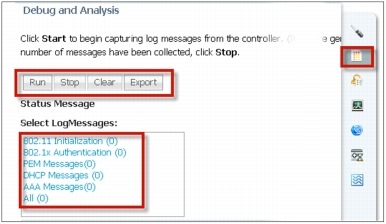

Log messages can be retrieved from the controller with the use of the Log Analysis tool, as shown in the following figure:

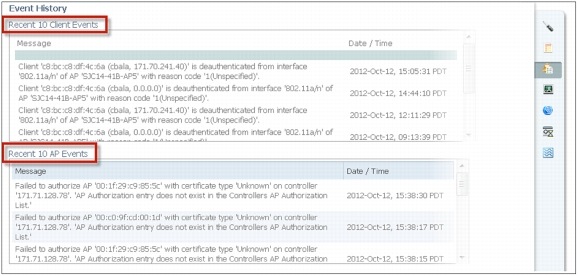

The Event History tool provides users with event messages from clients and APs, as shown in the following figure:

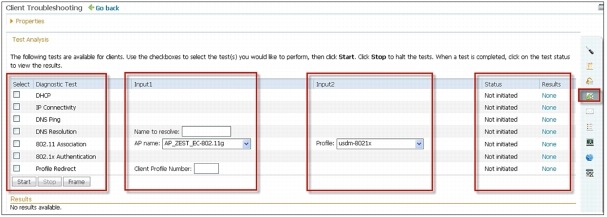

Test Analysis Tool (CCXv5 Clients)
CCXv5 clients are client devices that support Cisco Compatible Extensions version 5 (CCXv5). You can now have troubleshooting capabilities for these clients in the Test Analysis section.
Cisco Prime Infrastructure 1.2 provides integrated management of wired and wireless devices/clients. Cisco Prime Infrastructure 1.2 also provides monitoring and troubleshooting for wired and wireless clients. SNMP is used to discover clients and collect client data. ISE is polled periodically to collect client statistics and other attributes to populate related dashboard components and reports.

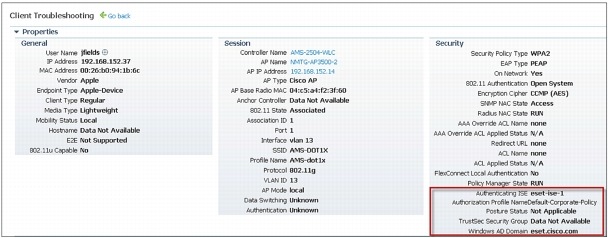

If ISE is added to the systems and devices are authenticating to it, the Client Details page displays additional details labeled as Security within the Client Troubleshooting, as shown in the following figure:
In order to navigate to Operation > Clients and Users, select a client, and click the Troubleshoot icon on the tools menu at the top of the page, as shown in the following figure:
This takes the user to the page shown in the screen shot below. In this example, the client device has link connectivity, but failed IP connectivity.
On the right side of the screen, there is a tool bar with these items, all related to troubleshooting:
• Client Troubleshooting Tool
• Log Analysis
• Event History
• Context Aware History
Event History provides messages related to connectivity events for this client. In this example, the client failed to successfully authenticate. Date/time is provided to assist the network administrator in troubleshooting this client.

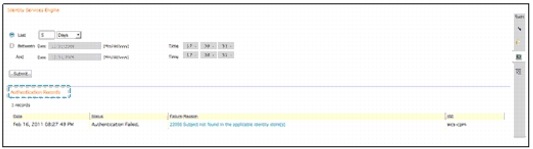

ISE provides authentication records to NCS through the REST API. Network administrators can choose a time period for retrieving authentication records from ISE. In the example in the following figure, the authentication record indicates that the user was not found in the ISE database.
Alarms and Events

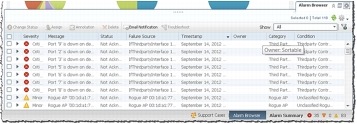

Alarms and events provide a single page view of all alarms and events for wired and wireless infrastructure. Persistent alarm summary and alarm browser are displayed at the bottom right of the screen (figure below) regardless of what screen the user is on. Next to it is Alarm Browser view that shows all the alerts based on severity and device types as shown in the figure on below.

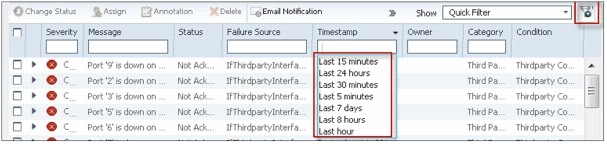

Almost all of the tables in Cisco Prime Infrastructure have a quick filter widget. This quickly allows users to filter through the table, especially when there are many rows involved. This is very useful with alarms and events or clients and users. The following figure shows how quickly correct alarms can be filtered with this.
The Advanced Filter, as the name implies, allows user to filter on the content with complex rules. The following figure shows the Advanced Filter being used with more complex rules. These filters can be saved for one-click use the next time they are needed.
Trigger Packet Capture from Cisco Prime Infrastructure
Cisco Prime Infrastructure provides a very flexible solution for capturing packets throughout your network. You can either manually trigger a packet capture or automatically specify the capture based on some advanced parameters, so that it will be triggered once a threshold level is breached. In both of these solutions, packets can be captured locally on the NAM or they can be stitched from multiple NAMs and stored in Cisco Prime Infrastructure.
Manual Packet Capture from Cisco Prime Infrastructure
In order to do an ad hoc packet capture, you can navigate to Operate > Packet Capture (under Operational Tools) > Capture Sessions. If you are coming to this page for the first time, you may not have any capture profiles set up. In order to create a new profile, click Create and fill in all the criteria for capturing a particular traffic. If you have a need to capture a particular type of traffic all the time, it may a good idea to proactively create those profiles and test them out before automating them, as will be shown in the next section.
Once the profile is defined, you can test it out by clicking Start, as shown in the preceding figure. See if the packets are captured correctly. You can then use these profiles for automatically capturing packets.
Automating Packet Capture Using Cisco Prime Infrastructure
There are times when you want to capture packets based on a trigger. There is no way to find out ahead of time when the trigger will happen. For example, if you are trying to meet the SLA for AvgRespTime for an application, you may want to start the packet capture if the response time exceeds the predefined time. You can easily achieve this by combining threshold and packet capture in Cisco Prime Infrastructure. Navigate to Design > Monitoring Configuration > Features > Thresholds. When you click a threshold template, you can create a new instance from it. Besides the header information, you can select thresholds based on your interest from Traffic Analysis, Application, Voice/Video Signaling, Voice/Video Data, Interface Health, Device Health, and NAM Health. It would be a good idea to explore these options and see what types of trigger points each of them has. Once you select the category for capture, you can then select the subcategory. All the trigger points can then be seen. In order to change any of them, simply select that row and edit the threshold as shown in the image below. You can see (figure below) that we have chosen to alert and start capturing Sharepoint traffic if the AvgRespTime exceeds the default value.
Decoding Packet Capture Using Cisco Prime Infrastructure

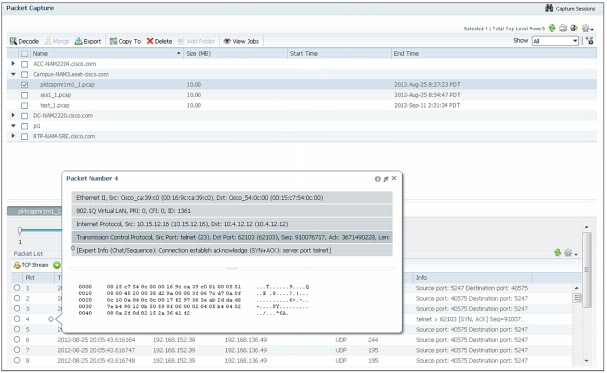

Once the packets are captured, there are two options to decode the capture. The easiest way is to select the packet capture session and click Decode from the Packet Capture homepage (Operate > Packet Capture). The capture decode is shown in a pop-up window, which makes it extremely easy to evaluate each and every packet as shown in the figure below.
You could also click the Export button and the .pcap file will be downloaded directly on the client PC. This is useful if you need to perform advance troubleshooting on the capture decode. There is a dimmed Merge button between the Decode button and the Export button, which can be used to merge the .pcap files if more than one file is selected.
TIP: if the capture file is not very large (that is, not on the order of GB), it makes sense to decode it in Cisco Prime Infrastructure instead of jumping over to the NAM. Otherwise, you should use NAM instead of Cisco Prime Infrastructure for decoding very large capture files.
Miscellaneous Multi-NAM Capabilities Within Cisco Prime Infrastructure
Cisco Prime Infrastructure can serve as a central manager of managers (MoM) if multiple NAMs are deployed in the network. Some of the functionality that Cisco Prime Infrastructure can help with includes:
• Centralized monitoring of NAM Health
• Deploying configurations to multiple NAMs using the CLI configuration templates
• Upgrading NAMs using software image management capabilities
• Using one-click packet capture from multiple NAMs based on a capture policy
• Proactively capturing packets using threshold breaches
All of these allow users to use Cisco Prime Infrastructure to effectively manage the NAMs, thus making it a very good and stable data source for application visibility.
Remediate Wireless Issues
The following tools available within Cisco Prime Infrastructure may be used in order to remediate wireless issues:
• Cisco CleanAir®
• Client Troubleshooting
• AP Troubleshooting
• Audit Tool
• Security Dashboard
• Switchport Tracing (SPT)
• Apart from these key tools, you can find more tools by navigating to Operate > Wireless (under Operational Tools).
• Contextual device 360-degree views for easy access to assorted tools:
– Cisco Discovery Protocol Neighbors
– WLAN and SSID information
– Active AP and client count
Remediate Wired Issues
The following tools within Cisco Prime Infrastructure can be used to remediate wired issues:
• Wired Client Troubleshooting
• Ad Hoc and Automated Packet Capture
• Device Work Center
• Contextual device 360-degree views for easy access to assorted tools:
– Cisco Discovery Protocol Neighbors
– Config Diffs
– Inventory Details
– Network Audits
– Support Forums
Use Cisco Prime Infrastructure to Optimize the Operation of Your Converged Network
There are several tools availabe within Cisco Prime Infrastructure to optimize your network. Some of the tools that help optimize wireless infrastructure would be:
• Wireless Network Performance (RRM)
• Wired Performance (WAN bandwidth)
Cisco Prime Infrastructure uses the latest dashboard, which uses the latest technology of CSS3, HTML5, as well as AJAX with some charts. All of these allow for easy customization and visualization of data. There two main ways of customizing the dashboards:
• Adding your own dashboard in addition to the ones provided
• Adding/moving dashlets (aka portlets) from one dashboard to another
First navigate to one of the four existing dashboards as show in the figure above:
You can easily add a new dashboard by going to the top right of the screen and clicking the Edit Dashboard () icon. You should see a new pop-up as shown in the figure above. Depending on where you were in the menu when you clicked the gear icon, a new dashboard will be created under that tree. Type in a suitable name for the dashboard, and click the Add button to create a new dashboard. A new tab is reflected immediately. If you created a tab by mistake, you can simply go to Manage Dashboards as shown in figure at the left and delete the newly created dashboard, and then re-create a new one under the appropriate dashboard.
Note that Add/Remove Filter(s) applies only to the default dashboards and not for the custom dashboards. By default all of these filters will be populated for the default dashboards.
The next step is to populate the new dashboard that you created with content. This is done by adding dashlets to it. There are about 50 preconfigured templates that you can use for various dashboards.
A new dashlet can be added by going to the dashboard where you want it to show up and clicking Add Dashlet(s) from the Edit Dashboard menu. Once you see the list of dashlets, you can simply drag and drop the desired dashlet onto the dashboard. You should see a green bar as a confirmation that the dashlet will stay there, as shown in figure above.
Customizing the Dashlet Content
We can not only customize the dashboard but also the content within the dashlets. At times, you may want to know the rates instead of the volume, or you may want information coming from NetFlow instead of NAM or vice versa. You can configure the dashlet to show just that. First, make sure the needed dashlet already exists in the dashboard. If not, you will need to create it as shown in the previous section. Now click Dashlet Options, as shown in the figure at the left. This will expose all of the configurations that can be tweaked for a given dashlet as shown in the figure at the right. You may now use the pull-down menu to select and configure as needed. Some key interesting things to note are data type, traffic type, data sources, and differentiated services code point (DSCP). Each dashlet will have its configuration parameters. Once you are done, click Save and Close to return to the default data view.
Advance Configuration Topics
Identity Services Engine Integration
Cisco ISE is a next-generation identity and policy-based network access platform that helps enable enterprises to enforce compliance, enhance infrastructure security, and streamline their service operations. See the figure below. Cisco Prime Infrastructure manages the wired and the wireless clients in the network. When Cisco ISE is used as a RADIUS server to authenticate clients, Cisco Prime Infrastructure collects additional information about these clients from the ISE and provides all relevant client information to Cisco Prime Infrastructure to be visible in a single console.
Cisco Prime Infrastructure can be integrated with ISE by navigating to Design > External Management Servers (under Management Tools) > ISE Servers. You can add a new ISE server by selecting Add Identity Services Engine as shown in the figure above. You will then be prompted for some basic ISE connectivity information (see the figure below). Once that is entered, the ISE server is then added to the list. Most of the remaining configuration will need to be done on the ISE itself.
TIP: ISE has a locking mechanism if the password is entered incorrectly three times in a row. It is extremely important to use the correct credentials when integrating within Cisco Prime Infrastructure; otherwise the ISE web interface will be locked out. Users will then need to log in through the ISE CLI to unlock the web interface.
Automated deployment is a new feature within Cisco Prime Infrastructure 1.2 that eases the pain of deploying new branch routers or switches. Normally when a device is provisioned in a new branch or remote site, it needs to be prepared for provisioning. Some network engineers prefer to stage the device completely and ship it to the end location, while others prefer to do a partial staging of the device so that it can come online once it's deployed in the end location. Management systems can then be used to push the full configuration. In both cases, a lot of manual configuration is needed, and it amounts to big delays in deploying a new branch or site. Automated deployment could be used for places where quick and zero-touch deployments are desired. If a nontechnical staff is deploying the device in a remote branch, this feature will definitely prove to be useful. The following image gives us a good overview of the deployment process:
The three main components within the automated deployment profile are:
• Bootstrap configuration
• Desired device configuration
• Desired Cisco IOS Software image
This is the configuration that is needed within the device in order to get the full-blown working configuration. Some users may recall that the Cisco Networking Services Configuration Engine also worked the same way. A sample bootstrap configuration is shown below:
There are four bootstrapping options available for automated deployment within Cisco Prime Infrastructure. There are no CLI skills needed for any of these options.
1. Using the Cisco Prime Automated Deployment application (available for PC/iPhone/iPad): Installer connects LAN/WAN cables and a USB console cable and a laptop/iPhone/iPad application to bootstrap the ISR router at the end location in a branch/site. This options works well if multiple devices are to be deployed.
2. Portable USB drives may also be used to bootstrap the device: Installer at the remote site connects LAN/WAN cables and a USB stick to the new device to be deployed at that site. This option is available for ISR routers with Cisco Virtual Office zero-touch deployment capabilities.
3. Using Cisco Integrated Customized Services, which loads a custom factory configuration on the ISR, is available for all ISR routers. Installer only connects LAN/WAN cables at the site.
4. Using Cisco Configuration Professional (CCP) Express is available for all ISR routers only.
Bootstrap configuration is needed for the device to talk to the automated deployment gateway to download the designed/desired configuration and image. In the next release of Cisco Prime Infrastructure (2.0), the gateway will be included within Cisco Prime Infrastructure itself, so there will be no need to install a separate gateway application (as with Cisco Prime Infrastructure 1.2).
Desired Device Configuration
The desired device configuration is the configuration that is intended to be running on the device after the device has been successfully deployed. This configuration should contain components such as SNMP, SSH/Telnet, ACLs, and syslog that will enable Cisco Prime Infrastructure to effectively manage this device when it comes online.
Desired Cisco IOS Software Image
This is the Cisco IOS Software image that is desired to be running on the device after successful deployment of the device.
Creating the Bootstrap and Device Configuration Template
Before creating an automated deployment template, we need to have the templates ready for bootstrap and the initial configuration of the device. In order to create a new bootstrap configuration template, navigate to Design > Configuration Templates > CLI Template > CLI and fill in all the details in the Template Basic section. In the next section, Validation Criteria, users can specify what device family type and what Cisco IOS Software version are applicable for this template. Type or paste the CLI in the CLI Content area. Let's look at how to convert a simple line with two values into a variable. We will look at the first line of the bootstrap configuration:
ip host abcd.ef.com 192.168.1.163
Once the preceding line is pasted into the CLI content area, select the value abcd.ef.com, which we want to convert to a variable. Once the value is selected, you can then click the Manage Variable icon () on the right. This will create a new variable as shown in the following figure:
Select the row, and click Edit. You can now give a meaningful name to the value so that the user deploying the template will know what it means. The following image shows the same row after editing:
Save the changes, and click Add at the bottom to replace our original value abcd.ef.com with $fqdn_hostname. You can now click Form View to get a feel for how the template will appear when you deploying it. See the following figure:
Similarly you can take each of the values that need to be converted and make them into variables. Once you are done, you can click Save As New Template and create a new bootstrap template out of it. The final template could look something like the following:
This will be used in the next section when creating a new automated deployment template. This procedure can be used for creating any new template.
Create Automated Deployment Templates
In order to create a new template for automated deployment, navigate to Design > Automated Deployment Profiles > PnP Profile (selected by default). You can now fill in the Profile Basic, Validation Criteria, and Profile Detail sections. The filled out template should look like the one shown below:
Now save the template. You can also click Publish and then Deploy if you plan on deploying the template right away.
Deploying the Automated Deployment Template
Once published, the template can also be deployed by navigating to Deploy > Automated Deployment Profiles. Select the recently created template and click Deploy, as shown in the following figure:
Once you click Deploy, you can see all the devices that are now filtered out based on our Validation Criteria in the template. Click Add to add the device that is to be provisioned using automated deployment. The following figure shows a sample filled-out form for the modal pop-up that appears after you click Add.
Click OK to save the new device to be provisioned in the network. You can now see the device ID, which is the serial number for the device as show in figure below.
You can now either send the email using the bootstrap configuration or email the PIN directly. You will get an email as shown (below). This PIN can then be used to pull the bootstrap directly from the PnP gateway server.
Deploying Devices Using Automated Deployment Templates
The easiest way to deploy the bootstrap configuration is by using the Automated Deployment Application as shown in figure on right. You need to connect the laptop to the router using the console cable, and just input the PIN number in the Cisco Deployment Application as shown in the following image.
The application will then configure the router with the basic bootstrap configuration. Once the device reboots, it will connect to the automated deployment gateway and download the actual device configuration and the image that it needs to run.
The following table shows wired devices supported by Cisco Prime Infrastructure 1.2:
Cisco Integrated Services Routers (ISRs)
8x0 Series, 1800 and 1900 Series, 2800 and 2900 Series, 3800 and 3900 Series
Cisco Aggregation Services Routers (ASRs)
Cisco Catalyst® Switches
2900, 2975, 3750, 3560, 4500, 4900, and 6500 Series
Cisco Prime Network Analysis Module (NAM)
Cisco Catalyst 6500 Series (NAM-1/NAM-2/NAM-3), NAM 2000 Series Appliances, NAM for Nexus 1100 Series, Cisco Prime NAM for Nexus 1010, Cisco Prime NAM for WAAS Virtual Blade (VB), Cisco Branch Routers Series Network Analysis Module (NME-NAM), Cisco SM-SRE NAM, NGA 3240
Cisco Wide Area Application Services (WAAS)
WAE-512, WAE-522, WAE-612, WAE-674, WAE-7341
Data Center Devices
Cisco Nexus 1000, 2000, 3000, 4000, 5000, 7000 Series, Cisco MDS 9000 Series Multilayer Fabric Switches, Cisco MDS 9000 Series Multilayer Switches, Cisco UCS 5108 and Cisco UCS 6140XP
The following table shows wireless and other device types supported by Cisco Prime Infrastructure 1.2:
Cisco Mobility Services Engine (MSE)
2700 Series Wireless Location Appliance
Cisco Wireless Controllers (WLC)
2100, 2500, 4400, 5500 Series, Flex 7500 Series, Catalyst 3750G Series Integrated WLC, Catalyst 6500 Series (WiSM and WiSM2), WLC Module on SRE, WLC Module (WLCM and WLCM-E) for ISR, Wireless Controller on Service Ready Engine (WLCM2 on SRE)
