This Product Bulletin introduces Cisco IOS® Software Release 12.2SX and includes the following sections:
1) Cisco IOS Software Release 12.2SX Introduction
2) Release 12.2(33)SXH Migration, Service Module Support, and Cisco IOS Software Modularity Considerations
3) Release 12.2(33)SXH Highlights
4) Release 12.2SX Additional Information
1) Cisco IOS Software Release 12.2SX Introduction
Cisco IOS Software Release 12.2S is designed for Enterprise campus and Service Provider edge networks that require world-class IP and Multiprotocol Label Switching (MPLS) services.
Derived from Release 12.2(30)S, Release 12.2(33)SXH provides Release 12.2S functionality and new features and hardware support for the Cisco Catalyst 6500 Series Switch.
For detailed information about the features and hardware supported in Release 12.2SX and 12.2(33)SXH, refer to the Cisco IOS Software Release 12.2SX release notes and customer documentation at the following website:
Not all features may be supported on all platforms. Use the Cisco Feature Navigator to find information about platform support and Cisco IOS Software image support. Access the Cisco Feature Navigator at http://tools.cisco.com/ITDIT/CFN/jsp/index.jsp. You must have an account on Cisco.com.
Cisco IOS Release 12.2(33)SXH is developed for and intended to run on Cisco Catalyst 6500 Series Switches only.
2.1) Release 12.2(33)SXH Migration
Cisco IOS Software Release 12.2(33)SXH is the next Extended Maintenance release, and will be supported for a period of 24 months for Cisco Catalyst 6500 Series Switches. For more details on Release 12.2SX Standard and Extended Maintenance releases please visit:
Starting with Cisco IOS Software Release 12.2(33)SXH, the Cisco Catalyst 6500 will be offering the Cisco IOS Software Modular images as a feature set in addition to the Cisco IOS Native images with full feature parity between them. The 12.2(33) SXH Software Release provides new feature functionality and introduces additional hardware support for the Cisco Catalyst 6500 Series Switch which allows customers to deploy it within the Enterprise campus, Data Center, WAN aggregation and Service Provider edge networks.
Beginning with Release 12.2(33)SXH, the Cisco Catalyst 6500 Supervisor 720 Enterprise Services software image will no longer be offered. Existing customer's running Cisco IOS Enterprise Services image can receive a free license upgrade to Cisco IOS Advanced Enterprise Services for Supervisor-720 and Supervisor-32 until January 29th 2008.

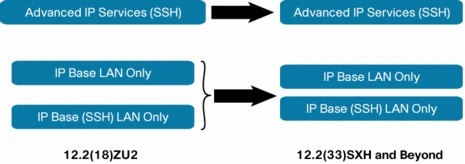

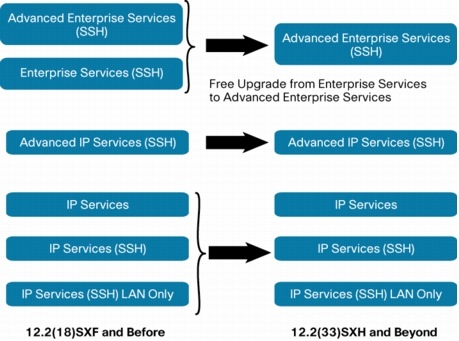

Cisco IOS Software Release 12.2(33)SXH offers the following images for the Cisco Catalyst 6500 Supervisor Engine 720, Supervisor Engine 32, and ME 6524:
Supervisor-720 IOS Software images:
• Cisco Catalyst 6500 Supervisor 720 IOS IP Services
• Cisco Catalyst 6500 Supervisor 720 IOS IP Services (MODULAR)
• Cisco Catalyst 6500 Supervisor 720 IOS IP Services (SSH) LAN ONLY
• Cisco Catalyst 6500 Supervisor 720 IOS IP Services (SSH) LAN ONLY (MODULAR)
• Cisco Catalyst 6500 Supervisor 720 IOS IP Services (SSH)
The service modules that were supported in Release 12.2(18)SXF (and prior releases) and not supported in Release 12.2(33)SXH are shown below with migration path:
Cisco IOS Software Modularity provides customers multiple benefits in areas of high availability and manageability. The Software Modularity on the Cisco Catalyst 6500 platform has been available to customers starting from Release 12.2SXF4.
Cisco IOS Software Modularity provides customers multiple benefits in areas of high availability and manageability. The Software Modularity feature set option on the Cisco Catalyst 6500 platform has been available to customers since Cisco IOS Software Release 12.2(18)SXF4. With 12.2(33)SXH, the Cisco IOS Software Modularity images will have the following attributes:
• Hardware and software feature consistency between modular and non-modular features sets: while there were certain support restrictions in Release 12.2(18)SXF4, Cisco IOS Software Modularity images (such as no support for IPv6 or MPLS), these have been lifted in Release 12.2(33)SXH.
• The Cisco IOS Software Modularity images will continue to be offered as an optional feature set of Cisco IOS Software Native images.
• The Cisco IOS Software Modular images can be deployed across all the different places in the network including Enterprise Campus, Data Centers, WAN and Carrier Ethernet deployments. However, the new modular infrastructure introduces a few scalability considerations which should be evaluated before selecting the Cisco IOS Software Modularity feature set:
It is recommended that only default timers be used for all IPv4, IPv6 routing and multicast protocols.
3) Release 12.2(33)SXH Feature Highlights
The following sections include Release 12.2(33)SXH hardware and software feature highlights.
Release 12.2(33)SXH, like all 12.2SX releases, integrates innovations that span multiple technology areas, including Cisco IOS High Availability, Quality of Service, MPLS and VPNs, IP Addressing and Services, IP Multicast and Routing, and Infrastructure and Embedded Management.
Table 1. Release 12.2(33)SXH Highlights
Hardware
IP Routing
IP Multicast
MPLS and VPN, AToM
• Catalyst 6500 Series Distributed Forwarding Card
• IP 16-way Equal-Cost Multipath (ECMP)
• Switched Port Analyzer (SPAN) Enhancements
• Cisco IOS Software Modularity Support for SIP-200, SIP-400, and Enhanced FlexWAN SPAs
• 50 ms Fabric Stand-by Hot Sync
• Cisco IOS Software Modularity for the Catalyst 6500 ME 6524 Ethernet Switch
• Inline 802.3af Power Classification Override
• OSPF Graceful Restart (RFC 3623)
• Reliable Static Routing Backup Using Object Tracking
• OSPF Area Transit Capability
• EIGRP Route Map Support
• BGP Multicast Inter-AS (IAS) VPN Support
• BGP Dual AS Configuration support
• BGP IP Prefix Import from Global to VRF Table
• BGP Support for Named Extended Community Lists
• BGP Support for TCP Path MTU Discovery
• BGP Support for Next Hop Address Tracking
• Supress BGP Advertisement for Inactive Routes
• Per-VRF Assignment of BGP Router-ID
• BGP Dynamic Neighbors

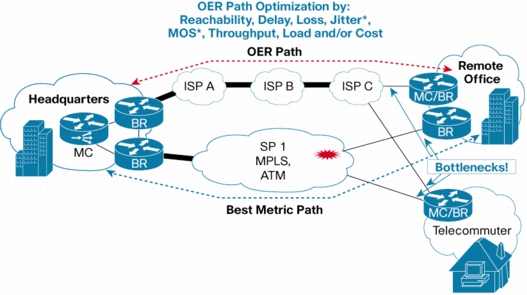

• Optimized Edge Routing
• Cisco IOS Software Modularity for IPv6 Routing (RIPng, OSPFv3)
• MVPN Inter-AS Support
• MVPN Extranet
• Multicast IPv6 Enhancements
• Auto-RP Enhancements
• IPv4 Extended ACL for IGMP to Support SSM
• IP Multicast Route Standard MIB (IPMROUTE-STD-MIB)
• Multicast VPN MIB (CISCO-MVPN-MIB)
• MSDP Compliance with IETF RFC 3618
• Triggered PIM Joins
• Multicast Router Guard
• IGMP Filtering and Snooping Enhancements
• Cisco IOS Software Modularity for L3 VPN Control Plane
• AToM: ATM AAL5 over MPLS
• AToM: ATM OAM Cell Emulation
• AToM: ATM Cell Relay over MPLS
• AToM: Ethernet over MPLS
• Multiplexed UNI
• MPLS Graceful Restart
• MPLS LDP Support
• VRF Aware Syslog
• MPLS Traffic Engineering Enhancements:
• AutoTunnel Primary and Backup
• Class-based Tunnel Selection
• Inter-AS Feature

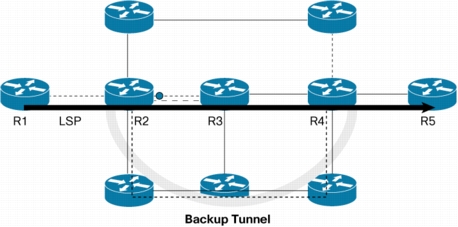

• Fast Reroute (FRR) Link and Node Protection

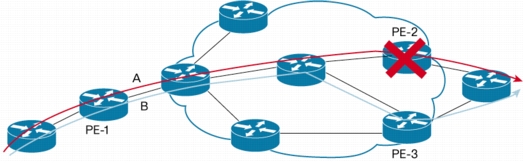

• Fast Reroute (FRR) Prefix Independence
• Label Switched Path (LSP) Attributes
• Verbatim Path Support
• Autotunnel Mesh Groups
• Shared Risk Link Groups (SRLG)
• NSF/SSO: MPLS TE and RSVP Graceful Restart

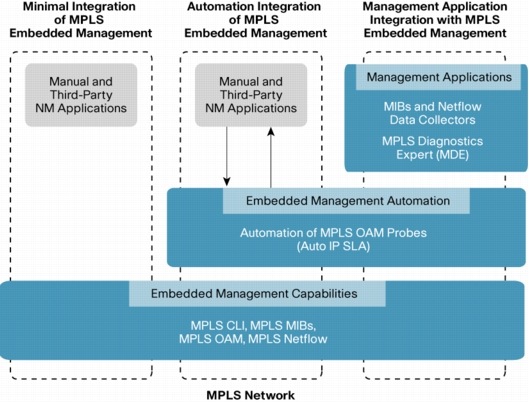

MPLS Management
IP Services (including QoS features)
Embedded Management
Integrated Security
• MPLS TE FRR MIB, IETF draft version 01
• MPLS LSP Ping/Trace for MPLS core (LDP IPv4 and RSVP IPv4 FEC support), IETF draft version 03
• IP SLA automation for MPLS LSP Ping/Trace for MPLS core
• MPLS LSP Ping for Layer-2 VPNs (via VCCV), IETF draft version 03
• PW-E3 MIB
• Enhanced Object Tracking
• (SSO) for HSRP and GLBP
• MD5 Authentication for HSRP and GLBP
• TCP Maximum Segment Size (MSS) Adjustment
• Cisco IOS Auto QoS
• CBQOSMIB Index Persistency
• IOS Configuration Rollback
• IPv6 Default Router Selection
• NetFlow Egress Multicast Enhancement
• NetFlow for IPv6 Unicast Traffic
• NetFlow MIB and TopNTalkers
• NetFlow: per-interface/sub-interface NetFlow
• Contextual Diff Utility
• Config Logger Persistency
• Configuration Change Logging
• Exclusive Config Change Access
• IPv6 Default Router Selection
• Cisco IOS TCL
• Embedded Syslog Manager
• IP Service Level Agreements (IP SLAs)
• Ethernet OAM Protocols: IEEE 802.1ag and 802.3ah
• Smart Call Home
• IBNS (802.1x, MAC Authentication Bypass and Web Auth) enhancements
• NAC Enhancements
• IEEE 802.1x based L2 NAC
• Auto Secure
• IP Source Guard
• Wake on LAN
• Policy-Based ACLs (PBACL)
• Private Hosts
Hardware
Cisco® Catalyst® 6500 Series Distributed Forwarding Card
The new Cisco® Catalyst® 6500 Series Distributed Forwarding Card (DFC), including WS-F6700-DFC3C and WS-F6700-DFC3XL is an optional daughter card for CEF720-based line cards such as WS-X6704-10GE, WS-X6724-SFP, WS-X6748-SFP, and WS-X6748-GE-TX. The new Distributed Forwarding Card supports the System Virtualization, provides localized forwarding decisions for each line card and scales the aggregate system performance to reach up to 400+ Mpps.
The key highlights of the new Distributed Forwarding Card are:
• Supports System Virtualization
• Supports all the functions that DFC3B and DFC3BXL support
• Deployed in CEF720 line cards such as WS-X6704-10GE, WS-X6724-SFP, WS-X6748-SFP, and WS-X6748-GE-TX
Table 2. DFC 3 Supported Combinations
WS-F6700-DFC3A
WS-F6700-DFC3B
WS-F6700-DFC3BXL
WS-F6700-DFC3C
WS-F6700-DFC3CXL
WS-SUP720
PFC3A functionality
PFC3A functionality
PFC3A functionality
PFC3A functionality
PFC3A functionality
WS-SUP720-3B
PFC3A functionality
PFC3B functionality
PFC3B functionality
PFC3B functionality
PFC3B functionality
WS-SUP720-3BXL
PFC3A functionality
PFC3B functionality
PFC3BXL functionality
PFC3B functionality
PFC3BXL functionality
Table 3 gives specifications of the distributed forwarding card.
Table 3. Specifications of Distributed Forwarding Card
Feature
Cisco Distributed Forwarding Card (DFC3C)
Cisco Distributed Forwarding Card (DFC3CXL)
MAC Entries
96,000
96,000
Memory
512M
1G
IP Routes
256,000 entries
1,000,000 entries
NetFlow Entries
128,000 entries
256,000 entries
Product Numbers
Table 4 gives product numbers and pricing information for Distributed Forwarding Card.
Table 4. Product Numbers
Product Number
Description
WS-F6700-DFC3C
Catalyst 6500 Dist Fwd Card for WS-X67xx modules
WS-F6700-DFC3CXL
Catalyst 6500 Dist Fwd Card-3CXL, for WS-X67xx modules
Minimum Software Requirements
Minimum software requirements for Distributed Forwarding Cards are listed in Table 5.
Table 5. Minimum Software Requirements for New Distributed Forwarding Cards
Product Number
Software Release
WS-F6700-DFC3C
• Cisco IOS Software Release 12.2(18)SXF5 and later with Cisco Supervisor 720 3B if using with WS-X6708-10G-3C line card
• Cisco IOS Software Release 12.2(33)SXH and later with all the line cards mentioned above
WS-F6700-DFC3CXL
• Cisco IOS Software Release 12.2(18)SXF5 and later with Cisco Supervisor 720 3B if using with WS-X6708-10G-3CXL line card
• Cisco IOS Software Release 12.2(33)SXH and later with all the line cards mentioned above
Benefits
Reduces the Supervisor switch over time from 1.5 seconds to less than 50ms.
In today's data centers where large content providers need to cluster computers for massive search applications or other data crunching applications using parallel processing, a scalable way of distributing packets across multiple parallel links is needed. Prior to Release 12.2(33)SXH, the Catalyst 6500 supported up to eight equal cross paths in the routing table.
Starting with Release 12.2(33)SXH, the Catalyst 6500 will support a 16-way Equal-Cost Multipath (ECMP) on supervisors for all versions of the Policy Feature Card 3 (PFC3).
An example of the IP 16-way Equal-Cost Multipath feature is shown below in Figure 4. A cluster of server farms is connected to the Catalyst 6500 switches in the access layer, and the access layer is in turn connected to the Distribution layer through 16 parallel paths, either through GigE or 10 GigE. Traffic will be distributed across these 16 parallel paths using the IP 16-way ECMP feature.
Figure 4. IP 16-way Equal-Cost Multipath Feature Topology
This feature is enabled by specifying "maximum-paths" under routing protocols, or it can be configured via static routes.
Benefits
The IP 16-way ECMP feature provides customers optimal traffic scalability, with the capability of pushing more than160 Gigs of throughput between the two switches.
There are several enhancements in Release 12.2(33)SXH to SPAN features to make it easier for network operators to monitor and troubleshoot their network environments.
Increase of Egress SPAN ports. The Catalyst 6500 now can deliver 14 Tx-only SPAN ports plus 2 Tx/Rx/Both ports, for a total of 16 SPAN ports. Customers can now monitor their traffic with TX, looking at traffic leaving the port, or RX, looking at traffic entering the port, or both.
RP/SP CPU Inband SPAN feature adds the ability to capture CPU-bound and CPU-generated traffic. This feature gives customers the ability to monitor traffic destined to either the RP or the SP CPU and monitor it to a SPAN destination port. By monitoring traffic coming to and going out of the CPU, customers can now have a very clear picture of what type of traffic and how much is going to the RP CPU to determine what causes the CPU to go high. Control Plane Policing policy then can be applied to alleviate the high CPU usage problem.
Distributed Egress SPAN helps scale the SPAN feature by performing Tx SPAN replication locally on the line card instead of relying on the Supervisor for SPAN replication. Today with the bandwidth of the interfaces, as well as the density of ports on the line cards increasing, distributed Egress SPAN will help with scalable SPAN designs using both RX and Tx SPAN.
Benefits
These SPAN enhancements provide a more scalable suite of tools that allow customers to more effectively manage Catalyst 6500 Series Switches in their networks.
Cisco IOS Software Modularity Support for SIP-200, SIP-400, and Enhanced FlexWAN
The Catalyst 6500 is a high-speed modular switch and router ideal for convergence of Data Center, Campus and WAN in a single system. It offers a rich Enterprise WAN feature set such as MPLS, HA, QoS, and a wide range of WAN interfaces.
Starting with Release 12.2(33)SXH, Enhanced FlexWAN, SIP-200, and SIP-400 will be supported in IOS with Software Modularity, bringing all of the IOS modularity benefits to Enterprise WAN deployments. Those benefits include memory protection, fault containment, stateful process restart, and subsystem ISSU, all important features to ensure maximum high availability necessary for WAN deployments. Customers can deploy SIP/SPA and Enhanced FlexWAN today in Release 12.2(33)SXF, but will not get the same advantages that IOS Modularity offers.
Figure 5. SIP-200, SIP-400, and Enhanced FlexWAN SPAs
Table 6. Comparison between Enhanced FlexWAN, SIP-200, and SIP-400
Feature
Enhanced FlexWAN
SIP-200
SIP-400
Aggregate Performance
~ 625 Kpps
~1.1Mpps
~ 6 Mpps
Switch Fabric Enabled
Yes
Yes
Yes
Memory per bay, Default/Max
256MB/512MB
512Mb/1Gb
1Gb
PAs/SPAs
Majority of Port Adapters
Low-Speed SPAs
High-Speed SPAs
Congestion Avoidance, Tail Drop
Yes
Yes
Yes
Congestion Avoidance, WRED
IPPRec/DSCP/EXP
IPPRec/DSCP/EXP
Yes
Maximum # Policers
8,000
16,000
1023
Ingress Shaping
Yes
Yes
No
Egress Shaping
Yes
Yes
Yes
The SPA WAN adapter is shared across high end Cisco routers from the Catalyst 6500 to the flagship CRS-1. Customers can purchase SPAs with the knowledge that these SPAs can be used in Cisco 7300, Cisco 10000, Cisco 7600, Cisco 12000, CRS-1, in addition to the Catalyst 6500.
Table 7. SPAs Supported in Release 12.2(33)SXH
Product ID
12.2(18)SXF SIP-200 Support
12.2(18)SXF SIP-400 Support
12.2(18)SXH SIP-200 Support
12.2(18)SXHSIP-400 Support
SPA-8XCHT1/E1
12.2(18)SXE
No
12.2(33)SXH
No
SPA-2XT3/E3
12.2(18)SXE
No
12.2(33)SXH
No
SPA-4XT3/E3
12.2(18)SXE
No
12.2(33)SXH
No
SPA-2XCT3/DS0
12.2(18)SXE
No
12.2(33)SXH
No
SPA-4XCT3/DS0
12.2(18)SXE
No
12.2(33)SXH
No
SPA-1xCHSTM1/OC3
No
No
12.2(33)SXH
No
SPA-2XOC3-POS
12.2(18)SXE
12.2(18)SXE
12.2(33)SXH
12.2(33)SXH
SPA-4XOC3-POS
12.2(18)SXE
12.2(18)SXE
12.2(33)SXH
12.2(33)SXH
SPA-1XOC12-POS
No
12.2(18)SXE
No
12.2(33)SXH
SPA-1XOC48POS/RPR
No
No
No
12.2(33)SXH
SPA-2X1GE (Gila ASIC)
No
12.2(18)SXF
No
12.2(33)SXH
SPA-4X1FE-TX-V2 (Fugu ASIC)
No
No
12.2(33)SXH
No
SPA-8X1FE-TX-V2 (Fugu ASIC)
No
No
12.2(33)SXH
No
SPA-2XOC3-ATM
12.2(18)SXE
12.2(18)SXE
No
No
SPA-4XOC3-ATM
12.2(18)SXE
12.2(18)SXE
No
No
SPA-1XOC12-ATM
No
12.2(18)SXE
No
No
SPA-1XOC48-ATM
No
12.2(18)SXE
No
No
To maximize investment protection on Cisco products, the Catalyst 6500 offers the Enhanced FlexWAN solution so customers can re-use Port Adapters purchased for Cisco 7500 or 7200 on the Catalyst 6500.
Table 8. Port Adapters Support in Release 12.2(33)SXH
The Standby Fabric Hot Sync feature lowers the Supervisor 720 switch over time from about 1.5 seconds to about 50 milliseconds (ms). This is achieved by allowing the channels to maintain sync to both active and stand-by switch fabrics. DFC equipped cards achieve the 50 ms switchover whereas the CFC equipped cards achieve 300 ms switchover with Cisco IOS Software Release 12.2(33)SXH. The hot-sync feature is supported on all Catalyst 6500 E-Series chassis (it is not supported by Catalyst 6500 non-E-Series chassis).

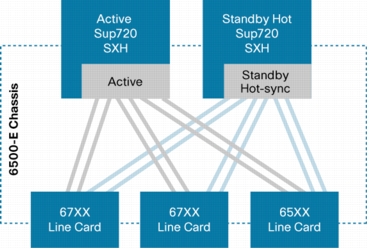

Figure 6. Standby Fabric Hot Sync Mode
Figure 6 above illustrates that the line card maintains the channel in sync with both active and standby fabrics at the same time. Upon switchover, the active fabric goes down and the link to the standby fabric can be used to switch traffic without any re-sync involved.
Benefits
Reduces the Supervisor switchover time from 1.5 seconds to less than 50ms.
Cisco IOS Software Modularity Support for the Catalyst 6500 ME 6524 Ethernet Switch
The ME 6524 switch will now be offering Cisco IOS Software Modularity as a feature set with Cisco IOS Native. This will be similar to the offering on the other Supervisor Engine family. The majority of the features listed in this product bulletin refers to ME 6524 systems as well.
Please visit the ME 6524 Release Notes for details on features supported on the ME 6524:
When an IEEE 802.3af Power over Ethernet (PoE) device is connected to a linecard with the Luhai-A (WS-F6K-48-AF) daughter card on the Catalyst 6500, a fast link pulse is used to detect the type of PoE device and its IEEE class. For Cisco PoE devices, Cisco Discovery Protocol (CDP) is then used to allocate the appropriate amount of power to the port on which the device is connected. For PoE devices which do not have CDP capability, maximum power (15.4W at the switch level) is allocated to the port by default.
Since the actual power drawn by the device could be lower than the power allocated to the port from the power budget, Release 12.2(33)SXH introduces the following CLI commands to override the default inline power allocation and hard code it to a lower number:
"power inline allocation initial <milli-watts>"- overrides the default power allocation
"power inline allocation initial default"-restores the default power allocation
Note: These commands have been supported in CatOS since CatOS Release 8.5(1).
Benefits
Allows optimization of power allocated to PoE devices with no CDP capability
Hardware
Power over Ethernet (PoE) daughter card WS-F6K-48-AF, Cisco Catalyst 6500 Series Switch
OSPF graceful restart functionality, as described in RFC 3623, supports nonstop forwarding enhancements to the OSPF routing protocol when a peer OSPF router restarts. An OSPF nonstop forwarding (NSF) capable router that is reloading and attempting a graceful restart originates grace link state advertisements (grace-lsas) to notify its neighbors that it will perform graceful restart within the specified amount of time. During this grace period, the neighboring OSPF routers, called helper routers, continue to announce the restarting router in their LSAs as if it were fully adjacent, as long as the network topology remains static.
Once the router comes up, it will synchronize with the neighbor router (helper router). Once it is synchronized, the router withdraws the grace-lsas from the neighbor. If network topology changes while a router is being restarted, then the entire synchronization is required between the restarted router and its neighbors.
This process ensures that the network does not notice any changes when a router is being restarted. During this period, the traffic is being forwarded appropriately throughout the network.
Benefits
Non stop forwarding during a router restart: by limiting the knowledge of a router restart to only immediate neighbors in a network, the entire network continues to be fully functional and forwards the traffic appropriately.
Improved network reliability: When a router restarts, it quickly converges with only its neighbors without disrupting the network. This quick convergence allows minimal to no impact on services.
Reliable Static Routing Backup Using Object Tracking
The Reliable Static Routing Backup Using Object Tracking feature introduces the ability for Cisco IOS Software to use Internet Control Message Protocol (ICMP) pings to identify when a Point-to-Point over Ethernet (PPPoE) or IP Security Protocol (IPsec) Virtual Private Network (VPN) tunnel goes down, allowing the initiation of a backup connection from any alternative port. The Reliable Static Routing Backup Using Object Tracking feature is compatible with both preconfigured static routes and Dynamic Host Configuration Protocol (DHCP) configurations.
Benefits
PPPoE and IPsec VPN deployments provide cost-effective and secure Internet-based solutions that can replace traditional dialup and Frame Relay circuits.
• Simplicity: The Reliable Static Routing Backup Using Object Tracking feature can determine the state of the primary connection without enabling a dynamic routing protocol.
• Reliability: The Reliable Static Routing Backup Using Object Tracking feature introduces a reliable backup solution for PPPoE and IPsec VPN deployments, allowing these solutions to be used for critical circuits that must not go down without a backup circuit automatically engaging.
OSPF area transit capability (RFC 2328) provides the ability for an OSPF area to carry data traffic that neither originates nor terminates in the OSPF area itself.
Benefits
Enables an OSPF Area Border Router (ABR) to discover shorter paths through the transit area and forward traffic along those paths rather than using the virtual link or path, which are not as optimal.
Considerations
This feature supports RFC 2328 OSPF Version 2 only.
The Enhanced Interior Gateway Routing Protocol (EIGRP) Route Map Support feature enables EIGRP to interoperate with other protocols by filtering inbound and outbound traffic based on complex route map options. EIGRP can process a permitted set and match parameters supplied by a route-map facility and extend filtering on an added EIGRP-specific set and match choices.
Benefits
• Flexibility: Allows complex inbound and outbound filtering with other routing protocols.
• Robustness: Enables the ability to match clauses based on entire source routing protocol or external routing protocol metrics or range of metrics.
BGP Multicast Inter-Autonomous System (IAS) VPN Support
The BGP Multicast Inter-AS (IAS) VPN feature introduces the IPv4 Multicast Distribution Tree (MDT) Sub-Address Family Identifier (SAFI) in Border Gateway Protocol (BGP). The MDT SAFI is a transitive multicast capable connector attribute that is defined as an IPv4 address family in BGP. The MDT SAFI is designed to support inter-autonomous system (inter-AS) Virtual Private Network (VPN) peering sessions.
Benefits
Enables multicast sessions across inter-AS VPNs: By allowing multicast distribution tree information exchange across inter-AS VPNs, one multicast receiver from one AS VPN can join another AS VPN.
Border Gateway Protocol (BGP) Support for Dual Autonomous System Configuration for Network Autonomous System Migrations
When a Service Provider merges its Autonomous System (AS) with another (for example, via business acquisition), this features provides for a seamless way to transition the customers over to the new AS. This transition involves two integrated feature components:
• Maintaining the TCP session with the customer's router independent of AS.
• Modifying the inbound and outbound as-path lists so that this transition to a new AS is as transparent to the customer as possible.
Benefits
Enables the network to provide an easier transition for customers from one of their AS numbers to another during the transition phase. Customers can change the Service Provider AS number in their configurations at their convenience.
Border Gateway Protocol Support for IP Prefix Import from Global Table into Virtual Routing and Forwarding Table
This feature allows customers to specify which specific prefixes from the global routing table are to be imported into a VPN routing and forwarding table (VRF).
Hardware
Routers
Cisco 800, 1700, 1800, 2600XM, 2800, 3600, 3700, 3800, 7200, and 7600 Series Routers
Border Gateway Protocol Support for Named Extended Community Lists
Border Gateway Protocol (BGP) uses extended community lists to apply policies to groups of prefixes to distinguish routing paths. This enhancement introduces support for named extended community lists. Previously, extended community lists could only be numbered and were limited to a few hundred entries.
Benefits
• Improves customer's ability to manage and troubleshoot BGP policies by using name strings for extended community lists instead of numerical values.
• No inherent limit on the number of named extended community lists, provided that they are uniquely named.
Border Gateway Protocol Support for Next-Hop Address Tracking
Border Gateway Protocol (BGP) Next-Hop Address Tracking allows BGP to converge quickly when a path to next-hop address changes. BGP speaker A learns routes from another BGP speaker B while the next-hop address for routes may be different from BGP speaker B. By tracking the next-hop address, BGP speaker A converges all routes associated with the next-hop addressed by speaker B very quickly.
An address-tracking filter mechanism is used to filter notifications to the routing information base. This mechanism allows for new path selection to begin as soon as the notification regarding the change in reachability state of the next hop occurs. This results in much faster convergence of traffic to a new path and less impact to traffic flows. All of these facts mean faster convergence, leading to improved reliability of the network for users.
Figure 7. Next-Hop Tracking Speeds Convergence
As illustrated in Figure 7 above, BGP Next-Hop Tracking will trigger the BGP scanner at PE-1 to run immediately on Interior Gateway Protocol (IGP) convergence, so the route through PE-3 will handle traffic upon failure to PE-2.
Benefits
• Minimal impact to data forwarding: By converging all routes associated with a next-hop, the BGP router forwards the data along the right path to the final destination.
• Improved network reliability: By quickly converging and keeping the latest routes, the impact on services is minimal.
Hardware
Routers
Cisco 7200, 7300, 7500, 7600, and 10000 Series Routers
BGP Support for TCP Path MTU Discovery per Session
BGP support for TCP path MTU discovery per session between two BGP speakers allows a BGP speaker to discover the maximum update size that the speaker should use to communicate with the other speaker. This will avoid fragmentation by any node in the network, and reassembly of fragments by a BGP speaker. The fragmentation and reassembly leads to delay in processing a message. By avoiding fragmentation and reassembly, BGP can avoid the delay in processing of messages and process updates quickly. This will lead to faster convergence of routes and improved performance of the network.
Benefits
• Minimal impact to data forwarding: By using appropriate packet sizes for updates, BGP speakers can converge routes quickly and forward the data along the right path to the final destination.
• Improved router performance: By avoiding reassembly of packets of a single update, a BGP speaker can avoid unnecessary CPU utilization.
The Suppress BGP Advertisement for Inactive Routes feature allows BGP updates to be more consistent with routes used for data forwarding. When BGP learns a new route and selects the route as the best, it tries to insert it into the local routing table. The route may not be inserted into the routing table for many reasons ie: routing table may have a size limit imposed by an administrator or if the routing table already has a better router via static, then it does not install this route. With this feature, BGP does not advertise this route unless the nexthop is the same. This feature ensures that a BGP speaker does not advertise routes to other peers unless the BGP speaker uses the route in its data forwarding.
Benefits
• Consistent Routing and Forwarding: By suppressing inactive routes, BGP speakers advertise routes that are used for forwarding purposes which ensures routing and forwarding are consistent with each other.
• Easier to Debug Network Issues: This feature does not advertise any inactive routes, users can use BGP routes and corresponding routing tables for debugging purposes and be certain that the forwarding table reflects the routing table.
Per-VRF BGP Router-ID enables a BGP speaker in one VRF to establish connection to itself via another VRF. This allows the exchange of routes between VRF-BGP speakers while they are able to use all the features and flexibility of the BGP.
Benefits
Flexible Redistribution of Routes Between VRFs: Using this feature, BGP can establish connection to itself via two VRFs and redistribute routes between these two VRFs. Users can configure all features available to control distribution of routes from one VRF to other VRF.
The BGP Dynamic Neighbors feature simplifies the configuration to allow connections from a large number of neighbors. Currently, BGP speaker A accepts a connection from another BGP speaker B only if the user configures neighbor information about speaker B. If there are a large number of neighbors, this approach requires the user to configure information about every neighbor. This feature allows users to configure a range of IP addresses and AS numbers that a BGP speaker should accept connections from. A BGP speaker accepts a connection request from a neighbor only if the neighbor's IP address and AS number belongs to the configured IP address range and AS numbers.
Benefits
• Ease of Use and Simplified Configuration: By allowing an IP address range and AS numbers, the user does not have to configure each neighbors information at a speaker. It simplifies configuration to allow BGP sessions among a large number of BGP speakers.
• Improved Security and Flexible Configuration: This features provides flexibility in configuring multiple IP address ranges and assigning different sets of properties for each range. In addition, it provides better security by accepting connections from only configured IP address ranges instead of accepting connections from everyone.
• Improved Router Performance: BGP relies on TCP to listen and accept connections from neighbors. By listening to an IP address range instead of each individual IP address, BGP avoids unnecessary CPU utilization.
Cisco Optimized Edge Routing (OER) automates routing in order to optimize network performance. In addition, Cisco OER allows customers to minimize both bandwidth costs and operational expenses. Cisco OER can select the best path based upon cost minimization, load distribution policy, and overall network performance.
Cisco OER enables intelligent network traffic load distribution and dynamic failure detection of data-paths at the WAN edge (ie: multi-homing to the Internet or for intranet connectivity). While traditional routing mechanisms can provide both load-sharing and failure mitigation, Cisco OER is unique in that it can make adaptive and dynamic routing adjustments based on criteria other than static routing metrics: response time, packet loss, jitter, MOS, path availability, traffic load distribution, and financial cost minimization policies.
Cisco OER is implemented in Cisco IOS Software as an integrated part of Cisco core routing functionality. It can be deployed with familiar simplicity via standard CLI configuration. Cisco OER offers increased Cisco product value and differentiation by leveraging various Cisco IOS Software features (such as Cisco IOS NetFlow and Cisco IOS IP SLAs) and cross product integration to support multiple hardware products and routing protocols.
Figure 8. Cisco OER Deployment Example
Table 9. Cisco OER Benefits
Features
Benefits
Automatic Performance, Cost Minimization, and Policy-Based Load Distribution
Instant routing adjustments based on performance, path availability, load share, Jitter, MOS or monetary cost measurements and business objectives.
Multiple Router Support
Delivers advanced networking capabilities and investment protection on many Cisco IOS Software based hardware products.
Multiple Routing Protocol Support
Delivers advanced networking capabilities and investment protection by integrating with IP core routing (ie: BGP, static routes, PBR) and network characterization features.
Internet and WAN Edge Traffic Optimization
Improve Internet and WAN edge traffic performance for content/application providers' customers.
Passive and Active Measurements
• Delivers advanced networking capabilities and investment protection by integrating with existing Cisco IOS Software features, such as Cisco IOS NetFlow and Cisco IOS IPSLA.
• NetFlow passive measurements minimize active probing.
Control and Observation Modes for Different Prefixes
Allows non-disruptive observation of the behavior of OER before controlling prefixes.
Support Multiple Link Billing Models
Provides flexibility for bandwidth cost minimization and ISP selection.
CLI Configuration and Reporting on Cisco IOS Software Based Hardware Products
Provides consistent Cisco IOS CLI which leverages the existing CLI knowledge of IT staff.
Cisco IOS Software Modularity Support for IPv6 Routing Protocols (RIPng, OSPFv3)
Prior to Release 12.2(33)SXH, all IPv6 features were part of the ios-base within the software modular software image. Starting with Release 12.2(33)SXH, IPv6 RIPng and OSPFv3 have been moved into the "iprouting" process which allows these processes to be restarted to attain high availability.
The following IPv6 components will still continue to reside in the ios-base process:
Multicast VPN (MVPN) technology is a method to dynamically provide multicast information across an MPLS enabled network. It is simple to set up, highly scalable, and has minimal administrative overhead. The MVPN architecture introduces an additional set of protocols and procedures that help enable services to support multicast traffic in a VPN. It allows for the transport of a customer's IP Multicast traffic across a customer's VPN backbone, and it is integrated transparently with the Cisco IOS Unicast MPLS VPN solution. It allows a service provider to offer multicast services to its VPN customers, in addition to its current Unicast VPN offering. The capability allows transparent connection of multiple multicast sites to be mapped and transported across common multicast tree's built across the MPLS core network.
The Inter-Autonomous System (Inter-AS) feature allows two provider-edge routers to communicate with MVPN across autonomous systems. Support for the Multicast VPN feature can be configured on a VRF router, to enable forwarding of Multicast VPN traffic from one site of a VPN Red in Autonomous System 1 to another site of the VPN Red in Autonomous System 2. Using the Multicast Distribution Tree (MDT) autonomous system, provider-edge routers in different autonomous systems are able to learn about each others' existence and join each other. As defined in the IETF standards, all three options for Inter-AS MPLS VPN are supported with the Inter-AS MVPN. (See Figure 9 below).
The Reverse Path Forwarding (RPF) vector is needed for Inter-AS to function properly and allows devices in different AS's to be aware or find the origin of a route used for the RPF check. This is done by adding additional information in the PIM join packet, the intermediate routers are able to select a RPF interface by doing a direct lookup in a special BGP MDT table. The BGP MDT table is used only to set up the MDT tunnel. It is not used for the VPN traffic encapsulated in the MDT tunnel. For intermediate routers that do not run BGP, the RPF vector is used to find the RPF interface.

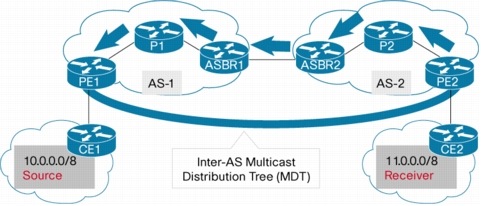

Figure 9. Diagram of MVPN Inter-AS: PIM Join sent from PE1 across AS's to PE1
Benefits
• Scalable and efficient method to transport and replicate customer multicast information across multiple BGP AS's in an Inter-AS Layer 3 MPLS VPN network
• Efficient support of all 3 inter-AS connection options:
– Back to Back ASBR PE's
– ASBR's exchanging VPNv4 routes
– VPNv4 Routes via Multi-Hop MP-eBGP
• Integrated transparently with unicast MPLS VPN services
A new capability to allow extranet capabilities in MVPN is now available. Extranet allows VPN closed user groups to share information and common multicast information to be distributed across multiple VPN customers.
An extranet can be viewed as part of a company's intranet that is extended to users outside the company. An extranet is a VPN connecting the corporate site or sites to external business partners or suppliers, to securely share part of a business's information or operations among them. MPLS VPNs inherently provide security, ensuring that users access only appropriate information. The MPLS VPN Extranet service offers users unicast connectivity without comprising the integrity of their corporate data. Multicast VPN Extranet extends this service offering to include multicast connectivity to the extranet community of interest. It allows Service Providers to offer the next generation of flexible extranet services, helping to enable business partnerships between different Enterprises.
As shown in Figure 10 below, the Multicast VPN Extranet feature allows network providers to source multicast content from VPN Green into VPN Red.
Figure 10. Topology of Two Multicast VPN Extranet Use Case
Benefits
• Scalable and efficient method to transport and replicate customer multicast information across an MPLS network between different VPN's
• Extranet MVPN solves these business needs:
– Efficient content distribution between Enterprises
– Efficient sharing of multicast resources with external or business partners
– Efficient content distribution from Service Providers or content provider to its different VPN customers
• Integrated transparently with unicast MPLS VPN services
Cisco is an established leader in multicast technology and supports multicast for IPv6, MPLS, IPv4 and VPN network environments. A series of features have recently been released to enhance IPv6 Multicast deployments.
Table 10. New Multicast IPv6 Features in Release 12.2(33)SXH
Feature Name
Functionality
Bootstrap Router (BSR)
Cisco has added Bootstrap Router (BSR) for Rendezvous Point (RP) information distribution. BSR is a standard method for RP information distribution in a multicast domain.
MLD Access Group
MLD access group allows Cisco edge routers to explicitly track Source and Group (S,G) joins and filters based on source or source and group pairs. Access lists are combined to permit and deny access to sources and groups in the network (see Figure 11 below).
Explicit Tracking of Receivers
The router can explicitly track the behavior of multicast hosts in the network and enable the fast leave when using MLDv2. If a group is no longer needed by the hosts it will be immediately removed from the MLD cache. This feature is applicable for fast channel change in an IPTV provided service.
PIM Accept Register
Filtering is now available at the RP for source register messages.
PIM Embedded RP
When enabled, the router will look for embedded RP group addresses in MLD reports/PIM messages and data packets. The router will learn the RP for the group from the address itself. It will then use this learned RP for all protocol activity for the group.
Routable Address Hello Option
This feature implements the hello option to advertise the routable addresses of an interface. These addresses are used by neighboring routers in RPF checks to map a routable address.
RPF Flooding of Bootstrap Router (BSR) Packets
This feature adds support for RPF flooding BSR packets. The router will do an RPF check for the BSR address and forward the packet only if it is received on the RPF interface.
Static Multicast Routing (mroute) for IPv6
Static routing is very useful in multicast environments to build multicast trees on specific interfaces not considered optimal by unicast routing. This feature brings support for IPv6 static multicast routing.

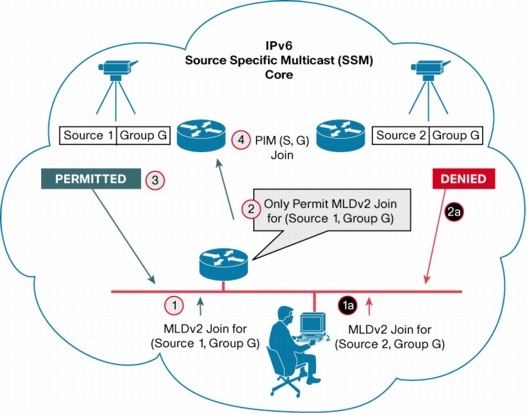

Figure 11. MLD Access Group Example
Benefits
• Enhanced features for IPv6 multicast deployments
Protocol Independent Multicast (PIM) sparse mode requires a Rendezvous Point (RP) to build multicast trees and forward traffic from multicast sources to receivers in the network. RP's are used by senders to a multicast group to announce their existence and by receivers of multicast packets to learn about new senders. There are various methods for distributing RP information in Cisco routers including static RP configuration, Auto-RP and Boot Strap Router (BSR). Many customers choose Cisco proprietary technology Auto-RP to distribute RP information. Auto-RP uses multicast groups to distribute RP information to devices in the network and the RP information is cached in the devices RP mapping cache. If the RP information is not available and the RP mapping cache is empty, then PIM Dense Mode will be enabled automatically to make sure the multicast information is flooded in the network. This behavior is called Dense Mode Fallback and is enabled by default. A new configuration command "no dense mode fallback" has been introduced to allow the router to continue operation in sparse mode.
Benefits
• Allow the user to enable or disable fallback to dense mode functionality
• Allow the user to block multicast traffic for groups not specifically configured. When a group is not specifically configured (that is, there is no RP for that group), multicast traffic does not flow across the network.
Source Specific Multicast (SSM) utilizes Source and Group (S,G) pairs to build multicast trees and forward traffic in the network. In general, SSM is used for one to many multicast applications and does not require Rendezvous Point (RP) in the network. SSM works with Internet Group Membership Protocol Version 3 (IGMPv3) reports that contain (S,G) information to build multicast trees to the source.
Cisco IOS Software now supports access lists that can specifically block an (S,G) pair being signaled by IGMPv3. This feature enables greater security for multicast SSM deployments. Prior to this feature, an IGMP access list accepted only a standard access list, allowing membership reports to be filtered based on a multicast group address. Using SSM with an IGMP extended Access Control List (ACL) allows you to permit or deny source S and group G (S,G) in IGMPv3 reports, thereby filtering SSM traffic based on source address and/or group address.
Figure 12. IPv4 Extended ACL for IGMP to Support SSM Topology Example
Benefits
• Added security for SSM deployments with IGMPv3
• Control of the multicast state in the network using enhanced IGMP filtering
• Utilize enhanced filtering to permit or deny specific source(s) or source and group pair(s)
IP Multicast Route Standard MIB (IPMROUTE-STD-MIB)
Cisco offers extensive support for multicast network management to understand how multicast is performing and operating in the network. Cisco also offers applications such as Cisco Multicast Manager (CMM) to read the Simple Network Management Protocol (SNMP) MIB data and present this to customers in tables and graphs.
Cisco historically supported a proprietary MIB to understand the multicast forwarding state in the network, the CISCO-IPMROUTE-MIB. Cisco has just introduced the IETF standard version of the IP MROUTE MIB for customers (IPMROUTE-STD-MIB). The new MIB allows users to understand the number of multicast routes available in the routing table, the byte count per multicast route or the byte count per interface per multicast route. This information is essential to understand how multicast is performing and operating in the network.
Benefits
• Enhanced network management to understand multicast performance and operation
• Specific support to understand the number of multicast routes and the amount of traffic forward per multicast route entry
Cisco offers extensive support for multicast network management to understand how multicast is performing and operating in the network. Cisco also offers applications such as Cisco Multicast Manager (CMM) to read the SNMP MIB data and present this to customers in tables and graphs.
Multicast Virtual Private Network (MVPN) allows a Service Provider to support IP multicast traffic over a Multiprotocol Label Switching (MPLS) VPN network by using a unique multicast domain that has sources and receivers located in different sites. The Multicast VPN MIB (CISCO-MVPN-MIB_ introduces the capability for Simple Network Management Protocol (SNMP) monitoring of an MVPN. The MVPN MIB allows the user to understand the details of a multicast VPN deployment with external network management applications.
Table 11. Detailed Information About New Capabilities Introduced with the MVPN MIB
Capabilities
• Determine the number of multicast VRF's and the number of multicast enabled interfaces
• Determine the multicast distribution tree groups joined and addresses allocated
• Information on multicast distribution tree tunnels being utilized
• Changes in creation and deletion of multicast VRF's on the PE device
Benefits
• Enhanced network management to understand multicast performance and operation of multicast VPN
• Extensive information to understand the usage of multicast groups and VRF's in the MPLS network
Multicast Source Distribution Protocol (MSDP) Compliance with IETF RFC 3618
Multicast Source Distribution Protocol (MSDP) is used to signal multicast source information between multicast domains or between multicast RP's when using anycast RP for RP redundancy. MSDP allows multicast sources for a group to be known to all Rendezvous Points (RPs) in different domains. Each PIM-SM domain uses its own RPs and does not depend on RPs in other domains. An RP runs MSDP over the Transmission Control Protocol (TCP) to discover multicast sources in other domains.
The MSDP compliance with the IETF RFC 3618 feature enables you to configure compliance with the Internet Engineering Task Force (IETF) RFC 3618 specifications for MSDP. Compliance provides the following benefits:
• Border Gateway Protocol (BGP) route reflectors without running MSDP.
• Interior Gateway Protocol (IGP) for the Reverse Path Forwarding (RPF) checks and thereby run peering without BGP or Multiprotocol BGP (MBGP).
• Peering between routers in non-directly connected autonomous systems (that is, with one or more autonomous systems between them). This capability helps in confederation configurations and for redundancy.
Multicast high availability is a critical feature for customers requiring minimal network downtime for multicast traffic. Triggered PIM Joins is a new enhancement to the Cisco multicast high availability portfolio. Triggered PIM Joins protects the multicast state and prevents temporary black outs of multicast traffic upon supervisor failover. The use of a special PIM hello notifies PIM neighbors to trigger the refresh of multicast state in the router with supervisor failure. The triggered event of multicast routing and neighbor information minimizes outage time.

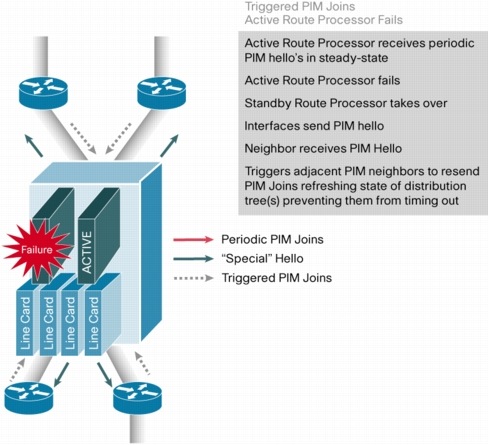

Figure 13. Triggered PIM Joins Functionality
Benefits
• Protection of multicast routing state using a new triggered mechanism
• Reduced downtime and the elimination of multicast traffic black holing during supervisor failure
Prior to this feature, any Layer 2 port switchport on a Catalyst 6500 Series Switch could accept multicast control packets and allow PIM adjacency with a neighboring router.
With this feature in Release 12.2(33)SXH, customers can prevent unauthorized devices from becoming multicast routers, which can disrupt multicast traffic flow. This feature enables all Layer 2 ports within the switch to become "multicast" host ports which are capable of discarding multicast control packets such as IGMP query, PIM hello, IPv4 PIMv2, DVMRP, RGMP, and CGMP messages.

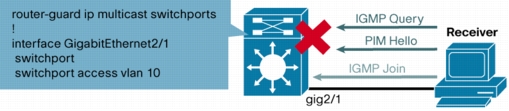

By discarding these packets, a particular interface cannot participate as a multicast router port and does not allow PIM adjacency to be established with neighboring routers. This feature can be enabled globally and can be disabled at any switchport interface level.
This feature is typically deployed on the Layer 2 ports of the access layer of a multi-tier network topology (see Figure 14).
In the current IGMP implementations, the customer does not have any concrete method of limiting IGMP joins in terms of version, limiting the number of IGMP groups, etc. With these new features in Release 12.2(33)SXH, the customer can now administratively filter and provide access control to the IGMP joins received on the switch interface.
The IGMP Filtering feature in Release 12.2(33)SXH allows the customer to administratively control multicast stream delivery within their networks. This feature works only in conjunction with the following IGMP snooping features to help control multicast traffic within the network:
• IGMP snooping Access Control: This feature enables customers to have more granular control of the multicast streams that can be allowed on a switch port or a VLAN by using either standard (group) or extended (source and group) access control lists. It also limits an interface to specific group membership or channel membership.
• Number of IGMP Groups/Channels Limit: The IGMP Snooping Group/Channel helps prevent oversubscription or bandwidth hogging by individual users and limits the number of IGMP groups or channels a single port can subscribe to.
• IGMP Protocol Minimum-Version: The IGMP snooping minimum protocol version helps prevent use of undesired IGMP versions in multicast network and enforces a minimum protocol version for IGMP hosts on VLAN. This can be applied to membership reports only and the configuration is allowed on the SVI only.
These features also provide additional security and control to routers by preventing undesired multicast streams from launching a denial of service attack. These features can be configured on either of the following interfaces.
• Per-SVI: Provides a default filter for all access switch ports in VLAN. For L2 only VLAN, SVI must exist but can be shut.
• Per-L2-switchport: Overrides any default SVI filter. On trunk, applies to all VLANs on trunk, overriding SVI filters
• Per-VLAN on L2 trunk port: Overrides any configured switch port filter for that VLAN
Deployment Scenarios
These features are applicable in multicast networks at the access layer switches in case of a Layer 3 access Layer. If the access-layer is layer 2, then only the per-L2-switchport and L2 trunk port configuration is applicable. In this case, these features need to be configured on the Distribution switches to allow control of the multicast streams (see Figure 15).
Figure 15. IGMP Filtering and Snooping Deployment Scenario
Cisco IOS Software Modularity Support for MPLS Control Plane Components
Prior to Release 12.2(33)SXH, all MPLS features were part of the ios-based within the software modular software image. Starting with Release 12.2(33)SXH, the following software components for MPLS have been moved into the "iprouting" process which allow these processes to be restarted to attain high availability:
• L3 VPN control plane components (BGP MPLS/VRF related code)
The following MPLS components will still continue to reside in the ios-base process:
There are ten new MPLS Traffic Engineering (TE) features and enhancements in Cisco IOS Software Release 12.2(33)SXH:
1. MPLS Traffic Engineering (TE): AutoTunnel Primary and Backup
The MPLS Traffic Engineering (TE): AutoTunnel Primary and Backup feature enables a router to dynamically build backup tunnels and to dynamically create one-hop primary tunnels on all interfaces that have been configured with Multiprotocol Label Switching (MPLS) Traffic Engineering (TE) tunnels. This support consists of the following features:
• Backup AutoTunnel: Enables a router to dynamically build backup tunnels.
• Primary One-Hop AutoTunnel: Enables a router to dynamically create one-hop primary tunnels on all interfaces that have been configured with MPLS TE tunnels.
If no backup tunnels exist, the following types of backup tunnels are created:
• Next hop (NHOP)
• Next-next hop (NNHOP)
Benefits
• Backup tunnels are built automatically, eliminating the need for users to preconfigure each backup tunnel and then assign the backup tunnel to the protected interface.
• The dynamic creation of one-hop primary tunnels eliminates the need to configure an MPLS TE tunnel with the Fast Reroute (FRR) option for the tunnel to be protected.
• Protection is expanded; FRR does not protect IP traffic that is not using the TE tunnel or Label Distribution Protocol (LDP) labels that are not using the TE tunnel.
The MPLS Traffic Engineering (TE): Class-based Tunnel Selection feature enables you to dynamically route and forward traffic with different Class of Service (CoS) values onto different TE tunnels between the same tunnel headend and the same tailend. The TE tunnels can be regular TE or DiffServ-aware TE (DS-TE) tunnels.
The set of TE (or DS-TE) tunnels from the same headend to the same tailend that you configure to carry different CoS values is referred to as a "tunnel bundle." After configuration, CBTS dynamically routes and forwards each packet into the tunnel that:
• Is configured to carry the CoS of the packet
• Has the right headend for the destination of the packet
Benefits
• Because Class-Based Tunnel Selection (CBTS) offers dynamic routing over DS-TE tunnels and requires minimum configuration, it greatly eases deployment of DS-TE in large-scale networks.
• CBTS can distribute all CoS values on eight different tunnels
• CBTS also allows the TE tunnels of a tunnel bundle to exit headend routers through different interfaces.
Inter-AS Traffic Engineering allows Service Providers to traffic engineer between networks and regions, this feature was previously not available. It involves the configuration of a single tunnel at the headend, as opposed to switching tunnels across each area that must be crossed, enabling Service Providers to deliver more robust, resilient and scalable networks.
The MPLS TE Inter-AS feature in Cisco IOS Software Release 12.2(33)SXH provides Autonomous System Boundary Router (ASBR) node protection, loose path reoptimization, Stateful Switchover (SSO) recovery of Label-Switched Paths (LSPs) that include loose hops, ASBR forced link flooding, Cisco IOS Resource Reservation Protocol (RSVP) local policy extensions for Inter Autonomous System (Inter-AS), and per-neighbor keys.
Benefits
• ASBR node protection: Protects interarea and Inter-AS TE Label-Switched Paths (LSPs) from the failure of an Area Border Router (ABR) or ASBR.
• Loose path reoptimization: Allows a Multiprotocol Label Switching (MPLS) Traffic Engineering (TE) tunnel's LSPs to traverse hops that are not in the tunnel headend router's topology database (that is, they are not in the same Open Shortest Path First (OSPF) area, Intermediate System-to-Intermediate System (IS-IS) level, or autonomous system as the tunnel's head-end router).
• Loose hop recovery: Supports SSO recovery of LSPs that include loose hops.
• ASBR forced link flooding: Helps an LSP cross a boundary into another domain when information in the other domain is not available to the headend router.
• Cisco IOS RSVP local policy extensions for Inter-AS: Allows network administrators to create controlled policies for TE tunnels that function across multiple autonomous systems.
• Per-neighbor keys: Allows cryptographic authentication to be accomplished on a per-neighbor basis.
4. MPLS Traffic Engineering (TE): Fast Reroute (FRR) Link and Node Protection
The MPLS Traffic Engineering (TE): Fast Reroute (FRR) Link and Node Protection feature provides link protection (backup tunnels that bypass only a single link of the Label-Switched Path (LSP), node protection (backup tunnels that bypass next-hop nodes along LSPs), and the following FRR capabilities:
• Backup tunnel support
• Backup bandwidth protection
• Resource Reservation Protocol (RSVP) Hellos
Fast Reroute (FRR) is a mechanism for protecting MPLS Traffic Engineering (TE) Label-Switched Paths (LSPs) from link and node failures by locally repairing the LSPs at the point of failure, allowing data to continue to flow on them while their headend routers attempt to establish new end-to-end LSPs to replace them. FRR locally repairs the protected LSPs by rerouting them over backup tunnels that bypass failed links or nodes.
Backup tunnels that bypass only a single link of the LSP's path provide Link Protection. They protect LSPs if a link along their path fails by rerouting the LSP's traffic to the next hop (bypassing the failed link). These are referred to as Next-Hop (NHOP) backup tunnels because they terminate at the LSP's next hop beyond the point of failure. Figure 16 illustrates a next-hop backup tunnel.

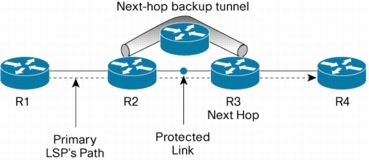

Figure 16. Next-Hop Backup Tunnel
FRR provides Node Protection for LSPs. Backup tunnels that bypass next-hop nodes along LSP paths are called Next-Next-Hop (NNH) backup tunnels because they terminate at the node following the next-hop node of the LSP paths, thereby bypassing the next-hop node. They protect LSPs if a node along their path fails by enabling the node upstream of the failure to reroute the LSPs and their traffic around the failed node to the next-next hop. FRR supports the use of RSVP Hellos to accelerate the detection of node failures. Next-Next Hop (NNHOP) backup tunnels also provide protection from link failures, because they bypass the failed link as well as the node. Figure 17 illustrates a next-next hop backup tunnel.

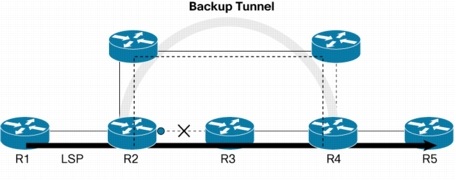

Figure 17. Next-Next Hop Backup Tunnel
If an LSP is using a backup tunnel and something changes so that the LSP is no longer appropriate for the backup tunnel, the LSP is torn down. Such changes include the following:
• Backup bandwidth of the backup tunnel is reduced.
• Backup bandwidth type of backup tunnel is changed to a type that is incompatible with the primary LSP.
• Primary LSP is modified so that Fast ReRoute is disabled. (The no mpls traffic-eng fast-reroute command is entered)
The Fast Reroute enhancements include the following:
• Backup tunnel support: Backup tunnels can terminate at the next-next hop to support FRR.
• Multiple backup tunnels: There no longer is a limit (except memory limitations) to the number of backup tunnels that can protect a given interface. In many topologies, support for Node Protection requires supporting multiple backup tunnels per protected interface. These backup tunnels can terminate at the same destination or at different destinations. That is, for a given protected interface, you can configure multiple NHOP or NNHOP backup tunnels. This allows for redundancy and load balancing.
• Bandwidth protection on backup tunnels: NHOP and NNHOP backup tunnels can be used to provide bandwidth protection for rerouted LSPs. This is referred to as backup-bandwidth. You can associate backup-bandwidth with NHOP or NNHOP backup tunnels. This informs the router of the amount of backup-bandwidth a particular backup tunnel can protect. When a router maps LSPs to backup tunnels, bandwidth protection ensures that an LSP uses a given backup tunnel only if there is sufficient backup-bandwidth. The router selects which LSPs use which backup tunnels in order to provide maximum bandwidth protection. That is, the router determines the best way to map LSPs onto backup tunnels in order to maximize the number of LSPs that can be protected.
• Bandwidth pool restrictions for backup tunnels: You can restrict the types of LSPs that can use a given backup tunnel. Backup tunnels can be restricted so that only LSPs using sub-pool bandwidth can use them or only LSPs that use global-pool bandwidth can use them. This allows different backup tunnels to be used for voice and data. Example: The backup tunnel used for voice could provide bandwidth protection, and the backup tunnel used for data could (optionally) not provide bandwidth protection.
• Semi-dynamic backup tunnel paths: The path of a backup tunnel can be configured to be determined dynamically. This can be done by using the IP explicit address exclusion feature (this feature was introduced in Release 12.0(14)ST). Using this feature, semi-dynamic NHOP backup tunnel paths can be specified simply by excluding the protected link; semi-dynamic NNHOP backup tunnel paths can be configured simply by excluding the protected node.
• RSVP Hello: RSVP Hello enables RSVP nodes to detect when a neighboring node is not reachable. This feature is useful when next-hop node failure is not detectable by link layer mechanisms, or when notification of link-layer failures is not available (for example, Gigabit Ethernet).
Benefits
• Node Protection: Backup tunnels that terminate at the next-next hop protect both the downstream link and node. This provides protection for link and node failures.
• Multiple Backup Tunnels Can Protect the Same Interface: In addition to being required for Node Protection, this enhancement provides the following benefits:
– Redundancy: If one backup tunnel is down, other backup tunnels protect LSPs.
– Increased backup capacity: If the protected interface is a high-capacity link and no single backup path exists with an equal capacity, multiple backup tunnels can protect that one high-capacity link. The LSPs using this link will fail over to different backup tunnels, allowing all of the LSPs to have adequate bandwidth protection during failure (rerouting). If bandwidth protection is not desired, the router spreads LSPs across all available backup tunnels (that is, there is load balancing across backup tunnels).
• Bandwidth Protection: Rerouted LSPs not only have their packets delivered during a failure, but the quality of service can also be maintained.
• Scalability: A backup tunnel can protect multiple LSPs. Furthermore, a backup tunnel can protect multiple interfaces. This is called many-to-one (N:1) protection. N:1 protection has significant scalability advantages over one-to-one (1:1) protection, where a separate backup tunnel must be used for each LSP needing protection. N:1 protection is not new with Node Protection; it existed with Link Protection.
– Example of 1:1 protection: When 5,000 backup tunnels protect 5,000 LSPs, each router along the backup path must maintain state for an additional 5,000 tunnels.
– Example of N:1 protection: When one backup tunnel protects 5,000 LSPs, each router along the backup path maintains one additional tunnel.
• RSVP Hello: RSVP Hello allows a router to detect when its neighbor has gone down but its interface to that neighbor is still operational. When Layer 2 link protocols are unable to detect that the neighbor is unreachable, Hellos provide the detection mechanism; this allows the router to switch LSPs onto its backup tunnels and avoid packet loss.
5. Fast Reroute (FRR) Prefix Independence: The MPLS Fast Reroute Prefix Independence feature is a mechanism which makes Fast Reroute failover time independent of the number of prefixes/routes, and Layer 2 VPN and VPLS Virtual Circuits with Fast Reroute protection.
6. MPLS Traffic Engineering: Label Switched Path (LSP) Attributes: The MPLS Traffic Engineering LSP Attributes feature is an extension to Multiprotocol Label switching (MPLS) Traffic Engineering (TE) that allows for a flexible configuration of attributes for path options associated with MPLS TE tunnels. LSP Attributes provide an LSP Attribute List feature and a Path Option for Bandwidth Override feature. Several LSP attributes can be applied to path options for TE tunnels using an LSP attribute list. If bandwidth is the only LSP attribute you require, then you can configure a path option for bandwidth override.
Benefits
• LSP Attribute Lists provide an ability to configure values for several LSP-specific path options for TE tunnels.
• One or more TE tunnels can specify specific path options by referencing an LSP attribute list.
• LSP Attribute Lists make the MPLS TE user interface more flexible, easier to use, and easier to extend and maintain.
• Path Option for Bandwidth Override provides a single command that allows a TE tunnel to fall back temporarily to path options that can reduce bandwidth constraints.
7. MPLS Traffic Engineering Verbatim Path Support: This feature allows network nodes to support Resource Reservation Protocol (RSVP) extensions without supporting Interior Gateway Protocol (IGP) extensions for Traffic Engineering (TE), thereby bypassing the topology database verification process.
MPLS TE LSPs usually require that all the nodes in the network are TE aware, meaning they have IGP extensions to TE in place. However, some network administrators want the ability to build TE LSPs to traverse nodes that do not support IGP extensions to TE, but that do support RSVP extensions to TE.
Verbatim LSPs are helpful when all or some of the intermediate nodes in a network do not support IGP extensions for TE.
When this feature is enabled, the IP explicit path is not checked against the TE topology database. Since the TE topology database is not verified, a Path message with IP explicit path information is routed using the Shortest Path First (SPF) algorithm for IP routing.
8. MPLS Traffic Engineering Autotunnel Mesh Groups: MPLS Traffic Engineering AutoTunnel Mesh Groups (referred to as mesh groups) allow a network administrator to configure Traffic Engineering (TE) Label-Switched Paths (LSPs) by using a few Command-Line Interface (CLI) commands.
In a network topology where edge TE Label Switch Routers (LSRs) are connected by core LSRs, the Mesh Group feature automatically constructs a mesh of TE LSPs among the Provider Edge (PE) routers.
Initially, you must configure each existing TE LSR to be a member of the mesh by using a minimal set of configuration commands. When the network grows (that is, when one or more TE LSRs are added to the network as PE routers), you do not need to reconfigure the existing TE LSR members of that mesh.
Mesh groups have the following benefits:
• Minimize the initial configuration of the network. You configure one template interface per mesh, and it propagates to all mesh tunnel interfaces, as needed.
• Minimize future configurations resulting from network growth. The feature eliminates the need to reconfigure each existing TE LSR to establish a full mesh of TE LSPs whenever a new PE router is added to the network.
• Enable existing routers to set up TE LSPs to new PE routers.
• Enable the construction of a mesh of TE LSPs among the PE routers automatically.
9. MPLS Traffic Engineering Shared Risk Link Groups (SRLG): Shared Risk Link Groups (SRLGs) refer to situations where links in a network share a common fiber (or a common physical attribute). If one link fails, other links in the group may fail too. Links in the group have a shared risk.
The MPLS Traffic Engineering Shared Risk Link Groups feature enhances backup tunnel path selection so that a backup tunnel avoids using links that are in the same SRLG as interfaces the backup tunnel is protecting.
Benefits
Backup tunnels should avoid using links in the same SRLG as interfaces they are protecting. Otherwise, when the protected link fails, the backup tunnel fails too.
Figure 18 shows a primary Label-Switched Path (LSP) from router R1 to router R5. The LSP protects against the failure of the R2-R3 link at R2 via a backup tunnel to R4. If the R2-R3 link fails, Link Protection reroutes the LSP along the backup tunnel. However, the R2-R3 link and one of the backup tunnel links are in the same SRLG. So if the R2-R3 link fails, the backup tunnel may fail too.
Figure 18. Backup Tunnel in the Same SRLG as the Interface it is Protecting
The MPLS TE SRLG feature enhances backup tunnel path selection so a backup tunnel can avoid using links that are in the same SRLG as the interfaces it is protecting.
There are two ways for a backup tunnel to avoid the SRLGs of its protected interface:
1. The router does not create the backup tunnel unless it avoids SRLGs of the protected interface.
2. The router tries to avoid SRLGs of the protected interface, but if that is not possible the router creates the backup tunnel anyway. In this case there are two explicit paths. The first explicit path tries to avoid the SRLGs of the protected interface. If that does not work, the backup tunnel uses the second path (which ignores SRLGs).
To activate the MPLS TE SRLG feature, you must do the following:
• Configure the SRLG membership of each link that has a shared risk with another link.
• Configure the routers to automatically create backup tunnels that avoid SRLGs of the protected interfaces.
OSPF and Intermediate System-to-Intermediate System (IS-IS) flood the SRLG membership information (including other TE link attributes such as bandwidth availability, affinity, and so forth) so that all routers in the network have the SRLG information for each link. With this topology information, routers can compute backup tunnel paths that exclude links having SRLGs in common with their protected interfaces. As shown in Figure 19, the backup tunnel avoids the link between R2 and R3, which shares an SRLG with the protected interface.
Figure 19. Backup Tunnel that Avoids SRLG of Protected Interface
10. NSF/SSO: MPLS TE and RSVP Graceful Restart: This feature allows a Route Processor (RP) to recover from disruption in control plane service without losing its Multiprotocol Label Switching (MPLS) forwarding state.
Cisco Nonstop Forwarding (NSF) with Stateful Switchover (SSO) provides continuous packet forwarding, even during a network processor hardware or software failure. In a redundant system, the secondary processor recovers control plane service during a critical failure in the primary processor. SSO synchronizes the network state information between the primary and the secondary processor.
RSVP graceful restart allows RSVP TE-enabled nodes to recover gracefully following a node failure in the network such that the RSVP state after the failure is restored as quickly as possible. The node failure may be completely transparent to other nodes in the network as far as the RSVP state is concerned.
RSVP graceful restart preserves the label values and forwarding information and works with third-party or Cisco routers seamlessly.
RSVP graceful restart depends on RSVP hello messages to detect that a neighbor went down. Hello messages include Hello Request or Hello Acknowledgment (ACK) objects between two neighbors.
As shown in Figure 20, the RSVP graceful restart extension to these messages adds an object called Hello Restart_Cap, which tells neighbors that a node may be capable of recovering if a failure occurs.
Figure 20. How RSVP Graceful Restart Works
The Hello Restart_Cap object has two values: the restart time, which is the sender's time to restart the RSVP_TE component and exchange hello messages after a failure; and the recovery time, which is the desired time that the sender wants the receiver to synchronize the RSVP and MPLS databases.
As illustrated in Figure 20 above, RSVP graceful restart help neighbor support is enabled on Routers 1 and 3, so that they can help a neighbor recover after a failure, but they cannot perform self recovery. Router 2 has full SSO help support enabled, meaning it can perform self recovery after a failure or help its neighbor to recover. Router 2 has two RPs, one that is active and one that is standby (backup). A TE Label-Switched Path (LSP) is signaled from Router 1 to Router 4.
Router 2 performs checkpointing; that is, it copies state information from the active RP to the standby RP, thereby ensuring that the standby RP has the latest information. If an active RP fails, the standby RP can take over.
Routers 2 and 3 exchange periodic graceful restart hello messages every 10,000 milliseconds (ms) (10 seconds), and so do Routers 2 and 1 and Routers 3 and 4. Assume that Router 2 advertises its restart time = 60,000 ms (60 seconds) and its recovery time = 60,000 ms (60 seconds) as shown in the following example:
Router 3 records this into its database. Also, both neighbors maintain the neighbor status as UP. However, Router 3's control plane fails at some point (for example, a primary RP failure). As a result, RSVP and TE lose their signaling information and states although data packets continue to be forwarded by the line cards.
When Router 3 declares communication with Router 2 lost, Router 3 starts the restart time to wait for the duration advertised in Router 2's restart time previously recorded (60 seconds). Routers 1 and 2 suppress all RSVP messages to Router 3 except hellos. Router 3 keeps sending the RSVP PATH and RESV refresh messages to Routers 4 and 5 so that they do not expire the state for the LSP; however, Routers 1 and 3 suppress these messages for Router 2.
When Routers 1 and 3 receive the hello message from Router 2, Routers 1 and 3 check the recovery time value in the message. If the recovery time is 0, Router 3 knows that Router 2 was not able to preserve its forwarding information, and Routers 1 and 3 delete all RSVP states that they had with Router 2.
If the recovery time is greater than 0, Router 1 sends Router 2 PATH messages for each LSP that it had previously sent through Router 2. If these messages were previously refreshed in summary messages, they are sent individually during the recovery time. Each of these PATH messages includes a Recovery_Label object containing the label value received from Router 2 before the failure.
When Router 3 receives a PATH message from Router 2, Router 3 sends a RESV message upstream. However, Router 3 suppresses the RESV message until it receives a PATH message. When Router 2 receives the RESV message, it installs the RSVP state and reprograms the forwarding entry for the LSP.
Benefits
• State Information Recovery: RSVP graceful restart allows a node to perform self recovery or to help its neighbor recover state information when there is an RP failure or the device has undergone an SSO.
• Session Information Recovery: RSVP graceful restart allows session information recovery with minimal disruption to the network.
• Increased Availability of Network Services: A node can perform a graceful restart to help itself or a neighbor recover its state by keeping the label bindings and state information, thereby providing a faster recovery of the failed node and not affecting currently forwarded traffic.
Cisco IOS MPLS LDP offers standards-based feature capabilities for MPLS label information signaling between MPLS-enabled routers. In addition to RFC3036-compliant MPLS signaling, Cisco's MPLS LDP also offers a number of value-added feature capabilities, which enable improved configuration and usability of MPLS LDP functionality. MPLS LDP feature capabilities are focused on MPLS LDP CLI configuration enhancements, enhanced security, and coexistence support with the Cisco High Availability (HA) feature set, including NSF/SSO and ISSU.
In Release 12.2(33)SXH, various new LDP feature enhancements are introduced, which include:
MPLS LDP Session Management, Label Signaling and Assignment:
• MPLS LDP: Static Label Support
• MPLS LDP: VRF-aware Static Label Support
MPLS LDP High Availability:
• MPLS LDP: Graceful Restart (GR) Support
• MPLS LDP: Session Protection
• MPLS LDP: HA (SSO, NSF, and ISSU) Support
Benefits
Key benefits of the Cisco MPLS LDP feature portfolio are:
• MPLS LDP Support for Static Labels: Enables configuration of static bindings between MPLS labels and IPv4 prefixes to support MPLS hop-by-hop forwarding through neighbor router nodes, which don't support LDP label distribution. With this feature static MPLS cross-connects can be configured to support MPLS Label Switched Path (LSP) midpoints in an MPLS network where neighbor router nodes do not support LDP or RSVP label distribution, but do support MPLS forwarding.
• MPLS LDP Support for MPLS High Availability (HA): MPLS LDP support for MPLS HA enables LDP sessions to stay operational during a Route Processor (RP) switch-over event and this way LDP-established MPLS forwarding entries will not be removed and will stay operational until LDP has re-initialized itself with it's remote neighbor (helper) nodes.
The VRF Aware System Message Logging (Syslog) feature allows a customer to send system logging (syslog) messages to a syslog server host connected through a Virtual Private Network (VPN) Routing and Forwarding (VRF) interface. Logging information can be used for network monitoring and troubleshooting. This feature extends this capability to network traffic connected through VRFs.
Any Transport over MPLS: ATM Adaptation Layer 5 ( AAL5) over MPLS
Any Transport over MPLS: ATM AAL5 over MPLS enables a network provider to transport ATM AAL5 frames across an MPLS backbone. This extends the reachability of ATM and allows Service Providers to aggregate ATM transport and IP transport across a common packet backbone. The Service Provider can integrate an existing ATM environment with the packet backbone to improve operational efficiency and make use of the high-speed packet interfaces to scale the ATM implementations.
Transporting ATM AAL5 across MPLS networks provides a number of benefits, including:
• ATM PVC extended service.
• Aggregation to a higher speed backbone, such as OC-192, in order to scale ATM implementations.
• Improved operational efficiency. The MPLS backbone becomes the single network that integrates the various existing networks and services.
ATM AAL5 over MPLS transports ATM AAL5 frames across the MPLS backbone instead of cells, creating an efficient transport mechanism of ATM PVCs.
In Release 12.2(33)SXH, the Catalyst 6500 Series Switch supports ATM Operation, Administrative, and Maintenance (OAM) cell emulation with AAL5 over MPLS. You configure OAM cell emulation on both PE routers, which emulates a VC by forming two unidirectional LSPs. After OAM cell emulation is enabled on a router, you can configure and manage the ATM VC in the same manner as you would a terminated VC. A VC that has been configured with OAM cell emulation can send loopback cells at configured intervals toward the local CE router. The endpoint can be either of the following:
• End-to-end loopback, which sends OAM cells to the local CE router.
• Segment loopback, which responds to OAM cells to a device along the path between the PE and CE routers.
The OAM cells include the following:
• Alarm Indication Signal (AIS)
• Remote Defect Indication (RDI)
These cells identify and report defects along a VC. When a physical link or interface failure occurs, intermediate nodes insert OAM AIS cells into all the downstream devices affected by the failure. When a router receives an AIS cell, it marks the logical interface down and sends an RDI cell to let the remote end know about the failure.
Any Transport over MPLS: ATM Cell Relay over MPLS enables a Service Provider to carry ATM cells transparently across the MPLS backbone. This functionality is supported for single ATM cells in PVC mode only. ATM cell relay treats each ATM cell as a data packet and transports it across the MPLS network. This allows cells to be carried, regardless of which adaptation layer is used underneath. ATM Cell Relay over MPLS is more versatile than ATM AAL5 over MPLS, which carries only AAL5 frames. Other AAL types, such as AAL2 and AAL1, cannot be carried across the packet backbone, even if Quality of Service (QoS) is not an issue.
ATM Cell Relay over MPLS also allows the signaling of Operation, Administration, and Maintenance (OAM) cells to pass transparently across the packet network.
Any Transport over MPLS: Ethernet over MPLS enables a Service Provider to transport Ethernet VLAN packets across an MPLS backbone. This extends the reachability of Ethernet and allows Service Providers to offer Ethernet as a service to end customers.
A number of applications involve transporting raw Ethernet packets across MPLS networks, including:
• Metro Ethernet service
• Point-to-point Ethernet service
• LAN or broadcast domain extensions
• Remote peering and distributed Network Access Points (NAPs)
The Provider Edge (PE) router does not need to peer with the customer device. The Service Provider does not carry any customer IP routing information but instead transports the Layer 2 frames across the network. This is analogous to providing a Layer 2 circuit point-to-point.
Other MPLS features can be enabled on the PE router with AToM support, such as MPLS Virtual Private Networks (VPNs). For end users, the connectivity to remote sites is the same as if they were on the same LAN, and they do not have to modify their applications.
The AToM Graceful Restart feature assists neighboring routers that have nonstop forwarding (NSF), Stateful Switchover (SSO) and Graceful Restart (GR) for Any Transport over MPLS (AToM) to recover gracefully from an interruption in service. AToM GR functions strictly in helper mode, which means it helps other routers that are enabled with the NSF/SSO: Any Transport over MPLS and AToM Graceful Restart feature to recover. If the router with AToM GR fails, its peers cannot help it recover. AToM GR is based on the MPLS Label Distribution Protocol (LDP) Graceful Restart feature.
AToM GR works in strict helper mode, which means it helps a neighboring route processor that has AToM NSF/SSO to recover from a disruption in service without losing its MPLS forwarding state. The disruption in service could result from a TCP or User Datagram Protocol (UDP) event or the stateful switchover of a route processor. AToM GR is based on the MPLS LDP Graceful Restart feature, which preserves forwarding information for AToM circuits during an LDP session interruption. When the neighboring router establishes a new session, the LDP bindings and MPLS forwarding state are recovered.
Cisco IOS MPLS embedded management offers standards-based management capabilities for IP/MPLS networks. The Cisco industry leading MPLS management feature portfolio offers network operators detailed MPLS resource monitoring and connectivity troubleshooting capabilities, which include MPLS-specific SNMP MIBs, MPLS OAM, and MPLS-enabled NetFlow features.
In Release 12.2(33)SXH, various new enhancements are introduced to the MPLS embedded management feature portfolio, including enhanced MPLS MIB and MPLS OAM support. The MPLS embedded management feature portfolio can be summarized as follows:
MPLS MIBs:
• MPLS LSR MIB: IETF draft version 05
• MPLS LDP MIB: IETF draft version 08
• MPLS TE MIB: IETF draft version 05
• MPLS TE FRR MIB: IETF draft version 01 New
• MPLS VPN MIB: IETF draft version 05
MPLS OAM:
• MPLS LSP Ping/Trace for MPLS core (LDP IPv4 and RSVP IPv4 FEC support): IETF draft version 03 New
• IP SLA automation for MPLS LSP Ping/Trace for MPLS core New
• MPLS LSP Ping for Layer-2 VPNs (via VCCV): IETF draft version 03 New
MPLS NetFlow:
• MPLS-aware NetFlow
• MPLS Prefix Application Label (PAL)
The embedded management capabilities for MPLS can be used in various usage scenarios ranging from manual CLI-based trouble shooting to a fully automated trouble shooting solution. In addition to MPLS MIB, OAM, and NetFlow features, Cisco also offers complementary management tools, which can be integrated with embedded MPLS management capabilities:
• Auto IP SLA: Automatic execution of MPLS OAM probes.
• Cisco MPLS Diagnostics Expert (MDE): Unique Cisco management application for automated MPLS troubleshooting, which leverages embedded MPLS management capabilities.
Depending on the level of automation and integration needed, an operator may choose to use MPLS OAM capabilities manually via CLI access or to leverage the Cisco Auto IP SLA and MDE application to deploy a fully automated MPLS failure detection, isolation, and diagnosis solution.
Key benefits of the Cisco MPLS embedded management solution are:
• Enables enhanced MPLS resource monitoring: MPLS MIB modules provide standard SNMP access to a wide variety of MPLS-specific resources supported on Label Switched Routers (LSR), including MPLS label forwarding and LDP session information. Existing SNMP-based management applications can be configured to retrieve and collect MPLS-specific management information via the new MPLS MIB modules.
• Increases operational efficiency: MPLS OAM tools, such as LSP Ping and LSP Trace, enable fast detection and isolation of complex MPLS connectivity problems, which improves trouble resolution time and will help with reducing network downtime.
• Provides a comprehensive solution for addressing MPLS network and service availability: The Cisco MPLS embedded management capabilities, together with Cisco Auto IP SLA automation and automated trouble resolution capabilities via the Cisco MPLS Diagnostics Expert (MDE), provide a comprehensive end-to-end solution for MPLS network monitoring and trouble resolution.
The Enhanced Object Tracking feature provides complete separation between the objects to be tracked and the action to be taken by a client when a tracked object changes. Thus, several clients such as HSRP, VRRP, or GLPB can register their interest with the tracking process, track the same object, and each take different action when the object changes.
Each tracked object is identified by a unique number that is specified on the tracking Command-Line Interface (CLI). Client processes use this number to track a specific object.
The tracking process periodically polls the tracked objects and notes any change of value. The changes in the tracked object are communicated to interested client processes, either immediately or after a specified delay. The object values are reported as either up or down.
The tracking capabilities have been enhanced to enable the configuration of a combination of tracked objects in a list, and a flexible method of combining objects using Boolean logic. The enhancements introduced the following capabilities:
• Threshold: The tracked list can be configured to use a weight or percentage threshold to measure the state of the list. Each object in a tracked list can be assigned a threshold weight. The state of the tracked list is determined by whether or not the threshold has been met.
• Boolean "and" function: When a tracked list has been assigned a Boolean "and" function, it means that each object defined within a subset must be in an up state so that the tracked object can become up.
• Boolean "or" function: When the tracked list has been assigned a Boolean "or" function, it means that at least one object defined within a subset must be in an up state so that the tracked object can become up.
Object tracking of IP SLAs operations allows tracking clients to track the output from IP SLAs objects and use the provided information to trigger an action.
Cisco IOS IP SLAs is a network performance measurement and diagnostics tool that uses active monitoring. Active monitoring is the generation of traffic in a reliable and predictable manner to measure network performance. Cisco IOS Software uses IP SLAs to collect real-time metrics such as response time, network resource availability, application performance, jitter (interpacket delay variance), connect time, throughput, and packet loss.
These metrics can be used for troubleshooting, for proactive analysis before problems occur, and for designing network topologies.
Benefits
• Increases the availability and speed of recovery of a router system.
• Decreases outages and their duration.
• Provides a scalable solution that allows processes such as HSRP, GLBP or VRRP to track objects individually or a list of objects.
The SSO Aware FHRP (respectively GLBP) feature enables the Cisco IOS HSRP (respectively GLBP) subsystem software to detect that a standby RP (Route Processor) is installed and the system is configured in SSO redundancy mode. Further, if the active RP fails, no change occurs to the HSRP (respectively GLBP) group itself and traffic continues to be forwarded through the current active gateway router.
Prior to this feature, when the active HSRP (respectively GLBP) router primary RP failed, it would stop participating in the HSRP (respectively GLBP) group and trigger another router in the group to take over as the active HSRP (respectively GLBP) router.
The SSO-Aware HSRP feature is required to preserve the forwarding path for traffic destined to the HSRP (respectively GLBP) virtual IP through a RP switchover.
Configuring SSO on the edge router enables the traffic on the Ethernet links to continue during an RP failover without the Ethernet traffic switching over to an HSRP (respectively GLBP) standby router (and then back, if preemption is enabled).
With this feature, HSRP (respectively GLBP) SSO information is synchronized to the standby RP, allowing traffic that is sent using the HSRP (respectively GLBP) virtual IP address to be continuously forwarded during a switchover without a loss of data or a path change. Additionally, if both RPs fail on the active HSRP router, then the standby HSRP (respectively GLBP) router takes over as the active HSRP (respectively GLBP) router.
Benefits
The addition of SSO to the HSRP and GLBP redundancy scheme unparallel gateway high availability scheme.
Message Digest 5 (MD5) Authentication for HSRP and GLBP
Before the introduction of MD5 authentication, HSRP and GLBP authenticated protocol packets with a simple plain text string. HSRP and GLBP MD5 authentication is an enhancement to generate an MD5 digest for the HSRP and GLBP portion of the multicast HSRP and GLBP protocol packet. This functionality provides added security and protects against the threat from HSRP and GLBP spoofing software.
MD5 authentication provides greater security than the alternative plain text authentication scheme. MD5 authentication allows each HSRP and GLBP group member to use a secret key to generate a keyed MD5 hash that is part of the outgoing packet. A keyed hash of an incoming packet is generated and if the hash within the incoming packet does not match the generated hash, the packet is ignored.
Benefits
Protects against HSRP and GLBP spoofing software
Uses the industry-standard MD5 algorithm for improved reliability and security
The TCP MSS Adjustment feature enables the configuration of the maximum segment size (MSS) for transient packets that traverse a router, specifically TCP segments in the SYN bit set, when PPP over Ethernet (PPPoE) is being used in the network. PPPoE truncates the Ethernet Maximum Transmission Unit (MTU) 1492, and if the effective MTU on the hosts (PCs) is not changed, the router in between the host and the server can terminate the TCP sessions. The ip tcp adjust-mss command specifies the MSS value on the intermediate router of the SYN packets to avoid truncation.
Usage Guidelines
When a host initiates a TCP session with a server, it negotiates the IP segment size by using the MSS option field in the TCP SYN packet. The value of the MSS field is determined by the Maximum Transmission Unit (MTU) configuration on the host. The default MSS value for a PC is 1500 bytes.
The PPP over Ethernet (PPPoE) standard supports a MTU of only 1492 bytes. The disparity between the host and PPPoE MTU size can cause the router in between the host and the server to drop 1500-byte packets and terminate TCP sessions over the PPPoE network. Even if the path MTU (which detects the correct MTU across the path) is enabled on the host, sessions may be dropped because system administrators sometimes disable the ICMP error messages that must be relayed from the host in order for path MTU to work.
The ip tcp adjust-mss command helps prevent TCP sessions from being dropped by adjusting the MSS value of the TCP SYN packets.
Considerations
The ip tcp adjust-mss command is effective only for TCP connections passing through the router.
In most cases, the optimum value for the max-segment-size argument is 1452 bytes. This value plus the 20-byte IP header, the 20-byte TCP header, and the 8-byte PPPoE header add up to a 1500-byte packet that matches the MTU size for the Ethernet link.
If you are configuring the ip mtu command on the same interface as the ip tcp adjust-mss command, it is recommended that you use the following commands and values:
ip tcp adjust-mss 1452
ip mtu 1492
Example
The following example shows the configuration of a PPPoE client with the MSS value set to 1452:
vpdn enable
no vpdn logging
!
vpdn-group 1
request-dialin
protocol pppoe
!
interface Ethernet0
ip address 192.168.100.1.255.255.255.0
ip tcp adjust-mss 1452
ip nat inside
!
interface ATM0
no ip address
no atm ilmi-keepalive
pvc 8/35
pppoe client dial-pool-number 1
!
dsl equipment-type CPE
dsl operating-mode GSHDSL symmetric annex B
dsl linerate AUTO
!
interface Dialer1
ip address negotiated
ip mtu 1492
ip nat outside
encapsulation ppp
dialer pool 1
dialer-group 1
ppp authentication pap callin
ppp pap sent-username sohodyn password 7 141B1309000528
Cisco IOS AutoQoS represents innovative technology that simplifies a network administrator's challenges by reducing Quality-of-Service (QoS) complexity and deployment time and cost in Enterprise networks. Cisco AutoQoS incorporates value-added intelligence in Cisco IOS® Software and Cisco Catalyst® OS software to provision and manage large-scale QoS deployments.
AutoQoS offers straightforward capabilities to automate Voice-over-IP (VoIP) deployments for customers who want to deploy IP telephony, but who lack the expertise and/or staffing to plan and deploy IP QoS and IP services.
Customers can more easily provision and manage successful QoS deployments using Cisco AutoQoS together with CiscoWorks QoS Policy Manager (Cisco QPM). Cisco AutoQoS provides QoS provisioning for individual routers and switches, simplifying deployment and reducing human error. Cisco QPM provides centralized QoS design, administration, and traffic monitoring that scales to large QoS deployments.
Quality-of-Service Deployment Overview

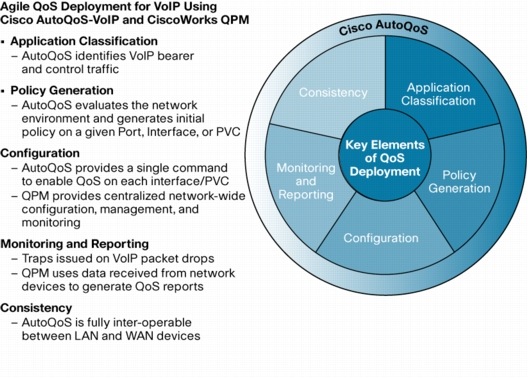

Cisco AutoQoS simplifies and shortens the QoS deployment cycle. The five major aspects of successful QoS deployments are:
