This product bulletin specifies the software feature sets available for Cisco® 2800 Series Integrated Services Routers with Cisco IOS® Software Release 15.0. It also issues recommendations for flash and DRAM memory configuration.
Note: This product bulletin covers the Cisco IOS Software Release model changes from Cisco IOS Software Releases 12.4 Mainline and 12.4T for the Cisco 2800 Series Integrated Services Routers. It does not cover individual new features. For information about new features in Cisco IOS Software Release 15.0, refer to the Cisco IOS Software pages at Cisco.com.
Overview
Cisco IOS® Software Release 15.0 follows Release 12.4(24)T. Created for wide deployment in the world's most demanding enterprise, access, and service provider networks, Cisco IOS Software Release 15.0 provides a comprehensive portfolio of Cisco technologies, functions, and hardware support from Releases 12.4 and 12.4T, anchored by an intensive stability and testing program. Important innovations span multiple technology areas, including security, voice, high availability, IP Routing and Multicast, quality of service (QoS), IP Mobility, Multiprotocol Label Switching (MPLS), VPNs, and Cisco IOS MPLS Embedded Management.
Cisco IOS Software Release 15.0 can help you by providing new feature and hardware support more quickly than in previous Mainline (M) and Technology (T) releases, broadened feature consistency with other major Cisco IOS Software releases, more predictable new feature release and rebuild schedules, proactive individual release support policies, enhanced release numbering, and clearer software deployment and migration guidelines. Figure 1 details Cisco IOS Software Release 15.0.

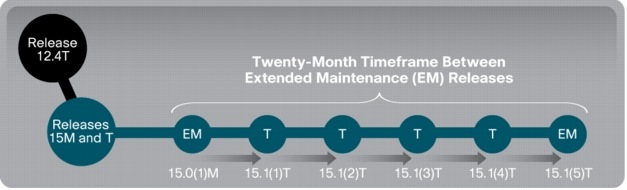

Figure 1. Release 15.0 Train Map
Unlike the traditional Cisco IOS Software M and T releases, Cisco IOS Software Release 15.0 does not diverge into separate M and T software release trains. Beginning with 15.0, new releases will be available 2 to 3 times per year, delivered sequentially from a single software train. Extended Maintenance (EM) releases will be available approximately every 20 months. Standard maintenance T releases enable faster Cisco feature delivery before the next EM release becomes available.
Highlights of Release 15 M & T follow:
• Feature inheritance from Cisco IOS Software Releases 12.4T and 12.4 Mainline
• New feature releases delivered sequentially from a single T train
• Extended maintenance new feature M release every 20 months
• Standard maintenance T releases for the latest features and hardware support before the next M release becomes available on Cisco.com
Note that rebuilds of Release 15 M and T contain bug fixes only.
M Releases (Extended Maintenance)
• Ideal for long-term maintenance, enabling you to qualify, deploy, and remain on the release for an extended period
• Provides 44 months of support
• Incorporates features delivered in previous releases plus incremental new feature enhancements and hardware support
T Releases (Standard Maintenance)
• Short deployment releases ideal for latest new features and hardware support before the next M release becomes available
The remainder of this product bulletin provides details about Cisco IOS Software Release 15.0 availability for the Cisco 2800 Series routers and the associated flash and DRAM memory requirements.
Cisco IOS Software Release 15.0 Feature Sets and Memory Recommendations
Cisco 2801 Feature Sets and Memory Recommendations
Table 1 lists the Cisco IOS Software Release 15.0 feature sets that are available for the Cisco 2801 Integrated Services Router. Note that the flash memory recommendations given in the table are calculated without added management tools such as Cisco Configuration Professional.
Table 1. Cisco 2801 Integrated Services Router with Cisco IOS Software Release 15.0 Feature Set Memory Recommendations
Part Number
Product Description
Image Filename
Recommended Flash Memory for Release 15.0
Recommended DRAM for Release 15.0
S280AESK9
S280UASK9A
S280UASK9A
S280USPSK9
Advanced Enterprise Services
c2801-adventerprisek9-mz
128 MB
384 MB
S280AVSK9
Advanced Enterprise Services with Integrated Voice/Video Gatekeeper, IP-IP Gateway, and TDM-IP Gateway
c2801-adventerprisek9_ivs-mz
128 MB
384 MB
S280AISK9
S280RAISK9
S280UAISK9
S280UASK9B
Advanced IP Services
c2801-advipservicesk9-mz
128 MB
384 MB
S280ASK9
S280RAISK9
Advanced Security
c2801-advsecurityk9-mz
128 MB
384 MB
S280EB
Enterprise Base without cryptology
c2801-entbase-mz
64 MB
256 MB
S280EBK9
Enterprise Base
c2801-entbasek9-mz
64 MB
256 MB
S280ES
Enterprise Services without cryptology
c2801-entservices-mz
64 MB
384 MB
S280ESK9
S280UESK9
Enterprise Services
c2801-entservicesk9-mz
64 MB
384 MB
S280IPB
IP Base without cryptology
c2801-ipbase-mz
64 MB
256 MB
S280IPBK9
IP Base
c2801-ipbasek9-mz
64 MB
256 MB
S280IPV
IP Voice without cryptology
c2801-ipvoice-mz
64 MB
256 MB
S280IVS
IP Voice with Integrated Voice/Video Gatekeeper, IP-IP Gateway, and TDM-IP Gateway
c2801-ipvoice_ivs-mz
64 MB
256 MB
S280IPVK9
IP Voice
c2801-ipvoicek9-mz
64 MB
256 MB
S280SPSK9
S280RSPSK9
SP Services
c2801-spservicesk9-mz
64 MB
384 MB
Cisco 2811, 2821, and 2851 Feature Sets and Memory Recommendations
Table 2 lists the Cisco IOS Software Release 15.0 feature sets that are available for the Cisco 2811, 2821, and 2851 Integrated Services Routers. Note that the flash memory recommendations given in the table are calculated without added management tools such as Cisco Configuration Professional
Table 2. Table 2 Cisco 2811, 2821, and 2851 Integrated Services Routers with Cisco IOS Software Release 15.0 Feature Set Memory Recommendations
Part Number
Product Description
Image Filename
Recommended Flash Memory for Release 15.0
Recommended DRAM for Release 15.0
S28NAESK9
S28NUAESK9
S28NUASK9A
S28NUSPSK9
Advanced Enterprise Services
c2800nm-adventerprisek9-mz
128 MB
512 MB
S28NAVSK9
Advanced Enterprise Services
with integrated Voice/Video Gatekeeper, IP-IP Gateway, and TDM-IP Gateway
c2800nm-adventerprisek9_ivs-mz
128 MB
512 MB
S28NSNAK9
Advanced Enterprise Services with SNA Switching
c2800-adventerprisek9_sna-mz
128 MB
512 MB
S28NAISK9
S28NRAISK9
S28NUAISK9
S28NUASK9B
Advanced IP Services
c2800nm-advipservicesk9-mz
128 MB
512 MB
S28NASK9
S28NRAISK9
Advanced Security
c2800nm-advsecurityk9-mz
64 MB
256 MB
S28NEB
Enterprise Base without cryptology
c2800nm-entbase-mz
64 MB
256 MB
S28NEBK9
Enterprise Base
c2800-entbasek9-mz
64 MB
256 MB
S28NES
Enterprise Services without cryptology
c2800-entservices-mz
128 MB
512 MB
S28NESK9
S28NUESK9
Enterprise Services
c2800-entservicesk9-mz
128 MB
512 MB
S28NIPB
IP Base without cryptology
c2800-ipbase-mz
64 MB
256 MB
S28NES
Enterprise Services without cryptology
c2800nm-entservices-mz
128 MB
512 MB
S28NIPBK9
IP Base
c2800-ipbasek9-mz
64 MB
256 MB
S28NIPV
IP Voice without cryptology
c2800-ipvoice-mz
64 MB
512 MB
Part Number
Product Description
Image Filename
Recommended Flash Memory for Release 15.0
Recommended DRAM for Release 15.0
S28NIVS
IP Voice with integrated Voice/Video Gatekeeper, IP-IP Gateway, and TDM-IP Gateway
c2800nm-ipvoice_ivs-mz
64 MB
512 MB
S28NIPVK9
IP Voice
c2800nm-ipvoicek9-mz
64 MB
512 MB
S28NSPSK9
S28NRSPSK9
SP Services
c2800nm- spservicesk9-mz
128 MB
512 MB
Feature Area Map for Cisco IOS Software Release 15.0 Cross-Platform Feature Sets
For Cisco IOS Software Release 15.0, the cross-platform feature sets remain the same as those for Cisco IOS Software Releases 12.4 Mainline and 12.4T. These cross-platform feature sets simplify the image selection process by providing similar functions across platform boundaries.
Table 3. Feature Area Map
Basic IP Connectivity for Data
Voice over IP and Voice over Frame Relay
ATM, Voice over ATM, and MPLS
AppleTalk, Internetwork Packet Exchange (IPX), and IBM Protocols
Firewall, Intrusion Protection and VPN
Secure Shell (SSH) Protocol, HTTPS, and Simple Network Management Protocol Version 3 (SNMPv3)
