Using Reports
The Reports tab displays information about your devices. You can save and email reports. You can also set specific times for emailed reports to be run and sent automatically.
The reports available are dependent on the groups of devices and individual devices you choose from the selector in the left pane.
Note
Some of the subtabs may not be visible to some users.
The following topics discuss the reports provided by WLSE:
•
•
•
•
Using the Basic Report Features
The WLSE reports share several common features. The following topics describe these features:
•
Using the Device Selector
The WLSE contains a device selector and Search that can be used to select a group or devices or an individual device. For information about how to use the device selector, see Using the Device Selector
The search results, as well as the folders in the device selector, display icons indicating the alarm status of the devices. For an explanation of the icons, see Understanding the Icons.
For information about the folders for device groups in the device selector, see System-Defined Groups.
Sorting Table Data
For information on how to sort table data, see Sorting Table Data.
Exporting a Report
Procedure
Step 1
Step 2
Step 3
If you select Open, the output opens in the selected application, for example a CSV file opens in an Microsoft Office Excel spreadsheet. If you select Save, the output is saved to the specified location and can be opened with any application.
Exporting URL-Based Report Data
The WLSE provides a feature that allows users to manually enter a URL in the WLSE to export report data, rather than using the GUI export function.
Note
Procedure
Step 1
http://{WLSE name:port | ipaddress:port}/servlet/com.cisco.nm.wlse.util.WLSEReportsExportServlet?{parameters}The parameters are as follows and are case sensitive:
reporttype={Wireless Client | group | device}
id={group name | client macaddress | device name | device ip address}
family= {Router | Switch | IOSAccessPoint | Wireless Client | EAP | RADIUS | PEAP | EAP-MD5 | group}
reportName ={name} Enter the name of the report.
filetype= {csv | xml | pdf}
reportcategory={current | trends}
tzOffset={time}The time zone offset in minutes for GMT/UTC. Add a + (plus) or - (minus) as appropriate. For example, -300 minutes means 5 hours.
For trend reports, you must add the following parameters:
startdate={YYYY-MM-DD-hh-mm-ss}
enddate={YYYY-MM-DD-hh-mm-ss}
Note
topNVal This is required only to display Top N Reports.
DataFrequency={Hourly | Weekly | Daily | Monthly}
save = { yes | no } When exporting data, enter yes to provide a dialog box to open or save the report in the selected format, or enter no to open the report in the same window.
Following is an example of a URL to generate XML output for Group Performance Report: RF Utilization:
http://172.19.28.139:1741/servlet/com.cisco.nm.wlse.reports.util.WLSEReportsExportServlet? id=AP%201100&reporttype=group&family=group&reportName=Group%20Performance%20Report%20%3A%2 0RF%20Utilization&tzOffset=330&filetype=xml&reportcategory=trends&stdate=2005-6-21-00-00-0 0&enddate=2006-8-21-23-59-59&DataFrequency=Hourly&save=noEmailing a Report
All reports can be exported via email. These reports can be mailed on-demand, as one-time scheduled jobs, or at recurring intervals. Although IT policies vary depending on the deployment environment, consider scheduling weekly email exports of trending reports and exporting inventory reports as needed. For example, some of the security configuration inventory reports might be exported on a monthly basis as part of an ongoing security audit.
Before You Begin
Configure the mailroute so that the WLSE knows where to send the e-mails. Enter the mail server hostname or IP address by selecting Administration > Appliance > Configure Mailroute.
Procedure
Step 1
Step 2
Tip
Step 3
Step 4
Step 5
a.
b.
Job Name
Enter a name for the job.
For more information, see Naming Guidelines.
Report Data for Last
From the list, select the number of days, weeks, or months for which you want the hourly/daily, weekly, or monthly report data emailed.
Note
Start Date
From the list, select the date you would like to send the email.
Start Time
From the list, select the time you would like to send the email.
Repeat
Enable
Check if you want to set up a scheduled job that periodically sends email.
Every
From the list, select the period of time you would like the email sent.
Step 6
•
•
Step 7
Scheduling Email Jobs
This window allows you to view information about email jobs you have scheduled. It also allows you to delete them and edit them.
Note
The length of time job data is retained is 30 days by default. To change the default setting, select Devices > Discover > Inventory > Polling.
Note
Procedure
Step 1
Job Name
The name of the job.
For more information, see Naming Guidelines.
Recurring
Indicates whether it is a recurring job.
Next Schedule
Indicates when the job runs again.
Step 2
Step 3
Step 4
Viewing Email Job Details
The following tables are displayed in a window when you select a job in Reports > Scheduled Email Jobs, then click View Email Job.
Report Properties
User Name
The name of the user who scheduled the job.
Report Type
The report type.
Report Name
The report name.
Email Properties
Schedule Properties
Email Job Name
The name of the email job.
Start Date
The date the report is emailed.
Frequency
The frequency with which the report is to be emailed.
Editing an Email Job
Procedure
Step 1
Step 2
Tip
Step 3
Step 4
Using the Device Center
The device center enables you to quickly access various types of reports for a particular device.
Note
Procedure
Step 1
Step 2
Note
Step 3
Access Points and Bridges
•
•
•
•
•
•
•
Tip
•
•
WDS-WLSM
•
•
•
•
•
•
WDS-AP
•
•
•
•
•
•
•
•
•
Tip
•
•
Switches
•
•
•
Routers
•
•
•
Servers
Summary Report—See Displaying a Server Summary Report.
Viewing the WDS Summary Report
The following reports are displayed for the device's wireless domain services (WDS) summary:
•
•
Table 10-1 AP-WDS Summary Report
Name
The access point name.
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays
MAC Address
The MAC address of the access point.
IP Address
The IP address of the access point.
Click to open a browser window to the AP Summary Status.
TipStatus
The operational status of the device:
•
•
•
•
WDS Priority
The access point's assigned WDS priority number.
Subnet Address
The access point's subnet address.
Subnet Mask
The access point's subnet mask.
Active WDS IP Address
The IP address of the active WDS.
Last WDS Election Time
The last time this access point was elected as a WDS.
Number of Infrastructure Nodes Registered with WDS
The number of access points registered with the WDS.
WLSE to WDS Authentication Status
The status of the authentication of the WLSE with the WDS.
WLSE IP Address Configured at WDS
The IP address of the WLSE.
Table 10-2 WLSM-WDS Summary Report
Name
The access point name.
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays
MAC Address
The MAC address of the WLSM.
IP Address
The IP address of the WLSM.
Subnet Address
The WLSM subnet address.
Subnet Mask
The WLSM subnet mask.
Number of Infrastructure Nodes Registered with WDS
The number of access points registered with the WDS.
WLSE to WDS Authentication Status
The status of the authentication of the WLSE with the WDS.
WLSE IP Address Configured at WDS
The IP address of the WLSE.
Switch containing the WLSM
The IP address of the switch that contains the WLSM.
HSRP Redundant Status
The status of the hot standby router interface.
HSRP Virtual IP Address
The virtual IP address of the hot standby router interface.
Viewing the WDS Registered APs Report
The following table is provides information about the access points that are registered with the WDS.
Related Topics
Using the Basic Report Features
Viewing the Fault Status Report
The following table is displayed for the device's fault status:
Table 10-4 Device Fault Status
Type
The fault type.
Description
A description of the fault.
Click to see fault details. See Viewing Fault Details.
Severity
The fault severity level.
State
The current state of the fault.
Timestamp
The time the fault was reported.
Click to see fault details. See Viewing Fault Details.
For more information, see Understanding WLSE Time Displays.
Related Topics
Using the Basic Report Features
Viewing Device History
The following table is displayed for the device's history:
Table 10-5 Device History
Timestamp
The time the device's state last changed.
For more information, see Understanding WLSE Time Displays.
Device Name
The name of the device.
IP Address
The IP address of the device.
State
The current state of the device.
Related Topics
Using the Basic Report Features
Viewing Config History
The following table is displayed for the device's configuration history:
Related Topics
Using the Basic Report Features
Viewing Firmware History
The following table is displayed for the device's firmware history:
Related Topics
Using the Basic Report Features
Viewing the Auto Config Retry Report
This report provides information about retries in uploading auto-configuration templates that are deployed using the Deployment Wizard.
Table 10-8 Auto Config Retry
Name
The device name.
Device IP
The IP address of the device.
Status
The device status, which is one of the following Deployment Wizard phases:
•
•
•
•
•
•
•
Boot Time
The time the device booted up.
Template Name
The name of the template designated as the auto config template.
Retry Number
The number of times the WLSE has attempted to upload the template to the device.
Retry Time
The time the auto config job will re-run.
Description
The status description
As Of
The time the status was last updated.
For more information, see Understanding WLSE Time Displays.
Related Topics
Using the Basic Report Features
Displaying Radio Manager Reports
Note
The Radio Manager reports allow you to view radio management information.
•
•
•
•
•
•
•
Viewing the Radio Configuration Parameters
Use the Configured Radio Parameters report to display the radio configuration parameters for a selected access point.
Typical Scenarios and FAQs
•
Note
Before You Begin
•
•
–
–
Procedure
Step 1
Step 2
Step 3
Step 4
Table 10-9 Configured Radio Parameters Report
AP Name
The name of the access point.
Interface Name
The name of the radio interface.
MAC Address
The MAC address of the access point.
PHY
The physical interface type (11a, 11b, or 11g) of the radio interface.
Channel
The radio channel used.
Transmit Power
The power level of the radio transmission (in milliwatts).
Data Rate
The data rates supported by this interface (in Mbps).
Beacon
The amount of time between beacons (in kilo microseconds).
Note
Admin Status
The administrative status of the access point.
For more information about the radio interface port's administrative status values, see Setting RF Port AdminStatus Threshold.
Operational Status
The operational status of the access point.
For an explanation of the possible operational status values, see Viewing the WDS Summary Report.
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays.
Related Topics
•
•
Viewing Current Path Loss Results
Use the Path Loss Between Managed APs report to:
•
•
For a selected access point, this report displays:
•
•
Typical Scenarios and FAQs
•
•
Note
Before You Begin
•
•
Procedure
Step 1
Step 2
Step 3
Step 4
Table 10-10 Path Loss Between Managed APs Report
AP Name
The name of the access point.
Interface Name
The name of the radio interface.
PHY
The physical interface type (11a, 11b, or 11g) of the radio interface.
Channel
The radio channel used.
Neighbor AP Name
The name of the neighbor access point.
Neighbor Interface Name
The interface name of the neighbor access point.
Path Loss
The amount in decibels of path loss between the two access points.
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays.
Related Topics
•
•
•
Viewing Historical Path Loss Results
The historical path loss report displays the previous path loss information for selected a AP (or group). The information is collected every 15 minutes and saved to the path loss historical table. The data in the historical table is trimmed every 60 minutes.
Note
Before You Begin
•
•
Procedure
Step 1
Step 2
Step 3
Step 4
Related Topics
•
•
•
Viewing Current Channel Load Results
Radio measurement data, the Clear Channel Assessment (CCA) measurement in particular, provides information about how heavily a channel is loaded. For a selected access point, you can use the Channel Loading report to display the percentage of time a channel is being used.
Note
The Channel Loading report shows the background loading of each AP—in particular, how often the channel is busy due to traffic that is not generated by the reporting AP radio. This information is useful even before running AP Radio Scan just to see how busy the environment is before deploying new sets of access points. You can also run this same report from time to time just to see whether this environment has changed.
Note
Typical Scenarios and FAQs
•
•
Note
Before You Begin
•
•
Procedure
Step 1
Step 2
Step 3
Step 4
Table 10-11 Channel Loading Report
AP Name
The name of the access point.
PHY
The physical interface type (11a, 11b, or 11g) of the radio interface.
Channel
The radio channel used.
Average Near (%)
The average (of 15 minutes) channel loading detected by the access point from the nearest clients.
Average Far (%)
The average (of 15 minutes) channel loading detected by the access point from the farthest clients.
Peak Near (%)
The average (of 15 minutes) peak value detected by the access point from the nearest clients.
Peak Far (%)
The average (of 15 minutes) peak value detected by the access point from the farthest clients.
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays.
Related Topics
•
•
•
Viewing Historical Channel Load Results
The historical channel load report displays the previous channel load information for selected a AP (or group). The information is collected every 15 minutes and saved to the channel load historical table. The data in the historical table is trimmed every 60 minutes.
Note
Before You Begin
•
•
Procedure
Step 1
Step 2
Step 3
Step 4
Related Topics
•
•
•
Viewing Current Radar Detection Events
This report provides information about all currently-active radar detection events.
Note
Note
Before You Begin
•
•
•
Radio 802.11n(5 GHz) Policies > Dynamic Frequency Selection).Procedure
Step 1
Step 2
Step 3
Step 4
Related Topics
•
•
•
Viewing Historical Radar Detection Events
This report provides information about all recorded radar detection events.
Note
Note
Before You Begin
•
•
•
Radio 802.11n(5 GHz) Policies > Dynamic Frequency Selection).Procedure
Step 1
Step 2
Step 3
Step 4
Related Topics
•
•
•
Displaying Voice Reports
The Reports > Voice option displays voice call information about the devices in your network. This information can be shown for an AP, a single floor, or the entire network. You can view, export, and email the reports. Using this option, you can view, export, and email the following report types:
•
–
–
•
AP Group Call Summary: Current
The AP Group Call Summary: Current report allows you to view the current status of a group of APs.
Note
Before You Begin
Satisfy the voice prerequisites (see Guidelines for Using Voice).
Procedure
Step 1
Step 2
Step 3
This report displays the following information:
Time
The time (month, day, hour, and minute) the WLSE polled information from the device (MM-DD-hh-mm).
For more information, see Understanding WLSE Time Displays.
AP Name
The name of the access point.
Percent Bandwidth Allocated
The percentage of the channel allocated for voice traffic.
Percent of Allocated Bandwidth in Use
The percentage of the configured bandwidth that is currently being used by voice traffic.
Voice Streams in Progress
The number of voice streams in progress on the AP.
Each client participating in a call counts as one voice stream. There are at least two voice streams, one from each client, per call. For a conference call, the number of voice streams is equal to the number of clients participating in that call.
Additional Voice Streams
The AP's estimate of the number of voice streams it can admit, minus the roaming reserve.
Calls Rejected Due to Insufficient Bandwidth
Number of TSPEC requests denied due to insufficient bandwidth.
Calls Rejected Due to Other Reason
Number of TSPEC requests denied for other reasons.
Step 4
AP Group Metrics Summary: Current
The AP Group Metrics Summary: Current report displays the consolidated metrics of all the clients collected in the current 90 second report.
Note
You can use this report to highlight different information about the displayed APs. For example:
•
•
Note
Before You Begin
Satisfy the voice prerequisites (see Guidelines for Using Voice).
Procedure
Step 1
Step 2
Step 3
This report displays the following information:
Time
The time (month, day, hour, and minute) the WLSE polled information from the device (MM-DD-hh-mm).
For more information, see Understanding WLSE Time Displays.
AP Name
The name of the access point.
Interface Name
The name of the radio interface.
QOS
An indicator bar that shows whether the packet latency and packet loss rates are within normal limits.
•
•
•
This data comes from the Traffic Stream Metrics (see Understanding Voice Packet Latency, Jitter, and Loss).
% PLR (Downlink)
The percentage of packets lost per traffic stream (from the AP to the client).
% PLR (Uplink)
The percentage of packets lost per traffic stream (from the client to the AP).
Ave Queuing Delay (ms) (Downlink)
The average delay (in milliseconds) from the time a packet was queued in the AP's driver queue to the time the acknowledgement was received by the AP's driver from the client.
Ave Queuing Delay (ms) (Uplink)
The average delay (in milliseconds) from the time a packet was queued in the client's driver queue to the time the acknowledgement was received by the client's driver from the AP.
% Packets > 40ms Queuing Delay
The percentage of packets that experience more than 40 ms delay per cell.
% Packets > 20ms Queuing Delay
The percentage of packets that experience less than or equal to 40 ms and more than 20 ms delay per cell.
Client(s) Using U-APSD
Whether the AP's clients are using U-APSD (unsolicited automatic power save delivery).
Roaming Delay (ms)
The time (in milliseconds) between the last RTP packet seen on the old AP and the first RTP packet seen on the new AP.
Step 4
Related Topics
Understanding Voice Packet Latency, Jitter, and Loss
AP Detail: Current
The AP Detail: Current report highlights information about the associated clients for the last 90 second interval. For example:
•
•
•
Note
Before You Begin
Satisfy the voice prerequisites (see Guidelines for Using Voice).
Procedure
Step 1
Step 2
Step 3
The AP Detail: Current report displays the following information:
Time
The time (month, day, hour, and minute) the WLSE polled information from the device (MM-DD-hh-mm).
For more information, see Understanding WLSE Time Displays.
Client MAC
The client's MAC address.
Interface Name
The name of the radio interface.
QOS
An indicator bar that shows whether the packet latency and packet loss rates are within normal limits.
•
•
•
This data comes from the Traffic Stream Metrics.
Packet Count (Downlink)
The total number of packets counted per traffic stream (from the AP to the client).
Packet Count (Uplink)
The total number of packets counted per traffic stream (from the client to the AP).
% PLR (Downlink)
The percentage of packets lost per traffic stream (from the AP to the client).
% PLR (Uplink)
The percentage of packets lost per traffic stream (from the client to the AP).
Ave Queuing Delay (ms) (Downlink)
The average delay (in milliseconds) from the time a packet was queued in the AP's driver queue to the time the acknowledgement was received by the AP's driver from the client.
Ave Queuing Delay (ms) (Uplink)
The average delay (in milliseconds) from the time a packet was queued in the client's driver queue to the time the acknowledgement was received by the client's driver from the AP.
% Packets > 40ms Queuing Delay
The percentage of packets that experience more than 40 ms delay per cell.
% Packets > 20ms Queuing Delay
The percentage of packets that experience less than or equal to 40 ms and more than 20 ms delay per cell.
Using U-APSD
Whether the AP's clients are using U-APSD (unsolicited automatic power save delivery).
Roaming Delay (ms)
The time (in milliseconds) it takes for a roaming call's association process to complete.
Roaming Count
The number of times a client has roamed to this AP.
Step 4
Related Topics
•
•
AP Detail: Last Hour
The AP Detail: Last Hour report highlights information about the associated clients for the last hour. For example:
•
•
Note
Before You Begin
Satisfy the voice prerequisites (see Guidelines for Using Voice).
Procedure
Step 1
Step 2
Step 3
The AP Detail: Last Hour report displays the following information:
Time
The time (month, day, hour, and minute) the WLSE polled information from the device (MM-DD-hh-mm).
For more information, see Understanding WLSE Time Displays.
Interface Name
The name of the radio interface.
QOS
An indicator bar that shows whether the packet latency and packet loss rates are within normal limits.
•
•
•
This data comes from the Traffic Stream Metrics.
% PLR (Downlink)
The percentage of packets lost per traffic stream (from the AP to the client).
% PLR (Uplink)
The percentage of packets lost per traffic stream (from the client to the AP).
Ave Queuing Delay (ms) (Downlink)
The average delay (in milliseconds) from the time a packet was queued in the AP's driver queue to the time the acknowledgement was received by the AP's driver from the client.
Ave Queuing Delay (ms) (Uplink)
The average delay (in milliseconds) from the time a packet was queued in the client's driver queue to the time the acknowledgement was received by the client's driver from the AP.
% Packets > 40ms Queuing Delay
The percentage of packets that experience more than 40 ms delay per cell.
% Packets > 20ms Queuing Delay
The percentage of packets that experience less than or equal to 40 ms and more than 20 ms delay per cell.
Client(s) Using U-APSD
Whether the AP's clients are using U-APSD (unsolicited automatic power save delivery).
Roaming Delay (ms)
The time (in milliseconds) it takes for a roaming call's association process to complete.
Step 4
Related Topics
•
•

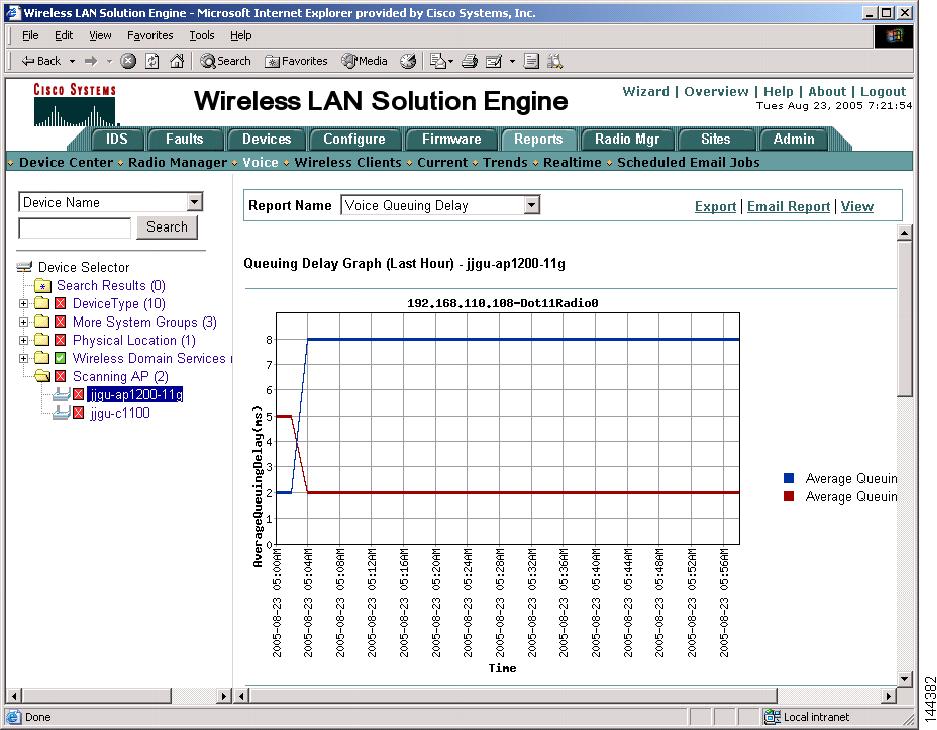

Voice Queuing Delay
This graph displays:
•
•
Note
Before You Begin
Satisfy the voice prerequisites (see Guidelines for Using Voice).
Procedure
Step 1
Step 2
Step 3
Step 4
Related Topics
Understanding Radio Management for VoWLAN

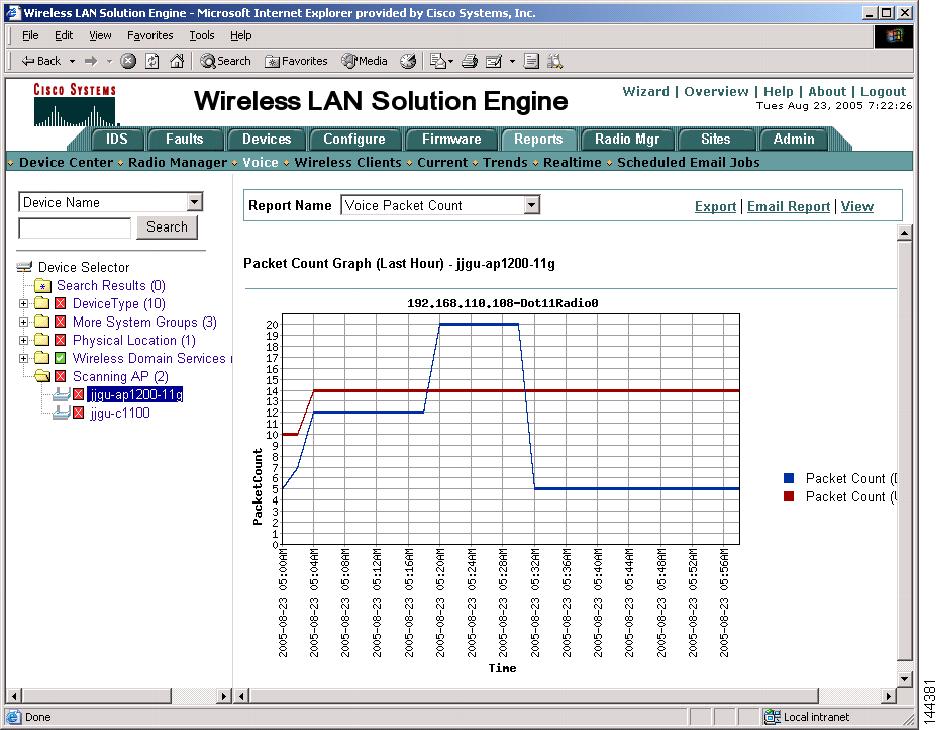

Voice Packet Loss
This graph displays:
•
•
Tracking the packet count is important for these reasons:
•
•
Note
Before You Begin
Satisfy the voice prerequisites (see Guidelines for Using Voice).
Procedure
Step 1
Step 2
Step 3
Step 4
Related Topics
Understanding Radio Management for VoWLAN

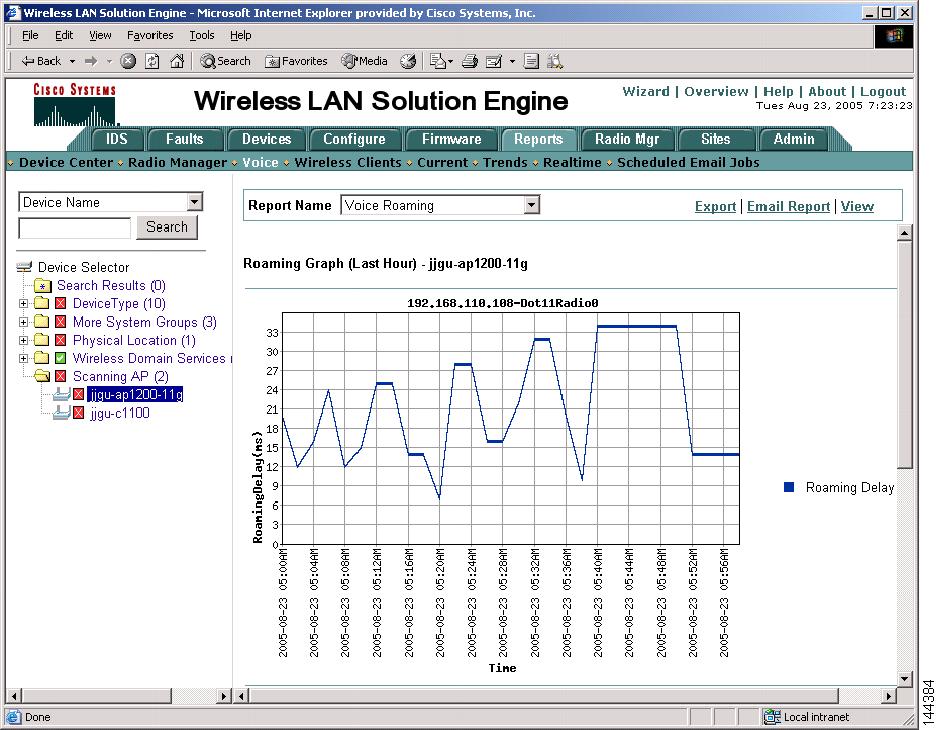

Voice Roaming
This graph displays:
•
•
Note
Before You Begin
Satisfy the voice prerequisites (see Guidelines for Using Voice).
Procedure
Step 1
Step 2
Step 3
Step 4
Related Topics

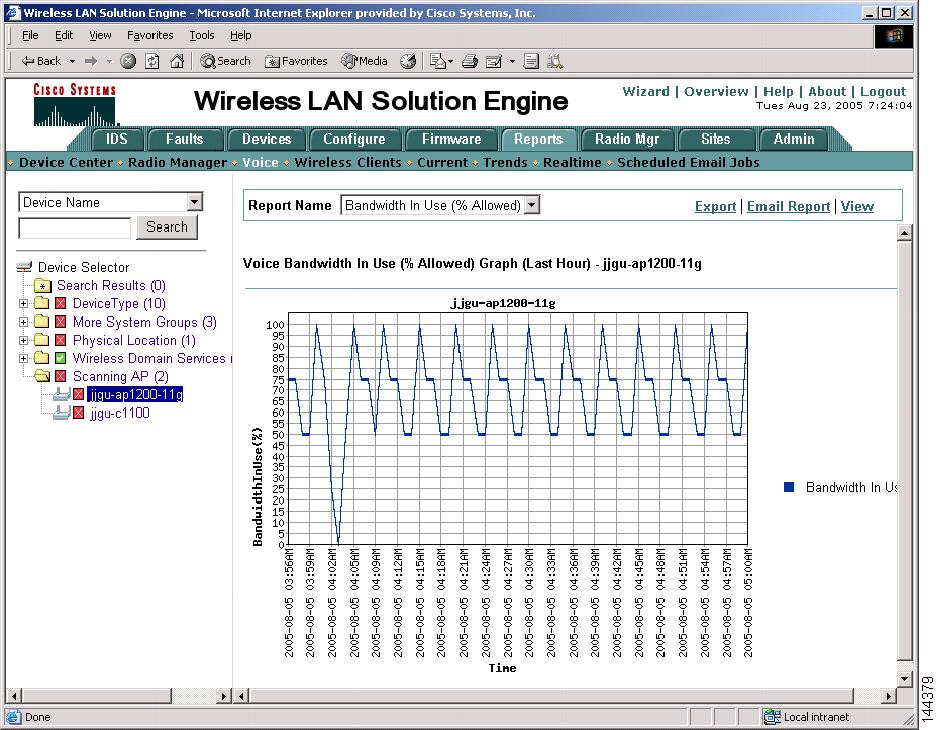

Bandwidth In Use
This graph displays the percentage of allowed bandwidth that has been used by the AP during the last hour.
Note
Before You Begin
Satisfy the voice prerequisites (see Guidelines for Using Voice).
Procedure
Step 1
Step 2
Step 3
Step 4
Related Topics
Understanding Radio Management for VoWLAN

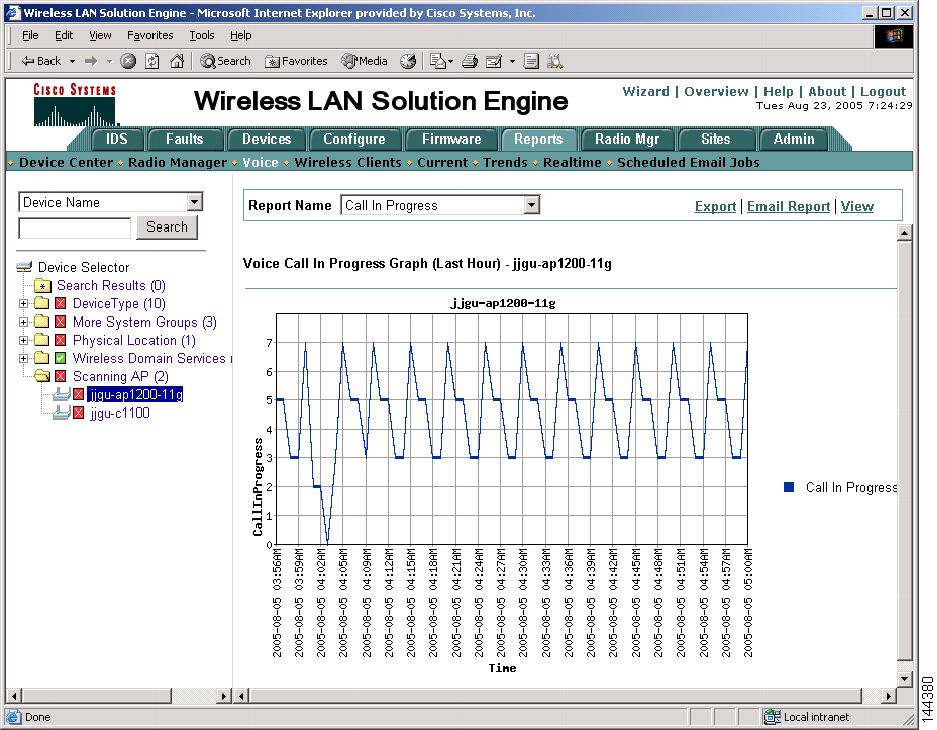

Voice Streams In Progress
This graph displays the number of voice streams in progress on the AP during the last hour.
Each client participating in a call counts as one voice stream. There are at least two voice streams, one from each client, per call. For a conference call, the number of voice streams is equal to the number of clients participating in that call.
Note
Before You Begin
Satisfy the voice prerequisites (see Guidelines for Using Voice).
Procedure
Step 1
Step 2
Step 3
Step 4
Related Topics
Understanding Radio Management for VoWLAN

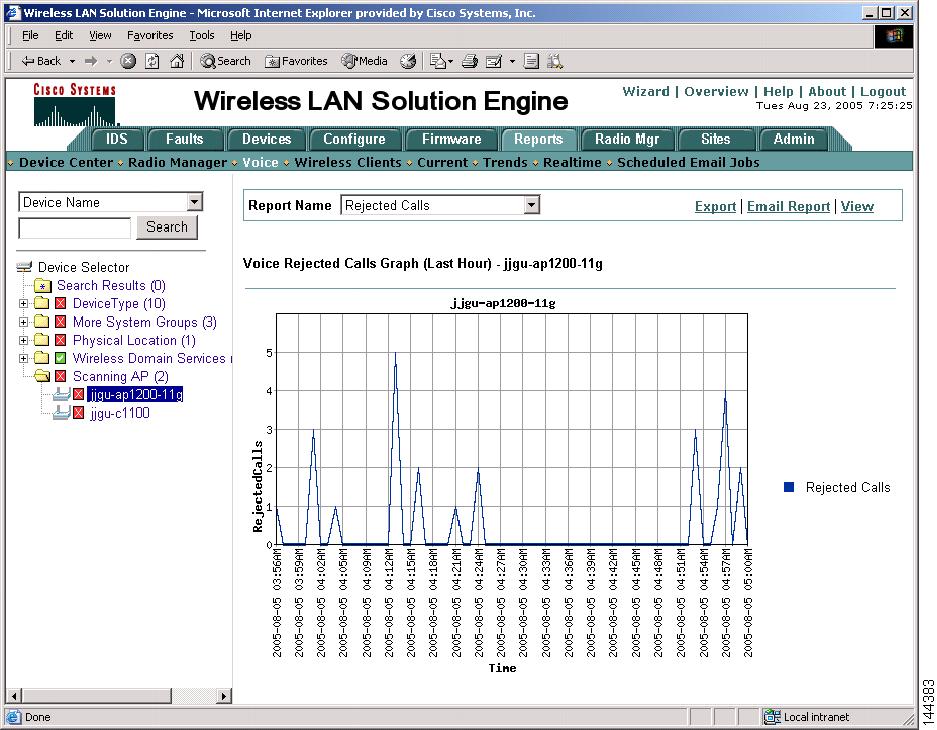

Rejected Voice Streams
This graph displays the number of voice streams rejected by the AP during the last hour.
Each client participating in a call counts as one voice stream. There are at least two voice streams, one from each client, per call. For a conference call, the number of voice streams is equal to the number of clients participating in that call.
Note
Before You Begin
Satisfy the voice prerequisites (see Guidelines for Using Voice).
Procedure
Step 1
Step 2
Step 3
Step 4
Related Topics
Understanding Radio Management for VoWLAN
Displaying Wireless Client Reports
Wireless client reports provide information about:
•
•
•
•
Wireless client reports are not real-time reports. The information displayed in the reports is gathered by client polling and, for particular versions of firmware, client tracking. To understand more about wireless client reports and how the information for them is gathered, see Client Tracking vs. Client Polling.
Note
You can view the following the report types:
•
•
•
•
•
Displaying a Client Detail Report
Wireless client polling frequency is set to 51 minutes by default. To increase the accuracy of this report, increase the polling frequency. To change the default setting, select Devices > Discover > Inventory > Polling.
Caution
In some instances, report data may be missing for clients that are associated with access points in which client tracking is turned on for their corresponding WDS devices. This happens because the WDS does not include all the information displayed in the report when it sends notifications about client activity events to the WLSE. The missing data may be obtained by selecting Devices > Discover > Inventory > Run Inventory on the associated access point.
Procedure
Step 1
Step 2
Step 3
Note
Step 4
Step 5
Step 6
Note
Table 10-14 Client Detail Report
Name
The client name.
Note
IP Address
The client IP address.
EAP User Name
The client used for EAP authentication.
Mobility ID
The client mobility identification number.
Note
Client Type
The type of client. For example Workgroup Bridge, 350 Series, Ethernet AP, etc.
Note
Connected To
The name or IP address of the AP.
Click on this link to view the AP Detail Report and the Fault Summary.
For more information, see Displaying a Detailed Report
Role
The role of the wireless device. For example, client station, repeater, root bridge, etc.
Note
Radio Type
The type of radio model of the wireless device. For example, Cisco 3500, 3000, 4500, 340, or 350 radios.
SSID
The unique identifier the client device uses to associate with the access point.
State
The current state of the authentication and association process between the client and the access point or bridge.
Time Last Seen
The time the client was last seen by the system.
Software Version
The IOS version if the client is an access point, bridge or repeater. Otherwise, it is the firmware version of the client card.
Note
MAC Address
The MAC address of the client.
Related Topics
Using the Basic Report Features
Displaying a Client Statistics Report
Wireless client polling frequency is set to 51 minutes by default. If 0 (zero) values are displayed in the report or if you want to increase the accuracy of the report, increase the polling frequency. To change the default setting, select Devices > Discover > Inventory > Polling .
Caution
Procedure
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Step 7
Step 8
Related Topics
Using the Basic Report Features
Displaying a Client Historical Association Report
Wireless client polling frequency is set to 51 minutes by default. To increase the accuracy of this report, increase the polling frequency. To change the default setting, select select Devices > Discover > Inventory > Polling.
Caution
Client tracking is available on all access points with firmware release 12.2(15)JA or later, and with WDS service enabled. To enable client tracking, select Devices >Discover > Client Tracking. (See Prerequisites for Enhanced Client Tracking)
Procedure
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Step 7
Step 8
Step 9
Table 10-16 Client Historical Association Report
AP Name
The name of the access point.
AP IP Address
The IP address of the access point.
EAP User Name
The RADIUS username used for EAP authentication. (Usernames are not available for non-EAP authentications.)
Note
The RADIUS username is generally available in all EAP au then cia ti on cases, except for PEAP and EAP-TTLS. In these instances, the availability of the information is dependent on vendor support.
Authentication Type
The authentication type used.
Event Type
The type of event that occurred:
•
This can happen when the WLSE reboots and the WDS to WLSE management link is established or restored after being lost.
•
•
•
•
•
MAC Address
The client MAC address.
WDS Address
The IP address of the WDS.
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays.
Event Time
The time the event occurred.
Related Topics
Using the Basic Report Features
Displaying a Client Access Failure Report
Wireless client polling frequency is set to 51 minutes by default. To increase the accuracy of this report, increase the polling frequency. To change the default setting, select select Devices > Discover > Inventory > Polling .
Caution
Client tracking is available on all access points with firmware release 12.2(15)JA or later, and with WDS service enabled. To enable client tracking, select Devices >Discover > Client Tracking. (See Prerequisites for Enhanced Client Tracking)
Procedure
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Step 7
Step 8
Step 9
Table 10-17 Client Access Failure Report
AP Name
The name of the access point.
AP IP Address
The IP address of the access point.
Client MAC Address
The MAC address of the client.
EAP User Name
The RADIUS username used for EAP authentication. (Usernames are not available for non-EAP authentications.)
Note
The RADIUS username is generally available in all EAP au then cia ti on cases, except for PEAP and EAP-TTLS. In these instances, the availability of the information is dependent on vendor support.
Authentication Type
The authentication type used.
Event Type
The type of event that occurred:
•
This can happen when the WLSE reboots and the WDS to WLSE management link is established or restored after being lost.
•
•
•
•
WDS Address
The IP address of the WDS.
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays.
Event Time
The time this event occurred.
Related Topics
Using the Basic Report Features
Voice Client Detail: Last Hour
The Voice Client Detail: Last Hour report highlights the voice metrics of a specific client for the last hour.
Note
Before You Begin
Satisfy the voice prerequisites (see Guidelines for Using Voice).
Procedure
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Step 7
Step 8
Time
The time (month, day, hour, and minute) the WLSE polled information from the device (MM-DD-hh-mm).
For more information, see Understanding WLSE Time Displays.
QOS
An indicator bar that shows whether the packet latency and packet loss rates are within normal limits.
•
•
•
This data comes from the Traffic Stream Metrics.
AP Name
The name of the access point.
Interface Name
The name of the radio interface.
Packet Count (Downlink)
The total number of packets counted per traffic stream (from the AP to the client).
Packet Count (Uplink)
The total number of packets counted per traffic stream (from the client to the AP).
% PLR (Downlink)
The percentage of packets lost per traffic stream from the AP to the client)
% PLR (Uplink)
The percentage of packets lost per traffic stream from the client to the AP.
Ave Queuing Delay (ms) (Downlink)
The average delay (in milliseconds) from the time a packet was queued in the AP's driver queue to the time the acknowledgement was received by the AP's driver from the client.
Ave Queuing Delay (ms) (Uplink)
The average delay (in milliseconds) from the time a packet was queued in the client's driver queue to the time the acknowledgement was received by the client's driver from the AP.
% Packets > 40ms Queuing Delay
The percentage of packets that experience greater than 40 milliseconds delay per cell.
% Packets > 20ms Queuing Delay
The percentage of packets that experience less than or equal to 40 milliseconds and greater than 20 milliseconds delay per cell.
Using U-APSD
Whether the client is using U-APSD (unsolicited automatic power save delivery).
Roaming Delay (ms)
The time it takes (in milliseconds) for a roaming call's association process to complete.
Roaming Count
The number of times a client has roamed to this AP.
Step 9
Related Topics
•
•
Displaying Current Reports
This window allows you to view current information about the monitored devices in your network. You can view, export, and email the reports.
The frequency with which configuration data is collected from the devices is 12 hours by default. To change the default setting, select Devices > Discover > Inventory > Polling.
Using this option, you can view the following types of current reports:
•
–
–
–
–
•
–
–
Note
Group Reports for APs
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Group Reports for 1300 Wireless Bridges
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Group Reports for 1400 Wireless Bridges
•
•
•
•
•
•
•
•
Group Reports for AP1100 and AP1200 in Workgroup Bridge Mode
•
•
•
•
•
•
•
Access Point Reports
Note
•
•
•
•
•
•
•
•
•
•
•
•
Wireless Bridge Reports (BR1310 and BR1410)
•
•
•
•
•
•
•
Workgroup Bridge Reports (AP1100 and AP1200 in WGB Mode)
•
•
•
•
•
•
•
Switch Reports
•
•
•
Router Reports
•
•
Server Reports
•
•
WLSM Reports
•
•
•
•
Displaying a Group Client Association Report
Procedure
Step 1
Step 2
Step 3
Table 10-18 Group Client Association Report
Number of Clients Associated with this Group
The total number of clients associated with the group of access points or bridges.
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays.
AP Name
The name of the access point.
Click to view the following:
•
•
•
AP IP Address
The IP address of the access point.
Click to open a browser window to the AP Summary Status.
TipRF Interface
The radio interface name.
Number of Clients Connected
The number of wireless clients connected to the device.
Number of Bridges Connected
The number of bridges connected to the access point.
Number of AP-Repeaters Connected
The number of repeaters connected to the access point.
Status (Fault)
Click to view the Fault Summary.
For more information, see Viewing the Fault Status Report.
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays.
Related Topics
Using the Basic Report Features
Displaying a Group Security Report
Procedure
Step 1
Step 2
Step 3
Table 10-19 Group SSID Security Report
AP Name
The name of the device.
Click to view the following:
•
•
•
AP IP Address
The IP address of the device.
Click to open a browser window to the AP Summary Status.
TipRF Interface
The radio interface name.
SSID
The service set identifier name.
Authentication Type - Open System
Indicates whether the SSID is configured for open authentication.
Authentication Type - Shared Key
Indicates whether the SSID is configured for shared authentication.
Authentication Type - Cisco EAP
Indicates whether the SSID is configured for Cisco EAP authentication.
As Of
The time the fault was reported.
For more information, see Understanding WLSE Time Displays.
Table 10-20 Group VLAN Security Report
AP Name
The name of the device.
Click to view the following:
•
•
•
AP IP Address
The IP address of the device.
Click to open a browser window to the AP Summary Status.
TipVLAN ID
The VLAN identification number.
VLAN Name
The name of the VLAN.
Backup VLANs
The IDs of the backup VLANs for the VLAN, if any.
RF Interface
The radio interface type.
•
•
Length of WEP Key 1
The length of the WEP key.
Length of WEP Key 2
Length of WEP Key 3
Length of WEP Key 4
Encryption Mode
The encryption mode: None, WEP Encryption, or Cipher.
Cipher Type
The cipher type, which could be any combination of the following: AESCCM, CKIP, CMIC, TKIP, WEP 128, and WEP 40.
As Of
The time the fault was reported.
For more information, see Understanding WLSE Time Displays.
Related Topics
Using the Basic Report Features
Displaying a Group SSID Report
This report displays all the configured SSIDs (both primary and auxiliary) and their corresponding properties in all the devices in the group.
Procedure
Step 1
Step 2
Table 10-21 Group SSID Report
SSID
The unique identifier the client device uses to associate with the access point.
AP Name
The name of the access point.
Click to view the following:
•
•
•
AP IP Address
The IP address of the access point.
Click to open a browser window to the AP Summary Status.
TipRF Interface
The radio interface name.
Guest Mode Status
Indicates whether the SSID guest mode is enabled or disabled.
SSIDL Information Element
What is it?
•
•
VLAN ID
The identification number of the VLAN.
VLAN Name
The name of the VLAN.
Backup VLANs
The IDs of the backup VLANs for the VLAN, if any.
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays.
Related Topics
Using the Basic Report Features
Displaying a Group MBSSID Report
This report displays all the configured MBSSIDs and their corresponding properties in all the devices in the group.
Procedure
Step 1
Step 2
Table 10-22 Group MBSSID Report
SSID
The unique identifier the client device uses to associate with the access point.
BSSID
The unique Basic Service Set Identifier that is associated with the SSID.
AP Name
The name of the access point.
Click to view the following:
•
•
•
AP IP Address
The IP address of the access point.
Click to open a browser window to the AP Summary Status.
TipRF Interface
The radio interface name.
Guest Mode Status
Indicates whether the SSID guest mode is enabled or disabled.
MBSSID Status
Indicates whether MBSSID is enabled or disabled.
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays.
Related Topics
Using the Basic Report Features
Displaying a Group VLAN Report
This report displays all the configured VLANs (normal and backup) and their corresponding properties in the group.
Procedure
Step 1
Step 2
Note
Table 10-23 Group VLAN Report
VLAN ID
The identification number of the VLAN.
VLAN Name
The name of the VLAN.
Backup VLAN (Y/N)
Indicates whether the VLAN is normal or backup.
AP Name
The name of the access point.
Click to view the following:
•
•
•
AP IP Address
The IP address of the access point.
Click to open a browser window to the AP Summary Status.
TipRF Interface
The radio interface name.
Class of Service
The configured class of service.
SSID
The unique identifier the client device uses to associate with the access point.
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays.
Related Topics
Using the Basic Report Features
Displaying a Per VLAN Client Report
Wireless client polling frequency is set to 51 minutes by default. To increase the accuracy of this report, increase the polling frequency. To change the default setting, select Devices > Discover > Inventory > Polling.
Caution
Procedure
Step 1
Step 2
Table 10-24 Per VLAN Client Report
VLAN ID
The identification number of the VLAN.
VLAN Name
The name of the VLAN.
Backup VLAN (Y/N)
Indicates whether the VLAN is normal or backup.
RF Interface
The radio interface name.
SSID
The unique identifier the client device uses to associate with the access point.
Client MAC Address
The MAC address of the client.
User Name
The name of the user.
Client Name
The name of the client.
Client IP Address
The IP address of the client.
ClientType
The type of client.
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays.
Related Topics
Using the Basic Report Features
Displaying a Group Client Report
This report lists the clients configured on each of the access points in this group.
Procedure
Step 1
Step 2
Table 10-25 Group Client Report
AP Name
The name of the access point.
Click to view the following:
•
•
•
AP IP Address
The IP address of the access point.
Click to open a browser window to the AP Summary Status.
RF Interface
The radio interface name.
SSID
The unique identifier the client device uses to associate with the access point.
Client MAC Address
The MAC address of the client.
Client Name
The name of the client.
EAP User Name
The username used for authentication.
Client IP Address
The IP address of the client.
Role
The role of the client.
Client Type
The type of client.
Time last seen
The time the client was last seen by the system.
Related Topics
Using the Basic Report Features
Displaying a Group Identity Report
This report lists information about the access points in the group such as their serial number, the switch to which they are connected, and other identifying features.
Procedure
Step 1
Step 2
Table 10-26 Group Identity Report
AP Name
The name of the access point.
Click to view the following:
•
•
•
Version
The device version.
SSID
The .11 SSID configured on the interface.
Channel
The channel number configured in the radio interface.
AP IP Address
The IP address of the access point.
Click to open a browser window to the AP Summary Status.
MAC Address (Ethernet)
The Ethernet MAC address.
MAC Address (Radio B/G)
The base MAC Address of the radio interface, if MBSSID is enabled in the AP.
MAC Address (Radio A)
The.11a radio MAC address.
Note
Serial Number
The serial number of the access point.
Switch IP Address
The IP address of the switch to which the access point is connected.
Switch Port
The port of the switch to which the access point is connected.
Operating Frequency
The operating frequency band.
Operating Mode
The operating mode.
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays.
Related Topics
Using the Basic Report Features
Displaying a Group Serial Number Report
This report lists the top assembly serial number on the access point.
Procedure
Step 1
Step 2
Related Topics
Using the Basic Report Features
Displaying a Group Security Violation Report
Procedure
Step 1
Step 2
Table 10-28 Group Security Violation Report
AP Name
The name of the device.
AP IP Address
The IP address of the access point.
Click to open a browser window to the AP Summary Status.
RF Interface
The name of the interface.
Client MAC Address
The MAC address of the client.
Local MIC Failures
The number of MIC failures encountered on the radio interface.
Remote MIC Failures
The number of MIC failures reported by the client's radio interface.
TKIP Counter Measures Invoked
The number of TKIP counter measures invoked on this interface.
TKIP Replay Errors Detected
The number of TKIP replay errors detected on this interface.
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays.
Related Topics
Using the Basic Report Features
Displaying a Group CDP Inline Power Report
Procedure
Step 1
Step 2
Table 10-29 Group CDP Inline Power Report
AP Name
The name of the device.
AP IP Address
The IP address of the access point.
Click to open a browser window to the AP Summary Status.
Power Source Type
Indicates the type of power source.
Current Power Value (mW)
Indicates, in milliwatts, the power value.
Current Power Mode
Indicates the power mode.
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays.
Related Topics
Using the Basic Report Features
Displaying a Group Inventory Report
This report lists the top assembly serial number on the access point.
Procedure
Step 1
Step 2
Related Topics
Using the Basic Report Features
Displaying a Group LBS Report
This report is for access points and bridges running version 12.3(4)JA and above.
Procedure
Step 1
Step 2
Table 10-31 Group LBS Report
AP Name
The name of the device.
AP IP Address
The IP address of the access point.
Click to open a browser window to the AP Summary Status.
Radio Interface
The radio interface name.
LBS Profile Name
The profile name configured in the AP.
LBS Position Server
The IP address of the positioning server configured in the AP.
LBS Track Method
The track method (RSSI).
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays.
Related Topics
Using the Basic Report Features
Displaying a Group Mobility ID Report
This report lists the mobility identification numbers configured on the WLSM. For Mobility ID to be displayed, a Network ID must be configured on the access point, and a client must associate to an access point using the SSID with which the Mobility ID (or Network ID on the access point) is configured.
Note
Procedure
Step 1
Step 2
Table 10-32 Group Mobility ID Report
WLSM IP Address
The IP address of the WLSM.
Mobility ID
The mobility ID configured on the WLSM.
Note
Client MAC Address
The client's MAC address.
SSID
The unique identifier the client device uses to associate with the access point.
Associated AP IP Address
The associated access point's IP address.
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays.
Related Topics
Using the Basic Report Features
Displaying a Group Version Summary Report
This report provides a summary of the versions for the devices in the group.
Procedure
Step 1
Step 2
Table 10-33 Group Version Summary Report
Device Version
The software version.
Count of Devices
The number of devices with that version.
Related Topics
Using the Basic Report Features
Displaying a Group Auto Config Retry Report
This report provides information about retries in uploading auto-configuration templates that are deployed using the Deployment Wizard.
Procedure
Step 1
Step 2
Table 10-34 Group Auto Config Retry Report
Name
The device name.
Device IP
The IP address of the device.
Status
The device status, which is one of the following Deployment Wizard phases:
•
•
•
•
•
•
•
Boot Time
The time the device booted up.
Template Name
The name of the template designated as the auto config template.
Retry Number
The number of times the WLSE has attempted to upload the template to the device.
Retry Time
The time the auto config job will re-run.
Description
The status description
As Of
The time the status was last updated.
For more information, see Understanding WLSE Time Displays.
Related Topics
Using the Basic Report Features
Displaying a Credentials Verification Report
This report displays the results of running a credentials verification job (see Enter Credentials Verification Job Settings). The report consists of a summary section and a details section. The details section displays a table listing all managed access points that were checked. All access points that have failed at least one credential are listed first, followed by all the access points that have all the credentials. The entries in the table are sorted by host name.
Procedure
Step 1
Step 2
Table 10-35 Group Auto Config Retry Report
Devices Checked
The number of managed access points checked.
Devices Failing Verification
The number of access points that with credentials mismatch.
As Of
The time the report was last updated.
AP Name
The access point's name.
AP IP Address
The access point's IP address.
SSH Status
The result of the credentials verification check:
•
•
•
•
•
•
Telnet Status
SNMPGet Status
SNMPSet Status
Remarks
Click View to find the reason for the failed status if any.
As Of
The time the status of the access point was last updated. For access points that were discovered after the job was run, this field is empty.
For more information, see Understanding WLSE Time Displays.
Related Topics
Using the Basic Report Features
Displaying an AP Summary Report
Procedure
Step 1
Step 2
Step 3
Note
Table 10-36 Summary Report
Full Name
The name for the device as entered in the Name Form field under Devices > Discover > Discover > Advanced Options.
MAC Address
The device's MAC address.
IP Address
The device's IP address.
Click to open a browser window to the AP Summary Status.
TipDescription
A description of the device.
SysName
The system name.
Serial Number
The serial number of the access point.
Parent WDS for the Access Point
Note
The access point that provides Wireless Domain Services.
Software Version
The IOS version on the device.
Model
The model number of the device.
Radio Port
Note
The radio port.
Radio Type
The radio interface type used.
Radio MAC Address
The MAC address for the radio interface.
MBSSID Status
Indicates whether the MBSSID is enabled or disabled.
Number of Clients Connected
The number of wireless clients connected to the device.
Number of Bridges Connected
The number of wireless bridges connected to the device.
Number of AP-Repeaters Connected
The number of AP repeaters connected to the device.
Desired SSID
The unique identifier the client device uses to associate with the access point.
Guest Mode SSID
A list of all the SSIDs that have a guest mode enabled for the interface.
Current Operating Frequency Channel
The radio channel being used.
Link to the Detailed Report
Note
Click to see details.
For more information, see Displaying a Detailed Report.
Link to the Association Report
Note
Click to see associations.
For more information, see Displaying an Associations Report.
Link to the Access Point Web Page
Note
Click to open a browser window to the AP Summary Status.
Please note:
•
•
For information on setting up the HTTP and HTTPS ports, see Enter HTTP/HTTPS Port Settings—Access Points.
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays.
To view information about the Fault Summary, see Viewing the Fault Status Report
Related Topics
Using the Basic Report Features
Displaying a Detailed Report
Procedure
Step 1
Step 2
Step 3
•
•
Note
Table 10-37 Detailed Report
Full Name
The system name for the device as entered in the Name Form field under Devices > Discover > Discover > Advanced Options.
MAC Address
The device's MAC address.
IP Address
The device's IP address.
Click to open a browser window to the AP Summary Status.
TipDescription
A description of the device.
If this field is blank, select a device under Devices > Discover > Managed Devices, enter the description of the device in the Description field, and click Save. The next time you display a detailed report, this filed will display the device's description.
Software Version
The IOS version on the device.
Model
Model number of the device.
Product ID
The device's identification number.
Version ID
The devices's version number.
Serial Number
The top assembly serial number.
Subnet Mask
The subnet mask.
Hot StandBy
Indicates whether the hot standby unit is in monitoring mode.
If true, the current unit is in monitoring mode.
Switch IP (attached to this AP, requires CDP)
The IP address of the switch to which this access point is attached.
Note
Switch Name ((attached to this AP, requires CDP)
The name of the switch to which this access point is attached.
Note
Switch Port
The port number of the switch to which the access point is connected.
Device Uptime
The time since the device last rebooted per the last inventory poll.
SysName
The system name.
Radio Port
Note
The radio port.
Radio Type
The radio interface type used.
Radio MAC Address
The MAC address of the radio interface.
MBSSID Status
Indicates whether the MBSSID is enabled or disabled.
Number of Clients Connected
The number of wireless clients connected to the device.
Desired SSID
The unique identifier the client device uses to associate with the access point.
This field displays the SSID that is configured as the infrastructure SSID on the access point.
Guest Mode SSID
A list of all the SSIDs that have a guest mode enabled for the interface.
SSID Associated to the Native Vlan
The SSID that is mapped to the native VLAN.
Radio Cell Role
Indicates the role of the device.
Operating Frequency
The operating frequency band.
Operating Mode
The operating mode (legacy, mixed, or greenField).
Transmit Power
The access point's transmission power setting in milliwatts.
Authentication Type - Open System
Indicates whether any device, regardless of its WEP keys, can authenticate and attempt to associate.
Authentication Type - Shared Key
Indicates whether an access point sends a query to any device attempting to associate with the access point.
Authentication Type-Cisco EAP
Indicates whether a device using EAP can authenticate and attempt to associate with the access point.
This field reflects the authentication type configured for the infrastructure SSID (that is, the desired SSID). If the access point does not have any SSID in the infrastructure mode, this field will be blank.
Active MAC Addresses
Click to view the list of all active MAC addresses.
Active MAC addresses are shown only when the MBSSID mode is enabled in the AP.
Link to the Access Point Web Page
Note
Click to open a browser window to the AP Summary Status.
TipAs Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays.
Related Topics
•
•
•
Displaying an Associations Report
Procedure
Step 1
Step 2
Step 3
Table 10-38 Associations Report
Name
The wireless client's name.
IP Address
The wireless client's IP address.
MAC Address
The wireless client's MAC address.
Device Type
The wireless client device type.
Role
The role of the client device in the network.
Radio Type
The type of client radio.
As Of
The time the client was last seen by the system.
For more information, see Understanding WLSE Time Displays.
Related Topics
Using the Basic Report Features
Displaying a RADIUS Authentication Report
This device report lists all the authentication servers that are configured for the device.
Procedure
Step 1
Step 2
Step 3
Related Topics
Using the Basic Report Features
Displaying an QoS Report
This device report displays the configured QoS parameters on access points.
Procedure
Step 1
Step 2
Step 3
:
Table 10-40 QoS Report
RF Interface
The radio interface name.
Class of Service
The configured class of service.
Min Contention Window
The minimum contention window value.
Max Contention Window
The maximum contention window value.
Fixed Time Slot
The configured time slot.
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays.
Related Topics
Using the Basic Report Features
Displaying an SSID Report
This device report displays all the configured SSIDs (both primary and auxiliary) and their corresponding properties.
Procedure
Step 1
Step 2
Step 3
Table 10-41 SSID Report
SSID
The unique identifier the client device uses to associate with the access point.
RF Interface
The radio interface name.
SSIDL Information Element
What is it?
•
•
Guest Mode Status
Indicates whether the guest mode is enabled or disabled for the interface.
VLAN ID
The VLAN identification number.
VLAN Name
The name of the VLAN.
Backup VLANs
The IDs of the backup VLANs, if any.
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays.
Related Topics
Using the Basic Report Features
Displaying an MBSSID Report
This device report displays all the configured MBSSIDs.
Procedure
Step 1
Step 2
Step 3
Table 10-42 MBSSID Report
SSID
The unique identifier the client device uses to associate with the access point.
RF Interface
The radio interface name.
MAC Address
The MAC address of the access point.
Guest Mode Status
Indicates whether the SSID guest mode is enabled or disabled.
MBSSID Status
Indicates whether MBSSID is enabled or disabled.
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays.
Related Topics
Using the Basic Report Features
Displaying a VLAN Report
This device report displays all the configured VLANs (normal and backup) and their corresponding properties.
Procedure
Step 1
Step 2
Step 3
Note
Table 10-43 VLAN Report
VLAN ID
The identification number of the VLAN.
VLAN Name
The name of the VLAN.
Backup VLAN (Y/N)
Indicates whether the VLAN is normal or backup.
Class of Service
Lists the class of service.
RF Interface
The radio interface name.
SSID
The unique identifier the client device uses to associate with the access point.
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays.
Related Topics
Using the Basic Report Features
Displaying a Per VLAN Client Report
Wireless client polling frequency is set to 51 minutes by default. To increase the accuracy of this report, increase the polling frequency. To change the default setting, select Devices > Discover > Inventory > Polling.
Caution
Procedure
Step 1
Step 2
Step 3
Table 10-44 Per VLAN Client Report
VLAN ID
The identification number of the VLAN.
VLAN Name
The name of the VLAN.
RF Interface
The radio interface name.
SSID
The unique identifier the client device uses to associate with the access point.
Client MAC Address
The MAC address of the client.
Client Name
The name of the client.
Client IP Address
The IP address of the client.
Client Type
The type of client associated to the access point.
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays.
Related Topics
Using the Basic Report Features
Displaying a Hot Standby Report
Procedure
Step 1
Step 2
Step 3
Related Topics
Using the Basic Report Features
Displaying an EAP and MAC Failed Authentication Report
Procedure
Step 1
Step 2
Step 3
Table 10-46 EAP and MAC Failed Authentication Report
AP Name
The name of the access point.
AP IP Address
The IP address of the access point.
Client IP Address
The IP address of the client.
EAP Username
Username used for authentication.
Authentication Type
The authentication type used.
Event Type
The type of event that failed.
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays.
Related Topics
Using the Basic Report Features
Displaying a Failed Authentication and Login Attempt per AP Report
This report provides information about authentication and login failures for devices that are deployed using the Deployment Wizard.
Procedure
Step 1
Step 2
Step 3
The report is displayed.
Table 10-47 Failed Authentication and Login Attempt per AP Report
AP Name
The name of the access point.
AP IP Address
The IP address of the access point.
Server Address
The IP address of the access server.
Server Type
The type of server (either RADIUS or TACACS).
Authentication Failures
The number of authentication failures.
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays.
Related Topics
Using the Basic Report Features
Displaying a Switch Summary Report
Procedure
Step 1
Step 2
Step 3
The group report is displayed with the following headings:
Table 10-48 Switch Summary Report
System Name
The switch name.
IP Address
The switch IP address or hostname.
System Description
A description of the system.
Location
A description of the switch location.
Product Type
The switch type.
System Version
The software version on the switch.
Link to the AP and Bridge Connected
Click for details.
For more information, see Displaying an AP and Bridge Connected to Switch Report.
Link to the WLSM Modules Contained
The WLSM Modules report displays with the following information
•
•
•
•
•
Related Topics
•
•
Displaying an AP and Bridge Connected to Switch Report
Procedure
Step 1
Step 2
Step 3
The report is displayed with the following headings:
Table 10-49 AP and Bridge Connected to Switch Report
Device Port
The device port.
AP Name
The name of the access point or bridge connected to the switch.
AP IP Address
The IP address of the access point or bridge connected to the switch.
Status (Fault)
The fault status.
Click for details. For more information, see Viewing the Fault Status Report.
Reset Power
Click to begin a switch power cycle which will reload the access point.
Note
For this feature to work properly, you must run discovery from Administration > Discover > DISCOVER on the switch if the connectivity of access point has changed in any way. This includes activities such as swapping access points between ports. In addition, if you change the DHCP address for the access points, you must delete the access points from the WLSE, then re-discover them for this feature to work.
Related Topics
Using the Basic Report Features
Displaying an WLSM Modules Report
Procedure
Step 1
Step 2
Step 3
The report is displayed with the following headings:
Related Topics
Using the Basic Report Features
Displaying a Router Summary Report
Procedure
Step 1
Step 2
Step 3
Step 4
Related Topics
•
•
Displaying an AP and Bridge Connected to Router Report
Procedure
Step 1
Step 2
Step 3
Step 4
Table 10-52 AP and Bridge Connected to Router Report
Device Port
The device port.
AP Name
The name of the access point or bridge connected to the router.
AP IP Address
The IP address of the access point or bridge connected to the router.
Status (Fault)
The fault status.
Click for details. For more information, see Viewing the Fault Status Report.
Related Topics
Using the Basic Report Features
Displaying a Server Summary Report
Procedure
Step 1
Step 2
Step 3
Step 4
The report is displayed with the following headings:
Table 10-53 Summary Report
Server Name
The name of the server.
Port
The port number used for authentication.
User Name
The user name used for authentication.
Related Topics
•
•
Displaying an AP Usage Report
Procedure
Step 1
Step 2
Step 3
Step 4
Table 10-54 AP Usage Report
AP Name
The name of the access point.
AP IP Address
The IP address of the access point.
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays.
Related Topics
Using the Basic Report Features
Displaying a Mobility Groups Report
Procedure
Step 1
Step 2
Step 3
Step 4
Table 10-55 Mobility Groups Report
Network ID
The mobility network ID configured on the WLSM to uniquely identify the mobility group.
Tunnel IP Address
The IP address of the tunnel configured for the mobility group.
No. of Clients
The number of client associated with the mobility group as of given time.
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays.
Related Topics
Using the Basic Report Features
Displaying a Mobility ID Report
For Mobility ID to be displayed, a Network ID must be configured on the access point, and a client must associate to an access point using the SSID with which the Mobility ID (or Network ID on the access point) is configured.
Note
Procedure
Step 1
Step 2
Step 3
Step 4
Table 10-56 Mobility ID Report
WLSM IP Address
The IP address of the WLSM.
Mobility ID
The mobility network ID with which the client associates.
Client MAC Address
The client MAC address.
SSID
The service set identifier name.
Associated AP IP Address
The IP address of the associated access point.
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays.
Related Topics
Using the Basic Report Features
Displaying Trends
The trending reports allow you to view performance and error rates over periods of time, which you can use to analyze peak network utilization periods (see Using Trend Reports For Capacity Planning). You can view trends about the monitored access points, bridges, and servers in your network, as well as view, export, and email the reports.
Note
The frequency with which performance data is aggregated can be selected at the time you run the report. To change the default setting for the length of time the data is saved, Devices > Discover > Inventory > Polling.
There may be instances in which the data points on a graph do not appear at the interval you set. This occurs because the graph's contents are summarized when the space needed to show all the data is not available in the specified graph size. For example for a given date range, if there are 100 data points and only 25 can be plotted, the x-axis will be plotted for every 4th point.
Using this option, you can view the following types of trend reports:
•
–
–
–
–
–
•
–
–
•
–
–
–
–
–
–
•
–
–
–
–
•
Server Response Time Graph—See Displaying a Server Response Time Graph
WLSM Report
Note
Related Topics
•
•
Using Trend Reports For Capacity Planning
Trend reports can help you analyze when peak network utilization occurs and make intelligent decisions about whether or not the network is supporting these peak utilizations adequately. If you see that there are a high number of errors during peak periods, or the peak periods correlate with many complaints about performance, you can take steps to improve the WLAN experience, perhaps by deploying more access points.
You can use trend reports to see which access points are most utilized, which are most underutilized, and which have the most errors. These data are useful for making intelligent decisions about the WLAN. Why is the WLAN most utilized in some areas and underutilized in others? Is it simply the location or is there another reason?
For example, in some retail and manufacturing deployments, WLAN administrators have used the WLSE trending reports to determine where the WLAN was underutilized. Using these data, they determined that the employees in these areas were inadequately trained on mobile applications. After this problem was identified and more training supplied to the employees, the WLAN administrators used the WLSE trend reports to validate that the WLAN usage patterns were consistent with expectations. This helped to maximize the return on investment of both the WLAN infrastructure and the wireless applications.
Displaying a Group Performance Report: RF Utilization
Procedure
Step 1
Step 2
Note
Step 3
Step 4
Step 5
The following table is displayed:
Table 10-57 Group Performance Report: RF Utilization
AP Name
The name of the access point.
AP IP Address
The IP address of the access point.
RF Interface
The radio interface name.
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays.
RF Utilization (%)
The percentage of radio frequency utilization.
Number of Associations
Shows the number of associations with clients.
Related Topics
Using the Basic Report Features
Displaying a Group Performance Report: Ethernet Utilization
Procedure
Step 1
Step 2
Note
Step 3
Step 4
Step 5
The following table is displayed:
Table 10-58 Group Performance Report: Ethernet Utilization
AP Name
The name of the access point.
AP IP Address
The IP address of the access point.
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays.
Ethernet Utilization (%)
The percentage of Ethernet utilization.
Number of Associations
Shows the number of associations with clients.
Related Topics
Using the Basic Report Features
Displaying a Top N Number of Associations: Tabular Report
This report lists the top number of access points which have the highest average number of associations over the selected period of time. The minimum and maximum number of associations are also displayed.
Procedure
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
The following table is displayed:
Related Topics
Using the Basic Report Features
Displaying a Top N Number of Associations: Graph Report
This report lists the top number of access points which have the highest average number of associations over the selected period of time.
Procedure
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
The following graph is displayed:
Table 10-60 Top N Number of Associations: Graph
Number of Clients Connected
The x-axis displays the time intervals.
The y-axis displays the average number of clients connected
Related Topics
Using the Basic Report Features
Displaying a Top N Percentage Errors Report
This report lists the top number of access points which have the highest average percentage of errors. The minimum and maximum percentage of errors during the selected period of time are also displayed.
Procedure
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Related Topics
Using the Basic Report Features
Displaying an RF Transmission Statistics Report
This report displays the transmit and receive rates overlaid in a graph.
Procedure
Step 1
Step 2
Step 3
Step 4
Step 5
he following graphs are displayed:
Table 10-64 RF Transmission Statistics Packet Errors
Packet Errors
The x-axis displays the time intervals.
The y-axis displays the percent of error packets per number of packets.
Related Topics
Using the Basic Report Features
Displaying an Ethernet Transmission Statistics Report
This report displays the transmit and receive rates overlaid in a graph.
Procedure
Step 1
Step 2
Step 3
Step 4
Step 5
The following graphs are displayed:
Related Topics
Using the Basic Report Features
Displaying an RF and Ethernet Utilization Graph
This report displays the Ethernet utilization and RF utilization overlaid in a graph.
Procedure
Step 1
Step 2
Step 3
Step 4
Step 5
Table 10-69 Number of Associations Graph
Number of Associations
The x-axis displays the time intervals.
The y-axis displays the number of client associations
Related Topics
Using the Basic Report Features
Displaying an RF and Ethernet Utilization: Tabular Report
Procedure
Step 1
Step 2
Step 3
Step 4
Step 5
Table 10-70 RF and Ethernet Utilization: Tabular
IP Address
The IP address of the access point or bridge.
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays.
Number of Associations
The number of client associations.
Ethernet Utilization (%)
The amount of Ethernet utilization.
RF Interface
The radio interface name.
RF Utilization (%)
The amount of radio frequency utilization.
Related Topics
Using the Basic Report Features
Displaying Top N Busiest Clients
This report lists the top number of busiest clients in terms of average bit rate as perceived by the access point for the selected period of time. The minimum and maximum bit rates for the clients are also displayed.
Wireless client polling frequency is set to 51 minutes by default. If 0 (zero) values are displayed in the report or if you want to increase the accuracy of the report, increase the polling frequency. To change the default setting, select Devices > Discover > Inventory > Polling.
Caution
Procedure
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Related Topics
Using the Basic Report Features
Displaying Top N Client MIC Error Rate
Wireless client polling frequency is set to 51 minutes by default. To increase the accuracy of this report, increase the polling frequency. To change the default setting, select Devices > Discover > Inventory > Polling.
Caution
This report lists the top number of clients in terms of Message Integrity Check (MIC) rate as perceived by the access point for the selected period of time.
Procedure
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
The following table is displayed:
Note
.
Related Topics
Using the Basic Report Features
Displaying a Server Response Time Graph
This graph plots the response time of the server over the period of time specified.
Note
Procedure
Step 1
Step 2
Step 3
Step 4
Step 5
The following graph displays:
Table 10-73 Server Response Time Graph
Server Response Time
The x-axis displays the time intervals.
The y-axis displays the response time in milliseconds.
Related Topics
Using the Basic Report Features
Displaying a Client Roaming Statistics Report
Procedure
Step 1
Step 2
Step 3
Step 4
Step 5
The following report displays:
Table 10-74 Client Roaming Statistics
IP Address
The IP address of the WLSM.
As Of
The time the WLSE polled information from the device.
For more information, see Understanding WLSE Time Displays
Roams per five seconds
The number of roams in a five second period.
Roams per minute
The number of roams in a five second period.
Roams per five minutes
The number of roams in a five second period.
Related Topics
Using the Basic Report Features
Displaying Real-Time Reports
The real-time reports allow you to view a snapshot of activity which is a useful tool for troubleshooting problems.
Using this option, you can view the following types of real-time reports:
•
•
•
•
•
•
•
Procedure
Step 1
Step 2
Step 3
Step 4
Note
The devices in the folder are displayed in the Available Devices list .
Step 5
Step 6
Step 7
Viewing the Real-Time Reports
Procedure
Step 1
Step 2
Step 3
Step 4
•
•
•
•
•
•
•
AP Memory Utilization
Table 10-75 AP Memory Utilization
Timestamp
The time the device's state last changed.
For more information, see Understanding WLSE Time Displays.
Device
The name of the device.
Memory Pool Name
The name of the memory pool.
Memory Free
The amount of free memory available.
Memory Used
The amount of memory used.
%Utilization
The total percentage of memory used.
Graph
Click the graph icon to see a graph of the data.
For information on the graphs, see Viewing RealTime Graphs
•
Note
•
•
•
AP CPU Utilization
T
Table 10-76 AP CPU Utilization
Timestamp
The time the device's state last changed.
For more information, see Understanding WLSE Time Displays.
Device
The name of the device.
CPU 5sec
Traffic rate for CPU utilization displayed at 5 seconds.
CPU 1 min
Traffic rate for CPU utilization displayed at 1 minute.
CPU 5 min
Traffic rate for CPU utilization displayed at 5 minutes.
Graph
Click the graph icon to see a graph of the data.
For information on the graphs, see Viewing RealTime Graphs
•
•
Note
•
•
AP Packet Statistics
This report includes information for the the following:
•
•
Table 10-77 AP Packet Statistics
Timestamp
The time the device's state last changed.
For more information, see Understanding WLSE Time Displays.
Device
The name of the device.
IfDecr
Identifies the interface.
Transmit (packets)
The number of packets transmitted.
Receive (packets)
The number of packets received.
Transmit (bytes)
The number of bytes transmitted.
Receive (bytes)
The number of bytes received.
Retries
The total number of retries.
Graph
Click the graph icon to see a graph of the data.
For information on the graphs, see Viewing RealTime Graphs
•
•
Note
•
•
AP Packet Errors
This report includes information about packet errors for access points. The table displays the following:
Table 10-78 AP Packet Errors
Timestamp
The time the device's state last changed.
For more information, see Understanding WLSE Time Displays.
Device
The name of the device.
IfDecr
Identifies the interface.
% Packet Errors
The total percentage of packet errors.
Graph
Click the graph icon to see a graph of the data.
For information on the graphs, see Viewing RealTime Graphs
•
•
Note
•
•
AP Radio Utilization
This report includes information about the radio utilization and total number of clients for access points. The table displays the following:
Table 10-79 AP Radio Utilization and Total Number of Clients
Timestamp
The time the device's state last changed.
For more information, see Understanding WLSE Time Displays.
Device
The name of the device.
RF Interface
Identifies the interface.
Number of Clients Connected
The current number of clients connected to the access point.
% RF Utilization
The percentage of radio frequency utilization.
Graph
Click the graph icon to see a graph of the data.
For information on the graphs, see Viewing RealTime Graphs
•
Note
•
•
•
Associated Clients Statistics
This report includes information for the following:
Table 10-80 Associated Client Statistics
Timestamp
The time the device's state last changed.
For more information, see Understanding WLSE Time Displays.
Device
The name of the device.
Client Name
The name of the associated client.
Client IP
The IP address of the client.
Client MAC
The MAC address of the client.
Tx (packets)
The number of packets transmitted.
Tx (octets)
The number of octets transmitted.
Rx (packets)
The number packets received.
Rx (Octets)
The number of octets received.
Signal Strength (dBm)
A tally of the received signal power.
Signal Quality (%)
The current percentage of radio signal quality.
Packet Errors
The total number of packet errors.
Graph
Click the graph icon to see a graph of the data.
For information on the graphs, see Viewing RealTime Graphs
•
•
Note
•
•
WLSM Roaming Statistics
This report includes information for the following:
Table 10-81 WLSM Roaming Statistics
Timestamp
The time the device's state last changed.
For more information, see Understanding WLSE Time Displays.
Device
The name of the device.
Roams 1 min
The number of roams in a one-minute period.
Roams 5 min
The number of roams in a five-minute period
Graph
Click the graph icon to see a graph of the data.
For information on the graphs, see Viewing RealTime Graphs
•
•
Note
•
•
Viewing RealTime Graphs
Using this feature, you can display the data in the table graphically. You can do the following:
•
•
•
Note
Displaying Intrusion Detection System Reports
To view Intrusion Detection System information (such as data concerning rogue and friendly APs, interference, unregistered clients, or ad-hoc networks), select IDS > Reports (see Using the IDS Reports Subtab).
