Generating Certificates
Revised: March 27, 2006, OL-9069-01Overview
This chapter provides a general overview of the steps involved in generating RSA keys and certificates without reference to specific tools. Following the overview, the sections Generating Certificates with OpenSSL and Certificate Generation with Windows CA provide examples based on OpenSSL and Windows Certificate Authority.
The actual mechanics of certificate generation are highly dependent on the tools used as well as the local security policies in effect. Some tools and policies might condense the three steps shown below into fewer (possibly one) steps or expand them into more steps. The degree of automation and direct user involvement also varies greatly and can range from a simple web form-based model with automatic certificate distribution to a more complicated procedure with multiple user interactions. Some CAs are set up to support online operations including certificate production while others might operate strictly offline and require more manual involvement.
RSA Key Generation
RSA keys have certain mathematical and cryptographic properties that require special software tools for the generation. Some tools will ask you to type on the keyboard during generation to create a source of randomness. This is because RSA keys are based on large random numbers.
RSA key pairs have two essential parameters that must be specified during creation. The first parameter is the key type which is always RSA. The second parameter is the key length in bits which can vary from 512 to 4096 bits (or even more). The key length is usually specified as part of the customers' security policy and it is difficult to give a generally applicable recommendation for it.
Certificate Request Creation
A Certificate Request (CR) is information packaged with the public key that specifies the type and general content of the desired certificate. It is usually packaged in a format based on PKCS#10 (one of the PKCS standards documented by RFC 2986) or Certificate Request Message Format (CRMF), an emerging standard from the IETF. The format of the CR is usually not important as long as the tools used to create and process it are compatible.
The CR usually contains the following:
•
An RSA key-pair
•
•
•
•
PEAP and EAP-TLS require server certificates to include an extendedKeyUsage extension of TLS Server Authentication and client certificates to include an extendedKeyUsage extension of TLS Client Authentication. The method used to specify extensions and their values depends on the tool. The extendedKeyUsage extension contains one or more Object Identifier (OID) values which are specified as strings of dot-separated decimals. The appropriate values are shown below:
Table 2-1 Required Values of extendedKeyUsage
Server
1.3.6.1.5.5.7.3.1
TLS Server Authentication
Client
1.3.6.1.5.5.7.3.2
TLS Client Authentication
Certificate Generation
The CR is submitted to the CA to generate the actual certificate. This might happen immediately, upon request (such as using a web form) or there might be delays if the CA is operated offline or requires manual management approval to issue certificates.
Generating Certificates with OpenSSL
This section provides example of creating certificates with OpenSSL. The OpenSSL open source project includes a command line tool, openssl, used to create keys and certificates. OpenSSL has many other useful capabilities. For more information about the OpenSSL open source project, check their website:
The examples create an extremely simple certificate hierarchy consisting of two levels and three certificates. First a self-signed root certificate is created and then used to sign a server certificate and a client certificate. Most realistic certificate hierarchies contain one or more levels of intermediate CA certificates.
The following steps assume a Linux or BSD-style shell is active, but the commands for most other command line environments are similar.
The openssl.cnf Configuration File
The openssl command tool uses a configuration file usually named openssl.cnf for various parameters and other information related to creating certificate requests.
There are two ways to make the openssl.cnf file available to the command tool:
•
export OPENSSL_CONF /opts/open/openssl.cnf
•
openssl <additional parameters> config ./openssl.cnf
The CA and CA_Default sections of the openssl.cnf file are particularly important because they specify information related to the configuration of a CA. Figure 2-1 shows an example of an openssl.cnf file, from the OpenSSL distribution.
Figure 2-1 Example openssl.cnf File
####################################################################[ ca ]default_ca = CA_default # The default ca section####################################################################[ CA_default ]dir = ./ca # Where everything is keptcerts = $dir/cert # Where the issued certs are keptcrl_dir = $dir/crl # Where the issued crl are keptdatabase = $dir/index.txt # database index file.new_certs_dir = $dir/newcerts # default place for new certs.certificate = $dir/root-cert.pem # The CA certificateserial = $dir/serial # The current serial numbercrl = $dir/crl.pem # The current CRLprivate_key = $dir/private/root-key.pem # The private keyRANDFILE = $dir/private/.rand # private random number filex509_extensions = usr_cert # The extentions to add to the cert# Comment out the following two lines for the "traditional"(and highly broken) format.name_opt = ca_default # Subject Name optionscert_opt = ca_default # Certificate field options# Extension copying option: use with caution.# copy_extensions = copy# Extensions to add to a CRL. Note: Netscape communicator chokes on V2 CRLs# so this is commented out by default to leave a V1 CRL.# crl_extensions = crl_extdefault_days = 365 # how long to certify fordefault_crl_day s= 30 # how long before next CRLdefault_md = md5 # which md to use.preserve = no # keep passed DN ordering# A few difference way of specifying how similar the request should look# For type CA, the listed attributes must be the same, and the optional# and supplied fields are just that :-)policy = policy_matchRequired Certificate Extensions
PEAP and EAP-TLS require server certificates to include an extendedKeyUsage extension of TLS Server Authentication and client certificates to include an extendedKeyUsage extension of TLS Client Authentication. These extensions can be placed in a configuration file referenced on the openssl command line.
The following is an example of the required certs-exts.cnf extensions file:
[ server_exts ]extendedKeyUsage = 1.3.6.1.5.5.7.3.1[ client_exts ]extendedKeyUsage = 1.3.6.1.5.5.7.3.2Creating Test Certificates and Keys
Use the openssl command line tool to create certificates and keys for testing PEAP. The following sections provide examples of how to create a simple certificate hierarchy that consists of a single CA certificate, a single server certificate, and a single client certificate. Additional certificates and keys can be produced as needed for testing purposes.
Note
Creating a CA Directory
To create a CA directory, enter the following commands as a root user:
mkdir ca
cd ca
mkdir certs private reqs
echo `01' > serial
touch index.txt
chmod 0700 private
cd ..
Creating a Self-signed CA Root Certificate and RSA Key
Use the following command sequence to create a self-signed CA root certificate and RSA key.
openssl req -x509 -newkey rsa:1024 -keyout ./ca/private/root-key.pem -keyform PEM
-out ./ca/certs/root-cert.pem -outform PEM -config ./openssl.cnfUse the following command to display the certificate:
openssl x509 -in ./ca/certs/root-cert.pem -text
Converting a CA Certificate to PKCS#12
Use the following command sequence to convert a CA certificate to PKCS#12 format. This process is useful for importing a CA certificate to a Windows PC for testing purposes.
cat ./ca/certs/root-cert.pem ./ca/private/root-key.pem > ./ca/private/root-all.pem
openssl pkcs12 -export -in ./ca/private/root-all.pem -out ./ca/certs/root-cert.p12
Creating a Server Certificate Request and RSA Key
Use the following command sequence to create a server certificate request and RSA key.
openssl req -newkey rsa:1024 -keyout ./ca/private/server-key.pem -keyform PEM
-out ./ca/reqs/server-req.pem -outform PEM -config ./openssl.cnfCreating a Server Certificate from the Request
Use the following command sequence to create a server certificate from the request and reference the certificate extensions file and required server certificate extension.
openssl x509 -req -days 365 -in ./ca/reqs/server-req.pem -CA ./ca/certs/root-cert.pem
-CAkey ./ca/private/root-key.pem -CAserial ./ca/serial -extfile ./ca/cert-exts.cnf
-extensions server_exts -out ./ca/certs/server-cert.pemUse the following command to display the server certificate:
openssl x509 -in ./ca/certs/server-cert.pem -text
Creating a Client Certificate Request
Use the following command sequence to create a client certificate request.
openssl req -days 365 -newkey rsa:1024 -keyout ./ca/private/client-key.pem -keyform PEM
-out ./ca/reqs/client-req.pem -outform PEM -config ./openssl.cnfCreating a Client Certificate from the Request
Use the following command sequence to create a client certificate from the request and reference the certificate extensions file and required client certificate extension.
openssl x509 -req -days 365 -in ./ca/reqs/client-req.pem -CA ./ca/certs/root-cert.pem
-CAkey ./ca/private/root-key.pem -CAserial ./ca/serial -extfile ./ca/cert-exts.cnf
-extensions client_exts -out ./ca/certs/client-cert.pemUse the following command to display the server certificate:
openssl x509 -in ./ca/certs/client-cert.pem -text
Converting a Client Certificate and Private Key to PKCS#12
Use the following command sequence to convert a client certificate and private key to PKCS#12. This process is useful for importing a client certificate to a Windows PC for testing.
cat ./ca/certs/client-cert.pem ./ca/private/client-key.pem > ./ca/private/client-all.pem
openssl pkcs12 -export -in client-all.pem -out client-all.p12
Certificate Generation with Windows CA
This section provides examples of creating certificates using the Windows Certificate Authority (Windows CA). The Windows CA provides a web-based interface for requesting and retrieving certificates. The web forms permit you to create a new key pair or use an existing key, specify the desired certificate fields and attributes, and to submit the request to the CA for processing.
Note
Usually an administrator will be required to manually review and grant or deny the request before the certificate can be accessed. (Windows CA can also be configured to automatically grant requests without administrator intervention.) The Certification Authority snap-in of the Microsoft Management Console (MMC) is used to review certificate requests and take the appropriate action. It can also be used for other purposes such as certificate revocation, renewal, etc.
After a certificate has been issued by the Windows CA it must be exported to a file so that it can be transported to the machine where it will be used. Although Windows can export certificates in DER or PEM format, if the corresponding private key is required (as it is for server and client certificates) then the certificate and private key will be bundled into a PKCS#12-formatted file. Since the required format for our purposes is PEM, the PKCS#12 content must be reformatted appropriately.
The following examples show an extremely simple certificate hierarchy consisting of two levels and three certificates. Most realistic certificate hierarchies will contain one or more levels of intermediate CA certificates. Since the root-level certificate is created when the Windows CA product is installed and configured, those steps are not shown here. The examples assume that the Windows CA has been configured for standalone operation, but the steps are essentially the same for other configurations.
The following examples assume that the Windows Certificate Authority product has been installed and configured. Since the exact installation steps vary depending on the version of Windows Certificate Authority and its configuration, those steps are not shown here. Refer to the appropriate Microsoft documentation for information about how to install Windows Certificate Authority.
Generating a Server Certificate
This section describes how to generate a server certificate.
Step 1

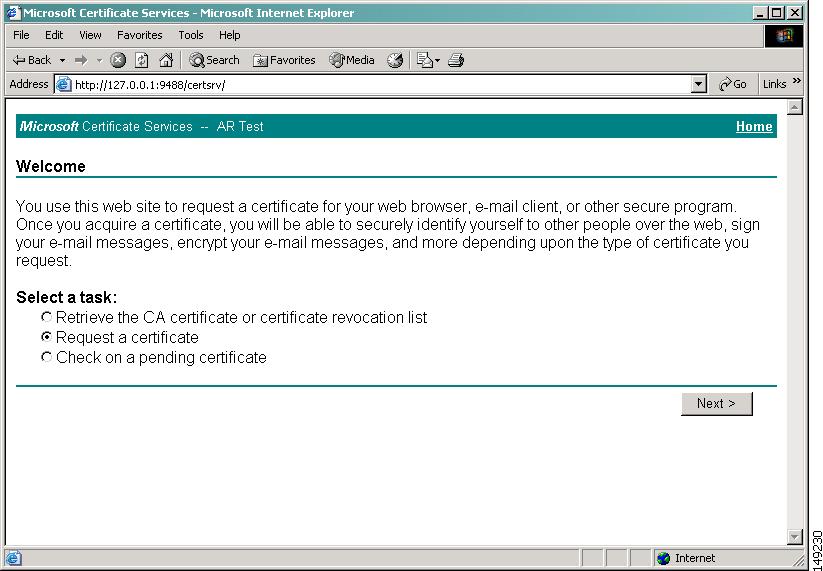

Figure 2-2 Windows Certificate Services Form
Step 2
The next window enables you to select the type of certificate request.

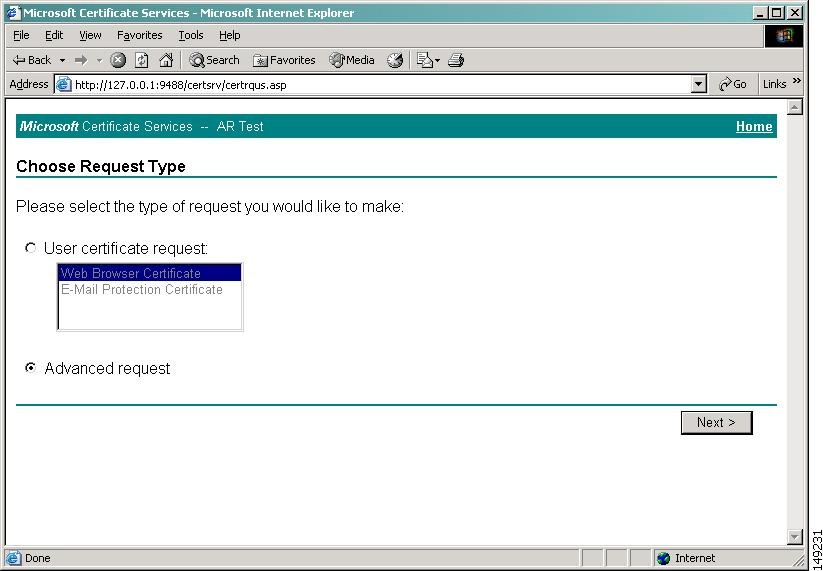

Figure 2-3 Selecting Certificate Request Type
Step 3
The next window enables you to select the method used to request the certificate.

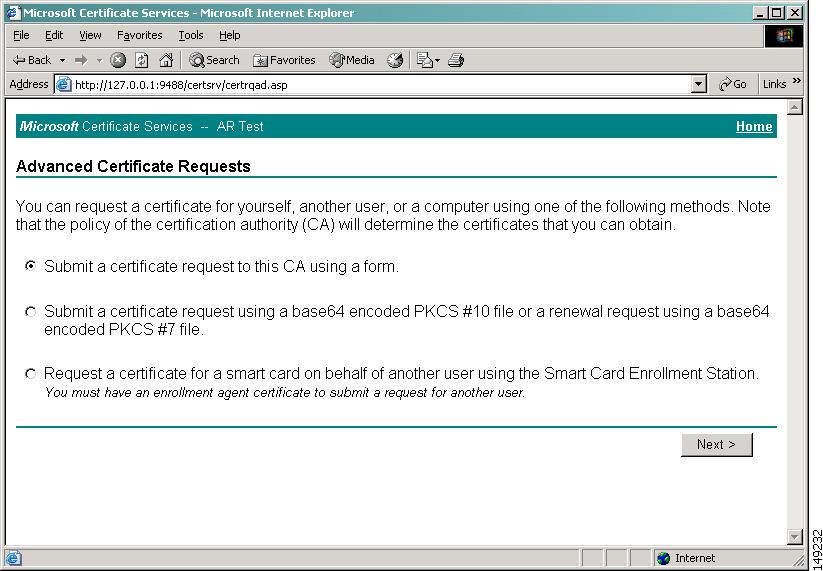

Figure 2-4 Advanced Certificate Requests
Step 4
The Advanced Certificate Request form, Figure 2-5, allows you to specify some of the certificate's information content. You need only specify a few items; use the default values for the others.
In the Identifying Information section, Name is usually the name of the server. Use the default values of the other fields.
In the Intended Purpose section, select Server Authentication Certificate.
In the Key Options section, select Mark keys as exportable.

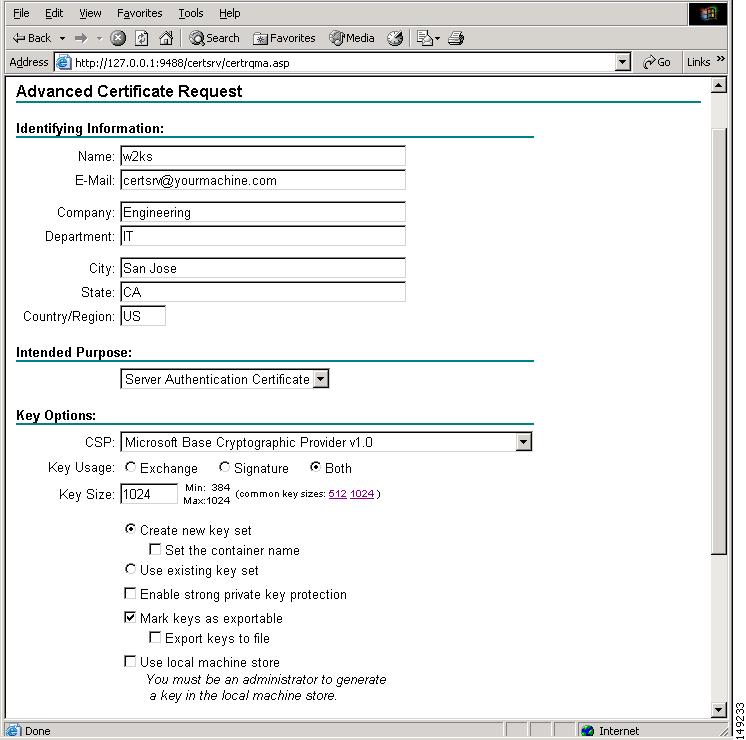

Figure 2-5 Advanced Certificate Request Form
Step 5
Note
The next window acknowledges receipt of the request and advises you to check back later to retrieve the certificate.

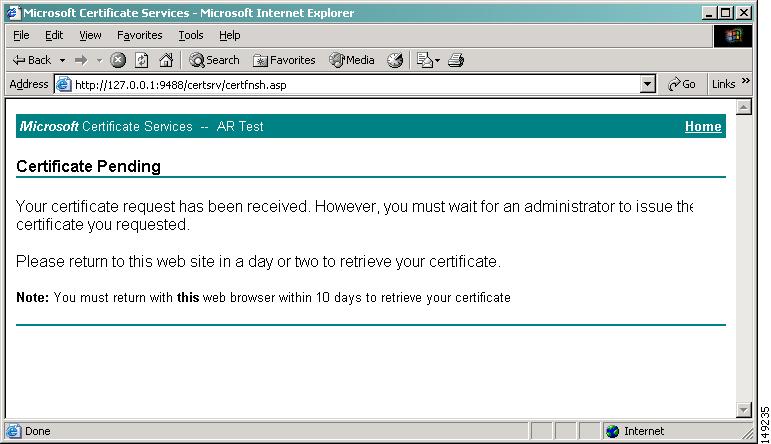

Figure 2-6 Certificate Pending
Step 6
Generating a Client Certificate
The procedure to generate a client certificate is very similar to the procedure to generate a server certificate. The only significant differences are the value of the Name field and the Intended Purpose on the Advanced Certificate Request page.
Because this is a client certificate, the Name field should contain the user ID if the certificate is for an individual or the machine name if the certificate is for a computer. The value of the Intended Purpose field must be set to Client Authentication Certificate.
Figure 2-7 shows an example of the Advanced Certificate Request form for requesting a client certificate.

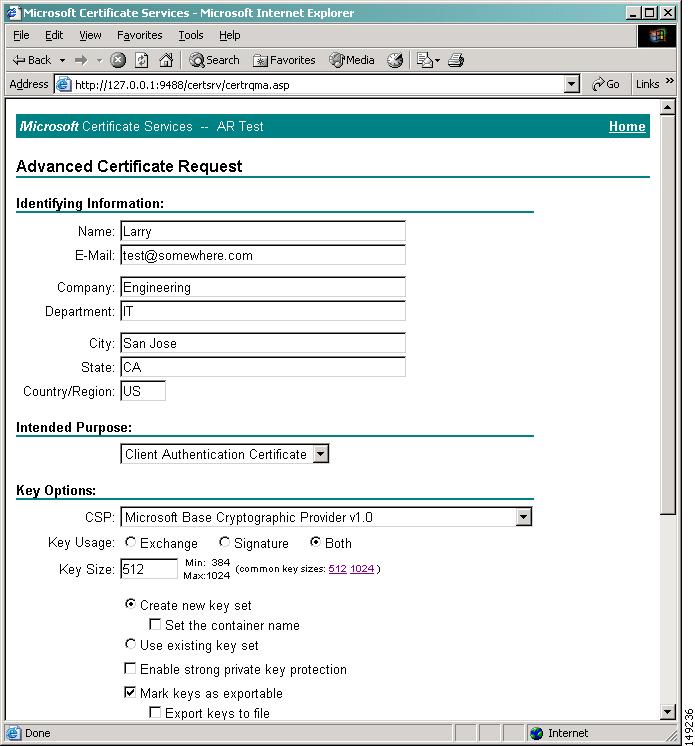

Figure 2-7 Example of Client Certificate Request Form
Certificate Retrieval
From the Certificate Services home page, select Check on a pending certificate.

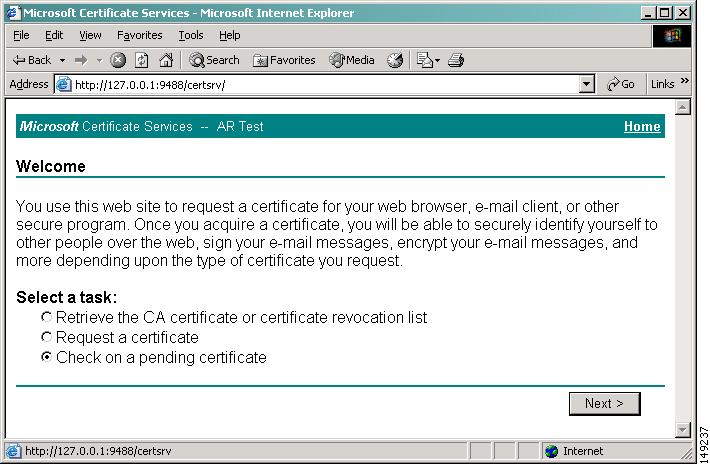

Figure 2-8 Example of Check Pending Certificate Request
Step 7
Figure 2-9 shows an example of the pending certificates requests.

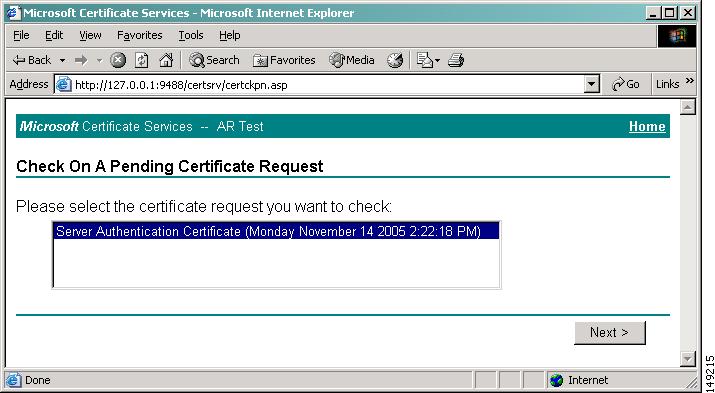

Figure 2-9 Check Pending Certificate Requests
Step 8
If the certificate you request has not yet been granted, the Certificate Pending window displays as shown in Figure 2-10. This window provides a button to remove the certificate request.

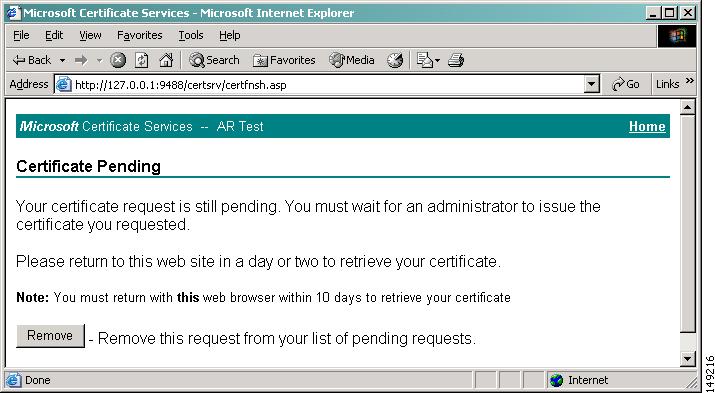

Figure 2-10 Certificate Pending with Remove Option
Assuming that the certificate request was approved, the server displays the Certificate Issued window shown in Figure 2-11.

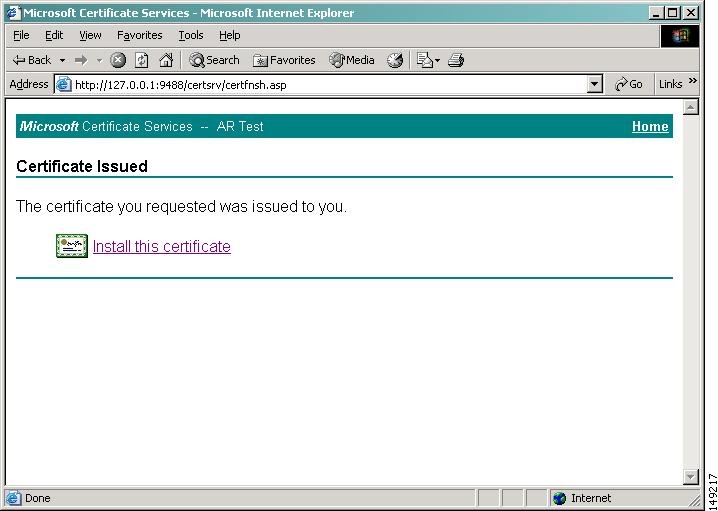

Figure 2-11 Certificate Issued
Step 9
Note
Figure 2-12 shows a confirmation of successful certificate installation.

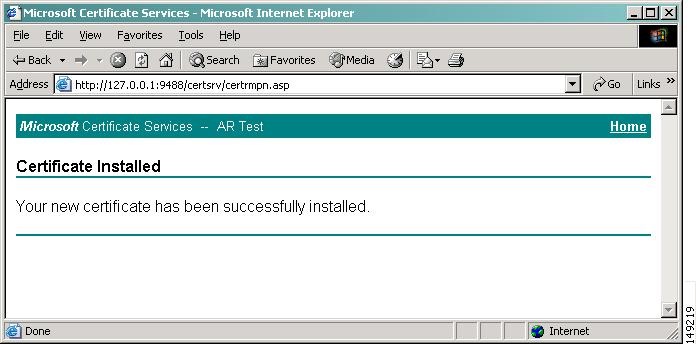

Figure 2-12 Certificate Installed Confirmation
Exporting Server and Client Certificates
The certificate and private key must be exported from Windows before they can be installed on another machine. The easiest way to do this is to use the browser. This example uses Internet Explorer version 5.0. The procedure is the same for server and client certificates.
Navigate to the Certificates dialog box with these steps:
Step 1
Step 2
Step 3
Step 4
The Certificates dialog box will display the certificates installed on this computer, as shown in Figure 2-13.

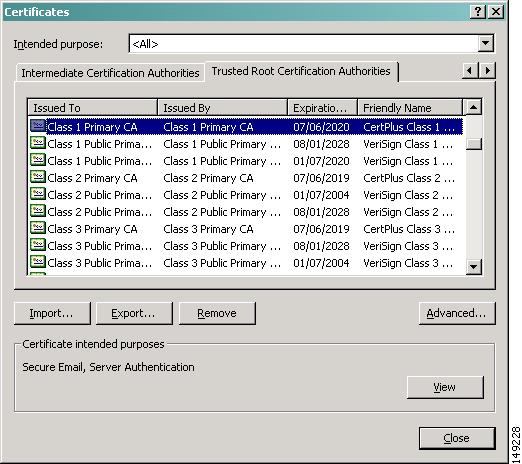

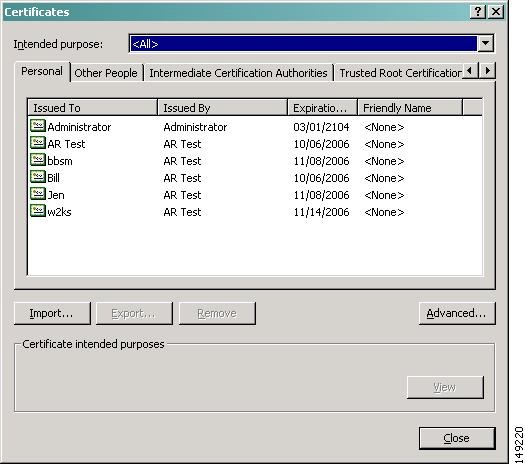

Figure 2-13 Certificates Dialog
Step 5

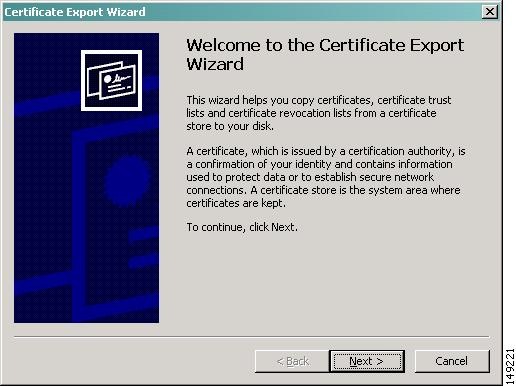

Figure 2-14 Certificate Export Wizard
Click Next to continue. The Export Private Key window displays as shown in Figure 2-15, which enables you to export the private key with the certificate.

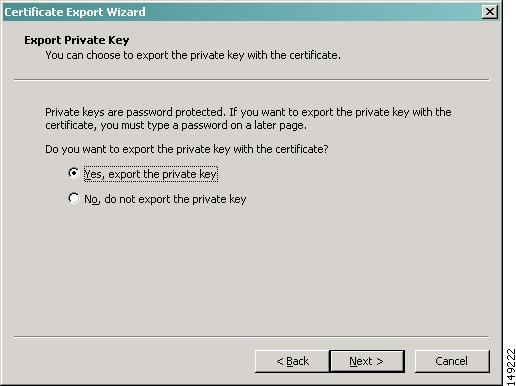

Figure 2-15 Export Private Key
Step 6
The next window allows you to select the format of the certificate file. Since we are exporting both the certificate and the private key, the only format permitted is PKCS#12.

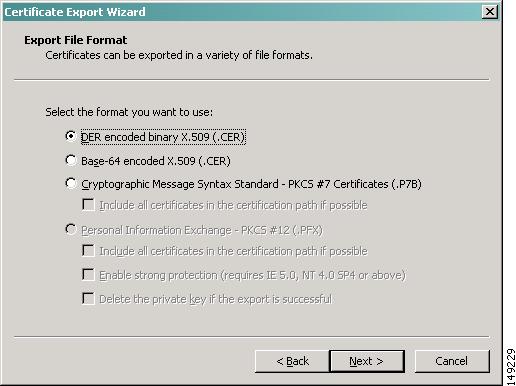

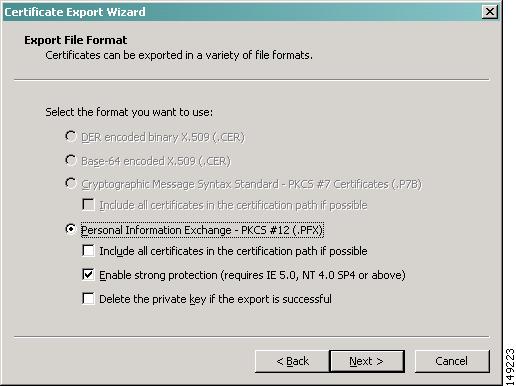

Figure 2-16 Export File Format
Step 7
The next screen prompts you to enter the password used to protect the PKCS#12 content.

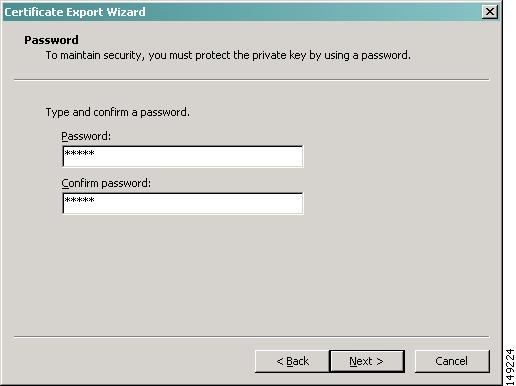

Figure 2-17 Export Wizard Password
After entering the password, click Next to continue.
The next screen prompts you to specify (or browse to) the name of file to export.

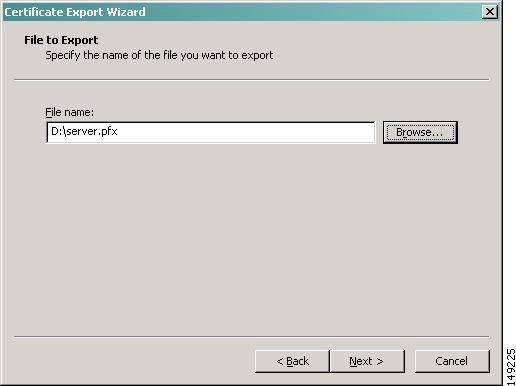

Figure 2-18 File to Export
Step 8
Figure 2-19 shows the settings selected through the Certificate Export wizard.

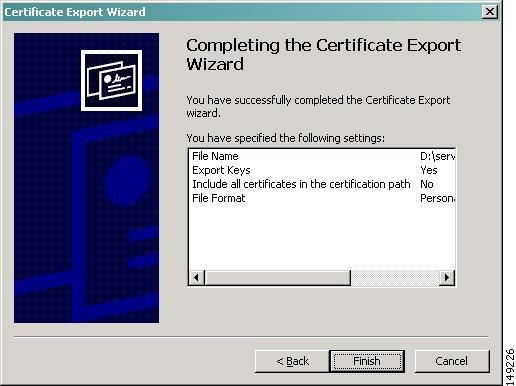

Figure 2-19 Completing the Certificate Export
Step 9
If successful, the message shown in Figure 2-20 displays to indicate a successful export.
Figure 2-20 Successful Export
Exporting CA Certificates
The procedure shown in Exporting Server and Client Certificates, can also be used to export CA certificates. In the Certificates dialog box, click the appropriate tab for either Intermediate Certification Authorities or Trusted Root Certification Authorities and scroll the list to locate the certificate you want to export. (Other categories might also be present depending on how the certificate store is configured.)
Figure 2-21 shows an example of the certificates to export window.
Figure 2-21 Certificates to Export
The rest of the procedure is the same as for server and client certificates except that usually the private key of CA certificates are not exported. In that case, the enabled exported certificate file format options will be a little different. Instead of just PKCS#12, the two formats will be DER or Base-64 encoded DER as shown in Figure 2-22.
Figure 2-22 Export File Formats
Converting PKCS#12 to PEM
A certificate and private key that have been exported from Windows will generally be encapsulated in a single file in PKCS#12 format. Before they can be installed on WLSE, they must be reformatted into PEM formatted files. It is a good security practice to store the certificate and private key in separate files. You can use the openssl command line tool from the OpenSSL open source project to do this.
Most Windows systems will not have the openssl tool installed, so it is usually easier to copy the PKCS#12 certificate file to a computer that does support OpenSSL.
There are two steps involved:
Step 1
Step 2
The following command line converts the content of server.pfx from PKCS#12 to PEM and places the result into server.pem:
openssl pkcs12 -in server.pfx -out server.pem
If the PKCS#12 file has been password protected, openssl will prompt you for the password. If the conversion succeeds, the server.pem file will contain the certificate and private key in PEM format. An example of a converted PEM file follows:
Bag AttributeslocalKeyID: 01 00 00 001.3.6.1.4.1.311.17.1: Microsoft Base Cryptographic Provider v1.0friendlyName: 9191ccb399024e88287768944c8053cc_e0808bc1-0ea6-4702-85a9-1ccdee37a5c7Key AttributesX509v3 Key Usage: 10-----BEGIN RSA PRIVATE KEY-----Proc-Type: 4,ENCRYPTEDDEK-Info: DES-EDE3-CBC,B22C8C19F46F9824CcZ1Y5B5wu0l3bs/4wCv01RutRBLaRMdWb4QyRfPt6CpWnxZDkgvDVRyXnLiaw+g75zYbWCMFMLsLiUeDr7yp0gSjpsOihwpdY4MEZL3V35iGIBl/dxOZ0dhywz8YoCoD1XGQXBPTu3Uun/tZeyxISQDQFeGKopg1RvJzCdCEfF3hlg9bIWfFNuRhIOlvZoVKeEO1TjsqtbH9hZTUyLH0dzfsix+xEw4Assc03KB4bEse+6Uk4Q3H7qFSwQNluxM8zLpXMcIxSE0I+i9OdLbshUwBhKuW9/ksvvmneuaL7GCQRVvYj+QQmzAFPm0gYchzDdBm+E86P8+J2/KlxEBWrFSpbgwpr6wM5SmqETH6VOIy2xaT+VTspDnp2jtJfyl2/fOrG4V2njxuutQfGK9S2W49uVlcp1oss6iF4e7hVIY0+G1c/6LS8QFcQJoLbmwymmFRgi8j0jYGQWNpj7Awax+2Bpa+0wuWb/teCMX77/HRIJna+r8J0FbSWm3Z2JVHAAvmtxO8SDJpuWSid1AVp7CFPESSpQHHy77dSFnGN3GBDmQTgUonbdN1ESCIMBMLBIbaokDRt2HuoJXCaWa9vot2ssimidYlz0sOoTO2hHr8ai0dQErDGao5jAFzTGqdrKf+jA04GOagjknMfrNAfnnsOU1rKJAeW0oa24Z3YLep0LNhrf5H0ZuvrbDmv5xKBlgCONuNNDcuEffjY6f/9MVpZX6dM80jjtD71xE/GR0oNUCsOhFTJZwGLSTJPS0p3wxFswLNmqB2cWZgUifYX+UcQxkjb5quEeAqhY2UJujGu+yP12s9A==-----END RSA PRIVATE KEY-----Bag AttributeslocalKeyID: 01 00 00 00subject=/C=US/ST=WA/L=Seattle/O=Engineering/OU=IT/CN=Serverissuer= /C=US/ST=WA/L=Seattle/O=Engineering/OU=IT/CN=Root CA-----BEGIN CERTIFICATE-----MIIDyzCCA3WgAwIBAgIKYbFeTwAAAAAAAzANBgkqhkiG9w0BAQUFADBhMQswCQYDVQQGEwJVUzELMAkGA1UECBMCV0ExEDAOBgNVBAcTB1NlYXR0bGUxFDASBgNVBAoTC0VuZ2luZWVyaW5nMQswCQYDVQQLEwJJVDEQMA4GA1UEAxMHUm9vdCBDQTAeFw0wNTA5MjkxNzE4NTRaFw0wNjA5MjkxNzI4NTRaMGAxCzAJBgNVBAYTAlVTMQswCQYDVQQIEwJXQTEQMA4GA1UEBxMHU2VhdHRsZTEUMBIGA1UEChMLRW5naW5lZXJpbmcxCzAJBgNVBAsTAklUMQ8wDQYDVQQDEwZTZXJ2ZXIwgZ8wDQYJKoZIhvcNAQEBBQADgY0AMIGJAoGBALmJ4jD5IPDHS36RdmemhLCP0Q14bQzE8ngcFPcIsUY7YeK28tw2GejsiAIE+kTEUdqPtVhqLT7NAQQykZjIzGNRpyiNuEJYDDsBow6J/SnHdPhTmAGJX0+YgCQdgb+3N6fSAOAv0APVcIY1/aN7cGhrSbYH4F11Nl0sfUSWLclZAgMBAAGjggHKMIIBxjAOBgNVHQ8BAf8EBAMCBPAwEwYDVR0lBAwwCgYIKwYBBQUHAwEwHQYDVR0OBBYEFMo+Uu+Kxo8h/RWVtBLKTdIqxSC8MIGaBgNVHSMEgZIwgY+AFKD7ph9yoLwfDhG6IWO+lIrZZd9ioWWkYzBhMQswCQYDVQQGEwJVUzELMAkGA1UECBMCV0ExEDAOBgNVBAcTB1NlYXR0bGUxFDASBgNVBAoTC0VuZ2luZWVyaW5nMQswCQYDVQQLEwJJVDEQMA4GA1UEAxMHUm9vdCBDQYIQEkPt5Jo2DJ9J/drIo1njrjBjBgNVHR8EXDBaMCqgKKAmhiRodHRwOi8vdzJrcy9DZXJ0RW5yb2xsL1Jvb3QlMjBDQS5jcmwwLKAqoCiGJmZpbGU6Ly9cXHcya3NcQ2VydEVucm9sbFxSb290JTIwQ0EuY3JsMH4GCCsGAQUFBwEBBHIwcDA1BggrBgEFBQcwAoYpaHR0cDovL3cya3MvQ2VydEVucm9sbC93MmtzX1Jvb3QlMjBDQS5jcnQwNwYIKwYBBQUHMAKGK2ZpbGU6Ly9cXHcya3NcQ2VydEVucm9sbFx3MmtzX1Jvb3QlMjBDQS5jcnQwDQYJKoZIhvcNAQEFBQADQQDTmBDMuK1OZR7p8TtsEGH8G3qa7QnHtPGfEtaW5iFq72eqyQNx0lys7sl36iY/+S98we3LO2Vyo9QegXLm5tv9-----END CERTIFICATE-----You might want to split the certificate and private key into two separate PEM files for security purposes. Since PEM is a text format, you can use any common editor (such as vi or emacs) to derive, for example, server-cert.pem and server-key.pem from server.pem.
