Context-Aware Planning and Verification
This chapter describes a number of tools and configurations that can be used to enhance the location accuracy of elements (clients, tags, rogue clients, and rogue access points) within an indoor or outdoor area.
Context-Aware Software (CAS) installed on a mobility services engine retrieves location as well as other contextual information such as temperature and asset availability about a client or tag (Cisco CX version 1 or later) from access points.
Note
Non-Cisco CX tags are not tracked or mapped by Cisco WCS.
Note Context-Aware Software was previously referred to as Cisco location-based services.
This chapter contains the following sections:
•"Planning for Data, Voice, and Location Deployment" section
•"Creating and Applying Calibration Models" section
•"Inspecting Location Readiness and Quality" section
•"Verifying Location Accuracy" section
•"Using Chokepoints to Enhance Tag Location Reporting" section
•"Using Wi-Fi TDOA Receivers to Enhance Tag Location Reporting" section
•"Using Tracking Optimized Monitor Mode to Enhance Tag Location Reporting" section
•"Defining Inclusion and Exclusion Regions on a Floor" section
•"Defining a Rail Line on a Floor" section
•"Modifying Context-Aware Software Parameters" section
•"Configuring a Location Template" section
Note•You must purchase licenses from Cisco to retrieve contextual information on tags and clients from access points. Licenses for tags and clients are offered independently. (The clients' license also includes tracking of rogue clients and rogue access points).
•For details on tag and client licenses, refer to the Cisco 3350 Mobility Services Engine Release Note at: http://www.cisco.com/en/US/products/ps9742/tsd_products_support_series_home.html
Planning for Data, Voice, and Location Deployment
You can calculate the recommended number and location of access points based on whether data and/or voice traffic and/or location will be active.
To calculate recommended number and placement of access points for a given deployment, follow these steps:
Step 1 In Cisco WCS, click Monitor > Maps.
Step 2 Click on the appropriate map name link in the list that displays.
A map appears showing placement of all installed elements (access points, clients, tags) and their relative signal strength.
Note If you select a building map, you then need to select a floor map from the window that appears.
Step 3 Select Planning Mode from the Select a command menu found at the top-right of the window. Click GO.
A map appears with planning mode options at the top of the page.
Step 4 Click Add APs to open a window to enter data necessary to calculate the recommended number of access points.
Step 5 In the window that appears, drag the dashed rectangle over the map location for which you want to calculate the recommended access points.
Note Adjust the size or placement of the rectangle by selecting the edge of the rectangle and holding down the Ctrl key. Move the mouse as necessary to outline the targeted location.
Step 6 Check the check box next to the service that will be used on the floor. Options are Data/Coverage (default), Voice, Location and Location with Monitor Mode APs. Click Calculate.
The recommended number of access points given the services requested appears.
Note Each service option is inclusive of all services that are listed above it. For example, if you check the Location check box, the calculation will consider data/coverage, voice and location in determining the optimum number of access points required.
Note Recommended calculations assume the need for consistently strong signals. In some cases, fewer access points may be required than recommended.
Step 7 Click Apply (left panel, bottom) to generate a map based on the recommended number of access point and their proposed placement in the selected area.
Note Check the Location services option to ensure that the recommended access points will provide the true location of an element within 10 meters at least 90% of the time.
Creating and Applying Calibration Models
If the provided RF models do not sufficiently characterize the floor layout, you can create a calibration model that is applied to the floor and better represents the attenuation characteristics of that floor. In environments in which many floors share common attenuation characteristics (such as in a library), one calibration model can be created and then applied to floors with the same physical layout and same deployment.
You can collect data for a calibration using one of two methods:
•Data point collection-Calibration points are selected and their coverage area is calculated one location at a time.
•Linear point collection-A series of linear paths are selected and then calculated as you traverse the path. This approach is generally faster than the data point collection. You can also employ data point collection to augment data collection for locations missed by the linear paths.
Note Calibration models can only be applied to clients, rogue clients, and rogue access points. Calibration for tags is done using the Aeroscout System Manager. Refer to the following link for details on tag calibration at: http://support.aeroscout.com.
Note A client device that supports both 802.11a/n and 802.11b/g/n radios is recommended to expedite the calibration process for both spectrums.
Use a laptop or other wireless device to open a browser to Cisco WCS and perform the calibration process.
To create and apply data point and linear calibration manual models, follow these steps:
Step 1 Navigate to Monitor > Maps and click RF Calibration Models from the Select a command drop-down menu. Click GO.
Step 2 Choose Create New Model from the Select a command drop-down menu in the upper right. Click GO.
Step 3 Assign a name to the model and click OK.
The new model appears along with the other RF calibration models, but its status is listed as Not Yet Calibrated.
Step 4 To start the calibration process, click on the model name link. A new window appears which indicates the details of the new model.
Step 5 Select Add Data Points from the Select a command drop-down menu and click GO.
Step 6 If this process is being performed from a mobile device connected to WCS through the Cisco Centralized architecture, the MAC address field is automatically populated with the device's address. Otherwise, you can manually enter the MAC address of the device being used to perform the calibration. MAC addresses that are manually entered must be delimited with colons (such as FF:FF:FF:FF:FF:FF).
Step 7 Choose the appropriate campus, building, and floor where the calibration is to be performed (see Figure 7-1). Click Next.
Figure 7-1 Starting to Calibrate
Step 8 When the chosen floor map and access point locations display, a grid of plus marks (+) indicates the locations where data collection for calibration is performed.
Using these locations as guidelines, you can perform either a point or linear collection of data by appropriate placement of either the Calibration Point pop-up (point) or the Start and Finish pop-ups (linear) that display on the map when the respective options are displayed. Figure 7-2 shows the starting window for a point calibration.
Figure 7-2 Positioning Calibration Points
a. If you want to do a point collection of data for the calibration, do the following:
1. Select Point from the Collection Method drop-down menu and check the Show Data points check box if not already checked. A calibration point pop-up displays on the map.
2. Position the tip of the calibration point pop-up at a data point (+) and click GO. A panel appears showing the progress of the data collection.
Note Rotate the calibrating client laptop during data collection so that the client is heard evenly by all access points in the vicinity.
3. When the data collection is complete for a selected data point and the coverage area is plotted on the map, move the calibration point pop-up to another data point and click GO.
Note The coverage area plotted on the map is color-coded and corresponds with the specific wireless LAN standard used to collect that data. Information on color-coding is provided in legend on the left-hand side of the window. Additionally, the progress of the calibration process is indicated by two status bars above the legend, one for 802.11a/n and one for 802.11b/g/n.
Note To delete data points for locations selected in error, click Delete and move the black square that appears over the appropriate data points. Resize the square as necessary by pressing Ctrl and moving the mouse.
4. Repeat steps a1 to a3 until the calibrations status bar of the relevant spectrums (802.11a/n, 802.11b/g/n) display as `done.' b/g/n) display as `done.'
Note The calibration status bar indicates data collection for the calibration as done, after roughly 50 distinct locations and 150 measurements have been gathered. For every location point saved in the calibration process, more than one data point is gathered. The progress of the calibration process is indicated by two status bars above the legend, one for 802.11b/g/n and one for 802.11a/n.
b. If you want to do a linear collection of data for the calibration, do the following:
1. Select Linear from the Collection Method drop-down menu and check the Show Data points check box if not already checked. A line appears on the map with both Start and Finish pop-ups.
2. Position the tip of the Start pop-up at the starting data point.
3. Position the Finish pop-up at the ending data point.
4. Position yourself with your laptop at the starting data point and click GO. Walk steadily towards the end point along the defined path. A panel displays to show that data collection is in process.
Note Do not stop data collection until you reach the end point even if the data collection bar indicates completion.
5. Press the space bar (or Done on the data collection panel) when you reach the end point. The collection panel displays the number of samples taken before it closes to reveal the map. The map displays all the coverage areas where data was collected. (see Figure 7-3).
Note To delete data points for locations selected in error, click Delete and move the black square that appears over the appropriate data points. Resize the square as necessary by pressing Ctrl and moving the mouse.
Figure 7-3 Linear Data Collection
Note The coverage area is color-coded and corresponds with the specific wireless LAN standard used to collect that data. Information on color-coding is provided in legend on the left-hand side of the window.
6. Repeat steps b2 to b5 until the status bar for the respective spectrum is filled in (done).
Note You can augment linear collection with data point collection to address missed coverage areas.
Step 9 Click on the name of the calibration model at the top of the window to return to the main screen for that model to calibrate the data points.
Step 10 Select Calibrate from the Select a command drop-down menu and click GO.
Step 11 Click the Inspect Location Quality link when calibration completes. A map displays showing RSSI readings displays.
Step 12 To use the newly created calibration model, you must apply the model to the floor on which it was created (and on any other floors with similar attenuation characteristics as well). Navigate to Monitor > Maps and find the specific floor to which the model is applied. At the floor map interface, choose Edit Floor Area from the drop-down menu and click GO.
Step 13 From the Floor Type (RF Model) drop-down menu, choose the newly created calibration model. Click OK to apply the model to the floor.
Note This process can be repeated for as many models and floors as needed. After a model is applied to a floor, all location determination performed on that floor is done using the specific collected attenuation data from the calibration model.
Inspecting Location Readiness and Quality
You can configure Cisco WCS to verify the ability of the existing access point deployment to estimate the true location of a client, rogue client, rogue access point, or tag within 10 meters at least 90% of the time. The location readiness calculation is based on the number and placement of access points.
You can also check the location quality and the ability of a given location to meet the location specification (10 m, 90%) based on data points gathered during a physical inspection and calibration.
Inspecting Location Readiness Using Access Point Data
To inspect location readiness using access point data, follow these steps:
Step 1 In Cisco WCS, click Monitor > Maps.
Step 2 Click on the appropriate floor location link from the list that displays.
A map displays showing placement of all installed access points, clients and tags and their relative signal strength.
Note If RSSI is not displayed, you can enable AP Heatmaps under the Layer menu (top-left).
Note If clients, tags and access point are not displayed verify that their respective check boxes are checked in the Layers menu. Additionally, licenses for both clients and tags must be purchased for each of them to be tracked.
Step 3 Select Inspect Location Readiness from the Select a command menu found at the top-right of the window. Click GO.
A color-coded map appears showing those areas that do (Yes) and do not (No) meet the 10 meter, 90% location specification.
Inspecting Location Quality Using Calibration Data
After completing a calibration model based on data points generated during a physical tour of the area, you can inspect the location quality of the access points.
To inspect location quality based on calibration, follow these steps:
Step 1 In Cisco WCS, click Monitor > Maps.
Step 2 Choose RF Calibration Model from the Select a command menu. Click GO.
A list of calibration models appears.
Step 3 Click the appropriate calibration model.
Details on the calibration including date of last calibration, number of data points by signal type (802.11a, 802.11 b/g) used in the calibration, location, and coverage are displayed.
Step 4 At the same window, click the Inspect Location Quality link found under the Calibration Floors heading.
A color-coded map noting percentage of location errors appears.
Note You can modify the distance selected to see the effect on the location errors.
Verifying Location Accuracy
By checking for location accuracy, you are checking the ability of the existing access point deployment to estimate the true location of an element within 10 meters at least 90% of the time.
You can analyze the location accuracy of non-rogue and rogue clients and asset tags by using the Accuracy Tool.
The Accuracy Tool enables you to run either a scheduled or on-demand location accuracy test. Both tests are configured and executed through a single window.
Using the Location Accuracy Tool to Conduct Accuracy Testing
There are two methods of conducting location accuracy testing:
•Scheduled Accuracy Testing-Employed when clients and tags are already deployed and associated to the wireless LAN infrastructure. Scheduled tests can be configured and saved when clients and tags are already pre-positioned so that the test can be run on a regularly, scheduled basis.
•On demand Accuracy Testing-Employed when elements are associated but not pre-positioned. On demand testing allows you to test the location accuracy of clients and tags at a number of different locations. It is generally used to test the location accuracy for a small number of clients and tags.
Both are configured and executed through a single window.
Note The Advanced Debug option must be enabled in Cisco WCS to allow use of both the Scheduled and On-demand location accuracy testing features. Additionally, the Location Accuracy Tool does not appear as an option under the Tools menu when the Advanced Debug option is not enabled.
To enable the advanced debug option in Cisco WCS, follow these steps:
Step 1 In Cisco WCS, click Monitor > Maps.
Step 2 Select Properties from the Select a command drop-down menu and click GO.
Step 3 Select Enabled from the Advanced Debug drop-down menu. Click OK.
Note If Advanced Debug is already enabled, you do not need to do anything further. Click Cancel.
You can now run location accuracy tests on the mobility services engine using the Location Accuracy Tool.
Using Scheduled Accuracy Testing to Verify Accuracy of Current Location
To configure a scheduled accuracy test, follow these steps:
Step 1 Click Tools > Location Accuracy Tool.
Step 2 Select New Scheduled Accuracy Test from the Select a command drop-down menu.
Step 3 Enter a Test Name.
Step 4 Select an Area Type from the drop-down menu.
Step 5 Campus is configured as Root Area, by default. There is no need to change this setting.
Step 6 Select the Building from the drop-down menu.
Step 7 Select the Floor from the drop-down menu.
Step 8 Select the begin and end time of the test by entering the days, hours and minutes. Hours are entered using a 24-hour clock.
Note When entering the test start time, be sure to allow enough time prior to the test start to position testpoints on the map.
Step 9 Select the Destination point for the test results. You can have the report emailed to you or download the test results from the Accuracy Tests > Results window. Reports are in PDF format.
Note If you select the email option, a SMTP Mail Server must first be defined for the target email address. Click Administrator > Settings > Mail Server to enter the appropriate information.
Step 10 Click Position Testpoints. The floor map appears with a list of all clients and tags on that floor with their MAC addresses.
Step 11 Click the check box next to each client and tag for which you want to check the location accuracy.
When you check a MAC address check box, two icons which overlay each other appear on the map.
One icon represents the actual location and the other the reported location.
Note To enter a MAC address for a client or tag that is not listed, check the Add New MAC check box and enter the MAC address and click Go. An icon for the element appears on the map.If the newly added element is on the mobility services engine but on a different floor, the icon displays in the left-most corner (0,0 position).
Step 12 If the actual location for an element is not the same as the reported location, drag the actual location icon for that element to the correct position on the map. Only the actual location icon can be dragged.
Step 13 Click Save when all elements are positioned. A panel appears confirming successful accuracy testing.
Step 14 Click OK to close the confirmation panel. You are returned to the Accuracy Tests summary window.
Note The accuracy test status displays as Scheduled when the test is about to execute. A status of Running displays when the test is in process and Idle when the test is complete. A Failure status appears when the test is not successful.
Step 15 To view the results of the location accuracy test, click the test name and then select the Results tab on the page that displays.
Step 16 At the Results panel, click the Download link under the Saved Report heading to view the report.
The Scheduled Location Accuracy Report includes the following information:
•A summary location accuracy report that details the percentage of elements that fell within various error ranges.
•An error distance histogram
•A cumulative error distribution graph
•An error distance over time graph
•A summary by each MAC address whose location accuracy was tested noting its actual location, error distance and a map showing its spatial accuracy (actual vs. calculated location) and error distance over time for each MAC.
Using On-demand Accuracy Testing to Test Location Accuracy
An On demand Accuracy Test is run when elements are associated but not pre-positioned. On demand testing allows you to test the location accuracy of clients and tags at a number of different locations. It is generally used to test the location accuracy for a small number of clients and tags.
To run an On-demand Accuracy Test, follow these steps:
Step 1 Click Tools > Location Accuracy Tool.
Step 2 Select New On demand Accuracy Test from the Select a command drop-down menu.
Step 3 Enter a Test Name.
Step 4 Select the Area Type from the drop-down menu.
Step 5 Campus is configured as Root Area, by default. There is no need to change this setting.
Step 6 Select the Building from the drop-down menu.
Step 7 Select the Floor from the drop-down menu.
Step 8 Tests results are viewed at the Accuracy Tests > Results window. Reports are in PDF format.
Step 9 Click Position Testpoints. The floor map appears with a red cross hair at the (0,0) coordinate.
Step 10 To test the location accuracy and RSSI of a particular location, select either client or tag from the drop-down menu on the left. A list of all MAC addresses for the selected option (client or tag) displays in a drop-down menu to its right.
Step 11 Select a MAC address from the drop-down menu and move the red cross hair to a map location and click the mouse to place it.
Step 12 Click Start to begin collection of accuracy data.
Step 13 Click Stop to finish collection. You should allow the test to run for at least two minutes before clicking Stop.
Step 14 Repeat Step 10 to Step 13 for each testpoint that you want to plot on the map.
Step 15 Click Analyze when you are finished mapping the testpoints.
Step 16 Select the Results tab on the panel that appears.
The On-demand Accuracy Report includes the following information:
•A summary location accuracy report that details the percentage of elements that fell within various error ranges.
•An error distance histogram
•A cumulative error distribution graph
Note You can download logs for accuracy tests from the Accuracy Tests summary page.
•To do so, check the listed test check box and select either Download Logs or Download Logs for Last Run from the Select a command menu and click GO.
•The Download Logs option downloads the logs for all accuracy tests for the selected test(s).
•The Download Logs for Last Run option downloads logs for only the most recent test run for the selected test(s).
Using Chokepoints to Enhance Tag Location Reporting
Installing chokepoints provides enhanced location information for active RFID tags. When an active Cisco CX version 1 compliant RFID tag enters the range of a chokepoint, it is stimulated by the chokepoint. The MAC address of this chokepoint is then included in the next beacon sent by the stimulated tag. All access points that detect this tag beacon then forward the information to the controller and location appliance.
Using chokepoints in conjunction with active Cisco CX compliant tags provides immediate location information on a tag and its asset. When a Cisco CX tag moves out of the range of a chokepoint, its subsequent beacon frames do not contain any identifying chokepoint information. Location determination of the tag defaults to the standard calculation methods based on RSSIs reported by access point associated with the tag.
Adding Chokepoints to the Cisco WCS
Chokepoints are installed and configured as recommended by the chokepoint vendor. When the chokepoint is installed and operational, you can add the chokepoint to the location database and positioned on a Cisco WCS map.
Note Chokepoints (also known as exciters) are managed by the chokepoint vendor's application. For details refer to the AeroScout Context-Aware Engine for Tags, for Cisco Mobility Services Engine User's Guide for configuration details at the following link: http://support.aeroscout.com.
To add a chokepoint to Cisco WCS, follow these steps:
Step 1 Click Configure > Chokepoints from the main menu (top).
The All Chokepoints summary window appears.
Step 2 Select Add Chokepoint from the Select a command menu and click GO.
The Add Chokepoint entry screen appears.
Figure 7-4 Add Chokepoint Window
Step 3 Enter the MAC address, name, coverage range, and IP address for the chokepoint.
Note The chokepoint range is product-specific and is supplied by the chokepoint vendor.
Step 4 Check the Entry/Exit Chokepoint check box if you want the chokepoint to function as an perimeter chokepoint. Its function is to track the entry and exit of clients and tags from an area or floor.
Note If a tag shows strong RSSIs on two floors, you can check for the last perimeter chokepoint the tag passed to determine its current floor.
Step 5 Click OK to save the chokepoint entry to the database.
The All Chokepoints summary window appears with the new chokepoint entry listed (Figure 7-5).
Figure 7-5 All Chokepoints Summary Window
Note After you add the chokepoint to the database, you can place the chokepoint on the appropriate WCS floor map.
Step 6 To add the chokepoint to a map, click Monitor > Maps (Figure 7-6).
Figure 7-6 Monitor > Maps Window
Step 7 At the Maps window, select the link that corresponds to the floor location of the chokepoint. The floor map appears (Figure 7-7).
Figure 7-7 Selected Floor Map
Step 8 Select Add Chokepoints from the Select a command menu. Click GO.
The Add Chokepoints summary window appears (Figure 7-8).
Note The Add Chokepoints summary window lists all recently-added chokepoints that are in the database but not yet mapped.
Figure 7-8 Add Chokepoints Summary Window
Step 9 Check the box next to the chokepoint to be added to the map. Click OK (bottom of screen).
A map appears with a chokepoint icon located in the top-left hand corner. You can now place the chokepoint on the map.
Step 10 Left click on the chokepoint icon and drag and place it in the proper location (Figure 7-9).
Figure 7-9 Chokepoint Icon is Positioned on the Floor Map
Note The MAC address, name, and coverage range of the chokepoint appear in the left panel when you click on the chokepoint icon for placement.
Step 11 Click Save when icon is correctly placed on the map.
You are returned to the floor map and the added chokepoint appears on the map (Figure 7-10).
Note The icon for the newly added chokepoint may or may not appear on the map depending on the display settings for that floor. If the icon did not appear, proceed with Step 11.
Figure 7-10 New Chokepoint Displayed on Floor Map
Note The rings around the chokepoint icon indicate the coverage area. When a Cisco CX tag and its asset passes within the coverage area, location details are broadcast and the tag is automatically mapped on the chokepoint coverage circle. When the tag moves out of the chokepoint range, its location is calculated as before and it is no longer mapped on the chokepoint rings.
Note MAC address, name, and range of a chokepoint display when you pass a mouse over its map icon
Step 12 If the chokepoint does not appear on the map, click Layers to collapse a selection menu of possible elements to display on the map. Click the Chokepoints check box.
The chokepoint appears on the map (Figure 7-11).
Figure 7-11 Chokepoints Displayed on Map
Step 13 Click X to close the Layers window.
Note Do not select Save Settings unless you want to save this display criteria for all maps.
Removing Chokepoints from the WCS Database and Map
You can remove one or multiple chokepoints at a time.
To delete a chokepoint, follow these steps:
Step 1 Click Configure > Chokepoints. The All Chokepoints window appears.
Step 2 Check the box(es) next to the chokepoint(s) to be deleted.
Step 3 Select Remove Chokepoints from the Select a command drop-down menu. Click GO (Figure 7-12).
Figure 7-12 Removing a Chokepoint
Step 4 To confirm chokepoint deletion, click OK in the pop-up window that appears.
You are returned to the All Chokepoints window. A message confirming deletion of the chokepoint appears. The deleted chokepoint(s) is no longer listed in the window.
Using Wi-Fi TDOA Receivers to Enhance Tag Location Reporting
The Wi-Fi TDOA receiver is an external system designed to receive signals transmitted from a tagged, tracked asset. These signals are then forwarded to the mobility services engine to aid in the location calculation of the asset. TDOA receivers use the method of Time Difference of Arrival (TDOA) to calculate tag location. This method uses data from a minimum of three TDOA receivers to generate a tagged asset's location.
Note If a TDOA receiver is not in use, then the location calculations for tags are generated using RSSI readings from access points.
Before using a TDOA receiver within the Cisco Unified Wireless Network, you must:
1. Have a mobility services engine active in the network.
Refer to Chapter 2, "Adding and Deleting Systems" for details on adding a mobility services engine.
2. Add the TDOA receiver to the Cisco WCS database and map.
Refer to "Adding Chokepoints to the Cisco WCS" section for details on adding the TDOA receiver to Cisco WCS.
3. Synchronize Cisco WCS and mobility services engines.
Refer to Chapter 3, "Synchronizing Mobility Services Engines" for details on synchronization.
4. Setup the TDOA receiver using the AeroScout System Manager.
Note Refer to the AeroScout Context-Aware Engine for Tags, for Cisco Mobility Services Engine User's Guide for configuration details at the following link: http://support.aeroscout.com.
Adding Wi-Fi TDOA Receivers to Cisco WCS and Maps
After adding TDOA receivers to Cisco WCS maps and synchronizing, TDOA receiver configuration changes are done using the AeroScout System Manager application rather than Cisco WCS.
Note For more details on configuration options, refer to the AeroScout Context-Aware Engine for Tags, for Cisco Mobility Services Engine User's Guide at the following link: http://support.aeroscout.com.
To add a TDOA receiver to the Cisco WCS database and appropriate map, follow these steps:
Step 1 In Cisco WCS, click Configure > WiFi TDOA Receivers. The All WiFi TDOA Receivers summary window appears.
Step 2 From the Select a command menu, choose Add WiFi TDOA Receivers and click GO.
Step 3 Enter the MAC Address, Name and Static IP address of the TDOA receiver.
Step 4 Click OK to save the TDOA receiver entry to the database. The All WiFi TDOA Receivers summary window appears with the new TDOA receiver entry listed.
Note After you add the TDOA receiver to the database, you can place the TDOA receiver on the appropriate WCS floor map. To do so, continue with Step 5.
Step 5 To add the TDOA receiver to a map, click Monitor > Maps.
Step 6 At the Maps window, select the link that corresponds to the floor location of the TDOA receiver. The floor map appears.
Step 7 Select Add WiFi TDOA receivers from the Select a command menu. Click GO.
The Add WiFi TDOA Receivers summary window appears.
Note The All WiFi TDOA Receivers summary window lists all recently-added TDOA receivers that are in the database but not yet mapped.
Step 8 Check the check box next to each TDOA receiver to add it to the map. Click OK.
A map appears with a TDOA receiver icon located in the top-left hand corner. You are now ready to place the TDOA receiver on the map.
Step 9 Left click on the TDOA receiver icon and drag and place it in the proper location on the floor map.
Note You can also place the receiver by entering the horizontal (Horz), and vertical (Vert) coordinates of the target location.
Note The MAC address and name of the TDOA receiver appear in the left panel when you click on the TDOA receiver icon for placement.
Step 10 After placing the TDOA receiver, enter the height of the receiver in the sensor height field.
Step 11 Click Save when the icon is placed correctly on the map.
You are returned to the floor heat map and the added TDOA receiver appears on the map.
Note The icon for the newly added TDOA receiver may or may not appear on the map depending on the display settings for that floor. If the icon did not appear, proceed with Step 12.
Step 12 If the TDOA receiver does not appear on the map, click Layers to collapse a selection menu of possible elements to display on the map. Click the WiFi TDOA Receivers check box.
Step 13 The TDOA receiver appears on the map (Figure 7-13).
Note You can hover over (mouse over) a TDOA receiver on a map to see configuration details for that receiver.
Figure 7-13 WiFi TDOA Receiver Enabled on Layers Menu for Map Display
Step 14 Click X to close the Layers window.
Note Do not select Save Settings in the Layers menu unless you want to save this display criteria for all maps.
Removing Wi-Fi TDOA Receivers from Cisco WCS and Maps
You can remove one or multiple Wi-Fi TDOA receivers at a time. If you remove a TDOA receiver from a map it remains in the WCS database but is labeled as unassigned.
To delete a TDOA receiver from WCS, follow these steps:
Step 1 In Cisco WCS, click Configure > WiFi TDOA Receivers. The All WiFi TDOA Receivers summary window appears.
Step 2 Check the box next to each TDOA receiver to be deleted.
Step 3 Select Remove WiFi TDOA Receivers from the Select a command drop-down menu. Click GO.
Step 4 To confirm TDOA receiver deletion, click OK in the pop-up window that appears.
You are returned to the All WiFi TDOA Receivers window. A message confirming deletion of the TDOA receiver appears. The deleted TDOA receiver is no longer listed in the window.
Using Tracking Optimized Monitor Mode to Enhance Tag Location Reporting
To optimize monitoring and location calculation of tags, you can enable TOMM on up to four channels within the 2.4GHz band (802.11b/g radio) of an access point. This allows you to focus channel scans only on those channels on which tags are usually programmed to operate (such as channels 1, 6, and 11).
After enabling Monitor Mode at the access point level, you must then enable TOMM and assign monitoring channels on the 802.11 b/g radio of the access point.
Note For details on enabling Monitor Mode on an access point, refer to Step 5 in the "Configuring Access Points" section in Chapter 9 of the Cisco Wireless Control System Configuration Guide, Release 5.1.
To enable TOMM and assign monitoring channels on the access point radio, follow these steps:
Step 1 After enabling Monitor Mode at the access point level, click Configure > Access Points.
Step 2 At the All Access Points Summary window, select the 802.11 b/g Radio link for the appropriate access point.
Step 3 At the Radio parameters window, disable Admin Status by unchecking the check box. This disables the radio.
Step 4 Check the Location Optimized Channel Assignment check box. Drop-down menus for each of the four configurable channels display.
Step 5 Select the four channels on which you want the access point to monitor tags.
Note You can configure fewer than four channels for monitoring. To eliminate a monitoring channel, select None from the channel drop-down menu.
Step 6 Click Save. Channel selection is saved.
Step 7 At the Radio parameters window, re-enable the radio by checking the Admin Status check box.
Step 8 Click Save. The access point is now configured as a TOMM access point.
The AP Mode display as Monitor/TOMM on the Monitor > Access Points window.
Defining Inclusion and Exclusion Regions on a Floor
To further refine location calculations on a floor, you can define the areas that are included (inclusion areas) in the calculations and those areas that are not included (exclusion areas).
For example, you might want to exclude areas such as an atrium or stairwell within a building but include a work area (such as cubicles, labs, or manufacturing floors).
Note In Cisco WCS, inclusion and exclusion regions are only calculated for clients.
Guidelines
Inclusion and exclusion areas can be any polygon shape and must have at least three points.
You can only define one inclusion region on a floor. By default, an inclusion region is defined for each floor when it is added to Cisco WCS. The inclusion region is indicated by a solid aqua line, and generally outlines the region.
You can define multiple exclusion regions on a floor.
Newly defined inclusion and exclusion regions appear on heatmaps only after the mobility services engine recalculates location.
Defining an Inclusion Region on a Floor
To define an inclusion area, follow these steps:
Step 1 Click Monitor > Maps.
Step 2 Click on the name of the appropriate floor area.
Step 3 Select Map Editor from the Select a command drop-down menu.Click GO.
Step 4 At the map, click the aqua box in the tool bar.
Note A message box appears reminding you that only one inclusion area can be defined at a time. Defining a new inclusion region automatically removes the previously defined inclusion region. By default, an inclusion region is defined for each floor when it is added to Cisco WCS. The inclusion region is indicated by a solid aqua line and generally outlines the region (Figure 7-14).
Figure 7-14 Map Editor Window
Step 5 Click OK in the message box that appears. A drawing icon appears to outline the inclusion area.
Step 6 To begin defining the inclusion area, move the drawing icon to a starting point on the map and click once.
Step 7 Move the cursor along the boundary of the area you want to include and click to end a border line. Click again to define the next boundary line.
Step 8 Repeat Step 7 until the area is outlined and then double click the drawing icon. A solid aqua line defines the inclusion area.
Step 9 Select Save from the Command menu or click the disk icon on the tool bar to save the inclusion region.
Note If you made an error in defining the inclusion area, click on the area. The selected area is outlined by a dashed aqua line. Next, click on the X icon in the tool bar. The area is removed from the floor map.
Step 10 To return to the floor map to enable inclusion regions on heatmaps, select Exit from the Command menu.
Step 11 At the floor map, click the Layers drop-down menu.
Step 12 Check the Location Regions check box if it is not already checked. If you want it to apply to all floor maps, click Save settings. Close the Layers configuration panel.
Step 13 To resynchronize the Cisco WCS and location databases, click Mobility > Synchronize Services.
Step 14 At the Synchronize window, select Network Designs from the Synchronize drop-down menu and then click Synchronize.
Check the Sync. Status column to ensure that the synchronization is successful (two green arrows).
Note Newly defined inclusion and exclusion regions appear on heatmaps only after the mobility services engine recalculates location.
Defining an Exclusion Region on a Floor
To further refine location calculations on a floor, you can define areas that are excluded (exclusion areas) in the calculations. For example, you might want to exclude areas such as an atrium or stairwell within a building. As a rule, exclusion areas are generally defined within the borders of an inclusion area.
To define an exclusion area, follow these steps:
Step 1 Click Monitor > Maps.
Step 2 Click on the name of the appropriate floor area.
Step 3 Select Map Editor from the Select a command drop-down menu.Click GO.
Step 4 At the map, click the purple box in the tool bar.
Step 5 Click OK in the message box that appears. A drawing icon appears to outline the exclusion area.
Step 6 To begin defining the exclusion area, move the drawing icon to the starting point on the map and click once.
Step 7 Move the drawing icon along the boundary of the area you want to exclude and click once to start a boundary line and click again to end the boundary line.
Step 8 Repeat Step 7 until the area is outlined and then double click the drawing icon. The defined exclusion area is shaded in purple. when the area is completely defined. The excluded area is shaded in purple.
Step 9 To define additional exclusion regions, repeat Step 4 to Step 8 (see Figure 7-15).
Figure 7-15 Defining Exclusion Areas on Floor Map
Step 10 When all exclusion areas are defined, select Save from the Command menu or the disk icon on the tool bar to save the exclusion region.
Note To delete an exclusion area, click on the area to be deleted. The selected area is outlined by a dashed purple line. Next, click on the X icon in the tool bar. The area is removed from the floor map.
Step 11 To return to the floor map to enable exclusion regions on heatmaps, select Exit from the Command menu.
Step 12 At the floor map, click the Layers drop-down menu.
Step 13 Check the Location Regions check box if it is not already checked and then click Save settings and close the Layers configuration panel when complete.
Step 14 To resynchronize the Cisco WCS and location databases, click Mobility > Synchronize Services.
Step 15 At the Synchronize window, select Network Designs from the Synchronize drop-down menu and then click Synchronize.
Check the Sync. Status column to ensure that the synchronization is successful (two green arrows).
Defining a Rail Line on a Floor
You can define a rail line on a floor that represents a conveyor belt. Additionally, you can define an area around the rail area known as the snap-width to further assist location calculations. This represents the area in which you expect clients to appear. Any client located within the snap-width area is plotted on the rail line (majority) or just outside of the snap-width area (minority).
Note Rail line configurations do not apply to tags.
The snap-width area is defined in feet or meters (user-defined) and represents the distance that is monitored on either side (east and west or north and south) of the rail.
To define a rail with a floor, follow these steps:
Step 1 Click Monitor > Maps.
Step 2 Click on the name of the appropriate floor area.
Step 3 Select Map Editor from the Select a command drop-down menu.Click GO.
Step 4 At the map, click the rail icon (to the right of the purple exclusion icon) in the tool bar (see Figure 7-16).
Figure 7-16 Rail Icon on Map Editor Tool Bar
Step 5 In the message panel that appears, enter a snap-width (feet or meters) for the rail and then click OK. A drawing icon appears.
Note The snap-width is defined in feet or meters (as defined by the user) and represents the distance that is monitored on either side (left and right) of the rail.
Step 6 Click the drawing icon at the starting point of the rail line. Click again when you want to stop drawing the line or change the direction of the line.
Step 7 Click the drawing icon twice when the rail line is completely drawn on the floor map. The rail line appears on the map and is bordered on either side by the defined snap-width region (see Figure 7-17).
Figure 7-17 Rail Line
Note To delete a rail line, click on the area to be deleted. The selected area is outlined by a dashed purple line. Next, click on the X icon in the tool bar. The area is removed from the floor map.
Step 8 To return to the floor map to enable rails on heatmaps, select Exit from the Command menu.
Step 9 At the floor map, click the Layers drop-down menu.
Step 10 Check the Rails check box for if it is not already checked and then click Save settings and close the Layers configuration panel when complete.
Step 11 To resynchronize the Cisco WCS and mobility services engine, click Mobility > Synchronize Services.
Step 12 At the Synchronize window, select Network Designs from the Synchronize drop-down menu and then click Synchronize.
Check the Sync. Status column to ensure that the synchronization is successful (two green arrows).
Modifying Context-Aware Software Parameters
You can modify Context-Aware Software properties as to the type and number of clients or tags that are tracked and whether or not locations are calculated for those clients or tags.
You can also modify parameters that affect the location calculation of clients and tags such as Receiver Signal Strength Indicator (RSSI) measurements.
Note Licenses are required to retrieve contextual information on tags and clients from access points. The client's license also includes tracking of rogue clients and rogue access points. Licenses for tags and clients are offered independently. Licenses for tags and clients are offered in a range of quantities, ranging from 3,000 to 12,000 units. Refer to the Release Notes for Cisco 3300 Series Mobility Services Engine for Software Release 5.2.xx.0 at the following link for details: http://www.cisco.com/en/US/products/ps9742/tsd_products_support_series_home.html
Modifying Tracking Parameters
The mobility services engine can track up to18,000 clients and up to18,000 tags (with the proper license purchase). Updates on the locations of elements being tracked are provided to the mobility services engine from the Cisco wireless LAN controller.
Only those elements designated for tracking by the controller are viewable in Cisco WCS maps, queries and reports. No events and alarms are collected for non-tracked elements and none are used in calculating the 18,000 element limit for clients or tags.
You can modify the following tracking parameters using Cisco WCS:
•Enable and disable element locations (client stations, active asset tags, and rogue clients and access points) you actively track.
•Set limits on how many of a specific element you want to track.
For example, given a client license of 12,000 trackable units, you could set a limit to track only 8,000 client stations (leaving 4,000 units available to track rogue clients and rogue access points). Once the tracking limit is met for a given element, the number of elements not being tracked is summarized on the Tracking Parameters page.
•Disable tracking and reporting of ad hoc rogue clients and access points.
To configure tracking parameters for a mobility services engine, follow these steps:
Step 1 In Cisco WCS, click Mobility > Mobility Services. The Mobility Services window appears.
Step 2 Click the name of the mobility services engine whose properties you want to edit. The General Properties window appears.
Step 3 In the Context-Aware Software menu (left panel), select Tracking Parameters from the Administration sub-heading to display the configuration options.
Step 4 Modify the tracking parameters as appropriate. Table 7-1 describes each parameter.
:
Table 7-1 Tracking Parameters
Parameter
|
Configuration Options
|
Tracking Parameters
|
Client Stations
|
1. Check the Enable check box to enable tracking of client stations by the mobility services engine.
2. Check the Enable Limiting check box to set a limit on the number of client stations to track.
3. Enter a Limit Value, if limiting is enabled. The limit entered can be any positive value up to 18,000 which is the maximum number of clients that can be tracked by a mobility services engine.
Note The actual number of tracked clients is determined by the license purchased.
Note Active Value (display only): Indicates the number of client stations currently being tracked.
Note Not Tracking (display only): Indicates the number of client stations beyond the limit.
|
Asset Tags
|
1. Check the Enable check box to enable tracking of asset tags by the mobility services engine.
2. Check the Enable Limiting check box to set a limit on the number of asset tags stations to track.
3. Enter a Limit Value, if limiting is enabled. The limit entered can be any positive value up to 18,000, which is the maximum number of tags that can be tracked by a mobility services engine.
Note The actual number of tracked tags is determined by the license purchased.
Note Active Value (display only): Indicates the number of asset tags currently being tracked.
Note Not Tracking (display only): Indicates the number of asset tags beyond the limit.
|
Rogue Clients and Access Points
|
1. Check the Enable check box to enable tracking of rogue clients and asset points by the mobility services engine.
2. Check the Enable Limiting check box to set a limit on the number of rogue clients and asset tags stations to track.
3. Enter a Limit Value, if limiting is enabled. The limit entered can be any positive value up to18,000 which is the maximum number of rogue clients and access points that can be tracked by a mobility services engine.
Note The actual number of tracked rogues (clients and access points) is driven by the client license purchased. The user must consider the number of clients that are being tracked in determining the available quantity to allocate to track rogue clients and access points because clients and rogue clients and access points are addressed by the same license.
Note Active Value (display only): Indicates the number of rogue clients and access points currently being tracked.
Note Not Tracking (display only): Indicates the number of rogue clients and asset tags beyond the limit.
|
Exclude Ad-Hoc Rogues
|
Check the check box to turn off the tracking and reporting of ad hoc rogues in the network. As a result, ad hoc rogues are not displayed on Cisco WCS maps or its events and alarms reported.
|
SNMP Parameters Not applicable to mobility services engines.
|
SNMP Retry Count
|
Enter the number of times to retry a polling cycle. Default value is 3. Allowed values are from 1 to 99999. (Configurable in controller release 4.1 and earlier and location server release 3.0 and earlier only).
|
SNMP Timeout
|
Enter the number of seconds before a polling cycle times out. Default value is 5. Allowed values are from 1 to 99999. (Configurable in controller release 4.1 and earlier and location server release 3.0 and earlier only).
|
Client Stations
|
Check the Enable check box to enable client station polling and enter the polling interval in seconds. Default value is 300. Allowed values are from 1 to 99999. (Configurable in controller release 4.1 and earlier and location server release 3.0 and earlier only).
|
Asset Tags
|
Check the Enable check box to enable asset tag polling and enter the polling interval in seconds. Default value is 600. Allowed values are from 1 to 99999. (Configurable in controller release 4.1 and earlier and location server release 3.0 and earlier only).
Note Before the location server can collect asset tag data from controllers, you must enable the detection of active RFID tags using the CLI command config rfid status enable on the controllers.
|
Rogue Clients and Access Points
|
Check the Enable check box to enable rogue access point polling and enter the polling interval in seconds. Default value is 600. Allowed values are from 1 to 99999.(Configurable in controller release 4.1 and earlier and location server release 3.0 and earlier only).
|
Statistics
|
Check the Enable check box to enable statistics polling for the location server, and enter the polling interval in seconds. Default value is 900. Allowed values are from 1 to 99999.(Configurable in controller release 4.1 and earlier and location server release 3.0 and earlier only).
|
Step 5 Click Save to store the new settings in the mobility services engine database.
Modifying Filtering Parameters
In Cisco WCS, you can limit the number of asset tags, clients, and rogue clients and access points whose location is tracked by filtering on:
•MAC addresses
Specific MAC addresses can be entered and labeled as allowed or disallowed from location tracking. You can import a file with the MAC addresses that are to be allowed or disallowed, or you can enter them individually from the WCS GUI window.
The format for entering MAC addresses is xx:xx:xx:xx:xx:xx. If a file of MAC addresses is imported, the file must follow a specific format as noted below:
–Each MAC address should be listed on a single line.
–Allowed MAC addresses must be listed first and preceded by an "[Allowed]" line item. Disallowed MAC addresses must be preceded by "[Disallowed]."
–Wildcard listings can be used to represent a range of MAC addresses. For example, the first entry "00:11:22:33:*" in the Allowed listing below is a wildcard.
Note Allowed MAC address formats are viewable from the Filtering Parameters configuration window. See Table 7-2 for details.
EXAMPLE file listing:
[Allowed]
00:11:22:33:*
22:cd:34:ae:56:45
02:23:23:34:*
[Disallowed]
00:10:*
ae:bc:de:ea:45:23
•Probing clients
Probing clients are clients that are associated to another controller but whose probing activity causes them to be seen by another controller and counted as an element by the "probed" controller as well as its primary controller.
To configure filtering parameters for a mobility services engine, follow these steps:
Step 1 In Cisco WCS, click Mobility > Mobility Services. The Mobility Services window appears.
Step 2 Click the name of the mobility services engine whose properties you want to edit. The General Properties window appears.
Step 3 From the Context-Aware Software menu (left panel), select Filtering Parameters from the Administration sub-heading to display the configuration options.
Step 4 Modify the filtering parameters as appropriate. Table 7-2 describes each parameter.
Table 7-2 Filtering Parameters
Parameter
|
Configuration Options
|
Exclude Probing Clients
|
Check the check box to prevent location calculation of probing clients.
|
Enable Location MAC Filtering
|
1. Check the check box to enable MAC filtering of specific elements by their MAC address.
2. To import a file of MAC addresses (Upload a file for Location MAC Filtering field), browse for the file name and click Save to load the file. The imported list of MAC addresses auto-populates the Allowed List and Disallowed List based on their designation in the file.
Note To view allowed MAC address formats, click on the red question mark next to the Upload a file for Location MAC Filtering field.
3. To add an individual MAC address, enter the MAC addresses (format is xx:xx:xx:xx:xx:xx) and click either Allow or Disallow. The address appears in the appropriate column.
Note To move an address between the Allow and Disallow columns, highlight the MAC address entry and click the button under the appropriate column.
Note To move multiple addresses, click the first MAC address and depress the Ctrl to highlight additional MAC addresses. Click the Allow or Disallow button based on its desired destination.
Note If a MAC address is not listed in the Allow or Disallow column, by default, it appears in the Blocked MACs column. If you click the Unblock button, the MAC address automatically moves to the Allow column. You can move it to the Disallow column by selecting the Disallow button under the Allow column.
|
Step 5 Click Save to store the new settings in the mobility services engine database.
Modifying History Parameters
You can use Cisco WCS to specify how long to store histories on client stations, rogue access points, and asset tags. These histories are received from those controllers associated with the mobility services engine.
You can also program the mobility services engine to periodically prune (remove) duplicate data from its historical files to reduce the amount of data stored on its hard drive.
To configure mobility services engine history settings, follow these steps:
Step 1 In Cisco WCS, choose Mobility > Mobility Services.
Step 2 Click the name of the mobility services engine whose properties you want to edit.
Step 3 From the Context-Aware Software menu, select History Parameters from the Administration sub-heading.
Step 4 Modify the following history parameters as appropriate. Table 7-3 describes each parameter.
:
Table 7-3 History Parameters
Parameter
|
Configuration Options
|
Archive for
|
Enter the number of days for the mobility services engine to retain a history of each enabled category. Default value is 30. Allowed values are from 1 to 99999.
|
Prune data starting at
|
Enter the interval of time in which the mobility services engine starts data pruning (between 0 and 23 hours, and between 1 and 59 minutes). Also enter the interval in minutes after which data pruning starts again (between 0, which means never, and 99900000). Default start time is 23 hours and 50 minutes, and the default interval is 1440 minutes.
|
Enable History Logging of Location Transitions for Client Stations, Asset Tags and Rogue Clients and Access Points
|
Check any or all of the element (client stations, asset tags, and rogue clients and access points) check boxes to log location transitions for the selected element type(s). When history logging is enabled for an element, a location transition event is logged each time the location of the selected element changes.
|
Step 5 Click Save to store your selections in the mobility services engine database.
Enabling Location Presence
You can enable location presence by mobility services engine to provide expanded Civic (city, state, postal code, country) and GEO (longitude, latitude) location information beyond the Cisco default setting (campus, building, floor, and X, Y coordinates). This information can then be requested by clients on a demand basis for use by location-based services and applications.
Location Presence can be configured when a new Campus, Building, Floor or Outdoor Area is being added or configured at a later date.
Once enabled, the mobility services engine is capable of providing any requesting Cisco CX v5 client its location.
Note For details on configuring location presence when adding a new Campus, Building, Floor or Outdoor Area, refer to the "Creating Maps" section in Chapter 5 of the Cisco Wireless Control System Configuration Guide, release 5.2 and greater.
Note Before enabling this feature, synchronize the mobility services engine.
To enable and configure location presence on a mobility services engine, follow these steps:
Step 1 Click Mobility > Mobility Services > Device Name. Select the mobility services engine to which the campus or building is assigned.
Step 2 From the Context-Aware Software menu (left-panel), select Presence Parameters from the Administration sub-heading. The Presence window displays.
Step 3 Check the Service Type On Demand check box to enable location presence for Cisco CX clients v5.
Step 4 Select one of the following Location Resolution options.
a. When Building is selected, the mobility services engine can provide any requesting client, its location by building.
–For example, if a client requests its location and the client is located in Building A, the mobility services engine returns the client address as Building A.
b. When AP is selected, the mobility services engine can provide any requesting client, its location by its associated access point. The MAC address of the access point displays.
–For example, if a client requests its location and the client is associated with an access point with a MAC address of 3034:00hh:0adg, the mobility services engine returns the client address of 3034:00hh:0adg.
c. When X,Y is selected, the mobility services engine can provide any requesting client, its location by its X and Y coordinates.
–For example, if a client requests its location and the client is located at (50, 200) the mobility services engine returns the client address of 50, 200.
Step 5 Check any or all of the location formats.
a. Check the Cisco check box to provide location by campus, building and floor and X and Y coordinates. Default setting.
b. Check the Civic check box to provide the name and address (street, city, state, postal code, country) of a campus, building, floor or outdoor area.
Note To import a file with multiple Civic listings, refer to the "Importing Civic Information" section.
c. Check the GEO check box to provide the longitude and latitude coordinates.
Step 6 By default the Text check box for Location Response Encoding is checked. It indicates the format of the information when received by the client. There is no need to change this setting.
Step 7 Check the Retransmission Rule Enable check box to allow the receiving client to retransmit the received information to another party.
Step 8 Enter a Retention Expiration value in minutes. This determines how long the received information is stored by the client before it is overwritten. Default value is 24 hours (1440 minutes).
Step 9 Click Save.
Importing Asset Information
To import asset, chokepoint and TDOA receiver information for the mobility services engine using Cisco WCS, follow these steps:
Step 1 In Cisco WCS, click Mobility > Mobility Services.
Step 2 Click the name of the mobility services engine for which you want to import information.
Step 3 Click Context Aware Software (left panel).
Step 4 Click Import Asset Information from under the Administration sub-menu heading.
Step 5 Enter the name of the text file or browse for the file name.
Information in the imported file should be one of the following formats:
a. tag format: #tag, 00:00:00:00:00:00, categoryname, groupname, assetname
b. station format: #station, 00:00:00:00:00:00, categoryname, groupname, assetname
c. Wi-Fi TDOA receiver format: BuildingName, FloorName, LSMacAddress, LSName, IP Address, X,Y, Z.
X, Y, and Z represent map coordinates
LS refers to the TDOA receiver
d. chokepoint format: BuildingName, FloorName, CPMacAddress, CPName, IP Address, Range, X,Y, Z, IsPerimeter
X, Y, and Z represent map coordinates.
CP refers to the chokepoint
IsPerimeter is only required if the chokepoint is a perimeter chokepoint
Step 6 Click Import.
Exporting Asset Information
To export asset, chokepoint, and TDOA receiver information from the mobility services engine to a file using Cisco WCS, follow these steps:
Step 1 In Cisco WCS, click Mobility > Mobility Services.
Step 2 Click the name of the mobility services engine from which you want export information.
Step 3 Click Context Aware Software (left panel).
Step 4 Click Export Asset Information from under the Administration sub-menu heading.
Information in the exported file is in one of the following formats:
a. tag format: #tag, 00:00:00:00:00:00, categoryname, groupname, assetname
b. station format: #station, 00:00:00:00:00:00, categoryname, groupname, assetname
c. Wi-Fi TDOA receiver format: BuildingName, FloorName, LSMacAddress, LSName, IP Address, X,Y, Z.
X, Y, and Z represent map coordinates
LS refers to the TDOA receiver
d. chokepoint format: BuildingName, FloorName, CPMacAddress, CPName, IP Address, Range, X,Y, Z, IsPerimeter
X, Y, and Z represent map coordinates.
IsPerimeter indicates the chokepoint is a perimeter chokepoint.
CP refers to the chokepoint
Step 5 Click Export.
You are prompted to Open (display to screen) or Save (to external PC or server) the asset file or to Cancel the request.
Note If you select Save, you are asked to select the asset file destination and name. The file is named "assets.out" by default. Click Close from the dialog box when download is complete.
Importing Civic Information
To import civic information for the mobility services engine using Cisco WCS, follow these steps:
Step 1 In Cisco WCS, click Mobility > Mobility Services.
Step 2 Click the name of the mobility services engine for which you want to import asset information.
Step 3 Click Context Aware Software (left panel).
Step 4 Click Import Civic Information from under the Administration sub-menu heading.
Step 5 Enter the name of the text file or browse for the file name.
Information in the imported file must be in the following format:
Switch IP Address, Slot Number, Port Number, Extended Parent Civic Address, X,Y, Floor ID, Building ID, Network Design ID, ELIN:"ELIN", PIDF-Lo-Tag:"Civic Address Element Value",...
Note Each entry must be on a separate line.
Step 6 Click Import.
Modifying Location Parameters
You can use Cisco WCS to modify parameters that affect location calculations such as Receiver Signal Strength Indicator (RSSI) measurements for clients.
You can also apply varying smoothing rates to manage location movement of a client.
Note Tag location is not managed or affected by location parameter settings. Only client location is affected.
To configure location parameters, follow these steps:
Step 1 In Cisco WCS, click Mobility> Mobility Services.
Step 2 Click the name of the mobility services engine whose properties you want to modify.
Step 3 From the Context Aware Software menu (left panel), select Location Parameters from under the Advanced sub-heading. The configuration options appear.
Step 4 Modify the location parameters as appropriate. Table 7-4 describes each parameter.
Table 7-4 Location Parameters
Parameter
|
Configuration Options
|
Calculation time
|
Check the corresponding check box to enable the calculation of the time required to compute location.
Note This parameter applies only to clients.
Caution Enable only under Cisco TAC personnel guidance because enabling this parameter slows down overall location calculations.
|
OW Location
|
Check the corresponding check box to enable Outer Wall (OW) calculation as part of location calculation.
Note This parameter is ignored by the mobility services engine.
|
Relative discard RSSI time
|
Enter the number of minutes since the most recent RSSI sample after which RSSI measurement should be considered discarded. For example, if you set this parameter to 3 minutes and the mobility services engine receives two samples at 10 and 12 minutes, it keeps both samples. An additional sample received at 15 minutes is discarded. Default value is 3. Allowed values range from 0 to 99999. A value of less than 3 is not recommended.
Note This parameter applies only to clients.
|
Absolute discard RSSI time
|
Enter the number of minutes after which RSSI measurement should be considered stale and discarded, regardless of the most recent sample. Default value is 60. Allowed values range from 0 to 99999. A value of less than 60 is not recommended.
Note This parameter applies only to clients.
|
RSSI Cutoff
|
Enter the RSSI cutoff value, in decibels (dBs) with respect to one (1) mW (dBm), above which the mobility services engine will always use the access point measurement. Default value is -75.
Note When 3 or more measurements are available above the RSSI cutoff value, the mobility services engine will discard any weaker values and use the 3 (or more) strongest measurements for calculation; however, when only weak measurements below the RSSI cutoff value are available, those values are used for calculation.
Note This parameter applies only to clients.
Caution Modify only under Cisco TAC personnel guidance. Modifying this value can reduce the accuracy of location calculation.
|
Smooth Location Positions
|
Smoothing compares an element's prior location to its most recent reported location by applying a weighted average calculation to determine its current location. The specific weighted average calculation employed is tied to the given smoothing option selected. Default value is More Smoothing.
Options:
•Off (No smoothing): Elements assumed to be in location indicated by most recent polling.
•Less smoothing: Prior location weighted at 25% and New location weighted at 75%.
•Average smoothing: Prior location weighted at 50% and New location weighted at 50%.
•More smoothing: Prior location weighted at 75% and New location weighted at 25%.
•Maximum smoothing: Prior location weighted at 90% and New location weighted at 10%.
Note This parameter applies only to clients.
|
Chokepoint Usage
|
Check the Enable check box to enable tracking of Cisco compatible tags by chokepoints.
Note This parameter is ignored by the mobility services engine.
|
Use Chokepoints for Interfloor conflicts
|
Perimeter chokepoints or weighted location readings can be selected to determine the location of Cisco compatible tags.
Options:
•Never: When selected, perimeter chokepoints are not used to determine the location of Cisco compatible tags.
•Always: When selected, perimeter points are used to determine the location of Cisco compatible tags.
•Floor Ambiguity: When selected, both weighted location readings and perimeter chokepoints are used to generate location for Cisco compatible tags. If similar locations are calculated by the two methods, the perimeter chokepoint value is used by default.
Note This parameter is ignored by the mobility services engine.
|
Chokepoint Out of Range Timeout
|
When a Cisco compatible tag leaves a chokepoint range, the timeout period entered is the period that passes before RSSI values are again used for determining location.
Note This parameter is ignored by the mobility services engine.
|
Allow Civic Address updates from Switches
|
Check the enable check box to receive civic address updates from the controller. When enabled, the civic address parameter provides city, state, postal code and country specifics for the mobility services engine. This capability is in addition to the Cisco default settings of campus, building, floor, and X, Y coordinates. This information can then be requested by clients on demand for use by location-based services and applications.
Note For more details on civic addresses and other location options, refer to the "Enabling Location Presence" section.
|
Step 5 Click Save to store your selections in the Cisco WCS and mobility services engine databases.
Configuring Notification Parameters
You can use Cisco WCS to configure mobility services engine event notification parameters that define such items as how often the notifications are generated or resent by the mobility services engine.
Note Modify notification parameters only if you expect the mobility services engine to send a large number of notifications or if notifications are not being received.
You can also enable forwarding of northbound notifications for tags to be sent to third-party applications.
The format of northbound notifications sent by the mobility services engine is available on the Cisco developers support portal at:
http://www.cisco.com/en/US/products/svcs/ps3034/ps5408/ps5418/serv_home.html
To configure notification parameters, follow these steps:
Step 1 In Cisco WCS, choose Mobility > Mobility Services.
Step 2 Click the name of the mobility services engine you want to configure.
Step 3 From the Context Aware Software menu (left panel), select Notification Parameters from the Advanced sub-heading to display the configuration options.

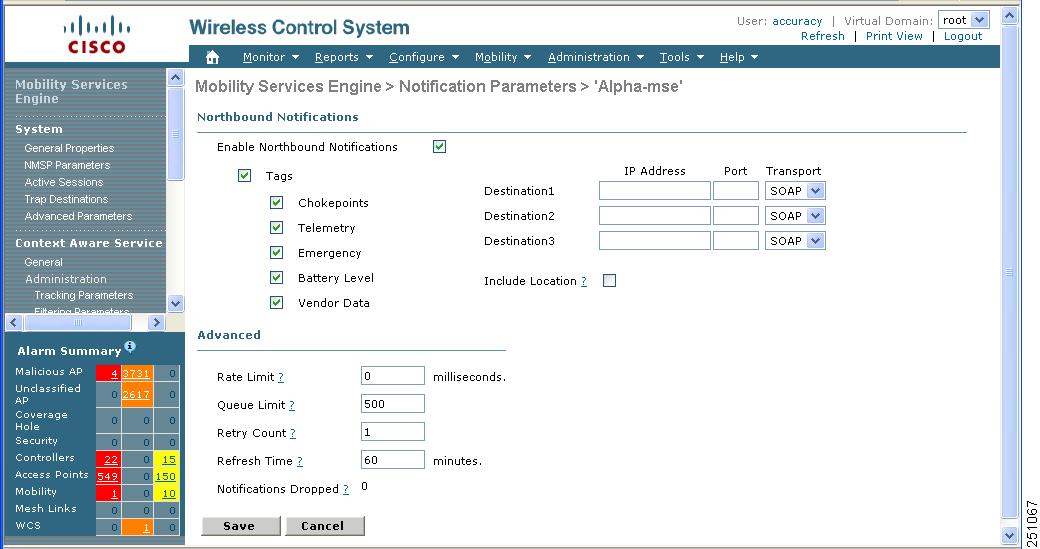

Figure 7-18 Mobility Services Engine > Context Aware Software > Notification Parameters
Step 4 Check the Enable Northbound Notifications check box to enable the function.
Step 5 Check the Tags check box to send tag notifications to third-party applications.
Step 6 Check the check box for each of the tag notification event types (chokepoints, telemetry, emergency, battery level, vendor data) that you want sent.
Step 7 Check the Include location check box to send the tag location.
Note You can define what type of location information is sent for the tag. Options include building, X, Y map coordinates, civic (address), city, state) or GEO (longitude, latitude). Refer to the "Enabling Location Presence on a Mobility Services Engine" section in Chapter 7 for configuration details.
Step 8 Enter the IP address and port for the system that is to receive the northbound notifications.
Step 9 Select the transport type from the drop-down menu.
Step 10 To modify the notification parameter settings, enter the new value in the appropriate field in the Advanced section of the window. Definitions for each of the parameters is listed in Table 7-5.
Table 7-5 Notification Parameters:
Parameter
|
Configuration Options
|
Rate Limit
|
Enter the rate in milliseconds at which the mobility services engine will generate notifications. A value of 0 (default) means that the mobility services engine will generate event notifications as fast as possible.
|
Queue Limit
|
The event queue limit for sending notifications. The mobility services engine will drop any event above this limit. Default value is 500.
|
Retry Limit
|
Enter the number of times to generate an event notification before the refresh time expires. This value ensures, to some extent, that the events that the mobility services engine generated will eventually reach Cisco WCS. Default value is 1.
Note The mobility services engine does not store events in its database.
|
Refresh Time
|
Enter the wait time in minutes that must pass before an event notification is resent. For example, suppose you enter 30 in this field. If a monitored element goes out of a specified area, the mobility services engine sends an event notification. Then, until the event is cleared, the mobility services engine resends an event notification every 30 minutes.
|
Notifications Dropped
|
(Read only). The number of event notifications dropped from the queue since startup.
|
Step 11 Click Save to store your updates in the Cisco WCS and mobility services engine databases.
Configuring a Location Template
You can define a location template for the controller for download to multiple controllers.
You can set the following general and advanced parameters on the location template.
General parameters-Enable RFID tag collection, set the location path loss for calibrating or normal (non-calibrating) clients, measurement notification for clients, tags, and rogue access points, set the RSSI expiry timeout value for clients, tags, and rogue access points.
Advanced parameters-Set the RFID tag data timeout value and enable the location path loss configuration for calibrating client multi-band.
To configure notification parameters, follow these steps:
Step 1 Click Configure > Controller.
Step 2 Select Location Configuration (left panel).
Step 3 Select Add Template from the Select a command drop-down menu.
Step 4 At the New template window, enter a name for the location template (Figure 7-19).
Figure 7-19 New Template > General Panel
Step 5 At the General panel modify parameters as necessary. Definitions for each of the parameters is listed in Table 7-6.
Table 7-6 General Location Parameters
Parameter
|
Configuration Options
|
RFID tag calculation
|
Check the Enabled check box to collect data on tags.
|
Calibrating Client
|
Check the Enabled check box to enable calibration for the client. Controllers send regular S36 or S60 requests (depending on the client capability) by way of the access point to calibrating clients. Packets are transmitted on all channels. All access points irrespective of channel (and without a channel change) gather RSSI data from the client at each location. These additional transmissions and channel changes might degrade contemporaneous voice or video traffic.
To use all radios (802.11a/b/g/n) available you must enable multiband on the Advanced panel.
|
Normal Client
|
Check the Enabled check box to have a non-calibrating client. No S36 or S60 requests are transmitted to the client.
|
Measurement Notification Interval
|
Enter a value to set the NMSP measurement notification interval for clients, tags and rogues. This value can be applied to selected controllers via the template. Setting this value on the controller generates out-of-sync notification and the user is able to view this on the Synchronize Servers page. When different measurement intervals exists between a controller and the mobility services engine exist, the largest interval setting of the two is adopted by the mobility services engine.
Once this controller is synchronized with the mobility services engine, the new value is set on the mobility services engine.
|
RSSI Expiry Timeout for Clients
|
Enter a value to set the RSSI timeout value for normal (non-calibrating) clients.
|
RSSI Expiry Timeout for Calibrating Clients
|
Enter a value to set the RSSI timeout value for calibrating clients.
|
RSSI Expiry Timeout for Tags
|
Enter a value to set the RSSI timeout value for tags.
|
RSSI Expiry Timeout for Rogue APs
|
Enter a value to set the RSSI timeout value for rogue access points.
|
Figure 7-20 New Template > Advanced Parameters Panel
Step 6 At the Advanced panel modify parameters as necessary (Figure 7-20). Definitions for each of the parameters is listed in Table 7-6.
Table 7-7 Advanced Location Parameters
Parameter
|
Configuration Options
|
RFID Tag Data Timeout
|
Enter a value to set the RFID tag data timeout setting.
|
Calibrating Client Multiband
|
Check the Enabled check box to send S36 and S60 packets (where applicable) on all channels. Calibrating clients must be enabled on the general panel.
|
Step 7 Click Save.
