Configuring Proxy Mobile IP
This chapter describes how to enable and configure your access point's proxy Mobile IP feature.
Note
Proxy Mobile IP applies to a bridge only when configured as a root access point.
The chapter contains the following sections:
•
Proxy Mobile IP
These sections explain how access points conduct proxy Mobile IP:
•
Overview
The access point's proxy Mobile IP feature works in conjunction with the Mobile IP feature on Cisco devices on the wired network. When you enable proxy Mobile IP on your access point and on your wired network, the access point helps client devices from other networks remain connected to their home networks. The visiting client devices do not need special software; the access point provides proxy Mobile IP services on their behalf. Any wireless client can participate.
Mobile IP provides users the freedom to roam beyond their home subnets while maintaining their home IP addresses. This enables transparent routing of IP datagrams to mobile users during their movement, so that data sessions can be initiated to them while they roam. For example, a client device with an IP address of 192.95.5.2 could associate to an access point on a network whose IP addresses are in the 209.165.200.x range. The guest client device keeps its 192.95.5.2 IP address, and the access point forwards its packets through a Mobile IP enabled router across the Internet to a router on the client's home network.
Access points with proxy Mobile IP enabled attempt to provide proxy service for any client device that associates and does not perform the following:
•
•
You enable proxy Mobile IP for specific SSIDs on the access point, providing support only for clients who use those SSIDs. Proxy Mobile IP does not support VLANs.
Proxy Mobile IP is disabled by default.
Note
Components of a Proxy Mobile IP Network
Five devices participate in proxy Mobile IP:
•
•
•
•
•
Figure 6-1 shows the five participating devices.
Figure 6-1 Participating Devices in Proxy Mobile IP
How Proxy Mobile IP Works
The proxy Mobile IP process has four main phases. These sections describe each phase:
Agent Discovery
During the agent discovery phase, the home agent and the foreign agent advertise their services on the network by using the ICMP Router Discovery Protocol (IRDP). The access point monitors these advertisements.
The IRDP advertisements carry Mobile IP extensions that specify whether an agent is a home agent, foreign agent, or both; its care-of address; the types of services it provides, such as reverse tunneling and generic routing encapsulation (GRE); and the allowed registration lifetime or roaming period for visiting client devices. Rather than waiting for agent advertisements, an access point can send out an agent solicitation. This solicitation forces any agents on the network to immediately send an agent advertisement.
When an access point determines that a client device is connected to a foreign network, it acquires a care-of address for the visiting client. The care-of address is an IP address of a foreign agent that has an interface on the network being visited by a client device. An access point can share this address among many visiting client devices.
When the visiting client associates to an access point, the access point compares the client's IP address with that of its own IP network information and detects that the client is a visitor from another network. The access point then begins the registration. However, before the access point can begin the registration process on behalf of the visiting client, it must have the home agent IP address of the visiting client, which it gets from a subnet map table.
Subnet Map Exchange
Each access point with proxy Mobile IP enabled maintains a subnet map table. The subnet map table consists of a list of home agent IP addresses and their subnet masks. Table 6-1 is an example of a subnet map table.
Table 6-1 Example of a Subnet Map Table
10.10.10.1
255.255.255.0
10.10.4.2
255.255.255.0
10.3.4.4
255.255.255.248
10.12.1.1
255.255.0.0
Access points use the subnet map table to determine the IP address of the visiting client's home agent. When an access point boots up or when proxy Mobile IP is first enabled on an access point, it obtains its own home agent information using the agent discovery mechanism. It sends this information to another access point called an authoritative access point (AAP). The AAP is an access point that maintains the latest subnet map table.
When the AAP receives the new information, it replies to the access point with a copy of the latest subnet map table. The new access point now has the latest subnet map table locally and it is ready to perform proxy Mobile IP for visiting clients. Having the subnet map table locally helps the access point do a quick lookup for the home agent information. Meanwhile, the AAP adds the new access point to its list of access points and the home agent information to its subnet map table. The AAP then updates all the other access points with this additional piece of information.
You can designate up to three AAPs on your wireless LAN. If an access point fails to reach the first AAP, it tries the next configured AAP. The AAPs compare their subnet map tables periodically to make sure they have the same subnet map table. If the AAP detects that there are no more access points for a particular home agent, it sends an invalid registration packet with a bad SPI and group key using the broadcast address of the home agent subnet to determine if the home agent is still active. If the home agent responds, the AAP keeps the home agent entry in the subnet map table even though there are no access points in the home agent's subnet. This process supports client devices that have already roamed to foreign networks. If the home agent does not respond, the AAP deletes the home agent entry from the subnet map table.
When a client device associates to an access point and the access point determines that the client is visiting from another network, the access point performs a longest-match lookup on its subnet map table and obtains the home agent address for the visiting client. When the access point has the home agent address, it can proceed to the registration step.
Registration
The access point is configured with the mobility security association (which includes the shared key) of all potential visiting clients with their corresponding home agents. You can enter the mobility security association information locally on the access point or on a RADIUS server on your network, and access points with proxy Mobile IP enabled can access it there.
The access point uses the security association information, the visiting client's IP address, and the information that it learns from the foreign agent advertisements to form a Mobile IP registration request on behalf of the visiting client. It sends the registration request to the visiting client's home agent through the foreign agent. The foreign agent checks the validity of the registration request, which includes verifying that the requested lifetime does not exceed its limitations and that the requested tunnel encapsulation is available. If the registration request is valid, the foreign agent relays the request to the home agent.
The home agent checks the validity of the registration request, which includes authentication of the visiting client. If the registration request is valid, the home agent creates a mobility binding (an association of the visiting client with its care-of address), a tunnel to the care-of address, and a routing entry for forwarding packets to the home address through the tunnel.
The home agent then sends a registration reply to the visiting client through the foreign agent (because the registration request was received through the foreign agent). The foreign agent verifies the validity of the registration reply, including ensuring that an associated registration request exists in its pending list. If the registration reply is valid, the foreign agent adds the visiting client to its visitor list, establishes a tunnel to the home agent, and creates a routing entry for forwarding packets to the home address. It then relays the registration reply to the visiting client.
Finally, the access point checks the validity of the registration reply. If the registration reply specifies that the registration is accepted, the access point is able to confirm that the mobility agents are aware of the visiting client's roaming. Subsequently, the access point intercepts all packets from the visiting client and sends them to the foreign agent.
The access point reregisters on behalf of the visiting client before its registration lifetime expires. The home agent and foreign agent update their mobility binding and visitor entry, respectively, during reregistration.
A successful Mobile IP registration by the access point on behalf of the visiting client sets up the routing mechanism for transporting packets to and from the visiting client as it roams.
Tunneling
The visiting client sends packets using its home IP address, effectively maintaining the appearance that it is always on its home network. Even while the visiting client is roaming on foreign networks, its movements are transparent to correspondent nodes (other devices with which the visiting client communicates).
Data packets addressed to the visiting client are routed to its home network, where the home agent intercepts and tunnels them to the care-of address toward the visiting client. Tunneling has two primary functions: encapsulation of the data packet to reach the tunnel endpoint, and decapsulation when the packet is delivered at that endpoint. The tunnel mode that the access point supports is IP Encapsulation within IP Encapsulation.
Typically, the visiting client sends packets as it normally would. The access point intercepts these packets and sends them to the foreign agent, which routes them to their final destination, the correspondent node.
Proxy Mobile IP Security
Mobile IP uses a strong authentication scheme to protect communications to and from visiting clients. All registration messages between a visiting client and the home agent must contain the mobile-home authentication extension (MHAE). Proxy Mobile IP also implements this requirement in the registration messages sent by the access point on behalf of the visiting clients to the home agent.
The integrity of the registration messages is protected by a shared 128-bit key between the access point (on behalf of the visiting client) and the home agent. You can enter the shared key on the access point or on a RADIUS server.
The keyed message digest algorithm 5 (MD5) in prefix+suffix mode is used to compute the authenticator value in the appended MHAE. Mobile IP and proxy Mobile IP also support the hash-based message authentication code (HMAC-MD5). The receiver compares the authenticator value it computes over the message with the value in the extension to verify the authenticity.
Optionally, the mobile-foreign authentication extension and the foreign-home authentication extension are appended to protect message exchanges between a visiting client and foreign agent and between a foreign agent and home agent, respectively.
Replay protection uses the identification field in the registration messages as a timestamp and sequence number. The home agent returns its time stamp to synchronize the visiting client for registration. In proxy Mobile IP, the visiting clients are not synchronized to their home agents because the access point intercepts all home agent messages. If the timestamp in the first registration request is out of the tolerance window (± 7 seconds), the request is rejected. The access point uses the information from the rejection to create a valid value and resends the registration request.
The Proxy Mobile IP Setup Page
This section describes the Proxy Mobile IP Setup page and the links it provides to other pages you use to set up proxy Mobile IP on your access point. Figure 6-2 shows the Proxy Mobile IP Setup page.
Figure 6-2 Proxy Mobile IP Setup page
Follow this link path to reach the Proxy Mobile IP Setup page:
1.
2.
There are 5 links on the page:
General
Selecting the General link takes you to the Proxy Mobile IP General page (Figure 6-3), where you enable proxy Mobile IP on the access point and identify the IP addresses of the authoritative access points on your wireless network.

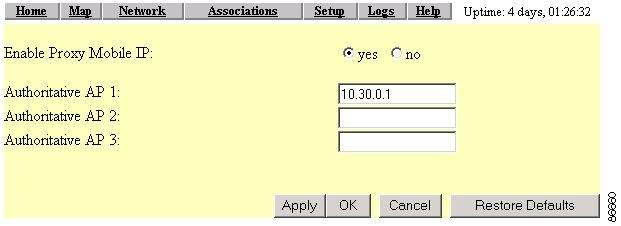

Figure 6-3 Proxy Mobile IP General Page
Settings on the Proxy Mobile IP General Page
Enable Proxy Mobile IP
This setting enables the proxy Mobile IP feature on the access point. The default setting is no.
Note
Authoritative AP n
These settings identify the IP addresses of up to three authoritative access points (AAPs) on the wireless network. At least one AAP is required for the proxy Mobile IP enabled wireless network. The n represents the number of the authoritative access point. The authoritative access point is the device that registers with the home agent. After registering with the home agent, the AAP populates a subnet map for other access points. The subnet map links the access points to the home agent to contact and register a mobile client based on the client's IP address. For example, if a mobile client appears with a "30" subnet IP address on the "20" subnet, the access point must register with the home agent that services subnet "30" mobile clients.
Authentication Server
Selecting the Authentication Server link takes you to the Authenticator Configuration page (Figure 6-4). From this page, you configure the RADIUS or TACACS servers that will be managing proxy Mobile IP wireless devices.
Figure 6-4 Authenticator Configuration Page
Settings on the Authenticator Configuration Page
802.1X Protocol Version (for EAP Authentication)
This drop-down menu allows you to select the draft of the 802.1X protocol the access point's radio will use. EAP operates only when the radio firmware on client devices complies with the same 802.1X Protocol draft as the management firmware on the access point. See the "Setting Up EAP Authentication" section for additional information.
Primary Server Reattempt Period (Min)
This field specifies how many minutes should pass before checking for the primary server when it was not initially accessible.
Server Name/IP
This field identifies the name or IP address of the RADIUS or TACACS server proxy Mobile IP is using for authentication purposes.
Server Type
This drop-down menu displays the selections you can make to designate the server type you want the proxy Mobile IP configuration to use. The choices are RADIUS or TACACS. RADIUS is the default setting.
Port
This field specifies the port number the server uses for authentication. The default setting, 1812, is the port setting for Cisco's RADIUS server, the Cisco Secure Access Control Server, and for many other RADIUS servers. Check your server's product documentation to find the correct port setting.
Shared Secret
This field identifies the shared secret used by your RADIUS server. The shared secret on the access point must match the shared secret on the RADIUS server. The shared secret can contain up to 64 alphanumeric characters. This setting has no default.
Retran Int (sec)
This field specifies the time interval in seconds that the server waits after it failed to contact the server until it tries again. The default setting is 5 seconds.
Max Retran
This field indicates how many times the server attempts to contact the server before it attempts to contact an alternate server. The setting works in conjunction with the Retran Int (sec) parameter.
Use server for:
These check boxes specify the authentication types the server uses: EAP, MAC Address, User, or MIP authentication. Checking the EAP authentication check box designates the server as an authenticator for any EAP type, including LEAP, PEAP, EAP-TLS, LEAP-SIM, and EAP-MD5.
Local SA Bindings
Selecting the Local SA Bindings link takes you to the Local SA Bindings page (Figure 6-5). You use this page to identify valid clients that are able to establish contact with a foreign agent in another network segment or network other than the client's home network.
Figure 6-5 Local SA Bindings Page
Settings on the Local SA Bindings Page
IP Address Range - Start
This field contains the beginning IP address of the range in which client devices must reside in order to be valid.
IP Address Range - End
This field contains the ending IP address of the range in which the client devices must reside in order be valid.
Group SPI
This field specifies the security parameter index of the IP address range entered in the IP Address Range - Start and End fields. The SPI is a 32-bit number (8 hexadecimal digits) assigned to the initiator of the security association request by the receiving IPSec endpoint. On receiving a packet, the destination address, protocol, and SPI are used to determine the security association. The security association allows the node to authenticate or decrypt the packet according to the security policy configured for that security association.
Group Key
This field contains an authentication key, similar to a WEP key, that the group specified in the security association uses to access a foreign agent. The group key is a 128-bit key entered as 32 hexadecimal digits (0-9, a-f, or A-F).
Existing SA Bindings
This field contains a listing of previously configured security association bindings. The information contains the beginning and ending IP address range and their associated group SPI and key settings.
Statistics
Selecting the Statistics link takes you to the Proxy Mobile IP Statistics page (Figure 6-6).
Two buttons are available on this page:
•
•
Figure 6-6 Proxy Mobile IP Statistics Page
Settings on the Proxy Mobile IP Statistics Page
Mobile IP Status
This informational field indicates whether proxy Mobile IP is enabled or disabled.
Home Agents
This informational field provides information about home agents the access point discovers on its own subnet. If a home agent is discovered, its IP address is displayed. If no agent is discovered, the field displays Not Found.
Foreign Agents
This informational field provides information about foreign agents it discovers on the access point discovers on the network. If a foreign agent is discovered, its IP address is displayed. If multiple foreign agents are discovered, their IP addresses are displayed. If no agent is discovered, the field displays Not Found.
Active AAP
This informational field lists the IP address of the active authoritative access point. If multiple authoritative access points are configured, their IP addresses are displayed.
MN IP Addresses
This informational field lists the IP addresses of the mobile nodes, which are client devices that the access point is servicing.
Solicitations Sent
The number of agent solicitations messages the access point has sent. If the access point does not hear advertisements, it sends a solicitation message requesting a foreign or home agent acknowledgement. The solicitation forces any agents on the link to immediately send an agent advertisement.
Authentication Failures for HA
The number of times the home agent rejected registration requests because of authentication failures, such as an invalid SPI or group key. When a mobile node moves to a foreign network, the access point registers the mobile node to its home agent. This statistic indicates the number of registration failures caused by failure of the home agent or foreign agent to authenticate each other or the mobile node.
Registration Requests Sent
The number of registration requests sent by the access point for the mobile node.
Registration Request Denied by FA
The number of times a foreign agent rejected a registration request. When a mobile node moves to a foreign network, the access point registers the mobile node to its home agent. This statistic indicates the number of registration requests that were denied by the foreign agent. The reasons for denial vary and include home agent unreachable, no resources found, etc.
Advertisements Received
The number of IRDP advertisements received by agents.
Registration Requests Successes
The number of times registration requests were successful.
Authentication Failures for FA
The number of times the foreign agent rejected registration requests because of mobile node or home agent authentication failures.
Deregister Requests Sent
The number of times the access point sent deregistration requests to the home agent.
Deregister Replies Received
The number of times the access point received deregistration replies from the home agent.
Registration Requests Denied by HA
The number of times the home agent rejected registration requests.
Gratuitious ARPs sent
The number of times the access point sent gratuitious Address Resolution Protocol messages (ARPs). Gratuitious ARPs are sent by the home agent on behalf of a roaming mobile node to update the ARP caches on the local hosts. When the mobile node returns to its home network, the home access point sends gratuitious ARPs (on behalf of the mobile node) to notify the network of the mobile node's MAC and IP address. In addition, the home agent also issues gratuitious ARPs for the mobile node in case there are nodes who could not hear the mobile node.
View Subnet Map Table
Selecting the View Subnet Map Table link takes you to the Subnet Map Table page (Figure 6-7). The subnet map table contains a list of home agent IP addresses and their associated subnet masks.
Two buttons are available on this page that are not shown on Figure 6-7:
•
•
Figure 6-7 Subnet Map Table Page
Settings on the Subnet Map Table Page
HA Address
This column lists the IP addresses of the home agents.
Subnet Mask
This column lists the subnet mask addresses for the corresponding home agents.
Configuring Proxy Mobile IP
Proxy Mobile IP functions as a proxy on behalf of roaming clients that do not implement a Mobile IP software stack. In a Mobile IP environment, the access point uses the services of a home agent and a foreign agent to allow valid mobile nodes to access a working Mobile IP network on a wired LAN. A working Mobile IP network assumes the following:
•
•
•
•
Optionally, you can implement an AAA server to authenticate mobile clients in addition to home and foreign agents.
Before You Begin
Before configuring proxy Mobile IP, you should consider these guidelines:
•
•
•
•
•
•
http://support.microsoft.com/default.aspx?scid=KB;EN-US;Q239924&
•
Configuring Proxy Mobile IP on Your Wired LAN
Proxy Mobile IP on access points works in conjunction with Mobile IP configured on your network routers. For instructions on configuring Mobile IP on a router on your network, refer to the Mobile IP chapter in 12.2 T New Features (Early Deployment Releases). Click this link to browse to the Mobile IP chapter:
http://www.cisco.com/univercd/cc/td/doc/product/software/ios120/120newft/120t/120t1/mobileip.htm
In addition, make sure you have accomplished the following items:
•
•
•
•
•
Configuring the Authoritative Access Point
Proxy Mobile IP must be enabled on the wireless SSID. Since multiple SSIDs may exist on the access point and not all SSIDs may have to accommodate mobile clients, you must enable proxy Mobile IP per SSID. The AAP is used to communicate with new access points to update subnet map records and send the new access points a new and complete subnet mapping table. The AAP also contacts all the other access points listed in the table and sends update packets containing the changed information. In this way the other access points update their subnet mapping tables. For example, if a mobile device appears with a "30" subnet IP address on the "20" subnet, the access point must register the client with the home agent that services the mobile clients on the "30" subnet.
Follow these steps to configure the authoritative access point.
Step 1
Step 2
Step 3
Figure 6-8 AP Radio Internal SSID #x Page
Step 4
Step 5
Step 6
Step 7
Figure 6-9 Proxy Mobile IP Setup Page
Step 8
Figure 6-10 Proxy Mobile IP General Page
Step 9
Step 10
Step 11
Step 12
Figure 6-11 Subnet Map Table
Step 13
Configuring the Access Point on a Home or Foreign Network
At least one access point on the wireless side of a home and foreign network must be a home or foreign agent access point. Both access points must be configured to enable valid mobile nodes to associate with them and be detected by the authoritative access point.
There are no "standard" procedures that describe how to configure these agent access points. Configuration parameters, such as SSIDs, valid proxy Mobile IP addresses, SPI keys and group keys, and security settings must be carefully considered and coordinated with wired side router settings before any degree of success can be expected. The basic settings are the same for both access points. The only difference is where the access point is located. A home agent access point is on the wireless side of the mobile node's home network. A foreign agent access point is on the wireless side of the network the mobile node is authorized to enter in order to communicate back to its home network.
These instructions provide a general overview of the steps involved to configure the wireless network components to operate in a mobile IP environment. It must be stressed that the majority of configuration effort is devoted to components on the wired network.
Follow these steps to configure a home or foreign agent access point.
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Step 7
Step 8
Step 9
Step 10
Step 11
Step 12
Step 13
Step 14
Step 15
