Cisco Voice Connectivity MIB
The Cisco Voice Connectivity MIB (ciscoVoiceConnectivityMIB) provides connectivity related information for devices (for example, connectivity between voice gateways, phones, gatekeepers and call processing agents). This MIB can be used by network management applications to collect the information regarding voice connectivity among the devices in the network. The CISCO-VOICE-CONNECTIVITY-MIB can also be used to retrieve the status of voice connectivity between the devices in the network.
By configuring SNMP to send notifications to one or more monitoring computers, the network management system (NMS) application can monitor a population of CUEs. Because notifications are event driven, they cause much less network traffic than using the SNMP GET operation repeatedly to poll a population of CUEs. The SNMP management interface provides observability of the system through SNMP GET operations, and sends SNMP v2c notifications to the NMS application when events occur.
Feature History of the Cisco CME MIB Feature
Release
|
Modification
|
4.1
|
This feature was introduced on the Cisco Unity Express Release 2.2.
Added the cvcProductCategory object to Table 1 to resolve CSCsd38122.
|
Finding Support Information for Platforms and Cisco IOS Software Images
Use Cisco Feature Navigator to find information about platform support and Cisco IOS software image support. Access Cisco Feature Navigator at http://www.cisco.com/go/fn. You must have an account on Cisco.com. If you do not have an account or have forgotten your username or password, click Cancel at the login dialog box and follow the instructions that appear.
Contents
•
Prerequisites for the CISCO-VOICE-CONNECTIVITY-MIB
•Information About the CISCO-VOICE-CONNECTIVITY-MIB
•CISCO-VOICE-CONNECTIVITY-MIB Objects
•Cisco Voice Connectivity MIB Object Groups
•How to Use the CISCO-VOICE-CONNECTIVITY-MIB
Prerequisites for the CISCO-VOICE-CONNECTIVITY-MIB
To get the most out of the CISCO-VOICE-CONNECTIVITY-MIB, ensure the following prerequisites are met.
•Administrators of the CISCO-VOICE-CONNECTIVITY-MIB must be familiar with Cisco CLI.
•Use a MIB browser to interact with the CISCO-VOICE-CONNECTIVITY-MIB
•Upload the CISCO-VOICE-CONNECTIVITY-MIB to the NMS
•Ensure the SNMP Agent provides SNMP v1 and SNMPv2c compliance
Information About the CISCO-VOICE-CONNECTIVITY-MIB
The CUE software release 2.2 adds an SNMP agent and supports the following MIBs:
•SNMPv2-MIB
•IF-MIB
•IP-MIB
•SYSAPPL-MIB
•CISCO-PROCESS-MIB
•CISCO-UNITY-EXPRESS-MIB
•CISCO-VOICE-CONNECIVITY-MIB
•The CISCO-VOICE-CONNECIVITY-MIB lists the voice call agents, the defined ports, and the connections status for each
CISCO-VOICE-CONNECTIVITY-MIB Structure
The CISCO-VOICE-CONNECTIVITY-MIB is uniquely identified within the Cisco management (9) group by the number 393.
Therefore, the CISCO-VOICE-CONNECTIVITY-MIB is: 1.3.6.1.4.1.9.9.393
Objects in the CISCO-VOICE-CONNECTIVITY-MIB can be identified by either of the following methods.
The object identifier—1.3.6.1.4.1.9.9.393.<Cisco Cisco Connectivity MIB-variable>
or
The object name—iso(1).org(3).dod(6).internet(1).private(4).enterprise(1).cisco(9).ciscoMgmt(9)
.CISCO-VOICE-CONNECTIVITY-MIB(393).<MIB-variable>
Figure 1 shows the position of the CISCO-VOICE-CONNECTIVITY-MIB in the Internet MIB hierarchy. The CISCO-VOICE-CONNECTIVITY-MIB is part of the Cisco management (9) group, which is presented by private.enterprise.cisco.ciscoMgmt. And is shown graphically in Figure 1.
The CISCO-VOICE-CONNECTIVITY-MIB uses definitions from the following MIBs:
•CISCO-SMI
•IANAifType-MIB
•INET-ADDRESS-MIB
•SNMP-FRAMEWORK-MIB
•SNMPv2-CONF
•SNMPv2-SMI
•SNMPv2-TC

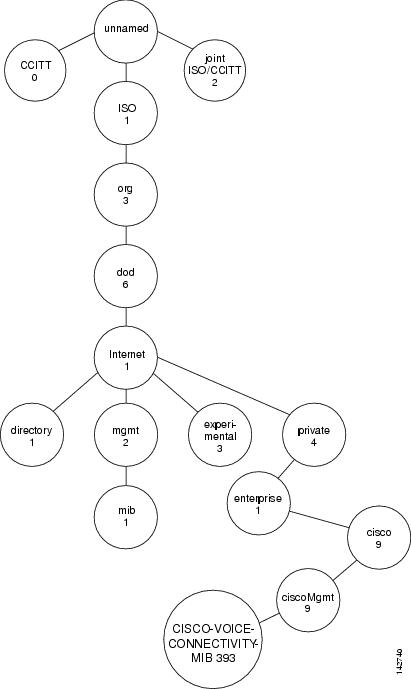

Figure 1 CISCO-VOICE-CONNECTIVITY-MIB Tree Structure
The CISCO-VOICE-CONNECTIVITY-MIB structure is divided into the following groups
Cisco Voice Connectivity MIB Groups
ciscoVoiceConnectivityMIBNotifs
ciscoVoiceConnectivityMIBObjects
ciscoVoiceConnectivityMIBMIBConform
The ciscoVoiceConnectivityMIBObjects group is further divided into the following subgroups:
ciscoVoiceConnectivityMIB Objects
cvcCallAgent
cvcPort
cvcCallAgentConnection
cvcNotif
The CISCO-VOICE-CONNECTIVITY-MIB is uniquely identified within the Cisco management (9) group by the number 393.
Therefore, the CISCO-VOICE-CONNECTIVITY-MIB is: 1.3.6.1.4.1.9.9.393
Objects in the CISCO-VOICE-CONNECTIVITY-MIB can be identified by either of the following methods.
The object identifier—1.3.6.1.4.1.9.9.393.<cvc MIB-variable>
or
The object name—iso(1).org(3).dod(6).internet(1).private(4).enterprise(1).cisco(9).ciscoMgmt(9)
.CISCO-VOICE-CONNECTIVITY-MIB(393).<MIB-variable>
Figure 1 shows the position of the CISCO-VOICE-CONNECTIVITY-MIB in the Internet MIB hierarchy.
CISCO-VOICE-CONNECTIVITY-MIB Objects
This section contains the Cisco Voice Connectivity MIB object. Table 1 lists the CISCO-VOICE-CONNECTIVITY-MIB objects, the maximum access for each, and their descriptions. Table 4 lists the CISCO-VOICE-CONNECTIVITY-MIB object IDs (OIDs).
Table 1 CISCO-VOICE-CONNECTIVITY-MIB Groupings and Objects
Group
|
Object
|
Max Access
|
Description
|
| |
CISCO-VOICE-
CONNECTIVITY-MIB DEFINITIONS
|
—
|
This MIB module provides connectivity related information for devices (e.g., connectivity between voice gateway, phones, gatekeepers, and call processing agent). The MIB can be used by network management applications to collect the information regarding voice connectivity among the devices in the network. The MIB can also be used to retrieve the status of voice connectivity between the devices.
|
| |
-- Voice Connectivity MIB groups
|
—
|
The following are the CISCO-VOICE-CONNECTIVITY-MIB groups:
ciscoVoiceConnectivityMIBNotifs
ciscoVoiceConnectivityMIBObjects
ciscovoiceConnectivityMIBConform
|
| |
-- Voice Connectivity MIB objects
|
—
|
The following are the CISCO-VOICE-CONNECTIVITY-MIB objects:
cvcCallAgent
cvcPort
cvcCallAgentConnection
cvcNotif
|
| |
-- cvc MIB Groups
|
—
|
The following are the CISCO-VOICE-CONNECTIVITY-MIB groups:
ciscoVoiceConnectivityMIBNotifs
ciscoVoiceConnectivityMIBObjects
ciscoVoiceConnectivityMIBConform
|
| |
-- cvc MIB object groups
|
—
|
The following are the CISCO-VOICE-CONNECTIVITY-MIB object groups:
cvcCallAgent
cvcPort
cvcCallAgentConnection
cvcNotif
|
cvcCallAgent
|
| |
cvcCallAgentTable
|
not-accessible
|
This table contains information about call agents.
When the network management subsystem implements this MIB, this table lists the call agents that exist in this system. This table will contain one entry per call agent.
When systems other than those hosting call agents implement this MIB, this table will contain the list of call agents to which ports of this system are associated. The entries would be representative of remote call agents.
For example, if a device is a voice gateway having a T1 port associated with three call processing agents, then this table will have three entries representing each of the three call processing agents.
The network management subsystem adds conceptual rows to this table for every call agent.
|
| |
cvcCallAgentEntry
|
not-accessible
|
An entry (conceptual row) in the cvcCallAgent table, providing associated call agent information such as call agent's IP address and its type.
|
| |
cvcCallAgentIndex
|
not-accessible
|
An arbitrary integer, a unique value for each call agent associated with the device.
|
| |
cvcCallAgentName
|
read-only
|
This object indicates name of the call agent given by call agent administrator.
|
| |
cvcCallAgentInet
AddressType
|
read-only
|
This object reflects a particular type of internet address and provides the context for interpreting one or more address objects elsewhere in this MIB module.
|
| |
cvcCallAgentInetAddress
|
read-only
|
This object indicates the IP address of the call agent. The type of internet address is indicated by the value of cvcCallAgentInetAddressType.
|
| |
cvcCallAgentType
|
read-only
|
This object indicates the type of call agent. A list of call agent types can be found in the CISCO-VOICE-APPLICATIONS-OID-MIB.
|
cvcPort
|
| |
cvcPortTable
|
not-accessible
|
This table contains information about ports.
When the network management subsystem implements this MIB, this table lists all the ports associated with the call agents listed in cvcCallAgentTable.
When systems other than those hosting call agents implement this MIB, this table will contain information of all the ports of the system, associated with the call agents listed in cvcCallAgentTable.
The network management subsystem adds conceptual rows to this table for every port associated to call agent.
|
| |
cvcPortEntry
|
not-accessible
|
An entry (conceptual row) in the port table, providing the port or interface information such as name, IP address, type, MAC address, type of the device containing this port and protocol used by the port.
|
| |
cvcPortIndex
|
read-only
|
An arbitrary integer value uniquely identifying each physical or virtual port of the device associated with call agent.
|
| |
cvcPortAssociation
|
read-only
|
An association to conceptual row of the port define within another MIB group. This can be used to get more information about the port defined in other MIB group. For example, to get more information about the T1 port defined in this table, this attribute points to a row in ifTable for that T1 port, for example, value for this attribute will be 'ifIndex.5'.
|
| |
cvcPortDeviceName
|
read-only
|
The device name under which this port has been registered with call agent. This is a mandatory field that represents the port.
|
| |
cvcPortInetAddressType
|
read-only
|
This object reflects a particular type of internet address and provides the context for interpreting one or more address objects elsewhere in this MIB module.
|
| |
cvcPortInetAddress
|
read-only
|
This object indicates the IP address of the port. The type of internet address is indicated by the value of cvcPortInetAddressType.
|
| |
cvcPortMACAddress
|
read-only
|
This object indicates the MAC address of the port. For ports which do not have such an address, this object should contain an octet string of zero length.
|
| |
cvcPortType
|
read-only
|
The type of port. Additional values for cvcPortType are assigned by the Internet Assigned Numbers Authority (IANA), through updating the syntax of the IANAifType textual convention.
If the port type is not defined in IANAifType, then value of this object will be other(1). In this case, port type can be identified either by productCategory or by referring to other MIB pointed by cvcPortAssociation.
|
| |
cvcProductCategory
|
read-only
|
This object indicates the type of the device that contains the port.
1—phone
2—gateway
3—h323Device
4—ctiDevice
5—voiceMailDevice
6—mediaResourceDevice
7—huntListDevice
8—sipDevice
|
| |
cvcProtocol
|
read-only
|
Protocol the port use for communication to its associated device.
1—sccp
2—sgcp
3—mgcp
4—h323
5—sip
|
| |
cvcVirtualInterfaceDN
|
read-only
|
This attribute indicates directory number of the port. This attribute is applicable only to virtual or logical interface that is associated with call agent.
|
cvcCallAgentConnection
|
| |
cvcCallAgentConnectionTable
|
not-accessible
|
This table contains current registration status information for all the ports, listed in cvcPortTable, that are associated with the call agents listed cvcCallAgentTable.
The network management subsystem adds a conceptual row to this table per port and its associated call agent pair. Entries in this table depends on entries in cvcPortTable and cvcCallAgentTable.
Deletion of any entry in those other two table will result in deletion of corresponding entry in this table.
|
| |
cvcCallAgentConnectionEntry
|
not-accessible
|
An entry (conceptual row) in the cvcCallAgentConnectionTable, containing the information about a port or interface's registration status to call agents.
|
| |
cvcCallAgentPriority
|
read-only
|
A port can be associated with multiple call agents. In case of failure of the call agent to which the port has been registered, port falls back to the back-up call agent. To achieve this redundancy each call agent is assigned a priority number in context of port. This object indicates the call agent's priority number.
|
| |
cvcRegistrationStatus
|
read-only
|
his syntax is used to identify the registration status of the port with call agent.
1—unknown: The registration status of the port is unknown.
2—not applicable: The registration status of the port is not applicable
3—registered: The port has successfully registered with the call agent
4—unregistered: The port is no longer registered with the call agent
5—rejected: Registration request from the port was rejected by the call agent.
|
| |
cvcStatusReason
|
read-only
|
This syntax is used as means of identifying the reasons for a device registration error. Following are possible reason of registration status value.
1—noError: No Error
2—unknown: Unknown error cause
3—configurationError: Device configuration error
4—deviceNameUnresolveable: Unable to resolve the device name to an IP address
5—maxDevRegReached: Maximum number of device registration have been reached
6—connectivityError: Call agent is unable to establish communication with the device during registration
7—initializationError: An error occurred during initialization of the device
8—deviceReset: Indicates that the error was due to device reset.
|
| |
cvcLastStatus
ChangeTime
|
read-only
|
The time registration status of the port changed.
|
| |
cvcLastRegistered
Time
|
read-only
|
The time the port last registered with the call agent.
|
cvcNotif
|
| |
cvcNotifEnable
|
read-write
|
This variable indicates whether the system generates notifications defined in this MIB. A false value will prevent all the notifications from being generated by this system.
|
Cisco Voice Connectivity MIB Object Groups
Table 2 lists the CISCO-VOICE-CONNECTIVITY-MIB object name and the corresponding object ID mapping.
There are four CISCO-VOICE-CONNECTIVITY-MIB groups listed in Table 2:
•ciscoVoiceConnectivityMIBNotifs
•ciscoVoiceConnectivityMIBObjects
•ciscovoiceConnectivityMIBConform
Table 2 CISCO-VOICE-CONNECTIVITY-MIB Object ID Mapping
Object Name
|
Object ID
|
ciscoVoiceConnectivityMIB
|
1.3.6.1.4.1.9.9.393
|
ciscoVoiceConnectivityMIBNotifs
|
1.3.6.1.4.1.9.9.393.0
|
ciscoUnityExpressApplAlert
|
1.3.6.1.4.1.9.9.393.0.1
|
ciscoUnityExpressStorageAlert
|
1.3.6.1.4.1.9.9.393.0.2
|
ciscoUnityExpressSecurityAlert
|
1.3.6.1.4.1.9.9.393.0.3
|
ciscoUnityExpressCallMgrAlert
|
1.3.6.1.4.1.9.9.393.0.4
|
ciscoUnityExpressRescExhausted
|
1.3.6.1.4.1.9.9.393.0.5
|
ciscoUnityExpressBackupAlert
|
1.3.6.1.4.1.9.9.393.0.6
|
ciscoUnityExpressNTPAlert
|
1.3.6.1.4.1.9.9.393.0.7
|
ciscoVoiceConnectivityMIBObjects
|
1.3.6.1.4.1.9.9.393.1
|
cvcCallAgent
|
1.3.6.1.4.1.9.9.393.1.1
|
cvcCallAgentTable
|
1.3.6.1.4.1.9.9.393.1.1.1
|
cvcCallAgentEntry
|
1.3.6.1.4.1.9.9.393.1.1.1.1
|
cvcCallAgentIndex
|
1.3.6.1.4.1.9.9.393.1.1.1.1.1
|
cvcCallAgentName
|
1.3.6.1.4.1.9.9.393.1.1.1.1.2
|
cvcCallAgentInetAddressType
|
1.3.6.1.4.1.9.9.393.1.1.1.1.3
|
cvcCallAgentInetAddress
|
1.3.6.1.4.1.9.9.393.1.1.1.1.4
|
cvcCallAgentType
|
1.3.6.1.4.1.9.9.393.1.1.1.1.5
|
cvcPort
|
1.3.6.1.4.1.9.9.393.1.2
|
cvcPortTable
|
1.3.6.1.4.1.9.9.393.1.2.1
|
cvcPortTableEntry
|
1.3.6.1.4.1.9.9.393.1.2.1.1
|
cvcPortIndex
|
1.3.6.1.4.1.9.9.393.1.2.1.1.1
|
cvcPortAssociation
|
1.3.6.1.4.1.9.9.393.1.2.1.1.2
|
cvcPortDeviceName
|
1.3.6.1.4.1.9.9.393.1.2.1.1.3
|
cvcPortInetAddressType
|
1.3.6.1.4.1.9.9.393.1.2.1.1.4
|
cvcPortInetAddress
|
1.3.6.1.4.1.9.9.393.1.2.1.1.5
|
cvcPortMACAddress
|
1.3.6.1.4.1.9.9.393.1.2.1.1.6
|
cvcPortType
|
1.3.6.1.4.1.9.9.393.1.2.1.1.7
|
cvcProductCategory
|
1.3.6.1.4.1.9.9.393.1.2.1.1.8
|
cvcProtocol
|
1.3.6.1.4.1.9.9.393.1.2.1.1.9
|
cvcVirtualInterfaceDN
|
1.3.6.1.4.1.9.9.393.1.2.1.1.10
|
cvcCallAgentConnection
|
1.3.6.1.4.1.9.9.393.1.3
|
cvcCallAgentConnectionTable
|
1.3.6.1.4.1.9.9.393.1.3.1
|
cvcCallAgentConnectionEntry
|
1.3.6.1.4.1.9.9.393.1.3.1.1
|
cvcCallAgentPriority
|
1.3.6.1.4.1.9.9.393.1.3.1.1.1
|
cvcRegistrationStatus
|
1.3.6.1.4.1.9.9.393.1.3.1.1.2
|
cvcStatusReason
|
1.3.6.1.4.1.9.9.393.1.3.1.1.3
|
cvcLastStatusChangeTime
|
1.3.6.1.4.1.9.9.393.1.3.1.1.4
|
cvcLastRegisteredTime
|
1.3.6.1.4.1.9.9.393.1.3.1.1.5
|
ciscoVoiceConnectivityMIBConform
|
1.3.6.1.4.1.9.9.393.2
|
cvcMIBCompliances
|
1.3.6.1.4.1.9.9.393.2.1
|
cvcMIBGroups
|
1.3.6.1.4.1.9.9.393.2.2
|
cvcNotif
|
1.3.6.1.4.1.9.9.393.1.4
|
cvcNotifEnable
|
1.3.6.1.4.1.9.9.393.1.4.1
|
cvcNotificationsGroup
|
1.3.6.1.4.1.9.9.393.1.5
|
cvcPortRegistrationStatusChange
|
1.3.6.1.4.1.9.9.393.1.5.1
|
Table 3 Cisco Voice Connectivity MIB Groups
Object Name
|
Object ID
|
ciscoVoiceConnectivityMIBNotifs
|
1.3.6.1.4.1.9.9.393.0
|
ciscoVoiceConnectivityMIBObjects
|
1.3.6.1.4.1.9.9.393.1
|
ciscoVoiceConnectivityMIBConform
|
1.3.6.1.4.1.9.9.393.2
|
Table 4 Cisco Voice Connectivity MIB Objects
Object Name
|
Object ID
|
ciscoVoiceConnectivityMIBObjects
|
1.3.6.1.4.1.9.9.393.1
|
cvcCallAgentGroup
|
1.3.6.1.4.1.9.9.393.1.1
|
cvcPortGroup
|
1.3.6.1.4.1.9.9.393.1.2
|
cvcCallAgentConnectionGroup
|
1.3.6.1.4.1.9.9.393.1.3
|
cvcNotifGroup
|
1.3.6.1.4.1.9.9.393.1.4
|
cvcNotificationsGroup
|
1.3.6.1.4.1.9.9.393.1.5
|
Table 5 Cisco Voice Connectivity MIB Conform Objects
Object Name
|
Object ID
|
ciscoVoiceConnectivityMIBConform
|
1.3.6.1.4.1.9.9.393.2
|
cvcMIBCompliances
|
1.3.6.1.4.1.9.9.393.2.1
|
ccvMIBGroups
|
1.3.6.1.4.1.9.9.393.2.2
|
How to Use the CISCO-VOICE-CONNECTIVITY-MIB
The following sections contain information regarding configuring and using the CISCO-VOICE-CONNECTIVITY-MIB.
The snmp-server community string command provides access control for SNMPv1 and SNMPv2c but also continues to provide backward compatibility between different versions. The previous version of this command did not have an option to create a community string that allows SNMP messages to execute a set operation on a MIB object. An rw or ro option has been introduced for this purpose.
Note The SNMP agent is disabled by default, and a community string is not configured.
The following example enables the SNMP agent and assigns the community string comaccess to SNMP:
507-1(config)# snmp-server community comaccess ro
The preceding example defines a community string comaccess used as a password for authentication when you access the SNMP agent. Any SNMP message sent to the SNMP agent must have the "Community Name" field of the message match the community string defined here in order to be authenticated. Entering a community string enables the SNMP agent.
The following example disables the SNMP agent and removes the previously defined community string.
507-1(config)# no snmp-server community comaccess ro
Locating the CISCO-VOICE-CONNECTIVITY-MIB
To locate and download MIBs for selected platforms, Cisco IOS releases, and feature sets, use the Cisco MIB Locator found at the following URL:
http://tools.cisco.com/ITDIT/MIBS/servlet/index
If Cisco MIB Locator does not support the MIB information that you need, you can also obtain a list of supported MIBs and download MIBs from the Cisco MIBs page at the following URL:
http://www.cisco.com/public/sw-center/netmgmt/cmtk/mibs.shtml
To access Cisco MIB Locator, you must have an account on Cisco.com. If you have forgotten or lost your account information, send a blank e-mail to cco-locksmith@cisco.com. An automatic check will verify that your e-mail address is registered with Cisco.com. If the check is successful, account details with a new random password will be e-mailed to you. Qualified users can establish an account on Cisco.com by following the directions found at the following URL:
http://tools.cisco.com/RPF/register/register.do
Enabling the SNMP Agent
The SNMP agent for the CISCO-VOICE-CONNECTIVITY-MIB is disabled by default.
Prerequisites
Be sure the router platform is a supported router and the required MIBs are installed.
DETAILED STEPS
| |
Command or Action
|
Purpose
|
Step 1
|
Access your router directly using Telnet or using Terminal server.
|
Telnets to the router identified by the specified IP address
(represented as xxx.xxx.xxx.xxx).
|
Step 2
|
Router> enable
|
Enters privileged EXEC mode.
|
Step 3
|
Router# config terminal
|
Enters global configuration mode.
|
Step 4
|
Router(config)# snmp-server community <password> RO
|
Enables the read-only (RO) community string, where <password> represents the read-only community/password string.
|
Step 5
|
Router(config)# snmp-server community <password> RW
|
Enables the read-write (RW) community string, where <password> represents the read-write community/password string.
|
Step 6
|
Router(config)# exit
|
Exits global configuration mode and returns to privileged EXEC mode.
|
Step 7
|
Router# write memory
|
Writes the modified configuration to NVRAM, permanently saving the settings.
|
Verifying the Enabling of the SNMP Agent
To verify that the SNMP agent has been enabled on a given network device, perform the following steps.
DETAILED STEPS
Step 1 Telnet to the target device.
Step 2 Display the running configuration on the device and examine the output for any displayed SNMP information:
Router# show running-config
snmp-server community public RO
snmp-server community private RW
Any "snmp-server" statement appearing in the output that takes the form shown above verifies that SNMP has been enabled on the specified device.
Note You can also use show snmp configuration to display the SNMP configurations made.
Configuring the MIB Browser to Read MIB Values
For the MIB browser to read the MIB values, configure the Cisco Voice Connectivity MIB using the following CLI commands.
MIB Browser Configuration
For the MIB browser to read the Cisco Voice Connectivity MIB values, the browser must be configured.
Prerequisites
Be sure the router platform is a supported router and the required MIBs are installed.
SUMMARY STEPS
1. enter password
2. end the configuration
DETAILED STEPS
| |
Command or Action
|
Purpose
|
Step 1
|
enter password
Example:
snmp-server community <password> RO
|
Allows the use of a MIB browser to read MIB values, you must configure the CISCO-VOICE-CONNECTIVITY-MIB using CLI.
•Where <password> can be any password you choose.
|
Step 2
|
end configuration
Example:
(config) > end
|
Ends the configuration mode.
|
Configuring the MIB Browser to Write MIB Values
For the MIB browser to write the MIB values, configure the CISCO-VOICE-CONNECTIVITY-MIB using the following CLI commands.
MIB Browser Configuration
For the MIB browser to write the Cisco Voice Connectivity MIB values, the browser must be configured.
Prerequisites
Be sure the router platform is a supported router and the required MIBs are installed.
SUMMARY STEPS
1. enter password
2. end the configuration
DETAILED STEPS
| |
Command or Action
|
Purpose
|
Step 1
|
enter password
Example:
snmp-server community <password> RW
|
Allows the use of a MIB browser to write MIB values, you must configure the Cisco Voice Connectivity MIB using CLI.
•Where <password> can be any password you choose.
|
Step 2
|
end oonfiguration
Example:
(config) > end
|
Ends the configuration mode.
|
What to Do Next
Begin monitoring your network.
Additional References
The following sections provide references related to the CISCO-VOICE-CONNECTIVITY-MIB.
Related Documents
Related Topic
|
Document Title
|
| |
|
| |
|
| |
|
| |
|
Standards
Standard
|
Title
|
No new or modified standards are supported by this feature.
|
|
MIBs
MIB
|
MIBs Link
|
•SNMPv2-SMI
•SNMPv2-CONF
•SNMPv2-TC
•SNMP-FRAMEWORK-MIB
•CISCO-SMI
•IANAifType-MIB
•INET-ADDRESS-MIB
•CISCO-VOICE-APPLICATIONS-OID-MIB
•CISCO-UNITY-EXPRESS-MIB
|
To locate and download MIBs for selected platforms, Cisco IOS releases, and feature sets, use Cisco MIB Locator found at the following URL:
http://www.cisco.com/go/mibs
|
RFCs
Technical Assistance
Description
|
Link
|
The Cisco Technical Support website contains thousands of pages of searchable technical content, including links to products, technologies, solutions, technical tips, and tools. Registered Cisco.com users can log in from this page to access even more content.
|
http://www.cisco.com/techsupport
|
Command Reference
Glossary
CLI—Command Line Interface.
CUE—Cisco Unity Express.
MIB—Management Information Base.
NMS—Network Management System.
SNMP—Simple Network Management Protocol.
Note See Internetworking Terms and Acronyms and Cisco IOS Voice Configuration Library Glossary for terms not included in this glossary.
Copyright © 2006 Cisco Systems, Inc. All rights reserved.
Feedback
