Cisco Voice Applications OID MIB

The Cisco Voice Applications OID MIB (ciscoVoiceApplicationsOIDMIB) defines the object identifiers (OIDs) that are assigned to various Cisco voice applications, such as Cisco Call Manager, Cisco Call Manager Express, Cisco Survivable Remote Site Telephony, Cisco Broadband Telephony Services, and Cisco SIP Proxy Server. Voice applications include call agents and other voice application products. Call agents are call processing components of a device in an IP telephony and VoIP network.

The Cisco Voice Applications OID MIB identifies the OIDs for the following call managers with which it connects:

•Cisco Call Manager Application (CCM)

•Cisco Call Manager Express (CCME)

•Cisco Survivable Remote Site Telephony (SRST)

•Cisco Broadband Telephony Services (BTS)

•Cisco SIP Proxy Server (Standalone Unix/Linux SIP Proxy)

Finding Support Information for Platforms and Cisco IOS Software Images

Use Cisco Feature Navigator to find information about platform support and Cisco IOS software image support. Access Cisco Feature Navigator at http://www.cisco.com/go/fn. You must have an account on Cisco.com. If you do not have an account or have forgotten your username or password, click Cancel at the login dialog box and follow the instructions that appear.

Contents

•Information About the CISCO-VOICE-APPLICATIONS-OID-MIB

•CISCO-VOICE-APPLICATIONS-OID-MIB Objects

•CISCO-VOICE-APPLICATIONS-OID-MIB Objects

•How to Use the CISCO-VOICE-APPLICATIONS-OID-MIB

Information About the CISCO-VOICE-APPLICATIONS-OID-MIB

The MIB provides enumeration of call agent types used by the CISCO-VOICE-CONNECTIVITY-MIB.

CISCO-VOICE-APPLICATIONS-OID-MIB Structure

The CISCO-VOICE-APPLICATIONS-OID-MIB is uniquely identified within the Cisco module (12) group by the number 5.

Therefore, the CISCO-VOICE-APPLICATIONS-OID-MIB is: 1.3.6.1.4.1.9.12.5

Objects in the CISCO-VOICE-APPLICATIONS-OID-MIB can be identified by either of the following methods.

The object identifier—1.3.6.1.4.1.9.12.5.<Cisco Voice Applications OID MIB-variable>

or

The object name—iso(1).org(3).dod(6).internet(1).private(4).enterprise(1).cisco(9).ciscoModules(12)
.CISCO-VOICE-APPLICATIONS-OID-MIB(5).<MIB-variable>

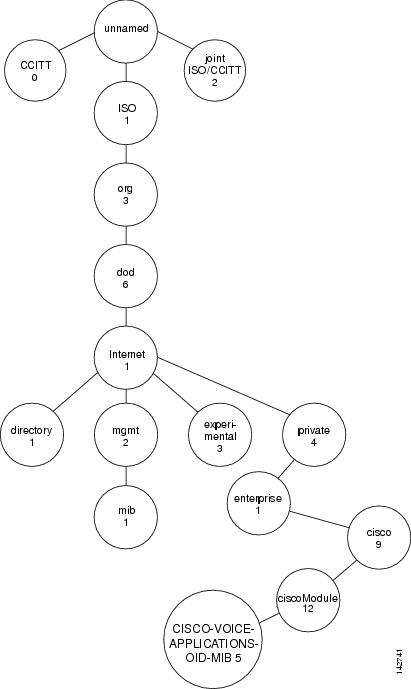

Figure 1 shows the position of the CISCO-VOICE-APPLICATIONS-OID-MIB in the Internet MIB hierarchy. The CISCO-VOICE-APPLICATIONS-OID-MIB is part of the Cisco modules (12) group, and is shown graphically in Figure 1.

The CISCO-VOICE-APPLICATIONS-OID-MIB uses definitions from the following MIBs:

•SNMPv2-SMI

•CISCO-SMI

Figure 1 CISCO-VOICE-APPLICATIONS-OID-MIB Tree Structure

The CISCO-VOICE-APPLICATIONS-OID-MIB structure is divided into the following OIDs

cvaMIBOids

ciscoCallManager

ciscoCallManagerExpress

ciscoSRST

ciscoBTS

ciscoCSPS

CISCO-VOICE-APPLICATIONS-OID-MIB Objects

This section contains the Cisco Voice Applications OID MIB object. Table 1 lists the CISCO-VOICE-APPLICATIONS-OID-MIB. Table 2 lists the ciscoVoiceApplicationsOIDMIB object IDs (OIDs).

Table 1 CISCO-VOICE-APPLICATIONS-OID-MIB Objects

Group
Object
Max Access
Description

cvaMIBOids

ciscoVoiceApplicationsOIDMIB

—

This module defines the object identifiers that are assigned to various Cisco voice applications. Voice applications include call agents and other voice application products. Call agents are call processing components of a device in a IP telephony and VoIP network.



ciscoCallManager

—

This MIB allows management of ciscoCallManager.



ciscoCallManagerExpress

—

This MIB allows management of Cisco Call Manager Express.



ciscoSRST

—

This MIB allows management of Cisco Survivable Remote Site Telephony.



ciscoBTS

—

This MIB allows management of Cisco Broadband Telephony Services.



ciscoCSPS

—

This MIB allows management of Cisco SIP Proxy Server.


CISCO-VOICE-APPLICATIONS-OID-MIB Objects

Table 2 lists the CISCO-VOICE-APPLICATIONS-OID-MIB object name and the corresponding object ID mapping.

There are five CISCO-VOICE-APPLICATIONS-OID-MIB objects listed in Table 2:

Table 2 CISCO-VOICE-APPLICATIONS-OID-MIB Object ID Mapping

Object Name
Object ID

ciscoVoiceApplicationsOIDMIB

1.3.6.1.4.1.9.12.5

ciscoCallManager

1.3.6.1.4.1.9.12.5.1

ciscoCallManagerExpress

1.3.6.1.4.1.9.12.5.2

ciscoSRST

1.3.6.1.4.1.9.12.5.3

ciscoBTS

1.3.6.1.4.1.9.12.5.4

ciscoCSPS

1.3.6.1.4.1.9.12.5.5


How to Use the CISCO-VOICE-APPLICATIONS-OID-MIB

The following sections contain information regarding configuring and using the CISCO-VOICE-APPLICATIONS-OID-MIB.

The snmp-server community string command provides access control for SNMPv1 and SNMPv2c but also continues to provide backward compatibility between different versions. The previous version of this command did not have an option to create a community string that allows SNMP messages to execute a set operation on a MIB object. An rw or ro option has been introduced for this purpose.

Note The SNMP agent is disabled by default, and a community string is not configured.

The following example enables the SNMP agent and assigns the community string comaccess to SNMP:

507-1(config)# snmp-server community comaccess ro

The preceding example defines a community string comaccess used as a password for authentication when you access the SNMP agent. Any SNMP message sent to the SNMP agent must have the "Community Name" field of the message match the community string defined here in order to be authenticated. Entering a community string enables the SNMP agent.

The following example disables the SNMP agent and removes the previously defined community string.

507-1(config)# no snmp-server community comaccess ro

Locating the CISCO-VOICE-APPLICATIONS-OID-MIB

To locate and download MIBs for selected platforms, Cisco IOS releases, and feature sets, use the Cisco MIB Locator found at the following URL:

http://tools.cisco.com/ITDIT/MIBS/servlet/index

If Cisco MIB Locator does not support the MIB information that you need, you can also obtain a list of supported MIBs and download MIBs from the Cisco MIBs page at the following URL:

http://www.cisco.com/public/sw-center/netmgmt/cmtk/mibs.shtml

To access Cisco MIB Locator, you must have an account on Cisco.com. If you have forgotten or lost your account information, send a blank e-mail to cco-locksmith@cisco.com. An automatic check will verify that your e-mail address is registered with Cisco.com. If the check is successful, account details with a new random password will be e-mailed to you. Qualified users can establish an account on Cisco.com by following the directions found at the following URL:

http://tools.cisco.com/RPF/register/register.do

Enabling the SNMP Agent

The SNMP agent for the CISCO-VOICE-APPLICATIONS-OID-MIB is disabled by default.

Prerequisites

Be sure the router platform is a supported router and the required MIBs are installed.

DETAILED STEPS


Command or Action
Purpose

Step 1

Access your router directly using Telnet or using Terminal server.

Telnets to the router identified by the specified IP address
(represented as xxx.xxx.xxx.xxx).

Step 2

Router> enable

Enters privileged EXEC mode.

Step 3

Router# config UPR terminal

Enters global configuration mode.

Step 4

Router(config)# snmp-server community <password> RO

Enables the read-only (RO) community string, where <password> represents the read-only community/password string.

Step 5

Router(config)# snmp-server community <password> RW

Enables the read-write (RW) community string, where <password> represents the read-write community/password string.

Step 6

Router(config)# exit

Exits global configuration mode and returns to privileged EXEC mode.

Step 7

Router# write memory

Writes the modified configuration to NVRAM, permanently saving the settings.

Verifying the Enabling of the SNMP Agent

To verify that the SNMP agent has been enabled on a given network device, perform the following steps.

DETAILED STEPS

Step 1 Telnet to the target device.

Step 2 Display the running configuration on the device and examine the output for any displayed SNMP information:

Router# show running-config

.

.

.

snmp-server community public RO

snmp-server community private RW

.

.

.

Any "snmp-server" statement appearing in the output that takes the form shown above verifies that SNMP has been enabled on the specified device.

Configuring the MIB Browser to Read MIB Values

For the MIB browser to read the MIB values, configure the CISCO-VOICE-APPLICATIONS-OID-MIB using the following CLI commands.

MIB Browser Configuration

For the MIB browser to read the CISCO-VOICE-APPLICATIONS-OID-MIB values, the browser must be configured.

Prerequisites

Be sure the router platform is a supported router and the required MIBs are installed.

SUMMARY STEPS

1. enter password

2. end the configuration

DETAILED STEPS


Command or Action
Purpose

Step 1

enter password

Example:

snmp-server community <password> RO

Allows the use of a MIB browser to read MIB values, you must configure the CISCO-VOICE-APPLICATIONS-OID-MIB using CLI.

•Where <password> can be any password you choose.

Step 2

end configuration

Example:

(config) > end

Ends the configuration mode.

Configuring the MIB Browser to Write MIB Values

For the MIB browser to write the MIB values, configure the CISCO-VOICE-APPLICATIONS-OID-MIB using the following CLI commands.

MIB Browser Configuration

For the MIB browser to write the CISCO-VOICE-APPLICATIONS-OID-MIB values, the browser must be configured.

Restrictions

Be sure the router platform is a supported router and the required MIBs are installed.

Prerequisites

Be sure the router platform is a supported router and the required MIBs are installed.

SUMMARY STEPS

1. enter password

2. end the configuration

DETAILED STEPS


Command or Action
Purpose

Step 1

enter password

Example:

snmp-server community <password> RW

Allows the use of a MIB browser to write MIB values, you must configure the CISCO-VOICE-APPLICATIONS-OID-MIB using CLI.

•Where <password> can be any password you choose.

Step 2

end oonfiguration

Example:

(config) > end

Ends the configuration mode.

Note Refer to the Cisco Unity Express System Monitoring Guide Release 2.2 for a list of CLI commands for use with Cisco Unity Express.

What to Do Next

Begin monitoring your network.

Additional References

The following sections provide references related to the CISCO-VOICE-APPLICATIONS-OID-MIB.

Related Documents

Related Topic
Document Title





Standards

Standard
Title

No new or modified standards are supported by this feature.




MIBs

MIB
MIBs Link

•SNMPv2-SMI

•CISCO-SMI

To locate and download MIBs for selected platforms, Cisco IOS releases, and feature sets, use Cisco MIB Locator found at the following URL:

http://www.cisco.com/go/mibs


RFCs

RFC
Title



Technical Assistance

Description
Link

The Cisco Technical Support website contains thousands of pages of searchable technical content, including links to products, technologies, solutions, technical tips, and tools. Registered Cisco.com users can log in from this page to access even more content.

http://www.cisco.com/techsupport


Command Reference

Refer to the Cisco Unity Express System Monitoring Guide Release 2.2 for a list of new and modified CLI commands.

Glossary

CCM—Cisco CallManager

CCME—Cisco CallManager Express

CRA—Customer Response Applications

CRS—Customer Response Solution

CUE—Cisco Unity Express

HPOV—HP Open View

MIB—Management Information Base

NMS—Network Management System

SNMP—Simple Network Management Protocol

Note See Internetworking Terms and Acronyms for terms not included in this glossary.
