General Step Descriptions
The steps in the General palette of the Cisco Unity Express Script Editor provide basic programming functionality for scripting.
The General palette contains the following steps:
•
End
•
•
•
Figure 37 shows the steps in the General palette as they appear in the Palette pane of the Cisco Unity Express Script Editor.
Figure 37 General Palette Steps
Annotate
Use the Annotate step to enter comments that explain the function of a script segment.
Figure 38 shows the customizer window for the Annotate step.
Figure 38 Annotate Customizer Window
To annotate a script, enter your comments in the Enter Comments field and click OK.
The Annotate customizer window closes and the first words of your annotation appear next to the Annotate icon in the Design pane of the Cisco Unity Express Script Editor.
This step has no effect on script logic.
Call Subflow
Use the Call Subflow step to execute a subflow, which is analogous to a subroutine or module in structured programming.
Use the Cisco Unity Express Script Editor to create the subflow as an independent script that you can reuse in other scripts. Subflows can be nested; that is, you can call subflows from within scripts that are themselves used as subflows.
During run time, if an exception occurs within a subflow and you do not handle the exception within the subflow, the exception is available to the parent script for processing. For more information about exceptions, see the "On Exception Goto" section.
The Call Subflow customizer window contains two tabs:
General Tab

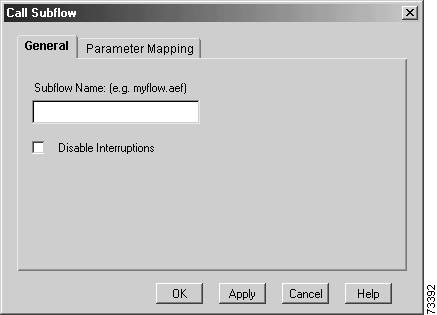

Use the General tab of the Call Subflow customizer window, shown in Figure 39, to specify the filename of the subflow you want to call.
Figure 39 Call Subflow Customizer Window—General Tab
Table 11 describes the fields of the General tab.
Follow these steps to use the General tab of the Call Subflow customizer window to call a subflow:
Step 1
The General tab of the Call Subflow customizer window appears.
Step 2
Step 3
Step 4
Step 5
Parameter Mapping Tab

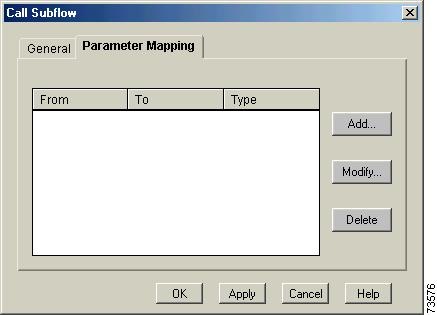

Use the Parameter Mapping tab of the Call Subflow customizer window, shown in Figure 40, to map variables or expressions from the main script to variables in the subflow you specified in the General tab of the Call Subflow customizer window.
Note
You can map variables only to variables of the same type. For example, you can map a string variable in the main script only to a string variable in the subflow.
You can pass in any valid expression; for example, "4" or an expression such as "counter + 3".
When the script calls a subflow, the subflow has access to the variables from the main script that you specify on the Parameter Mapping tab. If the subflow changes the value of a mapped variable, that change carries over to the main script when the subflow returns control to the main script.
Figure 40 Call Subflow Customizer Window—Parameter Mapping Tab
Table 12 describes the fields of the Parameter Mapping tab.
Follow these steps to map variables or expressions:
Step 1
The Parameter tab of the Call Subflow customizer window appears.
Step 2
The Parameter Mapping dialog box appears, as shown in Figure 41.
Figure 41 Parameter Mapping Dialog Box
Step 3
Step 4
Step 5
The Parameter Mapping dialog box closes. The name and type of the variable you entered in the To Variable text field appear in the list box of the Call Subflow window.
Step 6
The Call Subflow customizer window closes. The script name you specified in the General tab appears next to the Call Subflow step icon in the Design pane of the Cisco Unity Express Script Editor.
Day of Week
Use the Day of Week step to direct the script to different connection output branches depending on the current day of the week.
When the Cisco Unity Express system clock matches one of the days associated with a connection, the script executes any steps that you configured for that day's connection branch.
Configure all days with output branches and assign each day its own connection(s). If a day is not assigned to at least one output branch, the Cisco Unity Express Script Editor displays a warning dialog box when you close the Day of Week customizer window.

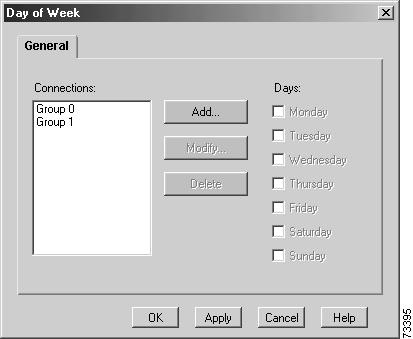

Figure 42 shows the customizer window for the Day of Week step.
Figure 42 Day of Week Customizer Window
Table 13 describes the fields of the Day of Week customizer window.
Table 13 Day of Week Customizer Window Fields
Connections
Output branches that execute depending on a specified day of week.
Days
Days of the week for each connection branch.
Follow these steps to add a connection output branch and associate it with days of the week:
Step 1
The Add Connection Name dialog box appears. (See Figure 43.)
Figure 43 Add Connection Name Dialog Box
Step 2
The Add Connection Name dialog box closes, and the name of the new connection appears in the Connections list box of the Day of Week customizer window.
Step 3
Note
Step 4
The Day of Week customizer window closes.
Decrement
Use the Decrement step to decrease the value of a chosen Integer variable by one. This step is a specialized version of the Set step of the General palette, which you use to assign any value to a variable.
Figure 44 shows the customizer window for the Decrement step.
Figure 44 Decrement Customizer Window
To decrease the chosen Integer variable by one, choose the desired variable from the Variable drop-down menu and click OK.
The Decrement customizer window closes. The variable appears next to the Decrement step icon in the Design pane of the Cisco Unity Express Script Editor.
Delay
Use the Delay step to pause the processing of a script for a specified number of seconds.

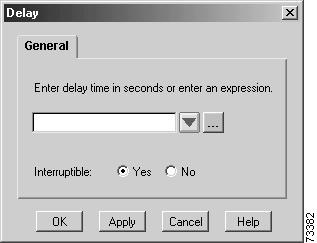

Figure 45 shows the customizer window for the Delay step.
Figure 45 Delay Customizer Window
Table 14 describes the fields of the Delay customizer window.
Follow these steps to specify a script processing delay:
Step 1
Step 2
Step 3
The Delay customizer window closes. Either the number of seconds or the name of the variable appears next to the Delay step of the Design pane of the Cisco Unity Express Script Editor.
End
Use the End step at the end of a script to complete processing and free all allocated resources.
You can also use the End step at the end of a branch of logic in a script. Any call still active by the time this step is executed will automatically be processed by the system default logic.
This step has no properties and does not require a customizer.
Goto
Use the Goto step to cause the script logic to branch to a specified Label step within the script.
Note
Figure 46 shows the customizer window for the Goto step.
Figure 46 Goto Customizer Window
To cause the script logic to branch to a specific Label step, choose that Label step from the Select a Label drop-down menu and click OK.
The Goto customizer window closes. The label name appears next to the Goto step icon in the Design pane of the Cisco Unity Express Script Editor.
If
Use the If step to cause the script to go to one of two branches based on the evaluation of a specified Boolean expression.
The If step automatically adds two output branches, True and False:
•
•
Figure 47 shows the customizer window for the If step.
Figure 47 If Customizer Window
To create True and False output branches, either enter an expression in the text field or click the Expression Editor (...) button to enter an expression and click OK.
The If customizer window closes. The expression appears next to the If step icon in the Design pane of the Cisco Unity Express Script Editor.
Increment
Use the Increment step to increase the value of a chosen Integer variable by one. This step is a specialized version of the Set step of the General palette, which you use to assign any value to a variable.
Figure 48 shows the customizer window for the Increment step.
Figure 48 Increment Customizer Window
To increase the value of a specific Integer variable by one, choose that Integer type variable from the Variable drop-down menu and click OK.
The Increment customizer window closes. The variable appears next to the Increment step icon in the Design pane of the Cisco Unity Express Script Editor.
Label
Use the Label step to insert a label into a script to serve as a target for a Goto step within the same script.
Figure 49 shows the customizer window for the Label step.
Figure 49 Label Customizer Window
To insert a label into a script, enter a name in the Enter Label Name text field, and then click OK.
The Label customizer window closes. The Label name appears next to the Label step icon in the Design pane of the Cisco Unity Express Script Editor.
On Exception Clear
Use the On Exception Clear step to remove an exception set by a previous On Exception Goto step.
Typically, this step is used in the following sequence:
1.
2.
3.
You may also use this step when you no longer need to handle the selected exception within the script.

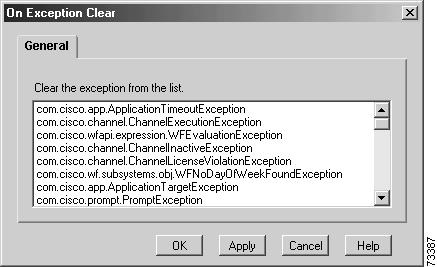

Figure 50 shows the customizer window for the On Exception Clear step.
Figure 50 On Exception Clear Customizer Window
To clear an exception, select the specific exception from the list box and click OK.
The On Exception Clear customizer window closes. The exception being cleared appears next to the On Exception Clear step icon in the Design pane of the Cisco Unity Express Script Editor.
On Exception Goto
Use the On Exception Goto step to catch problems that may occur during script execution and allow a graceful exit from the situation.
You can include any script steps in the Exception Flow branch that you want to use to respond to the exception.
If you are using subflows and the subflow does not handle an exception, the exception is returned to the script and the script can respond to it.

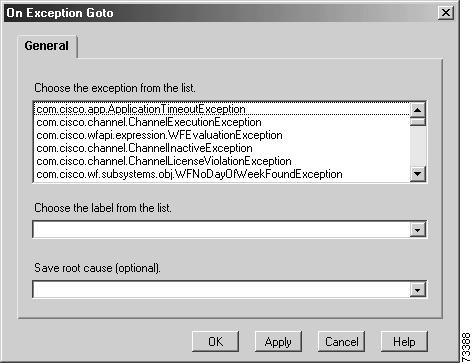

Figure 51 shows the customizer window for the On Exception Goto step.
Figure 51 On Exception Goto Customizer Window
Table 15 describes the fields of the On Exception Goto customizer window.
Follow these steps to create a response to an exception:
Step 1
Step 2
Step 3
Step 4
The On Exception Goto customizer window closes. The information you selected appears next to the On Exception Goto step icon in the Design pane of the Cisco Unity Express Script Editor.
Set
Use the Set step to change the value of a variable.
The Set step supports type casting (with possible loss of precision) from any Number data type (Integer, Float, Long, Double, BigInteger, BigDecimal) to any other Number data type.
You can also use the Set step to convert a String variable to any Number data type. For String conversions, the system replaces all "*" characters with a decimal point (".") before performing the conversion.
Figure 52 shows the customizer window for the Set step.
Figure 52 Set Customizer Window
Table 16 describes the fields of the Set customizer window.
Follow these steps to set the value for a variable:
Step 1
The Type field automatically displays the type of the variable you chose.
Step 2
Step 3
The Set customizer window closes. The information you entered appears next to the Set step icon in the Design pane of the Cisco Unity Express Script Editor.
Start
The Cisco Unity Express Script Editor automatically adds the Start step when you create a new script by choosing File > New.
This step has no properties and does not require a customizer. It is not shown in any palette.
Switch
Use the Switch step to cause the program logic to branch to one of a number of cases based on the evaluation of a specified expression.
A case is a method for providing script logic based on the value of a variable at a point in time. You can assign one case for each value. The Switch step lets you define any number of case output branches. You can then create a separate script logic for each branch.
The Switch step supports switching based on the following variables:
•
•
The type of switching is automatically determined by the type of the specified expression.
If the integer or string expression you specify for a case is equal to the global expression defined in the Switch Expression field, the script executes the steps configured for that case output branch.
The Default branch of the step allows you to handle cases where none of the branches matches the expression.

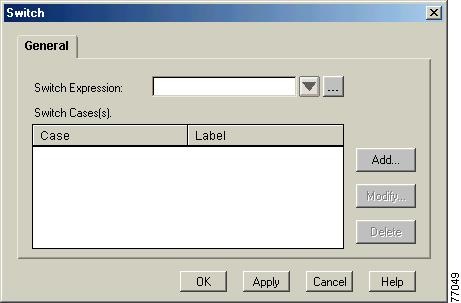

Figure 53 shows the customizer window for the Switch step.
Figure 53 Switch Customizer Window
Table 17 describes the fields of the Switch customizer window.
Follow these steps to create script logic for one or more cases:
Step 1
Step 2
The Switch Case and Label dialog box appears, as shown in Figure 54.
Figure 54 Switch Case and Label Dialog Box
Step 3
The script will branch to this Label when the variable equals the value specified in the Case field.
Step 4
The Switch Case and Label dialog box closes.
Step 5
The Switch customizer window closes. The information you entered appears next to the Switch step icon in the Design pane of the Cisco Unity Express Script Editor.
Time of Day
Use the Time of Day step to cause the script to branch to different connection branches depending on the current time of day.
When the Cisco Unity Express system clock indicates that the time of day matches the time associated with a connection, the script executes any steps configured for that output branch.
Associate each output branch with a specified range of time.
During run time, if the current time falls out of the configured time range, the script follows the Rest output branch of the Time of Day step.
Figure 55 shows the customizer window for the Time of Day step.
Figure 55 Time of Day Customizer Window
Table 18 describes the fields of the Time of Day customizer window.
Table 18 Time of Day Customer Window Fields
Connections
Output branches that execute depending on specified time of day
Time Ranges
Time ranges for each connection branch
Follow these steps to add a new connection and specify a range of hours for that connection:
Step 1
The Add Connection Name dialog box appears as shown in Figure 56.
Figure 56 Add Connection Name Dialog Box
Step 2
The Add Connection dialog box closes. The name of the new connection appears in the Connections text box of the Day of Week customizer window.
Step 3
The Add Range of Hours dialog box appears as shown in See Figure 57.
Figure 57 Add Range of Hours Dialog Box
Step 4
Step 5
Step 6
The Add Range of Hours dialog box closes.
Step 7
The Time of Day customizer window closes.
