Syntegra ITS SMDI Integration Guide for Cisco Unity 5.0
Revised November 26, 2007
This document provides instructions for integrating the phone system with Cisco Unity.
Integration Tasks
Before doing the following tasks to integrate Cisco Unity with the Syntegra ITS phone system, confirm that the Cisco Unity server is ready for the integration by completing the appropriate tasks in the applicable Cisco Unity installation guide.
The following task list describes the process for creating the integration.
Task List to Create the Integration
Use the following task list to set up a new integration with the Syntegra ITS phone system. If you are installing a new Cisco Unity server by using the applicable Cisco Unity installation guide, you may have already completed some of the following tasks.
1.
Integrate Cisco Unity with Cisco Unified CM version 3.2(x) or later. Refer to the applicable Cisco Unified CM integration guide for Cisco Unity at http://www.cisco.com/en/US/products/sw/voicesw/ps2237/products_installation_and_configuration_guides_list.html.
2. Review the system and equipment requirements to confirm that all phone system and Cisco Unity server requirements have been met. See the "Requirements" section.
3. Program and configure the Syntegra ITS phone system. See the "Programming the Syntegra ITS Phone System" section.
4. On the VoIP gateway, configure the trunk to the Syntegra ITS phone system and configure the appropriate dial-peer so outbound calls are routed to the Syntegra ITS phone system and inbound calls are routed to Cisco Unified CM. For instructions, refer to the gateway documentation.
5. Configure the Cisco Unified CM phone system. See the "Configuring the Cisco Unified CM Phone System" section.
6. Configure the Syntegra SMDI gateway. See the "Configuring the Syntegra SMDI Gateway" section.
7. Configure the Cisco Unity SMDI settings to accept the serial cable from the Syntegra ITS phone system. See the "Configuring the Cisco Unity SMDI Settings" section.
8. Test the integration. See the "Testing the Integration" section.
9. If you have a secondary server for Cisco Unity failover, integrate the secondary server. See the "Integrating a Secondary Server for Cisco Unity Failover" section.
Requirements
The Syntegra ITS integration supports configurations of the following components:
Cisco Unified Communications Manager Phone System
•A Cisco IP telephony applications server consisting of a supported version of Cisco Unified CM, running on a Cisco Media Convergence Server (MCS) or customer-provided server meeting approved Cisco configuration standards.
•Cisco licenses for all IP phone lines, IP phones, and other H.323-compliant devices or software (such as Cisco VirtualPhone and Microsoft NetMeeting clients) that will be connected to the network, as well as one license for each Cisco Unity port.
•IP phones for the Cisco Unified CM extensions.
•A LAN connection in each location where you will plug an IP phone into the network.
•A VoIP gateway.
Syntegra ITS Phone System
•Syntegra ITS platform (release 13 or later).
•Syntegra SMDI gateway (release 1.2 or later).
•The Syntegra SMDI gateway connected to the Syntegra ITS platform as described in the installation guide for the phone system.
•The serial data port in the phone system connected to a serial port (COM1 is the default) on the Cisco Unity server with an RS-232 serial cable.
We recommend that the serial cable have the following construction:
–A maximum of 50 feet (15.24 m) in length
–24 AWG stranded conductors
–Low capacitance—for example, no more than 12 pF/ft (39.4 pF/m) between conductors
–At least 65 percent braided shield over aluminized polymer sleeve around conductors
–UL-recognized overall cable jacket insulation with low dielectric constant
–Braided shield fully terminated to and enclosed by a metal connector backshell
–Gold-plated connector contacts
•The voice messaging ports in the phone system connected to the voice cards in the Cisco Unity server.
•The phone system ready for the integration as described in the installation guide for the phone system.
•A trunk connection between Cisco Unified CM and the Syntegra ITS phone system through a VoIP gateway.
•Unique subscriber extensions on the Syntegra ITS phone system that forward on no answer to corresponding "phantom" extensions (extension numbers that do not have physical devices) on Cisco Unified CM.
Cisco Unity Server
•Cisco Unity installed and ready for the integration, as described in the applicable Cisco Unity installation guide at http://www.cisco.com/en/US/products/sw/voicesw/ps2237/prod_installation_guides_list.html.
•A license that enables the applicable number of voice messaging ports.
•An available serial port (COM1 is the default).
Integration Description
The Syntegra ITS integration requires a data link, which consists of a network connection, a Syntegra SMDI gateway, and an RS-232 serial cable to connect the Syntegra ITS phone system and the Cisco Unity server. Cisco Unity uses the data link to turn MWIs on and off on the Syntegra ITS phone system. Connections between the Syntegra ITS phone system and Cisco Unified CM are carried by the E1/T1 ISO QSIG trunk connection and the VoIP gateway. Figure 1 shows the required connections.

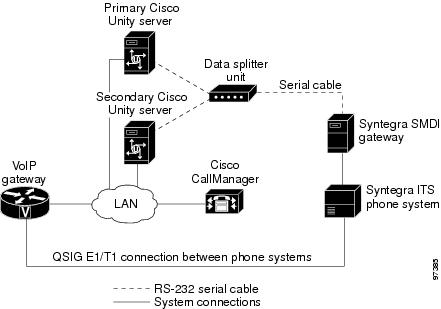

Figure 1 Connections Between the Syntegra ITS Phone System and Cisco Unity
When a call for a subscriber is unanswered, the Syntegra ITS phone system forwards the call to a "phantom" extension on Cisco Unified CM. This extension is set to forward all calls to Cisco Unity so that the caller can record a message. Cisco Unity then turns the subscriber MWI on through the RS-232 serial cable.
Integration Functionality
The Syntegra ITS integration with Cisco Unity provides the following features:
•Call forward to personal greeting
•Caller ID
•Easy message access (a subscriber can retrieve messages without entering an ID because Cisco Unity identifies the subscriber based on the extension from which the call originated; a password may be required)
•Identified subscriber messaging (Cisco Unity identifies the subscriber who leaves a message during a forwarded internal call, based on the extension from which the call originated)
•Message waiting indication (MWI)
Programming the Syntegra ITS Phone System
Do the following two procedures.
To Program the Syntegra ITS Phone System
Step 1 Add a Digital Line Interface Card (DLIC) to the Syntegra ITS phone system with the correct QSIG software (E1 or T1).
Step 2 Connect an access cable from the DLIC to the rack access panel by using CAT5 presentation.
Step 3 Connect the Syntegra ITS phone system to the VoIP gateway with a voice cross-over cable that is wired as shown in Table 1.
Table 1 E1/T1 QSIG Trunk Wiring Between the Syntegra ITS Phone System and the VoIP Gateway
Pin from the Syntegra ITS Phone System
|
Pin to the VoIP Gateway
|
1
|
5
|
2
|
4
|
3
|
3
|
4
|
2
|
5
|
1
|
6
|
6
|
7
|
7
|
8
|
8
|
Step 4 Configure the DLIC to run in BASIC mode.
Step 5 Configure the Syntegra ITS phone system to be the clock source.
Step 6 Configure the Syntegra ITS phone system to run Slave comms.
To Set Up Voice Mail Speed Dial Buttons and Call-Forward-on-No-Answer Diverts
Step 1 In the Syntegra ITS profile, set the voice mail pilot number for Cisco Unity.
Step 2 In the first user profile that needs voice mail, add a voice mail access key that uses the subscriber extension set up in Cisco Unity for the user (for example, 5001).
Step 3 For the same user, add an extension key:
Divert No Answer
|
*42<"phantom" extension number>#
|
Divert Immediate
|
*41<"phantom" extension number>#
|
The "phantom" extension is the extension set up in Cisco Unified CM (for example, 5001) that corresponds to the Syntegra ITS extension (for example, 1001) that needs voice mail.
Step 4 Repeat Step 2 and Step 3 for each remaining user profile that needs voice mail.
Configuring the Cisco Unified CM Phone System
Do the following two procedures.
To Configure the Gateway on Cisco Unified CM
Step 1 On the Cisco Unified CM Administration, configure the gateway that connects to the Syntegra ITS phone system. For details, refer to the Cisco Unified Communications Manager Administration Guide at http://www.cisco.com/en/US/products/sw/voicesw/ps556/prod_maintenance_guides_list.html.
Note Because the following procedure requires restarting all devices, calls may be dropped on the gateways. Cisco recommends doing this procedure after business hours.
To Add "Phantom" Extensions to the Cisco Unified CM Phone System
Step 1 For the first Syntegra ITS turret extension that needs voice mail, in the Cisco Unified CM Administration, click Device > Add a New Device. The Add a New Device page appears.
Step 2 In the Device Type list, click Phone, and click Next. The Add a New Phone page appears.
Step 3 In the Phone Type list, click Cisco IP Phone 7960, and click Next. The Phone Configuration page appears.
Note After you choose a phone type, you cannot modify your choice.
Step 4 Enter the following settings.
Table 2 Phone Configuration Page Settings
Field
|
Setting
|
MAC Address
|
Enter any unique Media Access Control (MAC) address that is 12 digits long. It is not necessary that this address be real, but it must be unique.
|
Device Pool
|
Click Default.
|
Calling Search Space
|
If the voice messaging ports are in a partition, click the calling search space that can access this partition. Otherwise, click <None>.
|
Phone Button Template
|
Click Standard 7960.
|
Step 5 Click Insert.
Step 6 At the message stating that the phone has been added to the database, click OK.
Step 7 On the Directory Number Configuration page, enter the following settings.
Table 3 Directory Number Configuration Page Settings
Field
|
Setting
|
Directory Number
|
Enter a unique "phantom" directory number that corresponds to an extension on the Syntegra ITS phone system. For example, enter the "phantom" directory number 5001 to correspond to the Syntegra ITS extension 1001. Make sure that the directory number that you enter in the Directory Number field is unique within the partition that you choose.
|
Partition
|
Click the partition to which the directory number belongs. Make sure that the directory number that you enter in the Directory Number field is unique within the partition that you choose.
|
Voice Mail Profile
|
Click the voice mail profile that is set up for Cisco Unity, or click <None>.
|
Calling Search Space
|
If the voice messaging ports are in a partition, click the calling search space that can access this partition. Otherwise, click <None>.
|
Forward All
|
Check the Voice Mail check box.
|
Forward Busy
|
Check the Voice Mail check box.
|
Forward No Answer
|
Check the Voice Mail check box.
|
Step 8 Click Insert.
Step 9 When prompted to click OK to return to the current device, click Cancel.
Step 10 Click Reset Devices.
Step 11 When prompted to restart the device, click OK.
Step 12 Repeat Step 1 through Step 11 for each remaining Syntegra ITS turret extension that needs voice mail.
Configuring the Syntegra SMDI Gateway
Do the following procedure.
To Configure the Syntegra SMDI Gateway
Step 1 On the Syntegra SMDI Gateway, enter the following settings for the serial data link.
Table 4 Serial Data Link Settings on the Syntegra SMDI Gateway
Parameter
|
Setting
|
Baud Rate
|
9600
|
DataBits
|
8
|
StopBits
|
1
|
Parity
|
No
|
Flow Control
|
No
|
Step 2 Save the serial data link settings.
Configuring the Cisco Unity SMDI Settings
Do the following procedures in the order given.
To Configure the Cisco Unity SMDI Settings
Step 1 On the Windows Start menu of the Cisco Unity server, click Programs > Accessories > Notepad. The Notepad window appears.
Step 2 On the File menu, click Open.
Step 3 In the Open dialog box, browse to the \CommServer\IntLib directory, and double-click Cisco0002.ini.
Step 4 At the end of the file, insert the following lines:
Step 5 Save the file.
Step 6 On the File menu of the Notepad window, click Open.
Step 7 In the Open dialog box, browse to the \CommServer\IntLib directory, and double-click Avsmdi.avd.
Step 8 Scroll down to the [Configuration] section of the file, and change the following settings as shown.
Table 5 Configuration Section Settings
Parameter
|
Setting
|
DefaultExtLen
|
<the number of digits in the Syntegra ITS extension numbers>
|
SwsDefaultExtLen
|
<the number of digits in the Syntegra ITS extension numbers>
|
Port
|
1
(This setting must match the setting in the Syntegra SMDI gateway.)
|
Baud
|
9600
(This setting must match the setting in the Syntegra SMDI gateway.)
|
Parity
|
None
(This setting must match the setting in the Syntegra SMDI gateway.)
|
DataBits
|
8
(This setting must match the setting in the Syntegra SMDI gateway.)
|
StopBits
|
1
(This setting must match the setting in the Syntegra SMDI gateway.)
|
Step 9 Save the file, and exit Notepad.
Step 10 For the settings to take effect, restart the Cisco Unity server.
If you want Cisco Unity to update the subscriber MWI when each new voice message arrives, do the following procedure. Otherwise, skip to the "To Add Syntegra ITS Turret Subscribers in Cisco Unity" procedure.
To Configure Cisco Unity to Update MWIs When Each Voice Message Arrives
Step 1 On the Windows Start menu of the Cisco Unity server, click Programs > Accessories > Notepad. The Notepad window appears.
Step 2 On the File menu, click Open.
Step 3 In the Open dialog box, browse to the \CommServer\IntLib directory, and double-click Cisco0002.ini.
Step 4 In the [Alternate MWI] section of the file, insert the following line:
Step 5 Save the file, and exit Notepad.
Step 6 For the new line to take effect, restart the Cisco Unity server.
To Add Syntegra ITS Turret Subscribers in Cisco Unity
Step 1 In the Cisco Unity Administrator, go to the Subscribers > Subscribers > Profile page.
Step 2 Click the Add icon.
Step 3 If the message store is Microsoft Exchange, select New Exchange Subscriber, and then skip to Step 5.
Step 4 If the message store is IBM Lotus Domino:
a. Click Notes.
Note This procedure assumes that the new subscribers have already been entered in Domino. For instructions, refer to the Domino documentation.
b. In the Address Book list, confirm that the address book listed is the one that contains the user data that you want to import.
If the address book that you want to use is not listed, go to the System > Configuration > Subscriber Address Books page and add a different address book. For details on how to add an address book, see the "Subscriber Address Book Settings" section in the "System Settings" chapter of the Cisco Unity System Administration Guide at http://www.cisco.com/en/US/products/sw/voicesw/ps2237/prod_maintenance_guides_list.html.
c. In the Find Domino Person By list, indicate whether to search by short name, first name, or last name.
d. Enter the appropriate short name or name. You also can enter * to display a list of all users, or enter one or more characters followed by * to narrow your search.
e. Click Find.
f. On the list of matches, click the name of the user to import. The Add Subscriber page appears.
Step 5 Enter the appropriate information on the Add Subscriber page.
The Extension field must contain the Syntegra ITS turret extension number (for example, 1001).
Step 6 Click Add.
Step 7 Go to the Subscribers > Messages page.
Step 8 Under Message Waiting Indicators, check the Use MWI for Message Notification check box.
Step 9 Under MWI Extensions, in the Extension field, delete the X, and enter Z.
Step 10 Go to the Subscribers > Alternate Extension page.
Step 11 Click Add.
Step 12 In the Alternate Extensions field, enter the "phantom" extension on Cisco Unified CM that corresponds to the Syntegra ITS turret extension number (for example 5001).
Step 13 On the subscriber record, customize other settings as applicable, and then click the Save icon.
Step 14 Repeat Step 2 through Step 13 for each remaining Syntegra ITS turret user that needs voice mail.
For details on adding or importing subscribers into Cisco Unity, refer to the "Creating Subscriber Accounts" chapter in the Cisco Unity System Administration Guide available at http://www.cisco.com/en/US/products/sw/voicesw/ps2237/prod_maintenance_guides_list.html.
Testing the Integration
You must test the integration to verify that Cisco Unity and the Syntegra ITS phone system are integrated correctly. Two working extensions are needed, one extension on the Syntegra ITS phone system and the other on the Cisco Unified CM phone system.
To test the integration, call from the Cisco Unified CM extension to the Syntegra ITS extension to verify the following actions:
•A call to an unanswered Syntegra ITS extension is forwarded to Cisco Unity.
•A call to a busy Syntegra ITS extension is forwarded to Cisco Unity.
•When a message is left for a subscriber, the MWI is lit on the Syntegra ITS extension.
•A subscriber can listen to messages from the Syntegra ITS extension without entering the extension.
If any of these test fail, verify the settings described earlier in this guide.
Integrating a Secondary Server for Cisco Unity Failover
The Cisco Unity failover feature enables a secondary server to provide voice messaging services when the primary server becomes inactive. For information on installing a secondary server for failover, refer to the applicable Cisco Unity installation guide, available at http://www.cisco.com/en/US/products/sw/voicesw/ps2237/prod_installation_guides_list.html.
For information on failover, refer to the applicable Cisco Unity Failover Configuration and Administration Guide at http://www.cisco.com/en/US/products/sw/voicesw/ps2237/products_feature_guides_list.html.
Requirements
The following components are required to integrate a secondary server:
Phone System
•A serial data port on the Syntegra SMDI gateway for the data link.
•A data splitter unit to split the single data link into two serial cables.
•Two additional RS-232 serial cables (to be used with the serial cable from the integration of the primary server). With the three serial cables, connect one from the data port on the Syntegra SMDI gateway to the data splitter unit; connect the second from the data splitter unit to the serial port on the primary server; and connect the third from the data splitter unit to the serial port on the secondary server.
Cisco Unity Server
•One secondary server for each primary server installed and ready for the integration, as described in the applicable Cisco Unity installation guide and earlier in this integration guide.
•A license that enables failover.
Integration Description
The phone system communicates with both the primary and secondary servers through the LAN or WAN. The primary and secondary servers use the serial data link to set MWIs on the Syntegra ITS phone system. Figure 2 shows the required connections.
Figure 2 Connections Between the Syntegra ITS Phone System and Cisco Unity
The primary and secondary servers act in the following manner:
•When the primary server is operating normally, the secondary server is inactive.
•When the primary server becomes inactive, the secondary server becomes active.
•When the primary server becomes active again, the secondary server becomes inactive.
Connecting the Syntegra SMDI Gateway to the Cisco Unity Servers
Do the following procedure.
To Connect the Syntegra SMDI Gateway to the Cisco Unity Servers
Step 1 Connect one serial cable from the serial port on the Syntegra SMDI gateway to the data splitter unit.
Step 2 Connect the remaining two serial cables to the two serial ports on the data splitter unit. Then connect one serial cable to the serial port on the primary server and the other serial cable to the serial port on the secondary server.
Appendix: Documentation and Technical Assistance
Conventions
The Syntegra ITS SMDI Integration Guide for Cisco Unity 5.0 uses the following conventions.
Table 6 Syntegra ITS SMDI Integration Guide for Cisco Unity 5.0 Conventions
Convention
|
Description
|
boldfaced text
|
Boldfaced text is used for:
•Key and button names. (Example: Click OK.)
•Information that you enter. (Example: Enter Administrator in the User Name box.)
|
< >
(angle brackets)
|
Angle brackets are used around parameters for which you supply a value. (Example: In the Command Prompt window, enter ping <IP address>.)
|
-
(hyphen)
|
Hyphens separate keys that must be pressed simultaneously. (Example: Press Ctrl-Alt-Delete.)
|
>
(right angle
bracket)
|
A right angle bracket is used to separate selections that you make:
•On menus. (Example: On the Windows Start menu, click Settings > Control Panel > Phone and Modem Options.)
•In the navigation bar of the Cisco Unity Administrator. (Example: Go to the System > Configuration > Settings page.)
|
[x]
(square brackets)
|
Square brackets enclose an optional element (keyword or argument). (Example: [reg-e164])
|
[x | y]
(vertical line)
|
Square brackets enclosing keywords or arguments separated by a vertical line indicate an optional choice. (Example: [transport tcp | transport udp])
|
{x | y}
(braces)
|
Braces enclosing keywords or arguments separated by a vertical line indicate a required choice. (Example: {tcp | udp})
|
The Syntegra ITS SMDI Integration Guide for Cisco Unity 5.0 also uses the following conventions:
Note Means reader take note. Notes contain helpful suggestions or references to material not covered in the document.
Caution Means
reader be careful. In this situation, you might do something that could result in equipment damage or loss of data.
For descriptions and URLs of Cisco Unity documentation on Cisco.com, see the About Cisco Unity Documentation. The document is shipped with Cisco Unity and is available at http://www.cisco.com/en/US/products/sw/voicesw/ps2237/products_documentation_roadmaps_list.html.
Obtaining Documentation, Obtaining Support, and Security Guidelines
For information on obtaining documentation, obtaining support, providing documentation feedback, security guidelines, and also recommended aliases and general Cisco documents, see the monthly What's New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Any Internet Protocol (IP) addresses used in this document are not intended to be actual addresses. Any examples, command display output, and figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses in illustrative content is unintentional and coincidental.
© 2007 Cisco Systems, Inc. All rights reserved.
