Support for Tel URI in SIP Diversion Header Feature Module
Document Release History
Feature History
9.8(1)
The Support for Tel URI in SIP Diversion Header feature is introduced in the Cisco PGW 2200 Softswitch software.
This document describes the Support for tel Uniform Resource Identifier (URI) in the Session Initiation Protocol (SIP) Diversion Header feature. Details of this feature are provided in the following sections:•
Supported Standards, MIBs, and RFCs
•
Feature Description
Diversion information in incoming SIP messages, such as INVITE and 3xx, may have tel URI. Currently, the Cisco PGW 2200 Softswitch supports only the SIP URI in the Diversion header. The Support for Tel URI in SIP Diversion Header feature enables the Cisco PGW 2200 Softswitch to relay the Diversion headers received with incoming SIP requests or responses to the outgoing SIP network. If multiple Diversion headers are present, the Cisco PGW 2200 Softswitch relays information pertaining to all the Diversion headers to the outgoing SIP network. The Cisco PGW 2200 Softswitch will also parse and handle the tel-URI-formatted Diversion headers in the SIP.
The following is a summary of the different scenarios in which the Support for Tel URI in SIP Diversion Header feature is enabled:
•

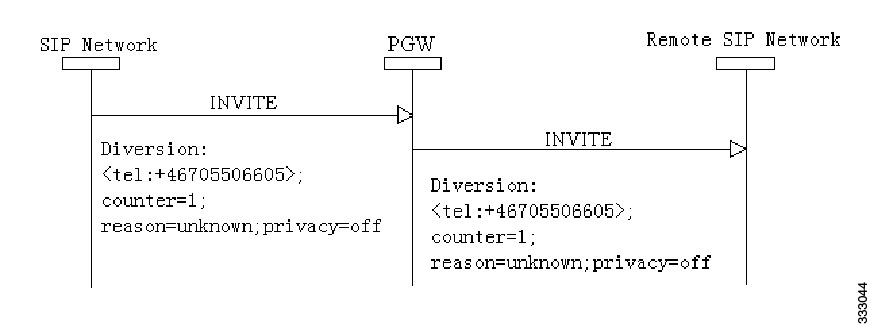

Figure 1 shows a sample call flow that illustrates the relaying of the tel URI received in the Diversion header of the INVITE for the SIP-to-SIP calls.
Figure 1 Sample Call Flow 1 for SIP-to-SIP Calls

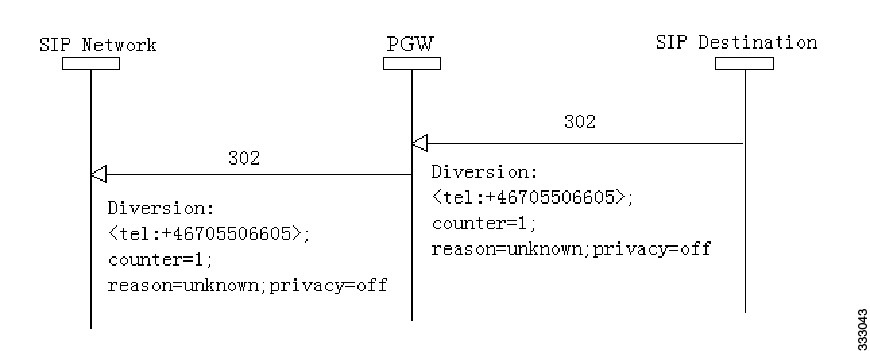

Figure 2 show a sample call flow that illustrates how the Cisco PGW 2200 Softswitch receives 302 back from a SIP destination and relays the same back to the peer SIP network.
Figure 2 Sample Call Flow 2 for SIP-to-SIP Calls

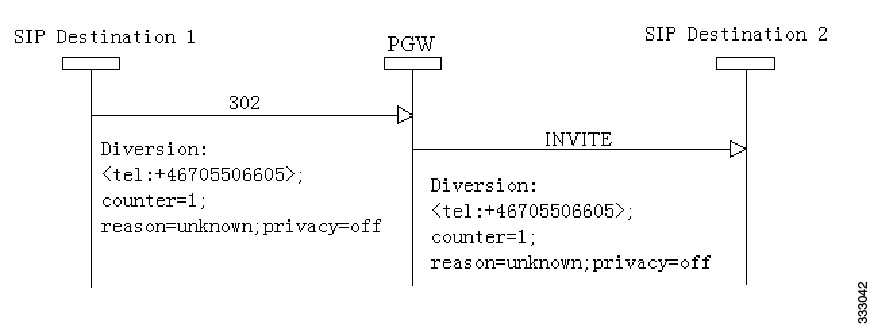

Figure 3 shows a sample call flow that illustrates how the Cisco PGW 2200 Softswitch receives 302 back from a SIP destination and sends an INVITE to a new SIP destination.
Figure 3 Sample Call Flow 3 for SIP-to-SIP Calls
•
•

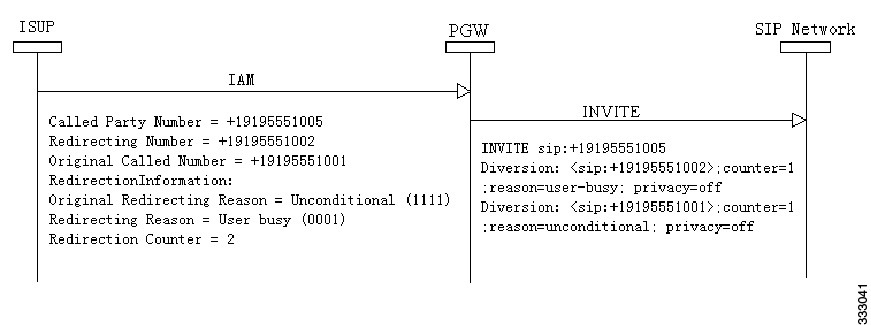

Figure 4 show a sample call flow illustrating an ISUP-to-SIP interoperation.
Figure 4 Sample Call Flow showing ISUP-to-SIP Interoperation
•
•
Benefits
This feature provides the following benefits:
•
•
Prerequisites
The Cisco PGW 2200 Softswitch must be running Cisco PGW 2200 Softswitch software Release 9.8(1). The prerequisites for this release of Cisco PGW 2200 Softswitch can be found in Release Notes for the Cisco PGW 2200 Softswitch Release 9.8(1) at:
http://www.cisco.com/en/US/docs/voice_ip_comm/pgw/9/release/note/rn981.html
Restrictions or Limitations
The Support for Tel URI in SIP Diversion Header feature has the following limitations:
The Cisco PGW 2200 Softswitch will relay all the information mentioned in this document to the outgoing SIP network. This does not cover the local processing of tel URI received in the diversion header.
Related Documents
This document contains information that is strictly related to this feature. Documents that contain additional information about the Cisco PGW 2200 Softswitch are available at:
http://www.cisco.com/en/US/products/hw/vcallcon/ps2027/tsd_products_support_series_home.html
Supported Standards, MIBs, and RFCs
This section identifies the new or modified standards, MIBs, and RFCs that are supported by this feature.
Standards
No new or modified standards are supported by this feature.
MIBs
No new or modified MIBs are supported by this feature.
For more information on the MIBs used in the Cisco PGW 2200 Softswitch, see Cisco PGW 2200 Softswitch MIBs at:
http://www.cisco.com/iam/PGW_MIBS/index.html
RFCs
No new or modified RFCs are supported by this feature.
Provisioning Examples
This section provides provisioning examples for this feature. Additional provisioning examples pertaining to the Cisco PGW 2200 Softswitch can be found in the Cisco PGW 2200 Softswitch Release 9.8 Provisioning Guide. Additional dial plan examples pertaining to the Cisco PGW 2200 Softswitch can be found in the Cisco PGW 2200 Softswitch Release 9.8 Dial Plan Guide.
