Cisco PGW 2200 Softswitch Nortel Release Link Trunk (RLT) Support Feature Module
Supported Standards, MIBs, and RFCs
Provisioning Specific Property to the Trunk Group
Provisioning the FACILITY Result Type
Software Changes for This Feature
Modified Result Type Definitions
Obtaining Documentation and Submitting a Service Request
Cisco PGW 2200 Softswitch Nortel Release Link Trunk (RLT) Support Feature Module
Document Release History
Feature History
9.8(1)
The Nortel Release Link Trunk (RLT) Support feature is introduced on the Cisco PGW 2200 Softswitch software.
This document describes the Nortel Release Link Trunk (RLT) Support feature. The feature is described in the following sections:•
Supported Standards, MIBs, and RFCs
•
•
Feature Description
The Nortel RLT Support feature extends the existing RLT mechanism on the Cisco PGW 2200 Softswitch. It enables the Cisco PGW 2200 Softswitch to release a call when it receives a SIP REFER message. With this feature, trunk facilities can be optimized because SS7 circuits are released after call bridging or redirection occurs. Cisco PGW 2200 Softswitch can interwork with the switches that are configured to accept RLT message sequences as following:
•
•
–
–
Note
For SIP interoperability, when a SIP BYE is received (for example, the called party terminates the call), Cisco PGW 2200 Softswitch sends out an ISUP REL message, even if an FAR message has been sent and no response (FAA or FRJ) has been received. Cisco PGW 2200 Softswitch releases the call if no response is received within 5 seconds.
The RLT behavior selection is based on the dial plan (A/B number analysis). It is not based on the trunk group. Calls from the same incoming SS7 trunk group might have different transfer behaviors.
Note

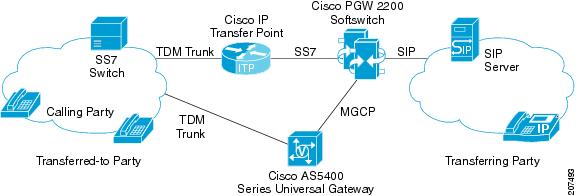

Figure 1 shows a typical deployment for this feature. In this deployment, the Cisco PGW 2200 Softswitch receives the SIP REFER message from the SIP server. It can interwork with the SS7 switch that is configured to handle RLT messages. The Cisco PGW 2200 Softswitch can send FAR to the switch and receive FAA or FRJ from the switch.
Figure 1 Typical Deployment for This Feature
Call Flows
This section provides call flows of basic RLT functionality scenarios.

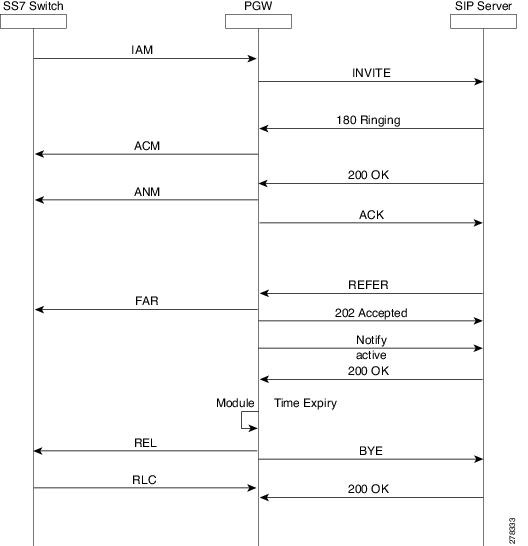

Figure 2 provides the call flow of the FAA received scenario.
Figure 2 Call Flow of FAA Received
Figure 3 provides the call flow of the FRJ received scenario. If the FAR message is rejected by the switch, Cisco PGW 2200 Softswitch clears the call by sending a REL message to the switch (cause code: Normal Call Clearing).
Figure 3 Call Flow of FRJ Received
Figure 4 provides the call flow of the no response received scenario. If the Cisco PGW 2200 Softswitch has not received any response when the timer expires, it sends a REL message (to the SS7 side) or a BYE message (to the SIP side) and releases the line.
Figure 4 Call Flow of No Response Received
RLT Messages
This section describes the messages that Cisco PGW 2200 Softswitch handles with the RLT functionality.
Facility Request Message
The Cisco PGW 2200 Softswitch sends an FAR message to the switch to request the activation of a facility. All parameters and fields of FAR message are hard-coded, except Calling and Called Party Number Length, Odd/Even indicator, and Address signals. After sending an FAR message, the Cisco PGW 2200 Softswitch waits for an FAA or FRJ response.
If both Calling Party Number and Charge Number are present in an IAM message, the Charge Number is used. Cisco PGW 2200 Softswitch sends it back in the Calling Party Number parameter of the FAR. If either number is present, that number is used as the Calling Party Number parameter in the FAR. If neither number is present, no Calling Party Number parameter is sent in the FAR.
The values of following Calling Party Number parameters of FAR are copied from either Charge Number or Calling Party Number:
•
•
•
Table 1 provides the definition of the FAR message.
Table 1 FAR Message Definition
Message Type
F1
1 byte
Identifies the type of ISUP message.
Facility Indicator
F
1 byte
Contains information that defines and controls RLT billing.
Called Party Number
O2
3-14 bytes
Contains the Called Party Number that arrives in the Refer-To header of SIP REFER message.
Calling Party Number
O
4-14 bytes
Contains the Calling Party Number that arrives in the initial IAM.
Operator Information
O
14 bytes
Contains information about the answering agent.
1 F = Fixed-length parameters (mandatory).
2 O = Fixed or variable length parameters (optional).
Table 2 provides an example of the FAR message that the Cisco PGW 2200 Softswitch sends out.
Facility Accept Message
The switch sends an FAA message to the Cisco PGW 2200 Softswitch in response to an FAR message. This message indicates that the switch has invoked the requested facility.
Table 3 provides the definition of the FAA message.
Table 3 FAA Message Definition
Message Type
F1
1 byte
Identifies the type of ISUP message.
Facility Indicator
F
1 byte
Contains information that defines and controls RLT billing.
Call Reference
O2
8 bytes
Contains circuit-independent information that identifies a particular call. Includes the call identity and the point code of the switch for the call.
Generic Digits
O
4-136 bytes
Contains information about a supplementary service in the form of digits. Defines the type of digits it contains and includes encoding method indicators.
1 F = Fixed-length parameters (mandatory).
2 O = Fixed or variable length parameters (optional).
Facility Reject Message
The switch sends an FRJ message forward to the Cisco PGW 2200 Softswitch in response to an FAR message. This message indicates that the switch could not perform the facility request.
Table 4 provides the definition of the FRJ message.
Table 4 FRJ Message Definition
Message Type
F1
1 byte
Identifies the type of ISUP message.
Facility Indicator
F
1 byte
Contains information that defines and controls RLT billing.
Cause Indicator
V2
3 bytes
Provides the coding standard, location, and cause value for the call. Indicates why a switch could not perform the action that an FAR message requested. Identifies the network that originated the message.
1 F = Fixed-length parameters (mandatory).
2 V = Variable-length parameters (mandatory).
Benefits
This feature provides the following benefits:
When it is determined that the preceding switch can be used to bridge the call to the destination,
•
•
Prerequisites
The Cisco PGW 2200 Softswitch must be running software Release 9.8(1). Prerequisites for this release can be found in Release Notes for the Cisco PGW 2200 Softswitch Release 9.8(1) at:
http://www.cisco.com/en/US/docs/voice_ip_comm/pgw/9/release/note/rn981.html
Restrictions or Limitations
The Nortel RLT Support feature has the following limitations:
•
•
•
Related Documents
This document contains information that is strictly related to this feature. The documents that contain additional information related to the Cisco PGW 2200 Softswitch can be found at:
http://www.cisco.com/en/US/products/hw/vcallcon/ps2027/tsd_products_support_series_home.html
Supported Standards, MIBs, and RFCs
This section identifies the new or modified standards, MIBs, and RFCs that are supported by this feature.
Standards
This feature uses the following standards as references:
•
MIBs
No new or modified MIBs are supported by this feature.
For more information on the MIBs used in the Cisco PGW 2200 Softswitch, see Cisco PGW 2200 Softswitch MIBs at:
http://www.cisco.com/iam/PGW_MIBS/index.html
RFCs
This feature is in compliance with the following RFC:
•
Provisioning Tasks
This section describes provisioning tasks for this feature.
To use this feature, you need to perform the following main tasks:
•
•
For the complete provisioning examples, see the "Provisioning Examples" section.
Provisioning Trunk Groups
Use the following Man-Machine Language (MML) commands to provision trunk groups of different types:
•
prov-add:trnkgrp:name="1000",clli="sip-path",svc="sip-path",type="IP_SIP", selseq="LIDL",qable="N"•
prov-add:trnkgrp:name="3000",type="TDM_ISUP",svc="ss7svc1",selseq="CASC",qable="N"Provisioning Specific Property to the Trunk Group
The RltPrefixLength property is specific to the Nortel RLT functionality. It specifies the number of prefix digits to be removed from the RLT redirection number. The redirection number is got from Refer-To header of the SIP REFER message. After prefix removal, the new redirection number is sent in called party number parameter of FAR message to ISUP side.
Use the following command to configure the trunk group property RltPrefixLength:
prov-ed:trnkgrpprop:name="3000",rltprefixlength="5"Provisioning the FACILITY Result Type
To enable RLT functionality, use the following MML command to provision the FACILITY result type:
numan-add:resulttable:custgrpid="T002",name="fac-1",resulttype="FACILITY",dw1="3",dw2="7", setname="rs-CSPS-1"Provisioning Examples
This section provides a provisioning example for this feature. Additional provisioning examples for the Cisco PGW 2200 Softswitch can be found in Cisco PGW 2200 Softswitch Release 9.8 Provisioning Guide. Additional dial plan examples for the Cisco PGW 2200 Softswitch can be found in Cisco PGW 2200 Softswitch Release 9.8 Dial Plan Guide.
________________________________________; Start a New Provisioning Session;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;prov-sta::srcver="new",dstver="rlt-prov"________________________________________; Add a new dialplan named "T002";;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;numan-add:dialplan:custgrpid="T002",overdec="YES"________________________________________; Add OPC, DPC, and External Nodes (ITP);;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;prov-add:opc:name="opc1",desc="Own Point code",netaddr="1.1.1",netind=2,type="trueopc"prov-add:dpc:name="dpc1",desc="M3UA",netaddr="1.4.4",netind=2prov-add:extnode:name="sh-2651-322",desc="sh-2651-322",type="ITP",isdnsigtype="N/A", group=1prov-add:sgp:name="m3ua-sgp1",extnode="sh-2651-322"________________________________________;Add an SS7 Signaling Path;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;prov-add:m3uaroute:name="m3uarte1",desc="m3uarte1",opc="opc1",dpc="dpc1", extnode="sh-2651-322",PRI=1prov-add:m3uakey:name="m3uakey1",desc="m3uakey1",opc="opc1",dpc="dpc1",routingcontext=12, si="ISUP",networkappearance=1prov-add:ss7path:name="ss7svc1",desc="To Other Side PGW SS7", mdo="ANSISS7_STANDARD",custgrpid="T002",side="network",dpc="dpc1",m3uakey="m3uakey1"prov-add:association:name="m3ua-assoc1",sgp="m3ua-sgp1",type="M3UA",ipaddr1="IP_Addr1", port=2905,peeraddr1="10.0.90.23",peerport=2905,rcvwin=18000,maxinitretrans=10, maxinitrto=2000,maxretrans=5,cumsackto=300,bundleto=100,minrto=300,maxrto=3000,hbto=2000, ipprecedence="ROUTINE",dscp="AF31",maxretransdest=3________________________________________; Add an External Node (AS5400);;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;prov-add:extnode:name="sh-5400-308",desc="sh-5400-308",type="AS5400",isdnsigtype="N/A", group=0prov-add:mgcppath:name="mgcp5400-308",desc="Service to sh-5400-308",extnode="sh-5400-308"prov-add:iplnk:name="iplink5400-308-1",desc="MGCP link-1 to AS-5400-308", svc="mgcp5400-308",ipaddr="IP_Addr1",port=2427,peeraddr="10.0.94.9",peerport=2427,pri=1________________________________________; Add an SS7 Trunk Group;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;prov-add:trnkgrp:name="3000",type="TDM_ISUP",svc="ss7svc1",selseq="CASC",qable="N"________________________________________; Provision the Trunk Group Property rltprefixlength;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;prov-ed:trnkgrpprop:name="3000",rltprefixlength="5"________________________________________; Add Trunks and Route List;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;prov-add:switchtrnk:name="1",trnkgrpnum="3000",span="ffff",cic=1,cu="sh-5400-308", endpoint="s7/ds1-6/1@sh-5400-308.cisco.com",spansize=31prov-add:rttrnkgrp:name="3000",type=1prov-add:rttrnk:weightedTG="OFF",name="RT-OTHER-PGW-SS7",trnkgrpnum=3000prov-add:rtlist:name="RTLIST-OTHER-PGW-SS7",rtname="RT-OTHER-PGW-SS7",distrib="OFF"________________________________________; Add a SIP Signaling Path;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;prov-add:sippath:name="sip-path",desc="SIP path",mdo="IETF_SIP"prov-add:siplnk:name="sip-link",desc="SIP link",svc="sip-path",ipaddr="Virtual_IP_Addr1", port=5060,pri=1prov-add:trnkgrp:name="0001",clli="sipin-path",svc="sip-path",type="SIP_IN",selseq="LIDL", qable="N",default=1prov-add:profile:name="pf-1",type="SIPPROFILE",custgrpid="T002",mgcdomain="10.0.242.133"prov-add:trnkgrpprof:name="1",profile="pf-1"________________________________________; Add SIP Trunk Groups;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;prov-add:trnkgrp:name="1000",clli="sip-path",svc="sip-path",type="IP_SIP",selseq="LIDL", qable="N"prov-ed:trnkgrpprop:name="1000",custgrpid="T002",MGCdomain="10.0.242.133"prov-add:siprttrnkgrp:name="1000",url="10.0.1.233",srvrr=0,sipproxyport=5060, version="2.0",cutthrough=1,extsupport=1prov-add:rttrnk:weightedTG="OFF",name="rt1000",trnkgrpnum=1000prov-add:rtlist:name="rtlist1000",rtname="rt1000",distrib="OFF"________________________________________; Dial plan routing to SS7 side;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;numan-add:resultset:custgrpid="T002",name="rs-ss7-pgw"numan-add:resulttable:custgrpid="T002",setname="rs-ss7-pgw",name="cut30", resulttype="BMODDIG",dw1="1",dw2="2"numan-add:resulttable:custgrpid="T002",name="route-ss7-pgw",resulttype="ROUTE", dw1="RTLIST-OTHER-PGW-SS7",setname="rs-ss7-pgw"numan-add:bdigtree:custgrpid="T002",callside="originating",digitstring="30", setname="rs-ss7-pgw"________________________________________; Dial plan routing to SIP side;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;numan-add:resultset:custgrpid="T002",name="rs-CSPS-1"numan-add:resulttable:custgrpid="T002",name="fac-1",resulttype="FACILITY",dw1="3",dw2="7", setname="rs-CSPS-1"numan-add:resulttable:custgrpid="T002",setname="rs-CSPS-1",name="cut10", resulttype="BMODDIG",dw1="1",dw2="2"numan-add:resulttable:custgrpid="T002",name="route",resulttype="ROUTE",dw1="rtlist1000", setname="rs-CSPS-1"numan-add:bdigtree:custgrpid="T002",callside="originating",digitstring="10", setname="rs-CSPS-1"________________________________________; Save the Provisioning Session;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;prov-dplySoftware Changes for This Feature
The following sections contain software changes related to this feature:
Properties
This section describes new and modified properties for this feature. For more information on the other properties, see Cisco PGW 2200 Softswitch Release 9 MML Command Reference.
New Properties
Table 5 describes the new properties for this feature.
Result Type Definitions
This section describes the new and modified result types for this feature. For information on other result types, see Cisco PGW 2200 Softswitch Release 9.8 Dial Plan Guide.
Modified Result Type Definitions
Table 6 describes the modified result types for this feature.
The following paragraphs contain definitions of the result type listed in Table 6.
FACILITY
The FACILITY result type is modified for this feature. A new value 7 for Dataword2 is introduced. You must use the dw1=3 and dw2=7 combinations to enable RLT function on the Cisco PGW 2200 Softswitch. For other data words combinations and their usages, see Cisco PGW 2200 Softswitch Release 9.8 Dial Plan Guide.
The Nortel RLT Support feature introduces the following new data word value:
•
Note
Troubleshooting the Feature
This section provides the troubleshooting solutions for this feature.
•
Step 1
Check the FACILITY result type.
Ensure that you have provisioned the result type FACILITY for the dial plan. The dw1=3 and dw2=7 combination of FACILITY result type enables RLT function on the Cisco PGW 2200 Softswitch.
For result type details, see the "Result Type Definitions" section.
Step 2
Check the ANSISS7_STANDARD variant.
Ensure that you have provisioned the ANSISS7_STANDARD variant for SS7 signaling path. For MML command details, see the "Provisioning Examples" section.
