This chapter describes the Cisco PGW 2200 Softswitch billing interface capabilities and its call detail records (CDRs). It contains the following sections:
The generic interface to the CDR dumper interface carries all the billing information in the form of call detail blocks (CDBs). When the CDR dumper receives the CDB, it writes the record in the CDR file.
CDB generation is based on a point in call (PIC). The Cisco PGW 2200 Softswitch predefines several PICs that can trigger the generation of CDBs. Examples of PICs include Answered, Long Duration, and Released. For example, the Cisco PGW 2200 Softswitch triggers the generation of the Answered CDB when an Answer message (ANM for SS7) is received.
Each CDB has a type associated with it that distinguishes the PIC.
CDB-required events that are triggered are passed to the CDR manager module. When an event is received, the action the CDR manager module takes is determined by its configuration. The CDR manager module either handles or ignores the event.
System Interfaces
System interfaces vary according to the configuration. The configuration can be either dual Cisco PGW 2200 Softswitch (hot-standby) or standalone. The physical interface is described in the following section.
Physical Interface
The physical interface between the Cisco PGW 2200 Softswitch and the mediation software (for example, Billing and Measurements Server (BAMS)) relies on guaranteed delivery of the CDB information between both Cisco PGW 2200 Softswitches. The interface consists of dual Ethernet links. Each link is physically isolated for redundancy.
RADIUS Interface
The RADIUS Enhancement for Accounting feature provides RADIUS interface support on the PGW 2200 for CDR data. For more information about the feature, including new CDRs, refer to theRADIUS Enhancement for Accounting feature guide.
Message Interface
The CDB message interface is a one-way interface to the CDR dumper. The CDR dumper saves the CDB message into the CDR files without any conversion or data manipulation. The CDR files can be retrieved by a mediation system, for example, a Cisco Billing and Measurements Server (BAMS). The mediation system can convert the CDR data into ASCII files, which can be forwarded to an external billing system for further processing.
Note Follow your local procedures for managing files created by the Cisco PGW 2200 Softswitch billing process, including archiving and deleting files from your system.
CDB Message Format
The format of CDB messages being sent to the CDR dumper is based on a binary, tag-length-value (TLV) format. Each field within the CDB message has a tag, length, and value.
Figure 1-1 shows how the CDB record itself is also in TLV format, with the value part composed of multiple sub-TLVs. For performance reasons, the first few fields (tags) of the value portion of the CDB exist in a fixed order for every message. These fields are the Unique Call Correlator ID (Tag 5000), CDB Version (Tag 4000), and CDB Timepoint (Tag 4001).
Note These three fields are fixed so that the CDR dumper can have direct access to these fields without having to parse or search through all the CDB message TLV fields.
As shown in Figure 1-1, the first tag in the CDB record identifies the CDB message type. The length indicates the length of the entire message, excluding 4 bytes (2 bytes for the message tag and 2 bytes for the length).
Figure 1-1 CDB TLV Record Format
The CDB message has both mandatory fields and optional fields. The following fields are mandatory in each CDB message.
•Unique Call Correlator ID
•Version
•CDB Timestamp
All other fields in the CDB message are considered optional. The optional fields do not appear in any sort of predefined order. The TLV format allows the application to be insensitive to the order of the message data. For example, in a 1010 Answer CDB message, the Call Reference ID tag (4002) could appear as the first optional field, whereas in another CDB message, such as 1040 Release, the Call Reference ID tag could appear as the last optional field.
Note The mandatory fields exist in each CDB message, with their associated values and locations. The optional fields can have no value. To improve performance, optional fields with no value are not included in the CDB message.
Tag Values
As shown in Figure 1-2, the tags are divided into categories. The first tag category is assigned to the CDB message ID(s), the second category is assigned to CDB format fields, and the third category is assigned to miscellaneous usage.
Each category is divided into two or more sections. One section is the MGC range, and another section is the customer-defined range. Customer-defined ranges (for each category) can be used to further process the CDB records as required by the customer.
For example, in Figure 1-2, an MGC message ID range defined by a customer (1900 through 1999) can be used for generating customer-specific CDB auditing records. The auditing records can be for beginning and ending the CDR file. You can use values in the customer-defined range of the field category (5900 through 5999) to define new fields in the CDB auditing records.

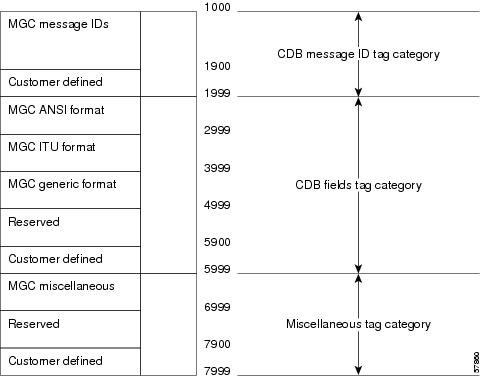

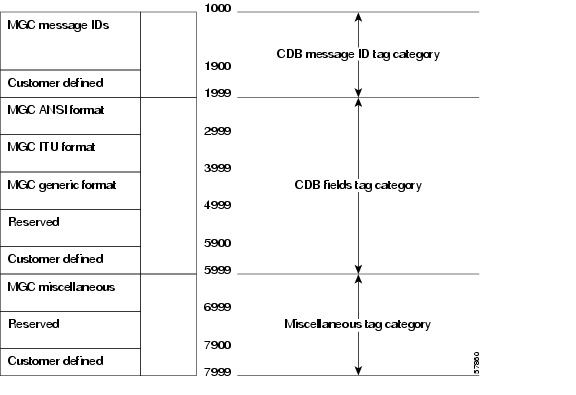

Figure 1-2 CDB Tag Categories
Formats and Codes
The CDB message tag and the length fields are binary encoded using big-endian (BE). The tag field holds the value to identify the CDB field, and the length field holds the number of octets (length) of the CDB field.
Note The length indicator value does not include the field tag octets (2 octets) or the length indicator octets (2 octets).
The CDB field value is encoded as specified BE, International Alphabet No. 5 (IA5), ANSI T1.113, or ITU Q.763).
CDB Record Types
This section describes different types of CDBs and their relation to PIC events. Creation of the CDB is based on certain PIC events (refer to Table 1-1), and other call events.
Table 1-1 CDB Types
PIC Event
Description
CDB Tag Value
CDB Message Record
Answer call event
Call went through and was answered.
1010
Set CDB record
Deselected outgoing circuit event
Circuit cannot be used, passed to another.
1020
Deselected outgoing circuit CDB record
Aborted attempt call event
Call did not progress to setup status.
1030
Aborted attempt CDB record
Release call event
Released call.
1040
Release CDB record
Interrupted call event
Call terminating without release message.
1050
Interrupted CDB record
Ongoing call event
Long call.
1060
Ongoing call CDB record
Maintenance CDB record
Circuit maintenance.
1070
Maintenance CDB record
SS7 CIC audit
This CDB is generated for the following conditions:
•When the MML command sta-aud-cic is used to generate the current CIC availability information on each configured ISUP trunk group or signaling service.
•A provisioning change (add or delete) is made in the number of circuits.
•A CIC service state or block-state change occurs.
1071
SS7 CIC Audit CDB record
External access CDB
Call sent a query to a Service Control Point (SCP) (or to another external device or database).
1080
External access CDB record
File header CDB
CDR dumper creates the file header CDB at the beginning of each CDR file.
1090
File header CDB record
File footer CDB
CDR dumper creates the file footer CDB at the end of each CDR file.
1100
File footer CDB record
End of a call CDB
This CDB is generated when the Cisco PGW 2200 Softswitch is configured to have one CDB per call.
The CDB is generated at the end of the call (as in Release CDB) or when the call did not progress to setup status (as in Aborted attempt CDB).
Note If the Cisco PGW 2200 Softswitch is configured for 1110 output, the 1010, 1030, and 1040 CDBs must not be configured for inclusion in the output billing files.
1110
End of a Call CDB
Half call slave release event CDB
This CDB is generated at the end-of-call, or for a call that did not progress to setup status, for a noncontrolling slave half-call instance.
1210
Slave End of a Call CDB
Half call slave ongoing call event CDB
This CDB is generated for a noncontrolling slave half-call instance when the call instance remains active beyond a preconfigured time.
1260
Slave Long Duration Call CDB
Call Data Block Descriptions
The CDB consists of several call data elements (CDEs) that are related to a certain PIC. Each CDE has a tag, a length, and a value. Table 1-2 lists the CDE fields in a CDB.
Table 1-2 CDB Call Data Element Fields for Current Release
To initialize the database that stores call screening information, modify the SysConnectDataAccess parameter in the "Engine" section of the XECfgParm.dat file. For parameter modification, enter
Note Making changes to the XECfgParm.dat file requires the system software to be stopped, the parameter value changed, and the software restarted. Contact Cisco TAC before stopping the system software.
To enable or disable the A-number and B-number analysis in the call screening database, enter one of the following values:
•If you do not have the database environment set with all the required data populated, set this value to false (default).
•If you have the database and want the system to access it, set this value to true.
Configuring Call Detail Record File Output
To configure the call detail record (CDR) file output, modify the following parameters in the "Data Dumper" and "Engine" sections of the XECfgParm.dat file.
Parameter modification: engine.CDRencodingFormat
To specify the CDR file-encoding format, enter one of the following values:
•AnsiCDB—North American (default)
•ItuCDB—European
Parameter modification: engine.CDRtimeStamp
To specify the CDR file timestamp unit, enter one of the following values:
•S—Seconds (default).
•M—Milliseconds; use this parameter if your configuration uses TCAP.
Note If you use 1110 in the engine.CDRmessageTypes parameter (for TCAP), you must specify milliseconds for the CDRtimeStamp value.
Note The timestamp value is in Coordinated Universal Time (UTC). Previously the term used was Greenwich Mean Time (GMT).
Configuring CDR Message Types
To specify which CDBs (statistics taken at various points in a call) are recorded during a call, modify the following parameter.
Parameter modification: engine.CDRmessageTypes
To specify which CDBs are recorded, enter one of the following sets of values (each number represents a point in a call):
•1010, 1020, 1030, 1040, 1050, 1060, 1070, 1080—Use this set of values if your CDR files are used by a measurement server or by another CDR reader.
•1060, 1110—Use this set of values if the end-of-call record is desired.
•1071—Use this set of values for BAMS measurements.
Enabling Call Screening
To initialize the database that stores call-screening information, modify the following parameter.
To enable or disable the A-number and B-number analysis in the call screening database, enter one of the following values:
•If you do not have the database environment set with all the required data populated, set this value to false (default).
•If you have the database and want the system to access it, set this value to true.
Configuring CDR File Output
To configure the CDR file output, modify the parameters shown in Table 1-3 in the Data Dumper and Engine sections of the XECfgParm.dat file.
Table 1-3 Call Detail Record File Output Parameters
Parameter
Modification
engine.CDRencodingFormat
To specify the CDR file encoding format, enter one of the following values:
•AnsiCDB—North American (default)
•ItuCDB—European
engine.CDRmessageTypes
To specify which CDBs (statistics taken at various points in a call) are recorded during a call, enter one of the following sets of values (each number represents a point in a call):
•1010, 1020, 1030, 1040, 1050, 1060, 1070, 1080—Use this set of values if your CDR files are to be read by a measurement server or another CDR reader.
•1060, 1110—Use this set of values if the end-of-call record is desired.
•1071—Use this set of values for BAMS measurements.
engine.CDRtimeStamp
To specify the CDR file time-stamp unit, enter one of the following values:
•S—Seconds (default).
•M—Milliseconds; use this parameter if your configuration uses TCAP or BAMS.
Note If you are using BAMS or 1110 in the engine.CDRmessageTypes parameter (for TCAP), you must specify milliseconds (M) for the CDRtimeStamp value.
cdrDmpr.openCDR
To indicate whether the standard data dumper writes out CDR files, enter one of the following values:
•true—Standard data dumper opens a CDR file and logs CDBs.
•false—Standard data dumper does not open a CDR file and does not log CDBs.
cdrDmpr.seqFile
Indicate the location of the file for storing or retrieving the CDR sequence number (range is 1 to 999999).
Default: ../var/.cdr.seq
CDE Descriptions
This section describes the current CDB CDEs. The CDEs are divided into three tables (ANSI, ITU, and generic format). The ANSI-formatted fields (typically used in North American networks) are based on ANSI T1.113.1995. The ITU-formatted fields (typically used in European networks) are based on ITU-Q.763.
The generic format provides common CDEs with one encoding scheme. The generic format is used to handle different protocol variants. Table 1-4 defines all the fields that can exist in any given CDB and gives the associated tag and type for each one.
Note In Table 1-4, Y = Yes, the field exists in the CDB; N = No, the field does not exist in the CDB.
Table 1-4 CDE Detail Description for the Current Release
1This field is used only in the File Header CDB and File Footer CDB. These CDBs are not optional and are generated by the CDR dumper for each CDR file.
Cisco PGW 2200 Softswitch Billing Interfaces
There are two billing interfaces provided by the Cisco PGW 2200 Softswitch. They are
•File Transfer Protocol (FTP) interface
•Generic interface
FTP and SFTP Support
The Cisco PGW 2200 Softswitch (Release 9.7 and later) and BAMS 3.30 run on Solaris 10, which supports both file transfer protocol (FTP) and Secure FTP (SFTP). You can use FTP or SFTP to transfer CDR files from the spool directory in order to use them on a separate system, such as a mediation or data collection system. For security purposes, you can restrict FTP access by establishing user privileges.
The data collection and mediation systems can use this interface by periodically downloading the files. Each CDR file provides a sequence number and a timestamp for the creation of the file. The data collection system or the mediation system can use this information to determine the file to download.
The Cisco PGW 2200 Softswitch has several configuration parameters to write the CDR file. The following are the configuration parameters:
•The prefix in the file name (CDR_YYYYMMDDHHMMSS_SeqNo), where SeqNo is a sequence number in the format (000001 to 999999)
•Spool directory
•Frequent creation of the file
The purpose of the sequence number is to provide an audit capability to the data collection system or mediation software. The sequence number is unique and ranges from 1 to 999999. If the Cisco PGW 2200 Softswitch fails or restarts, it uses the next sequence number (the last sequence number + 1). When the sequence number reaches 999999, the sequence restarts at 1.
Generic Interface
The Cisco PGW 2200 Softswitch defines a generic or flexible billing interface. This is an internal interface between the call processing module and the CDR dumper in the Cisco PGW 2200 Softswitch. You cannot modify this interface.
This interface provides a CDB data stream for the CDR dumper. The generic interface is based on the flexible CDB record layout. The record layout uses a TLV encoding mechanism. The detail messages (that is, CDBs) are explained later in this document.
Redundant Cisco PGW 2200 Softswitch Configuration
In a redundant Cisco PGW 2200 Softswitch configuration, the active Cisco PGW 2200 Softswitch creates checkpoint records that synchronize it with the standby Cisco PGW 2200 Softswitch. The standby Cisco PGW 2200 Softswitch creates call objects with appropriate states to allow continued call processing after switchover occurs. When the standby Cisco PGW 2200 Softswitch becomes active, it starts synchronizing with end offices (circuit audit). Each Cisco 2600 buffers messages while failover occurs.
Billing under a redundant configuration is basically limited to the following: The active Cisco PGW 2200 Softswitch generates the CDBs, and the standby Cisco PGW 2200 Softswitch does not. When failover occurs, the now active Cisco PGW 2200 Softswitch generates the CDBs.
If a call was stable during the failover, the newly active Cisco PGW 2200 Softswitch eventually generates an end-of-call CDB (Release CDB or possibly an Interrupted CDB) for each call. The CDBs generated by the previous standby Cisco PGW 2200 Softswitch include the same unique call IDs. The mediation software requires correlating the CDB records from both systems. For both systems to be properly correlated, the two Cisco PGW 2200 Softswitch clocks must be synchronized with each other.
Cisco PGW 2200 Softswitch Clock Synchronization
The Cisco PGW 2200 Softswitch uses Network Time Protocol (NTP) to synchronize its time to another server or time source. For example, the NTP provides client accuracy that is typically within 1 millisecond on LANs and up to a few tenths of a second on WANs relative to a primary server synchronized to UTC by a Global Positioning System (GPS) receiver. To achieve high accuracy and reliability, typical NTP configurations use multiple redundant servers and diverse network paths. Some configurations include cryptographic authentication to prevent accidents or malicious protocol attacks.
Note RFC 1305 provides information on the NTP architecture, protocol, and algorithm.
Detailed CDB Descriptions
This section contains the distinct record layouts for the CDBs. Because each type of CDB is for a different part of a call, the Cisco PGW 2200 Softswitch provides the related CDEs that are needed.
The CDE includes only fields that have values. The layout varies based on the Cisco PGW 2200 Softswitch configuration. For example, if the Cisco PGW 2200 Softswitch is configured with a protocol that does not support a specific CDE, the CDB record does not include that particular CDE.
The following CDB records are listed in this section:
Answered CDB Record (Tag: 1010/Release 5 and Later)
Table 1-5 lists data about the answered message. This CDB is generated when a call went through and was answered (when the Cisco PGW 2200 Softswitch received an ANM/Answered message).
When configured for seconds timepoint (Release 7 and later option)
ACM Timepoint
4004
When configured for seconds timepoint (Release 7 and later option)
ANM Timepoint
4005
When configured for seconds timepoint (Release 7 and later option)
Originating Trunk Group
4008
Originating Member
4009
Calling Number
4010
Charged Number
4011
Dialed Number
4012
LRN Number
4013
Called Number
4014
Terminating Trunk Group
4015
Terminating Member
4016
Last SAM Timepoint (Second)
4021
Release 9.8(1)
LNP Dip
4029
MGC Info Field
4031
Disabled as of Release 7.3.x, 7.4.x
Ingress Originating Point Code
4034
Ingress Destination Point Code
4035
Egress Originating Point Code
4036
Egress Destination Point Code
4037
Ingress Media Gateway (CU)
4038
Ingress Media Gateway ID
Egress Media Gateway (CU)
4039
Egress Media Gateway ID
TCAP Transaction Identification
4040
Transaction Start Time
4041
Transaction End Time
4042
TCAP Database Identification
4043
Route Selection Info
4045
Directional Flag
4048
Inbound Trunk Profile
4051
Release 9.8(1) and later
Originating Gateway Primary Select
4052
Release 9.8(1) and later
Terminating Gateway Primary Select
4053
Release 9.8(1) and later
Egress Domain Profile
4054
Release 9.8(1) and later
Call Policy
4055
Release 9.8(1) and later
SIP Terminating Call ID
4056
Release 9.7, 9.8(1) and later
Egress Trunk Profile
4057
Release 9.8(1) and later
Ingress Domain Profile
4058
Release 9.8(1) and later
Display Name
4059
Release 9.8(1) and later
Redirecting Number
4060
Number or address from which redirected
Test Line Indicator
4063
Ingress SigPath ID
4066
Ingress Span ID
4067
Ingress BearChan ID
4068
Ingress ProtocolId
4069
Egress SigPath ID
4070
Egress Span ID
4071
Egress BearChan ID
4072
Egress ProtocolId
4073
Original Called Number
4080
Release 9.3(1) and later
Charge Indicator
4083
Release 9.5(2) and later
Outgoing Calling Party Number
4084
Release 9.5(2) and later
MCID Request Indicator
4085
Release 9.5(2) and later
MCID Response Indicator
4086
Release 9.5(2) and later
Network Translated Address Indicator
4089
Release 9.5(2) and later
Reservation Request Accepted
4090
Release 9.5(2) and later
Reservation Request Lost Count
4091
Release 9.5(2) and later
ATM Ingress Configured Profile
4092
Release 9.5(2) and later
ATM Egress Configured Profile
4093
Release 9.5(2) and later
ATM Negotiated Profile
4094
Release 9.5(2) and later
Route List Name
4095
Release 9.5(2) and later
Route Name
4096
Release 9.5(2) and later
MGCP Script Response String
4097
Release 9.5(2) and later
Ingress Media Gateway Pool ID
4110
Release 9.8(1) and later
Egress Media Gateway Pool ID
4111
Release 9.8(1) and later
Originating P-Charging-Function-Addresses Header
4114
Release 9.8(1) and later
Terminating P-Charging-Function-Addresses Header
4115
Release 9.8(1) and later
Originating P-Charging-Vector orig-IOI
4116
Release 9.8(1) and later
Originating P-Charging-Vector term-IOI
4117
Release 9.8(1) and later
Terminating P-Charging-Vector orig-IOI
4118
Release 9.8(1) and later
Terminating P-Charging-Vector term-IOI
4119
Release 9.8(1) and later
Originating P-Charging-Vector ICID-value
4120
Release 9.8(1) and later
Terminating P-Charging-Vector ICID-value
4121
Release 9.8(1) and later
Ingress Originating P-Access-Network-Info Header
4122
Release 9.8(1) and later
Egress Originating P-Access-Network-Info Header
4123
Release 9.8(1) and later
Ingress Terminating P-Access-Network-Info Header
4124
Release 9.8(1) and later
Egress Terminating P-Access-Network-Info Header
4125
Release 9.8(1) and later
Originating Remote SIP Host
4201
Release 9 and later (Named as Ingress SIP URL in versions prior to the Release 9.7(3))
Originating Local SIP Host
4202
Release 9 and later (Named as Egress SIP URL in versions prior to the Release 9.7(3))
SIP Originating Call ID
4203
Release 9 and later.
The name of this CDR was changed from SIP Call ID to SIP Originating Call ID in Release 9.7, 9.8(1) and later.
Source IP Address
4204
Release 9.4(1) and later
Ingress Media Device Address
4205
Release 9.4(1) and later
Egress Media Device Address
4206
Release 9.4(1) and later
Initial Codec
4207
Release 9.4(1) and later
Final Codec
4208
Release 9.4(1) and later
Ingress Media Device Port
4209
Release 9.4(1) and later
Egress Media Device Port
4210
Release 9.4(1) and later
Originating VPN ID
4211
Release 9.4(1) and later
Terminating VPN ID
4212
Release 9.4(1) and later
Partial Calling Line Identity
4220
Release 9.5(2) and later
H323 Destination
4236
Release 9.7 and later
Ingress Redirecting Number
4237
Added in a Release 9.5(2) patch
CNAM DIP
4240
Release 9.7 and later
Calling Party Name
4241
Release 9.7 and later
Terminating Remote SIP Host
4242
Release 9.7 and later
Terminating Local SIP Host
4243
Release 9.7 and later
SIP Ingress Transport
4246
Release 9.7 and later. The name of this tag was changed from SIP Transport to SIP Ingress Transport in Release 9.8(1).
SIP Routing URI Source
4247
Release 9.7 and later
SIP Routing URI
4248
Release 9.7 and later
Original Source Header
4249
Release 9.8(1) and later
Original Source URI
4250
Release 9.8(1) and later
Final Destination URI
4251
Release 9.8(1) and later
Non-E.164 Destination Route Select Failure
4251
Release 9.8(1) and later
Domain Screening Failure URI
4253
Release 9.8(1) and later
SIP Egress Transport
4254
Release 9.8(1) and later
SIP Final Source URI
4255
Release 9.8(1) and later
Millisecond Granularity Timepoint Fields
Last SAM Timepoint (MilliSecond)
4022
Release 9.8(1) and later
IAM Timepoint Received_ms
4100
IAM Timepoint Sent_ms
4101
ACM Timepoint Received_ms
4102
ACM Timepoint Sent_ms
4103
ANM Timepoint Received_ms
4104
ANM Timepoint Sent_ms
4105
Cisco Reserved Tags
Unique Call Correlator ID (Release 9 and later)
5000
1When configured for ANSI-based formatted fields (Release 7 and later option)
2When configured for ITU-based formatted fields (Release 7 and later option)
Deselected Outgoing Circuit CDB Record (Tag: 1020/Release 5 and Later)
Table 1-6 lists data about the deselected outgoing circuit. CDB Tag 1020 is generated when a circuit is attempted to be used and for some reason the circuit can not be used. The call is then passed to another circuit to complete the call.
1When configured for ANSI encoding (Release 7 and later)
2When configured for ITU encoding (Release 7 and later)
3When configured for milliseconds (Release 7 and later)
Aborted Attempt CDB Record (Tag: 1030/Release 5 and Later)
Table 1-7 lists data about the aborted attempt. CDB Tag 1030 is generated for an attempted call that did not progress to Setup status. That is a call that did not get answered.
1When configured for ANSI-based encoding (Release 7 and later)
2When configured for ITU encoding (Release 7 and later)
3When configured for milliseconds granularity for timepoints fields
Release CDB Record (Tag: 1040/Release 5 and Later)
Table 1-8 lists data about the release CDB. CDB Tag 1040 is generated when the terminating CDB on a call that went through and was answered and then released.
1When configured for ITU encoding (Release 7 and later)
2When configured for ITU encoding (Release 7 and later)
3When configured for ITU encoding (Release 7 and later)
Interrupted CDB Record (Tag: 1050/Release 5 and Later)
Table 1-9 lists data about the interrupted CDB. CDB Tag 1050 is created when a call is terminated without a Release message. This happens, for example, in hot standby configuration with dual Cisco PGW 2200 Softswitches; when failover occurs and the newly active Cisco PGW 2200 Softswitch discovers that a call is no longer active, it terminates the call without a Release message. (The release message probably arrived and was lost during the failover window.)
Table 1-9 Interrupt CDB Record
Field Name
Tag Value
Comments
Cisco PGW 2200 Softswitch Generic Tags
CDB Version
4000
CDB Timepoint
4001
Call Reference ID
4002
Crash Timepoint
4007
Cisco Reserved Tags
Unique Call Correlator ID (Release 9 and later)
5000
On-Going (Call) CDB Record (Tag: 1060/Release 5 and Later)
The On-going Call CDB (or Long-Call CDB) indicates that a call is still active after the expiration of the time span defined in the XECfgParm.dat parameter *.LongCallTime. This CDB is generated again each time the period defined in *.LongCallTime elapses while the call is active. For example, if *.LongCallTime is set to its default value, 21600000 ms, which is equal to 6 hours, a 1060 CDB is generated every 6 hours until the call is terminated.
Note When the Cisco PGW 2200 Softswitch is configured to create only the 1110 CDB (End-of-Call Summary) and this CDB, all of the relevant 1060 tags are present and populated. This is because the 1060 CDB might be the first CDB that is written for a call, if the call has been active for the long-call period. In this case, the 1060 CDB contains the full set of populated tags. However, when the Cisco PGW 2200 Softswitch is configured to generate event-based CDBs (such as 1010, 1020, 1030, 1040, 1050, 1060, 1070, and 1080) the 1060 CDB can contain only a subset of tags: 5000, 4000-4002, 4213, and 4214. This occurs because the other event-based CDBs contain the tag information, since they are associated with specific events. Therefore, in this instance the 1060 CDB does not contain this redundant data, because that would be outside the primary purpose of this CDB.
Table 1-10 lists data about the ongoing (Call) CDB.
Note In Release 7 and later, the long duration includes more fields than it does in Release 5. The extra fields are marked Release 7 and later.
Table 1-10 On-going CDB Record
Field Name
Tag Value
Comments
ANSI-Specific Tags
Egress Calling Number NOA
2018
Added in a Release 9.5(2) patch. Present only when 1110 is configured. Not recorded for point-in-call mode.
Egress Redirecting Number NOA
2019
Added in a Release 9.5(2) patch. Present only when 1110 is configured. Not recorded for point-in-call mode.
Egress Original Called Number NOA
2020
Added in a Release 9.5(2) patch. Present only when 1110 is configured. Not recorded for point-in-call mode.
ITU-Specific Tags
Egress Calling Number NOA
3018
Added in a Release 9.5(2) patch. Present only when 1110 is configured. Not recorded for point-in-call mode.
Egress Redirecting Number NOA
3019
Added in a Release 9.5(2) patch. Present only when 1110 is configured. Not recorded for point-in-call mode.
Egress Original Called Number NOA
3020
Added in a Release 9.5(2) patch. Present only when 1110 is configured. Not recorded for point-in-call mode.
MGC Generic Tags
CDB Version
4000
Always present and populated in 1060.
CDB Timepoint
4001
Always present and populated in 1060.
Call Reference ID
4002
Always present and populated in 1060.
IAM Timepoint
4003
Optional. Present only when 1110 is configured and if system is configured for seconds timepoint.
ACM Timepoint
4004
Optional. Present only when 1110 is configured and if system is configured for seconds timepoint.
ANM/Answer Timepoint
4005
Optional. Present only when 1110 is configured and if system is configured for seconds timepoint.
Originating Trunk Group
4008
Optional. Present only when 1110 is configured.
Originating Member
4009
Optional. Present only when 1110 is configured.
Calling Number
4010
Optional. Present only when 1110 is configured.
Dialed Number
4012
Optional. Present only when 1110 is configured.
Called Number
4014
Optional. Present only when 1110 is configured.
Terminating Trunk Group
4015
Optional. Present only when 1110 is configured.
Terminating Member
4016
Optional. Present only when 1110 is configured.
Last SAM Timepoint (Second)
4021
Optional. Present only when 1110 is configured.
Ingress SigPath ID
4066
Optional. Present only when 1110 is configured.
Ingress Span ID
4067
Optional. Present only when 1110 is configured.
Ingress BearChan ID
4068
Optional. Present only when 1110 is configured.
Ingress ProtocolId
4069
Optional. Present only when 1110 is configured.
Egress SigPath ID
4070
Optional. Present only when 1110 is configured.
Egress Span ID
4071
Optional. Present only when 1110 is configured.
Egress BearChan ID
4072
Optional. Present only when 1110 is configured.
Egress ProtocolId
4073
Optional. Present only when 1110 is configured.
Original Called Number
4080
Release 9.3(1) and later. Optional. Present only when 1110 is configured.
Meter Pulses Received
4213
Release 9.5(2) and later. Always present and populated in 1060.
Meter Pulses Sent
4214
Release 9.5(2) and later. Always present and populated in 1060.
Partial Calling Line Identity
4220
Release 9.5(2) and later. Optional. Present only when 1110 is configured.
Ingress Redirecting Number
4237
Added in a Release 9.5(2) patch. Present only when 1110 is configured. Not recorded for point-in-call mode.
Millisecond Granularity Timepoint Fields
Last SAM Timepoint (MilliSecond)
4022
Optional. Present only when 1110 is configured.
IAM Timepoint Received _ms
4100
Optional. Present only when 1110 is configured.
IAM Timepoint Sent_ms
4101
Optional. Present only when 1110 is configured.
ACM Timepoint Received_ms
4102
Optional. Present only when 1110 is configured.
ACM Timepoint Sent_ms
4103
Optional. Present only when 1110 is configured.
ANM Timepoint Received_ms
4104
Optional. Present only when 1110 is configured.
ANM Timepoint Sent_ms
4105
Optional. Present only when 1110 is configured.
Cisco Reserved Tags
Unique Call Correlator ID (Release 9 and later)
5000
Always present and populated in 1060.
Maintenance CDB Record (Tag: 1070/Release 5 and Later)
Table 1-11 lists data about the maintenance record CDB type. CDB Tag 1070 is created for maintenance activity (such as block or unblock) on a circuit.
Table 1-11 Maintenance CDB Record
Field Name
Tag Value
Cisco PGW 2200 Softswitch Generic Tags
CDB Version
4000
CDB Timepoint
4001
Call Reference ID
4002
Maint Trunk Group
4017
Maint Circuit Member
4018
Maint Type
4032
Maint Reason (retired in Release 9.4(1))
4033
Maintenance SigPath ID
4074
Maintenance Span ID
4075
Maintenance BearChan ID
4076
Maintenance Circuits Count
4077
Cisco Reserved Tags
Unique Call Correlator ID (Release 9 and later)
5000
SS7 CIC Audit CDB Record (Tag: 1071/Release 9 and Later)
Table 1-12 lists data about the SS7 CIC audit record CDB type. This CDB is used to record changes to:
•The number of circuits defined for a trunk group when the Cisco PGW 2200 Softswitch is configured in Call Control mode
•The number of circuits defined in a signaling service when the Cisco PGW 2200 Softswitch is configured in Signaling mode
This CDB is modeled after the 1070 CDB but does not contain independent CIC statuses, just total counts of CICs defined and unavailable. It is triggered by provisioning changes to the number of circuits in a trunk group (Call Control) or signaling service (Signaling).
Table 1-12 SS7 CIC Audio CDB Record
Field Name
Tag Value
Comments
Cisco PGW 2200 Softswitch Generic Tags
CDB Version
4000
CDB Timepoint
4001
Maint Trunk Group
4017
Appears when the Cisco PGW 2200 Softswitch is configured for call control.
Maintenance SigPath ID
4074
Appears when the Cisco PGW 2200 Softswitch is configured for signaling.
Total Circuit Count
4234
added in 9.4(1) patch
Total Circuit Unavailable Count
4235
added in 9.4(1) patch
Cisco Reserved Tags
Unique Call Correlator ID
5000
Note You can configure CDB 1071 in XECfgParm.dat by adding it in engine.CDRmessageType. However, if CDB 1110 is configured, CDB 1071 is suppressed.
Once configured in XECfgParm.dat, CDB 1071 is generated for the following conditions:
•When the MML command sta-aud-cic is used to generate the current CIC availability information on each configured ISUP trunk group or signaling service.
•When a provisioning change (add or delete) is made in the number of circuits.
•When a CIC service state or block state change occurs. A circuit that is unavailable is either blocked, OOS, or both. A circuit that is blocked and also OOS is not double-counted as two unavailable circuits. Table 1-13 and Table 1-14 show the action taken when there is a service state or block state change.
Table 1-13 Service State Change
Service State Change
Blocked
Unblocked
OOS
Do nothing
Increment total unavailable counters
IS
Do nothing
Decrement total unavailable counters
Table 1-14 Service Block Change
Service Block Change
OOS
IS
Block
Do nothing
Increment total unavailable counters
Unblock
Do nothing
Decrement total unavailable counters
A blocked state is one of the following states or a combination of these states:
•Manual local block
•Manual remote block
•Auto remote block (hardware failure)
•Auto local block
•Propagation block (gateway-initiated blocking)
CDB Tag 1071 generation rules:
•If CDB Tag 1071 is generated as the result of the sta-aud-cic MML command, it includes the CIC unavailability information per trunk group for switched configuration, or per signaling service for a nailed-up configuration. For the other two scenarios (a provisioning change to the number of circuits, or a CIC service state or block state change), it generates the information only for the trunk groups that are impacted.
•CDB Tag 1071 is generated only on the active side.
•To generate the CDB Tag 1071 on a trunk group or signaling service level rather than individual CIC level to minimize CPS impact, the Cisco PGW 2200 Softswitch uses an internal 10-second timer. 1071 CDB is generated 10 seconds after the initial CIC state change and/or the initial CIC provision change. This delay prevents the flooding of 1071 CDBs if a large number of CICs have blocks or service state changes almost simultaneously.
•The sta-aud-cic MML command is rejected for the following conditions:
–An attempt is made to run the MML command on the standby side.
–CDB Tag 1071 is not configured in the XECfgParm.dat file.
•A circuit that has COT failure and has COT retest in progress is not counted as unavailable.
External Access CDB (Tag: 1080/Release 7 and Later)
Table 1-15 lists data about the external access CDB type. CDB Tag 1080 is generated whenever a query is sent to an SCP (or to some other external device or database).
Table 1-15 External Access CDB Record
Field Name
Tag Value
Information Source
Cisco PGW 2200 Softswitch Generic Tags
CDB Version
4000
CDB Timepoint
4001
Time written
Call Reference ID
4002
—
TCAP Transaction Identification
4040
TCAP Transaction ID
Transaction Start Time
4041
Time that TCAP query was sent
Transaction End Time
4042
Time that TCAP response was received
TCAP Database Identification
4043
SCP Selection Number
Service Logic ID
4049
SCP AMASlpID
AMALineNumber
4050
SCP AMALineNumber (Analyze_Route)
Cisco Reserved Tags
Unique Call Correlator ID (Release 9 and later)
5000
File Header CDB (Tag: 1090/Release 7 and Later)
The CDR dumper generates the File Header CDB at the beginning of each new CDR file. It is generated according to the CDB creation guidelines, where the first three fields are mandatory and are located in their specified positions (refer to Table 1-16).
Note This CDB is not configurable. Users cannot enable or disable the CDB nor can they select which fields are to be included. This CDB always contains the fields shown in Table 1-16.
.
Table 1-16 File Header CDB Record
Field Name
Tag Value
Information Source
Cisco PGW 2200 Softswitch Generic Tags
CDB Version
4000
CDB Timepoint
4001
Time written
Call Reference ID
4002
Always 0 for compatibility with all other CDB layouts
Miscellaneous Fields
File Start Time
6001
Host Cisco PGW 2200 Softswitch ID
6000
Cisco PGW 2200 Softswitch Software Version
6004
File Footer CDB (Tag: 1100/Release 7 and Later)
The CDR dumper generates the File Footer CDB at the end of each new CDR file. It is generated according to the CDB creation guidelines, where the first three fields are mandatory and are located in their specified positions (refer to Table 1-17).
Note This CDB is not configurable. Users cannot enable or disable the File Footer CDB nor can they select which fields are to be included. This CDB always contains the fields shown in Table 1-17.
Table 1-17 File Footer CDB Record
Field Name
Tag Value
Information Source
Cisco PGW 2200 Softswitch Generic Tags
CDB Version
4000
CDB Timepoint
4001
Call Reference ID
4002
This will always be 0, for compatibility with all other CDB layouts.
Miscellaneous Fields
File End Time
6002
Total Number of CDB Records
6003
Host ID
6000
Cisco PGW 2200 Softswitch Software Version
6004
End of the Call CDB (Tag: 1110/Release 7 and Later)
When the Cisco PGW 2200 Softswitch software is configured to generate one CDB per call, it generates a CDB that includes basic billing information. The CDB is generated at the end of the call when
•A call is ended with a Release CDB
•An attempted call did not progress to Setup status, that is, a call that did not get answered (Aborted Attempted CDB for example)
This End of Call CDB consists of the values listed in Table 1-18.
Table 1-18 End of Call CDB Record
ANSI
ITU
Tag Value
Description
Tag Value
Description
2000
Calling Party Category
3000
Calling Party Category
2001
User Service Information
3001
User Service Information
2003
Calling number NOA
3003
Calling Number NOA
2004
Charged number NOA
—
Does not exist for ITU
2005
Dialed number NOA
3005
Dialed Number NOA
2007
Called Number NOA
3007
Called Number NOA
2008
Reason Code
3008
Reason Code
2013
Transit Network Selection
3013
Transit Network Selection
2015
Carrier Selection Parameter
—
Carrier Selection Parameter
2017
Redirecting Number NOA
3017
Redirecting Number NOA
2018
Egress Calling Number NOA (Release 9.5(2) and later)
3018
Egress Calling Number NOA (Release 9.5(2) and later)
2019
Egress Redirecting Number NOA (Release 9.5(2) and later)
3019
Egress Redirecting Number NOA (Release 9.5(2) and later)
2020
Egress Original Called Number NOA (Release 9.5(2)) and later)
3020
Egress Original Called Number NOA (Release 9.5(2) and later)
4000
CDB Version
4000
CDB Version
4001
CDB Timepoint
4001
CDB Timepoint
4002
Call Reference ID
4002
Call Reference ID
4008
Originating Trunk Group
4008
Originating Trunk Group
4009
Originating Member
4009
Originating Member
4010
Calling Number
4010
Calling Number
4011
Charged Number
4011
Charged Number
4012
Dialed Number
4012
Dialed Number
4014
Called Number
4014
Called Number
4015
Terminating Trunk Group
4015
Terminating Trunk Group
4016
Terminating Member
4016
Terminating Member
4028
First Release Source
4028
First Release Source
4031
MGC Info Field (disabled as of Release 7.3.x and 7.4.x)
4031
MGC Info Field (disabled as of Release 7.3.x and 7.4.x)
4034
Ingress Originating Point Code (Release 9.3(2) and later)
4034
Ingress Originating Point Code (Release 9.3(2) and later)
4035
Ingress Destination Point Code (Release 9.3(2) and later)
4035
Ingress Destination Point Code (Release 9.3(2) and later)
4036
Egress Originating Point Code (Release 9.3(2) and later)
4036
Egress Originating Point Code (Release 9.3(2) and later)
4037
Egress Destination Point Code (Release 9.3(2) and later)
4037
Egress Destination Point Code (Release 9.3(2) and later)
4046
Ingress Gateway Packet Info (restored as of Release 9.4(1))
4046
Ingress Gateway Packet Info (restored as of Release 9.4(1))
4047
Egress Gateway Packet Info (restored as of Release 9.4(1))
4047
Egress Gateway Packet Info (restored as of Release 9.4(1))
4051
Inbound Trunk Profile
4051
Inbound Trunk Profile
4052
Originating Gateway Primary Select
4052
Originating Gateway Primary Select
4053
Terminating Gateway Primary Select
4053
Terminating Gateway Primary Select
4054
Egress Domain Profile
4054
Egress Domain Profile
4055
Call Policy
4055
Call Policy
4056
SIP Terminating Call ID
4056
SIP Terminating Call ID
4057
Egress Trunk Profile
4057
Egress Trunk Profile
4058
Ingress Domain Profile
4058
Ingress Domain Profile
4059
Display Name
4059
Display Name
4060
Redirecting Number
4060
Redirecting Number
4061
Tariff Rate
4061
Tariff Rate
4062
Scale Factor
4062
Scale Factor
4063
Test Line Indicator
4063
Test Line Indicator
4065
Redirection Number
4065
Redirection Number (Release 9.7(3) and later)
4068
Ingress BearChan ID (Release 9.3(2) and later)
4068
Ingress BearChan ID (Release 9.3(2) and later)
4072
Egress BearChan ID (Release 9.3(2) and later)
4072
Egress BearChan ID (Release 9.3(2) and later)
4078
Charge Band Number
4078
Charge Band Number
4079
Furnish Charging Information
4079
Furnish Charging Information
4080
Original Called Number
4080
Original Called Number
4082
Charge Unit Number
4082
Charge Unit Number
4083
Charge Indicator (Release 9.5(2) and later)
4083
Charge Indicator (Release 9.5(2) and later)
4084
Outgoing Calling Party Number (Release 9.5(2) and later)
4084
Outgoing Calling Party Number (Release 9.5(2) and later)
4085
MCID Request Indicator (Release 9.5(2) and later)
4085
MCID Request Indicator (Release 9.5(2) and later)
4086
MCID Response Indicator (Release 9.5(2) and later)
4086
MCID Response Indicator (Release 9.5(2) and later)
4087
Ingress MGCP DLCX Return Code (Release 9.5(2) and later)
4087
Ingress MGCP DLCX Return Code (Release 9.5(2) and later)
4088
Egress MGCP DLCX Return Code (Release 9.5(2) and later)
4088
Egress MGCP DLCX Return Code (Release 9.5(2) and later)
4089
Network Translated Address Indicator (Release 9.5(2) and later)
4089
Network Translated Address Indicator (Release 9.5(2) and later)
4090
Reservation Request Accepted (Release 9.5(2) and later)
4090
Reservation Request Accepted (Release 9.5(2) and later)
4091
Reservation Request Lost Count (Release 9.5(2) and later)
4091
Reservation Request Error Count (Release 9.5(2) and later)
4092
ATM Ingress Configured Profile (Release 9.5(2) and later)
4092
ATM Ingress Configured Profile (Release 9.5(2) and later)
4093
ATM Egress Configured Profile (Release 9.5(2) and later)
4093
ATM Egress Configured Profile (Release 9.5(2) and later)
4094
ATM Negotiated Profile (Release 9.5(2) and later)
4094
ATM Negotiated Profile (Release 9.5(2) and later)
4095
Route List Name (Release 9.5(2) and later)
4095
Route List Name (Release 9.5(2) and later)
4096
Route Name (Release 9.5(2) and later)
4096
Route Name (Release 9.5(2) and later)
4097
MGCP Script Response String (Release 9.5(2) and later)
4097
MGCP Script Response String (Release 9.5(2) and later)
4098
Originating Leg DSP Statistics (Release 9.4(1) and later)
4098
Originating Leg DSP Statistics (Release 9.4(1) and later)
4099
Terminating Leg DSP Statistics (Release 9.4(1) and later)
4099
Terminating Leg DSP Statistics (Release 9.4(1) and later)
4100
IAM Timepoint Received_msec
4100
IAM Timepoint Received_msec
4101
IAM Timepoint Sent_msec
4101
IAM Timepoint Sent_msec
4102
ACM Timepoint Received_msec
4102
ACM Timepoint Received_msec
4103
ACM Timepoint Sent_msec
4103
ACM Timepoint Sent_msec
4104
ANM Timepoint Received_msec
4104
ANM Timepoint Received_msec
4105
ANM Timepoint Sent_msec
4105
ANM Timepoint sent_msec
4106
First REL Timepoint_msec
4106
First REL Timepoint_msec
4107
Second REL Timepoint_msec
4107
Second REL Timepoint_msec
4108
RLC Timepoint Received_msec
4108
RLC Timepoint Received_msec
4109
RLC Timepoint Sent_msec
4109
RLC Timepoint Sent_msec
4110
Ingress Media Gateway Pool ID
4110
Ingress Media Gateway Pool ID
4111
Egress Media Gateway Pool ID
4111
Egress Media Gateway Pool ID
4201
Originating Remote SIP Host (Release 9 and later)
4201
Originating Remote SIP Host (Release 9 and later)
4202
Originating Local SIP Host (Release 9 and later)
4202
Originating Local SIP Host (Release 9 and later)
4203
SIP Originating Call ID (Release 9 and later).
The name of this CDR was changed from SIP Call ID to SIP Originating Call ID in Release 9.7, 9.8(1) and later.
4203
SIP Originating Call ID (Release 9 and later).
The name of this CDR was changed from SIP Call ID to SIP Originating Call ID in Release 9.7, 9.8(1) and later.
4204
Source IP Address (Release 9.4(1) and later)
4204
Source IP Address (Release 9.4(1) and later)
4205
Ingress Media Device Address (Release 9.4(1) and later)
4205
Ingress Media Device Address (Release 9.4(1) and later)
4206
Egress Media Device Address (Release 9.4(1) and later)
4206
Egress Media Device Address (Release 9.4(1) and later)
4207
Initial Codec (Release 9.4(1) and later)
4207
Initial Codec (Release 9.4(1) and later)
4208
Final Codec (Release 9.4(1) and later)
4208
Final Codec (Release 9.4(1) and later)
4209
Ingress Media Device Port (Release 9.4(1) and later)
4209
Ingress Media Device Port (Release 9.4(1) and later)
4210
Egress Media Device Port (Release 9.4(1) and later)
4210
Egress Media Device Port (Release 9.4(1) and later)
4211
Originating VPN ID (Release 9.4(1) and later)
4211
Originating VPN ID (Release 9.4(1) and later)
4212
Terminating VPN ID (Release 9.4(1) and later)
4212
Terminating VPN ID (Release 9.4(1) and later)
4213
Meter Pulses Received (Release 9.5(2) and later)
4213
Meter Pulses Received (Release 9.5(2) and later)
4214
Meter Pulses Sent (Release 9.5(2) and later)
4214
Meter Pulses Sent (Release 9.5(2) and later)
4215
Charge Tariff Info (Release 9.5(2) and later)
4215
Charge Tariff Info (Release 9.5(2) and later)
4216
Advice of Charge Indicator (Release 9.5(2) and later)
4216
Advice of Charge Indicator (Release 9.5(2) and later)
4217
Short Call Indicator (Release 9.5(2) and later)
4217
Short Call Indicator (Release 9.5(2) and later)
4218
Charge Limit Exceeded (Release 9.5(2) and later)
4218
Charge Limit Exceeded (Release 9.5(2) and later)
4219
Call Recovered Indication (Release 9.5(2) and later)
4219
Call Recovered Indication (Release 9.5(2) and later)
4220
Partial Calling Line Identity (Release 9.5(2) and later)
4220
Partial Calling Line Identity (Release 9.5(2) and later)
4221
Service Activation (added in Release 9.5(2), modified in Release 9.6(1))
4221
Service Activation (added in Release 9.5(2), modified in Release 9.6(1))
4222
PRI AOC Invoke Type (Release 9.5(2) and later)
4222
PRI AOC Invoke Type (Release 9.5(2) and later)
4223
PRI AOC - S Charge Information (Release 9.5(2) and later)
4223
PRI AOC - S Charge Information (Release 9.5(2) and later)
4224
PRI AOC - D Charge Information (Release 9.5(2) and later)
4224
PRI AOC - D Charge Information (Release 9.5(2) and later)
4225
PRI AOC - E Charge Information (Release 9.5(2) and later)
4225
PRI AOC - E Charge Information (Release 9.5(2) and later)
4226
PRI AOC Invoke Failure (Release 9.5(2) and later)
4226
PRI AOC Invoke Failure (Release 9.5(2) and later)
4227
Route Optimization/Path Replacement Action (Release 9.6(1) and later)
4227
Route Optimization/Path Replacement Action (Release 9.6(1) and later)
4228
Route Optimization/Path Replacement Call Reference of Associated Call Instance (Release 9.6(1) and later)
4228
Route Optimization/Path Replacement Call Reference of Associated Call Instance (Release 9.6(1) and later)
4229
Route Optimization/Path Replacement Trunk Group Info (Release 9.6(1) and later)
4229
Route Optimization/Path Replacement Trunk Group Info (Release 9.6(1) and later)
4230
Route Optimization/Path Replacement Channel Info (Release 9.6(1) and later)
4230
Route Optimization/Path Replacement Channel Info (Release 9.6(1) and later)
4231
Route Optimization Switchover Timestamp (Release 9.6(1) and later)
4231
Route Optimization Switchover Timestamp (Release 9.6(1) and later)
4232
Rejecting Location Label (Release 9.6(1) and later)
4232
Rejecting Location Label (Release 9.6(1) and later)
4233
Rejecting Location Label Direction (Release 9.6(1) and later)
4233
Rejecting Location Label Direction (Release 9.6(1) and later)
4236
H323 Destination (Release 9.7 and later)
4236
H323 Destination (Release 9.7 and later)
4237
Ingress Redirecting Number (Release 9.5(2) and later)
4237
Ingress Redirecting Number (Release 9.5(2) and later)
4239
Service Usage Data (Release 9.7 and later)
4239
Service Usage Data (Release 9.7 and later)
4240
CNAM DIP (Release 9.7 and later)
4240
CNAM DIP (Release 9.7 and later)
4241
Calling Party Name (Release 9.7 and later)
4241
Calling Party Name (Release 9.7 and later)
4242
Terminating Remote SIP Host (Release 9.7 and later)
4242
Terminating Remote SIP Host (Release 9.7 and later)
4243
Terminating Local SIP Host (Release 9.7 and later)
4243
Terminating Local SIP Host (Release 9.7 and later)
4244
License Rejecting Reason (Release 9.7 and later)
4244
License Rejecting Reason (Release 9.7 and later)
4245
License Rejecting Direction (Release 9.7 and later)
4245
License Rejecting Direction (Release 9.7 and later)
4246
SIP Ingress Transport (Release 9.7 and later). The name of this tag was changed from SIP Transport to SIP Ingress Transport in Release 9.8(1).
4246
SIP Ingress Transport (Release 9.7 and later). The name of this tag was changed from SIP Transport to SIP Ingress Transport in Release 9.8(1).
4247
SIP Routing URI Source
4247
SIP Routing URI Source (Release 9.7 and later)
4248
SIP Routing URI
4248
SIP Routing URI (Release 9.7 and later)
4249
Original Source Header
4249
Original Source Header
4250
Original Source URI
4250
Original Source URI
4251
Final Destination URI
4251
Final Destination URI
4252
Non-E.164 Destination Route Select Failure
4252
Non-E.164 Destination Route Select Failure
4253
Domain Screening Failure URI
4253
Domain Screening Failure URI
4254
SIP Egress Transport
4254
SIP Egress Transport
4255
SIP Final Source URI
4255
SIP Final Source URI
4256
iTNT Dtmf Digits (Release 9.7(3)and later)
iTNT Dtmf Digits (Release 9.7(3)and later)
4257
NCT Destinations (Release 9.7(3)and later)
NCT Destinations (Release 9.7(3)and later)
4258
iTNT Destinations (Release 9.7(3)and later)
iTNT Destinations (Release 9.7(3)and later)
4259
iTNT MidCall Dial Plan (Release 9.7(3)and later)
iTNT MidCall Dial Plan (Release 9.7(3)and later)
5000
Unique Call Correlator ID (Release 9 and later)
5000
Unique Call Correlator ID (Release 9 and later)
6005
Interim CDB (Release 9.5(2) and later)
6005
Interim CDB (Release 9.5(2) and later)
Slave End-of-Call CDB Record (Tag: 1210/Release 9.6 and Later)
Table 1-19 lists data about the Slave End-of-Call CDB type. The Cisco PGW 2200 Softswitch generates this CDB at the end of the call for a noncontrolling half-call instance. Only end-of-call summary style CDBs are issued for slave half-call instances, and the appropriate information is check-pointed to ensure the data is successfully written if a switchover occurs. This CDB is disabled by default on your Cisco PGW 2200.
Note If you do enable this CDB and your network includes a Cisco BAMS, you must provision the Cisco BAMS to ignore this CDB.
Table 1-19 Slave End-of-Call CDB Record
Field Name
Tag Value
Comments
Cisco PGW 2200 Softswitch Generic Tags
Call Reference ID
4002
IAM Timepoint
4003
REL Timepoint
4006
Originating Trunk Group
4008
Originating Member
4009
Terminating Trunk Group
4015
Terminating Member
4016
Last SAM Timepoint (MilliSecond)
4022
Added in Releae 9.8(1)
RO/PR Executed
4227
Added in Release 9.6(1)
RO/PR Other Call Ref
4228
Added in Release 9.6(1)
Cisco Reserved Tags
Unique Call Correlator ID (Release 9 and later)
5000
Slave Long Duration Call CDB Record (Tag: 1260/Release 9.6 and Later)
Table 1-20 lists data about the Slave Long Duration Call CDB type. This CDB is used when the call instance remains active beyond a preconfigured time. The long call duration timer of the slave call is the same as that of "master" call configured in XECfgParm.dat.
Table 1-20 Slave Long Duration Call CDB Record
Field Name
Tag Value
Comments
Cisco PGW 2200 Softswitch Generic Tags
Call Reference ID
4002
IAM Timepoint
4003
Originating Trunk Group
4008
Originating Member
4009
Terminating Trunk Group
4015
Terminating Member
4016
RO/PR Executed
4227
Added in Release 9.6(1)
RO/PR Other Call Ref
4228
Added in Release 9.6(1)
Cisco Reserved Tags
Unique Call Correlator ID (Release 9 and later)
5000
CDE Detail Description
A call data element (CDE) is a field within the CDB that contains basic information about a billing record. Examples of CDEs are the calling number and the called number.
The CDEs are described in the CDE description form template as shown in Table 1-21. CDE description forms for each of the CDBs listed near the bottom in Table 1-21 are included in Table 1-22 through Table 1-251.
Table 1-21 CDE Description Form Template
Name: Name of the CDE
Tag: The tag value
Source: Subsystem that generates the CDE value
Description/Purpose: Brief description of the CDE
Format: The format of the CDE value
Length: CDE value length
Data Value: Range of CDE values, or valid values
Extended Data Value: This section includes CDE values that are extended (from the ANSI/ITU standard) by the Cisco PGW 2200 Softswitch.
General Information: General information about the CDE and comments.
Cisco PGW 2200 Softswitch Release: The Cisco PGW 2200 Softswitch release(s) supporting this CDE
CDEs Encoded in ANSI
Calling Party Category (Tag: 2000/ANSI)
Table 1-22 Calling Party Category Description Form
Name: Calling Party Category
Tag: 2000
Source: MDL
Description/Purpose: Indicates what type of calling party is placing the call.
Format: ANSI T1.113
Length in Octets: 1
Data Value:
The following codes are used in the calling party category (CPC) parameter field:
00000000 Calling party's category unknown (default) 00000001 Operator, language French 00000010 Operator, language English 00000011 Operator, language German 00000100 Operator, language Russian 00000101 Operator, language Spanish 00000110, 00000111, 00001000 Available to admin. For selecting a particular language. 00001001 Reserved 00001010 Ordinary calling subscriber 00001011 Ordinary calling subscriber with priority 00001100 Data call 00000001 Operator, language French 00001101 Test call 00001110 Spare 00001111 Pay phone
00010000 to 11011111 CCITT spare
11100000 Emergency service call 11100001 High priority emergency service call 11100010 National security and emergency
11100011 to 11110111 ANSI spare
11110000 to 11111110 Network-specific use
11111111 Reserved
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
User Service Information (Tag: 2001/ANSI)
Table 1-23 User Service Information Description Form
Name: User Service Information
Tag: 2001
Source: MDL
Description/Purpose: Sends the data transmission parameters to the distant exchange. The field format is the same as the format for the bearer capability information element from ANSI standard T1.607.
Format: ANSI T1.113
Length in Octets: 2 to 13
Data Value: For more detail, refer to ANSI T1.113.
Extension: Octet continues through the next octet, 1 last octet,
Coding standard: The setting should be 00 for CCITT standard, 10 for national,
Information Transfer Capability
For POTS calling, this field is set to one of the following:
00000 Speech 01000 Unrestricted digital information 01001 Restricted digital information 10000 3.1-kHz audio 10001 Unrestricted digital information with tone and announcements
Structure, Configuration, Establishment, and so on: refer to T1.113.
Extended Data Value: No extended value.
General Information:
Originating Line Information (Tag: 2002/ANSI)
Table 1-24 Originating Line Information Description Form
Name: Originating Line Information
Tag: 2002
Source: MDL
Description/Purpose: Contains information captured from the originating line information parameter.
Format: ANSI T1.113
Length in Octets: 1
Data Value:
00000000 to 01100011 Binary equivalent of the digits
01100100 to 11111111 Reserved
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
Calling Number Nature of Address (Tag: 2003/ANSI)
Table 1-25 Calling Number Nature of Address Description Form
Name: Calling Number Nature of Address
Tag: 2003
Source: MDL
Description/Purpose: Indicates the nature of address (NOA) of the calling party. In POTS calling, two values are usually used: unique national number and nonunique national number.
Format: ANSI T1.113
Length in Octets: 1
Data Value:
0000000 Spare 0000001 Unique subscriber number 0000010 Spare (national use) 0000011 Unique national number 0000100 Unique international number
0000101 to 1110000 Spare
1110001 Nonunique subscriber number 1110010 Spare 1110011 Nonunique national number 111010 0 Nonunique international number 1110101 Spare 1110110 Spare 1110111 Test line
1111000 to 1111000 Reserved
1111111 Spare
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
Charged Number Nature of Address (Tag: 2004/ANSI)
Table 1-26 Charged Number Nature of Address Description Form
Name: Charged Number Nature of Address
Tag: 2004
Source: MDL
Description/Purpose: Indicates to the Cisco PGW 2200 Softswitch how the number was delivered.
Format: ANSI T1.113
Length in Octets: 1
Data Value:
0000000 Spare 0000001 Unique subscriber number 0000010 Spare (national use) 0000011 Unique national number 0000100 Unique international number
0000101 to 1110000 Spare
1110001 Nonunique subscriber number 1110010 Spare 1110011 Nonunique national number 111010 0 Nonunique international number 1110101 Spare 1110110 Spare 1110111 Test line
1111000 to 1111000 Reserved
1111111 Spare
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
Dialed Number Nature of Address (Tag: 2005/ANSI)
Table 1-27 Dialed Number Nature of Address Description Form
Name: Dialed Number Nature of Address
Tag: 2005
Source: MDL
Description/Purpose: Allows the Call Process to route a call differently based on the Nature of Address (NOA) value provided in the IAM called number parameter. This tag represents the external (for example, line) value of NOA for the called part number.
Format: ANSI T1.113
Length in Octets: 1
Data Value:
0000000 Spare. If the LEC does not know what type of line the calling party is, it sends this value to the Cisco PGW 2200 Softswitch. The Cisco PGW 2200 Softswitch does not alter this value and does not use it for billing.
0000001 Unique subscriber number 0000010 Spare (national use) 0000011 Unique national number 0000100 Unique international number
0000101 to 1110000 Spare
1110001 Nonunique subscriber number 1110010 Spare 1110011 Nonunique national number 111010 0 Nonunique international number 1110101 Spare 1110110 Spare 1110111 Test line
1111000 to 1111000 Reserved
1111111 Spare
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
LRN Nature of Address (Tag: 2006/ANSI)
Table 1-28 LRN Nature of Address Description Form
Name: LRN Nature of Address
Tag: 2006
Source: MDL
Description/Purpose: Stores the NOA of the location routing number (LRN) from an Intelligent Network Application Part (INAP) query.
Format: ANSI T1.113
Length in Octets: 1
Data Value:
0000000 Spare 0000001 Unique subscriber number 0000010 Spare (national use) 0000011 Unique national number 0000100 Unique international number
0000101 to 1110000 Spare
1110001 Nonunique subscriber number 1110010 Spare 1110011 Nonunique national number 111010 0 Nonunique international number 1110101 Spare 1110110 Spare 1110111 Test line
1111000 to 1111000 Reserved
1111111 Spare
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
Called Number Nature of Address (Tag: 2007/ANSI)
Table 1-29 Called Number Nature of Address Description Form
Name: Called Number Nature of Address
Tag: 2007
Source: MDL
Description/Purpose: Contains the Nature of Address (NOA) value from the egress protocol message used in the outbound IAM. The NOA value in this tag is taken from the ingress protocol message. If no B number NOA is available (redirected to an unknown number) but an original called number information element (IE) is available in the protocol message, the NOA from the IE is logged, and this original called number can be modified for number normalization.
Format: ANSI T1.113
Length in Octets: 1
Data Value:
0000000 Spare. If the LEC doesn't know what type of line the calling party is, it sends this value to the Cisco PGW 2200 Softswitch. The Cisco PGW 2200 Softswitch does not alter this value and does not use it for billing
0000001 Unique subscriber number 0000010 Spare (national use) 0000011 Unique national number 0000100 Unique international number
0000101 to 1110000 Spare
1110001 Nonunique subscriber number 1110010 Spare 1110011 Nonunique national number 111010 0 Nonunique international number 1110101 Spare 1110110 Spare 1110111 Test line
1111000 to 1111000 Reserved
1111111 Spare
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
Reason Code (Tag: 2008/ANSI)
Table 1-30 Reason Code Description Form
Name: Reason Code
Tag: 2008
Source: MDL
Description/Purpose: Incorporates SS7 release with cause values and any additional reasons (any reasons not defined in the SS7 specification) that the basic call model determines.
Format: ANSI T1.113
Length in Octets: 2
Data Value: The value of this field includes the first two octets of the cause indicators. Refer to the ANSI T1.113 specification.
Note The Cisco PGW 2200 Softswitch does not include the diagnostic information (described in ANSI T1.113) in the CDR.
Extended Data Value:
Tag 2008 extends the ANSI definition by adding COT failure indicators according to ANSI rules, with slight modification as follows:
•Octet 1:
– Extension 0
–Coding standard 11
–Spare 0
–Location 0011
• Octet 2:
– Extension 1
–Cause 1111110
General Information:
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
Forward Call Indicators Received (Tag: 2009/ANSI)
Table 1-31 Forward Call Indicators Received Description Form
Name: Forward Call Indicators Received
Tag: 2009
Source: MDL
Description/Purpose: Contains the received Forward Call Indicator parameter in an ISUP message. It includes the following fields: International Call Ind.; End To End Method Ind.; Interworking Ind.; IAM Segmentation Ind.; ISDN User Part Ind.; ISDN User Part Preference Ind.; ISDN Access Ind.; and SCCP Method Ind.
Format: ANSI T1.113
Length in Octets: 2
Data Value:
National/International call indicator Bit A—For POTS calling, Bit A should be coded as a 0, signifying that this is an incoming national call. A coding of 1 signifies that the call is an incoming international call.
End-to-end method indicator Bits CB:
•00 No end-to-end method available.
•01 Pass along method available.
•10 SCCP method available.
•11 Both Pass along and SCCP methods available.
Interworking indicator Bit D—This field indicates to the Cisco PGW 2200 Softswitch if any interworking has been encountered in the signaling for this call. No information needs to be acted upon by the Cisco PGW 2200 Softswitch; it passes the information to the destination. "0" means no interworking was encountered (SS7 all the way). "1" means interworking was encountered.
IAM segmentation indicator Bit E—In POTS calling, this segmentation indicator is marked with a 0.
ISDN User Part indicator Bits F, HG, and I: These bits provide ISUP information. In the United States, the ISUP is used exclusively. For POTS national numbers, this field is marked 1 on all ISUP signaling paths. That is, if the Interworking indicator is set at 0 there was no interworking. If the incoming call has a 0 in this field, there was interworking or the incoming international call could have used TUP for signaling before reaching the national network. The Cisco PGW 2200 Softswitch does not deal with this bit, but passes it on to the destination. For more details, refer to the ANSI T1.113 specification.
Extended Data Value:
General Information:
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
Forward Call Indicators Sent (Tag: 2010/ANSI)
Table 1-32 Forward Call Indicators Sent Description Form
Name: Forward Call Indicators Sent
Tag: 2010
Source: MDL
Description/Purpose: Contains the sent Forward Call Indicator parameter in an ISUP message. It includes the following fields: International Call Ind.; End To End Method Ind.; Interworking Ind.; IAM Segmentation Ind.; ISDN User Part Ind.; ISDN User Part Preference Ind.; ISDN Access Ind.; and SCCP Method Ind.
Format: ANSI T1.113
Length in Octets: 2
Data Value: National/International call indicator
Bit A—For POTS calling, Bit A should be coded as a 0, signifying that this is an incoming national call. A coding of 1 signifies that the call is an incoming international call.
Bits CB—End-to-end method indicator:
00 No end-to-end method available. 01 Pass along method available. 10 SCCP method available. 11 Both Pass along and SCCP methods available.
Bit D—Interworking indicator. This field indicates to the Cisco PGW 2200 Softswitch if any interworking has been encountered in the type of signaling for this call. No information needs to be acted upon by the Cisco PGW 2200 Softswitch; it passes the information to the destination. 0 means no interworking encountered (SS7 all the way). "1" means interworking was encountered.
Bit E—IAM segmentation indicator. In POTS calling, this segmentation indicator is marked with a 0.
Bits F, HG, and I—ISDN User Part indicator. These bits provide ISUP information. In the United States, the ISUP is used exclusively. For POTS national numbers, this field is marked 1 on all ISUP signaling paths. That is, if the Interworking indicator is set at 0, there was no interworking. If the incoming call has a 0 in this field, there was interworking or the incoming international call could have used TUP for signaling before reaching the national network. The Cisco PGW 2200 Softswitch does not deal with this bit, but passes it on to the destination. For more details, refer to the ANSI T1.113 specification.
Extended Data Value:
General Information:
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
Nature of Connection Indicators Received (Tag: 2011/ANSI)
Table 1-33 Nature of Connection Indicators Received Description Form
Name: Nature of Connection Indicators Received
Tag: 2011
Source: MDL
Description/Purpose: Records the Nature of Connection received from the IAM. Three possible indicators can be received: the satellite indicator, the continuity check indicator, and the echo suppressor indicator.
Format: ANSI T1.113
Length in Octets: 1
Data Value:
Assume bit order HGFEDCBA.
Bits BA—Satellite Indicator. This field provides the Cisco PGW 2200 Softswitch with information on how many satellites have been used on this circuit. If the field is set to 00 and the Cisco PGW 2200 Softswitch sends the call message out on a circuit going over a satellite, the field is incremented by 1. The same is true for the other incoming settings (for example, 01 goes to 10 and 10 goes to 11). If the outgoing circuit does not go over a satellite, the field is not incremented.
Bits DC—Continuity check indicator. The Cisco PGW 2200 Softswitch acts upon this field based on what is received. Also depending on mutual agreements with the LECs, each outgoing trunk group sends continuity tones to the terminating LECs with a frequency between 0 and 100 percent of the time. This is configurable on a per trunk group basis. In addition, the Cisco PGW 2200 Softswitch interprets the incoming continuity field and passes the appropriate action to the coding unit.
Bit E—Echo suppressor indicator. If this field is filled, the outgoing half echo control is already set on previous circuits, and there is no need for the terminating Cisco PGW 2200 Softswitch to engage the EC for this call. If the Cisco PGW 2200 Softswitch activates the echo canceller, this field needs to be set for the outgoing IAM message to subsequent switches.
Bits GF: spare
Extended Data Value:
General Information:
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
Nature of Connection Indicators Sent (Tag: 2012/ANSI)
Table 1-34 Nature of Connection Indicators Sent Description Form
Name: Nature of Connection Indicators Sent
Tag: 2012
Source: MDL
Description/Purpose: Records the Nature of Connection sent. Three possible indicators can be sent: the satellite indicator, the continuity check indicator, and the echo suppressor indicator.
Format: ANSI T1.113
Length in Octets: 1
Data Value:
Assume bit order HGFEDCBA.
Bits BA—Satellite Indicator. This field provides the Cisco PGW 2200 Softswitch with information on how many satellites have been used on this circuit. If the field is set to 00 and the Cisco PGW 2200 Softswitch sends the call out on a circuit going over a satellite, the field is incremented by 1. The same is true for the other incoming settings (for example, 01 goes to 10 and 10 goes to 11). If the outgoing circuit does not go over a satellite, the field is not incremented.
Bits DC—Continuity check indicator. The Cisco PGW 2200 Softswitch acts upon this field based on what is received. Also depending on mutual agreements with the LECs, each outgoing trunk group sends continuity tones to the terminating LECs with a frequency between 0 and 100 percent of the time. This is configurable on a per trunk group basis. In addition, the Cisco PGW 2200 Softswitch interprets the incoming continuity field and passes the appropriate action to the coding unit.
Bit E—Echo suppressor indicatorIf this field is filled, the outgoing half echo control is already set on previous circuits, and there is no need for the terminating Cisco PGW 2200 Softswitch to engage the EC for this call. If the Cisco PGW 2200 Softswitch activates the echo canceller, this field needs to be set for the outgoing IAM message to subsequent switches.
Bits GF: Spare
Extended Data Value:
General Information:
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
Transit Network Selection (Tag: 2013/ANSI)
Table 1-35 Transit Network Selection Description Form
Name: Transit Network Selection
Tag: 2013
Source: MDL
Description/Purpose: Contains the Type of Network, Network Identification Plan, Digits, and Circuit Code fields.
Format: ANSI T1.113
Length in Octets: 4
Data Value:
Network Identification Plan—This field indicates to the Cisco PGW 2200 Softswitch what type of ID the parameter has. Since POTS calling uses the National Network Plan, there are two values that pertain to the Cisco PGW 2200 Softswitch, the 3-digit carrier identification code (CIC) and 4-digit CIC:
0000 Unknown 0010 Specifies that the parameter contains a 4-digit CIC. 0011 to 0111 Spare 1000 to 1111 Reserved for network-specific use
Type of Network Identification—This field contains the type of network identification for the transit network parameter:
000 CCITT 010 National Network ID
Spare bit
Digits 1, 2, 3 or Digits 1, 2, 3, 4—These fields contain the CIC of the international transit carrier that is required. The 4-digit CIC is present if the Network Identification Plan is specified as 0010 (see above).
Circuit Code—The entry in the Circuit Code field indicates to the carrier how the call was dialed. The following values are contained in this field:
0000 Unknown 0001 International call, no operator 0010 International call, operator requested
Extended Data Value:
General Information:
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
Carrier Identification Parameter (Tag: 2014/ANSI)
Table 1-36 Carrier Identification Parameter Description Form
Name: Carrier Identification Parameter
Tag: 2014
Source: MDL
Description/Purpose: Contains the Carrier Identification Parameter in the ISUP message. It includes the following fields: Network Identification Plan; Type of Network Identification; Spare; Digit 1; Digit 2; Digit 3; Digit 4 or Null.
Format: ANSI T1.113
Length in Octets: 3 or 4
Data Value:
Network Identification Plan (1st Octet, Bits 4321)—Indicates what type of carrier identification the caller is requesting. The Cisco PGW 2200 Softswitch looks at this field to determine whether the requested CIC is a 3- or 4-digit code and how many digits to expect in the Digits field.
Type of Network Identification (1st Octet, Bits 765)—Gives the identification of the network numbering plan. For POTS calls from the LECs, the value of this field is 010 (National Network ID).
Spare (1st Octet, Bit 8)—Not applicable.
Digits 1, 2, 3 or Digits 1, 2, 3, 4 (remaining two octets, bits 8, 7, 6, and 5 are all zeros if only 3 digits are present)—Requested CIC.
Extended Data Value:
General Information:
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
Carrier Selection Parameter (Tag: 2015/ANSI)
Table 1-37 Carrier Selection Parameter Description Form
Name: Carrier Selection Parameter
Tag: 2015
Source: MDL
Description/Purpose: Indicates to the Cisco PGW 2200 Softswitch how the carrier access code was dialed. The Cisco PGW 2200 Softswitch uses this information and the Carrier Identification parameter to route the call.
Format: ANSI T1.113
Length in Octets: 1
Data Value:
00000000 No indication 00000001 Selected carrier identification code presubscribed and not input by by the calling party 00000010 Selected carrier identification code presubscribed and input by the calling party 00000011 Selected carrier identification code presubscribed, but there is no indication of whether input by the calling party 00000100 Selected carrier identification code not presubscribed and input by the calling party
00000101 to 11111110 Spare
11111111 Reserved
Extended Data Value:
General Information:
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
Jurisdiction Information Parameter (Tag: 2016/ANSI)
Table 1-38 Jurisdiction Information Parameter Description Form
Name: Jurisdiction Information Parameter
Tag: 2016
Source: MDL
Description/Purpose: This parameter provides numerical data indicating the geographic origination of the call.
Format: IA5
Length in Octets: 6
Data Value: Digits from Jurisdiction Information Parameter.
Extended Data Value:
General Information:
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
Redirecting Number Nature of Address (Tag 2017/ANSI)
Table 1-39 Redirecting Number Nature of Address Description Form
Name: Redirecting Number Nature of Address
Tag: 2017
Source: MDL
Description/Purpose: Records the NOA of the redirecting number sent in the outgoing message from the redirecting party. In POTS calling, two values are usually used, the unique national number and the nonunique national number.
Format: ANSI T1.113
Length in Octets: 1
Data Value:
0000000 Spare 0000001 Unique subscriber number 0000010 Spare (national use) 0000011 Unique national number 0000100 Unique international number
0000101 to 1110000 Spare
1110001 Nonunique subscriber number 1110010 Spare 1110011 Nonunique national number 111010 0 Nonunique international number 1110101 Spare 1110110 Spare 1110111 Test line
1111000 to 1111000 Reserved
1111111 Spare
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7.4.
Egress Calling Number Nature of Address (Tag 2018/ANSI)
Table 1-40 Egress Calling Number Nature of Address (ANSI) Description Form
Name: Egress Calling Number NOA
Tag: 2018
Source: MDL
Description/Purpose: This CDE records the calling party NOA sent in the outgoing message by the Cisco PGW 2200 Softswitch. This field indicates the address type of the calling party. In POTS calling, two values are usually used, the unique national number and the nonunique national number.
Format: ANSI T1.113
Length in Octets: 1
Data Value:
0000000 Spare 0000001 Unique subscriber number 0000010 Spare (national use) 0000011 Unique national number 0000100 Unique international number
0000101 to 1110000 Spare
1110001 Nonunique subscriber number 1110010 Spare 1110011 Nonunique national number 1110100 Nonunique international number 1110101 Spare 1110110 Spare 1110111 Test line
1111000 to 1111000 Reserved
1111111 Spare
Extended Data Value: No extended value.
General Information:
This CDE is present in the 1060 CDB if the end-of-call CDB (1110) is configured. For point-in-call mode, the 1060 CDB is usually a short one and does not contain this CDE.
Egress Redirecting Number Nature of Address (Tag 2019/ANSI)
Table 1-41 Egress Redirecting Number Nature of Address (ANSI) Description Form
Name: Egress Redirecting Number NOA
Tag: 2019
Source: MDL
Description/Purpose: Records the redirecting number NOA sent in the outgoing message by the Cisco PGW 2200 Softswitch.
Format: ANSI T1.113
Length in Octets: 1
Data Value:
0000000 Spare 0000001 Unique subscriber number 0000010 Spare (national use) 0000011 Unique national number 0000100 Unique international number
0000101 to 1110000 Spare
1110001 Nonunique subscriber number 1110010 Spare 1110011 Nonunique national number 1110100 Nonunique international number 1110101 Spare 1110110 Spare 1110111 Test line
1111000 to 1111000 Reserved
1111111 Spare
Extended Data Value: No extended value.
General Information:
This CDE is present in the 1060 CDB if the end-of-call CDB (1110) is configured. For point-in-call mode, the 1060 CDB is usually a short one and does not contain this CDE.
Egress Original Called Number Nature of Address (Tag 2020/ANSI)
Table 1-42 Egress Calling Number Nature of Address (ANSI) Description Form
Name: Egress Original Called Number NOA
Tag: 2020
Source: MDL
Description/Purpose: Records the original called-party NOA sent in the outgoing message by the Cisco PGW 2200 Softswitch.
Format: ANSI T1.113
Length in Octets: 1
Data Value:
0000000 Spare 0000001 Unique subscriber number 0000010 Spare (national use) 0000011 Unique national number 0000100 Unique international number
0000101 to 1110000 Spare
1110001 Nonunique subscriber number 1110010 Spare 1110011 Nonunique national number 1110100 Nonunique international number 1110101 Spare 1110110 Spare 1110111 Test line
1111000 to 1111000 Reserved
1111111 Spare
Extended Data Value: No extended value.
General Information:
This CDE is present in the 1060 CDB if the end-of-call CDB (1110) is configured. For point-in-call mode, the 1060 CDB is usually a short one and does not contain this CDE.
Table 1-43 Calling Party Category Description Form
Name: Calling Party Category
Tag: 3000
Source: MDL
Description/Purpose: Indicates what type of calling party is placing the call.
Format: ITU-T Q.763
Length in Octets: 1
Data Value:
00000000 Calling party's category is unknown (national use). 00000001 Operator, language French 00000010 Operator, language English 00000011 Operator, language German 00000100 Operator, language Russian 00000101 Operator, language Spanish
00000110 to 00001000 Available to Administrations for selecting a particular language by mutual agreement
00001001 Reserved (refer to Recommendation Q.104). Can be used in national networks to indicate that the calling party is a national operator
00001010 Ordinary calling subscriber 00001011 Calling subscriber with priority 00001100 Data call (voice band data) 00001101 Test call 00001110 Spare 00001111 Payphone
00010000 to 11011111 Spare
11100000 to 11111110 Reserved for national use
11111111Spare
Note The above values are for standard ITU SS7. Variants of ITU SS7 might have different values. Verify the values for your variant with the appropriate specification, if necessary.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
User Service Information (Tag: 3001/ITU)
Table 1-44 User Service Information Description Form
Name: User Service Information
Tag: 3001
Source: MDL
Description/Purpose: Captures the User Service Information parameter of ITU-T ISUP.
Format: ITU-T Q.763
Length in Octets: 2 to 13
Data Value:
The contents of the octets are as follows.
Octet
8
7
6
5
4
3
2
1
1
Ext.
Coding standard
Information transfer capability
2
Ext.
Transfer mode
Information transfer rate
2a
Rate multiplier
3
Ext.
Layer identity
User information Layer 1 protocol
4
Ext.
Layer identity
User information Layer 2 protocol
5
Ext.
Layer identity
User information Layer 3 protocol
The following usage guidelines apply to the octets:
•Octet 2a is required if octet 2 indicates multirate (64 kbps base rate); otherwise it is not present.
•Octets 3, 4, 5 or any combination of these octets can be omitted. Octet 3 can be extended as described in Table 4-6/Q.931.
Note The above values are for standard ITU SS7. Variants of ITU SS7 might have different values. Verify the values for your variant with the appropriate specification, if necessary.
For French TUP, the following values apply:
Octet
8
7
6
5
4
3
2
1
1
Ext.
Coding standard (00)
Information transfer capability (mapped from OptaddRoutingInf)
Supported values:
01 Speech 10 3.1 kHz 11 64 kbps
2
Ext.
Transfer mode (00)
Information transfer rate (10000)
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
Originating Line Information (Tag: 3002/ITU) Retired
Table 1-45 Originating Line Information Description Form
Name: Originating Line Information
Tag: 3002
Source: MDL
Description/Purpose: Indicates to the Cisco PGW 2200 Softswitch what originating line information (OLI)—also called the II digits—are being sent from the LEC. This differentiates calls based on the II digits.
Format: ITU-T Q.763
Length in Octets: 1
Data Value:
Extended Data Value: No extended value.
General Information: For more information on II digits, refer to the Telecordia Local Exchange Routing Guide (LERG).
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
Note: This tag was retired in Release 7.4. It is no longer associated with any CDBs.
Calling Number Nature of Address (Tag: 3003/ITU)
Table 1-46 Calling Number Nature of Address Description Form
Name: Calling Number Nature of Address
Tag: 3003
Source: MDL
Description/Purpose: Indicates to the Cisco PGW 2200 Softswitch how the number was delivered. This field indicates the address type of the calling party. In POTS calling, two values are usually used, the unique national number and the nonunique national number.
Format: ITU-T Q.763
Length in Octets: 1
Data Value:
0000000 Spare 0000001 Subscriber number (national) 0000010 Unknown (national) 0000011 National (significant) number 0000100 International number
0000101 to 1101111 Spare
1110000 to 1111110 Reserved for national use
1111111 Spare
Note: The above values are for standard ITU SS7. Variants of ITU SS7 might have different values. Verify the values for your variant with the appropriate specification, if necessary.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
Charged Number Nature of Address (Tag: 3004/ITU) Retired
Table 1-47 Charged Number Nature of Address Description Form
Name: Charged Number Nature of Address
Tag: 3004
Source: MDL
Description/Purpose: Indicates the address type of the calling party. In POTS calling, the value is typically a unique national number or nonunique national number
Format: ITU-T Q.763
Length in Octets: 1
Data Value:
0000000 Spare 0000001 Subscriber number (national) 0000010 Unknown (national) 0000011 National (significant) number 0000100 International number
0000101 to 1101111 Spare
1110000 to 1111110 Reserved for national use
1111111 Spare
Note: The above values are for standard ITU SS7. Variants of ITU SS7 might have different values. Verify the values for your variant with the appropriate specification, if necessary.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7.0 and later. Retired in Release 9.1(2).
Dialed Number Nature of Address (Tag: 3005)
Table 1-48 Dialed Number Nature of Address Description Form
Name: Dialed Number Nature of Address
Tag: 3005
Source: MDL
Description/Purpose: This value allows the Call Process to route a call differently based on the Nature of Address value provided in the IAM Called Number parameter.
Format: ANSI T1.113
Length in Octets: 1
Data Value:
0000000 Spare 0000001 Subscriber number (national) 0000010 Unknown (national) 0000011 National (significant) number 0000100 International number
0000101 to 1101111 Spare
1110000 to 1111110 Reserved for national use
1111111 Spare
Note: The above values are for standard ITU SS7. Variants of ITU SS7 might have different values. Verify the values for your variant with the appropriate specification, if necessary.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
LRN Nature of Address (Tag: 3006/ITU)
Table 1-49 LRN Nature of Address Description Form
Name: LRN Nature of Address
Tag: 3006
Source: MDL
Description/Purpose: Stores the NOA of LRN from an INAP query.
Format: ITU-T Q.763
Length in Octets: 1
Data Value:
0000000 Spare 0000001 Subscriber number (national) 0000010 Unknown (national) 0000011 National (significant) number 0000100 International number
0000101 to 1101111 Spare
1110000 to 1111110 Reserved for national use
1111111 Spare
Note: The above values are for standard ITU SS7. Variants of ITU SS7 might have different values. Verify the values for your variant with the appropriate specification, if necessary.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
Called Number Nature of Address (Tag: 3007/ITU)
Table 1-50 Called Number Nature of Address Description Form
Name: Called Number Nature of Address
Tag: 3007
Source: MDL
Description/Purpose: The tag contains the Nature of Address (NOA) value from the egress protocol message used in the outbound IAM. The NOA value in this tag is from the ingress protocol message. If no B number NOA is available (redirected to an unknown number) but an original called number information element (IE) is available in the protocol message, the NOA from the IE is logged, and this NOA can be modified for number normalization.
Format: ITU-T Q.763
Length in Octets: 1
Data Value:
0000000 Spare 0000001 Subscriber number (national) 0000010 Unknown (national) 0000011 National (significant) number 0000100 International number
0000101 to 1101111 Spare
1110000 to 1111110 Reserved for national use
1111111 Spare
Note: The above values are for standard ITU SS7. Variants of ITU SS7 might have different values. Verify the values for your variant with the appropriate specification, if necessary.
Extended Data Value: No extended value.
General Information: The value might be modified during the call because of IN actions (for example, LNP).
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
Reason Code (Tag: 3008/ITU)
Table 1-51 Reason Code Description Form
Name: Reason Code
Tag: 3008
Source: MDL
Description/Purpose: Incorporates C7 release with cause values and any additional reasons that the basic call model determines.
Format: based on ITU-T Q.850
Length in Octets: 2
Data Value:
The contents of the octets are as follows.
Octet
8
7
6
5
4
3
2
1
1
Ext.
Coding Standard
Spare
Location
2
Ext.
Cause value
Note This CDE does not include the Diagnostic and Recommendation octets defined in Q.850. The format of this CDR is the same for both Q.763 and Q.931 signaling.
Extension:
0 Octet continues through the next octet (for example, octet 1 to 1a) 1 Last octet
Coding Standard
00 ITU-T standardized coding 01 ISO/IEC standard 10 National standard 11 Standard specific to identified location
Note The coding standards other than ITU-T should only be used only when the desired cause value cannot be represented with the ITU-T standardized coding.
Location:
0000 User (U) 0001 Private network serving the local user (LPN) 0010 Public network serving the local user (LN) 0011 Transit network (TN) 0100 Public network serving the remote user (RLN) 0101 Private network serving the remote user (RPN) 0111 International network (INTL) 1010 Network beyond interworking point (BI)
1100 to 1111 Reserved for national use
All other values are spare.
Cause value: (only applicable in the context of Recommendations Q.763 and Q.931)
The cause value is divided into two fields, a class (bits 5 through 7) and a value within the class (bits 1 through 4).
The class indicates the general nature of the event. The valid values are as follows:
000 Normal event 001 Normal event 010 Resource unavailable 011 Service or option not available 100 Service or option not implemented 101 Invalid message (for example, parameter out of range) 110 Protocol error (for example, unknown message) 111 Interworking
Unallocated (unassigned) number—Indicates that the called party cannot be reached because, although the called party number is in a valid format, it is not currently allocated (assigned).
DSS 1, ISUP
Q.931
U, RPN, LN
—
Q.931
RLN, TN, INTL
No route by digit analysis
000/0010/2
No route to specified transit network (national use)—Indicates that the equipment sending this cause has received a request to route the call through a particular transit network which it does not recognize. The equipment sending this cause does not recognize the transit network either because the transit network does not exist or because that particular transit network, while it does exist, does not serve the equipment which is sending this cause.
This cause is supported on a network-dependent basis.
DSS 1, ISUP(NU)
Q.931
LN, TN
—
000/0010/3
No route to destination—Indicates that the called party cannot be reached because the network through which the call has been routed does not serve the destination desired.
This cause is supported on a network- dependent basis.
DSS 1, ISUP
Q.931
U, RPN, LN
—
000/0100/4
Send special information tone— Indicates that the called party cannot be reached for reasons that are of a long-term nature and that the special information tone should be returned to the calling party.
ISUP
—
—
Clause 7/Q.35
000/0101/5
Misdialed trunk prefix (national use)—Indicates the erroneous inclusion of a trunk prefix in the called party number.
ISUP(NU)
—
—
—
000/0110/6
Channel unacceptable—Indicates that the channel most recently identified is not acceptable to the sending entity for use in this call.
DSS 1
Q.931
LN
—
000/0111/7
Call awarded and being delivered in an established channel—Indicates that the user has been awarded the incoming call, and that the incoming call is being connected to a channel already established to that user for similar calls (for example, packet-mode X.25 virtual calls).
DSS 1
Q.931
LN
—
000/1000/8
Preemption—Indicates that the call is being preempted.
DSS 1, ISUP
Q.735.3 Q.955.3
—
MLPP
000/1001/9
Preemption—Circuit reserved for reuse—indicates that the call is being preempted and the circuit is reserved for reuse by the preempting exchange.
ISUP
Q.735.3
—
MLPP
000/1110/14
QoR:ported number—Indicates that an exchange detected that the called number was ported out (see Annex C/Q.769.1)
Note QoR = Query on release.
ISUP
Q.769.1
LN
—
001/0000/16
Normal call clearing—Indicates that the call is being cleared because one of the users involved in the call has requested that the call be cleared.
Under normal circumstances, the source of this cause is not the network.
DSS 1, ISUP
Q.931, 2.3/Q.764
U, RPN
—
001/0001/17
User busy—Indicates that the called party is unable to accept another call because the user-busy condition has been encountered. This cause value can be generated by the called party or by the network.
For the called party to send the user-busy message, the called party's device must be capable of generating the user-busy cause.
DSS 1, ISUP
Q.931, Q.732, Q.733.3
U, RPN, RLN
Basic call and call diversion services
001/0010/18
No user responding—Used when a called party does not respond to a call establishment message with either an alerting or connect indication within the prescribed period of time.
DSS 1, ISUP
Q.931, Q.732
RLN
Call diversion services
001/0011/19
No answer from user (user alerted)—Used when the called party has been alerted but does not respond with a connect indication within a prescribed period of time.
Note This cause is not necessarily generated by Q.931 procedures; it might be generated by internal network timers.
DSS 1, ISUP
Q.931
RLN
—
2.1.4/Q.764, 2.9.8.3/ Q.764
RLN, TN, INTL
Expiry of waiting ANM timer (T9)
Q.732
RLN
Call diversion services
001/0100/20
Subscriber absent—Used when a mobile station has logged off, radio contact is not obtained with a mobile station, or if a personal telecommunication user is temporarily not addressable at any user-network interface.
DSS 1, ISUP
—
—
Mobile application
001/0101/21
Call rejected—Indicates that the equipment sending this cause does not wish to accept this call, although it could have accepted the call because the equipment sending this cause is neither busy nor incompatible. This cause may also be generated by the network, indicating that the call was cleared due to a supplementary service constraint.
DSS 1, ISUP
Q.931
U, RPN
—
Q.732
RLN
Call diversion services
001/0110/22
Number changed—Returned to a calling party when the called party number indicated by the calling party is no longer assigned. The new called party number can optionally be included in the diagnostic field. If a network does not support this cause value, cause No. 1, Unallocated (unassigned) number, is used.
DSS 1, ISUP
Q.931
U, RPN, LN
—
001/0111/23
Redirection to new destination—Used by a general ISUP protocol mechanism that can be invoked by an exchange that decides that the call should be set up to a different called number. Such an exchange can invoke a redirection mechanism, by use of this cause value, to request a preceding exchange involved in the call to route the call to the new number.
ISUP
—
—
—
001/1000/24
Call rejected due to a feature at the destination.
DSS 1, ISUP
—
RLN
—
001/1001/25
Exchange—routing error—Indicates that the destination indicated by the user cannot be reached, because an intermediate exchange has released the call due to reaching a limit in executing the hop count procedure. This cause is generated by an intermediate node, which when decrementing the hop counter value, gives the result 0.
ISUP
—
LN, TN, RLN, ITNL
—
001/1010/26
Non-selected user clearing—Indicates that the user has not been awarded the incoming call.
DSS 1
Q.931
LN
—
001/1011/27
Destination out of order—Indicates that the destination indicated by the user cannot be reached because the interface to the destination is not functioning correctly. The phrase "not functioning correctly" indicates that a signaling message could not be delivered to the remote party; this might be due to a failure in a physical layer or data link layer at the remote party, or if the user equipment is off-line.
DSS 1, ISUP
Q.931
RLN
—
001/1100/28
Invalid number format (address incomplete)—Indicates that the called party cannot be reached because the called party number is not in a valid format or is not complete.
Note This Cisco PGW 2200 Softswitch can determine that a number format is invalid immediately after it receives an end-of-pulsing (ST) signal, or on timeout after the last received digit.
DSS 1, ISUP
Q.931
U, RPN, RLN, LN
—
In Q.764, the following sections:
2.1.1, 2.1.2, 2.9.8.3, 2.2.5
TN, INTL
The called party number is not in a valid format or is not complete
Annex A/ Q.763
TN, INTL, RLN, RPN
—
001/1101/29
Facility rejected—Returned when a supplementary service requested by the user cannot be provided by the network.
DSS 1, ISUP
Q.931
RLN, U, RPN, LN
—
—
TN, INTL
Inability to provide a request signaling capability
Q.735.1
INTL, RLN
CUG
Q.737.1
INTL, TN, RLN
UUS
001/1110/30
Response to STATUS ENQUIRY—Included in the Status message when the reason for generating the Status message was the prior receipt of a Status Enquiry message.
DSS 1
Q.931
U, LN
—
001/1111/31
Normal, unspecified—Used to report a normal event only when no other cause in the normal class applies.
Call failure information indicating the failure of a call due to the lapse of a timeout or a fault not covered by specific causes (for example, expiry of timers., Q.764 not covered by specific causes, or release of interconnected circuit).
2.1.6/Q.764
2.9.7/Q.764
RLN, TN
Expiry of waiting INF timer (T33)
Annex A/ Q.763
—
—
010/0010/34
No circuit/channel available—Indicates that there is no appropriate circuit/channel presently available to handle the call.
DSS 1, ISUP
Q.931, Q.733.3
U, RPN, RLN, LN, TN
—
—
TN, INTL
Circuit congestion encountered in an exchange
010/0110/38
Network out of order—Indicates that the network is not functioning correctly and that the condition is likely to last a relatively long period of time. (Immediately reattempting the call, for example, is not likely to be successful.)
DSS 1, ISUP
Q.931
U. RPN
—
010/0111/39
Permanent frame mode connection out of service—Included in a Status message to indicate that a permanently established frame mode connection is out of service (for example, due to equipment or section failure). See Annex A/Q.933.
DSS 1
Q.933
—
—
010/1000/40
Permanent frame mode connection operational—Included in a Status message to indicate that a permanently established frame mode connection is operational and capable of carrying user information. See Annex A/Q.933.
DSS 1
Q.933
—
—
010/1001/41
Temporary failure—Indicates that the network is not functioning correctly and that the condition is not likely to last a long period of time. (The user may wish to attempt another call almost immediately.)
DSS 1, ISUP
Q.931
U, RPN, RLN, LN
—
010/1010/42
Switching equipment congestion—Indicates that the switching equipment generating this cause is experiencing a period of high traffic.
DSS 1, ISUP
—
TN, RLN, INTL
—
2.9.9.1/ Q.764
TN, RLN
Temporary trunk block (national use)
010/1011/43
Access information discarded—Indicates that the network could not deliver access information to the remote user as requested, that is, user-to-user information, low layer compatibility, high layer compatibility, or subaddress, as indicated in the diagnostic information. The particular type of access information discarded is optionally included in the diagnostic.
DSS 1, ISUP
Q.931
U, RPN, LN
—
010/1100/44
Requested circuit/channel not available—Returned when the circuit or channel indicated by the requesting entity cannot be provided by the other side of the interface.
DSS 1, ISUP
Q.931
U, RPN, LN
—
010/1110/46
Precedence call blocked—Indicates that there are no preemptable circuits or that the called user is busy with a call that has an equal or higher preemptable level.
DSS 1, ISUP
Q.735.3, Q.955.3
—
MLPP
010/1111/47
Resource unavailable, unspecified—Used to report a resource unavailable event only when no other cause in the resource unavailable class applies.
DSS 1, ISUP
Q.931
U, RPN
—
Annex A/ Q.763
—
—
011/0001/49
Quality of service not available—Used to report that the requested quality of service, as defined in Recommendation X.213, cannot be provided (for example, throughput or transit delay cannot be supported).
DSS 1
Q.931
—
—
011/0010/50
Requested facility not subscribed—Indicates that the user has requested a supplementary service implemented by the equipment that generated this cause, but which the user is not authorized to use.
DSS 1, ISUP
Q.931, Q.735
U, LN, RLN
—
011/0101/53
Outgoing calls barred within CUG—Indicates that although the calling party is a member of the CUG for the outgoing CUG call, outgoing calls are not allowed for this member of the CUG.
ISUP
Q.735.1
—
CUG
011/0111/55
Incoming calls barred within CUG—Indicates that although the called party is a member of the CUG for the incoming CUG call, incoming calls are not allowed to this member of the CUG.
ISUP
Q.735.1
RLN
CUG
011/1001/57
Bearer capability not authorized—Indicates that the user has requested a bearer capability implemented by the equipment that generated this cause, but the user is not authorized to use.
DSS 1, ISUP
Q.931
LN
—
011/1010/58
Bearer capability not presently available—Indicates that the user has requested a bearer capability which is implemented by the equipment which generated this cause but which is not available at this time.
DSS 1, ISUP
Q.931
LN
—
011/1110/62
Inconsistency in designated outgoing access information and subscriber class.
DSS 1, ISUP
Q.735
—
—
011/1111/63
Service or option not available, unspecified—Used to report a service or option not available event only when no other cause in the service or option not available class applies.
DSS 1, ISUP
Q.931
LN
—
Annex A/ Q.763
—
—
100/0001/65
Bearer capability not implemented—Indicates that the equipment sending this cause does not support the bearer capability requested.
DSS 1, ISUP
Q.931
LN
—
Annex A/ Q.763
TN, INTL
Inability to provide requested TMR
100/0010/66
Channel type not implemented—Indicates that the equipment sending this cause does not support the channel type requested.
DSS 1
Q.931
—
—
100/0101/69
Requested facility not implemented—Indicates that the equipment sending this cause does not support the requested supplementary service.
DSS 1, ISUP
Q.931, Q.737.1
U, RPN, LN, RLN
UUS
100/0110/70
Only restricted digital information bearer capability is available (national use)—Indicates that the calling party has requested an unrestricted bearer service but that the equipment sending this cause supports only the restricted version of the requested bearer capability.
DSS 1, ISUP(NU)
Q.931
—
—
100/1111/79
Service or option not implemented, unspecified—Used to report a service or option not implemented event only when no other cause in the service or option not implemented class applies.
DSS 1, ISUP
Q.931
—
—
Annex A/ Q.763
—
—
101/0001/81
Invalid call reference value—Indicates that the equipment sending this cause has received a message with a call reference which is not currently in use on the user-network interface.
DSS 1
Q.931
U, LN
—
101/0010/82
Identified channel does not exist—Indicates that the equipment sending this cause has received a request to use a channel not activated on the interface for a call. For example, if a user has subscribed to those channels on a primary rate interface numbered from 1 to 12 and the user equipment or the network attempts to use channels 13 through 23, this cause is generated.
DSS 1
Q.931
—
—
101/0011/83
A suspended call exists, but this call identity does not—Indicates that a call resume has been attempted with a call identity which differs from that in use for any presently suspended call(s).
DSS 1
Q.931
LN
—
101/0100/84
Call identity in use—Indicates that the network has received a call suspended request containing a call identity (including the null call identity) which is already in use for a suspended call within the domain of interfaces over which the call might be resumed.
DSS 1
Q.931
LN
—
101/0101/85
No call suspended—Indicates that the network has received a call resume request containing a call identity information element which presently does not indicate any suspended call within the domain of interfaces over which calls may be resumed.
DSS 1
Q.931
LN
—
101/0110/86
Call having the requested call identity has been cleared—Indicates that the network has received a call resume request containing a call identity information element indicating a suspended call that has in the meantime been cleared while suspended (either by network timeout or by the remote user).
DSS 1
Q.931
LN
—
101/0111/87
User not member of CUG—Indicates that the called user for the incoming CUG call is not a member of the specified CUG or that the calling user is an ordinary subscriber calling a CUG subscriber.
ISUP, DSS 1
Q.735.1
RLN
CUG
101/1000/88
Incompatible destination—Indicates that the equipment sending this cause has received a request to establish a call which has low layer compatibility, high layer compatibility, or other compatibility attributes (for example, data rate) which cannot be accommodated.
DSS 1, ISUP
Q.931
U, RPN
—
ISUP
Q.737.1
RLN
UUS 2
101/1010/90
Non-existent abbreviated address entry.
ISUP
Q.735
—
CUG
101/1011/91
Invalid transit network selection (national use)—Indicates that a transit network identification was received which is of an incorrect format as defined in Annex C/ Q.931.
DSS 1, ISUP(NU)
Q.931
LN, TN
—
101/1111/95
Invalid message, unspecified—Used to report an invalid message event only when no other cause in the invalid message class applies.
DSS 1, ISUP
Q.931
LN
—
Annex A/ Q.763
—
—
110/0000/96
Mandatory information element is missing—Indicates that the equipment sending this cause has received a message which is missing an information element which must be present in the message before that message can be processed.
DSS 1
Q.931
U, LN
—
110/0001/97
Message type nonexistent or not implemented—Indicates that the equipment sending this cause has received a message with a message type it does not recognize either because this is a message not defined or defined but not implemented by the equipment sending this cause.
DSS 1, ISUP
Q.931
U, LN
—
From Q.764, the following sections:
2.9.5.2, 2.9.5.3
TN, INTL, RLN
—
110/0010/98
Message not compatible with call state or message type nonexistent or not implemented—Indicates that the equipment sending this cause has received a message that is not a permissible message to receive while it is in the call state, or a Status message was received indicating an incompatible call state.
DSS 1
Q.931
U, LN
—
110/0011/99
Information element/parameter nonexistent or not implemented—Indicates that the equipment sending this cause has received a message which includes information element(s)/parameter(s) not recognized because the information element identifier(s)/parameter name(s) are not defined or are defined but not implemented by the equipment sending the cause. This cause indicates that the information element(s)/ parameter(s) were discarded. However, the information element is not required to be present in the message in order for the equipment sending the cause to process the message.
DSS 1, ISUP
Q.931
U, LN
—
2.9.5.2/ Q.764, 2.9.5.3/ Q.764, Annex A/ Q.763
TN, INTL, RLN
—
110/0100/100
Invalid information element contents—Indicates that the equipment sending this cause has received an information element which it has implemented; however, one or more fields in the information element are coded in such a way that has not been implemented by the equipment sending this cause.
DSS 1
Q.931
U, LN
—
110/0101/101
Message not compatible with call state—Indicates that a message has been received which is incompatible with the call state.
DSS 1
Q.931
U, LN
—
110/0110/102
Recovery on timer expiry—Indicates that a procedure has been initiated by the expiry of a timer in association with error handling procedures.
DSS 1, ISUP
Q.931
—
—
Q.733.4
RLN
Terminal portability: expiry of waiting RES (user) timer
2.4.3/Q.764
INTL
Expiry of waiting RES (network) timer (incoming international exchange)
110/0111/103
Parameter nonexistent or not implemented. Passed on (national use)—Indicates that the equipment sending this cause has received a message which includes parameters not recognized because the parameters are not defined or are defined but not implemented by the equipment sending the cause. The cause indicates that the parameter(s) were ignored. In addition, if the equipment sending this cause is an intermediate point, this cause indicates that the parameter(s) were passed through unchanged.
ISUP(NU)
—
—
—
110/1110/110
Message with unrecognized parameter discarded—Indicates that the equipment sending this cause has discarded a received message which includes a parameter that is not recognized.
ISUP
2.9.5.2/ Q.764, 2.9.5.3/ Q.764
—
—
110/1111/111
Protocol error, unspecified—Used to report a protocol error event only when no other cause in the protocol error class applies.
DSS 1, ISUP
Q.931
RLN
—
Annex A/ Q.763
RLN, TN, INTL
—
Q.735.1
RLN
CUG
111/1111/127
Interworking, unspecified—Indicates that there has been interworking with a network which does not provide causes for actions it takes. Thus, the precise cause for a message which is being sent cannot be ascertained.
DSS 1, ISUP
Q.931
—
—
Annex A/ Q.763
—
—
1Application indicates that the cause value may be carried in DSS 1 and/or ISUP. Causes carried in ISUP which are not marked for national use are the minimum set of cause values that are supported over the international interface.
3These are typical locations generated within the scope of the associated ITU-T Recommendations. Other locations can be used depending upon the network configuration.
Forward Call Indicators Received (Tag: 3009/ITU)
Table 1-53 Forward Call Indicators Received Description Form
Name: Forward Call Indicators Received
Tag: 3009
Source: MDL
Description/Purpose: Contains information for the received Forward Call Indicator in ISUP message. It includes the following fields: International Call Ind.; End To End Method Ind.; Interworking Ind.; IAM Segmentation Ind.; ISDN User Part Ind.; ISDN User Part Preference Ind.; ISDN Access Ind.; SCCP Method Ind.
Format: ITU-T Q.763
Length in Octets: 2
Data Value:
The contents of the octets are as follows.
Octet
8
7
6
5
4
3
2
1
1
H
G
F
E
D
C
B
A
2
P
O
N
M
L
K
J
I
The following codes are used in the forward call indicators parameter field:
Bit A—National/international call indicator
0 Call to be treated as a national call 1 Call to be treated as an international call
This bit can be set to any value in the country of origin. In the international network this bit is not checked. In the destination country, calls from the international network will have this bit set to 1.
Note Bits B-F and J-K constitute the protocol control indicator.
Bits CB—End-to-end method indicator:
00 No end-to-end method available (only link-by-link method available) 01 Pass along method available 10 SCCP method available 11 Pass along and SCCP methods available
Bit D—Internetworking indicator:
0 No internetworking encountered (SS7 all the way) 1 Internetworking encountered
Bit E—National/international call indictor
0 Call to be treated as a national call 1 Call to be treated as an international call
Bit F—ISDN user part indicator
0 ISDN user part not used all the way 1 ISDN user part used all the way
Bits HG—ISDN user part preference indicator
00 ISDN user part preferred all the way 01 ISDN user part not required all the way 10 ISDN user part required all the way 11 Spare
Bits KJ—Signal Control Control Part (SCCP) method indicator
00 No indication 01 Connectionless method available 10 Connection-oriented method available 11 Connectionless and connection-oriented methods available
Bit L—Spare
Bits P-M—Reserved for national use
Note The above values are for standard ITU SS7. Variants of ITU SS7 might have different values. Verify the values for your variant with the appropriate specification, if necessary.
Extended Data Value:
General Information:
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
Forward Call Indicators Sent (Tag: 3010/ITU)
Table 1-54 Forward Call Indicators Sent Description Form
Name: Forward Call Indicators Sent
Tag: 3010
Source: MDL
Description/Purpose: Contains information for for the sent Forward Call Indicator in an ISUP message. It includes the following fields: International Call Ind.; End To End Method Ind.; Interworking Ind.; IAM Segmentation Ind.; ISDN User Part Ind.; ISDN User Part Preference Ind.; ISDN Access Ind.; SCCP Method Ind.
Format: ITU-T Q.763
Length in Octets: 2
Data Value:
The contents of the octets are as follows.
Octet
8
7
6
5
4
3
2
1
1
H
G
F
E
D
C
B
A
2
P
O
N
M
L
K
J
I
The following codes are used in the Forward Call Indicators parameter field:
Bit A—National/international call indicator:
0 Call to be treated as a national call 1 Call to be treated as an international call
Note Bit A can be set to any value in the country of origin. In the international network, this bit is not checked. In the destination country, calls from the international network have this bit set to 1.
Note Bits B-F and J-K constitute the protocol control indicator.
Bits CB—End-to-end method indicator:
00 No end-to-end method available (only link-by-link method available) 01 Pass along method available 10 SCCP method available 11 Pass along and SCCP methods available
Bit D—Internetworking indicator:
0 No internetworking encountered (SS7 all the way) 1 Internetworking encountered
Bit E—National/international call indictor:
0 Call to be treated as a national call 1 Call to be treated as an international call
Bit F—ISDN user part indicator:
0 ISDN user part not used all the way 1 ISDN user part used all the way
Bits HG—ISDN user part preference indicator:
00 ISDN user part preferred all the way 01 ISDN user part not required all the way 10 ISDN user part required all the way 11 Spare
00 No indication 01 Connectionless method available 10 Connection oriented method available 11 Connectionless and Connection oriented methods available
Bit L—Spare
Bits P-M—Reserved for national use
Note The above values are for standard ITU SS7. Variants of ITU SS7 might have different values. Verify the values for your variant with the appropriate specification, if necessary.
Extended Data Value:
General Information:
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
Nature of Connection Indicators Received (Tag: 3011/ITU)
Table 1-55 Nature of Connection Indicators Received Description Form
Name: Nature of Connection Indicators Received
Tag: 3011
Source: MDL
Description/Purpose: Used to record the Nature of Connection received from the IAM. There are three possible indicators that can be received: the satellite indicator, the continuity check indicator, and the echo suppressor indicator.
Format: ITU-T Q.763
Length in Octets: 1
Data Value:
The contents of the octet are as follows.
Octet
8
7
6
5
4
3
2
1
1
H
G
F
E
D
C
B
A
The following codes are used in the nature of connection indicators parameter field:
Bits BA—Satellite indicator:
00 No satellite circuit in the connection 01 One satellite circuit in the connection 10 Two satellite circuits in the connection 11 Spare
Bits DC—Continuity check indicator:
00 Continuity check not required 01 Continuity check required on this circuit 10 Continuity check performed on a previous circuit 11 Spare
Bit E—Echo control device indicator:
0 Outgoing half echo control device not included 1 Outgoing half echo control device included
Bits HGF—Spare
Note The above values are for standard ITU SS7. Variants of ITU SS7 might have different values. Verify the values for your variant with the appropriate specification, if necessary.
Extended Data Value:
General Information:
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
Nature of Connection Indicators Sent (Tag: 3012/ITU)
Table 1-56 Nature of Connection Indicators Sent Description Form
Name: Nature of Connection Indicators Sent
Tag: 3012
Source: MDL
Description/Purpose: Used to record the Nature of Connection sent from the IAM. There are three possible indicators that can be received: the satellite indicator, the continuity check indicator, and the echo suppressor indicator.
Format: ITU-T Q.763
Length in Octets: 1
Data Value:
The contents of the octet are as follows.
Octet
8
7
6
5
4
3
2
1
1
H
G
F
E
D
C
B
A
The following codes are used in the nature of connection indicators parameter field:
Bits BA—Satellite indicator:
00 No satellite circuit in the connection 01 One satellite circuit in the connection 10 Two satellite circuits in the connection 11 Spare
Bits DC—Continuity check indicator:
00 Continuity check not required 01 Continuity check required on this circuit 10 Continuity check performed on a previous circuit 11 Spare
Bit E—Echo control device indicator:
0 Outgoing half echo control device not included 1 Outgoing half echo control device included
Bits HGF—Spare
Note The above values are for standard ITU SS7. Variants of ITU SS7 might have different values. Verify the values for your variant with the appropriate specification, if necessary.
Extended Data Value:
General Information:
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
Transit Network Selection (Tag: 3013/ITU)
Table 1-57 Transit Network Selection Description Form
Name: Transit Network Selection
Tag: 3013
Source: MDL
Description/Purpose: Used to identify each previous network type transited.
Format: ITU-T Q.763
Length in Octets: 1 to n
Data Value:
The contents of the octets are as follows.
Octet
8
7
6
5
4
3
2
1
1
Odd/Even
Type of network identification
Network identification plan
2 to n
Network identification
The following codes are used in the subfields of the transit network selection parameter field.
Odd/even indicator:
0 Even number of digits 1 Odd number of digits
Type of network identification:
000 CCITT-standardized identification 010 National network identification other Spare
Network identification plan:
For CCITT-standardized identification
0000 Unknown 0011 Public data network identification code (DNIC), Recommendation X.121 0110 Public land mobile network identification code (MNIC), Recommendation E.212 other Spare For national network identification, this information is coded according to national specifications.
Network identification: This information is organized according to the network identification plan and the identified coding principle.
Note The above values are for standard ITU SS7. Variants of ITU SS7 might have different values. Verify the values for your variant with the appropriate specification, if necessary.
Extended Data Value:
General Information: This value is used only with the following ITU ISUPs: HONG_KONG, AUSTRALIAN, FRENCH, and JAPAN. It can also be used for national ISUPs, within any particular country, with private designations for the network type. For a national call, such as ANSI, this tag is generated along with 2014.205
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
Redirecting Number Nature of Address (Tag 3017/ITU)
Table 1-58 Redirecting Number Nature of Address Description Form
Name: Called Number Nature of Address
Tag: 3017
Source: MDL
Description/Purpose: Indicates to the Cisco PGW 2200 Softswitch how the number was delivered. It indicates the calling party address type. In POTS calling, there are usually two values that are used: Unique national number and Nonunique national number.
Format: ITU-T Q.763
Length in Octets: 1
Data Value:
0000000 Spare 0000001 Subscriber number (national) 0000010 Unknown (national) 0000011 National (significant) number 0000100 International number
0000101 to 1101111 Spare
1110000 to 1111110 Reserved for national use
1111111 Spare
Note The above values are for standard ITU SS7. Variants of ITU SS7 might have different values. Verify the values for your variant with the appropriate specification, if necessary.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7.4.
Egress Calling Number Nature of Address (Tag 3018/ITU)
Table 1-59 Egress Calling Number Nature of Address (ITU) Description Form
Name: Egress Calling Number NOA
Tag: 3018
Source: MDL
Description/Purpose: This CDE records the calling party NOA sent in the outgoing message by the Cisco PGW 2200 Softswitch. This field indicates the address type of the calling party. In POTS calling, there are usually two values that are used. They are Unique National Number and Nonunique National Number.
Format: ANSI T1.113
Length in Octets: 1
Data Value:
0000000 Spare 0000001 Subscriber number (national) 0000010 Unknown (national) 0000011 National (significant) number 0000100 International number
0000101 to 1101111 Spare
1110000 to 1111110 Reserved for national use
1111111 Spare
Note The above values are for standard ITU SS7. Variants of ITU SS7 might have different values. Verify the values for your variant with the appropriate specification, if necessary.
Extended Data Value: No extended value.
General Information:
This CDE is present in the 1060 CDB if the End-of-Call CDB (1110) is configured. For point-in-call mode, the 1060 CDB is usually a short one and does not contain this CDB.
Egress Redirecting Number Nature of Address (Tag 3019/ITU)
Table 1-60 Egress Redirecting Number Nature of Address (ITU) Description Form
Name: Egress Redirecting Number NOA
Tag: 3019
Source: MDL
Description/Purpose: This CDE records the redirecting calling number NOA sent in the outgoing message by the Cisco PGW 2200 Softswitch.
Format: ITU-T Q.763
Length in Octets: 1
Data Value:
0000000 Spare 0000001 Subscriber number (national) 0000010 Unknown (national) 0000011 National (significant) number 0000100 International number
0000101 to 1101111 Spare
1110000 to 1111110 Reserved for national use
1111111 Spare
Note The above values are for standard ITU SS7. Variants of ITU SS7 might have different values. Verify the values for your variant with the appropriate specification, if necessary.
Extended Data Value: No extended value.
General Information:
This CDE is present in the 1060 CDB if the end-of-call CDB (1110) is configured. For point-in-call mode, the 1060 CDB is usually a short one and does not contain this CDB.
Egress Original Called Number Nature of Address (Tag 3020/ITU)
Table 1-61 Egress Original Called Number Nature of Address (ITU) Description Form
Name: Egress Original Called Number NOA
Tag: 3020
Source: MDL
Description/Purpose: This CDE records the original called party NOA sent in the outgoing message by the Cisco PGW 2200 Softswitch.
Format: ITU-T Q.763
Length in Octets: 1
Data Value:
0000000 Spare 0000001 Subscriber number (national) 0000010 Unknown (national) 0000011 National (significant) number 0000100 International number
0000101 to 1101111 Spare
1110000 to 1111110 Reserved for national use
1111111 Spare
Note The above values are for standard ITU SS7. Variants of ITU SS7 might have different values. Verify the values for your variant with the appropriate specification, if necessary.
Extended Data Value: No extended value.
General Information:
This CDE is present in the 1060 CDB if the End-of-Call CDB (1110) is configured. For point-in-call mode, the 1060 CDB is usually a short one and does not contain this CDB.
Description/Purpose: Holds CDB version number to control raw CDB layout version.
Format: BE
Length in Octets: 1
Data Value: 1
Extended Data Value: No extended value.
General Information: This field is required in every CDB.
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
CDB Timepoint (Tag: 4001)
Table 1-63 CDB TimepointCDE Description Form
Name: CDB Timepoint
Tag: 4001
Source: MDL/Engine
Description/Purpose: Timepoint for creation of the CDB.
Format: BE
Length in Octets: 4
Data Value: UNIX time format (number of seconds since January 1, 1970).
Extended Data Value: No extended value.
General Information: This field is required in every CDB.
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
Call Reference ID (Tag: 4002)
Table 1-64 Call Reference ID Description Form
Name: Call Reference ID
Tag: 4002
Source: MDL/Engine
Description/Purpose: Created by the call processing engine as a unique call ID. This call reference ID provides a traceable link among multiple CDBs that are generated during the call. This field is used by downstream systems (such as mediation devices) to correlate CDBs and create a single CDR record for the call.
Format: BE
Length in Octets: 8
Data Value: This consists of a 32-bit time and a 32-bit ascending sequence number.
Extended Data Value: No extended value.
General Information: This field is required in every CDB.
IAM/Setup Timepoint (Tag: 4003)
Table 1-65 IAM/Setup Timepoint Description Form
Name: IAM/Setup Timepoint
Tag: 4003
Source: MDL/Engine
Description/Purpose: Timepoint for receipt of IAM/Setup (or receipt of CRM if a CRM preceded the IAM).
Format: BE
Length in Octets: 4
Data Value: UNIX time format (number of seconds since January 1, 1970).
Extended Data Value: No extended value.
General Information: This message is sent in the forward direction (from the originating exchange to the terminating exchange). It initiates seizure of an outgoing circuit and transmission of the number and other information relating to the routing and handling of a call.
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
ACM/Alert Timepoint (Tag: 4004)
Table 1-66 ACM/Alert Timepoint Description Form
Name: ACM/Alert Timepoint
Tag: 4004
Source: MDL/Engine
Description/Purpose: Timepoint for receipt of ACM/Alert.
Format: BE
Length in Octets: 4
Data Value: UNIX time format (number of seconds since January 1, 1970).
Extended Data Value: No extended value.
General Information: This message is sent in the backward direction (from the terminating exchange to the originating exchange), indicating that all signals required for routing the call to the called party have been received.
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
ANM/Answer Timepoint (Tag: 4005)
Table 1-67 ANM/Answer Timepoint Description Form
Name: ANM/Answer Timepoint
Tag: 4005
Source: MDL/Engine
Description/Purpose: Timepoint for receipt of ANM/Answer.
Format: BE
Length in Octets: 4
Data Value: UNIX time format (number of seconds since January 1, 1970).
Extended Data Value: No extended value.
General Information: This message is sent in the backward direction (from the terminating exchange to the originating exchange), indicating that the call has been answered.
This message can be used in conjunction with the charging information to start measurement of a call duration.
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
REL/Release Timepoint (Tag: 4006)
Table 1-68 REL/Release Timepoint Description Form
Name: REL/Release Timepoint
Tag: 4006
Source: MDL/Engine
Description/Purpose: Timepoint for receipt of first REL/Release.
Format: BE
Length in Octets: 4
Data Value: UNIX time format (number of seconds since January 1, 1970).
Extended Data Value: No extended value.
General Information: This message can be sent in either direction. It indicates that the circuit identified in the message is being released due to the reason (cause) supplied and is ready to be put in idle state on receipt of the release complete message.
This message provides the release of the circuit of a call initiated by the IAM message.
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
Crash Timepoint (Tag: 4007)
Table 1-69 Crash Timepoint Description Form
Name: Crash Timepoint
Tag: 4007
Source: MDL/Engine
Description/Purpose: Last known timepoint before a crash.
Format: BE
Length in Octets: 4
Data Value: UNIX time format (number of seconds since January 1, 1970).
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
Originating Trunk Group (Tag: 4008)
Table 1-70 Originating Trunk Group Description Form
Name: Originating Trunk Group
Tag: 4008
Source: MDL/Engine
Description/Purpose: Holds the originating trunk group number.
If you are using the Multiple Incoming IP Trunk Groups feature, this CDR contains the derived incoming trunk group ID.
Format: BE
Length in Octets: 2
Data Value: The trunk group number ranges from 1 to 16,384 for ANSI and 1 to 4096 for ITU.
Extended Data Value: No extended value.
General Information: If you are creating Bellcore AMA Format (BAF) records downstream, BAF supports only four digits for the trunk group number. This makes the practical limit 9999.
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
Originating Member (Tag: 4009)
Table 1-71 Originating Member Description Form
Name: Originating Member
Tag: 4009
Source: MDL
Description/Purpose: Contains the originating trunk member number within the originating trunk group. There can be 214 originating members when the Cisco PGW 2200 Softswitch is configured for ANSI, and 212 originating members when it is configured for ITU.
Format: BE
Length in Octets: 2
Data Value: Integer—There can be 214 members for ANSI, and 212 for ITU.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
Calling Number (Tag: 4010)
Table 1-72 Calling Number Description Form
Name: Calling Number
Tag: 4010
Source: MDL
Description/Purpose: These are the digits of the calling number.
Format: IA5
Length in Octets: 1 to 96
Data Value: Holds the digits of the calling number.
Extended Data Value: No extended value.
General Information: In the SS7/C7 environment, the calling number (Tag 4010) holds only the digits of the calling number; it does not include any NOA or other information. NOA and other information are presented by their own CDE(s).
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
Charged Number (Tag: 4011)
Table 1-73 Charged Number Description Form
Name: Charged Number
Tag: 4011
Source: MDL
Description/Purpose: If the protocol contains a parameter called charged number, the contents are deposited into this CDE in order to define the unique number of the party to be billed. In this case, it may or may not be the calling number. However, if the charged number parameter does not exist, the calling number is placed by default into this CDE as a billed party.
Format: IA5
Length in Octets: 1 to 96
Data Value: The digits of the number being billed.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
Dialed Number (Tag: 4012)
Table 1-74 Dialed Number Description Form
Name: Dialed Number
Tag: 4012
Source: MDL
Description/Purpose: These are the digits that were dialed by the calling party.
Format: IA5
Length in Octets: 1 to 96
Data Value: The digits that were dialed by the calling party.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
LRN Number (Tag: 4013)
Table 1-75 LRN Number Description Form
Name:LRN Number
Tag: 4013
Source: MDL
Description/Purpose: Location routing number (LRN) used in implementation of local number portability.
Format: IA5
Length in Octets: 1 to 96
Data Value: IA5 digits
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
Called Number (Tag: 4014)
Table 1-76 Called Number Description Form
Name: Called Number
Tag: 4014
Source: MDL
Description/Purpose: This is the number to which the call is sent. This tag contains egress message information sent out in the outbound IAM.
Format: IA5
Length in Octets: 1 to 96
Data Value: The digits for the number to which the call is sent.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
Terminating Trunk Group (Tag: 4015)
Table 1-77 Terminating Trunk Group Description Form
Name: Terminating Trunk Group
Tag: 4015
Source: MDL/Engine
Description/Purpose: Terminating Trunk Group number.
Format: BE
Length in Octets: 2
Data Value: The terminating trunk group number ranges from 1 to 16,384 when the Cisco PGW 2200 Softswitch is configured for ANSI and the number ranges from 1 to 4096 when it is configured for ITU.
Extended Data Value: No extended value.
General Information: When BAF records are created downstream, BAF supports only four digits for trunk group number. This makes the practical limit 9999.
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
Terminating Member (Tag: 4016)
Table 1-78 Terminating Member Description Form
Name: Terminating Member
Tag: 4016
Source: MDL/Engine
Description/Purpose: Contains the terminating trunk member number within the terminating trunk group. There can be 214 members when the terminating trunk group is configured for ANSI, and up to 212 members when it is configured for ITU.
Format: BE
Length in Octets: 2
Data Value: Integer—There can be up to 16,384 terminating members for ANSI, and up to 4096 members for ITU.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
Maintenance Trunk Group (Tag: 4017)
Table 1-79 Maintenance Trunk Group Description Form
Name: Maintenance Trunk Group
Tag: 4017
Source: MDL/Engine
Description/Purpose: Maintenance trunk group number involved for maintenance.
Format: BE
Length in Octets: 2
Data Value: The trunk group number ranges from 1 to 16,384 for ANSI and 1 to 4096 for ITU.
Extended Data Value: No extended value.
General Information: When BAF records are created downstream, BAF supports only four digits for trunk group number. This makes the practical limit 9999.
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
Maintenance Circuit Member (Tag: 4018)
Table 1-80 Maintenance Circuit Member
Name: Maintenance Circuit Member
Tag: 4018
Source: MDL/Engine
Description/Purpose: Maintenance circuit member number within a trunk group. There can be up to 214 members in a trunk group when the Cisco PGW 2200 Softswitch is configured for ANSI and up to 212 members when configured for ITU.
Format: BE
Length in Octets: 2
Data Value: There can be up to 16,384 members for ANSI and up to 4096 members for ITU, and is represented as an integer.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
Glare Encountered (Tag: 4019)
Table 1-81 Glare Encountered Description Form
Name: Glare Encountered
Tag: 4019
Source: MDL
Description/Purpose: Call completed but glare was encountered during the call.
Format: BE
Length in Octets: 1
Data Value:
0 = No glare 1 = Glare
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
RLC/RELEASE Complete Timepoint (Tag: 4020)
Table 1-82 RLC/Release Complete Timepoint Description Form
Name: RLC/Release Complete
Tag: 4020
Source: MDL/Engine
Description/Purpose: Timepoint for receipt of RLC/Release complete.
Format: BE
Length in Octets: 4
Data Value: UNIX time format (number of seconds since January 1, 1970).
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
Last SAM timepoint (Second) (Tag:4021)
Table 1-83 Last SAM timepoint (Second)
Name: Last SAM timepoint (Second)
Tag: 4021
Source: MDL/Engine
Description/Purpose: Time point in second for receipt of last SAM.
Format: BE
Length: 4
Data Value: Time in UNIX format (Number of seconds since January 1, 1970).
Extended Data Value: No extended value
General Information: This tag indicates the timepoint of the last SAM message received.
Cisco PGW 2200 Softswitch Release: 9.8(1)
First Release Source (Tag: 4028)
Table 1-84 First Release Source Description Form
Name: First Release Source
Tag: 4028
Source: MDL
Description/Purpose: Indicates if the release source was an originating, terminating, or local (Cisco PGW 2200 Softswitch) system.
Format: BE
Length in Octets: 1
Data Value:
0 = Originating side 1 = Terminating side 2 = Local (Cisco PGW 2200 Softswitch)
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
LNP Dip (Tag: 4029)
Table 1-85 LNP Dip Description Form
Name: LNP Dip
Tag: 4029
Source: MDL
Description/Purpose: Indicates if an LNP dip was required, and identifies the result of the dip.
Format: BE
Length in Octets: 1
Data Value:
0 = Not required 1 = Required and succeeded 2 = Not required, previous switch accomplished LNP 3 = Required, failed
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
Total Meter Pulses (Tag: 4030)
Table 1-86 Total Meter Pulses Description Form
Name: Total Meter Pulses
Tag: 4030
Source: MDL
Description/Purpose: Holds the total meter pulses. Some (but not all) Integrated Services Digital Network User Parts (ISUPs) and Telephone User Parts (TUPs) specifications define and permit the use of this optional information.
Format: BE
Length in Octets: 2
Data Value: Total meter pulse counts sent out by Cisco PGW 2200 Softswitch for a call.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 5.0 and later. To be retired after Release 9.5(2).
Maintenance Type (Tag: 4032)
Table 1-87 Maintenance Type Description Form
Name: Maintenance Type
Tag: 4032
Source: MDL
Description/Purpose: Indicates the type of maintenance requested.
Format: BE
Length in Octets: 1
Data Value:
Up to Release 9.2(2):
1 = Block 2 = Unblock 3 = Reset
Release 9.3(1) and later:
1 = Blocked channel remote 2 = Unblocked channel remote 3 = Reset or restart channel remote 4 = Reset channel local 5 = Blocked channel local 6 = Unblocked channel local
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
Maintenance Reason (Tag: 4033)—Retired
Table 1-88 Maintenance Reason Description Form
Name: Maintenance Reason
Tag: 4033
Source: MDL
Description/Purpose: Indicates the reason that the maintenance was requested.
Format: BE
Length in Octets: 1
Data Value:
Up to Release 9.2(2):
1 = Remote 2 = Local
Release 9.3(1) and later:
1 = Blocked channel remote 2 = Unblocked channel remote 3 = Reset or restart channel remote 4 = Reset channel local 5 = Blocked channel local 6 = Unblocked channel local
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 5.0 and later.
Note Tag 4033 is retired in Release 9.4(1) of the Cisco PGW 2200 Softswitch software.
Ingress Originating Point Code (Tag: 4034)
Table 1-89 Ingress Originating Point Code Description Form
Name: Ingress Originating Point Code
Tag: 4034
Source: MDL
Description/Purpose: Holds the ingress originating point code.
Format: BE
Length in Octets: 4
Data Value: The point code is in 4-byte integer format.
Extended Data Value: No extended value.
General Information:
Example showing the conversion of a point code value from a 4-byte integer to IA5 format:
•ITU C7 point code (3 bits - 8 bits - 3 bits) Tag value in integer format = 4114 Convert tag value to binary format = 1000000010010 Convert tag value to IA5 format = 10-00000010-010 (2-2-2)
•ANSI SS7 point code (8 bits - 8 bits - 8 bits) Tag value in integer format = 131586 Convert tag value to binary format = 100000001000000010 Convert tag value to IA5 format = 10-00000010-00000010 (2-2-2)
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
Ingress Destination Point Code (Tag: 4035)
Table 1-90 Ingress Destination Point Code Description Form
Name: Ingress Destination Point Code
Tag: 4035
Source: MDL
Description/Purpose: Holds the ingress destination point code.
Format: BE
Length in Octets: 4
Data Value: The point code is in 4-byte integer format.
Extended Data Value: No extended value.
General Information:
Example showing the conversion of a point code value from a 4-byte integer to IA5 format:
•ITU C7 point code (3 bits - 8 bits - 3 bits) Tag value in integer format = 4114 Convert tag value to binary format = 1000000010010 Convert tag value to IA5 format = 10-00000010-010 (2-2-2)
•ANSI SS7 point code (8 bits - 8 bits - 8 bits) Tag value in integer format = 131586 Convert tag value to binary format = 100000001000000010 Convert tag value to IA5 format = 10-00000010-00000010 (2-2-2)
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
Egress Originating Point Code (Tag: 4036)
Table 1-91 Egress Originating Point Code
Name: Egress Originating Point Code
Tag: 4036
Source: MDL
Description/Purpose: Holds the egress originating point code.
Format: BE
Length in Octets: 4
Data Value: The point code is in 4-byte integer format.
Extended Data Value: No extended value.
General Information:
Example showing the conversion of a point code value from a 4-byte integer to IA5 format:
•ITU C7 point code (3 bits - 8 bits - 3 bits) Tag value in integer format = 4114 Convert tag value to binary format = 1000000010010 Convert tag value to IA5 format = 10-00000010-010 (2-2-2)
•ANSI SS7 point code (8 bits - 8 bits - 8 bits) Tag value in integer format = 131586 Convert tag value to binary format = 100000001000000010 Convert tag value to IA5 format = 10-00000010-00000010 (2-2-2)
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
Egress Destination Point Code (Tag: 4037)
Table 1-92 Egress Destination Point Code Description Form
Name: Egress Destination Point Code
Tag: 4037
Source: MDL
Description/Purpose: Holds the egress destination point code.
Format: BE
Length in Octets: 4
Data Value: The point code is in 4-byte integer format.
Extended Data Value: No extended value.
General Information:
Example showing the conversion of a point code value from a 4-byte integer to IA5 format:
•ITU C7 point code (3 bits - 8 bits - 3 bits) Tag value in integer format = 4114 Convert tag value to binary format = 1000000010010 Convert tag value to IA5 format = 10-00000010-010 (2-2-2)
•ANSI SS7 point code (8 bits - 8 bits - 8 bits) Tag value in integer format = 131586 Convert tag value to binary format = 100000001000000010 Convert tag value to IA5 format = 10-00000010-00000010 (2-2-2)
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
Ingress Media Gateway ID (Tag: 4038)
Table 1-93 Ingress Media Gateway ID Description Form
Name: Ingress Media Gateway ID
Tag: 4038
Source: MDL
Description/Purpose: Ingress media gateway ID (expressed in address).
Format: BE
Length in Octets: 2
Data Value: 16 bits of binary value.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
Egress Media Gateway ID (Tag: 4039)
Table 1-94 Egress Media Gateway ID Description Form
Name: Egress Media Gateway ID
Tag: 4039
Source: MDL
Description/Purpose: Egress media gateway ID (expressed in address).
Format: BE
Length in Octets: 2
Data Value: 16 bits of binary value.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
TCAP Transaction ID (Tag: 4040)
Table 1-95 TCAP Transaction ID Description Form
Name: TCAP Transaction ID
Tag: 4040
Source: MDL
Description/Purpose: The TCAP transaction ID holds a unique identification number for each external request to an SCP, an intelligent peripheral (IP), or some other database.
Format: BE
Length in Octets: 4
Data Value: 32 bits of binary value.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
Transaction Start Time (Tag: 4041)
Table 1-96 Transaction Start Time Description Form
Name: Transaction Start Time
Tag: 4041
Source: MDL/Engine
Description/Purpose: The time at which the Cisco PGW 2200 Softswitch sent an external request to an SCP, intelligent peripheral (IP), or some other database.
Format: DT2
Length in Octets: 6
Data Value: UNIX time format (number of seconds since January 1, 1970).
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
Transaction End Time (Tag: 4042)
Table 1-97 Transaction End Time Description Form
Name: Transaction End Time
Tag: 4042
Source: MDL/Engine
Description/Purpose: The time at which the Cisco PGW 2200 Softswitch received a response from an external request to an SCP, IP, or some other database.
Format: DT2
Length in Octets: 6
Data Value: UNIX time format (number of seconds since January 1, 1970).
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
TCAP Database ID (Tag: 4043)
Table 1-98 TCAP Database ID Description Form
Name: TCAP Database ID
Tag: 4043
Source: MDL/Engine
Description/Purpose: The external database identification number for the SCP, IP, or some other external database for which a transaction was performed.
Format: BE
Length in Octets: 4
Data Value: UNIX time format (number of seconds since January 1, 1970).
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
Announcement ID (Tag: 4044)
Table 1-99 Announcement ID Description Form
Name: Announcement ID
Tag: 4044
Source: MDL
Description/Purpose: Announcement ID value.
Format: BE
Length in Octets: 2
Data Value: An integer value to identify which announcement to play.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
Route Selection Info (Tag: 4045) Retired
Table 1-100 Route Selection Info Description Form
Name: Route Selection Info
Tag: 4045
Source: MDL
Description/Purpose: Route index and the route ID value.
Format: BE
Length in Octets: 4
Data Value:
The route index and route ID details are as follows:
•Route Index
–Length = 2
–Value = Route index that is used to select a route
•Route ID
–Length = 2
–Value = Route ID selected
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7.0 and later. This tag is retired as of Release 9.5(2).
Ingress Gateway Packet Info (Tag: 4046) Restored
Table 1-101 Ingress Gateway Packet Info Description Form
Name: Ingress Gateway Packet Info
Tag: 4046
Source: MDL
Description/Purpose: Contains information about the packets sent, packets received, packets lost, octets sent, octets received, jitter, and latency information (reserved 1 and 2) from the ingress gateway. In Release 9.7(3), H.248 support is added. For an H.248 call, the subfield definitions are unchanged and the data is filled with the statistics of Network Package (nt) and RTP Package (rtp) in H.248.
Format: BE
Length in Octets: 36
Data Value:
For details of the subfields for this CDE, see Table 1-102.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Releases 7.0 to 7.3 and Release 9.4(1) and later.
Note: This tag was retired in Release 7.4. It is restored as of Release 9.4(1).
Table 1-102 Subfields for Ingress Gateway Packet Info (Tag: 4046)
Subfield
Length
Position
Value
Packets sent
4
1
MGCP->DLCX or DLCX ack,P:PS=
Packets received
4
5
MGCP->DLCX or DLCX ack,P:PR=
Packets lost
4
9
MGCP->DLCX or DLCX ack,P:PL=
Octets sent
4
13
MGCP->DLCX or DLCX ack,P:OS=
Octets received
4
17
MGCP->DLCX or DLCX ack,P:OR=
Jitter
4
21
MGCP->DLCX or DLCX ack,P:JI=
Latency
4
25
MGCP->DLCX or DLCX ack,P:LA=
Reserved 1
4
29
—
Reserved 2
4
33
—
Egress Gateway Packet Info (Tag: 4047) Restored
Table 1-103 Egress Gateway Packet Info Description Form
Name: Egress Gateway Packet Info
Tag: 4047
Source: MDL
Description/Purpose: Contains information about the packets sent, packets received, packets lost, octets sent, octets received, jitter, and latency information (reserved 1 and 2) from the egress gateway. On Release 9.7(3), H.248 support is added. For an H.248 call, the subfield definitions are unchanged and the data is filled with the statistics of Network Package (nt) and RTP Package (rtp) in H.248.
Format: BE
Length in Octets: 36
Data Value:
For details of the subfields for this CDE, see Table 1-104.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Releases 7.0 to 7.3, and Release 9.4(1) and later.
Note: This tag was retired in Release 7.4. It is restored as of Release 9.4(1).
Table 1-104 Subfields for Egress Gateway Packet Info (Tag: 4047)
Subfield
Length
Position
Value
Packets sent
4
1
MGCP->DLCX or DLCX ack,P:PS=
Packets received
4
5
MGCP->DLCX or DLCX ack,P:PR=
Packets lost
4
9
MGCP->DLCX or DLCX ack,P:PL=
Octets sent
4
13
MGCP->DLCX or DLCX ack,P:OS=
Octets received
4
17
MGCP->DLCX or DLCX ack,P:OR=
Jitter
4
21
MGCP->DLCX or DLCX ack,P:JI=
Latency
4
25
MGCP->DLCX or DLCX ack,P:LA=
Reserved 1
4
29
—
Reserved 2
4
33
—
Directional Flag (Tag: 4048)
Table 1-105 Directional Flag Description Form
Name: Directional Flag
Tag: 4048
Source: MDL/Engine
Description/Purpose: Describes the role of the Cisco PGW 2200 Softswitch when EISUP is involved.
Format: BE
Length in Octets: 1
Data Value:
0 = Intermediate switch (E-ISUP to E-ISUP) 1 = Ingress switch (^E-ISUP to E-ISUP) 2 = Egress switch (E-ISUP to ^E-ISUP) 3 = Both (^E-ISUP to ^E-ISUP)
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
Service Logic ID (Tag: 4049)
Table 1-106 Service Logic ID Description Form
Name: Service Logic ID
Tag: 4049
Source: MDL
Description/Purpose: In an advanced intelligent network (AIN) environment, this CDE records an identification of service logic in the SCP that was used. The automatic message accounting service logic program ID (AMAslpID) returned from the SCP hold the service logic ID value.
Format: IA5
Length in Octets: 9
Data Value: 000000001 - 899999999
Extended Data Value: No extended value.
General Information: This field value indicates that the mediation software, when configured to generate AMA (automatic message accounting) data, generates Structure Code 220. (For more details, refer to Telcordia document GR-2892-CORE, Section 8.)
Note This CDE is not applicable to INAP calls.
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
AMA Line Number (Tag: 4050)
Table 1-107 AMA Line Number Description Form
Name: AMA Line Number
Tag: 4050
Source: MDL
Description/Purpose: In an AIN environment, this CDE is included in the Analyzed_Route message. It uses an AIN digits format and contains the original called party ID, incoming terminating number, or ANI.
Format: IA5
Length in Octets: 15
Data Value: Up to a 12-digit line number and a 3-digit line number type.
Extended Data Value: No extended value.
General Information: This field value indicates that the mediation software (when configured to generate AMA) generates Structure Code 220 with AMALineNumber to be recorded in Module Code 307. (For more details, refer to Telcordia document GR-2892-CORE, Section 8.)
Note The Analyzed_Route message allows up to two AMALineNumber parameters; therefore, the Cisco PGW 2200 Softswitch can save up to two AMA line numbers, and the mediation can generate two module Code 307s.
Note This CDE is not applicable to INAP calls.
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
Inbound Trunk Profile (Tag: 4051)
Table 1-108 Inbound Trunk Profile Description Form
Name: Inbound Trunk Profile
Tag: 4051
Source: MDL/Engine
Description/Purpose: Contains the inbound trunk profile name used for the call.
Format: IA5
Length in Octets: 1 to 256
Data Value: Inbound trunk profile name.
Extended Data Value: No extended value.
General Information: This CDE is present in the following CDBs: 1010, 1030, and 1110. This CDE is not present in the following CDBs: 1020, 1040, 1050, 1060, 1070, and 1080.
General Information (Release 9.8): This CDE is present in the following CDBs: 1010, 1030, 1040, and 1110. This CDE is not present in the following CDBs: 1020, 1050, 1060, 1070, and 1080.
Cisco PGW 2200 Softswitch Release: Release 9.8 and later.
Originating Gateway Primary Select (Tag: 4052)
Table 1-109 Originating Gateway Primary Select
Name: Originating Gateway Primary Select
Tag: 4052
Source: MDL/Engine
Description/Purpose:
Format: Binary
Length in Octets: 1
Data Value: 0=False, 1=True
Extended Data Value: No extended value.
General Information: This CDE is present in the following CDBs: 1010 and 1030. This CDE is not present in the following CDBs: 1020, 1040, 1050, 1060, 1070, 1080, and 1110.
Cisco PGW 2200 Softswitch Release: Release 9.8 and later.
Terminating Gateway Primary Select (Tag: 4053)
Table 1-110 Terminating Gateway Primary Select
Name: Terminating Gateway Primary Select
Tag: 4053
Source: MDL/Engine
Description/Purpose:
Format: Binary
Length in Octets: 1
Data Value:
Extended Data Value: No extended value.
General Information: This CDE is present in the following CDBs: 1010 and 1030. This CDE is not present in the following CDBs: 1020, 1040, 1050, 1060, 1070, 1080, and 1110.
Cisco PGW 2200 Softswitch Release: Release 9.8 and later.
Egress Domain Profile (Tag: 4054)
Table 1-111 Egress Domain Profile Description Form
Name: Egress Domain Profile
Tag: 4054
Source: MDL/Engine
Description/Purpose: Contains the outbound domain profile name used for the call.
Format: IA5
Length in Octets: 1 to 256
Data Value: Egress domain profile name.
Extended Data Value: No extended value.
General Information: This CDE is present in the following CDBs: 1010, 1030, 1040, and 1110. This CDE is not present in the following CDBs: 1020, 1050, 1060, 1070, and 1080.
Cisco PGW 2200 Softswitch Release: Release 9.8 and later.
Call Policy (Tag: 4055)
Table 1-112 Call Policy Description Form
Name: Call Policy
Tag: 4055
Source: MDL
Description/Purpose: Indicates the back-to-back user agent policy applied to the call.
Format: Structured variable
Length in Octets: 1
Data Value: Outbound domain profile name.
Octet 1 Transport Protocol
•0 = Trusted
•1 = Nontrusted
•2 = Trusted, topology hiding enabled
•3 = Nontrusted, topology hiding disabled
Extended Data Value: No extended value.
General Information: This CDE is present in the following CDBs: 1010, 1030, 1040, and 1110. This CDE is not present in the following CDBs: 1020, 1050, 1060, 1070, and 1080.
Cisco PGW 2200 Softswitch Release: Release 9.8 and later.
SIP Terminating Call ID (Tag: 4056)
Table 1-113 SIP Terminating Call ID Description Form
Name: SIP Terminating Call ID
Tag: 4056
Source: MDL/Engine
Description/Purpose: Contains the Call ID used by the terminating side of a SIP call.
Format: IA5
Length in Octets: 1 to 256
Data Value: Call ID number.
Extended Data Value: No extended value.
General Information: This CDE is present in the following CDBs: 1010, 1030, and 1110. This CDE is not present in the following CDBs: 1020, 1040, 1050, 1060, 1070, and 1080.
Cisco PGW 2200 Softswitch Release: The name of this CDR was changed from SIP Call ID to SIP Originating Call ID in Release 9.7, 9.8(1) and later.
Egress Trunk Profile (Tag: 4057)
Table 1-114 Egress Trunk Profile Description Form
Name: Egress Trunk Profile
Tag: 4057
Source: MDL/Engine
Description/Purpose: Contains the outbound trunk profile name used for this call.
Format: IA5
Data Value: Outbound trunk profile name.
Extended Data Value: No extended value.
General Information: Used in the following CDB records: 1010 (setup), 1030 (aborted), 1040(release), 1110 (endof call).
Cisco PGW 2200 Softswitch Release: Release 9.8 and later.
Ingress Domain Profile (Tag: 4058)
Table 1-115 Egress Trunk Profile Description Form
Name: Ingress Domain Profile
Tag: 4058
Source: MDL/Engine
Description/Purpose: Contains the inbound domain profile name used for this call.
Format: IA5
Data Value: Inbound domain profile name.
Extended Data Value: No extended value.
General Information: Used in the following CDB records: 1010 (setup), 1030 (aborted), 1040(release), 1110 (endof call).
Cisco PGW 2200 Softswitch Release: Release 9.8 and later.
Display Name(Tag: 4059)
Table 1-116 Display Name Description Form
Name: Display Name
Tag: 4059
Source: MDL/Engine
Description/Purpose: The display name is gotten from call IAM or SETUP message (SS7 or PRI). It is sent as an element with hex type value of 0x28 in SETUP message, and the value is the display name such as "MyName".
Format: String
Length in Octets: 1 to 255
Extended Data Value: No extended value.
General Information: Example value in CDE: MyName, is in string format.
Cisco PGW 2200 Softswitch Release: Release 9.7(3) and later.
CDBs to be included in: 1010(Y) 1020(N) 1030(Y) 1040(Y) 1050(N) 1060(N) 1070(N) 1080(N) 1110(Y)
Redirecting Number (Tag: 4060)
Table 1-117 Redirecting Number Description Form
Name: Redirecting Number
Tag: 4060
Source: MDL/Engine
Description/Purpose: Stores the digits from the redirecting number.
Format: IA5
Length in Octets: 1 to 96
Data Value: Character string containing the forwarded station's address or subscriber number.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7 and later.
Scale Factor (Tag: 4062)
Table 1-118 Scale Factor Description Form
Name: Scale Factor
Tag: 4062
Source: MDL/Engine
Description/Purpose: Used for reporting Advice of Charge information.
Format: BE
Length in Octets: 4
Data Value: The actual value for the scale factor is given by 10^x, where x is the value of the scale factor. The MML coding of scale factor is as follows; all other values are spare:
Cisco PGW 2200 Softswitch Release: Release 9 and later.
Redirection Number (Tag: 4065)
Table 1-120 Ingress SigPath ID Description Form
Name: Redirection Number
Tag: 4065
Source: MDL
Description/Purpose: Contains the digits of the new number when the Cisco PGW 2200 Softswitch redirects a call.
Format: IA5
Length in Octets: 1 to 96
Data Value: Redirection number digits
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 9.7 and later.
Ingress SigPath ID (Tag: 4066)
Table 1-121 Ingress SigPath ID Description Form
Name: Ingress SigPath ID
Tag: 4066
Source: MDL/Engine
Description/Purpose: Associates incoming bearer channels with signaling services, such as a destination point code (DPC) in SS7.
Format: BE
Length in Octets: 4
Data Value: 32 bits of binary value
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7 and later.
Ingress Span ID (Tag: 4067)
Table 1-122 Ingress Span ID Description Form
Name: Ingress Span ID
Tag: 4067
Source: MDL/Engine
Description/Purpose: Identifies an ingress span, which is a grouping of incoming PRI bearer channels.
Format: BE
Length in Octets: 4
Data Value: 32 bits of binary value
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7 and later.
Ingress BearChan ID (Tag: 4068)
Table 1-123 Ingress BearChan ID Description Form
Name: Ingress BearChan ID
Tag: 4068
Source: MDL/Engine
Description/Purpose: Identifies the incoming bearer channel.
Format: BE
Length in Octets: 4
Data Value: 32 bits of binary value
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7 and later.
Ingress Protocol ID (Tag: 4069)
Table 1-124 Ingress Protocol ID Description Form
Name: Ingress Protocol ID
Tag: 4069
Source: MDL/Engine
Description/Purpose: Determined from MDL and used in measurements and billing. In Release 9.7(3), for the H.248 Protocol feature, a new protocol type 10 = H.248 is added to the definition.
Cisco PGW 2200 Softswitch Release: Release 7 and later.
Maintenance SigPath ID (Tag: 4074)
Table 1-129 Maintenance SigPath ID Description Form
Name: Maintenance SigPath ID
Tag: 4074
Source: MDL/Engine
Description/Purpose: Associates maintenance bearer channels with signaling services, such as a destination point code (DPC) in SS7.
Format: BE
Length in Octets: 4
Data Value: 32 bits of binary value
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7 and later.
Maintenance Span ID (Tag: 4075)
Table 1-130 Maintenance Span ID Description Form
Name: Maintenance Span ID
Tag: 4075
Source: MDL/Engine
Description/Purpose: Identifies a maintenance span, which is a grouping of maintenance PRI bearer channels.
Format: BE
Length in Octets: 4
Data Value: 32 bits of binary value
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7 and later.
Maintenance BearChan ID (Tag: 4076)
Table 1-131 Maintenance BearChan ID Description Form
Name: Maintenance BearChan ID
Tag: 4076
Source: MDL/Engine
Description/Purpose: Identifies a maintenance bearer channel.
Format: BE
Length in Octets: 4
Data Value: 32 bits of binary value
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7 and later.
Maintenance Circuits Count (Tag: 4077)
Table 1-132 Maintenance Circuits Count Description Form
Name: Maintenance Circuits Count
Tag: 4077
Source: MDL/Engine
Description/Purpose: The maintenance circuits count is the number of circuits in a maintenance event reported in CDB 1070.
Format: BE
Length in Octets: 4
Data Value: Counting is zero-based, so add 1 to any result returned in this tag for the actual circuit count.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 9.3(1) and later.
Charge Band Number (Tag: 4078)
Table 1-133 Charge Band Number Description Form
Name: Charge Band Number
Tag: 4078
Source: MDL/Engine
Description/Purpose: Used for reporting Advice of Charge information.
Format: BE
Length in Octets: 1
Data Value:
Integer containing the Charge Band Number.
Range: 0-255.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 9.3(1) and later.
Furnish Charging Information (Tag: 4079)
Table 1-134 Furnish Charging Information Description Form
Name: Furnish Charging Information
Tag: 4079
Source: MDL
Description/Purpose: Returned by the SCP during an IN Prepaid Service call dialog. Contains unspecified charge data to be written to the CDR.
Format: IA5
Length in Octets: Variable
Data Value: Unspecified.
Extended Data Value: No extended value.
General Information: Assigned by SCP and transparently passed to CDR
Cisco PGW 2200 Softswitch Release: Release 9.3(1) and later.
Original Called Number (Tag: 4080)
Table 1-135 Original Called Number Description Form
Name: Original Called Number
Tag: 4080
Source: MDL
Description/Purpose: Contains the digits from the original called party number.
Format: IA5
Length in Octets: 1 to 96
Data Value: The digits of the original called party number.
Extended Data Value: No extended value.
General Information: The following are conditions that could generate the Original Called Number CDE:
•Original Called Number parameter could be received in the IAM message if the call has been redirected previously (applicable to SS7 calls).
•A distant end TDM switch sends a Release message back to the Cisco PGW 2200 Softswitch over SS7 containing a Cause parameter or Redirection Information parameter, a Redirection Number parameter, and possibly a Redirection Number Restriction parameter.
The actual cause value contained in this CDE indicates that redirection is required, and Cause analysis directs the call. If the call is redirected and there is no original called party number, the called party number is inserted into the original called party number field of the outbound IAM.
Cisco PGW 2200 Softswitch Release: Release 9.3(1) and later.
T.38 Fax Call (Tag: 4081)
Table 1-136 T.38 Fax Call Description Form
Name: T.38 Fax Call
Tag: 4081
Source: MDL
Description/Purpose: Indicates that the call was a Fax call negotiated using T.38.
Format: IA5
Length in Octets: 1
Data Value:
0 = No fax information available 1 = Call Agent negotiated T.38 Fax call 2 = T.38 fax fail and up-speed CODEC is used for pass-through fax 3 = T.38 fax fail and no up-speed CODEC is used for pass-through fax
Extended Data Value: No extended value.
General Information: The data for this CDR is assigned by SCP and transparently passed to CDR.
Cisco PGW 2200 Softswitch Release: Release 9.3(2) and later. Added data values 2 and 3 in Release 9.5(2).
Charge Unit Number (Tag: 4082)
Table 1-137 Charge Unit Number Description Form
Name: Charge Unit Number
Tag: 4082
Source: MDL
Description/Purpose: Used for reporting Advice of Charge information.
Format: BE
Length in Octets: 1
Data Value:
An integer containing the Charge Unit Number, provisioned as part of the Dial Plan provisioning
ANSI/ITU Variations: None
Valid Range: 0-255
Extended Data Value: No extended value.
General Information: The data for this CDR is assigned by SCP and transparently passed to CDR.
Cisco PGW 2200 Softswitch Release: Release 9.3(2) and later.
Charge Indicator (Tag: 4083)
Table 1-138 Charge Indicator Description Form
Name: Charge Indicator
Tag: 4083
Source: MDL
Description/Purpose: Allows the carrier to determine which calls need to be billed.
Format: BE
Length in Octets: 1
Data Value:
Charge Indicator information is 2 bit and is defined as follows:
01 No charge 10 Charge 00 No indication
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 9.5(2) and later.
Outgoing Calling Party Number (Tag: 4084)
Table 1-139 Outgoing Calling Party Number Description Form
Name: Outgoing Calling Party Number
Tag: 4084
Source: MDL
Description/Purpose: The calling party number being sent out on line by the Cisco PGW 2200 Softswitch is recorded in this tag. This value might be different from the received calling party number. The received calling party number might be modified either because of the Generic Number contained in the message, or based on the generic analysis performed by the Cisco PGW 2200 Softswitch.
Format:IA5
Length in Octets: 1 to 96
Data Value: It contains the outgoing calling party number.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 9.5(2) and later.
MCID Request Indicator (Tag: 4085)
Table 1-140 MCID Request Indicator Description Form
Name: MCID Request Indicator
Tag: 4085
Source: MDL
Description/Purpose: Allows the carrier to determine whether malicious call identification (MCID) is requested.
Format: BE
Length in Octets: 1
Data Value:
MCID Request Indicator information is 1 bit and is defined as follows:
0 MCID not requested 1 MCID requested
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 9.5(2) and later.
MCID Response Indicator (Tag: 4086)
Table 1-141 MCID Response Indicator Description Form
Name: MCID Response Indicator
Tag: 4086
Source: MDL
Description/Purpose: Allows the carrier to determine whether MCID is included.
Format: BE
Length in Octets: 1
Data Value:
MCID Response Indicator information is 1 bit and is defined as follows:
0 MCID not included 1 MCID included
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 9.5(2) and later.
Ingress MGCP DLCX Return Code (Tag: 4087)
Table 1-142 Ingress MGCP DLCX Return Code Description Form
Name: Ingress MGCP DLCX Return Code
Tag: 4087
Source: MDL
Description/Purpose: Indication of MGCP DLCX (Delete Connection) return code value on the ingress gateway. In Release 9.7(3), the H.248 Protocol feature is added. If an H.248 gateway is engaged on the ingress side, this tag is not logged in to CDR.
Format: BE
Length in Octets: 1
Data Value: Return code value returned by the associated media gateway.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 9.5(2) and later.
Egress MGCP DLCX Return Code (Tag: 4088)
Table 1-143 Egress MGCP DLCX Return Code Description Form
Name: Egress MGCP DLCX Return Code
Tag: 4088
Source: MDL
Description/Purpose: Indication of MGCP DLCX (Delete Connection) return code value from the egress gateway. On Release 9.7(3), the H.248 Protocol feature is added. For the H.248 gateway, this tag is not logged in to CDR.
Format: BE
Length in Octets: 1
Data Value: Return code value returned by the associated media gateway.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 9.5(2) and later.
Network Translated Address Indicator (Tag: 4089)
Table 1-144 Network Translated Address Indicator Description Form
Name: Network Translated Address Indicator
Tag: 4089
Source: MDL
Description/Purpose: Information sent in the forward direction to indicate whether network translation of the called address has occurred. This indicator is specific to BTNUP, UK IUP, and UK ISUP. This allows you to determine whether a number has been translated. With a 1-900 provider, for example, if the NTA has not occurred, the Cisco PGW 2200 Softswitch operator knows that the calling party is not paying for the call.
Format: BE
Length in Octets: 1
Data Value:
Network Translated Address Indicator information is 1 bit and is defined as follows:
0 No indication 1 Network Translated Address indication
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 9.5(2) and later.
Reservation Request Accepted (Tag: 4090)
Table 1-145 Reservation Request Accepted Description Form
Name: Reservation Request Accepted
Tag: 4090
Source: MDL
Description/Purpose: This tag is present if the call was made using the Resource Reservation Protocol on the bearer.
Format: BE
Length in Octets: 1
Data Value:
0 = No RSVP was present 1 = RSVP was present in the call 2 = RSVP was present in the call, but call torn down when res/rl received
ANSI/ITU Variations: None
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 9.5(2) and later.
Reservation Request Lost Count (Tag: 4091)
Table 1-146 Reservation Request Lost Count Description Form
Name: Reservation Request Lost Count
Tag: 4091
Source: MDL
Description/Purpose: This tag is present if the Resource Reservation Lost event was received during a call. It will be a count of the number of times the event occurred during the call.
Format: BE
Length in Octets: 1
Data Value:
Count of the number of times the Resource Reservation Lost event was received during a call.
ANSI/ITU Variations: None
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 9.5(2) and later.
ATM Ingress Configured Profile (Tag: 4092)
Table 1-147 ATM Ingress Configured Profile Description Form
Name: ATM Ingress Configured Profile
Tag: 4092
Source: MDL
Description/Purpose: This tag is present if an ATM profile was configured based on Service Level Agreement (SLA) for the ingress call leg.
Format: IA5
Length in Octets: 1 to 16
Data Value:
ITU 1 ITU 2 ITU 3 ITU 7 ITU 8 ITU 12 Custom 100 Custom 101 Custom 110 Custom 200
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 9.5(2) and later.
ATM Egress Configured Profile (Tag: 4093)
Table 1-148 ATM Egress Configured Profile Description Form
Name: ATM Egress Configured Profile
Tag: 4093
Source: MDL
Description/Purpose: This tag is present if an ATM profile was configured based on Service Level Agreement (SLA) for Egress call leg.
Format: IA5
Length in Octets: 1 to 16
Data Value:
ITU 1 ITU 2 ITU 3 ITU 7 ITU 8 ITU 12 Custom 100 Custom 101 Custom 110 Custom 200
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 9.5(2) and later.
ATM Negotiated Profile (Tag: 4094)
Table 1-149 ATM Negotiated Profile Description Form
Name: ATM Negotiated Profile
Tag: 4094
Source: MDL
Description/Purpose: This tag is present if an ATM profile was negotiated based on Service Level Agreement (SLA).
Format: IA5
Length in Octets: 1 to 16
Data Value:
ITU 1 ITU 2 ITU 3 ITU 7 ITU 8 ITU 12 Custom 100 Custom 101 Custom 110 Custom 200
ANSI/ITU Variations: None
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 9.5(2) and later.
Route List Name (Tag: 4095)
Table 1-150 Route List Name Description Form
Name: Route List Name
Tag: 4095
Source: Engine
Description/Purpose: Route list name being used for the call.
Format:IA5
Length in Octets: 1 to 20
Data Value: ASCII name of the route list being used.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 9.5(2) and later.
Route Name (Tag: 4096)
Table 1-151 Route Name Description Form
Name: Route Name
Tag: 4096
Source: Engine
Description/Purpose: Route Name being used for the call.
Format: IA5
Length in Octets: 1 to 20
Data Value: ASCII name of the route being used.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 9.5(2) and later.
MGCP Script Response String (Tag: 4097)
Table 1-152 MGCP Script Response String Description Form
Name: MGCP Script Response String
Tag: 4097
Source: MDL
Description/Purpose: For MGCP Script handoff calls, this tag records the Notification response string, if any, returned in the O: parameter of the MGCP NTFY message. If this call did not receive a MGCP NTFY message, this tag is not logged.
Note In Release 9.7(3), the H.248 Protocol feature is supported. However, MGCP scripting is not implemented by the H.248 protocol, therefore, H.248 calls never generate this CDB.
Format: IA5
Length in Octets: Maximum of 128
Data Value:
Contains the response string obtained from the media gateway, in the MGCP NTFY message, including the event indicator oc or of.
ANSI/ITU variations: None.
Other variations: None.
Values: n/a
Examples of event indicators:
oc(Call completed.) oc(Authentication failed) of() of
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 9.5(2) and later.
Originating Leg DSP Statistics (Tag: 4098)
Table 1-153 Originating Leg DSP Statistics Description Form
Name: Originating Leg DSP Statistics
Tag: 4098
Source: Engine
Description/Purpose: Provides DSP statistics for the originating leg of the call. On Release 9.7(3), the H.248 Protocol feature is added. Because for H.248 DSP statistics in CDR are not supported, this tag is not logged in to CDR for the H.248 leg.
Format: IA5
Length in Octets: 280 to 794
Data Value:
An example of the statistics generated by the media gateway appears below:
In Release 9.6, the statistics are enhanced to support the DSP Voice Quality Statistics in the DLCX Messages feature in Cisco IOS Release 12.4(4)T. The DSP Voice Quality Statistics feature introduces a priority setting on the media gateway that allows control of the impact of statistics generation. There are two priority values: 1, which limits the statistics generated by the media gateway, and 2, which enables all statistics to be generated.
An example of the appearance of the statistics generated when the media gateway is set to priority 1 appears below:
General Information: This CDE is populated when (1) an originating endpoint is controlled by the Cisco PGW 2200 Softswitch software through the MGCP protocol and (2) the associated MGCP media gateway is enabled to send DSP statistics to the Cisco PGW 2200 Softswitch.
Information on the configuring DSP voice quality statistics on the media gateway and definitions for the various fields used in the statistics can be found in the DSP Voice Quality Statistics in DLCX Messages feature module.
Cisco PGW 2200 Softswitch Release: Release 9.4(1) and later.
Support of the DSP voice quality statistics is added in Release 9.6(1), patch CSCOnn026.
Terminating Leg DSP Statistics (Tag: 4099)
Table 1-154 Terminating Leg DSP Statistics Description Form
Name: Terminating Leg DSP Statistics
Tag: 4099
Source: Engine
Description/Purpose: Provides DSP statistics for the terminating leg of the call. In Release 9.7(3), the H.248 Protocol feature is added. Because for H.248 DSP statistics in CDR are not supported, this tag is not logged in to CDR for the H.248 leg.
In Release 9.6, the statistics are enhanced to support the DSP Voice Quality Statistics in DLCX Messages feature in Cisco IOS Release 12.4(4)T. The DSP Voice Quality Statistics feature introduces a priority setting on the media gateway that allows control of the impact of statistics generation. There are two priority values: 1, which limits the statistics generated by the media gateway, and 2, which enables all statistics to be generated.
An example of the appearance of the statistics generated when the media gateway is set to priority 1 appears below:
General Information: This CDE is populated when (1) a terminating endpoint is controlled by the Cisco PGW 2200 Softswitch software through the MGCP protocol and (2) the associated MGCP media gateway is enabled to send DSP statistics to the Cisco PGW 2200 Softswitch.
Information on the configuring DSP voice quality statistics on the media gateway and definitions for the various fields used in the statistics can be found in the DSP Voice Quality Statistics in DLCX Messages feature module.
Cisco PGW 2200 Softswitch Release: Release 9.4(1) and later.
Support of the DSP voice quality statistics is added in Release 9.6(1), patch CSCOnn026.
Ingress Media Gateway Pool ID (Tag: 4110)
Table 1-155 Ingress Media Gateway Pool ID Description Form
Name: Ingress Media Gateway Pool ID
Tag: 4110
Source: MDL
Description/Purpose: Specifies the ingress media gateway pool ID.
Format: BE
Length in Octets: 2
Data Value: An integer value that identifies the ingress media gateway pool.
Extended Data Value: No extended value.
General Information: This CDE is present in the following CDBs: 1010, 1030, and 1110. This CDE is not present in the following CDBs: 1020, 1040, 1050, 1060, 1070, and 1080.
General Information (Release 9.8): This CDE is present in the following CDBs: 1010, and 1030. This CDE is not present in the following CDBs: 1020, 1040, 1050, 1060, 1070, 1080, and 1110.
Cisco PGW 2200 Softswitch Release: Release 9.8 and later.
Egress Media Gateway Pool ID (Tag: 4111)
Table 1-156 Egress Media Gateway Pool ID Description Form
Name: Ingress Media Gateway Pool ID
Tag: 4111
Source: MDL
Description/Purpose: Specifies the egress media gateway pool ID.
Format: BE
Length in Octets: 2
Data Value: An integer value that identifies the egress media gateway pool.
Extended Data Value: No extended value.
General Information: This CDE is present in the following CDBs: 1010, 1030, and 1110. This CDE is not present in the following CDBs: 1020, 1040, 1050, 1060, 1070, and 1080.
General Information (Release 9.8): This CDE is present in the following CDBs: 1010, and 1030. This CDE is not present in the following CDBs: 1020, 1040, 1050, 1060, 1070, 1080, and 1110.
Cisco PGW 2200 Softswitch Release: Release 9.8 and later.
Ingress Intergateway Packet Information (Tag: 4112)
Table 1-157 Ingress Intergateway Packet Information Description Form
Name: Ingress Intergateway Packet Information
Tag: 4112
Source: MDL
Description/Purpose: Contains the following data:
•Packets sent
•Packets received
•Octets sent
•Octets received
•Jitter
•Latency (reserved1 and reserved2)
The Cisco PGW 2200 Softswitch gathers this information from ingress intergateway traffic.
Format: BE
Length in Octets: 36
Data Value: This CDR uses the following subfields:
•Packets sent (begins at octet 1)
•Packets received (begins at octet 5)
•Packets lost (begins at octet 9)
•Octets sent (begins at octet 13)
•Octets received (begins at octet 17)
•Jitter (begins at octet 21)
•Latency (begins at octet 25)
•Reservd1 (begins at octet 29)
•Reservd2 (begins at octet 33)
Note Each subfield is 4 octets long and uses BE encoding.
Extended Data Value: No extended value.
General Information: This CDE is present in CDBs 1030. This CDE is not present in the following CDBs: 1010, 1020, 1040, 1050, 1060, 1070, 1080, and 1110.
General Information (Release 9.8): This CDE is present in the following CDBs: 1030, 1040, and 1110. This CDE is not present in the following CDBs: 1010, 1020, 1050, 1060, 1070, and 1080.
Cisco PGW 2200 Softswitch Release: Release 9.8 and later.
Egress Intergateway Packet Information (Tag: 4113)
Table 1-158 Egress Intergateway Packet Information Description Form
Name: Egress Intergateway Packet Information
Tag: 4113
Source: MDL
Description/Purpose: Contains the following data:
•Packets sent
•Packets received
•Octets sent
•Octets received
•Jitter
•Latency (reserved1 and reserved2)
Note The Cisco PGW 2200 Softswitch gathers this information from egress intergateway traffic.
Format: BE
Length in Octets: 36
Data Value: This CDR uses the following subfields:
•Packets sent (begins at octet 1)
•Packets received (begins at octet 5)
•Packets lost (begins at octet 9)
•Octets sent (begins at octet 13)
•Octets received (begins at octet 17)
•Jitter (begins at octet 21)
•Latency (begins at octet 25)
•Reservd1 (begins at octet 29)
•Reservd2 (begins at octet 33)
Note Each subfield is 4 octets long and uses BE encoding.
Extended Data Value: No extended value.
General Information: This CDE is present in CDB 1030. This CDE is not present in the following CDBs: 1010, 1020, 1040, 1050, 1060, 1070, 1080, and 1110.
General Information (Release 9.8): This CDE is present in the following CDBs: 1030, 1040, and 1110. This CDE is not present in the following CDBs: 1010, 1020, 1050, 1060, 1070, and 1080.
Cisco PGW 2200 Softswitch Release: Release 9.8 and later.
Description/Purpose: Contains the terminating information of the P-Access-Network-Info header at the terminating side.
Format: IA5
Length in Octets: 1 to 256
Data Value: A complete string with access-type and access-info parameter values in the P-Access-Network-Info header.
Extended Data Value: None.
General Information: Used in the following CDB records: 1010 (setup), 1020, 1030 (aborted), 1110 (end of call).
Cisco PGW 2200 Softswitch Release: Release 9.8 or later.
Originating Remote SIP Host (Tag: 4201)
Table 1-171 Originating Remote SIP Host Description Form
Name: Originating Remote SIP Host
Tag: 4201
Source: MDL/Engine
Description/Purpose: Formerly named Ingress SIP URL. Contains the remote host for the originating side of a SIP-originated call. (This tag is present only if SIP appears on the originating side of the call.) In a simple call, this host is taken out of the From header, but if a P-Asserted or Remote Party ID header is received and has caused a change to the calling line information, the host is taken from the header that provides the resultant calling line information.
Format: IA5
Length in Octets: 1 to 256
Data Value: URL
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 9 and later.
Originating Local SIP Host (Tag: 4202)
Table 1-172 Originating Local SIP Host Description Form
Name: Originating Local SIP Host
Tag: 4202
Source: MDL/Engine
Description/Purpose:Formerly named Egress SIP URL. Contains the local host (the To Host received in a REQUEST on the originating side) of the originating side of a SIP call. This tag is present only if the originating side of the call is SIP.
Format: IA5
Length in Octets: 1 to 256
Data Value: URL
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 9 and later.
SIP Originating Call ID (Tag: 4203)
Table 1-173 SIP Originating Call ID Description Form
Name: SIP Originating Call ID
Tag: 4203
Source: MDL/Engine
Description/Purpose: Contains the Call ID used by the originating side of a SIP call.
Note The name of this CDE was changed from SIP Call ID to SIP Originating Call ID in Release 9.8.
Format: IA5
Length in Octets: 1 to 256
Data Value: Generated by call originator.
Extended Data Value: No extended value.
General Information: This CDE is present in the following CDBs: 1010, 1030, and 1110. This CDE is not present in the following CDBs: 1020, 1040, 1050, 1060, 1070, and 1080.
Cisco PGW 2200 Softswitch Release:
The name of this CDR was changed from SIP Call ID to SIP Originating Call ID in Release 9.7, 9.8(1) and later.
Source IP Address (Tag: 4204)
Table 1-174 Source IP Address Description Form
Name: Source IP Address
Tag: 4204
Source: MDL
Description/Purpose: Identifies the source that sends the call setup message in incoming SIP and H.323 calls.
Format: IA5 (string)
Length in Octets: 1 to 23
Data Value: IPv4 format. Example: 10.1.22.115.
Extended Data Value: No extended value.
General Information: The source IP address is used to look up a dial plan in the IP Address Table if the trunk group property, EnableIPScreening, is set to 1.
Cisco PGW 2200 Softswitch Release: Release 9.4(1) and later.
Ingress Media Device Address (Tag: 4205)
Table 1-175 Ingress Media Device Address Description Form
Name: Ingress Media Device Address
Tag: 4205
Source: MDL
Description/Purpose: Identifies the IP address of the originating RTP end point. This is parsed from the SDP from SIP, MGCP, or EISUP (HSI).
Format: IA5 (string)
Length in Octets: 1 to 256
Data Value: IPv4 format or FQDN. Examples: 10.1.22.115, sp-46-39-gateway.customer.com.
Extended Data Value: No extended value.
General Information: If the ingress media device address is an IP address, it is used to look up a dial plan in the IP Address table if the trunk group properties EnableIPScreening and SipIPSource are set to 1. If the call originates in the H.323 domain as a slow start call, this information is not present in the 1010 CDB. If the call is originated in the H.323 domain as a slow start call and a switchover operation is performed on the Cisco PGW 2200, this information is not captured in any CDB.
Cisco PGW 2200 Softswitch Release: Release 9.4(1) and later.
Egress Media Device Address (Tag: 4206)
Table 1-176 Egress Media Device Address Description Form
Name: Egress Media Device Address
Tag: 4206
Source: MDL
Description/Purpose: Identifies the IP address of the terminating RTP end point. This is parsed from the SDP from SIP, MGCP, or EISUP (HSI).
Format: IA5 (string)
Length in Octets: 1 to 256
Data Value: IPv4 format or FQDN. Examples: 10.1.22.115, sp-46-39-gateway.customer.com.
Extended Data Value: No extended value.
General Information: If the egress media device address is an IP address, it is used to look up a dial plan in the IP Address table if the trunk group properties EnableIPScreening and SipIPSource are set to 1. If the call is terminated in the H.323 domain as a slow start call, this information is not present in the 1010 CDB. If the call is terminated in the H.323 domain as a slow start call and a switchover operation is performed on the Cisco PGW 2200, this information is not captured in any CDB.
Cisco PGW 2200 Softswitch Release: Release 9.4(1) and later.
Initial Codec (Tag: 4207)
Table 1-177 Initial Codec Description Form
Name: Initial Codec
Tag: 4207
Source: MDL
Description/Purpose: This tag identifies the initial codec used for the RTP stream. The initial codec is parsed from the SDP from SIP or MGCP. If the call is a video call, this tag also includes the video codec.
Format: IA5 (string)
Length in Octets: 1 to 12
Data Value: String. Example: PCMU, H263
If the Cisco PGW 2200 Softswitch cannot determine the initial codec used for a call, it sets the Initial Codec value to UNKNOWN.
Extended Data Value: No extended value.
General Information: The Initial codec is used to provide the initial codec used in the RTP stream.
Description/Purpose: This tag identifies the final codec used for the RTP stream. The final codec is parsed from the SDP from SIP or MGCP. If the call is a video call, this tag also includes the video codec.
Format: IA5 (string)
Length in Octets: 1 to 12
Data Value: String. Example: PCMU, H263
If the Cisco PGW 2200 Softswitch cannot determine the final codec used for a call, it sets the Final Codec value to UNKNOWN.
Extended Data Value: No extended value.
General Information: The Final codec is used to provide the final codec used in the RTP stream. This could happen if there was a codec change mid call.
If there were multiple changes of the codec during the call, this would capture the latest codec used.
Cisco PGW 2200 Softswitch Release: Release 9.4(1) and later.
Table 1-179 Ingress Media Device Port Description Form
Name: Ingress Media Device Port
Tag: 4209
Source: MDL
Description/Purpose: Identifies the ingress RTP port involved in the connection.
Format: IA5 (string)
Length in Octets: 1 to 6
Data Value: String. Example: 66218
Extended Data Value: No extended value.
General Information: If the call originates in the H.323 domain as a slow start call, this information is not present in the 1010 CDB. If the call originates in the H.323 domain as a slow start call and a switchover operation is performed on the Cisco PGW 2200, this information is not captured in any CDB.
Cisco PGW 2200 Softswitch Release: Release 9.4(1) and later.
Egress Media Device Port (Tag: 4210)
Table 1-180 Egress Media Device Port Description Form
Name: Egress Media Device Port
Tag: 4210
Source: MDL
Description/Purpose: Identifies the egress RTP port involved in the connection.
Format: IA5 (string)
Length in Octets: 1 to 6
Data Value: String. Examples: 1024, 58890.
Extended Data Value: No extended value.
General Information: If the call is terminated in the H.323 domain as a slow start call, this information is not present in the 1010 CDB. If the call is terminated in the H.323 domain as a slow start call and a switchover operation is performed on the Cisco PGW 2200, this information is not captured in any CDB.
Cisco PGW 2200 Softswitch Release: Release 9.4(1) and later.
Originating VPN ID (Tag: 4211)
Table 1-181 Originating VPN ID Description Form
Name: Originating VPN ID
Tag: 4211
Source: MDL
Description/Purpose: Identifies the VPN customer ID associated with the incoming trunk group or signaling service. The DPNSS and QSIG access protocols use the Originating VPN ID information to implement the feature transparency feature.
Format: IA5
Length in Octets: 8
Data Value: Alphanumeric string. It is associated with DPNSS and QSIG trunk groups. Example: BTFNET1
Extended Data Value: No extended value.
General Information: This tag is included if there is a VPN ID associated with the incoming trunk group.
Note If the incoming trunk group is EISUP, the VPN ID of the incoming trunk group of the remote Cisco PGW 2200 is used (if a VPN ID is present).
Cisco PGW 2200 Softswitch Release: Release 9.4(1) and later.
Terminating VPN ID (Tag: 4212)
Table 1-182 Terminating VPN ID Description Form
Name: Terminating VPN ID
Tag: 4212
Source: MDL
Description/Purpose: Identifies the VPN customer ID associated with the outgoing trunk group or signaling service. The DPNSS and QSIG access protocols use the Terminating VPN ID information to implement the feature transparency feature.
Format: IA5
Length in Octets: 8
Data Value: Alphanumeric string. It is associated with DPNSS and QSIG trunk groups. Example: BTFNET1
Extended Data Value: No extended value.
General Information: This tag is included if there is a VPN ID associated with the outgoing trunk group.
Note If the outgoing trunk group is EISUP, the VPN ID of the outgoing trunk group of the remote Cisco PGW 2200 is used (if a VPN ID is present).
Cisco PGW 2200 Softswitch Release: Release 9.4(1) and later.
Meter Pulses Received (Tag: 4213)
Table 1-183 Meter Pulses Received Description Form
Name: Meter Pulses Received
Tag: 4213
Source: MDL
Description/Purpose: Contains the total number of meter pulses received at the terminating side of the call.
Format: BE
Length in Octets: 4
Data Value: Integer value in the range: 0 to 232-1
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 9.5(2) and later.
Meter Pulses Sent (Tag: 4214)
Table 1-184 Meter Pulses Sent Description Form
Name: Meter Pulses Sent
Tag: 4214
Source: MDL
Description/Purpose: Contains the total number of meter pulses sent to the originating side of the call.
Format: BE
Length in Octets: 4
Data Value: Integer value in the range: 0 to 232-1
Extended Data Value: No extended value.
General Information: The total pulses comprise those meter pulses generated internally and those transmitted by the Cisco PGW 2200 Softswitch.
Cisco PGW 2200 Softswitch Release: Release 9.5(2) and later.
Charge Tariff Info (Tag: 4215)
Table 1-185 Charge Tariff Info Description Form
Name: Charge Tariff Info
Tag: 4215
Source: MDL
Description/Purpose: Contains Charging Tariff Information that has been sent or received in MPM messages. It comprises the following data items:
•Tariff type sent
•Tariff type received
•Tariff ID (timestamped)—Can be repeated (up to 11 occurrences).
Format: BE
Length in Octets: 8, 14, 20, 26, 32, 38, 44, 50, 56, 62, or 68
Data Value:
Octet 1: integer value, range of 0—15 (tariff type sent) Octet 2: integer value range of 0-15 (tariff type received) Octets 3-4: integer value range of 0-512 (tariff ID) Octets 5-8: Time in UNIX format (timestamp associated with tariff ID in octets 3 and 4)
Extended Data Value: No extended value.
General Information: Octets 3-8 can be repeated (up to 11 occurrences) to allow for up to 11 tariff changes during the call. Timestamps in octets 5-8 are in UNIX format (as CDB Timepoint tag 4001).
Cisco PGW 2200 Softswitch Release: Release 9.5(2) and later.
Advice of Charge Indicator (Tag: 4216)
Table 1-186 Advice of Charge Indicator Description Form
Name: Advice of Charge Indicator
Tag: 4216
Source: MDL
Description/Purpose: Used to record the status of the AOC Indicator field of the charging information sent in MPM messages, either charge or advice of charge.
Format: BE
Length in Octets: 1
Data Value:
0 = Charge information 1 = Advice Of Charge only
Extended Data Value: No extended value.
General Information: This tag is a record of what was contained in the AOC indicator field of the MPM messages sent. This tag is based on information obtained from either the meter pulse tariff table or received messages.
Cisco PGW 2200 Softswitch Release: Release 9.5(2) and later.
Short Call Indicator (Tag: 4217)
Table 1-187 Short Call Indicator Description Form
Name: Short Call Indicator
Tag: 4217
Source: MDL
Description/Purpose: Used to indicate that a call was a short duration call.
Format: BE
Length in Octets: 1
Data Value: 1 = Short Call.
Extended Data Value: No extended value.
General Information: The actual period for the timer used to identify short duration calls can be configured for 1 to 30 seconds. This tag is added to the CDB only if the length of the call falls within the defined time frame.
Cisco PGW 2200 Softswitch Release: Release 9.5(2) and later.
Charge Limit Exceeded (Tag: 4218)
Table 1-188 Charge Limit Exceeded Description Form
Name: Charge Limit Exceeded
Tag: 4218
Source: MDL
Description/Purpose: Indicates that a call has exceeded the maximum duration permitted and has been cleared.
Format: BE
Length in Octets: 1
Data Value: 1 = Charge Limit Exceeded
Extended Data Value: No extended value.
General Information: For calls involving charging there is a maximum call duration timer maintained by the CDR manager. If this timer expires, the call is cleared and Charge Limit Exceeded is recorded in this tag. The value used for the timer is obtained from the tariff table or the ApplyCharging SCP procedure. This tag is added to the CDB only if the charge limit is exceeded.
Cisco PGW 2200 Softswitch Release: Release 9.5(2) and later.
Call Recovered Indication (Tag: 4219)
Table 1-189 Call Recovered Indication Description Form
Name: Call Recovered Indication
Tag: 4219
Source: MDL
Description/Purpose: Indicates that the call was recovered by the standby Cisco PGW 2200 Softswitch host following an automatic switchover and might have been released.
Format: BE
Length in Octets: 1
Data Value:
1 = Call Recovered 2 = Call Recovered and Released
Extended Data Value: No extended value.
General Information: Non-IN calls are recovered by the standby Cisco PGW 2200 Softswitch host and continue normally following an automatic switchover. IN calls are recovered by the standby Cisco PGW 2200 Softswitch host but are then released gracefully. This tag is used to record either of these events. This tag is not included in the CDB for normal calls (that is, calls that are not recovered).
Cisco PGW 2200 Softswitch Release: Release 9.5(2) and later.
Partial Calling Line Identity (Tag: 4220)
Table 1-190 Partial Calling Line Identity Description Form
Name: Partial Calling Line Identity (PCLI)
Tag: 4220
Source: MDL
Description/Purpose: The PCLI, being sent out on-line by the Cisco PGW 2200 Softswitch is recorded in this tag. This value is generated by the Cisco PGW 2200 Softswitch in case CLI information is not received from the incoming call.
Format: Hexidecimal
Length in Octets: 9
Data Value:
It holds the Partial CLI parameter content, which has the following format:
Type of Switch (0-99) PNO Identity (0-999) Switch Number(0-999) For bilateral agreement For bilateral agreement For bilateral agreement For bilateral agreement For bilateral agreement
The "For bilateral agreement" octets contain either the IP address or the trunk group and member of the incoming call.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 9.5(2) and later.
Service Activation (Tag: 4221)
Table 1-191 Service Activation Description Form
Name: Service Activation
Tag: 4221
Source: MDL
Description/Purpose: Allows the user to determine which supplementary services have been invoked by the user or the Cisco PGW 2200 Softswitch.
Format: BE
Length in Octets: 1
Data Value:
Service Activation information is one octet and is defined as follows:
1: AOC - S 2: AOC - D 3: AOC - E 4: AOC - S and AOC - D 5: AOC - S and AOC - E 6: AOC - D and AOC - E 7: AOC - S, AOC - D and AOC - E 8: Call Back Request (added in Release 9.6(1)) 9: Call Back Cancellation (added in Release 9.6(1)) 10: Call Back Notification (added in Release 9.6(1)) 11: Extension Status (added in Release 9.6(1))
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 9.5(2) and later.
PRI AOC Invoke Type (Tag: 4222)
Table 1-192 PRI AOC Invoke Type Description Form
Name: PRI AOC Invoke Type
Tag: 4222
Source: MDL
Description/Purpose: Allows the user to determine whether the supplementary services were invoked due to receipt of an invoke component from user (per call) or have been configured to be set up for all PRI calls (all calls).
Format: BE
Length in Octets: 1
Data Value:
PRI AOC Invoke Type information is one octet and is defined as follows:
PER CALL: 1 ALL CALLS: 2
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 9.5(2) and later.
PRI AOC - S Charge Information (Tag: 4223)
Table 1-193 PRI AOC - S Charge Information Description Form
Name: PRI AOC - S Charge Information
Tag: 4223
Source: MDL
Description/Purpose: Contains Charging Tariff Information that has been set up for AOC - S Supplementary services. It comprises the following data items:
•Tariff ID and time-stamped (from Octets 1-6) may be repeated (up to 11 occurrences). The number of repetitions depends on the number of different tariffs applied for a given call and the maximum number of tariffs allowed per day is 11.
Format: BE
Length in Octets: 6, 12, 18, 24, 30, 36, 42, 48, 54, 60, or 66
Data Value:
Octets 1-2: integer value range 0-9999 (tariff ID) Octets 3-6: Time in UNIX format (timestamp associated with tariff ID in octets 1-2)
Extended Data Value: No extended value.
General Information: Octets 1-6 may be repeated up to 11 times to allow for up to 11 tariff changes during the call. Timestamps in octets 3-6 are in UNIX format (as CDB Timepoint tag 4001).
Cisco PGW 2200 Softswitch Release: Release 9.5(2) and later.
PRI AOC - D Charge Information (Tag: 4224)
Table 1-194 PRI AOC - D Charge Information Description Form
Name: PRI AOC - D Charge Information
Tag: 4224
Source: MDL
Description/Purpose: Contains Charging Tariff Information that has been setup for AOC - D Supplementary services. It comprises the following data items:
•Tariff ID and time-stamped (from octets 5-10) can be repeated (up to 11 occurrences). The repetition depends on the number of different tariffs applied for a given call and the maximum number of tariffs allowed per day is 11.
Format: BE
Length in Octets: 10, 16, 22, 28, 34, 40, 46, 52, 58, 64, or 70
Data Value:
Octets 1-4: Total Charge (integer value) Octets 5-6: integer value range 0-9999 (tariff id) Octets 7-10: Time in UNIX format (timestamp associated with tariff id in octets 5-6)
Extended Data Value: No extended value.
General Information: Octets 1-6 can be repeated up to 11 times to allow for up to 11 tariff changes during the call. Timestamps in octets 3-6 are in UNIX format (as CDB Timepoint tag 4001).
Cisco PGW 2200 Softswitch Release: Release 9.5(2) and later.
PRI AOC - E Charge Information (Tag: 4225)
Table 1-195 PRI AOC - E Charge Information Description Form
Name: PRI AOC - E Charge Information
Tag: 4225
Source: MDL
Description/Purpose: Contains Charging Tariff Information that has been setup for AOC - E Supplementary services. It comprises the following data items:
•tariff id and time-stamped (from octet 5-10) can be repeated (up to 11 occurrences). The repetition depends on the number of different tariffs applied for a given call and the maximum number of tariffs allowed per day is 11.
Format: BE
Length in Octets: 10, 16, 22, 28, 34, 40, 46, 52, 58, 64, or 70
Data Value:
Octets 1-4: Total Charge (integer value) Octets 5-6: integer value range 0-9999 (tariff id) Octets 7-10: Time in UNIX format (timestamp associated with tariff id in octets 5-6)
Extended Data Value: No extended value.
General Information: Octets 5-10 can be repeated up to 11 times to allow for up to 11 tariff changes during the call. Timestamps in octets 7-10 are in UNIX format (as CDB Timepoint tag 4001).
Cisco PGW 2200 Softswitch Release: Release 9.5(2) and later.
PRI AOC Invoke Failure (Tag: 4226)
Table 1-196 PRI AOC Invoke Failure Description Form
Name: PRI AOC Invoke Failure
Tag: 4226
Source: MDL
Description/Purpose: PRI AOC Invoke Failure information is sent to the PRI user in case of failure to setup the charge. The same information is recorded in this tag for each of the three AOC supplementary services.
Format: BE
Length in Octets: 3
Data Value:
PRI AOC Invoke Failure Type information is three octets and is defined as follows:
Octet 1: AOC - S Failure Type Octet 2: AOC - D Failure Type Octet 3: AOC - E Failure Type
Each octet can have the following values:
1 = Invalid call state 2 = Not subscribed 3 = Charge not available
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 9.5(2) and later.
Description/Purpose: Indicates the point in time when media replacement occurred.
Format: Integer
Length in Octets: 4
Data Value: Time in UNIX format. See CDE 4001.
ANSI/ITU Variations: None.
Extended Data Value:No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 9.6(1) and later.
Rejecting Location Label (Tag: 4232)
Table 1-202 Rejecting Location Label Description Form
Name: Rejecting Location Label
Tag: 4232
Source: MDL
Description/Purpose: Name of the call-limiting location label which caused the call rejection.
Format: IA5 (string)
Length in Octets: 1 to 20
Data Value:
String
Example: londonVpnUser652
ANSI/ITU Variations: None.
Extended Data Value: No extended value.
General Information: For calls with location labels defined, a call-limiting check must be made once the terminating side is set up. This involves reading internal tables to get call limit data and active call counter data. If the call limit threshold is reached, the call is rejected against that location label. This record identifies the location label that failed the call.
This tag is added to the CDB only if the call-limiting check results in rejection.
Cisco PGW 2200 Softswitch Release: Release 9.6(1) and later.
Rejecting Location Label Direction (Tag: 4233)
Table 1-203 Rejecting Location Label Direction Form
Name: Rejecting Location Label Direction
Tag: 4233
Source: MDL
Description/Purpose: Indication of whether the call was rejected by a location label assigned to the Cisco PGW 2200 Softswitch originating (incoming) or terminating (outgoing) side.
General Information: For calls with location labels defined, a call admission check must be made once the terminating side is set up. This involves reading internal tables to get call limit data and active call counter data. If the call limit threshold is reached, the call is rejected against that location label. This record provides an indication of whether this call rejection was assigned to the Cisco PGW 2200 Softswitch originating (inbound) or terminating (outbound) side.
This tag is added to the CDB only if the call admission check results in rejection.
Cisco PGW 2200 Softswitch Release: Release 9.6(1) and later.
Total Circuits Count (Tag: 4234)
Table 1-204 Total Circuits Count Description Form
Name: Total Circuits Count
Tag: 4234
Source: Engine
Description/Purpose: Identifies the total number of circuits (CICs) defined for a trunk group or signaling service.
Format: BE
Length in Octets: 4
Data Value: 0 or greater (unsigned)
ANSI/ITU Variations: None.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 9.4(1) patch and later.
Total Circuits Unavailable Count (Tag: 4235)
Table 1-205 Total Circuits Unavailable Count Description Form
Name: Total Circuits Unavailable Count
Tag: 4235
Source: Engine
Description/Purpose: Identifies the total number of circuits (CICs) currently unavailable within a trunk group or SigPath. The definition of unavailable is a circuit that is either "blocked" or "OOS." A circuit that is already blocked, but which then goes OOS, is not reported additionally as unavailable, because it was already unavailable.
Format: BE
Length in Octets: 4
Data Value:
0 or greater
ANSI/ITU Variations: None.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 9.4(1) patch and later.
H323 Destination (Tag 4236)
Table 1-206 H323 Destination Description Form
Name: H323 Destination
Tag: 4236
Source: MDL
Description/Purpose: Identifies the H.323 Destination Address associated with the terminal trunk group or sigPath.
Format: IA5
Length in Octets: 1 to 29
Data Value: Content: [IP Address]:[Port]
Extended Data Value: No extended value.
General Information: This destination address is used to indicate the H.323 address that was used in Non-RAS mode. So this address is the same as H323PriAddr:H323PriPort or H323AltAddr:H323AltPort that are defined in sigPath/Trunkgroup property.
Cisco PGW 2200 Softswitch Release: Release 9.7.
Ingress Redirecting Number (Tag 4237)
Table 1-207 Ingress Redirecting Number Description Form
Name: Ingress Redirecting Number
Tag: 4237
Source: MDL/Engine
Description/Purpose: This CDE records the digits from the redirecting number received by the Cisco PGW 2200 Softswitch.
Format: IA5
Length in Octets: 1
Data Value: Character string containing the forwarded station's address or subscriber number.
Extended Data Value: No extended value.
General Information:
This CDE is present in the 1060 CDB if the End-of-Call CDB (1110) is configured. For point-in-call mode, the 1060 CDB is usually a short one and does not contain this CDB.
This CDE is present in the following CDBs: 1030, 1040, and 1110. This CDE is not present in the following CDBs: 1010, 1020, 1050, 1060, 1070, and 1080.
Cisco PGW 2200 Softswitch Release: Release 9.7.
CNAM DIP (Tag 4240)
Table 1-209 CNAM DIP Description Form
Name: CNAM DIP
Tag: 4240
Source: MDL
Description/Purpose: This feature indicates whether a called party has subscribed to the Calling Name Delivery (CNAM) feature. The feature allows the name of the calling party to be delivered to the called party.
Format: Structured Variable
Length in Octets: 2
Data Value: Indicates whether the CNAM feature is invoked by the called party.
This CDE is present in the following CDBs: 1010, 1030, and 1040. This CDE is not present in the following CDBs: 1020, 1050, 1060, 1070, and 1080.
Cisco PGW 2200 Softswitch Release: Release 9.7.
Calling Party Name (Tag 4241)
Table 1-210 Calling Party Name Description Form
Name: Calling Party Name
Tag: 4241
Source: MDL
Description/Purpose: The calling name (CNAM) is provided through the SCP or original call setup message. The CNAM is then passed to the egress destination if permitted based on CNAB and CIDS information. Calling Party Name is a terminating feature.
Format: Structured Variable
Length in Octets: 1 to 15
Data Value: Characters of calling party name displayed on the terminating side.
Example: Bob Johnson
Extended Data Value: No extended value.
General Information: This CDE is present in the following CDBs: 1010, 1030, and 1040. This CDE is not present in the following CDBs: 1020, 1050, 1060, 1070, and 1080.
Cisco PGW 2200 Softswitch Release: Release 9.7.
Terminating Remote SIP Host (Tag 4242)
Table 1-211 Terminating Remote SIP Host Description Form
Name: Terminating Remote SIP Host
Tag: 4242
Source: MDL/Engine
Description/Purpose: Contains the name of the remote host (the To Host for a SIP call when sending a REQUEST from the PGW on the terminating side) for the terminating side of a call. This tag is present only if SIP appears on the terminating side of the call
Format: IA5
Length in Octets: 1 to 256
Data Value: URL
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 9.7(3)
Terminating Local SIP Host (Tag 4243)
Table 1-212 Terminating Local SIP Host Description Form
Name: Terminating Local SIP Host
Tag: 4243
Source: MDL/Engine
Description/Purpose: Contains the name of the local host (the From Host for a SIP call when sending a REQUEST from the PGW on the terminating side) for the terminating side of a call. This tag is present only if the terminating side of the call is SIP.
Format: IA5
Length in Octets: 1to 256
Data Value: URL
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 9.7(3)
License Rejecting Reason (Tag 4244)
Table 1-213 License Rejecting Reason Description Form
Name: License Rejecting Reason
Tag: 4244
Source: MDL
Description/Purpose: Indicates that a call was rejected due to a license-control violation, and dentifies the license that the call failed to meet.
Format: IA5(string)
Length in Octets: 1 to 20
Data Value: String. Example: "SS7 Interface"
Extended Data Value: No extended value.
General Information:
The PGW performs a license check for calls with License Control. If the license limit threshold is reached or no license exists for the protocol interface, the call is rejected. This record provides the identity of the license that the call failed to meet.
This CDE is present in the following CDBs: 1030, and 1110. This CDE is not present in the following CDBs: 1010, 1020, 1040, 1050, 1060, 1070, and 1080.
Note This tag is added to the CDB only if the call admission check results in rejection.
Table 1-214 License Rejecting Direction Description Form
Name: License Rejecting Direction
Tag: 4245
Source: MDL
Description/Purpose: Indication of whether the call rejection was due to a license violation from incoming or outgoing traffic on the Cisco PGW 2200 Softswitch.
Format: BE
Length in Octets: 1
Data Value:
1 = Inbound (PGW originating side)
2 = Outbound (PGW terminating side)
Extended Data Value: No extended value.
General Information:
The PGW performs a license check for calls with License Control. If the license limit threshold is reached or no license exists for the protocol interface, the call is rejected. This record provides an indication of whether the call rejection was due to a license violation from incoming or outgoing traffic on the Cisco PGW 2200 Softswitch.
This CDE is present in the following CDBs: 1030, 1110. This CDE is not present in the following CDBs: 1010, 1020, 1040, 1050, 1060, 1070, and 1080.
Note This tag is added to the CDB only if the call admission check results in rejection.
Table 1-215 SIP Ingress Transport Description Form
Name: SIP Ingress Transport
Tag: 4246
Source: MDL
Description/Purpose: Indicates the transport protocol used by the PGW for incoming SIP messages. If the PGW switches between UDP and TCP, this value is the name of the transport protocol used in the last message.
Note The name of this tag was changed from SIP Transport to SIP Ingress Transport in Release 9.8(1).
Format: Structured variable
Length in Octets: 1
Data Value:
•1 = UDP (default)
•2 = TCP
Extended Data Value: No extended value.
General Information:
This CDE is present in the following CDBs: 1010, 1030, 1110. This CDE is not present in the following CDBs: 1020, 1040, 1050, 1060, 1070, and 1080.
Cisco PGW 2200 Softswitch Release: Release 9.7.
SIP Routing URI Source (Tag 4247)
Table 1-216 SIP Routing URI Source Description Form
Name: SIP Routing URI Source
Tag: 4247
Source: MDL/Engine
Description/Purpose: Indicates which header or URL was used to make routing decisions.
Format: Integer
Length in Octets: 1
Data Value:
1 = Top Route: header
2 = Request URL
3 = To: Header
Extended Data Value: No extended value.
General Information:
This CDE is present in the following CDBs: 1010 and 1030. This CDE is not present in the following CDBs: 1020, 1040, 1050, 1060, 1070, and 1080.
Cisco PGW 2200 Softswitch Release: Release 9.7.
SIP Routing URI (Tag: 4248)
Table 1-217 SIP Routing URI Description Form
Name: SIP Routing URI
Tag: 4248
Source: MDL/Engine
Description/Purpose: Contains the original URI used in the initial routing decisions.
Format: IA5
Length in Octets: 1 to 256
Data Value: URL
Extended Data Value: No extended value.
General Information:
This CDE is present in the following CDBs: 1010, 1030, and 1100. This CDE is not present in the following CDBs: 1020, 1040, 1050, 1060, 1070, and 1080.
Cisco PGW 2200 Softswitch Release: Release 9.7.
Original Source Header (Tag: 4249)
Table 1-218 Original Source Header Description Form
Name: Original Source Header
Tag: 4249
Source: MDL
Description/Purpose: Indicates which header or URL that the PGW used to obtain the source URI.
Format: Integer
Length in Octets: 1
Data Value:
1 = Remote-Party-ID:/P-Asserted-Identity: header
2 = From: header
Extended Data Value: No extended value.
General Information:
This CDE is present in the following CDBs: 1010, 1030, 1040, and 1110. This CDE is not present in the following CDBs: 1020, 1050, 1060, 1070, and 1080.
Cisco PGW 2200 Softswitch Release: Release 9.8(1) and later.
Original Source URI (Tag: 4250)
Table 1-219 Original Source URI Description Form
Name: Original Source URI
Tag: 4250
Source: MDL
Description/Purpose: This tag contains the original source URI used for analysis.
Format: IA5 String
Length in Octets: 1 to 40
Data Value: URI
Example: Bob@example.com
Extended Data Value: No extended value.
General Information: This CDE is present in the following CDBs: 1010, 1030, and 1110. This CDE is not present in the following CDBs: 1020, 1050, 1060, 1070, and 1080.
General Information (Release 9.8): This CDE is present in the following CDBs: 1010, 1030, and 1110. This CDE is not present in the following CDBs: 1020, 1040, 1050, 1060, 1070, and 1080.
Cisco PGW 2200 Softswitch Release: Release 9.8(1) and later.
Final Destination URI (Tag: 4251)
Table 1-220 Final Destination URI Description Form
Name: Translated Destination URI
Tag: 4251
Source: MDL
Description/Purpose: Contains the post-analysis destination URI that is used to generate outgoing SIP INVITE messages.
Format: IA5 String
Length in Octets: 1 to 40
Data Value: URI
Example: Phil@example.com
Extended Data Value: No extended value.
General Information: This CDE is present in the following CDBs: 1010, 1030, 1040, and 1110. This CDE is not present in the following CDBs: 1020, 1050, 1060, 1070, and 1080.
General Information (Release 9.8): This CDE is present in the following CDBs: 1010, 1030, and 1110. This CDE is not present in the following CDBs: 1020, 1040, 1050, 1060, 1070, and 1080.
Cisco PGW 2200 Softswitch Release: Release 9.8(1) and later.
Table 1-221 Non-E.164 Destination Route Select Failure Description Form
Name: Non-E.164 Destination Route Select Failure
Tag: 4252
Source: MDL
Description/Purpose: This tag indicates that the PGW is unable to select a non-E.164 destination. The tag contains the URI of the attempted destination.
Format: IA5 String
Length in Octets: 1 to 40
Data Value: URI
Example: Jim@example.com
Extended Data Value: No extended value.
General Information: This CDE is present in the following CDBs: 1010, 1030, 1040, and 1110. This CDE is not present in the following CDBs: 1020, 1050, 1060, 1070, and 1080.
General Information (Release 9.8): This CDE is present in the following CDBs: 1010, 1030, and 1110. This CDE is not present in the following CDBs: 1020, 1040, 1050, 1060, 1070, and 1080.
Cisco PGW 2200 Softswitch Release: Release 9.8(1) and later.
Domain Screening Failure URI (Tag: 4253)
Table 1-222 Domain Screening Failure URI Description Form
Name: Domain Screening Failure URI
Tag: 4253
Source: MDL
Description/Purpose: This tag indicates that a source or destination domain has failed blacklist or whitelist screening.
Format: BE
Length in Octets: 2
Data Value:
Octet 1
1= Source Domain 2= Destination Domain
Octet 2
1= Blacklist 2= Whitelist
Extended Data Value: No extended value.
General Information: This CDE is present in the following CDBs: 1010, 1030, 1040, and 1110. This CDE is not present in the following CDBs: 1020, 1050, 1060, 1070, and 1080.
General Information (Release 9.8): This CDE is present in the following CDBs: 1010, 1030, and 1110. This CDE is not present in the following CDBs: 1020, 1040, 1050, 1060, 1070, and 1080.
Cisco PGW 2200 Softswitch Release: Release 9.8(1) and later.
SIP Egress Transport (Tag: 4254)
Table 1-223 SIP Egress Transport Description Form
Name: SIP Egress Transport
Tag: 4254
Source: MDL
Description/Purpose: Indicates the transport protocol used by the PGW for outgoing SIP messages. If the PGW switches between UDP and TCP, this value is the name of the transport protocol used in the last message.
Format: Structured variable
Length in Octets: 1
Data Value:
Octet 1: Transport Protocol
0 = UDP
1 = TCP
Extended Data Value: No extended value.
General Information: This CDE is present in the following CDBs: 1010, 1030, and 1110. This CDE is not present in the following CDBs: 1020, 1040, 1050, 1060, 1070, and 1080.
Cisco PGW 2200 Softswitch Release: Release 9.8 and later.
SIP Final Source URI (Tag: 4255)
Table 1-224 SIP Final Source URI Description Form
Name: SIP Final Source URI
Tag: 4255
Source: MDL
Description/Purpose: Contains the post-analysis source URI that is used to generate outgoing SIP INVITE messages.
Format: IA5 String
Length in Octets: 2
Data Value: URI
Example: Jim@example.com
Extended Data Value: No extended value.
General Information: This CDE is present in the following CDBs: 1010, 1030, and 1110. This CDE is not present in the following CDBs: 1020, 1040, 1050, 1060, 1070, and 1080.
Cisco PGW 2200 Softswitch Release: Release 9.8(1) and later.
iTNT Dtmf Digits (Tag: 4256)
Table 1-225 iTNT Dtmf Digits
Name: iTNT Dtmf Digits
Tag: 4256
Source: MDL
Description/Purpose: This tag is used to record iTNT DTMF digits duing iTNT calls.
Format: IA5 String
Length in Octets: No limitation
Data Value: URI
Example: *8001234567#
Extended Data Value: No extended value.
General Information: This CDE is present in the following CDBs: 1020, 1040, and 1110. This CDE is not present in the following CDBs: 1010, 1030, 1050, 1060, 1070, and 1080.
Cisco PGW 2200 Softswitch Release: Release 9.7(3) and later.
NCT Destinations (Tag: 4257)
Table 1-226 NCT Destinations
Name: NCT Destinations
Tag: 4257
Source: MDL
Description/Purpose: This tag is used to record NCT destinations.
Format: IA5 String
Length in Octets: No limitation
Data Value: URI
Example: 24057032
Extended Data Value: No extended value.
General Information: This CDE is present in the following CDBs: 1020, 1040, and 1110. This CDE is not present in the following CDBs: 1010, 1030, 1050, 1060, 1070, and 1080.
Cisco PGW 2200 Softswitch Release: Release 9.7(3) and later.
iTNT Destinations (Tag: 4258)
Table 1-227 iTNT Destinations
Name: iTNT Destinations
Tag: 4258
Source: MDL
Description/Purpose: This tag is used to record iTNT/NBT/Basic TNT destinations.
Format: IA5 String
Length in Octets: No limitation
Data Value: URI
Example: 24057032
Extended Data Value: No extended value.
General Information: This CDE is present in the following CDBs: 1020, 1040, and 1110. This CDE is not present in the following CDBs: 1010, 1030, 1050, 1060, 1070, and 1080.
Cisco PGW 2200 Softswitch Release: Release 9.7(3) and later.
iTNT MidCall Dial Plan (Tag: 4259)
Table 1-228 iTNT MidCall Dial Plan
Name: iTNT MidCall Dial Plan
Tag: 4259
Source: MDL
Description/Purpose: This tag is used to record the midcall dial plan string used for an iTNT call.
Format: IA5 String
Length in Octets: No limitation
Data Value: URI
Example: 2222 , 1111
Extended Data Value: No extended value.
General Information: This CDE is present in the following CDBs: 1020, 1040, and 1110. This CDE is not present in the following CDBs: 1010, 1030, 1050, 1060, 1070, and 1080.
Cisco PGW 2200 Softswitch Release: Release 9.7(3) and later.
Timepoint Millisecond Granularity CDEs
Last SAM Timepoint (Millisecond) (Tag:4022)
Table 1-229 Last SAM timepoint (Millisecond)
Name: Last SAM timepoint (Millisecond)
Tag: 4022
Source: MDL/Engine
Description/Purpose: Time point in millisecond for receipt of last SAM.
Format: Binary
Length: 6
Data Value: Unix Time plus 2 bytes for milliseconds
Extended Data Value: No extended value
General Information: This tag indicates the timepoint of the last SAM message received.
Cisco PGW 2200 Softswitch Release: 9.8(1)
IAM Timepoint Received_ms (Tag: 4100)
Table 1-230 IAM Timepoint Received_ms Description Form
Name: IAM Timepoint Received_ms
Tag: 4100
Source: MDL/Engine
Description/Purpose: The IAM timepoint received is the recorded timepoint when the IAM was received, in milliseconds since January 1, 1970.
Format: Binary
Length in Octets: 6
Data Value:Cisco PGW 2200 Softswitch time plus 2 bytes for milliseconds.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
IAM Timepoint Sent_ms (Tag: 4101)
Table 1-231 IAM Timepoint Sent_ms Description Form
Name: IAM Timepoint Sent_ms
Tag: 4101
Source: MDL/Engine
Description/Purpose: The IAM timepoint sent is the recorded timepoint when the IAM was sent, in milliseconds since January 1, 1970.
Format: Binary
Length in Octets: 6
Data Value:Cisco PGW 2200 Softswitch time plus 2 bytes for milliseconds.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
ACM Timepoint Received_ms (Tag: 4102)
Table 1-232 ACM Timepoint Received_ms Description Form
Name: ACM Timepoint Received_ms
Tag: 4102
Source: MDL/Engine
Description/Purpose: The ACM timepoint received is the recorded timepoint when the ACM was received, in milliseconds since January 1, 1970.
Format: Binary
Length in Octets: 6
Data Value:Cisco PGW 2200 Softswitch time plus 2 bytes for milliseconds.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
ACM Timepoint Sent_ms (Tag: 4103)
Table 1-233 ACM Timepoint Sent_ms Description Form
Name: ACM Timepoint Sent_ms
Tag: 4103
Source: MDL/Engine
Description/Purpose: The ACM timepoint sent is the recorded timepoint when the ACM was sent, in milliseconds since January 1, 1970.
Format: Binary
Length in Octets: 6
Data Value:Cisco PGW 2200 Softswitch time plus 2 bytes for milliseconds.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
ANM Timepoint Received_ms (Tag: 4104)
Table 1-234 ANM Timepoint Received_ms Description Form
Name: ANM Timepoint Received_ms
Tag: 4104
Source: MDL/Engine
Description/Purpose: Recorded timepoint when the ANM was received, in milliseconds since January 1, 1970.
Format: Binary
Length in Octets: 6
Data Value:Cisco PGW 2200 Softswitch time plus 2 bytes for milliseconds.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
ANM Timepoint Sent_ms (Tag: 4105)
Table 1-235 ANM Timepoint Sent_ms Description Form
Name: ANM Timepoint Sent_ms
Tag: 4105
Source: MDL/Engine
Description/Purpose: Recorded timepoint when the ANM was sent, in milliseconds since January 1, 1970.
Format: Binary
Length in Octets: 6
Data Value:Cisco PGW 2200 Softswitch time plus 2 bytes for milliseconds,
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
First REL Timepoint_ms (Tag: 4106)
Table 1-236 First REL Timepoint_ms Description Form
Name: First REL Timepoint_ms
Tag: 4106
Source: MDL/Engine
Description/Purpose: Timepoint for receipt of first REL/RELEASE.
Format: Binary
Length in Octets: 6
Data Value:Cisco PGW 2200 Softswitch time plus 2 bytes for milliseconds.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
Second REL Timepoint _ms (Tag: 4107)
Table 1-237 Second REL Timepoint _ms Description Form
Name: Second REL Timepoint_ms
Tag: 4107
Source: MDL/Engine
Description/Purpose: Timepoint for receipt of second REL/RELEASE.
Format: Binary
Length in Octets: 6
Data Value:Cisco PGW 2200 Softswitch time plus 2 bytes for milliseconds.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
RLC Timepoint Received_ms (Tag: 4108)
Table 1-238 RLC Timepoint Received_ms Description Form
Name: RLC Timepoint Received_ms
Tag: 4108
Source: MDL/Engine
Description/Purpose: Recorded timepoint when the RLC was received, in milliseconds since January 1, 1970.
Format: Binary
Length in Octets: 6
Data Value:Cisco PGW 2200 Softswitch time plus 2 bytes for milliseconds.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
RLC Timepoint Sent_ms (Tag: 4109)
Table 1-239 RLC Timepoint Sent_ms Description Form
Name: RLC Timepoint Sent_ms
Tag: 4109
Source: MDL/Engine
Description/Purpose: Recorded timepoint when the RLC was sent, in milliseconds since January 1, 1970.
Format: Binary
Length in Octets: 6
Data Value:Cisco PGW 2200 Softswitch time plus 2 bytes for milliseconds.
Extended Data Value: No extended value.
General Information:
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
Cisco Reserved CDEs
Unique Call Correlator ID (Tag: 5000)
Table 1-240 Unique Call Correlator ID Description Form
Name: Unique Call Correlator ID
Tag: 5000
Source: MDL/Engine/External
Description/Purpose: A Unique Call Correlator ID can be created by a Cisco PGW 2200 Softswitch or a media gateway, depending on the origin of a call. The field uniquely identifies a single call across a multinode Cisco PGW 2200 Softswitch solution, and/or provides a common key for all involved recording systems. This ID can be used to associate external billing information, such as RADIUS records, and correlate multiple Cisco PGW 2200 Softswitches to what is considered a single call. The records created by the various network elements can be used by downstream systems (for example, a billing mediation server) after correlation for billing and other purposes.
Format: Structured variable
Length in Octets: 16
Octet
Field
Bits
Value
Meaning
1-4
time_low
8-1
Unsigned 32-bit integer
The low field of the timestamp
5-6
time_mid
8-1
Unsigned 16-bit integer
The middle field of the timestamp
7-8
time_hi_and_version
8-1
Unsigned 16-bit integer
The high field of the timestamp multiplexed with the version number
9
clock_seq_hi_and_ reserved
8-1
Unsigned 8-bit integer
The high field of the clock sequence multiplexed with the variant
10
clock_seq_low
8-1
Unsigned 8-bit integer
The low field of the clock sequence
11-16
node
8-1
Unsigned 48-bit integer
The universally unique node identifier
Data Value:
The timestamp contains the number of 100 nanosecond intervals since October 15, 1982.
The universally unique node identifier contains the hardware address of the system primary Ethernet adapter.
See ITU-T Recommendation H.225.0 for further details.
Extended Data Value: No extended value.
General Information: This field is required in every CDB.
Cisco PGW 2200 Softswitch Release: Release 9.0 and later.
Miscellaneous Fields
MGC ID (Tag: 6000)
Table 1-241 MGC ID Description Form
Name: MGC ID
Tag: 6000
Source: CDR Dumper
Description/Purpose: Indicates the ID of the Cisco PGW 2200 Softswitch on which the CDR file was created.
Format: IA5
Length in Octets: 1 to 32
Data Value: IA5 string
Extended Data Value: No extended value.
General Information: This field is used only by the CDR dumper to generate the file header CDB record and the file footer CDB record.
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
File Start Time (Tag: 6001)
Table 1-242 File Start Time Description Form
Name: File Start Time
Tag: 6001
Source: CDR Dumper
Description/Purpose: Indicates the start time applicable to the CDR file.
Format: BE
Length in Octets: 4
Data Value: UNIX time format (number of seconds since January 1, 1970).
Extended Data Value: No extended value.
General Information: This field is created by the CDR dumper to generate the file header CDB record.
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
File End Time (Tag: 6002)
Table 1-243 File End Time Description Form
Name: File End Time
Tag: 6002
Source: CDR Dumper
Description/Purpose: Indicates the end time applicable to the CDR file.
Format: BE
Length in Octets: 4
Data Value: UNIX time format (number of seconds since January 1, 1970).
Extended Data Value: No extended value.
General Information: This field is created by the CDR dumper to generate the file footer CDB record.
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
Total Number of CDB Records (Tag: 6003)
Table 1-244 Total Number of CDB Records Description Form
Name: Total Number of CDB Records
Tag: 6003
Source: CDR Dumper
Description/Purpose: Indicates the total number of CDB records included in the CDR file.
Format: BE
Length in Octets: 4
Data Value: Number of CDB records.
Extended Data Value: No extended value.
General Information: This field is created by the CDR dumper to generate the file footer CDB record.
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
MGC Version (Tag: 6004)
Table 1-245 MGC Version Description Form
Name: MGC Version
Tag: 6004
Source: CDR Dumper
Description/Purpose: Indicates the Cisco PGW 2200 Softswitch software version.
Format: ASCII
Length in Octets: 10
Data Value: ASCII string
Extended Data Value: No extended value.
General Information: This field is used (only) by the CDR dumper to generate the file header CDB record and the file footer CDB record.
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
Interim CDB (Tag: 6005)
Table 1-246 Interim CDB Description Form
Name: Interim CDB
Tag: 6005
Source: MDL
Description/Purpose: Indicates that this is an interim CDB and there are further CDBs to follow for this call.
Format: BE
Length in Octets: 1
Data Value: 1 = Interim CDB—Further CDBs to follow
Extended Data Value: No extended value.
General Information: This tag is used when multiple CDBs are sent. It indicates that there are further CDBs to be sent that are associated with this call ID.
Cisco PGW 2200 Softswitch Release: Release 9.5(2) and later.
Protocol-Specific CDEs
TTC Contract Number (Tag: 6100)
Table 1-247 TTC Contract Number Description Form
Name: TTC Contract Number
Tag: 6100
Source: MDL
Description/Purpose: Digits from the Contract Number Parameter of TTC-Q.763a.
Format: IA5
Length in Octets: 3 to 12
Data Value: Digits
Extended Data Value: No extended value.
General Information: This field is used only when the Cisco PGW 2200 Softswitch is configured with the TTC signaling protocol.
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
TTC Contract Number NOA (Tag: 6101)
Table 1-248 TTC Contract Number NOA Description Form
Name: TTC Contract Number NOA
Tag: 6101
Source: MDL
Description/Purpose: Nature of Address field of Contract Number Parameter from TTC-Q.763a.
Format: IA5
Length in Octets: 1
Data Value: 1 octet
Extended Data Value: No extended value.
General Information: This field is used only when the Cisco PGW 2200 Softswitch is configured with the TTC signaling protocol.
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
TTC Charge Info (Tag: 6102)
Table 1-249 TTC Charge Info Description Form
Name: TTC Charge Info
Tag: 6102
Source: MDL
Description/Purpose: From TTC-Q.763a Charge Information Parameter.
Format: IA5
Length in Octets: 3 to n, where the field configuration is specified separately for each network
Data Value: Sequence of octets
Extended Data Value: No extended value.
General Information: This field is used only when the Cisco MGC is configured with the TTC signaling protocol.
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
TTC Charge Info Type (Tag: 6103)
Table 1-250 TTC Charge Info Type Description Form
Name: TTC Charge Info Type
Tag: 6103
Source: MDL
Description/Purpose: This parameter is taken from the TTC-Q.763a Charge Information parameter.
Format: IA5
Length in Octets: 3 to n, where the field configuration is specified separately for each network
Data Value: Sequence of octets
Extended Data Value: No extended value.
General Information: This field is used only when the Cisco PGW 2200 Softswitch is configured with the TTC signaling protocol.
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
TTC Charge Area Info (Tag: 6104)
Table 1-251 TTC Charge Area Info Description Form
Name: TTC Charge Area Info
Tag: 6104
Source: MDL
Description/Purpose: This parameter is taken from the TTC-Q.763a Charge Originating Info parameter.
Format: IA5
Length in Octets: 3 to 6
Data Value: Sequence of octets
Extended Data Value: No extended value.
General Information: This field is used only when the Cisco PGW 2200 Softswitch is configured with the TTC signaling protocol.
Cisco PGW 2200 Softswitch Release: Release 7.0 and later.
Billing Capabilities Overview
