Fan Tray Replacement Procedure for the Cisco MeetingPlace 8106
Checking the New Fan Tray for Damage
Ensuring that the Cisco MeetingPlace System Works Correctly Before the Replacement
Powering Down the Cisco MeetingPlace 8106
Powering Up the Cisco MeetingPlace 8106
Verifying that the Fan Tray Works Correctly
Verifying that You are Connected
Fan Tray Replacement Procedure for the Cisco MeetingPlace 8106
This procedure describes how to replace the fan tray in the Cisco MeetingPlace 8106 and contains the following topics:
•
Before Replacing the Fan Tray
Additional References
Follow these general guidelines:
•
If you want information about installing the Cisco MeetingPlace 8100 series hardware for the first time or information about upgrading the Cisco MeetingPlace 8100 series software, see the Installation and Upgrade Guide for Cisco MeetingPlace Audio Server Release 5.3 at the following URL:
http://www.cisco.com/univercd/cc/td/doc/product/conf/mtgplace/audio/53/53inst/index.htm.•
If you want information about configuring the Cisco MeetingPlace 8100 series, see the Configuration Guide for Cisco MeetingPlace Audio Server Release 5.3 at the following URL:
http://www.cisco.com/univercd/cc/td/doc/product/conf/mtgplace/audio/53/53config/index.htm.•
For complete information about all of the Cisco conferencing documentation, including Regulatory Compliance and Safety Information for the Cisco MeetingPlace Series 8100, see the Guide to Cisco Conferencing Documentation and Support at the following URL:
http://www.cisco.com/univercd/cc/td/doc/product/conf/mtgplace/roadmap.htm.Before Replacing the Fan Tray
This section contains the following topics:
•
Checking the New Fan Tray for Damage
•
Ensuring that the Cisco MeetingPlace System Works Correctly Before the Replacement
•
Powering Down the Cisco MeetingPlace 8106
Checking the New Fan Tray for Damage
Visually inspect your new Cisco MeetingPlace 8106 fan tray for damage. Contact Cisco TAC if the Cisco MeetingPlace 8106 fan tray that you received was damaged during shipping or if parts are missing.
Figure 1 shows the Cisco MeetingPlace 8106 fan tray.
Figure 1 Cisco MeetingPlace 8106 Fan Tray
Verifying No User Activity
Before you power down your Cisco MeetingPlace 8106, verify that no user ports are active. You should have already scheduled downtime for your Cisco MeetingPlace 8106 by using the Reserve All Ports (RAP) meeting feature in Cisco MeetingTime. See the Administrator's Guide for Cisco MeetingPlace Audio Server Release 5.3 for more information about RAP meetings.
Step 1
Access the command line interface (CLI) of the Cisco MeetingPlace 8106 as follows:
a.
Connect one end of the null modem cable to the COM1 port on the front of the Cisco MeetingPlace 8106.
b.
Connect the other end of the null modem cable to a COM port on your computer.
c.
Start the terminal emulator program.
d.
Set the port parameters in the terminal emulator program as shown in Table 1. The CLI appears.
Table 1 Terminal Emulator Port Parameters
Parameter ValueBaud
19200
Data length
8 bit
Parity
None
Stop bits
1
Note
CLI commands are case sensitive. For CLI command information, see the Configuration Guide for Cisco MeetingPlace Audio Server Release 5.3.
Step 2
Keep a record of activity during the fan tray replacement by capturing the text in the terminal emulator program. This information can be used by Cisco TAC to diagnose problems that may occur during this replacement. Follow these steps:
a.
Go to the Transfer menu in the HyperTerminal window.
b.
Select Capture Text.
c.
Save the file. Note the location so that you can retrieve the file later.
d.
Click Start.
Step 3
At the CLI prompt, log in as an administrator. The tech$ prompt appears.
Note
For Cisco MeetingPlace Release 5.2, the default administrator username is tech and the default administrator password is wit!tra$. For Cisco MeetingPlace Release 5.3, the default administrator username is admin and the default administrator password is cisco. See the Installation and Upgrade Guide for Cisco MeetingPlace Audio Server Release 5.3 for more information about logging in to Cisco MeetingPlace.
Step 4
At the tech$ prompt, enter activity. The VUI Internal Status Utility menu appears.
Step 5
To see a quick status of all ports, enter 1. A list of the ports appears. The ports are listed numerically under the Port heading and the port status is under the Ap heading. Table 2 lists the most common Ap headings.
Table 2 Ap Headings and Definitions
Heading Definition--
The port is inactive.
CO
The port is participating in an active conference.
PR
The port is currently accessing a meeting profile.
Step 6
Verify that all the ports are inactive by ensuring that all ports have -- under the Ap heading. Press Enter to go to the next page. When you have scrolled through all the ports, the VUI Internal Status Utility menu appears.
Note
If any ports are active, wait for the calls to finish before proceeding.
Step 7
Exit the activity command by entering 0. The tech$ prompt appears.
Ensuring that the Cisco MeetingPlace System Works Correctly Before the Replacement
Ensure that your Cisco MeetingPlace system works correctly before replacing the fan tray. This helps with troubleshooting if your Cisco MeetingPlace system does not work correctly after the replacement. If your Cisco MeetingPlace system is not working correctly, contact Cisco TAC.
After replacing the fan tray, run these commands again to make sure your Cisco MeetingPlace system has come back online correctly.
Step 1
Access the CLI.
Step 2
Log in as an administrator. The tech$ prompt appears.
Step 3
Enter swstatus. Output similar to the following appears:
mtgplace:tech$ swstatus Conference server 5.3.0 S/N: C00178 System status: Operating System mode: Up Temperature: Unknown Power supply: OKMODULE NAME STATUS VERSION SIM UP "10/21/04 12:23 MPBUILD-R5_3_0_24" LSH UP "10/21/04 12:05 MPBUILD-R5_3_0_24" SNMPD UP "10/21/04 12:34 MPBUILD-R5_3_0_24" DBQSERVER UP "10/21/04 12:08 MPBUILD-R5_3_0_24" DBSERVER UP "10/21/04 12:08 MPBUILD-R5_3_0_24" POSERVER UP "10/21/04 12:16 MPBUILD-R5_3_0_24" CPSERVER UP "10/21/04 12:15 MPBUILD-R5_3_0_24" CONFSCHED UP "10/21/04 12:20 MPBUILD-R5_3_0_24" WSSERVER UP "10/21/04 12:24 MPBUILD-R5_3_0_24" VOICESERVER UP "10/21/04 12:30 MPBUILD-R5_3_0_24" GWSIMMGR UP "10/21/04 12:38 MPBUILD-R5_3_0_24"Step 4
Enter gwstatus. Output similar to the following appears:
mtgplace:tech$ gwstatus Gateway SIM Status/Thu Dec 2 12:35:26 2004 ------------------------------------------- Remote Units: Unit 16 MTGPLACE_WEBNOT v5.2.0.34 Ok 12/02/04 12:35:01Gateways: Unit 16 WebPub:DataSvc v4.3.0.246 Ok 12/02/04 12:34:02 Unit 16 WebPub:MPAgent v4.3.0.246 Ok 12/02/04 12:34:02 Unit 16 WebPub:Audio v4.3.0.246 Ok 12/02/04 12:34:02 Unit 16 MPConvert v4.3.0.246 Ok 12/02/04 12:34:02 Unit 16 WebPub:Master v4.3.0.246 Ok 12/02/04 12:34:02 Unit 16 DataConf:GW v4.3.0.246 Ok 12/02/04 12:34:02 Unit 16 DataConf:GCC v4.3.0.246 Ok 12/02/04 12:34:02 Unit 16 DataConf:MCS v4.3.0.246 Ok 12/02/04 12:34:02Step 5
Enter alarm. Output similar to the following appears:
mtgplace:tech$ alarmREFNO SEV CODE COUNT FIRST LAST UNIT ---------------------------------------------------------------------- 77350 MIN 0300e6 2 Jan 28 09:57 Feb 10 19:25 0 SW MODULE=8 Too many attempts to log into profile (100) 33373635383330000. Profile Locked!Step 6
Enter hwconfig. Output similar to the following appears:
mtgplace:tech$ hwconfig Cabinet: ELMA 4U Bus architecture: CompactPCI Processor card: SMM5370LATUDE S/N=7163050 Processor: Pentium III, Model 8, 700 MHz Memory: 512MB Temperature: 26C Voltages: 3.32V, 5.02V, 11.94V Power Supplies: OK Fans: OKSCSI Adapter: NCR 810DISK 1: 36000MB (SEAGATE ST336607LC REV=0007)DISK 2: 36000MB (SEAGATE ST336607LC REV=0007)Ethernet: Intel 8225x PCI 10/100 (0001af125f0c) Modem: Present (MultiTech MT5634Z)MultiAccess Blades:Slot 6: AC TP1610-4 S/N=340240 REV=0 AC0Smart Blades:Slot 1: NMS CG6000C S/N=104415759 REV=5894-B7 MSC0 PRC0Step 7
Enter spanstat -all. Output similar to the following appears:
mtgplace:tech$ spanstat -allSpan 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 ---- TR TR TR TR TR TR TR TR TR TR TR TR TR TR TR TR TR TR TR TR TR TR TR TR 0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 2 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 3 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 4 Span 4 (Card 1 Line A) is down (LOST) 5 Span 5 (Card 1 Line B) is down (LOST) 6 Span 6 (Card 1 Line C) is down (LOST) 7 Span 7 (Card 1 Line D) is down (LOST) 8 Span 8 (Card 2 Line A) is down (LOST) 9 Span 9 (Card 2 Line B) is down (LOST) 10 Span 10 (Card 2 Line C) is down (LOST) 11 Span 11 (Card 2 Line D) is down (LOST) 12 Span 12 (Card 3 Line A) is down (LOST) 13 Span 13 (Card 3 Line B) is down (LOST) 14 is not active 15 is not active 16 is not active 17 is not active 18 is not active 19 is not active Press n/+ for next page/line, 'q'=quit, 'h'=helpBacking up the Database
Back up the Cisco MeetingPlace 8106 database before you replace the fan tray. (You can use the backup to restore your data if there is a problem after the installation.) We recommend that you back up your database immediately before replacing the fan tray.
Note
Use the Cisco MeetingPlace Backup Gateway to back up your database. For information on how to install, configure, and use the Cisco MeetingPlace Backup Gateway, see the Administrator's Guide for Cisco MeetingPlace Backup Gateway Release 5.3.
Powering Down the Cisco MeetingPlace 8106
Note
As a courtesy, notify current users that you are powering down the Cisco MeetingPlace 8106.
Step 1
Access the CLI.
Step 2
Log in as an administrator. The tech$ prompt appears.
Step 3
To stop new Cisco MeetingPlace activity, enter down. A verification prompt appears.
Step 4
At the prompt, enter y. The power down cycle begins.
Step 5
Wait about 2 minutes for the power down cycle to complete.
Step 6
At the tech$ prompt, enter halt. A verification prompt appears.
Step 7
At the prompt, enter y.
Step 8
Locate the power switch on the back of the Cisco MeetingPlace 8106 and turn it to the off position ("O").
Step 9
Remove the power cable from the back of the Cisco MeetingPlace 8106.
How To Replace the Fan Tray
Replacing the fan tray for the Cisco MeetingPlace 8106 consists of the following activities:
•
Powering Up the Cisco MeetingPlace 8106
Removing the Old Fan Tray
Step 1
Manually loosen the three screws that secure the fan tray to the chassis. The screws are located on the left side of the Cisco MeetingPlace 8106 chassis. No screwdriver is needed.
Step 2
Slide the fan tray out of the chassis.
Installing the New Fan Tray
Step 1
Remove the new fan tray from the antistatic bag.
Step 2
Slide the fan tray into the empty slot on the front left of the Cisco MeetingPlace 8106 chassis. See Figure 2. Apply firm pressure when you slide the fan tray into the chassis to ensure that the power connectors fit properly. These power connectors have a flexible design to ensure that they are not misaligned during the fan tray installation.

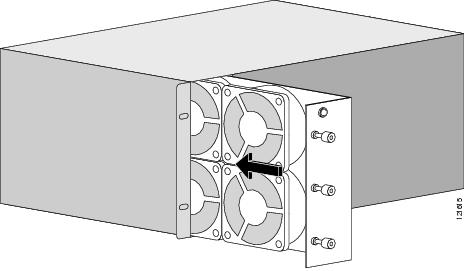

Figure 2 Inserting the Fan Tray into the Cisco MeetingPlace 8106
Step 3
Manually tighten the screws that secure the fan tray to the Cisco MeetingPlace 8106 chassis. No screwdriver is needed.
Powering Up the Cisco MeetingPlace 8106
Step 1
Plug the power cable into the back of the Cisco MeetingPlace 8106.
Step 2
Locate the power switch on the back of the Cisco MeetingPlace 8106 and turn it to the on position (" | ").
Step 3
Start the terminal emulator program on your computer. See the "Verifying No User Activity" section for information about how to start the terminal emulator program.
Step 4
Access the CLI.
Step 5
Log in as an administrator. The tech$ prompt appears.
Step 6
To ensure that the new fan is working properly, enter hwconfig. Output similar to the following example appears:
meetingplace:tech$ hwconfigCabinet: ELMA 4UBus architecture: CompactPCIProcessor card: SMM5370LATUDE S/N=6055691Processor: Pentium III, Model 8, 700 MHzMemory: 512 MBTemperature: 22CVoltages: 3.34V, 5.02V, 12.00VPower Supplies: OKFans: OKSCSI Adapter: NCR 810DISK 1: 36000MB (SEAGATE ST336607LC REV=0005)DISK 2: 36000MB (SEAGATE ST336607LC REV=0005)Ethernet: Intel 8225x PCI 10/100 (0001af0bc2cd)Modem: Absent or unrecognizedMulti Access Blades:Slot 1: AC TP1610-4 S/N=274404 REV=0 AC0Smart Blades:Slot 2: NMS CG6000C S/N=103237639 REV=5894-B4 MSC0 PRC0
Verifying that the Fan Tray Works Correctly
Step 1
Verify that the fans are active by listening for at least some minimal fan noise.
Step 2
Verify that the fans in the fan tray are moving air by doing both of the following:
a.
Place a small piece of paper on the left side of the Cisco MeetingPlace system (as you face the front of it). Ensure that the paper moves toward the fan vent.
b.
Place a small piece of paper on the right side of the Cisco MeetingPlace system (as you face the front of it). Ensure that the paper moves away from the fan vent.
Step 3
Verify that the fans are not too loud and do not make any noises that might indicate bad bearings. If you hear anything louder than a hum, this might indicate that one or more of the fans in the fan tray are bad. If you experience this, contact Cisco TAC.
Verifying that You are Connected
Step 1
Ensure that all the gateways work. See the Administrator Guides for the specific gateways for information on determining that they are working correctly.
Step 2
Ensure that you can call into the Cisco MeetingPlace system and attend a meeting. If you cannot call into the Cisco MeetingPlace system and attend a meeting, try reseating the fan tray. If that does not work, contact Cisco TAC.
