Cisco Unified MeetingPlace DCTS Addin

---

The Cisco Unified MeetingPlace Defense Collaboration Tool Suite (DCTS) Addin transmits the list of users and conferences on a Cisco Unified MeetingPlace system to an Envoke server.

This appendix discusses the following topics:

•About Cisco Unified MeetingPlace DCTS Addin

•Cisco Unified MeetingPlace DCTS Addin Software Requirements

•Enabling Cisco Unified MeetingPlace DCTS Addin

•Disabling Cisco Unified MeetingPlace DCTS Addin

About Cisco Unified MeetingPlace DCTS Addin

The Cisco Unified MeetingPlace DCTS Addin performs the following tasks:

•Listen to events related to users and conferences in Cisco Unified MeetingPlace

•Transmit these events to the Asynchrony Solution Envoke server

•Periodically send information to the Envoke server

This addin is a managed DLL assembly. During installation, InstallShield registers the addin's internal classes for COM interoperability, and registers the addin with the Cisco MeetingPlace Agent service.

Cisco Unified MeetingPlace Web Conferencing Server loads the addin as a COM DLL and implements the IConferenceTechnologyProvider interface. The DCTS addin consumes the following events:

•CN_STARTCONF (Conf#)

•CN_ENDCONF (Conf#)

•CN_CONFPARTJOIN (Conf#, PartID#, DeviceID#, PartName)

•CN_CONFPARTLEAVE (Conf#, PartID#, DeviceID#, PartName)

•CN_PARTNAMECHANGE (Conf#, PartID#)

•MP_TECHPROVIDER_EVENT_USER_LOGIN (fLogin, Session#, UserID#, LoginClient#)

After receiving these events, the IConferenceTechnologyProvider implementation calls the Envoke server API and calls the following methods, which reflect the data passed in the event:

•AddUser

•AddConference

•RemoveUser

•Remove Conference

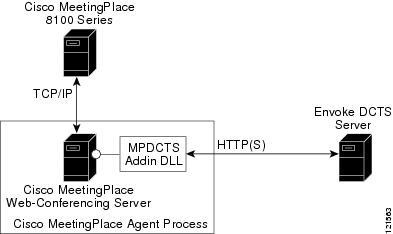

Figure E-1 shows an overview of the Cisco Unified MeetingPlace DCTS addin.

Figure E-1 Overview of Cisco Unified MeetingPlace DCTS Addin

Cisco Unified MeetingPlace DCTS Addin Software Requirements

The DCTS Addin DLL requires the following:

•Cisco Unified MeetingPlace Web Agent service. This service is installed as part of Cisco Unified MeetingPlace Web Conferencing Server 4.3.0.225 and later.

•HTTP/HTTPS connection to the Envoke server

Enabling Cisco Unified MeetingPlace DCTS Addin

---

Step 1 Choose Windows Start menu > Programs > Cisco MeetingPlace Applications > MeetingPlace DCTS Addin.

Step 2 When the addin application opens, select Enable MeetingPlace DCTS Addin.

Step 3 Enter values in fields:

Field	Value
Envoke Server URL	Replace <server> with the hostname of your Envoke Server.
Login UserID	Enter the DCTS login ID. This ID is specific to the DCTS application and is different from an end-user ID.
Login Password	Enter the DCTS login password.
Cisco Unified MeetingPlace Web URL	Enter the URL of your Cisco Unified MeetingPlace web server.
Organization	Enter the name of your department or organization. This field is provided for information purposes only.
Update Interval	Enter how often (in milliseconds) you want the Cisco Unified MeetingPlace web server to update the Envoke Server.
Heartbeat Interval	Enter the regular amount of time (in milliseconds) that should pass between the Cisco Unified MeetingPlace web server and Envoke Server before the two exchange information, called heartbeats. If the Envoke Server does not receive a heartbeat when expected, it assumes that the connection is dead and turns off.

Step 4 Click Submit.

Step 5 Restart Cisco Unified MeetingPlace Web.

---

Disabling Cisco Unified MeetingPlace DCTS Addin

---

Step 1 Choose Windows Start menu > Programs > Cisco MeetingPlace Applications > MeetingPlace DCTS Addin.

Step 2 When the addin application opens, clear Enable MeetingPlace DCTS Addin and click Submit.

Step 3 Restart Cisco Unified MeetingPlace Web.

---
