IPsec with Network Isolation Utility

---

• About IPsec
• IPsec manual deployment versus via Network Isolation Utility
• Cisco Network Isolation Utility
• Illustration of Network Isolation Utility deployment
• Network Isolation Utility information
• About encrypting traffic
• Network Isolation feature deployment
• Caveats
• Batch deployment
• Network Isolation Utility command line syntax
• Monitor IPsec
• Troubleshoot Network Isolation IPsec policy

About IPsec

Internet Protocol Security (IPsec) is a security standard developed jointly by Microsoft, Cisco, and many other Internet Engineering Task Force (IETF) contributors. It provides integrity (authentication) and encryption between any two nodes, which could be endpoints or a gateways. IPsec is application independent because it works at layer 3 of the network. This is particularly useful for large and distributed applications like Unified ICM because it provides security between the application nodes independent of the application.

For some introductory information on IPsec, see:

• Frequently Asked Questions
• Whitepaper on Internet Protocol Security for Microsoft Windows Server 2008 R2

IPsec manual deployment versus via Network Isolation Utility

The Network Isolation Utility described in this chapter automates much of the work you need to do to secure a Unified ICM/Unified CCE environment using IPsec. The Network Isolation utility deploys a preconfigured IPsec policy on Unified ICM and Unified CCE servers that secures the entire network traffic to or from those servers. Network connectivity is restricted to only those severs that share the same policy or are explicitly listed as exceptions. If you wish to secure network traffic only between selected communication paths, then refer to the manual steps described in the chapter on IPsec and NAT Support.

Cisco Network Isolation Utility

The Cisco Network Isolation Utility uses the Windows IPsec feature to isolate Unified ICM devices (for example, the router, the logger, and the peripheral gateway device) from the rest of the network. The utility creates a Network Isolation IPsec policy, which, when it is deployed, sets Unified ICM devices as Trusted and authenticates and optionally encrypts all traffic between Trusted Devices. Traffic between Trusted Devices continues to flow normally without any additional configuration. All traffic to or from devices outside the Trusted Devices is denied unless it is classified as coming from or going to a Boundary Device.

A Boundary Device is a device without an IPsec policy that is allowed access to a Trusted Device. These devices typically include the Domain Controller, the Unified CM, default gateway devices, CTI OS desktops, serviceability devices, and remote-access computers.

Each Trusted Device has its own list of Boundary Devices, which is defined either by separate IP addresses or subnets or ports.

The Network Isolation policy uses the IPsec ESP (Encapsulating Security Payload) protocol for integrity and encryption. The cipher suite deployed is as follows:

• IP Traffic Security:
  • Integrity algorithm: SHA1
  • Encryption algorithm: 3DES
• Key Exchange Security:
  • Integrity algorithm: SHA1
  • Encryption algorithm: 3DES (optional)
  • Diffie-Hellman group: High (2048-bit key)

Illustration of Network Isolation Utility deployment

Figure 1. Example Network Isolation Deployment

Network Isolation Utility information

To understand the Network Isolation Utility design and how it works, make sure you understand the following:

• IPsec Terminology
• The Network Isolation Utility Process

• IPsec terminology
• Network Isolation Utility process

IPsec terminology

The following list provides information about IPsec terminology:

Policy

An IPsec policy is a collection of one or more rules that determine IPsec behavior. In Windows Server 2008 R2, multiple policies can be created but only one policy can be assigned (active) at a time.

Rules

Each rule is made up of a FilterList, FilterAction, Authentication Method, TunnelSetting, and ConnectionType.

Filter List

A filter list is a set of filters that match IP packets based on source and destination IP address, protocol, and port.

Filter Action

A filter action, identified by a Filter List, defines the security requirements for the data transmission.

Authentication Method

An authentication method defines the requirements for how identities are verified in communications to which the associated rule applies.

For fuller definitions of Microsoft Windows IPsec terminology, see Overview of IPsec Policy Concepts.

Network Isolation Utility process

The Network Isolation Utility must be run separately on each Trusted Device. Do not run the utility on Boundary Devices.

To allow traffic to or from Boundary Devices, the Boundary Devices list on each Trusted Device must be configured manually.

After the Network Isolation IPsec policy is deployed on a device, that device is set as Trusted and traffic flows freely between it and any other Trusted Device without any additional configuration.

When run, the Network Isolation Utility does the following:

1. Removes any IPsec policies that are already on that computer. This is to avoid conflicts so the new policy matches on all Unified ICM devices for a successful deployment.
2. Creates a Cisco Unified Contact Center (Network Isolation) IPSec policy in the Windows IPsec policy store.
3. Creates the following two rules for the policy:
   1. Trusted Devices Rule This rule involves the following items:
      • Trusted Devices Filter List: All traffic. One filter that matches all traffic.
      • Trusted Devices Filter Action: Require security. Authenticate using the integrity algorithm SHA1 and optionally encrypt using encryption algorithm 3DES.
      • Authentication Method: The authentication method used to create trust between computers is a Preshared Key. The Preshared Key can be a string of words, numbers, or characters except the double quote symbol. The minimum length for this key is 36 characters.
   2. Boundary Devices Rule This rule involves the following items:
      • Boundary Devices Filter List: (empty by default)
      • Boundary Devices Filter Action: Permit traffic without IPsec policy. Boundary Devices do not require IPsec to communicate with Trusted Devices.
4. The Network Isolation Utility stores a copy of the Cisco Unified Contact Center IPsec policy in an XML file located in Network Isolation utility folder:<system drive>:\CiscoUtils\NetworkIsolation\CiscoICMIPsecConfig.XML. The XML files stores the policy state and the Boundary Device list. It does not store the preshared key.
5. The Network Isolation Utility logs all commands and actions in a log file at: <SystemDrive>:\CiscoUtils\NetworkIsolation\Logs\CiscoICMNetworkIsolation.log. The utility keeps one copy of the log file and appends all commands and actions to any previously created logs.

About encrypting traffic

The Network Isolation policy allows only those computers that have the same preshared key to interact. However, if encryption is not enabled, then, although an outside hacker cannot access a trusted computer, the hacker might be able to see the traffic coming and going from that computer. Therefore, you can also encrypt that traffic if you want to.

Note

You cannot encrypt traffic to one Trusted Device alone. You must encrypt traffic on either all Trusted Devices or none. The reason is that if only one computer has encrypted traffic, then none of the other Trusted Devices will understand it. Cisco strongly recommends the use of encryption offload network interface cards when IPsec is enabled with encryption so that performance is not impacted by the encryption software. See IPsec and NAT Support for more details.

Network Isolation feature deployment

Be aware of the following when designing your deployment plan for the Network Isolation feature:

• Important Deployment Tips
• Sample Deployment
• Devices That Must Communicate with One Another
• Typical Boundary Devices

• Important deployment tips
• Sample deployment
• Device two-way communication
• Boundary Devices and normal functioning

Important deployment tips

No configuration is needed on Boundary Devices. All the configuration is done on Trusted Devices. The Network Isolation Utility configures Trusted Devices to interact with other Trusted Devices and with Boundary Devices. Because the network isolation feature is applied on one device at a time, and because this feature instantly limits communication with other devices after it is applied, you need to carefully plan how to deploy this feature before using it or you could accidentally stop your network from working. It is advisable to write a deployment plan before you implement the Network Isolation feature. Deploy this feature therefore only during a maintenance window and review the Caveats before writing your deployment plan.

Sample deployment

The following is one sample deployment. Phase one of the deployment is to deploy the policy on the CallRouter, Logger, and Administration & Data Server and to put the Peripheral Gateway (PG) subnets in the CallRouter's Boundary Devices list. Phase two of the deployment is to remove the PGs from the CallRouter's Boundary Device list simultaneously as the policy is deployed on the PGs.

1. Start with a fully functional Unified ICM or Unified CCE system that has no IPsec policy deployment.

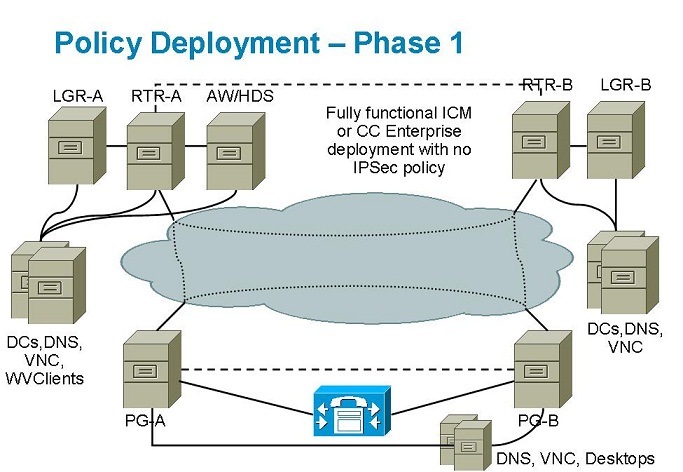

   Figure 2. Example Contact Center Enterprise System




2. Set the CallRouter, the Logger, and the Administration & Data Server as Trusted Devices by running the Network Isolation Utility on each of them.

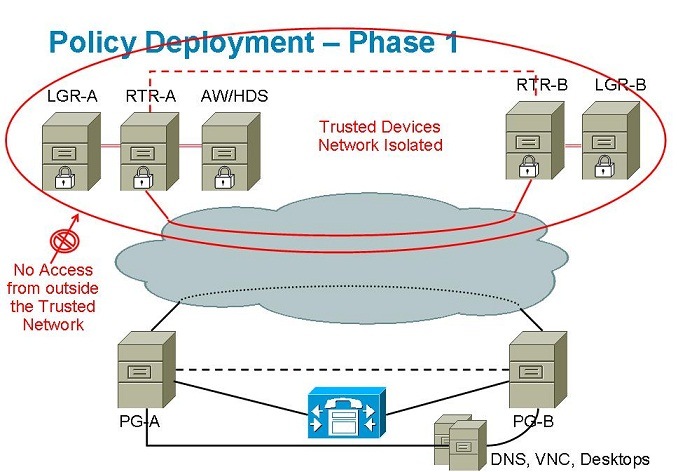

   Figure 3. Example Phase 1 - Step 1 IPSec deployment




   This process leaves the Trusted Devices as network isolated.

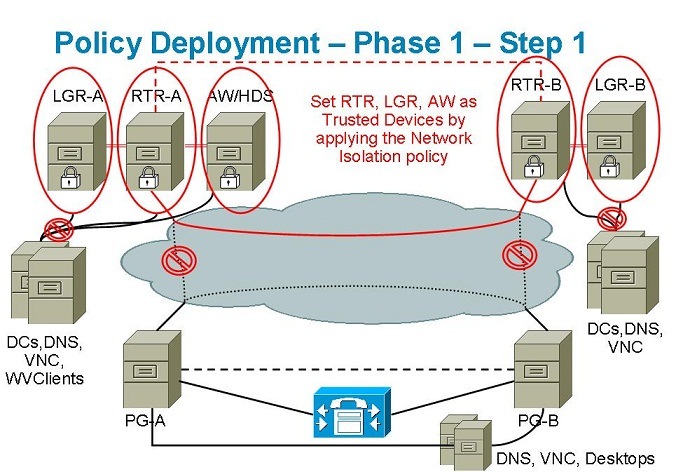

   Figure 4. Example Trusted Device Isolation




3. Add the infrastructure servers and clients as Boundary Devices.

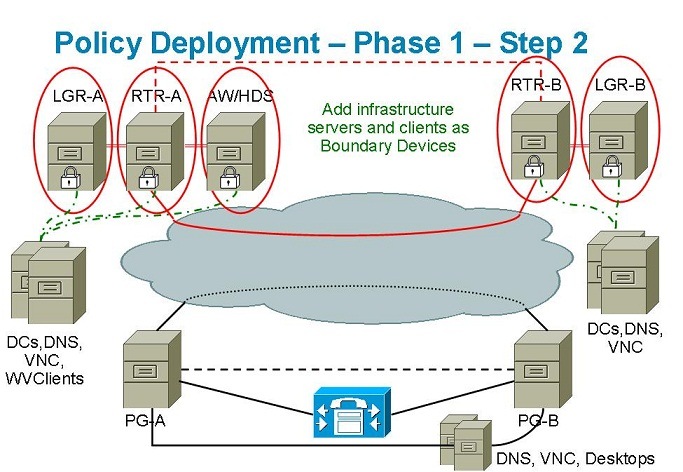

   Figure 5. Example Phase 1 - Step 2 IPSec Deployment




4. Put the Peripheral Gateway (PG) subnets in the CallRouter's Boundary Devices list.

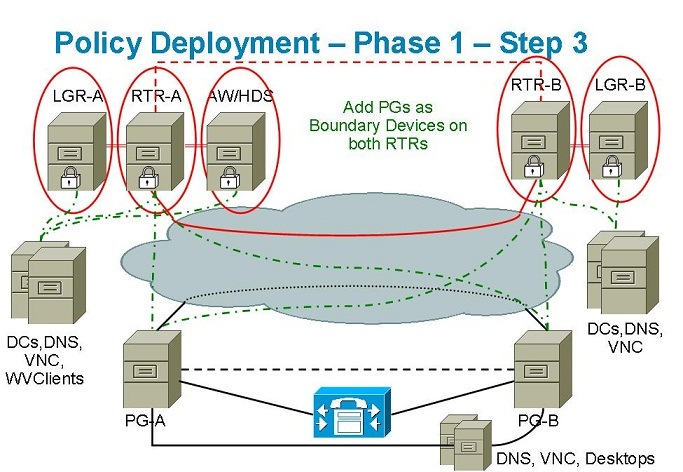

   Figure 6. Example Phase 1 - Step 3 IPSec Deployment




5. Then set the PGs as Trusted Devices and simultaneously remove them from the CallRouter Boundary list.

   Note	After the policy is deployed on a PG, that PG is a Trusted Device. Therefore, it is imperative that the PG be removed from the Router Boundary Device list because a communication path (in this case, between the router and the PG) cannot be set as both Trusted and Boundary.

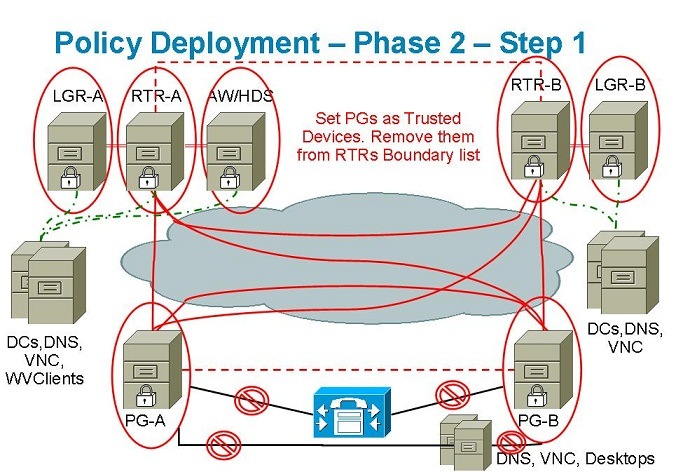

   Figure 7. Example Phase 2 - Step 1 IPSec Deployment




6. Add Unified CM or ACD server, the DNS, and the agent desktops as Boundary Devices on both PGs.

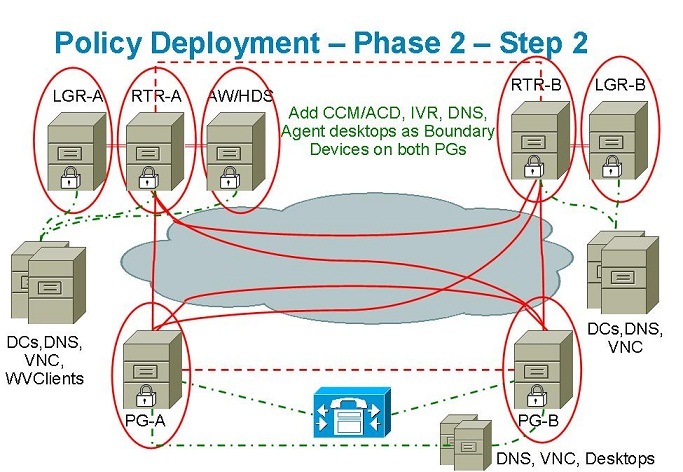

   Figure 8. Example Phase 2 - Step 2 IPSec Deployment




   When you are finished, all Unified ICM Trusted Devices will communicate only with each other and their respective Boundary Devices (the domain controller, the DNS, the Unified CM, and so on). Any network attack from outside will not reach the Trusted Devices, unless it is routed through the Boundary Devices.
   Figure 9. Example IPSec Deployment - Overall Design





Device two-way communication

Each device in the following list must be able to have two-way communication with each device in its sublist. These devices can be set as either Trusted or Boundary Devices:

• CallRouter
  • CallRouter (on the other side in a duplex system)
  • Logger
  • Administration & Data Server/Historical Database Server
  • NAM Router
  • Peripheral Gateway (on both sides in a duplex system)
  • Application Gateway
  • Database Server
  • Network Gateway
• Logger
  • Historical Database Server/Administration & Data Server
  • CallRouter
  • Campaign Manager
  • Dialer
• Peripheral Gateway
  • Multichannel/Multimedia Server
  • CallRouter (on both sides in a duplex system)
  • Peripheral Gateway (on the other side in a duplex system)
  • Unified CM
  • Administration & Data Server legacy PIMS/switches
• CTI OS Server and CTI OS Clients
  • CTI OS Server (on the other side in a duplex system)
  • Peripheral Gateway
  • CTI OS Agent desktops
  • Cisco Agent Desktop
  • All CTI Clients
• Silent Monitor Server
  • CTI OS Server (on the other side in a duplex system)
  • Peripheral Gateway
  • CTI OS Agent desktops
  • Cisco Agent Desktop
  • All CTI Clients
• Administration & Data Server/Historical Database Server
  • Multichannel/Multimedia Server
  • Router
  • Logger
  • Custom Application Server
  • CON API Clients
  • Internet Script Editor Clients/Webskilling
  • 3rd Party Clients/SQL party
• Administration Server, Real-time and Historical Data Server, and Detail Data Server (AW-HDS-DDS)
  • Multichannel/Multimedia Server
  • Router
  • Logger
  • Custom Application Server
  • Internet Script Editor Clients/Webskilling
  • Third-Party Clients/SOL party

Boundary Devices and normal functioning

The following is a list of Boundary Devices that you typically require for normal functioning in a Unified ICM system:

• Domain Controllers for RTR, LGR, Administration & Data Server or HDS, and PGs
  Configuration Example:

  • Boundary Device: Domain Controller IP Address
  • Traffic Direction: Outbound
  • Protocol: Any
  • Port: Not Applicable
• DNS, WINS, Default Gateway
• Remote Access or Remote Management for every Trusted Device (VNC, pcAnywhere, Remote Desktop Connection, SNMP)
  Configuration Example for VNC:

  • Boundary Device: Any host
  • Traffic Direction: Inbound
  • Protocol: TCP
  • Port: 5900
• Communications Manager Cluster for PGs
  Configuration Example:

  • Boundary Device: A specific IP Address (or Subnet)
  • Traffic Direction: Outbound
  • Protocol: TCP
  • Port: All ports
• Agent Desktops
  Configuration Example for CTI OS Server:

  • Boundary Device: A Subnet
  • Traffic Direction: Inbound
  • Protocol: TCP
  • Port: 42028

Caveats

You must carefully plan deployments so that the policy is applied to all machines at the same time. Otherwise, you can accidentally isolate a device.

Caveats include the following:

• Important:

  Enabling the policy remotely will block remote access unless a provision is made in the Boundary Device list for remote access. You must add a Boundary Device for remote access before enabling the policy remotely.

• Important:

  You must add all domain controllers as Boundary Devices or your domain login will fail and your Unified ICM services will also fail to start or you may see delayed login times. This list of domain controllers should include all domains in which the Unified ICM application is installed as well as all domains in which Web Setup tool, configuration users and supervisors exist.

• Adding a new device as a Boundary Device (for example, a new Domain Controller) requires a change to the policy on all Trusted Devices that need access to this new device without IPsec.
• A change in the Preshared Key must be invoked on all Trusted Devices.
• If you enable encryption on only one Trusted Device, that device will not be able to communicate with the other Trusted Devices because its network traffic will be encrypted. Enable encryption on all or none of the Trusted Devices.
• Avoid the use the Windows IPsec policy MMC plug-in to make any changes to the IPsec policy. The Network Isolation Utility maintains its own copy of the policy, and, whenever executed, the utility reverts to its last saved configuration, ignoring any changes made outside the utility (or the Security Wizard).
• While the Network Isolation Utility does not interfere with applications that run on the network, run it only during the application maintenance window because it can potentially disrupt connectivity when you are setting up the network security.
• If your network is behind a firewall, then you must configure the firewall to:
  • Allow IP protocol number 50, which is the ESP (Encapsulating Security Protocol).
  • Allow UDP source and destination traffic on port 500 for the IKE protocol.
• If you are using the NAT protocol, you must configure the firewall to forward traffic on UDP source and destination port 4500 for UDP-ESP encapsulation.
• Any changes made to the application port usage, such as a web server port, must also be reflected in the policy.
• Deploy the Network Isolation Policy after the Unified ICM or the Unified Contact Center application is configured and confirmed to be working.

Batch deployment

You can use the following XML file to help speed up deployment when a common set of Boundary Devices must be added to all Trusted Devices:

<system drive>:\CiscoUtils\NetworkIsolation\CiscoICMIPsecConfig.XML

This XML file contains the list of Boundary Devices and policy state, on one Trusted Device. You can use this to replicate the policy on other Trusted Devices.

For example, when setting up your PGs as Trusted Devices, you may first want to complete configuring one Unified ICM PG. Next, you can copy the XML file from that configured PG to the rest of your Unified ICM PGs, and then run the Isolation Utility (or the Security Wizard) on the other PGs to replicate the same Boundary Device list on all your PGs.

Network Isolation Utility command line syntax

You can run the Network Isolation Utility either from the command line or from the Unified Contact Center Security Wizard.

Note	It is recommended that you use the Security Wizard for initial policy creation or modification. You can use the command line for batch deployment.

To run the utility from the command line, go to the C:\CiscoUtils\NetworkIsolation directory, where the utility is located, and run it from there:

C:\CiscoUtils\NetworkIsolation>

The following is the command-line syntax for enabling the policy on Trusted Devices:

cscript ICMNetworkIsolation.vbe <arguments>

Note	You must use cscript to invoke the script.

You can add Boundary Devices with multiple filters. You can filter them by:

• IP Address: Individual IP addresses or by an entire subnet of devices
• Dynamically detected devices: DNS, WINS, DHCP, Default Gateway Windows dynamically detects the IP address of these devices and keeps the filter list updated
• Direction of traffic: Inbound or outbound
• Protocol: TCP, UDP, ICMP, or any protocol
• Port (only if TCP or UDP is selected): A specific port or all ports

In the syntax:

• angle brackets < >= required
• square brackets [ ] = optional
• pipe or bar | = any one of the items between the bars

The following table lists the command syntax for all uses of the command.

Table 1  Network Isolation Utility command syntax for each argument

Argument Name	Syntax and Example	Function
HELP	cscript ICMNetworkIsolation.vbe /?	Displays the syntax for the command.
ENABLE POLICY
	cscript ICMNetworkIsolation.vbe /enablePolicy <36+ characters PreSharedKey in double quotes> [/encrypt] Note    The only non-supported character for use in the PresharedKey is double quotes because that character marks the beginning and end of the key. You can enter any other character within the key. For example: cscript ICMNetworkIsolation.vbe /enablePolicy "myspecialpresharedkey123456789mnbvcx"	Creates a new policy or enables an existing one from the stored policy XML file. Optionally enables encryption of the network traffic data. Creates a new policy in Windows IPsec policy store and adds all Boundary Devices listed in the XML file. If the XML file does not exist, then it creates a new XML file. The /encrypt option overrides the value set in the XML file.
Note    The add, remove, and delete arguments make a backup of the XML file and name it xml.lastconfig before carrying out their function.
ADD BOUNDARY	cscript ICMNetworkIsolation.vbe /addBoundary DNS|WINS|DHCP|GATEWAY For example: cscript ICMNetworkIsolation.vbe /addBoundary DNS This example adds the DNS server to the Boundary Device list.	Adds to the Boundary Device list the type of device specified. The type can be specified as DNS, WINS, DHCP, or GATEWAY. The utility recognizes DNS, WINS, DHCP, and GATEWAY as the Domain Name System (DNS) device, the Windows Internet Name Service (WINS) device, the Dynamic Host Configuration Protocol (DHCP) device, and the default Gateway (GATEWAY) device respectively. The Windows operating system dynamically detects a change in IP address for each of the preceding types of devices and dynamically updates the Boundary filter list accordingly.
	cscript ICMNetworkIsolation.vbe /addAnyHostBoundary <Outbound|Inbound> <TCP|UDP> <PortNumber> For example: cscript ICMNetworkIsolation.vbe /addAnyHostBoundary Inbound TCP 5900 This example allows VNC access from all machines.	Adds to the Boundary Device list any device that matches the following criteria: One of the specified traffic directions (outbound or inbound). One of the specified protocols Transmission Control Protocol (TCP) or User Datagram Protocol (UDP). The specified port.
	cscript ICMNetworkIsolation.vbe /addIPAddrBoundary <IP address> <Outbound|Inbound> <TCP|UDP|ICMP|Any> [All|PortNumber] For example: cscript ICMNetworkIsolation.vbe /addIPAddrBoundary 10.86.121.160 Outbound Any This example allows all outbound traffic to a device with the specified IP address.	Adds to the Boundary Device list the IP address of a device that has the following configuration: (required) The specified IP address. (required) One of the specified traffic directions (outbound or inbound). (required) One of the specified protocols (required): Transmission Control Protocol (TCP), User Datagram Protocol (UDP), Internet Control Message Protocol (ICMP), or any protocol. (optional) any port or a specified port if the selected protocol is TCP or UDP.
	cscript ICMNetworkIsolation.vbe /addSubnetBoundary <StartingIP address> <Subnet Mask> <Outbound|Inbound> <TCP|UDP|ICMP|Any> [All|PortNumber] For example: cscript ICMNetworkIsolation.vbe /addSubnetBoundary 10.86.0.0.255.255.0.0 Inbound TCP 42028 This example allows a CTI OS Server to listen for agent desktops on the 10.86.x.x network.	Adds to the Boundary Device list the subnet that has the following configuration: (required) The starting IP address of the following specified range. (required) The specified subnet mask (a range of logical addresses within an address space). (required) One of the specified traffic directions (outbound or inbound). (required) One of the specified protocols Transmission Control Protocol (TCP), User Datagram Protocol (UDP), Internet Control Message Protocol (ICMP), or any protocol. (optional) any port or a specified port if TCP or UDP is selected as the protocol.
REMOVE BOUNDARY	cscript ICMNetworkIsolation.vbe /removeBoundary DNS|WINS|DHCP|GATEWAY For example: cscript ICMNetworkIsolation.vbe /removeBoundary GATEWAY	Removes from the Boundary Device list the type of device specified. The type can be specified as DNS, WINS, DHCP, or GATEWAY. The utility recognizes DNS, WINS, DHCP, and GATEWAY as the Domain Name System (DNS) device, the Windows Internet Name Service (WINS) device, the Dynamic Host Configuration Protocol (DHCP) device, and the default Gateway (GATEWAY) device respectively. The Windows operating system dynamically detects a change in IP address for each of the preceding types of devices and dynamically updates the Boundary filter list accordingly.
	cscript ICMNetworkIsolation.vbe /removeAnyHostBoundary <Outbound|Inbound> <TCP|UDP> <PortNumber> For example: cscript ICMNetworkIsolation.vbe /removeAnyHostBoundary Inbound TCP 5900	Removes from the Boundary Device list any host device at the specified IP address that matches the following criteria: One of the specified traffic directions (outbound or inbound). One of the specified protocols (TCP or UDP). The specified port number for internet traffic.
	cscript ICMNetworkIsolation.vbe /removeIPAddrBoundary <IP address> <Outbound|Inbound> <TCP|UDP|ICMP|Any> [All|PortNumber] For example: cscript ICMNetworkIsolation.vbe /removeIPAddrBoundary 10.86.121.160 Outbound Any	Removes from the Boundary Device list the device at the specified IP address that has the following configuration: (required) The specified IP address. (required) One of the specified traffic directions (outbound or inbound). (required) One of the specified protocols (TCP, UDP, ICMP, or any protocol). (optional) any port or a specified port if TCP or UDP is the specified protocol.
	cscript ICMNetworkIsolation.vbe /removeSubnetBoundary <StartingIP address> <Subnet Mask> <Outbound|Inbound> <TCP|UDP|ICMP|Any> [All|PortNumber] For example: cscript ICMNetworkIsolation.vbe /removeSubnetBoundary 10.86.0.0.255.255.0.0 Inbound Any	Removes from the Boundary Device list all the devices at the specified IP address that have the following configuration: (required) The starting IP address of the following specified range. (required) The specified subnet mask. (required) One of the specified traffic directions (outbound or inbound). (required) One of the specified protocols (TCP, UDP, ICMP, or any protocol). (optional) a port or a specified port.
DISABLE POLICY	cscript ICMNetworkIsolation.vbe /disablePolicy	Disables the Unified ICM Network Isolation IPsec policy on the computer. However, the policy is not deleted and it can be re-enabled. This option is helpful when troubleshooting network problems. If you are having a network connectivity problem with your contact center application, and you do not know what is causing the problem, you might want to disable the policy to help you clarify the source of your problem. If you are still having the problem with the policy disabled, then the policy is not the cause of your problem.
DELETE POLICY	cscript ICMNetworkIsolation.vbe /deletePolicy	Deletes the Unified ICM Network Isolation Security policy from the Windows IPsec policy store and renames the XML file to CiscoICMIPsecConfig.xml.lastconfig.

Monitor IPsec

Use IP Security Monitor (ipsecmon) to monitor IPsec on a Windows device 2008 operating system. Details on the use of IPsec Monitor can be found in the article KB 324269.

Troubleshoot Network Isolation IPsec policy

Use the following steps to troubleshoot the Network Isolation IPsec policy:

Procedure

---

Step 1	Disable the policy and confirm whether the network problem you experienced still exists. Shutting down the policy might not be an option on a highly distributed system. So, it is very important that the policy is deployed after the Unified ICM application is completely configured and tested.
Step 2	Check whether an IP address or port specified in the Boundary Device list was modified after the policy was deployed.
Step 3	Check whether a communication path is set as Trusted and Boundary. An overlap of both will cause communication to fail.
Step 4	Confirm by looking in the <system drive>:\CiscoUtils\NetworkIsolation\CiscoICMIPsecConfig.XML file whether the required Boundary Devices are listed as Boundary Devices. Preferably, use the Security Wizard (see Cisco Unified Contact Center Security Wizard) to check the Boundary Devices.
Step 5	Changes made to the IPsec policy directly from the Windows MMC console are not reflected in the utility (or in the Security Wizard). The Enable Policy option will always overwrite the IPsec policy store with the configuration stored in the XML file.
Step 6	Check for the caveats listed in Caveats.

---
