Testing Ethernet card for silent monitor

---

On a site where IP telephony is or will be deployed, the Unified CM and the IP Phones are normally configured to use a Virtual Local Area Network (VLAN) such that voice is logically separated from data. Although both traffic types are carried on the same physical channel they are transmitted on different VLANs, one for voice and other for data. This configuration allows voice to be transmitted with higher priority than data.

In a call center that will use silent monitor you must connect the agent desktop system to the PC port on the back of the IP phone, such that voice packets reaching the phone can be collected by the silent monitor subsystem to then forward to the supervisor workstation. The agent desktop system then uses one single physical channel to interact with two different VLANs.

The agent desktop system accesses the physical channel via an Ethernet Network Interface Controller (NIC). The NIC monitors the channel and collects Ethernet frames addressed to the agent's computer. The NIC then runs a preprocessing step to extract IP packets from the Ethernet frames and deliver them to the TCP/IP stack on the operating system.

During internal testing Cisco identified that some Ethernet NIC card drivers available in the market are not capable of pre-processing Ethernet frames that have an IP packet encapsulated in a VLAN frame; that is the NIC card driver discards the Ethernet frame altogether if the IP packet is encapsulated in an 802.1Q frame. Some vendors can provide a configuration setting that allows their NIC card driver to forward VLAN traffic to the TCP/IP stack.

If an agent desktop's NIC card driver discards VLAN traffic, then the silent monitor subsystem on that desktop cannot collect and forward voice packets to the supervisor workstation and silent monitor cannot function properly. Cisco developed a procedure to determine if a particular Ethernet NIC card driver works with the CTI OS silent monitor. The procedure is described in the following sections.

• Test procedure

Test procedure

The test involves sending sample VLAN packets to a Test Target NIC card and verifying that the packets are not discarded by the pre-processing step but are passed onto the TCP/IP stack on the operating system at the computer hosting the NIC card.

The test requires a configuration as shown in the following diagram.

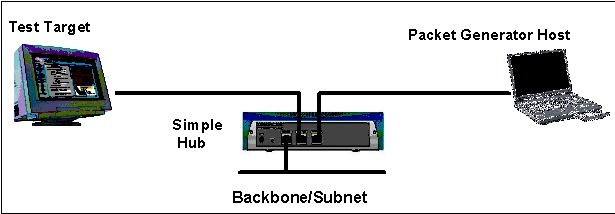

Figure 1. Silent monitor ethernet card test configuration

The Test Target NIC is connected to one port of a simple Hub. The Hub is connected to the network backbone or subnet. You also need a Packet Generator Host capable of generating Ethernet traffic. You must connect the Packet Generator Host to another port on the Hub.

The Packet Generator Host equipment can be either a dedicated packet analyzer or a computer with a software-based packet analyzer with capabilities to generate Ethernet traffic.

You can use several available software packet analyzers that can be used for this purpose. For more information about reliable analyzers, visit the Cooperative Association for Internet Data Analysis website at http://www.caida.org/tools/taxonomy/workload.xml.

The following sections demonstrate the use of Sniffer Pro.

After you set up the environment as described above you must load the software tools on the Test Target and Packet Generator Host as follows.

• Prepare test target
• Prepare packet generator host
• Executing a test

Prepare test target

Procedure

---

Step 1	Install the WinPcap utility. The WinPcap installation program is located at the root directory on the Cisco Computer Telephony Integration CTI Object Server CD.
Step 2	Create a directory on the Test Target computer named "VLANTest".
Step 3	From the Cisco Computer Telephony Integration CTI Object Server CD, copy WinDump.exe and place it in the directory you created in Step 2. (WinDump is located on the CD under CtiOS\Tools\VLANTest\WinDump.)
Step 4	Open a console window. Go to the directory where you copied WinDump.exe.
Step 5	Determine the MAC address of the Test Target NIC by executing ipconfig /all at the command prompt. Write down the number that appears for the Physical Address. For example, the "Intel Pro/100" NIC card has a MAC address of 00D059d8f7d9. Figure 2. Determining the Test Target NIC Mac address
Step 6	Determine the device interface number of the Test Target NIC. Execute windump –D and write down the number of the NIC you want to test. In this example, you would choose interface number 1, which corresponds to the "Intel Pro/100" NIC card. Note    If you are not sure which number to pick, repeat the test for each card until the test succeeds for one (sufficient to pass) or this fails for all cards.

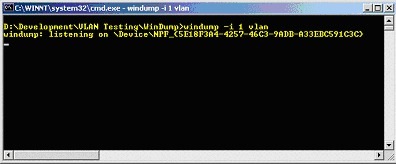

Step 7	Start WinDump to monitor the Test Target NIC for incoming VLAN packets. To do this execute windump –i <device_number> vlan. In the following example the device_number is 1. Figure 3. Monitoring the Test Target NIC for incoming VLAN packets

---

Prepare packet generator host

Perform the following steps to prepare the packet generator host.

Procedure

---

Step 1	Load the packet analyzer software onto your Packet Generator Host.
Step 2	Load the sample capture file provided in the Cisco Computer Telephony Integration CTI Object Server CD (Ctios\Tools\VLANTest\VLANCapture\VLANSamplePackets.cap). The capture file was generated in a format that is used by most dedicated and software packet analyzers.
Step 3	Select the Decode view from the tab at the bottom of the screen.

---

Executing a test

The test involves sending sample VLAN packets to a Test Target NIC card and verifying that the packet is not discarded by the pre-processing step but is passed onto the TCP/IP stack on the computer hosting the NIC card.

The test case to determine whether or not the Test Target NIC is qualified to work with CTI OS silent monitor is as follows. (In the test case nomenclature, PA stands for Packet Analyzer and WD stands for WinDump.)

Table 1 SMNIC- 1 Send Sample VLAN Packets to Test Target NIC Card

Objective	Verify that the Test Target NIC can pre-process VLAN packets and forward them to the TCP/IP stack on the Test Target Host.
Steps	Party	Action
1	PA	Select one of the loaded sample VLAN Packets.
2	PA	Select or right-click "Send Current Frame".
3	PA	Modify the destination MAC address to use the MAC address of the Test target NIC (for more information, see the figure "Modifying the destination MAC address" below).
4	PA	Send the new frame to the Test Target NIC five times.
5	WD	Verify that there is activity reported on the Test Target NIC.
Expected Result	At the Test Target computer windump displays five packets for VLAN ID = 85 (for more information, see the figure "Sample output showing successful packet capture" below). If the test fails, no packets appear.

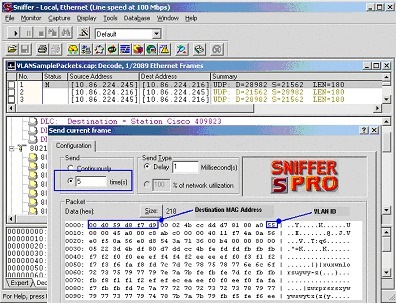

Figure 4. Modifying the destination MAC address

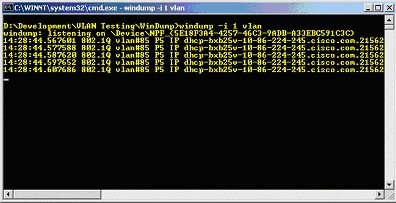

Figure 5. Sample output showing successful packet capture

If the outcome of this test is successful, then your Test Target NIC works with the CTI OS silent monitor. Otherwise, contact your NIC card provider and ask what settings are necessary to allow your NIC card driver to forward all packets including VLAN packets to the TCP/IP stack on the computer so that your packet analyzer tool can capture and display them. Then apply the appropriate adjustments and rerun this test procedure.
