Scheduling a historical report means instructing the Unified CCX Historical Reports client to automatically generate the report in the future. Although you can schedule a report to generate once,
the report scheduling function is useful for preparing reports
that you require regularly. For example, you can schedule an Agent Detail
Report to generate every Monday at midnight and an Agent Summary Report to
generate on the first Sunday of every month at noon.
When you schedule a report, you perform these steps:
Choose general settings for the report, including the name of the
report, whether to include charts, to save (export) or print the
Choose detailed settings for the report, including a
sort method and a filter parameter.
Choose the time zone for the report data, if the Scheduler is
running in English.
Choose scheduling settings, including how often and when the report
The following table shows the types of schedules that you can specify for historical reports and the information that is contained in each report:
Information Contained in the Report
Every day (Sunday through Saturday)
Every weekday (Monday through Friday)
Every n days (for example, every 3 days)
A report that runs every weekday runs every Tuesday through Saturday so that it can include information for Monday through Friday.
A daily report always contains data from 12:00 midnight (0000) to 11:59:59 p.m. (1159:59) for the day before the report runs. For example, a daily report that runs on Tuesday containdata for the preceding Monday.
Every week on a certain day (for example, every Monday)
Every n weeks on a specific day (for example, every two weeks on Friday)
A weekly report always contains data from Sunday at 12:00 midnight (0000) to Saturday at 11:59:59 p.m. (1159:59) for the week before the report runs, regardless of the day it runs. For example, a weekly report that runs on Monday, on Wednesday, or on Friday contains data for Sunday through Saturday of the previous week.
Every month on a specific date (for example, the 15th of every month)
Every month on a certain day (for example, the first Friday of every month)
If a monthly report is scheduled to run on a date that does not occur in some months, for example the 30th or 31st, the report runs on the last day of a month that does not contain the date.
A monthly report always contains data from the first day of the previous month at 12:00 midnight (0000) to the last day of the previous month at 11:59:59 p.m. (1159:59). For example, a monthly report that runs on any day in February will contain data for all of January.
Any single date and time that you specify
A report that runs once contains data for the date and time range that you specify.
Recommendations for scheduling
When a scheduled report generates, it uses significant resources on the Cisco Unified CCX server. To help keep the server running efficiently, schedule reports to generate at times when the Unified CCX server is least busy, for example, late at night or early in the morning.
The Unified CCX Historical Reports client includes a Scheduler program. A Scheduler resides on each client computer and performs
Maintains information about each schedule, including when each
schedule should execute and what information the scheduled report should
Executes schedules at their scheduled times, based on the time and
date of the Unified CCX Historical Reports client computer
The Scheduler runs automatically and unattended in the
background on the Unified CCX Historical Reports client computer. It does
not affect other activities that you perform on the client computer. The
Scheduler should always be left running, even when you exit the Unified CCX
Historical Reports window. If the Scheduler is not running when a schedule
should execute, the schedule does not execute.
If a schedule does not execute because the Scheduler is not
running, the Missed Report dialog box appears when the Scheduler restarts. See Handling Missed Schedules.
You can control the Scheduler using the Scheduler icon, shown
in the following figure. This icon appears in the status area on your Windows
Figure 1. Scheduler Icon
To verify that the Scheduler is running, right-click the
Scheduler icon and look at the Run Scheduler option in the Scheduler menu. If
Run Scheduler is dimmed (unavailable), the Scheduler is running.
The Scheduler icon does not appear in the Windows status bar under a
terminal service session. If you need to access features from the Schedule
icon, do so from the computer on which the Scheduler is installed.
To start the Scheduler, right-click the Scheduler icon and
Run Scheduler. Or, select
Start > Programs > Cisco
Unified CCX Historical Reports > Cisco Unified CCX
Historical Reports Scheduler.
To stop the Scheduler, right-click the Scheduler icon and
choose Stop Scheduler. The Scheduler remains loaded, but
it does not execute schedules.
To exit the Scheduler, right-click the Scheduler icon and
Exit. The scheduler unloads and does not execute
If you change the system time on the Unified CCX Historical
Reports client computer, stop and then restart the Scheduler.
General settings for Scheduled Reports
General settings for scheduled reports include:
Name of the report to schedule
Whether to include charts with the report
Whether to print the report or export it to a file
You can return the report settings you choose for a scheduled
report to their default values by clicking
Reset in the Unified CCX Historical Reports window.
If you have saved report settings in a Report Settings file,
you can load the Report Settings file and use it as a basis for a scheduled
report. See Save and Load report settings.
If you have already made settings for a report in this Unified CCX Historical Reports session, the information that you entered in the
general or detailed fields appears in those areas when you
schedule reports. If the report is set to occur once, the date and
time information appears in the
Unified CCX Historical Reports Schedule menu. You can use the information
that appears in the general and detailed fields and in the Schedule menu as a
basis for your scheduled report, or you can click
Reset to return the report settings to their default values.
Choose whether to print or export Scheduled Report
When a schedule executes, the Unified CCX Historical
Reports client prints the report or exports it (saves it in a file).
You can select detailed report settings. You also
must select schedule settings before the schedule executes.
Scheduled reports print on the default printer that has been
designated for your computer. To print a scheduled report,
click the Export Type drop-down arrow in the Unified CCX Historical Reports
window and select Export to Printer.
Now you can choose detailed report settings. You also must
select schedule settings before the schedule executes.
The Unified CCX Historical Reports client saves
scheduled reports in files. You can view, print, and manipulate the data in
these files with other programs. Unless you have changed the defaultExportPath
parameter in the hrcConfig.ini file, the Unified CCX Historical Reports
client stores these files on the client computer in the Unified CCX
Historical Reports\Reports directory. By default, the
system installs in the Program Files directory, and the client saves
scheduled reports in a PDF file. Also by default, the client gives saved
reports a descriptive file name that indicates the following information:
date and time of creation
login identification of the user
who scheduled it
You can also specify another format, location, and file name.
If you change the file name, the client automatically adds descriptive
information to the new file name when it creates the file.
When you save a generated report, you
can designate any of the formats shown in the following table:
Extension that the System Adds to the File Name
Acrobat Format (PDF)
Portable Document Format file that can be read
with Adobe Acrobat Reader
Comma-separated values (CSV)
Comma-separated text file
Microsoft Excel file
Rich Text (Exact) Format
RTF file that can be opened with Microsoft Word
Extensible Markup Language file
To save a scheduled report in a file when the report runs,
follow these steps:
Make sure that Export to File appears in the Export Type field in
the Unified CCX Historical Reports window. If Export to File does
not appear, click the Export Type drop-down arrow, and then choose Export to
File from the list.
If you want to change the default format, location, or file name
for exported files, click
Export Location button appears as “...” in the
The Save As dialog box opens. The Unified CCX Historical
Reports client adds information to the default file name in the File
Name field when the report is generated.
You can make changes in the Save As dialog box as follows:
To change the location, use the Save In drop-down arrow, the
Folder Name pane, or the Save In tools to specify the directory in which to
save the exported report.
To change the file name, enter the new name in the File Name
field, or click the drop-down arrow and then choose it from the list of
existing names. If you specify a file name that includes an extension shown in
the Save as type drop- down list, the system creates a file in that format,
regardless of the format that you select in the Save As field.
To change the format, click the Save As Type drop-down arrow,
and then select the report format.
You can select detailed report settings. You also must select
schedule settings before the schedule will execute.
When you use detailed report settings, you can cause
scheduled reports to include only specific information or to display
information in a particular order. Detailed report settings include a sorting
method and a filter parameter.
Detailed settings are optional. If you do not choose a
detailed setting, the report contains all relevant information presented in
a default order.
In the Unified CCX Historical Reports window, click the
Generate and View Historical Reports radio button.
The time zone used in the English scheduled report is either
UTC or local time zone, based on the TIMEZONE settings in hrcconfig.ini. You
can also change the time zone for each report.
The time and date for
data in non-English scheduled reports is in the UTC time zone.
When a report shows date
and time information for an event or an activity in the report data, that date
and time is based on the TIMEZONE configuration in hrcconfig.ini.
The Start and End time
is also based on the TIMEZONE configuration in hrcconfig.ini.
The difference between
the server time and the selected time zone is displayed within parentheses
beside the Start and End time.
The bottom of the report displays the report generated time, which is the local time of the HR client machine. This time does not change when a Daylight Saving Time (DST) changes.
In the Unified CCX Historical Reports main window, Click the Settings menu.
In the drop-down menu, you might notice the check mark beside the Use UTC Time Zone for Reports
menu option depending on the configuration in hrcconfig.ini. The check mark is displayed, if UTC time zone (value 1) is
configured and the check mark is not displayed if local time zone (value 0 -
Default) is configured.

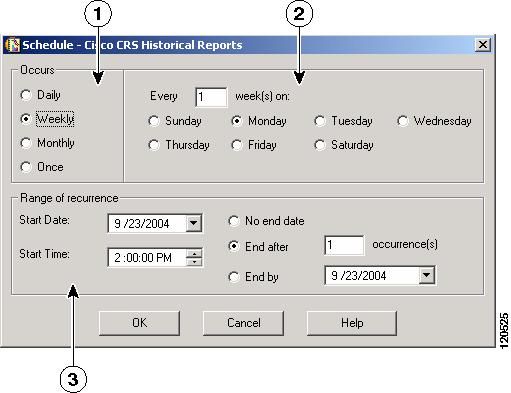

In the Occurs area, select how often the schedule executes, as described in the following table.
If You Want the Schedule to Execute This Often
Click This Radio Button
Then Perform These Actions
Every radio button, and then enter
1 in the Every n Day(s) field.
Every specific number of days (for example,
every 3 days)
Every radio button, and then enter the number of
days in the Every n Day(s) field.
Every weekday (Monday through Friday)
This report runs every Tuesday through Saturday so
that it can include information for Monday through Friday.
Every weekday radio button.
Every week on a certain day (for example,
every week on Friday)
1 in the Every n Week(s) On field, and then click
the radio button for the desired day.
Every specific number of weeks on a certain
day (for example, every 2 weeks on Monday)
Enter the number of weeks in the Every n
Weeks(s) On field, and then click the radio button for the desired day.
Every month on a specific date, (for example,
the 15th of every month)
n of calendar month radio button. Then enter
the date in this field, or you can click the drop-down arrow and click the
scroll arrow to display the date that you want and then click the date. (If you
enter a date that does not occur in some months, for example 30 or 31, the
system uses the last day of the month for months that do not contain the
Every month on a certain day (for example, the
second Friday of every month, or the last Sunday of every month)
number day of calendar month
radio button. Click the drop-down arrow in the first
field and select the number of the day. Then click the drop-down arrow in the
second field and select the name of the day.
In the Report Start Date and Report End Date
fields, specify the dates and times of the first and last data that you want to
include in the report.
Select these settings in
the Range of Recurrence area:
In the Start Date field, specify the date.
In the Start Time field, specify the time.
For a schedule that is set to occur daily, weekly, or monthly,
make these settings in the Range of Recurrence area:
In the Start Date field, specify the first date to generate the schedule.
In the Start Time field, specify the time to start.
Specify how often you want the schedule to recur:
If you want the
schedule to recur indefinitely, click the
No end date radio button.
If you want the
schedule to recur a specific number of times, click the
End after radio button, and enter the
number of occurrences in the End After field.
If you want to
specify the last date of a range during which you want the schedule to execute,
End by radio button, and enter the date
in the End By field.
After selecting general, detailed, and schedule settings, save the scheduling information. When you save scheduling
information, the system stores the information you have specified as a schedule
in the Scheduler database.
In the Unified CCX Historical Reports window, click
The Report Scheduled Successfully dialog box opens.
To see a list of schedules that are
stored in the Scheduler, choose
Settings > Scheduler
from the Unified CCX Historical Reports window, or click the
Scheduler tool. The Scheduled Reports window appears.
To exit the Scheduled Reports window, click
The Scheduled Reports window lists each stored schedule that
you created when you were logged into the Cisco Unified CCX Historical Reports
system using the current login information. This window displays each schedule
on a row and arranges information about each schedule in the columns shown in
the following table:
Name of the scheduled report
Date and time that the schedule was created
How often the schedule executes
Printer, or format of the export file
IP address or host name of the Unified CCX
Detailed description of the schedule
To expand a column if you cannot see its entire contents,
drag the left or right border next to its title.
When you open the Scheduled Reports window, the window displays schedules in alphabetical order by Report Name. You can change the display order by arranging the schedules in ascending or descending order by the information displayed in any column.
To change the order of displayed schedules, click the desired column name. The schedule appears in ascending alphabetical or numerical order by the information in that column. Click the same column name again to display the information in descending order.
For example, to display the list of schedules in the order that each schedule was created, click the Date Created column title. Similarly, to display schedules by recurrence type, click the Recurrence Type column title.
When you delete a schedule, the schedule is permanently
removed from the Scheduler and will no longer be run.
From the Scheduled Reports window, click anywhere in the row that
contains the schedule you want to delete.
An arrow appears to the left of the name of the report, indicating
that the schedule is selected.
The Confirmation dialog box opens.
OK to permanently delete the schedule.
If you decide not to delete the schedule, click
Handling Missed Schedules
For a schedule to execute
The Unified CCX server, (or its standby server, if deployed)
must be running.
At least one server on which the Database component is installed
must be running.
The Scheduler must be running on the Unified CCX Historical
Reports client computer.
If schedules do not execute because a server is not running,
you can generate the reports manually when the server is running.
If schedules do not execute because the Scheduler is not
running, the Scheduler identifies missed schedules. When the Scheduler
restarts, the client computer displays a dialog box that shows the number
of missed schedules and prompts you to execute missed schedules. Click
Yes to execute missed schedules, or click
NO to continue without executing the schedules. If you click
Yes, the reports that generate depend on the parameters
specified in the sch.ini configuration file and the scheduling options for the
For example, assume that you have set up a schedule to run
daily, and that the schedule has no end date. In addition, assume that five of
these schedules were missed, and that the sch.ini file instructs the system to
execute up to three missed daily schedules. When you execute missed schedules,
the system generates the three most recent daily reports.
As another example, assume that you have set up a schedule to
run weekly and to end after four occurrences. In addition, assume that all of
these schedules were missed, and that the sch.ini file instructs the system to
execute up to three missed weekly schedules. When you execute missed schedules,
the system generates three of the missed weekly reports. The first report
are the one that was scheduled to be the final report. The other reports
are the two previous reports.
