Introduction

The SUBSCRIBE, NOTIFY, and PUBLISH interfaces for the presence event package that the Cisco Unified Presence Engine provides are compliant to the Simple specifications that are provided in the "Industry Standards Requirements" section. This document provides the expected contents of each of the fields in the messages, specifically for the Enterprise Presence application, and describes how those contents correlate to the provisioned information on the Cisco Unified Presence Engine.

Overall Architecture

The Cisco Unified Presence Server contains the following main pieces: IP Phone Messenger (IPPM), proxy, and the Cisco Unified Presence Engine. It also works with third-party SIMPLE-based instant messaging clients, such as Sametime, Xten, and GAIM. An entity can send the Cisco Unified Presence Engine a SUBSCRIBE message through the proxy. After policy is applied, the Cisco Unified Presence Engine sends the appropriate presence status in NOTIFY messages. Also, a SIMPLE interface exists that is available external to the Enterprise. Figure 1 shows the overall Cisco Unified Presence Server system architecture.

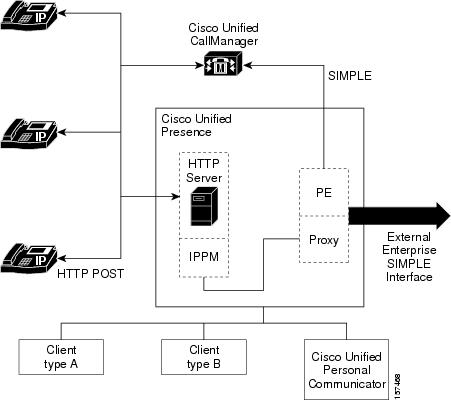

Figure 1 Cisco Unified Presence Server System Architecture

Address of Record Definition

In this architecture, a single Address of Record (AOR) represents or addresses a human user. This AOR typically has the form of username@domain.com. The user who is represented by this AOR may have multiple devices and/or components of state. The AOR itself gets provisioned as a distinct resource on the Cisco Unified Presence Engine, whereas the individual does not.

Some components of state get received through a PUBLISH from the client (through the proxy). The Cisco Unified Presence Engine retrieves other components of state through a series of back-end subscriptions. The back-end sources of state must get provisioned at the Cisco Unified Presence Engine. Each component of state gets assigned a provisioned priority.

Composition and Filtering

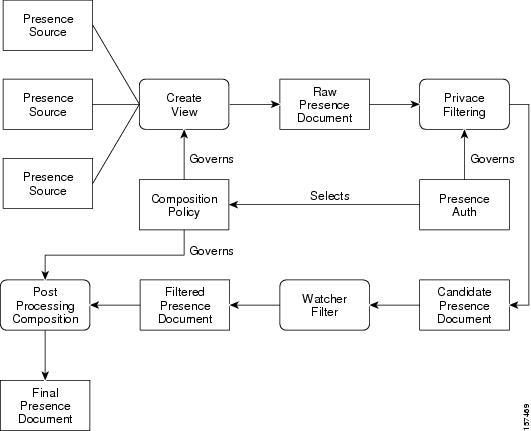

Figure 2 shows generically how composition and filtering are applied after the components of state are collected.

Figure 2 Presence Data Model Processing

Persona composition policy governs the combination of all components of state. After the state is composed, privacy (presentity asserted) and watcher (subscriber asserted) filtering rules get applied to modify the composed state prior to sending to the watcher. The privacy filters remain outside the scope of this interface document because they involve a non-SIMPLE means for a presentity to define filtering rules concerning who can watch what subset of persona state. The subscriber determines watcher filtering rules.

Simple Interface

Industry Standards Requirements

The following list shows the applicable industry standards that describe the SIMPLE interface supported for the presence package by the Cisco Unified Presence Engine:

•RFC3261—SIP: Session Initiation Protocol

•RFC3265—Session Initiation Protocol (SIP)-Specific Event Notification

•RFC3856—A Presence Event Package for the Session Initiation Protocol (SIP)

•RFC 3863—Presence Information Data Format (PIDF)

•RFC3903—Session Initiation Protocol (SIP) Extension for Event State Publication

•draft-ietf-simple-rpid-07—RPID: Rich Presence: Extensions to the Presence Information Data Format (PIDF)

•draft-ietf-simple-prescaps-ext-03—User Agent Capability Extension to Presence Information Data Format (PIDF)

•draft-ietf-simple-event-list-07—A Session Initiation Protocol (SIP) Event Notification Extension for Resource Lists

Other pidf Extensions

Because the Cisco Unified Presence Engine is agnostic to pidf extensions, any Presence User Agent Client or Presence User Agent Server that interfaces with the Cisco Unified Presence Engine must be prepared to handle these extensions.

Call Flows

This section provides examples of call flows to show the interfaces into and out of Cisco Unified Presence Server.

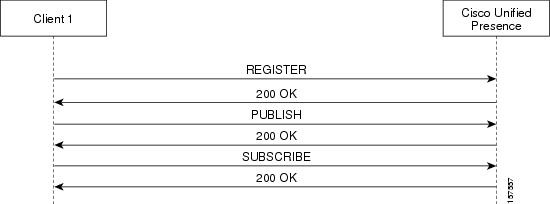

Figure 3 shows the messaging exchange for a client to log in to the Cisco Unified Presence Server.

Figure 3 Call flow for a client log in to the Cisco Unified Presence Server

Figure 4 shows the messaging exchange for Client 2 to PUBLISH its own state to the Cisco Unified Presence Server, as well as the messaging exchange for a separate Client 1 to subscribe to that presence state.

Figure 4 Call flow for PUBLISH and Subscribe to Local Resource

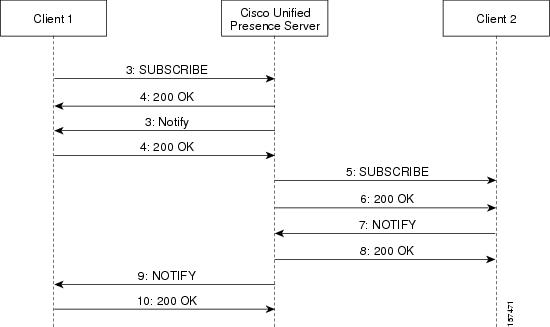

Figure 5 shows the messaging exchange for the case when a client subscribes to the presence state of a resource that is not stored locally on the Cisco Unified Presence Engine. In this scenario, the Cisco Unified Presence Engine will create a back-end subscription to the Cisco Unified Presence Server that has the presence state stored locally to retrieve the state and send it on in a NOTIFY to the watcher/subscriber.

Figure 5 Call Flow for SUBSCRIBE to Foreign Resource

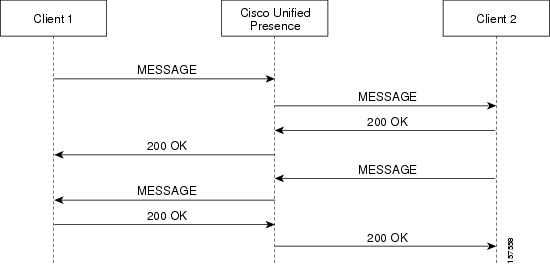

Figure 6 shows the call flow into and out of the instant messaging clients. Each client registers with the Cisco Unified Presence Server registrar and publishes its own status. Each client then subscribes to the status of its buddy and receives notifications. At this point, either client can send an instant message to the other.

Figure 6 Call Flow for IP Phone Messenger

Transport

The Cisco Unified Presence Engine uses the protocols, TLS, TCP, or UDP, for the transport type for the SIP messages. See the "Security" section for more information.

Security

In the Enterprise Presence product, no support exists on the Cisco Unified Presence Engine for MD5 authentication. A proxy server in the Cisco Unified Presence Server architecture performs authentication of the users. After configuration, the Cisco Unified Presence Engine only accepts requests from "trusted peers". The authentication that is performed at the Cisco Unified Presence Engine involves the configuration of these trusted peer elements, by using either IP addresses for nodes that communicate over IPSec or TLS Subject Alt names for nodes that communicate over TLS.

In Cisco Unified Presence Server 1.0, the list of trusted peers gets configured automatically to include the proxy and Cisco Unified CallManager nodes. This configuration does not include TLS.

Subscription Description

Example 1 shows the SUBSCRIBE message that gets sent from the watcher device to the Cisco Unified Presence Engine. Table 1 describes the bold Headers that need mapping to the provisioned information for the Cisco Unified Presence Engine. For the headers that are not in bold, refer to the appropriate SIMPLE/SIP specification.

On a refresh SUBSCRIBE, only the expiration time gets extended. The characteristics that define the subscription, that is, the other bold fields, should not change in a refresh SUBSCRIBE. If the client wants to change the characteristics of the subscription, terminate the existing subscription and create a new subscription.

Example 1 Subscribe message

SUBSCRIBE sip:xten3@compB.cisco.com:5060;transport=tcp SIP/2.0

Via: SIP/2.0/TCP 57.1.1.15:5060;branch=7d37939e-f68c2040-34226455-fb8872e6-1

Via: SIP/2.0/UDP 57.1.1.15:5051;received=57.1.1.15

From: <sip:ippm4@compB.cisco.com>;tag=82c1000

To: <sip:xten3@compB.cisco.com:5060;transport=TCP>

Call-ID: 4207647f-178-2f538b99-8c4@57.1.1.15

Csque: 166 SUBSCRIBE

Contact: <sip:ippm4@57.1.1.15:5060>

Content-Length: 0

Event: presence

Accept: application/pidf+xml

Expires: 300

User-Agent: MeetingPlace/5.1

P-Asserted-Identity: <sip:ippm4@compB.cisco.com>

Table 1 Subscription Header Descriptions

Header Name	Description	Mapping to provisioning
RequestURI	This field contains the URI of the presentity to be watched.	Ensure that the value in this field corresponds to a provisioned alias for a user/persona.
P-Asserted-Identity	This field provides the preferred method for passing the identity of the watcher to the Cisco Unified Presence Engine. It either gets inserted by the proxy, or if included by the end-user client, it gets validated by the proxy.	If the presentity has a URIACL list that is defined for authorization, the value in this field gets matched with the provisioned URI in that list. If the presentity has a URIACL list that is defined for authorization, the value in this field gets matched with the provisioned URI in that list. In addition, a domain-based watcher filter is provisioned, the domain portion of this URI gets used to match with the provisioned domain filter.
Remote-Party-ID	If P-Asserted-Identity is not supported by the sender, the identity of the watcher gets sent in this field. The Cisco Unified Presence Engine does not use this field if P-Asserted-Identity is present. Example Remote-Party-iD: <sip:ippm4@compB.cisco.com>	Same as P-Asserted-Identity
From	If the sender supports neither P-Asserted-Identity nor Remote-Party-ID, the identity of the watcher should get sent in this field. This field will only be used if neither a P-Asserted-Identity nor a Remote-Party-ID header is present.	Same as P-Asserted-Identity
User-Agent	This field contains the client type and version information for the sender of the request.	The client type and version information in this field gets matched to provisioned filter information for the specified client type and version. For example, if all Cisco Unified MeetingPlace clients should have a phone only state filter applied, this filter gets provisioned for a client type of Cisco Unified MeetingPlace. Any SUBSCRIBE request with a User-Agent header of MeetingPlace results in the phone-only filter being applied.
Expires	This field contains the relative expiration time of the subscription. The value must fall between the configured minimum and maximum expires times that are configured on the Cisco Unified Presence Engine. If it is too small, the Cisco Unified Presence Engine rejects the subscription. If it is too large, the subscription gets accepted but the expiration of the subscription gets set to the configured default expiration time on the Cisco Unified Presence Engine. If the Expires header is not present, the expiration of the subscription gets set to the configured default expiration time on the Cisco Unified Presence Engine.	Not applicable
Event	For Enterprise Presence, the value of this field specifies "presence". This specification does not cover other Event packages.	Not applicable
Accept	Set this field to the list of accepted mime types for the subscription. Mime types other than those supported by the Cisco Unified Presence Engine exist in the header as long as one or more of the mime types match those that the Cisco Unified Presence Engine supports.	The following mime types gets used for Cisco Unified Presence Server for an Event type of 'presence': •application/pidf+xml •multipart/related (used for list subscriptions) •application/rlmi+xml (used for list subscriptions) •application/cpim-pidf+xml (support of legacy Sametime, will eventually be deprecated) The Cisco Unified Presence Engine may receive or ignore other mime types.
Supported	Set the header to the extensions that are supported.	For list subscriptions, specify the value of "eventlist".

Subscription Response

No message body/payload exists in the response to the subscription. It comes in the Notify, as per RFC3903.

Notification Description

Example 2 shows a Notify request that is sent by the Cisco Unified Presence Engine to a watcher for an authorized subscription. Table 2 provides a description of the usage portions of the message that are in bold.

Example 2 Notification Description

NOTIFY sip:ippm4@compB.cisco.com:5060 SIP/2.0

Call-ID: 42078b79-e0-30e78af6-8c4@57.1.1.15

From: <sip:xten3@compB.cisco.com:5060;transport=TCP>;tag=52fc53ae

To: <sip:ippm4@compB.cisco.com>;tag=82d1158

Event: presence

CSeq: 1073741825 NOTIFY

Contact: <sip:57.1.1.14:5060>

Content-Length: 599

Content-Type: application/pidf+xml

Subscription-State: active;expires=300

Via: SIP/2.0/UDP 57.1.1.14:5060;branch=z9hG4bK76d2e702-1dd2-11b2-8fe0-b1c8ef4f8c83

Max-Forwards: 69

<?xml version="1.0" encoding="UTF-8"?>

<presence entity="sip:xten3@compB.cisco.com" xmlns="urn:ietf:params:xml:ns:pidf"

>

    <ep:person xmlns:ep="urn:ietf:params:xml:ns:pidf:rpid:rpid-person" >

      <status xmlns="urn:ietf:params:xml:ns:pidf"> <basic>open</basic>

    </status>

  </ep:person>

    <tuple xmlns="urn:ietf:params:xml:ns:pidf" id="t31">

      <contact priority="1">sip:xten3@57.1.1.15</contact>

   <sc:sercvaps xmlns:sc="urn:ietf:params:xml:ns:pidf:servcaps">

     <sc:audio>true</sc:audio>

     <sc:video>false</sc:video>

     <sc:text>true</sc:text>

   </sc:servcaps>

   <es:user-input
xmlns:es="urn:ietf:params:xml:ns:pidf:rpid:status:rpid-status">active</es:user-input>

      <status>

        <basic>open</basic>

    </status>

</tuple>

    <tuple xmlns="urn:ietf:params:xml:ns:pidf" id="t32">

      <contact priority="1">sip:xten4@57.1.1.16</contact>

   <sc:sercvaps xmlns:sc="urn:ietf:params:xml:ns:pidf:servcaps >

     <sc:audio>true</sc:audio>

     <sc:video>false</sc:video>

     <sc:text>true</sc:text>

   </sc:servcaps>

   <es:user-input xmlns:es="urn:ietf:params:xml:ns:pidf:rpid:status:rpid-status"
>active</es:user-input>

      <status>

        <basic>open</basic>

    </status>

  </tuple>

</presence>

Table 2 Notify Message Description

Field Name	Description
Subscription-State	This field contains the state of the subscription. If the subscription is active, the field includes expiration time of the subscription. Otherwise, the field includes the reason for the termination of the subscription.
Content-Type	This field contains the mime type of the message body. It will correlate to one of the mime types that were sent in the Accept header of the initial SUBSCRIBE request.
Message body	This XML document describes the state of the presentity. It represents the resulting document after any composition, privacy filtering, or watcher filtering has been applied. Because this may contain composed state, the client must be able to accept multiple tuples that correspond to the multiple device states for the presentity. Extensions to base pidf get sent from the Cisco Unified Presence Engine, and the client must handle them appropriately; for example, the client ignore extensions that it does not use. Typically one tuple exists per device.
<audio>	This element in the published document indicates whether the class of service of audio (for example, phone) is available. Note Multiple classes of services can get published from the same device.
<text>	This element in the published document indicates whether the class of service of text (for example, IM) is available. Note Multiple classes of services can get published from the same device.
<video>	This element in the published document indicates whether the class of service of video is available. Note Multiple classes of services can get published from the same device.
<user-input>	This element in the published document indicates activity on the device (for example, keyboard, pointing device, or voice).
<person>	This element provides information about the "reachability" status of the persona. It also includes elements that indicate certain activities that are reported from the user devices, such as "meeting", and so on, as defined in the rpid draft. The following mapping shows the Cisco Unified Presence Server defined reachability status values the way they get reported by the Cisco Unified Presence Engine in the <person> element. Available <r:person> <status> <basic>open</basic> </status> </r:person> Interruptible but busy <r:person> <status> <basic>open</basic> <r:activities> <r:busy/> </r:activities> </status> </r:person> Busy <r:person> <status> <basic>closed</basic> <r:activities> <r:busy/> </r:activities> </status> </r:person> Do Not Disturb <r:person> <status> <basic>closed</basic> <r:activities> <r:busy/> <r:away/> </r:activities> </status> </r:person> Out of Office <r:person> <status> <basic>closed</basic> <r:activities> <r:away/> </r:activities> </status> </r:person>
<person> (Continued)	On Vacation <r:person> <status> <basic>closed</basic> <r:activities> <r:vacation/> </r:activities> </status> </r:person> Unavailable <r:person> <status> <basic>closed</basic> </status> </r:person> Unknown no person element

Event List Notification

Example 3 shows a NOTIFY request for the state of a list subscription. The Require header gets included with a value of eventlist for a Notification due to a list subscription.

Example 3 Notify Request of the State of a List Subscription

NOTIFY sip:handset0@10.21.91.156:5060 SIP/2.0

Call-ID: 2085017328@10.21.91.156

From: <sip:publisher@cisco.com>;tag=970c4542

To: <sip:publisher@cisco.com>;tag=82d1158

Event: presence

CSeq: 2045 NOTIFY

Contact: <sip:10.89.51.203:5060>

Content-Length: 1344

Content-Type:
multipart/related;type="application/rlmi+xml";start="<972014@10.89.51.203>";boundary="9720
1414-1dd1-11b2-b"

Require: eventlist

Subscription-State: active;expires=300

Via: SIP/2.0/UDP 10.89.51.203:5060;branch=z9hG4bK9721baee-1dd1-11b2-b7c3-f9efc6ad7818

Max-Forwards: 69

--97201414-1dd1-11b2-b

Content-Transfer-Encoding: binary

Content-ID: <972014@10.89.51.203>

Content-Type: application/rlmi+xml;charset="UTF-8"

<?xml version="1.0" encoding="UTF-8"?>

<list xmlns="urn:ietf:params:xml:ns:rlmi" uri="sip:publisher@cisco.com" version="0"
fullState="true"><resource uri="sip:scalar1@cisco.com">

  <instance cid="971a00@10.89.51.203" id="1" state="active"/>

</resource>

<resource uri="sip:scalar2@cisco.com">

  <instance cid="971a28@10.89.51.203" id="1" state="active"/>

</resource>

</list>

--97201414-1dd1-11b2-b

Content-Transfer-Encoding: binary

Content-ID: <971a00@10.89.51.203>

Content-Type: application/pidf+xml

<?xml version="1.0" encoding="UTF-8"?>

<presence entity="sip:scalar1@cisco.com" >

        <ep:person xmlns:ep="urn:ietf:params:xml:ns:pidfrpid:rpid-person">

      <status xmlns="urn:ietf:params:xml:ns:pidf"  > <basic>open</basic>

    </status>

  </ep:person>

    <tuple  xmlns="urn:ietf:params:xml:ns:pidf"   id="t31">

      <contact priority="1">sip:scalar1@57.1.1.15</contact>

   <sc:sercvaps xmlns:sc="urn:ietf:params:xml:ns:pidf:servcaps">

     <sc:audio>true</sc:audio>

     <sc:video>false</sc:video>

     <sc:text>true</sc:text>

   </sc:servcaps>

   <es:user-input
xmlns:es="urn:ietf:params:xml:ns:pidf:rpid:status:rpid-status">active</es:user-input>

      <status>

        <basic>open</basic>

    </status>

</tuple>

</presence>

--97201414-1dd1-11b2-b

Content-Transfer-Encoding: binary

Content-ID: <971a28@10.89.51.203>

Content-Type: application/pidf+xml

<?xml version="1.0" encoding="UTF-8"?>

<presence entity="sip:scalar2@cisco.com"

>

       <ep:person xmlns:ep="urn:ietf:params:xml:ns:pidfrpid:rpid-person"  >

      <status xmlns="urn:ietf:params:xml:ns:pidf" > <basic>open</basic>

    </status>

  </ep:person>

    <tuple xmlns="urn:ietf:params:xml:ns:pidf"  id="t31">

      <contact priority="1">sip:scalar2@57.1.1.15</contact>

   <sc:sercvaps xmlns:sc="urn:ietf:params:xml:ns:pidf:servcaps">

     <sc:audio>true</sc:audio>

     <sc:video>false</sc:video>

     <sc:text>true</sc:text>

   </sc:servcaps>

   <es:user-input xmlns:es="urn:ietf:params:xml:ns:pidf:rpid:status:rpid-status"
>active</es:user-input>

      <status>

        <basic>open</basic>

    </status>

</tuple>

    <tuple xmlns="urn:ietf:params:xml:ns:pidf"  id="t32">

      <contact priority="1">sip:xten4@57.1.1.16</contact>

   <sc:sercvaps xmlns:sc="urn:ietf:params:xml:ns:pidf:servcaps">

     <sc:audio>true</sc:audio>

     <sc:video>false</sc:video>

     <sc:text>true</sc:text>

   </sc:servcaps>

   <es:user-input xmlns:es="urn:ietf:params:xml:ns:pidf:rpid:status:rpid-status"
>active</es:user-input>

      <status>

        <basic>open</basic>

    </status>

  </tuple>

</presence>

--97201414-1dd1-11b2-b--

Publication Description

Example 4 shows a Publish request that is sent to the Cisco Unified Presence Engine from a Presence UAC. Table 3 describes the usage portions of the message that are in bold.

Example 4 Publish Request

PUBLISH sip:xten3@compB.cisco.com:5060;transport=tcp SIP/2.0

Via: SIP/2.0/TCP 57.1.1.15:5060;branch=42fe6223-25e92eae-dd09f88a-7fcf9be6-1

To: <sip:xten3@57.1.1.15>

From: xten3<sip:xten3@compB.cisco.com>;tag=5577e92b

Via: SIP/2.0/UDP
57.1.1.83:6756;received=57.1.1.83;rport=6756;branch=z9hG4bK-d87543-1071201803-1--d87543-

Call-ID: 3178d777074bee32

CSeq: 1 PUBLISH

Contact: <sip:xten3@57.1.1.83:6756>

Expires: 3600

Max-Forwards: 69

Allow: INVITE, ACK, CANCEL, OPTIONS, BYE, REFER, NOTIFY, MESSAGE, SUBSCRIBE

Content-Type: application/pidf+xml

User-Agent: eyeBeam release 8888a stamp 16336 (sn:a0d46d0c5ff5ecfbb8d8)

P-Asserted-Identity: < sip:xten3@compB.cisco.com >

Event: presence

Content-Length: 591

<?xml version="1.0" encoding="UTF-8"?>

<presence xmlns="urn:ietf:params:xml:ns:pidf"

 xmlns:et="urn:ietf:params:xml:ns:pidf:rpid:rpid-tuple"

 xmlns:ep="urn:ietf:params:xml:ns:pidf:rpid:rpid-person"

 xmlns:es="urn:ietf:params:xml:ns:pidf:rpid:status:rpid-status"

 xmlns:ci="urn:ietf:params:xml:ns:pidf:cipid"

xmlns:sc="urn:ietf:params:xml:ns:pidf:servcaps"

 xmlns:so="urn:cisco:params:xml:ns:pidf:source"

 entity="sip:xten3@57.1.1.15">

  <ep:person>

    <status><basic>open</basic>

    </status>

  </ep:person>

  <tuple id="t0">

    <contact priority="1">sip:xten3@57.1.1.15</contact>

  <so:source> Manually set by persona </so:source>

    <sc:servcaps>

     <sc:audio>true</sc:audio>

     <sc:video>false</sc:video>

     <sc:text>true</sc:text>

   </sc:servcaps>

   <es:user-input>active</es:user-input>

    <status>

      <basic>open</basic>

    </status>

  </tuple>

</presence>

Table 3 Publish Message Description

Header/Field Name	Description	Mapping to provisioning
RequestURI	This field contains the URI of the presentity for which the state belongs.	Ensure that the value in this field corresponds to a provisioned alias for a user/persona.
P-Asserted-Identity	This field provides the preferred method to pass the identity of the presentity to the Cisco Unified Presence Engine. It either gets inserted by the proxy, or, if included by the end-user client, the proxy validates it.	This field authorizes the Publish request according to the authorization policy. For Publish authorization, you typically set to "self", which means that the URI in the P-asserted-Identity needs to map to the same user that corresponds to the RequestURI.
Remote-Party-ID	If the sender does not support P-Asserted-Identity, the identity of the presentity gets sent in this field. The Cisco Unified Presence Engine does not use this field if P-Asserted-Identity is present. Example: Remote-Party-ID: <sip:xten3@compB.cisco.com>	Same as P-Asserted-Identity
From	If the sender does not support either P-Asserted-Identity or Remote-Party-ID, the identity of the presentity gets sent in this field. This field only gets used if neither a P-Asserted-Identity nor a Remote-Party-ID header is present.	Same as P-Asserted-Identity
Content-Type	This header contains the mime type of the document that the message body contains.	For the presence package, the appropriate mime type specifies application/pidf+xml
<source>	This element in the Published document indicates the source of the publish request to determine whether this source has a specific "priority" associated with it. This proprietary element resides within the following namespace: "urn:cisco: params:xml:ns:pidf:source" For example, the instant messaging client or Cisco Unified Personal Communicator applications send a specific value in source when they want to invoke the manual override of state functionality.	The value in this field must match the provisioned value in the Source Priority provisioning. Any value that is received that does not match a provisioned value gets ignored. This element gets compared against the reachability rules definition.
<audio>	This element in the published document indicates whether the class of service of audio (for example, phone) is available. Note Multiple classes of services can get published from the same device.	The value of "true" in this field indicates that the state being published is that of a phone device. Phone only watcher or privacy filters get compared against this field to distinguish which pieces of state are associated with "phone" devices.
<text>	This element in the published document indicates whether the class of service of text (for example, IM) is available. Note Multiple classes of services can be published from the same device.	Use the value of "true" to indicate that the state that is being published is that of an IM device. IM only type filters get compared against this field to distinguish which pieces of state are associated with "IM" devices.
<video>	This element in the published document indicates whether the class of service of video is available. Note Multiple classes of services can get published from the same device.	Use the value of "true" in this field to indicate that the state that is being published is that of a video-capable device.
<user-input>	This element in the published document indicates activity on the device (for example, keyboard, pointing device, or voice).	This value gets transmitted to a watcher without a filter in this release.
<activities>	This element in the published document indicates whether the device is on-the-phone, busy, or so on.	Values of on-the-phone or busy identify reachability states of Busy or Interruptible But Busy when applying the reachability rules algorithm. Other activities do not affect the reachability algorithm but get included in the composed document that is sent to the watchers in the NOTIFY.
Expires	This field contains the relative expiration time of the publish. The value must fall between the configured minimum and maximum expires times that are configured on the Cisco Unified Presence Engine. If it is too small, the Cisco Unified Presence Engine rejects the publication. If it is too large, the publication gets accepted, but the expiration of the publication gets set to the configured default expiration time on the Cisco Unified Presence Engine. If the Expires header is not present, the expiration of the publication gets set to the configured default expiration time on the Cisco Unified Presence Engine.	On a periodic basis, the expired published state gets removed from the Cisco Unified Presence Engine soft-state information.
User-Agent	This field contains the client type and version information for the sender of the request.	The client type and version information in this field get compared to a pre-configured table that identifies the class of service that is available from that client type. Use this configuration to determine class of service if the information is not provided in the pidf body of the message. If the class of service information is not provided in the message body and no configuration for the type of User-Agent exists (or the User-Agent header is missing), the default set of capabilities for the device specifies IM/text.

Publication Response

No message body/payload occurs in the response to the publication. All presence status gets retrieved from the Cisco Unified Presence Engine via SUBSCRIBE/NOTIFY as per RFC3903.

Back-end Subscription Description

When some or all the state for a user is not stored locally at the Cisco Unified Presence Engine, it may create a back-end subscription to the element that is responsible for storing that state. Refer to the "Subscription Description" section for an example of a SUBSCRIBE message.

Table 4 Back-end Subscription Header Descriptions

Header Name	Description	Mapping to provisioning
RequestURI	This field contains the URI of the presentity to be watched. This may differ from the URI of the presentity that the received.	The Cisco Unified Presence Engine provides a provisioned mapping of local presentity URIs to foreign back-end presentity URIs when applicable. An example would be a subscription received by the Cisco Unified Presence Engine for a whole persona, 'sip:joe@cisco.com' that may result in a back-end subscription to obtain phone state for the phone that is owned by Joe, 'sip:5555@cm.cisco.com'.
P-Asserted-Identity	This header gets set to the original watcher identity that Cisco Unified Presence Engine receive. That identity comes from one of the P-Asserted-Identity, Remote-Party-ID, or from headers as described in Table 3.	Not applicable
From	This header gets set to the original watcher identity that the Cisco Unified Presence Engine receives. That identity comes from one of the P-Asserted-Identity, Remote-Party-ID, or from headers as described in Table 3.	Not applicable
Expires	This field contains the relative expiration time of the back-end subscription.	This value comes from either a foreign- server specific provisioned value, or a global default value for all back-end subscriptions.
Event	For Enterprise Presence, ensure that the value of this field specifies "presence". This specification does not cover other Event packages.	Not applicable
Accept	This field gets set the list of accepted mime types for the subscription that Cisco Unified Presence Engine received from the original watcher.	The following mime types get used for Cisco Unified Presence Server for an Event type of "presence": •application/pidf+xml •application/cpim-pidf+xml Note If Cisco Unified Presence Engine received additional mime types, they get transmitted to the foreign server.

Notification From Foreign Server Description

The foreign server that receives a back-end subscription request from the Cisco Unified Presence Engine sends the state of the requested resource back to the Cisco Unified Presence Engine in a NOTIFY request. Example 3 shows a NOTIFY request in the "Notification Description" section.

The main difference occurs because NOTIFY requests from foreign servers need to also contain a User-Agent header as described in Table 5.

Table 5 NOTIFY Message Description

Field Name	Description
Subscription-State	This field contains the state and expiration time of the subscription that is currently at the foreign server.
Content-Type	This field contains the mime type of the message body. It correlates to one of the mime type that was sent in the Accept header of the back-end SUBSCRIBE request.
Message body	This XML document describes the state of the foreign presentity. It gets fed into the appropriate composition and filtering algorithms before being sent to the original watcher. Also, the foreign presentity gets translated to the local presentity prior to sending in a NOTIFY to the original watcher. See description of specific elements in the following message body.
<source>	Use this element in the message body document to indicate the source of the state to determine whether this source has a specific priority that is associated with it. This proprietary element occurs within the following namespace: "urn:cisco: params:xml:ns:pidf:source" Ensure that the value in this field matches the provisioned value in the Source Priority provisioning. Any value that is received that does not match a provisioned value gets ignored.
<audio>	This element in the published document indicates whether the class of service of audio (for example, phone) is available. Note Multiple classes of services may get published from the same device. The value of "true" in this field indicates that the state that is being published is a phone device. Phone only watcher or privacy filters get compared against this field to distinguish which pieces of state are associated with phone devices.
<text>	This element in the published document indicates whether the class of service of text (for example, IM) is available. Note Multiple classes of services may get published from the same device. The value of "true" in this field indicates that the state that is being published is an IM device. IM only type of filters get compared against this field to distinguish which pieces of state are associated with IM devices.
<video>	This element in the published document indicates whether the class of service of video is available. Note Multiple classes of service may get published from the same device. The value of "true" in this field indicates that the state that is being published is that of a video-capable device.
<user-input>	This element in the published document indicates activity on the device (for example, keyboard, pointing device, or voice) This value gets transmitted to a watcher without a filter.
<activities>	This element in the published document indicates whether the device is on-the-phone, busy, or so on.
User-Agent	This field contains the client type and version information for the sender of the request. The client type and version information in this field gets matched to a preconfigured table that identifies the class of service that is available from that client type. Use this configuration to determine the class of service when the information is not provided in the pidf body of the message. If the class of service information is not provided in the message body and no configuration for the type of User-Agent exists (or the User-Agent header is missing), the default set of capabilities for the device specifies IM/text.

Instant Messaging Applications

This section provides information related to instant messaging applications. The Cisco Unified Presence Server instant messaging interface is based on the following standard:

RFC3428—Session Initiation Protocol (SIP) Extension for Instant Messaging

Subscription Description

Instant messaging applications subscribe to the presence status of each buddy that you have provisioned. The duration of the subscription is configurable, and it gets refreshed as long as the user is logged into the instant messaging application. All subscriptions get terminated when the user logs out.

Notification Description

The instant messaging application receives presence event notifications from the Cisco Unified Presence Engine while the subscription remains active. See "Notification Description" section for more information.

Publication Description

The instant messaging application publishes status changes to the Cisco Unified Presence Engine whenever the user logs in, logs out, or manually overrides his status. See the "Publication Description" section for more information.

Register Description

Example 5 shows an example Register request by which clients receive instant messages. Table 6 provides a description of the Register Description fields.

Example 5 Register Request

REGISTER sip:cisco.com:5060;transport=tcp SIP/2.0

Via: SIP/2.0/TDP 172.18.201.90:5060;branch=z9hG4bK-8337e00

To: xten4<sip:xten4@comB.cisco.com>

From: xten4<sip:xten4@compB.cisco.com>;tag=5577e92b

Call-ID: 5543173d19-c8-6825acfd-767b@comB.cisco.com

CSeq: 101 REGISTER

Contact: <sip:xten4@172.18.201.90:5060>;q=0.5

Max-Forwards: 69

P-Asserted-Identity: <sip:xten3@cisco.com>

Expires: 3600

Content-Type: text/plain; charset=UTF-8

User-Agent: CSCO/IPPM-1.0

Content-Length: 0

Table 6 Register Description Field Descriptions

Field Name	Description
RequestURI	This field specifies the recipient and has the following format: recipient@domain
q-value	This parameter specifies the relative preference of this client to receive IMs addressed to this user.
P-Asserted-Identity	This field gets added by the proxy after it authenticates the client.
Expires	This field specifies the duration that this client will accept incoming message requests and gets set to 0 when the client unregisters.

Message Description

Example 6 shows an example Message request that gets sent between clients. Table 7 provides a description of the Message Description fields.

Example 6 Message Description

MESSAGE sip:xten4@esp.compB.cisco.com:5060;transport=tcp SIP/2.0

Via: SIP/2.0/TDP 172.18.201.90:5060;received=172.18.201.90;branch=z9hG4bK-8337e00

To: xten4<sip:xten4@cisco.com>

From: xten3<sip:xten3@compB.cisco.com>;tag=5577e92b

Call-ID: 43173d19-c8-6825abfd-767b@comB.cisco.com

CSeq: 101 MESSAGE

Contact: <sip:xten3@57.1.1.2:5060>

Max-Forwards: 69

P-Asserted-Identity: <sip:xten3@cisco.com>

Content-Type: text/plain; charset=UTF-8

User-Agent: CSCO/IPPM-1.0

Content-Length: 12

Hello xten4!

Table 7 Message Description Field Descriptions

Field Name	Description
RequestURI	This field specifies the recipient and has the following format: recipient@domain
P-Asserted-Identity	This field gets added by the proxy after it authenticates the client.
Content-Type	This field is always set to text/plain.

Related Documentation

The followings documents contain additional information related to Cisco Unified Presence Server:

•Cisco Unified Presence Server Administration Guide

•Cisco Unified Presence Server Serviceability Administration Guide

•Cisco Unified Communications Operating System Administration Guide

•Cisco IP Phone Messenger User Guide for Cisco Unified Presence Server

Obtaining Documentation

Cisco documentation and additional literature are available on Cisco.com. Cisco also provides several ways to obtain technical assistance and other technical resources. These sections explain how to obtain technical information from Cisco Systems.

Cisco.com

You can access the Cisco website at this URL:

http://www.cisco.com

You can access the most current Cisco documentation at this URL:

http://www.cisco.com/univercd/home/home.htm

You can access international Cisco websites at this URL:

http://www.cisco.com/public/countries_languages.shtml

Ordering Documentation

You can find instructions for ordering documentation at this URL:

http://www.cisco.com/univercd/cc/td/doc/es_inpck/pdi.htm

You can order Cisco documentation in these ways:

•Registered Cisco.com users (Cisco direct customers) can order Cisco product documentation from the Ordering tool:

http://www.cisco.com/en/US/partner/ordering/

•Nonregistered Cisco.com users can order documentation through a local account representative by calling Cisco Systems Corporate Headquarters (California, USA) at 408 526-7208 or, elsewhere in North America, by calling 1 800 553-NETS (6387).

Documentation Feedback

You can send comments about technical documentation to bug-doc@cisco.com.

You can submit comments by using the response card (if present) behind the front cover of your document or by writing to the following address:

Cisco Systems
Attn: Customer Document Ordering
170 West Tasman Drive
San Jose, CA 95134-9883

We appreciate your comments.

Cisco Product Security Overview

Cisco provides a free online Security Vulnerability Policy portal at this URL:

http://www.cisco.com/en/US/products/products_security_vulnerability_policy.html

From this site, you can perform these tasks:

•Report security vulnerabilities in Cisco products.

•Obtain assistance with security incidents that involve Cisco products.

•Register to receive security information from Cisco.

A current list of security advisories and notices for Cisco products is available at this URL:

http://www.cisco.com/go/psirt

If you prefer to see advisories and notices as they are updated in real time, you can access a Product Security Incident Response Team Really Simple Syndication (PSIRT RSS) feed from this URL:

http://www.cisco.com/en/US/products/products_psirt_rss_feed.html

This product contains cryptographic features and is subject to United States and local country laws governing import, export, transfer and use. Delivery of Cisco cryptographic products does not imply third-party authority to import, export, distribute or use encryption. Importers, exporters, distributors and users are responsible for compliance with U.S. and local country laws. By using this product you agree to comply with applicable laws and regulations. If you are unable to comply with U.S. and local laws, return this product immediately.

A summary of U.S. laws governing Cisco cryptographic products may be found at: http://www.cisco.com/wwl/export/crypto/tool/stqrg.html.

If you require further assistance please contact us by sending email to export@cisco.com.

Reporting Security Problems in Cisco Products

Cisco is committed to delivering secure products. We test our products internally before we release them, and we strive to correct all vulnerabilities quickly. If you think that you might have identified a vulnerability in a Cisco product, contact PSIRT:

•Emergencies — security-alert@cisco.com

•Non emergencies — psirt@cisco.com

---

Tip We encourage you to use Pretty Good Privacy (PGP) or a compatible product to encrypt any sensitive information that you send to Cisco. PSIRT can work from encrypted information that is compatible with PGP versions 2.x through 8.x.

Never use a revoked or an expired encryption key. The correct public key to use in your correspondence with PSIRT is the one that has the most recent creation date in this public key server list:

http://pgp.mit.edu:11371/pks/lookup?search=psirt%40cisco.com&op=index&exact=on

---

In an emergency, you can also reach PSIRT by telephone: 1-877-228-7302 or 1-408-525-6532.

Obtaining Technical Assistance

For all customers, partners, resellers, and distributors who hold valid Cisco service contracts, Cisco Technical Support provides 24-hour-a-day, award-winning technical assistance. The Cisco Technical Support Website on Cisco.com features extensive online support resources. In addition, Cisco Technical Assistance Center (TAC) engineers provide telephone support. If you do not hold a valid Cisco service contract, contact your reseller.

Cisco Technical Support Website

The Cisco Technical Support Website provides online documents and tools for troubleshooting and resolving technical issues with Cisco products and technologies. The website is available 24 hours a day, 365 days a year, at this URL:

http://www.cisco.com/techsupport

Access to all tools on the Cisco Technical Support Website requires a Cisco.com user ID and password. If you have a valid service contract but do not have a user ID or password, you can register at this URL:

http://tools.cisco.com/RPF/register/register.do

---

Note Use the Cisco Product Identification (CPI) tool to locate your product serial number before submitting a web or phone request for service. You can access the CPI tool from the Cisco Technical Support Website by clicking the Tools & Resources link under Documentation & Tools. Choose Cisco Product Identification Tool from the Alphabetical Index drop-down list, or click the Cisco Product Identification Tool link under Alerts & RMAs. The CPI tool offers three search options: by product ID or model name; by tree view; or for certain products, by copying and pasting show command output. Search results show an illustration of your product with the serial number label location highlighted. Locate the serial number label on your product and record the information before placing a service call.

---

Submitting a Service Request

Using the online TAC Service Request Tool is the fastest way to open S3 and S4 service requests. (S3 and S4 service requests are those in which your network is minimally impaired or for which you require product information.) After you describe your situation, the TAC Service Request Tool provides recommended solutions. If your issue is not resolved using the recommended resources, your service request is assigned to a Cisco TAC engineer. The TAC Service Request Tool is located at this URL:

http://www.cisco.com/techsupport/servicerequest

For S1 or S2 service requests or if you do not have Internet access, contact the Cisco TAC by telephone. (S1 or S2 service requests are those in which your production network is down or severely degraded.) Cisco TAC engineers are assigned immediately to S1 and S2 service requests to help keep your business operations running smoothly.

To open a service request by telephone, use one of the following numbers:

Asia-Pacific: +61 2 8446 7411 (Australia: 1 800 805 227)
EMEA: +32 2 704 55 55
USA: 1 800 553-2447

For a complete list of Cisco TAC contacts, go to this URL:

http://www.cisco.com/techsupport/contacts

Definitions of Service Request Severity

To ensure that all service requests are reported in a standard format, Cisco has established severity definitions.

Severity 1 (S1)—Your network is "down," or there is a critical impact to your business operations. You and Cisco will commit all necessary resources around the clock to resolve the situation.

Severity 2 (S2)—Operation of an existing network is severely degraded, or significant aspects of your business operation are negatively affected by inadequate performance of Cisco products. You and Cisco will commit full-time resources during normal business hours to resolve the situation.

Severity 3 (S3)—Operational performance of your network is impaired, but most business operations remain functional. You and Cisco will commit resources during normal business hours to restore service to satisfactory levels.

Severity 4 (S4)—You require information or assistance with Cisco product capabilities, installation, or configuration. There is little or no effect on your business operations.

Obtaining Additional Publications and Information

Information about Cisco products, technologies, and network solutions is available from various online and printed sources.

•Cisco Marketplace provides a variety of Cisco books, reference guides, and logo merchandise. Visit Cisco Marketplace, the company store, at this URL:

http://www.cisco.com/go/marketplace/

•Cisco Press publishes a wide range of general networking, training and certification titles. Both new and experienced users will benefit from these publications. For current Cisco Press titles and other information, go to Cisco Press at this URL:

http://www.ciscopress.com

•Packet magazine is the Cisco Systems technical user magazine for maximizing Internet and networking investments. Each quarter, Packet delivers coverage of the latest industry trends, technology breakthroughs, and Cisco products and solutions, as well as network deployment and troubleshooting tips, configuration examples, customer case studies, certification and training information, and links to scores of in-depth online resources. You can access Packet magazine at this URL:

http://www.cisco.com/packet

•iQ Magazine is the quarterly publication from Cisco Systems designed to help growing companies learn how they can use technology to increase revenue, streamline their business, and expand services. The publication identifies the challenges facing these companies and the technologies to help solve them, using real-world case studies and business strategies to help readers make sound technology investment decisions. You can access iQ Magazine at this URL:

http://www.cisco.com/go/iqmagazine

•Internet Protocol Journal is a quarterly journal published by Cisco Systems for engineering professionals involved in designing, developing, and operating public and private internets and intranets. You can access the Internet Protocol Journal at this URL:

http://www.cisco.com/ipj

•World-class networking training is available from Cisco. You can view current offerings at this URL:

http://www.cisco.com/en/US/learning/index.html

This document is to be used in conjunction with the documents listed in the "Related Documentation" section.
