Contents
- Cisco Accessories
- Batteries
- AC Power Supply
- Charge Phone Using AC Power Supply
- Cisco Unified Wireless IP Phone 7925G Multicharger
- Cisco Unified Wireless IP Phone 7925G Desktop Charger
- Cisco Unified Wireless IP Phones Lock Set
- Install Phone Lock Set
- Carry Cases
- Holster Carry Cases
- Leather Carry Cases
- Cisco Unified Wireless IP Phone 7925G Ruggedized Case
- USB Cable
Cisco Accessories
- Batteries
- AC Power Supply
- Cisco Unified Wireless IP Phone 7925G Multicharger
- Cisco Unified Wireless IP Phone 7925G Desktop Charger
- Cisco Unified Wireless IP Phones Lock Set
- Carry Cases
- USB Cable
Batteries
Batteries for the Cisco Unified Wireless IP Phone 7925G, 7925G-EX, and 7926G are not included with the phone and must be ordered separately. See your local representative for more information.
The following table describes the battery types. Refer to the Cisco Unified Wireless IP Phone 7925G, 7925G-EX, and 7926G User Guide for instructions on installing your battery.
Note
Using a Bluetooth wireless headset affects battery life and reduces the talk time. In addition, how the system administrator configures the phone also affects its battery life. For more information, see your system administrator.
AC Power Supply
The power supply with AC plug adapter enables you to quickly charge your phone battery. You can use the phone while you are charging the battery.
The following table provides approximate battery charging times for the two battery types and power supply configurations. You can check the battery charging state on the phone display.
Table 2 Approximate Battery Charging Times
Caution
Use only Cisco-specified AC power supplies for the Cisco Unified Wireless IP Phone 7925G, 7925G-EX, and 7926G.
Charge Phone Using AC Power Supply
ProcedureThe following figure describes how you set up the phone to charge with the AC power supply. The numbers refer to the procedure steps.

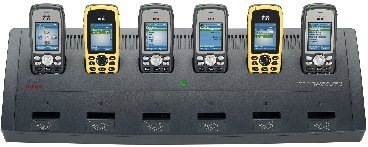

Cisco Unified Wireless IP Phone 7925G Multicharger
Cisco Unified Wireless IP Phone 7925G Desktop Charger
The Cisco Unified Wireless IP Phone 7925G Desktop Charger provides the following features:
- Works on line power or from a charged spare battery for the phone
- Contains two LEDs:
- Contains a speakerphone with the volume controlled by the phone volume buttons
- Supports Bluetooth
- Charges the docked phone battery
- Contains an additional charging port at the back of the station for charging a spare battery
For more information, see the following documents:
Cisco Unified Wireless IP Phones Lock Set
The Cisco Unified Wireless IP Phones Lock Set includes the cable, the C-ring, and the combination lock.
The security slot can accommodate a lock up to 20 mm. Compatible laptop cable locks include the Kensington laptop cable lock and other manufacturers' cable locks that fit into the security slot on the left side of the desktop charger.
NoteCisco does not supply a laptop cable lock; you must purchase a cable lock from your local electronics supply source.

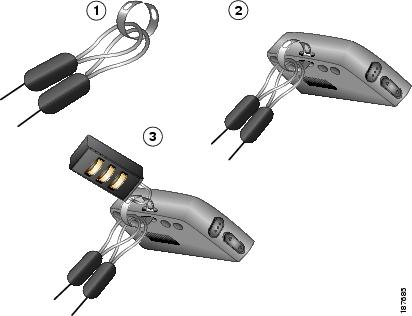

Install Phone Lock Set
Procedure
Carry Cases
Carry cases make it easy to keep the Cisco Unified Wireless IP Phone 7925G, 7925G-EX, and 7926G with you and provide some protection for the phone. The following sections describe the available carry cases.
Holster Carry Cases
The holster carry case is a hard plastic case that holds the phone and has a clip on the back that rotates 180 degrees. Use the clip to secure the phone to a belt or pocket.
There are two holster cases available: Cisco Unified Wireless IP Phone 7925G Holster Case and Cisco Unified Wireless IP Phone 7926G Holster Case.
The following figure shows the Cisco Unified Wireless IP Phone 7925G Holster Case. The Cisco Unified Wireless IP Phone 7926G Holster Case is similar in appearance, but is shaped differently to accommodate the bar code scanner of the Cisco Unified Wireless IP Phone 7926G.
Leather Carry Cases
A leather carry case makes it easy to keep the phone with you and provide protection for the phone.
There are two leather cases available: Cisco Unified Wireless IP Phone 7925G Leather Carry Case and Cisco Unified Wireless IP Phone 7926G Leather Carry Case.
Features of the leather carry case include:
- A clear plastic window that allows you to view the screen and provides easy access to the keys and buttons.
- Openings for the microphone, headset port, and mini-USB port that allow you to use and charge the phone without removing the leather carry case.
- A removable belt clip on the back that rotates 360 degrees.
- A security cord with a ring on one end that slides onto the D-ring on the back of the carry case. You can fasten the other end of the cord to a belt loop to secure the phone.
Note
After you insert the phone in the leather carry case, you may need to adjust the alignment so the microphone (at bottom of phone) is not covered.

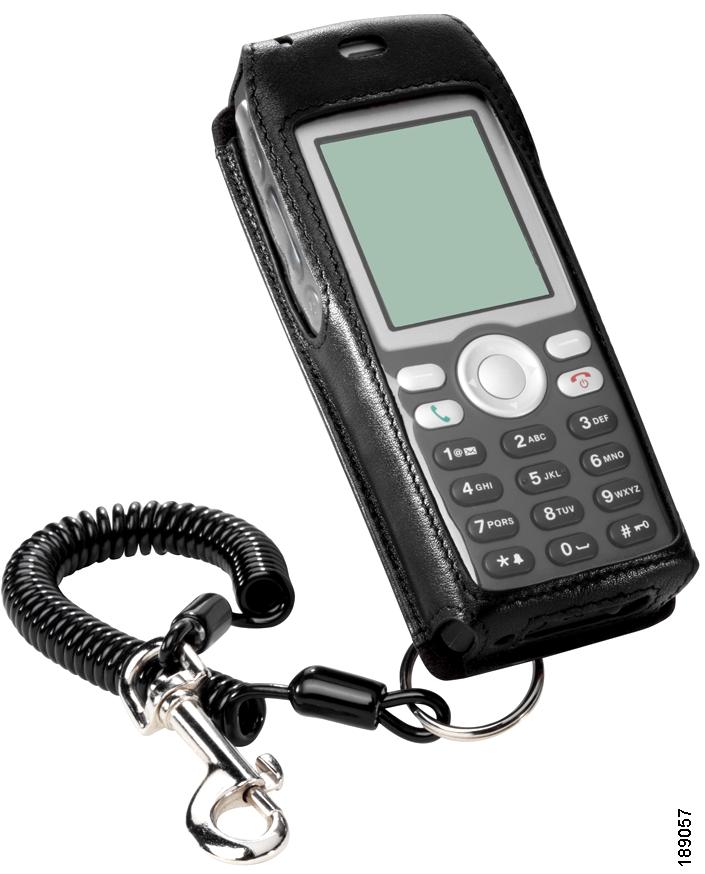

The following figure shows the Cisco Unified Wireless IP Phone 7925G Leather Carry Case. The Cisco Unified Wireless IP Phone 7926G Leather Carry Case is similar, but the bar code scanner of the Cisco Unified Wireless IP Phone 7926G is accessible without removing the case.

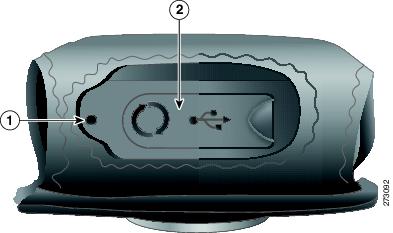

The following figure shows the bottom of the phone when in the leather case.
Cisco Unified Wireless IP Phone 7925G Ruggedized Case

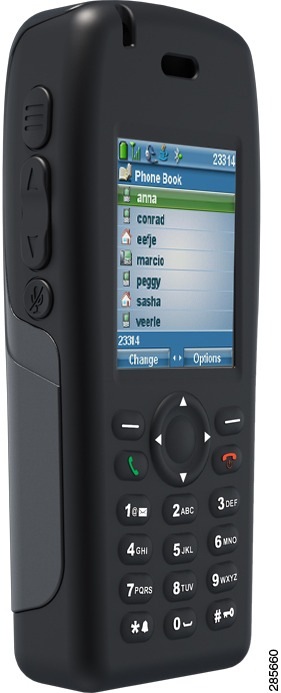

The Cisco Unified Wireless IP Phone 7925G Ruggedized Case protects the Cisco Unified Wireless IP Phone 7925G. This protective case reduces damage if the phone is frequently dropped. The following figure shows the phone installed in the protective case.

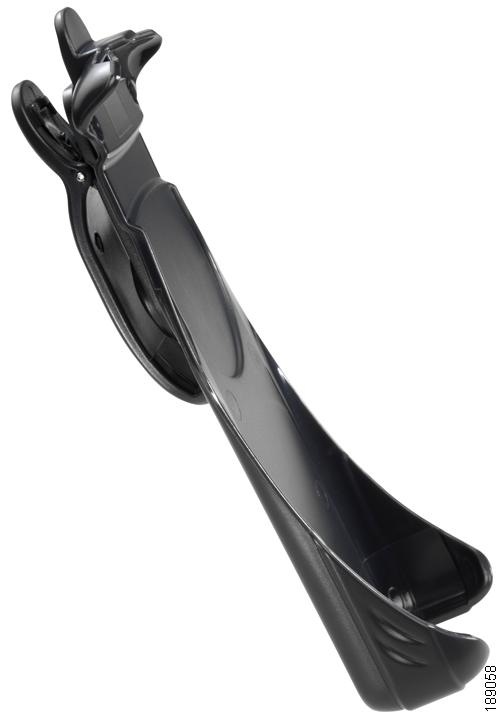

Two clips that can attach to the back of case are provided:
NoteThe case does not fit the Cisco Unified Wireless IP Phone 7926G.
