Connecting Your Phone

Connecting Your Phone

---

Your system administrator will likely connect your new Cisco IP Phone to the corporate IP telephony network. If that is not the case, refer to Figure 1 ( Cisco IP Phone 7905G) and Figure 2 (Cisco IP Phone 7912G) and the tables that follow to connect your phone.

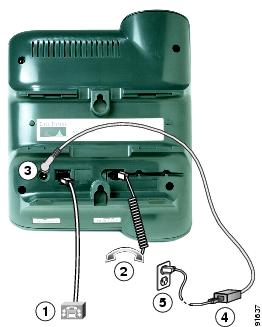

Figure 1 Cisco IP Phone 7905G Cable Connections

1	Network port (10BaseT)	2	Handset port
3	DC Adaptor port (DC48V)	4	Cisco-supplied power supply (optional)
5	Power cable with wall socket plug

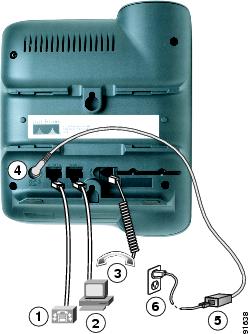

Figure 2 Cisco IP Phone 7912G Cable Connections

1	Network port (10/100 SW)	2	Access port (10/100 PC)
3	Handset port	4	DC Adaptor port (DC48V)
5	Cisco-supplied power supply (optional)	6	Power cable

Adjusting the Handset Rest

When you connect your phone, you might want to adjust the handset rest to ensure that the receiver will not slip out of the cradle. See the table below for instructions.

1	Set the handset aside and pull the square plastic tab from the handset rest.
2	Rotate the tab 180 degrees.
3	Slide the tab back into the handset rest. An extension protrudes from the top of the rotated tab. Return the handset to the handset rest.

Registering with TAPS

After your phone is connected to the network, your system administrator might ask you to auto-register your phone using TAPS (Tool for Auto-Registered Phones Support). TAPS might be used either for a new phone or to replace an existing phone.

To register with TAPS, pick up the handset, enter the TAPS extension provided by your system administrator, and follow the voice prompts. You might need to enter your entire extension, including the area code. After your phone displays a confirmation message, hang up. The phone will re-start.
