The Cisco Unified IP Phone 6921 provides these features:
•Phone connections
•Buttons and hardware
•Phone screen
•Footstand
•Handset rest
Phone Connections
For your phone to work, it must be connected to the corporate IP telephony network. Your system administrator can help you connect your phone.
1
DC adaptor port (DC48V).
5
Access port (10/100 PC) connection.
2
AC-to-DC power supply (optional).
6
Handset connection.
3
AC power wall plug (optional).
7
Analog headset connection (optional).
4
Network port (10/100 SW) connection. IEEE 802.3af power enabled.
Buttons and Hardware
1
Handset light strip
Indicates an incoming call (flashing red) or new voice message (steady red).
2
Phone screen
Shows information about your phone such as directory number, active call and line status, softkey options, speed dials, placed calls, and phone menu listings.
3
Softkey buttons
Depending on how your system administrator sets up the phone, enable softkey options displayed on your phone screen.
4
Transfer button
Transfers a call.
5
Conference button
Creates a conference call.
6
Hold button
Places an active call on hold.
7
Navigation bar and Select button
The Navigation bar allows you to scroll through menus and highlight items. When phone is on-hook, displays phone numbers from your Placed Call listing (up arrow) or your speed dials (down arrow).
The Select button (in the middle of the Navigation bar) allows you to select a highlighted item.
8
Line 1 and Line 2 buttons
Line 1 selects the primary phone line.
Depending on how your system administrator sets up the phone, Line 2 may provide access to:
•Secondary phone line
•Speed-dial number (speed-dial button)
•Web-based service (for example, a Personal Address Book button)
Buttons illuminate to indicate status:
•Green, steady—Active call
•Green, flashing—Held call
•Amber, flashing—Incoming call or reverting call
•Red, steady—Remote line in use (shared line)
•Red, flashing—Remote line on hold
9
Headset button
Toggles the headset on or off. When the headset is on, the button is lit.
10
Speakerphone button
Toggles the speakerphone on or off. When the speakerphone is on, the button is lit.
11
Keypad
Allows you to dial phone numbers, enter letters, and select menu items (by entering the item number).
12
Mute button
Toggles the microphone on or off. When the microphone is muted, the button is lit.
13
Volume button
Controls the handset, headset, and speakerphone volume (off-hook) and the ringer volume (on-hook).
14
Messages button
Auto-dials your voicemail system (varies by system).
15
Applications button
Opens/closes the Applications menu. Use it to access call history, user preferences, phone settings, and phone model information.
16
Contacts button
Opens/closes the Directories menu. Use it to access personal and corporate directories.
17
Handset
Phone handset.

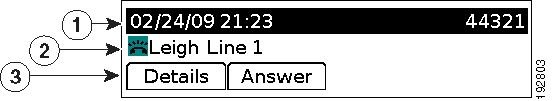

Phone Screen
1
Header
Displays date, time, and directory number.
2
Line details and other phone information
During a call, displays details for the active line. If not on a call, displays line text label and other information such as placed calls, speed dials, and phone menu listings.
3
Softkey labels
Display softkeys for available features or actions.
Footstand
If your phone is placed on a table or desk, the footstand can be connected to the back of the phone for a higher or lower viewing angle, depending on your preference.
1
Footstand slots for a higher viewing angle
2
Footstand slots for a lower viewing angle
Higher Viewing Angle
Lower Viewing Angle
Handset Rest
Your system administrator may have mounted your phone on a wall. With a wall-mounted phone, you might need to adjust the handset rest to ensure that the receiver will not slip out of the cradle.
1
Remove the handset from the cradle and pull the plastic tab from the handset rest.
2
Rotate the tab 180 degrees.
3
Hold the tab between two fingers, with the corner notches facing you. Make sure the tab lines up evenly with the slot in the handset cradle.
4
Press the tab evenly into the slot. An extension protrudes from the top of the rotated tab. Return the handset to the handset rest.
Cisco Unified IP Phone 6941
The Cisco Unified IP Phone 6941 provides these features:
•Phone connections
•Buttons and hardware
•Phone screen
•Footstand
•Handset rest
Phone Connections
For your phone to work, it must be connected to the corporate IP telephony network. Your system administrator can help you connect your phone.
1
DC adaptor port (DC48V).
5
Access port (10/100 PC) connection.
2
AC-to-DC power supply (optional).
6
Handset connection.
3
AC power wall plug (optional).
7
Analog headset connection (optional).
4
Network port (10/100 SW) connection. IEEE 802.3af power enabled.
Buttons and Hardware
1
Handset light strip
Indicates an incoming call (flashing red) or new voice message (steady red).
2
Phone screen
Shows information about your phone such as directory number, active call and line status, softkey options, speed dials, placed calls, and phone menu listings.
3
Programmable feature buttons
Depending on how your system administrator sets up the phone, programmable feature buttons (on each side of the phone screen) provide access to:
•Phone lines and intercom lines
•Speed-dial numbers (speed-dial buttons, including the Line Status speed-dial features)
•Web-based services (for example, a Personal Address Book button)
•Call features (for example, a Privacy button)
Buttons illuminate to indicate status:
•Green, steady—Active call or two-way intercom call
•Green, flashing—Held call
•Amber, steady—Privacy in use, one-way intercom call, DND active, or logged into Hunt Group
•Amber, flashing—Incoming call or reverting call
•Red, steady—Remote line in use (shared line or Line Status)
•Red, flashing—Remote line on hold
4
Softkey buttons
Depending on how your system administrator sets up the phone, enable softkey options displayed on your phone screen.
5
Transfer button
Transfers a call.
6
Conference button
Creates a conference call.
7
Hold button
Places an active call on hold.
8
Navigation bar and Select button
The Navigation bar allows you to scroll through menus and highlight items. When phone is on-hook, displays phone numbers from your Placed Call listing (up arrow) or your speed dials (down arrow).
The Select button (in the middle of the Navigation bar) allows you to select a highlighted item.
9
Headset button
Toggles the headset on or off. When the headset is on, the button is lit.
10
Speakerphone button
Toggles the speakerphone on or off. When the speakerphone is on, the button is lit.
11
Keypad
Allows you to dial phone numbers, enter letters, and select menu items (by entering the item number).
12
Mute button
Toggles the microphone on or off. When the microphone is muted, the button is lit.
13
Volume button
Controls the handset, headset, and speakerphone volume (off-hook) and the ringer volume (on-hook).
14
Messages button
Auto-dials your voice messaging system (varies by system).
15
Applications button
Opens/closes the Applications menu. Use it to access call history, user preferences, phone settings, and phone model information.
16
Contacts button
Opens/closes the Directories menu. Use it to access personal and corporate directories.
17
Handset
Phone handset.
Phone Screen
1
Header
Displays date, time, and directory number.
2
Line text label with icon
Displays text label and icon for phone or intercom line, speed-dial numbers, or services, depending on your configuration.
3
Primary line details and other phone information
Displays line label and call details for the primary line, and other phone information such as placed calls, speed dials, and phone menu listings.
4
Secondary line details and other phone information
Displays line label and call details for the secondary line, and other phone information such as placed calls, speed dials, and phone menu listings.
5
Softkey labels
Display softkeys for available features or actions.
Footstand
If the phone is placed on a table or desk, the footstand can be connected to the back of your phone for a higher or lower viewing angle, depending on your preference.
1
Footstand slots for a higher viewing angle
2
Footstand slots for a lower viewing angle
Higher Viewing Angle
Lower Viewing Angle
Handset Rest
Your system administrator may have mounted your phone on a wall. With a wall-mounted phone, you might need to adjust the handset rest to ensure that the receiver will not slip out of the cradle.
1
Remove the handset from the cradle and pull the plastic tab from the handset rest.
2
Rotate the tab 180 degrees.
3
Hold the tab between two fingers, with the corner notches facing you. Make sure the tab lines up evenly with the slot in the handset cradle.
4
Press the tab evenly into the slot. An extension protrudes from the top of the rotated tab. Return the handset to the handset rest.
Cisco Unified IP Phone 6961
The Cisco Unified IP Phone 6961 provides these features:
•Phone connections
•Buttons and hardware
•Phone screen
•Footstand
•Handset rest
Phone Connections
For your phone to work, it must be connected to the corporate IP telephony network. Your system administrator can help you connect your phone.
1
DC adaptor port (DC48V).
5
Access port (10/100 PC) connection.
2
AC-to-DC power supply (optional).
6
Handset connection.
3
AC power wall plug (optional).
7
Headset connection (optional).
4
Network port (10/100 SW) connection. IEEE 802.3af power enabled.

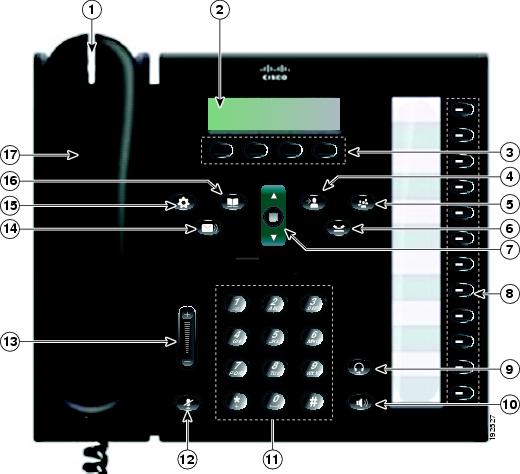

Buttons and Hardware
1
Handset light strip
Indicates an incoming call (flashing red) or new voice message (steady red).
2
Phone screen
Shows information about your phone such as directory number, active call and line status, softkey options, speed dials, placed calls, and phone menu listings.
3
Softkey buttons
Depending on how your system administrator sets up the phone, enable softkey options displayed on your phone screen.
4
Transfer button
Transfers a call.
5
Conference button
Creates a conference call.
6
Hold button
Places an active call on hold.
7
Navigation bar and Select button
The Navigation bar allows you to scroll through menus and highlight items. When phone is on-hook, displays phone numbers from your Placed Call listing (up arrow) or your speed dials (down arrow).
The Select button allows you to select a highlighted item.
8
Programmable feature buttons
Depending on how your system administrator sets up the phone, programmable feature buttons provide access to:
•Phone lines and intercom lines
•Speed-dial numbers (speed-dial buttons, including the Line Status speed-dial features)
•Web-based services (for example, a Personal Address Book button)
•Call features (for example, a Privacy button)
Buttons illuminate to indicate status:
•Green, steady—Active call or two-way intercom call
•Green, flashing—Held call
•Amber, steady—Privacy in use, one-way intercom call, DND active, or logged into Hunt Group
•Amber, flashing—Incoming call or reverting call
•Red, steady—Remote line in use (shared line or Line Status)
•Red, flashing—Remote line on hold
9
Headset button
Toggles the headset on or off. When the headset is on, the button is lit.
10
Speakerphone button
Toggles the speakerphone on or off. When the speakerphone is on, the button is lit.
11
Keypad
Allows you to dial phone numbers, enter letters, and select menu items (by entering the item number).
12
Mute button
Toggles the microphone on or off. When the microphone is muted, the button is lit.
13
Volume button
Controls the handset, headset, and speakerphone volume (off-hook) and the ringer volume (on-hook).
14
Messages button
Auto-dials your voice messaging system (varies by system).
15
Applications button
Opens/closes the Applications menu. Use it to access call history, user preferences, phone settings, and phone model information.
16
Contacts button
Opens/closes the Directories menu. Use it to access personal and corporate directories.
17
Handset
Phone handset.
Phone Screen
1
Header
Displays date, time, and directory number.
2
Line details and other phone information
During a call, displays details for the active line. If not on a call, displays line text label and other information such as placed calls, speed dials, and phone menu listings.
3
Softkey labels
Display softkeys for available features or actions.
Footstand
If the phone is placed on a table or desk, the footstand can be connected to the back of your phone for a higher or lower viewing angle, depending on your preference.
1
Footstand slots for a higher viewing angle
2
Footstand slots for a lower viewing angle
Higher Viewing Angle
Lower Viewing Angle
Handset Rest
Your system administrator may have mounted your phone on a wall. With a wall-mounted phone, you might need to adjust the handset rest to ensure that the receiver will not slip out of the cradle.
1
Remove the handset from the cradle and pull the plastic tab from the handset rest.
2
Rotate the tab 180 degrees.
3
Hold the tab between two fingers, with the corner notches facing you. Make sure the tab lines up evenly with the slot in the handset cradle.
4
Press the tab evenly into the slot. An extension protrudes from the top of the rotated tab. Return the handset to the handset rest.
