Overview

---

This guide provides phone layout and feature descriptions for the Cisco Unified IP Phone 3905.

• Physical Description of Cisco Unified IP Phone 3905

Physical Description of Cisco Unified IP Phone 3905

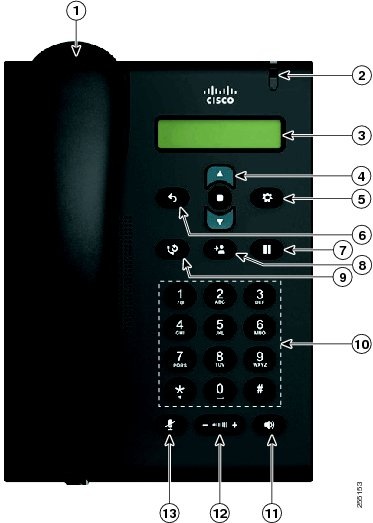

The Cisco Unified IP Phone 3905 is a single-line phone. Buttons near the handset provide direct access to several features.

	Item	Description
1	Handset	Functions as traditional phone handset.
2	Message waiting indicator	Indicates new voice message (steady red) or an incoming call (blinking).
3	Phone screen	Displays phone menus and call activity including caller ID (phone number), call duration, and call state.
4	Navigation Pad and Select (center) button	Allows you to scroll through menu items and highlight items. When the phone is on-hook, displays the call logs (Missed Calls, Received Calls, Placed Calls) and your Speed Dials.
5	Application button	Provides access to phone settings such as call history, user preferences, phone configuration (including administration settings, device configuration, network configuration, and other common configurations), and phone model information.
6	Previous button	Toggles back to the previous setting.
7	Hold button	Places an active call on hold.
8	Transfer button	Transfers active calls to another extension.
9	Redial button	Dials the last dialed number.
10	Keypad	Allows you to dial phone numbers and enter numbers or letters.
11	Speakerphone button	Selects the speakerphone. When the speakerphone is on, the button is lit.
12	Volume button	Controls the handset and speakerphone volume (off-hook) and the ringer volume (on-hook).
13	Mute button	Mutes the speakerphone and handset. If the button is lit, the speaker and handset are muted.

• Phone Connections
• Adjusting the Handset Rest

Phone Connections

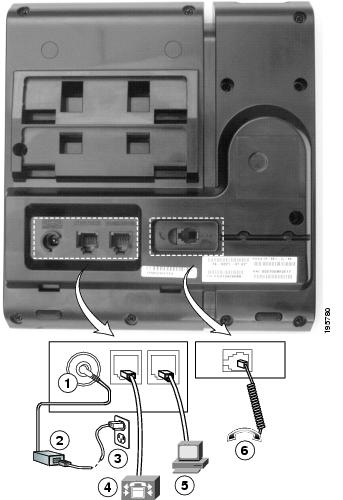

For your phone to work, it must be connected to the corporate IP telephony network. Your system administrator can help you connect your phone.

1	DC adaptor port (DC48V)	4	Network port (10/100 SW) connection. IEEE 802.3af power enabled.
2	AC-to-DC power supply (optional)	5	Access port (10/100 PC) connection
3	AC power wall plug (optional)	6	Handset connection

Adjusting the Handset Rest

You can adjust the handset rest of a wall-mounted phone so that the receiver does not slip out of the cradle.

Procedure

---

Step 1	Set the handset aside and pull the square plastic tab from the handset rest.
Step 2	Rotate the tab halfway (180 degrees).
Step 3	Hold the tab between two fingers, with the small notches (in the corners) facing you.
Step 4	Make sure the tab lines up evenly with the slot in the cradle.
Step 5	Slide the tab back into the handset rest. An extension protrudes from the top of the rotated tab. Return the handset to the handset rest.

---
