Using Virtual Network Computing Version 3.3.7

Similar to Microsoft Terminal Services, Virtual Network Computing (VNC) allows a system administrator to use a server to install applications or perform configuration tasks on a remote server while the user on the remote server views the tasks that occur.

Contents

•Before You Begin

•Installing and Configuring VNC

•Starting a Remote Server from the Master Server

•Using the Master Server to Perform Tasks on the Remote Server

•Troubleshooting

•Obtaining Documentation

•Obtaining Technical Assistance

•Obtaining Additional Publications and Information

Before You Begin

Review the following information before you install VNC:

About VNC Terminology

In this document, master server refers to the server where the user initiates, performs, and manages tasks; the remote server(s) receives the software or configuration information from the master server.

About Compatible Operating System Versions

Make sure that you have installed Cisco-provided operating system version 2000.2.5 on all servers that will use VNC. For information on upgrading the operating system, refer to the documentation for the version of the Cisco CallManager upgrade that runs in the cluster.

About Security Risks

Be aware that using VNC poses a security risk by making the cluster vulnerable to attacks.

Installing VNC opens a network port, which may make the server vulnerable to attacks. A network scanner will show port 5800 "VNC => Remote Control Software" and allow an attacker to access the server.

During the VNC installation, enter a complex alphanumeric password for VNC. VNC limits the password to eight characters.

To minimize security risks, set the VNC service to Manual startup and start it only during remote management. This action ensures that users must enter a Windows user name/password that the server can authenticate before starting the service.

Disable Terminal Services if you no longer plan to use it for remote management.

About Upgrading VNC

When you upgrade the operating system or run an operating system patch on the server, make sure that you review the operating system readme document for information on upgrading VNC. Cisco provides the VNC upgrade files in the operating system upgrade and/or operating system support patch, although Cisco does not automatically install these files on the server.

About CPU Utililization

VNC may use a large percentage of CPU when you move the mouse and particularly when you move entire windows on the desktop. To minimize CPU utilization, limit unnecessary movements on the desktop, particularly while the server is in production.

Installing and Configuring VNC

Perform the following procedure to install and configure VNC Version 3.3.7 on all servers that will use VNC.

Procedure

Step 1 Using Windows Explorer, browse to the following folder:

C:\utils\VNC\

Step 2 In the VNC folder, double-click vnc-3.3.7-x86_win32.exe.

The following message displays: This will install VNC. Do you wish to continue?

Step 3 Click Yes.

Step 4 The welcome window displays. Click Next.

Step 5 Click Yes to accept the software license agreement.

Step 6 In the Select Destination Directory, accept the default location or choose another folder where you want to install VNC, and then click Next.

Step 7 In the Select Components window, click Next.

Step 8 In the Select Start Menu Folder window, accept the default folder name or choose another folder where you want the setup program to create the program shortcuts; then, click Next.

Step 9 In the Select Additional Tasks window, check the Register VNC Server as a system service check box and the Start the VNC Server System service check box. If you want to create additional icons, check the check box next to the icons that you want to create; then, click Next.

The Ready to Install window displays.

Step 10 Click Install.

A message that indicates that the WinVNC service was successfully registered displays.

Step 11 Click OK.

Step 12 For new installations, a message indicates that you must set the default password for VNC. Click OK.

Step 13 The WinVNC: Current User Properties dialog box displays, as show in Figure 1.

Figure 1 WinVNC: Current User Properties Dialog Box

Step 14 In the Incoming Connections pane, enter a password in the Password field. You can choose any password of up to eight characters that you want to use. You will use this password to open a VNC session between servers.

Step 15 Click OK.

The Information window displays.

Step 16 To continue the setup, click Next.

Step 17 Click Finish.

Starting a Remote Server from the Master Server

If you want to start a remote server via VNC, perform the following procedure:

Procedure

Step 1 From the master server, map a drive to the remote server by using the server name (not the IP address).

Step 2 Right-click My Computer and choose Manage.

Step 3 Choose Action > Connect to another computer....

The Select Computer dialog box displays.

Step 4 In the Name field, enter the name of the server to which you want to connect; then, click OK.

Step 5 In the Computer Management window, double-click Services and Applications.

Step 6 If an Internet Services Manager dialog displays, click Yes.

Step 7 Click Services.

Step 8 Right-click VNC Server; then, choose Start.

Using the Master Server to Perform Tasks on the Remote Server

Perform the following procedure to complete installation or configuration tasks via VNC:

Procedure

Step 1 On the master server, choose Start > Programs > RealVNC > Run VNCviewer.

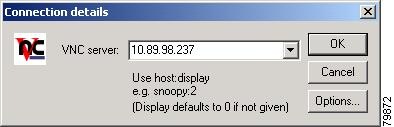

The Connection Details dialog box displays, as shown in Figure 2.

Figure 2 Connection Details dialog box

Step 2 In the VNC server field, enter the IP address of the remote server on which you want to install the software or perform a configuration task.

Step 3 Click OK.

The VNC Authentication dialog box displays, as shown in Figure 3.

Figure 3 VNC Authentication Dialog Box

Step 4 In the Session password field, enter the password that you specified in Step 14 in the "Installing and Configuring VNC" section.

Step 5 Click OK.

The desktop of the remote server displays.

Step 6 From the master server, install software or perform configuration tasks on the remote server.

Caution Make sure that you insert installation CD-ROMs into the CD-ROM drive of the remote server or download the files from the web onto the remote server.

Note When you are using a remote terminal over VNC to install Cisco CallManager on an IBM server, the procedure may seem to stall or hang during the installation. On the remote terminal, if you move (drag) the VNC window or refresh the screen by choosing Request screen refresh from the VNC application window menu (the menu that appears when you click on the VNC icon in the left corner of the window title), the procedure will continue.

Step 7 Stop the VNC Server service.

Step 8 Perform the procedures in "Starting a Remote Server from the Master Server" and "Using the Master Server to Perform Tasks on the Remote Server" for each remote server on which you want to perform installation or configuration tasks.

Troubleshooting

If you run VNC to install/upgrade Cisco CallManager on IBM xSeries servers, the installation may appear to hang when the server is copying the files during the installation. Move the mouse to continue the installation.

When using VNC, some servers exhibit high CPU utilization. The server may respond slower than usual.
