Call Admission Control
Last revised on: September 27, 2007
The call admission control function is an essential component of any IP telephony system that involves multiple sites connected through an IP WAN. In order to better understand what call admission control does and why it is needed, consider the example in Figure 9-1.
Figure 9-1 Why Call Admission Control is Needed
As shown on the left side of Figure 9-1, traditional TDM-based PBXs operate within circuit-switched networks, where a circuit is established each time a call is set up. As a consequence, when a legacy PBX is connected to the PSTN or to another PBX, a certain number of physical trunks must be provisioned. When calls have to be set up to the PSTN or to another PBX, the PBX selects a trunk from those that are available. If no trunks are available, the call is rejected by the PBX and the caller hears a network-busy signal.
Now consider the IP telephony system shown on the right side of Figure 9-1. Because it is based on a packet-switched network (the IP network), no circuits are established to set up an IP telephony call. Instead, the IP packets containing the voice samples are simply routed across the IP network together with other types of data packets. Quality of Service (QoS) is used to differentiate the voice packets from the data packets, but bandwidth resources, especially on IP WAN links, are not infinite. Therefore, network administrators dedicate a certain amount of "priority" bandwidth to voice traffic on each IP WAN link. However, once the provisioned bandwidth has been fully utilized, the IP telephony system must reject subsequent calls to avoid oversubscription of the priority queue on the IP WAN link, which would cause quality degradation for all voice calls. This function is known as call admission control, and it is essential to guarantee good voice quality in a multisite deployment involving an IP WAN.
To preserve a satisfactory end-user experience, the call admission control function should always be performed during the call setup phase so that, if there are no network resources available, a message can be presented to the end-user or the call can be rerouted across a different network (such as the PSTN).
This chapter discusses the following main topics:
This section summarizes the key best practices, recommendations, and notes about call admission control for the readers who are already familiar with the principles and mechanisms described in the remainder of this chapter.
•
Call Admission Control Principles
This section defines the two fundamental approaches to call admission control in an IP-based telephony system: topology-aware and topology-unaware call admission control.
•
This section describes the call admission control mechanisms available through the various components of a Cisco IP Communications system, such as Cisco Unified Communications Manager locations, Cisco IOS gatekeeper, RSVP, and the IP-to-IP gateway.
•
This section shows how to apply and combine the mechanisms described in the previous sections, based on the IP WAN topology (simple hub-and-spoke, two-tier hub-and-spoke, MPLS, or other topologies) and also based on the Cisco Unified Communications Manager deployment model adopted.
Best Practices Summary
This section briefly summarizes the best practices for providing call admission control in various Cisco Unified Communications Manager (Unified CM) deployments. The remainder of this chapter explains these best practices in more detail.
The following recommendations apply to deployments with a single Unified CM cluster:
•
•
•
The following recommendations apply to deployments with multiple Unified CM clusters:
•
•
•
•
•
Call Admission Control Principles
As mentioned previously, call admission control is a function of the call processing agent in an IP-based telephony system, so in theory there could be as many call admission control mechanisms as there are IP-based telephony systems. However, most of the existing call admission control mechanisms fall into one of the following two main categories:
•
•
The remainder of this section first analyzes the principles of topology-unaware call admission control and its limitations, then it presents the principles of topology-aware call admission control.
Topology-Unaware Call Admission Control
We define as topology-unaware call admission control any mechanism that is based on a static configuration within a call processing agent or IP-based PBX, aimed at limiting the number of simultaneous calls to or from a remote site connected via the IP WAN.
As shown in Figure 9-2, most of these mechanisms rely on the definition of a logical "site" entity, which generally corresponds to a geographical branch office connected to the enterprise IP WAN.
After assigning all the devices located at each branch office to the corresponding site entity, the administrator usually configures a maximum number of calls (or a maximum amount of bandwidth) to be allowed in or out of that site.
Each time a new call needs to be established, the call processing agent checks the sites to which the originating and terminating endpoints belong, and verifies whether there are available resources to place the call (in terms of number of calls or amount of bandwidth for both sites involved). If the check succeeds, the call is established and the counters for both sites are decremented. If the check fails, the call processing agent can decide how to handle the call based on a pre-configured policy. For example, it could send a network-busy signal to the caller device, or it could attempt to reroute the call over a PSTN connection.
Figure 9-2 Principles of Topology-Unaware Call Admission Control
Because of their reliance on static configurations, topology-unaware call admission control mechanisms can generally be deployed only in networks with a relatively simple IP WAN topology. In fact, most of these mechanisms mandate a simple hub-and-spoke topology or a simple MPLS-based topology (where the MPLS service is provided by a service provider), as shown in Figure 9-3.
Figure 9-3 Domain of Applicability of Topology-Unaware Call Admission Control
In a hub-and-spoke network or MPLS-based network such as those shown in Figure 9-3, each spoke site is assigned to a "site" within the call processing agent, and the number of calls or amount of bandwidth for that "site" is configured to match the bandwidth available for voice (and/or video) on the IP WAN link that connects the spoke to the IP WAN.
Notice the absence of redundant links from the spoke sites to the hub site and of links directly connecting two spoke sites. The next section explains why such links create problems for topology-unaware call admission control.
Limitations of Topology-Unaware Call Admission Control
In today's enterprise networks, high availability is a common requirement, and it often translates into a desire to provide redundancy for the IP WAN network connectivity.
When considering the IP WAN topology in a typical enterprise network, you are likely to encounter a number of characteristics that complicate the assumption of a pure hub-and-spoke topology. Figure 9-4 shows several of these network characteristics in a single diagram. Obviously, only the largest enterprise networks present all these characteristics at once, but it is highly likely that most IP WAN networks feature at least one of them.
Figure 9-4 Topology Characteristics of Typical Enterprise Networks
As explained in the section on Call Admission Control Design, it is sometimes possible to adapt a topology-unaware call admission control mechanism to a complex network topology, but there are limitations in terms of when this approach can be used and what behavior can be achieved. For example, consider the simple case of a branch site connected to a hub site via the IP WAN, where redundancy is a network requirement. Typically, redundancy can be achieved in one of the following ways:
•
•
•
The examples Figure 9-5 attempt to apply a topology-unaware call admission control mechanism to the case of a single router with a primary and backup link and the case of a single router with two active load-balanced links. (The case of two router platforms has the same call admission control implications as the latter example.)
Figure 9-5 Topology-Unaware Call Admission Control in Presence of Dual Links
For the first example in Figure 9-5, branch office A is normally connected to the IP WAN via a primary link, whose Low Latency Queuing (LLQ) bandwidth is provisioned to allow a maximum of 10 simultaneous calls. When this primary link fails, a smaller backup link becomes active and preserves the connectivity to the IP WAN. However, the LLQ bandwidth of this backup link is provisioned to allow only up to 2 simultaneous calls.
In order to deploy a topology-unaware call admission control mechanism for this branch office, we must define a "site" A in the call processing agent and configure it for a certain number of calls (or amount of bandwidth). If we choose to use 10 calls as the maximum for site A, the backup link can be overrun during failures of the primary link, thereby causing bad voice quality for all active calls. If, on the other hand, we choose 2 calls as the maximum, we will not be able to use the bandwidth provisioned for the remaining 8 calls when the primary link is active.
Now consider branch office B, which has two active links connecting it to the IP WAN. Each of these links is provisioned to allow a maximum of 10 simultaneous calls, and the routing protocol automatically performs load-balancing between them. When deploying a topology-unaware call admission control mechanism for this branch office, we must define a "site" B in the call processing agent and configure it for a certain number of calls (or amount of bandwidth). Similar to the case of branch office A, if we choose to add up the capacity of the two links and use 20 calls as the maximum for site B, there is a potential to overrun the LLQ on one of the two links during failures of the other one. For example, if link #2 fails, the system still allows 20 simultaneous calls to and from site B, which are now all routed via link #1, thus overrunning it and causing poor voice quality for all calls. On the other hand, if site B is configured for a maximum of 10 simultaneous calls, the available LLQ bandwidth is never fully utilized under normal conditions (when both links are operational).
These two simple examples show how IP WAN bandwidth provisioning in real enterprise networks is often too complex to be summarized in statically configured entries within the call processing agent. Deploying topology-unaware call admission control in such networks forces the administrator to make assumptions, develop workarounds, or accept sub-optimal use of network resources.
The optimal way to provide call admission control in the presence of a network topology that does not conform to a simple hub-and-spoke is to implement topology-aware call admission control, as described in the following section.
Note
Topology-Aware Call Admission Control
We define as topology-aware call admission control any mechanism aimed at limiting the number of simultaneous calls across IP WAN links that can be applied to any network topology and can dynamically adjust to topology changes.
To accomplish these goals, topology-aware call admission control must rely on real-time communications about the availability of network resources between a call processing agent (or IP-based PBX) and the network. Because the network is a distributed entity, real-time communications require a signaling protocol.
The Resource Reservation Protocol (RSVP) is the first significant industry-standard signaling protocol that enables an application to reserve bandwidth dynamically across an IP network. Using RSVP, applications can request a certain amount of bandwidth for a data flow across a network (for example, a voice call) and can receive an indication of the outcome of the reservation based on actual resource availability.
In the specific case of call admission control for voice or video calls, an IP-based PBX can synchronize the call setup process with RSVP reservations between the two remote sites and can make a routing decision based on the outcome of the reservations. Because of its distributed and dynamic nature, RSVP is capable of reserving bandwidth across any network topology, thus providing a real topology-aware call admission control mechanism.
To better understand the basic principles of how RSVP performs bandwidth reservation in a network, consider the simple example depicted in Figure 9-6. This example does not analyze the exact message exchanges and protocol behaviors, but rather focus on the end results from a functionality perspective. For more information on the RSVP message exchanges, see RSVP Principles, page 3-40.
Assume that RSVP is enabled on each router interface in the network shown in Figure 9-6 and that the numbers shown in the circles represent the amount of available RSVP bandwidth remaining on each interface.
Figure 9-6 Sample Network to Show RSVP Principles
Now consider an RSVP-enabled application that wants to reserve a certain amount of bandwidth for a data stream between two devices. This scenario is depicted in Figure 9-7, which shows a particular data stream that requires 24 kbps of bandwidth from Device 1 to Device 2.
Figure 9-7 RSVP Signaling for a Successful Reservation
The following considerations apply to Figure 9-7:
•
•
•
•
•
After a reservation has been successfully established between Device 1 and Device 2, now assume that another application requests a 24-kbps reservation between Device 3 and Device 4, as depicted in Figure 9-8.
Figure 9-8 RSVP Signaling for an Unsuccessful Reservation
The following considerations apply to Figure 9-8:
•
•
•
We can now apply the topology-aware call admission control approach based on RSVP to the examples of dual-connected branch offices A and B introduced in the previous section.
As shown in Figure 9-9, branch office A has a primary link with an LLQ provisioned for 10 calls, while the backup link can accommodate only 2 calls. With this approach, RSVP is configured on both router interfaces so that the RSVP bandwidth matches the LLQ bandwidth. Branch A is also configured within the call processing agent to require RSVP reservations for all calls to or from other branches. Now calls are admitted or rejected based on the outcome of the RSVP reservations, which automatically follow the path determined by the routing protocol. Under normal conditions (when the primary link is active), up to 10 calls will be admitted; during failure of the primary link, only up to 2 calls will be admitted.
Policies can typically be set within the call processing agent to determine what to do in the case of a call admission control failure. For example, the call could be rejected, rerouted across the PSTN, or sent across the IP WAN as a best-effort call with a different DSCP marking.
Figure 9-9 Topology-Aware Call Admission Control for Dual Links
Similar considerations apply to branch B, connected to the IP WAN via two load-balanced links, as shown on the right side of Figure 9-9. RSVP is enabled on each of the two router interfaces, with a bandwidth value that matches the LLQ configuration (in this case, enough bandwidth for 10 calls). Branch B is also configured within the call processing agent to request RSVP reservations for calls to or from other branches. Again, calls are admitted or rejected based on the actual bandwidth available along the path chosen by the routing protocol. So in a case of perfectly even load-balancing across the two links, up to 20 calls could be admitted under normal conditions (when both links are operational); if one of the two links fails, only up to 10 calls would be admitted.
In the case that one of the two links failed while more than 10 calls were active, some calls would fail to re-establish a reservation on the new path. At this point, the call processing agent would be notified and could react based on the configured policy (for example, by dropping the extra calls or by remarking them as best-effort calls).
In conclusion, topology-aware call admission control allows administrators to protect call quality with any network topology, to automatically adjust to topology changes, and to make optimal use of the network resources under all circumstances.
Special Considerations for MPLS Networks
From the call admission control perspective, a network based on MPLS differs from one based on traditional Layer 2 WAN Services with respect to support for RSVP in the "hub" of the network. Hub sites of traditional Layer 2 wide-area networks consist, in most cases, of an enterprise-controlled router that can be enabled to participate in RSVP. Because the entire network (cloud) is the "hub site" in MPLS networks, there is no enterprise-controlled hub location to enable RSVP. (For more information, see Simple MPLS Topologies.) Therefore, to provide topology-aware call admission control in an MPLS environment, the Customer Edge (CE) devices of the network must be configured for RSVP support.
Because RSVP must be enabled on the CE, control of this equipment is important. If this equipment is not under the control of the enterprise, you must work with your service provider to determine if they will enable RSVP on your WAN interface and if that implementation will support advanced features such as RSVP application ID.
RSVP messages will transparently pass across the RSVP-unaware MPLS cloud, so this does not pose a problem with end-to-end RSVP capability. Configuring RSVP on the CE WAN interface will ensure that its priority queue will not be overrun. Because RSVP reservations are unidirectional, the following rules must be observed to protect the priority queue on the Provider Edge (PE) router when RSVP is not enabled in the MPLS cloud:
•
•
RSVP PATH messages record the egress IP address of the RSVP-aware routers they traverse. The information in the PATH message is used to send the RSVP RESV message back via the same route. Because of this mechanism, the WAN link between CE and PE must have routable IP addresses or the RSVP Reservations will fail.
If your MPLS network does not comply with these rules, contact your local Cisco account team for further assistance before implementing RSVP.
Call Admission Control Elements
There are several mechanisms that perform the call admission control function in a Cisco IP Communications system. This section provides design and configuration guidelines for all of these mechanisms, according to their category:
•
•
–
–
Note
Unified CM Static Locations
Unified CM provides a simple mechanism known as static locations for implementing call admission control in the centralized call processing deployment. When you configure a device in Unified CM, the device can be assigned to a location. A certain amount of bandwidth will be allocated for calls to or from each location. The locations configured in Unified CM are virtual locations and not real, physical locations. Unified CM has no knowledge of the physical locations of devices. Therefore, if a device is moved from one physical location to another, the system administrator must perform a manual update on its location configuration so that Unified CM can correctly calculate bandwidth allocation for that device. Each device is in location Hub_None by default. Location Hub_None is a special location that is configured by default with unlimited audio and video bandwidth, and location Hub_None cannot be deleted. If the devices at a branch location are configured in the Hub_None location, none of the phone calls to or from that branch device will be subject to any call admission control.
Unified CM allows you to define a voice and video bandwidth pool for each location. If the location's audio and video bandwidth are configured as Unlimited, there will be unlimited bandwidth available for that location, and every audio or video call to or from that location will be permitted by Unified CM. On the other hand, if the bandwidth values are set to a finite number of kilobits per second (kbps), Unified CM will allow calls in and out of that location as long as the aggregate bandwidth used by all active calls is less than or equal to the configured values. If the video bandwidth for the location is configured as None, every video call to or from that location is denied but the video calls within the same location are not affected.
For video calls, the video location bandwidth takes into account both the video and the audio portions of the call. Therefore, for a video call, no bandwidth is deducted from the audio bandwidth pool.
The devices that can specify membership in a location include:
•
•
•
•
•
•
•
•
The static locations call admission control mechanism also takes into account the mid-call changes of call type. For example, if an inter-site video call is established, Unified CM will subtract the appropriate amount of video bandwidth from the respective locations. If this video call changes to an audio-only call via a transfer to a device that is not capable of video, Unified CM will return the allocated bandwidth to the video pool and allocate the appropriate amount of bandwidth from the audio pool. Calls that change from audio to video will cause the opposite change of bandwidth allocation.
Table 9-1 lists the amount of bandwidth requested by the static locations algorithm for various call speeds. For an audio call, Unified CM counts the media bit rates plus the Layer 3 overhead. For example, a G.711 audio call consumes 80 kbps allocated from the location's audio bandwidth pool. For a video call, Unified CM counts only the media bit rates for both the audio and video streams. For example, for a video call at a speed of 384 kbps, Unified CM will allocate 384 kbps from the video bandwidth pool.

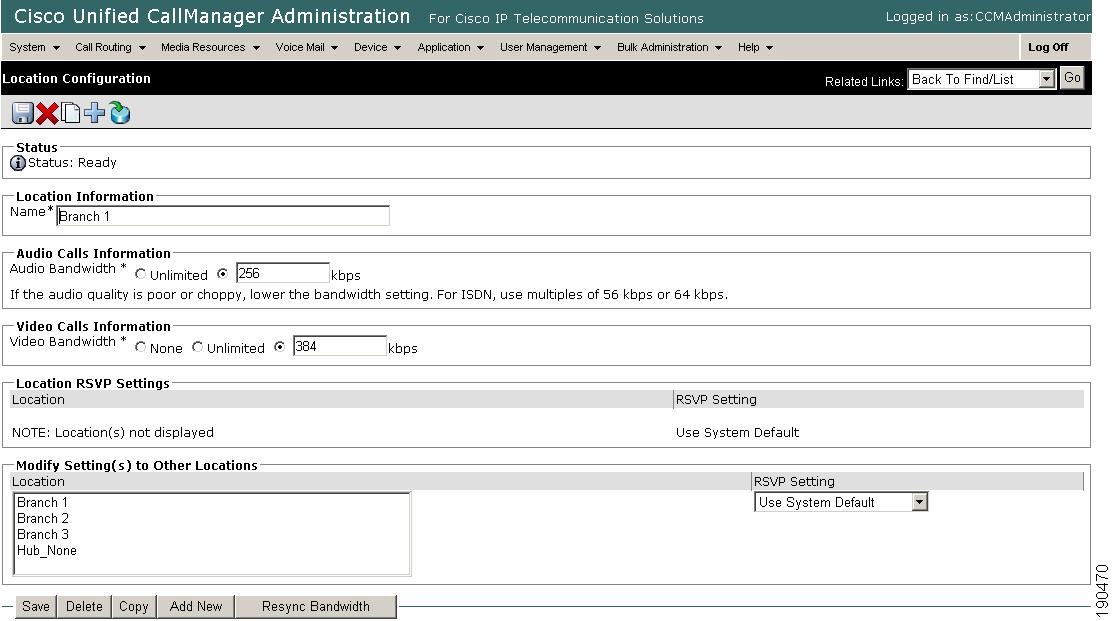

Figure 9-10 shows the configuration for the location Branch 1, with 256 kbps of available audio bandwidth and 384 kbps of available video bandwidth. The Branch 1 location can support up to three G.711 audio calls (at 80 kbps per call) or ten G.729 audio calls (at 24 kbps per call), or any combination of both that does not exceed 256 kbps. The location can also support different numbers of video calls depending on the video and audio codecs being used. For example, one video call requesting 384 kbps of bandwidth or three video calls with each requesting 128 kbps of bandwidth.
Figure 9-10 Defining a Location in Cisco Unified CM
Call admission control does not apply to calls between devices within the same location.
When a call is placed from one location to the other, Unified CM deducts the appropriate amount of bandwidth from both locations. For example, a G.729 call between two locations causes Unified CM to deduct 24 kbps from the available bandwidth at both locations. When the call has completed, Unified CM returns the bandwidth to the affected locations. If there is not enough bandwidth at either branch location, the call is denied by Unified CM and the caller receives the network busy tone. If the calling device is an IP phone with a display, that device also displays the message "Not Enough Bandwidth."
When an inter-site call is denied by call admission control, Unified CM can automatically reroute the call to the destination via the PSTN connection by means of the Automated Alternate Routing (AAR) feature. For detailed information on the AAR feature, see Automated Alternate Routing, page 10-27.
Note
Cisco IOS Gatekeeper Zones
A Cisco IOS gatekeeper can provide call routing and call admission control between devices such as Cisco Unified CM, Cisco Unified Communications Manager Express (Unified CME), or H.323 gateways connected to legacy PBXs. It uses the H.323 Registration Admission Status (RAS) protocol to communicate with these devices and route calls across the network.
Gatekeeper call admission control is a policy-based scheme requiring static configuration of available resources. The gatekeeper is not aware of the network topology, so it is limited to simple hub-and-spoke topologies. Refer to the section on Call Admission Control Design, for detailed topology examples.
The Cisco 2600, 3600, 3700, 2800, 3800, and 7200 Series routers all support the gatekeeper feature. You can configure Cisco IOS gatekeepers in a number of different ways for redundancy, load balancing, and hierarchical call routing. This section focuses on the call admission control aspect of the gatekeeper feature. For redundancy and scalability considerations, refer to the section on Gatekeeper Design Considerations, page 8-20. For call routing considerations, refer to Call Routing in Cisco IOS with a Gatekeeper, page 10-41.
The call admission control capabilities of a Cisco IOS gatekeeper are based on the concept of gatekeeper zones. A zone is a collection of H.323 devices, such as endpoints, gateways, or Multipoint Control Units (MCUs), that register with a gatekeeper. There can be only one active gatekeeper per zone, and you can define up to 100 local zones on a single gatekeeper. A local zone is a zone that is actively handled by that gatekeeper - that is, all H.323 devices assigned to that zone register with that gatekeeper.
When multiple gatekeepers are deployed in the same network, a zone is configured as a local zone on only one gatekeeper. On the other gatekeepers, that zone is configured as a remote zone. This configuration instructs the gatekeeper to forward calls destined for that zone to the gatekeeper that "owns it" (that is, the gatekeeper on which that zone is configured as a local zone).
Use the bandwidth command to manage the number of calls that the gatekeeper will allow, thus providing call admission control functionality. This command has several options, but the most relevant are the following:
•
•
•
•
The bandwidth value deducted by the gatekeeper for every active call is double the bit-rate of the call, excluding Layer 2, IP, and RTP overhead. For example, a G.711 audio call that uses 64 kbps would be denoted as 128 kbps in the gatekeeper, and a 384-kbps video call would be denoted as 768 kbps. Table 9-2 shows the bandwidth values used by the gatekeeper feature for some of the most popular call speeds.
Note
To better understand the application of the bandwidth commands in a real network, consider the example shown in Figure 9-11.
Figure 9-11 Example of Cisco IOS Gatekeeper bandwidth Commands
Assuming that all calls are voice-only calls using the G.711 codec, and given the configuration commands shown in Figure 9-11, the following statements hold true:
•
•
•
•
Unified CM RSVP-Enabled Locations
Cisco Unified CM Release 5.0 introduces a topology-aware call admission control mechanism based on the Resource Reservation Protocol (RSVP), which is applicable to any network topology and which eases the restriction of a traditional hub-and-spoke topology. The Cisco RSVP Agent is a Cisco IOS feature that enables Unified CM to perform the RSVP-based call admission control. The Cisco RSVP Agent feature has been introduced into Cisco IOS Release 12.4(6)T, and it is available on the Cisco 2600XM, 2691, 3700 Series, 2800 Series, and 3800 Series Integrated Services Routers platforms.
The Cisco RSVP Agent registers with Unified CM as either a media termination point (MTP) or a transcoder device with RSVP support. When an endpoint device makes a call in need of a bandwidth reservation, Unified CM invokes a Cisco RSVP Agent to act as a proxy for the endpoint to make the bandwidth reservation.

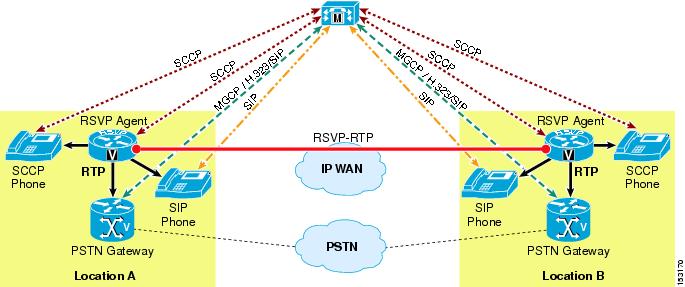

Figure 9-12 shows the signaling protocols used between Unified CM and various other devices, as well as the associated RTP streams for calls across the WAN in a given location. For any calls across the WAN, Unified CM directs the endpoint devices to send the media streams to their local Cisco RSVP Agent, which originates another call leg synchronized with an RSVP reservation to the Cisco RSVP Agent at the remote location. Figure 9-12 illustrates the following signaling protocols:
•
•
•
Figure 9-12 Protocol Flows for Locations with RSVP

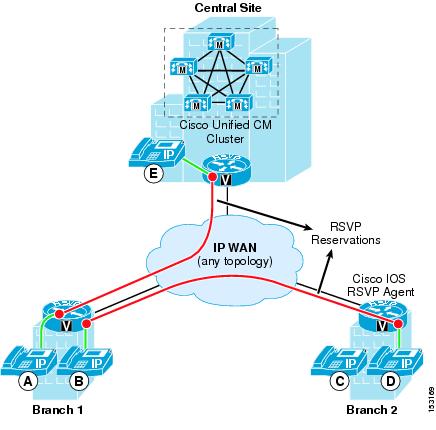

Figure 9-13 shows a typical Cisco RSVP Agent deployment within a Unified CM cluster, which includes three locations: Central Site, Branch 1, and Branch 2. The IP WAN connecting the three locations can be of any topology type and is not restricted to the hub-and-spoke topology. For any call between two locations that requires an RSVP reservation in the media path, a pair of Cisco RSVP Agents is invoked dynamically by Unified CM. The Cisco RSVP Agent acts as a proxy to make an RSVP reservation for the IP phone in the same location with the Cisco RSVP Agent. For example, when phone A in Branch 1 calls phone E in the Central Site, an RSVP reservation (illustrated as the red line in Figure 9-13) is established between Cisco RSVP Agents in the Branch 1 and Central Site locations.
There are three call legs for the media streams of this call. The first call leg is between phone A and the Branch 1 Cisco RSVP Agent, the second call leg is between the Branch 1 and Central Site Cisco RSVP Agents, and the third call leg is between the Central Site Cisco RSVP Agent and phone E. By the same token, when phone B in Branch 1 calls phone D in Branch 2, the RSVP reservation is established between the Branch 1 and Branch 2 Cisco RSVP Agents. Note that the media streams of a call between two branch locations are not sent through the Central Site in this case, which is different from a call made over the traditional hub-and-spoke topology using call admission control based on static locations.
Note
Figure 9-13 Cisco RSVP Agent Concept
Cisco RSVP Agent Provisioning
The Cisco RSVP Agent feature requires Cisco IOS Release 12.4(6)T and either of the following options:
•
•
•
The capacity of Cisco RSVP Agent in terms of simultaneous calls (also referred to as sessions) depends on the following factors:
•
•
For software-based MTP functionality, Table 9-3 provides guidelines for session capacity based on a router dedicated to the Cisco RSVP Agent and 75% CPU utilization. These numbers apply to Cisco IOS Release 12.4(6)T and should be considered as broad guidelines. Different combinations of specific services, configurations, traffic patterns, network topologies, routing tables, and other factors can significantly affect actual performance for a specific deployment and hence reduce the number of concurrent sessions supported. Cisco recommends careful planning and validation testing prior to deploying a multi-service router in a production environment.
Note

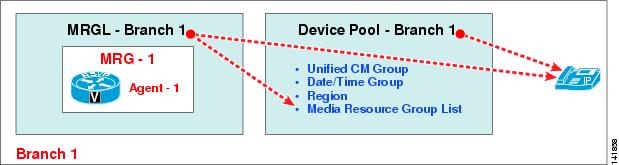

The Cisco RSVP Agent can be associated to the endpoint device by a combination of the device pool, media resource group (MRG), and media resource group list (MRGL) configurations. The Cisco RSVP Agent can be included in an MRG, and the MRG can be part of an MRGL. The MRGL can be assigned to the endpoint device either directly or via the device pool. As illustrated in Figure 9-14, MRGL-Branch 1 can be associated to the IP phone either directly or via Device Pool-Branch 1. As a general rule, assign the MRGL directly to the endpoint device if the endpoint device requires an unique set of media resources; otherwise, assign the MRGL to the device pool in which the endpoint device is located.
Figure 9-14 Assigning a MRGL to an IP Phone
Unified CM allocates the Cisco RSVP Agent in the same way it allocates other conventional media resources including MTP, transcoder, conferencing resource, and annunciator.
Cisco recommends that you do not configure the Cisco RSVP Agent in the same MRG with other conventional media resources. Doing so could cause the Cisco RSVP Agent to be allocated for any call in need of an MTP device even though the call is not RSVP related.

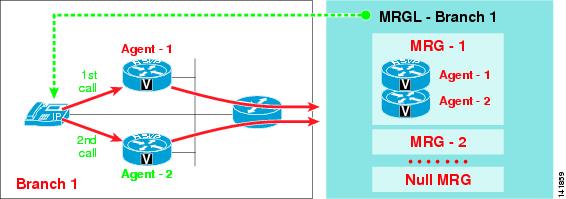

Figure 9-15 shows how Cisco RSVP Agent load balancing is implemented via the MRG and MRGL configurations. For all the Cisco RSVP Agents within the same MRG, Unified CM load-balances and allocates the Cisco RSVP Agents in a round-robin fashion.
Figure 9-15 Cisco RSVP Agent Load Balancing
As Figure 9-15 illustrates, if both Cisco RSVP Agents in MRG-1 are available, Agent-1 will be selected for the first call and Agent-2 will be selected for the second call. If neither of the Cisco RSVP Agents in MRG-1 is available, Unified CM will try to search through MRG-2, MRG-3, and the rest of the MRGs until it finds a suitable Cisco RSVP Agent for the call. Any Cisco RSVP Agent that is not explicitly included in an MRG will be included in the Null MRG by default. Note that the Null MRG is always implicitly included as the last MRG in any MRGL configurations, but it is not displayed in Unified CM Administration. The Cisco RSVP Agent in the Null MRG is accessible by any endpoint devices in the Unified CM cluster. Therefore, Cisco recommends that you always configure a Cisco RSVP Agent in an MRG. For details on Unified CM's media resource allocation process and the associated best practices, see Media Resources, page 6-1.
Cisco RSVP Agent Registration
The Cisco RSVP Agent registers with Unified CM as an MTP or transcoder device with RSVP support. The Cisco RSVP Agent does not have transcoding capability when registering as an MTP device. To have transcoding capability, the Cisco RSVP Agent must register with Unified CM as a transcoder device.
Registration Switchover and Switchback
If the primary Unified CM fails, the Cisco RSVP Agent switches over to the secondary Unified CM. When the primary Unified CM recovers from the failure, the Cisco RSVP Agent switches its registration back to the primary Unified CM. Use the following commands to configure the Cisco RSVP Agent registration switchover and switchback:
sccp ccm groupswitchover method immediateswitchback method guard timeout 7200!gatewaytimer receive-rtp 180•
•
•
Maximum Sessions Support
The Cisco RSVP Agent supports a maximum number of calls or sessions, based on the software-based (CPU) and hardware-based (DSP) resources equipped on the Cisco RSVP Agent router. The maximum sessions command in the dspfarm profile configuration mode specifies the maximum number of calls that the Cisco RSVP Agent is able to handle. The Cisco RSVP Agent notifies Unified CM of its session capacity based on this configuration. The maximum number of sessions decreases by one for every call going through the Cisco RSVP Agent. When the counter reaches zero, the Cisco RSVP Agent is regarded as having no resources available, and Unified CM skips that Cisco RSVP Agent for any subsequent calls.

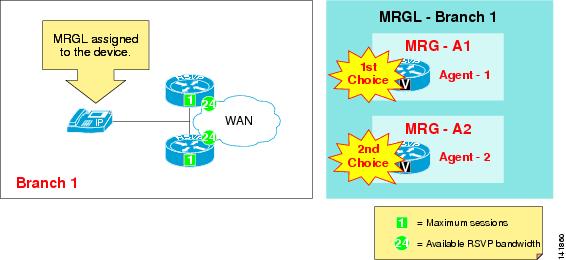

Figure 9-16 shows a branch site with dual Cisco RSVP Agents. The Cisco RSVP Agents are co-resident with the WAN routers, and Cisco RSVP Agent redundancy is achieved by assigning two Cisco RSVP Agents to different MRGs in the same MRGL. If Agent-1 in MRG-1 is unavailable or out of session capacity, Unified CM will try to allocate Agent-2 in MRG-2 for RSVP calls to or from Branch 1. To ensure that Agent-2 is selected when Agent-1's capacity is reached, Cisco recommends configuring the maximum number of sessions to match exactly the number of calls supported by the ip rsvp bandwidth configured on the WAN interface of the Cisco RSVP Agent. In this example, both Cisco RSVP Agents need to be configured with maximum sessions 1. This recommendation is made on the assumption that all calls going across the WAN will use the same type of codec so that an accurate calculation of the number of calls across the WAN can be derived, which is done by dividing the total available RSVP bandwidth by the bandwidth requested per call.
Note
Figure 9-16 Configuring Maximum Sessions on the Cisco RSVP Agent
Pass-Through Codec
The pass-through codec enables a Cisco IOS Enhanced MTP device to terminate an RTP media stream received from an endpoint without knowing the media encoding of the stream. That is, the UDP packets of the media stream flow through the MTP without being decoded. This method enables the MTP to support every audio, video, and data codec that is defined in Unified CM. Because the MTP does not decode the media stream, the pass-through codec can also be used with encrypted (SRTP) media streams. In fact, for video and SRTP media streams to use an MTP, it must support the pass-through codec. When configured with the pass-through codec, the Cisco RSVP Agent will substitute its own IP address for the source IP address in the IP/UDP headers of the packets and let them flow through.
The Cisco RSVP Agent will use the pass-through codec only if all of the following conditions are met:
•
•
•
Note
The following example shows an Cisco RSVP Agent configuration on a Cisco 2800 IOS platform:
interface Loopback0ip address 10.11.1.100 255.255.255.255!sccp local Loopback0sccp ccm 20.11.1.50 identifier 1 priority 1 version 5.0.1sccp ccm 20.11.1.51 identifier 2 priority 2 version 5.0.1sccp!sccp ccm group 1associate ccm 1 priority 1associate ccm 2 priority 2associate profile 1 register RSVPAgentswitchover method immediateswitchback method guard timeout 7200!dspfarm profile 1 mtpcodec pass-throughcodec g729ar8rsvpmaximum sessions software 100associate application SCCPRSVP Policy
Unified CM can apply different RSVP policies to different location pairs. The RSVP policy can be configured in Unified CM Administration. The RSVP policy defines whether or not Unified CM will admit the call if the RSVP reservation attempt fails. The following RSVP policy settings can be configured between any two locations:
•
No RSVP reservation attempt is made, and only static-locations call admission control is performed by Unified CM.
•
Unified CM does not ring the terminating endpoint device until the RSVP reservation succeeds for the audio stream and, if the call is a video call, for the video stream as well.
•
A video call can proceed as an audio-only call if a reservation for the video stream cannot be reserved but the reservation for the audio stream succeeds.
•
A call can proceed as a best-effort audio-only call if it fails to obtain reservations for both its audio and video streams. The Cisco RSVP Agent re-marks the media packets as best-effort.
•
The RSVP policy for the location pair matches the clusterwide RSVP policy. The default clusterwide RSVP policy is No Reservation. To change the default RSVP policy in Unified CM Administration, select System > Service Parameters > Cisco CallManager Service.> Default Inter-location RSVP Policy
Note

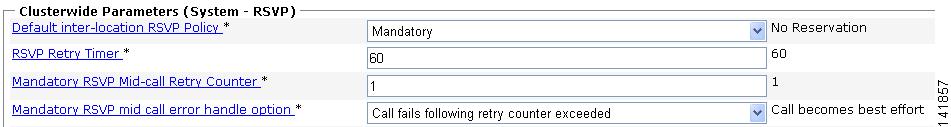

Figure 9-17 shows both the default and recommended configurations of the RSVP clusterwide parameters. Cisco recommends configuring the RSVP policy as Mandatory or Mandatory (Video Desired) because those settings guarantee the bandwidth reservation and the voice quality of the call. The most efficient method for setting the clusterwide RSVP policy is to configure the Default Inter-location RSVP Policy in the RSVP clusterwide parameters of the Cisco CallManager Service Service Parameter Configuration, and leave the RSVP configuration in the location configuration set to Use System Default.
Figure 9-17 Setting RSVP Clusterwide Parameters
In the clusterwide RSVP parameters configuration, there is a service parameter named Mandatory RSVP mid call error handle option. If the RSVP policy is configured as Mandatory or Mandatory (Video Desired), this parameter specifies how Unified CM will treat an existing RSVP call based on the failure of a mid-call RSVP reservation attempt. The mid-call RSVP reservation attempt can be triggered by (but is not limited to) a network convergence after a WAN failure or by an existing voice-only call becoming a video call. A network convergence makes the Cisco RSVP Agent not only start to send the media streams over the newly converged path but also to try to make a new RSVP reservation over the new path.
The default setting of the Mandatory RSVP mid call error handle option is Call Becomes Best Effort. With the default option configured, Unified CM will maintain the existing call even though the mid-call RSVP reservation attempt fails, but the RTP streams will be marked as best effort (DSCP 0). Cisco recommends configuring this parameter with the Call Fails Following Retry Counter Exceeded option. With this option configured, Unified CM will fail the call if the RSVP reservation attempt keeps failing after a certain number of retries. The default value of the retry counter is 1, which is defined by the RSVP Mandatory mid-call retry counter service parameter, and the default value of RSVP retry timer is 60 seconds. Cisco recommends having both the retry counter and the retry timer service parameters configured with their default values. With both set to their default values, Unified CM will wait for 60 seconds before it disconnects the call if the RSVP mid-call retry fails. During this period, users might experience degraded voice quality because no RSVP reservation is in place and the RTP streams are marked as best effort.
Migrating from Static Locations to RSVP Call Admission Control
The example in this section illustrates the best practices for migrating from the traditional static-locations call admission control to the RSVP-based call admission control mechanism.

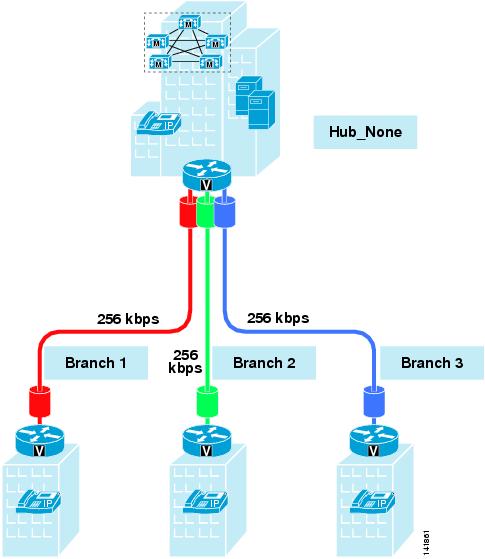

Figure 9-18 shows a centralized call processing deployment with the static-locations call admission control mechanism. There are four locations in the Unified CM cluster, including the Hub_None location and three branches. For simplicity of illustration, the bandwidth used in this example refers only to the voice stream bandwidth. Table 9-4 and Table 9-5 show that every branch location is statically provisioned with 256 kbps of bandwidth, and the Hub_None location is provisioned with Unlimited bandwidth. The RSVP setting between any pair of locations is configured with Use System Default, and the clusterwide RSVP setting is configured with the default value No Reservation.
Figure 9-18 Configuration with Static Locations for Call Admission Control
Table 9-4 Locations and Bandwidth Settings for the Example in Figure 9-18
Hub_None
Unlimited
Branch 1
256 kbps
Branch 2
256 kbps
Branch 3
256 kbps
Table 9-5 RSVP Policy for the Example in Figure 9-18
Any
Any
No Reservation
To migrate to RSVP-based call admission control, Cisco recommends migrating one location at a time. For example, if Branch 1 is the first location to be migrated, observe the following procedures:
•
•
•
•
Table 9-6 and Table 9-7 show the location bandwidth and RSVP policy configuration after the migration at Branch 1.
Table 9-6 Locations and Bandwidth Settings After Migration of Branch 1
Hub_None
Unlimited
Branch 1
Unlimited
Branch 2
256 kbps
Branch 3
256 kbps
Table 9-7 RSVP Policy After Migration of Branch 1
Branch 1
Any
Mandatory
All other locations
All other locations
No Reservation
Table 9-8 and Table 9-9 show the location bandwidth and RSVP policy configurations after the clusterwide migration. With the clusterwide migration completed, any inter-site call will require a RSVP reservation to be made directly between two Cisco RSVP Agents, and the voice stream will be transported over the bandwidth reservation path.
The following procedures can be used to migrate Branch 2 and Branch 3 to RSVP call admission control:
•
•
•
•
•
•
Table 9-8 Locations and Bandwidth Settings After Migration Is Complete
Hub_None
Unlimited
Branch 1
Unlimited
Branch 2
Unlimited
Branch 3
Unlimited
RSVP Application ID
The RSVP Application ID is a mechanism that enables Unified CM to add an identifier to both the voice and video traffic so that the Cisco RSVP Agent can set a separate bandwidth limit on either traffic based on the identifier received. To deploy the RSVP Application ID in the network, you must use Cisco IOS Release 12.4(6)T or later on the Cisco RSVP Agent router and Cisco Unified CM Release 5.0. The RSVP Application ID strings can be configured via two service parameters in the clusterwide RSVP parameter configuration: RSVP Audio Application ID and RSVP Video Application ID.
Unified CM uses SCCP to convey the RSVP Application ID to the Cisco RSVP Agent. The Cisco RSVP Agent also inserts the RSVP Application ID into the RSVP signaling messages (such as the RSVP Path and Resv messages) and sends those messages to the downstream or upstream RSVP routers.
The RSVP Application ID uses a model to separate the bandwidth of voice and video traffic that is different than the static locations model. In static locations, the voice and video streams of a video call are both deducted from the video bandwidth counter. When using the RSVP Application ID, the voice stream is deducted from the audio bandwidth pool while the video stream is deducted from the video bandwidth pool. With this change in the call admission control model, you can now reserve a certain amount of bandwidth for voice calls and allow them to use the entire available bandwidth in the priority queue, thus ensuring that all the available bandwidth can be used for voice calls if no video calls are in progress. If there is enough available bandwidth in the priority queue, calls can optionally be enabled for video. You can set limits on how much bandwidth the video-enabled calls can consume, but if voice calls are consuming all the available bandwidth, it might not be possible to place a video call at all. For detailed information on how to configure the RSVP Application ID, RSVP policy, and LLQ, see RSVP Application ID, page 3-47.
Cisco IOS Gatekeeper and IP-to-IP Gateway with RSVP
The Cisco Multiservice IP-to-IP Gateway (also referred to as IP-IP gateway or IPIPGW) can be used to ease the restriction of hub-and-spoke topologies for the IP WAN connections between Unified CM clusters and/or H.323 gateways.
This Cisco IOS feature provides a mechanism to enable H.323 Voice over IP (VoIP) and videoconferencing calls from one IP network to another. The main purpose of the IP-IP gateway is to provide a control point and a demarcation for VoIP and video calls traversing administrative domains. This gateway performs most of the same functions of a PSTN-to-IP gateway, but typically joins two IP call legs rather than a PSTN and an IP call leg.
The most interesting feature of the IP-IP gateway in an enterprise IP Communications environment is that it can generate an RSVP reservation for each call that traverses it. As described in the section on Topology-Aware Call Admission Control, RSVP is a network-based signaling protocol that provides a topology-aware call admission control mechanism that does not require a hub-and-spoke topology but works with any network topology.
Note
As a consequence, you can perform call admission control over any IP WAN topology by inserting two IP-IP gateways in the call flow and enabling RSVP between them. Figure 9-19 shows a basic example where two sites, A and B, each have a Unified CM cluster and are connected via an IP WAN that has an arbitrary topology. An IP-IP gateway is also located at each site, and the two Unified CM clusters are configured so that all inter-site calls are routed via a trunk that points to the local IP-IP gateway. When a call is set up between Site A and Site B, the following events occur:
•
•
•
•
Figure 9-19 Simple Example of the IP-to-IP Gateway for RSVP Call Admission Control
The example in Figure 9-19 is a simple scenario in which all calls between Unified CM clusters are routed via a pair of IP-IP gateways. However, in many re
