PAWS Management administrative interface basics

---

PAWS Management administrative interface overview

The PAWS-M administrative interface allows you to start upgrades for Cisco Unified Presence, Cisco Unified Communications Manager, and Cisco Unity Connection. It allows you to configure the server inventory for the system as well as select, schedule, and monitor upgrades of one or more servers across one or more clusters. In the PAWS-M administrative interface, you can also create groups of servers to help manage multiple clients and applications. From the administrative interface, you can schedule restarts for servers and schedule tasks for switching to the active version (active partition).

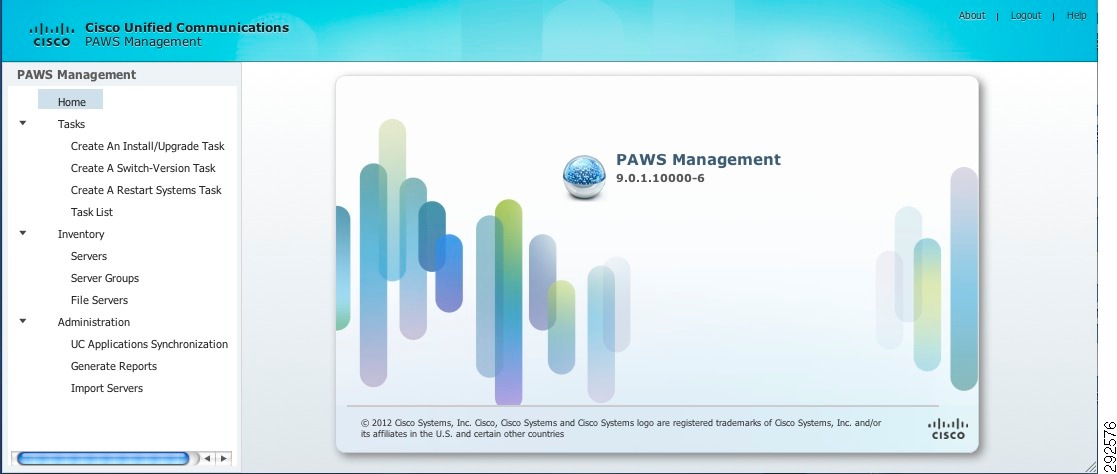

Figure 1. PAWS-M administrative interface

Browser support

From any user PC in your network, you can browse into a server that is running the Cisco PAWS-M administrative interface and log in with administrative privileges.

Tip	The Cisco PAWS-M administrative interface does not support the buttons in your browser. Do not use the browser buttons (for example, the Back button) when you perform configuration tasks.

Chrome

This table outlines the compatibility of Chrome versions by operating system for Cisco PAWS-M.

Table 1 Compatibility of Chrome versions by operating system

Version	Windows OS - Windows XP	Windows OS - Win 7 (32 and 64 bit)	Apple OS	Linux OS	Google Chrome OS
Chrome 13	Supported	Supported	Supported	Not supported	Not supported
Chrome 14	Supported	Supported	Supported	Not supported	Not supported
Chrome 15	Supported	Supported	Supported	Not supported	Not supported
Chrome 16	Supported	Supported	Supported	Not supported	Not supported

Firefox

This table outlines the compatibility of Firefox versions by operating system for Cisco PAWS-M.

Table 2 Compatibility of Firefox versions by operating system

Version	Windows OS - Windows XP	Windows OS - Win 7 (32 and 64 bit)	Apple OS	Linux OS	Google Chrome OS
Firefox 4.0	Supported	Supported	Supported	Not supported	Not supported
Firefox 5.0	Supported	Supported	Supported	Not supported	Not supported
Firefox 6.0	Supported	Supported	Supported	Not supported	Not supported
Firefox 7.0	Supported	Supported	Supported	Not supported	Not supported

Internet Explorer

This table outlines the compatibility of Internet Explorer versions by operating system for Cisco PAWS-M.

Table 3 Compatibility of Internet Explorer versions by operating system

Version	Windows OS - Windows XP	Windows OS - Win 7 (32 and 64 bit)	Apple OS	Linux OS	Google Chrome OS
IE 8	Supported	Supported	Not supported	Not supported	Not supported
IE 9*	Not supported	Supported	Not supported	Not supported	Not supported

Opera

Opera is not supported with Cisco PAWS-M.

Safari

This table outlines the compatibility of Safari versions by operating system for Cisco PAWS-M.

Table 4 Compatibility of Internet Explorer versions by operating system

Version	Windows OS - Windows XP	Windows OS - Win 7 (32 and 64 bit)	Apple OS	Linux OS	Google Chrome OS
Safari 5	Not supported	Not supported	Supported	Not supported	Not supported
Safari 5.1	Not supported	Not supported	Supported	Not supported	Not supported

Login and logout

Note	Simultaneous login by a large number of administrators can cause performance issues with the interface, so try to limit the number of administrators that are logged in simultaneously.

Note	For security purposes, the Cisco PAWS-M administrative interface logs you out after 30 minutes of inactivity, and you must log back in.

Use this procedure to log in to the Cisco PAWS-M administrative interface:

Procedure

---

Step 1	To log in, start your preferred operating system browser. In the address bar of the web browser, enter this case-sensitive URL: https://<name of Cisco PAWS-M platform> where <name of the Cisco PAWS-M platform> equals the name or IP address that you specified for the Cisco PAWS-M platform during installation.
Step 2	At the main Cisco PAWS-M login page, enter the username and password that you specified during Cisco PAWS-M installation or changed after the installation.
Step 3	Click Login. To log out, click Logout in the upper right corner of the Cisco PAWS-M administrative interface. The page displays with the login fields.

---

Online help

Each page in the Cisco PAWS-M administrative interface provides online help for the settings on that page. To access the online help for the page, click the Help option in the upper right corner of the page.

The online help does not provide all of the information that is available in this guide. Review this guide before you perform configuration tasks in the Cisco PAWS-M administrative interface.

Interface version

To identify the version of the Cisco PAWS-M administrative interface, click About in the upper right corner of the page or click Home in the administrative interface. To close the About page, click x.

Accessibility

The Cisco PAWS-M administrative interface provides functionality that allows you to access buttons on the page without using a mouse. You can perform the following procedures from any point on the page, so you do not have to scroll or tab through various fields.

• Access icons
• Access buttons

Access icons

Many of the pages in the Cisco PAWS-M administrative interface include icons that display at the top of the page; for example, an icon for filter or last updated. To access these icons, perform this procedure:

Procedure

---

Step 1	Press Alt, press 1; then, press Tab. The cursor will highlight the first icon from the left. To move to the next icon, press Tab again.
Step 2	Press Enter. The system performs the function of the icon; for example, Filter.

---

Access buttons

Many of the pages in the Cisco PAWS-M administrative interface have buttons that display; for example, a button for Save. To access these buttons, perform this procedure:

Procedure

---

Step 1	Press Alt, press 2, and then press Tab. The cursor highlights the first button from the left. To move to the next button, press Tab again.
Step 2	Press Enter. The function of the button gets performed; for example, Save.

---
