Provisioning Basic SS7 Configurations

Revised: May 7, 2007

This chapter describes the provisioning process for the Cisco ITP and BTS 10200 Softswitch for Shared Point Code and Mated STP-Pair configurations and contains the following sections:

•ITP AS and ASP Configuration Example

•Mated STP-Pair Configuration Example

•Shared Point Code Configuration Example

ITP AS and ASP Configuration Example

The IETF SIGTRAN standard defines how a signaling gateway, such as the Cisco ITP, routes traffic from the SS7 service provider towards a SIGTRAN enabled IP end point, such as the Cisco BTS 10200 Softswitch. This section provides a basic example and diagram for configuring an application server (AS) and application server process (ASP) on the ITP. Please refer to Figure 2-1 when reading this example.

The following components are configured in this example:

•Routing Key—A set of SS7 parameters, such as DPC, OPC, SI, CIC range, and SSN, that uniquely define the range of signaling traffic to be handled by a particular application server (AS).

•Routing Context—A value that uniquely defines a routing key.

•Application Server (AS)—A logical entity serving a specific routing key. An example of an application server is a switch element handling all call processing for a unique range of SS7 network trunks, identified by an SS7 SI, DPC, OPC, Subsystem, and CIC-range. The AS will contain two application server processes, one of which is actively processing traffic. Note that there is a one-to-one relationship between an AS and a routing key.

•Application Server Process (ASP)—An active or standby process instance of an application server (in the BTS, it is either the active or standby BTS signaling gateway adapter or TCAP signaling adapter software process). An ASP is defined by its SCTP endpoint information (two IP addresses and port) and may be configured to process signaling traffic within more than one application server.

SCTP Provisioning

Provisioning SCTP Associations M3UA Layer

The SIGTRAN M3UA layer transmits ISUP messages between the BTS 10200 Softswitch and the ITP. This is accomplished by provisioning the BTS 10200 Softswitch with a platform-id of CAXXX, usually CA146, and with a remote IP port number for M3UA, generally 2905. You can configure another port number, as long as the port number is also configured on the ITP when the M3UA service is defined. The local port number that the BTS uses for M3UA communication is usually 11146, which was chosen as part of the BTS port naming convention.

Provisioning SCTP Associations SUA Layer for LNP and 800 Services

The SIGTRAN SUA layer is utilized to handle LNP and 800 services between the BTS feature server (FSAIN) and the ITP. This is accomplished by provisioning the BTS FSAIN with a platform-id of FSXXX , usually FSAIN205, and with the remote IP port number 14001. You can configure another port number, as long as the port number is also configured on the ITP when the SUA service is defined. The local port number that the BTS uses for FSAIN communication is usually 12205, which was chosen as part of the BTS port naming convention.

Provisioning SCTP Association SUA Layer for ACAR and CNAM Services

The SIGTRAN SUA layer is also utilized to handle automatic callback and automatic recall (ACAR) and calling name delivery (CNAM) services between the BTS feature server (FSPTC) and the ITP. This is accomplished by provisioning the BTS FSPTC with a platform-id of FSXXX (usually FSPTC235) and with remote IP port number 14001. You can configure another port number as long as the port number is also configured on the ITP when the SUA service is defined. The local port number that the BTS uses for FSPTC communication is usually 12235 , which was chosen as part of the BTS port naming convention.

Configuring SCTP Parameters

The SCTP timers on the BTS and the ITP side need to be aligned properly for failure detection. Parameters such as rto-min, rto-max, and max-path-retrans should be the same on both sides of the SCTP association. If they are not the same, each side will have its own retransmit interval and will determine there is a network failure at different times. The bundle-timeout should be tuned when a guaranteed round-trip time is needed.

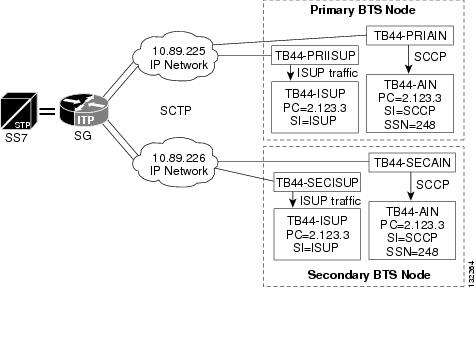

Figure 2-1 Configuring an AS and ASP on the ITP

Cisco ITP Configuration

The following ASP configuration defines the primary side TSA process on FSAIN. TB44-PRIAIN is the variable name of the ASP, 12205 is the remote (Cisco BTS 10200 Softswitch) port number, 14001 is the local (Cisco ITP) port number, and SCCP User Adaptation (SUA) defines the layer 3 SIGTRAN protocol that is utilized to transfer information to the ASP. In this definition, there are also the two IP addresses of the Cisco BTS10200 Softswitch that the TSA process on FSAIN uses for SUA communication.

! The following defines the local port defined for M3UA traffic on ITP

cs7 m3ua 2905

 local-ip 10.89.225.200

 local-ip 10.89.226.200


! The following defines the local port defined for SUA traffic on ITP

cs7 sua 14001

 local-ip 10.89.225.200

 local-ip 10.89.226.200


cs7 asp TB44-PRIAIN 12205 14001 sua

 remote-ip 10.89.225.234

 remote-ip 10.89.226.234

!

! The following configuration defines information for the secondary side TSA process on
FSAIN.

!

cs7 asp TB44-SECAIN 12205 14001 sua

 remote-ip 10.89.225.235

 remote-ip 10.89.226.235

!

! The following configuration defines an ASP that uses M3UA to transfer information to
! the ASP. This configuration is for the primary side SGA process.

!

cs7 asp TB44-PRIISUP 11146 2905 m3ua

 remote-ip 10.89.225.234

 remote-ip 10.89.226.234

!

! The following configuration is for the secondary side SGA process.

!

cs7 asp TB44-SECISUP 11146 2905 m3ua

 remote-ip 10.89.225.235

 remote-ip 10.89.226.235

!

! The AS configuration defines the routing key, which defines a filter for the traffic
! that will be sent towards the associated ASPs. The filter is based on parameters within
! incoming messages from the SS7 network, such as DPC, OPC, CIC range, service
! indicator, and SSN.

! The following line of the AS configuration defines an AS name of TB44-ISUP and also
! says that the AS is defined for M3UA.

!

cs7 as TB44-ISUP m3ua

!

! The following line defines the routing key. It is identified by a routing context value
! of 1. It also includes a DPC value of 2.1.3 (which is the BTS OPC). The next parameter

! in the routing key is the service indicator, SI ISUP. This means that when a layer 4 SS7
! message (such as an ISUP message) is received from the SS7 network, if the DPC in the
! MTP3 header is 2.1.3 and the SI indicates ISUP,  it will be processed by this AS.

!

routing-key 1 2.1.3 si isup

!

! The following lines of the AS configuration defines the two associated ASPs. These
! represent the active and standby BTS processes, one of which will actually do the
! processing.

!

asp TB44-PRIISUP

asp TB44-SECISUP

!

! The following line of the AS configuration indicates that override mode is being used
! for this AS. Either ASP TB44- PRIISUP or ASP TB44-SECISUP will process the
! traffic (as opposed to a load-share mode, which is not supported).

!

traffic-mode override

!

! Note that network-appearance is set to 1. This was a work around for BTS release 4.4 and
! should not be provisioned at all in release 4.5.

network-appearance 1

! The following AS definition is for processing AIN traffic. Instead of defining M3UA
! as the SIGTRAN protocol, which is used to communicate with this AS, SUA is
! the defined protocol. In addition to the DPC and SI definitions in the routing key
! definition, an SSN value of 248 is also used to further refine the filter.

!

cs7 as TB44-AIN sua

routing-key 2 2.1.3 si sccp ssn 248

 asp TB44-SECAIN

 asp TB44-PRIAIN

 traffic-mode override

 network-appearance 1

 !

Overlapping AS Configurations

The following AS configuration example is similar to the one in the previous subsection but has more information in the routing key definition.

In the following AS configuration, the routing key has a routing context value of 10. The routing key defined DPC value is 2.1.3. The routing key also defines an OPC value of 3.50.3. This OPC has a mask value of 255.255.255, which means all bits of the OPC will be considered when routing. It defines an SI of ISUP and a CIC range of 1 to 23. Therefore, this AS will route messages towards ASP PRI_ISUP_BTS2 or SEC_ISUP_BTS2, if the message has the following criteria: the DPC is 2.1.3, the OPC is 3.50.3, the service indicator is ISUP, and the CIC range is between 1 and 23.

Note that the network-appearance is set to 1. This is valid for BTS release 4.4 and should not be provisioned at all in release 4.5.

!

cs7 as ISUP_BTS1 m3ua

routing-key 10 2.1.3 opc 3.50.3 255.255.255 si isup cic 1 23

asp PRI_ISUP_BTS2

asp SEC_ISUP_BTS2

traffic-mode override

 network-appearance 1

!

This AS (ISUP_BTS1) and the AS of the previous section (TB44-ISUP) both route ISUP messages from the SS7 network that have DPC values of 2.1.3. The ITP routes towards the ASP that matches best when the DPC in the incoming ISUP message is 2.1.3. ISUP_BTS1 requires that four parameters from the incoming SS7 message match its routing key. TB44-ISUP only requires that two parameters match. If all four parameters of routing-key 10 match, then ISUP_BTS1 will be chosen. If only three parameters of routing-key 10 match, then routing key 1 is a better match, and TB44-ISUP will be chosen to process the message.

GTT Configuration

When an ITP pair is connected to a service provider's network using a Mated STP-Pair configuration, the ITP pair can be used as an STP pair. In this case, GTT can be performed on the ITP. The GTT table needs to be populated for remote subsystems and preserved as part of the start-up configuration. For additional information on populating the ITP GTT table, refer to the following URL:

http://www.cisco.com/en/US/products/sw/wirelssw/ps1862/index.html.

Extra steps are needed to save it in the flash and have the startup procedure load it from the flash. The following is an example procedure:

Step 1 On ITP1, add the GTT entry in the global config mode:

cs7 gtt selector acar_sel

gta 469255 pcssn 1.1.30 pcssn ssn 251

gta 469256 pcssn 1.1.31 pcssn ssn 251

Step 2 On ITP1, save the GTT table in the privileged enable mode:

cs7 save gtt-table flash:gttdata.txt

Step 3 On ITP1, save the configuration:

copy run start

Step 4 Swap the flash card between ITP1 and ITP2.

Step 5 On ITP2, load the GTT table in the global config mode:

cs7 gtt load flash:gttdata.txt

Step 6 Swap the flash card between ITP1 and ITP2.

Step 7 On ITP2, save the GTT table in the privileged enable mode:

cs7 save gtt-table flash:gttdata.txt

Step 8 On ITP2, save the configuration:

copy run start

Cisco BTS 10200 Softswitch Configuration

Each of the following configuration examples include BTS10200 example provisioning that is related to the associated profile. For a complete description of provisioning SS7 related objects on the Cisco BTS 10200 Softswitch, please refer to the following URL:

http://www.cisco.com/univercd/cc/td/doc/product/voice/bts10200/bts4_1/provgd/41_ss7.htm

The DSCP is now configured in the ca-config table. For information about the SCTP-DSCP token, refer to the Command Line Interface Guide (http://www.cisco.com/univercd/cc/td/doc/product/voice/bts10200/bts4_5/cli/clicallp.pdf).

Mated STP-Pair Configuration Example

A Mated STP-Pair configuration is used to access the SS7 service provider network signaling transfer point (STP), usually using SS7 D- links, although A-links can also be used to connect to an SEP in the network. With a Mated STP-Pair configuration, ITPs support GTT, and geographical separation is available.

This section provides an example and diagram for a basic Mated STP-Pair configuration. Please refer to Figure 2-2 when reading this example.

Note The ITP configuration may vary slightly depending on the ITP platform.

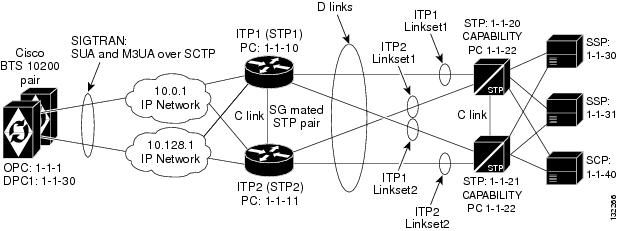

Figure 2-2 Mated STP-Pair Configuration

Cisco ITP Configuration

ITP1 Configuration

ITP1 is the first ITP in the sg-pair (each ITP in the sg-pair functions as an STP).

Current configuration : 3470 bytes

!

version 12.2

service timestamps debug datetime msec

service timestamps log datetime msec

no service password-encryption

!

hostname ITP1

!

boot-start-marker

boot system flash c2600-itp-mz.topsail_s_nightly_040915

boot-end-marker

!

redundancy inter-device

!

enable secret 5 $1$XCoU$j0Y2wFRoks2pocHa1gHhi0

enable password cisco

!

memory-size iomem 20

ip subnet-zero

!

ip domain-name cisco.com

ip name-server 10.0.0.6

!

!
! Note that for the Mated STP-Pair configuration (SG Mated Pair), the local
! point code value is 1.1.10, which is different than the BTS OPC and the other ITP (ITP1)
! that makes up the SG Mated Pair.
!

cs7 variant ANSI

cs7 point-code 1.1.10

!

controller E1 0/0

 framing NO-CRC4

 channel-group 0 timeslots 1

!

controller E1 0/1

 framing NO-CRC4

 channel-group 0 timeslots 1

!

controller E1 0/2

 shutdown

!

controller E1 0/3

 shutdown

!

interface Serial0/0:0

 description connect to link 0 of STP 1-1-20

 no ip address

 encapsulation mtp2

 no clns route-cache

!

interface Serial0/1:0

 description connect to link 0 of STP 1-1-21

 no ip address

 encapsulation mtp2

 no clns route-cache


interface FastEthernet0/0

 ip address 10.0.1.54 255.255.0.0

 speed auto

 half-duplex

 no clns route-cache

!

interface FastEthernet0/1

 ip address 10.128.1.239 255.255.0.0

 speed auto

 half-duplex

 no clns route-cache

!

!
! In the Mated STP-Pair configuration, instead of defining a cs7 group, as is done in
! the Shared Point Code configuration, a "local-peer" and "mated-sg" are defined. Here,
! we define the local-peer, which is the local definition for the C-link connection
! between the two ITPs that make up the redundant STP pair.
!

cs7 local-peer 7000

 local-ip 10.0.1.54

 local-ip 10.128.1.239

!
! Linkset definitions. Note that the number after 'link' represents SLC.
!

cs7 linkset lset1chn 1.1.20

 link 0 Serial0/0:0

!

cs7 linkset lset2chn 1.1.21

 link 0 Serial0/1:0

!
! C-link linkset definition. Here the point code value and IP information for
! the mated-sg is defined. Note that the local IP information is defined in
! the local-peer definition above.
!

cs7 linkset c-link 1.1.11

 link 0 sctp 10.0.1.55 10.128.1.240 7000 7000

!
! SS7 Route Definitions
!
! In the following entries, note the following:
! 1) All of the routes towards all DPCs are configured with equal priority when using
lset1chn or
!      lset2chn.
! 2) There are lower priority routes towards each destination across the c-link.
! 3) Routing towards the capability PC of the adjacent STPs is treated as if the capabilty
       PC is a DPC beyond the STP.
!

cs7 route-table system

 update route 1.1.30 255.255.255 linkset lset1chn priority 1

 update route 1.1.30 255.255.255 linkset lset2chn priority 1

 update route 1.1.31 255.255.255 linkset lset1chn priority 1

 update route 1.1.31 255.255.255 linkset lset2chn priority 1

 update route 1.1.40 255.255.255 linkset lset2chn priority 1

 update route 1.1.40 255.255.255 linkset lset1chn priority 1

!
! Lower priority C-link routes
!

update route 1.1.30 255.255.255 linkset c-link priority 2

 update route 1.1.31 255.255.255 linkset c-link priority 2

 update route 1.1.40 255.255.255 linkset c-link priority 2

!
! Routing to capability point codes of adjacent STPs
!

update route 1.1.22 255.255.255 linkset lset1chn priority 1

update route 1.1.22 255.255.255 linkset lset2chn priority 1

!
! With the mated-sg (Mated STP-Pair configuration), you must also define a connection
! between the ITPs to pass SIGTRAN specific state information and other data.
! This is done by defining the local IP information in the "cs7 sgmp" configuration
! and the peer IP information in the "cs7 mated-sg" configuration.
!

cs7 sgmp 9101

 local-ip 10.0.1.54

 local-ip 10.128.1.239

!

cs7 mated-sg ITP2 9101

 remote-ip 10.0.1.55

 remote-ip 10.128.1.240

!
! The M3UA definition that declares local IP addresses and port number
!

cs7 m3ua 2905

 local-ip 10.0.1.54

 local-ip 10.128.1.239

 keepalive 2000

!
! Here, as with all configurations, there are a minimum of two ASPs defined
! for each AS, one for the primary BTS node and one for the Secondary.
! In reality, there will be at least one for each user part on the BTS10200,
! so if you have a TCAP service going over SUA and ISUP traffic, you will
! have a total of at least four ASPs: primary ISUP, secondary ISUP, primary
! TCAP service, and secondary TCAP service.
!
!
! 2905 is the local port value. The remote IP addresses are the BTS IP addresses.
! They are also obtained through the fully-qualified domain name (FQDN) that is an SGA
command line argument.
!

cs7 asp PriCaIsupAsp 11146 2905 m3ua

 remote-ip 10.0.1.5

 remote-ip 10.128.1.2

!

cs7 asp SecCaIsupAsp 11146 2905 m3ua

 remote-ip 10.0.1.6

 remote-ip 10.128.1.3

!
! Note that the routing key is a very simple one. It has a routing context of 1
! defined, the DPC (BTS OPC) of 1.1.1 defined, and a service indicator of ISUP defined.
! This means that all traffic coming from the SS7 service provider network that has
! a DPC of 1.1.1 and a service indicator of ISUP will be sent to either PrimaryBtsIsupAsp
! or SecondaryBtsIsupAsp (depending on which one is active).
!
! The traffic mode is always set to override (not loadshare), as with the current
implementation, only the override application server traffic mode is supported. In the
case of override-traffic mode, the reception of ASP active messages at the SGP causes the
redirection of all traffic for the AS to the ASP that sent the ASP active message.
!
! In Cisco BTS 10200 Softswitch software release 4.4 only, there is a work around that
! requires network-appearance to be configured with a value of 1. In Cisco BTS 10200
! Softswitch release 4.5, this work-around is removed and network-appearance should not
! be provisioned on the ITP.
!

cs7 as CaIsupAs m3ua

 routing-key 1 1.1.1 si isup

 asp PriCaIsupAsp

 asp SecCaIsupAsp

 traffic-mode override

 network-appearance 1

!
! The SUA definition that declares local IP addresses and port number
!

cs7 sua 14001

 local-ip 10.0.1.54

 local-ip 10.128.1.239

 keepalive 2000

!
! Here we are defining an ASP that will process AIN related traffic.
!

cs7 asp PrimFsAinAsp 12205 14001 sua

 remote-ip 10.0.1.5

 remote-ip 10.128.1.2

!

cs7 asp SecFsAinAsp 12205 14001 sua

 remote-ip 10.0.1.6

 remote-ip 10.128.1.3

!

cs7 asp PriFsPtcAsp 12235 14001 sua

 remote-ip 10.0.1.5

 remote-ip 10.128.1.2

!

cs7 asp SecFsPtcAsp 12235 14001 sua

 remote-ip 10.0.1.6

 remote-ip 10.128.1.3

!

!
! The following AS is defined for LNP related message flows. The routing context
! value is 4, the DPC (BTS OPC) is 1.1.1, the service indicator is SCCP and the
! subsystem number is 247. This means that any message received from the SS7
! service provider that has a DPC of 1.1.1, a service indicator of SCCP and an
! SSN of 247 will be sent to either PrimaryBtsAinAsp or SecondaryBtsAinAsp
! (depending on which one is active).
!

cs7 as FsAinLnpAs sua

 routing-key 4402 1.1.1 si sccp ssn 247

 asp PriFsAinAsp

 asp SecFsAinAsp

 traffic-mode override

!

cs7 as FsAin800TAs sua

 routing-key 4404 1.1.1 si sccp ssn 254

 asp PriFsAinAsp

 asp SecFsAinAsp

 traffic-mode override

!

cs7 as FsAin800AAs sua

 routing-key 4403 1.1.1 si sccp ssn 248

 asp PriFsAinAsp

 asp SecFsAinAsp

 traffic-mode override

!

cs7 as FsPtcCnamAs sua

 routing-key 4404 1.1.1 si sccp ssn 232

 asp PriFsPtcAsp

 asp SecFsPtcAsp

 traffic-mode override

!

cs7 as FsPtcAcarAs sua

 routing-key 4405 1.1.1 si sccp ssn 251

 asp PriFsPtcAsp

 asp SecFsPtcAsp

 traffic-mode override

!

cs7 gtt load flash:gttdata.txt

!

ITP2 Configuration

ITP2 is the second ITP in the sg-pair (each ITP in the sg-pair functions as an STP). For the ITP2 configuration, please refer to the comments that were made in the ITP1 configuration.

Current configuration : 4054 bytes

!

version 12.2

service timestamps debug datetime msec

service timestamps log datetime msec

no service password-encryption

!

hostname ITP2

!

boot-start-marker

boot system flash 2600/c2600-itp-mz.topsail_s_nightly_040915

boot-end-marker

!

redundancy inter-device

!

enable secret 5 $1$B6u2$gI4fFgjOQo5XppDSWJDfI.

enable password cisco

!

!

memory-size iomem 10

ip subnet-zero

!

ip domain-name cisco.com

ip name-server 10.0.0.6

!

cs7 variant ANSI

!
! Note that for the Mated STP-Pair configuration (SG Mated Pair) configuration, the local
! point code value is 1.1.11, which is different than the BTS OPC and the other ITP (ITP1)
! that makes up the SG Mated Pair.
!

cs7 point-code 1.1.11

!

controller E1 0/0

 framing NO-CRC4

 channel-group 0 timeslots 1

!

controller E1 0/1

 framing NO-CRC4

 channel-group 0 timeslots 1

!

controller E1 0/2

 shutdown

!

controller E1 0/3

 shutdown

!

interface FastEthernet0/0

 ip address 10.0.1.55 255.255.0.0

 speed auto

 half-duplex

 no clns route-cache

!

interface FastEthernet0/1

 ip address 10.128.1.240 255.255.0.0

 speed auto

 half-duplex

 no clns route-cache

!

interface Serial0/0:0

 description connect to link 1 of STP 1-1-20

 no ip address

 encapsulation mtp2

 no clns route-cache


interface Serial0/1:0

 description connect to link 1 of STP 1-1-21

 no ip address

 encapsulation mtp2

 no clns route-cache

!

!
! local-peer definition
!

cs7 local-peer 7000

 local-ip 10.0.1.55

 local-ip 10.128.1.240

!

!
! Linkset definitions. Note that the number after 'link' represents SLC.
!

cs7 linkset lset1chn 1.1.20

 link 1 Serial0/0:0

!

cs7 linkset lset2chn 1.1.21

 link 1 Serial0/1:0

!

!
! C-link linkset definition.
!

cs7 linkset c-link 1.1.10

 link 0 sctp 10.0.1.54 10.128.1.239 7000 7000

!

cs7 route-table system

 update route 1.1.30 255.255.255 linkset lset1chn priority 1

 update route 1.1.30 255.255.255 linkset lset2chn priority 1

 update route 1.1.31 255.255.255 linkset lset1chn priority 1

 update route 1.1.31 255.255.255 linkset lset2chn priority 1

 update route 1.1.40 255.255.255 linkset lset2chn priority 1

 update route 1.1.40 255.255.255 linkset lset1chn priority 1

!
! C-link routes
!

 update route 1.1.30 255.255.255 linkset c-link priority 2

 update route 1.1.31 255.255.255 linkset c-link priority 2

 update route 1.1.40 255.255.255 linkset c-link priority 2

!
! Routing to capabilitypoint codes of adjacent STPs
!

update route 1.1.22 255.255.255 linkset lset1chn priority 1

update route 1.1.22 255.255.255 linkset lset2chn priority 1


!

cs7 sgmp 9101

 local-ip 10.0.1.55

 local-ip 10.128.1.240

!

cs7 mated-sg ITP1 9101

 remote-ip 10.0.1.54

 remote-ip 10.128.1.239

cs7 m3ua 2905

 local-ip 10.0.1.55

 local-ip 10.128.1.240

!

cs7 asp PriCaIsupAsp 11146 2905 m3ua

 remote-ip 10.0.1.5

 remote-ip 10.128.1.2

!

cs7 asp SecCaIsupAsp 11146 2905 m3ua

 remote-ip 10.0.1.6

 remote-ip 10.128.1.3

!

cs7 as CaIsupAs m3ua

 routing-key 1 1.1.1 si isup

 asp PriCaIsupAsp

 asp SecCaIsupAsp

 traffic-mode override

 network-appearance 1

!

cs7 sua 14001

 local-ip 10.0.1.55

 local-ip 10.128.1.240

 keepalive 2000

!

cs7 asp PriFsAinAsp 12205 14001 sua

 remote-ip 10.0.1.5

 remote-ip 10.128.1.2

!

cs7 asp SecFsAinAsp 12205 14001 sua

 remote-ip 10.0.1.6

 remote-ip 10.128.1.3

!

cs7 asp PriFsPtcAsp 12235 14001 sua

 remote-ip 10.0.1.5

 remote-ip 10.128.1.2

!

cs7 asp SecFsPtcAsp 12235 14001 sua

 remote-ip 10.0.1.6

 remote-ip 10.128.1.3

!

cs7 as FsAinLnpAs sua

 routing-key 4402 1.1.1 si sccp ssn 247

 asp PriFsAinAsp

 asp SecFsAinAsp

 traffic-mode override

!

cs7 as FsAin800TAs sua

 routing-key 4401 1.1.1 si sccp ssn 254

 asp PriFsAinAsp

 asp SecFsAinAsp

 traffic-mode override

!

cs7 as FsAin800AAs sua

 routing-key 4403 1.1.1 si sccp ssn 248

 asp PriFsAinAsp

 asp SecFsAinAsp

 traffic-mode override

!

cs7 as FsPtcCnamAs sua

 routing-key 4404 1.1.1 si sccp ssn 232

 asp PriFsPtcAsp

 asp SecFsPtcAsp

 traffic-mode override

!

cs7 as FsPtcAcarAs sua

 routing-key 4405 1.1.1 si sccp ssn 251

 asp PriFsPtcAsp

 asp SecFsPtcAsp

 traffic-mode override

!

cs7 gtt load flash:gttdata.txt

!

Cisco BTS10200 Provisioning for a Mated STP-Pair Configuration

The local IP addresses and port are determined by command line arguments that are passed to the SGA process and TSA processes when they start up. An example SGA command line is:

Args=-t 1 -h crit-aSYS11CA.ipclab.cisco.com -p 11146 -mdldir ../mdl -mdltracedir
../mdltrace -mdltestmode 0 -mdlloadmdo 0 -mdltriggertimer 200 -mdlgarbagetimer 5146
-resetcics 1 -fcmtimer 900 -fcmparalleljobs 4

In this list of arguments, the -h argument: crit-aSYS11CA.ipclab.cisco.com, is a fully qualified domain name (FQDN) that resolves to two local IP addresses. In most cases, the FQDN can be viewed in the /etc/hosts file. To determine the IP addresses to which the FQDN resolves, type nslookup <FQDN>.

The following example configures the Cisco BTS 10200 Softswitch in the Mated STP-Pair Configuration.

###################################################################
# CA Configuration
################################################################

add ca-config type=MGCP-INIT-TERMS;value=160;datatype=integer;

add ca-config type=MGCP-INIT-DURATION;value=5;datatype=integer;

add ca-config type=MGCP-ICMP-PING-RETRANSMIT-DURATION;value=5;datatype=integer;

add ca-config type=MGCP-ICMP-PING-RETRY-COUNT;value=5;datatype=integer;

add ca-config type=MGCP-MAX-UNREACH-COUNT;value=5;datatype=integer;

add ca-config type=MGCP-MAX-FAULT-COUNT;value=5;datatype=integer;

add ca-config type=MGCP-ADM-RESP-TIME;value=300;datatype=integer;

add ca-config type=MGCP-SIG-TOS-LOWDELAY;value=Y;datatype=boolean;

add ca-config type=MGCP-SIG-TOS-PRECEDENCE;value=1;datatype=integer;

add ca-config type=MGCP-SIG-TOS-RELIABILITY;value=Y;datatype=boolean;

add ca-config type=MGCP-SIG-TOS-THROUGHPUT;value=Y;datatype=boolean;

#
# CA & FS
#

add call-agent id=CA146; tsap-addr-sidea=hrn11ca; mgw-monitoring-enabled=N;

add feature-server id=FSAIN205; tsap-addr-sidea=hrn11ca:11205; type=AIN;

add feature-server id=FSPTC235; tsap-addr-sidea=hrn11ca:11235; type=PTC;

#
# SIGTRAN components
#

add user-part-variant id=ANSISS7_GR317;

#
# Note for the Mated STP-Pair configuration, there are two SGs defined for redundancy.
# They are essentially mated STPs. This is different than the A, F, or E link
# configurations, which derive redundancy at the SGP level.
#

add sg id=sg1; description=Signaling gateway 1;

add sg id=sg2; description=Signaling gateway 2;

#
# In the Mated STP-Pair configuration The SG-GRP has two SGs defined in the SG-GRP. The
# A,F, and E link configurations must only have one SG defined in an SG-GRP.
#

add sg-grp id=sg-grp1; sg1-id=sg1; sg2-id=sg2 description=SG group 1;


#
# In the Mated STP-Pair configuration, there is only one SGP per SG. Note that the
# two SGPs defined here have a one-to-one correspondence to the SGs that were
# defined above. This is in contrast to the A,F, and E link configurations,
# which must have two SGPs per SG.
#

add sgp id=sg1-sgp1 ; sg-id=sg1; description=SG process 1 for sg1;

add sgp id=sg2-sgp1 ; sg-id=sg2; description=SG process 1 for sg2;


add opc id=opc1; point-code=1-1-1; description=OPC; point-code-type=ANSI_CHINA;

add dpc id=dpc1; point-code=1-1-30; description=DPC 1; point-code-type=ANSI_CHINA;

add dpc id=dpc2; point-code=1-1-31; description=DPC 2; point-code-type=ANSI_CHINA;

#
# The ISUP routing keys

#

add routing-key id=rk1; opc-id=opc1; sg-grp-id=sg-grp1; si=ISUP; rc=1; platform-id=CA146;


add call-ctrl-route id=dpc1-route1; dpc-id=dpc1; routing-key-id=rk1; si=isup;
user-part-variant-id= ANSISS7_GR317

add call-ctrl-route id=dpc2-route1; dpc-id=dpc2; routing-key-id=rk1; si=isup;
user-part-variant-id= ANSISS7_GR317;


add sctp-assoc-profile id=sctp-prof;


#
# The SCTP associations
# Note that the chosen id name in this statement reflects the fact that this is the
# SCTP association for SGP1 of SG1
#

add sctp-assoc id=sg1-sgp1-sctp; sgp-id=sg1-sgp1; sctp-assoc-profile-id=sctp-prof;
platform-id=CA146; remote-port=2905; remote-tsap-addr1=10.0.1.54;
remote-tsap-addr2=10.128.1.239; ip-tos-precedence=ROUTINE;


add sctp-assoc id=sg2-sgp1-sctp; sgp-id=sg2-sgp1; sctp-assoc-profile-id=sctp-prof;
platform-id=CA146; remote-port=2905; remote-tsap-addr1=10.0.1.55;
remote-tsap-addr2=10.128.1.240; dip-tos-precedence=ROUTINE;


#
# Dial plan profile
#

add digman-profile id=pretrans;

add digman id=pretrans; rule=1; match-string=^*; replace-string=&; match-noa=any;
replace-noa=VSC;

add digman id=pretrans; rule=2; match-string=^#; replace-string=&; match-noa=any;
replace-noa=VSC;

add digman-profile id=ani_20;

add digman id=ani_20; rule=1; match-string=^20; replace-string=none;

add dial-plan-profile id=dp-1; nanp-dial-plan=Y; description=NA dial plan profile;
dnis-digman-id=pretrans; ani-digman-id=ani_20;

#
# SS7 TG
#

add ss7-ansi-tg-profile ID=ansi-tg-prof;

add trunk-grp ID=1; call_agent_id=CA146; tg_type=SS7; direction=BOTH;
tg_profile_id=ansi-tg-prof; call-ctrl-route-id=dpc1-route1; dial-plan-id=dp-1;
description=TG to DPC 1;  MGCP_PKG_TYPE=T;

add trunk-grp ID=2; call_agent_id=CA146; tg_type=SS7; direction=BOTH;
tg_profile_id=ansi-tg-prof; call-ctrl-route-id=dpc2-route1; dial-plan-id=dp-1;
description=TG to DPC 2;  MGCP_PKG_TYPE=T;

#
# MGW
#

add mgw-profile id=as5300-prof; vendor=Cisco; mgcp-hairpin-supp=n; MGCP_RSIPSTAR_SUPP=N;
MGCP_TERM_INIT_LEVEL=0; RBK_ON_CONN_SUPP=N; MGCP_VERSION=MGCP_1_0; mgcp-max2-retries=3;
fax-t38-camode-supp=Y; mgcp-keepalive-interval=60; mgcp-keepalive-retries=10;
mgcp-t-tran=400; mgcp-max1-retries=2; mgcp-t-longtran=5; mgcp-default-pkg=NONE;
MGCP_3WAY_HSHAKE_SUPP=N; mgw_type=AS5300; PC_MPTIME_SUPP=N;


MGCP_VERSION=MGCP_1_0; PC_MPTIME_SUPP=N;

add mgw id=va-5350-23; tsap-addr=va-5350-23.hrndevtest.cisco.com; call-agent-id=CA146;
mgw-profile-id=as5300-prof; type=TGW;

#
# SS7 terminations and trunks
#

add termination prefix=S3/DS1-4/; port-start=1; port-end=31; type=trunk;
mgw-id=va-5350-23;

add termination prefix=S3/DS1-5/; port-start=1; port-end=31; type=trunk;
mgw-id=va-5350-23;

add trunk cic-start=1; cic-end=31; tgn-id=1; mgw-id=va-5350-23;
termination-prefix=S3/DS1-4/; termination-port-start=1; termination-port-end=31;

add trunk cic-start=1; cic-end=31; tgn-id=2; mgw-id=va-5350-23;
termination-prefix=S3/DS1-5/; termination-port-start=1; termination-port-end=31;

#
# SS7 routes, route guides and destinations
#

add route id=dpc1-route; tg_selection=RR; tgn1_id=1;

add route id=dpc2-route; tg_selection=RR; tgn1_id=2;

add route-guide id=dpc1-rg; policy-type=ROUTE; policy-id=dpc1-route;

add route-guide id=dpc2-rg; policy-type=ROUTE; policy-id=dpc2-route;

add destination dest-id=dpc1-dest; call-type=LOCAL; route-type=ROUTE;
route-guide-id=dpc1-rg;

add destination dest-id=dpc2-dest; call-type=LOCAL; route-type=ROUTE;
route-guide-id=dpc2-rg;


#
# TCAP/SUA provisioning for FSAIN, FSPTC
#

add sctp-assoc id=sg1-sgp1-sctp-ain; sgp-id=sg1-sgp1; sctp-assoc-profile-id=sctp-prof;
platform-id=FSAIN205; remote-port=14001; remote-tsap-addr1=10.0.1.54;
remote-tsap-addr2=10.128.1.239; ip-tos-precedence=ROUTINE;


add sctp-assoc id=sg2-sgp1-sctp-ain; sgp-id=sg2-sgp1; sctp-assoc-profile-id=sctp-prof;
platform-id=FSAIN205; remote-port=14001; remote-tsap-addr1=10.0.1.55;
remote-tsap-addr2=10.128.1.240; ip-tos-precedence=ROUTINE;


add sctp-assoc id=sg1-sgp1-sctp-ptc; sgp-id=sg1-sgp1; sctp-assoc-profile-id=sctp-prof;
platform-id=FSPTC235; remote-port=14001; remote-tsap-addr1=10.0.1.54;
remote-tsap-addr2=10.128.1.239; ip-tos-precedence=ROUTINE;


add sctp-assoc id=sg2-sgp1-sctp-ptc; sgp-id=sg2-sgp1; sctp-assoc-profile-id=sctp-prof;
platform-id=FSPTC235; remote-port=14001; remote-tsap-addr1=10.0.1.55;
remote-tsap-addr2=10.128.1.240; ip-tos-precedence=ROUTINE;



add sccp-nw id=1;NET_IND=NATIONAL;SUB_SVC=NATIONAL;HOP_COUNT=3;


add subsystem-profile id=SS_LNP;  platform-id=FSAIN205; description=LNP subsystem;

add subsystem-profile id=SS_800A; platform-id=FSAIN205; description=AIN 800 subsystem;

add subsystem-profile id=SS_800T; platform-id=FSAIN205; description=IN1 800 subsystem;

add subsystem-profile id=SS_CNAM; platform-id=FSAIN205; description=CNAM subsystem;

add subsystem-profile id=SS_ACAR; platform-id=FSPTC235; description=ACAR subsystem;


add subsystem id=SS_LNP;  opc-id=opc1; local-ssn=247; remote-ssn=247; sccp-nw-id=1;
SCCP_VERSION=ANS92; TCAP_VERSION=ANS92; APPLICATION_VERSION=AIN01;

add subsystem id=SS_800A; opc-id=opc1; local-ssn=248; remote-ssn=248; sccp-nw-id=1;
SCCP_VERSION=ANS92; TCAP_VERSION=ANS92; APPLICATION_VERSION=AIN01;

add subsystem id=SS_CNAM; opc-id=opc1; local-ssn=232; remote-ssn=232; sccp-nw-id=1;
SCCP_VERSION=ANS92; TCAP_VERSION=ANS92; APPLICATION_VERSION=IN1;

add subsystem id=SS_800T; opc-id=opc1; local-ssn=254; remote-ssn=254; sccp-nw-id=1;
SCCP_VERSION=ANS92; TCAP_VERSION=ANS92; APPLICATION_VERSION=IN1;

add subsystem id=SS_ACAR; opc-id=opc1; local-ssn=251; remote-ssn=251; sccp-nw-id=1;
SCCP_VERSION=ANS92; TCAP_VERSION=ANS92; APPLICATION_VERSION=IN1;


add routing-key id=rk_lnp;  opc-id=opc1; sg-grp-id=sg_grp1; si=SCCP; rc=4402;
PLATFORM_ID=FSAIN205; ssn-id=SS_LNP;

add routing-key id=rk_800a; opc-id=opc1; sg-grp-id=sg_grp1; si=SCCP; rc=4403;
PLATFORM_ID=FSAIN205; ssn-id=SS_800A;

add routing-key id=rk_cnam; opc-id=opc1; sg-grp-id=sg_grp1; si=SCCP; rc=4404;
PLATFORM_ID=FSAIN205; ssn-id=SS_CNAM;

add routing-key id=rk_800t; opc-id=opc1; sg-grp-id=sg_grp1; si=SCCP; rc=4401;
PLATFORM_ID=FSAIN205; ssn-id=SS_800T;

add routing-key id=rk_acar; opc-id=opc1; sg-grp-id=sg_grp1; si=SCCP; rc=4405;
PLATFORM_ID=FSPTC235; ssn-id=SS_ACAR;


#
# Provisioned DPC is the STP capability point code
#

add dpc id=stp_cap_pc; point-code=1-1-22; point-code-type=ANSI_CHINA;
description=Capability Point Code of STPs


add feature fname=LNP; feature-server-id=FSAIN205; description=Local number portability;
tdp1=COLLECTED_INFORMATION; tid1=LNP_TRIGGER; ttype1=R;


add ported-office-code digit-string=301-612; in-call-agent=n;


add CA-Config type=DEFAULT-LNP-SLHR-ID; datatype=string;  value=slhr_lnp;


add slhr-profile id=slhr_800t; description=Service Logic Host Routing Table for IN1 800
Service;

add slhr-profile id=slhr_lnp;  description=Service Logic Host Routing Table for AIN LNP
Service;

add slhr-profile id=slhr_800a; description=Service Logic Host Routing Table for AIN 800
Service;

add slhr-profile id=slhr_cnam; description=Service Logic Host Routing Table for IN1 CNAM
Service;

add slhr-profile id=slhr_acar; description=Service Logic Host Routing Table for ACAR
Service;


add slhr id=slhr_800t; opc-id=opc1; dpc-id=stp_cap_pc; ssn-id=SS_800T; gtt-req=Y; tt=254;
GTT_ADDR_TYPE=CDPN; GTT_ADDR=3;

add slhr id=slhr_lnp;  opc-id=opc1; dpc-id=stp_cap_pc; ssn-id=SS_LNP;  gtt-req=Y; tt=11;
GTT_ADDR_TYPE=CDPN; GTT_ADDR=3;

add slhr id=slhr_800a; opc-id=opc1; dpc-id=stp_cap_pc; ssn-id=SS_800A; gtt-req=Y; tt=8;
GTT_ADDR_TYPE=CDPN; GTT_ADDR=3;

add slhr id=slhr_cnam; opc-id=opc1; dpc-id=stp_cap_pc; ssn-id=SS_CNAM; gtt-req=Y; tt=5;
GTT_ADDR_TYPE=CLGN; GTT_ADDR=3;

add slhr id=slhr_acar; opc-id=opc1; dpc-id=stp_cap_pc; ssn-id=SS_ACAR; gtt-req=Y; tt=251;
GTT_ADDR_TYPE=CDPN; GTT_ADDR=10;


add sccp-route opc-id=opc1; dpc-id=stp_cap_pc; ssn-id=SS_800T; rk-id=rk_800t;

add sccp-route opc-id=opc1; dpc-id=stp_cap_pc; ssn-id=SS_800A; rk-id=rk_800a;

add sccp-route opc-id=opc1; dpc-id=stp_cap_pc; ssn-id=SS_LNP;  rk-id=rk_lnp;

add sccp-route opc-id=opc1; dpc-id=stp_cap_pc; ssn-id=SS_CNAM; rk-id=rk_cnam;

add sccp-route opc-id=opc1; dpc-id=stp_cap_pc; ssn-id=SS_ACAR; rk-id=rk_acar;


add sccp-route SSN_ID=SS_ACAR; OPC_ID=opc1; DPC_ID=dpc1; RK_ID=rk_acar

add sccp-route SSN_ID=SS_ACAR; OPC_ID=opc1; DPC_ID=dpc2; RK_ID=rk_acar


add pop ID=50901; STATE=tx; COUNTRY=US; TIMEZONE=CDT; LOCAL_7D_DIALING=Y; ITP=N;
ZERO_MINUS=LEC; BLOCK_EAWOPIC=Y; CNAM_OPTION=EXT_LIDB; PIC2_REQD=N; MY_LRN=4692559999;
TREAT_IMS_ANONYMOUS=N; OPC_ID=opc1; ZERO_PLUS_LOCAL=N


#
# Control network entities in-service for ANSI SS7
#

control trunk-grp id=1; mode=forced; target-state=ins;

control trunk-grp id=2; mode=forced; target-state=ins;

equip trunk-termination tgn-id=1; cic=all;

equip trunk-termination tgn-id=2; cic=all;

control trunk-termination tgn-id=1; cic=all; target-state=INS;  mode=FORCED;

control trunk-termination tgn-id=2; cic=all; target-state=INS;  mode=FORCED;

control sctp-assoc id=sg1-sgp1-sctp; mode=forced; target-state=INS;

control sctp-assoc id=sg2-sgp1-sctp; mode=forced; target-state=INS;

control sctp-assoc id=sg1-sgp1-sctp-ain; mode=forced; target-state=INS;

control sctp-assoc id=sg2-sgp1-sctp-ain; mode=forced; target-state=INS;

control sctp-assoc id=sg1-sgp1-sctp-ptc; mode=forced; target-state=INS;

control sctp-assoc id=sg2-sgp1-sctp-ptc; mode=forced; target-state=INS;

control subsystem id=SS_800T; opc-id=opc; target-state=UIS;  mode=FORCED;

control subsystem id=SS_LNP;  opc-id=opc; target-state=UIS;  mode=FORCED;

control subsystem id=SS_800A; opc-id=opc; target-state=UIS;  mode=FORCED;

control subsystem id=SS_CNAM; opc-id=opc; target-state=UIS;  mode=FORCED;

control subsystem id=SS_ACAR; opc-id=opc; target-state=UIS;  mode=FORCED;

#

# Status commands

#

#status trunk-grp id=1;

#status trunk-grp id=2;

#status trunk-termination tgn-id=1; cic=all;

#status trunk-termination tgn-id=2; cic=all;

#status sctp-assoc id=sg1-sgp1-sctp;

#status sctp-assoc id=sg2-sgp1-sctp;

#status sctp-assoc id=sg1-sgp1-sctp-ain;

#status sctp-assoc id=sg2-sgp1-sctp-ain;

#status sctp-assoc id=sg1-sgp1-sctp-ptc;

#status sctp-assoc id=sg2-sgp1-sctp-ptc;

#status subsystem id=SS_800T; opc-id=opc;

#status subsystem id=SS_LNP;  opc-id=opc;

#status subsystem id=SS_800A; opc-id=opc;

#status subsystem id=SS_CNAM; opc-id=opc;

#status subsystem id=SS_ACAR; opc-id=opc;

Shared Point Code Configuration Example

A basic Shared Point Code configuration is used when a customer wants an OPC of the BTS to be shared with a point code of the ITP. This usually occurs when the customer wants to access the SS7 service provider network using A-links. It provides a low cost yet fully hardware and network redundant solution. Cost reduction is accomplished by minimizing the number of point codes that are connected to the SS7 service provider network and by connecting via A-links rather than D-links, which require more setup and maintenance.

This section provides an example and diagram for the basic Shared Point Code configuration. Please refer to Figure 2-3 when reading this example.

Note The ITP configuration may vary slightly, depending on the ITP platform.

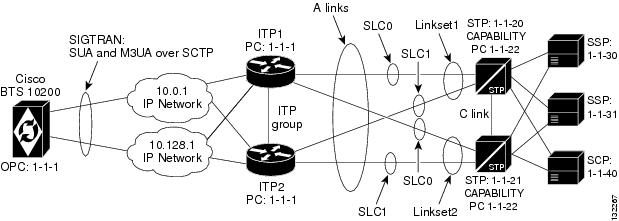

Figure 2-3 Shared Point Code Configuration

ITP Configuration

This section contains a configuration example for the basic Shared Point Code profile. For additional ITP configuration information, please refer to the ITP Configuration Guide at:

http://www.cisco.com/univercd/cc/td/doc/product/wireless/moblwrls/itp

Note When debugging the ITP, the version of the ITP should be noted so the associated ITP manual can be consulted.

ITP1 Configuration

This is the first ITP in the ITP group (the first SGP in the SG).

!

Current configuration : 3470 bytes

!

version 12.2

service timestamps debug datetime msec

service timestamps log datetime msec

no service password-encryption

!

hostname ITP1

!

boot-start-marker

boot system flash c2600-itp-mz.topsail_s_nightly_040915

boot-end-marker

!

redundancy inter-device

!

enable secret 5 $1$XCoU$j0Y2wFRoks2pocHa1gHhi0

enable password cisco

!

! Note that for the Shared Point Code configuration, ipc zone is provisioned to support
the link
! between two ITPs in the ITP-group.

!

ipc zone default

 association 1

  no shutdown

  protocol sctp

   local-port 9001

    local-ip 10.0.1.54

    local-ip 10.128.1.239

   remote-port 9000

    remote-ip 10.0.1.55

    remote-ip 10.128.1.240

!

memory-size iomem 20

ip subnet-zero

!

ip domain-name cisco.com

ip name-server 10.0.0.6

!

!
! Note that for the Shared Point Code (ITP-group/Distributed MTP) configuration, the local
! point code value is 1.1.1, which is the same as the BTS OPC.
!

cs7 variant ANSI

cs7 point-code 1.1.1

!

controller E1 0/0

 framing NO-CRC4

 channel-group 0 timeslots 1

!

controller E1 0/1

 framing NO-CRC4

 channel-group 0 timeslots 1

!

controller E1 0/2

 shutdown

!

controller E1 0/3

 shutdown

!

interface FastEthernet0/0

 ip address 10.0.1.54 255.255.0.0

 speed auto

 half-duplex

 no clns route-cache

!

interface Serial0/0:0

 description connect to link 0 of STP 1-1-20

 no ip address

 encapsulation mtp2

 no clns route-cache

!

interface FastEthernet0/1

 ip address 10.128.1.239 255.255.0.0

 speed auto

 half-duplex

 no clns route-cache

!

interface Serial0/1:0

 description connect to link 0 of STP 1-1-21

 no ip address

 encapsulation mtp2

 no clns route-cache

!

!
! Unlike the Mated STP-Pair configuration, which defines a local-peer and mated-sg for
! redundancy, for the Distributed  MTP3 feature Shared Point Code configuration, you
! define a cs7 group. This enables both ITPs in the ITP-group (or SGPs in the
! SG) to communicate with each other. In this configuration, you define the
! IP addresses and port values for both sides of the connection.
!

cs7 group grp-ITP1 9004

 local-ip 10.0.1.54

 local-ip 10.128.1.239

 peer grp-ITP2 9003

  remote-ip 10.0.1.55

  remote-ip 10.128.1.240

!

!
! Note here that when the linksets are defined, for redundancy, each linkset
! has links from each ITP in the ITP-group (or SGP in the SG).
!

cs7 linkset lset1chn 1.1.20

 link 0 grp-ITP1 Serial0/0:0

 link 1 grp-ITP2 Serial0/0:0

!

cs7 linkset lset2chn 1.1.21

 link 0 grp-ITP1 Serial0/1:0

 link 1 grp-ITP2 Serial0/1:0

!
! Note that unlike the Mated STP-Pair configuration, there are no low
! priority routes defined to the DPCs. This is because, in the ITP-group
! setup, the STPs view the combination of the two ITPs is as a single entity.
! The two SGPs form one SG. Therefore, there is no lower
! priority routes that travel across a C-link between the two
! ITPs like there is in the Mated STP-Pair configuration.
!

cs7 route-table system

 update route 1.1.30 255.255.255 linkset lset1chn priority 1

 update route 1.1.31 255.255.255 linkset lset2chn priority 1

 update route 1.1.30 255.255.255 linkset lset2chn priority 1

 update route 1.1.31 255.255.255 linkset lset1chn priority 1

 update route 1.1.40 255.255.255 linkset lset2chn priority 1

 update route 1.1.40 255.255.255 linkset lset1chn priority 1

!

! Routing to capability point codes of adjacent STPs

 update route 1.1.22 255.255.255 linkset lset1chn priority 1

 update route 1.1.22 255.255.255 linkset lset2chn priority 1

!

!
! The M3UA definition that declares local IP addresses and port
!

cs7 m3ua 2905

 local-ip 10.0.1.54

 local-ip 10.128.1.239

 keepalive 2000

!

!
! Here, as with all configurations, there are a minimum of two ASPs defined
! for each AS (one for the primary BTS node and one for the secondary BTS node).
! In reality, there will be at least one for each "user part" on the BTS10200.
! If you have a TCAP service going over SUA and ISUP traffic, you will
! have a total of at least four ASPs: primary ISUP, secondary ISUP, primary
! TCAP service, secondary TCAP service.
!
!2905 is the local port value. The remote IP addresses are the BTS IP addresses. They are
also obtained
! through the FQDN that is an SGA command line argument.
!

cs7 asp PriCaIsupAsp 11146 2905 m3ua

 remote-ip 10.0.1.5

 remote-ip 10.128.1.2

!

cs7 asp SecCaIsupAsp 11146 2905 m3ua

 remote-ip 10.0.1.6

 remote-ip 10.128.1.3

!

!

! The routing key is a very simple one. It has a routing context of 1 defined, the
! DPC (BTS OPC) of 1.1.1 defined, and a service indicator of ISUP defined.
! This means that all traffic coming from the SS7 service provider network that
! has a DPC of 1.1.1 and a service indicator of ISUP will be sent to either
PrimaryBtsIsupAsp or SecondaryBtsIsupAsp (depending on which one is active).
!
! The traffic mode is always set to override (not loadshare), as with the current
implementation, only the override application server traffic mode is supported. In the
case of override-traffic mode, the reception of ASP active messages at the SGP causes the
redirection of all traffic for the AS to the ASP that sent the ASP active message.


!

! In BTS release 4.4 only, there is a work around that mandates the network-appearance to
! be configured with a value of 1. In Cisco BTS 10200 Softswitch release 4.5, this work
around is removed and network-appearance should not be provisioned on the Cisco ITP.
!

cs7 as CaIsupAs m3ua

 routing-key 1 1.1.1 si isup

 asp PriCaIsupAsp

 asp SecCaIsupAsp

 traffic-mode override

 network-appearance 1

!

!

! This is the SUA definition that declares local IP addresses and port numbers.
!

cs7 sua 14001

 local-ip 10.0.1.54

 local-ip 10.128.1.239

 keepalive 2000

!

!
! Here we are defining an ASP that will process AIN related traffic.
! 14001 is the local port number.

!

!

cs7 asp PriFsAinAsp 12205 14001 sua

 remote-ip 10.0.1.5

 remote-ip 10.128.1.2

!

cs7 asp SecFSAinAsp 12205 14001 sua

 remote-ip 10.0.1.6

 remote-ip 10.128.1.3

!

!

! The following AS is defined for local number portability (LNP) related message flows.
! The routing context value is 4, the DPC (BTS OPC) is 1.1.1, the service indicator is
! SCCP and the subsystem number is 247. This means that any message received from the SS7
! service provider that has a DPC of 1.1.1, a service indicator of SCCP and an
! SSN of 247 will be sent to either PriFsAinAsp or SecFsAinAsp (depending
! on which one is active).

!

cs7 as FsAinLnpAs sua

 routing-key 4402 1.1.1 si sccp ssn 247

 asp PriFsAinAsp

 asp SecFsAinAsp

 traffic-mode override

   network-appearance 1


cs7 as FsAin800TAs sua

 routing-key 4401 1.1.1 si sccp ssn 254

 asp PriFsAinAsp

 asp SecFsAinAsp

 traffic-mode override

   network-appearance 1


cs7 as FsAin800AAs sua

 routing-key 4403 1.1.1 si sccp ssn 248

 asp PriFsAinAsp

 asp SecFsAinAsp

 traffic-mode override

   network-appearance 1


!

! Here we are defining an ASPs that will process FSPTC related traffic. 14001 is the local
! port number.

!


cs7 asp PriFsPtcAsp 12235 14001 sua

 remote-ip 10.0.1.5

 remote-ip 10.128.1.2

!

cs7 asp SecFsPtcAsp 12235 14001 sua

 remote-ip 10.0.1.6

 remote-ip 10.128.1.3

!

cs7 as FsPtcCnamAs sua

 routing-key 4404 1.1.1 si sccp ssn 232

 asp PriFsPtcAsp

 asp SecFsPtcAsp

 traffic-mode override


cs7 as FsPtcAcarAs sua

 routing-key 4405 1.1.1 si sccp ssn 251

 asp PriFsPtcAsp

 asp SecFsPtcAsp

 traffic-mode override


!

ITP2 Configuration

This is the second ITP in the ITP-Group (the second SGP in the SG). Please refer to the comments in the ITP1 Configuration section. The configuration in this section is similar to the ITP1 section, except for the ITP Group definition.

!

Current configuration : 4054 bytes

!

version 12.2

service timestamps debug datetime msec

service timestamps log datetime msec

no service password-encryption

!

hostname ITP2

!

boot-start-marker

boot system flash 2600/c2600-itp-mz.topsail_s_nightly_040915

boot-end-marker

!

redundancy inter-device

!

enable secret 5 $1$B6u2$gI4fFgjOQo5XppDSWJDfI.

enable password cisco

!

ipc zone default

 association 1

  no shutdown

  protocol sctp

   local-port 9000

    local-ip 10.0.1.55

    local-ip 10.128.1.240

   remote-port 9001

    remote-ip 10.0.1.54

    remote-ip 10.128.1.239

!

memory-size iomem 10

ip subnet-zero

!

ip domain-name cisco.com

ip name-server 10.0.0.6

!

cs7 variant ANSI

cs7 point-code 1.1.1

!

controller E1 0/0

 framing NO-CRC4

 channel-group 0 timeslots 1

!

controller E1 0/1

 framing NO-CRC4

 channel-group 0 timeslots 1

!

controller E1 0/2

 shutdown

!

controller E1 0/3

 shutdown

!

interface FastEthernet0/0

 ip address 10.0.1.55 255.255.0.0

 speed auto

 half-duplex

 no clns route-cache

!

interface Serial0/0:0

 description connect to link 1 of STP 1-1-20

 no ip address

 encapsulation mtp2

 no clns route-cache

!

interface FastEthernet0/1

 ip address 10.128.1.240 255.255.0.0

 speed auto

 half-duplex

 no clns route-cache

!

interface Serial0/1:0

 description connect to link 1 of STP 1-1-21

 no ip address

 encapsulation mtp2

 no clns route-cache

!

cs7 group grp-ITP2 9003

 local-ip 10.0.1.55

 local-ip 10.128.1.240

 peer grp-ITP1 9004

  remote-ip 10.0.1.54

  remote-ip 10.128.1.239

!

cs7 linkset lset1chn 1.1.20

 link 0 grp-ITP1 Serial0/0:0

 link 1 grp-ITP2 Serial0/0:0

!

cs7 linkset lset2chn 1.1.21

 link 0 grp-ITP1 Serial0/1:0

 link 1 grp-ITP2 Serial0/1:0

!

cs7 route-table system

 update route 1.1.30 255.255.255 linkset lset1chn priority 1

 update route 1.1.31 255.255.255 linkset lset2chn priority 1

 update route 1.1.30 255.255.255 linkset lset2chn priority 1

 update route 1.1.31 255.255.255 linkset lset1chn priority 1

 update route 1.1.40 255.255.255 linkset lset2chn priority 1

 update route 1.1.40 255.255.255 linkset lset1chn priority 1


! Routing to capability point codes of adjacent STPs

 update route 1.1.22 255.255.255 linkset lset1chn priority 1

 update route 1.1.22 255.255.255 linkset lset2chn priority 1


!

cs7 m3ua 2905

 local-ip 10.0.1.55

 local-ip 10.128.1.240

!

cs7 asp PriCaIsupAsp 11146 2905 m3ua

 remote-ip 10.0.1.5

 remote-ip 10.128.1.2

!

cs7 asp SecCaIsupAsp 11146 2905 m3ua

 remote-ip 10.0.1.6

 remote-ip 10.128.1.3

!

cs7 as CaIsupAs m3ua

 routing-key 2 1.1.1 si isup

 asp PriCaIsupAsp

 asp SecCaIsupAsp

 traffic-mode override

 network-appearance 1

!

!

! The SUA definition that declares local IP addresses and port #

!

cs7 sua 14001

 local-ip 10.0.1.54

 local-ip 10.128.1.239

 keepalive 2000

!

cs7 asp PriFsAinAsp 12205 14001 sua

 remote-ip 10.0.1.5

 remote-ip 10.128.1.2

!

cs7 asp SecFsAinAsp 12205 14001 sua

 remote-ip 10.0.1.6

 remote-ip 10.128.1.3

!

cs7 as FsAinLnpAs sua

 routing-key 4402 1.1.1 si sccp ssn 247

 asp PriFsAinAsp

 asp SecFsAinAsp

 traffic-mode override

 network-appearance 1



cs7 as FsAin800TAs sua

 routing-key 4401 1.1.1 si sccp ssn 254

 asp PriFsAinAsp

 asp SecFsAinAsp

 traffic-mode override

 network-appearance 1


!

cs7 as FsAin800AAs sua

 routing-key 4403 1.1.1 si sccp ssn 248

 asp PriFsAinAsp

 asp SecFsAinAsp

 traffic-mode override

 network-appearance 1

!

cs7 asp PriFsPtcAsp 12235 14001 sua

 remote-ip 10.0.1.5

 remote-ip 10.128.1.2

!

cs7 asp SecFsPtcAsp 12235 14001 sua

 remote-ip 10.0.1.6

 remote-ip 10.128.1.3

!

cs7 as FsPtcCnamAs sua

 routing-key 4404 1.1.1 si sccp ssn 232

 asp PriFsPtcAsp

 asp SecFsPtcAsp

 traffic-mode override


cs7 as FsPtcAcarAs sua

 routing-key 4405 1.1.1 si sccp ssn 251

 asp PriFsPtcAsp

 asp SecFsPtcAsp

 traffic-mode override

Cisco BTS 10200 Softswitch Provisioning for the Shared Point Code Configuration

The following example provisions the Cisco BTS 10200 Softswitch for a basic Shared Point Code configuration:

#####################################################################

#
# CA configuration
#

add ca-config type=MGCP-INIT-TERMS;value=160;datatype=integer;

add ca-config type=MGCP-INIT-DURATION;value=5;datatype=integer;

add ca-config type=MGCP-ICMP-PING-RETRANSMIT-DURATION;value=5;datatype=integer;

add ca-config type=MGCP-ICMP-PING-RETRY-COUNT;value=5;datatype=integer;

add ca-config type=MGCP-MAX-UNREACH-COUNT;value=5;datatype=integer;

add ca-config type=MGCP-MAX-FAULT-COUNT;value=5;datatype=integer;

add ca-config type=MGCP-ADM-RESP-TIME;value=300;datatype=integer;

add ca-config type=MGCP-SIG-TOS-LOWDELAY;value=Y;datatype=boolean;

add ca-config type=MGCP-SIG-TOS-PRECEDENCE;value=1;datatype=integer;

add ca-config type=MGCP-SIG-TOS-RELIABILITY;value=Y;datatype=boolean;

add ca-config type=MGCP-SIG-TOS-THROUGHPUT;value=Y;datatype=boolean;

#

# CA & FS configuration
#

add call-agent id=CA146; tsap-addr-sidea=hrn11ca; mgw-monitoring-enabled=N;

add feature-server id=FSAIN205; tsap-addr-sidea=hrn11ca:11205; type=AIN;

add feature-server id=FSPTC235; tsap-addr-sidea=hrn11ca:11235; type=PTC;

#
# SIGTRAN components
#

add user-part-variant id=ANSISS7_GR317;

#
# Unlike the Mated STP-Pair solution that requires two SG definitions for each SG-grp,
#Shared Point Code (Basic Distributed MTP3) solution requires that only one SG be
associated
# with the SG-grp. This is because redundancy in the Shared Point Code solution is at the
SGP
# level (not the SG level).
#

add sg id=sg1; description=Siganling gateway 1;

add sg-grp id=sg-grp1; sg1-id=sg1; description=SG group 1;

#
# Note that there are two SGP definitions per SG. This is in contrast to the
# Mated STP-Pair solution that only allows one SGP per SG. It is at the SGP level that
# the Shared Point Code/Distributed MTP3 solution provides hardware and IP network
# redundancy.
#

add sgp id=sg1-sgp1 ; sg-id=sg1; description=SG process 1 for sg1;

add sgp id=sg1-sgp2 ; sg-id=sg1; description=SG process 2 for sg1;


add opc id=opc1; point-code=1-1-1; description=OPC; point-code-type=ANSI_CHINA;

add dpc id=dpc1; point-code=1-1-30; description=DPC 1; point-code-type=ANSI_CHINA;

add dpc id=dpc2; point-code=1-1-31; description=DPC 2; point-code-type=ANSI_CHINA;

#
# The ISUP routing keys
#

add routing-key id=rk1; opc-id=opc1; sg-grp-id=sg-grp1; si=ISUP; rc=1; platform-id=CA146;


add call-ctrl-route id=dpc1-route1; dpc-id=dpc1; routing-key-id=rk1; si=isup;
user-part-variant-id= ANSISS7_GR317

add call-ctrl-route id=dpc2-route1; dpc-id=dpc2; routing-key-id=rk1; si=isup;
user-part-variant-id= ANSISS7_GR317;

#
# SCTP configuration for M3UA (ISUP)
#

add sctp-assoc-profile id=sctp-prof;

#
# Note that the id used in the add sctp-assoc statement reflects the fact that
# this is the SCTP association for SGP1 of SG1.
#

add sctp-assoc id=sg1-sgp1-sctp; sgp-id=sg1-sgp1; sctp-assoc-profile-id=sctp-prof;
platform-id=CA146; remote-port=2905; remote-tsap-addr1=10.0.1.54;
remote-tsap-addr2=10.128.1.239; ip-tos-precedence=ROUTINE;


add sctp-assoc id=sg1-sgp2-sctp; sgp-id=sg1-sgp2; sctp-assoc-profile-id=sctp-prof;
platform-id=CA146; remote-port=2905; remote-tsap-addr1=10.0.1.55;
remote-tsap-addr2=10.128.1.240; ip-tos-precedence=ROUTINE;


#
# Dial plan profile with digit manipulation
#

add digman-profile id=pretrans;

add digman id=pretrans; rule=1; match-string=^*; replace-string=&; match-noa=any;
replace-noa=VSC;

add digman id=pretrans; rule=2; match-string=^#; replace-string=&; match-noa=any;
replace-noa=VSC;

add digman-profile id=ani_20;

add digman id=ani_20; rule=1; match-string=^20; replace-string=none;

add dial-plan-profile id=dp-1; nanp-dial-plan=Y; description=NA dial plan profile;
dnis-digman-id=pretrans; ani-digman-id=ani_20;

#
# SS7 trunk group configuration
#

add ss7-ansi-tg-profile ID=ansi-tg-prof;

add trunk-grp ID=1; call_agent_id=CA146; tg_type=SS7; direction=BOTH;
tg_profile_id=ansi-tg-prof; call-ctrl-route-id=dpc1-route1; dial-plan-id=dp-1;
description=TG to DPC 1;  MGCP_PKG_TYPE=T;

add trunk-grp ID=2; call_agent_id=CA146; tg_type=SS7; direction=BOTH;
tg_profile_id=ansi-tg-prof; call-ctrl-route-id=dpc2-route1; dial-plan-id=dp-1;
description=TG to DPC 2;  MGCP_PKG_TYPE=T;

#
# MGW configuration
#

add mgw-profile id=as5300-prof; vendor=Cisco; mgcp-hairpin-supp=n; MGCP_RSIPSTAR_SUPP=N;
MGCP_TERM_INIT_LEVEL=0; RBK_ON_CONN_SUPP=N; MGCP_VERSION=MGCP_1_0; mgcp-max2-retries=3;
fax-t38-camode-supp=Y; mgcp-keepalive-interval=60; mgcp-keepalive-retries=10;
mgcp-t-tran=400; mgcp-max1-retries=2; mgcp-t-longtran=5; mgcp-default-pkg=NONE;
MGCP_3WAY_HSHAKE_SUPP=N; mgw_type=AS5300; PC_MPTIME_SUPP=N;

MGCP_VERSION=MGCP_1_0; PC_MPTIME_SUPP=N;

add mgw id=va-5350-23; tsap-addr=va-5350-23.hrndevtest.cisco.com; call-agent-id=CA146;
mgw-profile-id=as5300-prof; type=TGW;

#
# SS7 terminations and trunks
#

add termination prefix=S3/DS1-4/; port-start=1; port-end=31; type=trunk;
mgw-id=va-5350-23;

add termination prefix=S3/DS1-5/; port-start=1; port-end=31; type=trunk;
mgw-id=va-5350-23;

add trunk cic-start=1; cic-end=31; tgn-id=1; mgw-id=va-5350-23;
termination-prefix=S3/DS1-4/; termination-port-start=1; termination-port-end=31;

add trunk cic-start=1; cic-end=31; tgn-id=2; mgw-id=va-5350-23;
termination-prefix=S3/DS1-5/; termination-port-start=1; termination-port-end=31;

#
# SS7 routes, route guides and destinations
#

add route id=dpc1-route; tg_selection=RR; tgn1_id=1;

add route id=dpc2-route; tg_selection=RR; tgn1_id=2;

add route-guide id=dpc1-rg; policy-type=ROUTE; policy-id=dpc1-route;

add route-guide id=dpc2-rg; policy-type=ROUTE; policy-id=dpc2-route;

add destination dest-id=dpc1-dest; call-type=LOCAL; route-type=ROUTE;
route-guide-id=dpc1-rg;

add destination dest-id=dpc2-dest; call-type=LOCAL; route-type=ROUTE;
route-guide-id=dpc2-rg;

#
# 	TCAP/SUA provisioning for FSAIN, FSPTC
#

add sctp-assoc id=sg1-sgp1-sctp-ain; sgp-id=sg1-sgp1; sctp-assoc-profile-id=sctp-prof;
platform-id=FSAIN205; remote-port=14001; remote-tsap-addr1=10.0.1.54;
remote-tsap-addr2=10.128.1.239; ip-tos-precedence=ROUTINE;


add sctp-assoc id=sg1-sgp2-sctp-ain; sgp-id=sg2-sgp1; sctp-assoc-profile-id=sctp-prof;
platform-id=FSAIN205; remote-port=14001; remote-tsap-addr1=10.0.1.55;
remote-tsap-addr2=10.128.1.240; ip-tos-precedence=ROUTINE;


add sctp-assoc id=sg1-sgp1-sctp-ptc; sgp-id=sg1-sgp1; sctp-assoc-profile-id=sctp-prof;
platform-id=FSPTC235; remote-port=14001; remote-tsap-addr1=10.0.1.54;
remote-tsap-addr2=10.128.1.239; ip-tos-precedence=ROUTINE;


add sctp-assoc id=sg1-sgp2-sctp-ptc; sgp-id=sg2-sgp1; sctp-assoc-profile-id=sctp-prof;
platform-id=FSPTC235; remote-port=14001; remote-tsap-addr1=10.0.1.55;
remote-tsap-addr2=10.128.1.240; ip-tos-precedence=ROUTINE;



add sccp-nw id=1;NET_IND=NATIONAL;SUB_SVC=NATIONAL;HOP_COUNT=3;


add subsystem-profile id=SS_LNP;  platform-id=FSAIN205; description=LNP subsystem;

add subsystem-profile id=SS_800A; platform-id=FSAIN205; description=AIN 800 subsystem;

add subsystem-profile id=SS_800T; platform-id=FSAIN205; description=IN1 800 subsystem;

add subsystem-profile id=SS_CNAM; platform-id=FSAIN205; description=CNAM subsystem;

add subsystem-profile id=SS_ACAR; platform-id=FSPTC235; description=ACAR subsystem;


add subsystem id=SS_LNP;  opc-id=opc1; local-ssn=247; remote-ssn=247; sccp-nw-id=1;
SCCP_VERSION=ANS92; TCAP_VERSION=ANS92; APPLICATION_VERSION=AIN01;

add subsystem id=SS_800A; opc-id=opc1; local-ssn=248; remote-ssn=248; sccp-nw-id=1;
SCCP_VERSION=ANS92; TCAP_VERSION=ANS92; APPLICATION_VERSION=AIN01;

add subsystem id=SS_CNAM; opc-id=opc1; local-ssn=232; remote-ssn=232; sccp-nw-id=1;
SCCP_VERSION=ANS92; TCAP_VERSION=ANS92; APPLICATION_VERSION=IN1;

add subsystem id=SS_800T; opc-id=opc1; local-ssn=254; remote-ssn=254; sccp-nw-id=1;
SCCP_VERSION=ANS92; TCAP_VERSION=ANS92; APPLICATION_VERSION=IN1;

add subsystem id=SS_ACAR; opc-id=opc1; local-ssn=251; remote-ssn=251; sccp-nw-id=1;
SCCP_VERSION=ANS92; TCAP_VERSION=ANS92; APPLICATION_VERSION=IN1;


add routing-key id=rk_lnp;  opc-id=opc1; sg-grp-id=sg_grp1; si=SCCP; rc=4402;
PLATFORM_ID=FSAIN205; ssn-id=SS_LNP;

add routing-key id=rk_800a; opc-id=opc1; sg-grp-id=sg_grp1; si=SCCP; rc=4403;
PLATFORM_ID=FSAIN205; ssn-id=SS_800A;

add routing-key id=rk_cnam; opc-id=opc1; sg-grp-id=sg_grp1; si=SCCP; rc=4404;
PLATFORM_ID=FSAIN205; ssn-id=SS_CNAM;

add routing-key id=rk_800t; opc-id=opc1; sg-grp-id=sg_grp1; si=SCCP; rc=4401;
PLATFORM_ID=FSAIN205; ssn-id=SS_800T;

add routing-key id=rk_acar; opc-id=opc1; sg-grp-id=sg_grp1; si=SCCP; rc=4405;
PLATFORM_ID=FSPTC235; ssn-id=SS_ACAR;


#
# Provisioned DPC is the STP capability point code (alias point code)
#

add dpc id=stp_cap_pc; point-code=1-1-22; point-code-type=ANSI_CHINA;
description=Capability Point Code of STPs


add feature fname=LNP; feature-server-id=FSAIN205; description=Local number portability;
tdp1=COLLECTED_INFORMATION; tid1=LNP_TRIGGER; ttype1=R;


add ported-office-code digit-string=301-612; in-call-agent=n;


add CA-Config type=DEFAULT-LNP-SLHR-ID; datatype=string;  value=slhr_lnp;


add slhr-profile id=slhr_800t; description=Service Logic Host Routing Table for IN1 800
Service;

add slhr-profile id=slhr_lnp;  description=Service Logic Host Routing Table for AIN LNP
Service;

add slhr-profile id=slhr_800a; description=Service Logic Host Routing Table for AIN 800
Service;

add slhr-profile id=slhr_cnam; description=Service Logic Host Routing Table for IN1 CNAM
Service;

add slhr-profile id=slhr_acar; description=Service Logic Host Routing Table for ACAR
Service;


add slhr id=slhr_800t; opc-id=opc1; dpc-id=stp_cap_pc; ssn-id=SS_800T; gtt-req=Y; tt=254;
GTT_ADDR_TYPE=CDPN; GTT_ADDR=3;

add slhr id=slhr_lnp;  opc-id=opc1; dpc-id=stp_cap_pc; ssn-id=SS_LNP;  gtt-req=Y; tt=11;
GTT_ADDR_TYPE=CDPN; GTT_ADDR=3;

add slhr id=slhr_800a; opc-id=opc1; dpc-id=stp_cap_pc; ssn-id=SS_800A; gtt-req=Y; tt=8;
GTT_ADDR_TYPE=CDPN; GTT_ADDR=3;

add slhr id=slhr_cnam; opc-id=opc1; dpc-id=stp_cap_pc; ssn-id=SS_CNAM; gtt-req=Y; tt=5;
GTT_ADDR_TYPE=CLGN; GTT_ADDR=3;

add slhr id=slhr_acar; opc-id=opc1; dpc-id=stp_cap_pc; ssn-id=SS_ACAR; gtt-req=Y; tt=251;
GTT_ADDR_TYPE=CDPN; GTT_ADDR=10;


add sccp-route opc-id=opc1; dpc-id=stp_cap_pc; ssn-id=SS_800T; rk-id=rk_800t;

add sccp-route opc-id=opc1; dpc-id=stp_cap_pc; ssn-id=SS_800A; rk-id=rk_800a;

add sccp-route opc-id=opc1; dpc-id=stp_cap_pc; ssn-id=SS_LNP;  rk-id=rk_lnp;

add sccp-route opc-id=opc1; dpc-id=stp_cap_pc; ssn-id=SS_CNAM; rk-id=rk_cnam;

add sccp-route opc-id=opc1; dpc-id=stp_cap_pc; ssn-id=SS_ACAR; rk-id=rk_acar;


add sccp-route SSN_ID=SS_ACAR; OPC_ID=opc1; DPC_ID=dpc1; RK_ID=rk_acar

add sccp-route SSN_ID=SS_ACAR; OPC_ID=opc1; DPC_ID=dpc2; RK_ID=rk_acar



add pop ID=50901; STATE=tx; COUNTRY=US; TIMEZONE=CDT; LOCAL_7D_DIALING=Y; ITP=N;
ZERO_MINUS=LEC; BLOCK_EAWOPIC=Y; CNAM_OPTION=EXT_LIDB; PIC2_REQD=N; MY_LRN=4692559999;
TREAT_IMS_ANONYMOUS=N; OPC_ID=opc1; ZERO_PLUS_LOCAL=N


#
# Control network entities in-service for ANSI SS7
#

control trunk-grp id=1; mode=forced; target-state=ins;

control trunk-grp id=2; mode=forced; target-state=ins;

equip trunk-termination tgn-id=1; cic=all;

equip trunk-termination tgn-id=2; cic=all;

control trunk-termination tgn-id=1; cic=all; target-state=INS;  mode=FORCED;

control trunk-termination tgn-id=2; cic=all; target-state=INS;  mode=FORCED;

control sctp-assoc id=sg1-sgp1-sctp; mode=forced; target-state=INS;

control sctp-assoc id=sg1-sgp2-sctp; mode=forced; target-state=INS;

control sctp-assoc id=sg1-sgp1-sctp-ain; mode=forced; target-state=INS;

control sctp-assoc id=sg1-sgp2-sctp-ain; mode=forced; target-state=INS;

control sctp-assoc id=sg1-sgp1-sctp-ptc; mode=forced; target-state=INS;

control sctp-assoc id=sg1-sgp2-sctp-ptc; mode=forced; target-state=INS;

control subsystem id=SS_800T; opc-id=opc; target-state=UIS;  mode=FORCED;

control subsystem id=SS_LNP;  opc-id=opc; target-state=UIS;  mode=FORCED;

control subsystem id=SS_800A; opc-id=opc; target-state=UIS;  mode=FORCED;

control subsystem id=SS_CNAM; opc-id=opc; target-state=UIS;  mode=FORCED;

control subsystem id=SS_ACAR; opc-id=opc; target-state=UIS;  mode=FORCED;


#
# Status commands
#

#status trunk-grp id=1;

#status trunk-grp id=2;

#status trunk-termination tgn-id=1; cic=all;

#status trunk-termination tgn-id=2; cic=all;

#status sctp-assoc id=sg1-sgp1-sctp;

#status sctp-assoc id=sg1-sgp2-sctp;

#status sctp-assoc id=sg1-sgp1-sctp;

#status sctp-assoc id=sg1-sgp2-sctp;

#status sctp-assoc id=sg1-sgp1-sctp-ain;

#status sctp-assoc id=sg1-sgp2-sctp-ain;

#status sctp-assoc id=sg1-sgp1-sctp-ptc;

#status sctp-assoc id=sg1-sgp2-sctp-ptc;

#status subsystem id=SS_800T; opc-id=opc;

#status subsystem id=SS_LNP; opc-id=opc;

#status subsystem id=SS_800A; opc-id=opc;

#status subsystem id=SS_CNAM; opc-id=opc;

#status subsystem id=SS_ACAR; opc-id=opc;
