Cisco BTS 10200 Softswitch Reduced Number of Physical Interfaces Review

---

This document describes the Reduced Number of Network Interfaces feature for the Cisco BTS 10200 Softswitch. This feature reduces the number of network interfaces on the Call Agent/Feature Server (CA/FS) and the EMS/BDMS hosts to two network interfaces per host computer. This reduction allows the BTS10200 to run on smaller, or less expensive, host computers. In addition, it creates redundant management local area networks (LANs) for the Cisco BTS 10200 Softswitch.

Feature Specifications for the Reduced Number of Physical Interfaces

Feature History
Release	Modification
4.1	This feature was introduced.

Contents

The following sections are contained in this document:

•Information About the Reduced Number of Physical Interfaces Feature

•Operational, Management, and Administrative Interfaces

•Troubleshooting

•Installation

•Platform Requirements

•Cabling

Information About the Reduced Number of Physical Interfaces Feature

The standard network configuration that was supported in Release 3.3 and earlier is shown in Figure 1. The host computer used for the EMS and BDMS required five network interfaces, and the host computer used for the Call Agent/Feature Server required nine interfaces.

The Reduced Number of Network Interfaces feature changes the supported network configuration. This configuration is shown in Figure 2. The two interfaces must be on different network interface cards.

---

Note For Telnet, FTP, and so forth, two IP addresses are available in the new configuration.

---

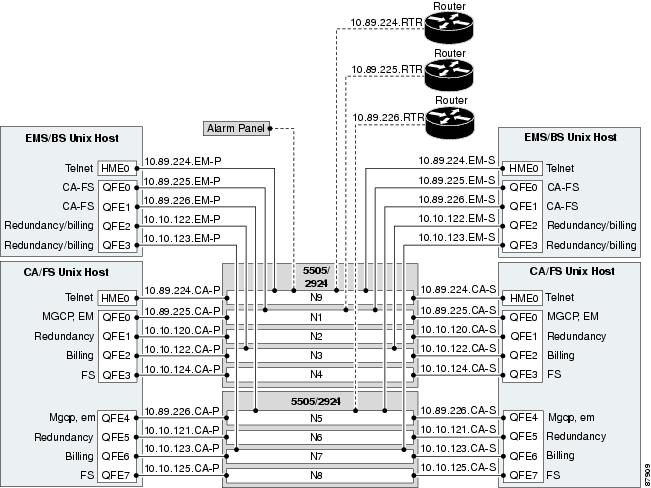

Figure 1 Cisco BTS 10200 Softswitch Releases 2.0 through 3.3 Network Configuration

Critical IP address configuration for Figure 1:

1. Call Agent/Feature Server

Platform.cfg	Side A	Side B
CriticalLocalIPsConnectedToRtr	192.168.225.CA-P, 192.168.226.CAP	192.168.225.CA-S, 192.168.226.CA-S
CriticalMateIPsConnectedToRtr	192.168.225.CA-S, 192.168.226.CA-S	192.168.225.CA-P, 192.168.226.CA-P
CriticalRouterIPs	192.168.225.RTR, 192.168.226.RTR	192.168.225.RTR, 192.168.226.RTR

2. EMS

Platform.cfg	Side A	Side B
CriticalLocalIPsConnectedToRtr	192.168.225.EMP, 192.168.226.EMP	192.168.225.EMS, 192.168.226.EMS
CriticalMateIPsConnectedToRtr	192.168.225.EMS, 192.168.226.EMS	192.168.225.EMP, 192.168.226.EMP
Critical RouterIPs	192.168.225.RTR, 192.168.226.RTR	192.168.225.RTR, 192.168.226.RTR

3. Bulk Data Management Server

Platform.cfg	Side A	Side B
CriticalLocalIPsConnectedToRtr	192.168.225.BSP, 192.168.226.BSP	192.168.225.BSS, 192.168.226.BSS
CriticalMateIPsConnectedToRtr	192.168.225.BSS, 192.168.226.BSS	192.168.225.BSP, 192.168.226.BSP
CriticalRouterIPs	192.168.225.RTR, 192.168.226.RTR	192.168.225.RTR, 192.168.226.RTR

IRDP configuration on router (IRDP advertisement parameters) for Figure 1:

•Interval between IRDP advertisements: maximum = 4 seconds, minimum = 3 seconds.

•IRDP advertisement lifetime is10 seconds.

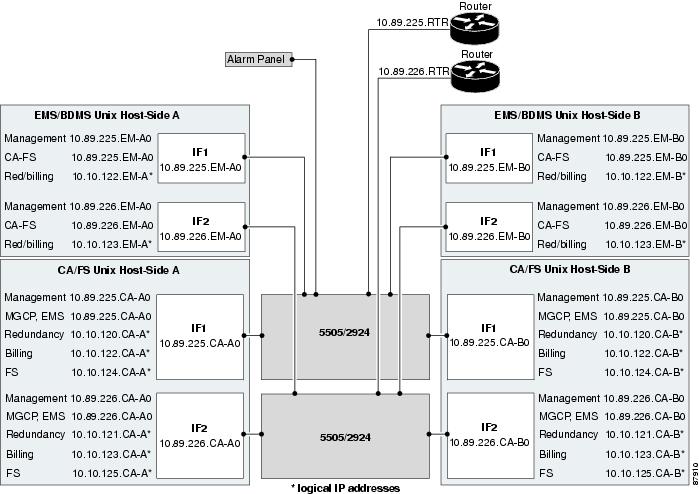

Figure 2 Cisco BTS 10200 Softswitch Release 4.1 Alternate Network Configuration

Critical IP address configuration for Figure 2:

1. Call Agent/Feature Server

Platform.cfg	Side A	Side B
CriticalLocal IPsConnectedToRtr	10.89.225.CA-A0, 10.89.226.CA-A0	10.89.225.CA-B0, 10.89.226.CA-B0
CriticalMateIPsConnectedToRtr	10.89.225.CA-B0, 10.89.226.CA-B0	10.89.225.CA-A0, 10.89.226.CA-A0
CriticalRouterIPs	10.89.225.RTR, 10.89.226.RTR	10.89.225.RTR, 10.89.226.RTR

2. EMS/BDMS

Platform.cfg	Side A	Side B
CriticalLocalIPsConnectedToRtr	10.89.225.EM-A0, 10.89.226.EM-A0	10.89.225.EM-B0, 10.89.226.EM-B0
CriticalMateIPsConnectedToRtr	10.89.225.EM-B0, 10.89.226.EM-B0	10.89.225.EM-A0, 10.89.226.EM-A0
Critical RouterIPs	10.89.225.RTR, 10.89.226.RTR	10.89.225.RTR, 10.89.226.RTR

IRDP configuration on router (IRDP advertisement parameters) for Figure 2:

•Interval between IRDP advertisements: maximum = 4 seconds, minimum = 3 seconds.

•IRDP advertisement lifetime is 10 seconds.

Operational, Management, and Administrative Interfaces

No changes were made to the operational, management and administrative interfaces of the Cisco BTS 10200 Softswitch.

Troubleshooting

TBD.

Installation

Jumpstart has been modified to define the logical IP addresses for the two interfaces (per Figure 2). Extra interfaces are now disabled.

1. Jumpstart installs only two network interfaces—other interfaces are not configured.

2. The two network interfaces must be on two different cards (on the standard hardware configuration).

3. Jumpstart installs the logical IP addresses associated with each interface (as per Figure 2).

4. The 10-mbps option is removed and the 100Mb/s is forced.

Refer to the Cisco BTS 10200 Softswitch Jumpstart Procedures for Release 4.1 for further information.

Platform Requirements

The parameter MinRequiredNICsOnHost (contains the number of IP addresses on the host) in the platform.cfg is now 8 for CA/FS platforms and 4 for EMS/BS platforms.

In previous releases, the IP Manager removed logical IP addresses when they were brought down administratively. Now, in Release 4.1, the IP Manager does not remove the logical IP addresses when logical IP addresses are brought down administratively.

Cabling

Cabling information is documented in the Cisco BTS 10200 Cabling Procedures document.
