Brooktrout Technology Voice-Fax Cards

Brooktrout Technology TR1034 Voice-Fax Cards

Brooktrout Technology TR114+P4L and TR114+uP4L Voice-Fax Cards

Brooktrout Technology Voice-Fax Cards

---

This appendix contains the following sections:

•Brooktrout Technology TR1034 Voice-Fax Cards

•Brooktrout Technology TR114+P4L and TR114+uP4L Voice-Fax Cards

Brooktrout Technology TR1034 Voice-Fax Cards

The four-port and eight-port TR1034 voice-fax cards provide four or eight loop-start lines for inbound or outbound messages. The cards are installed in the Cisco Unity Bridge server or in an expansion chassis, and both types of cards can be installed in the same Bridge server or expansion chassis.

Four-port cards have one RJ-45 receptacle, and eight-port cards have two receptacles. The telecom cord that ships with most cards has an RJ-45 connector on one end and four single-pair RJ-11 connectors on the other end. For the United Kingdom and for Hong Kong, the telecom cord that ships with the cards has an RJ-45 connector on one end and four single-pair BT-431A connectors on the other end.

The TBR-21-compliant cards are qualified for use in Europe, and other country-specific cards have also been qualified. For a complete list of qualified cards, refer to the "Supported Voice-Fax Cards" section of Cisco Unity Bridge 3.1 System Requirements, and Supported Hardware and Software at http://www.cisco.com/en/US/products/sw/voicesw/ps2237/prod_installation_guides_list.html.

For the four-port TR1034 card, Figure A-1 shows the top and side views, and Figure A-2 shows the connection pinouts and back plate.

For the eight-port TR1034 card, Figure A-3 shows the top and side views, and Figure A-4 shows the connection pinouts and back plate.

Figure A-1 TR1034 Top and Side Views, Four-Port Card

Figure A-2 TR1034 Connection Pinouts and Back Plate, Four-Port Card

Figure A-3 TR1034 Top and Side Views, Eight-Port Card

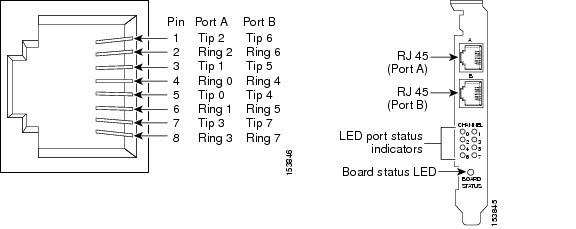

Figure A-4 TR1034 Connection Pinouts and Back Plate, Eight-Port Card

Brooktrout Technology TR114+P4L and TR114+uP4L Voice-Fax Cards

The TR114+P4L and TR114+uP4L voice-fax cards provide four loop-start lines for inbound or outbound messages. The cards are installed in the Cisco Unity Bridge server or in an expansion chassis, and both types of cards can be installed in the same Bridge server.

The TR114+P4L and TR114+uP4L cards have one RJ-45 receptacle serving all four ports. The telecom cord that ships with most cards has an RJ-45 connector on one end and four single-pair RJ-11 connectors on the other end. For the United Kingdom and for Hong Kong, the telecom cord that ships with the cards has an RJ-45 connector on one end and four single-pair BT-431A connectors on the other end.

Universal PCI (uPCI) is the ability to plug a TR114+uP4L card into either a 3.3-volt or 5-volt bus slot in a server chassis. A uPCI card is physically keyed for both 3.3-volt and 5-volt bus signaling, and has a second notch in the PCI edge connector on the card.

The TBR-21-compliant TR114+P4L and TR114+uP4L cards are qualified for use in Europe, and other country-specific TR114+P4L and TR114+uP4L cards have also been qualified. For a complete list of qualified cards, refer to the "Supported Voice-Fax Cards" section of Cisco Unity Bridge 3.1 System Requirements, and Supported Hardware and Software at http://www.cisco.com/en/US/products/sw/voicesw/ps2237/prod_installation_guides_list.html.

Figure A-5 shows the top and side views of theTR114+P4L card, Figure A-6 shows the top and side views of the TR114+uP4L card, and Figure A-7 shows the connection pinouts and back plate for both cards.

Figure A-5 TR114+P4L Top and Side Views

Figure A-6 TR114+uP4L Top and Side Views

Figure A-7 TR114+P4L and TR114+uP4L Connection Pinouts and Back Plate
