Managing Jobs (CLUI)
Revised: October 10, 2008, OL-16995-01
This section includes the following topics:
•
Job Log Window: Managing Jobs Before Submission
•Job Status Window: Managing Submitted Jobs
Job Log Window: Managing Jobs Before Submission
This section includes the following topics:
•Introduction to the Job Log Window
•Understanding the Job Log Window
•Job Log Menus
•Adding Jobs to the Job Log
•Submitting Jobs from the Job Log Window
•Creating a New Job Log
•Saving the Job Log
•Opening a Saved Job Log
•Editing Jobs in the Job Log
•Assigning Job Profiles in the Job Log Window
•Changing the Priority of Jobs in the Job Log Window
•Resetting a Job
•Updating Jobs in the Job Log
•Understanding Job Properties
•Viewing and Setting Job Properties
•Deleting Jobs from the Job Log
Introduction to the Job Log Window
The Job Log window is one of four user interface windows available with the Cisco MXE 3000.
The Job Log window can be opened from any Cisco MXE 3000 window by selecting View > Job Log.
The Job Log lists jobs in chronological order (most recently logged jobs last).
The Job Log window is used to display information about jobs that have been created in the main window. From the Job Log window, among other tasks, you can complete the following:
•Assigning Job Profiles in the Job Log Window
•Submitting Jobs from the Job Log Window
•Changing the Priority of Jobs in the Job Log Window
•Deleting Jobs from the Job Log
The entire set of information displayed in the Job Log window can be saved for later use, and previously saved log files can be reopened. Log files are saved in a standardized Avid Log Exchange (ALE) format.
See also: Saving the Job Log and Opening a Saved Job Log.
Understanding the Job Log Window

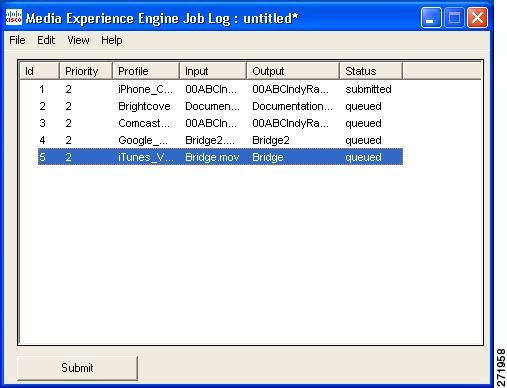

The Job Log window, shown in Figure 9-1, lets you manage each logged job in a central repository prior to submitting it for encoding. Jobs are created in the main window and are submitted by you to the Job Log.
Jobs are not automatically removed from the Job Log. You may want to resubmit jobs or make changes to jobs even after they have been submitted. See also: Resetting a Job.
Figure 9-1 Job Log Window
Job Log information is displayed in six columns, as described in Table 9-1.
Table 9-1 Job Log Window Displays and Descriptions
Display
|
Description
|
Id
|
Displays the order of jobs submitted to the Job Log.
Note Id is a temporary number assigned to the job to track its order in the Job Log. This number is different than the Job ID, which is assigned when jobs are submitted for encoding.
|
Priority
|
Displays the priority assigned to the job. By default, the Priority is set to 2. Jobs that are more urgent can be set to Priority 1, while jobs that are less time-critical can be set to the lowest priority, Priority 3.
In the Job Log window, change Job Priority by highlighting the job and selecting Edit > Set Priority or by right-clicking the job and selecting Set Priority.
|
Profile
|
Lists the name of the Job Profile assigned to the job. A blank field indicates that no profile has been assigned. A job can be added to the Job Log without a Job Profile, but the job cannot be submitted without a Job Profile.
Assign a Job Profile or change the currently assigned Job Profile from the Job Log window, by highlighting the job and selecting Edit > Set Profile or by right-clicking the job and selecting Set Profile.
|
Input
|
Displays information about the input media to be encoded. The name of the source file will display.
|
Output
|
Displays the Output Name assigned when the job was created. Output Name can be a text string defined by you or can be a unique name generated based on variables used by the Cisco MXE 3000.
|
Status
|
Displays the current status of the logged job.
•Queued: Indicates that the job either has not yet been submitted for encoding or has been reset and is ready to be submitted again. Only jobs with a status of queued can be submitted.
•Submitted: Indicates that the job has been submitted for encoding. A job can only be successfully submitted if a Job Profile has been assigned and the Cisco MXE 3000 is able to establish communication with the server. Jobs that show a status of submitted cannot be resubmitted without being reset.
|
Job Log Menus
This section describes the following Job Log menus:
•File Menu
•Edit Menu
•View Menu
•Help Menu
File Menu

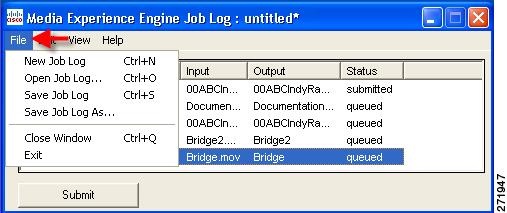

The Job Log File menu options are described in Figure 9-2.
Figure 9-2 Job Log File Menu
.
Table 9-1 describes the menu options.
Table 9-2 Job Log Window Menu Options and Descriptions
Option
|
Description
|
New Job Log
|
Clears the information currently displayed, and creates a new Job Log.
|
Open Job Log
|
Allows you to browse for and open existing Job Logs that have been saved as .ale files.
|
Save Job Log
|
Allows information in the Job Log window to be saved as a log file in .ale format.
|
Save Job Log As
|
Allows information in the Job Log window to be saved. This option is normally used to save a copy of a previously saved log file under a new name or to a new location.
|
Close Window
|
Closes the Job Log window.
|
Exit
|
Exits the Cisco MXE 3000 CLUI.
|
Edit Menu

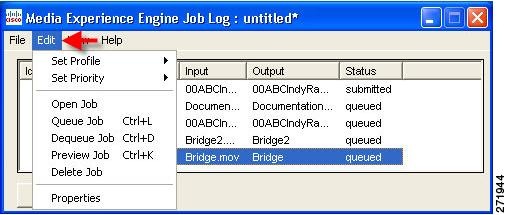

The Job Log File menu options are shown in Figure 9-3.
Figure 9-3 Job Log Edit Menu
.
Table 9-1 describes the menu options.
Table 9-3 Edit Menu Options and Descriptions
Option
|
Description
|
Set Profile
|
Displays a list of Job Profiles. Select a profile to associate to the job, and the profile name displays in the Job Log window.
|
Set Priority
|
Allows you to set or change the highlighted job's priority: 1, 2, or 3 (1 is highest)
|
Open Job
|
Opens the job and its associated Job Profile in the main window.
|
Queue Job
|
Changes the status of the job from submitted to queued to allow the job to be resubmitted.
|
Dequeue Job
|
Sets the status of the job to dequeued meaning that the job will not be submitted when you click Submit.
|
Preview Job
|
Opens the Preview window allowing a frame-by-frame preview and a modification of the in point and out point.
|
Delete Job
|
Deletes the job from the Job Log.
|
Properties
|
Opens a Properties window to display job properties including assigned metadata.
|
View Menu

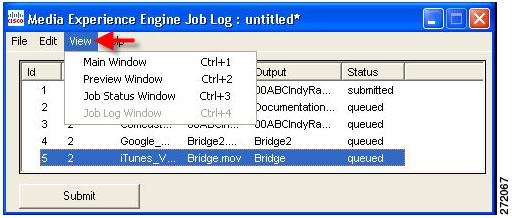

The View menu, shown in Figure 9-4, is consistent across all Cisco MXE 3000 windows and can be accessed from the top menu bar in each window. Select a window to bring it to the foreground.
Figure 9-4 Job Log View Menu
.
Help Menu

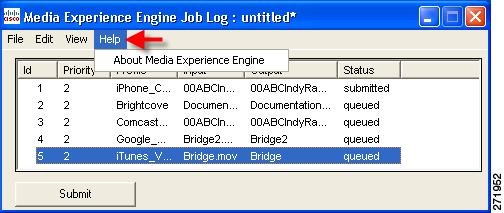

The Job Log Help menu, shown in Figure 9-5, displays release and build information for the Cisco MXE 3000. To view the Help guide for the Cisco MXE 3000, click Help on the main window.
Figure 9-5 Job Log Help Menu
.
Adding Jobs to the Job Log
Note See also: Step 5: Submit the Job for complete instructions on submitting jobs.
Procedure
Step 1 From the File Job tab, in the File Job box, highlight one or more jobs.
Step 2 Click the Add file job to log button. The job appears in the job log, as shown in Figure 9-6.
Figure 9-6 Job Log Window.
Submitting Jobs from the Job Log Window
Note Only jobs that have a Job Profile attached and are queued can be submitted.
Procedure
Step 1 From the Job Log window, highlight one or more jobs.
Step 2 Click Submit.
Creating a New Job Log
Caution You may want to save the current job log before performing this procedure. Creating a New Job Log before saving the current job log will discard all jobs in the current Job Log window. Jobs that are currently in a queued status will be discarded without being submitted, and all data about those jobs will be lost. See also:
Saving the Job Log.
Procedure
Step 1 In the Job Log window, click File on the menu bar.
Step 2 Select New Job Log. The Open Queue warning pop-up displays.
Step 3 Click Yes to confirm that the current job log can be discarded. A new, empty job log displays.
Saving the Job Log
Procedure
Step 1 Add jobs to the Job Log. See also: Adding Jobs to the Job Log.
Step 2 Click File on the menu bar, and select Save Job Log.
Step 3 Browse to the directory where the log will be saved.
Step 4 Enter a file name, and click Save.
Opening a Saved Job Log
Caution If you don't save the current Job Log before opening another log file, the information will be discarded and the jobs will have to be recreated in order to be submitted.
Step 1 In the Job Log window, save the Job Log. See also: Saving the Job Log.
Step 2 Click File > Open Job Log. The Open Queue warning pop-up displays.
Step 3 Click Yes.
Step 4 Browse to the location of the log file you want to open.
Step 5 Select the file, and click Open.
Editing Jobs in the Job Log
•To modify jobs listed in the Job Log window, right-click the job to open the Edit menu.
or
•From the Job Log menu, click Edit.
See also: Edit Menu for editing options.
Assigning Job Profiles in the Job Log Window
Procedure
Step 1 In the Job Log window, highlight the desired job.
Step 2 Right-click the job, or click Edit from the top menu bar.
Step 3 Select Set Profile.
Step 4 Select the desired Job Profile. The Job Profile name displays to the left of the job in the Job Log window.
Changing the Priority of Jobs in the Job Log Window
Procedure
Step 1 In the Job Log window, highlight the desired job.
Step 2 Right-click the job, or click Edit from the top menu bar.
Step 3 Select Set Priority.
Step 4 Click 1, 2, or 3 (1 highest, 2 default, 3 lowest) to set the job's priority.
Resetting a Job
You can resubmit a job with the identical settings or edit the settings and then resubmit.
Procedure
Step 1 In the Job Log window, highlight a submitted job to be reset.
Step 2 Right-click the job, or click Edit from the top menu bar.
Step 3 Select Queue Job. The Status now displays queued.
Step 4 (Optional) You may now edit the job if needed. See also: Edit Menu.
Updating Jobs in the Job Log
Once jobs have been added to the Job Log, they can be opened and updated in the main window.
There are three ways to update job information from the Job Log window:
•To open the job's corresponding main window File Job tab, double-click the job in the Job Log window. This allows you to update job metadata, output name, and other settings.
•To open the job and all of its associated Job Profile information, from the Job Log window, click Edit > Open Job. From here you can adjust any job or Job Profile settings.
•To open the Preview window and all job information including the associated Job Profile, from the Job Log window, click Edit > Preview Job. From here you can interactively modify job settings including the in point and out point.
Once all necessary adjustments have been made, update the job by completing the following procedure:
Procedure
Step 1 To update and resave a job queued in the Job Log, select one of the three methods to open the job in the main window.
Step 2 Add/remove/change data, change any of the file job settings, or make changes to the clip from the Preview window.
Step 3 Click Update file job to save the new information.
Understanding Job Properties

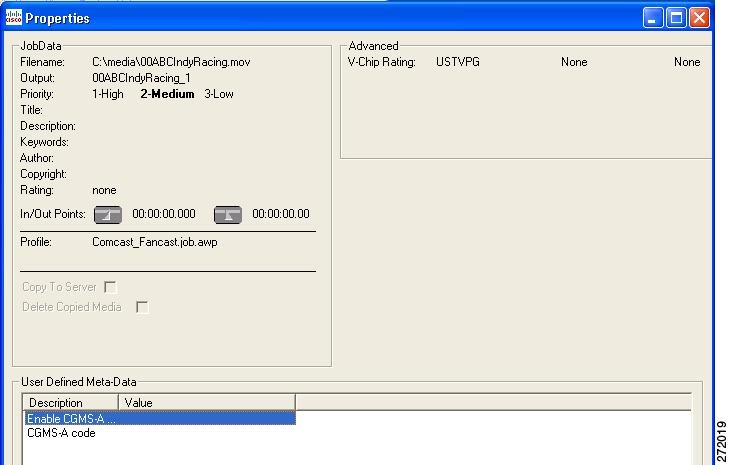

The Properties window, shown in Figure 9-7, displays basic information about the selected job.
To access the Properties window from the Job Log:
•Highlight a job, right-click it, and select Properties.
or
•Highlight a job, click the Job Log Edit menu > Properties.
Figure 9-7 Job Log Properties Window
Table 9-4 describes the settings.
Table 9-4 Properties Settings and Descriptions
Setting
|
Description
|
Filename
|
Displays the name or names of the media files to be submitted.
|
Output
|
Displays the name of the output file as entered on the File Job tab.
|
Priority
|
Displays the job priority (1: highest, 3: lowest).
|
Title
|
Displays the title of the clip being encoded as entered in the Metadata section of the File Job tab.
|
Description
|
Displays the description of the clip as entered in the Metadata section of the File Job tab.
|
Keywords
|
Displays keywords as entered in the Metadata section of the File Job tab.
|
Author
|
Displays the author as entered in the Metadata section of the File Job tab.
|
Copyright
|
Displays copyright information for the clip: either the default copyright defined in metadata preferences or the copyright entered in the Metadata section of the File Job tab. See also: Submission Defaults.
|
Rating
|
Displays the rating as entered in the Metadata section of the File Job tab.
|
In/Out Points
|
Displays the in point(s) and out point(s) for the clip. This can be defined on the Job Profile's Preprocessor tab or can be individually set for each clip using the Preview window.
|
Profile
|
Displays the Job Profile selected for this job.
|
Copy to Server
|
Indicates whether the Copy File to Server box was checked on the File Job tab.
|
Delete Copied Media
|
Indicates whether the Remove File From Server When Finished box was checked on the File Job tab.
|
User Defined Metadata
|
Double-click a field in the Value column to override various settings on a job-by-job basis. See also: Applying Graphic Overlays to a Job with User-Defined Metadata.
|
Viewing and Setting Job Properties
Procedure
Step 1 In the Job Log Window, highlight a job.
Step 2 Right-click the job, or click Edit from the top menu bar.
Step 3 Click Properties. The Properties window displays.
Step 4 To adjust settings, do one of the following:
•JobData or Forensic Watermarking settings. See also: Updating Jobs in the Job Log.
•User Defined Meta-Data: Double-click a field in the Value column to override that setting.
Deleting Jobs from the Job Log
Caution There is no way to restore a job that has been deleted from the Job Log. To resubmit the job, recreate it.
Step 1 In the Job Log window, highlight the unwanted job.
Step 2 Right-click the job, or click Edit from the top menu bar.
Step 3 Select Delete Job. The job is removed from the Job Log.
Job Status Window: Managing Submitted Jobs
This section includes the following topics:
•Introduction to the Job Status Window
•Understanding the Job Status Window
•Job Status Menus
•Expiration of Jobs from Job Status
•Working with Jobs in the Job Status Window
•Viewing Task Detail in the Job Status Window
•Changing the Priority of Jobs in the Job Status Window
•Rescheduling Jobs in the Job Status Window
•Stopping Pending or Running Jobs in the Job Status Window
•Viewing Encoded Output from the Job Status Window
•Viewing the Output Folder From the Job Status Window
•Deleting Jobs From the Job Status Window
•Displaying Errors on Failed Jobs
•Understanding the Worker Error Status Window
Introduction to the Job Status Window
Once jobs are submitted for encoding, they can be monitored in the Job Status window, shown in Figure 9-8. Job Status shows a real-time summary of each job's status. It indicates when a job is submitted, running, completed, or has failed. It can also be used to display the percent of completion for each task defined in the assigned Job Profile.
See also: Understanding the Job Status Window for an explanation of each color.

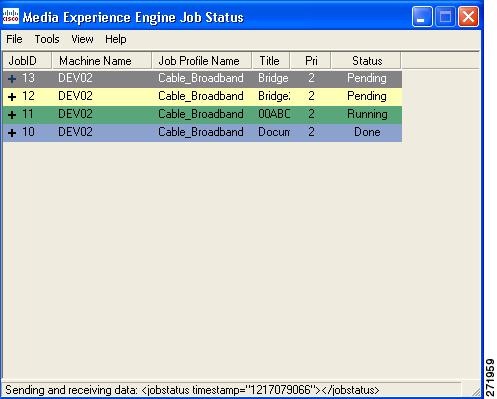

Figure 9-8 Job Status Window
Understanding the Job Status Window
Jobs that have been submitted for encoding can be viewed in the Job Status window, shown in Figure 9-8.
Summary information about each job is displayed along with the status.
The status of each job is also indicated by color, as described Table 9-5.
Table 9-5 Job Status Color and Description
Color
|
Description
|
Yellow
|
Pending: The job has been submitted but has not begun.
|
Green
|
Running: The job has begun. Jobs stay in a Running state until all tasks in the Job Profile have been executed or until the job fails.
|
Blue
|
Completed: All tasks in the Job Profile have completed successfully.
|
Red
|
Failed: A job fails if any task in the Job Profile did not complete successfully. For example, if communication with an FTP server cannot be established, the job will fail because the distribution task cannot be completed successfully. Likewise, if a user stops a job, the job will show as failed with a "user stop request" message.
|
Job Status Menus
This section describes the following Job Status menus:
•File Menu
•Tools Menu
•View Menu
•Help Menu
File Menu
The Job Status File menu is shown in Figure 9-9.
Figure 9-9 Job Status File Menu
Table 9-6 describes the options.
Table 9-6 File Menu Options and Descriptions
Option
|
Description
|
Close Window
|
Closes the Job Status window only. The main window and the Job Log window remain open.
|
Exit
|
Closes the entire Cisco MXE 3000 Client User Interface.
|
Tools Menu
The Job Status Tools Menu is shown in Figure 9-10.
Figure 9-10 Job Status Tools Menu
Change Server: Displays a list of servers available to the Cisco MXE 3000 and permits selection of a current server. This servers list is set defined in General Preferences.
View Menu
The View menu, shown in Figure 9-11, is consistent across all Cisco MXE 3000 windows and can be accessed from the top menu bar in each window. Select a window to bring it to the foreground.
Figure 9-11 Job Status View Menu
Help Menu
The Job Status Help menu, shown in Figure 9-12, displays release and build information for the Cisco MXE 3000 version you are using. If you need to contact Technical Support, they will need this information.
Figure 9-12 Job Status Help Menu
Expiration of Jobs from Job Status
As new jobs are submitted, the Job Status list lengthens. Jobs that are not individually deleted from the Job Status window can be removed using an Auto Reap interval that is established at the time of your system deployment. For more information on setting the Auto Reap interval, see the Depoyment and Administration Guide for Cisco Media Experience Engine 3000 Cisco.com.
Descriptions of the Job Status fields are labeled in Figure 9-13.

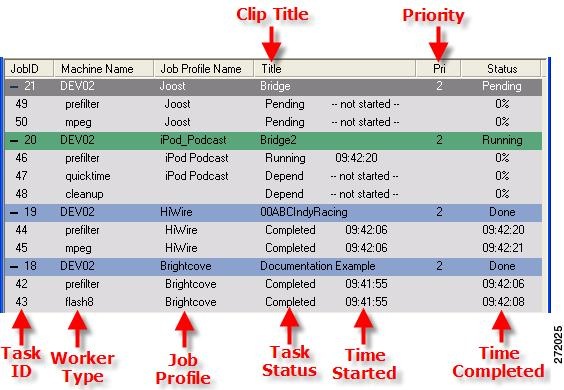

Figure 9-13 Job Status Display Features
Working with Jobs in the Job Status Window
The Job Status window offers two menus for working with jobs, as described in Table 9-7.
Table 9-7 Job Status Menus and Descriptions
Menu
|
Description
|
Job Menu
|
Allows you to make changes that affect the entire job. Open the job menu by highlighting the job and right-clicking.
|
Task Menu
|
Allows you to view the encoded output or any errors associated with a specific encoding task. (A job is comprised of one or more tasks.) Open the task menu by expanding (click the + on the left) a Job ID, highlighting a task, and right-clicking that task.
Note To see the difference between a Job ID and a Task ID, see Job Status Display Features.
|
Job Menu
In the Job Status window, right-click anywhere on the job row. The menu, shown in Figure 9-14, displays.
Figure 9-14 Job Menu
Table 9-8 describes the menu options.
Table 9-8 Job Menu Options and Descriptions
Option
|
Description
|
Change Priority
|
Changes the priority of the job. (1: highest; 2: default; 3:lowest)
|
Stop
|
Stops a running or pending job if, for example, you realize after the job has been submitted that it was submitted incorrectly.
Note Stopped jobs display a failed status in the collapsed Job Status view. Expanding the detailed status shows that the job failed because of a user stop request.
|
Delete
|
Allows you to manually delete completed jobs from the Job Status window. Select one job or Ctrl+click or Shift+click to select multiple jobs.
Deleting pending jobs removes the job. If the job is later resubmitted, it will be assigned a new ID number.
Jobs can also be deleted by highlighting the unwanted job and pressing the Delete key on the keyboard.
|
Reschedule
|
Rescheduling a stopped or failed job resubmits the job from within the Job Status window. The job maintains its unique ID and is processed in the order that it was originally submitted.
|
Show XML
|
In a separate window, displays the job XML.
|
Show Errors
|
To view errors on a failed job, right-click the job and select Show Errors. A Worker Status Error window will open to display any errors as seen below. See also: Understanding the Worker Error Status Window.
|
Task Menu
In the Job Status window, expand a JobID to view its tasks. Highlight a task and right-click it to open, as shown in Figure 9-15.
Figure 9-15 Task Menu
Table 9-9 describes the menu options.
Table 9-9 Task Menu Options and Descriptions
Option
|
Description
|
Show Job Errors
|
Click this option to display the Worker Status Error window. See also: Understanding the Worker Error Status Window.
|
View Clip
|
The appropriate media player opens and plays the clip.
Note The correct media player for the type of clip being viewed must be installed for the clip to play properly.
|
View Folder
|
The output folder opens in Windows Explorer.
|
Viewing Task Detail in the Job Status Window
As jobs are processed, a status for each task (profile component) is recorded. Display the statuses by expanding a JobID (click the + to the left).
As seen in Figure 9-16, the detailed statuses show exactly which profile components have been processed and which are still outstanding. The status for each preprocessing or encoding task is updated as the work progresses.
Note You may also use the task status displays when troubleshooting to determine where a submitted failed.

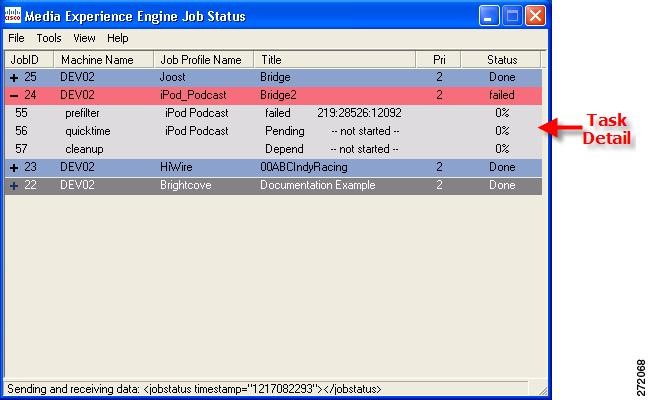

Figure 9-16 Task Detail Display
Changing the Priority of Jobs in the Job Status Window
Note The priority of Pending (yellow), Running (green), or Failed (red) jobs can be changed. The priority of Completed (blue) jobs cannot be changed.
Procedure
Step 1 To change a job priority in the Job Status window, highlight a job.
Step 2 Right-click the job to open the Job menu.
Step 3 Click Change Priority, and select 1(highest) to 3 (lowest).
Rescheduling Jobs in the Job Status Window
Procedure
Step 1 In the Job Status window:, highlight a job.
Step 2 Right-click the job to open the Job Status menu, and click Reschedule.
Note The job will be rescheduled. The Job ID and Priority will not be changed from the original, so the job will be processed according to the order it was originally submitted. If changes are made to the Job Profile after the job has been submitted, the changes will not affect the rescheduled job.
Stopping Pending or Running Jobs in the Job Status Window
Procedure
Step 1 In the Job Status window, highlight the pending (yellow) or running (green) job to be stopped.
Step 2 Right-click to open the Job Status menu, and click Stop.
Note Stopped jobs display in red indicating that the job has failed. In the task detail or Worker Error window the reason for failure displays: User Stop Request. See also: Viewing Task Detail in the Job Status Window and Understanding the Worker Error Status Window.
Viewing Encoded Output from the Job Status Window
Procedure
Step 1 In the Job Status window, click the plus sign (+) to expand a completed (blue) job.
Step 2 Highlight a task, right-click it, and select View Clip. The media player opens and the clip plays.
Note The correct media player for the type of clip being viewed must be installed for the clip to play properly.
Viewing the Output Folder From the Job Status Window
Procedure
Step 1 In the Job Status window, click the plus sign (+) to expand a completed (blue) job.
Step 2 Highlight a task, right-click it, and select View Folder. The folder with all output jobs displays.
Deleting Jobs From the Job Status Window
Procedure
Step 1 In the Job Status window, highlight the job to be deleted.
Step 2 Right-click the job, and click Delete. (Or, highlight the job, and press your Delete key.)
Step 3 Click OK to confirm deletion.
Displaying Errors on Failed Jobs
See also: Understanding the Worker Error Status Window.
•In the Job Status window:
1. Highlight the failed (red) job.
2. Right-click the job, and click Show Errors.
or
•From the expanded tasks list:
1. Highlight any task listed within the failed job.
2. Right-click the task, and select Show Job Errors.
Understanding the Worker Error Status Window
Open the Worker Error Status window from the right-click pop-up menu in the Job Status window. The pop-up, shown in Figure 9-17, displays the reason for job failure.

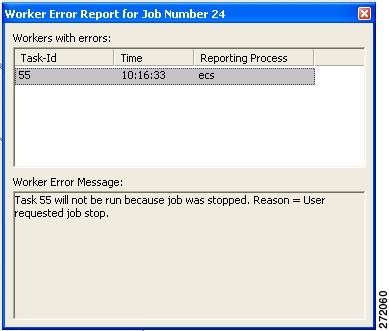

Figure 9-17 Worker Error Status Window
Table 9-10 describes the fields.
Table 9-10 Worker Error Status Fields and Descriptions
Field
|
Description
|
Job Id
|
Displays the unique numeric identification number assigned to the entire job.
|
Task-Id
|
Displays the unique numeric identification number assigned to the task within the job that generated the error.
|
Time
|
Displays the time that the error occurred. Time is displayed in a 24-hour format as hh:mm:ss.
|
Worker
|
Displays the name of the worker responsible for the task that generated the error.
|
Error Message
|
Displays the text of the error message generated.
Note Drag the window edge to the right to view the entire message.
|
