Configuring the Cisco Unified Videoconferencing 3515 MCU
About the Cisco Unified Videoconferencing 3515 MCU Administrator Interface
How to Manage and Configure Administrators and Operators
About Administrators and Operators
Viewing Administrators and Operators
Adding Administrators and Operators
Editing Administrator and Operator Settings
Deleting Administrators and Operators
Viewing LED Information for the 3515 MCU
How to View and Set General 3515 MCU Information
Viewing General Information About the 3515 MCU
Viewing Software Version Details
Setting the Time and Date on the MCU
Setting the MCU Location
How to View and Change Address Settings for the 3515 MCU
About IP Address, DNS, and Ethernet Settings
Changing Address Settings
How to Change Web Settings
Changing the Administrator Interface Web Server Port for the 3515 MCU
Creating and Importing a Web Server Certificate
Configuring Security for the 3515 MCU
Configuring the Cisco Unified Videoconferencing 3515 MCU
•
About the Cisco Unified Videoconferencing 3515 MCU Administrator Interface
•About Administrators and Operators
•Viewing LED Information for the 3515 MCU
•Viewing General Information About the 3515 MCU
•How to View and Change Address Settings for the 3515 MCU
•How to Change Web Settings
•Configuring Security for the 3515 MCU
About the Cisco Unified Videoconferencing 3515 MCU Administrator Interface
In the Cisco Unified Videoconferencing 3515 MCU Administrator interface, you can configure management policies, media processing, call management protocols, and services. Table 1-1 explains the tabs that appear in the Cisco Unified Videoconferencing 3515 MCU Administrator interface.
Table 1-1 MCU Administrator Interface Tabs
Tab Name
|
Description
|
Status
|
Enables you to view resource usage information and the number of calls and conferences currently in progress.
|
Settings
|
Enables you to define the MCU mode of operation.
|
Media Processing
|
Enables you to view the data and video processors and servers currently registered with the MCU and access the web interface (if available) of registered devices to modify settings.
|
Protocols
|
Enables you to set the gatekeeper IP address and the Session Initiation Protocol (SIP) registrar address for routing calls to the MCU from H.323, Skinny Client Control Protocol (SCCP), and Session Initiation Protocol (SIP) endpoints.
|
Services
|
Enables you to view, configure and edit the services that the MCU provides.
|
Event Log
|
Enables you to view MCU alarm events.
|
Table 1-1 and Table 1-2 display and list the elements in the MCU Administrator interface.

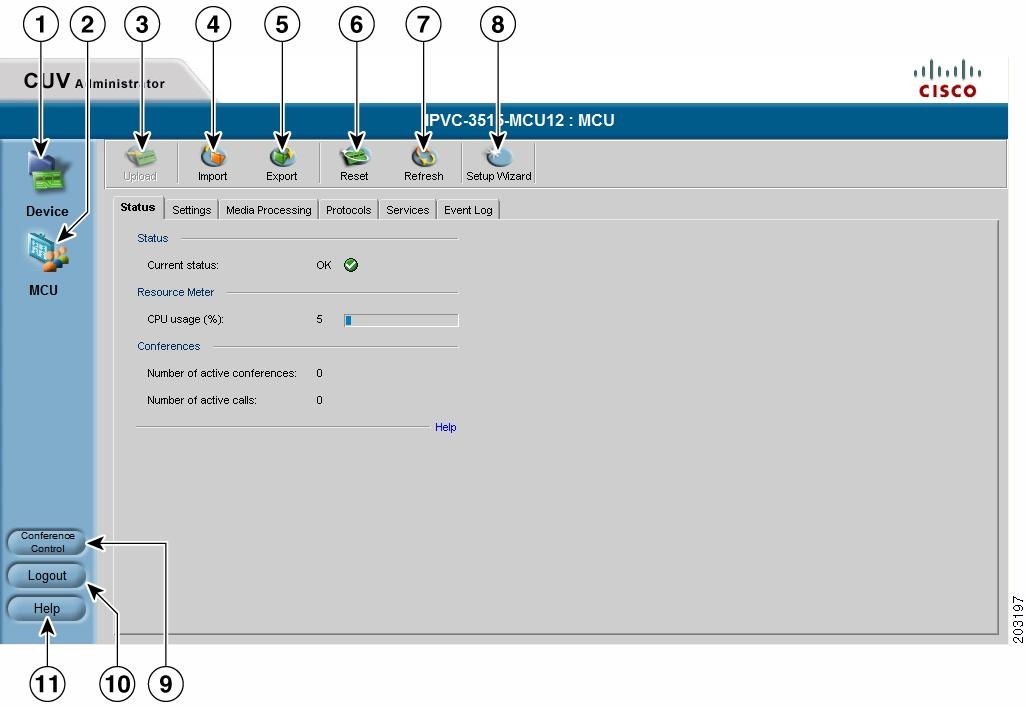

Figure 1-1 MCU Administrator Interface Elements
Table 1-2 MCU Administrator Interface Elements
Number
|
Description
|
1
|
Device button
|
2
|
MCU button
|
3
|
Upload button
|
4
|
Import button
|
5
|
Export button
|
6
|
Reset button
|
7
|
Refresh button
|
8
|
Set Up Wizard button
|
9
|
Help button
|
10
|
Logout button
|
11
|
Conference Control button
|
How to Manage and Configure Administrators and Operators
•About Administrators and Operators
•Viewing Administrators and Operators
•Adding Administrators and Operators
•Editing Administrator and Operator Settings
•Deleting Administrators and Operators
About Administrators and Operators
Users must have authorization to access the MCU interface. You can also require users to have Operator-level access to perform management functions during conference calls.
Viewing Administrators and Operators
In the Users tab in the Device interface, you can view user names that are registered with this MCU and their access level. Table 1-3 lists the elements that appear in the Users tab.
Table 1-3 User Tab Elements
Field
|
Description
|
Name
|
The user login name.
|
Access Level
|
The access privilege assigned to the user.
|
Telnet/FTP
|
Indicates whether the user is authorized to use Telnet or FTP to access the MCU. Telnet and FTP access is intended for maintenance of the MCU.
|
Adding Administrators and Operators
Procedure
Step 1 In the Administrator interface, on the sidebar, click Device.
Step 2 Click the Users tab.
Step 3 Click Add.
The Add User dialog box appears.
Step 4 In the User name field, enter the name you want the Administrator or Operator to log in with.
Step 5 In the Access Level field, choose the required authorization level for this user:
•Administrator—Allows this user to launch the Administrator interface, use the Conference List that has links to web pages of current conferences, share conference moderation with another user, and access this device through Telnet, FTP, and the Cisco Upgrade Utility. You can assign up to ten users Administrator authorization.
•Operator—Allows this user to share conference moderation with another user and to access the Conference List that has links to web pages of current conferences. Up to 50 users can be assigned Operator authorization.
Step 6 In the Password field, enter the password this user uses to log in with.
Passwords can contain a maximum of 32 characters and can include the "a-z", "A-Z" and "0-9" characters only.
Step 7 In the Confirm password field, re-enter the password you entered in step 6.
Step 8 Select Enable for Telnet/FTP to allow this user to access this device through Telnet and FTP. Telnet and FTP access is intended for maintenance of the MCU
Step 9 On the toolbar, click Upload.
Editing Administrator and Operator Settings
Procedure
Step 1 In the Administrator interface, on the sidebar, click Device.
Step 2 Click the Users tab.
Step 3 Click the user you want to edit settings for.
Step 4 Click Edit
The Edit User dialog box appears.
Step 5 In the User name field, enter the name you want the Administrator to log in with.
Step 6 In the Access Level field, choose the authorization level for this user:
•Administrator—Allows this user to launch the Administrator interface, use the Conference List that has links to web pages of current conferences, share conference moderation with another user, and access this device through Telnet, FTP, and the Cisco Upgrade Utility. You can assign up to ten users Administrator authorization.
•Operator—Allows this user to share conference moderation with another user and to access the Conference List that has links to web pages of current conferences. Up to 50 users can be assigned Operator authorization.
Step 7 In the Password field, enter the password this user uses to log in with.
Step 8 In the Repeat Password field, re-enter the password you entered in step 6.
Step 9 Select Enable for Telnet/FTP to allow this user to access this device through Telnet and FTP.
Step 10 On the toolbar, click Upload.
Deleting Administrators and Operators
Procedure
Step 1 In the Administrator interface, on the sidebar, click Device.
Step 2 Click the Users tab.
Step 3 Click the user you want to delete and then click Delete.
Viewing LED Information for the 3515 MCU
In the LED Monitoring tab in the Device interface, you can monitor the status of all the MCU front panel LED indicators. The LEDs are displayed in diagrams reproducing the layout of the MCU front panel.
Procedure
Step 1 In the MCU interface, on the sidebar, click Device.
Step 2 Click the LED Monitoring tab.
Step 3 Place the mouse cursor over the required LED in the LED Monitoring tab to view a description of that LED.
How to View and Set General 3515 MCU Information
•Viewing General Information About the 3515 MCU
•Viewing Software Version Details
•Setting the Time and Date on the MCU
•Setting the MCU Location
Viewing General Information About the 3515 MCU
Procedure
Step 1 In the MCU interface, on the sidebar, click Device.
Step 2 Click the Basics tab.
Table 1-4 describes the elements that appear in the Basics tab.
Table 1-4 Device Basic Tab Elements
Field
|
Description
|
Device name
|
Identifies the model number of the device.
|
Location
|
User-configured description about the device. Click this field to enter a new description, and then click Upload on the toolbar.
|
Serial number
|
The serial number that the factory assigned to the device.
|
Hardware version
|
The version number of the current hardware configuration.
|
Software version
|
The first two digits of the version number of the software installed on the device. Click Details to view details of the versions of software components installed on the device.
|
Date/Time
|
The date and time that the Cisco Unified Videoconferencing 3515 MCU clock reports.
|
Related Topics
•Viewing Software Version Details
•Setting the Time and Date on the MCU
•Setting the MCU Location
Viewing Software Version Details
Procedure
Step 1 On the sidebar, click Device.
Step 2 Click the Basics tab.
Step 3 Locate the Software version field and click Details.
The Version Details dialog box appears.
Setting the Time and Date on the MCU
Procedure
Step 1 In the Administrator interface, on the sidebar, click Device.
Step 2 Make sure the Basics tab is selected.
Step 3 Next to the Date/Time field, click Change.
The Change Time dialog box appears. The date and time the MCU reports appear in the Set time to field.
Step 4 In the Change field, select the unit of time that you want to change.
Note There is no unit to change AM and PM. This designation rolls automatically when the hour rolls past 12 backward or forward. Similarly, seconds roll minutes, minutes roll hours, hours roll days, and days roll months.
Step 5 In the Set board time to field, choose the up or down arrow to change that unit.
The unit you choose changes in the direction you choose: higher (up) or lower (down).
Step 6 Repeat step 4 and step 5 for as many units as you want to change.
Step 7 Select NTP enabled to synchronize the time with a network server clock, and to select time zone settings.
Step 8 On the toolbar, click Upload.
Setting the MCU Location
You can install the MCU anywhere on your network including at a remote site. In the Basics tab, you can describe the current location of the MCU.
Procedure
Step 1 On the sidebar, click Device.
Step 2 Click the Basics tab.
Step 3 In the Location field, enter the location information about the MCU that you want to display.
The field displays up to 23 characters.
Step 4 On the toolbar, click Upload to save to configuration memory.
How to View and Change Address Settings for the 3515 MCU
•About IP Address, DNS, and Ethernet Settings
•Changing Address Settings
•How to Change Web Settings
About IP Address, DNS, and Ethernet Settings
In the Addressing tab, you can view address information for the MCU such as IP address information, Domain Name Server (DNS) information and Ethernet port speed and duplex. Table 1-5 describes the elements that appear on the Addressing tab.
Table 1-5 Addressing Tab Elements
Field
|
Description
|
IP Address
|
IP Address
|
The IP address assigned to the MCU.
|
Router IP
|
The address of the router that the MCU uses.
|
Subnet Mask
|
The subnet address that the MCU uses.
|
DNS
|
DNS suffix
|
The DNS alias that the MCU uses.
|
Preferred DNS Server
|
The IP address of the primary DNS server that the MCU uses.
|
Alternate DNS server
|
The IP address of the alternative DNS server that the MCU uses.
|
Ethernet
|
Port type
|
Displays information about the Ethernet connection (read-only).
|
Port settings
|
The Ethernet speed and duplex that the MCU uses.
Changing the value selected in the Port settings option causes the MCU to go offline and reboot.
When there is a duplex mismatch between the MCU and the switch it is attached to, the MCU goes offline and does not accept any incoming calls.
|
MAC address
|
Displays the Mandatory Access Control (MAC) code assigned to the MCU (read-only).
|
Port status
|
Displays the actual Ethernet speed and duplex the MCU uses on the network (read-only).
|
Related Topics
•Changing Address Settings
Changing Address Settings
Procedure
Step 1 In the Administrator interface, on the sidebar, click Device.
Step 2 Click the Addressing tab.
Step 3 To change an IP address setting, do any of the following steps:
•In the IP Address field, enter the IP address you want to assign to the MCU.
•In the Router IP field, enter the IP address of the router you want the MCU to use.
•In the Subnet Mask field, enter the subnet mask you want the MCU to use.
Step 4 To change or add DNS information, do the following steps:
•In the DNS suffix field, enter the alias you want to assign to the current MCU.
•In the Preferred DNS server field, enter the IP address of the primary DNS server that you want the MCU to use.
•In the Alternate DNS server field, enter the IP address of the back-up DNS server that you want the MCU to use.
Step 5 In the Port settings field, choose the Ethernet port and duplex speed value you want to set.
Note We recommend that you set the Port settings option to "Auto".
Step 6 On the toolbar, click Upload.
Related Topics
•How to View and Change Address Settings for the 3515 MCU
How to Change Web Settings
•Changing the Administrator Interface Web Server Port for the 3515 MCU
•Creating and Importing a Web Server Certificate
Changing the Administrator Interface Web Server Port for the 3515 MCU
In the General section, in the Web server port field, 80 is the default Administrator interface web server port. For additional security, you can modify the web server port in the Web tab.
Procedure
Step 1 In the Administrator interface, on the sidebar, click Device.
Step 2 Click the Web tab.
Step 3 In the Web server port field, enter the port number.
Step 4 On the toolbar, click Upload.
Creating and Importing a Web Server Certificate
In the HTTPS section, click Manage Certificate to create a web server certificate with the wizard or click Import Certificate to import an existing certificate.
Configuring Security for the 3515 MCU
You can configure the access that external programs have to the MCU. These external programs include Telnet, Simple Network Management Protocol (SNMP), File Transfer Protocol (FTP) and ICMP (Internet Control Message Protocol or "ping").
Procedure
Step 1 In the Administrator interface, on the sidebar, click Device.
Step 2 Click the Security tab.
Step 3 From the Security mode field, choose the access level you want the MCU to support:
•Standard—Allows SNMP, Telnet, FTP, and ICMP to access the MCU.
•High (no Telnet or FTP)—Allows access to the MCU only through SNMP and ICMP.
•Maximum (no Telnet, FTP, SNMP, or ICMP)—Disallows external programs to access the MCU.
Step 4 In the SNMP Read community and Write community fields, enter default strings used to enable SNMP communication between the MCU and an external application such as the Cisco Upload Utility.
