Functionality
This section describes the following topics:
•
Introducing the Cisco Unified Videoconferencing 3545 MCU
•About Cisco Unified Videoconferencing 3545 MCU Users
•Main Features
•Port Capacities
•About Cisco Unified Videoconferencing 3545 MCU Architecture
•About Cisco Unified Videoconferencing 3545 MCU Topologies
Introducing the Cisco Unified Videoconferencing 3545 MCU
The Cisco Unified Videoconferencing 3545 MCU enables multimedia, multiparty collaboration in applications such as group conferencing, distance learning, training and video telephony. The Cisco Unified Videoconferencing 3545 MCU supports multimedia, multiparty communications in the board room, at the desktop, in the home, or on the road over wireless.
The Cisco Unified Videoconferencing 3545 MCU provides core IP-centric functionality, a wide range of layouts, powerful audio and video transcoding, an open API for customer application development, support of web-initiated data collaboration, and software upgradeable technology. Services are pre-configured so that they suit most conferencing requirements. However, when necessary, administrators can create customized services to suit their networks and user needs.
About Cisco Unified Videoconferencing 3545 MCU Users
The Cisco Unified Videoconferencing 3545 MCU provides an intuitive web interface with a single point of entry for configuring, controlling and monitoring the Cisco Unified Videoconferencing 3545 MCU unit and conference sessions. Access to the interfaces is password-protected for four types of users—Administrators, Moderators, Operators and conference users.
Administrators
Administrators use the Administrator interface for configuring, controlling and managing the Cisco Unified Videoconferencing 3545 MCU, conference services and supporting devices and applications.
Moderators and Operators
Moderators and Operators can use the Conference Control interface for controlling audio, video and data connections, for selecting advanced conference view image positioning and multiple layouts, and for creating new conferences and sub-conferences.
Moderators can use the Conference Control interface to view conference details and manage a specific conference.
Operators have a global view of all current conferences, and can act as Moderators for all current conferences.
Conference Users
Conference users participate in actual video or audio conferences.
Main Features
Table 1-1 lists the main features provided by the Cisco Unified Videoconferencing 3545 MCU for effective audio and videoconferencing and a satisfying user experience.
Table 1-1 Summary of Cisco Unified Videoconferencing 3545 MCU Features
Feature
|
Description
|
Superior video quality
|
Video and audio processing is carried out per user rather than per conference. Each user connects using unique, optimized audio and video settings to enjoy the best audio and video quality supported by his/her endpoint and network.
|
Seamless interoperability
|
The Cisco Unified Videoconferencing 3545 MCU is built on the strong foundation of the Cisco H.323 and SIP software, ensuring full compliance and unmatched interoperability with IP and ISDN networks.
The MCU enables H.323, SIP and SCCP devices to participate in the same conference session.
When used with the Cisco Unified Videoconferencing 3545 Gateway, the MCU also enables ISDN and V.35 devices to participate in the same conference session.
|
Intuitive web-based management and control
|
Both the Cisco Unified Videoconferencing 3545 MCU system and actual conference sessions are managed, configured, and dynamically modified through an intuitive, web-based interface that offers easy, high-level conference control and administrative flexibility for an enhanced user experience.
|
Supported protocols
|
•H.323 version 4
•SIP RFC 3261 for the Session Initiation Protocol
•SCCP
•H.243 for conference control
•RFC 2833 for in-band DTMF with SIP
•H.281 for far end camera control (FECC)
•H.235 for IP-based media encryption
•H.239 for standard simultaneous transmission of live video and presentation sharing feeds.
•SDP (RFC 3264, 2327)
•T.120
•H.320 (when using a gateway)
Note The Cisco Unified Videoconferencing 3545 MCU supports calls from H.323 and SIP endpoints in the same conference. Call signalling is handled on all ports regardless of the protocol type.
|
Audio transcoding codecs
|
•G.711 A/ยต Law
•G.722
•G.722.1
•G.723.1
•G.728
•G.729 A and B
|
Unmatched video quality
|
The Cisco Unified Videoconferencing 3545 MCU delivers exceptionally high quality video and audio processing, using the latest industry standards and leveraging upon advanced software-upgradeable DSP chips. The Cisco QualiVision feature provides highly improved, standard-based video quality for networks with packet loss, assuring best video quality at all times.
The Cisco Unified Videoconferencing 3545 MCU achieves the best video quality by supporting the following video capabilities:
•High definition and standard definition participants in the same conference.
•H.261, H.263 and H.264 in the same conference
•A choice of 26 Continuous Presence layouts
•Up to 2 Mbps on each stream without affecting capacity
•QCIF, CIF and 4CIF in the same conference without affecting capacity
•720p (capacity affected)
•VGA, SVGA, XGA (supported for presentation channel only)
|
T.120 Data Collaboration support
|
Data collaboration is defined by the T.120 standard. Data collaboration using T.120 over the video conference connection enhances the conference by providing the tools for conference participants to share data instantaneously.
|
Security and privacy
|
•Administrator and operator password protection for accessing the Cisco Unified Videoconferencing 3545 MCU web interfaces.
•Optional PIN protection for joining a conference and web access.
•Additional PIN protection for conference Moderator Control.
•The Cisco Unified Videoconferencing 3545 MCU uses H.235-based encryption to achieve secure communication with endpoints that support this standard.
|
In-conference control using DTMF or H.243
|
During a conference, participants may use their endpoint remote control or keypad to perform actions such as mute, volume control, changing video layouts and inviting participants. Users interact with the Cisco Unified Videoconferencing 3545 MCU via DTMF signaling or the onscreen GUI of H.243-compliant endpoints.
|
Optional no self-see
|
The administrator can configure the Cisco Unified Videoconferencing 3545 MCU service to remove the self-view for each conference participant. This feature enables more effective use of the video screen.
Note No self-see display is not available for high definition participants, even if the no self-see option is enabled.
|
IVR messages
|
The Cisco Unified Videoconferencing 3545 MCU includes pre-recorded greetings to conference participants and announcements as each new participant joins the conference. Using the Cisco Audio Message Utility, IVR messages can be recorded to provide custom greetings and announcements.
|
Port Capacities
The Cisco Unified Videoconferencing 3545 MCU can be configured to support a wide range of audio and/or video ports.
The Cisco Unified Videoconferencing 3545 MCU supports Continuous Presence High Definition (CP HD) services. CP HD services support split-screen (continuous presence) up to 2 Mbps and offer resolutions of 1280 x 720 pixels (720p).
The Cisco Unified Videoconferencing 3545 MCU supports switched High Definition (HD) video service types. The switched HD service enables Voice Activated single-screen displays at up to 2 Mbps, and offers resolutions of 1280 x 720 pixels (720p) and 1920 x 1080 pixels (1080p). Switched HD service types also enable you to set a minimum downspeeding bandwidth rate which is common to all endpoints participating in a conference.
Cisco Unified Videoconferencing 3545 MCU conferencing includes two types of cards:
•Cisco Unified Videoconferencing 3545 MCU—An MCU card that is responsible for the signaling and the audio. When working alone, this card can only do audio conferencing of 96 audio ports. It can be mixed and matched with up to four EMP cards to create a 96 flat port video bridge. The Cisco Unified Videoconferencing 3545 MCU card has no video capabilities.
•Cisco Unified Videoconferencing 3545 EMP Enhanced Media Processor (EMP)—A video processing card that can support 48 standard rate video ports (up to 384 Kbps) or 24 high rate video ports (up to 2 Mbps).
Table 1-2 shows the port capacity for different Cisco Unified Videoconferencing 3545 MCU configurations.
Table 1-2 Cisco Unified Videoconferencing 3545 MCU Port Capacities
Platform
|
Cisco Unified Videoconferencing 3545 MCU System Configuration
|
Port Capacity
|
|
1 MCU card
|
96 audio
|
4 MCU cards
|
384 audio
|
1 MCU card + 1 EMP card
|
96 audio
48 standard rate video (up to 384 Kbps)
24 high rate video (up to 2 Mbps)
16 HD CP or HD/SD interoperability*
|
1 MCU card + 2 EMP cards
|
96 audio/48 video
96 standard rate video (up to 384 Kbps)
48 high rate video (up to 2 Mbps)
32 HD CP or HD/SD interoperability*
|
1 MCU card + 3 EMP cards
|
96 audio
96 standard rate video (up to 384 Kbps)
72 high rate video (up to 2 Mbps)
48 HD CP or HD/SD interoperability*
|
|
8 MCU cards
|
768 audio
|
1 MCU card + 4 EMP cards
|
96 audio
96 standard rate video (up to 384 Kbps)
96 high rate video (up to 2 Mbps)
64 HD CP or HD/SD interoperability*
* Enabling the processed HD service reduces capacity for all services on the MCU, but the high-capacity SD service continues to support 2 connections per port.
|
2 MCU cards + 4 EMP cards
|
192 audio
192 standard rate video (up to 384 Kbps)
96 high rate video (up to 2 Mbps)
|
About Cisco Unified Videoconferencing 3545 MCU Architecture
The Cisco Unified Videoconferencing 3545 MCU enables both voice-only and video conference calls for H.323, SIP, H.320, SCCP and regular PSTN network telephones. H.323 and SIP devices can connect to a conference directly through the Cisco Unified Videoconferencing 3545 MCU. Other devices such as voice telephones and video conferencing terminals (H.320) can connect to a conference via a gateway, such as the Cisco Unified Videoconferencing 3545 Gateway.

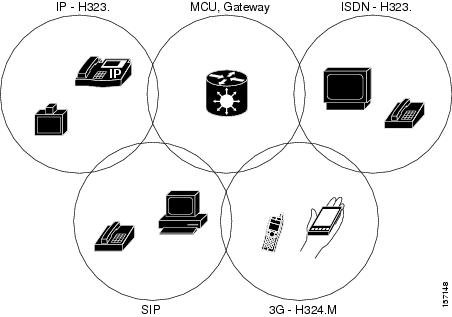

Figure 1-1 Supported Devices and Protocols
The Cisco Unified Videoconferencing 3545 MCU supports devices that can send and receive video streams, as well as those that cannot send but only receive video streams. This means that terminals without a video camera or video capturing capabilities can participate in a conference as voice-only participants while benefiting from seeing the other participants.
About Cisco Unified Videoconferencing 3545 MCU Topologies
The Cisco Unified Videoconferencing 3545 MCU can work in a centralized or cascaded topology. This section describes these two options.
Centralized Topology
In a centralized topology, the Cisco Unified Videoconferencing 3545 MCU performs media processing for all connected terminals. The Cisco Unified Videoconferencing 3545 MCU can handle multiple conferences simultaneously.

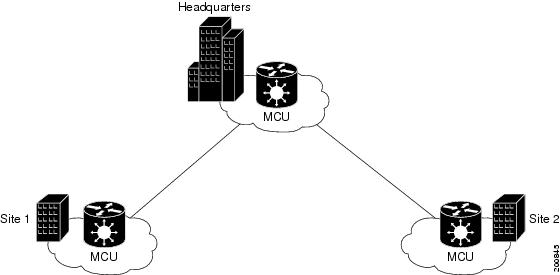

Figure 1-2 Centralized Topology
Cascaded Conferences
The Cisco Unified Videoconferencing 3545 MCU allows you to combine two or more conferences resulting in a larger conference with many more participants. This is called cascading. Cascading creates a distributed environment that helps reduce the drain on network resources. In addition, the processing resources required by the Cisco Unified Videoconferencing 3545 MCU are distributed between participating MCUs. Costly telephone or ISDN line usage can be further reduced with the mediation of a gateway.
Cascading occurs when one conference with "x" number of participants invites another conference with "y" number of participants. The two conferences effectively become one large conference. The bandwidth required across a cascaded conference link is only that of one audio/video stream between the two conferences. This is significantly less than the accumulated bandwidth of all the participants. Each separate Cisco Unified Videoconferencing 3545 MCU unit participating in a conference retains control of its individual conference resources and participants.
The cascaded conference in Figure 1-3 minimizes the use of network bandwidth while distributing processing among the participating the Cisco Unified Videoconferencing 3545 MCU units.

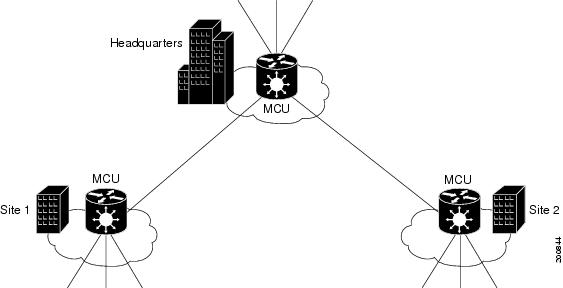

Figure 1-3 Cascaded Conference
