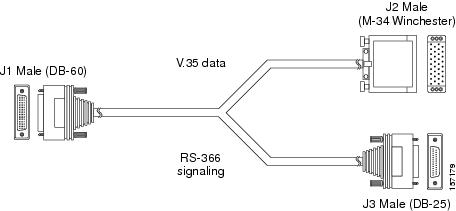

V.35/RS366-DTE
EIA449/RS366-DTE
EIA530/RS366-DTE
EIA530/RS366-DTE-LOS
EIA530A/RS366-DTE

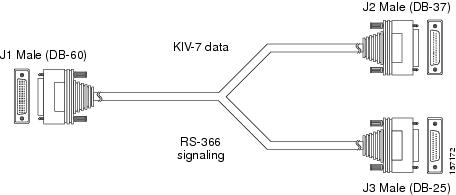

KIV7/RS366-DTE
Physical Description of DCE Cables
V.35/RS366-DCE
EIA449/RS366-DCE
EIA530/RS366-DCE
Data Interface Cable Pin-out Configurations
Data Interface Pin Layouts

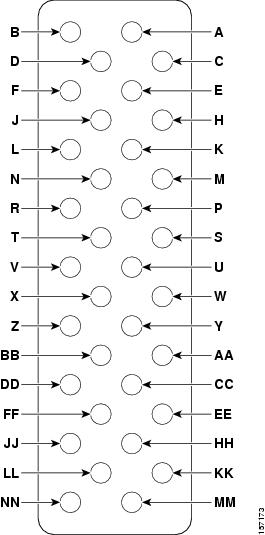

M-34 Connector

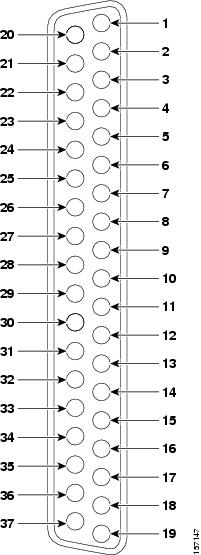

DB-37 Connector
DB-25 Connector
Signaling Interface Cable Pin-out Configuration
Signaling Interface Pin Layout
DB-25 Connector
Connecting the Gateway to a Power Source
Installing Online Help on the Network
Accessing the Gateway Administrator Interface
Registering the Online Help
Netscape Navigator Users
Installing the Cisco Unified Videoconferencing 3545 Series
This section describes the following topics:
•
Physical Description
•Preparing for Installation
•Verifying the Package Contents
•Mounting the Cisco Unified Videoconferencing 3545 Chassis in a 19-inch Rack
•Installing the Gateway
•Initial Cisco Unified Videoconferencing 3545 Series Configuration
•Connecting the Gateway to the Network
•Connecting PRI Lines to the Gateway
•Connecting Serial Lines to the Gateway
•Serial Gateway Cable Connections and Pin-outs
•Connecting the Gateway to a Power Source
•Installing Online Help on the Network
•Accessing the Gateway Administrator Interface
•Registering the Online Help
Physical Description
This section provides a physical description of the gateway modules and their corresponding RTMs.
Gateway Module
The gateway module has a 10/100BaseT Ethernet port on the front panel that uses an RJ-45 connector to connect to the network. There is an asynchronous, 9-pin serial port that you can use with a hyperterminal program to configure and monitor the module.
Figure 2-1 shows the front panel components of the gateway module. Table 2-1 describes these components.
Figure 2-1 Gateway Front Panel
Table 2-1 Front Panel Components
Component
|
Description
|
10/100 Base T-1 connector
|
An RJ-45 connector that provides the primary Ethernet connection for the IP network port.
|
SERIAL connector
|
A DB-9 connector that allows you to connect a PC terminal for local configuration.
|
RST button
|
Allows you to reset the gateway manually.
|
GK Reg LED
|
Lights green when the gateway is registered with a gatekeeper.
|
CD LED
|
Lights green when at least one gateway port connection is online.
|
ACT LED
|
Lights green to indicate that there are active calls in the gateway.
|
ALARM LED
|
Lights green to indicate that an error has occurred and the gateway requires resetting.
|
10/100 Base T-1 LEDs
|
The top part of the 10/100 Base T-1 connector contains two LED indicators. The left-hand LED lights green when the local IP network link is active. The right-hand LED lights green if the connection speed is 100 Mbps, and is off when the connection speed is 10 Mbps.
|
SWAP RDY LED
|
Hot Swap indication. Lights blue when the latches of a board are unlocked and it is safe to remove the board from the chassis. Goes off when the board is completely detached.
|
Cisco Unified Videoconferencing 3545 PRI Gateway RTM
The Rear Transition Module (RTM) provides the PRI line connections for the Cisco Unified Videoconferencing 3545 PRI Gateway.
Figure 2-2 shows the RTM panel components of the Cisco Unified Videoconferencing 3545 PRI Gateway module. Table 2-2 describes these components.
Figure 2-2 PRI Gateway: Rear Transition Module
Table 2-2 PRI Gateway Rear Transition Module Components
Component
|
Description
|
ACT LEDs
|
Lights green to indicate that there are active calls in the gateway.
|
D-Ch LEDs
|
Lights green to indicate that the PRI line is enabled and a carrier signal is detected.
|
ALARM LEDs
|
Displays alarm events for the PRI line.
•YELLOW —Lights yellow when there is a loss of frame alignment at the remote side.
•ORANGE—Lights orange when there is a loss of frame alignment in the gateway.
|
PRI LINE connectors
|
RJ-45 connectors that provide the PRI line connections for the specified gateway ISDN PRI port.
|
Cisco Unified Videoconferencing 3545 Serial Gateway RTM
The Rear Transition Module (RTM) provides the serial line connections for the Cisco Unified Videoconferencing 3545 Serial Gateway.
Figure 2-3 shows the RTM panel components of the Cisco Unified Videoconferencing 3545 Serial Gateway module. Table 2-3 describes these components.
Figure 2-3 Serial Gateway: Rear Transition Module
Table 2-3 Serial Rear Transition Module Components
Component
|
Description
|
PORT connectors
|
DB-60 connectors that provide the serial line connections for gateway serial ports 1 to 4.
|
ACT and ALARM LEDs
|
ACT lights green to indicate that the specified serial line is currently in use.
ALARM lights red to indicate an internal error related to the specified line.
|
Preparing for Installation
This section describes the requirements for installing the Cisco Unified Videoconferencing 3545 PRI Gateway and the Cisco Unified Videoconferencing 3545 Serial Gateway in a Cisco Unified Videoconferencing 3545 chassis. For more information, see the Platform Guide for Cisco IPVC 3644 Chassis. The requirements are as follows:
Warning During this procedure, wear grounding wrist straps to avoid ESD damage to the card. Do not directly touch the backplane with your hand or any metal tool, or you could shock yourself.
•Cisco Unified Videoconferencing 3545 chassis
•Proper clearance at the sides of the unit to allow adequate ventilation, and at least 20 cm clearance at the back of the chassis to allow access to the boards and cable connections
•PC with a serial port and terminal emulation software to assign the gateway an IP address
•Dedicated IP address for the gateway
•IP address of the router the gateway will use to communicate across the network
•IP address of the H.323 gatekeeper with which you want the gateway to register
•Available IP network ports on the switch for the Cisco Unified Videoconferencing 3545 chassis
•A grounded AC power outlet
•10BaseT or 100BaseT LAN cable
•Ambient room temperature range of 32o to 104oF (0o to 40oC)
•Non-condensing relative humidity range of 5% to 85%
Verifying the Package Contents
Inspect the contents of the box for shipping damage. Report any damage or missing items to your Cisco representative. Table 2-4 lists the package contents for the gateway.
Table 2-4 Package Contents with Cisco Unified Videoconferencing 3545 PRI Gateway or Cisco Unified Videoconferencing 3545 Serial Gateway
Product
|
Contents
|
Cisco Unified Videoconferencing 3545 chassis with Cisco Unified Videoconferencing 3545 PRI Gateway or Cisco Unified Videoconferencing 3545 Serial Gateway
|
•Cisco Unified Videoconferencing 3545 PRI Gateway or Cisco Unified Videoconferencing 3545 Serial Gateway
•Cisco Unified Videoconferencing 3545 PRI Gateway or Cisco Unified Videoconferencing 3545 Serial Gateway Rear Transition Module
•LAN cable
•Regulatory Compliance and Safety Information for Cisco Unified Videoconferencing 3500 Products
•Cisco Unified Videoconferencing Software CD-ROM
•Cisco Information Package
|
You can also order the following cables for the Cisco Unified Videoconferencing 3545 Serial Gateway:
•V.35/RS366-DTE cable
•EIA449/RS366-DTE cable
•EIA530/RS366-DTE cable
•EIA530/RS366-DTE-LOS cable
•EIA530A/RS366-DTE cable
•KIV7/RS366-DTE cable
•V.35/RS366-DCE cable
•EIA449/RS366-DCE cable
•EIA530/RS366-DCE cable
Related Topics
•Serial Gateway Cable Connections and Pin-outs
Mounting the Cisco Unified Videoconferencing 3545 Chassis in a 19-inch Rack
You can optionally mount the Cisco Unified Videoconferencing 3545 chassis in a standard 19-inch rack. Two mounting brackets and a set of screws are included in the Cisco Unified Videoconferencing 3545 chassis shipping box.
Procedure
Step 1 Disconnect all cables including the power cables.
Step 2 Place the Cisco Unified Videoconferencing 3545 chassis right-side up on a hard flat surface, with the front panel facing you.
Step 3 Position a mounting bracket over the mounting holes on each side of the Cisco Unified Videoconferencing 3545 chassis, as shown in Figure 2-4.
Step 4 Pass the screws through the brackets and tighten them into the screw holes on each side of the Cisco Unified Videoconferencing 3545 chassis using a suitable screwdriver.

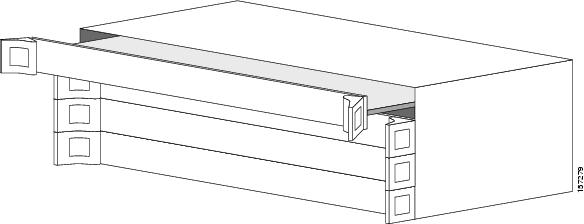

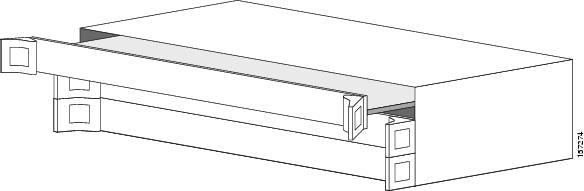

Figure 2-4 Fitting a Bracket for Rack Mounting
Step 5 Insert the Cisco Unified Videoconferencing 3545 chassis into the 19-inch rack.
Step 6 Fasten the brackets to the side rails of the rack.
Step 7 Make sure that the air vents at the sides of the Cisco Unified Videoconferencing 3545 chassis are not blocked.
Installing the Gateway
This section describes how to insert a gateway into the Cisco Unified Videoconferencing 3545 chassis.
Before You Begin
Note the following:
•The Cisco Unified Videoconferencing 3545 chassis has four slots. You can install the Cisco Unified Videoconferencing 3545 Series in any of the slots.
•Insert the gateway in the top slot at the front of the Cisco Unified Videoconferencing 3545 chassis to view status and identification information via the System web user interface.
The Cisco Unified Videoconferencing 3545 Series has two components that you must install in the chassis: the Cisco Unified Videoconferencing 3545 Series module and the corresponding Rear Transition Module (RTM), as indicated in Table 2-5.
Table 2-5 Identifying RTM Boards
Gateway
|
Corresponding RTM
|
Cisco Unified Videoconferencing 3545 PRI Gateway
|
Dual PRI RTM board
|
Cisco Unified Videoconferencing 3545 Serial Gateway
|
Quad Serial RTM board
|
The gateway module installs in the front of the chassis and provides ISDN or serial functionality. The RTM installs in the rear of the chassis and provides the physical interface for the ISDN or serial line. You must install these modules in corresponding slots in the chassis. That is, if you insert the gateway module in the top slot in the front of the chassis, you must insert the RTM in the top slot in the rear of the chassis.
Warning During this procedure, wear grounding wrist straps to avoid ESD damage to the card. Do not directly touch the backplane with your hand or any metal tool, or you could shock yourself.
Warning Only trained and qualified personnel should be allowed to install, replace, or service this equipment.
Warning Before working on a system that has an on/off switch, turn OFF the power and unplug the power cord.
Warning Before opening the chassis, disconnect the telephone network cables to avoid contact with telephone network voltages.
Warning To avoid electric shock, do not connect safety extra-low voltage (SELV) circuits to telephone-network voltage (TNV) circuits. LAN ports contain SELV circuits, and WAN ports contain TNV circuits. Some LAN and WAN ports both use RJ-45 connectors. Use caution when connecting cables.
Warning The telecommunications lines must be disconnected 1) before unplugging the main power connector and/or 2) while the housing is open.
Installing the RTM Module
This section describes how to install the RTM module in the Cisco Unified Videoconferencing 3545 chassis. The Rear Transition Module (RTM) provides the ISDN or serial line connections for the gateway.
Warning You must install the RTM module before you install the gateway module. Inserting an RTM module in the rear of the chassis when a gateway module is already installed in the same position at the front of the chassis may damage the chassis.
Procedure
Step 1 On the back of the chassis, loosen the screws of the blank panel covering the slot into which the RTM module is to be installed.
Step 2 Remove the blank panel.
Step 3 Remove the new RTM from the antistatic bag.
Step 4 Press the red buttons and open the handles of the RTM module.
Step 5 Align the edges of the RTM module with the chassis guide rails.
Step 6 Slide the RTM module into the chassis until it stops (see Figure 2-5).
Figure 2-5 Inserting the RTM Module in the Cisco Unified Videoconferencing 3545 Chassis
Step 7 Use even pressure to push the module further into the slot.
Caution Do not force the connection. Forcing the connection can bend or damage the pins in the connector inside the chassis.
Step 8 Snap the handles forward to secure the RTM module in the slot.
Step 9 Secure the RTM module screws.
Caution Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place.
Installing the Gateway Module
This section describes how to install the Cisco Unified Videoconferencing 3545 Series module in the Cisco Unified Videoconferencing 3545 chassis.
Warning You must install the RTM module before you install the gateway module. Inserting an RTM module in the rear of the chassis when a gateway module is already installed in the same position at the front of the chassis may damage the chassis.
Procedure
Step 1 On the front of the chassis, loosen the screws of the blank panel covering the slot into which the gateway module is to be installed.
Step 2 Remove the blank panel.
Step 3 Remove the new gateway module from the antistatic bag.
Step 4 Press the red buttons and open the handles of the gateway module.
Step 5 Align the edges of the gateway module with the chassis guide rails.
Step 6 Slide the gateway module into the chassis until it stops (see Figure 2-5 for the Cisco Unified Videoconferencing 3545 chassis).
Step 7 Use even pressure to push the module further into the slot.
Caution Do not force the connection. Forcing the connection can bend or damage the pins in the connector inside the chassis.
Note If you are installing the gateway module and the power to the chassis is on, the SWAP RDY LED on the module front panel turns blue when you slide the module into the chassis as far as it will go. This means that you can secure the module safely. The LED turns off when the handles are closed.
Step 8 Snap the handles forward to secure the gateway module in the slot.
Step 9 Secure the gateway module screws.
Caution Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place.
Removing a Module
This section describes how to remove the Cisco Unified Videoconferencing 3545 Series or the RTM module from the Cisco Unified Videoconferencing 3545 chassis.
Warning You must remove the gateway module from the slot at the front of the chassis before removing the corresponding RTM module from the same slot position at the rear of the chassis.
Procedure
Step 1 Loosen the gateway or RTM module screws.
Step 2 Press the red buttons and open the handles of the gateway or RTM module (see Figure 2-6).
Figure 2-6 Removing a Module from the Cisco Unified Videoconferencing 3545 Chassis
Step 3 Wait for the blue SWAP RDY LED to light up. The SWAP RDY LED indicates that it is safe to remove the module.
Note It may take up to one minute for the LED to light up while the Windows operating system is shutting down.
The light goes out when the board is completely detached from the backplane.
Step 4 Remove the module completely.
Step 5 Insert a blank cover panel provided by Cisco.
Step 6 Secure the blank cover panel screws.
Caution Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place.
Initial Cisco Unified Videoconferencing 3545 Series Configuration
Initial monitoring and administration of the gateway are performed from a remote PC via a serial connection. This allows you to access the boot configuration menu of the gateway. At power-up, the gateway goes through the following boot phases:
•Auto-boot—The embedded operating system initializes and displays basic information.
•Configuration menu—A 6-second countdown allows you to enter the configuration menu.
•Initialization—The gateway completes its boot sequence and is ready for operation.
Note You can perform serial port configuration of the gateway only at startup, during a short period indicated by a 6-second countdown. Once the initialization phase is complete, the only way you can access the configuration menu is by restarting the gateway.
Connecting to a PC
This section describes how to use the serial port connection to configure the gateway with an IP address.
Procedure
Step 1 Locate the terminal cable shipped with the gateway.
Step 2 Connect the end labeled PC to the serial port on the computer.
Step 3 Connect the end labeled Unit to the serial port connector on the gateway front panel.
Note The PC terminal should have an installed terminal emulation application, such as HyperTerminal.
Setting the IP Address
This section describes how to use the serial port to configure the unit with an IP address and other address information.
The serial port on the gateway front panel is used to assign a new IP address to your gateway. You must assign the IP address before you connect the gateway to the network.
Before You Begin
Gather the items listed in Table 2-6 to assign an IP address to the Cisco Unified Videoconferencing 3545 MCU.
Table 2-6 Requirements for Setting the IP Address
Requirements
|
Notes
|
Dedicated IP address for the gateway
|
|
IP address of the default router the gateway uses to communicate over the network
|
|
PC with available serial port and terminal emulator software installed
|
|
RS-232 terminal cable (shipped with the unit)
|
|
Procedure
Step 1 Connect the supplied terminal cable to the PC terminal.
Step 2 Connect the power cable.
Step 3 Start the terminal emulation application on the PC.
Step 4 Set the communication settings in the terminal emulation application on the PC as follows:
–Baud rate: 9600
–Data bits: 8
–Parity: None
–Stop bits: 1
–Flow control: None
Step 5 Turn on the power to the gateway.
Step 6 After the terminal emulator session starts, press the RST button on the gateway front panel to reset the module.
A log of the auto-boot events and a VxWorks banner scrolls across the computer monitor.
Note When the gateway is started for the first time, two VxWorks banners appear. The configuration option appears after the second banner.
Step 7 When the message "Press any key to start configuration" appears on the screen, press any key within 6 seconds.
The Network Configuration menu displays:
Press any Key To start configuration...
Enter <N> to configure default network port values
Enter <P> to change the configuration software password
Enter <A> to display advanced configuration menu
Enter <Q> to quit configuration menu and start GW
Caution If you do not press a key before the countdown ends, the device continues its initialization and you can only configure the device by pressing the
RST button on the front panel.
Step 8 At the prompt, type N to configure default network port values and press Enter.
Step 9 At the Enter IP address for default interface prompt, type the IP address you want to assign to the gateway and press Enter.
Caution Do not use leading zeros in the IP address.
Step 10 At the Enter Default Router IP Address prompt, type the IP address of the router associated with the segment in which the unit will be installed and press Enter.
Caution Do not use leading zeros in the IP address.
Step 11 At the Enter IP Mask <HEX> for default device prompt, type the subnet mask as follows:
–Convert the subnet mask IP address to hexadecimal notation, type the hexadecimal number at the prompt, and press Enter.
For example, for the subnet mask 255.255.255.0 the hexadecimal value you type is FFFFFF00.
Note You can use the computer's desktop calculator to convert the subnet mask ID to hexadecimal notation.
–If a subnet mask is not used, press Enter.
Step 12 Allow the unit to complete the reboot process. A new emulator session begins.
Step 13 Close the terminal emulator session.
Changing the Configuration Tool Login Password
You can use the terminal emulator to change the default password of the default login user before others can use the gateway interface.
Procedure
Step 1 Start a terminal emulator session for the gateway.
Step 2 Press the RST button on the front panel of the gateway.
After 60 seconds, a new terminal emulator session begins on the computer monitor.
Step 3 After the second VxWorks banner scrolls across the screen, the following message appears: "Press any Key to start the configuration."
Step 4 Press any key and then press Enter.
The default network properties screen appears.
Step 5 At the prompt, enter P and press Enter to select "change the configuration software password."
The Enter user name prompt appears.
Step 6 Enter the user login name for which you want to change the password and press Enter.
The default user name is admin. This is the user name that allows you to access the gateway interface.
The Enter new password prompt appears.
Step 7 Enter the password you want the user to use to log in to the gateway interface and press Enter.
There is no default password.
Step 8 The configuration menu re-appears.
Step 9 Enter Q and press Enter to exit.
Upgrading Gateway Software
Software upgrades for the gateway include the software components that are upgraded for the new version and a utility to upload the software to the unit. This section describes how to upgrade the software. For more information, see Chapter 7, "Using the Cisco Software Upgrade Utility".
Procedure
Step 1 Download the upgrade software to a host that can access the gateway.
Step 2 Unzip the upgrade file.
Step 3 Double click the upgrade.exe file.
The Cisco Software Upgrade Utility appears.
Step 4 In the Target IP field, type the IP address of the gateway for which you want to upload the software.
Step 5 In the User Name field, type the software user name.
This is a global login name that the upload, upgrade, and Telnet utilities use to log in to the gateway software. It can also be used to access the Administrator interface. The default user name is admin.
Step 6 In the Password field, type the software password.
The default value is null.
Note To view the software components that will upgrade, click Customize. The Customize dialog box appears. If you do not want to upgrade a component, deselect it.
Step 7 Click Upgrade.
The upgrade process takes a few minutes. After the upload completes, the Upload Complete Message dialog box appears.
Step 8 Click OK.
Connecting the Gateway to the Network
Cisco Unified Videoconferencing 3545 Series can connect to the LAN only through the front panel. The gateway supports a 10/100BaseT, full-duplex Ethernet interface through an RJ-45 connector.
Procedure
Step 1 Connect the supplied LAN cable from your network hub to the 10/100BaseT Ethernet port on the front panel of the gateway. The 10/100BaseT port accepts an RJ-45 connector.
Step 2 Connect a separate ISDN or serial line to each PRI or serial port in the rear panel of the gateway. The port accepts an RJ-45 connector.
Connecting PRI Lines to the Gateway
You must connect a PRI line to at least one Cisco Unified Videoconferencing 3545 PRI Gateway port. The gateway supports T1 and E1 PRI configurations.
Connecting Serial Lines to the Gateway
You can connect the Cisco Unified Videoconferencing 3545 Serial Gateway to four serial lines that may support different physical standards (V.35, RS-449 or EIA-530). The system is capable of recognizing the type of cable connected.
Procedure
Step 1 Connect the DB-60 male connector of the cable to the DB-60 female connector of the unit.
Step 2 Tighten the screws.
Step 3 Connect the remote connectors (V.35, RS-449, EIA-530 and RS-366) to the connectors or the connecting cable of the remote equipment
Serial Gateway Cable Connections and Pin-outs
This section describes the DTE and DCE cables that you can use with the Cisco Unified Videoconferencing 3545 Serial Gateway including the following topics:
•Physical Description of DTE Cables
•Physical Description of DCE Cables
•Data Interface Cable Pin-out Configurations
•Data Interface Pin Layouts
•Signaling Interface Cable Pin-out Configuration
•Signaling Interface Pin Layout
Physical Description of DTE Cables
This section describes the following DTE cables supplied with the Cisco Unified Videoconferencing 3545 Serial Gateway:
•V.35/RS366-DTE
•EIA449/RS366-DTE
•EIA530/RS366-DTE
•EIA530/RS366-DTE-LOS
•EIA530A/RS366-DTE
•KIV7/RS366-DTE
Note
|
•The DB-25 connector provides the data interface for the EIA530/RS366-DTE and EIA530/RS366-DTE-LOS cables.
|
| |
•The DB-37 connector provides the data interface for the EIA449/RS366-DTE and KIV7/RS366-DTE cables.
|
| |
•The DB-25 connector provides the RS-366 signaling interface for all Cisco Unified Videoconferencing 3545 Serial Gateway cables.
|
V.35/RS366-DTE
Figure 2-7 shows the V.35/RS366-DTE cable.
Figure 2-7 V.35/RS366-DTE Cable
EIA449/RS366-DTE
Figure 2-8 shows the EIA449/RS366-DTE cable.
Figure 2-8 EIA449/RS366-DTE Cable
EIA530/RS366-DTE
Figure 2-9 shows the EIA530/RS366-DTE cable.
Figure 2-9 EIA530/RS366-DTE Cable
EIA530/RS366-DTE-LOS
Figure 2-10 shows the EIA530/RS366-DTE-LOS cable.
Figure 2-10 EIA530/RS366-DTE-LOS Cable
EIA530A/RS366-DTE

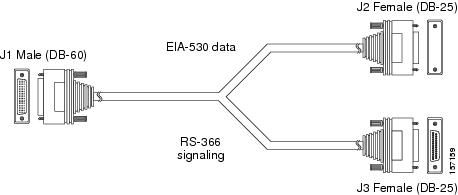

Figure 2-11 shows the EIA530A/RS366-DTE cable.
Figure 2-11 EIA530A/RS366-DTE Cable
KIV7/RS366-DTE
Figure 2-12 shows the KIV7/RS366-DTE cable.
Figure 2-12 KIV7/RS366-DTE Cable
Physical Description of DCE Cables
This section describes the following DCE cables supplied with the Cisco Unified Videoconferencing 3545 Serial Gateway:
•V.35/RS366-DCE
•EIA449/RS366-DCE
•EIA530/RS366-DCE
Note
|
•The DB-25 connector provides the data interface for the EIA530/RS366-DCE cable.
|
| |
•The DB-37 connector provides the data interface for the EIA449/RS366-DCE cable.
|
| |
•The DB-25 connector provides the RS-366 signaling interface for all Serial Gateway cables.
|
V.35/RS366-DCE

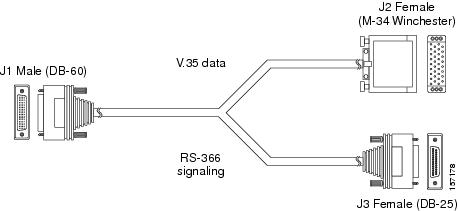

Figure 2-13 shows the V.35/RS366-DCE cable.
Figure 2-13 V.35/RS366-DCE Cable
EIA449/RS366-DCE

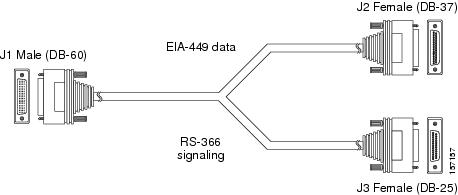

Figure 2-14 shows the EIA449/RS366-DCE cable.
Figure 2-14 EIA449/RS366-DCE Cable
EIA530/RS366-DCE

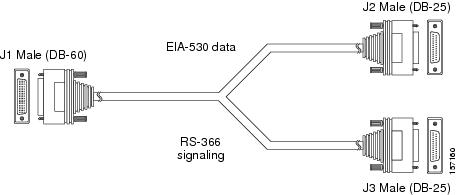

Figure 2-15 shows the EIA530/RS366-DCE cable.
Figure 2-15 EIA530/RS366-DCE Cable
Data Interface Cable Pin-out Configurations
Figure 2-15 describes the data interface pin-out configuration for the serial gateway cables.
Table 2-7 Serial Gateway Data Interface Cable Pin-out
Signal Name
|
Mnemonic
|
KIV-7 (DB-37)
DTE only
|
EIA-449 (DB-37)
|
EIA-530 (DB-25)
|
EIA-530 LOS (DB-25)
DTE only
|
EIA-530A LOS (DB-25)
DTE only
|
V.35 (M-34)
|
Shield
|
—
|
1
|
1
|
1
|
1
|
1
|
A
|
Transmit Data
|
TXD A
|
2
|
4
|
2
|
2
|
2
|
P
|
Transmit Timing
|
TXC A
|
15
|
5
|
15
|
15
|
15
|
Y
|
Receive Data
|
RXD A
|
3
|
6
|
3
|
3
|
3
|
R
|
Request To Send
|
RTS A
|
4
|
7
|
4
|
4
|
4
|
C
|
Receive Timing
|
RXC A
|
17
|
8
|
17
|
17
|
17
|
V
|
Clear To Send
|
CTS A
|
5
|
9
|
5
|
5
|
5
|
D
|
Data Set Ready
|
DSR A
|
6
|
11
|
6
|
6
|
6
|
E
|
Data Terminal ready
|
DTR A
|
20
|
12
|
20
|
20
|
20
|
H
|
Carrier Detect
|
DCD A
|
8
|
13
|
8
|
8
|
8
|
F
|
Terminal Timing
|
TT A
|
24
|
17
|
24
|
24
|
24
|
U
|
Signal Ground
|
—
|
27
|
19
|
7
|
7
|
7
|
B
|
Transmit Data
|
TXD B
|
14
|
22
|
14
|
14
|
14
|
S
|
Transmit Timing
|
TXC B
|
12
|
23
|
12
|
12
|
12
|
AA
|
Receive Data
|
RXD B
|
16
|
24
|
16
|
16
|
16
|
T
|
Request To Send
|
RTS B
|
19
|
25
|
19
|
19
|
19
|
—
|
Receive Timing
|
RXC B
|
9
|
26
|
9
|
9
|
9
|
X
|
Clear To Send
|
CTS B
|
13
|
27
|
13
|
13
|
13
|
—
|
Data Set Ready
|
DSR B
|
22
|
29
|
22
|
22
|
—
|
—
|
Data Terminal ready
|
DTR B
|
23
|
30
|
23
|
23
|
—
|
—
|
Carrier Detect
|
DCD B
|
10
|
31
|
10
|
10
|
10
|
—
|
Terminal Timing
|
TT B
|
11
|
35
|
11
|
11
|
11
|
W
|
Local Loopback
|
LL
|
—
|
10
|
18
|
—
|
18
|
L, K
|
Remote Loopback
|
RLB
|
—
|
14
|
21
|
—
|
21
|
N
|
Loss of Sync
|
LOS unbalanced
|
31
|
36
|
—
|
—
|
—
|
—
|
Loss of Sync
|
LOS A
|
—
|
3
|
—
|
18
|
—
|
—
|
Loss of Sync
|
LOS B
|
—
|
21
|
—
|
21
|
—
|
—
|
Data Interface Pin Layouts
This section illustrates the pin layouts for the serial gateway cable connectors.
M-34 Connector
Figure 2-16 shows the M-34 pin assignment.
Figure 2-16 M-34 Pin Layout
DB-37 Connector
Figure 2-17 shows the DB-37 pin layout.
Figure 2-17 DB-37 Pin Layout
DB-25 Connector

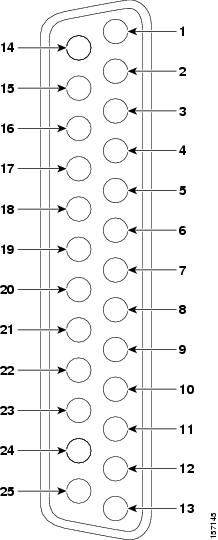

Figure 2-18 shows the DB-25 pin layout.
Figure 2-18 DB-25 Pin Layout
Signaling Interface Cable Pin-out Configuration
Table 2-8 describes the signaling interface pin-out configuration for the serial gateway cables.
Table 2-8 Serial Gateway Signaling Interface Cable Pin-out
Signal Name
|
Mnemonic
|
RS-366 (DB-25)
|
Shield
|
—
|
1
|
Digit Present
|
DPR
|
2
|
Abandon Call & Retry
|
ACR
|
3
|
Call Request
|
CRQ
|
4
|
Present Next Digit
|
PND
|
5
|
Power Indication
|
PWI
|
6
|
Signal Ground
|
—
|
7
|
Distant Station Connection
|
DSC
|
13
|
Digit Signal Circuit 1
|
NB1
|
14
|
Digit Signal Circuit 2
|
NB2
|
15
|
Digit Signal Circuit 4
|
NB4
|
16
|
Digit Signal Circuit 8
|
NB8
|
17
|
Receive Common
|
RC
|
18
|
Send Common
|
SC
|
19
|
Data Link Occupied
|
DLO
|
22
|
Signaling Interface Pin Layout
This section illustrates the pin layout for the serial gateway signaling cable connector.
DB-25 Connector

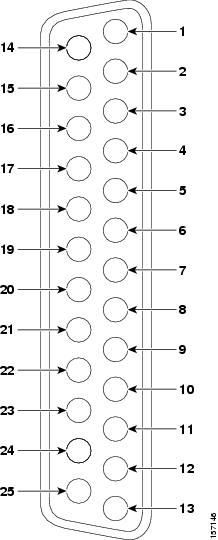

Figure 2-19 shows the DB-25 pin layout.
Figure 2-19 DB-25 Pin Layout
Connecting the Gateway to a Power Source
This section describes how to supply power to the gateway. The gateway is equipped with an autoswitching power supply that supports 100-240 VAC at 50/60 Hz.
Warning Never defeat the ground conductor or operate the equipment in the absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain that suitable grounding is available.
Procedure
Step 1 Plug a power cord into the power socket on the rear panel of the gateway.
Step 2 Connect the power cable to a grounded AC outlet.
Step 3 Turn the power on.
Installing Online Help on the Network
Online help files for the Cisco Unified Videoconferencing 3545 Seriess are shipped on the IPVC Software CD-ROM. To use the online help in the gateway interface, you must install the appropriate help files in a shared directory on your network and register the directory location with the gateway interface. This section describes how to install the online help files on your network.
Procedure
Step 1 Identify or create a shared directory on the network in which you want to install the online help files.
Note Make sure that the gateway interface for each gateway you install can access the shared directory.
Refer to your network operating system documentation for instructions about how to configure a shared directory.
Step 2 Insert the Cisco IPVC Software for the IPVC 3500 CD-ROM in the CD-ROM drive of a computer that is connected to your network.
The CD-ROM is configured to automatically start the installation program.
Step 3 Read the Welcome dialog box and click Next.
Step 4 Click Browse and navigate to the shared directory in which you want to install the online help files, and click Next.
Step 5 Select the Custom option button and then click Next.
Step 6 Select your Cisco Unified Videoconferencing 3545 Series type option button, and click Next.
Step 7 In the Program Folders field, enter the name of the folder in which you want to copy the online help files and click Next.
The CD-ROM copies the files.
Step 8 Click Finish.
Accessing the Gateway Administrator Interface
The gateway Administrator is a web interface that allows you to view and configure the gateway hardware and application parameters. You can use the gateway interface to:
•Set administrative parameters to define access to the gateway
•Set gateway application parameters that specify how the gateway processes incoming and outgoing calls
•Set chassis operating parameters for Cisco Unified Videoconferencing 3545 Series modules installed in the top slot of a Cisco Unified Videoconferencing 3545 chassis
The following requirements are necessary to access the gateway Administrator web interface:
•A Java-compliant browser. Microsoft Internet Explorer version 5.5 or later is recommended.
•The gateway IP address or a web link to the gateway.
•Administrator level-access
•The required user name and password.
Note For first-time installation, you must assign an IP address to the gateway using a serial port connection before you can access the web interface. For more information, see the "Setting the IP Address" section.
Procedure
Step 1 Launch your browser and type the IP address or the name of the gateway.
For example, http://125.221.23.44 or board_name.
The gateway login page appears.
Step 2 Type the Administrator user name and password in the appropriate fields and click Login. The default global user name is admin. The default password is <null>.
The gateway Administrator interface appears.
Note If you try to sign in as an Administrator and another Administrator is currently signed in, the gateway signs you in as a Read only user and the words Read Only appear at the top of the window. Read only users cannot edit any of the gateway settings.
Registering the Online Help
The online help files for the gateway Administrator interface are shipped on the Cisco IPVC Software CD-ROM. To use the online help, you must install the help files for the appropriate Cisco Unified Videoconferencing 3545 Series in a shared directory on your network and register the directory location in the Administrator interface.
Procedure
Step 1 Ensure that you have installed the online help library from the Cisco IPVC Software CD-ROM on your PC.
Step 2 Open a Java-compliant web browser and access the gateway Administrator web interface.
The Administrator login page appears.
Step 3 In the Name field, type you user name.
Step 4 In the Password field, type your password.
Step 5 Click Go.
Step 6 On the sidebar, click Board.
Step 7 Click the Web tab.
Step 8 In the Online Help URL field, type the path to the directory in which the gateway online help files that you want to use are stored as follows:
–If the directory is located on a file server, type:
file://.../shared_directory_name /program_folder
–If the directory is located on a web server, type:
http://.../shared_directory_name /program_folder
Note The online help files are stored in the folder 3500gw by default. The gateway interface retrieves online help text from these files. In the path statement, include all directories in the path up to, but not including, 3500gw
Step 9 On the toolbar, click Upload.
Netscape Navigator Users
Online help files located on the local network and accessed using Netscape Navigator 4.x must be located on a mapped network drive.
