Configuring the Cisco TelePresence System

---

First Published: September 4, 2008, OL-13676-03

Contents

•IP Settings

•Network Settings

•Cisco Unified Communications Manager (Unified CM) Settings

•Address Book

•Telephony Settings

•SNMP Settings

•System Settings

Introduction

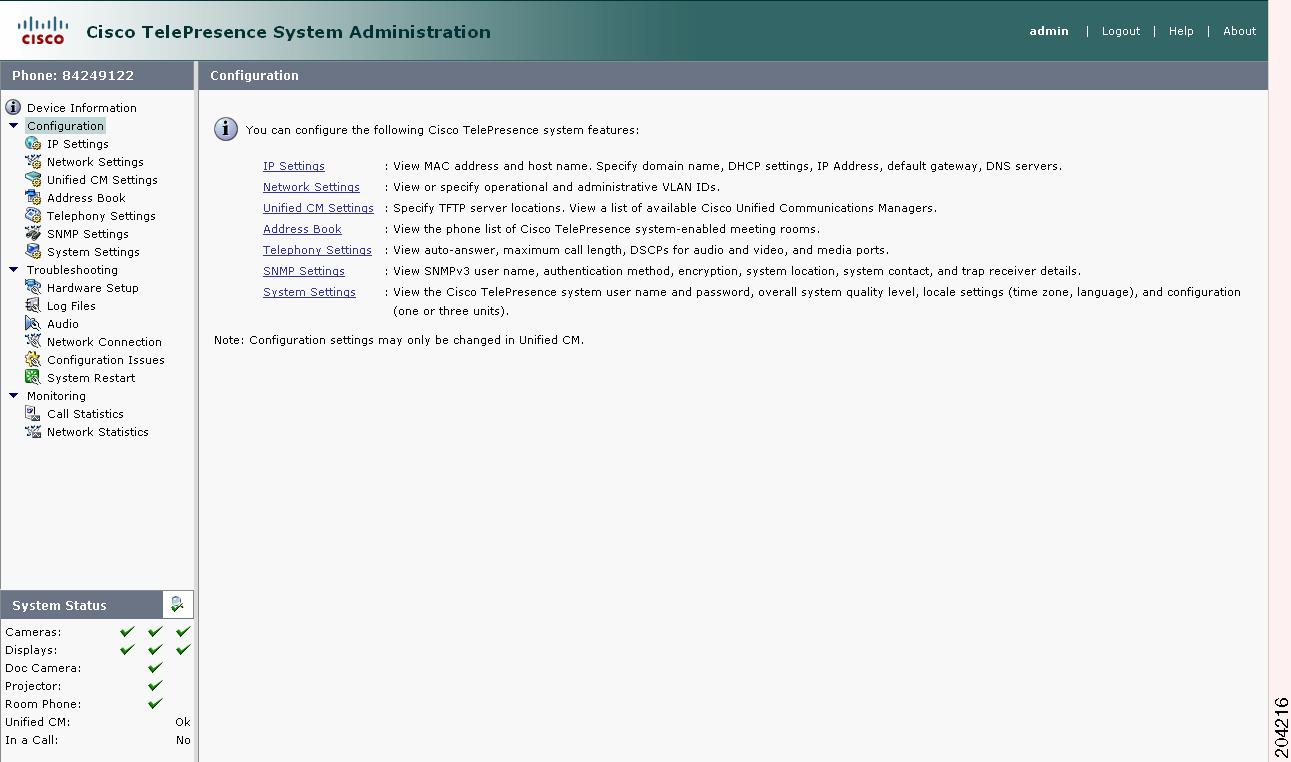

Figure 3-1 shows the options available from the Configuration window.

Figure 3-1 Configuration Window

IP Settings

The IP Settings window displays the MAC address and hostname supplied for the Cisco TelePresence system.

Network software needs a static address, even though it is not necessary for dynamic address assignment, but using a static address allows the Cisco IP phone to be configured and discovered as a device in the network, rather than as a router.

---

Note You must restart the CTS after configuring a static IP address for the address to take effect.

---

Table 3-1 describes the IP address and DHCP settings for the Cisco TelePresence system uplink to your network.

Table 3-1 IP Settings

Field or Button	Setting
MAC Address:	MAC address of the CTS primary codec
Host Name:	Host name of the CTS primary codec
DHCP Enabled:	Indicates whether Dynamic Host Configuration Protocol (DHCP) has been enabled for the CTS primary codec.
Domain Name:	Indicates the domain name for the primary codec
Use Static IP Address:	Indicates whether the CTS primary codec is configured to use a static IP address
IP Address	IP address for the Cisco TelePresence system
Subnet Mask	Subnet mask used for the IP address supplied
Default Gateway	Default gateway for the CTS primary codec
DNS Server 1 and 2	IP addresses of the Domain Name System (DNS) servers

•To register new or modified settings, click Apply.

•To restore the original settings, click Reset.

Network Settings

Choose Network Settings to view the operational VLAN ID and the administrative VLAN ID.

Operational VLAN ID

This field provides a display-only VLAN ID that is standard for networks with a Cisco Unified  IP phone.

Administrative VLAN ID

CTS needs to know its VLAN membership ID before it can proceed with a DHCP request for an IP address. This field contains the administrative VLAN ID for CTS.

To restore the administrative VLAN ID setting displayed when you opened this window, click Reset.

To register a new or modified setting, click Apply.

Cisco Unified Communications Manager (Unified CM) Settings

Choose Unified CM Settings to view or configure Cisco Unified Communications Manager settings for this Cisco TelePresence system.

Table 3-2 describes the fields and settings expected in this window.

Table 3-2 Cisco Unified Communications Manager Settings

Field	Settings
Use Configuration TFTP Server	•Click Automatic to set the default condition, which is that the TFTP server will reply to DHCP requests for option 150, or for a list of TFTP servers that indicate to endpoints in the network where to find Unified CM configuration files. •Click Specify to manually supply IP addresses of TFTP servers in the interactive fields provided.
TFTP Server 1-5	Interactive fields are provided for entering TFTP server addresses when Specify at Use Configuration TFTP Server is chosen.
Cisco Unified Communications Manager1-5	Display-only report that displays the names of up to five Cisco Unified Communications Managers.
CAPF Authentication String	Certificate Authority Proxy Function authentication string. The characters entered in this field must match the CAPF Authentication string entered in Unified CM.
Certificate Trust List (CTL)	The Delete CTL button becomes active when the CTS is provided a CTL by a Unified CM configured in mixed authentication mode. Click Delete CTL to delete all entries on the CTL.

•To register new or modified settings, click Apply.

•To restore the original settings, click Reset.

Related Information

•Cisco Unified Communications Manager Installation Guide for the Cisco TelePresence System

•Cisco Unified CallManager Documentation Guide for Release 6.0

Address Book

The Address Book window displays read-only entries that have been set during Unified CM configuration. You can create listings for up to 40 meeting rooms. Use Unified CM to make changes to the Address Book.

Telephony Settings

The Telephony Settings window displays read-only information about the telephony settings for the Cisco TelePresence system that were set in Cisco Unified Communications Manager. Use Unified CM to make changes to Telephony Settings.

Table 3-3 describes the fields and settings.

Table 3-3 Telephony Settings

Field	Settings
Auto Answer	Displays the automatic answering capability on the phone. Yes indicates that automatic answering has been enabled. No indicates that automatic answering has been disabled.
Maximum Call Length (mins)	Displays the defined limit to the number of minutes allowed for a call. The default setting is 0 minutes, which means no limit to call duration is set. The maximum number of minutes that can be set is 10080 (7 days). The call will automatically end at the number of minutes set. When the default setting is used, the call is never ended automatically.
DSCP For Audio DSCP For Video	Displays the traffic queuing techniques that define per-hop behavior based on the Differentiated Services Code Point (DSCP) value in the IP header of a packet. The following DSCP settings apply for both audio and video traffic: •AF11 DSCP (001010) •AF12 DSCP (001100) •AF13 DSCP (001110) •AF21 DSCP (010010) •AF22 DSCP (010100) •AF23 DSCP (010110) •AF31 DSCP (011010) •AF32 DSCP (011100) •AF33 DSCP (011110) •AF41 DSCP (100010) •AF42 DSCP (100100) •AF43 DSCP (100110) •CS1 (precedence 1) DSCP (001000) •CS2 (precedence 2) DSCP (010000) •CS3 (precedence 3) DSCP (011000) •CS4 (precedence 4) DSCP (100000) •CS5 (precedence 5) DSCP (101000) •CS6 (precedence 6) DSCP (110000) •CS6 (precedence 7) DSCP (111000) •Default DSCP (000000) •EF DSCP (101110)
Start Media Port	Must be in the range from 16384 to 32766, and must be lower than the End Media Port settings.
End Media Port	Must be in the range from 16384 to 32766, and must be higher than the Start Media Port settings.

SNMP Settings

Choose SNMP Settings to see a read-only report of the SNMP configuration done in Unified CM for the Cisco TelePresence system. If changes to the SNMP settings are required, use Unified CM to make them. The following information is provided in the SNMP Settings window:

•Engine ID—Identifies the local or remote SNMP engine. The remote agent's SNMP engine ID and user password are used to compute authentication and privacy digests.

•SNMP Configuration—Parameters that access the SNMP server associated with this Cisco TelePresence system.

•Trap Receiver Configuration—SNMP settings for the receiver to which this Cisco TelePresence system will send traps.

System Settings

Choose System Settings to view the system configuration specified in the Unified CM for the Cisco TelePresence system. If changes to the System settings are required, use Unified CM to make them.

Table 3-4 describes the settings.

Table 3-4 System Settings

Field	Description or Setting
Username/Password Configuration
Username New Password New Password (verify)	Displays username and password. Note Usernames and passwords must be at least 5 characters, but not more than 64 characters in length, and can contain upper and lower case alphanumeric characters and the underscore and dash characters. The following usernames are not allowed: apache, daemon, nobody, operator, and shutdown.
Quality Configuration
Overall System Quality	This field displays the system bandwidth and screen resolution. A higher bandwidth increases video quality, but may also cause packets to be dropped and video to be interrupted. Choices: •Highest Detail, Best Motion: 4Mbps 1080p •Highest Detail, Better Motion: 3.5Mbps, 1080p •Highest Detail, Good Motion: 3Mbps, 1080p •High Detail, Best Motion: 3Mbps, 720p •High Detail, Better Motion: 2Mbps, 720p •High Detail, Good Motion: 1Mbps, 720p Default is Highest Detail, Best Motion: 4Mbps 1080p.
Locale Configuration
Time Zone	Displays the configured time zone for your area of the world from the drop-down list.
Language	Displays the configured language for CTS.
Cisco TelePresence System Configuration
System Type	Identifies the CTS model. Choices are: •Cisco TelePresence 500 •Cisco TelePresence 1000 •Cisco TelePresence 3000 •Cisco TelePresence 3200
Days Display Not Active	Specifies the days of the week that the Cisco TelePresence system display remains off by default. Choices are Monday through Sunday. Default is Sunday and Saturday.
Display On Time	Specifies the time of day that the Cisco TelePresence system display(s) will remain on after being turned on, if CCM is configured. Times are displayed in a 24-hour format where 00:00 indicates 12:00 midnight and 23:59 indicates 11:59 pm. Default is 07:30. If you clear the default value so that the field is blank, the display(s) will turn off after the completion of each call.
Display On Duration	Specifies the length of time the Cisco TelePresence system display(s) will remain on if a "Display On Time" value is defined. Times are displayed in a 24-hour format, where 1:30 indicates one hour and thirty minutes; the maximum value is 24:00 (24 hours). Default is 10:30. If you clear the default value so that the field is blank, then the display will turn off at 11:59 pm.
Note If your version of Unified CM does not allow you to configure values for Days Display Not Active, Display On Time or Display On Duration, the system uses the default values for these features.
NTP Servers
NTP Server 1-5	NTP is used to synchronize the clocks on Cisco IP telephony servers with an external network time server that uses NTP. You can have up to five IP addresses for Network Time Protocol servers.
