Network Management
This chapter describes the following network management tools you can use with Cisco SES PNNI nodes and PNNI networks:
•
Cisco WAN Manager SES PNNI Features
Minimum System Requirements
The following sections describe the hardware and software components that make up the Cisco WAN Manager network management workstation.
Hardware
This section lists the hardware requirements for a Cisco WAN Manager network management workstation. Table 7-1 lists the minimum workstation requirements. Using a workstation that meets these requirements ensures sufficient performance.
Three types of machines are supported for WAN Manager 10.2 as standard platforms. They are low-end, mid-range, and high-end platforms. Table 7-2 describes the configuration for each platform.
Note
The selection of a proper CWM platform depends on a number of factors, such as, the number of CWM desktops, the number of managed connections, and the number of statistics collected and stored. Table 7-2 lists recommended CWM platforms based on the size of network.
The following are additional notes for CWM platform requirements:
•
•
•
•
•
•
•
Software
This section lists the required software to install on the Cisco WAN Manager Network Management workstation to manage the SES PNNI nodes and PNNI networks.
•
•
•
•
•
•
•
HP OpenView 6.1 is not bundled with CWM CDs. You must order HP OpenView separately.
For HP OpenView installation requirements and procedures, refer to the HP OpenView Network Node Manager Products, Installation Guide (part number J1136-90000 from HP).
•
•
Installing and Configuring Cisco WAN Manager
Refer to the appropriate chapters in the Cisco WAN Manager Installation Guide for Solaris, Release 10.2 for general workstation setup (including disk partitioning) and installation procedures.
Disk Partitioning Requirements
A change in the installation procedure requires that you use the following disk partitioning requirements instead of those found in the CWM 10.2 Installation Guide for Solaris (Doc-7810308=).
Sufficient disk space and proper disk partitioning are essential to achieving the best performance from CWM and your network management workstation.
Note
Use the following commands to gather some of the required information:
•
•
Partitioning One 9-GB Disk
This section describes how to partition a CWM workstation's single 9-GB disk drive. The following procedure ensures that all but the final partition will be at a set size.
Note
Note
Partitioning Two 9-GB Disks
This section describes how to partition a CWM workstation that has two 9-GB disk drives. When you install Solaris, partition the first disk drive as shown in Table 7-3.
Note
Note
Modifying the network.conf File for PNNI Networks
For SES PNNI networks using in-band management, provide the following information for your network:
NETWORK:Network2GATEWAYS:sj234567DISCOVERY PROTOCOL:PNNI
Note
Configuring PNNI Topology Discovery
Use the Topology Configurator to provide information required to communicate with the nodes. Also use the configurator to specify Network IP.
Note
Configuring the SES PNNI Controllers
To configure a PXM-SES card, telnet to the card and execute the following shellConn commands:
pxm1> shmsimulateresetReason 0pxm1> deltree "D:/DB2"
Note
pxm1> addpnport 9.1 assumes a BXM in slot 9pxm1> cnfpnportsig 9.1 -nniver pnni10Cisco WAN Manager SES PNNI Features
Cisco WAN Manager (CWM) provides the following features for the Cisco SES PNNI controller:
•
•
•
•
•
•
•
SPVC Overview
Table 7-5 lists the types of SPVCs supported by the SES PNNI controller using CWM 10.2.
Table 7-5 Supported SPVC Connections
TypeBXM
BXM
ATM SPVC
Routing nodes on BPX with feeder node on SES
WAN CiscoView 3.2
The Cisco SES PNNI controller is managed through WAN CiscoView 3.2. WAN CiscoView 3.2 requires Release 5.1 of the CiscoView Engine, which is included on the CWM 10.2 CD.
CiscoView Release 5.1 has been migrated from X/MOTIF to a JAVA based application. WAN CiscoView 3.2 supports line, port and resource partition configuration and real-time counters on Cisco SES PNNI controllers.
The look and feel of CiscoView 5.1 is slightly different from CiscoView 4.2, but most dialog screens will be familiar to experienced CiscoView users. Rear view selection (normally done by selecting the outer part of the device with the right mouse button) is not available for the Cisco SES PNNI controller.
Installing CiscoView
During the CWM 10.2 installation process, CiscoView 5.1 and BPX-SES device packages are installed for you. This eliminates the need to incrementally select device packages to install.
Accessing CiscoView
Accessing CiscoView is a simple task. From the CWM 10.2 Topology Map, a device can be selected for management by CiscoView.
Navigating in CiscoView
When you start CiscoView, the CiscoView main window opens. The following components comprise the CiscoView main window:
•
•
•
•
Select Device Drop-Down List Box
Use the Select Device drop-down list box to select and display a device. Either enter a device name or IP address, or select from the recently displayed devices listed.
Device names and SNMP read and write community strings are preserved when you open new CiscoView sessions.
Device Commands Buttons
Use the device command buttons to activate device commands unique to the displayed device. The device command buttons are described in the online help for each device package.
Main Menu Buttons
Use the Main Menu buttons to perform various CiscoView tasks.
Graphical Device Display Window
Use the Graphical Device Display window to view a graphical display of the device's back or front panel once you select a device. The display shows all device components color-coded according to their current status and refreshed according to your polling frequency. If a hot swap is detected, the device is rediscovered and the display redrawn at the next poll.
Status Bar and Buttons
Use the Status Bar and buttons to display the result of device polling, selections, and so on.
Main Menu Buttons
Table 7-6 describes the Main Menu buttons.
Status Bar and Buttons
Table 7-7 describes the options on the status bar and buttons.
Making Selections and Displaying Menus
When you select a device in CiscoView, a graphical representation of the device is displayed. You view the front device panel and select different components and menu options to configure and monitor status for these devices.
Popup Menu Options
Table 7-8 describes the options on the popup menu.
Using CiscoView
Once you have installed CiscoView and learned to navigate within it, you can perform various tasks.
Starting CiscoView
Depending on your platform, you can start CiscoView:
•
•
Selecting a Device
Select a device to view its graphical representation to configure and monitor it. The device names and SNMP read and write community strings are preserved when you open new CiscoView sessions.
Setting Preferences
Use the Set Preferences option to change certain options within CiscoView.
Selecting a Component
Select a component on the graphical device display to configure and monitor it.
Configuring Your Device
Use the Configure menu to configure multiple categories of information, for example, Interface, Management, Physical, and ARP Table, simultaneously.
Different categories of information can be displayed for each device, card, and port. To see the categories of information that can be displayed for each component type, look at the Category pop up menu from the Configuration window.
Monitoring Your Device
Use the Monitor menu to monitor multiple categories of information, for example, Ethernet collisions, Management, Physical, and ARP Table, simultaneously. The Monitoring dialog is non-modal and resizeable.
Preference Setting Options
Setting Community Strings
Use the Preferences Community tab to delete the read and write community strings for the device currently being managed. This lets you enter the read and write community strings for a device after you display the device. If you want to make changes to a device or port setting, but did not specify community string when you first opened the device display, you can enter the community string without exiting and reopening the device window.
If a host's community strings are not already defined within CiscoView, you can add them with the CiscoView Community Strings dialog. Otherwise, CiscoView allows you to enter the correct community strings when you try to access the host.
If you do not enter a host's community strings when accessing the host, CiscoView uses the default read and write community strings of public and private.
Setting SNMP Preferences
Use the Preferences SNMP tab to set polling frequency, SNMP timeout and retries, and default read and write community strings. The recommended values for preferences are as follows:
•
•
•
•
Use the Default Read and Write Community fields to define the community strings that CiscoView automatically uses for device when you do not specify the device's current community strings.
Device-Specific Buttons within Configure Menu
Integrating New Device Information
Use the Device Support Utility to integrate new Cisco device information asynchronously with the CiscoView engine, uninstall device packages, install new device packages, or upgrade existing installed packages.
The Device Support Utility operates in one of two modes: Interactive mode or Command Line mode. The functionality of both modes is similar; the only difference between the two is that Interactive mode provides a Graphical User Interface (GUI). Each mode allows the user to display a list of currently installed device packages and their versions, uninstall one or more packages, and automate device package installations and upgrades.
Device Support Utility Features
Use the Device Support Utility to perform the following tasks:
•
•
•
Using the Device Support Utility
Starting the Device Support Utility
From a UNIX platform, you can start the Device Support Utility by running the script "xdsu" from the ~svplus/wancv/bin directory.
Installing Device Packages
In Interactive mode, the Install Device Packages dialog box installs new device packages or upgrades existing packages. The Device Support Utility will not allow you to select a package whose superseding version has already been installed in the package repository.
Uninstalling Device Packages
In Interactive mode, the Device Support Utility dialog box shows a list of the device packages that are already installed. It also acts as a launch point for uninstalling device packages.
Testing Basic Connectivity and Setup
Troubleshooting
The following information describes how to test the basic connectivity and setup for CiscoView. Perform the following steps when you have a CiscoView-related problem:
Step 1
Step 2
Step 3
Test the IP Connectivity
From the UNIX workstation, try to ping the router's IP address. If the ping is unsuccessful, make sure that IP routing is properly enabled and is functioning. Use "ping -s" to check for slow IP response. Ping the device by its Network IP as well as by its LAN IP address.
If you can ping the device by its LAN IP address but not its Network IP address, there is a Network IP problem. Consult your system administrator for assistance in resolving this problem.
Open a Telnet Session to the Device
Enter the dspsnmp command to view the SNMP configuration and verify the community strings. If the strings are not correct, configure the device with the cnfsnmp command.
Verify the CiscoView Preferences
Use the Preferences SNMP tab to set polling frequency, SNMP timeout and retries, and default read and write community strings. The recommended values for preferences are:
•
•
•
•
Call Tracing
The Cisco SES PNNI controller supports the Call Trace feature as two distinct facilities, as defined by ATM Forum PNNI v2.0 Living List, July `98:
•
•
Both these facilities can be used to trace a call in the Control Plane.
Connection Trace
The Connection Trace facility can be used to determine the path taken by an existing connection—Point-to-Point, or Point-to-Multipoint—from any node in the network to the destination node of the call. You initiate the trace of a connection through the SES CLI by providing the ingress interface, the call reference for a p2p call, and in addition endpoint reference for p2mp call. This generates a TRACE CONNECTION message, which includes Trace Transit List (TTL) IE. This message would always travel towards the node which has the called address.
Each node fills up TTL IE with node ID and Egress logical port ID and passes the message on. The egress logical port Id is obtained from call record of the existing connection, using CallRef and EndPtRef (p2mp). The destination node makes the portId zero.
This feature is not supported on an IISP interface, neither for the transporting of IEs nor for the processing of the IEs.
Connection Trace Success
The destination node copies the TTL IE as is into TRACE CONNECTION ACK message, and sends it back to the source node with the following status:
trace completed normally
Use the Trace Transit List to find out the path taken by an existing connection.
Connection Trace Failure
A connection trace may fail at any node for the following reasons:
1.
2.
3.
You are then informed of these failure events, with appropriate cause values along with the TTL up to the last node which sent the failure message back.
CLI Commands Functionality
Refer to the SES PNNI Command Reference, Release 1 for command syntax details.
conntrace Command
Refer to the the SES PNNI Command Reference, Release 1, for the full syntax of the conntrace command

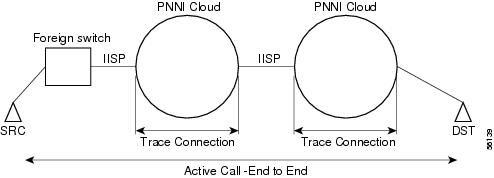

Figure 7-1 shows the section within which a call can be traced. For instance, you could start the trace for a call setup between SRC and DST. The Trace Connection message would terminate at the IISP interface and an ACK/NACK would be sent back (similar to as if its a UNI). This would enable the user to complete a partial trace.
Figure 7-1 Connection Trace in PNNI and IISP Network
Path Trace
Path Trace facility allows you to trace calls in real time. You enable or disable this feature node wide, on a per UNI interface basis or based on called party/calling party number. When enabled, the source node adds a TTL IE as part of the Setup/AddParty message and subsequent nodes supporting this feature add their own TTL IE. Various flags can be turned ON/OFF as part of the TTL on the source node, enabling a user to filter details on the trace. These flags are
1.
2.
3.
Note
4.
5.
Path trace information for all the traced calls are stored in the trace log file, where they can be display information on the CLI screen.
Path Trace Success
The information from the response message is displayed using show commands. This information includes the TTL IEs and result of the return code.
Path Trace Failure:
Path trace fails due to similar reasons specified above for Connection Trace Fail. However, since this is a real-time trace, the node detecting the failure fills in the proper information in TTL IE, apart from filling up the Release Message.
An IISP interface is treated similarly to a UNI interface and the trace is terminated.
SES CLI Pathtrace Commands
The Pathtrace commands are as follows:
Their syntax is described in the SES PNNI Command Reference, Release 1, Chapter 2, "SVC, SPVC, and PNNI Commands."
pathtrace-node
If path trace is enabled, the source node adds the TTL IE in the Setups depending on the flags set. The via node processes this IE and adds the relevant octets into the IE.
The signaling stack checks this flag before decoding TTL IE in an incoming setup message. It then checks this flag before starting TTL IE encoding procedures for an outgoing call.
pathtrace-if
This command is for incoming calls on a source node. Signalling checks these flags/parameters before generating/decoding the TTL IE. If the user selects disable, the rest of the parameters are ignored.
pathtrace-ie
This command is used for interoperability, when the Cisco SES PNNI controller is connected to equipment which does not support path trace. It takes two options, described below.
•
This command option allows you to control/handle Path trace on a interface level, when the PNNI network is connected to another through an IISP link, or to another PNNI network which does not support this facility. When this command is issued, TTL IE would be removed from all subsequent Setup messages going out on that interface, and would be reinserted to Connect/Release/Rls_Comp messages coming back for the same call. This ensures interoperability with other vendors' switches. All other flags would be ignored when issued with the removeIE flag. It would also remove the TTL IE from the connect message going out on that interface.
•
This option inserts the TTL IE to any incoming Setup/Connect message. The direction of this option is exactly opposite of removeIE option. Both these options can be applied on any interface on any via node.

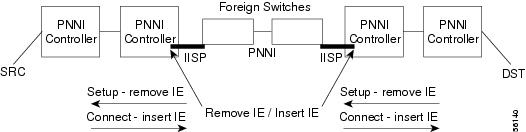

Figure 7-2 illustrates a sample network with pathtrace insert and remove IEs.
Figure 7-2 Insert and Remove IEs
The Cisco SES PNNI controller supports Connection Trace and Path trace facility for maximum 10 hops network and maximum 5 traces are allowed to be in progress at a time. The trace log file is recycled every time it reaches 1MByte in size.
