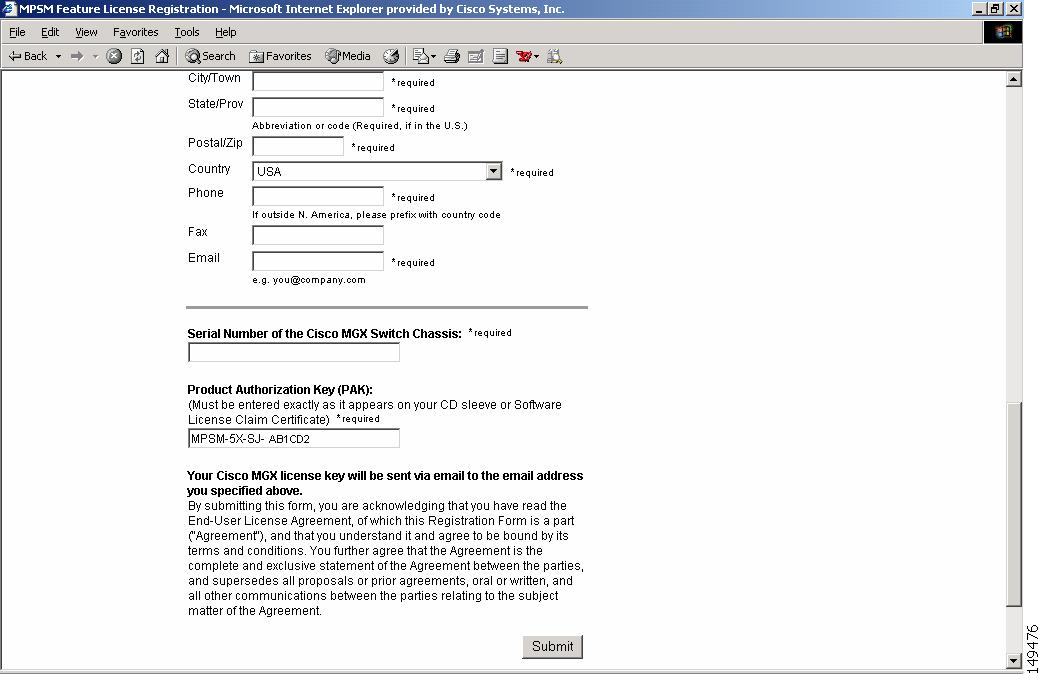

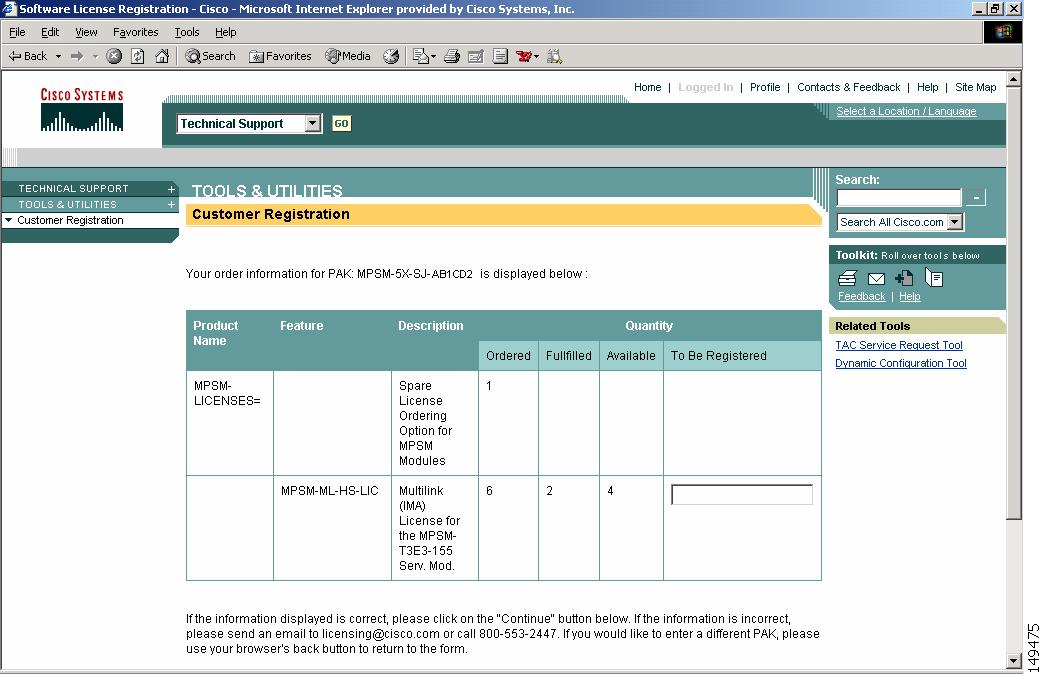

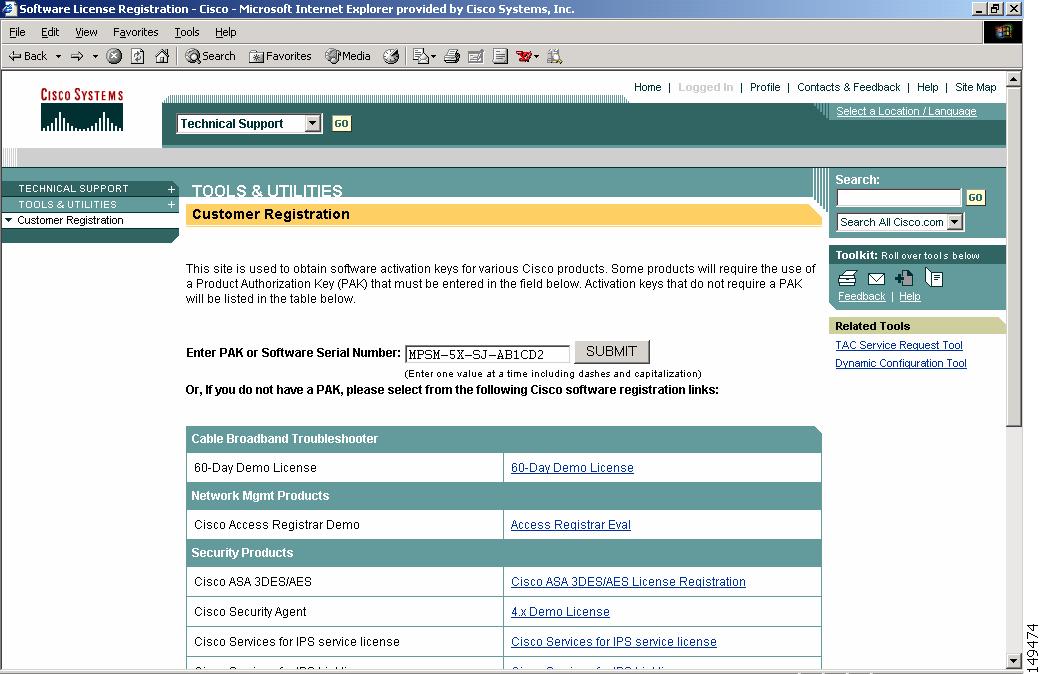

Adding Licenses Obtained from Cisco.com
Viewing the Product Authorization Key Online
Adding Licenses to the License Pool
Moving Licenses from an MPSM Card to the License Pool
Allocating Feature Licenses to a Card
Recovering Feature Licenses That are Not In Use
Saving and Restoring the License Configuration
Transferring Licenses Between Switches
MPSM License Concepts and Terms
Cisco Product Security Overview
Reporting Security Problems in Cisco Products
Obtaining Technical Assistance
Cisco Technical Support & Documentation Website
Definitions of Service Request Severity
Obtaining Additional Publications and Information
Release Notes for Cisco MGX 8850, Cisco MGX 8950, and Cisco MGX 8830, Software Release 5.2.10
Part Number OL-9187-01 Revision E0, March, 2007
Table of Contents
Overview
These release notes contain the following sections:
•
Limitations, Restrictions, and Notes
•
Installation and Upgrade Procedures
•
Resolved Anomalies in Previous Releases
•
Appendix A: Downloading and Installing Software Upgrades
•
Cisco Product Security Overview
•
Obtaining Technical Assistance
•
Obtaining Additional Publications and Information
About Release 5.2.10
Version .206 of Release 5.2.10 is a patch release that does not introduce new features. The resolved anomalies for Version .206 are listed in Table 10.
Version .204 of Release 5.2.10 is a patch release that does not introduce new features. The resolved anomalies for Version .204 are listed in Table 11.
Version .201 of Release 5.2.10 adds Unique Device Identifier (UDI) compliance for the Cisco MGX 8830/B chassis and backplane, and Version .202 changes the Cisco product identifier from MGX8830/B to MGX8830/B-CH. The resolved anomalies for Version .202, .201, and .200 are listed in Table 12, Table 13, and Table 14.
These release notes describe the system requirements and limitations that apply to Release 5.2.10 of the Cisco MGX 8850, Cisco MGX 8950, and Cisco MGX 8830 Multiservice Switches, and provide Cisco support information.
These releases notes contain updates to the MPSM Licensing appendix of the Cisco MGX 8800/8900 Series Configuration Guide, Release 5.2. See Appendix B: MPSM Licensing.
Type of Release
Release 5.2.10 is a software release for the following Cisco MGX switches:
•
MGX 8830 (PXM1E)
•
MGX 8830/B (PXM1E and PXM45)
•
MGX 8850 (PXM1E and PXM45)
•
MGX 8850/B (PXM1E and PXM45)
•
MGX 8950 (PXM45)
Locating Software Updates
Release 5.2.10 software is located at:
http://www.cisco.com/public/sw-center/wan/wan-planner.shtml
Route Processor Module (RPM) Cisco IOS software images are located at:
http://www.cisco.com/public/sw-center/sw-ios.shtml
Features and Enhancements in Release 5.2.10
Version .201 of Release 5.2.10 adds UDI compliance for the Cisco MGX 8830/B chassis, and Version .202 changes the Cisco product identifier (PID) from MGX8830/B to MGX8830/B-CH. The UDI consists of the Cisco product identifier, version identifier (VID), and serial number (SN).
The show inventory command displays the PID, VID, and SN for each product in the chassis. The following example shows typical UDI information for the Cisco MGX 8830/B chassis:
M8830_SF.1.PXM.a > show inventoryNAME: "1" , DESCR: "Cisco MGX8830 Model B, 14 Slot chassis"PID: MGX8830/B-CH, VID: , SN: -----NAME: "" , DESCR: "Cisco MGX8830 Model B Backplane"PID: MGX8830/B-CH, VID: V01, SN: SCA09380009Features in Release 5.2.00
Release 5.2.00 has the following features:
•
Graceful Upgrades to AXSM-XG Cards
•
Multilink PPP on the MPSM-T3E3-155 Card
•
PXM45/C Support in the MGX 8830/B Chassis
•
Compression and Multiplexing Support for RPM-PR Cards
•
Service Class Template (SCT) File Information
MGX-VXSM-T3 Card
Release 5.2.00 introduces a third VXSM card for the support of T3 lines. The card consists of a front card with six T3 ports and a half height back card with three T3 ports. The front card can be configured with either a single back card or two back cards.
AXSM-8-622-XG Card
The AXSM-8-622-XG is an 8-port OC-12/STM-4 card that supports clear-channel OC-12c/STM-4 or OC-12/STM-4 channelized down to OC-3c/STM-1 and DS3. This card complements the family of AXSM-XG cards, which includes the AXSM-16-155-XG, AXSM-4-2488-XG, and AXSM-1-9953-XG.
The AXSM-8-622-XG card has the following functionality:
•
Independent channelization of each line.
•
Common software for the MGX 8850, MGX 8830, and MGX 8950 chassis
•
Maximum bandwidth is 2.4 Gbps when installed in a MGX 8850 or MGX 8830 chassis
•
Maximum bandwidth is full card bandwidth when installed in MGX 8950 chassis
•
Trap generation to CWM signals configuration changes and alarm status
•
VSI support for PNNI and MPLS controllers
•
Up to 128 total logical interfaces
•
Up to 16 Classes of Service per logical interface
•
Trunk and port interfaces on same card
•
Virtual trunk support
•
Resource Management
–
Interface resource partitioning among PNNI and MPLS controllers
–
Dynamic resource partitioning
–
Ingress CAC of logical ports based on maximum chassis slot bandwidth
•
Connection Management
–
Up to 128K connections (VCs+VPs)
–
Up to 64 groups per card, divisible into any mix of OC-12c/STM-4, OC-3c/STM-1, and DS-3 channels up to the total card capacity
–
SVC/SVP, SPVC/SPVP and LVC
–
Symmetric and asymmetric connections
–
VC merge for AAL 5 traffic
–
Point to multipoint connections
•
Traffic Management
–
Enhanced CAC support
–
Congestion management
–
Per VC/VP traffic policing
–
Per VC/VP traffic shaping
–
ABR with VS/VD
•
OAM support: compliance with ITU-T I.610
•
ILMI: compliance with ATM Forum 4.0
•
Statistics: similar to AXSM-E
•
Redundancy
–
Card redundancy using hot standby
–
APS backup with 1:1 and 1+1, inter-card and intra-card, and facility protection with single front card and two back cards
•
Online and offline diagnostics
•
Feeder support
–
You can directly connect feeder nodes to unchannelized AXSM-8-622-XG ports.
–
Supports all feeder functions available with AXSM and AXSM/B cards.
•
BPX product support
The AXSM-8-622-XG supports direct connection to BPX nodes with all ENNI functions available on AXSM and AXSM/B.
The AXSM-8-622-XG card has the following restrictions:
•
All lines on the same bay must have the same SONET/SDH configuration
•
Up to 1 ms of traffic loss after reconfiguration of lines/paths on the same bay
•
The AXSM-XG does not support AutoRoute CoS queues
Graceful Upgrades to AXSM-XG Cards
In this release, you can gracefully upgrade AXSM, AXSM/B and AXSM-E cards to AXSM-XG cards. The AXSM-16-155-XG and AXSM-8-622-XG cards have a higher port density than the equivalent AXSM-E cards, and the AXSM-16-155-XG and AXSM-8-622-XG have better traffic management support than their AXSM/B counterparts.
Graceful upgrades simplify the process of migrating to the newer AXSM-XG cards. During the upgrade, the MGX control processor transfers the configuration/connection database from the previously installed AXSM card to the new AXSM-XG, which preserves all connection configurations. The upgrade process might cause an outage of up to four minutes.
You can install and operate any number of AXSM-XG cards in conjunction with AXSM, AXSM/B or AXSM-E in an MGX 8850 chassis equipped with the PXM45 processor. You can install and operate any number of AXSM-XG cards in conjunction with AXSM/B in an MGX 8950.
Card redundancy is supported only between identical front and back card pairs. For example, an AXSM-16-155-XG can only be redundant to another AXSM-16-155-XG, where the two front cards use an identical set of back cards.
For more information about the upgrade procedure, see Upgrading an AXSM/A, AXSM/B, or AXSM-E to an AXSM-XG.
Multilink PPP on the MPSM-T3E3-155 Card
This release adds Multilink PPP (MLPPP) to the MPSM-T3E3-155 card. MLPPP includes the following capabilities:
•
Support for MLPPP
•
PPPmux on a MLPPP bundle basis
•
Interworking between MLPPP and PPPoATM
•
NxDS0 and DS1 PPP links
•
Maximum of 84 PPP links per card
•
Maximum of 84 MLPPP bundles per card
•
Maximum of 6 PPP links per MLPPP bundle
•
Dynamic (auto) PVC bandwidth on a MLPPP bundle basis
•
Layer 2 QoS to minimize delay of delay sensitive traffic and prioritize control messages
•
Support for three strict priority queues
•
Support for the CDMA2000 and EVDO
•
1:1 hot standby front card redundancy
•
Operational load management
The MLPPP feature has the following restriction:
•
Supported on the BNC-3-T3E3 back card only and only in channelized mode. In other words, MLPPP is not supported for E3 in any form or unchannelized T3.
PXM45/C Support in the MGX 8830/B Chassis
A PXM45/C controller in an MGX8830/B chassis provides support for a selection of narrowband and broadband interfaces in an 8-slot chassis. The PXM45/C controller's 45Gbps switch matrix makes it possible to aggregate and switch traffic from a mix narrowband, DS3/E3, OC-3c/STM-1 and OC-12/STM-4 ATM ports, and simplifies the process of scaling a network node as connection counts increase.
Mobile PNNI Support
This release adds the Mobile PNNI feature to the existing PNNI functionality. Generally a PNNI network has a fixed hierarchy where each element has a fixed point of attachment. Mobile PNNI extends a fixed network infrastructure to mobile ATM switches that are roaming in the network. To maintain connectivity when the location of the mobile ATM switch changes, mobile switches are allowed to dynamically change peer group membership. To implement this feature, you establish a link to the fixed network; the mobile network then finds the proper peer group and hierarchy and joins the network.
Mobile PNNI allows each mobile network to build its own PNNI hierarchy and integrate the hierarchy of the fixed network as a logical group node (LGN). In the context of mobile PNNI, it is called Mobile LGN. A mobile logical group node has the capability to dynamically change its membership from one peer group to another as it attaches to different fixed switches. A mobile logical group node is only allowed to join a parent peer group of one of the fixed switches.
The ATM forum describes mobile PNNI in publication AF-RA-0123.000, PNNI addendum for mobility extensions Version 1.0, which is available at the following location:
ftp://ftp.atmforum.com/pub/approved-specs/af-ra-0123.000.pdf
Compression and Multiplexing Support for RPM-PR Cards
The MGX-RPM-1FE-CP (one-port, Fast Ethernet-Co-processor) back card is an MGX8850/RPM-PR back card that off-loads the following processes from the Route Processor Module (RPM-PR):
•
Compression/decompression of Real-time Transport Protocol (RTP)/User Datagram Protocol (UDP) headers (cRTP/cUDP)
•
Multiplexing/demultiplexing of Point-to-Point Protocol (PPP) frames
This feature was previously supported on PXM1 systems only. This release extends this capability to PXM1E/PXM45 systems.
For more information, refer to:
http://cisco.com/en/US/products/hw/routers/ps4062/prod_module_install_config_guide09186a00801f42d7.html
Service Class Template (SCT) File Information
This section contains SCT file information for Release 5.2.00.
PXM1E
The default SCTs provided are as follows:
•
SCT 5—Policing enabled. In general, this is for use on UNI ports.
•
SCT 6—Policing disabled. In general, this is for use on NNI ports.
The filenames and checksums for the SCT files are as follows:
•
PXM1E_SCT.PORT.5.V1: Checksum is = 0xa287c4ee= 2726806766
•
PXM1E_SCT.PORT.6.V1: Checksum is = 0x79f6c93d= 2046216509
•
PXM1E_SCT.PORT.52.V1: Checksum is = 0x199550ec= 429215980
•
PXM1E_SCT.PORT.53.V1: Checksum is = 0xf6d53485= 4141167749
•
PXM1E_SCT.PORT.54.V1: Checksum is = 0xa39611dc= 2744521180
•
PXM1E_SCT.PORT.55.V1: Checksum is = 0x11a518f1= 296032497
Notes:
1.
PXM1E does not support CARD SCT.
2.
ABR VSVD parameters are not supported due to hardware limitation.
3.
The above PXM1E SCT files apply to MGX 8850 (PXM1E) and MGX 8830
4.
Use SCTs with VC thresholds of at least 50000 microseconds for the VSI signaling service type. New SCTs 5,6 and 54, 55 (SCTs for the T3/E3, Combo cards, and IMA group links, respectively) update the VC threshold and have minor version = 1. Upgrade your custom SCTs to the new recommended VC thresholds and change the minor version. You can gracefully upgrade an SCT with a minor version change without interrupting traffic. The SCT chapter of the Cisco MGX 8800/8900 Series Configuration Guide, Release 5.2 explains how to upgrade a SCT file to a new minor version.
AXSM and AXSM/B
The AXSM and AXSM/B SCTs have the following characteristics:
•
SCT 2—Policing enabled, PNNI
•
SCT 3—Policing disabled, PNNI
•
SCT 4—Policing enabled, MPLS and PNNI
•
SCT 5—Policing disabled, MPLS and PNNI
The filenames and checksums for the SCT files are as follows:
•
AXSM_SCT.PORT.0.V1:Cchecksum is = 0x6aadd6c6= 1789777606
•
AXSM_SCT.PORT.2.V1: Checksum is = 0x78ccfb22= 2026699554
•
AXSM_SCT.PORT.3.V1: Checksum is = 0x987919a7= 2558073255
•
AXSM_SCT.PORT.4.V1: Checksum is = 0x775bfaa2= 2002516642
•
AXSM_SCT.PORT.5.V1: Checksum is = 0xe84c696a= 3897321834
•
AXSM_SCT.CARD.0.V1: Checksum is = 0x6aadd6c6= 1789777606
•
AXSM_SCT.CARD.2.V1: Checksum is = 0x78ccfb22= 2026699554
•
AXSM_SCT.CARD.3.V1: Checksum is = 0x987919a7= 2558073255
•
AXSM_SCT.CARD.4.V1: Checksum is = 0x775bfaa2= 2002516642
•
AXSM_SCT.CARD.5.V1: Checksum is = 0xe84c696a= 3897321834
To confirm that the checksum of the SCT file and the file on the node match, enter dspsctchksum <filename>.
AXSM-E
The AXSM-E SCTs have the following characteristics:
•
CARD and PORT SCT 5—Policing enabled for PNNI, disabled for MPLS
•
PORT SCT 6—Policing disabled, used for PNNI ports.
•
CARD and PORT SCT 52—Policing enabled on PNNI, disabled on MPLS
•
PORT SCT 53—Policing disabled on PNNI and MPLS
•
PORT SCT 54— Policing enabled on PNNI, disabled on MPLS
•
PORT SCT 55—Policing disabled on PNNI and MPLS
The following are checksums for the AXSM-E SCT file:
•
AXSME_SCT.PORT.5.V1: Checksum is = 0x793c56d0= 2033997520
•
AXSME_SCT.PORT.6.V1: Checksum is = 0xe92db9a5= 3912087973
•
AXSME_SCT.PORT.52.V1: Checksum is = 0x51241b7a= 1361320826
•
AXSME_SCT.PORT.53.V1: Checksum is = 0x34bdf8b9= 884865209
•
AXSME_SCT.PORT.54.V1: Checksum is = 0xb5df2c5c= 3051301980
•
AXSME_SCT.PORT.55.V1: Checksum is = 0xc5d355c8= 3318961608
•
AXSME_SCT.CARD.5.V1: Checksum is = 0x793c56d0= 2033997520
•
AXSME_SCT.CARD.52.V1: Checksum is = 0x972810ac= 2535985324
AXSM-XG
The AXSM-XG SCTs have the following characteristics:
•
CARD SCT 2—Policing disabled on PNNI and MPLS. Applied in ingress direction based on backplane bandwidth.
•
PORT SCT 100 (OC-192), 200 (OC-48), 300 (OC-12), 400 (OC-3), 500 (DS3)—Policing disabled on PNNI and MPLS
•
PORT SCT 101, 201, 301, 401, 501—Policing disabled on PNNI and enabled on MPLS
•
PORT SCT 110, 210, 310, 410, 510—Policing enabled on PNNI and disabled on MPLS
•
PORT SCT 111, 211, 311, 411, 511—Policing enabled on PNNI and enabled on MPLS
The SCT filenames and checksums are:
•
AXSMXG_SCT.PORT.100.V1: Checksum is = 0x2342cfdf= 591581151
•
AXSMXG_SCT.PORT.200.V1: Checksum is = 0x2814a68d= 672441997
•
AXSMXG_SCT.PORT.300.V1: Checksum is = 0x7e2bf17= 132300567
•
AXSMXG_SCT.PORT.400.V1: Checksum is = 0xa602de0a= 2785205770
•
AXSMXG_SCT.PORT.500.V1: Checksum is = 0xd6d07790= 3603986320
•
AXSMXG_SCT.PORT.101.V1: Checksum is = 0x7f3935c0= 2134455744
•
AXSMXG_SCT.PORT.201.V1: Checksum is = 0x6e41c693= 1849804435
•
AXSMXG_SCT.PORT.301.V1: Checksum is = 0x98ba0700= 2562328320
•
AXSMXG_SCT.PORT.401.V1: Checksum is = 0xae33e067= 2922635367
•
AXSMXG_SCT.PORT.501.V1: Checksum is = 0x11988936= 295209270
•
AXSMXG_SCT.PORT.110.V1: Checksum is = 0xd431808= 222500872
•
AXSMXG_SCT.PORT.210.V1: Checksum is = 0x2835432c= 674579244
•
AXSMXG_SCT.PORT.310.V1: Checksum is = 0x4f4c4a34= 1330399796
•
AXSMXG_SCT.PORT.410.V1: Checksum is = 0xe4a7ed75= 3836210549
•
AXSMXG_SCT.PORT.510.V1: Checksum is = 0xecc0047c= 3972007036
•
AXSMXG_SCT.PORT.111.V1: Checksum is = 0x68397de6= 1748598246
•
AXSMXG_SCT.PORT.211.V1: Checksum is = 0x6e61632e= 1851876142
•
AXSMXG_SCT.PORT.311.V1: Checksum is = 0xdf23911a= 3743650074
•
AXSMXG_SCT.PORT.411.V1: Checksum is = 0xecd7efce= 3973574606
•
AXSMXG_SCT.PORT.511.V1: Checksum is = 0xe920f6c3= 3911251651
•
AXSMXG_SCT.CARD.2.V1: Checksum is = 0xb58b69a8= 3045812648
•
AXSMXG_SCT.CARD.3.V1: Checksum is = 0xb4e1239a= 3034653594
MPSM-T3E3-155
The SCT files for the MPSM-T3E3-155 card have the following characteristics:
•
Port SCT 1—Optimized for UNI connections that use 5 or more T1/E1 lines.
•
Port SCT 2—Optimized for NNI connections that use 5 or more T1/E1 lines.
•
Port SCT 3—Optimized for IMA or MFR UNI connections that use 4 T1/E1 lines or less.
•
Port SCT 4—Optimized for IMA or MFR NNI connections that use 4 T1/E1 lines or less.
The SCT filenames and checksums are:
•
MPSM155_SCT.PORT.1.V1: Checksum is = 0x88569bf5= 2287377397
•
MPSM155_SCT.PORT.2.V1: Checksum is = 0x21e18676= 568428150
•
MPSM155_SCT.PORT.3.V1: Checksum is = 0x3cb04789= 1018185609
•
MPSM155_SCT.PORT.4.V1: Checksum is = 0xd63b320a= 3594203658
•
MPSM155_SCT.CARD.1.V1: Checksum is = 0x808b3c54= 2156608596
MPSM-16-T1E1
The SCT files for the MPSM-16-T1E1 card have the following characteristics:
•
Port SCT 3—Use for UNI ports less than or equal to 4 T1 in bandwidth.
•
Port SCT 4—Use for NNI ports less than or equal to 4 T1 in bandwidth.
The MPSM-16-T1E1 SCT filenames and checksums are:
•
MPSM16T1E1_SCT.PORT.3.V1: Checksum is = 0x3cb04789= 1018185609
•
MPSM16T1E1_SCT.PORT.4.V1: Checksum is = 0xd63b320a= 3594203658
•
MPSM16T1E1_SCT.CARD.1.V1: Checksum is = 0x808b3c54= 2156608596
Features in Release 5.1.20
Release 5.1.20 supports Evolution-Data Optimized (EV-DO) traffic on the MPSM-16-T1E1. EV-DO is a high-speed data overlay for CDMA2000, where the MGX 8850 operates as the aggregation node:
•
Multilink PPP Feature for CDMA2000 and EVDO
Features in Release 5.1.00
This section contains the descriptions of the following new features in Release 5.1.00:
•
IP Management Connections through the RPM
MPSM-16-T1E1 Card
The MPSM-16-T1E1 is a single-height front card that accommodates one single-height back card and fits into a slot in the upper or lower bay of the following chassis systems:
•
MGX 8850 and MGX 8850/B switches
•
MGX 8830 and MGX 8830/B switches
The MPSM-16-T1E1 front card supports 16 ports with T1/E1 capabilities, depending upon which back card is installed. Each line can be channelized or unchannelized.
Limitation: Consolidated Link Layer Management for Frame Relay is not supported in this release.
Operational Modes
The MPSM-16-T1E1 supports two software modes:
•
ATM and Frame Relay services
•
Multilink PPP services only
You boot into one mode or the other during initial card startup.
Supported Features
This section lists the features that are supported on the MPSM-16-T1E1 card.
Supported Services
The following services are supported:
•
Frame Relay
•
ATM
•
Inverse Multiplexing for ATM (IMA)
•
Multilink PPP (MLPPP)
•
Any Service Any Port
General Features
The MPSM-16-T1E1 card supports the following general features:
•
Physical interfaces configurable as channelized or unchannelized ports for 16 T1 or E1 interfaces.
•
Fault management and performance management for T1 and E1 interfaces.
•
1:1 hot standby card redundancy (Requires 1:1 redundancy back cards and Y-cable).
•
1:N cold standby card redundancy (Requires 1:N redundancy back cards and RCON connector).
•
Standard Cisco MGX RAS features.
•
Onboard BERT support for NxDS0 and T1/E1 interfaces.
•
Any Service Any Port (ASAP).
•
Optional software features enabled through feature licenses.
•
Support for SPVCs, SVCs, SPVPs, and PVPs.
•
Support for card and port service class templates.
•
Maximum of 2000 connections. Any combination of Frame Relay and ATM connections is allowed.
•
Support for FR-FR, FR-ATM, ATM-FR, ATM-VISM, and ATM-CE SPVC connection types, where one of the end-points resides on the MPSM-16-T1E1 card. The MPSM-16-T1E1 cannot be the CE end point for ATM-CE connections because the MPSM-16-T1E1 does not support circuit emulation.
•
Connections provisioned on the PNNI control plane on the MGX 8850 platform using the MSF switch architecture based VSI (Virtual Switch Interface).
•
Support for provisioning Extended Permanent Virtual Circuits (XPVC) endpoints. A XPVC is an end-to-end virtual circuit (VC) that spans multiple networks using AutoRoute and PNNI protocols.
•
Support for OAM fault management.
•
Statistics collection and upload to Cisco Wan Manager (CWM).
•
Configuration upload to CWM.
ATM Features
The MPSM-16-T1E1 card supports the following ATM features:
•
Handles up to 16 T1/E1 worth of ATM traffic.
•
T1 and E1 ATM interfaces.
•
ATM trunking.
•
VPCs and VCCs.
•
Egress VC Shaping.
•
ABR VS/VD with support for external ABR segment.
•
ILMI on all ATM interfaces.
•
Maximum of 32 ATM UNI/NNI/VUNI/VNNI/EVUNI/EVNNI ports with signaling.
•
Maximum of 2000 ATM connections.
•
ATM traffic management features (includes ABR VS/VD).
•
VCC/VPC shaping.
IMA Features
The MPSM-16-T1E1 card supports the following IMA features:
•
Support for IMA version 1.0 and 1.1 with fallback and auto restart support.
•
Support for up to 16 IMA groups.
•
Support for both T1 and E1 IMA links (T1 and E1 cannot be mixed in the same IMA group).
•
Maximum of 8 links per IMA group.
•
Differential delay supported is 275 ms for T1 and 220 ms for E1.
•
Support for CTC and ITC clocking modes.
Frame Relay Features
The MPSM-16-T1E1 card supports the following Frame Relay features:
•
Supports the bandwidth of 16 T1/E1 lines.
•
Ports can be added on T1/E1 lines or NxDS0 channels in T1/E1 lines.
•
Maximum Frame Relay port bandwidth is 1.984 Mbps (E1 line with 31 time slots).
•
Support for 56 Kbps ports.
•
Support for a total of 496 Frame Relay logical ports (16 x 31 time slots in E1).
•
Maximum of 2000 Frame Relay connections.
•
FR UNI, FR NNI, and Frame Forwarding interfaces.
•
Ingress cut through mode of frame processing (No waiting for the complete frame to arrive. Frame processing and conversion to ATM cells starts as soon as header information is available).
•
Maximum frame size supported is 4510 bytes.
•
Support for 2-byte Frame Relay header.
•
Ratio based egress servicing.
•
Support for FRF.5 (NIW) and FRF.8.1 (SIW) standards.
•
LMI and Enhanced LMI on all Frame Relay interfaces.
•
Frame Relay traffic management features.
MLPPP Features
The MPSM-16-T1E1 card supports the following Mulitlink PPP features:
•
PPPmux on a MLPPP bundle basis.
•
Interworking between PPP and PPPoATM.
•
Maximum of 16 MLPPP bundles.
•
Maximum of 4 PPP links per MLPPP bundle.
•
Dynamic (auto) PVC bandwidth on a MLPPP bundle basis.
•
NxDS0 and T1/E1 PPP links.
•
1 PPP link per physical line.
•
Layer 2 QoS to minimize delay of delay sensitive traffic and prioritize control messages.
•
Support for 4 strict priority queues.
•
Support for CDMA2000 applications with the MWR 1900 and the RPM-XF.
•
1:N cold standby front card redundancy supported.
•
Connections provisioned on the MGX 8850 PNNI control plane using the MSF switch architecture based Virtual Switch Interface (VSI)
•
Licensing of the supported features
Multilink PPP Feature for CDMA2000 and EVDO
The MPSM-16-T1E1 implements Multilink PPP, which is a key protocol in a larger application defined by CDMA2000. In this application, the MGX 8850 (PXM45) aggregates traffic from several BTS site routers (MWR) and transfers that traffic to an IP network. The aggregation point in the MGX 8850 (PXM45) is the RPM-XF. Traffic from all of the BTS routers are transported over PPP links (typically on T1/E1 links) and brought into the MGX 8850 (PXM45) through an MPSM-16-T1E1 card. The MPSM-16-T1E1 transforms the PPP payload into AAL5 cells, which it sends to the RPM-XF using ciscoPPPoAAL5 encapsulation.
With growth in traffic in the CDMA2000 application, you might need to add additional T1/E1 links between the MWR and the MPSM-16-T1E1. The MLPPP feature simplifies the process of adding incremental bandwidth because it can aggregate capacity of individual T1/E1 lines. Because the IP payloads are small (typically voice) and the overhead associated with PPP (MLPPP) packets increases with smaller payloads, PPPMUX functionality is utilized on the MPSM-16-T1E1. In EV-DO, multiplexing is not used.
The connection between MPSM and RPM-XF is setup as a PVC connection. The bandwidth of this PVC depends on the number of operation PPP links on an MP bundle. RPM-XF terminates the PPPoAAL5 data and routes the IP traffic to the backbone IP network.
MPSM-155-T3E3 and MPSM-16-T1E1 Online Diagnostics
The online diagnostic tests run on regular intervals for both on the active and standby state of the MPSM cards to check the health of the devices and data paths. The online diagnostics test the following devices and data paths:
•
Data path from the CPU on the MPSM to the CBC slave loopback on the MPSM through Winpath 0
•
Data path from the CPU on MPSM to the CBC master loopback on the PXM via Winpath 1
•
Winpath memory access test (packet, parameter, host memory)
•
Write/read memory access test for internal devices
•
Validate front card NVRAM checksum
•
Validate flash checksum
PNNI Current Route Feature
Current Route feature provides the path information for active Point-to-Point (P2P) SPVCs/SPVPs master-end connections. The path information contains the lowest level physical node and egress trunk information of the path on which the connection is currently routed.
This feature uses the ATM standards based connTrace message to obtain the current route information. CWM uses the configuration upload file mechanism to request available path information of connections on a periodic or an on-demand basis.
This feature works in single peer group and multiple peer group networks. The current path can be used by the network administrators and planners to engineer the trunk use and to direct how connections should be routed.
Operational and Redundancy Limitations
The current route feature has the following operational limitations:
•
Point-to-multipoint calls are not supported.
•
Only SPVC/SPVP connections are supported. CWM does not manage SVC/SVP connections.
•
Master ended connections have the current route information. Slave ended connections do not have this information.
•
The configuration upload file contains a snapshot of the current route information at the time that the switch receives a configuration upload request from CWM. Therefore, the snapshot might not contain the latest information, and connection trace information that the switch receives after the file is created is not included in the file.
•
If congestion occurs on a node, the connTrace message sent by the CLI and by the Current Route feature is dropped. The two connTrace messages are not distinguishable. This limitation also applies to connTrace ACK messages that are received on a congested node.
•
After changing a node ID, disable and then re-enable the current route feature on each node in the network using the new CLI command, cnfndcurrte.
This command flushes all existing current route information and starts collecting new information. After disabling the current route feature, wait at least 9 seconds (the time-out period for a conn-trace message) before re-enabling it. This inhibits processing of stale connTrace messages.
•
The connection path information for a connection traversing more than 20 nodes is not stored in the current route path table. Therefore, such connections do not have current route information.
•
The current route path does not include the destination termination port (normally slave endpoint UNI port). The destination port is set to zero in the current route path, which is similar to preferred route.
The current route feature has the following redundancy limitations:
•
The current route feature provides redundancy. However, because the current route must not reduce routing performance, some connections might not have redundant current route information on the standby PXM.
For those connections that do not have redundant current route information at the time of a switchcc, their current route information is obtained through the normal scanning on the active card when the old standby becomes the new active.
•
After a standby PXM card is inserted and reset, the active card sends the current route information to the standby card only after its state changes from Init to Standby. This avoids increasing the time it takes for the redundant card to come up to the Standby state, ready for switchcc.
The Standby state is not redundant until the current route update is completed. Therefore, a switchcc that occurs before all current route information is sent to the redundant card results in some connections not having current route information on the newly active card. The current route information for those connections is obtained during the normal current route scanning and processing.
•
When inserting or resetting the standby PXM, enter the command dspndcurrte and verify that Bulkupdate is complete before performing a switchcc.
Feature Specifications
The current route feature has the following limits:
•
A maximum of 10K path entries per node are supported.
•
A maximum of 5K node ID entries per node are supported.
•
A maximum of 2K ports on PXM1E systems are supported when current route is enabled.
An attempt to enable the current route feature on a node which has more than 2K ports is not allowed and results in error. If the current route feature is enabled and more than 2K ports are subsequently added, this feature or other applications might not work properly.
•
A maximum of 100K connections are supported PXM45/B systems when current route is enabled.
An attempt to enable current route on a node which has more than 100K connections results in error. If the current route feature is enabled and more than 100K connections are subsequently added, this feature or other applications might not work properly.
PNNI Product Enhancements
The Link Selection enhancement adds new functionality to parallel links to which link selection criteria is provisioned to `minAW' (`minAWlinks'). This feature can be activated through the CLI. If these enhancements are not activated, the existing `link selection' behavior is used.
Table 1 lists the PNNI product enhancement requests incorporated in this release.
PXM1E OAM Enhancement
The PXM1E processes the following OAM loopback cells:
•
End-to-end OAM loopback cells—Used for background connection continuity verification. These cells might be sent by a VISM card or router.
•
Segment OAM loopback cells—Used for diagnostic testing between segment endpoints. These cells are sent for the following CLI commands: tstdelay, tstconsegep, and tstpndelay.
This release moves the task of extracting and injecting OAM loopback cells at the PXM1E from the Atlas to the QE1210. Unlike with Atlas, the QE1210 can distinguish between segment and end-to-end OAM loopback cells. The QE1210 extracts only the segment OAM loopback cells, while transparently passing the end-to-end OAM loopback cells.
Because the end-to-end OAM loopback cells no longer require software processing, the previous limitations for the OAM loopback cell rate on the PXM1E no longer apply. These cells are now processed in the QE1210 hardware and are limited only by the available line bandwidth.
Each PXM1E segment endpoint has a polling-induced queue extraction delay of up to 10 ms for a segment OAM loopback cell. This delay is not imposed on end-to-end cells or segment cells at nonsegment endpoints.
IP Management Connections through the RPM
You can manage the MGX 8850 node from the traditional Ethernet or console port, or you can set up one of the following connections:
•
Through the AXSM or MPSM cards using an SVC to the PXM card
•
Through the RPM card using a PVC to the PXM card
This release changes the PXM svcifconfig command to support management connections through the RPM card.
The IP addresses of hosts accessing the MGX 8850 node are stored in a RAM cache. Because this cache has a limit of 50 entries, only 50 IP hosts can actively access the node at one time. New IP hosts are blocked until the cache clears (as result of inactivity from some hosts) to make room for new entries.
Use this solution to manage only one MGX 8850 node through RPM, not an entire network of nodes.
Note
If you are connected to the MGX node using the RPM and accidentally delete the SPVC, the connection drops. To restore RPM access, you must re-add the SPVC using the console port or Ethernet port.
Note
If the clrallcnf, clrcnf, or clrsmcnf commands are executed, the persistent data pertaining to the IP connections is lost and connections are dropped. To restore RPM access, you must reconfigure the RPM and PXM cards for IP connectivity, using the console port or Ethernet port.
System Requirements
This section describes software compatible with this release and lists the supported hardware.
Software/Firmware Compatibility Matrix
Table 2 lists Cisco WAN or Cisco IOS software products that are compatible with Release 5.2.10.
MGX and RPM Software Version Compatibility Matrix
Table 3 lists the software that is compatible for use in a switch running Release 5.2.00 software.
Table 3 MGX and RPM Software Version Compatibility Matrix
Board Pair Boot Software Runtime SoftwarePXM45/B
pxm45_005.002.010.204_bt.fw
pxm45_005.002.010.206_mgx.fw
PXM45/C
pxm45_005.002.010.204_bt.fw
pxm45_005.002.010.206_mgx.fw
PXM45/C MGX 8830/B chassis
pxm45_005.002.010.204_bt.fw
pxm45_005.002.010.206_m30.fw
PXM1E-4-155 MGX 8850 (PXM1E) chassis
pxm1e_005.002.010.204_bt.fw
pxm1e_005.002.010.204_mgx.fw
PXM1E-8-155 MGX 8850 (PXM1E) chassis
PXM1E-8-T3E3 MGX 8850 (PXM1E) chassis
PXM1E-COMBO MGX 8850 (PXM1E) chassis
PXM1E-8-155
PXM1E-4-155 MGX 8830 chassis
pxm1e_005.002.010.204_bt.fw
pxm1e_005.002.010.204_m30.fw
PXM1E-8-T3E3 MGX 8830 chassis
PXM1E-8-155 MGX 8830 chassis
PXM1E-COMBO MGX 8830 chassis
AXSM-1-2488
axsm_005.002.010.200_bt.fw
axsm_005.002.010.200.fw
AXSM-16-155
AXSM-4-622
AXSM-16-T3/E3
AXSM-1-2488/B
axsm_005.002.010.200_bt.fw
axsm_005.002.010.200.fw
AXSM-16-155/B
AXSM-4-622/B
AXSM-16-T3/E3/B
AXSM-2-622-E
axsme_005.002.010.200_bt.fw
axsme_005.002.010.200.fw
AXSM-8-155-E
AXSM-16-T3E3-E
AXSM-32-T1E1-E
AXSM-16-155-XG
axsmxg_005.002.011.200_bt.fw
axsmxg_005.002.011.201.fw
AXSM-8-622-XG
AXSM-4-2488-XG
AXSM-1-9953-XG
MPSM-16-T1E1
mpsm16t1e1_005.002.010.200_bt.fw
mpsm16t1e1_005.002.010.200.fw
MPSM-16-T1E1-PPP
mpsm16t1e1_005.001.020.200_bt.fw1
mpsm16t1e1ppp_005.001.020.202.fw
MPSM-T3E3-155
mpsm155_005.002.010.200_bt.fw
mpsm155_005.002.010.200.fw
MPSM-T3E3-155-PPP
mpsm155_005.002.010.200_bt.fw
mpsm155ppp_005.002.010.200.fw
MPSM-8-T1E1
mpsm_t1e1_030.002.010.200_bt.fw
mpsm_t1e1_030.002.010.200.fw
MGX-SRME
N/A (Obtains from PXM)
N/A (Obtains from PXM)
MGX-SRME/B
N/A (Obtains from PXM)
N/A (Obtains from PXM)
SRM3T3/C
N/A (Obtains from PXM)
N/A (Obtains from PXM)
AX-CESM-8E1
cesm_8t1e1_CE8_BT_1.0.02.fw
cesm_8t1e1_022.002.010.200.fw
AX-CESM-8T1
cesm_8t1e1_CE8_BT_1.0.02.fw
cesm_8t1e1_022.002.010.200.fw
MGX-CESM-8T1/B
cesm_8t1e1_CE8_BT_1.0.02.fw
cesm_8t1e1_022.002.010.200.fw
MGX-AUSM-8T1/B
ausm_8t1e1_AU8_BT_1.0.02.fw
ausm_8t1e1_022.002.010.200.fw
MGX-AUSM-8E1/B
ausm_8t1e1_AU8_BT_1.0.02.fw
ausm_8t1e1_022.002.010.200.fw
AX-FRSM-8T1
frsm_8t1e1_FR8_BT_1.0.06.fw
frsm_8t1e1_022.002.010.200.fw
AX-FRSM-8E1
frsm_8t1e1_FR8_BT_1.0.06.fw
frsm_8t1e1_022.002.010.200.fw
AX-FRSM-8T1-C
frsm_8t1e1_FR8_BT_1.0.06.fw
frsm_8t1e1_022.002.010.200.fw
AX-FRSM-8E1-C
frsm_8t1e1_FR8_BT_1.0.06.fw
frsm_8t1e1_022.002.010.200.fw
MGX-FRSM-HS2/B
frsm_vhs_VHS_BT_1.0.07.fw
frsm_vhs_022.002.010.200.fw
MGX-FRSM-2CT3
frsm_vhs_VHS_BT_1.0.07.fw
frsm_vhs_022.002.010.200.fw
MGX-FRSM-2T3E3
frsm_vhs_VHS_BT_1.0.07.fw
frsm_vhs_022.002.010.200.fw
MGX-RPM-PR-256
rpm-boot-mz.123-11.T9
rpm-js-mz.123-11.T9
MGX-RPM-PR-512
rpm-boot-mz.123-11.T9
rpm-js-mz.123-11.T9
MGX-RPM-XF-512
rpmxf-boot-mz.123-11.T9
rpmxf-p12-mz.123-11.T9
MGX-VXSM-155
vxsm_005.002.010.201_bt.fw
vxsm_005.052.010.201.fw
(CALEA image)
vxsm_005.002.010.201.fw
(non-CALEA image)
MGX-VXSM-T3
MGX-VXSM-T1E1
MGX-VISM-PR-8T1
vism_8t1e1_VI8_BT_3.2.00.fw
vism-8t1e1-003.053.025.201.fw
(CALEA image)vism-8t1e1-003.003.025.201.fw (non-CALEA image)
MGX-VISM-PR-8E1
1 Obtain the MPSM-16-T1E1-PPP version 005.001.020.200 boot code from the Release 5.1.20 bundle that is located on Cisco.com.
SNMP MIB Release
The SNMP MIB file for release 5.2.10 is mgx8850rel5210mib.tar.
Note
SNMP manuals are replaced by the online MIB tool at :
http://tools.cisco.com/ITDIT/MIBS/jsp/index.jsp
Hardware Supported
This section lists:
•
MGX 8850 (PXM45) Product IDs, 800 part numbers, and revision levels
•
MGX 8850 (PXM1E) Product IDs, 800 part numbers, and revision levels
•
MGX 8830 Product IDs, 800 part numbers, and revision levels
•
MGX 8950 Product IDs, 800 part numbers, and revision levels
Hardware in Release 5.2.10
Release 5.2.10 does not introduce new hardware.
Product IDs, Card Types, and APS Connectors
The following tables list part number and revision compatibility for front and back cards in the MGX chassis. The table also lists whether an APS connector is required.
Table 4 MGX Chassis, Card, and APS Configurations Part 1
Front Card Type Minimum 800 Part Number and Revision Back Card Types APSCon Minimum 800 Part Number and Revision MGX 8850 and 8850/BPXM45 MGX 8850 and 8850/BPXM1E MGX 8830/BPXM45 MGX 8830 and 8830/BPXM1E MGX 8950PXM45PXM45/C
800-20217-04-A0
PXM-HD
—
800-05052-03-A0
x
—
x
—
x
PXM-UI-S3/B
—
800-21557-01-A0
PXM45/B
800-09266-04-A0
PXM-HD
—
800-05052-03-A0
x
—
—
—
x
PXM-UI-S3
—
800-05787-02-A0
PXM1E-8-155
800-21686-05-A0
SFP-8-155
Yes
800-21518-03-A0
—
x
—
x
—
SMFIR-1-155-
SFPYes
10-1283-01-A0
SMFLR-1-155-
SFPYes
10-1280-01-A0
MMF-1-155-SFP
10-1308-01-A0
PXM-UI-S3/B
—
800-21557-01-A0
PXM1E-4-155
800-18588-03-A0
MMF-4-155/C
Yes 1
800-07408-02-A0
—
x
—
x
—
SMFIR-4-155/C
Yes 1
800-07108-02-A0
SMFLR-4-155/C
Yes 1
800-07409-02-A0
PXM-UI-S3/B
—
800-21557-01-A0
PXM1E-8-T3E3
800-18590-03-A0
SMB-8-T3
—
800-05029-02-A0
—
x
—
x
—
SMB-8-E3
—
800-04093-02-A0
PXM-UI-S3/B
—
800-21557-01-A0
PXM1E-16-T1E1
800-18658-04-A0
MCC-16-E1
—
800-19853-02-A0
—
x
—
x
—
RBBN-16-T1E1
—
800-21805-03-A0
PXM-UI-S3/B
—
800-21557-01-A0
PXM1E-T3E3-
155Also referred to as
PXM1E-COMBO
800-18604-03-A0
MGX-T3E3-155
—
800-18698-02-A0
—
x
—
x
—
SMFIR-1-155-
SFP—
10-1283-01-A0
SMFLR-1-155-
SFP—
10-1280-01-A
MMF-1-155-
SFP—
10-1308-01-A0
PXM-UI-S3/B
—
800-21557-01-A0
1 APS connectors are required to upgrade to a PXM1E-8-155 card without service interruption.
Table 5 MGX Chassis, Card, and APS Configurations Part 2
Front Card Type Minimum 800 Part Number and Revision Back Card Types APSCon Minimum 800 Part Number and Revision MGX 8850 and 8850/BPXM45 MGX 8850 and 8850/BPXM1E MGX 8830/BPXM45 MGX 8830 and 8830/BPXM1E MGX 8950PXM45XM-60
800-04706-06-A0
—
—
—
—
—
—
—
x
MGX-APS-CON
800-05307-01-A0
—
—
—
x
—
—
—
—
MGX-8850-APS-
CON800-20640-01-A0
—
—
—
x
x
—
—
—
MGX-8830-APS-
CON800-05308-02
—
—
—
—
—
x
x
—
MGX-8950-APS-
CON800-15308-01-A0
—
—
—
—
—
—
—
x
MPSM-T3E3-155
800-23005-06-A0
SFP-2-155
Yes
800-23170-02-A0
x
x
x
x
—
BNC-3-T3E3
—
800-23142-04-A0
SMB-2-155-EL
Yes
800-23171-03-A0
MPSM-8-T1E1
800-24473-07-A0
AX-RJ48-8T1
—
800-02286-01-A0
x
x
x
x
—
AX-R-RJ48-
8T1—
800-02288-01-A0
AX-RJ48-8E1
—
800-02408-01-A0
AX-R-RJ48-
8E1—
800-02409-01-A0
AX-SMB-8E1
—
800-02287-01-A0
AX-R-SMB-
8E1—
800-02410-01-A0
MPSM-16-T1E1
800-22339-08
RBBN-16-
T1E1-1N—
800-23091-03
x (/B chassis only)
x (/B chassis only)
x1
x1
—
MCC-16-E1-
1N—
800-23135-02
RED-16-T1E1
—
800-23092-04
MCC-16-E1
—
800-19853-03
x
x
x
x
—
RBBN-16-
T1E1—
800-21805-04
RCON-1TO5-8850
800-23094-03
—
—
—
x (/B chassis only)
x (/B chassis only)
—
—
RCON-1TO3-8850
800-23196-01
—
—
—
x (/B chassis only)
x (/B chassis only)
—
—
—
RCON-1TO3-8830
800-23197-01
—
—
—
—
—
x
x
—
1 The MGX 8830/B chassis must use the RED-16-T1E1 back card for 1:N redundancy.
Table 6 MGX Chassis, Card, and APS Configurations Part 3
Front Card Type Minimum 800 Part Number and Revision Back Card Types APSCon Minimum 800 Part Number and Revision MGX 8850 and 8850/BPXM45 MGX 8850 and 8850/BPXM1E MGX 8830/BPXM45 MGX 8830 and 8830/BPXM1E MGX 8950PXM45AXSM-1-9953-XG
800-07365-06-A0
SMFSR-1-9953
—
800-08237-06-A0
—
—
—
—
x
SMFIR-1-9953
—
800-08246-06-A0
SMFLR-1-9953
—
800-08247-06-A0
AXSM-4-2488-XG
800-16987-04-A0
SMF-4-2488-
SFP—
800-19913-04-A0
—
—
—
—
x
SMFSR-1-2488-SFP
10-1421-03
SMFLR-1-2488-SFP
10-1742-01
AXSM-1-2488
800-05795-05-A0
SMFSR-1-2488
Yes
800-05490-05-A0
x
—
—
—
—
SMFLR-1-2488
Yes
800-06635-04-A0
SMFXLR-1-
2488Yes
800-05793-05-A0
AXSM-1-2488/B
800-07983-02-A0
SMFSR-1-2488/B
Yes
800-07255-01-A0
x
—
—
—
x
SMFLR-1-2488/B
Yes
800-08847-01-A0
SMFXLR-1-
2488/BYes
800-08849-01-A0
AXSM-8-622-XG
800-21445-06
SFP-4-622
Yes
800-22143-05
x
—
x
—
x1
AXSM-4-622
800-05774-09-B0
SMFIR-2-622
SMFLR-2-622
Yes
800-05383-01-A1
x
—
—
—
—
Yes
800-05385-01-A1
AXSM-4-622/B
800-07910-05-A0
SMFIR-2-622/B
Yes
800-07412-02-
B0x
—
—
—
x
SMFLR-2-622/B
Yes
800-07413-02-
B0AXSM-2-622-E
800-18521-02-A0
SMFIR-1-622/C
Yes
800-07410-02-A0
x
—
x
—
—
SMFLR-1-622/C
Yes
800-07411-02-A0
AXSM-16-155-XG
800-20821-06-A0
SFP-8-155
Yes
800-21518-03-A0
x
—
x
—
x1
SMFIR-1-155-
SFP10-1283-01-A0
SMFLR-1-155-
SFP10-1280-01-A0
MMF-1-155-
SFP10-1308-01-A0
MCC-8-155
Yes
800-22117-02-A0
AXSM-16-155
800-05776-06-A0
MMF-8-155-MT
Yes
800-04819-01-A1
x
—
—
—
—
SMFIR-8-155-
LCYes
800-05342-01-A0
SMFLR-8-155-
LCYes
800-05343-01-
C0AXSM-16-155/B
800-07909-05-A0
MMF-8-155-
MT/BYes
800-01720-02-A0
x
—
—
—
x
SMFIR-8-155-
LC/BYes
800-07864-02-B0
SMFLR-8-155-
LC/BYes
800-07865-02-B0
AXSM-8-155-E
800-18520-02-A0
SMB-4-155
Yes
800-07425-02-A0
x
—
—
—
—
MMF-4-155/C
Yes
800-07408-02-A0
SMFIR-4-155/C
Yes
800-07108-02-A0
SMFLR-4-155/C
Yes
800-07409-02-A0
AXSM-16-T3E3
800-05778-08-A0
SMB-8-T3
—
800-05029-02-A0
x
—
—
—
—
SMB-8-E3
—
800-04093-02-A0
AXSM-16-T3E3/B
800-07911-05-A0
SMB-8-T3
—
800-05029-02-A0
x
—
—
—
x
SMB-8-E3
—
800-04093-02-A0
AXSM-16-T3E3-E
800-18519-02-A0
SMB-8-T3
—
800-05029-02-A0
x
—
x
—
—
SMB-8-E3
—
800-04093-02-A0
AXSM-32-T1E1-E
800-22229-01-A0
MCC-16-E1
—
800-19853-02-A0
x
—
—
—
—
RBBN-16-
T1E1—
800-21805-03-A0
MGX8950-
EXTDR-CON800-23813-03-A0
—
—
—
—
—
—
—
x1
1 MGX8950-EXTDR-CON is required for AXSM-16-155-XG and AXSM-8-622-XG cards in the Cisco MGX 8950 chassis.
Table 7 MGX Chassis, Card, and APS Configurations Part 4
Front Card Type Minimum 800 Part Number and Revision Back Card Types APSCon Minimum 800 Part Number and Revision MGX 8850 and 8850/BPXM45 MGX 8850 and 8850/BPXM1E MGX 8830/BPXM45 MGX 8830 and 8830/BPXM1E MGX 8950PXM45MGX-SRME
800-14224-02-A0
MGX-SMFIR-1-155
Yes 1
800-14460-02-A0
x
x
—
x
—
MGX-STM1-
EL-1Yes 2
800-23175-03-A0
MGX-SRME/B
800-21629-03-A0
MGX-BNC-
3T3-M—
800-03148-02-A0
x
x
x
x
—
MGX-STM1-
EL-1—
800-23175-03-A0
MGX-SRM-3T3/C
800-05648-01-A0
MGX-BNC-
3T3-M—
800-03148-02-A0
x
x
—
x
—
MGX-AUSM-
8T1/B800-04809-01-A0
AX-RJ48-8T1
—
800-02286-01-A0
x
—
x
—
AX-R-RJ48-
8T1—
800-02288-01-A0
MGX-AUSM-
8E1/B800-04810-01-A0
AX-SMB-8E1
—
800-02287-01-A0
x
x
—
x
—
AX-R-SMB-8E1
—
800-02410-01-A0
AX-RJ48-8E1
—
800-02408-01-A0
AX-R-RJ48-
8E1—
800-02409-01-A0
MGX-RJ48-
8E1—
800-19310-01-
B0AX-CESM-8E1
800-02751-02-A0
AX-SMB-8E1
—
800-02287-01-A0
x
x
—
x
—
AX-R-SMB-
8E1—
800-02410-01-A0
AX-RJ48-8E1
—
800-02408-01-A0
AX-R-RJ48-
8E1—
800-02409-01-A0
MGX-RJ48-
8E1—
800-19310-01-
B0AX-CESM-8T1
800-02750-03-B0
AX-RJ48-8T1
—
800-02286-01-A0
x
—
—
—
—
AX-R-RJ48-
8T1—
800-02288-01-A0
MGX-CESM-8T1/B
800-08613-02-A0
AX-RJ48-8T1
AX-R-RJ48-
8T1—
800-02286-01-A0
x
x
—
x
—
—
800-02288-01-A0
MGX-VXSM-155
800-15121-06-A0
VXSM-BC-4-155
—
800-21428-06-A0
x
—
—
—
—
MGX-VXSM-T3
800-4074-02-
A0VXSM-BC-3T3
—
800-3095-03
x
—
—
—
—
MGX-VXSM-T1E1
800-24073-02-A0
VXSM-BC-
24T1E1—
800-23088-03-A0
x
—
—
—
—
MGX-VISM-PR-
8T1800-07990-02-A0
AX-RJ48-8T1
—
800-02286-01-A0
x
x
x
x
—
AX-R-RJ48-
8T1—
800-02288-01-A0
MGX-VISM-PR-
8E1800-07991-02-A0
AX-SMB-8E1
800-02287-01-A0
x
x
x
x
—
AX-R-SMB-
8E1800-02410-01-A0
AX-RJ48-8E1
800-02286-01-A0
AX-R-RJ48-
8E1800-02409-01-A0
AX-FRSM-8E1
800-02438-04-A0
AX-SMB-8E1
—
800-02287-01-A0
x
x
—
x
—
AX-FRSM-8E1-C
800-02462-04-A0
AX-R-SMB-
8E1—
800-02410-01-A0
x
x
—
x
—
AX-RJ48-8E1
—
800-02408-01-A0
AX-R-RJ48-
8E1—
800-02409-01-A0
MGX-RJ48-
8E1—
800-19310-01-
B0AX-FRSM-8T1
800-02461-04-A0
AX-RJ48-8T1
—
800-02286-01-A0
x
x
—
x
—
AX-FRSM-8T1-C
800-02461-04-A0
AX-R-RJ48-
8T1—
800-02288-01-A0
x
x
—
x
—
MGX-FRSM-2CT3
800-06335-01-D0
MGX-BNC-
2T3—
800-04057-02-A0
x
x
—
x
—
MGX-FRSM-
2T3E3800-02911-07-D0
MGX-BNC-2E3
—
800-04056-02-A0
x
x
—
x
—
MGX-BNC-2T3
—
800-04057-02-A0
FRSM-12-T3E32
800-18731-02-A0
SMB-6-T3E3
—
800-08799-01-A0
x
—
—
—
—
MGX-FRSM-
HS2/B800-17066-01-A0
SCSI2-2HSSI/B
—
800-05463-02-A0
800-05501-01-A0
x
—
x
—
MGX-12IN1-
8S—
800-18302-01-A0
MGX-RPM-PR-
256800-07178-02-A0
MGX-MMF-FE
—
800-03202-02-A0
x
x
—
x
x
MGX-RPM-PR-
512800-07656-02-A0
MGX-RJ45-
4E/B—
800-12134-01-A0
MGX-RJ45-FE
—
800-02735-02-A0
MGX-RPM-XF-512
800-09307-06-A0
MGX-XF-UI
—
800-09492-01-A0
x
—
—
—
x
MGX-1-GE
—
800-18420-03-A0
MGX-2-GE
—
800-20831-04-A0
MGX-1OC12
POS-IR—
800-08359-05-A0
MGX-2OC12
POS-IR—
800-21300-04-A0
GLC-LH-SM (was MGX-GE-
LHLX)—
30-1301-01-A0
GLC-SX-MM (was MGX-GE-SX1)
—
30-1299-01-A0
GLC-ZX-SM (was MGX-GE-ZX1)
—
10-1439-01-A0
1 APS connectors are not required in 8830 chassis.
2 The FRSM-12-T3E3 card is not supported.
Table 8 summarizes the correct APS connector for each MGX chassis and front card.
•
R- means that this is a redundant card, for AX-R-RJ48-8E1, AX-R-RJ48-8T1, and AX-R-SMB-8E1 cards.
•
Either of these connectors work for the AXSM cards in the MGX 8850 (PXM45) switch: MGX-8850-APS-CON or MGX-APS-CON.
•
The PXM45 card is not supported in Release 5.0.00 and later. The PXM45/B and PXM45/C cards are supported.
•
The SCSI2-2HSSI/B card has two different 800 part numbers, and both part numbers are valid.
•
The PXM1E-COMBO card is also known as PXM1E-T3E3-155 card.
MGX 8950 does not support the AXSM/A or the AXSM-E cards. If these cards are present, they display "Failed" when the dspcds command is issued.
1. Required only if running in OC-3 mode.
2: APS connectors are required if you want to upgrade to a PXM1E-8-155 card without interrupting service.
New and Changed Commands
This sections lists the updated commands for the following features:
•
Online Insertion or Removal of the MGX-RPM-1FE-CP Back Card
Mobile PNNI
The following commands are modified to support mobile PNNI configuration:
•
addpnni-node
•
cnfpnni-intf
•
cnfpnni-routing-policy
•
dsppnni-intf
•
dsppnni-node
•
dsppnni-ptse
•
dsppnni-routing-policy
For complete command information, see the Cisco MGX 8800/8900 Series Command Reference, Release 5.2.
Graceful Upgrade
This section lists the updated commands for the AXSM-XG graceful upgrade feature. For more information about the upgrade procedure, see Upgrading an AXSM/A, AXSM/B, or AXSM-E to an AXSM-XG.
The following commands are modified to support the graceful upgrade feature:
•
loadrev
•
runrev
For complete command information, see the Cisco MGX 8800/8900 Series Command Reference, Release 5.2.
Online Insertion or Removal of the MGX-RPM-1FE-CP Back Card
Online insertion or removal (OIR) of the MGX-RPM-1FE-CP back card for the RPM-PR card requires the following RPM-PR commands:
•
Privileged exec mode command hw-module slot <slot> {stop | start}
•
Configuration mode command hw-module slot <slot> shutdown {powered | unpowered}
To perform online insertion or removal in privileged exec mode:
Step 1
Enter hw-module slot <slot> stop
Step 2
Perform online insertion or removal.
Step 3
Enter hw-module slot <slot> start
To perform online insertion or removal in configuration mode:
Step 1
Enter hw-module slot <slot> shutdown powered | unpowered
Step 2
Perform online insertion or removal.
Step 3
Enter no hw-module slot <slot> shutdown powered | unpowered
Limitations, Restrictions, and Notes
This section includes information about limitations, restrictions, and notes pertaining to MGX Release 5.2.10.
MGX Chassis Bandwidth Limitations
The total bandwidth of all cards and configured ports in your MGX switch must not exceed the total switch capacity. If you install more cards or configure more ports than your switch can support, your switch may drop traffic. This section describes the bandwidth limits, card placement, and oversubscription options for narrowband cards. It also provides the solution for anomaly CSCei02096.
Bandwidth Limits
An MGX 8850 (PXM45) chassis supports up to OC-12 aggregate bandwidth for narrowband cards, within the following limitations:
•
Each pair of slots in the upper bay supports a total of OC-6 aggregate cellbus throughput.
•
Each pair of slots in the lower bay supports a total of OC-6 aggregate cellbus throughput.
•
Each half of the lower bay can support total OC-6 aggregate cellbus bandwith.
•
The left half of the switch can support a total of OC-9 aggregate cellbus throughput. This includes both the top and bottom bays, combined.
•
The right half of the switch can support a total of OC-9 aggregate cellbus throughput. This includes both the top and bottom bays, combined.
Note
These limits do not apply to broadband cards such as the AXSM, AXSME, AXSM-XG, RPM-XF and VXSM. Broadband cards use a serial bus, rather than the cell bus.
Card Placement Guidelines
To fully use the bandwidth of MPSM-T3E3-155 cards, install cards according to the following guidelines:
•
Install MPSM-T3E3-155 cards so that they are balanced on the left side and right side of your switch (8 slots apart). For example, if you are installing two active MPSM-T3E3-155 cards in your switch, and you place one MPSM-T3E3-155 card in slot 6, then you should place the second MPSM-T3E3-155 in slot 14.
•
Install no more than four active MPSM-T3E3-155 cards in a single Cisco MGX switch.
•
Install broadband cards, such as RPM-XF and AXSM cards, between MPSM-T3E3-155 cards. These cards use a different backplane bus and do not affect the narrowband bandwidth.
Placement of the MPSM-T3E3-155 is especially important because of the total card capacity. Other narrowband cards also utilize cellbus capacity, but they have smaller bandwidth requirements and place less load on the backplane.
Bandwidth Oversubscription
You can install more than the recommended number of cards under the following circumstances:
•
You do not configure the full port rate available to each card installed in your switch.
•
You use statistical multiplexing of traffic to support overbooking of cell bus traffic. Statistical multiplexing works better for a T3 port that is channelized down to DS1s than it does for a T3 port that uses its full T3 capacity.
If you do not have such information available when installing your switch, you must follow the general recommendations to provide adequate bandwidth margins.
PXM1E Switch Limitations
The following notes apply to PXM1E based switches—MGX 8850 (PXM1E) and MGX 8830:
•
Y-red is not supported on the MCC electrical back card.
•
For inter-card APS to work on the PXM1E-8-155, and one front card is missing or not available, both back cards must be present. A front card cannot drive the alternate trunk back card when its own local trunk back card is absent.
•
MPLS controller is not supported on PXM1E.
•
PXM1E clock source is supported by VISM-PR, CESM, and AUSM cell bus service module cards. CESM and AUSM can provide one clock source, either primary or secondary.
•
Only SPVCs and SPVPs are supported on cell bus service modules. SVCs are not supported on CBSMs.
•
No bandwidth CAC support exists on the cell bus service modules, except for the RPM card, which is checked against the OC-3 card rate. For example, for a given RPM, the bandwidth allocated to all connections might not exceed the OC-3 rate. Bandwidth CAC is supported on the PXM1E uplink port.
•
The maximum bandwidth to be distributed among cell bus service modules is approximately an OC-10 rate while traffic on the network interfaces on PXM1E can achieve true OC-12 line rate.
•
Traffic must be balanced between the cell bus controllers (CBC) to achieve the OC-10 rate. The traffic must be distributed equally at a rate of about OC-5 on the two CBCs.
The CBCs cannot load share to achieve OC-10 with one cell bus set at an OC-6 rate, and another cell bus set at an OC-4 rate. Traffic above the OC-6 rate is dropped. However, if only one CBC is used and the other CBC is not used, then the CBC can achieve an OC-10 rate.
On an MGX 8850, the CBCs are split between the left and right side of the chassis: CBC0 supports slots 1-6 and 17-22 and CBC1 supports slots 9-14 and 25-30. On an MGX 8830, CBC0 supports slots 3,5,10, and 12 and CBC1 supports slots 4,6,11, and 13. Balance traffic by evenly distributing cell-based cards on the left and right sides of the chassis.
PXM1E Hardware Limitations
PXM1E hardware limitations are as follows:
•
For inter-card APS to work on the PXM1E-8-155 with one front card missing or unavailable, both back cards must be present. A front card cannot drive the alternate trunk back card when its own local trunk back card is absent.
•
During hardware upgrade from PXM1E-4-155 to PXM1E-8-155, at the time when the inserted card types are different (one PXM1E-4-155 card set and one PXM1E- 8-155 card set), the standby trunk back card functionality is not available. Therefore, LED functionality is not available, and APS lines do not work on that back card. Modular optical transceiver (SFP-8-155) mismatches are not reported for that back card, and SFP-8-155 mismatches are not reported during hardware upgrades.
•
Because the PXM1E-4-155 and PXM1E-8-155 back cards support LC and SC interfaces respectively, the following restriction applies when upgrading from PXM1E-4-155 to PXM1E-8-155 hardware:
After replacing the first PXM1E-4-155 card with the PXM1E-8-155 card set, update cabling for the PXM1E-8-155 interfaces with an LC-SC converter.
Similarly, after the second card set is replaced, perform the same update for the interfaces on the new card set. Otherwise, the upgrade is not graceful and becomes service affecting, until appropriate cables are installed.
•
When MGX-8850-APS-CON is used, and one trunk back card is removed, screw the remaining back card in completely to ensure that the contacts are fully engaged.
•
When MGX-8850-APS-CON is used, the Combo card and the PXM1E-4-155 card do not require a mini-backplane, but the PXM1E-8-155 does. Therefore, to support graceful upgrade to the PXM1E-8-155 card in the future, insert a mini-backplane with the PXM1E-4-155.
PXM1E Reserved VCIs
You cannot provision the following reserved VCIs:
•
On a feeder trunk, VPI.VCI 3.8 is reserved for inband communication with the feeder shelf, and 3.31 is used for the feeder trunk Annex.G ILMI.
•
VPI = 0 and VCI = 5 are used for SSCOP for UNI signaling ports. If the port is configured for non-signaling (univer = none), no VPI/VCI is reserved.
•
VUNI uses configured VPI and VCI = 5 for SSCOP.
•
EVUNI uses minimum VPI and VCI = 5 for SSCOP.
•
NNI uses VPI = 0, VCI = 18 for PNNI RCC.
•
VNNI uses configured VPI for the port and the VCI = 18 for PNNI RCC.
•
EVNNI uses minimum VPI and the VCI = 18 for PNNI RCC.
•
VPI = 0 and VCI = 16 are used for ILMI if ILMI is enabled. VUNI and VNNI uses configured VPI for the port and VCI = 16 for ILMI. Similarly, ILMI for EVNNI or EVUNI uses a minimum VPI and VCI = 16.
•
If MPLS is configured, VCI = 33 in a similar fashion as above.
•
If NCDP is configured, minimum VPI and VCI = 34 for NCDP clocking.
•
VPI = 0 and VCI = 31 are used for online diagnostics.
PXM1E Point to Multipoint Support
Point-to-multipoint connections support new real-time and non-real-time applications, for example LAN emulation, distance-learning, live broadcasts, financial data delivery (stock market feeds), white board collaboration, video conferencing, data and file replication, and video on demand.
Multipoint enhances network efficiency because multiple streams of data can be replaced by a single transmission up to the multicast distribution point, typically a MGX with PXM45. Point-to-multipoint differs from broadcast because it replicates packets only to specific destination endpoints in the multicast distribution tree.
The MGX 8830 (PXM1E) and MGX 8850 (PXM1E) can be used in conjunction with an MGX (PXM45) in a network to support point-to-multipoint connections. The PXM45 hardware performs cell replication to multiple destination endpoints. The MGX with PXM1E functions as the originating node or as an intermediate node of a point-to-multipoint connection. If necessary, MGX with PXM1E can perform limited branching or cell replication to support multiple parties, or leaves, of a point-to-multipoint connection.
Enabling cell replication or branching of more than two leaves per root in the PXM1E node is not recommended for mission-critical point-to-multiple connections because of potential ATM cell drops. PXM1E Parity Errors
The PXM1E handles parity errors as follows:
•
If the PXM1E card has a CBC CBH RAM parity error and all connections do not have traffic, then the PXM1E card fails to detect this parity error and does not switch over to the standby card. Also, all service module cards reset.
•
The PXM1E standby card comes up even after a QE TS RAM parity error.
PXM1E Policing Accuracy
The PXM1E card has a policing accuracy limitation. The policing rate is defined as 50000000/PCR, so if the PCR is comparable to the OC-12 line rate (1412830), the policing rate parameter is a relative small number (50000000/1412830 = ~35.38996).
Because the PXM1E performs integer division, the decimal results are truncated and the policing parameter is not calculated accurately. Moreover, the policing rate parameter is stored as an exponent (5-bits) and mantissa (9-bits), which cannot represent a small number accurately. Therefore, a 100% accurate policing parameter cannot be configured for large PCR values.
To ensure that you get the rate that you have specified, the software configures policing at the next larger rate that the hardware supports. For example, if you program a connection with PCR = 1400000, the software programs the actual policing rate to be 1428571. For a worse-case scenario, if you configure a VBR2 connection with a PCR of 1400010 and the ingress user traffic is 1428570, there is no policing because the ATM policing rate is actually 1428571.
PXM45 and PXM1E System Limitations
The following limitations apply to PXM45 and PXM1E systems:
•
Because of granularity limitations in the AXSM-E hardware, cell traffic does not reach the configured PCR rate when WFQ is enabled. For connections that have WFQ enabled, configure a PCR of 101% of the actual required rate. ABR has the same Qbin priority as UBR in the SCT tables. In this case ABR and UBR share excess bandwidth if WFQ is enabled.
•
The percentage trunk utilization with overbooking is calculated using the following formula:
–
(overbooked MaxCR - overbooked ACR)/overbooked MaxCR. This occurs when you are interoperating with SES from Release 3.0.x and later.
–
ACR = MaxCR - (trunk utilization/overbooking factor).
–
overbooked ACR = ACR/overbooking factor.
–
overbooked MaxCR = MaxCR/overbooking factor.
•
The overbooked ACR is calculated differently for MGX and SES.
–
On MGX, the bandwidth for all current connections on the port are considered overbooked when calculating the trunk utilization.
–
On the SES, the bandwidth for all current connections on the port are not considered overbooked when calculating the trunk utilization.
Therefore, the trunk utilization calculation is lower on the MGX than on the SES when there are existing connections on the port with an overbooking factor configured. This in turn yields a lower percentage trunk utilization on the MGX compared to the SES.
•
The PXM45/A card is not supported in Release 5.0.00 and later.
•
Disable complex node for physical nodes (the lowest level node) to decreases memory usage without decreasing functionality. Complex node should only be turned on for logical nodes.
•
Simple Network Timing Protocol CWM MIB is not supported.
Maximum Threshold Accuracy
The PXM45 and PXM1E have a limitation with the accuracy of the maximum threshold. The Qbin threshold and VI rate are stored in the form of exponent and mantissa, and some accuracy is lost in expressing the real rate. In testing the thresholds, the lack of accuracy is compounded with both of the Qbin and VI rate (draining rate). Therefore, you cannot calculate an exact 100% correct discard rate.
To ensure that you obtain the rate that you have specified, the software configures Qbin depth at the next larger rate that the hardware supports. As a result, Int. Cell Gap (ICG) and Relative Service Delay (RSD) are truncated.
Clearing the Configuration on Redundant PXM45 and PXM1E Cards
These notes apply to redundant cards.
•
Because of checks to prevent an inserted card from affecting the system, an additional step might be required when inserting two non native PXM45 (or PXM1E) cards in a shelf. Insert the first PXM45, use the clrallcnf command, and allow this to become active before inserting the second PXM45 (or PXM1E).
•
After a clrallcnf, explicitly clean up stale SCT files (see anomaly CSCdw80282).
SPVC Interoperability Limitations
SPVCs have the following interoperability limitations:
•
NNI SPVC Addendum Version 1.0 is not supported.
•
PNNI 1.0 Addendum (Soft PVC MIB) is not supported.
•
Terminating single-ended SPVCs on MGX switch with legacy service modules is not supported.
•
Origination of single-ended SPVCs, with slavepers flag, from legacy service modules (FRSM, CESM, and RPM) is not supported.
•
CC (Continuity Check) is not available at the slave end of a single-ended SPVC.
•
Reporting AIS detection to CWM is not available at the slave end of a single-ended SPVC.
•
The tstdelay command is not available at the slave end of a single-ended SPVC for MGX 8850. For SES-PNNI, the command is available from the PXM even for the slave endpoint.
•
The slave end of a single-ended SPVC is not visible to CWM.
•
If single-ended SPVCs originate from MGX switches, they can only be configured from the CLI and not from CWM.
•
Single-end provisioning is not supported for DAX connections as no value addition is seen for interoperability.
•
SPVC statistics are not available for the slave endpoint of a single-ended SPVC because this endpoint is nonpersistent.
•
When the persistent slave endpoint of an existing SPVC connection is deleted and the master endpoint remains, the connection might get established as a single-ended SPVC connection. In this case, CWM shows the connection as Incomplete.
•
Override of SVC connections on a VPI because of an incoming SPVP request for that VPI is not supported. Only the following override options are supported:
–
spvcoverridesvc
–
spvcoverridesvp
–
spvpoverridesvp
Service Card Limitations
This section describes service card limitations.
AXSM Channel Loopback Limitation
The channel loopback tests the integrity of the connection (channel) at the local UNI or across the network. The system returns an error message if the connection is broken or incorrect data arrives at the end of the loopback. The maximum number of connection loopbacks that can exist on an AXSM is 8 for Release 2.1 and later. The addchanloop command in the Cisco MGX 8800/8900 Series Command Reference, Release 5.2 incorrectly states the limit as 256.
AXSM-16-155-XG with MCC Back Card Limitations
You might experience the following scenario when card to card APS is configured on one card but not the other:
The Protection Line Status in dspapslns or dspapsln shows OK if the other side has added the card redundancy and activated the line but not the APS. If the back cards are SFP back cards, the Protection Line Status is in SF in the same setup.
From CLI screen on the side of APS added, the only way to find out if the remote APS has been added is through the Receive chanfield and modefield in dspapsln. The following display shows the APS status during configuration:
For GR253:
Receive k2 chanfield - Null Channel
Receive k2 modefield - Undefined
After adding remote APS (with MCC):
Receive k2 chanfield - Null Channel
Receive k2 modefield - UNI1+1 or Bi depending on mode
For ITU (or AnnexA)
Receive k2 chanfield - Null Channel
Receive k2 modefield - Undefined
After adding remote APS:
Receive k2 chanfield - Null Channel
Receive k2 modefield - Undefined
For AnnexB:
Receive k2 chanfield - Null Channel
Receive k2 modefield - Undefined
After adding remote APS:
Receive k2 chanfield - Working Section 1 or 2
Receive k2 modefield - Undefined
AXSM-32-T1E1-E and PXM1E-16-T1E1 Card Limitations
The following notes apply to the AXSM-32-T1E1-E and PXM1E-16-T1E1 cards:
•
IMA version fall back is part of IMA group operation. If a group is configured with Version 1.1 and it is connected to a far end group which is configured with Version 1.0, this group falls back to Version 1.0.
•
The IMA link Loss of IMA Frame (LIF) and Link Out of Delay Synchronization (LODS) defect integration times are configurable.
•
ATM layer configuration for line and IMA ports takes an additional parameter, AIS enable. It is enabled by default.
•
In T1 mode, payload scrambling is disabled by default and in E1 mode it is enabled by default on all lines and IMA groups.
•
Only 10 SVC calls per second is guaranteed.
•
FDL support for Loopback code detection is not supported.
•
Far End Line Performance counters are supported only for E1. They are not supported for the T1 interface.
•
HMM support is not available for the IMA and the Framer devices. When a switchover occurs, it can take up to 3.5 seconds for the IMA groups to recover. Data is lost until the groups recover.
•
IMA Autorestart (persistent RX IMA ID) feature is supported.
•
IMA groups cannot have links from upper and lower bays together.
•
ITC clocking mode on IMA is not supported.
•
One-way transmission delay of more than 500 ms on the T1/E1 IMA links is not supported.
•
There is 5 ms fluctuation on IMA delay tolerance.
•
While the IMA group accumulated delay is being removed with clrimadelay, the following applies:
–
Any changes to this IMA group configuration are temporarily blocked.
–
Any changes in the FE IMA links in this group can cause the NE IMA group to restart.
•
The VC and COSB thresholds are updated when the links are added/deleted from the IMA groups.
•
The thresholds for the connections added when there are N links in the group can differ from connections added when there are (N+1) links in the IMA group.
•
BERT is only supported on the T1 interfaces. BERT is not supported on E1 interfaces.
•
The port number in the pnport (shelf.slot:subslot.port:subport) could be a random number. Do not interpret this number as line or IMA group number. Refer to anomaly CSCdy08500.
•
PNNI requires SCR = 453 cells per second and PCR = 969 cells per second for the control connection.
•
SSCOP requires of SCR = 126 cells per second and PCR = 2000 cells per second.
AXSM-E Card OAM Limitations
The following notes apply to AXSM-E OAM cells:
•
Any connection can receive E2E/OAM loopback cells up to the line rate, as long as the policing policy permits it.
•
The AXSM-E card can receive up to 1,500 segment OAM loopback cells per second for all connections operating in the normal mode (not loopback), assuming an even flow rate. Any excessive segment OAM loopback cells are dropped.
For example, if only one connection exists, that connection can receive 1,500 segment OAM loopback cells per second. If 2,000 connections exist on an AXSM-E card, and each connection passes one segment OAM loopback cell per second, then only 1,500 of the connections can receive loopback cells at any given second. The additional 500 loop back cells are not received for that second.
General AXSM Card Limitations
If ER stamping is used, the rate interval does not provide sufficient accuracy to be completely effective. As a result, when an AXSM card has a PNNI link that is congested with mixed CBR/ABR traffic, cells are dropped. This condition only occurs when ER stamping is enabled and CI is disabled on an AXSM PNNI link where CBR/ABR traffic causes congestion on the link.
Use the CI/EFCI mechanism for rate feedback rather than the ER stamping mechanism, especially if CBR/ABR traffic is expected.
AXSM-XG Signal Level Limitation
The IR/LR/XLR SFP modules need a 10 db attenuator when connected with short cables. Otherwise, the signal overloads the receiver.
ATM Multicast Limitation
Configure an MGX 8950 with ATM multicast as follows:
•
MGX 8950 system loaded with AXSM/Bs without AXSM-XG cards in the system.
•
MGX 8950 system loaded with all AXSM-XG based cards without AXSM/Bs in the system.
An MGX 8950 system with a mix of AXSM-XG and AXSM/B cards is not recommended for the ATM multicast application because of limitations in the backplane serial buses. The workaround for MGX 8950 systems that must have a mix of AXSM-XG and AXSM/B cards is to configure the PNNI node as branching restricted.
cnfpnni -node 1 -branchingRestricted on.Priority Bumping Limitation
When you enable priority bumping on the node, you cannot change the booking factor for AXSM signaling ports. You can still change the booking factor for non-signaling ports.
AXSM Card APS Limitations
Thee APS feature has the following limitations:
•
For AXSM APS, the back card of the active card must be present for correct APS operation.
•
AXSM front cards need the corresponding back card for correct APS operation. In other words, the AXSM cards do not support cross back card removal—the upper back card of one AXSM and lower back card of another AXSM.
•
If you remove the upper back card of the active front AXSM, it triggers an active card switch. At this point the APS is still operational. However, if the lower back card of the current active AXSM is removed, it does not trigger switching because the standby card is missing the back card.
•
Port LED lights on AXSM-E, AXSM-XG and PXM1E front cards indicate the receive status of physical line connected to it only when the card is in the active state. For a standby AXSM-E, AXSM-XG, and PXM1E card, the LEDs always remains green when the lines are in LOS irrespective of which lines are active.
MPSM Card Limitations
The MPSM cards have the following limitations:
•
The MPSM-T3E3-155 card does not support the LMI Autosense feature.
•
The MPSM-8T1-FRM and MPSM-8E1-FRM cards do not support the LMI Autosense feature.
•
If a combination of RPM-PR and MPSM-T3E3-155 cards are being installed in slots served by the same cell bus, then enable Option 10 of cnfndparms (auto clock rate setting) before installing the MPSM-T3E3-155 and RPM-PR cards. This note applies when two RPM-PR cards or two MPSM-T3E3-155 cards (or one RPM-PR and one MPSM-T3E3-155 card) are inserted into slots under the same cell bus master, for example, slots 5 and 6 or 3 and 4.
•
The MPSM cards are cell bus based cards, and they have limitations that suggest only a few of these cards could be used in a chassis when running at full port rate.
In reality, the full port rate available is rarely used. Statistical multiplexing of traffic across many ports can allow overbooking of the cell bus capacity just as it allows overbooking of trunk capacity. Estimates on how much overbooking is practical without dropping cells relies on the network's characteristics, such as the mix of service types, port speeds, and offered traffic loads as a percentage of port speed or as generated cell rates. Work with your Cisco Customer Engineering representative to help you characterize the quantity of MPSM cards suitable for your network.
•
If you order MPSM cards with systems, the MPSM licenses can be shipped on the PXM card. For more information, see Appendix B: MPSM Licensing.
MPSM-16-T1E1 Card PPP Limitation
On the RPM-XF, Rated Priority Queue is not supported; SAR based QoS is enabled instead. The traffic on priority queue can exceed the limit even if the class-based weighted fair (CBWF) queues are relatively free. RPM-XF supports absolute priority only, where the upper limit on the traffic is layered using the policing command.
CBSM Card Limitations
Cell Bus Service Modules (CBSM), formerly known as narrowband service modules, have the following limitations:
•
When switchredcd is entered at the same time as a PXM switchover occurs, either through the switchcc/resetcd command at the PXM or because of a failure, the switchover can fail.
Conditions: switchredcd is entered at the PXM command line to perform CBSM Switchover, but the PXM switches over (manual or automatic) before the service module switchover is complete.
Symptom: Service module did not switch over after switchredcd.
If the PXM switches over before the CBSM switchover completes, the following can occur:
–
The switchover might not be complete and the standby card is in an indeterminate state. The dspcd command from PXM still shows it as 'standby' and later switchover (because of active service module removal or reset) fails, causing loss of traffic. The switchredcd command also fails.
–
The switchredcd from PXM again causes the failure because the standby service module is not able to allocate memory.
Workaround: Reset the standby service module card.
•
Each CBSM has the following maximum number of connections:
–
FRSM-8 = 1,000
–
FRSM-2CT3 = 4,000
–
FRSM-2T3 = 2,000
–
FRSM-2E3 = 2,000
–
CESM-8 = 248
IGX Feeder Limitation
After adding an IGX as a feeder to a SES/BPX or MGX node, the IGX has a default node number that might not be unique within the network. If the number is not unique, modify it to a unique node number by entering rnmnd <x>, where x is unique with respect to all other AutoRoute nodes. To find the other node numbers, enter dspnds +n. Failing to assign a unique number could cause the CWM Databroker to incorrectly form a hybrid connection database. The CWM GUI might show the connection as incomplete.
Clock Source Limitations
Service modules have the following clock source limitations:
•
The AUSM card supports one clock source only. Attempts to configure the secondary clock fail silently.
•
The FRSM card does not support clock source configuration. Attempts to configure the clock source are not recorded in the database.
•
When resetcd is invoked, the primary and secondary (if configured) clock sources are recommitted. Recommitted means that the primary and secondary get requalified. The node temporarily uses the internal oscillator until the clock is requalified, and then locks onto the primary clock source again.
Clearing Card Configuration Notes
The clear service module configuration feature has the following behavior:
•
Do not execute clrsmcnf on more than one card at a time.
•
If a controller card switchover occurs before the clear service module configuration operation is complete, the clrsmcnf command must be re-entered to ensure that the configuration is completely cleared and to avoid incomplete cleanup.
•
The clrsmcnf command might result in a discrepancy in the PNNI configuration. For example, some connections might be in the mismatch state.
•
If the clrsmcnf command is entered with the <all> option to clear the software version for the slot as well, then cell bus service modules go into the boot/empty state and broadband service modules (for example, AXSM or MPSM-155-T3E3) enter the fail/active state.
•
After entering the clrsmcnf command, the card in the specified slot is not usable until the operation has successfully completed.
PNNI Limitations
This section describes limitations to PNNI links and routing.
Logical Link Limits
The number of logical links in the higher levels of the PNNI hierarchy is limited to 30 per level when the complex node configuration is enabled. The limit is essential to reduce the processing time for finding the bypasses between the logical links. A significant change in bandwidth in one of the links within the peer group triggers the bypass calculation. The bypasses are usually found from one logical link to another.
If there are n logical links, the calculation involves the finding n*n bypasses. If the number of logical links n is large, calculating the bypasses requires significant processing resources. The number of logical links can be controlled by configuring the appropriate number of aggregation tokens for the outside links for that peer group.
Preferred Route Limitations
Preferred routes have the following limitations:
•
Preferred routes are not supported for connections with endpoints on the RPM-PR.
•
Upgrading from any Release 3.0.x is nongraceful. During the upgrade, the preferred route identifier information for each connection is lost, and the preferred route identifier must be reprovisioned on the service module cards.
Also, the preferred route table at the PXM controller is lost. Connections that have already been routed with preferred routing remain, and no alarms for these connections occur. If a node in the PNNI network is removed by physical decommissioning and if any nodes in the network had preferred routes that contained the removed node as one of the hops, you must manually delete and modify the preferred routes.
•
When a connection is routed on a route other than its preferred route and if the preferred route becomes available, the connection is not automatically routed back to its preferred route. You must deroute and reroute using configuration commands (optrte, rrtcon, dncon/upcon, and so on). QoS precedence over the preferred route does not apply to multipeer group networks (CSCdz40310).
•
A preferred route configured with a higher node ID cannot be blocked (CSCdz41145, CSCdz49001). Because of differences in physical port numbering, non-MGX nodes can only be the terminating nodes in a preferred route.
•
Preferred route status is supported in Release 5.0.00 and later. After an upgrade, manually reconfigure using commands like cnfcon. This step is necessary one time after the upgrade, and does not need to be repeated on subsequent upgrades.
Priority Route Limitations
Priority routing has the following limitations:
•
Prioritized reroute of SPVCs is not guaranteed if the SPVCs originate on a signaling port. SPVCs might get routed out of order. In-order routing of SPVCs is guaranteed on non-signaling ports only.
•
The RPM does not support configuration of routing priority. The PXM assigns a priority of 8 to all RPM-mastered SPVCs.
•
The addcon command on SES does not support routing priority; all added SPVCs are assigned a routing priority of 8. Use the cnfcon command to change the routing priority of the SPVCs.
•
Changing the routing priority for DAX connections does not change the priority of the associated SVCs. The SPVCs are not derouted and rerouted if only the endpoint parameters are changed, and routing priority is an end-point parameter. Also, because DAX connections are never derouted even when the UNI port goes down and the rrtcon command does not support DAX connections, the routing priority change never gets reflected. The only way to reflect this change is to enter a dncon and then upcon. Because DAX connections are never derouted, the effect of this limitation is void.
•
Priority routing operates in a best effort manner for the following reasons:
–
Two in-order releases can still arrive out of order at the master node if they take two different paths.
–
Under congestion, releases can be transmitted out-of-order. This is because releases of other calls must not be held up if you are not able to send releases on one of the congested interfaces. The calls that were not released could be higher priority calls.
•
Lower priority SPVCs can be routed ahead of higher priority SPVCs. This can occur after several failed attempts to route higher priority SPVCs. To prevent starvation of lower priority SPVCs after these failures, the software starts to route lower priority SPVCs and postpones higher priority SPVCs routing.
Persistent Topology Limitations
The persistent topology feature has the following limitations:
•
In a mixed network of pre-Release 4.0.00 and 4.0.00 or later nodes, only the node name and the node ID are shown for a pre-Release 4.0.00 node in the Topo DB. This is because the feature is not present in pre-Release 4.0.00 nodes.
•
If a peer group is made up of physical nodes with pre-Release 4.0.00 logical nodes, the information for the logical node is stored in the Topo DB. This is because there is no way to distinguish between physical nodes and pre-Release 4.0.00 logical nodes. Logical nodes with Release 4.0.00 or later software release are not stored in the Topo DB.
•
To delete a node information entry from the Topo DB, first remove the node from the network, either by disconnecting the cables or by downing all the links between that node and the network. Wait for an hour. Then, delete that node from the Topo DB. This is done because, even if a node is removed from the Topo DB of all nodes in the peer group, its PTSEs are still stored in the other nodes until they are flushed from those nodes. This happens within one hour, but it is configurable as a PNNI timer value. If the node is deleted from the Topo DB within that hour's time, and the node does switchcc/reboot, then it's possible that the node info for that deleted node will be added back into the Topo DB.
•
When the node ID of a node is changed, the old node ID is added back into the Topo DB as a new node entry. In addition, the old node ID still is stored in the Topo DB of all the other nodes in the peer group. To delete this entry, wait for an hour so that the PTSEs with the old node ID is flushed from the DB of all the nodes in the peer group. Then, delete the information of the old node ID from the Topo DB.
•
It is possible that the gateway nodes are not in sync in a peer group, and this could happen in many situations. For example, a gateway node is added in a peer group, then a node is deleted from the PG, and another gateway node is configured, then the info for the deleted node would not be in the second gateway node. Another example is that a node is deleted from one gateway node, but not in another gateway node.
When deleting a node from the peer group, the node info must be deleted from all the nodes in that peer group, even the non-gateway-node nodes. Otherwise, the node info for that deleted node will still be in the non-gateway-node nodes. This could cause inconsistencies later if this node is configured to be a gateway node.
Fault Isolation and Trace Limitations
This section describes fault isolation and trace limitations.
Serial Bus Path Fault Isolation Limitation
The Serial Bus Path Fault Isolation feature isolates errors on local cards only. However, when a common error occurs on the switching fabric card, this feature does not resolve the error. As a result, a problem on the PXM card or the XM-60 is reported by all cards that detect the symptoms of this problem.
Cell Bus Path Fault Isolation and Recovery Limitations
Cell bus path fault isolation has the following limitations:
•
The isolation procedures can isolate the cell bus path in the serial bus service modules (for example, AXSM, AXSM/B, AXSM-E) and all communication with the standby controller card and the cell bus service modules (for example, FRSM, CESM). These procedures cannot isolate cell bus path failures involving the ATMizer SAR, which is used for all inter-card communication except polling, between the active controller card and the serial bus based service modules.
•
The isolation procedures can isolate the cell bus path failures to the active controller card only. This isolates the active controller card faults for the inter-card communication over the cell bus from the active controller card to the service modules and the standby controller card. It does not isolate the fault if the active controller card fails to communicate with some cards and successfully communicates with the rest on the cell bus.
•
At least two cards (two service modules or one service module and one standby PXM) must exist to isolate cell bus path failures to the active controller card.
•
Only failures that are detected by periodic polling trigger the isolation procedures. Failures reported from other sources in the system about a service module or the standby controller card, due to the cell bus path failures, do not initiate the isolation procedures. Such failures reset the card for which the failure is reported, even while the active controller card is in the process of isolating the cell bus path failures triggered by the polling failures.
•
No separate trap or alarm is generated for the active controller card cell bus path when the fault is isolated to the active controller card. Use the event logs to investigate events triggered by the card reset and switchover traps.
•
If controller card redundancy is unavailable, isolating the cell bus path failure to the active controller card results in outage. The active controller card is reset.
Path and Connection Trace Notes
The path and connection trace features have the following limitations:
•
Path trace is not supported on the control port.
•
Path trace does not have the accurate information when there is a crankback on the connect path.
•
Path and connection trace after Release 3.0.00 is not compatible with the path and connection trace available with previous releases.
•
Path and connection trace supports point to point connections.
•
Path and connection trace supports MPG (multipeer group) and SPG (single-peer group).
CLI Access Level Notes
Configuration of CLI access levels has the following limitations:
•
Not all CLI command access levels can be changed and a command cannot be changed to CISCO_GP group access level.
•
Only the switch software can generate the access level binary file. This file has an authentication signature which must be validated before the file can be used. Any manual changes to the file make the file void.
•
If the binary file becomes corrupted, then the command access levels revert back to the default values during the card bring-up. To recover, repeat the installation process or retain a copy of the binary file and do cnfcli accesslevel install on that service module.
•
Command names are verified, but an invalid command name might be parsed and be added to the binary file. However, this invalid name is ignored later.
•
If replication to standby failed, the installation process failed.
•
The cnfcli accesslevel default command restores all command access levels to default for the service module on which the command is executed. This command does not remove the binary file, so this change is not persistent. If the command is executed on the active card of a redundancy pair, the standby card is not affected. When a card is reset and the binary file exists, the card is configured from the binary file when it is brought up.
Disk Space Maintenance Notes
The firmware does not audit the disk space usage and remove unused files, so you must manually manage the disk space in C: and E: drives.
Manually delete unused saved configuration files, core files, and firmware files and the configuration files of the MGX-RPM-PR-256/512 and MGX-RPM-XF-512 cards. This avoids a shortage of disk space for storing event logs.
To remove files from the active controller card:
Step 1
Change to the directory that needs grooming.
cc <directory_name>Step 2
List the directory to identify old files that can be removed and available disk space.
llStep 3
Remove any old files (you may also use wild cards in the filename).
rm <complete_filename>Step 4
List the directory to see if the file has been removed and disk space is available.
ll
Non-native Controller Front Card and PXM-HD Card Notes
The following notes pertain to non-native front card controllers and the PXM-HD card:
•
When the front controller cards or the PXM-HD back cards are swapped within the same system, the system performs a non-native card check. As a result, the controller card that attempts to come up as Active/Active might get reset twice.
•
When a non-native PXM1E front card or a PXM-HD card is inserted into the standby controller slot, after the standby controller front card becomes Active/Standby, the active controller front card copies its hard disk content over to the standby controller card. The active controller front card does not automatically remove hard disk content from the active or standby controller card.
•
The system keeps only the two most recent copies of the saved system configuration in the C:/CNF directory. You can use FTP to transfer all the saved configuration files in C:/CNF to a local server for future reference. All files under C:/CNF are not replicated to the standby controller card under any circumstances.
Other Limitations and Restrictions
Other limitations and restrictions are as follows:
•
When configuring virtual interfaces (for example, VUNI, VNNI, EVUNI, EVNNI), the physical interface must all be the same ATM header type, either UNI or NNI. The signaling that is applied to a virtual port is independent of the actual virtual port ATM header. The only limit is that the VPI value must be within the UNI ATM header range(see CSCdz33652).
•
If you clear the channel counters using the clrchancnt command while you are monitoring the channel counts using the dspchancnt command, the counters return incorrect values. To display correct data, enter the dspchancnt again .
•
The clrsmcnf command does not work for redundant service modules.
•
The clrsmcnf does not work while an upgrade is in progress.
•
If RPM-PR or RPM-XF is configured as a Label Switch Controller (LSC), execution of clrsmcnf command on those LSC slots is rejected.
•
Configuration information is not synchronized between PXMs during upgrades. You must reboot the standby PXM after it enters a stable state to synchronize changes made during the upgrade.
•
Release 3.0.00 or later with PXM45/B supports up to 250,000 connections.
•
The BPX does not support NCDP.
Installation and Upgrade Procedures
Do not upgrage to Release 5.1 and later from Release 4.0.17 and earlier.
For information on the following installation and upgrade procedures, refer to the Cisco MGX 8800/8900 Series Configuration Guide, Release 5.2.
Upgrade Information
The upgrade appendix in the Cisco MGX 8800/8900 Series Configuration Guide, Release 5.2 contains the following procedures:
•
Graceful PXM1E and PXM45 Boot Upgrades
•
Non-Graceful PXM1E and PXM45 Boot Upgrades
•
Graceful PXM1E and PXM45 Runtime Software Upgrades
•
Non-Graceful PXM1E and PXM45 Runtime Software Upgrades
•
Graceful Service Module Boot Upgrades
•
Non-Graceful Service Module Boot Upgrades
•
Graceful Service Module Runtime Software Upgrades
•
Non-Graceful Service Module Runtime Software Upgrades
•
Graceful RPM-PR and RPM-XF Boot Software Upgrades
•
Graceful RPM-PR and RPM-XF Runtime Software Upgrades
•
Non-Graceful RPM-PR and RPM-XF Boot Software Upgrades
•
Non-Graceful RPM-PR and RPM-XF Runtime Software Upgrades
•
Installing SCT Files
Upgrading AXSM-XG Cards
The following notes apply to AXSM-XG card upgrades:
•
When installing AXMS-XG cards into a node that has a release earlier than Release 4.0.15, all of the other cards in the node must be upgraded first to Release 5.0.
•
When configuring virtual interfaces (for example, VUNI, VNNI, EVUNI, or EVNNI), the physical interface must be of all one ATM header type, either UNI or NNI. The signaling that is applied to a virtual port is independent of the actual virtual port ATM header. The only limit is that the VPI value must be within the UNI ATM header limitations.
For information about graceful upgrades of AXSM-XG cards, see Upgrading an AXSM/A, AXSM/B, or AXSM-E to an AXSM-XG.
Upgrading the VISM-PR Image
If you are upgrading the VISM-PR image to Release 3.2.1x or later and the PXM1E or PXM45 image from Release 4.x or earlier to Release 5.x, first upgrade the VISM-PR cards. Then, upgrade the PXM1E or PXM45 cards in the same node.
Do not configure the new VISM features until you have fully upgraded the network. After you upgrade your network to PXM1E or PXM45 Release 5.x or later and VISM-PR to Release 3.2.1x or later, apply the standard upgrade process.
Maintenance Information
The upgrade appendix in the Cisco MGX 8800/8900 Series Configuration Guide, Release 5.2 contains the following procedures:
•
Replacing PXM1E-4-155 cards and with PXM1E-8-155 Cards
•
Replacing PXM45/A or PXM45/B Cards with PXM45/C Cards.
Anomalies in Release 5.2.10
This section contains the known, resolved, and changed status anomalies in Release 5.2.10.
For information about anomalies with the VXSM card, refer to Release Notes for the Cisco Voice Switch Service Module (VXSM), Release 5.2.10.
For information about anomalies with the VISM card, refer to Release Notes for the Cisco Voice Interworking Service Module (VISM), Release 3.3.25.
For information about anomalies with the RPM-XF card, refer to Release Notes for Cisco MGX Route Processor Module (RPM-XF) IOS Release 12.3(11)T9 for PXM45-based Switches, Release 5.2.10 .
For information about anomalies with the RPM-PR card, refer to Release Notes for Cisco MGX Route Processor Module (RPM-PR) IOS Release 12.3(11)T9 for MGX Releases 1.3.12 and 5.2.10.
Known Anomalies in Release 5.2.10
Table 9 lists the known anomalies in Release 5.2.10.
Resolved Anomalies in Release 5.2.10
Table 10 lists the anomalies that are resolved in Version .206 of Release 5.2.10.
Table 11 lists the anomalies that are resolved in Version .204 of Release 5.2.10.
Table 12 lists the anomaly that is resolved in Version .202 of Release 5.2.10.
Table 12 Resolved Anomaly in Version .202 of Release 5.2.10
Identifier HeadlineCSCek38380
entPhysicalModelName for 8830/B chassis should display MGX8830/B-CH
Table 13 lists the anomalies that are resolved in Version .201 of Release 5.2.10.
Table 14 lists the resolved anomalies in Release 5.2.10.
Status Changed Anomalies
Table 15 lists the anomalies that changed status but were not resolved in Release 5.2.10.
Resolved Anomalies in Previous Releases
This section contains the resolved anomalies in the following releases:
•
Release 5.2.00
•
Release 5.1.20
•
Release 5.1.00
•
Release 5.0.20
•
Release 5.0.10
•
Release 5.0.00
Resolved Anomalies in Release 5.2.00
Table 16 lists the resolved anomalies in Release 5.2.00.
Resolved Anomalies in Release 5.1.20
Table 17 lists the resolved anomalies in Release 5.1.20.
Resolved Anomalies in Release 5.1
Table 18 lists the anomalies that are resolved in Release 5.1.
Resolved Anomalies in Release 5.0.20
Table 19 lists the anomalies that are resolved in Release 5.0.20.
Resolved Anomalies in Release 5.0.10
Table 20 lists the anomalies that are resolved in Release 5.0.10.
Resolved Anomalies in Release 5.0.00
Table 21 lists the anomalies that are resolved in Release 5.0.00.
Documentation Updates
This section provides updates for the following documents:
•
Cisco PNNI Network Planning Guide for MGX and SES Products Updates
•
Cisco MGX 8800/8900 Series Configuration Guide, Release 5.2 Updates
Cisco PNNI Network Planning Guide for MGX and SES Products Updates
The first version of the PXM45 card, sometimes called the PXM45A, is not supported on Release 5.0 and later. Also, the PXM45 does not support point-to-multipoint connections.
Table 22 describes the document updates that clarify these points and resolve CSCei54818.
Cisco Frame Relay Services (FRSM/MPSM-8-T1E1) Configuration Guide and
Command Reference for MGX Switches, Release 5.2LMI Autosense is not supported on MPSM-8T1-FRM and MPSM-8E1-FRM cards. Therefore, the LMI Autosense steps in the following procedures apply to the FRSM cards only:
•
Chapter 2, "Adding Frame Relay Ports"
•
Chapter 2, "Configuring Frame Relay Ports"
Also, the LMI Autosense options in the following commands apply to the FRSM card only:
•
addport
•
cnfport
•
xcnfport
Cisco MGX 8800/8900 Series Configuration Guide, Release 5.2 Updates
The following sections are updated:
•
Appendix A—Graceful upgrades to AXSM-XG
•
Appendix F—MPSM licensing updates
For information about updated commands for the graceful update feature, see the Cisco MGX 8800/8900 Series Command Reference, Release 5.2.
Appendix A: Downloading and Installing Software Upgrades
Upgrading an AXSM/A, AXSM/B, or AXSM-E to an AXSM-XG
The AXSM-16-155-XG and AXSM-8-622-XG cards have a higher port density than the equivalent AXSM-E cards, and the AXSM-16-155-XG and AXSM-8-622-XG have better traffic management support than their AXSM/B counterparts. Using the procedures in this section, you can gracefully upgrade AXSM, AXSM/B and AXSM-E cards to AXSM-XG cards.
Graceful upgrades simplify the process of migrating to the newer AXSM-XG cards. During the upgrade, the MGX control processor transfers the configuration/connection database from the previously installed AXSM card to the new AXSM-XG, which preserves all connection configurations. The upgrade process might cause an outage of up to four minutes.
A cable adapter (PN 39-0258-01) is available for AXSM-XG upgrades (single-mode and multimode).
Supported Configurations
Graceful hardware upgrades from AXSM-A/B/E OC-3/OC-12 release 4.0.17 or later to AXSM-XG OC-3/OC-12 in standalone or redundancy mode with Y-cable configurations are supported.
Note
Graceful migration applies to AXSM A/B/E OC-3 and OC-12 cards only.
Limitations
The following limitations apply to graceful upgrades:
•
AXSM-A/B do not support Y-cable in MMF configuration
•
AXSM-XG-622 lines cannot be set to both SONET and SDH on the same bay. If the card to upgrade has both SONET and SDH lines on the same back card, separate the lines into different bays before starting the migration.
•
AXSM OC-48 cards cannot be gracefully upgraded to AXSM-XG OC-48 cards in the MGX 8950 chassis because the back cards are physically incompatible. However, non-graceful upgrade is supported.
•
Upgrade of AXSM-A/B/E with SMB-4-155 to AXSM-XG with an electrical back card (MCC-8-155) is not supported because of hardware limitations of the MCC-8-155 back card.
•
No more than 6 SCTs can be loaded onto the AXSM-XG at one time.
Preparing to Upgrade
Before performing the upgrade procedures, perform the following tasks:
•
Upgrade all custom SCT files (See Converting Custom SCTs).
•
Upgrade all other cards to Release 5.2. This is very important, because failure to upgrade will cause connections on the upgraded card to other AXSM cards to change to the mismatch state.
•
Verify that the AXSM to upgrade has less than 126,976 connections, which is the maximum number of AXSM-XG connections.
•
Verify that the system is in good working order. This includes checking for alarms and verifying redundancy operation. Resolve any existing problems before starting the upgrade.
•
Do not attempt to upgrade an electrical back card with APS.
Converting Custom SCTs
The AXSM-A/B/E SCT files are not compatible with the AXSM-XG SCT files. The upgrade procedure automatically updates the default SCT files to the new format. However, customers that use custom SCTs must convert them to the AXSM-XG format before performing the upgrade. The following tables show the AXSM SCT mapping for Cisco-provided SCTs.
To convert custom AXSM-A/B/E SCTs to AXSM-XG SCTs:
Step 1
Map the existing AXSM-A/B/E SCT to the new AXSM-XG SCT using Table 23 or Table 24.
For example, if the existing SCT was derived from AXSM_SCT.PORT.2.V1 (which has policing enabled for PNNI), the new SCT must be derived from AXSMXG_SCT.PORT.410.V1(which is specific for the OC-3 card and has policing enabled for PNNI).
Step 2
Using a tool such as CWM, port the custom settings from the existing AXSM-A/B/E SCT to the new AXSM-XG SCT.
Step 3
Save the new AXSM-XG SCT using the same SCT ID that the existing SCT uses.
For example, if the existing SCT is named AXSM_SCT.PORT.40.V1, save the new SCT as AXSMXG_SCT.PORT.40.V1.
Graceful Upgrade Procedure
This section explains how to gracefully upgrade an AXSM-A/B/E card to an AXSM-XG card, and includes an example of upgrading an AXSM-A card to an AXSM-8-622-XG card.
Note
If you experience problems with the upgrade, you can cancel it using the abortrev command.
The following display shows the example system, which includes two redundant AXSM/A cards to be upgraded, using the PXM dspcd command. Slot 10 is the active card, and slot 11 is the standby card. Inter-card APS is not configured, but lines 10.1.1 and 11.1.1 are connected using a single mode fiber Y-cable.
M8850_NY.7.PXM.a > dspcdsM8850_NY System Rev: 05.01 May. 20, 2005 22:38:56 GMTChassis Serial No: SAA03211181 Chassis Rev: B0 GMT Offset: 0Node Alarm: NONECard Front/Back Card Alarm Redundant RedundancySlot Card State Type Status Slot Type--- ---------- -------- -------- ------- -----01 Active/Active AXSM_4OC12 NONE NA NO REDUNDANCY02 Active/Active AXSM_4OC12 NONE NA NO REDUNDANCY03 Active/Active VXSM_155 NONE NA NO REDUNDANCY04 Active/Active AXSME_16T3E3 NONE NA NO REDUNDANCY05 Active/Active AXSM_4OC12 NONE NA NO REDUNDANCY06 Active/Active AXSM_16OC3_B NONE NA NO REDUNDANCY07 Active/Active PXM45C NONE 08 PRIMARY SLOT08 Standby/Active PXM45C NONE 07 SECONDARY SLOT09 Active/Active RPM_PR NONE NA NO REDUNDANCY10 Active/Active AXSM_4OC12 NONE 11 PRIMARY SLOT11 Standby/Active AXSM_4OC12 NONE 10 SECONDARY SLOT12 Active/Active AXSM_1OC48 NONE NA NO REDUNDANCY13 Active/Active FRSM_2CT3 NONE NA NO REDUNDANCY14 Empty --- --- --- ---15 Empty --- --- --- ---16 Empty --- --- --- ---29 Active/Active FRSM_8T1 NONE NA NO REDUNDANCY30 Active/Active FRSM_8E1 NONE NA NO REDUNDANCY31 Empty --- --- --- ---32 Empty --- --- --- ---To perform a graceful upgrade of a AXSM A/B/E to AXSM-XG card, follow these steps.
Step 1
Delete any intercard APS configured on the AXSM A/B/E cards to be upgraded using the delapsln command.
Note
Deleting APS may cause traffic outages.
Step 2
From the AXSM A/B/E card, enter the dspconinfo command and record the existing connection information. You will use this information later to verify successful migration of existing connections to the new AXSM-XG card.
Step 3
From the PXM issue the loadrev command, specifying the active slot of the redundancy pair, software version, and axsmxg keyword. The axsmxg keyword specifies that you are upgrading both hardware and software.
For example:
M8850_NY.7.PXM.a > loadrev 10 5.1(206.15)A axsmxgone or more card(s) in the logical slot may be reset.loadrev: Do you want to proceed (Yes/No)? yReplace the card in slot 11 with AXSMXG nowM8850_NY.7.PXM.a >After entering the loadrev command, the card in slot 11 changes to the Mismatch state. For example:
M8850_NY.7.PXM.a > dspcdsM8850_NY System Rev: 05.01 May. 20, 2005 22:51:50 GMTChassis Serial No: SAA03211181 Chassis Rev: B0 GMT Offset: 0Node Alarm: MAJORCard Front/Back Card Alarm Redundant RedundancySlot Card State Type Status Slot Type--- ---------- -------- -------- ------- -----01 Active/Active AXSM_4OC12 NONE NA NO REDUNDANCY02 Active/Active AXSM_4OC12 NONE NA NO REDUNDANCY03 Active/Active VXSM_155 NONE NA NO REDUNDANCY04 Active/Active AXSME_16T3E3 NONE NA NO REDUNDANCY05 Active/Active AXSM_4OC12 NONE NA NO REDUNDANCY06 Active/Active AXSM_16OC3_B NONE NA NO REDUNDANCY07 Active/Active PXM45C NONE 08 PRIMARY SLOT08 Standby/Active PXM45C NONE 07 SECONDARY SLOT09 Active/Active RPM_PR NONE NA NO REDUNDANCY10 Active-U/Active AXSM_4OC12 NONE 11 PRIMARY SLOT11 Mismatch-U/Empty AXSM_4OC12 MAJOR 10 SECONDARY SLOT12 Active/Active AXSM_1OC48 NONE NA NO REDUNDANCY13 Active/Active FRSM_2CT3 NONE NA NO REDUNDANCY14 Empty --- --- --- ---15 Empty --- --- --- ---16 Empty --- --- --- ---29 Active/Active FRSM_8T1 NONE NA NO REDUNDANCY30 Active/Active FRSM_8E1 NONE NA NO REDUNDANCY31 Empty --- --- --- ---32 Empty --- --- --- ---Step 4
Insert the new AXSM-XG front card, back cards, and cables in the standby slot of the redundancy pair. The AXSM-XG card comes up in the STANDBY-U state.
The output of the PXM dspcds command for the example is as follows.
M8850_NY.7.PXM.a > dspcdsM8850_NY System Rev: 05.01 May. 21, 2005 00:04:47 GMTChassis Serial No: SAA03211181 Chassis Rev: B0 GMT Offset: 0Node Alarm: MAJORCard Front/Back Card Alarm Redundant RedundancySlot Card State Type Status Slot Type--- ---------- -------- -------- ------- -----01 Active/Active AXSM_4OC12 NONE NA NO REDUNDANCY02 Active/Active AXSM_4OC12 NONE NA NO REDUNDANCY03 Active/Active VXSM_155 NONE NA NO REDUNDANCY04 Active/Active AXSME_16T3E3 NONE NA NO REDUNDANCY05 Active/Active AXSM_4OC12 NONE NA NO REDUNDANCY06 Active/Active AXSM_16OC3_B NONE NA NO REDUNDANCY07 Active/Active PXM45C NONE 08 PRIMARY SLOT08 Standby/Active PXM45C NONE 07 SECONDARY SLOT09 Active/Active RPM_PR NONE NA NO REDUNDANCY10 Active-U/Active AXSM_4OC12 NONE 11 PRIMARY SLOT11 Standby-U/Active AXSM-8-622-XG MAJOR 10 SECONDARY SLOT12 Active/Active AXSM_1OC48 NONE NA NO REDUNDANCY13 Active/Active FRSM_2CT3 NONE NA NO REDUNDANCY14 Empty --- --- --- ---15 Empty --- --- --- ---16 Empty --- --- --- ---29 Active/Active FRSM_8T1 NONE NA NO REDUNDANCY30 Active/Active FRSM_8E1 NONE NA NO REDUNDANCY31 Empty --- --- --- ---32 Empty --- --- --- ---
Note
The card may remain in Mismatch state if old hardware was still plugged in after a card reset with the new card type.
Step 5
Load the boot code on the standby AXSM-XG card using the PXM burnboot command, specifying the standby slot number and the boot code version. The standby AXSM-XG card is reset and upgraded to the specified boot software version.
For example:
M8850_NY.7.PXM.a > burnboot 11 5.1(206.15)AWARNING! burnboot is a destructive command if used improperly.Please DO NOT Abort or Reset the PXM/SM when the command is in progress,as this may corrupt the Boot image.The card in slot 11 will be reset.burnboot: Do you want to proceed (Yes/No)? yStep 6
If SCM is being used for statistics collection, disable statistics collection using the SCM GUI.
Note
You cannot disable statistics collection using the MGX CLI; you must use the SCM GUI.
Step 7
From the PXM, enter the runrev command, specifying the active slot of a redundancy pair, the version number, and the axsmxg keyword.
Note
In some cases, such as failed slot hardware, you must force the action using the -f option.
For example:
M8850_NY.7.PXM.a > runrev 10 5.1(206.15)A axsmxgone or more card(s) in the logical slot may be reset.runrev: Do you want to proceed (Yes/No)? yReplace the card in slot 10 with AXSMXG nowM8850_NY.7.PXM.a >After issuing the runrev command, the PXM dspcds command shows card 10 in the Mismatch state.
M8850_NY.7.PXM.a > dspcdsM8850_NY System Rev: 05.01 May. 21, 2005 00:52:00 GMTChassis Serial No: SAA03211181 Chassis Rev: B0 GMT Offset: 0Node Alarm: MAJORCard Front/Back Card Alarm Redundant RedundancySlot Card State Type Status Slot Type--- ---------- -------- -------- ------- -----01 Active/Active AXSM_4OC12 NONE NA NO REDUNDANCY02 Active/Active AXSM_4OC12 NONE NA NO REDUNDANCY03 Active/Active VXSM_155 NONE NA NO REDUNDANCY04 Active/Active AXSME_16T3E3 NONE NA NO REDUNDANCY05 Active/Active AXSM_4OC12 NONE NA NO REDUNDANCY06 Active/Active AXSM_16OC3_B NONE NA NO REDUNDANCY07 Active/Active PXM45C NONE 08 PRIMARY SLOT08 Standby/Active PXM45C NONE 07 SECONDARY SLOT09 Active/Active RPM_PR NONE NA NO REDUNDANCY10 Mismatch-U/Empty AXSM_4OC12 MAJOR 11 PRIMARY SLOT11 Active-U/Active AXSM-8-622-XG NONE 10 SECONDARY SLOT12 Active/Active AXSM_1OC48 NONE NA NO REDUNDANCY13 Active/Active FRSM_2CT3 NONE NA NO REDUNDANCY14 Empty --- --- --- ---15 Empty --- --- --- ---16 Empty --- --- --- ---29 Active/Active FRSM_8T1 NONE NA NO REDUNDANCY30 Active/Active FRSM_8E1 NONE NA NO REDUNDANCY31 Empty --- --- --- ---32 Empty --- --- --- ---Step 8
Insert the second AXSM-XG hardware, including front card, back cards, and cables.
Removing the existing hardware from the active slot invokes a redundancy switchover, and the standby AXSM-XG card transitions to the ACTIVE-U state.
The newly inserted AXSM-XG card becomes the standby card and transitions to the STANDBY-U state.
The output of the PXM dspcds command is as follows:
M8850_NY.7.PXM.a > dspcdsM8850_NY System Rev: 05.01 May. 21, 2005 01:01:06 GMTChassis Serial No: SAA03211181 Chassis Rev: B0 GMT Offset: 0Node Alarm: NONECard Front/Back Card Alarm Redundant RedundancySlot Card State Type Status Slot Type--- ---------- -------- -------- ------- -----01 Active/Active AXSM_4OC12 NONE NA NO REDUNDANCY02 Active/Active AXSM_4OC12 NONE NA NO REDUNDANCY03 Active/Active VXSM_155 NONE NA NO REDUNDANCY04 Active/Active AXSME_16T3E3 NONE NA NO REDUNDANCY05 Active/Active AXSM_4OC12 NONE NA NO REDUNDANCY06 Active/Active AXSM_16OC3_B NONE NA NO REDUNDANCY07 Active/Active PXM45C NONE 08 PRIMARY SLOT08 Standby/Active PXM45C NONE 07 SECONDARY SLOT09 Active/Active RPM_PR NONE NA NO REDUNDANCY10 Standby-U/Active AXSM-8-622-XG NONE 11 PRIMARY SLOT11 Active-U/Active AXSM-8-622-XG NONE 10 SECONDARY SLOT12 Active/Active AXSM_1OC48 NONE NA NO REDUNDANCY13 Active/Active FRSM_2CT3 NONE NA NO REDUNDANCY14 Empty --- --- --- ---15 Empty --- --- --- ---16 Empty --- --- --- ---29 Active/Active FRSM_8T1 NONE NA NO REDUNDANCY30 Active/Active FRSM_8E1 NONE NA NO REDUNDANCY31 Empty --- --- --- ---32 Empty --- --- --- ---
Note
The card may remain in Mismatch state if old hardware was still plugged in after a card reset with the new card type.
Step 9
If SCM is being used for statistics collection, verify that the new card is ready for statistics collection and then enable statistics collection using the SCM GUI.
Note
You cannot enable statistics collection using the MGX CLI.
Step 10
Load the boot code on the second AXSM-XG card using the PXM burnboot command, specifying the new standby slot number and the boot code version. The new standby AXSM-XG card is reset and upgraded to the specified boot software version. For example:
M8850_NY.7.PXM.a > burnboot 10 5.1(206.15)AWARNING! burnboot is a destructive command if used improperly.Please DO NOT Abort or Reset the PXM/SM when the command is in progress,as this may corrupt the Boot image.The card in slot 10 will be reset.burnboot: Do you want to proceed (Yes/No)? yM8850_NY.7.PXM.a >Step 11
Restore APS if it was previously present using the addapsln command.
Step 12
Verify that both cards have become ACTIVE-U and STANDBY-U using the PXM dspcds command:
M8850_NY.7.PXM.a > dspcdsM8850_NY System Rev: 05.01 May. 21, 2005 01:13:23 GMTChassis Serial No: SAA03211181 Chassis Rev: B0 GMT Offset: 0Node Alarm: NONECard Front/Back Card Alarm Redundant RedundancySlot Card State Type Status Slot Type--- ---------- -------- -------- ------- -----01 Active/Active AXSM_4OC12 NONE NA NO REDUNDANCY02 Active/Active AXSM_4OC12 NONE NA NO REDUNDANCY03 Active/Active VXSM_155 NONE NA NO REDUNDANCY04 Active/Active AXSME_16T3E3 NONE NA NO REDUNDANCY05 Active/Active AXSM_4OC12 NONE NA NO REDUNDANCY06 Active/Active AXSM_16OC3_B NONE NA NO REDUNDANCY07 Active/Active PXM45C NONE 08 PRIMARY SLOT08 Standby/Active PXM45C NONE 07 SECONDARY SLOT09 Active/Active RPM_PR NONE NA NO REDUNDANCY10 Standby-U/Active AXSM-8-622-XG NONE 11 PRIMARY SLOT11 Active-U/Active AXSM-8-622-XG NONE 10 SECONDARY SLOT12 Active/Active AXSM_1OC48 NONE NA NO REDUNDANCY13 Active/Active FRSM_2CT3 NONE NA NO REDUNDANCY14 Empty --- --- --- ---15 Empty --- --- --- ---16 Empty --- --- --- ---29 Active/Active FRSM_8T1 NONE NA NO REDUNDANCY30 Active/Active FRSM_8E1 NONE NA NO REDUNDANCY31 Empty --- --- --- ---32 Empty --- --- --- ---Step 13
Verify that the upgrade was successful.
a.
From the AXSM-XG card, enter the dspconinfo command and verify successful migration of all existing connections to the AXSM-XG redundancy pair. If necessary, wait for the migration to complete.
b.
From the AXSM-XG card, enter the dspcd command and verify that all line, port, partition, and connections are correct, and that it displays the type of card from which this AXSM-XG was upgraded.
Note
You can revert to the previous hardware and software using the abortrev command.
Step 14
From the PXM, enter the commitrev command, specifying the slot number, version number, and axsmxg keyword.
M8850_NY.7.PXM.a > commitrev 10 5.1(206.15)A axsmxgM8850_NY.7.PXM.a >After entering the PXM commitrev command, the PXM dspcds command displays the following:
M8850_NY.7.PXM.a > dspcdsM8850_NY System Rev: 05.01 May. 21, 2005 01:18:03 GMTChassis Serial No: SAA03211181 Chassis Rev: B0 GMT Offset: 0Node Alarm: NONECard Front/Back Card Alarm Redundant RedundancySlot Card State Type Status Slot Type--- ---------- -------- -------- ------- -----01 Active/Active AXSM_4OC12 NONE NA NO REDUNDANCY02 Active/Active AXSM_4OC12 NONE NA NO REDUNDANCY03 Active/Active VXSM_155 NONE NA NO REDUNDANCY04 Active/Active AXSME_16T3E3 NONE NA NO REDUNDANCY05 Active/Active AXSM_4OC12 NONE NA NO REDUNDANCY06 Active/Active AXSM_16OC3_B NONE NA NO REDUNDANCY07 Active/Active PXM45C NONE 08 PRIMARY SLOT08 Standby/Active PXM45C NONE 07 SECONDARY SLOT09 Active/Active RPM_PR NONE NA NO REDUNDANCY10 Standby/Active AXSM-8-622-XG NONE 11 PRIMARY SLOT11 Active/Active AXSM-8-622-XG NONE 10 SECONDARY SLOT12 Active/Active AXSM_1OC48 NONE NA NO REDUNDANCY13 Active/Active FRSM_2CT3 NONE NA NO REDUNDANCY14 Empty --- --- --- ---15 Empty --- --- --- ---16 Empty --- --- --- ---29 Active/Active FRSM_8T1 NONE NA NO REDUNDANCY30 Active/Active FRSM_8E1 NONE NA NO REDUNDANCY31 Empty --- --- --- ---32 Empty --- --- --- ---M8850_NY.7.PXM.a >
Non-Graceful Upgrade Procedure
This section explains how to upgrade AXSM-A/B/E cards to AXSM-XG cards, and includes an example of upgrading an AXSM-A card to an AXSM-8-622-XG card.
The following display shows the card status in the example system, using the PXM dspcd command. The AXSM/A card in slot 12 is operating normally and is ready to upgrade.
M8850_NY.7.PXM.a > dspcdsM8850_NY System Rev: 05.01 Jun. 22, 2005 18:44:09 GMTChassis Serial No: SAA03211181 Chassis Rev: B0 GMT Offset: 0Node Alarm: NONECard Front/Back Card Alarm Redundant RedundancySlot Card State Type Status Slot Type--- ---------- -------- -------- ------- -----01 Active/Active AXSM_4OC12 NONE 02 PRIMARY SLOT02 Standby/Active AXSM_4OC12 NONE 01 SECONDARY SLOT03 Active/Active VXSM_155 NONE NA NO REDUNDANCY04 Active/Active AXSME_16T3E3 NONE NA NO REDUNDANCY05 Active/Active AXSM_4OC12 NONE NA NO REDUNDANCY06 Active/Active AXSM_16OC3_B NONE NA NO REDUNDANCY07 Active/Active PXM45C NONE 08 PRIMARY SLOT08 Standby/Active PXM45C NONE 07 SECONDARY SLOT09 Active/Active RPM_PR NONE NA NO REDUNDANCY10 Active/Empty RPM NONE NA NO REDUNDANCY11 Empty --- --- --- ---12 Active/Active AXSM_4OC12 NONE NA NO REDUNDANCY13 Active/Active FRSM_2CT3 NONE NA NO REDUNDANCY14 Empty --- --- --- ---15 Empty --- --- --- ---16 Empty --- --- --- ---27 Empty --- --- --- ---29 Active/Active FRSM_8T1 NONE NA NO REDUNDANCY30 Active/Active FRSM_8E1 NONE NA NO REDUNDANCY31 Empty --- --- --- ---32 Empty --- --- --- ---To perform a non-graceful upgrade of a AXSM A/B/E to AXSM-XG card, follow these steps.
Step 1
From the AXSM A/B/E card, enter the dspconinfo command and record the existing connection information. You will use this information later to verify successful migration of existing connections to the new AXSM-XG card.
Step 2
From the PXM issue the loadrev command, specifying the slot of the card to upgrade, software version, and axsmxg keyword. The axsmxg keyword specifies that you are upgrading both hardware and software.
M8850_NY.7.PXM.a > loadrev 12 5.1(206.20)A axsmxgone or more card(s) in the logical slot may be reset.loadrev: Do you want to proceed (Yes/No)? yM8850_NY.7.PXM.a >After entering the loadrev command, the card in slot 12 changes to the Active-U state. For example:
M8850_NY.7.PXM.a > dspcdsM8850_NY System Rev: 05.01 Jun. 22, 2005 19:16:32 GMTChassis Serial No: SAA03211181 Chassis Rev: B0 GMT Offset: 0Node Alarm: MAJORCard Front/Back Card Alarm Redundant RedundancySlot Card State Type Status Slot Type--- ---------- -------- -------- ------- -----01 Active/Active AXSM_4OC12 NONE 02 PRIMARY SLOT02 Standby/Active AXSM_4OC12 NONE 01 SECONDARY SLOT03 Active/Active VXSM_155 NONE NA NO REDUNDANCY04 Active/Active AXSME_16T3E3 NONE NA NO REDUNDANCY05 Active/Active AXSM_4OC12 NONE NA NO REDUNDANCY06 Active/Active AXSM_16OC3_B NONE NA NO REDUNDANCY07 Active/Active PXM45C NONE 08 PRIMARY SLOT08 Standby/Active PXM45C NONE 07 SECONDARY SLOT09 Active/Active RPM_PR NONE NA NO REDUNDANCY10 Active/Empty RPM NONE NA NO REDUNDANCY11 Empty --- --- --- ---12 Active-U/Active AXSM_4OC12 MAJOR NA NO REDUNDANCY13 Active/Active FRSM_2CT3 NONE NA NO REDUNDANCY14 Empty --- --- --- ---15 Empty --- --- --- ---16 Empty --- --- --- ---27 Empty --- --- --- ---29 Active/Active FRSM_8T1 NONE NA NO REDUNDANCY30 Active/Active FRSM_8E1 NONE NA NO REDUNDANCY31 Empty --- --- --- ---32 Empty --- --- --- ---M8850_NY.7.PXM.a >Step 3
If SCM is being used for statistics collection, disable statistics collection using the SCM GUI.
Note
You cannot disable statistics collection from the MGX CLI; you must use the SCM GUI.
Step 4
From the PXM card, enter the runrev command, specifying the slot number, the version number, and the axsmxg keyword.
For example:
M8850_NY.7.PXM.a > runrev 12 5.1(206.20)A axsmxgone or more card(s) in the logical slot may be reset.runrev: Do you want to proceed (Yes/No)? yReplace the card in slot 12 with AXSMXG nowAfter entering the runrev command, card 12 changes to the Mismatch state.
M8850_NY.7.PXM.a > dspcdsM8850_NY System Rev: 05.01 Jun. 22, 2005 19:16:32 GMTChassis Serial No: SAA03211181 Chassis Rev: B0 GMT Offset: 0Node Alarm: MAJORCard Front/Back Card Alarm Redundant RedundancySlot Card State Type Status Slot Type--- ---------- -------- -------- ------- -----01 Active/Active AXSM_4OC12 NONE 02 PRIMARY SLOT02 Standby/Active AXSM_4OC12 NONE 01 SECONDARY SLOT03 Active/Active VXSM_155 NONE NA NO REDUNDANCY04 Active/Active AXSME_16T3E3 NONE NA NO REDUNDANCY05 Active/Active AXSM_4OC12 NONE NA NO REDUNDANCY06 Active/Active AXSM_16OC3_B NONE NA NO REDUNDANCY07 Active/Active PXM45C NONE 08 PRIMARY SLOT08 Standby/Active PXM45C NONE 07 SECONDARY SLOT09 Active/Active RPM_PR NONE NA NO REDUNDANCY10 Active/Empty RPM NONE NA NO REDUNDANCY11 Empty --- --- --- ---12 Mismatch-U/Empty AXSM_4OC12 MAJOR NA NO REDUNDANCY13 Active/Active FRSM_2CT3 NONE NA NO REDUNDANCY14 Empty --- --- --- ---15 Empty --- --- --- ---16 Empty --- --- --- ---27 Empty --- --- --- ---29 Active/Active FRSM_8T1 NONE NA NO REDUNDANCY30 Active/Active FRSM_8E1 NONE NA NO REDUNDANCY31 Empty --- --- --- ---32 Empty --- --- --- ---Step 5
Insert the new AXSM-XG front card, back cards, and cables. The new AXSM-XG card comes up in the ACTIVE-U state.
Enter the PXM dspcds command again:
M8850_NY.7.PXM.a > dspcdsM8850_NY System Rev: 05.01 Jun. 22, 2005 19:40:26 GMTChassis Serial No: SAA03211181 Chassis Rev: B0 GMT Offset: 0Node Alarm: NONECard Front/Back Card Alarm Redundant RedundancySlot Card State Type Status Slot Type--- ---------- -------- -------- ------- -----01 Active/Active AXSM_4OC12 NONE 02 PRIMARY SLOT02 Standby/Active AXSM_4OC12 NONE 01 SECONDARY SLOT03 Active/Active VXSM_155 NONE NA NO REDUNDANCY04 Active/Active AXSME_16T3E3 NONE NA NO REDUNDANCY05 Active/Active AXSM_4OC12 NONE NA NO REDUNDANCY06 Active/Active AXSM_16OC3_B NONE NA NO REDUNDANCY07 Active/Active PXM45C NONE 08 PRIMARY SLOT08 Standby/Active PXM45C NONE 07 SECONDARY SLOT09 Active/Active RPM_PR NONE NA NO REDUNDANCY10 Active/Empty RPM NONE NA NO REDUNDANCY11 Empty --- --- --- ---12 Active-U/Active AXSM-8-622-XG NONE NA NO REDUNDANCY13 Active/Active FRSM_2CT3 NONE NA NO REDUNDANCY14 Empty --- --- --- ---15 Empty --- --- --- ---16 Empty --- --- --- ---27 Empty --- --- --- ---29 Active/Active FRSM_8T1 NONE NA NO REDUNDANCY30 Active/Active FRSM_8E1 NONE NA NO REDUNDANCY31 Empty --- --- --- ---32 Empty --- --- --- ---
Note
The card may remain in Mismatch state if old hardware was still plugged in after issue of card reset with the new card type.
Step 6
Load the boot code on the AXSM-XG card using the PXM burnboot command, specifying the slot number and the boot code version. The standby AXSM-XG card is reset and upgraded to the specified boot software version. For example:
M8850_NY.7.PXM.a > burnboot 12 5.1(206.20)AWARNING! burnboot is a destructive command if used improperly.Please DO NOT Abort or Reset the PXM/SM when the command is in progress,as this may corrupt the Boot image.The card in slot 12 will be reset.burnboot: Do you want to proceed (Yes/No)? yStep 7
If SCM is being used for statistics collection, verify that the new card is ready for statistics collection and then enable statistics collection using the SCM GUI.
Note
You cannot enable statistics collection using the MGX CLI.
Step 8
Verify that the upgrade was successful.
a.
From the AXSM-XG card, enter the dspconinfo command and verify successful migration of all existing connections to the AXSM-XG. If necessary, wait for the migration to complete.
b.
From the AXSM-XG card, enter the dspcd command and verify that all line, port, partition, and connections are correct, and that it displays the type of the card from which this AXSM-XG was upgraded.
Note
You can revert to the previous hardware and software using the abortrev command.
Step 9
From the PXM, enter the commitrev command, specifying the slot number, version number, and axsmxg keyword.
M8850_NY.7.PXM.a > commitrev 12 5.1(206.20)A axsmxgAfter you enter the PXM commitrev command, the PXM dspcds command displays the following:
M8850_NY.7.PXM.a > dspcdsM8850_NY System Rev: 05.01 Jun. 22, 2005 21:06:30 GMTChassis Serial No: SAA03211181 Chassis Rev: B0 GMT Offset: 0Node Alarm: NONECard Front/Back Card Alarm Redundant RedundancySlot Card State Type Status Slot Type--- ---------- -------- -------- ------- -----01 Active/Active AXSM_4OC12 NONE 02 PRIMARY SLOT02 Standby/Active AXSM_4OC12 NONE 01 SECONDARY SLOT03 Active/Active VXSM_155 NONE NA NO REDUNDANCY04 Active/Active AXSME_16T3E3 NONE NA NO REDUNDANCY05 Active/Active AXSM_4OC12 NONE NA NO REDUNDANCY06 Active/Active AXSM_16OC3_B NONE NA NO REDUNDANCY07 Active/Active PXM45C NONE 08 PRIMARY SLOT08 Standby/Active PXM45C NONE 07 SECONDARY SLOT09 Active/Active RPM_PR NONE NA NO REDUNDANCY10 Active/Empty RPM NONE NA NO REDUNDANCY11 Empty --- --- --- ---12 Active/Active AXSM-8-622-XG NONE NA NO REDUNDANCY13 Active/Active FRSM_2CT3 NONE NA NO REDUNDANCY14 Empty --- --- --- ---15 Empty --- --- --- ---16 Empty --- --- --- ---27 Empty --- --- --- ---29 Active/Active FRSM_8T1 NONE NA NO REDUNDANCY30 Active/Active FRSM_8E1 NONE NA NO REDUNDANCY31 Empty --- --- --- ---32 Empty --- --- --- ---M8850_NY.7.PXM.a >Appendix B: MPSM Licensing
MPSM Licensing Information
The Cisco multiprotocol service module (MPSM) family of cards includes MPSM-T3E3-155, MPSM-16-T1E1, and MPSM-8-T1E1 service modules. The MPSM-T3E3-155 and MPSM-16-T1E1 cards both support two software images, one for ASAP and another for MLPPP. With proper licensing, these cards can provide multiple services or features. License management software on the card grants and enforces the use of licensed services.
This appendix explains license management functions and procedures. It includes the following sections:
•
Adding Licenses Obtained from Cisco.com
•
Moving Licenses from an MPSM Card to the License Pool
•
Allocating Feature Licenses to a Card
•
Recovering Feature Licenses That are Not In Use
•
Saving and Restoring the License Configuration
•
Transferring Licenses Between Switches
•
MPSM License Concepts and Terms
MPSM License Overview
This appendix helps you with the following MPSM licensing scenarios:
•
You purchase MPSM cards and licenses as part of an initial chassis purchase. Cisco loads the licenses on the PXM card before shipment.
•
You purchase spare MPSM cards with licenses. Cisco loads the licenses on the MPSM card before shipment. You subsequently move the licenses from the MPSM card to the PXM license pool. See the "Moving Licenses from an MPSM Card to the License Pool" procedure.
•
You purchase MPSM licenses alone, without hardware. You request license keys from Cisco.com using the Product Authorization Key (PAK) printed on the sales order, and then add licenses to the PXM license pool. See the "Adding Licenses Obtained from Cisco.com" procedure.
Note
We recommend purchasing MPSM licenses alone, separate from the hardware.
•
You must transfer MPSM licenses from one MGX switch to another. You must contact Cisco TAC and request transfer license keys. See the "Transferring Licenses Between Switches" procedure.
•
You must rekey MPSM licenses that are in an alarm state. You must contact Cisco TAC and request rekey license keys. See the "Rekeying Feature Licenses" procedure.
Note
You can purchase MGX systems, spares, and MPSM licenses from Cisco.com.
Tip
Although Table 25 summarizes available licenses, read the entire appendix to understand the terms and processes used for MPSM licensing. For example, if your shelf activates a Node License Alarm, you have a 5-day grace period to recover licenses without interrupting service. After you read this appendix, contact Cisco TAC for additional assistance.
Table 25 lists MPSM licenses available for MPSM cards.
MPSM licenses have the following characteristics:
•
Redundant cards require the same licenses as the primary cards they protect. For 1:N redundancy, a redundant card requires the same licenses as the primary cards it protects.
•
Licenses are authorized for a specific backplane serial number. Licenses for one type of card cannot be used on another type of card.
•
For the MPSM-T3E3-155 or MPSM-16-T1E1 cards, if a license is not allocated to the service module, the configuration commands for that feature return a licensing error.
•
Licenses are bundled by card type, so you purchase licenses for each MPSM card type separately.
PXM License Pool
A pool of licenses is stored on the PXM hard disk and is managed by the PXM controller. Figure 1 illustrates the license pool and shows how the PXM controller adds, transfers, and allocates licenses from the pool.
Figure 1 Switch License Pool
When a card needs to use a license, it checks out the license out of the depository. The license becomes unavailable to all other cards while it is checked out. For example, if a standard ABR connection is provisioned on an MPSM-8-T1E1 card configured for Frame Relay services, a rate control license in the pool is checked out or allocated to that card. If the ABR connection is removed and no other ports on the card have provisioned standard ABR connections, the rate control feature license is checked back into the license pool and becomes available for other cards.
When a license is checked out, the switch records the assignment of the feature to a card and enables the feature on the card. The license remains in the license pool until explicitly removed. The only way to safely remove a license from the pool is to explicitly transfer it to another switch.
Viewing License Data
Display commands allow you to view node license data, card license data, or license history data. The following sections describe ways to view the license data.
Viewing All Node Licenses
To view all node licenses, enter the dsplics command as follows:
M8830_CH.1.PXM.a > dsplicsM8830_CH System Rev: 04.09 Mar. 08, 2004 00:15:51 GMTMGX8830 Node Alarm: CRITICALNode License Alarm : MinorLicensed License Licenses Licenses LicensesCard Type Type Installed Allocated Available----------------- ----------- --------- --------- ---------MPSM-T3E3-155 MultiSrvc 4 1 3Channelize 4 1 3Multilink 4 0 4RateControl 4 1 3Use the dsplics command to show all licenses in the license pool, the number of licenses are in use, and the number that are available for use.
Viewing Licenses for a Specific MPSM Card Type
To view the licenses for a specific MPSM card type, enter the dsplics -cd cardtype, where cardtype is a number that specifies the MPSM card type:
•
1 = MPSM-8-T1E1
•
2 = MPSM-16-T1E1
•
3 = MPSM-T3E3-155
For example:
M8830_CH.1.PXM.a > dsplics -cd 3M8830_CH System Rev: 04.09 Mar. 08, 2004 00:08:45 GMTMGX8830 Node Alarm: CRITICALLicensed License Licenses Licenses LicensesCard Type Type Installed Allocated Available----------------- ----------- --------- --------- ---------MPSM-T3E3-155 MultiSrvc 4 1 3Channelize 4 1 3Multilink 4 0 4RateControl 4 1 3The dsplics -cd command displays the same information as the dsplics, command, but it limits the display to a single card type.
Viewing Licenses for All Cards
To view the licenses allocated or programmed for all cards, enter the dspliccds command. The dspliccds command is a nonprivileged command and is available on the PXM45 and PXM1E cards.
The following output shows licenses for all MPSM card types.
M8830_CH.1.PXM.a > dspliccdsM8830_CH System Rev: 05.00 Apr. 11, 2004 19:08:26 GMTMGX8830 Node Alarm: CRITICALCard Card Lic Prov License AllocSlot Type Alarm Status Type lics---- ------------- -------- ------ ------- ----1 -- -- -- -- --2 -- -- -- -- --3 MPSM-T3E3-155 No Yes MultiSrvc 1Channelize 1MultiLink 1RateControl 14 MPSM-T3E3-155 Minor Yes MultiSrvc 15 MPSM-T3E3-155 Minor No MultiSrvc 1MultiLink 16 MPSM-T3E3-155 No Yes -- --9 -- -- -- -- --10 MPSM-8T1E1 No Yes RateControl 111 MPSM-8T1E1 No Yes -- --12 MPSM-8T1E1 No Yes RateControl 113 MPSM-16T1E1 No Yes MultiSrvc 1MultiLink 1RateControl 1PPP 1...The following output shows programmed licenses of all cards. A programmed license is a license that is shipped on a card from the factory.
M8850_SF.7.PXM.a > dspliccds -progM8850_SF System Rev: 05.02 Jan. 24, 2006 06:51:43 GMTMGX8850 Node Alarm: MAJORLicenses License ProgrammedSlot Card Type moved Type Licenses---- ------------- -------- ------- ----------1 -- -- -- --2 -- -- -- --3 MPSM-T3E3-155 No MultiSrvc 1Channelize 1MultiLink 14 MPSM-T3E3-155 Yes MultiSrvc 1Channelize 15 MPSM-T3E3-155 Yes MultiSrvc 1MultiLink 1RateControl 16 MPSM-T3E3-155 N/A -- --9 -- -- -- --10 MPSM-8T1E1 No RateControl 111 MPSM-8T1E1 N/A -- 012 MPSM-8T1E1 Yes RateControl 113 MPSM-16T1E1 N/A -- 0...Viewing Licenses for a Specific Card
To view the license usage for a single card within a switch, enter the dspliccd command on either the PXM or the MPSM. The following output shows license details for card 11, displayed from a PXM card:
M8830_CH.11.PXM.a > dspliccd 11M8830_CH System Rev: 04.00 Feb. 27, 2003 17:28:26 GMTChassis Serial No: SAA02390010 Chassis Rev: E4 GMT Offset: 0Node Alarm: NONECard License Alarm: MinorService Module Type: MPSM-T3E3-155Service Module Serial Number: 3SA4567011Provisioning allowed: YesGrace-Period Remaining: 3 Days 4 Hours=========================================================Allocated License Type Qty---------------------- ----Multi-Srvc 1Channelize 1=========================================================Programmed License Type Qty----------------------- ----Multi-Srvc 1Channelize 1=========================================================Programmed Licenses Registered: YESLicense Registration Node: MyNodeBuilding3License Registration Chassis Serial No: 8SA931247821License Creation Timestamp: Oct 25, 2003 14:20:40License Registration Timestamp: Dec 02, 2003 19:33:12=========================================================The following license states might occur:
•
If the grace period has already expired, the following output appears:
Provisioning allowed: No Grace-Period Status: Expired•
If the slot is running normally without a license alarm, only the following output appears:
Provisioning allowed: YesAn allocated license is one that has been assigned to a card. A programmed license is a license that has been shipped on a card from the factory. It must be moved to the license pool before it can be allocated to a card.
In the following example, the dspliccd command is entered at an MPSM card prompt, so you do not have to enter the slot number:
M8830_CH.12.MPSM155[FR].a > dspliccdCard License Alarm: NoneService Module Type: MPSM-T3E3-155Service Module Serial Number: SAD073504CTProvisioning (addcon) Allowed: YES=========================================================Needed License Type Needed Licenses------------------- ---------------Multi-Srvc 1Channelize 1=========================================================Allocated License Type Allocated licenses---------------------- ------------------Multi-Srvc 1Channelize 1=========================================================Programmed License Type Programmed licenses------------------------ -------------------Multi-Srvc 1Channelize 1=========================================================Programmed License Registered: YESLicense registration node: M8830_CHLicense registration chassis: 8SA931247821=========================================================A needed license is a one that is required by the MPSM card to provide a desired feature.
Viewing License Updates History
To display a history of all license updates on the switch, enter the dsplics -history command as follows:
M8830_CH.1.PXM.a > dsplics -historyM8830_CH System Rev: 04.09 Mar. 08, 2004 00:20:22 GMTMGX8830 Node Alarm: CRITICALLicensed Chassis or Update Update LicenseCardType Card Serial# Method Sequence# Update Time---------------- ------------ -------- --------- -----------MPSM-T3E3-155 SAG06152SZM Addition 1 WED OCT 08 19:58:54 2003Viewing License Alarms
To display a list of license feature alarms, enter the dsplicalms command as follows:
M8830_CH.1.PXM.a > dsplicalmsM8830_CH System Rev: 04.09 Mar. 08, 2004 00:20:59 GMTMGX8830 Node Alarm: CRITICALSlot Critical Major Minor || Slot Critical Major Minor---- -------- ------- ------- || ---- -------- ------- -------1 0 0 0 || 8 0 0 02 0 0 0 || 9 0 0 03 0 0 0 || 10 0 0 04 0 0 0 || 11 0 0 05 0 0 0 || 12 0 0 06 0 0 0 || 13 0 0 07 0 0 0 || 14 0 0 0Adding Licenses Obtained from Cisco.com
This section explains how to use the Cisco.com licensing tool and your Product Authorization Key (PAK) to request MPSM licenses, and describes how to add the licenses to an MGX switch. Use this procedure only when you are adding licenses for existing hardware. If you are purchasing new MGX switches or MPSM cards, you can order the licenses when you order the hardware.
The general procedure is as follows:
1.
Purchase additional licenses from Cisco and receive a PAK by mail. You can view the PAK number online as soon as the sales order is fulfilled. See the "Viewing the Product Authorization Key Online" procedure.
2.
Obtain the node ID for the MGX switch in which you plan to install the licenses. See the "Obtaining Node IDs" procedure.
3.
Request a license key using the Cisco.com licensing tool. See the "Requesting Licenses" procedure.
4.
Add licenses to the PXM license pool on the MGX switch. See the "Adding Licenses to the License Pool" procedure.
Viewing the Product Authorization Key Online
If you have an active CCO account on Cisco.com and know your sales order number, you can view the sales order online and view the Product Authorization Key (PAK). You do not need to wait for the PAK to arrive by conventional mail.
To view the PAK number online, perform the following steps:
Step 1
Log on to Cisco.com and open your customer order.
Step 2
Check the Show Serial Number box. The PAK number appears in the Product column.
Obtaining Node IDs
MPSM licenses are keyed to a specific MGX switch. For that reason, you must specify the MGX node ID when requesting licenses.
To obtain the node ID, perform the following steps:
Step 1
Establish a configuration session using a username with SERVICE_GP privileges or greater.
Step 2
Display the switch serial number used for licensing by entering the dsplicnodeid command. If no licenses are installed, the switch generates a node license ID as shown in the following example:
M8850_SF.7.PXM.a > dsplicnodeidThe BkPL recorded Lic Seq Num did not exist. Creating with 0.NodeID=SCA062300GF:000000:005:002:211If the switch has an existing node license ID, it is displayed as follows:
M8850_SF.7.PXM.a > dsplicnodeidNodeID=SCA062300GF:000001:005:002:211Step 3
Record the node ID and log out.
Requesting Licenses
You can request licenses online using the Cisco licensing tool. To complete the request, you need your PAK key and node ID of the switch you wish to license.
To request licenses, perform the following steps:
Step 1
Access the Cisco licensing tool at the following URL:
http://www.cisco.com/go/licenseThe following page opens.
Step 2
At the prompt, enter the PAK number.
Step 3
Click Submit.
The following page opens, displaying the number of purchased, fulfilled, and available licenses:
Step 4
Enter the number of licenses to register.
Step 5
Click Submit.
The following page opens.
Step 6
Enter the customer information.
Step 7
In the Serial Number field, enter the node ID of the target switch.
Note
Do not enter the serial number.
Step 8
In the Product Authorization Key field, enter your PAK number.
Step 9
Click Submit. You will receive the license by e-mail.
Adding Licenses to the License Pool
After you receive the license e-mail, you can add the licenses on the MGX switch. You have two options for adding licenses:
•
Use the license file attached to the e-mail
•
Use the license key in the body of the e-mail
You can use the license key or file only once because the MGX node ID changes after you add the license.
To add licenses to an MGX switch, perform the following steps:
Step 1
If you are adding licenses from the license file, FTP the license file to the C:/LICENSE directory on the destination switch.
Step 2
Establish a configuration session using a username with SERVICE_GP privileges or greater.
Step 3
If you are adding licenses from the license file, verify that the license file exists. Otherwise, skip this step.
M8850_SF.7.PXM.a > cd LICENSEls...Lmpsm16t1e1_20051221181923966.datIn the file system :total space : 818961 K bytesfree space : 677443 K bytesStep 4
Display current licenses, for example for MPSM-16-T1E1 cards:
M8850_SF.7.PXM.a > dsplics -cd 2M8850_SF System Rev: 05.02 Dec. 28, 2005 06:54:34 GMTMGX8850 Node Alarm: MAJORNode License Alarm : NoneLicensed License Licenses Licenses LicensesCard Type Type Installed Allocated Available----------------- ----------- --------- --------- ---------MPSM-16-T1E1 MultiSrvc 2 0 2RateControl 2 0 2MultiLink 2 0 2PPP 4 1 3Step 5
Enter the cnflic command.
•
To add licenses using a license file, enter cnflic -f filename,
where filename is the e-mail attachment name.
•
To add licenses using a license key, enter cnflic key,
where key is the license key string in the e-mail body.
The following example shows how to add a license using the license file:
M8850_SF.7.PXM.a > cnflic -f Lmpsm16t1e1_20051221181923966.datUpdate method : AdditionCard type : MPSM-16-T1E1Creation date/time : THU DEC 22 02:19:23 2005Grace period (days) : 0Update sequence number: 30License serial number : L0000007923Num of features : 4--------------- -----License Type Qty--------------- -----MultiSrvc 2RateControl 2MultiLink 2PPP 2Please confirm the above license information.cnflic: Do you want to proceed (Yes/No)? yThe following example shows how to add a license using the license key string:
M8850_SF.7.PXM.a > cnflic 010502d395743af39a3ba51ef3f9be256ba5ec90c12bc22563d8b236d882b0d8919fec8d3e4126f4b555d96653 4a9384cf88ce1666Update method : AdditionCard type : MPSM-16-T1E1Creation date/time : THU DEC 22 02:19:23 2005Grace period (days) : 0Update sequence number: 30License serial number : L0000007923Num of features : 4--------------- -----License Type Qty--------------- -----MultiSrvc 2RateControl 2MultiLink 2PPP 2Please confirm the above license information.cnflic: Do you want to proceed (Yes/No)? yStep 6
To verify that new licenses have been installed, enter the dsplics command.
M8850_SF.7.PXM.a > dsplics -cd 2M8850_SF System Rev: 05.02 Dec. 28, 2005 06:59:04 GMTMGX8850 Node Alarm: MAJORNode License Alarm : NoneLicensed License Licenses Licenses LicensesCard Type Type Installed Allocated Available----------------- ----------- --------- --------- ---------MPSM-16-T1E1 MultiSrvc 4 0 4RateControl 4 0 4MultiLink 4 0 4PPP 6 1 5
CautionTo avoid losing licenses during a configuration restoration, save the switch configuration after installing the new licenses by using the saveallcnf command.
Step 7
Enter the saveallcnf command.
Moving Licenses from an MPSM Card to the License Pool
If a license is purchased at the same time as the MPSM card, the license is programmed on the MPSM card. A license that is programmed on an MPSM card is unavailable to that card and all other cards in the switch. To enable use of the license, you must move the license from the MPSM card to the PXM license pool.
You can only move licenses from an MPSM card to the PXM license pool. You cannot move licenses back to an MPSM card. If you want to transfer licenses to another switch, see the "Transferring Licenses Between Switches" procedure.
To move licenses from an MPSM card to the PXM license pool, perform the following steps:
Step 1
Establish a configuration session using a username with SERVICE_GP privileges or greater.
Step 2
Enter the cc command to move to the CLI prompt for the MPSM card.
Step 3
Enter the movelic command as follows:
M8850_SF.1.28.MPSM8T1.FRM.a > movelic------------------------------------------------Programmed License Type #Programmed----------------------- -----------Rate-Control 1Do you want to proceed (Yes/No)? YesCard Licenses have been moved to license pool.
CautionTo avoid losing licenses during a configuration restoration, save the switch configuration after moving the new licenses into the PXM license pool by using the saveallcnf command.
Step 4
Enter saveallcnf.
Allocating Feature Licenses to a Card
To allocate a feature license to an MPSM card, configure the card to use the licensed feature. For example, to allocate the IMA feature to a card, use the addimagrp command to create an IMA group. Licenses are also allocated to redundant cards, so if you use the addred command to configure a secondary card for a primary card, licenses are allocated to the secondary card. When the secondary card serves multiple primary cards, the secondary card receives one of each type of license used by the primary cards it serves.
If the license pool on the switch has an available license for that feature on the MPSM card type, the license is automatically allocated to the card. Once a license is allocated to the card, it is no longer available for use on other cards until it returns to the license pool (See the "Recovering Feature Licenses That are Not In Use" procedure").
If you configure a card to use a feature for which no licenses are available, the command that requires the feature fails.
Recovering Feature Licenses That are Not In Use
Feature licenses are automatically returned to the license pool when the card configuration no longer requires them. The following actions can be used to remove the configuration for featured licenses:
•
Use the CLI commands to remove the feature configuration. For example, if you delete all channelized ports (delport) on a card, the channelized feature is no longer required and is returned to the license pool.
•
Clear the entire configuration on the service module (clrsmcnf).
•
Clear the entire configuration on the switch (clrallcnf).
•
Delete a redundant card configuration. This action releases any licenses reserved for the secondary card, provided that those licenses are no longer required for other primary cards.
When licenses are returned to the license pool, they are immediately available for use on other MPSM cards.
Saving and Restoring the License Configuration
MPSM feature licenses are backed up and restored with the complete switch configuration as described in the "Managing the Configuration Files" section in Chapter 9, "Switch Operating Procedures".
CautionTo avoid losing feature licenses, always save the switch configuration after you move, transfer, or add licenses, by using the saveallcnf command.
Transferring Licenses Between Switches
When you transfer licenses between switches, you remove licenses from one switch and add them to another switch.
To transfer licenses:
1.
Obtain the node IDs for the source and destination MGX switches for the transfer. See the "Obtaining Node IDs" procedure.
2.
Call the Cisco TAC, provide the node IDs, and request a transfer license. You cannot use the online Cisco license tool to transfer licenses. You receive transfer licenses by e-mail.
3.
Remove the licenses from the source switch and add the licenses to the destination switch. See the "Transferring Licenses" procedure.
Transferring Licenses
You can transfer licenses using license files or license keys. In either case, you use the license file or key you receive from Cisco to remove the licenses from the source switch. The source switch then generates a license file and key that you use to add the licenses to the destination switch. You can use license keys or files only one time because the node IDs change after you remove or add licenses.
Removing the Licenses From the Source Switch
To remove licenses from the source switch, perform the following steps:
Step 1
If you are transferring licenses using the license file, FTP the transfer license file to the C:/LICENSE directory on the source switch.
Step 2
Establish a configuration session with the source switch using a username with SERVICE_GP privileges or greater.
Step 3
If you are transferring licenses using the license file, verify that the license file is in the LICENSE directory. Otherwise, skip this step.
M8850_SF.7.PXM.a > cd LICENSEM8850_SF.7.PXM.a > ls...Lmpsm16t1e1_20051229100127934.datIn the file system :total space : 818961 K bytesfree space : 675506 K bytesStep 4
Display current licenses. For example, for MPSM-16-T1E1 cards:
M8850_SF.7.PXM.a > dsplics -cd 2M8850_SF System Rev: 05.02 Jan. 04, 2006 06:51:53 GMTMGX8850 Node Alarm: MAJORNode License Alarm : NoneLicensed License Licenses Licenses LicensesCard Type Type Installed Allocated Available----------------- ----------- --------- --------- ---------MPSM-16-T1E1 MultiSrvc 4 0 4RateControl 4 0 4MultiLink 4 0 4PPP 6 1 5Step 5
Enter the cnflic command to remove licenses from the source switch.
•
To use a license file, enter cnflic -f filename,
where filename is the e-mail attachment name.
•
To use a license key, enter cnflic key,
where key is the license key string in the e-mail body.
The following example shows how to remove licenses using the license file:
M8850_SF.7.PXM.a > cnflic -f Lmpsm16t1e1_20051229100127934.datUpdate method : Xfer-outCard type : MPSM-16-T1E1Creation date/time : THU DEC 29 18:01:27 2005Grace period (days) : 0Update sequence number: 31License serial number : L0000008665Num of features : 4--------------- -----License Type Qty--------------- -----MultiSrvc 2RateControl 2MultiLink 2PPP 2Please confirm the above license information.cnflic: Do you want to proceed (Yes/No)? ylicense file has been generated as: C:/LICENSE/LX-M8850_SF-31.liclicense is: 010501cdd9a1d5a125587521d9fcf15c5006769a004afa3fee67f73b7ad0c1e44cd4a45fbf466cb7bdb7f61fb6 673ceaef1c0e38c24a741ebcb294c4This step removes the licenses identified for transfer from the license pool, and these licenses are no longer available for use on the source switch.
This step also generates a new license key and a new license file, which you use to add the licenses to the destination switch. The license key appears in the command output. The license file is stored in the C:/LICENSE directory.
Step 6
Record the name of the license file and the license key string.
Step 7
Verify that the licenses are removed.
M8850_SF.7.PXM.a > dsplics -cd 2M8850_SF System Rev: 05.02 Jan. 04, 2006 06:57:46 GMTMGX8850 Node Alarm: MAJORNode License Alarm : NoneLicensed License Licenses Licenses LicensesCard Type Type Installed Allocated Available----------------- ----------- --------- --------- ---------MPSM-16-T1E1 MultiSrvc 2 0 2RateControl 2 0 2MultiLink 2 0 2PPP 4 1 3
Adding the Licenses to the Destination Switch
To add licenses to the destination switch, perform the following steps:
Step 1
If you are transferring licenses using a license file, use FTP to get the generated license file from the C:/LICENSE directory on the source switch, and then put the license file into the C:/LICENSE directory on the destination switch. Use the filename you recorded in Step 6 of the previous procedure.
Step 2
Establish a configuration session with the destination switch using a username with SERVICE_GP privileges or greater.
Step 3
If you are transferring licenses using a license file, verify that the license file is in the LICENSE directory. Otherwise, skip this step.
M8850_LA.8.PXM.a > cd LICENSEM8850_LA.8.PXM.a > ls...LX-M8850_SF-31.licIn the file system :total space : 818961 K bytesfree space : 675506 K bytesStep 4
Enter the cnflic command to add the licenses to the destination switch.
•
To use a license file, enter cnflic -f filename,
where filename is the generated filename you recorded in Step 6 of the previous procedure.
•
To use a license key, enter cnflic key,
where key is the license key string you recorded in Step 6 of the previous procedure.
The following example shows how to add licenses to the destination switch using the license file:
M8850_LA.8.PXM.a > cnflic -f LX-M8850_SF-31.licUpdate method : Xfer-inCard type : MPSM-16-T1E1Creation date/time : THU DEC 29 18:01:27 2005Grace period (days) : 0Update sequence number: 8License serial number : L0000008665Num of features : 4--------------- -----License Type Qty--------------- -----MultiSrvc 2RateControl 2MultiLink 2PPP 2Please confirm the above license information.cnflic: Do you want to proceed (Yes/No)? yStep 5
To verify that the transferred licenses are installed on the destination switch, enter the dsplics command.
M8850_LA.8.PXM.a > dsplics -cd 2M8850_LA System Rev: 05.01 Jan. 05, 2006 06:02:10 GMTMGX8850 Node Alarm: CRITICALNode License Alarm : NoneLicensed License Licenses Licenses LicensesCard Type Type Installed Allocated Available----------------- ----------- --------- --------- ---------MPSM-16-T1E1 MultiSrvc 4 0 4RateControl 4 0 4MultiLink 4 0 4PPP 4 0 4
CautionTo avoid losing licenses during a configuration restoration, save the switch configuration at the source and destination switches by using the saveallcnf command.
Step 6
Enter the saveallcnf command.
MPSM License Alarms
MPSM feature license alarms can occur at the node level or slot level of the switch. The following sections describe these alarms:
Node License Alarms
Node license alarms occur under the following conditions:
•
A switch configuration that was saved before licenses were added or transferred to and from the PXM license pool is restored. Any mismatch between the actual license sequence number and the restored license sequence number generates a minor node license alarm. To prevent this type of alarm, always save the switch configuration (saveallcnf) after you move, transfer, or add licenses.
•
The switch configuration is restored on a different node, or the Cisco MGX chassis is replaced with another chassis. Because licenses are authorized for a specific backplane serial number, such conditions cause a mismatch between the physical backplane serial number and serial number recorded in the database.
When a node license alarm is raised, all cards that are using feature licenses go into the slot license alarm state. If no licenses are in use by the cards, no slot license alarms are raised.
On PXM45 and PXM1E platforms, use the PXM dspndalms command to troubleshoot the node license alarm. As shown in the following example on the PXM45 platform, the output of this command indicates if the switch is in the node license alarm state:
M8850_SF.8.PXM.a > dspndalmsNode Alarm SummaryAlarm Type Critical Major Minor---------- -------- ------- -------Clock Alarms 0 0 0Switching Alarms 0 0 0Environment Alarms 0 0 0Card Alarms 0 0 0Node License Alarm 0 0 1You clear node license alarms and restore normal operation by validating (rekeying) licenses in the license pool. For more information, see the "Rekeying Feature Licenses" procedure.
Note
If the switch is in node license alarm, you must rekey the PXM license pool before proceeding with any other license management tasks.
Slot License Alarms
Slot license alarms are raised under the following conditions:
•
When a node license alarm is raised, all cards that are using feature licenses enter the slot license alarm state. You clear s lot license alarms raised under this condition by rekeying the PXM license pool. See the "Rekeying Feature Licenses" procedure.
•
The slot in alarm has acquired or oversubscribed one or more licenses while these licenses were not available in the license pool. You clear slot license alarms raised under this condition by adding the required number of licenses to the PXM license pool or by releasing corresponding licenses from other slots so that they become available to the slot in alarm. If slots in alarm have redundancy, you must add licenses to cover both the primary and secondary slots to clear the alarms.
On PXM1E and PXM45 platforms, use the PXM dsplicalms command to troubleshoot slot license alarms. The output of this command indicates which MPSM cards are in the slot license alarm state. The following example shows the output of the PXM dsplicalms command on the PXM45 platform. In this example, the MPSM card in slot 28 is in slot license alarm:
M8850_SF.8.PXM.a > dsplicalmsM8850_SF System Rev: 05.00 Jul. 10, 2004 04:35:12 GMTMGX8850 Node Alarm: MINORSlot Critical Major Minor || Slot Critical Major Minor---- -------- ------- ------- || ---- -------- ------- -------1 0 0 0 || 17 0 0 02 0 0 0 || 18 0 0 03 0 0 0 || 19 0 0 04 0 0 0 || 20 0 0 05 0 0 0 || 21 0 0 06 0 0 0 || 22 0 0 07 0 0 0 || 23 0 0 08 0 0 0 || 24 0 0 09 0 0 0 || 25 0 0 010 0 0 0 || 26 0 0 011 0 0 0 || 27 0 0 012 0 0 0 || 28 0 0 113 0 0 0 || 29 0 0 014 0 0 0 || 30 0 0 015 0 0 0 || 31 0 0 016 0 0 0 || 32 0 0 0M8850_SF.8.PXM.a >On PXM1E and PXM45 platforms, the output of the PXM dspliccd <slot> command also shows the card license alarm state, and displays the remaining time left in the alarm grace period and if provisioning is allowed with the addcon command. The following example shows the output of the PXM dspliccd <slot> command of an MPSM-8T1-FRM card in a PXM45 platform in the slot license alarm state:
M8850_SF.8.PXM.a > dspliccd 28M8850_SF System Rev: 05.00 Jul. 10, 2004 05:02:24 GMTMGX8850 Node Alarm: MINORCard License Alarm: MinorService Module Type: MPSM-8T1-FRMService Module Serial Number: SAG07208RRAProvisioning Allowed: YesGrace-Period Remaining: 4 Days, 22 Hrs=========================================================Allocated License Type Quantity-------------------- --------RateControl 1=========================================================Programmed License Type Quantity-------------------- --------RateControl 1=========================================================Programmed License Registered: YesLicense Registeration Node: M8850_SFLicense Registeration Chassis Serial No: SCA062300GFOn PXM1E and PXM45 platforms, the dspcd command indicates if a card is in slot license alarm. If the card is in the slot license alarm state, the cardIntegratedAlarm is minor and the cardMinorAlarmBitMap indicates License Alarm. The following example shows the output of the dspcd command of an MPSM-8T1-FRM card in a PXM45 platform in the slot license alarm state:
M8850_SF.1.28.MPSM8T1.FRM.a > dspcdModuleSlotNumber: 28FunctionModuleState: ActiveFunctionModuleType: MPSM-8T1-FRMFunctionModuleSerialNum: SAG07208RRAFunctionModuleHWRev: 02FunctionModuleFWRev: 030.000.004.016-P2FunctionModuleResetReason: Reset by PXMLineModuleType: LM-RJ48-8T1LineModuleState: PresentmibVersionNumber: 102configChangeTypeBitMap: No changescardIntegratedAlarm: MinorcardMinorAlarmBitMap: LICENSE ALARMFront Card InfoPCB PART NO-(800 LEVEL): 800-22480-04PCB PART_NO-(73 LEVEL): 73-8466-04PCB REVISION (800 LEVEL):PCB SERIAL NO: SAG07208RRACLEI CODE: 0MANUFACTURING ENG: 0x0RMA TEST HISTORY: 0x0Back Card InfoPCB PART NO-(800 LEVEL): 000-00000-00PCB PART NO-(73 LEVEL): 00-00000-00PCB REVISION (800 LEVEL): AAFAB PART NO-(28 LEVEL): 28-02011-01PCB SERIAL NO: 648467MANUFACTURING ENG: 0x1CRMA HISTORY: 0x0On PXM1E and PXM45 platforms, the output of the MPSM dspliccd command also shows if a card is in slot license alarm. The following example shows the output of the dspliccd command of an MPSM-8T1-FRM card in a PXM45 platform in the slot license alarm state:
M8850_SF.1.28.MPSM8T1.FRM.a > dspliccdCard License Alarm: MinorService Module Type: MPSM8T1E1Service Module Serial Number: SAG07208RRAProvisioning (addcon) Allowed: YES=========================================================Needed License Type Needed Licenses------------------- ---------------RateControl 1=========================================================Allocated License Type Allocated licenses---------------------- ------------------RateControl 1=========================================================Programmed License Type Programmed licenses------------------------ -------------------RateControl 1=========================================================Programmed License Registered: YESLicense registration node: M8850_SFType <CR> to continue, Q<CR> to stop:License registration chassis: SCA062300GF=========================================================
Note
If the switch is in node license alarm, you must rekey the PXM license pool before proceeding with any other license management tasks. (See the "Rekeying Feature Licenses" procedure.)
Grace Period
When the switch is in slot license alarm, you have a grace period of 5 days (120 hours) to resolve the alarms. During the first 4 days (96 hours), traps are sent every 24 hours. For the final 24 hours of the grace period, traps are sent every hour of operation. If the alarms are not cleared, the following actions are taken:
•
An event is logged indicating the expiration of the grace period for a given slot needing licenses.
•
A trap is sent hourly indicating the expiration of the grace period.
•
Configuration commands for the licensed feature are disabled.
The following example shows the license status on an MPSM-16-T1E1 card after the grace period expires:
M8850_SF.7.PXM.a > dspliccd 27M8850_SF System Rev: 05.02 Feb. 13, 2006 02:04:05 GMTMGX8850 Node Alarm: CRITICALCard License Alarm: MinorService Module Type: MPSM-16-T1E1-PPPService Module Serial Number: SAD0823086BProvisioning Allowed: NoGrace Period: Expired=========================================================Allocated License Type Quantity-------------------- --------PPP 1=========================================================Programmed License Type Quantity-------------------- --------=========================================================Programmed Licenses Registered: N/ALicense Registration Node: --License Registration Chassis Serial No: --The following example shows the error message if you try to add a connection after the grace period expires:
M8850_SF.27.MPSM16T1E1PPP[FR].a > addcon 16 1000 5 3 1 190461 -slave 4700918100000000059A3F981B0000010B180200.0.2001 -lpcr 51600 -lscr 51600 -rpcr 51600 -rscr 51600ERR: Adding connections is blocked due to Node/Slot license alarmAfter you rekey or add licenses to the PXM license pool, provisioning is restored and the switch exits the license alarm state.
Rekeying Feature Licenses
Use this rekey procedure to clear node license alarms.
The general procedure is as follows:
1.
Obtain the node ID of the switch with Node License Alarms. See the "Obtaining Node IDs" procedure.
2.
Contact Cisco TAC, provide the node ID, and request a rekey license. You will receive the license in an e-mail, which contains the license key and an attached license file.
3.
Install the rekey license.
To install a rekey license, perform the following steps:
Step 1
If you are rekeying licenses using the license file, FTP the license file to the C:/LICENSE directory on the switch.
Step 2
Establish a configuration session with the switch using a username with SERVICE_GP privileges or greater.
Step 3
Enter the cnflic command.
•
To add licenses using a license file, enter cnflic -f filename,
where filename is the e-mail attachment name.
•
To add licenses using a license key, enter cnflic key,
where key is the license key string in the e-mail body.
The following example shows how to rekey a license using the license key:
M8850_SF.8.PXM.a > cnflic 01050004e435730660768401f6608ec42404477f35d311f226fb3bd2992a92359da94c979d7ed2bff3d24c4630 25c1Update method :RekeyCard type :----Creation date/time :TUE JUL 06 21:02:43 2004Grace period (days) :0Update sequence number:7License serial number :L0000000502Num of features :0--------------- -----License Type Qty--------------- -----Please confirm the above license information.cnflic:Do you want to proceed (Yes/No)? yThe following example shows how to rekey a license using a license file:
M8850_SF.8.PXM.a > cnflic -f L_20040706140923521.datUpdate method :RekeyCard type :----Creation date/time :TUE JUL 06 21:09:23 2004Grace period (days) :0Update sequence number:8License serial number :L0000003455Num of features :0--------------- -----License Type Qty--------------- -----Please confirm the above license information.cnflic:Do you want to proceed (Yes/No)? yStep 4
To verify that license alarms are clear, enter the dspndalms command as follows:
M8850_SF.8.PXM.a > dspndalmsNode Alarm SummaryAlarm Type Critical Major Minor---------- -------- ------- -------Clock Alarms 0 0 0Switching Alarms 0 0 0Environment Alarms 0 0 0Card Alarms 0 0 0Node License Alarm 0 0 0In this example, after applying the rekey license to the destination switch, the switch is no longer in Node License Alarm.
CautionTo avoid losing licenses during a configuration restoration, save the switch configuration after applying the rekey license by using the saveallcnf command.
Step 5
Enter the saveallcnf command.
MPSM License Concepts and Terms
Table 26 lists the terminology used for managing feature licenses on MPSM cards.
Documentation
A Finding Cisco User Documentation Online ships with your product. That guide contains general information about how to locate Cisco MGX, BPX, SES, and CWM documentation online.
Obtaining Documentation
Cisco documentation and additional literature are available on Cisco.com. Cisco also provides several ways to obtain technical assistance and other technical resources. These sections explain how to obtain technical information from Cisco Systems.
Cisco.com
You can access the most current Cisco documentation at this URL:
http://www.cisco.com/techsupport
You can access the Cisco website at this URL:
You can access international Cisco websites at this URL:
http://www.cisco.com/public/countries_languages.shtml
Product Documentation DVD
The Product Documentation DVD is a comprehensive library of technical product documentation on a portable medium. The DVD enables you to access multiple versions of installation, configuration, and command guides for Cisco hardware and software products. With the DVD, you have access to the same HTML documentation that is found on the Cisco website without being connected to the Internet. Certain products also have .PDF versions of the documentation available.
The Product Documentation DVD is available as a single unit or as a subscription. Registered Cisco.com users (Cisco direct customers) can order a Product Documentation DVD (product number DOC-DOCDVD= or DOC-DOCDVD=SUB) from Cisco Marketplace at this URL:
http://www.cisco.com/go/marketplace/
Ordering Documentation
Registered Cisco.com users may order Cisco documentation at the Product Documentation Store in the Cisco Marketplace at this URL:
http://www.cisco.com/go/marketplace/
Nonregistered Cisco.com users can order technical documentation from 8:00 a.m. to 5:00 p.m. (0800 to 1700) PDT by calling 1 866 463-3487 in the United States and Canada, or elsewhere by calling 011 408 519-5055. You can also order documentation by e-mail at tech-doc-store-mkpl@external.cisco.com or by fax at 1 408 519-5001 in the United States and Canada, or elsewhere at 011 408 519-5001.
Documentation Feedback
You can rate and provide feedback about Cisco technical documents by completing the online feedback form that appears with the technical documents on Cisco.com.
You can submit comments about Cisco documentation by using the response card (if present) behind the front cover of your document or by writing to the following address:
Cisco Systems
Attn: Customer Document Ordering
170 West Tasman Drive
San Jose, CA 95134-9883We appreciate your comments.
Cisco Product Security Overview
Cisco provides a free online Security Vulnerability Policy portal at this URL:
http://www.cisco.com/en/US/products/products_security_vulnerability_policy.html
From this site, you will find information about how to:
•
Report security vulnerabilities in Cisco products.
•
Obtain assistance with security incidents that involve Cisco products.
•
Register to receive security information from Cisco.
A current list of security advisories, security notices, and security responses for Cisco products is available at this URL:
To see security advisories, security notices, and security responses as they are updated in real time, you can subscribe to the Product Security Incident Response Team Really Simple Syndication (PSIRT RSS) feed. Information about how to subscribe to the PSIRT RSS feed is found at this URL:
http://www.cisco.com/en/US/products/products_psirt_rss_feed.html
Reporting Security Problems in Cisco Products
Cisco is committed to delivering secure products. We test our products internally before we release them, and we strive to correct all vulnerabilities quickly. If you think that you have identified a vulnerability in a Cisco product, contact PSIRT:
•
For Emergencies only — security-alert@cisco.com
An emergency is either a condition in which a system is under active attack or a condition for which a severe and urgent security vulnerability should be reported. All other conditions are considered nonemergencies.
•
For Nonemergencies — psirt@cisco.com
In an emergency, you can also reach PSIRT by telephone:
•
1 877 228-7302
•
1 408 525-6532
Tip
We encourage you to use Pretty Good Privacy (PGP) or a compatible product (for example, GnuPG) to encrypt any sensitive information that you send to Cisco. PSIRT can work with information that has been encrypted with PGP versions 2.x through 9.x.
Never use a revoked or an expired encryption key. The correct public key to use in your correspondence with PSIRT is the one linked in the Contact Summary section of the Security Vulnerability Policy page at this URL:
http://www.cisco.com/en/US/products/products_security_vulnerability_policy.html
The link on this page has the current PGP key ID in use.
If you do not have or use PGP, contact PSIRT at the aforementioned e-mail addresses or phone numbers before sending any sensitive material to find other means of encrypting the data.
Obtaining Technical Assistance
Cisco Technical Support provides 24-hour-a-day award-winning technical assistance. The Cisco Technical Support & Documentation website on Cisco.com features extensive online support resources. In addition, if you have a valid Cisco service contract, Cisco Technical Assistance Center (TAC) engineers provide telephone support. If you do not have a valid Cisco service contract, contact your reseller.
Cisco Technical Support & Documentation Website
The Cisco Technical Support & Documentation website provides online documents and tools for troubleshooting and resolving technical issues with Cisco products and technologies. The website is available 24 hours a day, at this URL:
http://www.cisco.com/techsupport
Access to all tools on the Cisco Technical Support & Documentation website requires a Cisco.com user ID and password. If you have a valid service contract but do not have a user ID or password, you can register at this URL:
http://tools.cisco.com/RPF/register/register.do
Note
Use the Cisco Product Identification (CPI) tool to locate your product serial number before submitting a web or phone request for service. You can access the CPI tool from the Cisco Technical Support & Documentation website by clicking the Tools & Resources link under Documentation & Tools. Choose Cisco Product Identification Tool from the Alphabetical Index drop-down list, or click the Cisco Product Identification Tool link under Alerts & RMAs. The CPI tool offers three search options: by product ID or model name; by tree view; or for certain products, by copying and pasting show command output. Search results show an illustration of your product with the serial number label location highlighted. Locate the serial number label on your product and record the information before placing a service call.
Submitting a Service Request
Using the online TAC Service Request Tool is the fastest way to open S3 and S4 service requests. (S3 and S4 service requests are those in which your network is minimally impaired or for which you require product information.) After you describe your situation, the TAC Service Request Tool provides recommended solutions. If your issue is not resolved using the recommended resources, your service request is assigned to a Cisco engineer. The TAC Service Request Tool is located at this URL:
http://www.cisco.com/techsupport/servicerequest
For S1 or S2 service requests, or if you do not have Internet access, contact the Cisco TAC by telephone. (S1 or S2 service requests are those in which your production network is down or severely degraded.) Cisco engineers are assigned immediately to S1 and S2 service requests to help keep your business operations running smoothly.
To open a service request by telephone, use one of the following numbers:
Asia-Pacific: +61 2 8446 7411 (Australia: 1 800 805 227)
EMEA: +32 2 704 55 55
USA: 1 800 553-2447For a complete list of Cisco TAC contacts, go to this URL:
http://www.cisco.com/techsupport/contacts
Definitions of Service Request Severity
To ensure that all service requests are reported in a standard format, Cisco has established severity definitions.
Severity 1 (S1)—An existing network is down, or there is a critical impact to your business operations. You and Cisco will commit all necessary resources around the clock to resolve the situation.
Severity 2 (S2)—Operation of an existing network is severely degraded, or significant aspects of your business operations are negatively affected by inadequate performance of Cisco products. You and Cisco will commit full-time resources during normal business hours to resolve the situation.
Severity 3 (S3)—Operational performance of the network is impaired, while most business operations remain functional. You and Cisco will commit resources during normal business hours to restore service to satisfactory levels.
Severity 4 (S4)—You require information or assistance with Cisco product capabilities, installation, or configuration. There is little or no effect on your business operations.
Obtaining Additional Publications and Information
Information about Cisco products, technologies, and network solutions is available from various online and printed sources.
•
The Cisco Product Quick Reference Guide is a handy, compact reference tool that includes brief product overviews, key features, sample part numbers, and abbreviated technical specifications for many Cisco products that are sold through channel partners. It is updated twice a year and includes the latest Cisco offerings. To order and find out more about the Cisco Product Quick Reference Guide, go to this URL:
•
Cisco Marketplace provides a variety of Cisco books, reference guides, documentation, and logo merchandise. Visit Cisco Marketplace, the company store, at this URL:
http://www.cisco.com/go/marketplace/
•
Cisco Press publishes a wide range of general networking, training and certification titles. Both new and experienced users will benefit from these publications. For current Cisco Press titles and other information, go to Cisco Press at this URL:
•
Packet magazine is the Cisco Systems technical user magazine for maximizing Internet and networking investments. Each quarter, Packet delivers coverage of the latest industry trends, technology breakthroughs, and Cisco products and solutions, as well as network deployment and troubleshooting tips, configuration examples, customer case studies, certification and training information, and links to scores of in-depth online resources. You can access Packet magazine at this URL:
•
iQ Magazine is the quarterly publication from Cisco Systems designed to help growing companies learn how they can use technology to increase revenue, streamline their business, and expand services. The publication identifies the challenges facing these companies and the technologies to help solve them, using real-world case studies and business strategies to help readers make sound technology investment decisions. You can access iQ Magazine at this URL:
http://www.cisco.com/go/iqmagazine
or view the digital edition at this URL:
http://ciscoiq.texterity.com/ciscoiq/sample/
•
Internet Protocol Journal is a quarterly journal published by Cisco Systems for engineering professionals involved in designing, developing, and operating public and private internets and intranets. You can access the Internet Protocol Journal at this URL:
•
Networking products offered by Cisco Systems, as well as customer support services, can be obtained at this URL:
http://www.cisco.com/en/US/products/index.html
•
Networking Professionals Connection is an interactive website for networking professionals to share questions, suggestions, and information about networking products and technologies with Cisco experts and other networking professionals. Join a discussion at this URL:
http://www.cisco.com/discuss/networking
•
World-class networking training is available from Cisco. You can view current offerings at this URL:
http://www.cisco.com/en/US/learning/index.html
Acronyms
Table 27 lists acronyms that have been referenced in these release notes.
.
CCSP, CCVP, the Cisco Square Bridge logo, Follow Me Browsing, and StackWise are trademarks of Cisco Systems, Inc.; Changing the Way We Work, Live, Play, and Learn, and iQuick Study are service marks of Cisco Systems, Inc.; and Access Registrar, Aironet, BPX, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Cisco Unity, Enterprise/Solver, EtherChannel, EtherFast, EtherSwitch, Fast Step, FormShare, GigaDrive, GigaStack, HomeLink, Internet Quotient, IOS, IP/TV, iQ Expertise, the iQ logo, iQ Net Readiness Scorecard, LightStream, Linksys, MeetingPlace, MGX, the Networkers logo, Networking Academy, Network Registrar, Packet, PIX, Post-Routing, Pre-Routing, ProConnect, RateMUX, ScriptShare, SlideCast, SMARTnet, The Fastest Way to Increase Your Internet Quotient, and TransPath are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.
All other trademarks mentioned in this document or Website are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (0601R)
© 2006 Cisco Systems, Inc. All rights reserved.
Feedback
