RPM-PR Installation and Configuration - Setting Up Connections Between Other Devices and the RPM [Cisco Network Modules]

This chapter describes how to make connections between an RPM and a PXM and among either service modules or other RPMs. The chapter contains the following sections:

•Configuring Connections Between the RPM and Other Devices

•Setting Up Connections Between CWM and the RPM

•Setting Up Connections Between Service Modules and the RPM

•ATM Configuration Examples

•Fully Meshed ATM Configuration Example

•RPM-to-Service Module DAX Connections

•RPM-to-PXM Feeder Trunk Connections

•Connection Synchronization

•Connection State Alarms

Configuring Connections Between the RPM and Other Devices

After configuring port adapters on the RPM, the user's next step is to configure connections between the RPM and other devices (service modules, other RPMs) via the PXM.

The PXM (the main processor on the MGX 8850) coordinates all communication between the RPM and service modules and other RPMs. See Figure 6-1 for a view of how service modules fit in the MGX 8850.

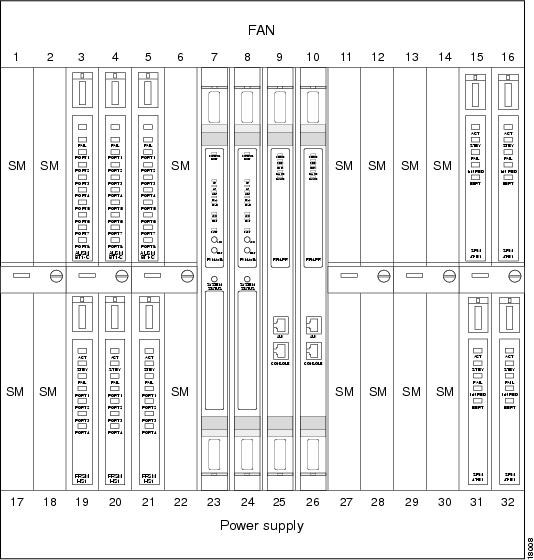

Figure 6-1 Service Modules in the MGX 8850

A complete connection between the RPM and any of these devices includes two parts:

•Half between the RPM and the PXM.

•Half between the PXM and the service module or a different RPM.

Setting Up the RPM Connection to the PXM

First, set up the connection between the RPM and the PXM.

For the RPM in slot 9 connecting to slot 6, perform the following procedure:

Step 1 Set up a logical interface:

RPM-3(config)# int sw 5/1.1 point-to-point

ip address 1.0.0.1 255.0.0.0

Step 2 Set up pvc:

RPM-3(config-if)# atm pvc 2 0 1 aal5snap

Step 3 To return to the global level, type exit:

RPM-3(config-if)# exit

RPM-3(config)#

Step 4 Enter the rpmrscprtn command to set up resource partitioning

RPM-3(config)# rpmrscprtn PAR 100 100 1 255 0 3840 4080

Partition type [par|tag|pnni] Percent ingress [<0-100>] Percent egress [<0-100>] Minimum
VPI [<0-255>] Maximum VPI [<0-255> Minimum VCI [<0-3840>] Maximum VCI [<0-3840>] Number of
LCNs [<0-4080>]

Step 5 Add a connection to the PVC—either VCC (virtual circuit connection) or VPC (virtual path connection):

RPM-3(config)# addcon vcc Switch slot/1[.sub-interface] vci [rname rname] rslot rslot
r_int r_vpi r_vci [master {local | remote}]

RPM-3(config)# addcon vpc Switch slot/1[.sub-interface] vpi [rname rname] rslot rslot
r_int r_vpi [master {local | remote}]

Available Parameters

The following parameters are available to set up the RPM to PXM connection.

•slot—RPM slot number

•sub-interface—Optional sub-interface

•vci—Local VCI

•vpi—Local VPI

•rname—Remote nodename

•rslot—Remote slot

•r_int—Remote interface, for example, Switch interface number, or SM port number

•r_vpi— Remote VPI

•r_vci —Remote VCI

•master

–Local makes this RPM the master end of the connection. Type master local to make the local RPM you are configuring master.

Use master local for connections to the PXM or to other SMs, or when connecting to FRSM, PXM for 2- or 3-segment connections. In a local (DAX) RPM-RPM connection, one side must be master.

–Remote (default) makes the other RPM the master end of the connection. Type master remote or press Enter to make the far-end RPM master.

•cost—Maximum connection cost, <1-255> (default 255)

•priority—Routing priority, <0-15> (default 0)

–none—No restriction (default)

–satellite—Avoid satellite trunks

–terrestrial—Avoid terrestrial trunks

•restriction—Restricted Trunk Type

–none—No restriction (default)

–satellite—Avoid satellite trunks

–terrestrial—Avoid terrestrial trunks

•rmcr—Remote MCR value, <0-353208> (default 0; allowed rmcr range will be either <0-rpcr> or <0-0> if rpcr is not explicitly configured)

•rpcr—Remote PCR value, <0-353208> (default 353208)

•rutil—Remote percent utilization, <0-100> (default 100)

•util—Connection percent utilization value, <0-100> (default 100)

Example RPM-PXM Configuration

The following example displays a configuration linking the RPM to the PXM module.

popeye01.1.7.PXM.a > cc

(session redirected)

RPM configuration

User Access Verification

Password: (cisco)

rpm01>ena

Password: (cisco)

rpm01#conf t

Enter configuration commands, one per line. End with CNTL/Z.

rpm01(config)#int ?

    ATM                   ATM interface

    Async                 Async interface

    BVI                   Bridge-Group Virtual Interface

    Cable                 CMTS interface

    Dialer                Dialer interface

    Ethernet              IEEE 802.3

    FastEthernet          FastEthernet IEEE 802.3

    Group-Async           Async Group interface

    Lex                   Lex interface

    Loopback              Loopback interface

    Null                  Null interface

    Port-channel          Ethernet Channel of interfaces

    Switch                Switch Virtual Interface

    Tunnel                Tunnel interface

    Virtual-Template      Virtual Template interface

    Virtual-TokenRing     Virtual TokenRing

rpm01(config)#int sw ?

    <1-16>         Chassis slot number

rpm01(config)#int sw 9/?

    <0-1>          Switch interface number

rpm01(config)#int sw 9/1?

    .              <0-1>

rpm01(config)#int sw 9/1.66 ?

    multipoint             Treat as a multipoint link

    point-to-point         Treat as a point-to-point link

    tag-switching          Treat as a tag switching link

    <cr>

rpm01(config)#int sw 9/1.66 point

rpm01(config-subif)#ip ?

Interface IP configuration subcommands:

    access-group           Specify access control for packets

    accounting             Enable IP accounting on this interface

    address                Set the IP address of an interface

    authentication         authentication subcommands

    bandwidth-percent      Set EIGRP bandwidth limit

    broadcast-address      Set the broadcast address of an interface

    cgmp                   Enable/disable CGMP

    directed-broadcast     Enable forwarding of directed broadcasts

    dvmrp                  DVMRP interface commands

    hello-interval         Configures IP-EIGRP hello interval

    helper-address         Specify a destination address for UDP broadcasts

    hold-time              Configures IP-EIGRP hold time

    igmp                   IGMP interface commands

    irdp                   ICMP Router Discovery Protocol

    load-sharing           Style of load sharing

    mask-reply             Enable sending ICMP Mask Reply messages

    mroute-cache           Enable switching cache for incoming multicast packets

    mtu                    Set IP Maximum Transmission Unit

    multicast              IP multicast interface commands

    nat                    NAT interface commands

    nhrp                   NHRP interface subcommands

rpm01(config-subif)#ip address 6.6.6.6 255.255.255.0

rpm01(config-subif)#atm ?

    address-registration      Address Registration

    arp-server                Configure IP ARP Server

    auto-configuration        ATM interface auto configuration

    classic-ip-extensions     Specify the type of Classic IP extensions

    e164                      E164 Configuration

    esi-address               7-octet ATM ESI address

    ilmi-enable               ILMI Configuration

    ilmi-keepalive            Keepalive polling configuration

    lecs-address              LECS Address

    multipoint-signaling     Multipoint Signaling

    nsap-address              20-octet ATM NSAP address

    pvc                       Create a PVC

    signaling                Signaling subcommands

rpm01(config-subif)#atm pvc ?

    <1-4095>         VCD number

rpm01(config-subif)#atm pvc 66 ?

    <0-255>          VPI number

rpm01(config-subif)#atm pvc 66 0 ?

    <1-65535>        VCI number

rpm01(config-subif)#atm pvc 66 0 66 ?

    aal5ciscoppp     Cisco PPP over AAL5 Encapsulation

    aal5mux          AAL5+MUX Encapsulation

    aal5nlpid        AAL5+NLPID Encapsulation

    aal5snap         AAL5+LLC/SNAP Encapsulation

rpm01(config-subif)#atm pvc 66 0 66 aal5snap ?

    <1-155000>       Peak rate(Kbps)

    inarp            Inverse ARP enable

    oam              OAM loopback enable

    <cr>

rpm01(config-subif)#atm pvc 66 0 66 aal5snap

rpm01(config-subif)#exit

rpm01(config)#rpmrscprtn ?

    par              Partition for PAR

    pnni             Partition for PNNI

    tag              Partition for TAG

rpm01(config)#rpmrscprtn par ?

    <0-100>          Ingress Percent Bandwidth

rpm01(config)#rpmrscprtn par 100 ?

    <0-100>          Egress Percent Bandwidth

rpm01(config)#rpmrscprtn par 100 100 ?

    <0-255>          Minimum VPI Value

rpm01(config)#rpmrscprtn par 100 100 0 ?

    <0-255>          Maximum VPI Value

rpm01(config)#rpmrscprtn par 100 100 0 255 ?

    <0-3840>         Minimum VCI Value

rpm01(config)#rpmrscprtn par 100 100 0 255 0 ?

    <0-3840>         Maximum VCI Value

rpm01(config)#rpmrscprtn par 100 100 0 255 0 3840 ?

    <0-4080>         Number of LCNs

rpm01(config)#rpmrscprtn par 100 100 0 255 0 3840 4080

rpm01(config)#addcon ?

    vcc              Add a vcc connection

    vpc              Add a vpc connection

rpm01(config)#addcon vcc ?

    Switch           Switch Virtual Interface

rpm01(config)#addcon vcc sw ?

    <1-16>           Chassis slot number

rpm01(config)#addcon vcc sw 9/?

    <0-1>            Switch interface number

rpm01(config)#addcon vcc sw 9/1?

    <0-1>            Switch sub-interface number

rpm01(config)#addcon vcc sw 9/1.66 ?

    <1-3824>         local VCI value

rpm01(config)#addcon vcc sw 9/1.66 66 ?

    rname            remote node name

    rslot            Remote slot number

rpm01(config)#addcon vcc sw 9/1.66 66 rslot ?

    <0-30>           Remote slot number

rpm01(config)#addcon vcc sw 9/1.66 66 rslot 0 ?

    <0-512>          Remote interface

rpm01(config)#addcon vcc sw 9/1.66 66 rslot 0 1 ?

    <0-255>          Remote VPI

rpm01(config)#addcon vcc sw 9/1.66 66 rslot 0 1 0 ?

    <0-65535>        Remote VCI

rpm01(config)#addcon vcc sw 9/1.66 66 rslot 0 1 0 66 ?

    cost             Maximum connection cost

    master           Master end of the ATM connection

    priority         Routing priority

    restriction      Restricted Trunk Type

    rmcr             Connection Remote MCR

    rpcr             Connection Remote PCR

    rutil            Connection Remote percent utilization

    util             Connection precent utilization

    <cr>

rpm01(config)#addcon vcc sw 9/1.66 66 rslot 0 1 0 66 master ?

    local            Local option

    remote           Remote option

rpm01(config)#addcon vcc sw 9/1.66 66 rslot 0 1 0 66 master local ?

    cost             Maximum connection cost

    priority         Routing priority

    restriction      Restricted Trunk Type

    rmcr             Connection Remote MCR

    rpcr             Connection Remote PCR

    rutil            Connection Remote percent utilization

    util             Connection precent utilization

    <cr>

rpm01(config)#addcon vcc sw 9/1.66 66 rslot 0 1 0 66 master local

Note The above example adds a connection to the active PXM.
The RPM is the MASTER and not the slave.
SlotNo = 0 (zero) which points to the active PXM.

rpm01(config)#exit

rpm01#wr mem

Building configuration...

rpm01#wr t

Building configuration...

Current configuration:

version 12.0

no service pad

service timestamps debug uptime

service timestamps log uptime

no service password-encryption

hostname rpm01

boot system c:rpm-js-mz.120-2.5.T

enable password cisco

ip subnet-zero

interface FastEthernet1/1

no ip address

no ip directed-broadcast

shutdown

interface Ethernet2/1

no ip address

no ip directed-broadcast

shutdown

interface Ethernet2/4

no ip address

no ip directed-broadcast

shutdown

interface Switch9/1

no ip address

no ip directed-broadcast

interface Switch9/1.66 point-to-point

ip address 6.6.6.6 255.255.255.0

no ip directed-broadcast

atm pvc 66 0 66 aal5snap

ip classless

line con 0

transport input none

line aux 0

line vty 0 4

password cisco

login

rpmrscprtn PAR 100 100 0 255 0 3840 4080

addcon vcc switch 9/1.66 66 rslot 0 1 0 66 master local

end

rpm01#cc 7

(session redirected)

PXM configuration

popeye01.1.7.PXM.a > dspcons (connection added is shown in blue)

dspcons

This End        Node Name     Other End     Status

1.1.0.0         popeye01      7.1.10.100    OK

2.1.0.100       popeye01      7.1.0.100     OK

3.1.20.200      popeye01      7.1.20.200    OK

7.1.0.100       popeye01      2.1.0.100     OK

7.1.10.100      popeye01      1.1.0.0       OK

7.1.20.200      popeye01      3.1.20.200    OK

7.1.0.66        popeye01      9.1.0.66      OK

9.1.0.66        popeye01      7.1.0.66      OK

popeye01.1.7.PXM.a > addcon

addcon

ERR: incorrect number of parameters: (not enough)

Syntax:     addcon "port_no conn_type local_VPI local_VCI service [mastership]

                [remoteConnId]"

            port_no -- a number 1..32

            conn_type -- a number 1..2 (1: vpc 2: vcc)

            local_VPI -- a number 0..4095

            local_VCI -- a number 0..65535

            service -- a number 1..4 (1:cbr 2:vbr 3:abr 4:ubr)

            mastership -- a number 1..2 (1:master 2:slave default:2)

            remoteConnId -- a string (format: NodeName.SlotNo.PortNo.VPI.VCI),

                required if mastership is 1 (master)

popeye01.1.7.PXM.a > addcon 1 2 0 66 1 2 popeye01.9.1.0.66

addcon 1 2 0 66 1 2 popeye01.9.1.0.66

Connection ID: popeye01.0.1.0.66

Note The above example completes the RPM connection.
The PXM is NOT the master but the slave.

Setting Up Connections Between CWM and the RPM

In an MGX 8850 standalone application, you need to set up and configure connections between the Cisco WAN Manager (CWM) and the RPM in order to access and configure the PXM module through the RPM. Do this by adding a connection to the 7.34 port on the PXM.

On the RPM Side

Use the following configuration procedure on the RPM side to set up this connection.

Step 1 Add a sub-interface and provide an IP address and a VPI/VCI.

Step 2 Enter the addcon command to add a connection to the 7.34 port on the PXM and configure this connection as Master.

Note This is the only place that the remote slot number is designated as 7 for PXM.

Step 3 Verify the connection by entering the show switch connection command. The connection should be in sync.

Step 4 Add a static route for the ATM IP address of the PXM pointing to the sub-interface that was added above in Step 1.

Step 5 Verify that the static route exists in the RPM by entering the show ip route command.

On the PXM Side

Use the following configuration procedure on the PXM side to set up this connection.

Step 1 Configure an ATM IP address using the cnfifip command.

Step 2 Verify that the connection added from the RPM is available in the PXM by entering the dspcons command.

Note The LAN IP and IP relay address need to be on different networks.

The connection should be in OK state.

Step 3 Verify that the PXM ATM IP address is accessible from RPM by using the ping command.

Step 4 Add a route on the CWM to the PXM ATM IP address pointing to the RPM Ethernet IP address.

Step 5 ping the PXM ATM IP address from CWM.

You should now be able to access the MGX 8850, MGX 8250, or MGX 8230 shelf from CWM via the RPM.

Sample CWM-PXM Configuration

Here is a sample configuration linking the CWM with the PXM through the RPM module.

On the RPM Side

The following screen capture displays how the connection looks from the RPM.

interface Switch1.1 point-to-point

ip address 11.11.11.1 255.255.255.252

no ip route-cache

no ip mroute-cache

pvc 0/10

encapsulation aal5snap

ip route 0.0.0.0 0.0.0.0 Ethernet1/1

ip route 172.1.1.0 255.255.255.0 Switch1.1                   <---- Important

rpmrscprtn PAR 100 100 0 255 0 3840 4080

addcon auto_synch off

addcon vcc switch 1.1 10 rslot 7 34 0 34 master local

Show commands

netboot-rpm2#show switch connections

Synch

1Vpi   lVci     remoteNodeName   remoteSlot remoteIf  rVpi   rVci  Status

 0      10                        7          34        0      34   inSynch

netboot-rpm2#show ip route

Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP

D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area

N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2

E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP

i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS

inter area

* - candidate default, U - per-user static route, o - ODR

P - periodic downloaded static route

Gateway of last resort is 0.0.0.0 to network 0.0.0.0

172.1.0.0/24 is subnetted, 1 subnets

S       172.1.1.0 is directly connected, Switch1.1

172.29.0.0/24 is subnetted, 1 subnets

C       172.29.37.0 is directly connected, Ethernet1/1

10.0.0.0/8 is variably subnetted, 2 subnets, 2 masks

S       10.10.10.2/32 is directly connected, Switch1.1

C       10.10.10.0/24 is directly connected, Loopback0

11.0.0.0/30 is subnetted, 1 subnets

C       11.11.11.0 is directly connected, Switch1.1

S*   0.0.0.0/0 is directly connected, Ethernet1/1

netboot-rpm2#

Verification of PXM ATM/ip address access from RPM

netboot-rpm2#ping 172.1.1.201

Type escape sequence to abort.

Sending 5, 100-byte ICMP Echos to 172.1.1.201, timeout is 2 seconds:

!!!!!

Success rate is 100 percent (5/5), round-trip min/avg/max = 1/2/4 ms

netboot-rpm2#

On the PXM Side

The following screen capture displays how the connection looks from the PXM.

mgx2.1.7.PXM.a > dspifip

Interface        Flag  IP Address       Subnetmask       Broadcast Addr

--------------  ----  ---------------  ---------------   ---------------

Ethernet/lnPci0  UP    172.29.37.91     255.255.255.0    172.29.37.255

SLIP/sl0         DOWN  0.0.0.0          255.0.0.0        (N/A)

ATM/atm0         UP    172.1.1.201      255.255.255.0    172.1.1.255

mgx2.1.7.PXM.a > dspcons

This End        Node Name       Other End       Status

2.1.0.10        mgx2            7.34.0.34       OK

7.34.0.34       mgx2            2.1.0.10        OK

mgx2.1.7.PXM.a > dspcon 2.1.0.10

Conn Par Addr       : 2.1.0.10

Vc Index            : 805306369

Conn SM Addr        : Ept:      vpi = 0 vci = 10 vpc = 0

ifNum = 0x20001    conNum = 0x7fff     glcn = 0x2c1      lcn = 26

qosFwd = 263 qosBwd = 263 pcrFwd = 353208 pcrBwd = 353208 mcrFwd =

0 mcrBwd

= 0

Remote Node Name    : mgx2

Remote Conn PAR Addr: 7.34.0.34

Remote Conn SM  Addr: Ept:      vpi = 0 vci = 34 vpc = 0

ifNum = 0x70022    conNum = 0x7fff     glcn = 0x2c0      lcn = 0

qosFwd = 263 qosBwd = 263 pcrFwd = 353208 pcrBwd = 353208 mcrFwd =

0 mcrBwd

= 0

OE VC Index         : 805306369

Oper Status         : OK

Conn Failure Reason :

RRT Failure Reason  :

Admin Status        : UP

Route               :

Setting Up Connections Between Service Modules and the RPM

To complete a RPM-to-service module connection, configure the connection between the service module and the PXM.

Types of Service Modules

Service modules can be of various types, including FRSM (Frame Relay Service Module), AUSM (ATM UNI Service Module), and VISM (Voice Interworking Service Module).

•AUSM—The AUSM-8T1/E1 is a multipurpose card that supports up to 8 T1 or E1 ports.

•VISM—VISM is a multi-DSP, co-processing card and software package that adds voice over IP or voice over ATM AAL2 capabilities to the MGX 8850 platform. The MGX 8850 uses this new feature card along with LAN/WAN routing capabilities to provide a 192/240 channel gateway for VoIP packetized voice traffic to and from TDM traffic.

•FRSM—The FRSM is a two-card set consisting of an FRSM front card (channelized or fractional, T1 or E1, 8 port) and either an 8T1, or 8E1 port adapter back card. The FRSM converts Frame Relay packets into ATM cells. Other FRSMs are available with T3/E3, channelized T3, V.35, X21, and HSSI interfaces of varying supported speeds, depending upon service module type.

•FRSM-VHS—The FRSM-VHS is a two-card set consisting of an FRSM-VHS front card (channelized or fractional, T3 or E3, 8 port) and either a 2T3, 2E3, HS1, HS2 or 2CT3 port adapter back card. The FRSM converts Frame Relay packets into ATM cells.

Data Forwarding to RPMs

Service modules can be configured to forward data to the RPMs in one of two modes: port forwarding or connection forwarding.

FRSM Frame Aggregation: Port Forwarding

In this mode, all frames received on a port are forwarded to the router for L3 processing. For example, a FRSM T1 could be configured for PPP IP access, by doing the following.

1. Setting up a frame forwarding (FF) connection from a FRSM T1 port to the RPM cellbus address on VPI/VCI.

2. Configuring the router to terminate PPP frames forwarded over an ATM connection on the ATM Deluxe Port Adaptor port on VCI 0/xFrame-forwarding (a proprietary method whereby all HDLC frames received on a port are converted to ATM AAL5 frames with a null encapsulation and sent over a single VC). Cisco has already implemented code to terminate frame-forwarded PPP over ATM.

The data flow for a PPP connection destined for the RPM is shown in the figure below. The packet enters the FRSM module as PPP and is frame forwarded to the RPM. The RPM receives the packet in PPP over ATM because MGX 8850 internal connectivity is ATM. The RPM runs software that works with PPP over ATM encapsulation, allowing the router to reach the IP layer and route the packet to its destination (such as the Internet). Packets then destined to the Internet via a WAN network are then sent back to the PXM, and out the ATM uplink.

Figure 6-2 Internal Path of a PPP Packet Destined for RPM

PPP over ATM Example

In this PPP over ATM example, the FRSM is in slot 18 and RPM A is in slot 12. A serial port on Router B is connected to the FRSM line 1.

***

Router B (connected to line 1 of FRSM) configuration example:

interface Serial5/0

ip address 192.168.100.2 255.255.255.0

encapsulation ppp

***

The following is an example of a FRSM configuration. (See FRSM documentation for complete command syntax.)

Step 1 Configure the line.

SQureshi.1.18.FRSM.a> addln 1

Step 2 Configure a frame-forwarding port on the line.

SQureshi.1.18.FRSM.a> addport 1 1 2 1 24 3

Step 3 Configure a frame-forwarding channel from the port to the RPM.

Step 4 Connect DLCI 1000 on the port to a unique VCI on the RPM, using VPI 0.

SQureshi.1.18.FRSM.a> addcon 1 1000 1536000 5 2 1 2 SQureshi.12.1.0.1001

***

RPM configuration example:

interface Virtual-Template12/1

ip address 192.168.100.12 255.255.255.0

interface Switch12/1.100 point-to-point

atm pvc 100 0 1001 aal5ciscoppp Virtual-Template12/1

rpmrscprtn par 100 100 0 255 0 3840 4080

addcon vcc Switch 12/1.100 1001 rslot 18 1 0 1000 master local

***

The following example displays how to verify connectivity.

RPM A--

rpm_slot12# show atm vc 100

Switch12/1.100:VCD:100, VPI:0, VCI:1001

UBR, PeakRate:149760

AAL5-CISCOPPP, etype:0x9, Flags:0xC2A, VCmode:0x0

OAM frequency:0 second(s)

InARP DISABLED

Transmit priority 4

InPkts:57, OutPkts:90, InBytes:1828, OutBytes:2068

InPRoc:57, OutPRoc:90

InFast:0, OutFast:0, InAS:0, OutAS:0

InPktDrops:0, OutPktDrops:0

CrcErrors:0, SarTimeOuts:0, OverSizedSDUs:0

OAM cells received:0

OAM cells sent:0

Status:UP

PPP:Virtual-Access12/1 from Virtual-Template12/1

rpm_slot12#show interface Virtual-Template12/1

Virtual-Access12/1 is up, line protocol is up

  Hardware is Virtual Access interface

  Internet address is 192.168.100.12/24

  MTU 1500 bytes, BW 100000 Kbit, DLY 100000 usec,

     reliablility 255/255, txload 1/255, rxload 1/255

  Encapsulation PPP, loopback not set

  Keepalive set (10 sec)

  DTR is pulsed for 5 seconds on reset

  LCP Open

  Open:IPCP

  Bound to Switch12/1.100 VCD:100, VPI:0, VCI:1001

  Cloned from virtual-template:1

  Last input 00:00:07, output never, output hang never

  Last clearing of "show interface" counters 00:06:17

  Queueing strategy:fifo

  Output queue 0/40, 0 drops; input queue 0/75, 0 drops

  5 minute input rate 0 bits/sec, 0 packets/sec

  5 minute output rate 0 bits/sec, 0 packets/sec

     59 packets input, 1632 bytes, 0 no buffer

     Received 59 broadcasts, 0 runts, 0 giants, 0 throttles

     0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort

     92 packets output, 2100 bytes, 0 underruns

     0 output errors, 0 collisions, 0 interface resets

     0 output buffer failures, 0 output buffers swapped out

     0 carrier transitions

rpm_slot12#ping 192.168.100.2

Type escape sequence to abort.

Sending 5, 100-byte ICMP Echos to 192.168.100.2, timeout is 2 seconds:

!!!!!

Success rate is 100 percent (5/5), round-trip min/avg/max = 4/4/8 ms

rpm_slot12#sh ip ro

...

     192.168.100.0/24 is variably subnetted, 2 subnets, 2 masks

C       192.168.100.0/24 is directly connected, Virtual-Access12/1

C       192.168.100.2/32 is directly connected, Virtual-Access12/1

Router B --

router_B#sh int s5/0

Serial5/0 is up, line protocol is up

  Hardware is M4T

  Internet address is 192.168.100.2/24

  MTU 1500 bytes, BW 1544 Kbit, DLY 20000 usec,

     reliablility 255/255, txload 1/255, rxload 1/255

  Encapsulation PPP, crc 16, loopback not set, keepalive set (10 sec)

  LCP Open

  Listen:CDPCP

  Open:IPCP

  Last input 00:00:00, output 00:00:00, output hang never

  Last clearing of "show interface" counters never

  Input queue:0/75/0 (size/max/drops); Total output drops:0

  Queueing strategy:weighted fair

  Output queue:0/1000/64/0 (size/max total/threshold/drops)

     Conversations  0/1/256 (active/max active/max total)

     Reserved Conversations 0/0 (allocated/max allocated)

  5 minute input rate 0 bits/sec, 0 packets/sec

  5 minute output rate 0 bits/sec, 0 packets/sec

     35953 packets input, 529169 bytes, 0 no buffer

     Received 35639 broadcasts, 0 runts, 1 giants, 0 throttles

     211 input errors, 176 CRC, 0 frame, 0 overrun, 0 ignored, 35 abort

     36172 packets output, 487073 bytes, 0 underruns

     0 output errors, 0 collisions, 2465 interface resets

     0 output buffer failures, 0 output buffers swapped out

     2475 carrier transitions     DCD=up  DSR=up  DTR=up  RTS=up  CTS=up

router_B#sh ip ro

...

     192.168.100.0/24 is variably subnetted, 2 subnets, 2 masks

C       192.168.100.12/32 is directly connected, Serial5/0

C       192.168.100.0/24 is directly connected, Serial5/0

router_B#ping 192.168.100.12

Type escape sequence to abort.

Sending 5, 100-byte ICMP Echos to 192.168.100.12, timeout is 2 seconds:

!!!!!

Success rate is 100 percent (5/5), round-trip min/avg/max = 4/5/8 ms

FRSM --

SQureshi.1.18.FRSM.a > dsplns

  Line  Conn      Type     Status/Coding      Length     XmtClock Alarm Stats

        Type                                             Source         Alarm

  ----  ----- ------------ ------ -------- ------------- -------- ----- -----

  18.1  RJ-48 dsx1ESF         Ena/dsx1B8ZS 0-131 ft      LocalTim  No    No

  18.2  RJ-48 dsx1ESF         Dis/dsx1B8ZS 0-131 ft      LocalTim

  18.3  RJ-48 dsx1ESF         Dis/dsx1B8ZS 0-131 ft      LocalTim

  18.4  RJ-48 dsx1ESF         Dis/dsx1B8ZS 0-131 ft      LocalTim

  18.5  RJ-48 dsx1ESF         Dis/dsx1B8ZS 0-131 ft      LocalTim

  18.6  RJ-48 dsx1ESF         Dis/dsx1B8ZS 0-131 ft      LocalTim

  18.7  RJ-48 dsx1ESF         Dis/dsx1B8ZS 0-131 ft      LocalTim

  18.8  RJ-48 dsx1ESF         Dis/dsx1B8ZS 0-131 ft      LocalTim

  LineNumOfValidEntries:8

Syntax :dsplns

SQureshi.1.18.FRSM.a > dspports

Port     Ena/Speed EQServ SignalType   T391 T392 N391 N392 N393  Type    Alarm ELMI

                   Ratio

-------- --- ----- ------ ------------ ---- ---- ---- ---- ---- -------- ----- ----

18.1.1   Add/1536k   1    NoSignaling   10   15    6    3    4 frForwar  No    Off

  Number of ports:             1

  PortDs0UsedLine1:            0x00ffffff

  PortDs0UsedLine2:            0x00000000

  PortDs0UsedLine3:            0x00000000

  PortDs0UsedLine4:            0x00000000

  PortDs0UsedLine5:            0x00000000

  PortDs0UsedLine6:            0x00000000

  PortDs0UsedLine7:            0x00000000

  PortDs0UsedLine8:            0x00000000

  PortNumNextAvailable:        119

Syntax :dspports

SQureshi.1.18.FRSM.a > dspchans

      DLCI      Chan EQ  I/EQDepth  I/EQDEThre  I/EECNThre  Fst/ DE Type  Alarm

  ------------- ---- -- ----- ----- ----- ----- ----- ----- --- --- ----- -----

  18.1.1.1000   101  2  65535/65535 32767/32767  6553/6553  Dis/Dis frFor  No

  Number of channels:   1

  ChanNumNextAvailable: 30

Syntax :dspchans

*****

Connection Forwarding

In this mode, all frames received on a given connection are forwarded to the router using the appropriate ATM encapsulation. For example, Frame Relay connections on a FRSM port could be forwarded to the RPM by

•Translating a Frame Relay connection to an ATM connection or service interworking (FRF.8)

•Configuring DLCI to the RPM cellbus address with VPI/VCI 0/x

•Configuring the RPM to terminate Frame Relay to ATM connections (RFC 1483) on the ATM interface on VCI 0/x

The data flow for a native Frame Relay connection destined to the RPM is shown in Figure 6-3. This data flow is identical to that of PPP packets, but the encapsulation techniques are different. Standard Frame Relay is encapsulated using RFC1490. When a packet is received at the FRSM that has been encapsulated using RFC1490, the standard FR-ATM service interworking translation mode (FRF.8) is performed so that when the packet is forwarded to the RPM it is encapsulated using RFC1483. The router also reads RFC1483, enabling it to reach the IP layer, and route the packet.

Figure 6-3 Path of a Native Frame Relay Connection

Frame over ATM Example

In this example, the FRSM-8T1 is in slot 18 of the MGX 8850, while the RPM is in slot 12.

A Frame Relay router (connected to line 1 of FRSM) configuration example follows:

interface Serial0

ip address 192.168.101.2 255.255.255.0

encapsulation frame-relay IETF

***

The following is an example of a FRSM configuration. (See FRSM documentation for complete command syntax.)

Step 1 Configure the line.

SQureshi.1.18.FRSM.a> addln 1

Step 2 Configure a Frame Relay port on the line, with StrataLMI signaling.

SQureshi.1.18.FRSM.a> addport 1 1 2 1 24 1

SQureshi.1.18.FRSM.a> xcnfport -pt 1 -sig 3

Step 3 Configure a service-interworking or network-interworking channel from the port to the RPM. Connect each DLCI on the port to a unique VCI on the RPM, using VPI 0.

SQureshi.1.18.FRSM.a> addcon 1 212 1536000 3 2 1 2 SQureshi.12.1.0.101

***

RPM configuration example:

interface Switch12/1.101 multipoint

ip address 192.168.101.12 255.255.255.0

atm pvc 101 0 101 aal5snap inarp

rpmrscprtn par 100 100 0 255 0 3840 4080

addcon vcc Switch 12/1.101 101 rslot 18 1 0 212 master local

***

To verify connectivity:

RPM --

rpm_slot12#ping 192.168.101.2

Type escape sequence to abort.

Sending 5, 100-byte ICMP Echos to 192.168.101.2, timeout is 2 seconds:

!!!!!

Success rate is 100 percent (5/5), round-trip min/avg/max = 4/5/8 ms

rpm_slot12#sh arp

Protocol  Address          Age (min)  Hardware Addr   Type   Interface

Internet  192.168.101.2           0    0 / 101        ATM    Switch12/1.101

rpm_slot12#

Frame Relay router --

rpm7206_2#show frame-relay map

Serial5/0 (up):ip 192.168.101.12 dlci 212(0xD4,0x3440), dynamic,

              broadcast,

              IETF, BW = 1536000, status defined, active

rpm7206_2#ping 192.168.101.12

Type escape sequence to abort.

Sending 5, 100-byte ICMP Echos to 192.168.101.12, timeout is 2 seconds:

!!!!!

Success rate is 100 percent (5/5), round-trip min/avg/max = 4/4/8 ms

rpm7206_2#

FRSM --

SQureshi.1.18.FRSM.a > dspchans

      DLCI      Chan EQ  I/EQDepth  I/EQDEThre  I/EECNThre  Fst/ DE Type  Alarm

  ------------- ---- -- ----- ----- ----- ----- ----- ----- --- --- ----- -----

  18.1.1.212    121  2  65535/65535 32767/32767  6553/6553  Dis/Dis SIW-X  No

  Number of channels:   1

  ChanNumNextAvailable: 26

Syntax :dspchans

SQureshi.1.18.FRSM.a > dspports

Port     Ena/Speed EQServ SignalType   T391 T392 N391 N392 N393  Type    Alarm ELMI

                   Ratio

-------- --- ----- ------ ------------ ---- ---- ---- ---- ---- -------- ----- ----

18.1.1   Add/1536k   1    StrataLMI      10   15    6    3    4 frameRel  No    Off

  Number of ports:             1

  PortDs0UsedLine1:            0x00ffffff

  PortDs0UsedLine2:            0x00000000

  PortDs0UsedLine3:            0x00000000

  PortDs0UsedLine4:            0x00000000

  PortDs0UsedLine5:            0x00000000

  PortDs0UsedLine6:            0x00000000

  PortDs0UsedLine7:            0x00000000

  PortDs0UsedLine8:            0x00000000

  PortNumNextAvailable:        83

Syntax :dspports

SQureshi.1.18.FRSM.a > dsplns

  Line  Conn      Type     Status/Coding      Length     XmtClock Alarm Stats

        Type                                             Source         Alarm

  ----  ----- ------------ ------ -------- ------------- -------- ----- -----

  18.1  RJ-48 dsx1ESF         Ena/dsx1B8ZS 0-131 ft      LocalTim  No    No

  18.2  RJ-48 dsx1ESF         Dis/dsx1B8ZS 0-131 ft      LocalTim

  18.3  RJ-48 dsx1ESF         Dis/dsx1B8ZS 0-131 ft      LocalTim

  18.4  RJ-48 dsx1ESF         Dis/dsx1B8ZS 0-131 ft      LocalTim

  18.5  RJ-48 dsx1ESF         Dis/dsx1B8ZS 0-131 ft      LocalTim

  18.6  RJ-48 dsx1ESF         Dis/dsx1B8ZS 0-131 ft      LocalTim

  18.7  RJ-48 dsx1ESF         Dis/dsx1B8ZS 0-131 ft      LocalTim

  18.8  RJ-48 dsx1ESF         Dis/dsx1B8ZS 0-131 ft      LocalTim

  LineNumOfValidEntries:8

Syntax :dsplns

SQureshi.1.18.FRSM.a >

ATM Service

The ATM UNI Service Modules (AUSMs) provide native ATM UNI (compliant with ATM Forum v3.0 and v3.1) interfaces at T1 and E1 speeds, with eight ports per card, providing up to16 Mbps of bandwidth for ATM service interfaces. This is compliant with the physical and ATM layer, but not with signaling.

Consistent with Cisco Intelligent QoS Management features, AUSM cards support per-VC queuing on ingress and multiple class-of-service queues on egress. AUSM cards fully support continuous bit rate (CBR), variable bit rate (VBR), unspecified bit rate (UBR), and available bit rate (ABR) service classes.

The AUSM-8 cards also support ATM Forum-compliant inverse multiplexing for ATM (IMA). This capability enables multiple T1 or E1 lines to be grouped into a single high-speed ATM port. This
N x T1 and N x E1 capability fills the gap between T1/E1 and T3/E3, providing bandwidth up to
12 Mbps (N x T1) or 16 Mbps (N x E1) without requiring a T3/E3 circuit.

A single AUSM card can provide hot standby redundancy for all active AUSM cards of the same type in the shelf (1:N redundancy).

AUSM modules are supported by standards-based management tools, including SNMP, TFTP (for configuration and statistics collection), and a command line interface. The Cisco WAN Manager application also provides full graphical user interface support for connection management, and CiscoView software provides equipment management.

Table 6-1 summarizes the key attributes of the AUSM cards.

Table 6-1 AUSM Card Specifications
	AUSM-8T1	AUSM-8E1
Physical interface	T1	E1
Number of ports	8	8
Line Speed	1.544 Mbps +/- 50 bps	2.048 Mbps +/- 50 bps
Logical ports	8 maximum	8 maximum
Maximum connections	1000	1000
Line coding	B8ZS AMI	HDB3 AMI
BERT	Yes	Yes
Loopback	Extended loopback pattern generation and verification	Loop-up, loop-down pattern generation and verification
Redundancy	1:N	1:N
Back Card	RJ48-8T1	RJ48-8E1

Setting Up the FRSM Connections to the PXM

The following procedure may be used for configuring the FRSM connections to the PXM. The AUSM is slightly different and is in the section "Setting Up the AUSM Connection to the PXM," later in this chapter.

Step 1 Go to the PXM and login.

Step 2 Enter the cc command to go to the slot where the service module is.

8250name.1.slot.FRSM.a> cc 12

Step 3 Enter dsplns to view the line interfaces.

8250name.1.slot.FRSM.a> dsplns

Step 4 To establish the physical connection between the service module and the PXM, enter the addln command to enable a line.

8250name.1.slot.FRSM.a> addln 2

Step 5 Enter the dspports command to display ports.

8250name.1.slot.FRSM.a> dspports

Step 6 Enter the addport command to add a port.

8250name.1.slot.FRSM.a> addport port_num line_num port_type

Step 7 Enter the dspports command to display ports.

8250name.1.slot.FRSM.a> dspports

Step 8 Enter the xcnfport command to choose signaling type.

8250name.1.slot.FRSM.a> xcnfport "-pt" (PortNum) -sig (type)"

<cr>

Step 9 Configure the logical link between the service module and the PXM by entering the addcon command.

8250name.1.slot.FRSM.a> addcon "port dlci cir chan_type [CAC]
[Controller_Type][mastership][remoteConnId]"

The parameters are

•port number—values ranging from 1-192 are accepted for T1 and 1-248 for E1

•DLCI number—value ranging from 0 to 1023

•committed rate—0-1536000 bps for T1; 0-2048000 bps for E1

•chan type—values 1-5:

–1=NIW

–2=SIW-transparent

–3=SIW-xlation

–4=FUNI

–5=frForward

•CAC—Connection Admission Control (optional); 1 = enable, 2 = disable (default)

•Controller Type (Signaling)—1:PVC (PAR) - Default , 2:SPVC (PNNI)

•mastership—1 for master, 2 for slave

•Remote end Connection ID—Formated as follows:

–NodeName.SlotNo.PortNo.Dlci OR

–NodeName.SlotNo.PortNo.ControllerId.Dlci for FR end point OR

–NodeName.SlotNo.PortNo.VPI.VCI for ATM end point.

Where controller ID can be 1(PAR), 2(PNNI), 3(TAG)

FRSM-PXM Configuration Example

The following example displays a FRSM-PXM configuration.

popeye01.1.2.FRSM.a > dspcd

    ModuleSlotNumber:           2

    FunctionModuleState:        Active

    FunctionModuleType:         FRSM-8T1

    FunctionModuleSerialNum:    788039

    FunctionModuleHWRev:        ab

    FunctionModuleFWRev:        5.0.00_04Feb99_2_CIR

    FunctionModuleResetReason:  Reset by ASC from Cell Bus

    LineModuleType:             LM-RJ48-8T1

    LineModuleState:            Present

    mibVersionNumber:           20

    configChangeTypeBitMap:     CardCnfChng, LineCnfChng

    cardIntegratedAlarm:        Clear

    fab number:                 28-2069-02

popeye01.1.2.FRSM.a >

popeye01.1.2.FRSM.a > addln

ERR : incorrect number of parameters (not enough)

Syntax :    addln "line_num"

            line number -- values ranging from 1-8 are accepted, for FRSM_8

    possible errors are :

    a) illegal/invalid parameters

    b) line aleady exists

popeye01.1.2.FRSM.a > addln 1

popeye01.1.2.FRSM.a > cnfln

ERR : incorrect number of parameters (not enough)

Syntax :    cnfln "line_num line_code line_len clk_src [E1-signaling]"

            line number -- values ranging from 1-8 are accepted, for FRSM_8

            line code -- 2 for B8ZS (T1),

                           3 for HDB3 (E1),

                           4 for AMI (T1/E1)

            line length -- 10-15 for T1,

                           8 for E1 with SMB line module,

                           9 for E1 with RJ48 line module

            clock source -- clock source : 1 for loop clock, 2 for local clock

            E1 signaling -- CAS: CAS, no CRC; CAS_CRC: CAS, with CRC;

                             CCS: CCS, no CRC; CCS_CRC: CCS, with CRC

                             CLEAR : Clear E1

    possible errors are :

    a) illegal/invalid parameters

    b) line doesn't exist, use addln to add line first

    c) loopback/bert is on

popeye01.1.2.FRSM.a > cnfln 1 2 10 2

popeye01.1.2.FRSM.a > dsplns

    Line  Conn      Type     Status/Coding      Length     XmtClock Alarm Stats

          Type                                             Source         Alarm

    ----  ----- ------------ ------ -------- ------------- -------- ----- -----

    2.1   RJ-48 dsx1ESF         Mod/dsx1B8ZS 0-131 ft      LocalTim  No    No

    2.2   RJ-48 dsx1ESF         Dis/dsx1B8ZS 0-131 ft      LocalTim

    2.3   RJ-48 dsx1ESF         Dis/dsx1B8ZS 0-131 ft      LocalTim

    2.4   RJ-48 dsx1ESF         Dis/dsx1B8ZS 0-131 ft      LocalTim

    2.5   RJ-48 dsx1ESF         Dis/dsx1B8ZS 0-131 ft      LocalTim

    2.6   RJ-48 dsx1ESF         Dis/dsx1B8ZS 0-131 ft      LocalTim

    2.7   RJ-48 dsx1ESF         Dis/dsx1B8ZS 0-131 ft      LocalTim

    2.8   RJ-48 dsx1ESF         Dis/dsx1B8ZS 0-131 ft      LocalTim

    LineNumOfValidEntries: 8

Syntax : dsplns

popeye01.1.2.FRSM.a > addport

ERR : incorrect number of parameters (not enough)

Syntax :    addport "port_num line_num ds0_speed begin_slot num_slot port_type"

            port number -- values ranging from 1-192 are accepted for T1 and 1-248

                for E1

            line number -- value ranging from 1 to 8

            DS0 speed -- 1 for 56K, 2 for 64K

            beginning slot -- beginning time slot in 1 base

            number of slot -- number of DS0 time slots assigned to

            port type -- values 1-3, 1=frame relay, 2=FUNI mode-1a, 3=frForward

    possible errors are :

    a) illegal/invalid parameters

    b) port already exists

    c) line not enabled

    d) line not channelized

popeye01.1.2.FRSM.a > addport 1 1 2 1 2 1

popeye01.1.2.FRSM.a > upport

ERR : incorrect number of parameters (not enough)

Syntax :    upport "port_num "

            port number -- values ranging from 1-192 are accepted for T1 and 1-248

    for E1

    possible errors are :

    a) illegal/invalid parameter for port number

    sprint01.1.2.FRSM.a > upport 1

popeye01.1.2.FRSM.a > dspports

Port     Ena/Speed EQServ SignalType   T391 T392 N391 N392 N393  Type    Alarm ELMI

                   Ratio

-------- --- ----- ------ ------------ ---- ---- ---- ---- ---- -------- ----- ----

2.1.1    Mod/ 128k   1    NoSignaling  10   15    6    3    4  frameRel   No   Off

    Number of ports: 1

    PortDs0UsedLine1:             0x00000003

    PortDs0UsedLine2:             0x00000000

    PortDs0UsedLine3:             0x00000000

    PortDs0UsedLine4:             0x00000000

    PortDs0UsedLine5:             0x00000000

    PortDs0UsedLine6:             0x00000000

    PortDs0UsedLine7:             0x00000000

    PortDs0UsedLine8:             0x00000000

    PortNumNextAvailable:         19

Syntax : dspports

popeye01.1.2.FRSM.a > addcon

ERR : incorrect number of parameters (not enough)

Syntax :    addcon "port dlci cir chan_type [CAC][Controller_Type][mastership]

                [remoteConnId]"

            port number -- values ranging from 1-192 are accepted for T1 and 1-248

                for E1

            DLCI number -- value ranging from 0 to 1023

            committed rate -- 0-1536000 bps for T1; 0-2048000 bps for E1

            chan type -- values 1-5, 1=NIW 2=SIW-transparent 3=SIW-xlation 4=FUNI 5

                =frForward

            CAC -- Connection Admission Control (optional); 1 = enable, 2 = disable

                (default)

            Controller Type (Signaling) -- 1: PVC (PAR) - Default , 2: SPVC (PNNI)

            mastership -- 1 for master, 2 for slave

            Remote end Connection ID -- Format :

             NodeName.SlotNo.PortNo.Dlci OR

             NodeName.SlotNo.PortNo.ControllerId.Dlci for FR end point OR

             NodeName.SlotNo.PortNo.VPI.VCI for ATM end point.

             Where controller ID can be 1(PAR),2(PNNI),3(TAG)

    possible errors are :

    a) Illegal/Invalid parameters

    b) channel already exists

    c) port may not be up

popeye01.1.2.FRSM.a > addcon 1 100 128000 2 2 1 2 popeye01.0.1.0.100

Note SlotNo = 0 (zero) which points to the active PXM.

Setting Up the AUSM Connection to the PXM

Use the following procedure to establish an ATM UNI/NNI connection using the AUSM card. The connection is between a T1 or E1 ATM UNI on the AUSM card and an ATM service interface elsewhere in the IPX/BPX network.

Step 1 Log in to the AUSM card.

Step 2 To add the line, enter the addln command.

RPM-3 (configure)# addln <line # (between 1 and 8)>

Step 3 Enter the cnfln command for line code, line length, and clock source.

Step 4 Enter the upport command, specifying the port to be upped.

Step 5 Enter the cnfportq command to set up egress queues.

The parameters are

•Port number (1-8)

•Queue number (1-16)

•Queue priority

0 = disable queue
1 = high priority, always serve
2 = best available
3 = Min. guaranteed bandwidth
4 = Min. guaranteed bandwidth with max. rate shaping
5 = CBR with smoothing

•Service sequence number (1-16)

•Max. queue depth (1-8000)

•CLP low threshold (1-8000)

•CLP high threshold (1-8000)

•EFCI threshold (1-8000)

Step 6 Enter the addcon command to add the connection.

The parameters are

•Logical Connection (LCN 16-271)

•Connection Type (1 = vpc, 2 = vcc)

•Port Number (1-4)

•VPI (0-255)

•VCI (0-65535)

•Service Type (1 = cbr, 2 = vbr, 3 = abr)

•Queue Number (1-16)

Step 7 To configure UPC, use one of the following cnfupc commands.
cnfupc cbr
cnfupc vbr
cnfupc abr

Step 8 Enter the cnfchanfst command to configure ForeSight.

Step 9 If queue depths need to be changed, enter the cnfchanq command.

Step 10 To add IMA ports, enter the addimagrp command.

AUSM-PXM Configuration Example

The following example displays an AUSM to PXM configuration.

AUSM configuration

popeye01.1.3.AUSMB8.a > dspcd

ModuleSlotNumber:            3

FunctionModuleState:         Active

FunctionModuleType:          AUSMB-8T1

FunctionModuleSerialNum:     023113

FunctionModuleHWRev:         aa

FunctionModuleFWRev:         10.0.00_12Feb99_1

FunctionModuleResetReason:   Reset by ASC from Cell Bus

LineModuleType:              LM-RJ48-8T1

LineModuleState:             Present

mibVersionNumber:            20

configChangeTypeBitMap:      CardCnfChng, LineCnfChng

cardIntegratedAlarm:         Major

cardMajorAlarmBitMap:        Line Alarm

cardMinorAlarmBitMap:        Channel failure

fab number:                  28-2580-01

popeye01.1.3.AUSMB8.a > addln

ERR : incorrect number of parameters (not enough)

Syntax :    addln "line_num"

            line number -- values ranging from 1-8 are accepted, for AUSM-8T1/8E1,

                IMATM-T3T1/E3E1

    possible errors are :

    a) illegal/invalid parameters

    b) line aleady exists

popeye01.1.3.AUSMB8.a > addln 1

popeye01.1.3.AUSMB8.a > cnfln 1

ERR : incorrect number of parameters (not enough)

Syntax :    cnfln "line_num line_code line_len clk_src [E1-signaling]"

            line number -- values ranging from 1-8 are accepted, for AUSM-8T1/8E1,

                IMATM-T3T1/E3E1

            line code --    2 for B8ZS (T1),

                            3 for HDB3 (E1)

            line length -- 10-15 for T1, 8 for E1 with SMB module,

                            9 for E1 with RJ48 line module

            clock source -- clock source : 1 for loop clock, 2 for local clock

            E1 signaling -- CCS: CCS, no CRC; CCS_CRC: CCS, with CRC;

                           CLEAR: Clear E1

    possible errors are :

    a) illegal/invalid parameters

    b) line doesn't exist, use addln to add line first

    c) loopback/bert is on

popeye01.1.3.AUSMB8.a > cnfln 1 2 10 2

popeye01.1.3.AUSMB8.a > dsplns

    Line  Conn      Type     Status/Coding      Length     XmtClock Alarm Stats

          Type                                             Source         Alarm

    ----  ----- ------------ ------ -------- ------------- -------- ----- -----

    3.1   RJ-48 dsx1ESF         Mod/dsx1B8ZS 0-131 ft      LocalTim  Yes   No

    3.2   RJ-48 dsx1ESF         Dis/dsx1B8ZS 0-131 ft      LocalTim

    3.3   RJ-48 dsx1ESF         Dis/dsx1B8ZS 0-131 ft      LocalTim

    3.4   RJ-48 dsx1ESF         Dis/dsx1B8ZS 0-131 ft      LocalTim

    3.5   RJ-48 dsx1ESF         Dis/dsx1B8ZS 0-131 ft      LocalTim

    3.6   RJ-48 dsx1ESF         Dis/dsx1B8ZS 0-131 ft      LocalTim

    3.7   RJ-48 dsx1ESF         Dis/dsx1B8ZS 0-131 ft      LocalTim

    3.8   RJ-48 dsx1ESF         Dis/dsx1B8ZS 0-131 ft      LocalTim

    LineNumOfValidEntries: 8

Syntax : dsplns

popeye01.1.3.AUSMB8.a > addport

ERR : incorrect number of parameters (not enough)

Syntax :    addport "port_num port_type line_num"

            port number -- values ranging from 1-8

            Port Type -- 1 - UNI, 2 - NNI

            line number -- value ranging from 1 to 8

    possible errors are :

    a) Incorrect parameters

    b) Line not present

    c) Line part of another IMA port or ATM port

    d) Port already in use

popeye01.1.3.AUSMB8.a > addport 1 1 1

popeye01.1.3.AUSMB8.a > dspports

    List of ATM ports:

    ==================

    Port PortType Line# Portenable  Speed  PortState

    ---- -------- ----- ----------  -----  ---------

    3.1   UNI      1    UP           3622  Active

No IMA ports are currently active

Syntax : dspports

popeye01.1.3.AUSMB8.a > addcon

ERR : incorrect number of parameters (not enough)

Syntax :    addcon "port_num vpi vci conn_type service_type [Controller_Type] [mast

                ership] [remoteConnId]"

            port number -- values ranging from 1-8

            Channel VPI -- Virtual Path Identifier: 0 - 255

            Channel VCI -- Virtual Channel Identifier: 0 - 65535 for VCC, * for VPC

            Connection Type -- Connection Type : 0 - VCC , non zero - Local

                               VP Id of the VPC (1 to 20)

            Service Type -- Service Type: 1 - CBR, 2 - VBR, 3 - ABR, 4 - UBR

            Controller Type (Signaling) -- 1: PVC (PAR) - Default , 2: SPVC (PNNI)

            Mastership -- 1 for master, 2 for slave Default:Slave

            Remote end Connection ID -- Format : NodeName.SlotNo.PortNo.ExternalConnId

    possible errors are :

    a) Illegal/Invalid parameters

    b) channel already exists

    c) port may not be up

popeye01.1.3.AUSMB8.a > addcon 1 20 200 0 2 1 2 popeye01.0.1.20.200

Local Connection Id is : popeye01.3.1.20.200

Note This example displays how to add the AUSM connection to the active PXM.

Note SlotNo = 0 (zero) which points to the active PXM.

ATM Configuration Examples

The following sections contain examples of ATM interface configurations:

•Example of PVCs with AAL5 and LLC/SNAP Encapsulation

•Example of PVCs in a Fully Meshed Network

For examples of emulated LAN configurations, refer to the MGX 8850 Wide Area Switch Installation and Configuration.

Example of PVCs with AAL5 and LLC/SNAP Encapsulation

The following example shows how PVCs are created on the ATM interface 5/1 using LLC/SNAP encapsulation over AAL5. ATM interface 5/1 (IP address 1.1.1.2 255.255.255.0) connects with the ATM interface (IP address 1.1.1.1 255.255.255.0) at the other end of the connection. The static map list named atm1 declares that the next node is a broadcast point for multicast packets from IP.

interface switch 5/1

ip address 1.1.1.2 255.255.255.0

 map-group atm1

 atm pvc 2 0 1 aal5snap

no ip classless

map-list atm1

 ip 1.1.1.1 atm-vc 2 broadcast

The following example displays a typical ATM configuration for a PVC.

interface switch 5/1

ip address 131.108.168.112 255.255.255.0

map-group atm

atm pvc 2 2 2 aal5snap

atm pvc 6 6 6 aal5snap

atm pvc 7 7 7 aal5snap

clns router iso-igrp comet

router iso-igrp comet

net 47.0004.0001.0000.0c00.6666.00

router igrp 109

network 131.108.0.0

ip domain-name CISCO.COM

map-list atm

ip 131.108.168.110 atm-vc 7 broadcast

clns 47.0004.0001.0000.0c00.6e26.00 atm-vc 6 broadcast

ip 131.108.168.120 atm-vc 2 broadcast

using <protocol> <address> atm-vc 2 broadcast

where

•protocol = ip

Example of PVCs in a Fully Meshed Network

The configurations for RPMs A, B, and C follow. In this example, the RPMs are configured to use PVCs. Fully meshed indicates that each network node has either a physical circuit or a virtual circuit connecting it to every other network node.

Note that the two map-list statements configured in RPM A identify the ATM addresses of RPMs B and C. The two map-list statements in RPM B identify the ATM addresses of RPMs A and C. The two map list statements in RPM C identify the ATM addresses of RPMs A and B.

Fully Meshed ATM Configuration Example

In the following example, RPM A, RPM B, and RPM C are located in the same MGX 8850 chassis.

RPM A (slot 4)

ip routing

interface Switch 4/1

ip address 131.108.168.1 255.255.255.0

atm pvc 10 0 10 aal5snap

atm pvc 3 0 20 aal5snap

map-group test-a

map-list test-a

ip 131.108.168.2 atm-vc 10 broadcast

ip 131.108.168.3 atm-vc 3 broadcast

rpmrscprtn PAR 100 100 1 255 0 3840 4080

addcon vcc sw4/1 10 rslot 5 1 0 20

addcon vcc sw4/1 20 rslot 3 1 0 21

RPM B (slot 5)

ip routing

interface Switch 5/1

ip address 131.108.168.2 255.255.255.0

atm pvc 10 0 20 aal5snap

atm pvc 3 0 21 aal5snap

map-group test-b

map-list test-b

ip 131.108.168.1 atm-vc 10 broadcast

ip 131.108.168.3 atm-vc 3 broadcast

rpmrscprtn PAR 100 100 1 255 0 3840 4080

addcon vcc sw5/1 20 rslot 4 1 0 10 master local

addcon vcc sw5/1 21 rslot 3 1 0 22

RPM C (slot 3)

ip routing

interface Switch 3/1

ip address 131.108.168.3 255.255.255.0

atm pvc 3 0 21 aal5snap

atm pvc 4 0 22 aal5snap

map-group test-c

map-list test-c

ip 131.108.168.1 atm-vc 3 broadcast

ip 131.108.168.2 atm-vc 4 broadcast

rpmrscprtn PAR 100 100 1 255 0 3840 4080

addcon vcc sw3/1 21 rslot 4 1 0 20 master local

addcon vcc sw3/1 22 rslot 5 1 0 21 master local

RPM-to-Service Module DAX Connections

All the configuration examples in the following section illustrate designs where datagrams enter and leave the RPM via the switch interface, get switched on the local PXM, and leave and enter a Service Module on the same MGX 8850 shelf.

RPM-to-FRSM-8T1 ATM/Frame Relay SIW DAX Connection

In this example, IP connectivity is established between a Cisco 3620 router and the RPM blade on the MGX 8850. The T1 WAN interface card (WIC) (serial 0/0) on the Cisco 3620 is connected to physical line 1 on the Frame Relay Service Module (FRSM)-8T1 in slot 11 on the MGX 8850. A digital access and cross-connect (DAX) connection is built through the PXM to switch the cells between the FRSM and the RPM switch interface.

Figure 6-4 RPM-to-FRSM-8T1 ATM/Frame Relay SIW DAX Connection

Configuring the FRSM Interface

This example shows how to configure the FRSM interface, enable the physical line, enable a logical port on the line, and adjust the parameters as necessary.

mgx8850a.1.11.FRSM.a > addln 1

     mgx8850a.1.11.FRSM.a > dspln 1

     LineNum:                   1

       LineConnectorType:         RJ-48

       LineType:                  dsx1ESF

       LineEnable:                Enabled

       LineCoding:                dsx1B8ZS

       LineLength:                0-131 ft

       LineXmtClockSource:        LocalTiming

       LineLoopbackCommand:       NoLoop

       LineSendCode:              NoCode

       LineUsedTimeslotsBitMap:   0x0

       LineLoopbackCodeDetection: codeDetectDisabled

       LineBertEnable:            Disable

The logical port consists of timeslots 1 through 6, and uses Gang of Four Logical Management Interface (LMI) with Enhanced Local Management Interface (ELMI).

Syntax : addport "port_num line_num ds0_speed begin_slot num_slot port_type"

port number -- values ranging from 1-192 are accepted for T1 and 1-248 for E1

              line number -- value ranging from 1 to 8

              DS0 speed -- 1 for 56K,  2 for 64K

              beginning slot -- beginning time slot in 1 base

              number of slot -- number of DS0 time slots assigned to

              port type -- values 1-3, 1=frame relay, 2=FUNI mode-1a, 3=frForward

mgx8850a.1.11.FRSM.a > addport 10 1 2 1 6 1

Syntax : cnfport "portNum lmiSig asyn ELMI T391 T392 N391 N392 N393"

port number -- values ranging from 1-192 are accepted for T1 and 1-248 for E1

              LMI signaling -- (N)one (S)trataLMI au-AnnexAUNI

              du-AnnexDUNI an-AnnexANNI dn-AnnexDNNI

              asyn UPD/UFS -- (UPD = Update Status, UFS = Unsolicited Full Status)

                     (n or 1) = both dis, (y or 2) = UPD en, 3 = UFS en, 4 = both en

              Enhanced LMI -- (N or n) disable (Y or y) enable

              T391 timer -- value ranging from 5 to 30 sec.

              T392 timer -- value ranging from 5 to 30 sec.

              N391 counter -- value ranging from 1 to 255

              N392 counter -- value ranging from 1 to 10

              N393 counter -- value ranging from 1 to 10, greater than N392

mgx8850a.1.11.FRSM.a > cnfport 10 S n y

mgx8850a.1.11.FRSM.a > dspport 10

SlotNum:                      11

       PortLineNum:                  1

       PortNum:                      10

       PortRowStatus:                Mod

       PortDs0Speed:                 64k

       PortDs0ConfigBitMap(1stDS0):  0x3f(1)

       PortEqueueServiceRatio:       1

       PortFlagsBetweenFrames:       1

       PortSpeed:                    384kbps

       SignallingProtocolType:       StrataLMI

       AsynchronousMsgs:             UPD_UFS disabled

       T391LineIntegrityTimer:       10

       T392PollingVerificationTimer: 15

       N391FullStatusPollingCounter: 6

       N392ErrorThreshold:           3

       N393MonitoredEventCount:      4

       EnhancedLmi:                  On

       PortState:                    FailedDuetoSignallingFailure

       PortSignallingState:          LMI Failure

       CLLMEnableStatus:             Disable

       CLLMxmtStatusTimer:           0

       portType:                     frameRelay

       PortIngrPercentUtil:          0

       PortEgrPercentUtil:           0

       PortOversubscribed:           False

       PortSvcStatus:                Disable

       PortSvcInUse:                 Not In-Use

       PortSvcShareLcn:              Card-based

       PortSvcLcnLow:                0

       PortSvcLcnHigh:               0

       PortSvcDlciLow:               0

       PortSvcDlciHigh:              0

       PortDs0UsedLine1:             0x0000003f

       PortDs0UsedLine2:             0x00000000

       PortDs0UsedLine3:             0x00000000

       PortDs0UsedLine4:             0x00000000

       PortDs0UsedLine5:             0x00000000

       PortDs0UsedLine6:             0x00000000

       PortDs0UsedLine7:             0x00000000

       PortDs0UsedLine8:             0x00000000

       PortNumNextAvailable:         11

Configuring the Router Interface

For the router interface, supply the appropriate physical, data-link, and network layer parameters. Because connectivity will be established through Frame Relay/ATM Service Interworking, use Internet Engineering Task Force (IETF) Frame Relay encapsulation on the interface instead of the default Cisco encapsulation, as shown in the following example.

wsw-3620a#conf t

     Enter configuration commands, one per line.  End with CNTL/Z.

     wsw-3620a(config)#int s 0/0

     wsw-3620a(config-if)#service-module T1 clock source line

     wsw-3620a(config-if)#service-module T1 framing esf

     wsw-3620a(config-if)#service-module T1 linecode b8zs

     wsw-3620a(config-if)#service-module T1 timeslots 1-6 speed 64

     wsw-3620a(config-if)#encap frame ietf

     wsw-3620a(config-if)#frame-relay qos-autosense

     wsw-3620a(config)#int s 0/0.110 point

     wsw-3620a(config-subif)#frame-relay interface-dlci 110

     wsw-3620a(config-fr-dlci)#exit

     wsw-3620a(config-subif)#ip address 10.97.110.1 255.255.255.0

     wsw-3620a(config-if)#no shut

     wsw-3620a(config-if)#^Z

     wsw-3620a#

     wsw-3620a#sh int s 0/0

     Serial0/0 is up, line protocol is up

       Hardware is QUICC with integrated T1 CSU/DSU

       Description: T1 to MGX8850A FRSM 11.1

       MTU 1500 bytes, BW 384 Kbit, DLY 20000 usec,

          reliability 255/255, txload 1/255, rxload 1/255

      Encapsulation FRAME-RELAY IETF, loopback not set

       Keepalive set (10 sec)

       Restart-Delay is 4294967 secs

       LMI enq sent  30, LMI stat recvd 32, LMI upd recvd 0, DTE LMI up

       LMI enq recvd 0, LMI stat sent  0, LMI upd sent  0

       LMI DLCI 1023  LMI type is CISCO  frame relay DTE

       FR SVC disabled, LAPF state down

       Broadcast queue 0/64, broadcasts sent/dropped 0/0, interface broadcasts 0

       Last input 00:00:03, output 00:00:03, output hang never

       Last clearing of "show interface" counters 00:05:11

       Input queue: 0/75/0 (size/max/drops); Total output drops: 0

       Queueing strategy: weighted fair

       Output queue: 0/1000/64/0 (size/max total/threshold/drops)

          Conversations  0/1/256 (active/max active/max total)

          Reserved Conversations 0/0 (allocated/max allocated)

       5 minute input rate 0 bits/sec, 0 packets/sec

       5 minute output rate 0 bits/sec, 0 packets/sec

          32 packets input, 475 bytes, 0 no buffer

          Received 0 broadcasts, 0 runts, 0 giants, 0 throttles

          0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort

          34 packets output, 502 bytes, 0 underruns

          0 output errors, 0 collisions, 0 interface resets

          0 output buffer failures, 0 output buffers swapped out

          1 carrier transitions

          DCD=up  DSR=up  DTR=up  RTS=up  CTS=up

     wsw-3620a#sh fram qos-auto

     ELMI information for interface Serial0/0

      Connected to switch:FRSM-8T1   Platform:AXIS   Vendor:Cisco

                   (Time elapsed since last update 00:00:50)

Configuring the RPM Interface

Set the traffic shaping for vbr-nrt at 128000 bps peak cell rate (PCR), 64000 bps minimum cell rate (MCR), and 38 cell burst, as shown in the following example.

wsw-8850a-rpm#conf t

     Enter configuration commands, one per line.  End with CNTL/Z.

     wsw-8850a-rpm(config)#int switch 1.110 point

     wsw-8850a-rpm(config)#ip address 10.97.110.2 255.255.255.0

     wsw-8850a-rpm(config-subif)#pvc 3620a-frame 0/1100

     wsw-8850a-rpm(config-if-atm-)#vbr-nrt 128 64 38

     wsw-8850a-rpm(config)#^Z

Building the RPM Slave Connection

Build the RPM Slave connection, as shown in the following example.

wsw-8850a-rpm#conf t

     Enter configuration commands, one per line.  End with CNTL/Z.

     wsw-8850a-rpm(config)#addcon vcc switch 1.110 1100 rname mgx8850a rslot 11 10 0 110

     wsw-8850a-rpm(config)#^Z

     wsw-8850a-rpm#show switch connections

                                                                           Synch

     lVpi   lVci     remoteNodeName   remoteSlot remoteIf  rVpi   rVci     Status

     0      1100     mgx8850a         11         10        0      110     inSynch

     wsw-8850a-rpm#show switch connections vcc 1100

     ----------------------------------------------------------

     Local Sub-Interface   : 110

     Local VPI             : 0

     Local VCI             : 1100

     Remote Node Name      : mgx8850a

     Remote Slot           : 11

     Remote Interface      : 10

     Remote VPI            : 0

     Remote VCI            : 110

     Routing Priority      : 0

     Max Cost              : 255

     Restricted Trunk Type : none

     Percent Util          : 100

     Remote PCR            : 302

     Remote MCR            : 151

     Remote Percent Util   : 100

     Connection Master     : Remote

     Synch Status          : inSynch

Building the FRSM-8T1 Master Connection

The following example specifies that Frame Relay/ATM Service Interworking will be used. The conversion from Frame Relay to ATM and vice versa occurs on the FRSM. Once the connection is configured, adjust policing on the channel by entering the cnfchanpol command.

Syntax : addcon "port dlci cir chan_type [CAC] [Controller_Type] [mastership]
[remoteConnId]"

              port number -- values ranging from 1-192 are accepted for T1 and 1-248 for
E1

              DLCI number -- value ranging from 0 to 1023

              committed rate -- 0-1536000 bps for T1; 0-2048000 bps for E1

              chan type -- values 1-5, 1=NIW 2=SIW-transparent 3=SIW-xlation 4=FUNI
5=frForward

              CAC -- Connection Admission Control (optional); 1 = enable, 2 = disable
(default)

              Controller Type (Signaling) -- 1: PVC (PAR) - Default , 2: SPVC (PNNI)

              mastership -- 1 for master, 2 for slave

              Remote end Connection ID -- Format :

               NodeName.SlotNo.PortNo.Dlci OR

               NodeName.SlotNo.PortNo.ControllerId.Dlci for FR end point OR

               NodeName.SlotNo.PortNo.VPI.VCI for ATM end point.

               Where controller ID can be 1(PAR),2(PNNI),3(TAG)

     mgx8850a.1.11.FRSM.a > addcon 10 110 64000 3 2 1 1 mgx8850a.10.1.0.1100

     mgx8850a.1.11.FRSM.a > dspcons

Line     ConnId            Chan EQ  I/EQDepth  I/EQDEThre  I/EECNThre  Fst/ DE Type  Alarm

---- --------------------- ---- -- ----- ----- ----- ----- ----- ----- --- --- ----- -----

1    mgx8850a.11.10.0.110   27  2  65535/65535 32767/32767  6553/6553  Dis/Dis SIW-X  No

     Syntax : cnfchanpol "chan_num cir bc be ibs detag egrat"

              channel number -- value ranging from 16 to 1015

              committed rate -- 0-1536000 bps for T1, 0-2048000 bps for E1

              committed burst -- 0-65535 in bytes

              excess burst -- 0-65535 in bytes

              initial burst -- 0-65535 in bytes. Less or equal to Bc

              DE bit tagging -- 1 for enable, 2 for disable

              Egress Service Rate -- 0-1536000 bps for T1, 0-2048000 bps for E1

     mgx8850a.1.11.FRSM.a > cnfchanpol 27 64000 8000 2000 2000 1 384000

     mgx8850a.1.11.FRSM.a > dspchan 27

       ChanNum:                  27

       ChanRowStatus:            Mod

       ChanPortNum:              10

       ChanDLCI:                 110

       EgressQSelect:            2

       IngressQDepth:            65535

       IngressQDEThresh:         32767

       IngressQECNThresh:        6553

       EgressQDepth:             65535

       EgressQDEThresh:          32767

       EgressQECNThresh:         6553

       DETaggingEnable:          Enabled

       CIR:                      64000

       Bc:                       8000

       Be:                       2000

       IBS:                      2000

       ForeSightEnable:          Disabled

       QIR:                      166

       MIR:                      166

       PIR:                      166

       ChanLocalRemoteLpbkState: Disabled

       ChanTestType:             TestOff

       ChanTestState:            NotInProgress

       ChanRTDresult:            65535 ms

       ChanType:                 SIW-Xlat

       ChanFECNmap:              setEFCIzero

       ChanDEtoCLPmap:           mapCLP

       ChanCLPtoDEmap:           mapDE

       ChanFrConnType:           PVC

       ChanIngrPercentUtil:      100

       ChanEgrPercentUtil:       100

       ChanEgrSrvRate:           384000

       ChanOvrSubOvrRide:        Enabled

       ChanLocalVpi:             0

       ChanLocalVci:             110

       ChanLocalNSAP:            6d6778383835306100000000000000000b000a00

       ChanRemoteVpi:            0

       ChanRemoteVci:            1100

       ChanRemoteNSAP:           6d6778383835306100000000000000000a000100

       ChanMastership:           Master

       ChanVpcFlag:              Vcc

       ChanConnServiceType:      ATFR

       ChanRoutingPriority:      1

       ChanMaxCost:              255

       ChanRestrictTrunkType:    No Restriction

       ChanConnPCR:              166

       ChanConnMCR:              166

       ChanConnPercentUti:       100

     mgx8850a.1.11.FRSM.a > cc 7

      (session redirected)

     mgx8850a.1.7.PXM.a > dspcons

     This End        Node Name       Other End       Status

     10.1.0.1100     mgx8850a        11.10.0.110     OK

     11.10.0.110     mgx8850a        10.1.0.1100     OK

Verifying the Configuration

Enter the ping command to verify that you have a good connection.

wsw-3620a#ping 10.97.110.2

Type escape sequence to abort.

Sending 5, 100-byte ICMP Echos to 10.97.110.2, timeout is 2 seconds:

!!!!!

Success rate is 100 percent (5/5), round-trip min/avg/max = 24/24/28 ms

Note Because the FRSM defaults to no signaling and the routers default to Gang of Four (also known as Cisco LMI), the two devices will not communicate until they both share the same protocol.

Note You must have encap frame ietf configured on the router before you can have Frame Relay/ATM Service Interworking.

Note The VPI on the RPM switch PVC is always 0.

Note You must match the shaping and policing parameters to prevent data loss.

RPM-to-AUSM-8T1 IMA DAX Connection

For this connection, use the ATM user service module (AUSM)-8T1 card as an Inverse Multiplexing for ATM (IMA) trunk to another AUSM-8T1 card. A connection is built from the RPM on one
MGX 8850 to the RPM on the other MGX 8850 across this IMA trunk.

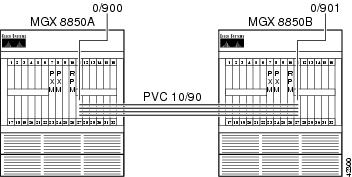

Figure 6-5 RPM-to-AUSM-8T1 IMA DAX Connection

Configuring the AUSM Interface

The following example shows an AUSM interface configuration.

/** MGX8850A **/

     mgx8850a.1.27.AUSMB8.a > addln 5

     mgx8850a.1.27.AUSMB8.a > addln 6

     mgx8850a.1.27.AUSMB8.a > addln 7

     mgx8850a.1.27.AUSMB8.a > addln 8

     Syntax : cnfln "line_num line_code line_len clk_src [E1-signaling]"

              line number -- values ranging from 1-8 are accepted, for AUSM-8T1/8E1,
IMATM-T3T1/E3E1

              line code --    2 for B8ZS (T1),

                              3 for HDB3 (E1)

              line length -- 10-15 for T1, 8 for E1 with SMB module,

                              9 for E1 with RJ48 line module

              clock source -- clock source : 1 for loop clock, 2 for local clock

              E1 signaling -- CCS: CCS, no CRC;     CCS_CRC: CCS, with CRC;

                             CLEAR: Clear E1

     mgx8850a.1.27.AUSMB8.a > cnfln 5 2 10 2

     mgx8850a.1.27.AUSMB8.a > cnfln 6 2 10 2

     mgx8850a.1.27.AUSMB8.a > cnfln 7 2 10 2

     mgx8850a.1.27.AUSMB8.a > cnfln 8 2 10 2

     Syntax : addimagrp (or addaimgrp) "group_num port_type list_of_lines  minNumLinks"

              IMA group number -- value ranging from 1 to 8

              Port Type -- 1 - UNI,  2 - NNI

              List of links -- list of links separated by dots

              minimum no of links -- minimum number of links for the group formation
:value ranging from 1 to 8

     mgx8850a.1.27.AUSMB8.a > addimagrp 5 1 5.6.7.8 2

     Syntax : cnfimagrp (or cnfaimgrp) "grp max_diff_delay min_num_links"

              IMA group number -- value ranging from 1 to 8

              Max diff delay -- value between 0 and 275 for AUSM 8T1; btwn 0 and 200 for
AUSM 8E1

              minimum no of links -- minimum number of links for the group formation
:value ranging from 1 to 8

     mgx8850a.1.27.AUSMB8.a > cnfimagrp 5 150 2

     /** MGX8850B **/

     mgx8850b.1.27.AUSMB8.a > addln 5

     mgx8850b.1.27.AUSMB8.a > addln 6

     mgx8850b.1.27.AUSMB8.a > addln 7

     mgx8850b.1.27.AUSMB8.a > addln 8

     mgx8850b.1.27.AUSMB8.a > cnfln 5 2 10 2

     mgx8850b.1.27.AUSMB8.a > cnfln 6 2 10 2

     mgx8850b.1.27.AUSMB8.a > cnfln 7 2 10 2

     mgx8850b.1.27.AUSMB8.a > cnfln 8 2 10 2

     mgx8850b.1.27.AUSMB8.a > addimagrp 6 1 5.6.7.8 2

     mgx8850b.1.27.AUSMB8.a > cnfimagrp 6 150 2

     mgx8850b.1.27.AUSMB8.a > dspimagrp 6

        IMA Group number                 : 6

        Port type                        : UNI

        Lines configured                 : 5.6.7.8

        Enable                           : Modify

        IMA Port state                   : Active

        IMA Group Ne state               : operational

        PortSpeed (cells/sec)            : 14364

        GroupTxAvailCellRate (cells/sec) : 14364

        ImaGroupTxFrameLength(cells)     : 128

        LcpDelayTolerance (IMA frames)   : 1

        ReadPtrWrPtrDiff  (cells)        : 4

        Minimun number of links          : 2

        MaxTolerableDiffDelay (msec)     : 150

        Lines Present                    : 5.6.7.8

        ImaGroupRxImaId                  : 0x4

        ImaGroupTxImaId                  : 0x5

        Observed Diff delay (msec)       : 0

        Clock Mode                       : CTC

        GroupAlpha                       : 2

        GroupBeta                        : 2

        GroupGamma                       : 1

        GroupConfiguration               : 1

        IMAGrp Failure status            : No Failure

        Timing reference link            : 5

Configuring the Router Interface

The following example shows a router interface configuration.

/** WSW-8850A-RPM **/

     wsw-8850a-rpm#conf t

     Enter configuration commands, one per line.  End with CNTL/Z.

     wsw-8850a-rpm(config)#int sw 1.900 p

     wsw-8850a-rpm(config-subif)#ip address 10.97.90.1 255.255.255.0

     wsw-8850a-rpm(config-subif)#pvc RPM-IMA_Trunk 0/900

     wsw-8850a-rpm(config-if-atm-)#abr 96 64

     wsw-8850a-rpm(config-if-atm-)#encap aal5snap

     wsw-8850a-rpm(config-if-atm-)#^Z

     /** WSW-8850B-RPM **/

     wsw-8850b-rpm#conf t

     Enter configuration commands, one per line.  End with CNTL/Z.

     wsw-8850b-rpm(config)#int sw 1.901 p

     wsw-8850b-rpm(config-subif)#ip addr 10.97.90.2 255.255.255.0

     wsw-8850b-rpm(config-subif)#pvc RPM-IMA_TRUNK 0/901

     wsw-8850b-rpm(config-if-atm-)#abr 96 64

     wsw-8850b-rpm(config-if-atm-)#encap aal5snap

     wsw-8850b-rpm(config-if-atm-)#^Z

Building the RPM-to-AUSM-IMA Slave Connection

The following example shows how to build the RPM to AUSM-IMA slave connection.

/** WSW-8850A-RPM **/

     wsw-8850a-rpm#conf t

     Enter configuration commands, one per line.  End with CNTL/Z.

     wsw-8850a-rpm(config)#addcon vcc switch 1.900 900 rname mgx8850a rslot 27 5 10 90

     wsw-8850a-rpm(config)#^Z

     wsw-8850a-rpm#sh sw conn vcc 900

     ----------------------------------------------------------

     Local Sub-Interface   : 900

     Local VPI             : 0

     Local VCI             : 900

     Remote Node Name      : mgx8850a

     Remote Slot           : 27

     Remote Interface      : 5

     Remote VPI            : 10

     Remote VCI            : 90

     Routing Priority      : 0

     Max Cost              : 255

     Restricted Trunk Type : none

     Percent Util          : 100

     Remote PCR            : 227

     Remote MCR            : 151

     Remote Percent Util   : 100

     Connection Master     : Remote

     Synch Status          : inSynch

     /** WSW-8850B-RPM **/

     wsw-8850b-rpm#conf t

     Enter configuration commands, one per line.  End with CNTL/Z.

     wsw-8850b-rpm(config)#addcon vcc switch 1.901 901 rname mgx8850b rslot 27 6 10 90

     wsw-8850b-rpm(config)#^Z

     wsw-8850b-rpm#sh sw conn vcc 901

     ----------------------------------------------------------

     Local Sub-Interface   : 901

     Local VPI             : 0

     Local VCI             : 901

     Remote Node Name      : mgx8850b

     Remote Slot           : 27

     Remote Interface      : 6

     Remote VPI            : 10

     Remote VCI            : 90

     Routing Priority      : 0

     Max Cost              : 255

     Restricted Trunk Type : none

     Percent Util          : 100

     Remote PCR            : 227

     Remote MCR            : 151

     Remote Percent Util   : 100

     Connection Master     : Remote

     Synch Status          : inSynch

Building the AUSM-IMA-to-AUSM-IMA Trunk Connection

The following example shows how to build the AUSM-IMA to AUSM-IMA trunk connection.

/** MGX8850A **/

     Syntax : addcon "port_num vpi vci conn_type service_type [Controller_Type]
[mastership] [remoteConnId] "

              port number -- values ranging from 1-8

              Channel VPI -- Virtual Path Identifier: 0 - 255

              Channel VCI -- Virtual Channel Identifier: 0 - 65535 for VCC, * for VPC

              Connection Type -- Connection Type : 0 - VCC , non zero - Local

                                 VP Id of the VPC (1 to 1000)

              Service Type -- Service Type: 1 - CBR, 2 - VBR, 3 - ABR, 4 - UBR

              Controller Type (Signaling) -- 1: PVC (PAR) - Default , 2: SPVC (PNNI)

              Mastership -- 1 for master, 2 for slave   Default:Slave

              Remote end Connection ID -- Format : NodeName.SlotNo.PortNo.ExternalConnId

     mgx8850a.1.27.AUSMB8.a > addcon 5 10 90 0 3 1 1 mgx8850a.10.1.0.900

     Syntax : cnfupcabr "Port.VPI.VCI enable pcr[0+1] cdvt[0+1] scr scr_police

                         mbs IngPcUtil EgSrvRate EgPcUtil clp_tag "

              Port.VPI.VCI -- A unique Port.VPI.VCI identifying a connection

              Enable/Disable -- UPC : 1 - Disable, 2 - Enable

              PeakCellRate -- PCR [0+1]: 10-PortRate(T1-3622,E1-4528,clearE1-4830),

                      For IMA,T1-3591,E1-4490,clrE1-4789, multiply rate by #links

              CDVT[0+1] -- Cell Delay Variation [0+1]: 1 - 250000 micro_secs

              SCR -- Sustained Cell Rate:10-PortRate(T1-3622,E1-4528,clearE1- 4830),

                      For IMA,T1-3591,E1-4490,ClrE1-4789, multiply rate by #links

              SCR Policing -- 1 - CLP[0] Cells, 2 - CLP[0+1] Cells, 3 - No SCR Policing

              Maximum Burst -- 1 - 5000 cells

              IngPcUtil -- Ingress percentage util: 1 to 127.  0 for default

              EgSrvRate -- Egress service rate:1-PortRate(T1-3622,E1-4528,clearE1-4830)

                      For IMA,T1-3591,E1-4490,clrE1-4789, multiply rate by #links.

              EgPcUtil -- Egress percentage util: 1 to 127.  0 for default

              Clp Tagging -- CLP TAG Enable : 1 - Disable, 2 - Enable

     mgx8850a.1.27.AUSMB8.a > cnfupcabr 5.10.90 2 227 1000 151 2 38 0 227 0 1

     /** MGX8850B **/

     mgx8850b.1.27.AUSMB8.a > addcon 6 10 90 0 3 1 1 mgx8850b.10.1.0.901

     mgx8850b.1.27.AUSMB8.a > cnfupcabr 6.10.90 2 227 1000 151 2 38 0 227 0 1

Verifying the Configuration

The following example shows a ping from RPM to RPM. In this example, more than 15 cells have gone out. Because this is an available bit rate (ABR) connection, Resource Management cells will be present on the link.

/** WSW-8850A-RPM **/

     wsw-8850a-rpm#ping 10.97.90.2

     Type escape sequence to abort.

     Sending 5, 100-byte ICMP Echos to 10.97.90.2, timeout is 2 seconds:

     !!!!!

     Success rate is 100 percent (5/5), round-trip min/avg/max = 20/25/32 ms

     /** MGX8850A **/

     mgx8850a.1.27.AUSMB8.a > dspchancnt 5.10.90

       ChanNum:                                    18

       ChannelState:                               Active

       ChannelEgressRcvState:                      Normal

       ChannelEgressXmitState:                     Normal

       ChannelIngressRcvState:                     Normal

       ChannelIngressXmtState:                     Normal

       ChanInServiceSeconds:                       534

       ChanIngressPeakQDepth(cells):               1

       ChanIngressReceiveCells:                    17

       ChanIngressClpSetCells:                     0

       ChanIngressEfciSetRcvCells:                 0

       ChanIngressEfciSetXmtCells:                 0

       ChanIngressUpcClpSetCells:                  0

       ChanIngressQfullDiscardCells:               0

       ChanIngressClpSetDiscardCells:              0

       ChanIngressTransmitCells:                   17

       ChanShelfAlarmDiscardCells:                 0

       ChanEarlyPacketDiscardCells:                0

       ChanPartialPacketDiscardCells:              0

       ChanIngressTransmitAAL5Frames:              5

       ChanIngressReceiveCellRate(cells/sec):      0

       ChanIngressReceiveUtilization(percentage):  0

       ChanIngressTransmitCellRate(cells/sec):     0

       ChanIngressTransmitUtilization(percentage): 0

       ChanEgressReceiveCellRate(cells/sec):       0

       ChanEgressReceiveUtilization(percentage):   0

       ChanEgressPortQFullDiscardCells:            0

       ChanEgressPortQClpThreshDiscardCells:       0

       ChanTransmitFifoFullCount (per card):       0

     /** MGX8850B **/

     mgx8850b.1.27.AUSMB8.a > dspchancnt 6.10.90

       ChanNum:                                    27

       ChannelState:                               Active

       ChannelEgressRcvState:                      Normal

       ChannelEgressXmitState:                     Normal

       ChannelIngressRcvState:                     Normal

       ChannelIngressXmtState:                     Normal

       ChanInServiceSeconds:                       184

       ChanIngressPeakQDepth(cells):               1

       ChanIngressReceiveCells:                    17

       ChanIngressClpSetCells:                     0

       ChanIngressEfciSetRcvCells:                 0

       ChanIngressEfciSetXmtCells:                 0

       ChanIngressUpcClpSetCells:                  0

       ChanIngressQfullDiscardCells:               0

       ChanIngressClpSetDiscardCells:              0

       ChanIngressTransmitCells:                   17

       ChanShelfAlarmDiscardCells:                 0

       ChanEarlyPacketDiscardCells:                0

       ChanPartialPacketDiscardCells:              0

       ChanIngressTransmitAAL5Frames:              5

       ChanIngressReceiveCellRate(cells/sec):      0

       ChanIngressReceiveUtilization(percentage):  0

       ChanIngressTransmitCellRate(cells/sec):     0

       ChanIngressTransmitUtilization(percentage): 0

       ChanEgressReceiveCellRate(cells/sec):       0

       ChanEgressReceiveUtilization(percentage):   0

       ChanEgressPortQFullDiscardCells:            0

       ChanEgressPortQClpThreshDiscardCells:       0

       ChanTransmitFifoFullCount (per card):       0

     /** WSW-8850B-RPM **/

     wsw-8850b-rpm#deb ip pack det

     IP packet debugging is on (detailed)

     *Jan  4 21:26:45.636: IP: s=10.97.90.1 (Switch1.901), d=10.97.90.2 (Switch1.901), len
100, rcvd 3

     *Jan  4 21:26:45.636:     ICMP TYPE=8, code=0

     *Jan  4 21:26:45.636:

     *Jan  4 21:26:45.636: IP: s=10.97.90.2 (local), d=10.97.90.1 (Switch1.901), len 100,
sending

     *Jan  4 21:26:45.636:     ICMP TYPE=0, code=0

     *Jan  4 21:26:45.636:

     *Jan  4 21:26:45.660: IP: s=10.97.90.1 (Switch1.901), d=10.97.90.2 (Switch1.901), len
100, rcvd 3

     *Jan  4 21:26:45.660:     ICMP TYPE=8, code=0

     *Jan  4 21:26:45.660:

     *Jan  4 21:26:45.660: IP: s=10.97.90.2 (local), d=10.97.90.1 (Switch1.901), len 100,
sending

     *Jan  4 21:26:45.660:     ICMP TYPE=0, code=0

     *Jan  4 21:26:45.660:

Note The VPI on the RPM switch PVC is always 0.

Note Remember to set the usage parameter control (UPC) on all AUSM connections or the data might not be correctly policed.

RPM-to-FRSM-2CT3 ATM/PPP DAX Connection

In the following example, a Cisco 7576 router transmits IPX datagrams out of a channelized DS3 port adapter using PPP encapsulation. The PPP frames are received on an FRSM-2CT3 service module that uses a frame forwarding connection to convert the frames to ATM cells. The cells are received by the RPM on the switch interface, and the datagrams are reintegrated through the aal5ciscoppp encapsulation.

Figure 6-6 RPM-to-FRSM-2CT3 ATM/PPP DAX Connection

Configuring the FRSM-2CT3 Interface

The following example shows how to configure the FRSM-2CT3 interface.

mgx8850b.1.5.VHS2CT3.a > addln 1

     Syntax : cnfln "line_num line_type clk_src "

              DS1 line number -- value range from 1 to 56

              DS1 line type -- 1 = dsx1ESF 2 = dsx1D4

              clock source -- clock source : 1 for loop clock, 2 for local clock

     mgx8850b.1.5.VHS2CT3.a > cnfln 2 1 2

     Syntax : addport "port_num line_num ds0_speed begin_slot num_slot port_ type"

              port number -- values ranging from 1-2( 2T3/2E3/HS2), 1-256 (2CT3)

              port line number -- value ranging from 1 to 56

              DS0 speed -- 1 for 56K,  2 for 64K

              beginning slot -- beginning time slot in 1 base

              number of slot -- number of DS0 time slots assigned to

              port type -- values 1-3, 1=frame relay, 2=FUNI mode-1a, 3=frForward

     mgx8850b.1.5.VHS2CT3.a > addport 20 2 2 1 12 3

Configuring the RPM Interface

The following example shows how to configure the RPM interface.

wsw-8850b-rpm#conf t

     Enter configuration commands, one per line.  End with CNTL/Z.

     wsw-8850b-rpm(config)#ipx routing

     wsw-8850b-rpm(config)#ipx internal DD0000

     wsw-8850b-rpm(config)#username wsw-7576ah pass cisco

     wsw-8850b-rpm(config)#int virtual-Template 1

     wsw-8850b-rpm(config-if)#ipx ipxwan

     wsw-8850b-rpm(config-if)#ppp auth chap

     wsw-8850b-rpm(config-if)#int sw 1.1100 p

     wsw-8850b-rpm(config-subif)#pvc PPP-ATM-FRSM 0/1100

     wsw-8850b-rpm(config-if-atm-)#encap aal5ciscoppp  virtual-Template 1

     wsw-8850b-rpm(config-if-atm-)#vbr-nrt 768 512 600

     wsw-8850b-rpm(config-if-atm-)#^Z

Configuring the Router Interface

The following example shows how to configure the router interface.

wss-7576ah#conf t

     Enter configuration commands, one per line.  End with CNTL/Z.

     wss-7576ah(config)#ipx routing

     wss-7576ah(config)#ipx internal AB0000

     wss-7576ah(config)#controller T3 11/0/0

     wss-7576ah(config-controller)#t1 2 channel-group 0 timeslots 1-12 speed 64

     wss-7576ah(config-controller)#t1 2 fram esf

     wss-7576ah(config-controller)#t1 2 clock source line

     wss-7576ah(config-controller)#int s 11/0/0/2:0

     wss-7576ah(config-if)#encap ppp

     wss-7576ah(config-if)#ipx ipxwan

     wss-7576ah(config-if)#ppp auth chap

     wss-7576ah(config-if)#username wsw-8850b-rpm pass cisco

     wss-7576ah(config)#^Z

Building the FRSM-2CT3 Slave Connection

The following example shows how to build the FRSM-2CT3 slave connection.

Syntax : addcon "port dlci cir chan_type serv_type [CAC] [Controller_Type] [mastership]
[remoteConnId]"

              port number -- values ranging from 1-2( 2T3/2E3/HS2), 1-256 (2CT3)

              DLCI number -- value ranging from 0-1023(2CT3/2T3/2E3/HS2)

              committed rate -- 0-1536000 bps for 2CT3; 0-44210000 bps for 2T3;

                              0-34010000 bps for 2E3 , 0-51840000 bps for HS2

              chan type -- values 1-5, 1=NIW 2=SIW-transparent 3=SIW-xlation

                              4=FUNI 5=frForward

              Egress service type --  1 = highpriorityQ      2 = rtVBRQ

                                      3 = nrtVBRQ     4 = aBRQ

                                      5 = uBRQ

              CAC -- Connection Admission Control (optional); 1 = enable, 2 = disable
(default)

              Controller Type (Signaling) -- 1: PVC (PAR) - Default , 2: SPVC (PNNI)

              mastership -- 1 for master, 2 for slave

              Remote end Connection ID -- Format :

               NodeName.SlotNo.PortNo.Dlci OR

               NodeName.SlotNo.PortNo.ControllerId.Dlci for FR end point OR

               NodeName.SlotNo.PortNo.VPI.VCI for ATM end point.

               Where controller ID can be 1(PAR),2(PNNI),3(TAG)

     mgx8850b.1.5.VHS2CT3.a > addcon 20 200 512000 5 3 2 1 2

     Local Connection Id is : mgx8850b.5.20.0.1000

Building the RPM Connection

The following example shows how to build the RPM connection.

wsw-8850b-rpm#conf t

Enter configuration commands, one per line.  End with CNTL/Z.

wsw-8850b-rpm(config)#addcon vcc sw 1.1100 1100 rname mgx8850b rslot 5 20 0 1000 master
local

wsw-8850b-rpm(config-if-atm-)#^Z

Verifying the Configuration

Enter the show ipx route command to view the contents of the IPX routing table and then enter the ping command to verify that you have a good connection, as shown in the following example.

wsw-8850b-rpm#sh ipx route

     Codes: C - Connected primary network,    c - Connected secondary network

            S - Static, F - Floating static, L - Local (internal), W - IPXWAN

            R - RIP, E - EIGRP, N - NLSP, X - External, A - Aggregate

            s - seconds, u - uses, U - Per-user static

     2 Total IPX routes. Up to 1 parallel paths and 16 hops allowed.

     No default route known.

     L     DD0000 is the internal network

     R     AB0000 [07/01] via        0.00ab.0000.0000,   27s, Vi1

     wsw-8850b-rpm#ping ipx ab0000.0000.0000.0001

     Type escape sequence to abort.

     Sending 5, 100-byte IPXcisco Echoes to AB0000.0000.0000.0001, timeout is 2 seconds:

     !!!!!

     Success rate is 100 percent (5/5), round-trip min/avg/max = 4/5/8 ms

Note The VPI on the RPM switch PVC is always 0.

Note Virtual Template/Interface and the aal5ciscoppp encap command are necessary for this configuration.

RPM-to-AUSM-8T1 ATM-IMA DAX Connection

The example below shows an IP connection between an RPM blade and a Cisco 7200 (see Figure 6-7). The Cisco 7200 hooks into the MGX 8850 through an IMA Port Adapter (PA) connected through four T1 lines to the AUSM-8T1 card in slot 28.

Figure 6-7 RPM-to-AUSM-8T1 ATM-IMA DAX Connection

Configuring the AUSM Interface

The following example shows how to configure the AUSM interface.

	mgx8850b.1.28.AUSMB8.a > addln 5

     mgx8850b.1.28.AUSMB8.a > addln 6

     mgx8850b.1.28.AUSMB8.a > addln 7

     mgx8850b.1.28.AUSMB8.a > addln 8

     Syntax : cnfln "line_num line_code line_len clk_src [E1-signaling]"

              line number -- values ranging from 1-8 are accepted, for AUSM-8T1/8E1,
IMATM-T3T1/E3E1

              line code --    2 for B8ZS (T1),

                              3 for HDB3 (E1)

              line length -- 10-15 for T1, 8 for E1 with SMB module,

                              9 for E1 with RJ48 line module

              clock source -- clock source : 1 for loop clock, 2 for local clock

              E1 signaling -- CCS: CCS, no CRC;     CCS_CRC: CCS, with CRC;

                             CLEAR: Clear E1

     mgx8850b.1.28.AUSMB8.a > cnfln 5 2 10 2

     mgx8850b.1.28.AUSMB8.a > cnfln 6 2 10 2

     mgx8850b.1.28.AUSMB8.a > cnfln 7 2 10 2

     mgx8850b.1.28.AUSMB8.a > cnfln 8 2 10 2

     Syntax : addimagrp (or addaimgrp) "group_num port_type list_of_lines  minNumLinks"

              IMA group number -- value ranging from 1 to 8

              Port Type -- 1 - UNI,  2 - NNI

              List of links -- list of links separated by dots

              minimum no of links -- minimum number of links for the group formation
:value ranging from 1 to 8

     mgx8850b.1.28.AUSMB8.a > addimagrp 1 1 5.6.7.8 2

     mgx8850b.1.28.AUSMB8.a > dspaimgrp 1

        IMA Group number                 : 1

        Port type                        : UNI

        Lines configured                 : 5.6.7.8

        Enable                           : Enabled

        IMA Port state                   : Active

        IMA Group Ne state               : operational

        PortSpeed (cells/sec)            : 14364

        GroupTxAvailCellRate (cells/sec) : 14364

        ImaGroupTxFrameLength(cells)     : 128

        LcpDelayTolerance (IMA frames)   : 1

        ReadPtrWrPtrDiff  (cells)        : 4

        Minimun number of links          : 2

        MaxTolerableDiffDelay (msec)     : 275

        Lines Present                    : 5.6.7.8

        ImaGroupRxImaId                  : 0x0

        ImaGroupTxImaId                  : 0x0

        Observed Diff delay (msec)       : 0

        Clock Mode                       : CTC

        GroupAlpha                       : 2

        GroupBeta                        : 2

        GroupGamma                       : 1

        GroupConfiguration               : 1

        IMAGrp Failure status            : No Failure

        Timing reference link            : 5

Configuring the Cisco 7200 Router Interface

The following example shows how configure the layer 1 parameters for the IMA bundle on the Cisco 7200, create the IMA interface, and add the layer 3 addressing.

wsw-7206c#conf t

     Enter configuration commands, one per line.  End with CNTL/Z.

     wsw-7206c(config)#int atm 4/0

     wsw-7206c(config-if)#fram esf

     wsw-7206c(config-if)#line b8

     wsw-7206c(config-if)#clock source line

     wsw-7206c(config-if)#lbo short 133

     wsw-7206c(config-if)#ima 0

     wsw-7206c(config-if)#int atm 4/1

     wsw-7206c(config-if)#fram esf

     wsw-7206c(config-if)#line b8

     wsw-7206c(config-if)#clock source line

     wsw-7206c(config-if)#lbo short 133

     wsw-7206c(config-if)#ima 0

     wsw-7206c(config-if)#int atm 4/2

     wsw-7206c(config-if)#fram esf

     wsw-7206c(config-if)#line b8

     wsw-7206c(config-if)#clock source line

     wsw-7206c(config-if)#lbo short 133

     wsw-7206c(config-if)#ima 0

     wsw-7206c(config-if)#int atm 4/3

     wsw-7206c(config-if)#fram esf

     wsw-7206c(config-if)#line b8

     wsw-7206c(config-if)#clock source line

     wsw-7206c(config-if)#lbo short 133

     wsw-7206c(config-if)#ima 0

     wsw-7206c(config-if)#int atm 4/ima0

     wsw-7206c(config-if)#ima active-links-minimum 2

     wsw-7206c(config-if)#ima clock comm 0

     wsw-7206c(config-if)#ima diff 125

     wsw-7206c(config-if)#int atm4/ima0.700 p

     wsw-7206c(config-subif)#ip address 10.97.70.1 255.255.255.0

     wsw-7206c(config-subif)#pvc WSW-8850B-RPM 1/700

     wsw-7206c(config-if-atm-vc)#encap aal5snap

     wsw-7206c(config-if-atm-vc)#vbr-nrt 128 96 38

     wsw-7206c(config-if-atm-vc)#int atm 4/0

     wsw-7206c(config-if)#no shut

     wsw-7206c(config-if)#int atm 4/1

     wsw-7206c(config-if)#no shut

     wsw-7206c(config-if)#int atm 4/2

     wsw-7206c(config-if)#no shut

     wsw-7206c(config-if)#int atm 4/3

     wsw-7206c(config-if)#no shut

     wsw-7206c(config-if)#^Z

Configuring the RPM Interface

The following example shows how to configure the RPM interface.

wsw-8850b-rpm#conf t

     Enter configuration commands, one per line.  End with CNTL/Z.

     wsw-8850b-rpm(config)#int sw 1.701 p

     wsw-8850b-rpm(config-subif)#ip addr 10.97.70.2 255.255.255.0

     wsw-8850b-rpm(config-subif)#PVC WSW-7206C-IMA 0/701

     wsw-8850b-rpm(config-if-atm-)#encapsulation aal5snap

     wsw-8850b-rpm(config-if-atm-)#vbr-nrt 128 96 38

     wsw-8850b-rpm(config-if-atm-)#exit

     wsw-8850b-rpm(config-subif)#^Z

Building the AUSM Slave Connection

The following example shows how to build the AUSM slave connection.

Syntax : addcon "port_num vpi vci conn_type service_type [Controller_Type] [mastership]
[remoteConnId]

              port number -- values ranging from 1-8

              Channel VPI -- Virtual Path Identifier: 0 - 255

              Channel VCI -- Virtual Channel Identifier: 0 - 65535 for VCC, * for VPC

              Connection Type -- Connection Type : 0 - VCC , non zero - Local

                                 VP Id of the VPC (1 to 1000)

              Service Type -- Service Type: 1 - CBR, 2 - VBR, 3 - ABR, 4 - UBR

              Controller Type (Signaling) -- 1: PVC (PAR) - Default , 2: SPVC (PNNI)

              Mastership -- 1 for master, 2 for slave   Default:Slave

              Remote end Connection ID -- Format : NodeName.SlotNo.PortNo.ExternalConnId

     mgx8850b.1.28.AUSMB8.a > addcon 1 1 700 0 2 1 2

     Local Connection Id is : mgx8850b.28.1.1.700

     Syntax : cnfupcvbr "Port.VPI.VCI enable pcr[0+1] cdvt[0+1] scr scr_police

                         mbs IngPcUtil EgSrvRate EgPcUtil clp_tag "

              Port.VPI.VCI -- A unique Port.VPI.VCI identifying a connection

              Enable/Disable -- UPC : 1 - Disable, 2 - Enable

              PeakCellRate -- PCR [0+1]: 10-PortRate(T1-3622,E1-4528,clearE1-4830),

                      For IMA,T1-3591,E1-4490,clrE1-4789, multiply rate by #links

              CDVT[0+1] -- Cell Delay Variation [0+1]: 1 - 250000 micro_secs

              SCR -- Sustained Cell Rate:10-PortRate(T1-3622,E1-4528,clearE1- 4830),

                      For IMA,T1-3591,E1-4490,ClrE1-4789, multiply rate by #links

              SCR Policing -- 1 - CLP[0] Cells, 2 - CLP[0+1] Cells, 3 - No SCR Policing

              Maximum Burst -- 1 - 5000 cells

              IngPcUtil -- Ingress percentage util: 1 to 127.  0 for default

              EgSrvRate -- Egress service rate:1-PortRate(T1-3622,E1-4528,clearE1-4830)

                      For IMA,T1-3591,E1-4490,clrE1-4789, multiply rate by #links.

              EgPcUtil -- Egress percentage util: 1 to 127.  0 for default

              Clp Tagging -- CLP TAG Enable : 1 - Disable, 2 - Enable

     mgx8850b.1.28.AUSMB8.a > cnfupcvbr 1.1.700 2 302 1000 226 2 38 0 302 0 1

Now build the RPM Master connection, as shown in the following example.

     wsw-8850b-rpm#conf t

     Enter configuration commands, one per line.  End with CNTL/Z.

     wsw-8850b-rpm(config)#addcon vcc sw 1.701 701 rname mgx8850b rslot 28 1 1 700 master
local

     wsw-8850b-rpm(config)#^Z

Verifying the Configuration

Enter the ping command to verify that you have a good connection.

wsw-8850b-rpm#ping 10.97.70.1

     Type escape sequence to abort.

     Sending 5, 100-byte ICMP Echos to 10.97.70.1, timeout is 2 seconds:

     !!!!!

     Success rate is 100 percent (5/5), round-trip min/avg/max = 16/18/20 ms

Note Remember to set the UPC parameters on all AUSM connections or your data will most likely not be policed to your needs.

Note The VPI on the RPM switch PVC is always 0.

RPM-to-AUSM-8T1/B ATM/ATM DAX Connection

Establish IP connectivity between a Cisco MC3810 router and the RPM blade on the MGX 8850. In the following example, we have configured the Multi-Flex Trunk (MFT) on the 3810 (Controller T1 0) for ATM (logical interface ATM 0). The MFT is connected to the physical line 1 on the AUSM-8T1/B in slot 27 on the MGX 8850. A DAX connection is built through the PXM to switch cells between the AUSM and the RPM switch interface.

Figure 6-8 RPM-to-AUSM-8T1/B ATM/ATM DAX Connection

Configuring the AUSM Interface

The following example shows how to configure the AUSM interface. To do this, enable the physical line, enable a logical port on the line, adjust parameters as necessary, and enable payload scrambling on the line.

mgx8850b.1.27.AUSMB8.a > addln 1

     mgx8850b.1.27.AUSMB8.a > dspln 1

       LineNum:                   1

       LineConnectorType:         RJ-48

       LineType:                  dsx1ESF

       LineEnable:                Enabled

       LineCoding:                dsx1B8ZS

       LineLength:                0-131 ft

       LineXmtClockSource:        LocalTiming

       LineLoopbackCommand:       NoLoop

       LineSendCode:              NoCode

       LineUsedTimeslotsBitMap:   0xffffffff

       LineLoopbackCodeDetection: codeDetectDisabled

       LineBERTEnable:            Disable

     Syntax : addport "port_num port_type line_num"

              port number -- values ranging from 1-8

              Port Type -- 1 - UNI,  2 - NNI

              line number -- value ranging from 1 to 8

     mgx8850b.1.27.AUSMB8.a > addport 1 1 1

     mgx8850b.1.27.AUSMB8.a > dspport 1

     LogicalPortNumber:             1

       Port Enable:                   UP

       Port State:                    Active

       PortType:                      UNI

       PhysicalPortNumber:            1

       CellFraming:                   ATM

       CellScramble:                  No Scramble

       Plpp Loopback:                 No Loopback

       Single-bit error correction:   Disabled

     mgx8850b.1.27.AUSMB8.a > dspplpp 1

       PhysicalPortNumber:            1

       CellFraming:                   ATM

       CellScramble:                  No Scramble

       Plpp Loopback:                 No Loopback

       Single-bit error correction:   Disabled

     Syntax : cnfplpp "phy_port_num loopback scramble singlebit_errcorr_ena"

              physical port number -- value should be between 1 to 8

              plpp loopback -- : 1- no loopback, 2- remote loopback, 3- local loopback

              cell scramble -- cell scramble: 1: no scramble, 2: scramble

              single bit errcorr -- 1: disable, 2: enable

     mgx8850b.1.27.AUSMB8.a > cnfplpp 1 1 2 1

Configuring the Router Interface

The following example shows how to configure the router interface. To do this, be sure to supply the appropriate physical, data-link, and network layer parameters. Because this is a Cisco 3810 with MFT and digital voice module (DVM), be sure to set the proper clocking from the interface that connects to the AUSM (controller T1 0). Also, be sure to configure the ATM interface for payload scrambling.

wsw-3810n#conf t

     Enter configuration commands, one per line.  End with CNTL/Z.

     wsw-3810n(config)#network-clock base-rate 64k

     wsw-3810n(config)#network-clock-select 1 t1 0

     wsw-3810n(config)#controller t1 0

     wsw-3810n(config-controller)#framing esf

     wsw-3810n(config-controller)#linecode b8zs

     wsw-3810n(config-controller)#clock source line

     wsw-3810n(config-controller)#mode atm

     *Mar  3 21:41:02.644:      TDMB   channel # 99 Timeslots ( X 48K, . 56K,* 64K, -
skipped)

     0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1

     wsw-3810n(config-controller)#int atm 0

     wsw-3810n(config-if)#atm enable-payload-scrambling

     wsw-3810n(config-if)#int atm 0.400 point

     wsw-3810n(config-subif)#pvc MGX8850B-AUSM8 20/400

     wsw-3810n(config-if-atm-vc)#ubr 64

     wsw-3810n(config-if-atm-vc)#ip address 10.97.172.1 255.255.255.0

     *Mar  3 21:44:41.893: Service Type: ATM peak rate provisioned UBR

     wsw-3810n(config-if)#exit

     wsw-3810n(config)#interface Loop 0

     wsw-3810n(config-if)#ip address 10.97.175.1 255.255.255.0

     wsw-3810n(config-if)#exit

     wsw-3810n(config)#router ospf 777

     wsw-3810n(config-router)#network 10.97.168.0 0.0.7.255 area 0

/**

     In order to prevent clock slips, we need to make sure either the MFT or the DVM
clocks the box, not both.

**/

     wsw-3810n(config-router)#cont t1 1

     wsw-3810n(config-controller)#clock source internal

     wsw-3810n(config-controller)#^Z

Configuring the RPM Interface

The following example shows how to configure the RPM switch interface. Because the RPM operates like a PA-A3 on a Cisco 7200 router, it is configured accordingly. The following example also shows how to set the traffic shaping for unspecified bit rate (UBR) at 64000 bps PCR.

wsw-8850b-rpm#conf t

     Enter configuration commands, one per line.  End with CNTL/Z.

     wsw-8850b-rpm(config)#int sw 1.400 point

     wsw-8850b-rpm(config-subif)#ip addr 10.97.172.2 255.255.255.0

/**

     The default MTU on the RPM is 4470 which will cause OSPF fits if we try to establish
a connection to

     a 3810 ATM interface with an MTU of 1500.

**/

     wsw-8850b-rpm(config-subif)#ip mtu 1500

     wsw-8850b-rpm(config-subif)#pvc WSW-3810N 0/401

     wsw-8850b-rpm(config-if-atm-)#ubr 64

     wsw-8850b-rpm(config-if-atm-)#router ospf 777

     wsw-8850b-rpm(config-router)#network 10.97.168.0 0.0.7.255 area 0

     wsw-8850b-rpm(config-router)#int loop 0

     wsw-8850b-rpm(config-if)#ip addr 10.97.174.1 255.255.255.0

     wsw-8850b-rpm(config-if)#^Z

Building the AUSM Slave Connection

The following example shows how to build the AUSM slave connection.

Syntax : addcon "port_num vpi vci conn_type service_type [Controller_Type] [mastership]
[remoteConnId]"

              port number -- values ranging from 1-8

              Channel VPI -- Virtual Path Identifier: 0 - 255

              Channel VCI -- Virtual Channel Identifier: 0 - 65535 for VCC, * for VPC

              Connection Type -- Connection Type : 0 - VCC , non zero - Local

                                 VP Id of the VPC (1 to 1000)

              Service Type -- Service Type: 1 - CBR, 2 - VBR, 3 - ABR, 4 - UBR

              Controller Type (Signaling) -- 1: PVC (PAR) - Default , 2: SPVC (PNNI)

              Mastership -- 1 for master, 2 for slave   Default:Slave

              Remote end Connection ID -- Format : NodeName.SlotNo.PortNo.ExternalConnId

     mgx8850b.1.27.AUSMB8.a > addcon 1 20 400 0 4 1 2

     Local Connection Id is : mgx8850b.27.1.20.400

     Syntax : cnfupcubr "Port.VPI.VCI  enable  pcr[0+1]  cdvt[0+1] IngPcUtil clp_tag "

              Port.VPI.VCI -- A unique Port.VPI.VCI identifying a connection

              Enable/Disable -- UPC : 1 - Disable, 2 - Enable

              PeakCellRate -- PCR [0+1]: 10-PortRate(T1-3622,E1-4528,clearE1-4830),

                      For IMA,T1-3591,E1-4490,clrE1-4789, multiply rate by #links

              CDVT[0+1] -- Cell Delay Variation [0+1]: 1 - 250000 micro_secs

              IngPcUtil -- Ingress percentage util: 1 to 127.  0 for default

              Clp Tagging -- CLP TAG Enable : 1 - Disable, 2 - Enable

     mgx8850b.1.27.AUSMB8.a > cnfupcubr 1.20.400 2 151 10000 0 2

     mgx8850b.1.27.AUSMB8.a > dspcon 1.20.400

       ChanNum:                           17

       RowStatus:                         Mod

       ConnectionType:                    VCC

       ServiceType:                       UBR

       ChanSvcFlag:                       PVC

       PortNum:                           1

       VPI:                               20

       VCI (For VCC):                     400

       Local VPId(for VPC):               0

       EgressQNum:                        4

       IngressQDepth(cells):              1000

       IngressDiscardOption:              CLP hysterisis

       IngressFrameDiscardThreshold       1000

       IngressQCLPHigh(cells):            900

       IngressQCLPLow(cells):             800

       QCLPState:                         LOW

       IngressEfciThreshold(cells):       1000

       UPCEnable:                         Enabled

       PeakCellRate[0+1](cells/sec):      151

       CellDelayVariation[0+1]:           10000 (micro secs)

       PeakCellRate[0](cells/sec):        3622

       CellDelayVariation[0]:             250000 (micro secs)

       SustainedCellRate(cells/sec):      151

       MaximumBurstSize(cells):           1000

       SCRPolicing:                       CLP[0]

       CLPTagEnable:                      Enabled

       FrameGCRAEnable:                   Disable

       ForesightEnable:                   Disable

       InitialBurstSize(cells):           0

       ForeSightPeakCellRate(cells/sec):  151

       MinimumCellRate(cells/sec):        0

       InitialCellRate(cells/sec):        0

       LocalRemoteLpbkState:              Disable

       ChanTestType:                      No Test

       ChanTestState:                     Not In Progress

       ChanRTDresult:                     65535 ms

       Ingress percentage util:           1

       Egress percentage util :           0

       Egress Service Rate:               0

       LocalVpi:                          20

       LocalVci:                          400

       LocalNSAP:                         6d6778383835306200000000000000001b000100

       RemoteVpi:                         0

       RemoteVci:                         0

       RemoteNSAP:                        5468697320697320612064756d6d79204e534150

       Mastership:                        Slave

       VpcFlag:                           Vcc

       ConnServiceType:                   UBR

       RoutingPriority:                   1

       MaxCost:                           255

       RestrictTrunkType:                 No Restriction

       ConnPCR:                           151

       ConnMCR:                           0

       ConnPercentUtil:                   1

Building the RPM Master Connection

The following example shows how to build the RPM master connection.

wsw-8850b-rpm#conf t

     Enter configuration commands, one per line.  End with CNTL/Z.

     wsw-8850b-rpm(config)#addcon vcc switch 1.400 401 rname mgx8850b rslot 27 1 20 400
master local

     wsw-8850b-rpm(config)#^Z

     wsw-8850b-rpm#cc 7

      (session redirected)

     mgx8850b.1.7.PXM.a > dspcons

     This End        Node Name       Other End       Status

     10.1.0.401      mgx8850b        27.1.20.400     OK

     27.1.20.400     mgx8850b        10.1.0.401      OK

Verifying the Configuration

Enter the show ip ospf neighbor command to view the OSPF-neighbor information on a per-interface basis. Then enter the ping command to verify that you have a good connection, as shown in the following example.

wsw-3810n#sh ip ospf nei

     Neighbor ID     Pri   State           Dead Time   Address         Interface

     10.97.174.1       1   FULL/  -        00:00:34    10.97.172.2     ATM0.400

     wsw-3810n#ping 10.97.172.2

     Type escape sequence to abort.

     Sending 5, 100-byte ICMP Echos to 10.97.172.2, timeout is 2 seconds:

     !!!!!

     Success rate is 100 percent (5/5), round-trip min/avg/max = 36/36/36 ms

Caveats

The following caveats exist.

Note Always check scrambling. Often two ATM devices stop communicating because scrambling is enabled on one device but is disabled on the other.

Note The maximum transmission unit (MTU) sizing default is 4470 on the RPM switch interface and 1500 on the Cisco 3810. A mismatch will cause problems with Open Shortest Path First (OSPF) procedures.

Note On a Cisco 3810 with DVM and MFT, to take the time from the MFT, you must configure the clock source on the DVM to something other than the line; otherwise, clock slips will occur.

Note The VPI on the RPM switch PVC is always 0.

Warning It is necessary to match the shaping and policing parameters to prevent data loss. It is very easy to forget the CNFUPC*** command on the AUSM.

RPM-to-PXM Feeder Trunk Connections

In the configuration examples in this section, datagrams enter and leave an RPM, get switched on the local Processor Switching Module (PXM), and leave and enter through a feeder trunk on the PXM. The BPX 8600, attached to the MGX 8850, switches the ATM cells to either another feeder-attached MGX 8850, ATM-attached customer premises equipment (CPE), or a feeder-attached MGX 8220.

RPM-to-RPM Three-Segment Connection

In the following examples, IP connectivity is established between RPM blades on two different MGX 8850 nodes. A connection is configured on each RPM to the feeder trunk on its associated PXM. Then, a connection is built on the BPX to join the feeder segments.

Configuring the RPM Interfaces

The following example shows how to set the traffic shaping for unspecified bit rate (UBR) at 256000 bps peak cell rate (PCR).

/** WSW-8850A-RPM **/

     wsw-8850a-rpm#conf t

     Enter configuration commands, one per line.  End with CNTL/Z.

     wsw-8850a-rpm(config)#int switch 1.300 point

     wsw-8850a-rpm(config-subif)#ip addr 10.97.30.1 255.255.255.0

     wsw-8850a-rpm(config-subif)#pvc 8850b-rpm 0/3000

     wsw-8850a-rpm(config-if-atm-)#ubr 256

     wsw-8850a-rpm(config-if-atm-)#^Z

     /** WSW-8850B-RPM **/

     wsw-8850b-rpm#conf t

     Enter configuration commands, one per line.  End with CNTL/Z.

     wsw-8850b-rpm(config)#int switch 1.300 point

     wsw-8850b-rpm(config-subif)#ip addr 10.97.30.2 255.255.255.0

     wsw-8850b-rpm(config-subif)#pvc 8850a-rpm 0/3001

     wsw-8850b-rpm(config-if-atm-)#ubr 256

     wsw-8850b-rpm(config-if-atm-)#^Z

Adding the RPM-to-Trunk Connections

The following example shows how to add the RPM to trunk connections.

/** WSW-8850A-RPM **/

     wsw-8850a-rpm#conf t

     Enter configuration commands, one per line.  End with CNTL/Z.

     wsw-8850a-rpm(config)#addcon vcc sw 1.300 3000 rname mgx8850a rslot 0 1 30 3100
master local

     wsw-8850a-rpm(config)#^Z

     wsw-8850a-rpm#sh switch conn

                                                                           Synch

     lVpi   lVci     remoteNodeName   remoteSlot remoteIf  rVpi   rVci     Status

     0      3000     mgx8850a         0          1         30     3100    inSynch

     wsw-8850a-rpm#sh switch conn vcc 3000

     ----------------------------------------------------------

     Local Sub-Interface   : 300

     Local VPI             : 0

     Local VCI             : 3000

     Remote Node Name      : mgx8850a

     Remote Slot           : 0

     Remote Interface      : 1

     Remote VPI            : 30

     Remote VCI            : 3100

     Routing Priority      : 0

     Max Cost              : 255

     Restricted Trunk Type : none

     Percent Util          : 100

     Remote PCR            : 604

     Remote MCR            : 604

     Remote Percent Util   : 100

     Connection Master     : Local

     Synch Status          : inSynch

     /** Since we have not built the BPX connection, our RPM-PXM connection will

     have A-Bit issues **/

     wsw-8850a-rpm#cc 7

     (session redirected)

     mgx8850a.1.7.PXM.a > dspcons

     This End        Node Name       Other End       Status

     7.1.30.3100     mgx8850a        10.1.0.3000     FAILED  ABIT ALARM

     10.1.0.3000     mgx8850a        7.1.30.3100     FAILED  ABIT ALARM

     /** WSW-8850B-RPM **/

     wsw-8850b-rpm#conf t

     Enter configuration commands, one per line.  End with CNTL/Z.

     wsw-8850b-rpm(config)#addcon vcc sw 1.300 3001 rname mgx8850b rslot 0 1 31 3101
master local

     wsw-8850b-rpm(config)#^Z

     wsw-8850b-rpm#sh swit con

                                                                           Synch

     lVpi   lVci     remoteNodeName   remoteSlot remoteIf  rVpi   rVci     Status

     0      3001     mgx8850b         0          1         31     3101    inSynch

     wsw-8850b-rpm#sh sw conn vcc 3001

     ----------------------------------------------------------

     Local Sub-Interface   : 300

     Local VPI             : 0

     Local VCI             : 3001

     Remote Node Name      : mgx8850b

     Remote Slot           : 0

     Remote Interface      : 1

     Remote VPI            : 31

     Remote VCI            : 3101

     Routing Priority      : 0

     Max Cost              : 255

     Restricted Trunk Type : none

     Percent Util          : 100

     Remote PCR            : 604

     Remote MCR            : 604

     Remote Percent Util   : 100

     Connection Master     : Local

     Synch Status          : inSynch

     wsw-8850b-rpm#cc 7

     (session redirected)

     mgx8850b.1.7.PXM.a > dspcons

     This End        Node Name       Other End       Status

     7.1.31.3101     mgx8850b        10.1.0.3001     FAILED  ABIT ALARM

     10.1.0.3001     mgx8850b        7.1.31.3101     FAILED  ABIT ALARM

Adding the Trunk-to-Trunk Connection

The following example shows how to add a trunk-to-trunk connection, including the commands that must be entered to create this connection.

wsw-bpx3       TN    StrataCom       BPX 8620  9.2.10    July 29 1999 16:09 EDT

      From            Remote      Remote                             Route

      11.1.30.3100    NodeName    Channel         State  Type        Avoid COS O

      11.1.30.3100    wsw-bpx3    9.1.31.3101     Ok     ubr

     Last Command: addcon 11.1.30.3100 wsw-bpx3 9.1.31.3101 ubr 604 * 5000 * *

     wsw-bpx3       TN    StrataCom       BPX 8620  9.2.10    July 29 1999 16:09 EDT

     Conn:  11.1.30.3100     wsw-bpx3    9.1.31.3101       ubr       Status:OK

         PCR(0+1)    % Util    CDVT(0+1)    FBTC CLP Set

         604/604      1/1      5000/5000     y     1

     Path:   Route information not applicable for local connections

     wsw-bpx3      BXM       : OK           wsw-bpx3  BXM       : OK

                   Line 11.1 : OK                     Line  9.1 : OK

                   OAM Cell RX: Clear                 NNI       : OK

                   NNI       : OK

     This Command: dspcon 11.1.30.3100

Verifying the Configuration

Enter the ping command to verify that you have a good connection, as shown in the following example.

/** Ping from RPM to RPM **/

     wsw-8850a-rpm#ping 10.97.30.2

     Type escape sequence to abort.

     Sending 5, 100-byte ICMP Echos to 10.97.30.2, timeout is 2 seconds:

     !!!!!

     Success rate is 100 percent (5/5), round-trip min/avg/max = 8/11/12 ms

     /** Examine Channel Stats on BPX **/

     wsw-bpx3       TN    StrataCom       BPX 8620  9.2.10    July 29 1999 16:11 EDT

     Channel Statistics for 11.1.30.3100Cleared: July 29 1999 16:11  (-)  Snapshot

     PCR: 604/604 cps        Collection Time: 0 day(s) 00:00:13      Corrupted: NO

        Traffic      Cells      CLP      Avg CPS   %util  Chan Stat Addr: 30F68D4C

     From Port   :      2686          0      205      33  OAM Cell RX: Clear

     To Network  :      2686    ---          205      33

     From Network:      2699          0      206      34

     To Port     :      2699          0      206      34

     Rx Frames Rcv :        29  NonCmplnt Dscd:         0  Rx Q Depth    :         0

     Tx Q Depth    :         0  Rx CLP0       :      2686  Rx Nw CLP0    :      2699

     Igr VSVD ACR  :         0  Egr VSVD ACR  :         0  Tx Clp0 Port  :      2699

     Rx Clp0+1 Port:      2686  NCmp CLP0 Dscd:         0  NCmp CLP1 Dscd:         0

     Oflw CLP0 Dscd:         0  Oflw CLP1 Dscd:         0

     Last Command: dspchstats 11.1.30.3100 1

     /** Show Connections on PXMs - A-Bit alarms Disappear **/

     mgx8850a.1.7.PXM.a > dspcons

     This End        Node Name       Other End       Status

     7.1.30.3100     mgx8850a        10.1.0.3000     OK

     10.1.0.3000     mgx8850a        7.1.30.3100     OK

     mgx8850b.1.7.PXM.a > dspcons

     This End        Node Name       Other End       Status

     7.1.31.3101     mgx8850b        10.1.0.3001     OK

     10.1.0.3001     mgx8850b        7.1.31.3101     OK

Note The VPI on the RPM switch PVC is always 0.

Note Match the shaping and policing parameters on both the MGX and the BPX to prevent data loss.

RPM-to-FRSM-2E3 Three-Segment Connection

The FRSM uses the service interworking translation method to convert incoming Frame Relay frames to ATM cells. The ATM cells are switched out the PXM interface and switched between feeder trunks by the BPX. When the cells are received by the other PXM, they are switched to the switch interface on the RPM in the node where they are re-integrated back into IP datagrams.

In the example below, IP datagrams are transported through Frame Relay/ATM service interworking between a Frame Relay-attached router and an RPM. An unchannelized E3 port adapter is connected on a
Cisco 7576 router to line 1 on the Frame Relay Service Module (FRSM-2E3) in slot 3 of one MGX 8850.

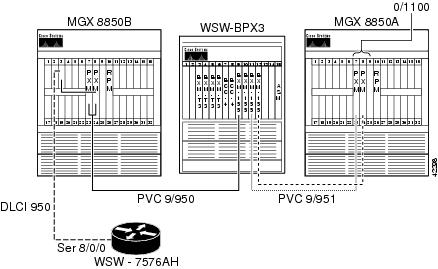

Figure 6-9 RPM-to-FRSM-2E3 Three-Segment Connection

Configuring the FRSM-2E3 Interface

The following example shows how to configure the FRSM-2E3 interface.

mgx8850b.1.3.VHS2E3.a > addln 1

     Syntax : cnfds3ln "line_num line_len clk_src "

              E3 line number -- value range from 1 to 2

              line length --  1 for LessThan225ft,

                              2 for GreaterThan225ft

              Dsx3 Xmt Clock Src -- 1 : backplane-clk 2 : recovery-clk  3 : Local-clk

     mgx8850b.1.3.VHS2E3.a > cnfds3ln 1 1 1

     Syntax : addport "port_num line_num port_type "

              port number -- values ranging from 1-2( 2T3/2E3/HS2), 1-256 (2CT3)

              port line number -- value ranging from 1 to 2

              port type -- values 1-3, 1=frame relay, 2=FUNI mode-1a, 3=frForward

     mgx8850b.1.3.VHS2E3.a > addport 1 1 1

     Syntax : cnfport "portNum lmiSig asyn ELMI T391 T392 N391 N392 N393"

              port number -- values ranging from 1-2( 2T3/2E3/HS2), 1-256 (2CT3)

              LMI signaling -- (N)one (S)trataLMI au-AnnexAUNI

              du-AnnexDUNI an-AnnexANNI dn-AnnexDNNI

              asyn update --  (UPD = Update Status, UFS = Unsolicited Full Status)

                     (n or 1) = both dis, (y or 2) = UPD en, 3 = UFS en, 4 = both en

              Enhanced LMI -- (N or n) disable (Y or y) enable

              T391 timer -- value ranging from 5 to 30 sec.

              T392 timer -- value ranging from 5 to 30 sec.

              N391 counter -- value ranging from 1 to 255

              N392 counter -- value ranging from 1 to 10

              N393 counter -- value ranging from 1 to 10, greater than N392

     mgx8850b.1.3.VHS2E3.a > cnfport 1 S n n

     mgx8850b.1.3.VHS2E3.a > dspds3ln 1

       LineNum:               1

       LineEnable:            Modify

       LineType:              G.751

       LineCoding:            e3HDB3

       LineLength:            LT225ft

       LineSubRateEnable:     Disable

       LineDsuSelect:         dl3100Mode

       LineRate:              34368kbps

       LineLoopbackCommand:   NoLoop

       LineXmitClockSource:   backplaneClk

       LineEqualizer:         internal equalizer

       LineBertEnable:        Disable

     Syntax : cnflnsubrate " line_num dsu_subrate_ena dsu_select dsu_line_rate "

              E3 line number -- value range from 1 to 2

              ds3 SubRate Enable -- 1 = disable, 2 = enable

              ds3 Dsu Select -- 1 = dl3100Mode, 2 = adcKentroxMode

              dsu Line Rate -- values ranging from 300 to 44736 in steps of 300kbps
(dl3100Mode) or 500 Kbps (adcKentroxMode)

     mgx8850b.1.3.VHS2E3.a > cnflnsubrate 1 2 1 33900

     dsx3LineRate = 33900

Configuring the Router Interface

The following example shows how to configure the router interface:

wss-7576ah#conf t Enter configuration commands, one per line. End with CNTL/Z.
wss-7576ah(config)#int s 8/0/0

wss-7576ah(config-if)#encap frame ietf wss-7576ah(config-if)#no shut
wss-7576ah(config-if)#clock source line

wss-7576ah(config-if)#dsu band 33900
wss-7576ah(config-if)#int s 8/0/0.950 p
wss-7576ah(config-subif)#ip addr 10.97.95.2 255.255.255.0
wss-7576ah(config-subif)#frame-relay interface-dlci 950
wss-7576ah(config-fr-dlci)#^Z

Configuring the RPM Interface

The following example shows how to configure the RPM interface:

wsw-8850a-rpm#conf t

Enter configuration commands, one per line.  End with CNTL/Z.

wsw-8850a-rpm(config)#int sw 1.951 p

wsw-8850a-rpm(config-subif)#ip address 10.97.95.1 255.255.255.0

wsw-8850a-rpm(config-subif)#PVC RPM-FRSM2E3 0/951

wsw-8850a-rpm(config-if-atm-)#vbr-nrt 384 256 151

wsw-8850a-rpm(config-if-atm-)#encap aal5snap

wsw-8850a-rpm(config-if-atm-)#^Z

Building the FRSM-2E3-to-Trunk Connection

The following example shows how to build the FRSM-2E3 to trunk connection.

Syntax : addcon "port dlci cir chan_type serv_type [CAC] [Controller_Type] [mastership]
[remoteConnId] "

              port number -- values ranging from 1-2( 2T3/2E3/HS2), 1-256 (2CT3)

              DLCI number -- value ranging from 0-1023(2CT3/2T3/2E3/HS2)

              committed rate -- 0-1536000 bps for 2CT3; 0-44210000 bps for 2T3;

                              0-34010000 bps for 2E3 , 0-51840000 bps for HS2

              chan type -- values 1-5, 1=NIW 2=SIW-transparent 3=SIW-xlation

                              4=FUNI 5=frForward

              Egress service type --  1 = highpriorityQ      2 = rtVBRQ

                                      3 = nrtVBRQ     4 = aBRQ

                                      5 = uBRQ

              CAC -- Connection Admission Control (optional); 1 = enable, 2 = disable
(default)

              Controller Type (Signaling) -- 1: PVC (PAR) - Default , 2: SPVC (PNNI)

              mastership -- 1 for master, 2 for slave

              Remote end Connection ID -- Format :

               NodeName.SlotNo.PortNo.Dlci OR

               NodeName.SlotNo.PortNo.ControllerId.Dlci for FR end point OR

               NodeName.SlotNo.PortNo.VPI.VCI for ATM end point.

               Where controller ID can be 1(PAR),2(PNNI),3(TAG)

     mgx8850b.1.3.VHS2E3.a > addcon 1 950 256000 3 3 2 1 1 mgx8850b.0.1.9.950

     mgx8850b.1.3.VHS2E3.a > dspchans

         DLCI      Chan ServType   I/EQDepth  I/EQDEThre  I/EECNThre  Fst/ DE Type Alarm

       ---------   ---- --------   ----- ----- ----- ----- ----- ----- --- --- ----- -----

       3.1.1.950      21   nrtVBR 1048575/1048575 524287/524287 104857/104857 Dis/Dis
SIW-X  Yes

     Syntax : cnfchanpol "chan_num cir bc be ibs detag"

              channel number -- value ranging from 16-4015(2CT3), 16-2015( 2T3/2E3/HS2)

              committed rate -- 0-1536000 bps for 2CT3; 0-44210000 2T3;

                              0-34010000 bps for 2E3; 0-51840000 bps for HS2

              committed burst -- 0-2097151 in bytes

              excess burst -- 0-2097151 in bytes

              initial burst -- 0-2097151 in bytes, Less than or equal to Bc

              DE bit tagging -- 1 for enable, 2 for disable

     mgx8850b.1.3.VHS2E3.a > cnfchanpol 21  256000 32000 16000 8000 2

Building the RPM-to-Trunk Connection

The following example shows how to build the RPM to trunk connection:

wsw-8850a-rpm#conf t

     Enter configuration commands, one per line.  End with CNTL/Z.

     wsw-8850a-rpm(config)#addcon vcc switch 1.951 951 rname mgx8850a rslot 0 1 9 951
master local

     wsw-8850a-rpm(config)#^Z

Building the Trunk-to-Trunk Connection

The following example shows how to configure a trunk-to-trunk connection, including the commands that must be entered to create this connection.

wsw-bpx3       TN    StrataCom       BPX 8620  9.2.10    Aug. 9 1999  10:09 EDT

      From            Remote      Remote                             Route

      11.1.9.951      NodeName    Channel         State  Type        Avoid COS O

      11.1.9.951      wsw-bpx3    9.1.9.950       Ok     atfr

     Last Command: addcon 11.1.9.951 wsw-bpx3 9.1.9.950 atfr 906 * 1000 604 151 * * * *

     wsw-bpx3       TN    StrataCom       BPX 8620  9.2.10    Aug. 9 1999  10:09 EDT

     Conn:  11.1.9.951       wsw-bpx3    9.1.9.950         atfr      Status:OK

        PCR(0+1)        % Util       CDVT(0+1)            SCR               MBS

       906/906         100/100       1000/1000         604/604           151/151

     Policing    VC Qdepth     EFCI         IBS

         3      1280/1280     35/35        1/1

     Path:   Route information not applicable for local connections

     wsw-bpx3      BXM       : OK           wsw-bpx3  BXM       : OK

                   Line 11.1 : OK                     Line  9.1 : OK

                   OAM Cell RX: Clear                 NNI       : OK

                   NNI       : OK

     This Command: dspcon 11.1.9.951

Verifying the Configuration

Enter the ping command to verify that you have a good connection, as shown in the following example.

/** The Ubiquitous Ping Test **/

     wsw-8850a-rpm#ping 10.97.95.2

     Type escape sequence to abort.

     Sending 5, 100-byte ICMP Echos to 10.97.95.2, timeout is 2 seconds:

     !!!!!

     Success rate is 100 percent (5/5), round-trip min/avg/max = 4/4/4 ms

     /** Examine Channel Stats on BPX **/

     wsw-bpx3       TN    StrataCom       BPX 8620  9.2.10    Aug. 9 1999  10:11 EDT

     Channel Statistics for 11.1.9.951  Cleared: Aug. 9 1999  10:11  (-)

     PCR: 906/906 cps        Collection Time: 0 day(s) 00:00:06      Corrupted: NO

        Traffic      Cells      CLP      Avg CPS   %util  Chan Stat Addr: 30F6933C

     From Port   :        15          0        2       0  OAM Cell RX: Clear

     To Network  :        15    ---            2       0

     From Network:        15          0        2       0

     To Port     :        15          0        2       0

     Rx Frames Rcv :         5  NonCmplnt Dscd:         0  Rx Q Depth    :         0

     Tx Q Depth    :         0  Rx CLP0       :        15  Rx Nw CLP0    :        15

     Igr VSVD ACR  :         0  Egr VSVD ACR  :         0  Tx Clp0 Port  :        15

     Rx Clp0+1 Port:        15  NCmp CLP0 Dscd:         0  NCmp CLP1 Dscd:         0

     Oflw CLP0 Dscd:         0  Oflw CLP1 Dscd:         0

     This Command: dspchstats 11.1.9.951 1

Caveats

The following caveats exist.

Note Because the FRSM defaults to no signaling and the routers default to Gang of Four (also known as Cisco LMI), the two devices will not communicate until they both share a protocol.

Note The encap frame ietf command is needed on the router for the Frame Relay/ATM Service Interworking.

Note The VPI on the RPM switch PVC is always 0.

Note To prevent data loss, you must match the shaping and policing parameters.

Connection Synchronization

Because connections are added separately to the RPM and to PXM or other RPM cards, connections may exist on the RPM but not on the PXM or the other RPM cards. Therefore, connection synchronization, which is also referred to as service module resynchronization, between the RPM and the other service modules is necessary.

Note This refers to synchronization between the modules' databases, not between the endpoints.

•If connection parameters are mismatched between the two databases, the connection status is set to "MISMATCH." To correct the problem the user is required to delete and re-add the connection.

•Administrative status is not considered as a connection parameter. Therefore, any mismatch in administrative status will not be detected by the connection synchronization feature. The mismatch, however, can be made known by using the OAM loopback test.

•If a connection exists on the RPM but not on a PXM or another RPM, the connection status will be set to "ONLY_ON_RPM." To correct the problem the user is required to delete and re-add the connection.

•If connection exists on a PXM or another RPM, but not on the local RPM, the connection status will be set to "NOT_ON_RPM." To correct the problem the user is required to delete and re-add the connection. The connection on the other service module can be deleted by issuing "no switch connection" on the RPM as if the connection exists on the RPM.

Manually Resynchronizing Connections

You can manually resynchronize connections. However, out of synchronization conditions may be triggered by

•Periodic kickoffs

•Connection provisioning time-out on the RPM

•PXM switchover

•RPM reset

You can force resynchronization by entering the start_resynch command at the configure interface level as shown here:

NY_9# conf t

NY_9(config)# int sw1

NY-9(config-if)#switch start_resynch

Automatically Resynchronizing Connections

auto_synch corrects mismatches between the PXM and the RPM databases. If your network is highly unstable, do not turn on auto_synch.

The commands that are used to enable/disable the auto_synch feature are moved under the new switch command. Here is an example of how you use this command on the config level.

NY_9# conf t

NY_9(config)# int sw1

NY-9(config-if)#switch auto_synch on <off|manual> "default is off"

Connection State Alarms

This section describes the alarm state of each PNNI, how alarms occur, and what they mean.

Endpoint status indicators reported by RPM and their meanings include:

•egrAisRdi—The endpoint is receiving AIS or RDI cells in the egress direction (from the network).

•ccFail—An OAM loopback failure has occurred.

•mismatch—There is a mismatch between the RPM and Connection Manager databases.

•conditioned—There is a routing failure.

These alarms are triggered when

•There is a change in the endpoint status.

•If a failure is detected by the Connection Manager during a routine routing status check.

Connection State Resynchronization

Connection state resynchronization is triggered by a PXM-1 switchover or an RPM reset. This happens when an alarm state is not persistent nor contains redundant data, and needs to be rebuilt after a switchover or reset.

Table Of Contents

Setting Up Connections Between Other Devices and the RPM

Configuring Connections Between the RPM and Other Devices

Setting Up the RPM Connection to the PXM

Available Parameters

Example RPM-PXM Configuration

Setting Up Connections Between CWM and the RPM

On the RPM Side

On the PXM Side

Sample CWM-PXM Configuration

On the RPM Side

On the PXM Side

Setting Up Connections Between Service Modules and the RPM

Types of Service Modules

Data Forwarding to RPMs

FRSM Frame Aggregation: Port Forwarding

PPP over ATM Example

Connection Forwarding

Frame over ATM Example

ATM Service

Setting Up the FRSM Connections to the PXM

FRSM-PXM Configuration Example

Setting Up the AUSM Connection to the PXM

AUSM-PXM Configuration Example

ATM Configuration Examples

Example of PVCs with AAL5 and LLC/SNAP Encapsulation

Example of PVCs in a Fully Meshed Network

Fully Meshed ATM Configuration Example

RPM A (slot 4)

RPM B (slot 5)

RPM C (slot 3)

RPM-to-Service Module DAX Connections

RPM-to-FRSM-8T1 ATM/Frame Relay SIW DAX Connection

Configuring the FRSM Interface

Configuring the Router Interface

Configuring the RPM Interface

Building the RPM Slave Connection

Building the FRSM-8T1 Master Connection

Verifying the Configuration

RPM-to-AUSM-8T1 IMA DAX Connection

Configuring the AUSM Interface

Configuring the Router Interface

Building the RPM-to-AUSM-IMA Slave Connection

Building the AUSM-IMA-to-AUSM-IMA Trunk Connection

Verifying the Configuration

RPM-to-FRSM-2CT3 ATM/PPP DAX Connection

Configuring the FRSM-2CT3 Interface

Configuring the RPM Interface

Configuring the Router Interface

Building the FRSM-2CT3 Slave Connection

Building the RPM Connection

Verifying the Configuration

RPM-to-AUSM-8T1 ATM-IMA DAX Connection

Configuring the AUSM Interface

Configuring the Cisco 7200 Router Interface

Configuring the RPM Interface

Building the AUSM Slave Connection

Verifying the Configuration

RPM-to-AUSM-8T1/B ATM/ATM DAX Connection

Configuring the AUSM Interface

Configuring the Router Interface

Configuring the RPM Interface

Building the AUSM Slave Connection

Building the RPM Master Connection

Verifying the Configuration

Caveats

RPM-to-PXM Feeder Trunk Connections

RPM-to-RPM Three-Segment Connection

Configuring the RPM Interfaces

Adding the RPM-to-Trunk Connections

Adding the Trunk-to-Trunk Connection

Verifying the Configuration

RPM-to-FRSM-2E3 Three-Segment Connection

Configuring the FRSM-2E3 Interface

Configuring the Router Interface

Configuring the RPM Interface

Building the FRSM-2E3-to-Trunk Connection

Building the RPM-to-Trunk Connection

Building the Trunk-to-Trunk Connection

Verifying the Configuration
