This appendix contains descriptions of the switch software commands that have been altered to support the MGX 8850 switch. These descriptions appear in the Cisco WAN Switching Command Reference.
addcon (ATM)
Establishes an ATM connection between the current node and one or more nodes in the network.
The addcon command for ATM adds any one of the following types of ATM connections:
•
Constant Bit Rate (CBR)
•
•
•
•
•
•
This description has the following explanations in the form of figures and tables
•
–
–
–
–
–
–
–
•
•
•
•
For detailed descriptions of the connection types, traffic classes, policing, and ATM-related topics, refer to the Cisco BPX 8600 Series Reference, the Cisco WAN Switching System Overview, and the ATM Forum specifications.
The node on which addcon executes is the "owner" of the connection. Connection ownership is important because automatic rerouting and preferred routing information is entered on the node that owns the connection. See the cnfpref and cnfcos descriptions for details on automatic rerouting.
The parameter prompts depend on the connection type. The figures on this and the following pages are flow diagrams showing the sequence of possible parameter prompts according to the connection type. The flow diagrams begin at the point after you have entered the remote node name and VPI and VCI (which are common parameters). The subsequent tables define the parameters and list the defaults and ranges for each parameter.
A form of notation appears for some parameters that may need explanation. The notation is either (0), (1), or (0+1). This refers to the state of the Cell Loss Priority (CLP) bit. The usage of the CLP bit is in the traffic policing schemes. (0+1) means cells with CLP=0 or 1. (0) means cells with CLP=0. (1) means cells with CLP=1. The CLP bit is used in different contexts. For example, CDVT (0+1) refers to Cell Delay Variation Tolerance (CDVT) for cells with CLP=0 or 1.
Before a connection is added, the proposed connection appears on the screen with a prompt for confirmation. After addcon executes, the system software automatically routes the connection.
Figure C-1 Prompt Sequence for a CBR Connection

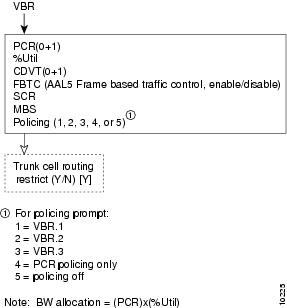

Figure C-2 Prompt Sequence for a VBR Connection
Figure C-3 Prompt Sequence for an ATFR Connection

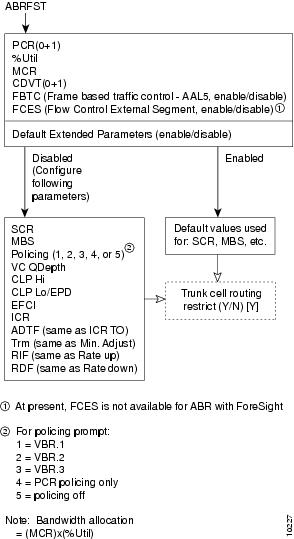

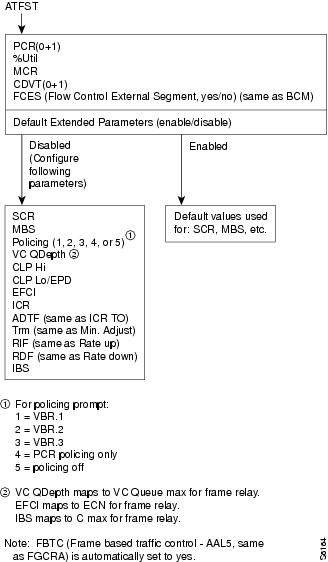

Figure C-4 Prompt Sequence for a ATFST Connection

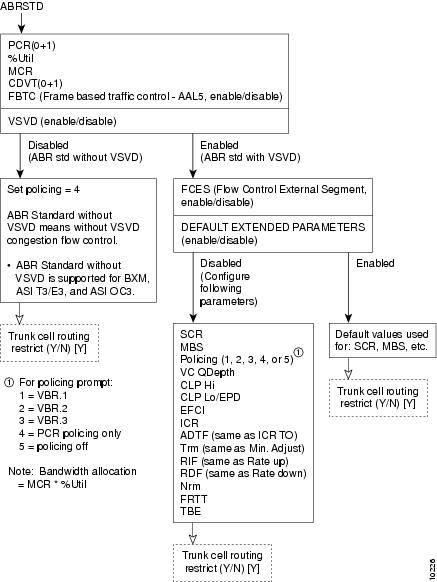

Figure C-5 Prompt Sequence for an ABRSTD Connection

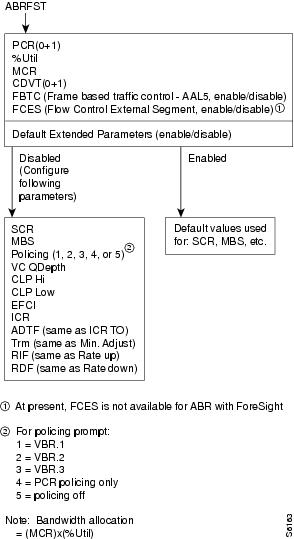

Figure C-6 Prompt Sequence for ABRFST Connection
Figure C-7 Prompt Sequence for a UBR Connection
Table C-1 contains descriptions of the ATM parameters that appear on screen. Table C-2 gives the defaults, ranges (or values), and applicable connection type (marked with an X) for each parameter. Table C-3 gives a shorthand definition of each type of traffic policing. In Table C-3, note that VBR.1, VBR.2, VBR.3, CBR.1, UBR.1, and UBR.2 are ATM Forum standards for traffic policing. The columns in Table C-3 indicate the actions involved with each policing type. For descriptions of the traffic types, connection types, and traffic policing, refer to the Cisco BPX 8600 Series Reference and the Cisco WAN Switching System Overview. The preceding flow diagrams help clarify the information in the forthcoming tables. The remaining parts of this description contain attributes and screen examples.
Note
Table C-1 addcon-Parameters
local channel
Specifies the local slot, port, virtual path identifier (vpi), and virtual connection identifier (vci) for the connection. The format is slot.port.vpi.vci.
The vpi range for a UNI connection is 0-255. The vpi range for an NNI connection
is 1-4095.The range for a vci is 1-65355. The vci can be an asterisk (*) to indicate the connection is a virtual path connection (so the vci has no meaning within the network).
When adding an MGX 8850 interface shelf with a UNI interface to a BPX 8600-series routing node, the VPI range is 1-255. The VCI range is 1-65535.
When adding an MGX 8850 interface shelf with an NNI interface to a BPX 8600-series routing node, the VPI range is 1-4095. The VCI range is 1-65535.
remote node name
Specifies the name of the node at the other (or remote) end of the connection.
remote channel
Specifies the remote node's slot, port, vpi, and vci for this connection. The format is slot.port.vpi.vci. The vpi and vci ranges are:
The vpi range for a UNI connection is 0-255. The vpi range for an NNI connection
is 0-1023The range for a vci is 1-4095. The vci can be an asterisk (*) to indicate the connection is a virtual path (the vci does not provide a distinction within the network).
connection class
Specifies one of the following connection types: VBR, UBR, CBR, ATFST, ATFR, ATFX, ATFT, ABRSTD, or ABRFST. The subsequent displayed parameters depend on the connection type you choose. To see the parameters associated with each connection type, refer to the appropriate flow diagrams (Figure C-1 through Figure C-7). For a definition of each class, refer to the Cisco WAN Switching System Overview.
The option for choosing a class number is also available. The class is a template for a connection type. The class serves as an alternative to specifying each parameter for a connection type. To specify a connection class, enter a digit in the range 1-10. To see the parameter values for a class, use the dspcls commands. To customize any class template, use cnfcls.
PCR
Peak Cell Rate: the cell rate that the source cannot exceed.
%Util
Specifies the percentage of bandwidth utilization.
MCR
Minimum Cell Rate: the committed, minimum cell rate for a connection in a network.
CDVT
Cell Delay Variation Tolerance: controls time scale over which the PCR is policed.
FBTC (AAL5 Frame Base Traffic Control)
Enables the possibility of discarding a whole frame rather than a single, non-compliant cell. FBTC used to set the Early Packet Discard bit at every node along a connection.
VSVD
Virtual Source Virtual Destination.
Flow Control External Segments
Enables Cisco WAN switches to perform flow control on external segments (on the CPE, for example) in addition to the Cisco WAN Switching segments.
SCR
Sustainable Cell Rate: the long-term limit on the rate that a connection can sustain.
MBS
Maximum Burst Size: the maximum number of cells that can burst at the PCR and still be compliant. MBS is used to determine the Burst Tolerance (BT), which controls the time period over which the SCR is policed.
Policing
(see Table C-3, "Traffic Policing Definitions").
VC QDepth
The depth of the queue VC QDepth.
CLP Hi
Cell Loss Priority Hi threshold (% of VC QDepth). When the high threshold is exceeded, the node discards cells with CLP=1 until the number of cells in the queue drops below the level specified by CLP Lo/EPD.
CLP Lo/EPD
Cell Loss Priority Low threshold (% of VC QDepth)/Early Packet Discard. When the number of cells in the queue drops below the level specified by CLP Lo/EPD, the node stops discarding cells with CLP=1.
If the card is a BXM and AAL5 FBTC=yes, the percent of VC QMax equals the value of EPD. Frame-based Traffic Control (FBTC) is FGCRA for AAL5.
For an ASI card, the percent of VC QMax is CLP Lo regardless of the FBTC setting.
EFCI
Explicit Forward Congestion Indication threshold (% of VC QDepth).
ICR
Initial Cell Rate: the rate at which a source initially transmits after an idle period.
IBR
Initial Burst Size: the maximum burst size a source can initially transmit after an idle period. IBR applies to only BXM cards.
ADTF (ATM Forum TM 4.0 term)
The Allowed-Cell-Rate Decrease Factor.
Time permitted between sending RM-cells before the rate is decreased to ICR. (In previous software releases, ADTF was ICR TO—Initial Cell Rate Time Out.)
Trm (ATM Forum TM 4.0 term)
An upper bound on the time between forward RM-cells for an active source: an RM cell must be sent at least every Trm milliseconds. (In previous software releases, Trm was Min. Adjust.)
RIF (ATM Forum TM 4.0 term)
Rate Increase Factor: controls the amount by which the cell transmission rate may increase upon receipt of an RM cell. (In previous software releases, RIF was Rate Up.)
RDF (ATM Forum TM 4.0 term)
Rate Decrease Factor: controls the amount decrease in cell transmission rate when an RM cell arrives. (In previous software releases, RDF was Rate Down.)
Nrm (ATM Forum TM 4.0 term)
Nrm.
Maximum number of cells a source may send for each forward RM cell: an RM cell must be sent for every Nrm-1 data cells.
FRTT (ATM Forum TM 4.0 term)
Fixed Round Trip Time: the sum of the fixed and propagation delays from the source to a destination and back.
TBE (ATM Forum TM 4.0 term)
Transient Buffer Exposure
The negotiated number of cells that the network would like to limit the source to sending during start-up periods, before the first RM-cell returns.
PCR
Peak cell rate: the cell rate which the source may never exceed.
Full Name
Add a connection
addcon parameters (see preceding flow diagrams and tables)
Related Commands
delcon, dspcons
Attributes
Example 1
addcon 9.1.100.100 pubsbpx2 9.1.102.102
Description
Add a standard ABR connection with VSVD and no Default Extended Parameters (which then require user input for SCR, MBS, and so on).
System Response
pubsbpx1 TN SuperUser BPX 15 9.19.1 Oct. 27 1998 05:22 GMTFrom Remote Remote Route9.1.100.100 NodeName Channel State Type Avoid COS O9.1.100.100 pubsbpx2 9.1.102.102 Ok abrstd9.1.102.102 pubsbpx2 9.1.100.100 Ok abrstdThis Command: addcon 9.1.100.100 pubsbpx2 9.1.102.102 abr * * * * e e * d * * 1* * * * * * * * *Add these connections (y/n)?addshelf
Adds an ATM link between a hub node and a concentrator such as an MGX 8220, MGX 8850, or IGX 8400-series shelf in a tiered network; an ATM link between a BXM card on a BPX 8600-series node and a label switching controller (LSC) such as a series 7200 or 7500 router; or an ATM link between a BXM card on a BPX 8600-series node and an Extended Services Processor. A label switching (LSC) or an Extended Services Processor is considered an interface shelf from the BPX 8600 perspective. The routing hub can be either a BPX 8600-series or an IGX 8400-series node.
The interface shelf can be one of the following:
•
•
•
•
•
The signaling protocol that applies to the trunk on an interface shelf is Annex G.
Note
Each IGX/AF, MGX 8220, or MGX 8850 shelf has one trunk that connects to the BPX 8600-series or IGX 8400-series node serving as an access hub. A BPX 8600-series routing hub can support up to 16 T3 trunks to the interface shelves, which can be an IGX/AF, MGX 8220, or MGX 8850 interface shelf. An IGX hub can support up to four trunks to the interface shelves, which can be IGX/AF shelves only.
Before it can carry traffic, the trunk on an interface shelf must be "upped" (using uptrk) on both the interface shelf and the hub node and "added" to the network (using addshelf). Also, a trunk must be free of major alarms before you can add it with the addshelf command.
Full Name
Add an interface shelf (feeder).
Syntax
Interface shelf:
addshelf <slot.port> <shelf-type> <vpi> <vci>
LSC:
addshelf <slot.port> <device-type> <control partition> <control ID>
Note
Related Commands
delshelf, dspnode, dsptrks
Attributes
Example 1
Interface shelf: addshelf 11.1 a 21 200
LSC: addshelf 4.1 vsi 1 1
Description
Interface shelf:
Add trunk 11.1 as an MGX 8220 interface shelf. After you add the shelf, the screen displays a confirmation message and the name of the shelf.
LSC:
Add trunk 4.1 as a VSI-LSC interface shelf. After you add the LSC, the screen displays a confirmation message and the name of the shelf.
Description for Label Switching
For label switching, before it can carry traffic, you need to "up" the link to a label switch controller (using either uptrk or upport) at the BPX 8600-series node. You can then "add" the link to the network (using addshelf). Also, the link must be free of major alarms before you can add it with the addshelf command. (See Table C-4.)
Note
Example for Label Switching
Add a label switch controller link to a BPX 8600-series node by entering the addshelf command at the desired BXM port as follows:
addshelf 4.1 vsi 1 1
System Response
nmsbpx23 TN SuperUser BPX 15 9.1 Apr. 4 1998 13:28 PSTBPX Interface Shelf InformationTrunk Name Type Alarm5.1 j6c AXIS MIN5.3 j5c IGX/AF MIN4.1 VSI VSI OKThis Command: addshelf 4.1 v 1 1Next Command:Description for Interface Shelves
An interface shelf can be one of the following:
•
•
•
•
Each MGX 8850 or MGX 8220 feeder has one trunk that connects to the BPX 8600-series or IGX node serving as an access hub. A BPX 8600-series hub can support up to 16 T3 trunks to the interface shelves. An IGX hub can support up to four trunks to the interface shelves.
Before it can carry traffic, the trunk on an interface shelf must be "upped" (using uptrk) on both the interface shelf and the hub node and "added" to the network (using addshelf). Also, a trunk must be free of major alarms before you can add it using the addshelf command. (See Table C-5.)
Example for Interface Shelves
Add an MGX 8220 at trunk 11.1 After you add the shelf, the screen displays a confirmation message and the name of the shelf. Add the MGX 8220 (may be referred to on screen as AXIS) as follows:
addshelf 11.1 a
The sample display shows the partial execution of a command with the prompt requesting that the I/F type be entered.
System Response
nmsbpx23 TN SuperUser BPX 15 9.1 Apr. 4 1998 13:28 PSTBPX Interface Shelf InformationTrunk Name Type Alarm1.3 AXIS240 AXIS OK11.2 A242 AXIS OKThis Command: addshelf 11.1Enter Interface Shelf Type: I (IGX/AF), A (AXIS), P (APS), V (VSI), X (PAR)Next Command:Example for Adding an MGX 8850 PAR (Portable AutoRoute) Interface Shelf
Add an MGX 8850 at trunk 4.8. After you add the MGX 8850 shelf, the screen displays a confirmation message and the name of the shelf. Add the MGX 8850 (may be referred to on screen as PAR) as follows:
addshelf 4.8 x
The sample display shows that an MGX 8850 was added on trunk 4.8 as a Portable AutoRoute (PAR) type of interface shelf. (Adding an MGX 8850 shelf is similar to adding a LSC interface shelf.)
System Response
pswbpx3 TN SuperUser BPX 8600 9.1 June 6 1998 13:28 PSTBPX Interface Shelf InformationTrunk Name Type Part Id Ctrl Id Alarm4.8 SIMFDR0 PAR - - OKThis Command: addshelf 4.8 xEnter Interface Shelf Type: A (MGX 8220), P (EPS), V (VSI), X (PAR), I (IGX/AF)Next Command:dspnode (LSC)
Displays a summary of the interface shelves.
The dspnode command can isolate the shelf where an alarm has originated. For example, when you execute dspalms, the display indicates the number of shelves with alarms but does not identify the shelves. Therefore, execute dspnode on the hub node to determine which interface shelf generated the alarm.
The first example shows a screen display with dspnode executed on a BPX 8600-series node. The second example shows a screen with dspnode executed on an IGX/AF. When executed on an IGX/AF, dspnode shows the name of the hub node and the trunk number. Note that to execute a command from an IGX/AF itself, you must either telnet to the shelf or use a control terminal attached to the shelf.
Full Name
Display node
Syntax
dspnode
Related Commands
addshelf, delshelf, dsptrk
Attributes
Example 1
dspnode
Description
Display information about the interface shelves (executed on the BPX 8600-series hub node).
System Response
sw53 TN SuperUser BPX 15 9.1 July 21 1998 15:09 GMTBPX Interface Shelf InformationTrunk Name Type Part ID Ctrl ID Alarm1.1 sw89 IGX/AF OK1.2 SW93AXIS AXIS UNRCH1.3 SW77AXIS AXIS MAJ3.1 sw92 LSC OK3.2 sw91 IGX/AF OK3.3 sw90 IGX/AF OK4.1 sw24 IGX/AF MIN4.3 sw25 IGX/AF MIN5.8 SIMFDR0 PAR - - OKLast Command: dspnodeNext Command:Example 2
dspnode
Description
Display information about the trunk to the hub node (executed on an IGX/AF).
System Response
sw141 TN SuperUser IGX 16 9.1 Aug. 20 1998 07:23 PDTSwitching Shelf InformationTrunk Name Type Alarm3 sw45 BPX OKLast Command: dspnodeNext Command:dspnode
Displays a summary of the interface shelves.
The dspnode command can isolate the shelf where an alarm has originated. For example, when you execute dspalms, the display indicates the number of shelves with alarms but does not identify the shelves. Therefore, execute dspnode on the hub node to determine which interface shelf generated the alarm.
The first example shows a screen display with dspnode executed on a BPX node. The second example shows a screen with dspnode executed on an IGX/AF. When executed on an IGX/AF, dspnode shows the name of the hub node and the trunk number. Note that to execute a command from an IGX/AF itself, you must either telnet to the shelf or use a control terminal attached to the shelf.
You can also display the VSI controllers on a BPX node using dspnode.
Full Name
Display node
Syntax
dspnode
Related Commands
addshelf, delshelf, dsptrk
Attributes
Example 1
dspnode
Description
Display information about the interface shelves (executed on the BPX 8600-series hub node).
System Response
sw53 TN SuperUser BPX 15 9.1 July 21 1998 15:09 GMTBPX Interface Shelf InformationTrunk Name Type Alarm1.1 sw89 IGX/AF OK1.2 SW93AXIS AXIS UNRCH1.3 SW77AXIS AXIS MAJ3.1 sw92 LSC OK3.2 sw91 IGX/AF OK3.3 sw90 IGX/AF OK4.1 sw24 IGX/AF MIN4.3 sw25 IGX/AF MINLast Command: dspnodeNext Command:Example 2
dspnode
Description
Display information about the trunk to the hub node (executed on an IGX/AF).
System Response
sw141 TN SuperUser IGX 16 9.1 Aug. 20 1998 07:23 PDTSwitching Shelf InformationTrunk Name Type Alarm3 sw45 BPX OKLast Command: dspnodeNext Command:dsptrks
Displays basic trunk information for all trunks on a node. This command applies to both physical only and virtual trunks. The displayed information consists of:
•
•
•
In addition, for trunks that have been added to the network with the addtrk command, the information includes the node name and trunk number at the other end. Trunks that have a "-" in the Other End column have been upped with uptrk but not yet added on both ends with addtrk. For disabled trunks, the trunk numbers appear in reverse video on the screen.
Full Name
Display trunks
Syntax
dsptrks
Related Commands
addtrk, deltrk, dntrk, uptrk
Attributes
Example 1
dsptrks
Description
Display information on the trunk configuration and alarm status for the trunks at a node. The trunk numbers with three places represent virtual trunks.
System Response
sw53 TN SuperUser BPX 15 9.1 Sep. 24 1998 23:03 GMTTRK Type Current Line Alarm Status Other End1.1 T3 Clear - OK sw89(IGX/AF)1.2 T3 Clear - OK -1.3 T3 Clear - OK -2.1.1 OC3 Clear - OK -3.1 T3 Clear - OK sw92(IGX/AF)3.2 T3 Clear - OK sw91(IGX/AF)3.3 T3 Clear - OK sw90(IGX/AF)4.1 T3 Clear - OK sw24(IGX/AF)4.2 T3 Clear - OK swstorm/1.14.3 T3 Clear - OK sw25(IGX/AF)13.1 T3(E3) Clear - OK -13.2.1 T3 Clear - OK -13.2.2 T3 Clear - OK -13.2.3 T3 Clear - OK -Last Command: dsptrksNext Command:Example 1
dsptrks
Description
Display information on the trunk configuration and alarm status for the trunks at a node. The trunk numbers with three places represent virtual trunks.
System Response
sw53 TN SuperUser BPX 15 9.1 Sep. 24 1998 23:03 GMTTRK Type Current Line Alarm Status Other End2.1 T3 Clear - OK pswbpx1/1.24.8 T3 Clear - OK SIMFDR0 (PAR)Last Command: dsptrksNext Command:
