Initial Configuration for the Switch

Revised: January 12, 2012

This chapter provides a quick step-by-step initial setup procedure for a switch.

Note For detailed installation procedures on rack mounting your switch or connecting to the small form-factor pluggable (SFP) modules, see Chapter 2, "Switch Installation." For product overview information, see Chapter 1, "Product Overview."

These steps describe how to do a simple installation:

1. Connecting to the Switch

2. Starting the Terminal-Emulation Software

3. Connecting to a Power Source

4. Entering the Initial Configuration Information

Note If you are using a DC power supply, see the "Connecting DC Power to the Cisco ME 4924-10GE Switch" section on page 1-3 for more information about setting up your switch with a DC power supply.

Note You need to provide the Category 5 straight-through cables to connect the switch ports to other Ethernet devices.

Connecting to the Switch

You must use the console port to perform the initial configuration. To connect the switch console port to a PC, use an RJ-45-to-DB-9 adapter cable.

Note A console cable is not provided in the accessory kit. It can be ordered as an option.

Follow these steps to connect the PC or terminal to the switch:

Step 1 Using an RJ-45-to-DB-9 adapter cable, insert the RJ-45 connector into the console port that is located on the front of the switch, as shown in Figure C-1.

Step 2 Attach the DB-9 female DTE of the adapter cable to a PC serial port, or attach an appropriate adapter to the terminal.

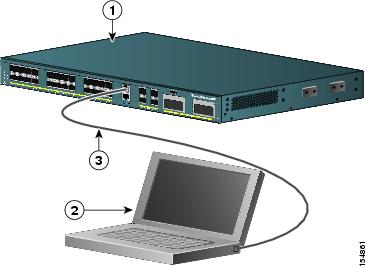

Figure C-1 Connecting a Switch to a PC

1

Switch

3

RJ-45-to-DB-9 adapter cable

2

Laptop



Starting the Terminal-Emulation Software

Before you power on the switch, start the terminal-emulation session so that you can see the output display from the power-on self-test (POST).

The terminal-emulation software—frequently a PC application such as Hyperterminal or ProcommPlus—makes communication between the switch and your PC or terminal possible.

Step 1 Start the terminal-emulation program if you are using a PC or terminal.

Step 2 Start a terminal-emulation session.

Step 3 Configure the baud rate and character format of the PC or terminal to match these console port default characteristics:

•9600 baud

•8 data bits

•1 stop bit

•No parity

•None (flow control)

Connecting to a Power Source

Follow these steps to connect to a power source:

Step 1 If you are using an AC power supply, connect one end of the supplied AC power cord to the power connector on the switch rear panel, and then connect the other end of the power cable to a grounded AC outlet. (See Figure C-1.)

Step 2 If you are using a DC power supply, see the "Connecting DC Power to the Cisco ME 4924-10GE Switch" section on page 1-3 for instructions on how to install the DC power supply.

As the switch powers on, it begins the POST, a series of tests that runs automatically to ensure that the switch functions properly.

POST lasts approximately 1 minute. After POST is complete, the system and status LEDs remain green (see the "LEDs" section on page 1-4 for more information).

If the switch fails POST, the system LED turns amber.

Note POST failures are usually fatal. Call Cisco Systems if your switch does not pass POST.

If you started the terminal-emulation program before you powered on your switch, the PC or terminal displays the bootloader sequence. You need to press Enter to display the setup program prompt.

Entering the Initial Configuration Information

To set up the switch, you need to assign an IP address and other configuration information necessary for the switch to communicate with the local routers and the Internet. The minimal configuration provided here does not cover most of the features, it simply allows you to preform other configuration tasks using a telnet connection from your management network. To configure other features and interfaces, please refer to the Catalyst 4500 Series Switch Software Configuration Guide.

IP Settings

You will need this information from your network administrator:

•Switch IP address

•Subnet mask (IP netmask)

•Default gateway (router)

•Enable secret password

•Enable password

•Telnet password

Performing the Initial Configuration

Follow these steps to complete the initial configuration for the switch:

Step 1 At the terminal prompt, enter the enable command to enter priveleged exec mode:

Switch> enable

Password: password

Switch#

Step 2 Set the system time using the clock set command in privileged EXEC mode.

Switch# clock set 20:09:01 3 Apr 2006

Step 3 Verify the change by entering the show clock command.

Switch# show clock

20:09:06.079 UTC Thu Apr 3 2006

Step 4 Enter the configure terminal command to enter global configuration mode.

Switch# configure terminal

Enter configuration commands, one per line. End with CNTL/Z.

Switch (config)#

Step 5 Configure a host name for the switch, and press Return.

Switch (config)# hostname Switch1

Step 6 Configure the system prompt for the switch, and press Return. To remove the new prompt and return the prompt to its default, use the no prompt command.

Switch (config)# prompt Switch1>

Step 7 Use the banner motd global configuration command to set location information in the login banner. You can also set a system contact using this command.

Switch1(config)# banner motd c 170 West Tasman Drive, San Jose, CA c

or

Switch1 (config)# banner motd c 170 West Tasman Drive, San Jose, CA; Tech Support 408 123
4567 c

Step 8 Configure an enable secret password, and press Return.

The password can be from 1 to 25 alphanumeric characters, can start with a number, is case sensitive, allows spaces, but ignores leading spaces. The secret password is encrypted and the enable password is in plain text.

Switch1 (config)# enable secret SecretPassword

Step 9 Configure an enable password, and press Return.

Switch1 (config)# enable password EnablePassword

Step 10 Configure a virtual terminal (Telnet) password, and press Return.

The password can be from 1 to 25 alphanumeric characters, is case sensitive, allows spaces, but ignores leading spaces.

Switch1 (config)# password terminal-password

Switch1 (config)# line vty 0 15

Step 11 Configure the interface that connects to the management network. (The IP address and subnet mask shown are for example only. Use an address appropriate for your network.)

Switch1 (config)# ip routing

Switch1 (config)# interface gigabitethernet 24

Switch1 (config-if)# no switchport

Switch1 (config-if)# no shutdown

Switch1 (config-if)# ip address 10.4.120.106 255.0.0.0

Switch1 (config-if)# exit

Step 12 Exit from global configuration mode:

Switch (config)# exit

Switch #

Step 13 View the configuration you just created and confirm that it is what you want.

Switch1# show run

!

hostname Switch1

!

banner motd ^C

170 West Tasman Drive, San Jose, CA ^C

!

!--- Output suppressed.

Step 14 Verify the IP information by using the show ip interface brief and show ip route commands.

Switch1# show ip interface brief

Interface        IP-Address         OK?    Method      Status      Protocol

Vlan1            172.16.1.2         YES    manual        up           up

FastEthernet1				 unassigned         YES    unset         up           up

!--- Output suppressed.

Switch1# show ip route

Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP

       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area

       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2

       E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP

       i - IS-IS, L1 - ISIS level-1, L2 - ISIS level-2, ia - ISIS inter area

       * - candidate default, U - per-user static route, o - ODR

       P - periodic downloaded static route

Gateway of last resort is 172.16.1.1 to network 0.0.0.0

     172.16.0.0/24 is subnetted, 1 subnets

C       172.16.1.0 is directly connected, Vlan1

S*   0.0.0.0/0 [1/0] via 172.16.1.1

Switch1#

Step 15 Save the running configuration:

Switch1# copy system:running-config nvram:startup-config

You have now completed the initial configuration of the switch.

To use the CLI to perform additional configuration or management tasks, enter commands at the Switch> prompt through the console port by using a terminal program or through the network by using Telnet. For configuration information, refer to the switch software configuration guide or the switch command reference.
