Overview
This chapter describes the features and components of the Cisco 1548M Micro Switch 10/100 (hereafter referred to as the "Micro Switch"). The Micro Switch is part of the Cisco Networked Office stack, a family of small-office networking platforms.
Overview of the Micro Switch
The Micro Switch is an 8-port managed switch with dual-speed, autonegotiated 10/100 Ethernet ports. The switch supports Spanning-Tree Protocol (STP), port-based virtual LANs (VLANs), Simple Network Management Protocol (SNMP) and web management functions.
Features
describes the features of the Micro Switch.
Front-Panel LEDs
describes the switch front-panel LEDs.

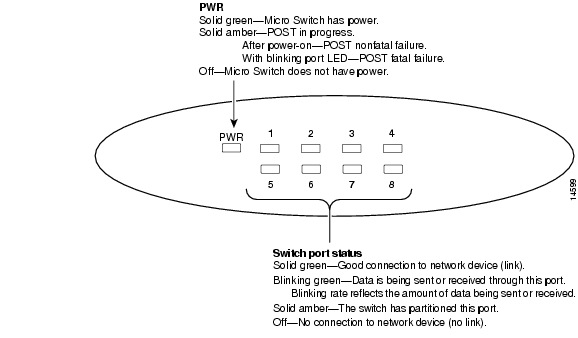

Figure 1-1 Front-Panel LEDs
Rear-Panel Components
shows the rear-panel ports, connectors, and LEDs.

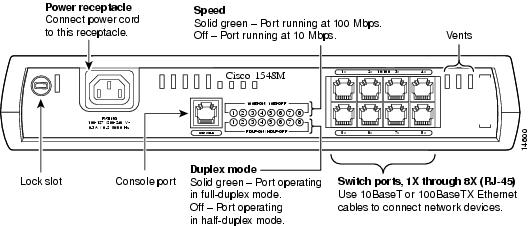

Figure 1-2 Rear-Panel LEDs and Components of the Micro Switch
Management Options
You can use the default settings shipped with the switch, or you can customize the configuration through the Cisco 1548 Switch Manager web-based interface, the CLI, or SNMP.
The Cisco 1548 Switch Manager is the easiest interface to use for the basic configuration and monitoring tasks. To perform all the configuration and monitoring tasks, use the CLI and SNMP.
This section provides the following information:
•
List of default configuration settings for the switch
•
Note
•
•
Note
Default Configuration Settings
The switch is designed to operate with little or no user intervention. After you assign the IP information, the switch uses its default settings () and begins forwarding packets as soon as it is powered up and connected to compatible devices.
.
For procedures on how to reset all switch console port settings to the factory defaults, see the "Resetting the Hub to the Factory Defaults" section on page 4-14.
Overview of the Cisco 1548 Switch Manager
The Cisco 1548 Switch Manager (hereafter referred to as the switch manager) is a web-based graphical user interface for basic switch configuration and monitoring. Using the switch manager, you can configure and monitor the switch from anywhere on your intranet.
Each switch manager page
•
•
•
•
•
To use the switch manager, you must have one of these web browsers installed on your management station:
•
•
Management Tasks Supported on the Switch Manager
The management tasks you can perform from the switch manager can be grouped as described in .
Procedures for accessing and using the switch manager are provided in
•
•
Note
Table 1-3 Configuration and Monitoring Tasks
Overview of the Command-Line Interface
Using the CLI, you can access the switch software and perform the same basic system configuration and system monitoring tasks available through the switch manager. You can also perform privileged configuration and troubleshooting tasks available only through the CLI and SNMP.
Procedures describing how to access the CLI are in the "Accessing the CLI" section on page 2-29. For complete information about using the CLI, refer to the Cisco 1548M Micro Switch 10/100 Command Reference.
Overview of SNMP
You can configure and monitor the switch by accessing the Management Information Base (MIB) variables through Simple Network Management Protocol (SNMP), an application-layer protocol facilitating the exchange of management information between network devices. The switch supports a comprehensive set of MIB objects, including four Remote Monitoring (RMON) groups. (The "Accessing the MIB Files through SNMP" section provides information about the MIB files and about accessing them.)
The SNMP system consists of three parts: SNMP manager, SNMP agent, and the MIB files. SNMP places all operations in a get-request, get-next-request, and set-request format. For example, an SNMP manager can get a value from an SNMP agent or store a value into that SNMP agent. The SNMP manager can be part of a network management system (NMS), and the SNMP agent can reside on a networking device such as a switch. You can compile the switch MIB files with your network management software. The SNMP agent can respond to MIB-related queries being sent by the NMS.
An example of an NMS is the CiscoWorks network management software. CiscoWorks uses the switch MIB variables to set device variables and to poll devices on the network for specific information. The results of a poll can be displayed as a graph and analyzed in order to troubleshoot internetworking problems, increase network performance, verify the configuration of devices, monitor traffic loads, and more.
Figure 1-3 shows how the SNMP agent gathers data from the MIB file, which holds information about device parameters and network data. The agent can send traps, or notification of certain events, to the manager.
Figure 1-3 SNMP Network
Note
The SNMP manager uses information in the MIB files to perform the operations described in .
Table 1-4 SNMP Manager Operations
get-request
Retrieves a value from a specific variable.
get-next-request
Retrieves a value from a variable within a table.1
get-response
Reply to a get-request, get-next-request, and set-request sent by an NMS.
set-request
Store a value in a specific variable.
trap
Send an unsolicited message from an SNMP agent to an SNMP manager indicating that some event has occurred.
1 An SNMP manager does not need the exact variable name. It sequentially searches to find the needed variable from within a table.
Network Examples Using the Micro Switch
This section describes common examples of how you can use the switch:
•
•
High-Performance Desktop
You can build a network of high-performance users for your small business or workgroup by using the Micro Switch and other compatible network devices such as a router, PCs, or workstations. shows an example of such a network.

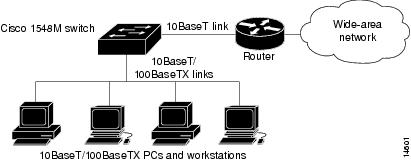

Figure 1-4 High-Performance Desktop Configuration
Network Backbone
shows an example of a network backbone for a small business or workgroup using a Micro Switch and other network devices.

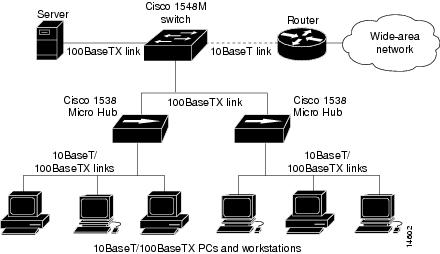

Figure 1-5 Network Backbone
