Release Notes for the Cisco IE 3000 Switch, Cisco IOS Release 15.0(2)SE and Later
January 14, 2013
Cisco IOS Release 15.0(2)SE and higher runs on all Cisco IE 3000 switches.
These release notes include important information about Cisco IOS releases 15.0(2)SE and higher, and any limitations, restrictions, and caveats that apply to the releases. Verify that these release notes are correct for your switch:
•

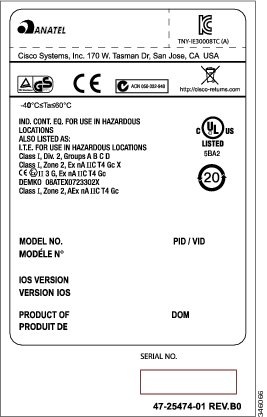

If you are installing a new switch, see the Cisco IOS release label on the rear panel of your switch.
•
•
You can download the switch software from this site (registered Cisco.com users with a login password):
http://www.cisco.com/cisco/software/navigator.html?a=ahttp://www.cisco.com/cisco/web/download/index.htmli=rpmContents
•
•
System Requirements
•
Supported Hardware
Switches and Modules
.
SFP Modules
.
Device Manager System Requirements
Hardware
Table 3 Minimum Hardware Requirements
233 MHz minimum1
512 MB2
256
1024 x 768
Small
1 We recommend 1 GHz.
2 We recommend 1 GB DRAM.
Software
•
•
Device Manager verifies the browser version when starting a session and does not require a plug-in.
Cluster Compatibility
You cannot create and manage switch clusters through Device Manager. To create and manage switch clusters, use the command-line interface (CLI) or the Network Assistant application.
When creating a switch cluster or adding a switch to a cluster, follow these guidelines:
•
•
•
For additional information about clustering, see Getting Started with Cisco Network Assistant and Release Notes for Cisco Network Assistant (not orderable but available on Cisco.com), the software configuration guide, and the command reference.
CNA Compatibility
Cisco IOS 12.2(46)SE1 and later is only compatible with Cisco Network Assistant (CNA) 5.4 and later.
Note
You can download Cisco Network Assistant from this URL:
http://www.cisco.com/cisco/software/navigator.html?mdfid=279230132http://www.cisco.com/pcgi-bin/tablebuild.pl/NetworkAssistanti=rpFor more information about Cisco Network Assistant, see the Release Notes for Cisco Network Assistant on Cisco.com.
Upgrading the Switch Software
•
•
•
•
Finding the Software Version and Feature Set
The Cisco IOS image is stored as a bin file in a directory that is named with the Cisco IOS release. A subdirectory contains the files needed for web management. The image is stored on the compact flash memory card.
You can use the show version privileged EXEC command to see the software version that is running on your switch. The second line of the display shows the version.
You can also use the dir filesystem: privileged EXEC command to see the directory names of other software images that you might have stored in flash memory.
Deciding Which Files to Use
The upgrade procedures in these release notes describe how to perform the upgrade by using a combined tar file. This file contains the Cisco IOS image file and the files needed for the embedded Device Manager. You must use the combined tar file to upgrade the switch through Device Manager. To upgrade the switch through the command-line interface (CLI), use the tar file and the archive download-sw privileged EXEC command.
Table 4 lists the filenames for this software release.
If you download the IP services image and plan to use Layer 3 functionality, you must use the Switch Database Management (SDM) routing template. To see which template is currently active template, enter the show sdm prefer privileged EXEC command. If necessary, change the SDM template to the routing template by entering the sdm prefer routing global configuration command. You will be prompted to reload the switch to activate the new template.
Note
Archiving Software Images
Before upgrading your switch software, make sure that you have archived copies of the current
Cisco IOS release and the Cisco IOS release to which you are upgrading. You should keep these archived images until you have upgraded all devices in the network to the new Cisco IOS image and until you have verified that the new Cisco IOS image works properly in your network.Cisco routinely removes old Cisco IOS versions from Cisco.com. See Product Bulletin 2863 for more information:
http://www.cisco.com/en/US/prod/collateral/iosswrel/ps8802/ps6969/ps1835/prod_bulletin0900aecd80281c0e.htmlYou can copy the bin software image file on the flash memory to the appropriate TFTP directory on a host by using the copy flash: tftp: privileged EXEC command.
Note
You can also configure the switch as a TFTP server to copy files from one switch to another without using an external TFTP server by using the tftp-server global configuration command. For more information about the tftp-server command, see the "Basic File Transfer Services Commands" section of the Cisco IOS Configuration Fundamentals Command Reference, Release 12.2:
http://www.cisco.com/en/US/docs/ios/fundamentals/command/reference/cf_t1.htmlUpgrading a Switch by Using Device Manager or Network Assistant
You can upgrade switch software by using Device Manager or Network Assistant. For detailed instructions, click Help.
Note
Upgrading a Switch by Using the CLI
This procedure is for copying the combined tar file to the switch. You copy the file to the switch from a TFTP server and extract the files. You can download an image file and replace or keep the current image.
Note
To download software, follow these steps:
Step 1
Step 2
a.
b.
c.
d.
e.
Step 3
For more information, see the Cisco IE 3000 Switch Software Configuration Guide.Step 4
Step 5
Switch# ping tftp-server-addressFor more information about assigning an IP address and default gateway to the switch, see the software configuration guide for this release.
Step 6
Switch# archive download-sw /overwrite /reload tftp:[[//location]/directory]/image-name.tarThe /overwrite option overwrites the software image in flash memory with the downloaded one.
The /reload option reloads the system after downloading the image unless the configuration has been changed and not saved.
For //location, specify the IP address of the TFTP server.
For /directory/image-name.tar, specify the directory (optional) and the image to download. Directory and image names are case sensitive.
This example shows how to download an image from a TFTP server at 198.30.20.19 and to overwrite the image on the switch:
Switch# archive download-sw /overwrite tftp://198.30.20.19/image-name.tarYou can also download the image file from the TFTP server to the switch and keep the current image by replacing the /overwrite option with the /leave-old-sw option.
Recovering from a Software Failure
For recovery procedures, see the "Troubleshooting" chapter in the software configuration guide for this release.
Installation Notes
You can assign IP information to your switch by using these methods:
•
•
•
•
New Software Features
•
•
•
•
For the Cisco IE 3000 Software Configuration Guide, Release 15.0(2)SE and Later, go to http://www.cisco.com/en/US/partner/docs/switches/lan/cisco_ie3000/software/release/15.0_2_se/configuration/guide/scg_ie3000.html.
Limitations and Restrictions
You should review this section before you begin working with the switch. These are known limitations that will not be fixed, and there is not always a workaround. Some features might not work as documented, and some features could be affected by recent changes to the switch hardware or software.
This section contains these limitations:
Cisco IOS Limitations
•
•
•
Configuration
•
This problem occurs under these conditions:
–
–
–
The workaround is to reconfigure the static IP address. (CSCea71176 and CSCdz11708)
•
The workaround is to configure the port for 10 Mb/s and half duplex or to connect a hub or a nonaffected device to the switch. (CSCed39091)
•
The workaround is to enter the no switchport block unicast interface configuration command on that specific interface. (CSCee93822)
•
There is no workaround. This is a cosmetic error and does not affect the functionality of the switch. (CSCef59331)
•
The workaround is to configure aggressive UDLD. (CSCsh70244)
•
The workaround is to always enter a non zero value for the timeout value when you enter the boot host retry timeout timeout-value command. (CSCsk65142)
•
The workaround is to use the rep lsl-age-out timer interface configuration command to configure the REP LSL age timer for more than 1000 milliseconds (1 second). (CSCsz40613)
Ethernet
•
If this happens, uneven traffic distribution will happen on EtherChannel ports.
Changing the load balance distribution method or changing the number of ports in the EtherChannel can resolve this problem.
Use any of these workarounds to improve EtherChannel load balancing:
–
–
–
–
For example, with load balance configured as dst-ip with 150 distinct incrementing destination IP addresses, and the number of ports in the EtherChannel set to either 2, 4, or 8, load distribution is optimal.(CSCeh81991)
IP
•
The workaround is to use rate limiting on DHCP traffic to prevent a denial of service attack from occurring. (CSCeb59166)
Multicasting
•
The workaround is to reduce the number of multicast routes and IGMP snooping groups to less than the maximum supported value. (CSCdy09008)
•
There is no workaround. (CSCdy82818)
•
–
–
There is no workaround. (CSCec20128)
•
The switchport block multicast interface configuration command is only applicable to non-IP multicast traffic.
There is no workaround. (CSCee16865)
•
–
–
The workaround is to enter the clear ip mroute privileged EXEC command on the interface. (CSCef42436)
•
Use one of these workarounds:
–
–
QoS
•
The workaround is to choose compatible buffer sizes and threshold levels. (CSCea76893)
•
There is no workaround. (CSCee22591)
•
01:01:32: %BIT-4-OUTOFRANGE: bit 1321 is not in the expected range of 0 to 1024There is no impact to switch functionality.
There is no workaround. (CSCtg32101)
SPAN and RSPAN
•
The workaround is to use the monitor session session_number destination {interface interface-id encapsulation replicate} global configuration command for local SPAN. (CSCed24036)
Trunking
•
There is no workaround. (CSCdz33708)
•
There is no workaround. (CSCdz42909).
•
There is no workaround. (CSCec35100).
VLAN
•
The workaround is to reduce the number of VLANs or trunks. (CSCeb31087)
•
The workaround is to enter the switchport access vlan dynamic interface configuration command separately on each port. (CSCsi26392)
•
The workaround is to remove unnecessary VLANs to reduce CPU utilization when many links are flapping. (CSCtl04815)
Device Manager Limitations
•
The workaround is to click Yes when you are prompted to accept the certificate. (CSCef45718)
•
The workaround is to manually reload the switch. (CSCsj88169)
Important Notes
Device Manager Notes
•
•
From Microsoft Internet Explorer:
1.
2.
3.
4.
5.
•
Beginning in privileged EXEC mode, follow these steps to configure the HTTP server interface:
•
If you change the HTTP port, you must include the new port number when you enter the IP address in the browser Location or Address field (for example, http://10.1.126.45:184 where 184 is the new HTTP port number). You should write down the port number through which you are connected. Use care when changing the switch IP information.
If you are not using the default method of authentication (the enable password), you need to configure the HTTP server interface with the method of authentication used on the switch.
Beginning in privileged EXEC mode, follow these steps to configure the HTTP server interface:
SDM Template Notes
Due to changes in the default image settings, IP routing is no longer enabled in the default SDM template. Systems that upgrade from an earlier Cisco IOS release to Release 15.0(2)SE must run a non-default SDM template to preserve the earlier IP routing configurations.
Open Caveats
•
The maximum number of VPN routing and forwarding (VRF) instances that can be configured is 25 instead of 26.
There is no workaround.
•
When an attempt is made to view the web pages of a switch, the initial request for a password by Device Manager is an unsecure connection. After the password is accepted, the next dialog box asks if a secure connection is desired.
There is no workaround.
•
The password must be entered twice before it is accepted in Express Setup.
There is no workaround.
•
The vendor specific attribute PortLogSyncIntervalCfg is a struct with a UINT type member variable called PortLogSyncInterval. The specified range of valid values for PortLogSyncInterval is from -1 to 6. A value of -1 cannot be assigned to the PortLogSyncInterval variable.
There is no workaround.
•
After the switch boots up, a connected device does not receive Gratuitous ARP (GARP) packets from the switch.
The workaround is to perform one of the following actions:
–
–
–
•
When a master switch in a switch stack reloads or loses power and rejoins the stack as a member switch (Switch A), traffic from Switch A to the destination is lost.
The workaround is to ping the destination from Switch A.
•
When you attempt to reconfigure a flow monitor on an interface, errors occur.
The workaround is to use the no flow monitor command in interface configuration mode and then configure flow monitor on the interface again.
•
When the switch reverts from a floating static route to a static route, packets are lost.
The workaround is to set static ARP.
•
The global power inline consumption default 15400 command fails to restrict the power consumption of a PoE+ port 15.4 W.
The workaround is to use the power inline consumption default 15400 command in interface configuration mode.
•
ACLs applied to outbound traffic on the switch virtual interface (SVI) do not work.
There is no workaround.
•
The Address Resolution Protocol (ARP) packets leak in the isolated ports of a private VLAN when dot1x is enabled.
There is no known workaround.
Resolved Caveats
•
•
Caveats Resolved in Cisco IOS Release 15.0(2)SE1
•
When using SNMP v3, the switch unexpectedly reloads when it encounters the snmp_free_variable_element.
There is no workaround.
•
When two traps are generated by two separate processes, the switch fails if one process is suspended while the other process updates variables used by the first process.
The workaround is to disable all SNMP traps.
•
If a redundant power supply (RSP) switchover occurs during a bulk configuration synchronization, some of the line configurations might disappear.
The workaround is to reapply the line configurations.
•
The show ip dhcp pool command displays a large number of leased addresses.
The workaround is to turn off ip dhcp remember and reload the switch.
•
The following warning messages might be displayed during the boot process even when a RADIUS or a TACACS server have been defined:
%RADIUS-4-NOSERVNAME:or
%AAAA-4-NOSERVER: Warning: Server TACACS2 is not definedThere is no workaround.
•
The secure copy feature (copy: source-filename scp: destination-filename command) does not work.
There is no workaround.
•
Local web authorization and HTTP services on the switch do not respond because of a web authorization resource limitation in the system. The resource limitation is normally caused by incorrectly terminated HTTP or TCP sessions.
These are possible workarounds and are not guaranteed to solve the problem:
–
–
–
•
Heavy traffic load conditions may cause the loop guard protection function to be automatically activated and almost immediately deactivated. These conditions can be caused by entering the shutdown and no shutdown interface configuration commands or by interface link flaps on more than forty ports. These log messages appear:
%SPANTREE-2-LOOPGUARD_BLOCK: Loop guard blocking port GigabitEthernet1/0/1 on MST0. %SPANTREE-2-LOOPGUARD_UNBLOCK: Loop guard unblocking port GigabitEthernet1/0/1 on MST0.There is no workaround.
•
When a peer switch sends inferior Bridge Protocol Data Units (BPDUs) on the blocking port of the Cisco switch (with the proposal bit ON), the Cisco switch waits for three such BPDUs before responding with a better BPDU. This leads to a convergence time of more than 5 seconds. The problem appears under these conditions:
–
–
There is no workaround.
•
With switches running Cisco IOS Release 15.0(2)SE, there was a problem when port-based address allocation was configured. The DHCP client did not receive IP addresses from the server if the client ID was configured as an ASCII string or if the subscriber ID was used as the client ID.
This problem has been fixed now. No action is required.
•
When you configure and save the monitor session source interface, the configuration is not saved after reboot.
There is no workaround.
•
The Smart Install client feature in Cisco IOS Software contains a vulnerability that could allow an unauthenticated, remote attacker to cause a denial of service (DoS) condition on an affected device.
Affected devices that are configured as Smart Install clients are vulnerable.
Cisco has released free software updates that address this vulnerability. There are no workarounds for devices that have the Smart Install client feature enabled.
This advisory is available at the following link:
http://tools.cisco.com/security/center/content/CiscoSecurityAdvisory/cisco-sa-20130327-smartinstall
•
If an interface is configured with the switchport port-security maximum 1 vlan command, the following error message is displayed:
%PORT_SECURITY-2-PSECURE_VIOLATION: Security violation occurred, caused by MAC address XXXX.XXXX.XXXX on port <interface>There is no workaround.
•
The flash memory is corrupted when you format the flash manually.
The workaround is to reload the switch. (Note that this will erase the flash memory, and you will need to reload the software image using TFTP, a USB drive, or a serial cable.
•
If the Performance Monitor cache is displayed (using the show performance monitor cache command) and you attempt to stop the command output display by entering the q keyword, there is an unusually long delay before the output is stopped.
The workaround is to enter the term len 0 privileged EXEC command so that all command outputs are displayed without any breaks.
Caveats Resolved in Cisco IOS Release 15.0(2)SE
•
Cisco IOS Software and Cisco IOS XE Software contain a vulnerability that could allow an unauthenticated, remote attacker to cause a denial of service (DoS) condition. An attacker could exploit this vulnerability by sending a crafted request to an affected device that has the DHCP version 6 (DHCPv6) server feature enabled, causing a reload.
Cisco has released free software updates that address this vulnerability. This advisory is available at the following link:
http://tools.cisco.com/security/center/content/CiscoSecurityAdvisory/cisco-sa-20120926-dhcpv6
•
The archive download feature does not work if the flash contains an "update" directory. This situation is likely to occur if a previous download failed or was interrupted and the "update"" directory is still left in the flash.
The workaround is to delete the "update" directory in the flash before starting the archive download.
•
OSPFv3 neighbors might flap because of the way the switch handles IPv6 traffic destined for well-known IPv6 multicast addresses.
There is no workaround.
•
Users connecting to the network through a device configured for web proxy authentication may experience a web authentication failure.
There is no workaround. Use the clear tcp tcb command to release the HTTP Proxy Server process.
•
Using the dot1x default command on a port disables access control on the port and resets the values of the authentication host-mode and authentication timer reauthenticate commands to the default values.
The workaround is to avoid using the dot1x default command and set various dot1x parameters individually. You can also reconfigure the parameters that were changed after you entered the dot1x default command.
•
When EnergyWise is disabled, the switch unexpectedly reloads and generates crash information.
There is no workaround.
•
When using the switchport port-security maximum 1 vlan access command, if an IP-phone with a personal computer connected to it is connected to an access port with port security, a security violation will occur on the interface. This type of message is displayed on the console:
%PORT_SECURITY-2-PSECURE_VIOLATION: Security violation occurred, caused by MAC address XXXX.XXXX.XXXX on port FastEthernet0/1.Here is a sample configuration:
interface gigabitethernet 3/0/47switchport access vlan 2switchport mode accessswitchport voice vlan 3switchport port-security maximum 2switchport port-security maximum 1 vlan accessswitchport port-security maximum 1 vlan voiceswitchport port-securityThe workaround is to remove the line switchport port-security maximum 1 vlan access.
•
You can use Express Setup to enter the initial configuration of a Cisco IE 3000 switch. You enter the IP address and VLAN information.
When you enter a different VLAN for the management and CIP interfaces and you click submit no error message is generated. If you then look at the Express Setup page, the CIP management VLAN is changed to the same VLAN ID as the management interface. If you enter the show vlan command at the CLI, the CIP VLAN was never created by the switch.
The workaround is to edit the running configuration by using the CLI, and entering the vlan vlan-id command, where vlan-id is the CIP VLAN.
•
The switch does not correctly detect a loopback when the switch port on an authenticated IP phone is looped to a port configured and authenticated with dot1x security, even when bpduguard is configured on the interface. This situation can result in 100 percent CPU utilization and degraded switch performance.
The workaround is to configure the interface with the authentication open command or to configure authentication mac-move permit on the switch.
•
The Catalyst 4500E series switch with Supervisor Engine 7L-E contains a denial of service (DoS) vulnerability when processing specially crafted packets that can cause a reload of the device.
Cisco has released free software updates that address this vulnerability.
Workarounds that mitigate this vulnerability are not available.
This advisory is available at the following link:
http://tools.cisco.com/security/center/content/CiscoSecurityAdvisory/cisco-sa-20120926-ecc
Documentation Updates
Note
http://cisco.com/public/sw-center/netmgmt/cmtk/mibs.shtml.
•
•
•
•
•
Updates to the Getting Started Guide
Express Setup
When you launch Express Setup, you are prompted for the switch password. Enter the default password, cisco. The switch ignores text in the username field. Before you complete and exit Express Setup, you must change the password from the default password, cisco.
In the "Running Express Setup" section of the Cisco IE 3000 Switch Getting Started Guide,
Steps 8 to 10 have changed.Running Express Setup:
To run Express Setup:
Warning Statement 1067
This warning statement has been removed from the Cisco IE 3000 Switch Getting Started Guide on Cisco.com.
Grounding the Switch
Step 6: Use a ratcheting torque screwdriver to tighten the ground screw and ring terminal lug to the switch front panel to 8.5 in-lb, the maximum recommended torque.
Wiring the DC Power Source
Step 6: Use a ratcheting torque flathead screwdriver to torque the power and relay connector captive screws (above the installed wire leads) to 2 in-lb, the maximum recommended torque.
Resetting the Switch
Follow these steps to return your switch to the factory default settings. These are reasons why you might want to reset the switch:
•
•
•
Caution
To reset the password on the switch:
1.
2.
3.
After the switch restarts, continue to run Express Setup.
Updates to the Regulatory Compliance and Safety Information for the Cisco IE 3000 Switch
Warning Statement 1067
Warning statement 1067 has been removed from the Regulatory Compliance and Safety Information for the Cisco IE 3000 Switch on Cisco.com.
Hazardous Locations Standards
The hazardous locations standards are updated in the Regulatory Compliance and Safety Information for the Cisco IE 3000 Switch on Cisco.com as shown in Table 5.
Compliance Labels
The Cisco IE 3000 switch compliance label (see Figure 1) is updated with revised ATEX directive titles in the Regulatory Compliance and Safety Information for the Cisco IE 3000 Switch on Cisco.com.
For the expansion modules, separate labels are used for the IEM-3000-8FM and IEM-3000-8TM models (see Figure 2), and the IEM-3000-4SM and IEM-3000-8SM models (see Figure 3). The IEM-3000-4SM and IEM-3000-8SM models have perforated sections for Anatel and KCC requirements, so that they can be removed if they do not apply.
Figure 1 Compliance Label for the Cisco IE 3000 Switch
Figure 2 Compliance Label for the IEM-3000-8FM and IEM-3000-8TM Switch Expansion Modules
Figure 3 Compliance Label for the IEM-3000-4SM and IEM-3000-8SM Expansion Modules
Note
Updates to the Hardware Installation Guide
This update is for the "Overview" chapter. These switches were added:
This update is for the "Technical Specifications" chapter.
The technical specifications listed in Table A-2 for the Cisco IE-3000-8TC and IE-3000-4TC switches also apply to the Cisco IE-3000-4TC-E and IE-3000-4TC-E switches.
Updates to the Software Configuration Guide
Correction to the "Clustering Switches" Chapter
In the "Candidate Switch and Cluster Member Switch Characteristics" section, the requirements should include:
•
Correction to the "Configuring Network Security with ACLs" Chapter
There is an error in the "Creating a Numbered Extended ACL" section. Contrary to the note in this section, ICMP echo-replies can be filtered.
Correction to the "Unsupported Commands" Chapter
The "Miscellaneous" section of the "Unsupported Commands" chapter should include the logging discriminator global configuration command.
Updates to the System Message Guide
New System Messages
Error Message IP-3-SBINIT: Error initializing [chars] subblock data structure. [chars]Explanation The subblock data structure was not initialized. [chars] is the structure identifier.
Recommended Action No action is required.
Error Message AUTHMGR-7-STOPPING: Stopping '[chars]' for client [enet] on Interface [chars] AuditSessionID [chars]Explanation The authentication process has been stopped. The first [chars] is the authentication method, [enet] is the Ethernet address of the host, the second [chars] is the interface for the host, and the third [chars] is the session ID.
Recommended Action No action is required.
Error Message AUTHMGR-7-NOMOREMETHODS: Exhausted all authentication methods for client ([chars]) on Interface [chars] AuditSessionID [chars]Explanation All available authentication methods have been tried. The first [chars] is the client identifier, the second [chars]s is the interface for the client, and the third [chars] is the session ID.
Recommended Action No action is required.
Modified System Messages
Error Message AUTHMGR-5-MACMOVE: MAC address ([enet]) moved from Interface [chars] to Interface [chars]Explanation The client moved to a new interface but did not log off from the first interface. [enet] is the MAC address of the client, the first [chars] is the earlier interface, and the second [chars] is the newer interface.
Recommended Action No action is required.
Error Message AUTHMGR-5-MACREPLACE: MAC address ([enet]) on Interface [chars] is replaced by MAC ([enet])Explanation A new client has triggered a violation that caused an existing client to be replaced. The first [enet] is the first client, [chars] is the interface, the second [enet] is the new client.
Recommended Action No action is required.
Error Message MAB-5-FAIL: Authentication failed for client ([chars]) on Interface [chars] AuditSessionID [chars]Explanation Authentication was unsuccessful. The first [chars] is the client, the second [chars] is the interface, and the third [chars] is the session ID.
Recommended Action No action is required.
Error Message MAB-5-SUCCESS: Authentication successful for client ([chars]) on Interface [chars] AuditSessionID [chars]Explanation Authentication was successful. The first [chars] is the client, the second [chars] is the interface, and the third [chars] is the session ID.
Recommended Action No action is required.
Deleted System Messages
Error Message IP-3-STCKYARPOVR: Attempt to overwrite Sticky ARP entry: [inet], hw: [enet] by hw: [enet]\n", MSGDEF_LIMIT_FASTExplanation Multiple stations are configured with the same IP address in a private VLAN. (This could be a case of IP address theft.) [inet] is the IP address that is configured, the first [enet] is the original MAC address associated with the IP address, and the second [enet] is the MAC address that triggered this message.
Recommended Action Change the IP address of one of the two systems.
Related Documentation
User documentation in HTML format includes the latest documentation updates and might be more current than the complete book PDF available on Cisco.com.
These documents provide complete information about the Cisco IE 3000 switches and are available at Cisco.com:
http://www.cisco.com/en/US/products/ps9703/tsd_products_support_series_home.html•
•
•
•
•
For other information about related products, see these documents:
•
•
•
These SFP module installation notes are available from this Cisco.com site:
http://www.cisco.com/en/US/products/hw/modules/ps5455/prod_installation_guides_list.html•
•
These compatibility matrix documents are available from this Cisco.com site:
http://www.cisco.com/en/US/products/hw/modules/ps5455/products_device_support_tables_list.html•
•
Obtaining Documentation, Obtaining Support, and Security Guidelines
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly What's New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.htmlSubscribe to the What's New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed and set content to be delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports RSS version 2.0.
This document is to be used in conjunction with the documents listed in the "Related Documentation" section.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1110R)
© 2012-2013 Cisco Systems, Inc. All rights reserved.
