Catalyst 6000 Family Network Analysis Module Installation and Configuration Note

WS-X6380-NAM

This publication describes how to install the Catalyst 6000 family Network Analysis Module (NAM) and how to configure the NAM using the Catalyst command-line interface (CLI), the NAM Traffic Analyzer application, or both. See the "Related Documentation" section for more information about software configuration for the switch.

Note For translations of the warnings in this publication, see the "Safety Overview" section and refer to the Regulatory Compliance and Safety Information for the Catalyst 6000 Family Switches.

Contents

This publication consists of these sections:

•Overview

•Safety Overview

•Software Requirements

•Hardware Requirements

•Required Tools

•Installing and Removing the NAM

•Configuring the NAM

•Administering the NAM

•Troubleshooting the NAM

•Supported RMON and RMON2 MIB Objects

•GNU General Public License

•FCC Class B Compliance

•Related Documentation

•Obtaining Documentation

•Obtaining Technical Assistance

Overview

This section describes the Catalyst 6000 family NAM, how it operates, and how to manage it, and includes these sections:

•Understanding How the NAM Works

•Managing the NAM

•New NAM Features

•Front Panel Description

•Specifications

Understanding How the NAM Works

The NAM monitors and analyzes network traffic for the Catalyst 6000 family switches using
remote monitoring (RMON), RMON extensions for switched networks (SMON), and other management information bases (MIBs). The NAM supports the following RMON groups:

•RMON groups defined in RFC 1757

•RMON2 groups defined in RFC 2021

In addition to extensive MIB support, the NAM also can monitor individual Ethernet VLANs, which allows it to serve as an extension to the basic RMON support provided by the Catalyst 6000 family supervisor engine.

You can use TrafficDirector, or any other IETF-compliant RMON application, to access link, host, protocol, and response-time statistics for capacity planning, departmental accounting, and real-time application protocol monitoring. You also can use filters and capture buffers to troubleshoot the network.

The NAM can analyze Ethernet VLAN traffic from one or both of the following sources:

•Ethernet, Fast Ethernet, Gigabit Ethernet, trunk port, or Fast EtherChannel SPAN or RSPAN source port

For more information about SPAN and RSPAN, refer to the "Configuring SPAN and RSPAN" chapter in the Catalyst 6000 Family Software Configuration Guide.

Note Cisco IOS software currently does not support RSPAN.

•Netflow Data Export (NDE)

For more information about NDE, refer to the Catalyst 6000 Family Software Configuration Guide.

The NAM is managed and controlled from either the embedded web-based NAM Traffic Analyzer application (directing a web browser at the NAM) or a Simple Network Management Protocol (SNMP) management application, such as those bundled with CiscoWorks2000, or both.

Managing the NAM

The NAM Traffic Analyzer application provides access to the NAM data and voice traffic management and monitoring features through a web browser. To use the NAM Traffic Analyzer application, you first need to do some basic configuration tasks on the NAM using the CLI. You then can start the NAM Traffic Analyzer application with a single command. Refer to the User Guide for the Catalyst 6000 Network Analysis Module Traffic Analyzer for more information about using the NAM Traffic Analyzer application.

With NAM Traffic Analyzer, you can do the following tasks:

•Configure SPAN resources

•Configure collections

•Monitor statistics

•Capture and decode packets

•Set and view alarms

For added security, you can use both the CLI (using the ip http secure command) and the NAM Traffic Analyzer application to configure the NAM to use a remote TACACS+ server. For information about configuring the TACACS+ server remote database, refer to the User Guide for the Catalyst 6000 Network Analysis Module NAM Traffic Analyzer. A TACACS+ server can be used for authentication and authorization for your web-based users. You also can use a local database on the NAM for security.

You also can manage the NAM using an SNMP management application such as the Cisco TrafficDirector real-time network management application or NetScout nGenius Real-Time Monitor (RTM). To use RMON and SNMP agent support, you configure the NAM using the CLI.

Refer to the following URL for more information about using RTM:

http://www.cisco.com/univercd/cc/td/doc/product/lan/cat6000/fam_mod/rel2_1_2/ol_2428.htm

For more information about TrafficDirector and RTM, refer to the CiscoWorks2000 documentation.

For more information about the NAM Traffic Analyzer application, refer to the User Guide for the Catalyst 6000 Network Analysis Module Traffic Analyzer.

If you have a NAM that is already configured and running in the switch, and are familiar with the NAM, you can begin using the NAM Traffic Analyzer application by entering the ip http server enable CLI command, then starting NAM Traffic Analyzer in your browser.

New NAM Features

These new features are included in the NAM:

•Catalyst 6000 NAM Traffic Analyzer

The NAM software release 2.1 includes the embedded NAM Traffic Analyzer application for monitoring and troubleshooting the availability and health of your network. The NAM Traffic Analyzer application provides browser-based access to the NAM RMON1, RMON2, SMON, DSMON, and voice monitoring features.

For information about enabling and using the NAM Traffic Analyzer application, see the application online help or see the PDF version of User Guide for the Catalyst 6000 Network Analysis Module Traffic Analyzer in the online help.

•The licensed Application Response Time (ART) MIB, which is used to determine the source of the slowdowns in application performance. The ART MIB measures the response time on the network at the transport layer.

Note You must purchase an ART MIB license from Cisco Systems before enabling and using the ART MIB feature.

•The licensed voice-monitoring application.

Note You must purchase a separate software license to enable voice collection on the NAM.

•Both Media Gateway Control Protocol (MGCP) and Session Initiation Protocol (SIP) voice protocols are now supported.

•Signalling Connection Control Part (SCCP) and H.323 voice protocols are now supported.

•The trap destination table is available when you enter the show snmp CLI command.

Note Cisco IOS does not support the show snmp CLI command.

•You can upgrade the maintenance image while the application is running.

Front Panel Description

The NAM front panel (see Figure 1) includes a STATUS LED, hard drive LED, SHUTDOWN button, and PCMCIA slot.

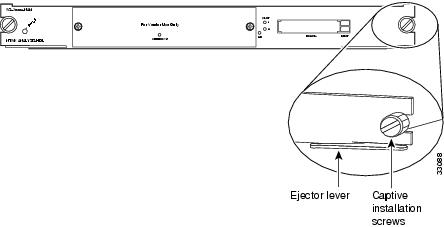

Figure 1 Network Analysis Module

STATUS LED

The STATUS LED indicates the operating states of the NAM. Table 1 describes the LED operation.

Table 1 STATUS LED Description

Color

Description

Green

All diagnostic tests pass. The NAM is operational.

Red

A diagnostic other than an individual port test failed.

Orange

Indicates one of three conditions:

•The NAM is running through its boot and self-test diagnostic sequence.

•The NAM is disabled.

•The NAM is in the shutdown state.

Off

The NAM power is off.

SHUTDOWN Button

Caution Do not remove the NAM from the switch until the NAM has shut down completely and the STATUS LED is orange. You can damage the NAM if you remove it from the switch before it completely shuts down.

To avoid corrupting the NAM hard disk, you must correctly shut down the NAM before you remove it from the chassis or disconnect the power. This shutdown procedure is normally initiated by commands entered at the supervisor engine CLI prompt or the NAM CLI prompt.

If the NAM fails to respond to these commands properly, you must use the SHUTDOWN button on the front panel to initiate the shutdown procedure.

To push the button, use a small pointed object (such as a paper clip).

The shutdown procedure may require several minutes. The STATUS LED turns off when the NAM shuts down.

Hard Drive Activity LED

The hard drive (HD) activity LED is lit when the hard drive is in use.

PCMCIA Slot

The PCMCIA slot provides access for up to two standard PCMCIA cards (now known as PC cards) and is reserved for future use.

Specifications

Table 2 describes the specifications for the NAM.

Table 2 Specifications

Specification

Description

Dimensions (H x W x D)

1.18 x 15.51 x 16.34 in. (30 x 394 x 415 mm)

Weight

Minimum: 3 lb (1.36 kg)

Maximum: 5 lb (2.27 kg)

Environmental conditions:

Operating temperature

Nonoperating temperature

Humidity

32 to 10×F (0 to 40×C)

-40 to 167×F (-40 to 75×C)

10 to 90%, noncondensing

Safety Overview

Safety warnings appear throughout this document in procedures that may harm you if performed incorrectly.

For additional safety information, refer to documents listed in the "Related Documentation" section.

Warning This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. To see translations of the warnings that appear in this publication, refer to the Regulatory Compliance and Safety Information document that accompanied this device.

Warning Waarschuwing Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van standaard maatregelen om ongelukken te voorkomen. Voor vertalingen van de waarschuwingen die in deze publicatie verschijnen, kunt u het document Regulatory Compliance and Safety Information (Informatie over naleving van veiligheids- en andere voorschriften) raadplegen dat bij dit toestel is ingesloten.

Warning Varoitus Tämä varoitusmerkki merkitsee vaaraa. Olet tilanteessa, joka voi johtaa ruumiinvammaan. Ennen kuin työskentelet minkään laitteiston parissa, ota selvää sähkökytkentöihin liittyvistä vaaroista ja tavanomaisista onnettomuuksien ehkäisykeinoista. Tässä julkaisussa esiintyvien varoitusten käännökset löydät laitteen mukana olevasta Regulatory Compliance and Safety Information -kirjasesta (määräysten noudattaminen ja tietoa turvallisuudesta).

Warning Attention Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant causer des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez conscient des dangers posés par les circuits électriques et familiarisez-vous avec les procédures couramment utilisées pour éviter les accidents. Pour prendre connaissance des traductions d'avertissements figurant dans cette publication, consultez le document Regulatory Compliance and Safety Information (Conformité aux règlements et consignes de sécurité) qui accompagne cet appareil.

Warning Warnung Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu einer Körperverletzung führen könnte. Bevor Sie mit der Arbeit an irgendeinem Gerät beginnen, seien Sie sich der mit elektrischen Stromkreisen verbundenen Gefahren und der Standardpraktiken zur Vermeidung von Unfällen bewußt. Übersetzungen der in dieser Veröffentlichung enthaltenen Warnhinweise finden Sie im Dokument Regulatory Compliance and Safety Information (Informationen zu behördlichen Vorschriften und Sicherheit), das zusammen mit diesem Gerät geliefert wurde.

Warning Avvertenza Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle persone. Prima di lavorare su qualsiasi apparecchiatura, occorre conoscere i pericoli relativi ai circuiti elettrici ed essere al corrente delle pratiche standard per la prevenzione di incidenti. La traduzione delle avvertenze riportate in questa pubblicazione si trova nel documento Regulatory Compliance and Safety Information (Conformità alle norme e informazioni sulla sicurezza) che accompagna questo dispositivo.

Warning Advarsel Dette varselsymbolet betyr fare. Du befinner deg i en situasjon som kan føre til personskade. Før du utfører arbeid på utstyr, må du vare oppmerksom på de faremomentene som elektriske kretser innebærer, samt gjøre deg kjent med vanlig praksis når det gjelder å unngå ulykker. Hvis du vil se oversettelser av deadvarslene som finnes i denne publikasjonen, kan du se i dokumentet Regulatory Compliance and Safety Information (Overholdelse av forskrifter og sikkerhetsinformasjon) som ble levert med denne enheten.

Warning Aviso Este símbolo de aviso indica perigo. Encontra-se numa situação que lhe poderá causar danos físicos. Antes de começar a trabalhar com qualquer equipamento, familiarize-se com os perigos relacionados com circuitos eléctricos, e com quaisquer práticas comuns que possam prevenir possíveis acidentes. Para ver as traduções dos avisos que constam desta publicação, consulte o documento Regulatory Compliance and Safety Information (Informação de Segurança e Disposições Reguladoras) que acompanha este dispositivo.

Warning ¡Advertencia! Este símbolo de aviso significa peligro. Existe riesgo para su integridad física. Antes de manipular cualquier equipo, considerar los riesgos que entraña la corriente eléctrica y familiarizarse con los procedimientos estándar de prevención de accidentes. Para ver una traducción de las advertencias que aparecen en esta publicación, consultar el documento titulado Regulatory Compliance and Safety Information (Información sobre seguridad y conformidad con las disposiciones reglamentarias) que se acompaña con este dispositivo.

Warning Varning! Denna varningssymbol signalerar fara. Du befinner dig i en situation som kan leda till personskada. Innan du utför arbete på någon utrustning måste du varamedveten om farorna med elkretsar och känna till vanligt förfarande för att förebygga skador. Se förklaringar av de varningar som förkommer i denna publikation i dokumentet Regulatory Compliance and Safety Information (Efterrättelse av föreskrifter och säkerhetsinformation), vilket medföljer denna anordning.

Warning Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

Software Requirements

Table 3 lists the NAM software versions supported by Catalyst OS and Cisco IOS software.

Table 3 NAM Software Compatibility

NAM Software

Catalyst Software

Cisco IOS Software

Application Image

Maintenance Image

1.1(1a)

1.1(1a)m or later

5.5(1) to 6.3(1)

Not applicable

1.2(1), 1.2(2)

1.2(1a)m

6.1(1d) or later

12.1(8a)EX with Supervisor Engine 2 with an MSFC 2.

1.2(3)

1.2(1a)m

5.5(1) or later

12.1(8a)EX or later with Supervisor Engine 2 with an MSFC 2.

12.1(11b)E or later with a Supervisor Engine 1A with an MSFC 2, or a Supervisor Engine 2 with an MSFC 2.

2.1(1a)

1.2(1a)m

6.1(1d) or later

Not applicable

2.1(2)

1.2(1a)m

6.1(1d) or later

12.1(11b)E or later with a Supervisor Engine 1A with an MSFC 2, or a Supervisor Engine 2 with an MSFC 2.

Hardware Requirements

For Catalyst OS, any Catalyst 6000 or 6500 series switch with any supervisor module is supported using Supervisor Engine 1, 1A, or 2. For Cisco IOS, any Catalyst 6000 or 6500 series switch with a Supervisor Engine 1A (or Supervisor Engine 2) with an MSFC2 if it is running 12.1(11b)E. If the switch is running the older 12.1(8a)EX, a Supervisor Engine 2 with an MSFC2 is required.

Required Tools

Note Before installing the NAM, you must install the Catalyst 6000 family switch chassis and at least one supervisor engine. For information on installing the switch chassis, refer to the Catalyst 6000 Family Installation Guide.

These tools are required to install the NAM in the Catalyst 6000 family switches:

•Flat-blade screwdriver

•Phillips-head screwdriver

•Wrist strap or other grounding device

•Antistatic mat or antistatic foam

Whenever you handle the NAM, always use a wrist strap or other grounding device to prevent electrostatic discharge (ESD).

Installing and Removing the NAM

Warning During this procedure, wear grounding wrist straps to avoid ESD damage to the card. Do not directly touch the backplane with your hand or any metal tool, or you could shock yourself.

All Catalyst 6000 family switches support hot swapping, which allows you to install, remove, replace, and rearrange modules without turning off the system power. For more information on removing the NAM from a switch, see the "Removing the NAM" section.

When the system detects that a module has been installed or removed, it automatically runs diagnostic and discovery routines, acknowledges the presence or absence of the module, and resumes system operation with no operator intervention.

Installing and using the NAM requires the following:

•Perform the initial installation by placing the NAM in a switch.

•Go to switch CLI, session to the NAM CLI and provide a basic configuration

•Send a data source to the NAM (Netflow data, SPANned ports, VLANs, or etherchannels)

•Configure collection types of you want to monitor (RMON, voice, application response time, and other collection monitoring as required for your network).

•Configure alarms.

•View monitored statistics, alarms, and use packet capture or decode functionality.

This section describes how to install and verify the operation of the NAM in the Catalyst 6000 family switches and contains the following sections:

•Slot Assignments

•Verifying the Installation

•Removing the NAM

Slot Assignments

The Catalyst 6006 and 6506 switch chassis have six slots, the Catalyst 6009 and 6509 switch chassis have nine slots, and the Catalyst 6513 switch chassis has thirteen slots. (See Figure 2.)

Note The Catalyst 6509-NEB switch has vertical slots numbered 1 to 9 from right to left. Install the modules with the component side facing to the right.

•Slot 1 is reserved for the supervisor engine.

•Slot 2 can contain an additional redundant supervisor engine in case the supervisor engine in slot 1 fails.

•If a redundant supervisor engine is not required, slots 2 through 6 on the 6-slot chassis, (slots 2 through 9 on the 9-slot chassis and slots 2 through 13 on the 13-slot chassis) are available for switching modules, such as the NAM.

•Install switching-module filler plates, which are blank switching-module carriers, in the empty slots to maintain consistent airflow through the switch chassis.

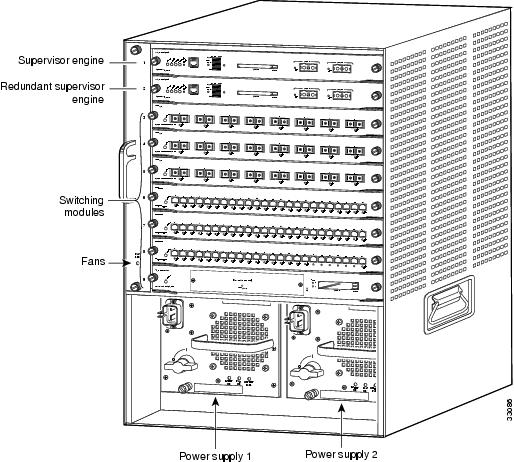

Figure 2 Slot Numbers on Catalyst 6000 Family Switches

Installing the NAM

Warning During this procedure, wear grounding wrist straps to avoid ESD damage to the card. Do not directly touch the backplane with your hand or any metal tool, or you could shock yourself.

To install the NAM in the Catalyst 6000 family switch, follow these steps:

Step 1 Make sure you take the necessary precautions to prevent ESD damage.

Step 2 Choose a slot for the NAM. (Refer to "Slot Assignments" section.)

Note You must install the supervisor engine in slot 1. You can install a redundant supervisor engine in slot 2. If a redundant supervisor engine is not required, slots 2 through 6 on the 6-slot chassis, (slots 2 through 9 on the 9-slot chassis and slots 2 through 13 on the 13-slot chassis) are available for switching modules.

Step 3 If the desired slot is empty and is not covered by a switching-module filler plate, go to Step 5. Otherwise, loosen the captive installation screws (with a screwdriver if necessary) that secure the switching-module filler plate or the existing switching module in the desired slot.

Warning Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place.

Step 4 Remove the switching-module filler plate or the existing switching module.

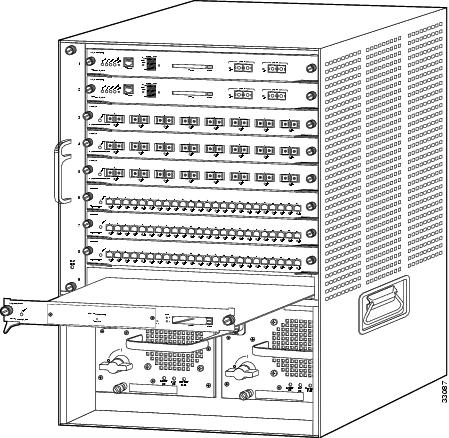

Step 5 Hold the NAM with one hand, and place your other hand under the carrier to support the module.

Caution Do not touch the printed circuit boards or connector pins.

Step 6 Place the module in the slot.

Step 7 Align the notch on the sides of the switching-module carrier with the groove in the slot. (See Figure 3.)

Figure 3 Installing Modules in the Catalyst 6000 Family Switch

Caution Always use the ejector levers when installing or removing the NAM. A module that is partially seated in the backplane will cause the system to halt and subsequently crash.

Step 8 Keep the NAM at a 90-degree orientation to the backplane (horizontal to the floor), and carefully slide the module into the slot until the notches on both ejector levers engage the chassis sides.

Step 9 Using the thumb and forefinger of each hand, simultaneously pivot both ejector levers forward to fully seat the module in the backplane connector. (See Figure 4 .)

Note If you perform a hot swap, the console displays the message "Module n has been inserted." If you are running Cisco IOS, the console displays the message "Power to Module in slot n set on." These messages do not appear when you are connected to the Catalyst 6000 family switch through a Telnet session.

Figure 4 Ejector Levers and Captive Installation Screws

Step 10 Use a screwdriver to tighten the captive installation screws on the left and right sides of the NAM.

Note After you install or reinstall the NAM into a switch, you must log in to the NAM root account and configure the NAM parameters before you can use the NAM for network analysis. See the "Initial Configuration" section for instructions on how to configure the NAM parameters.

Verifying the Installation

These sections describe how to verify the installation of the NAM.

•Cisco IOS Software

•Catalyst OS Software

Cisco IOS Software

To verify that the switch acknowledges the new NAM and has brought it online, enter the show module command.

This example shows the output of the show module command:
Router#show mod
Mod Ports Card Type                                  Model                    Serial No.
--- ----- --------------------------------------     ------------------       -----------
  2    2  Catalyst 6000 supervisor 2 (Active)         WS-X6K-SUP2-2GE         SAD0410050B
  3   48  48 port 10/100 mb RJ-45 ethernet            WS-X6248-RJ-45          SAD03080485
  5    2  Network Analysis Module                     WS-X6380-NAM            SAD05130AXB
  7    2  Intrusion Detection System                  WS-X6381-IDS            SAD05100HPT
Mod MAC addresses                       Hw       Fw               Sw           Status
--- -------------------------------     ------   ------------     ------------ -------
  2  0050.3e7e.70a2 to 0050.3e7e.70a3   90.223   6.1(3)           7.1(0.9)     Ok
  3  00e0.b0ff.9050 to 00e0.b0ff.907f    0.702   4.2(0.24)        7.1(0.9)     Ok
  5  0003.32bb.dacb to 0003.32bb.dacc    1.2     4B4LZ0XA         1.2(01)      Ok
  7  0003.3283.cae6 to 0003.3283.cae7    1.1     4B4LZ0XA         2.5(1)       Ok
Mod Sub-Module                  Model           Serial                   Hw     Status
--- --------------------------- --------------- ---------------       -------   -------
  2 Policy Feature Card 2       WS-F6K-PFC2     SAD040801JA           0.305     Ok
  2 Cat6k MSFC 2 daughterboard  WS-F6K-MSFC2    SAD04450FSS           1.1       Ok
When running Cisco IOS enter the show interface GigabitEthernet slot/ [1 | 2] command while logged in to the supervisor engine or console to verify that the switch acknowledges the new modules and has brought them online.

Catalyst OS Software

To verify that the switch acknowledges the new NAM and has brought it online, enter the show module or show port [mod/port] command.

This example shows the output of the show module command:
Console> (enable) show module
Mod Slot Ports Module-Type               Model               Sub Status
--- ---- ----- ------------------------- ------------------- --- --------
1   1    2     1000BaseX Supervisor      WS-X6K-SUP1A-2GE    yes ok
15  1    1     Multilayer Switch Feature WS-F6K-MSFC         no  ok
3   3    2     Network Analysis Module   WS-X6380-NAM        no  ok
5   5    48    10/100BaseTX Ethernet     WS-X6248-RJ-45      no  ok
.
.
.
Console> (enable)
Removing the NAM

This section describes how to remove the NAM from the Catalyst 6000 family switch.

Caution Do not remove the NAM from the switch until the NAM has shut down completely and the STATUS LED is orange or off. You can damage the NAM if you remove it from the switch before it completely shuts down.

Warning During this procedure, wear grounding wrist straps to avoid ESD damage to the card. Do not directly touch the backplane with your hand or any metal tool, or you could shock yourself.

To remove the NAM, follow these steps:

Step 1 Shut down the NAM by one of these methods:

•Cisco IOS software

–From the root account on the NAM, enter the shutdown command.

–In privileged mode from the CLI, enter the hw-mod module mod shutdown command. (When this command is used, you will have to enter the hw-mod module mod reset command in order to restart the NAM.)

Note When the switch is rebooted, the NAM will reboot.

–If the NAM does not respond to any commands from the NAM prompt or the supervisor engine, use a small, pointed object to access the SHUTDOWN button.

•Catalyst OS software

–From the root account on the NAM, enter the shutdown command.

–In privileged mode from the CLI, enter the set module disable mod command. (When this command is used, you will have to enter the set module enable mod command in order to restart the NAM.)

When you enter the set module disable mod command, the specified NAM will remain disabled, even if the switch is rebooted, until you enter the set module enable mod command.

–In privileged mode from the CLI, enter the set module shutdown mod command. This form of the command will shut down only the specified NAM.

When you enter the set module shutdown command, the NAM will reboot if the switch is rebooted.

–In privileged mode from the CLI, enter the set module shutdown all command.

When you enter the set module shutdown all command, you will shut down every NAM installed in the switch.

–If the NAM does not respond to any commands from the NAM prompt or the supervisor engine, use a small, pointed object to access the SHUTDOWN button.

Note Shutdown may require several minutes.

Step 2 Verify that the NAM shuts down. Do not remove the NAM from the switch until the STATUS LED is off or orange.

Step 3 Use a screwdriver to loosen the captive installation screws at the left and right sides of the NAM.

Step 4 Grasp the left and right ejector levers. Simultaneously, pull the left lever to the left and the right lever to the right to release the NAM from the backplane connector.

Step 5 As you pull the module out of the slot, place one hand under the carrier to support it. Avoid touching the module itself.

Step 6 Carefully pull the NAM straight out of the slot, keeping one hand under the carrier to guide it. Keep the module at a 90-degree orientation to the backplane (horizontal to the floor).

Step 7 Place the removed module on an antistatic mat or antistatic foam.

Warning Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place.

Step 8 If the slot is to remain empty, install a module filler plate to keep dust out of the chassis and to maintain proper airflow through the module compartment.

Configuring the NAM

How you configuring the NAM on your switch depends on whether you are using Cisco IOS software or the Catalyst OS software. There are also NAM configuration tasks that are common to both switch operating systems.

The following sections describe how to configure the NAM from the CLI for each switch operating system:

•Cisco IOS Software

•Catalyst OS Software

When you have completed configuring the software-dependent attributes for the NAM, you can configure the software-independent attributes in this section:

•Operating System-Independent Configuration

Cisco IOS Software

These sections describe how to remove the NAM from the Catalyst 6000 family switch when using Cisco IOS:

•Initial Configuration

•Configuring VLANs

•Using NetFlow Data Export as a Traffic Source

•Using SPAN as a Traffic Source

Initial Configuration

Before you can use the NAM for network analysis, you must log into the NAM root account and configure the following:

•IP address

•Subnet mask

•IP broadcast address

•IP host name

•Default gateway

•Domain name

•If you are using a Domain Name Service (DNS), configure the DNS name server.

•If you are using external SNMP manager to communicate with the NAM, configure the following:

–SNMP MIB variables

–Access control for the SNMP agent

–System group settings on the NAM

•Start the web server using the ip http server enable command.

To configure these parameters for the NAM, perform these steps in privileged mode:

Step 1 Enter this command to verify that the NAM is installed and that the power is on:
Router# show module mod
Step 2 Establish a console session with the NAM by entering:
Router# session slot processor 1
Step 3 At the login prompt, type root to log in to the root account.

Step 4 At the password prompt, type root as the root password.

Note If you have not changed the password from the factory-set default, a warning message displays. If you decide to change the password from the default, see the "Changing and Recovering the NAM CLI Passwords" section for more information.

Step 5 Configure the IP address and subnet mask by entering:
root@localhost# ip address ip-address subnet-mask
Step 6 Configure the IP broadcast address by entering:
root@localhost# ip broadcast broadcast-address
Step 7 Configure the IP host name used in the CLI prompt, show commands, and log messages by entering:
root@localhost# ip host name
Step 8 Configure the default gateway by entering:
root@localhost# ip gateway default-gateway
Step 9 Configure the domain name for the NAM by entering:
root@localhost# ip domain domain-name
Step 10 Configure one or more IP addresses as DNS name servers by entering:
root@localhost# ip nameserver ip-address [ip-address]
Step 11 Verify the NAM configuration by entering:
root@localhost# show ip
Step 12 Configure the SNMP syslocation MIB variable by entering:
root@localhost# snmp location location-string
Note The MIB variables in Step 13 and Step 14 must be valid DisplayString texts, each with a maximum length of 64 characters.

Step 13 Set the SNMP sysContact MIB variable by entering:
root@localhost# snmp contact contact-string
Step 14 Set the SNMP sysName MIB variable by entering:
root@localhost# snmp name name-string
Note You can delete the SNMP location, SNMP contact, or SNMP name by entering the respective command without any parameters.

Step 15 Set the SNMP agent community string parameter password for read-write access by entering:
root@localhost# snmp community community-string rw
Step 16 Set the SNMP agent community string parameter password for read-only access by entering:
root@localhost# snmp community community-string ro
Note Clear the SNMP community string with the snmp delete community community-string command.

Step 17 Verify the SNMP access controls and settings by entering:
root@localhost# show snmp
After completing this configuration, the NAM is ready to use with a network-monitoring application such as TrafficDirector or any other IETF-compliant RMON application.

Note If you are using RTM, you need to input the community strings in RTM exactly as you enter them in the NAM.

This example shows how to configure the NAM:
Router#session slot 8 processor 1
The default escape character is Ctrl-^, then x.
You can also type 'exit' at the remote prompt to end the session
Trying 127.0.0.81 ... Open
Cisco Network Analysis Module (WS-X6380-NAM)
login: root
Password:
Network Analysis Module (WS-X6380-NAM) Console, 2.1(1)
Copyright (C) 1999, 2000, 2001 Cisco Systems, Inc.
WARNING! Default password has not been changed!
root@localhost# ip address 172.20.52.29 255.255.255.224
root@localhost# ip broadcast 172.20.52.31
root@localhost# ip host nam1
root@localhost# ip gateway 172.69.2.132
root@localhost# ip domain cisco.com
root@localhost# ip nameserver 171.62.2.132
root@localhost# show ip
IP address:         172.20.98.167
Subnet mask:        255.255.255.192
IP Broadcast:       172.20.98.191
DNS Name:           namlab-shared.cisco.com
Default Gateway:    172.20.98.129
Nameserver(s):      171.69.2.133
HTTP server:        Enabled
HTTP secure server: Disabled
HTTP port:          80
HTTP secure port:   443
TACACS+ configured: Yes
Exsession:          On
root@localhost#
root@localhost# snmp location "Cisco Lab, Building X, Floor 1"
root@localhost# snmp contact "Jane Doe, Cisco Systems, (408) 111-1111"
root@localhost# snmp name "6k-NAM - Slot 2"
root@localhost# snmp community public ro
root@localhost# snmp community private rw
root@localhost# show snmp
SNMP Agent:   nam1.cisco.com   172.20.52.29
SNMPv1:  Enabled
SNMPv2C: Enabled
SNMPv3:  Disabled
community public 	read
community private 	write
sysDescr         "Catalyst 6000 Network Management Module (WS-X6380-NAM)"
sysObjectID      1.3.6.1.4.1.9.5.1.3.1.1.2.223
sysContact       "Jane Doe, Cisco Systems, (408) 111-1111"
sysName          "6k-NAM - Slot 2"
sysLocation      "Cisco Lab, Building X, Floor 1"
root@localhost#
Configuring VLANs

You must configure a VLAN for the NAM management port using the switchport access vlan vlan-number command.

Using NetFlow Data Export as a Traffic Source

To use NetFlow Data Export (NDE) as a traffic source for the NAM, enable the NetFlow Monitor option to allow the NAM to receive the NDE stream. The statistics are presented on reserved ifIndex.3000.

NDE makes traffic statistics available for analysis by an external data collector. You can use NDE to monitor all Layer 3 switched and all routed IP unicast traffic. In a Catalyst 6000 family switch, both the PFC and the MSFC maintain NetFlow caches that capture flow-based traffic statistics. The cache on the PFC captures statistics for Layer 3-switched flows. The cache on the MSFC captures statistics for routed flows.

Note For information on configuring NDE, refer to the switch software configuration guide.

To configure NDE for the Cisco IOS, follow these steps:

Step 1 Determine the current NDE configuration by entering:
Router#show running-config | include mls
mls rp nde-address 172.20.27.229
mls rp ip route-map
mls rp ip
no mls ip multicast aggregate
no mls ip multicast non-rpf cef
mls aging fast
mls flow ip full
mls flow ipx destination-source
mls nde flow include protocol tcp
mls nde sender
mls qos statistics-export interval 300
mls qos statistics-export delimiter |
Router#show running-config | include flow
mls flow ip full
mls flow ipx destination-source
mls nde flow include protocol tcp
 ip route-cache flow
 ip route-cache flow
 ip route-cache flow
ip flow-export source Vlan2
ip flow-export destination 172.20.27.229 3000
ip flow-aggregation cache as
Step 2 Determine the configured NDE exports by entering:
Router#show mls nde
 Netflow Data Export enabled
 Exporting flows to 172.20.27.229 (3000)
 Exporting flows from 172.20.27.221 (57675)
 Version:7
 Include Filter is:
   protocol:TCP
 Exclude Filter not configured
 Total Netflow Data Export Packets are:
    0 packets, 0 no packets, 0 records
 Total Netflow Data Export Send Errors:
        IPWRITE_NO_FIB = 0
        IPWRITE_ADJ_FAILED = 0
        IPWRITE_PROCESS = 0
        IPWRITE_ENQUEUE_FAILED = 0
        IPWRITE_IPC_FAILED = 0
        IPWRITE_MTU_FAILED = 0
        IPWRITE_ENCAPFIX_FAILED = 0
Router#show ip flow export
Flow export is enabled
  Exporting flows to 172.20.27.229 (3000)
  Exporting using source interface Vlan2
  Version 1 flow records
  0 flows exported in 0 udp datagrams
  0 flows failed due to lack of export packet
  0 export packets were sent up to process level
  0 export packets were dropped due to no fib
  0 export packets were dropped due to adjacency issues
  0 export packets were dropped due to fragmentation failures
  0 export packets were dropped due to encapsulation fixup failures
  0 export packets were dropped enqueuing for the RP
  0 export packets were dropped due to IPC rate limiting
Step 3 Configure NDE as follows:
Router(config)#mls nde sender
Router#configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#mls rp nde-address 172.20.27.229
Router(config)#mls flow ip full
Router(config)#mls nde flow include protocol tcp
Router(config)#ip flow-export destination 172.20.27.229 3000
Note The UDP port number must be set at 3000.
Router(config)#ip flow-export source vlan 2
Router(config)#ip flow-aggregation cache as
Router(config-flow-cache)#enable
Router(config)#interface GigabitEthernet8/6
Router(config-if)#ip address 1.2.3.4 255.255.255.0
Router(config-if)#ip route-cache flow
When you configure a NAM module as an NDE collector, you should use the IP address of the NAM (set up by sessioning into the NAM module).

Step 4 Synchronize NDE-related information with the NAM by entering:
Router#hw-module module 5 sync nde-info
This command may prompt you to reset the module. Use this command whenever the NDE configuration and the NAM configuration is completed (such as a VLAN of the NAM management port and that VLAN interface's IP address and other configuration information).

Note If the NAM is not being used as an NDE collector, this step is not required. This step only applies to the NAM that has version 1.2(xx). (NAM version 1.1(xx) is not supported).

Using SPAN as a Traffic Source

Note You can configure SPAN as a traffic source using both the CLI and the NAM Traffic Analyzer application.

To direct SPAN traffic to the NAM for monitoring, configure port 1 on the NAM as the SPAN destination port. You cannot use ports on the NAM module as SPAN source ports.

The NAM can analyze Ethernet VLAN traffic from Ethernet or Fast Ethernet SPAN source ports. You can also specify an Ethernet VLAN as the SPAN source.

The NAM can analyze Ethernet traffic from Ethernet, Fast Ethernet, Gigabit Ethernet, trunk port, or Fast EtherChannel SPAN source ports. You can also specify an Ethernet VLAN as the SPAN source.

To use the SPAN source port as a traffic source for the NAM, set port 1 on the NAM as the SPAN destination port. You cannot set port 2 on the NAM as a SPAN source port.

Refer to the Catalyst 6000 Family IOS Software Configuration Guide at the following website for more information on SPAN:

http://www.cisco.com/univercd/cc/td/doc/product/lan/cat6000/index.htm

For more information on configuring SPAN, refer to the switch software configuration guide.

Task

Command

Set the source interfaces and VLANs for the monitor session.

Router (config)# monitor session {session_number} {source {interface type slot/port} | {vlan vlan_ID}} [, | - | rx | tx | both]

Enable port 1 of the NAM as a SPAN destination.

Router (config)# monitor session {session_number} {destination {interface type slot/port} [, | - ] | {vlan vlan_ID}}

Disable the monitor session.

Router (config)# no monitor session session_number

Filter the SPAN session so that only certain VLANs are seen from switch port trunks.

Router (config)# monitor session {session_number} {filter {vlan_ID} [, | - ]}

Show current monitor sessions.

Router # show monitor session {session_number}

To enable SPAN on the NAM, perform one of these tasks:

This example shows how to enable SPAN on the NAM:
Router#show monitor
Session 1
---------
Source Ports:
    RX Only:      None
    TX Only:      None
    Both:         None
Source VLANs:
    RX Only:      None
    TX Only:      None
    Both:         None
Destination Ports:None
Filter VLANs:     None
Session 2
---------
Source Ports:
    RX Only:      None
    TX Only:      None
    Both:         None
Source VLANs:
    RX Only:      None
    TX Only:      None
    Both:         None
Destination Ports:None
Filter VLANs:     None
Router#conf t
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#monitor session 1 source vlan 1 both
Note The SPAN destination for the NAM must always be port 1.
Router#
00:21:10:%SYS-5-CONFIG_I:Configured from console by console
Router#conf t
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#monitor session 1 destination interface gi 8/1
Router#show monitor
Session 1
---------
Source Ports:
    RX Only:      None
    TX Only:      None
    Both:         None
Source VLANs:
    RX Only:      None
    TX Only:      None
    Both:         1
Destination Ports:Gi8/1
Filter VLANs:     None
Session 2
---------
Source Ports:
    RX Only:      None
    TX Only:      None
    Both:         None
Source VLANs:
    RX Only:      None
    TX Only:      None
    Both:         None
Destination Ports:None
Filter VLANs:     None
Router#
Catalyst OS Software

These sections describe how to configure the NAM from the CLI:

•Initial Configuration

•Configuring VLANs

•Using NetFlow Data Export as a Traffic Source

•Using SPAN as a Traffic Source

•Configuring the SNMP Agent

Initial Configuration

Before you can use the NAM for network analysis, you must log into the NAM root account and configure the following:

•IP address

•Subnet mask

•IP broadcast address

•IP host name

Hierarchical Navigation

Cisco Catalyst 6500 Series Switches

Catalyst 6000 Network Analysis Module Installation and Configuration Note Release 2.1(2)

Downloads

Table Of Contents

Catalyst 6000 Family Network Analysis Module Installation and Configuration Note

Contents

Overview

Understanding How the NAM Works

Managing the NAM

New NAM Features

Front Panel Description

STATUS LED

SHUTDOWN Button

Hard Drive Activity LED

PCMCIA Slot

Specifications

Safety Overview

Software Requirements

Hardware Requirements

Required Tools

Installing and Removing the NAM

Slot Assignments

Installing the NAM

Verifying the Installation

Cisco IOS Software

Catalyst OS Software

Removing the NAM

Configuring the NAM

Cisco IOS Software

Initial Configuration

Configuring VLANs

Using NetFlow Data Export as a Traffic Source

Using SPAN as a Traffic Source

Catalyst OS Software

Initial Configuration
