Catalyst 5000 Series ATM-Fabric Integration Module Configuration Note

Product Number: WS-X5165(=)

This configuration note describes how to install and configure the Catalyst 5000 Series ATM-fabric integration module.

Document Contents

This document consists of these sections:

•Module Description

•Module Specifications

•Safety Recommendations

•Installation

•Default Configuration

•Software Configuration

•FCC Class A Compliance

•Additional Documentation

•Cisco Connection Online

Module Description

The ATM-fabric integration module, shown in , seamlessly integrates the switching fabrics of a Catalyst 5500 switch and a LightStream 1010 ATM switch installed in the bottom slots of the Catalyst 5500 chassis. The module must be installed in slots 9 through 12 of the Catalyst 5500 switch chassis to bridge the two backplanes.

The module consists of one external LightStream 1010 OC-12 ATM interface and one internal interface that bridges the Catalyst 5500 and the LightStream 1010 switching backplanes. The external OC-12 ATM interface behaves exactly as any OC-12 interface on a LightStream 1010 port adapter.

Communication between the Catalyst 5000 series switch backplane and the LightStream 1010 ATM switch backplane occurs across the internal interface. The internal interface has bandwidth equivalent to OC-12 (however, there is no physical cabling and no SONET framing is used). You can apply configuration commands to the interface from both the ATM module command-line interface (CLI) and the LightStream 1010 CLI.

With an ATM-fabric integration module installed in slots 9 through 12 of the Catalyst 5500 chassis and a LightStream ATM switch processor (ASP) installed in slot 13, you can install LightStream 1010 port adapters in any remaining slots 9 through 12.

Figure 1 ATM-Fabric Integration Module

Note   The DIAG PORT connector is reserved for manufacturing use.

This module has one STATUS LED, which provides status information about the module, and three LEDs that provide status for the one port. The LEDs, shown in , are described in .

Figure 2 ATM-Fabric Integration Module LEDs

Table 1 ATM-Fabric Integration Module LEDs

LED
Description

STATUS
(module)

The switch performs a series of self-tests and diagnostic tests.
If all the tests pass, the LED is green.
If a test other than an individual port test fails, the LED is red.
During system boot or if the module is disabled, the LED is orange.

CD
(Carrier Detect)

When the carrier detect signal is being received, the LED is green.
When no carrier detect signal is received, the LED is off.

RX (Receive)

When the LED is off, no cells are being received.
When the LED is flashing green, cells are being received; pulse rate increases with the data rate.
When the LED is red, an alarm (LOF1 , LCD2 , AIS3 ) is detected.

TX (Transmit)

When the LED is off, no cells are being transmitted.
When the LED is flashing green, cells are being transmitted; the pulse rate increases with the data rate.
When the LED is flashing yellow, the port is in loopback.
When the LED is a steady yellow, an alarm (FERF4 ) is detected.

1 LOF=loss of frame

2 LCD=loss of cell delineation

3 AIS=alarm indication signal

4 FERF=far end receive failure


Hardware and Software Restrictions

These guidelines apply when using the ATM-fabric integration module:

•You must use Catalyst 5000 series supervisor engine software release 4.3(1) or later on the Catalyst 5000 series switch.

•You must use Catalyst 5000 series ATM software release 11.3(5)WA4(8) or later on the ATM-fabric integration module.

•A LightStream 1010 ATM Switch Processor (ASP) running LightStream 1010 software
release 12.0(1)W5(5) or later must be installed in slot 13 of the Catalyst 5500 switch. If no ASP is installed, the fabric integration module will not function.

•You must install the ATM-fabric integration module in slots 9 through 12 of the Catalyst 5500 switch.

Module Specifications

This section lists the standards compliance and specifications for the ATM-fabric integration module.

Standards Compliance

ATM-fabric integration modules, when installed in a Catalyst 5500 system, comply with the standards listed in .

Table 2 Standards Compliance

Specification
Description

Compliance:

CE Marking

Safety

UL1  1950, CSA2 -C22.2 No. 950, EN3  60950, IEC4  950

EMI5

FCC6  Class A (47 CFR, Part 15), EN 55022 Class A, and VCCI7 Class A with UTP8 cables

EN 55022 Class B; CISPR22 Class B, AS/NZS 3590 Class B, and VCCI Class B with STP9 cables

1 UL = Underwriters Laboratories

2 CSA = Canadian Standards Association

3 EN = Europäische Norm

4 IEC = International Electrotechnical Commission

5 EMI = electromagnetic interference

6 FCC = Federal Communications Commission

7 VCCI = Voluntary Control Council for Information Technology Equipment

8 UTP = unshielded twisted-pair

9 STP = shielded twisted-pair


Physical, Electrical, and Environmental Specifications

lists the specifications for the ATM-fabric integration module.

Table 3 Physical, Electrical and Environmental Specifications

Specification
Description

Dimensions (L x W x D)

1.18 x 15.51 x 16.34 in. (30 x 394 x 415 mm)

Weight

Minimum: 3 lb (1.36 kg)
Maximum: 5 lb (2.27 kg)

Environmental Conditions:

Operating temperature

32 to 104°F (0 to 40°C)

Nonoperating temperature

-40 to 167°F (-40 to 75°C)

Humidity

10 to 90%, noncondensing

Connectors

1 SC-type connector


Safety Recommendations

Safety warnings appear throughout this note in procedures that, if performed incorrectly, may harm you. A warning symbol precedes each warning statement.

Warning

This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. To see translations of the warnings that appear in this publication, refer to the appendix "Translated Safety Warnings" in the Catalyst 5000 Series Module Installation Guide.

Ensuring Safety

Use the following guidelines to ensure your safety and protect the equipment. This list does not include all potentially hazardous situations during installation, so be alert.

Note   Power supplies in the Catalyst 5002 switch do not have on/off switches.

Warning

Only trained and qualified personnel should install or replace this equipment.

•Always turn all power supplies off (the position marker zero), and unplug all power cords before installing or removing a chassis.

•Keep the chassis area clear and free of dust during and after installation.

•Keep tools and chassis components off the floor and away from foot traffic.

•Avoid wearing jewelry and securely fasten any loose clothing that could get caught in the chassis.

Warning

Before working on equipment that is connected to power lines, remove jewelry (including rings, necklaces, and watches). Metal objects will heat up when connected to power and ground and can cause serious burns or weld the metal object to the terminals.

Warning

Ultimate disposal of this product should be handled according to all national laws and regulations.

Following Basic Electrical Safety Guidelines

When working with electrical equipment, exercise these basic safety guidelines:

•Never install equipment that appears to be damaged.

•Locate the emergency power-off switch for the room in which you are working before beginning any procedures that require access to the chassis interior.

•Disconnect all power and external cables before installing or removing a chassis.

•Do not work alone when potentially hazardous conditions exist.

•Never assume that power has been disconnected from a circuit; always check.

•Do not perform any action that creates a potential hazard to people or makes the equipment unsafe.

•Examine your work area carefully for possible hazards such as moist floors, ungrounded power extension cables, and missing safety grounds.

Warning

Do not work on the system or connect or disconnect cables during periods of lightning activity.

Following Telephone Wiring and Network Cabling Safety Rules

Use the following safety rules when working with any equipment that is disconnected from a power source but still connected to telephone wiring or other network cabling:

•Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.

•Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface.

•Use caution when installing or modifying telephone lines.

Preventing Electrostatic Discharge Damage

Electrostatic discharge (ESD) damage occurs when electronic boards or components are improperly handled. ESD can result in complete or intermittent failures of electronic components. Guidelines for preventing ESD damage are as follows:

•Always use an antistatic wrist or ankle strap and ensure that it makes good skin contact.

•If you use the wrist strap with an alligator clip, connect the alligator clip to one of the captive installation screws on the chassis, an installed module, or a power supply. If you use the wrist strap with a banana-plug connector, insert the banana-plug connector into the grounding receptacle on the rear of the chassis.

•Handle supervisor engine modules and switching modules by the metal carrier edges and handles only; the metal carriers have electromagnetic interference (EMI) shielding. Never touch the printed circuit boards or connector pins.

•After removing a module, place it component-side up on an antistatic surface or in a static-shielding bag. If you plan to return the module to the factory, immediately place it in a static-shielding bag.

•Avoid contact between the modules and clothing; the wrist strap protects the module from ESD voltages on the body, but ESD voltages on clothing can still cause damage.

•Handle modules without metal carriers by the edges only.

Caution
For safety, periodically check the resistance value of the antistatic strap. The measurement should be between 1 and 10 megohms (Mohms).

Installation

All Catalyst 5000 series switches support hot swapping, which lets you install, remove, replace, and rearrange switching modules without turning off the system power. When the system detects that a switching module has been installed or removed, it runs diagnostic and discovery routines automatically, acknowledges the presence or absence of the module, and resumes system operation with no operator intervention.

Warning

Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

Tools Required

You need a flat-blade screwdriver to remove any filler (blank) switching modules and to tighten the captive installation screws that secure the modules in their slots. Whenever you handle switching modules, you should use a wrist strap or other grounding device to prevent ESD damage. See the "Preventing Electrostatic Discharge Damage" section.

ATM-Fabric Integration Module Installation

Note   This publication does not describe how to install the LightStream 1010 ATM switch processor (ASP) or LightStream 1010 carrier modules and port adapters. For complete information on installing the LightStream 1010 ASP, refer to the LightStream 1010 ATM Switch ASP Installation Guide. For complete information on installing the LightStream 1010 carrier modules and port adapters, refer to the LightStream 1010 ATM Switch PAM Installation Guide.

All Catalyst 5000 series switching modules, including the ATM-fabric integration module, are installed in horizontal slots that are numbered from top to bottom. shows module placement in the Catalyst 5500 chassis. The fabric integration module must be installed in slots 9 through 12.

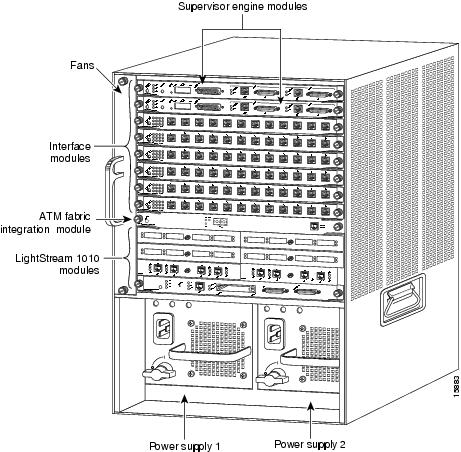

Figure 3 Catalyst 5500 Switch: Module Placement

To install an ATM-fabric integration module in a Catalyst 5500 series switch, perform these steps:

Caution
To prevent ESD damage, handle switching modules by the carrier edges only.

Step 1 Take the necessary precautions to prevent ESD damage, as described in the "Preventing Electrostatic Discharge Damage" section.

Step 2 Choose a slot for the new switching module. Ensure that there is enough clearance to accommodate any interface equipment that you will connect directly to the fabric integration module ports. If possible, place switching modules between empty slots that contain only switching-module filler plates.

Note   The ATM-fabric integration module must be installed in slots 9 through 12 of the Catalyst 5500 chassis. Additionally, a LightStream 1010 ASP must be installed in slot 13.

Step 3 Loosen the captive installation screws securing the switching-module filler plate (or the existing switching module) to the desired slot.

Step 4 Remove the switching-module filler plate (or the existing switching module). Save the switching-module filler plate for future use.

Note   If you are removing an existing switching module, place one hand carefully under the carrier to support the switching module as you slide it out of the chassis. Place the removed module in an antistatic bag or on an antistatic surface.

Step 5 To install the new module, hold the switching-module handle with one hand, and place your other hand under the carrier to support the switching module, as shown in . Do not touch the printed circuit boards or connector pins.

Step 6 Align the edges of the switching module carrier with the slot guides on the sides of the switch chassis, as shown in .

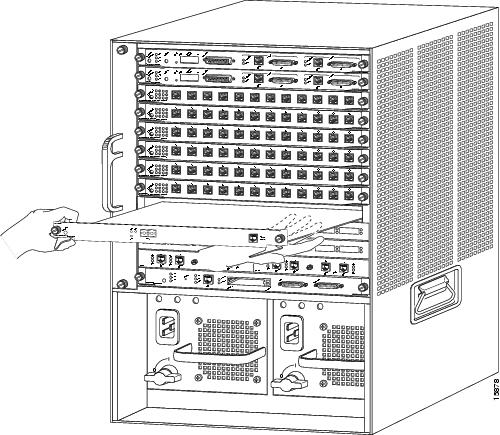

Figure 4 Installing the Module in the Chassis

Step 7 Pivot the two module ejector levers out away from the faceplate as shown in .

Step 8 Carefully slide the fabric integration module into the slot until the notches on both ejector levers engage the chassis sides.

Step 9 Using the thumb and forefinger of each hand, simultaneously, pivot in both ejector levers, as shown in , to fully seat the module in the backplane connector.

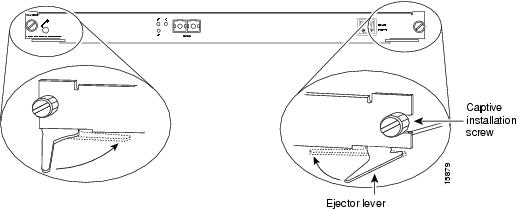

Figure 5 Module Ejector Lever Operation

Caution
Always use the ejector levers when installing or removing modules. A module that is partially seated in the backplane will cause the system to halt and subsequently crash.

Step 10 Use a screwdriver to tighten the captive installation screws on each end of the module faceplate.

Step 11 Attach network interface cables or other devices to the interface ports.

Default Configuration

shows the default configuration for the external OC-12 interface on the ATM-fabric integration module.

Table 4 ATM-Fabric Integration Module External OC-12 Interface Default Configuration

Feature
Default Setting

ATM interface type

UNI

UNI version

3.0

Maximum VPI bits

8

Maximum VCI bits

14

ATM interface side

Network

ATM UNI type

Private

Framing

STS-12C

Clock source

Network-derived

Synchronous Transfer Signal (STS) stream scrambling

On

Cell payload scrambling

On


shows the ATM-fabric integration module internal interface default configuration on the Catalyst 5000 switch side.

Table 5 ATM-Fabric Integration Module Internal Interface Default Configuration (Catalyst 5000 Side)

Feature
Default Value

LANE components

•No LECS database is configured

•No LES/BUS is configured

•No LECs are configured

PVCs

ILMI and signaling PVCs are set up

Output throttling

Disabled

ILMI keepalives

Disabled

UNI version

Autonegotiate (reverts to UNI 3.0 if autonegotiation fails)

VTP

Disabled


shows the ATM-fabric-integration module internal interface default configuration on the LightStream 1010 side.

Table 6 ATM-Fabric Integration Module Internal Interface Default Configuration (LightStream 1010 Side)

Feature
Default Setting

ATM interface type

UNI

UNI version

3.0

Maximum VPI bits

8

Maximum VCI bits

14

PVCs

ILMI and signaling PVCs are set up

ATM interface side

Network

ATM UNI type

Private

Framing

STS-3C

Clock source

Network-derived

Synchronous Transfer Signal (STS) stream scrambling

On

Cell payload scrambling

On


Software Configuration

These sections describe how to configure the ATM-fabric integration module:

•Configuring the External OC-12 ATM Interface

•Configuring the Internal ATM Port from the ATM Module CLI

•Configuring the Internal ATM Interface from the LightStream 1010 CLI

Configuring the External OC-12 ATM Interface

You can configure the external OC-12 ATM port on the ATM-fabric integration module exactly as you configure any OC-12 ATM port on the LightStream 1010 ATM switch.

Note   For complete information on configuring ATM interfaces, refer to the LightStream 1010 ATM Switch Configuration Guide.

Configuring the Internal ATM Port from the ATM Module CLI

On the Catalyst 5000 series switch side, the internal interface functions similarly to the ATM ports on the Catalyst 5000 series ATM LAN emulation/Multi-Protocol Over ATM (LANE/MPOA) modules (WS-X5167 and WS-X5167). However, there is no PHY on the internal bridge port.

You can configure the internal ATM interface (interface ATM0) exactly as you configure the ATM interface on the Catalyst 5000 series LANE/MPOA modules. For information on configuring the ATM interface, refer to the following documents:

•For information on configuring ATM LANE, refer to the "Configuring ATM LAN Emulation" chapter in the Catalyst 5000 Series Software Configuration Guide

•For information on configuring MPOA, refer to the "Configuring Multiprotocol Over ATM" chapter in the Catalyst 5000 Series Software Configuration Guide

The following commands are not available on the ATM-fabric integration module:

•set clock

•set sonet mode

In addition, the show controller command output does not show PHY error counters for the internal ATM port.

Configuring the Internal ATM Interface from the LightStream 1010 CLI

On the LightStream 1010 side, the internal interface functions similarly to an OC-12 ATM interface on a LightStream 1010 ATM port adapter. However, there is no PHY on the internal bridge interface.

You can configure the internal ATM interface exactly as you configure an OC-12 ATM interface on a LightStream 1010 port adapter. For information on configuring the LightStream 1010 ATM interface, refer to the LightStream 1010 ATM Switch Configuration Guide.

Note   In many cases, the default configuration on the LightStream 1010 internal interface is adequate and no additional configuration is necessary.

FCC Class A Compliance

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case users will be required to correct the interference at their own expense.

You can determine whether your equipment is causing interference by turning it off. If the interference stops, it was probably caused by the Cisco equipment or one of its peripheral devices. If the equipment causes interference to radio or television reception, try to correct the interference by using one or more of the following measures:

•Turn the television or radio antenna until the interference stops.

•Move the equipment to one side or the other of the television or radio.

•Move the equipment farther away from the television or radio.

•Plug the equipment into an outlet that is on a different circuit from the television or radio. (That is, make certain the equipment and the television or radio are on circuits controlled by different circuit breakers or fuses.)

Modifications to this product not authorized by Cisco Systems could void the FCC approval and negate your authority to operate the product.

Additional Documentation

For a complete description of commands to configure and maintain Catalyst 5000 series switches, refer to the Catalyst 5000 Series Software Configuration Guide and the Catalyst 5000 Series Command Reference publication. For complete switch hardware configuration and maintenance procedures, refer to the Catalyst 5000 Series Installation Guide. For information on Catalyst 5000 series switching modules, refer to the Catalyst 5000 Series Module Installation Guide. These documents are available on the Cisco Connection Documentation, Enterprise Series CD, or in print.

Cisco documentation and additional literature are available in a CD-ROM package, which ships with your product. The Documentation CD-ROM, a member of the Cisco Connection Family, is updated monthly. Therefore, it might be more up to date than printed documentation. To order additional copies of the Documentation CD-ROM, contact your local sales representative or call customer service. The CD-ROM package is available as a single package or as an annual subscription. You can also access Cisco documentation on the World Wide Web at http://www.cisco.com, http://www-china.cisco.com, or http://www-europe.cisco.com.

If you are reading Cisco product documentation on the World Wide Web, you can submit comments electronically. Click Feedback in the toolbar and select Documentation. After you complete the form, click Submit to send it to Cisco. We appreciate your comments.

Cisco Connection Online

Cisco Connection Online (CCO) is Cisco Systems' primary, real-time support channel. Maintenance customers and partners can self-register on CCO to obtain additional information and services.

Available 24 hours a day, 7 days a week, CCO provides a wealth of standard and value-added services to Cisco's customers and business partners. CCO services include product information, product documentation, software updates, release notes, technical tips, the Bug Navigator, configuration notes, brochures, descriptions of service offerings, and download access to public and authorized files.

CCO serves a wide variety of users through two interfaces that are updated and enhanced simultaneously: a character-based version and a multimedia version that resides on the World Wide Web (WWW). The character-based CCO supports Zmodem, Kermit, Xmodem, FTP, and Internet e-mail, and it is excellent for quick access to information over lower bandwidths. The WWW version of CCO provides richly formatted documents with photographs, figures, graphics, and video, as well as hyperlinks to related information.

You can access CCO in the following ways:

•WWW:  http://www.cisco.com

•WWW:  http://www-europe.cisco.com

•WWW:  http://www-china.cisco.com

•Telnet:  cco.cisco.com

•Modem:  From North America, 408 526-8070; from Europe, 33 1 64 46 40 82. Use the following terminal settings: VT100 emulation; databits: 8; parity: none; stop bits: 1; and connection rates up to 28.8 kbps.

For a copy of CCO's Frequently Asked Questions (FAQ), contact cco-help@cisco.com. For additional information, contact cco-team@cisco.com.

Note   If you are a network administrator and need personal technical assistance with a Cisco product that is under warranty or covered by a maintenance contract, contact Cisco's Technical Assistance Center (TAC) at 800 553-2447, 408 526-7209, or tac@cisco.com. To obtain general information about Cisco Systems, Cisco products, or upgrades, contact 800 553-6387, 408 526-7208, or cs-rep@cisco.com.

78-5589-01 Rev. A0
