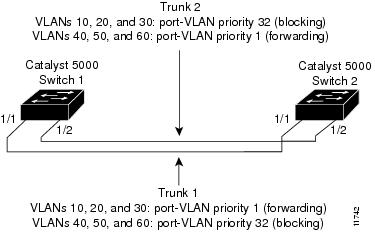

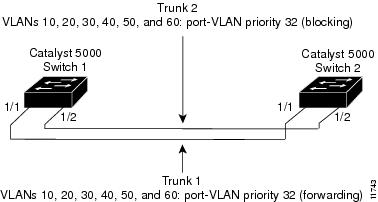

Load-Sharing VLAN Traffic Over Parallel Trunks Example

IEEE 802.1Q Nonegotiate Trunk Configuration Example

Disabling VLAN 1 on Trunks

Disabling VLAN 1 on a Trunk Link

Configuring VLAN Trunks on Fast Ethernet and Gigabit Ethernet Ports

This chapter describes how to configure Fast Ethernet and Gigabit Ethernet virtual LAN (VLAN) trunks.

Note For complete information on configuring VLANs, refer to Chapter 11, "Configuring VLANs."

Note For complete syntax and usage information for the commands used in this chapter, refer to the Catalyst 5000 Family Command Reference.

This chapter consists of these sections:

•Understanding How VLAN Trunks Work

•Default Trunk Configuration

•Configuring a Trunk Link

•Example VLAN Trunk Configurations

•Disabling VLAN 1 on Trunks

Understanding How VLAN Trunks Work

These sections describe how VLAN trunks work on the Catalyst enterprise LAN switches:

•Trunking Overview

•Trunking Modes and Encapsulation Types

•Trunking Support

•IEEE 802.1Q Trunk Restrictions

Trunking Overview

A trunk is a point-to-point link between one or more switch ports and another networking device such as a router or a switch. Trunks carry the traffic of multiple VLANs over a single link and allow you to extend VLANs across an entire network.

Two trunking encapsulations are available on Fast Ethernet and Gigabit Ethernet ports:

•Inter-Switch Link (ISL)—ISL is a Cisco-proprietary trunking encapsulation.

•IEEE 802.1Q—802.1Q is an industry-standard trunking encapsulation.

Note Trunking capabilities are hardware-dependent. To determine whether your hardware supports trunking, and to determine which trunking encapsulations are supported, see your hardware documentation or use the show port capabilities command.

You can configure a trunk on a single Fast or Gigabit Ethernet port or on a Fast or Gigabit EtherChannel bundle. For more information about Fast and Gigabit EtherChannel, see Chapter 7, "Configuring Fast EtherChannel and Gigabit EtherChannel."

Fast Ethernet and Gigabit Ethernet trunk ports support five different trunking modes (see Table 12-1). On some Fast Ethernet and Gigabit Ethernet ports, you also can specify whether the trunk will use ISL encapsulation, 802.1Q encapsulation, or whether the encapsulation type will be autonegotiated.

For trunking to be autonegotiated on Fast Ethernet and Gigabit Ethernet ports, the ports must be in the same VTP domain. However, you can use the on or nonegotiate mode to force a port to become a trunk, even if it is in a different domain. For more information on VTP domains, see Chapter 10, "Configuring VTP."

Trunk negotiation is managed by the Dynamic Trunking Protocol (DTP) in supervisor engine software release 4.2 and later. DTP supports autonegotiation of both ISL and IEEE 802.1Q trunks. In prior releases, trunk negotiation is managed by the Dynamic Inter-Switch Link (DISL) protocol. DISL supports autonegotiation of ISL trunks only. In supervisor engine software release 4.1, you must manually configure IEEE 802.1Q trunks on both ends of the link. IEEE 802.1Q trunks are not supported prior to software release 4.1.

Trunking Modes and Encapsulation Types

Table 12-1 lists the trunking modes used with the set trunk command and describes how they function on Fast Ethernet and Gigabit Ethernet ports.

Table 12-1 Fast Ethernet and Gigabit Ethernet Trunking Modes

Mode

Function

on

Puts the port into permanent trunking mode and negotiates to convert the link into a trunk link. The port becomes a trunk port even if the neighboring port does not agree to the change.

off

Puts the port into permanent nontrunking mode and negotiates to convert the link into a nontrunk link. The port becomes a nontrunk port even if the neighboring port does not agree to the change.

desirable

Makes the port actively attempt to convert the link to a trunk link. The port becomes a trunk port if the neighboring port is set to on, desirable, or auto mode.

auto

Enables the port to convert the link to a trunk link. The port becomes a trunk port if the neighboring port is set to on or desirable mode. This is the default mode for Fast and Gigabit Ethernet ports.

nonegotiate

Puts the port into permanent trunking mode but prevents the port from generating DTP frames. You must configure the neighboring port manually as a trunk port to establish a trunk link.

Table 12-2 lists the encapsulation types used with the set trunk command and describes how they function on Fast Ethernet and Gigabit Ethernet ports. You can use the show port capabilities command to determine which encapsulation types a particular port supports.

Table 12-2 Fast Ethernet and Gigabit Ethernet Trunk Encapsulation Types

Encapsulation

Function

isl

Specifies ISL encapsulation on the trunk link.

dot1q

Specifies IEEE 802.1Q encapsulation on the trunk link. IEEE 802.1Q trunks are supported in Catalyst 5000 family software release 4.1 and later with 802.1Q-capable hardware. Automatic negotiation of 802.1Q trunks is supported in software release 4.2 and later.

negotiate

Specifies that the port negotiate with the neighboring port to become an ISL (preferred) or 802.1Q trunk, depending on the configuration and capabilities of the neighboring port. This keyword is available in software release 4.2 and later.

The trunking mode, the trunk encapsulation type, and the hardware capabilities of the two connected ports determine whether a trunk link comes up and the type of trunk the link becomes. Table 12-3 shows the result of the possible trunking configurations.

Table 12-3 Results of Possible Fast Ethernet and Gigabit Ethernet Trunk Configurations

Neighbor Port Trunk Mode and Trunk Encapsulation

Local Port Trunk Mode and Trunk Encapsulation

off
isl or dot1q

on
isl

desirable
isl

auto
isl

on
dot1q

desirable
dot1q

auto
dot1q

desirable
negotiate

auto
negotiate

off
isl or dot1q

Local:
Nontrunk

Neighbor:
Nontrunk

Local:
ISL trunk

Neighbor:
Nontrunk

Local:
Nontrunk

Neighbor:
Nontrunk

Local:
Nontrunk

Neighbor:
Nontrunk

Local:
1Q trunk

Neighbor:
Nontrunk

Local:
Nontrunk

Neighbor:
Nontrunk

Local:
Nontrunk

Neighbor:
Nontrunk

Local:
Nontrunk

Neighbor:
Nontrunk

Local:
Nontrunk

Neighbor:
Nontrunk

on
isl

Local:
Nontrunk

Neighbor:
ISL trunk

Local:
ISL trunk

Neighbor:
ISL trunk

Local:
ISL trunk

Neighbor:
ISL trunk

Local:
ISL trunk

Neighbor:
ISL trunk

Local:
1Q trunk¹

Neighbor:
ISL trunk1

Local:
Nontrunk

Neighbor:
ISL trunk

Local:
Nontrunk

Neighbor:
ISL trunk

Local:
ISL trunk

Neighbor:
ISL trunk

Local:
ISL trunk

Neighbor:
ISL trunk

desirable
isl

Local:
Nontrunk

Neighbor:
Nontrunk

Local:
ISL trunk

Neighbor:
ISL trunk

Local:
ISL trunk

Neighbor:
ISL trunk

Local:
ISL trunk

Neighbor:
ISL trunk

Local:
1Q trunk

Neighbor:
Nontrunk

Local:
Nontrunk

Neighbor:
Nontrunk

Local:
Nontrunk

Neighbor:
Nontrunk

Local:
ISL trunk

Neighbor:
ISL trunk

Local:
ISL trunk

Neighbor:
ISL trunk

auto
isl

Local:
Nontrunk

Neighbor:
Nontrunk

Local:
ISL trunk

Neighbor:
ISL trunk

Local:
ISL trunk

Neighbor:
ISL trunk

Local:
Nontrunk

Neighbor:
Nontrunk

Local:
1Q trunk

Neighbor:
Nontrunk

Local:
Nontrunk

Neighbor:
Nontrunk

Local:
Nontrunk

Neighbor:
Nontrunk

Local:
ISL trunk

Neighbor:
ISL trunk

Local:
Nontrunk

Neighbor:
Nontrunk

on
dot1q

Local:
Nontrunk

Neighbor:
1Q trunk

Local:
ISL trunk1

Neighbor:
1Q trunk1

Local:
Nontrunk

Neighbor:
1Q trunk

Local:
Nontrunk

Neighbor:
1Q trunk

Local:
1Q trunk

Neighbor:
1Q trunk

Local:
1Q trunk

Neighbor:
1Q trunk

Local:
1Q trunk

Neighbor:
1Q trunk

Local:
1Q trunk

Neighbor:
1Q trunk

Local:
1Q trunk

Neighbor:
1Q trunk

desirable
dot1q

Local:
Nontrunk

Neighbor:
Nontrunk

Local:
ISL trunk

Neighbor:
Nontrunk

Local:
Nontrunk

Neighbor:
Nontrunk

Local:
Nontrunk

Neighbor:
Nontrunk

Local:
1Q trunk

Neighbor:
1Q trunk

Local:
1Q trunk

Neighbor:
1Q trunk

Local:
1Q trunk

Neighbor:
1Q trunk

Local:
1Q trunk

Neighbor:
1Q trunk

Local:
1Q trunk

Neighbor:
1Q trunk

auto
dot1q

Local:
Nontrunk

Neighbor:
Nontrunk

Local:
ISL trunk

Neighbor:
Nontrunk

Local:
Nontrunk

Neighbor:
Nontrunk

Local:
Nontrunk

Neighbor:
Nontrunk

Local:
1Q trunk

Neighbor:
1Q trunk

Local:
1Q trunk

Neighbor:
1Q trunk

Local:
Nontrunk

Neighbor:
Nontrunk

Local:
1Q trunk

Neighbor:
1Q trunk

Local:
Nontrunk

Neighbor:
Nontrunk

desirable negotiate

Local:
Nontrunk

Neighbor:
Nontrunk

Local:
ISL trunk

Neighbor:
ISL trunk

Local:
ISL trunk

Neighbor:
ISL trunk

Local:
ISL trunk

Neighbor:
ISL trunk

Local:
1Q trunk

Neighbor:
1Q trunk

Local:
1Q trunk

Neighbor:
1Q trunk

Local:
1Q trunk

Neighbor:
1Q trunk

Local:
ISL trunk

Neighbor:
ISL trunk

Local:
ISL trunk

Neighbor:
ISL trunk

auto
negotiate

Local:
Nontrunk

Neighbor:
Nontrunk

Local:
ISL trunk

Neighbor:
ISL trunk

Local:
ISL trunk

Neighbor:
ISL trunk

Local:
Nontrunk

Neighbor:
Nontrunk

Local:
1Q trunk

Neighbor:
1Q trunk

Local:
1Q trunk

Neighbor:
1Q trunk

Local:
Nontrunk

Neighbor:
Nontrunk

Local:
ISL trunk

Neighbor:
ISL trunk

Local:
Nontrunk

Neighbor:
Nontrunk

¹Using this configuration can result in spanning-tree loops and is not recommended.

Note DTP is a point-to-point protocol. However, some internetworking devices might forward DTP frames improperly. To avoid this problem, ensure that trunking is turned off on ports connected to non-switch devices if you do not intend to trunk across those links. When you manually enable trunking on a link to a Cisco router, use the nonegotiate keyword to cause the port to become a trunk but not generate DTP frames. The nonegotiate keyword is available in supervisor engine software release 2.4(3) and later.

Trunking Support

Trunking capabilities are hardware-dependent. Table 12-4 shows which switches have available hardware that supports the two trunking encapsulations. To determine whether a specific piece of hardware supports trunking, and to determine which trunking encapsulations are supported, see your hardware documentation or use the show port capabilities command.

Table 12-4 Trunking Encapsulation Support

Catalyst 5000 Family Trunking Method

Support

ISL

Yes

IEEE 802.1Q

Yes

IEEE 802.1Q Trunk Restrictions

The following configuration guidelines and restrictions apply when using 802.1Q trunks impose some limitations on the trunking strategy for a network. Note these restrictions when using 802.1Q trunks:

•When connecting Cisco switches through an 802.1Q trunk, make sure the native VLAN for an 802.1Q trunk is the same on both ends of the trunk link. If the native VLAN on one end of the trunk is different from the native VLAN on the other end, spanning tree loops might result.

•Disabling spanning tree on the native VLAN of an 802.1Q trunk without disabling spanning tree on every VLAN in the network can cause spanning-tree loops. We recommend that you leave spanning tree enabled on the native VLAN of an 802.1Q trunk. If this is not possible, disable spanning tree on every VLAN in the network. Make sure your network is free of physical loops before disabling spanning tree.

•When you connect two Cisco switches through 802.1Q trunks, the switches exchange spanning-tree BPDUs on each VLAN allowed on the trunks. The BPDUs on the native VLAN of the trunk are sent untagged to the reserved IEEE 802.1d spanning-tree multicast MAC address (01-80-C2-00-00-00). The BPDUs on all other VLANs on the trunk are sent tagged to the reserved Cisco Shared Spanning Tree (SSTP) multicast MAC address (01-00-0c-cc-cc-cd).

•Non-Cisco 802.1Q switches maintain only a single instance of spanning tree (the Mono Spanning Tree, or MST) that defines the spanning-tree topology for all VLANs. When you connect a Cisco switch to a non-Cisco switch through an 802.1Q trunk, the MST of the non-Cisco switch and the native VLAN spanning-tree of the Cisco switch combine to form a single spanning-tree topology known as the Common Spanning Tree (CST).

•Because Cisco switches transmit BPDUs to the SSTP multicast MAC address on VLANs other than the native VLAN of the trunk, non-Cisco switches do not recognize these frames as BPDUs and flood them on all ports in the corresponding VLAN. Other Cisco switches connected to the non-Cisco 802.1Q cloud receive these flooded BPDUs. This allows Cisco switches to maintain a per-VLAN spanning-tree topology across a cloud of non-Cisco 802.1Q switches. The non-Cisco 802.1Q cloud separating the Cisco switches is treated as a single broadcast segment between all switches connected to the non-Cisco 802.1Q cloud through 802.1Q trunks.

•Make certain that the native VLAN is the same on ALL of the 802.1Q trunks connecting the Cisco switches to the non-Cisco 802.1Q cloud.

•If you are connecting multiple Cisco switches to a non-Cisco 802.1Q cloud, all of the connections MUST be through 802.1Q trunks. You CANNOT connect Cisco switches to a non-Cisco 802.1Q cloud through ISL trunks or through access ports. Doing so will cause the switch to place the ISL trunk port or access port into the spanning-tree "port inconsistent" state and no traffic will pass through the port.

Default Trunk Configuration

Table 12-5 shows the default Fast Ethernet and Gigabit Ethernet trunk configuration.

Table 12-5 Default Fast Ethernet and Gigabit Ethernet Trunk Configuration

Feature

Default Configuration

Trunk mode

auto

Trunk encapsulation

•negotiate (on hardware supporting both ISL and 802.1Q)

•isl (on hardware supporting ISL only)

•dot1q (on hardware supporting 802.1Q only)

Allowed VLAN range

VLANs 1-1005

Configuring a Trunk Link

These sections describe how to configure a trunk link on Fast Ethernet and Gigabit Ethernet ports and how to define the allowed VLAN range on a trunk:

•Configuring an ISL Trunk

•Configuring an IEEE 802.1Q Trunk

•Configuring an ISL/802.1Q Negotiating Trunk Port

•Defining the Allowed VLANs on a Trunk

•Disabling a Trunk Port

Configuring an ISL Trunk

Note Some hardware does not support ISL encapsulation. To determine whether your hardware supports ISL, see your hardware documentation or use the show port capabilities command.

To configure an ISL trunk, perform this task in privileged mode:

Task

Command

Step 1

Configure an ISL trunk.

set trunk mod/port [on | desirable | auto | nonegotiate] isl

Step 2

Verify the trunking configuration.

show trunk [mod/port]

This example shows how to configure a port as a trunk and how to verify the trunk configuration. This example assumes that the neighbor port is in auto mode.
Console> (enable) set trunk 1/1 on
Port(s) 1/1 trunk mode set to on.
Console> (enable) 06/16/1998,22:16:39:DTP-5:Port 1/1 has become isl trunk
06/16/1998,22:16:40:PAGP-5:Port 1/1 left bridge port 1/1.
06/16/1998,22:16:40:PAGP-5:Port 1/1 joined bridge port 1/1.
Console> (enable) show trunk
Port      Mode         Encapsulation  Status        Native vlan
--------  -----------  -------------  ------------  -----------
 1/1      on           isl            trunking      1
Port      Vlans allowed on trunk
--------  ---------------------------------------------------------------------
 1/1      1-1005
Port      Vlans allowed and active in management domain
--------  ---------------------------------------------------------------------
 1/1      1,521-524
Port      Vlans in spanning tree forwarding state and not pruned
--------  ---------------------------------------------------------------------
 1/1
Console> (enable)
This example shows how to place a port in desirable mode and how to verify the trunk configuration. This example assumes that the neighbor port is in auto mode.
Console> (enable) set trunk 1/2 desirable
Port(s) 1/2 trunk mode set to desirable.
Console> (enable) 06/16/1998,22:20:16:DTP-5:Port 1/2 has become isl trunk
06/16/1998,22:20:16:PAGP-5:Port 1/2 left bridge port 1/2.
06/16/1998,22:20:16:PAGP-5:Port 1/2 joined bridge port 1/2.
Console> (enable) show trunk 1/2
Port      Mode         Encapsulation  Status        Native vlan
--------  -----------  -------------  ------------  -----------
 1/2      desirable    isl            trunking      1
Port      Vlans allowed on trunk
--------  ---------------------------------------------------------------------
 1/2      1-1005
Port      Vlans allowed and active in management domain
--------  ---------------------------------------------------------------------
 1/2      1,521-524
Port      Vlans in spanning tree forwarding state and not pruned
--------  ---------------------------------------------------------------------
 1/2
Console> (enable)
Configuring an IEEE 802.1Q Trunk

Note Some hardware does not support 802.1Q encapsulation. To determine whether your hardware supports 802.1Q, see your hardware documentation or use the show port capabilities command.

Note IEEE 802.1Q trunks require supervisor engine software release 4.1 or later and 802.1Q-capable hardware. In release 4.1, only the nonegotiate and off modes function with 802.1Q trunks. Autonegotiation of 802.1Q trunks is supported in software release 4.2 and later.

Caution DTP (formerly known as DISL) negotiation does not occur on IEEE 802.1Q trunks in software releases prior to release 4.2. You must configure the ports on both ends of the trunk link as 802.1Q trunks using the set trunk command with the nonegotiate and dot1q keywords. Spanning Tree Protocol (STP) will block the port on the other end of the trunk link until you configure that end of the link as an 802.1Q trunk as well. Do not configure one end of a trunk as an 802.1Q trunk and the other end as an ISL trunk or a nontrunk port. Errors will occur and no traffic can pass over the link. For more information, see the "Trunking Modes and Encapsulation Types" section.

To configure an IEEE 802.1Q trunk, perform this task in privileged mode:

Task

Command

Step 1

Configure an 802.1Q trunk.

set trunk mod/port [on | desirable | auto | nonegotiate] dot1q

Step 2

Verify the trunking configuration.

show trunk [mod/port]

This example shows how to configure an IEEE 802.1Q trunk and how to verify the trunk configuration in software release 4.2 and later:
Console> (enable) set trunk 2/9 desirable dot1q
Port(s) 2/9 trunk mode set to desirable.
Port(s) 2/9 trunk type set to dot1q.
Console> (enable)
Console> (enable) show trunk
Port      Mode         Encapsulation  Status        Native vlan
--------  -----------  -------------  ------------  -----------
 2/9      desirable    dot1q          trunking      1
Port      Vlans allowed on trunk
--------  ---------------------------------------------------------------------
 2/9      1-1005
Port      Vlans allowed and active in management domain
--------  ---------------------------------------------------------------------
 2/9      1,5,10-32,101-120,150,200,250,300,400,500,600,700,800,900,1000
Port      Vlans in spanning tree forwarding state and not pruned
--------  ---------------------------------------------------------------------
 2/9      5,10-32,101-120,150,200,250,300,400,500,600,700,800,900,1000
Console> (enable)
This example shows how to configure an IEEE 802.1Q trunk in software release 4.1:
Console> (enable) set trunk 4/5 nonegotiate dot1q
Port(s) 4/5 trunk mode set to nonegotiate.
Port(s) 4/5 trunk type set to dot1q.
Console> (enable)
Configuring an ISL/802.1Q Negotiating Trunk Port

To configure a trunk port to negotiate the trunk encapsulation type (either ISL or IEEE 802.1Q), perform this task in privileged mode:

Task

Command

Step 1

Configure a port to negotiate the trunk encapsulation type.

set trunk mod/port [on | desirable | auto | nonegotiate] negotiate

Step 2

Verify the trunking configuration.

show trunk [mod/port]

This example shows how to configure a port to negotiate the encapsulation type and how to verify the trunk configuration. This example assumes that the neighbor port is in auto mode with encapsulation set to isl or negotiate.
Console> (enable) set trunk 4/11 desirable negotiate
Port(s) 4/11 trunk mode set to desirable.
Port(s) 4/11 trunk type set to negotiate.
Console> (enable) show trunk 4/11
Port      Mode         Encapsulation  Status        Native vlan
--------  -----------  -------------  ------------  -----------
 4/11     desirable    n-isl          trunking      1
Port      Vlans allowed on trunk
--------  ---------------------------------------------------------------------
 4/11     1-1005
Port      Vlans allowed and active in management domain
--------  ---------------------------------------------------------------------
 4/11     1,5,10-32,55,101-120,998-1000
Port      Vlans in spanning tree forwarding state and not pruned
--------  ---------------------------------------------------------------------
 4/11     1,5,10-32,55,101-120,998-1000
Console> (enable)
Defining the Allowed VLANs on a Trunk

When you configure a trunk port, all VLANs are added to the allowed VLANs list for that trunk. However, you can remove VLANs from the allowed list to prevent traffic for those VLANs from passing over the trunk. You cannot remove VLAN 1, the default VLAN, from the allowed list.

Note When you first configure a port as a trunk, the set trunk command always adds all VLANs to the allowed VLAN list for the trunk, even if you specify a VLAN range (any specified VLAN range is ignored). To modify the allowed VLANs list, use a combination of the clear trunk and set trunk commands to specify the allowed VLANs.

To define the allowed VLAN list for a trunk port, perform this task in privileged mode:

Task

Command

Step 1

Remove VLANs from the allowed VLANs list for a trunk.

clear trunk mod/port vlans

Step 2

(Optional) Add specific VLANs to the allowed VLANs list for a trunk.

set trunk mod/port vlans

Step 3

Verify the allowed VLAN list for the trunk.

show trunk [mod/port]

This example shows how to define the allowed VLANs list for trunk port 1/1 to allow VLANs 1-100, VLAN 250, and VLANs 500-1005, and how to verify the allowed VLAN list for the trunk:
Console> (enable) clear trunk 1/1 101-499
Removing Vlan(s) 101-499 from allowed list.
Port 1/1 allowed vlans modified to 1-100,500-1005.
Console> (enable) set trunk 1/1 250
Adding vlans 250 to allowed list.
Port(s) 1/1 allowed vlans modified to 1-100,250,500-1005.
Console> (enable) show trunk 1/1
Port      Mode         Encapsulation  Status        Native vlan
--------  -----------  -------------  ------------  -----------
 1/1      desirable    isl            trunking      1
Port      Vlans allowed on trunk
--------  ---------------------------------------------------------------------
 1/1      1-100,250,500-1005
Port      Vlans allowed and active in management domain
--------  ---------------------------------------------------------------------
 1/1      1,521-524
Port      Vlans in spanning tree forwarding state and not pruned
--------  ---------------------------------------------------------------------
 1/1      1,521-524
Console> (enable)
Disabling a Trunk Port

To explicitly turn off trunking on a port, perform this task in privileged mode:

Task

Command

Step 1

Turn off trunking on a port.

set trunk mod/port off

Step 2

Verify the trunking configuration.

show trunk [mod/port]

To return a port to the default trunk type and mode for that port type, perform this task in privileged mode:

Task

Command

Step 1

Return the port to the default trunking type and mode for that port type.

clear trunk mod/port

Step 2

Verify the trunking configuration.

show trunk [mod/port]

Example VLAN Trunk Configurations

This section contains example VLAN trunk configurations:

•ISL Trunk Configuration Example

•ISL Trunk Over Fast EtherChannel Link Example

•IEEE 802.1Q Trunk Over Gigabit EtherChannel Link Example

•Load-Sharing VLAN Traffic Over Parallel Trunks Example

•IEEE 802.1Q Nonegotiate Trunk Configuration Example

Note For examples of configuring trunk links between switches and routers, refer to the Layer 3 Switching Software Configuration Guide—Catalyst 5000 Family, 4000 Family, 2926 Series, and 2980G Switches publication.

ISL Trunk Configuration Example

This example configuration shows how to configure an ISL trunk between two switches and how to limit the allowed VLANs on the trunk to VLAN 1 and VLANs 520-530.

In this example, port 1/1 (a Catalyst 5000 family supervisor engine Fast Ethernet uplink port) on Switch 1 is connected to a Fast Ethernet port on another switch. Both ports are in their default state, with the trunk mode set to auto (for more information, see the "Default Trunk Configuration" section).

Step 1 Enter the set trunk command to configure port 1/1 on Switch 1 as an ISL trunk port. By specifying the desirable keyword, the trunk is automatically negotiated with the neighboring port (port 1/2 on Switch 2). ISL encapsulation is assumed based on the hardware type.
Switch1> (enable) set trunk 1/1 desirable
Port(s) 1/1 trunk mode set to desirable.
Switch1> (enable) 06/18/1998,12:20:23:DTP-5:Port 1/1 has become isl trunk
06/18/1998,12:20:23:PAGP-5:Port 1/1 left bridge port 1/1.
06/18/1998,12:20:23:PAGP-5:Port 1/1 joined bridge port 1/1.
Switch1> (enable)
Step 2 Enter the show trunk command to check the configuration. The Status field in the screen output indicates that port 1/1 is trunking.
Switch1> (enable) show trunk 1/1
Port      Mode         Encapsulation  Status        Native vlan
--------  -----------  -------------  ------------  -----------
 1/1      desirable    isl            trunking      1
Port      Vlans allowed on trunk
--------  ---------------------------------------------------------------------
 1/1      1-1005
Port      Vlans allowed and active in management domain
--------  ---------------------------------------------------------------------
 1/1      1,521-524
Port      Vlans in spanning tree forwarding state and not pruned
--------  ---------------------------------------------------------------------
 1/1
Switch1> (enable)
Step 3 To define the allowed VLAN list for the trunk, use the clear trunk command to remove the VLANs that should not pass traffic over the trunk link.
Switch1> (enable) clear trunk 1/1 2-519
Removing Vlan(s) 2-519 from allowed list.
Port 1/1 allowed vlans modified to 1,520-1005.
Switch1> (enable) clear trunk 1/1 531-1005
Removing Vlan(s) 531-1005 from allowed list.
Port 1/1 allowed vlans modified to 1,520-530.
Switch1> (enable) show trunk 1/1
Port      Mode         Encapsulation  Status        Native vlan
--------  -----------  -------------  ------------  -----------
 1/1      desirable    isl            trunking      1
Port      Vlans allowed on trunk
--------  ---------------------------------------------------------------------
 1/1      1,520-530
Port      Vlans allowed and active in management domain
--------  ---------------------------------------------------------------------
 1/1      1,521-524
Port      Vlans in spanning tree forwarding state and not pruned
--------  ---------------------------------------------------------------------
 1/1      1,521-524
Switch1> (enable)
Step 4 Verify connectivity across the trunk using the ping command:
Switch1> (enable) ping switch2
switch2 is alive
Switch1> (enable)
ISL Trunk Over Fast EtherChannel Link Example

This example configuration shows how to configure an ISL trunk over a Fast EtherChannel link between two switches.

Figure 12-1 shows two switches connected through two 100BASE-TX Fast Ethernet ports.

Figure 12-1 ISL Trunk Over Fast EtherChannel Link

This example shows how to configure the switches to form a two-port Fast EtherChannel bundle, and then configure the EtherChannel bundle as an ISL trunk link.

Note There are a variety of configuration guidelines and restrictions for configuring Fast EtherChannel port bundles. For complete information on configuring Fast EtherChannel, see Chapter 7, "Configuring Fast EtherChannel and Gigabit EtherChannel."

Step 1 Confirm the channeling and trunking status of the switches by entering the show port channel and show trunk commands.
Switch_A> (enable) show port channel
No ports channelling
Switch_A> (enable) show trunk
No ports trunking.
Switch_A> (enable)
Switch_B> (enable) show port channel
No ports channelling
Switch_B> (enable) show trunk
No ports trunking.
Switch_B> (enable)
Step 2 Configure the ports on Switch A to negotiate a Fast EtherChannel bundle with the neighboring switch by entering the set port channel command.

This example assumes that the neighboring ports on Switch B are in EtherChannel auto mode. The system logging messages provide information about the formation of the EtherChannel bundle.
Switch_A> (enable) set port channel 1/1-2 desirable
Port(s) 1/1-2 channel mode set to desirable.
Switch_A> (enable) %PAGP-5-PORTFROMSTP:Port 1/1 left bridge port 1/1
%PAGP-5-PORTFROMSTP:Port 1/2 left bridge port 1/2
%PAGP-5-PORTFROMSTP:Port 1/2 left bridge port 1/2
%PAGP-5-PORTTOSTP:Port 1/1 joined bridge port 1/1-2
%PAGP-5-PORTTOSTP:Port 1/2 joined bridge port 1/1-2
Switch_B> (enable) %PAGP-5-PORTFROMSTP:Port 3/1 left bridge port 3/1
%PAGP-5-PORTFROMSTP:Port 3/2 left bridge port 3/2
%PAGP-5-PORTFROMSTP:Port 3/2 left bridge port 3/2
%PAGP-5-PORTTOSTP:Port 3/1 joined bridge port 3/1-2
%PAGP-5-PORTTOSTP:Port 3/2 joined bridge port 3/1-2
Step 3 After the EtherChannel bundle is negotiated, enter the show port channel command to verify the configuration.
Switch_A> (enable) show port channel
Port  Status     Channel   Channel     Neighbor                  Neighbor
                 mode      status      device                    port
----- ---------- --------- ----------- ------------------------- ----------
 1/1  connected  desirable channel     WS-C5000    009979082(Sw  3/1
 1/2  connected  desirable channel     WS-C5000    009979082(Sw  3/2
----- ---------- --------- ----------- ------------------------- ----------
Switch_A> (enable)
Switch_B> (enable) show port channel
Port  Status     Channel   Channel     Neighbor                  Neighbor
                 mode      status      device                    port
----- ---------- --------- ----------- ------------------------- ----------
 3/1  connected  auto      channel     WS-C5500    069003103(Sw  1/1
 3/2  connected  auto      channel     WS-C5500    069003103(Sw  1/2
----- ---------- --------- ----------- ------------------------- ----------
Switch_B> (enable)
Step 4 Configure one of the ports in the EtherChannel bundle to negotiate an ISL trunk by entering the set trunk command. The configuration is applied to all of the ports in the bundle. This example assumes that the neighboring ports on Switch B are configured to use isl or negotiate encapsulation and are in auto trunk mode. The system logging messages provide information about the formation of the
ISL trunk.
Switch_A> (enable) set trunk 1/1 desirable isl
Port(s) 1/1-2 trunk mode set to desirable.
Port(s) 1/1-2 trunk type set to isl.
Switch_A> (enable) %DTP-5-TRUNKPORTON:Port 1/1 has become isl trunk
%DTP-5-TRUNKPORTON:Port 1/2 has become isl trunk
%PAGP-5-PORTFROMSTP:Port 1/1 left bridge port 1/1-2
%PAGP-5-PORTFROMSTP:Port 1/2 left bridge port 1/1-2
%PAGP-5-PORTTOSTP:Port 1/1 joined bridge port 1/1-2
%PAGP-5-PORTTOSTP:Port 1/2 joined bridge port 1/1-2
Switch_B> (enable) %DTP-5-TRUNKPORTON:Port 3/1 has become isl trunk
%DTP-5-TRUNKPORTON:Port 3/2 has become isl trunk
%PAGP-5-PORTFROMSTP:Port 3/1 left bridge port 3/1-2
%PAGP-5-PORTFROMSTP:Port 3/2 left bridge port 3/1-2
%PAGP-5-PORTTOSTP:Port 3/1 joined bridge port 3/1-2
%PAGP-5-PORTTOSTP:Port 3/2 joined bridge port 3/1-2
Step 5 After the ISL trunk link is negotiated, enter the show trunk command to verify the configuration.
Switch_A> (enable) show trunk
Port      Mode         Encapsulation  Status        Native vlan
--------  -----------  -------------  ------------  -----------
 1/1      desirable    isl            trunking      1
 1/2      desirable    isl            trunking      1
Port      Vlans allowed on trunk
--------  ---------------------------------------------------------------------
 1/1      1-1005
 1/2      1-1005
Port      Vlans allowed and active in management domain
--------  ---------------------------------------------------------------------
 1/1      1-5,10,20,50,152,200,300,400,500,521-524,570,850,917,999
 1/2      1-5,10,20,50,152,200,300,400,500,521-524,570,850,917,999
Port      Vlans in spanning tree forwarding state and not pruned
--------  ---------------------------------------------------------------------
 1/1      1-5,10,20,50,152,200,300,400,500,521-524,570,850,917,999
 1/2      1-5,10,20,50,152,200,300,400,500,521-524,570,850,917,999
Switch_A> (enable)
Switch_B> (enable) show trunk
Port      Mode         Encapsulation  Status        Native vlan
--------  -----------  -------------  ------------  -----------
 3/1      auto         isl            trunking      1
 3/2      auto         isl            trunking      1
Port      Vlans allowed on trunk
--------  ---------------------------------------------------------------------
 3/1      1-1005
 3/2      1-1005
Port      Vlans allowed and active in management domain
--------  ---------------------------------------------------------------------
 3/1      1-5,10,20,50,152,200,300,400,500,521-524,570,850,917,999
 3/2      1-5,10,20,50,152,200,300,400,500,521-524,570,850,917,999
Port      Vlans in spanning tree forwarding state and not pruned
--------  ---------------------------------------------------------------------
 3/1      1-5,10,20,50,152,200,300,400,500,521-524,570,801,850,917,999
 3/2      1-5,10,20,50,152,200,300,400,500,521-524,570,801,850,917,999
Switch_B> (enable)
IEEE 802.1Q Trunk Over Gigabit EtherChannel Link Example

This example configuration shows how to configure an IEEE 802.1Q trunk over a Gigabit EtherChannel link between two switches with 802.1Q-capable hardware. (Use the show port capabilities command to see if your hardware is 802.1Q-capable.)

Figure 12-2 shows two switches connected through four 1000BASE-SX Gigabit Ethernet ports.

Figure 12-2 IEEE 802.1Q Trunk Over Gigabit EtherChannel Link

This example shows how to configure the switches to form a four-port Gigabit EtherChannel bundle, and then configure the EtherChannel bundle as an IEEE 802.1Q trunk link.

Note There are a variety of configuration guidelines and restrictions for configuring Gigabit EtherChannel port bundles. For complete information on configuring Gigabit EtherChannel, see Chapter 7, "Configuring Fast EtherChannel and Gigabit EtherChannel."

Step 1 Make sure all ports on both Switch A and Switch B are assigned to the same VLAN. This VLAN is used as the IEEE 802.1Q native VLAN for the trunk. In this example, all ports are configured as members of VLAN 1.
Switch_A> (enable) set vlan 1 2/3-6
VLAN  Mod/Ports
---- -----------------------
1     2/1-6
Switch_A> (enable)
Switch_B> (enable) set vlan 1 3/3-6
VLAN  Mod/Ports
---- -----------------------
1     3/1-6
Switch_B> (enable)
Step 2 Confirm the channeling and trunking status of the switches by entering the show port channel and show trunk commands.
Switch_A> (enable) show port channel
No ports channelling
Switch_A> (enable) show trunk
No ports trunking.
Switch_A> (enable)
Switch_B> (enable) show port channel
No ports channelling
Switch_B> (enable) show trunk
No ports trunking.
Switch_B> (enable)
Step 3 Configure the ports on Switch A to negotiate a Gigabit EtherChannel bundle with the neighboring switch by entering the set port channel command. This example assumes that the neighboring ports on Switch B are in EtherChannel auto mode. The system logging messages provide information about the formation of the EtherChannel bundle.
Switch_A> (enable) set port channel 2/3-6 desirable
Port(s) 2/3-6 channel mode set to desirable.
Switch_A> (enable) %PAGP-5-PORTFROMSTP:Port 2/3 left bridge port 2/3
%PAGP-5-PORTFROMSTP:Port 2/4 left bridge port 2/4
%PAGP-5-PORTFROMSTP:Port 2/5 left bridge port 2/5
%PAGP-5-PORTFROMSTP:Port 2/6 left bridge port 2/6
%PAGP-5-PORTFROMSTP:Port 2/4 left bridge port 2/4
%PAGP-5-PORTFROMSTP:Port 2/5 left bridge port 2/5
%PAGP-5-PORTFROMSTP:Port 2/6 left bridge port 2/6
%PAGP-5-PORTFROMSTP:Port 2/3 left bridge port 2/3
%PAGP-5-PORTTOSTP:Port 2/3 joined bridge port 2/3-6
%PAGP-5-PORTTOSTP:Port 2/4 joined bridge port 2/3-6
%PAGP-5-PORTTOSTP:Port 2/5 joined bridge port 2/3-6
%PAGP-5-PORTTOSTP:Port 2/6 joined bridge port 2/3-6
Switch_B> (enable) %PAGP-5-PORTFROMSTP:Port 3/3 left bridge port 3/3
%PAGP-5-PORTFROMSTP:Port 3/4 left bridge port 3/4
%PAGP-5-PORTFROMSTP:Port 3/5 left bridge port 3/5
%PAGP-5-PORTFROMSTP:Port 3/6 left bridge port 3/6
%PAGP-5-PORTFROMSTP:Port 3/4 left bridge port 3/4
%PAGP-5-PORTFROMSTP:Port 3/5 left bridge port 3/5
%PAGP-5-PORTFROMSTP:Port 3/6 left bridge port 3/6
%PAGP-5-PORTFROMSTP:Port 3/3 left bridge port 3/3
%PAGP-5-PORTTOSTP:Port 3/3 joined bridge port 3/3-6
%PAGP-5-PORTTOSTP:Port 3/4 joined bridge port 3/3-6
%PAGP-5-PORTTOSTP:Port 3/5 joined bridge port 3/3-6
%PAGP-5-PORTTOSTP:Port 3/6 joined bridge port 3/3-6
Step 4 After the EtherChannel bundle is negotiated, verify the configuration by entering the show port channel command.
Switch_A> (enable) show port channel
Port  Status     Channel   Channel     Neighbor                  Neighbor
                 mode      status      device                    port
----- ---------- --------- ----------- ------------------------- ----------
 2/3  connected  desirable channel     WS-C4003    JAB023806(Sw  2/3
 2/4  connected  desirable channel     WS-C4003    JAB023806(Sw  2/4
 2/5  connected  desirable channel     WS-C4003    JAB023806(Sw  2/5
 2/6  connected  desirable channel     WS-C4003    JAB023806(Sw  2/6
----- ---------- --------- ----------- ------------------------- ----------
Switch_A> (enable)
Switch_B> (enable) show port channel
Port  Status     Channel   Channel     Neighbor                  Neighbor
                 mode      status      device                    port
----- ---------- --------- ----------- ------------------------- ----------
 3/3  connected  auto      channel     WS-C4003    JAB023806(Sw  2/3
 3/4  connected  auto      channel     WS-C4003    JAB023806(Sw  2/4
 3/5  connected  auto      channel     WS-C4003    JAB023806(Sw  2/5
 3/6  connected  auto      channel     WS-C4003    JAB023806(Sw  2/6
----- ---------- --------- ----------- ------------------------- ----------
Switch_B> (enable)
Step 5 Configure one of the ports in the EtherChannel bundle to negotiate an IEEE 802.1Q trunk by entering the set trunk command. The configuration is applied to all of the ports in the bundle.

This example assumes that the neighboring ports on Switch B are configured to use dot1q or negotiate encapsulation and are in auto trunk mode. The system logging messages provide information about the formation of the 802.1Q trunk.
Switch_A> (enable) set trunk 2/3 desirable dot1q
Port(s) 2/3-6 trunk mode set to desirable.
Port(s) 2/3-6 trunk type set to dot1q.
Switch_A> (enable) %DTP-5-TRUNKPORTON:Port 2/3 has become dot1q trunk
%DTP-5-TRUNKPORTON:Port 2/4 has become dot1q trunk
%PAGP-5-PORTFROMSTP:Port 2/3 left bridge port 2/3-6
%DTP-5-TRUNKPORTON:Port 2/5 has become dot1q trunk
%PAGP-5-PORTFROMSTP:Port 2/4 left bridge port 2/3-6
%PAGP-5-PORTFROMSTP:Port 2/5 left bridge port 2/3-6
%DTP-5-TRUNKPORTON:Port 2/6 has become dot1q trunk
%PAGP-5-PORTFROMSTP:Port 2/6 left bridge port 2/3-6
%PAGP-5-PORTFROMSTP:Port 2/3 left bridge port 2/3
%PAGP-5-PORTTOSTP:Port 2/3 joined bridge port 2/3-6
%PAGP-5-PORTTOSTP:Port 2/4 joined bridge port 2/3-6
%PAGP-5-PORTTOSTP:Port 2/5 joined bridge port 2/3-6
%PAGP-5-PORTTOSTP:Port 2/6 joined bridge port 2/3-6
Switch_B> (enable) %DTP-5-TRUNKPORTON:Port 3/3 has become dot1q trunk
%DTP-5-TRUNKPORTON:Port 3/4 has become dot1q trunk
%PAGP-5-PORTFROMSTP:Port 3/3 left bridge port 3/3-6
%PAGP-5-PORTFROMSTP:Port 3/4 left bridge port 3/3-6
%PAGP-5-PORTFROMSTP:Port 3/5 left bridge port 3/3-6
%PAGP-5-PORTFROMSTP:Port 3/6 left bridge port 3/3-6
%DTP-5-TRUNKPORTON:Port 3/5 has become dot1q trunk
%DTP-5-TRUNKPORTON:Port 3/6 has become dot1q trunk
%PAGP-5-PORTFROMSTP:Port 3/5 left bridge port 3/3-6
%PAGP-5-PORTFROMSTP:Port 3/6 left bridge port 3/3-6
%PAGP-5-PORTTOSTP:Port 3/3 joined bridge port 3/3-6
%PAGP-5-PORTTOSTP:Port 3/4 joined bridge port 3/3-6
%PAGP-5-PORTTOSTP:Port 3/5 joined bridge port 3/3-6
%PAGP-5-PORTTOSTP:Port 3/6 joined bridge port 3/3-6
Step 6 After the 802.1Q trunk link is negotiated, verify the configuration by entering the show trunk command.
Switch_A> (enable) show trunk
Port      Mode         Encapsulation  Status        Native vlan
--------  -----------  -------------  ------------  -----------
 2/3      desirable    dot1q          trunking      1
 2/4      desirable    dot1q          trunking      1
 2/5      desirable    dot1q          trunking      1
 2/6      desirable    dot1q          trunking      1
Port      Vlans allowed on trunk
--------  ---------------------------------------------------------------------
 2/3      1-1005
 2/4      1-1005
 2/5      1-1005
 2/6      1-1005
Port      Vlans allowed and active in management domain
--------  ---------------------------------------------------------------------
 2/3      1-5,10,20,50,152,200,300,400,500,521-524,570,850,917,999
 2/4      1-5,10,20,50,152,200,300,400,500,521-524,570,850,917,999
 2/5      1-5,10,20,50,152,200,300,400,500,521-524,570,850,917,999
 2/6      1-5,10,20,50,152,200,300,400,500,521-524,570,850,917,999
Port      Vlans in spanning tree forwarding state and not pruned
--------  ---------------------------------------------------------------------
 2/3
 2/4
 2/5
 2/6
Switch_A> (enable)
Switch_B> (enable) show trunk
Port      Mode         Encapsulation  Status        Native vlan
--------  -----------  -------------  ------------  -----------
 3/3      auto         dot1q          trunking      1
 3/4      auto         dot1q          trunking      1
 3/5      auto         dot1q          trunking      1
 3/6      auto         dot1q          trunking      1
Port      Vlans allowed on trunk
--------  ---------------------------------------------------------------------
 3/3      1-1005
 3/4      1-1005
 3/5      1-1005
 3/6      1-1005
Port      Vlans allowed and active in management domain
--------  ---------------------------------------------------------------------
 3/3      1-5,10,20,50,152,200,300,400,500,521-524,570,850,917,999
 3/4      1-5,10,20,50,152,200,300,400,500,521-524,570,850,917,999
 3/5      1-5,10,20,50,152,200,300,400,500,521-524,570,850,917,999
 3/6      1-5,10,20,50,152,200,300,400,500,521-524,570,850,917,999
Port      Vlans in spanning tree forwarding state and not pruned
--------  ---------------------------------------------------------------------
 3/3      1-5,10,20,50,152,200,300,400,500,521-524,570,850,917,999
 3/4      1-5,10,20,50,152,200,300,400,500,521-524,570,850,917,999
 3/5      1-5,10,20,50,152,200,300,400,500,521-524,570,850,917,999
 3/6      1-5,10,20,50,152,200,300,400,500,521-524,570,850,917,999
Switch_B> (enable)
Load-Sharing VLAN Traffic Over Parallel Trunks Example

Using spanning tree port-VLAN priorities, you can load-share VLAN traffic over parallel trunk ports so that traffic from some VLANs travels over one trunk, while traffic from other VLANs travels over the other trunk. This configuration allows traffic to be carried over both trunks simultaneously (instead of keeping one trunk in blocking mode), which reduces the total traffic carried over each trunk while still maintaining a fault-tolerant configuration.

Figure 12-3 shows a parallel trunk configuration between two switches, using the Fast Ethernet uplink ports on the supervisor engine.

Figure 12-3 Parallel Trunk Configuration Before Configuring VLAN Traffic Load Sharing

By default, the port-VLAN priority for both trunks is equal (a value of 32). Therefore, STP blocks port 1/2 (Trunk 2) for each VLAN on Switch 1 to prevent forwarding loops. Trunk 2 is not used to forward traffic unless Trunk 1 fails.

This example shows how to configure the switches so that traffic from multiple VLANs is load-balanced over the parallel trunks.

Step 1 Configure a VTP domain on both Switch 1 and Switch 2 (by entering the set vtp command) so that the VLAN information configured on Switch 1 is learned by Switch 2.

Make sure Switch 1 is a VTP server. You can configure Switch 2 as a VTP client or as a VTP server.
Switch_1> (enable) set vtp domain BigCorp mode server
VTP domain BigCorp modified
Switch_1> (enable)
Switch_2> (enable) set vtp domain BigCorp mode server
VTP domain BigCorp modified
Switch_2> (enable)
Step 2 Create the VLANs on Switch 1 by entering the set vlan command. In this example, you see VLANs 10, 20, 30, 40, 50, and 60, as follows:
Switch_1> (enable) set vlan 10
Vlan 10 configuration successful
Switch_1> (enable) set vlan 20
Vlan 20 configuration successful
Switch_1> (enable) set vlan 30
Vlan 30 configuration successful
Switch_1> (enable) set vlan 40
Vlan 40 configuration successful
Switch_1> (enable) set vlan 50
Vlan 50 configuration successful
Switch_1> (enable) set vlan 60
Vlan 60 configuration successful
Switch_1> (enable)
Step 3 Verify the VTP and VLAN configuration on Switch 1 by entering the show vtp domain and show vlan commands as follows:
Switch_1> (enable) show vtp domain
Domain Name                      Domain Index VTP Version Local Mode  Password
-------------------------------- ------------ ----------- ----------- ----------
BigCorp                          1            2           server      -
Vlan-count Max-vlan-storage Config Revision Notifications
---------- ---------------- --------------- -------------
11         1023             13              disabled
Last Updater    V2 Mode  Pruning  PruneEligible on Vlans
--------------- -------- -------- -------------------------
172.20.52.10    disabled enabled  2-1000
Switch_1> (enable) show vlan
VLAN Name                             Status    Mod/Ports, Vlans
---- -------------------------------- --------- ----------------------------
1    default                          active    1/1-2
                                                2/1-12
                                                5/1-2
10   VLAN0010                         active
20   VLAN0020                         active
30   VLAN0030                         active
40   VLAN0040                         active
50   VLAN0050                         active
60   VLAN0060                         active
1002 fddi-default                     active
1003 token-ring-default               active
1004 fddinet-default                  active
1005 trnet-default                    active
<...output truncated...>
Switch_1> (enable)
Step 4 Configure the supervisor engine uplinks on Switch 1 as ISL trunk ports by entering the set trunk command. Specifying the desirable mode on the Switch 1 ports causes the ports on Switch 2 to negotiate to become trunk links (assuming that the Switch 2 uplinks are in the default auto mode).
Switch_1> (enable) set trunk 1/1 desirable
Port(s) 1/1 trunk mode set to desirable.
Switch_1> (enable) 04/21/1998,03:05:05:DISL-5:Port 1/1 has become isl trunk
Switch_1> (enable) set trunk 1/2 desirable
Port(s) 1/2 trunk mode set to desirable.
Switch_1> (enable) 04/21/1998,03:05:13:DISL-5:Port 1/2 has become isl trunk
Step 5 Verify that the trunk links are up by entering the show trunk command as follows:
Switch_1> (enable) show trunk 1
Port      Mode         Encapsulation  Status        Native vlan
--------  -----------  -------------  ------------  -----------
 1/1      desirable    isl            trunking      1
 1/2      desirable    isl            trunking      1
Port      Vlans allowed on trunk
--------  ---------------------------------------------------------------------
 1/1      1-1005
 1/2      1-1005
Port      Vlans allowed and active in management domain
--------  ---------------------------------------------------------------------
 1/1      1,10,20,30,40,50,60
 1/2      1,10,20,30,40,50,60
Port      Vlans in spanning tree forwarding state and not pruned
--------  ---------------------------------------------------------------------
 1/1
 1/2
Switch_1> (enable)
Step 6 When the trunk links come up, VTP passes the VTP and VLAN configuration to Switch 2. Verify that Switch 2 has learned the VLAN configuration by entering the show vlan command on Switch 2:
Switch_2> (enable) show vlan
VLAN Name                             Status    Mod/Ports, Vlans
---- -------------------------------- --------- ----------------------------
1    default                          active
10   VLAN0010                         active
20   VLAN0020                         active
30   VLAN0030                         active
40   VLAN0040                         active
50   VLAN0050                         active
60   VLAN0060                         active
1002 fddi-default                     active
1003 token-ring-default               active
1004 fddinet-default                  active
1005 trnet-default                    active
<...output truncated...>
Switch_2> (enable)
Step 7 Spanning tree takes one to two minutes to converge. After the network stabilizes, check the spanning tree state of each trunk port on Switch 1 by entering the show spantree command.

Trunk 1 is forwarding for all VLANs. Trunk 2 is blocking for all VLANs. On Switch 2, both trunks are forwarding for all VLANs, but no traffic passes over Trunk 2 because port 1/2 on Switch 1 is blocking.
Switch_1> (enable) show spantree 1/1
Port      Vlan  Port-State     Cost   Priority  Fast-Start  Group-method
--------- ----  -------------  -----  --------  ----------  ------------
 1/1      1     forwarding        19        32   disabled
 1/1      10    forwarding        19        32   disabled
 1/1      20    forwarding        19        32   disabled
 1/1      30    forwarding        19        32   disabled
 1/1      40    forwarding        19        32   disabled
 1/1      50    forwarding        19        32   disabled
 1/1      60    forwarding        19        32   disabled
 1/1      1003  not-connected     19        32   disabled
 1/1      1005  not-connected     19         4   disabled
Switch_1> (enable) show spantree 1/2
Port      Vlan  Port-State     Cost   Priority  Fast-Start  Group-method
--------- ----  -------------  -----  --------  ----------  ------------
 1/2      1     blocking          19        32   disabled
 1/2      10    blocking          19        32   disabled
 1/2      20    blocking          19        32   disabled
 1/2      30    blocking          19        32   disabled
 1/2      40    blocking          19        32   disabled
 1/2      50    blocking          19        32   disabled
 1/2      60    blocking          19        32   disabled
 1/2      1003  not-connected     19        32   disabled
 1/2      1005  not-connected     19         4   disabled
Switch_1> (enable)
Step 8 Divide the configured VLANs into two groups. You might want traffic from half of the VLANs to go over one trunk link and half over the other, or if one VLAN has heavier traffic than the others, you can have traffic from that VLAN go over one trunk and traffic from the other VLANs go over the other trunk link.

In this example, VLANs 10, 20, and 30 (Group 1) are forwarded over Trunk 1, and VLANs 40, 50, and 60 (Group 2) are forwarded over Trunk 2.

Step 9 On Switch 1, enter the set spantree portvlanpri command to change the port-VLAN priority for the Group 1 VLANs on Trunk 1 (port 1/1) to an integer value lower than the default of 32.
Switch_1> (enable) set spantree portvlanpri 1/1 1 10
Port 1/1 vlans 1-9,11-1004 using portpri 32.
Port 1/1 vlans 10 using portpri 1.
Port 1/1 vlans 1005 using portpri 4.
Switch_1> (enable) set spantree portvlanpri 1/1 1 20
Port 1/1 vlans 1-9,11-19,21-1004 using portpri 32.
Port 1/1 vlans 10,20 using portpri 1.
Port 1/1 vlans 1005 using portpri 4.
Switch_1> (enable) set spantree portvlanpri 1/1 1 30
Port 1/1 vlans 1-9,11-19,21-29,31-1004 using portpri 32.
Port 1/1 vlans 10,20,30 using portpri 1.
Port 1/1 vlans 1005 using portpri 4.
Switch_1> (enable)
Step 10 On Switch 1, change the port-VLAN priority for the Group 2 VLANs on Trunk 2 (port 1/2) to an integer value lower than the default of 32.
Switch_1> (enable) set spantree portvlanpri 1/2 1 40
Port 1/2 vlans 1-39,41-1004 using portpri 32.
Port 1/2 vlans 40 using portpri 1.
Port 1/2 vlans 1005 using portpri 4.
Switch_1> (enable) set spantree portvlanpri 1/2 1 50
Port 1/2 vlans 1-39,41-49,51-1004 using portpri 32.
Port 1/2 vlans 40,50 using portpri 1.
Port 1/2 vlans 1005 using portpri 4.
Switch_1> (enable) set spantree portvlanpri 1/2 1 60
Port 1/2 vlans 1-39,41-49,51-59,61-1004 using portpri 32.
Port 1/2 vlans 40,50,60 using portpri 1.
Port 1/2 vlans 1005 using portpri 4.
Switch_1> (enable)
Step 11 On Switch 2, change the port-VLAN priority for the Group 1 VLANs on Trunk 1 (port 1/1) to the same value you configured for those VLANs on Switch 1.

Caution The port-VLAN priority for each VLAN must be equal on both ends of the link.
Switch_2> (enable) set spantree portvlanpri 1/1 1 10
Port 1/1 vlans 1-9,11-1004 using portpri 32.
Port 1/1 vlans 10 using portpri 1.
Port 1/1 vlans 1005 using portpri 4.
Switch_2> (enable) set spantree portvlanpri 1/1 1 20
Port 1/1 vlans 1-9,11-19,21-1004 using portpri 32.
Port 1/1 vlans 10,20 using portpri 1.
Port 1/1 vlans 1005 using portpri 4.
Switch_2> (enable) set spantree portvlanpri 1/1 1 30
Port 1/1 vlans 1-9,11-19,21-29,31-1004 using portpri 32.
Port 1/1 vlans 10,20,30 using portpri 1.
Port 1/1 vlans 1005 using portpri 4.
Switch_2> (enable)
Step 12 On Switch 2, change the port-VLAN priority for the Group 2 VLANs on Trunk 2 (port 1/2) to the same value you configured for those VLANs on Switch 1.
Switch_2> (enable) set spantree portvlanpri 1/2 1 40
Port 1/2 vlans 1-39,41-1004 using portpri 32.
Port 1/2 vlans 40 using portpri 1.
Port 1/2 vlans 1005 using portpri 4.
Switch_2> (enable) set spantree portvlanpri 1/2 1 50
Port 1/2 vlans 1-39,41-49,51-1004 using portpri 32.
Port 1/2 vlans 40,50 using portpri 1.
Port 1/2 vlans 1005 using portpri 4.
Switch_2> (enable) set spantree portvlanpri 1/2 1 60
Port 1/2 vlans 1-39,41-49,51-59,61-1004 using portpri 32.
Port 1/2 vlans 40,50,60 using portpri 1.
Port 1/2 vlans 1005 using portpri 4.
Switch_2> (enable)
Step 13 When you have configured the port-VLAN priorities on both ends of the link, the spanning tree converges to use the new configuration. Check the spanning tree port states on Switch 1 by entering the show spantree command. The Group 1 VLANs should be forwarding on Trunk 1 and blocking on Trunk 2. The Group 2 VLANs should be blocking on Trunk 1 and forwarding on Trunk 2.
Switch_1> (enable) show spantree 1/1
Port      Vlan  Port-State     Cost   Priority  Fast-Start  Group-method
--------- ----  -------------  -----  --------  ----------  ------------
 1/1      1     forwarding        19        32   disabled
 1/1      10    forwarding        19         1   disabled
 1/1      20    forwarding        19         1   disabled
 1/1      30    forwarding        19         1   disabled
 1/1      40    blocking          19        32   disabled
 1/1      50    blocking          19        32   disabled
 1/1      60    blocking          19        32   disabled
 1/1      1003  not-connected     19        32   disabled
 1/1      1005  not-connected     19         4   disabled
Switch_1> (enable) show spantree 1/2
Port      Vlan  Port-State     Cost   Priority  Fast-Start  Group-method
--------- ----  -------------  -----  --------  ----------  ------------
 1/2      1     blocking          19        32   disabled
 1/2      10    blocking          19        32   disabled
 1/2      20    blocking          19        32   disabled
 1/2      30    blocking          19        32   disabled
 1/2      40    forwarding        19         1   disabled
 1/2      50    forwarding        19         1   disabled
 1/2      60    forwarding        19         1   disabled
 1/2      1003  not-connected     19        32   disabled
 1/2      1005  not-connected     19         4   disabled
Switch_1> (enable)
Figure 12-4 shows the network after you configure VLAN traffic load-sharing.

Figure 12-4 Parallel Trunk Configuration After Configuring VLAN Traffic Load-Sharing

Figure 12-4 shows that both trunks are used when the network is operating normally and, if one trunk link fails, the other trunk link acts as an alternate forwarding path for the traffic previously traveling over the failed link.

If Trunk 1 fails in the network shown in Figure 12-4 , STP reconverges to use Trunk 2 to forward traffic from all the VLANs, as shown in the following example:
Switch_1> (enable) 04/21/1998,03:15:40:DISL-5:Port 1/1 has become non-trunk
Switch_1> (enable) show spantree 1/1
Port      Vlan  Port-State     Cost   Priority  Fast-Start  Group-method
--------- ----  -------------  -----  --------  ----------  ------------
 1/1      1     not-connected     19        32   disabled
Switch_1> (enable) show spantree 1/2
Port      Vlan  Port-State     Cost   Priority  Fast-Start  Group-method
--------- ----  -------------  -----  --------  ----------  ------------
 1/2      1     learning          19        32   disabled
 1/2      10    learning          19        32   disabled
 1/2      20    learning          19        32   disabled
 1/2      30    learning          19        32   disabled
 1/2      40    forwarding        19         1   disabled
 1/2      50    forwarding        19         1   disabled
 1/2      60    forwarding        19         1   disabled
 1/2      1003  not-connected     19        32   disabled
 1/2      1005  not-connected     19         4   disabled
Switch_1> (enable) show spantree 1/2
Port      Vlan  Port-State     Cost   Priority  Fast-Start  Group-method
--------- ----  -------------  -----  --------  ----------  ------------
 1/2      1     forwarding        19        32   disabled
 1/2      10    forwarding        19        32   disabled
 1/2      20    forwarding        19        32   disabled
 1/2      30    forwarding        19        32   disabled
 1/2      40    forwarding        19         1   disabled
 1/2      50    forwarding        19         1   disabled
 1/2      60    forwarding        19         1   disabled
 1/2      1003  not-connected     19        32   disabled
 1/2      1005  not-connected     19         4   disabled
Switch_1> (enable)
IEEE 802.1Q Nonegotiate Trunk Configuration Example

This example configuration shows how to configure an IEEE 802.1Q Fast Ethernet trunk between two Catalyst 5000 family switches running software release 4.1 with 802.1Q-capable hardware. (To see if your hardware is 802.1Q-capable, use the show port capabilities command.)

Note The example in this section applies to IEEE 802.1Q configuration only in supervisor engine software release 4.1.

In software release 4.1, you must manually configure IEEE 802.1Q trunk ports on both ends of the link. IEEE 802.1Q trunks can be autonegotiated only in software release 4.2 and later. To properly configure an IEEE 802.1Q trunk in software release 4.1, the trunk type (encapsulation) and trunk mode must be the same on both ends of the link.

In this example, an 802.1Q trunk is configured between port 1/1 on Switch 1 and port 4/1 on Switch 2. The initial network configuration is shown in Figure 12-5. Assume that the native VLAN is VLAN 1 on both ends of the link.

Figure 12-5 IEEE 802.1Q Trunking: Initial Network Configuration

Step 1 Configure a port as an 802.1Q trunk by entering the set trunk command. You must use the nonegotiate keyword when configuring a port as an 802.1Q trunk.
Switch 1> (enable) set trunk 1/1 nonegotiate dot1q
Port(s) 1/1 trunk mode set to nonegotiate.
Port(s) 1/1 trunk type set to dot1q.
Switch 1> (enable) 04/15/1998,22:02:17:DISL-5:Port 1/1 has become dot1q trunk
Switch 2> (enable) 04/15/1998,22:01:42:SPANTREE-2: Rcved 1Q-BPDU on non-1Q-trunk port 4/1
vlan 1.
04/15/1998,22:01:42:SPANTREE-2: Block 4/1 on rcving vlan 1 for inc trunk port.
04/15/1998,22:01:42:SPANTREE-2: Block 4/1 on rcving vlan 1 for inc peer vlan 2.
Switch 2> (enable)
After the port on Switch 1 is configured as an 802.1Q trunk, syslog messages are displayed on the Switch 2 console, and port 4/1 on Switch 2 is blocked. STP blocks the port because there is a port-type inconsistency on the trunk link: port 1/1 on Switch 1 is configured as an 802.1Q trunk while port 4/1 on Switch 2 is configured as an ISL trunk (see Figure 12-6). Port 4/1 would also be blocked if it were configured as a nontrunk port.

Figure 12-6 IEEE 802.1Q Trunking: Port-Type Inconsistency

Step 2 Display the problem on Switch 2 by entering the show spantree and show spantree statistics commands. The configuration mismatch exists until the port on Switch 2 is properly configured.
Switch 2> (enable) show spantree 1
VLAN 1
Spanning tree enabled
Spanning tree type          ieee
Designated Root             00-60-09-79-c3-00
Designated Root Priority    32768
Designated Root Cost        0
Designated Root Port        1/0
Root Max Age   20 sec    Hello Time 2  sec   Forward Delay 15 sec
Bridge ID MAC ADDR          00-60-09-79-c3-00
Bridge ID Priority          32768
Bridge Max Age 20 sec    Hello Time 2  sec   Forward Delay 15 sec
Port      Vlan  Port-State     Cost   Priority  Fast-Start  Group-method
--------- ----  -------------  -----  --------  ----------  ------------
 1/1      1     not-connected      4        32   disabled
 1/2      1     not-connected      4        32   disabled
 4/1      1     type-pvid-inconsistent    100        32   disabled
 4/2      1     not-connected    100        32   disabled
<...output truncated...>
Switch 2> (enable) show spantree statistics 4/1
Port  4/1 VLAN 1
SpanningTree enabled for vlanNo = 1
                BPDU-related parameters
port spanning tree                   enabled
state                                broken
port_id                              0x8142
port number                          0x142
path cost                            100
message age (port/VLAN)              1(20)
designated_root                      00-60-09-79-c3-00
designated_cost                      0
designated_bridge                    00-60-09-79-c3-00
designated_port                      0x8142
top_change_ack                       FALSE
config_pending                       FALSE
port_inconsistency                   port_type & port_vlan
<...output truncated...>
Switch 2> (enable)
Step 3 Resolve the misconfiguration by completing the 802.1Q configuration on Switch 2:
Switch 2> (enable) set trunk 4/1 nonegotiate dot1q
Port(s) 4/1 trunk mode set to nonegotiate.
Port(s) 4/1 trunk type set to dot1q.
Switch 2> (enable) 2/20/1998,23:41:15:DISL-5:Port 4/1 has become dot1q trunk
Port 4/1 on Switch 2 changes from blocking mode to forwarding mode after the port-type inconsistency is resolved (see Figure 12-7). This assumes that there is no wiring loop present that would cause the port to be blocked normally by spanning tree. In either case, the port state would change from "type-pvid-inconsistent" to "blocking" in the show spantree output.

Figure 12-7 IEEE 802.1Q Trunking: Final Network Configuration

Step 4 Verify the 802.1Q configuration on Switch 1 by entering the show trunk and show spantree commands:
Switch 1> (enable) show trunk 1/1
Port      Mode         Encapsulation  Status        Native vlan
--------  -----------  -------------  ------------  -----------
 1/1      nonegotiate  dot1q          trunking      1
Port      Vlans allowed on trunk
--------  ---------------------------------------------------------------------
 1/1      1-1005
Port      Vlans allowed and active in management domain
--------  ---------------------------------------------------------------------
 1/1      1-3,1003,1005
Port      Vlans in spanning tree forwarding state and not pruned
--------  ---------------------------------------------------------------------
 1/1      1005
Switch 1> (enable) show spantree 1
VLAN 1
Spanning tree enabled
Spanning tree type          ieee
Designated Root             00-60-09-79-c3-00
Designated Root Priority    32768
Designated Root Cost        0
Designated Root Port        1/1
Root Max Age   20 sec    Hello Time 2  sec   Forward Delay 15 sec
Bridge ID MAC ADDR          00-10-29-b5-30-00
Bridge ID Priority          49152
Bridge Max Age 20 sec    Hello Time 2  sec   Forward Delay 15 sec
Port      Vlan  Port-State     Cost   Priority  Fast-Start  Group-method
--------- ----  -------------  -----  --------  ----------  ------------
 1/1      1     forwarding         4        32   disabled
 1/2      1     not-connected      4        32   disabled
<...output truncated...>
Switch 1> (enable)
The output shows that port 1/1 is an IEEE 802.1Q trunk port, that its status is "trunking," and that the port-state is "forwarding."

Step 5 Verify the configuration on Switch 2 by entering the show trunk and show spantree commands:
Switch 2> (enable) show trunk 4/1
Port      Mode         Encapsulation  Status        Native vlan
--------  -----------  -------------  ------------  -----------
 4/1      nonegotiate  dot1q          trunking      1
Port      Vlans allowed on trunk
--------  ---------------------------------------------------------------------
 4/1      1-1005
Port      Vlans allowed and active in management domain
--------  ---------------------------------------------------------------------
 4/1      1-3,1003,1005
Port      Vlans in spanning tree forwarding state and not pruned
--------  ---------------------------------------------------------------------
 4/1      1005
Switch 2> (enable) show spantree 1
VLAN 1
Spanning tree enabled
Spanning tree type          ieee
Designated Root             00-60-09-79-c3-00
Designated Root Priority    32768
Designated Root Cost        0
Designated Root Port        1/0
Root Max Age   20 sec    Hello Time 2  sec   Forward Delay 15 sec
Bridge ID MAC ADDR          00-60-09-79-c3-00
Bridge ID Priority          32768
Bridge Max Age 20 sec    Hello Time 2  sec   Forward Delay 15 sec
Port      Vlan  Port-State     Cost   Priority  Fast-Start  Group-method
--------- ----  -------------  -----  --------  ----------  ------------
 1/1      1     not-connected      4        32   disabled
 1/2      1     not-connected      4        32   disabled
 4/1      1     forwarding       100        32   disabled
 4/2      1     not-connected    100        32   disabled
<...output truncated...>
Switch 2> (enable)
The output shows that port 4/1 is an IEEE 802.1Q trunk port, that its status is "trunking," and that the port-state is "forwarding."

Step 6 Verify connectivity across the trunk by entering the ping command:
Switch 1> (enable) ping switch_2
switch_2 is alive
Switch 1> (enable)
Disabling VLAN 1 on Trunks

On the Catalyst family of switches, VLAN 1 is enabled by default to allow control protocols to transmit and receive packets across the network topology. However, when VLAN 1 is enabled on trunk links in a large complex network topology, the impact of broadcast storms increases. Because spanning tree applies to the entire network topology, the possibility of spanning tree loops also increases when VLAN 1 is enabled on all trunk links. To prevent this situation, you can disable VLAN 1 on trunk interfaces.

When VLAN 1 is disabled on a trunk interface, no user traffic is transmitted or received across that trunk interface, but the supervisor engine will continue to transmit and receive packets from control protocols such as Cisco Discovery Protocol (CDP), VLAN Trunking Protocol (VTP), Port Aggregation Protocol (PAgP), and Dynamic Trunking Protocol (DTP).

When a trunk port with VLAN 1 disabled becomes a nontrunk port, it is added to the native VLAN. If the native VLAN is VLAN 1, the port is enabled and added to VLAN 1.

Disabling VLAN 1 on a Trunk Link

To disable VLAN 1 on a trunk interface, perform this task in privileged mode:

Task

Command

Step 1

Disable VLAN 1 on the trunk interface.

clear trunk mod/port [vlan-range]

Step 2

Verify the allowed VLAN list for the trunk.

show trunk [mod/port]

This example shows how to disable VLAN 1 on a trunk link and verify the configuration:
Console> (enable) clear trunk 8/1 1
Removing Vlan(s) 1 from allowed list.
Port  8/1 allowed vlans modified to 2-1005.
Console> (enable) show trunk 8/1
Port      Mode         Encapsulation  Status        Native vlan
--------  -----------  -------------  ------------  -----------
 8/1      on           isl            trunking      1
Port      Vlans allowed on trunk
--------  ---------------------------------------------------------------------
 8/1      2-1005
Port      Vlans allowed and active in management domain
--------  ---------------------------------------------------------------------
 8/1      2-6,10,20,50,100,152,200,300,400,500,521,524,570,776,801-802,850,917,9
99,1003,1005
Port      Vlans in spanning tree forwarding state and not pruned
--------  ---------------------------------------------------------------------
 8/1      2-6,10,20,50,100,152,200,300,400,500,521,524,570,776,802,850,917,999,1
003,1005
Console> (enable)
