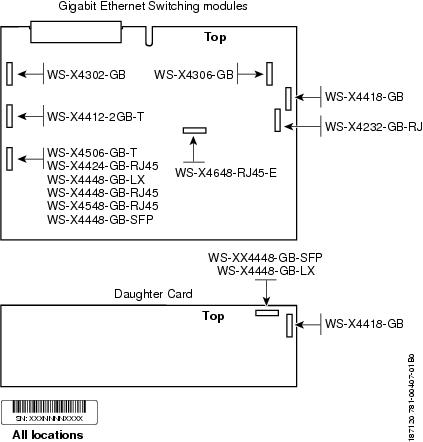

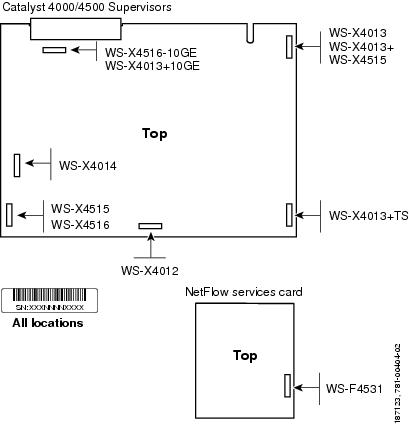

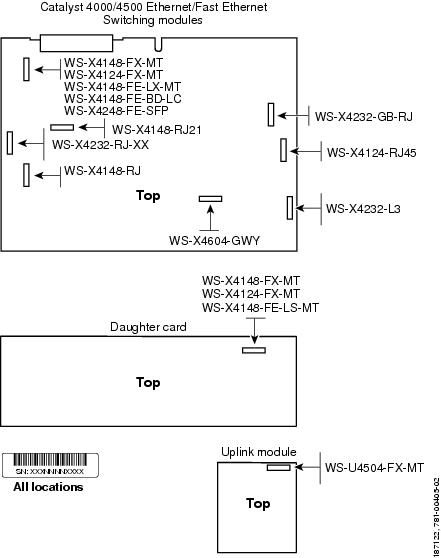

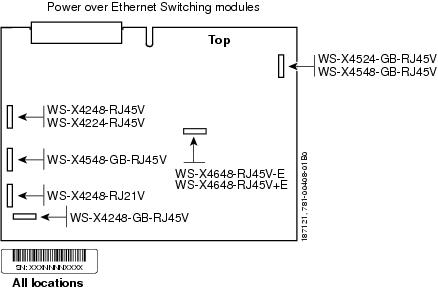

Serial Number Locations
Port Pinouts, Environmental Specifications, and Power Consumption Information
This appendix provides cable and technical specifications for Catalyst 4500 series switches.
Supervisor Engine Ethernet Management Port
The Supervisor Engine I has a 10BASE-T Ethernet management port. The Supervisor Engine II, II-Plus, II-Plus TS, III, and IV have a 10/100BASE-T Ethernet management port. All supervisor engine Ethernet management ports have DTE RJ-45 receptacles and an LED labeled STATUS. Table A-1 lists the Ethernet management port pinouts for the Catalyst 4500 series switches.
Table A-1 Catalyst 4500 Series Supervisor Engine
Management Port Pinouts
Pin
|
Signal
|
Direction
|
Definition
|
1
|
RXDP
|
Input
|
Receive data
|
2
|
RXDN
|
Input
|
Receive data
|
3
|
TXDP
|
Output
|
Transmit data
|
4
|
Unused
|
|
|
5
|
Unused
|
|
|
6
|
TXDN
|
Output
|
Transmit data
|
7
|
Unused
|
|
|
8
|
Unused
|
|
|
Unless directed to by a Cisco technical support representative, do not attempt to connect to the management port.
Supervisor Engine I Console Port
The console port on the Supervisor Engine I uses a DCE DB-25 (EIA/TIA-232) connector and supports DTR, DSR, CTS, and RTS handshake signals, and unbalanced circuits at signal speeds of up to 64 kbps. Table A-2 lists the Supervisor Engine I console port pinouts.
Table A-2 Supervisor Engine I Console Port Pinouts
Pin
|
Signal
|
Direction
|
Definition
|
1
|
Ground
|
|
|
2
|
RXD
|
Input
|
Receive data
|
3
|
TXD
|
Output
|
Transmit data
|
4
|
CTS
|
Input
|
Clear to send
|
5
|
RTS
|
Output
|
Request to send
|
7
|
Ground
|
|
|
8
|
DTR
|
Output
|
Data terminal ready
|
20
|
DSR
|
Input
|
Data set ready
|
Use a null modem cable to connect the switch to a remote DCE device, such as a modem or a DSU. Use a straight-through cable to connect the switch to a DTE device, such as a terminal or a PC.
Supervisor Engine Console Port
The console port on the Supervisor Engines uses an RJ-45 connector and supports DTR and DSR handshake signals. Table A-3 lists the console port pinouts.
Table A-3 Supervisor Engine II, III, II-Plus, II-Plus TS, IV and V Console Port Pinouts
Pin
|
Signal
|
Direction
|
Definition
|
1
|
RTS
|
Output
|
Request to send
|
2
|
DTR
|
Output
|
Data terminal ready
|
3
|
TXD
|
Output
|
Transmit data
|
4
|
Ground
|
|
|
5
|
Ground
|
|
|
6
|
RXD
|
Input
|
Receive data
|
7
|
DSR
|
Input
|
Data set ready
|
8
|
CTS
|
Input
|
Clear to send
|
Use the RJ-45-to-RJ-45 rollover cable and RJ-45-to-DB-9 female DTE adapter (with the label "Terminal") to connect the console port to a PC that runs terminal emulation software. If you use a direct console connection, configure your terminal emulation program for 9600 baud, 8 data bits, no parity, and 1 stop bit.
Switching Module Specifications
Table A-4 provides specifications for the Catalyst 4500 series switching modules.
Table A-4 Switching Module Specifications
Item
|
Specification
|
Physical Characteristics
|
|
Dimensions (H x W x D)
|
1.75 x 14.4 x 10.5 in. (44 x 366 x 267 mm)
|
Weight
|
4.8 lb (2.2 kg)
|
Environmental
|
|
Operating temperature
|
32 to 104ºF (0 to 40ºC)
|
Nonoperating temperature
|
-40 to 167ºF (-40 to 75ºC)
|
Humidity, noncondensing
|
10 to 90%
|
Refer to the most recent software release notes for the minimum and recommended software version for each module.
Table A-5 and Table A-6 provide power consumption and thermal output specifications for modules, supervisor engines, and Catalyst 4500 series chassis in AC and DC based systems.
Table A-5 AC and DC Power Information and Heat Dissipation Specifications
Module Type/
Model Number
|
AC or DC
Input
Power (W)
|
DC
Output
Power (W)
|
Reset Mode (W)
|
Heat Dissi- pation (BTU/Hr)
|
Input Current at 90 VAC (A)
|
Input Current at 120 VAC (A)
|
Input Current at 180 VAC (A)
|
Input Current at 240 VAC (A)
|
Catalyst 4503 chassis (with fans)
|
53
|
40
|
—
|
182
|
0.59
|
0.44
|
0.30
|
0.22
|
Catalyst 4506 chassis (with fans)
|
67
|
50
|
—
|
227
|
0.74
|
0.56
|
0.37
|
0.28
|
Catalyst 4507R chassis (with fans)
|
120
|
90
|
—
|
409
|
1.33
|
1.00
|
0.67
|
0.50
|
Catalyst 4510R chassis (with fans)
|
160
|
110
|
—
|
546
|
1.73
|
1.34
|
0.97
|
0.90
|
Catalyst 4503-E
chassis (with fans)
|
80
|
60
|
—
|
273
|
0.89
|
0.67
|
0.44
|
0.33
|
Catalyst 4506- E chassis (with fans)
|
160
|
120
|
—
|
546
|
1.78
|
1.33
|
0.89
|
0.67
|
Catalyst 4507R-E chassis (with fans)
|
180
|
135
|
—
|
614
|
2.00
|
1.50
|
1.00
|
0.75
|
Catalyst 4510R-E chassis (with fans)
|
267
|
200
|
—
|
909
|
2.96
|
2.22
|
1.48
|
1.11
|
Supervisor Engine I (WS-X4012)
|
93
|
70
|
70
|
318
|
1.04
|
0.78
|
0.52
|
0.39
|
Supervisor Engine II (WS-X4013)
|
147
|
110
|
110
|
500
|
1.63
|
1.22
|
0.81
|
0.61
|
Supervisor Engine II-plus (WS-X4013+)
|
147
|
110
|
110
|
500
|
1.63
|
1.22
|
0.81
|
0.61
|
Supervisor Engine II-plus TS (WS-X4013+TS)
|
181 + PoE
|
136
|
136
|
618
|
2.01
|
1.51
|
1.01
|
0.76
|
Supervisor Engine II-plus 10 GE (WS-X4013+10 GE)
|
173
|
130
|
80
|
591
|
1.93
|
1.44
|
0.96
|
0.72
|
Supervisor Engine III (WS-X4014)
|
147
|
110
|
110
|
500
|
1.63
|
1.22
|
0.81
|
0.61
|
Supervisor Engine IV (WS-X4515)
|
193
|
145
|
110
|
659
|
2.15
|
1.61
|
1.07
|
.81
|
Supervisor Engine V (WS-X4516)
|
200
|
150
|
53
|
682
|
2.22
|
1.67
|
1.11
|
0.84
|
Supervisor Engine V 10 GE (WS-X4516-10GE)
|
173
|
130
|
80
|
591
|
1.93
|
1.44
|
0.96
|
0.72
|
WS-X4124-RJ45
|
23
|
17
|
10
|
77
|
0.25
|
0.73
|
0.48
|
0.36
|
WS-X4124-FX-MT
|
120
|
90
|
75
|
409
|
1.33
|
1.00
|
0.67
|
0.50
|
WS-X4148-FX-MT
|
160
|
120
|
10
|
546
|
1.78
|
1.33
|
0.89
|
0.67
|
WS-X4148-RJ
|
87
|
65
|
40
|
296
|
0.96
|
0.72
|
0.48
|
0.36
|
WS-X4148-FE-BD-LC
|
117
|
88
|
10
|
400
|
1.30
|
0.98
|
0.65
|
0.49
|
WS-X4148-FE-LX-MT
|
153
|
115
|
10
|
523
|
1.70
|
1.28
|
0.85
|
0.64
|
WS-X4148-RJ21
|
87
|
65
|
40
|
296
|
0.96
|
0.72
|
0.48
|
0.36
|
WS-X4148-RJ45V
|
80
|
60
|
50
|
273
|
0.89
|
0.67
|
0.44
|
0.33
|
WS-X4224-RJ45V
|
23
|
17
|
10
|
77
|
0.89
|
0.67
|
0.44
|
0.33
|
WS-X4248-RJ21V
|
100
|
72
|
30
|
341
|
1.11
|
0.83
|
0.56
|
0.42
|
WS-X4248-RJ45V
|
80
|
60
|
25
|
273
|
0.89
|
0.67
|
0.44
|
0.33
|
WS-4248-FE-SFP
|
108
|
81
|
20
|
368
|
1.20
|
0.90
|
0.60
|
0.45
|
WS-X4232-GB-RJ
|
73
|
55
|
35
|
250
|
0.81
|
0.61
|
0.41
|
0.31
|
WS-X4232-L3
|
160
|
120
|
60
|
546
|
1.78
|
1.33
|
0.89
|
0.67
|
WS-X4232-RJ-XX
|
67
|
50
|
35
|
227
|
0.74
|
0.56
|
0.37
|
0.28
|
WS-U4504-FX-MT
|
13
|
10
|
10
|
45
|
0.15
|
0.11
|
0.07
|
0.06
|
WS-X4302-GB
|
47
|
35
|
30
|
159
|
0.52
|
0.39
|
0.26
|
0.19
|
WS-X4306-GB
|
47
|
35
|
30
|
159
|
0.52
|
0.39
|
0.26
|
0.19
|
WS-X4506-GB-T
|
40
|
30
|
20
|
136
|
0.44
|
0.33
|
0.22
|
0.17
|
WS-X4412-2GB-T
|
147
|
110
|
70
|
500
|
1.63
|
1.22
|
0.81
|
0.61
|
WS-X4418-GB
|
107
|
80
|
50
|
364
|
1.19
|
0.89
|
0.59
|
0.44
|
WS-X4424-GB-RJ45
|
120
|
90
|
50
|
409
|
1.33
|
1.00
|
0.67
|
0.50
|
WS-X4448-GB-LX
|
120
|
90
|
30
|
409
|
1.33
|
1.00
|
0.67
|
0.50
|
WS-X4448-GB-RJ45
|
160
|
120
|
72
|
546
|
1.78
|
1.33
|
0.89
|
0.67
|
WS-X4524-GB-RJ45V
|
47
|
35
|
20
|
159
|
0.52
|
0.39
|
0.26
|
0.19
|
WS-X4548-GB-RJ45
|
80
|
60
|
30
|
273
|
0.89
|
0.67
|
0.45
|
0.34
|
WS-X4448-GB-SFP
|
120
|
90
|
30
|
409
|
1.33
|
1.00
|
0.67
|
0.50
|
WS-X4548-GB-RJ45V
|
135
|
100
|
30
|
461
|
1.5
|
1.13
|
.75
|
0.56
|
WS-X4604-GWY
|
160
|
120
|
60
|
546
|
1.78
|
1.33
|
0.89
|
0.67
|
WS-X 4019
|
13
|
10
|
10
|
45
|
0.15
|
0.11
|
0.07
|
0.06
|
E-series
|
WS-X45-SUP6-E
|
347
|
200
|
200
|
1182
|
3.85
|
2.89
|
1.93
|
1.44
|
WS-X45-SUP6L-E
|
267
|
200
|
80
|
909
|
2.96
|
2.22
|
1.48
|
1.11
|
WS-X45-SUP6-E (standby)
|
247
|
185
|
135
|
841
|
2.74
|
2.06
|
1.37
|
1.03
|
WS-X45-SUP6L-E (standby)
|
200
|
165
|
80
|
750
|
2.44
|
1.83
|
1.22
|
0.92
|
WS-X4606-X2-E
|
173
|
130
|
80
|
227
|
0.74
|
0.56
|
0.37
|
0.28
|
WS-X4624-SFP-E
|
60
|
45
|
12
|
205
|
0.67
|
0.50
|
0.33
|
0.25
|
WS-X4648-RJ45V-E
|
123
|
92
|
10
|
418
|
1.36
|
1.02
|
0.68
|
0.51
|
WS-X4648-RJ45V+E
|
123
|
92
|
10
|
418
|
1.36
|
1.02
|
0.68
|
0.51
|
Table A-6 DC Power Requirements and Heat Dissipation Specifications
Model Number/
Module Type
|
DC
Input
Power (W)
|
DC
Output
Power (W)
|
Heat
Dissipation (BTU/Hr)
|
Input Current at -40 VDC (A)
|
Input Current at -48 VDC (A)
|
Input Current at -52 VDC (A)
|
Input Current at -58 VDC (A)
|
Catalyst 4503 chassis
(with fans)
|
53
|
40
|
182
|
1.33
|
1.11
|
1.03
|
0.92
|
Catalyst 4506 chassis
(with fans)
|
67
|
50
|
227
|
1.67
|
1.39
|
1.28
|
1.15
|
Catalyst 4507R chassis
(with fans)
|
120
|
90
|
409
|
3.00
|
2.50
|
2.31
|
2.07
|
Catalyst 4510R chassis
(with fans)
|
160
|
110
|
546
|
4.00
|
3.33
|
3.08
|
2.76
|
Catalyst 4503-E chassis
(with fans)
|
80
|
60
|
273
|
1.90
|
1.67
|
1.54
|
1.38
|
Catalyst 4506-E chassis
(with fans)
|
160
|
120
|
546
|
3.81
|
3.33
|
3.08
|
2.76
|
Catalyst 4507R-E chassis
(with fans)
|
180
|
135
|
614
|
4.29
|
3.75
|
3.46
|
3.10
|
Catalyst 4510R-E chassis
(with fans)
|
276
|
200
|
909
|
6.35
|
5.56
|
5.13
|
4.60
|
Supervisor Engine I (WS-X4012)
|
93
|
70
|
318
|
2.33
|
1.94
|
1.79
|
1.61
|
Supervisor Engine II (WS-X4013)
|
147
|
110
|
500
|
3.67
|
3.06
|
2.82
|
2.53
|
Supervisor Engine II-plus (WS-X4013+)
|
147
|
110
|
500
|
3.49
|
3.06
|
2.82
|
2.53
|
Supervisor Engine II-plus TS (WS-X4013+TS)
|
181 + PoE
|
136
|
618
|
4.32
|
3.78
|
3.49
|
3.13
|
Supervisor Engine II-plus 10 GE (WS-X4013+10 GE)
|
173
|
130
|
591
|
4.13
|
3.61
|
3.33
|
2.99
|
Supervisor Engine III (WS-X4014)
|
147
|
110
|
500
|
3.67
|
3.06
|
2.82
|
2.53
|
Supervisor Engine IV (WS-X4515)
|
193
|
145
|
659
|
4.83
|
4.03
|
3.72
|
3.33
|
Supervisor Engine V (WS-X4516)
|
200
|
150
|
682
|
5.00
|
4.17
|
3.85
|
3.45
|
Supervisor Engine V 10 GE (WS-X4516-10GE)
|
173
|
130
|
591
|
4.13
|
3.61
|
3.33
|
2.99
|
WS-X4124-RJ45
|
23
|
17
|
10
|
0.54
|
0.47
|
0.44
|
0.39
|
WS-X4124-FX-MT
|
120
|
90
|
409
|
3.00
|
2.50
|
2.31
|
2.07
|
WS-X4148-FX-MT
|
160
|
120
|
546
|
4.00
|
3.33
|
3.08
|
2.76
|
WS-X4148-RJ
|
87
|
65
|
296
|
2.17
|
1.81
|
1.67
|
1.49
|
WS-X4148-FE-BD-LC
|
117
|
88
|
10
|
2.79
|
2.44
|
2.26
|
2.02
|
WS-X4148-FE-LX-MT
|
153
|
115
|
523
|
3.65
|
3.19
|
2.95
|
2.64
|
WS-X4148-RJ21
|
87
|
65
|
296
|
2.17
|
1.81
|
1.67
|
1.49
|
WS-X4148-RJ45V
|
80
|
60
|
273
|
2.00
|
1.67
|
1.54
|
1.38
|
WS-X4224-RJ45V
|
23
|
17
|
77
|
0.54
|
0.47
|
0.44
|
0.39
|
WS-X4248-RJ21V
|
100
|
72
|
341
|
2.5
|
2.08
|
1.92
|
1.72
|
WS-X4248-RJ45V
|
100
|
72
|
341
|
2.5
|
2.08
|
1.92
|
1.72
|
WS-4248-FE-SFP
|
108
|
81
|
368
|
2.57
|
2.25
|
2.08
|
1.86
|
WS-X4232-GB-RJ
|
73
|
55
|
250
|
1.83
|
1.53
|
1.41
|
1.26
|
WS-X4232-L3
|
160
|
120
|
546
|
4.00
|
3.33
|
3.08
|
2.76
|
WS-X4232-RJ-XX
|
67
|
50
|
227
|
1.67
|
1.39
|
1.28
|
1.15
|
WS-X4302-GB
|
47
|
35
|
159
|
1.17
|
0.97
|
0.90
|
0.81
|
WS-X4306-GB
|
47
|
35
|
159
|
1.18
|
0.98
|
0.90
|
0.80
|
WS-X4506-GB-T
|
40
|
30
|
20
|
0.95
|
0.83
|
0.77
|
0.69
|
WS-X4412-2GB-T
|
147
|
110
|
500
|
3.67
|
3.06
|
2.82
|
2.53
|
WS-X4418-GB
|
107
|
80
|
364
|
2.67
|
2.22
|
2.05
|
1.84
|
WS-X4424-GB-RJ45
|
120
|
90
|
409
|
3.00
|
2.50
|
2.31
|
2.07
|
WS-X4448-GB-LX
|
120
|
90
|
409
|
3.00
|
2.50
|
2.31
|
2.07
|
WS-X4448-GB-RJ45
|
160
|
120
|
546
|
4.00
|
3.33
|
3.08
|
2.76
|
WS-X4524-GB-RJ45V
|
47
|
35
|
159
|
1.11
|
0.97
|
0.90
|
0.80
|
WS-X4548-GB-RJ45
|
80
|
60
|
273
|
2.00
|
1.67
|
1.34
|
1.38
|
WS-X4548-GB-SPF
|
120
|
90
|
409
|
3.00
|
2.50
|
2.31
|
2.07
|
WS-X4548-GB-RJ45V
|
135
|
100
|
461
|
3.38
|
2.81
|
2.6
|
2.33
|
WS-X4604-GWY
|
160
|
120
|
546
|
4.00
|
3.33
|
3.08
|
2.76
|
WS-X4019
|
13
|
10
|
45
|
0.33
|
0.28
|
0.26
|
0.23
|
WS-U4504-FX-MT
|
13
|
10
|
45
|
0.33
|
0.28
|
0.26
|
0.23
|
E-Series
|
WS-X45-SUP6-E
|
347
|
200
|
1182
|
8.25
|
7.22
|
6.67
|
5.98
|
WS-X45-SUP6L-E
|
267
|
200
|
909
|
6.35
|
5.56
|
5.13
|
4.60
|
WS-X45-SUP6-E
(standby)
|
247
|
185
|
841
|
5.87
|
5.14
|
4.74
|
4.25
|
WS-X45-SUP6L-E (standby)
|
200
|
165
|
750
|
5.24
|
4.58
|
4.23
|
3.79
|
WS-X4606-X2-E
|
66.67
|
130
|
227
|
1.59
|
1.39
|
1.28
|
1.15
|
WS-X4624-SFP-E
|
60.00
|
45
|
205
|
1.43
|
1.25
|
1.15
|
1.03
|
WS-X4648-RJ45V-E
|
122.67
|
92
|
418
|
2.92
|
2.56
|
2.31
|
2.07
|
WS-X4648-RJ45V+E
|
122.67
|
92
|
418
|
2.92
|
2.56
|
2.36
|
2.11
|
Serial Number Locations
The serial number locations for supervisor engines are shown in Figure A-1. The serial number locations for Gigabit Ethernet switching modules are shown in Figure A-2. The serial number locations for PoE switching modules are shown in Figure A-3. The serial number locations for Ethernet/FastEthernet switching modules are shown in Figure A-4.
Figure A-1 Supervisor Engine Serial Number Locations
Figure A-2 Gigabit Ethernet Module Serial Number Locations
Figure A-3 Power over Ethernet Module Serial Number Locations
Figure A-4 Ethernet/FastEthernet Module Serial Number Locations
