Module Overview and Specifications


This chapter provides an overview of the features of the Catalyst 4500 series supervisor engines and switching modules. The information is presented in the following major sections:

Catalyst 4000 Series Switches

Catalyst 4500 Series Switches

Supervisor Engines

Ethernet and Fast Ethernet Switching Modules

Gigabit Ethernet Switching Modules

E-Series Switching Modules

End of Sale Switching Modules

Switching Module LEDs

Hot-Swapping Feature

Catalyst 4000 Series Switches

The Catalyst 4000 series switches consist of the Catalyst 4003 switch and the Catalyst 4006 switch. The switches are designed for high-performance, high-density wiring closet applications. A detailed overview of these switches is in the Catalyst 4000 Series Installation Guide. These switches are no longer sold or supported by Cisco, but most switching modules originally created for the Catalyst 4000 function in a Catalyst 4500 or Catalyst 4500 E-Series switch. Catalyst OS and the supervisor engines using it are likewise End of Life (EoL) products.

Catalyst 4500 Series Switches

The Catalyst 4500 series switches consist of the Catalyst 4503 switch, the Catalyst 4506 switch, the Catalyst 4507R switch, and the Catalyst 4510R switch. The switches are designed for high-performance, high-density wiring closet applications. A detailed overview of these switches is in the Catalyst 4500 Series Installation Guide.

Switching modules created for these switches can also be used with a Catalyst 4500 E-series switch chassis or supervisor engine.

Catalyst 4500 E-Series Switches

The Catalyst 4500 E-series switches consist of the Catalyst 4503-E switch, the Catalyst 4506-E switch, the Catalyst 4507R-E switch, and the Catalyst 4510R-E switch. The switches are designed for high-performance, high-density wiring closet applications. A detailed overview of these switches is in the Catalyst 4500 E- Series Installation Guide.

Switching modules created for these switches are not compatible with a Catalyst 4500 Classic chassis or supervisor engine. They require a larger capacity connection to the chassis backplane than is available with Catalyst 4500 Classic hardware.

Supervisor Engines

These sections describe the supervisor engines available for the Catalyst 4500 and Catalyst 4500 E-series switches:

Supervisor Engine I (WS-X4012, EoL), which is used in the Catalyst 4003 switch (Figure 1-1)

Supervisor Engine II (WS-X4013, EoL) which is used in the Catalyst 4006, 4503, and 4506 switches (Figure 1-2)

Supervisor Engine II-Plus (WS-X4013+), which is used in the Catalyst 4006, 4503, 4506, and 4507R switches (Figure 1-3)

Supervisor Engine II-Plus TS (WS-X4013+TS), which is used in Catalyst 4503 switches only (Figure 1-4)

Supervisor Engine II-Plus 10GE (WS-X4013+10GE), which is used in Catalyst 4503, 4506, and 4507R switches (Figure 1-5)

Supervisor Engine III (WS-X4014, EoL) which is used in the Catalyst 4006, 4503, and 4506 switches (Figure 1-6)

Supervisor Engine IV (WS-X4515), which is used in the Catalyst 4006, 4503, 4506, and 4507R switches (Figure 1-7)

Supervisor Engine V (WS-X4516), which is used in the Catalyst 4006, 4503, 4506, 4507R, and 4510R switches (Figure 1-8)

Supervisor Engine V-10GE (WS-X4516-10GE), which is used in the Catalyst 4503, 4506, 4507R, and 4510R switches (Figure 1-9)

Supervisor Engine 6-E (WS-X45-Sup 6-E), which is used in the Catalyst 4500 Classic and Catalyst 4500 E-series switches (Figure 1-10)

Supervisor Engine 6L-E (WS-X45-Sup 6-E), which is used in the Catalyst 4500 Classic and Catalyst 4500 E-series switches (Figure 1-11)

On the three and six-slot switches, you can install the Supervisor Engine in slot 1 only. On the Catalyst 4507R or 4510R switch, you install the primary supervisor engine in slot 1, and you can install an optional redundant supervisor engine in slot 2. On the Catalyst 4507R-E switch, you install the primary supervisor engine in slot 3, and you can install an optional redundant supervisor engine in slot 4. On the 4510R-E switch, you install the primary supervisor engine in slot 5, and you can install an optional redundant supervisor engine in slot 6.

The supervisor engines have the following features:

Data path and control for all network interfaces

Management functions:

Interface monitoring

Environmental status

SNMP and console/Telnet interface

Hot-swapping


Note Packets are not forwarded while the module is removed. A system reboot occurs when a supervisor engine is reinserted.


The Supervisor Engine II-Plus TS provides 12 nonblocking 10/100/1000BASE-T (RJ-45) ports and 8 1000BASE-X (SFP) ports.

The Supervisor Engine II-Plus 10GE and Supervisor Engine V-10GE provides 2 nonblocking 10GBASE uplink ports.

The Supervisor Engine II-Plus 10GE and Supervisor Engine V-10GE provide 4 1000BASE-X (SFP) ports.

The Supervisor Engine IV and V support the Catalyst 4500 series NetFlow Services Card (WS-F4531). NetFlow is integral to the Supervisor Engine V-10 GE.

The Supervisor Engine 6-E and Supervisor Engine 6L-E respectively provide 2 and 4 nonblocking 10GBASE uplink ports.

To install a supervisor engine, follow the procedure in the "Installing the Modules" section on page 3-2.

The supervisor engines used in Catalyst 4000 and Catalyst 4500 switches are shown in Figure 1-1 to Figure 1-8.

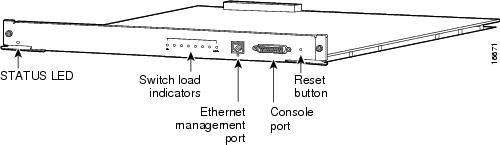

Figure 1-1 Supervisor Engine I (WS-X4012, End of Life)

Figure 1-2 Supervisor Engine II (WS-X4013, End of Life)

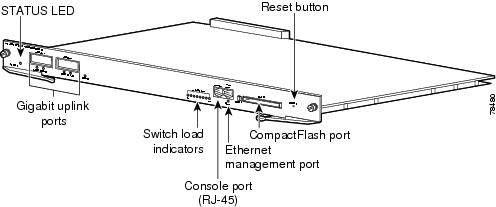

Figure 1-3 Supervisor Engine II-Plus (WS-X4013+)

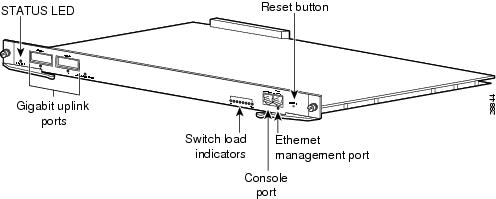

Figure 1-4 Supervisor Engine II-Plus TS (WS-X4013+TS)

Figure 1-5 Supervisor Engine II-Plus 10GE (WS-X4013+10GE)

Figure 1-6 Supervisor Engine III (WS-X4014, End of Life)

Figure 1-7 Supervisor Engine IV (WS-X4515)

Figure 1-8 Supervisor Engine V (WS-X4516)

Figure 1-9 Supervisor Engine V-10GE (WS-X4516-10GE)

Figure 1-10 Supervisor Engine 6-E, 2x10GE(X2) w/ Twin Gig (WS-X45-Sup6-E)

1

Status LED

6

Uplink ports

2

Reset button

7

USB port

3

Active Supervisor LED

8

Console port

4

Utilization LEDs

9

Management port

5

Compact flash port



Figure 1-11 Cisco Catalyst 4500 E-Series Supervisor Engine 6L-E (WS-X45-SUP6L-E)

1

Status LED

4

Utilization LEDs

7

Console port

2

Reset button

5

Compact flash port

8

Management port

3

Active Supervisor LED

6

Uplink ports

9

DIMM


Front-Panel Components

The following connectors, LEDs, and buttons are located on the front panel of the supervisor engine:

The STATUS LED, which indicates the operating state of the module

Two Gigabit uplink ports (WS-X4013, WS-X4013+, WS-X4014, and WS-X4515 supervisor engines only)

Four SFP Gigabit uplinks ports and 2 10-Gigabit uplink ports on WS-X4013+10GE and WS-X4016-10GE.

SFP Gigabit uplinks ports (via the Twin Gig converter) or 10-Gigabit X2 uplink ports (WS-X45-SUP6-E, and WS-X45-SUP6L-E supervisor engines)

Eight unmarked switch load indicator LEDs, which provide an approximation of the current traffic across the backplane

A console port (DB-25 for the WS-X4012; RJ-45 for the WS-X4013, WS-X4013+, WS-X4013+ TS, WS-X4013+10GE, WS-X4014, WS-X4515, WS-X4516, and WS-X4516-10GE supervisor engines)

An Ethernet management port (RJ-45)

A link status LED, which provides status for the management port (10BASE-T on the WS-X4012 and 10/100BASE-T on the WS-X4013, WS-X4013+, WS-X4013+ TS, WS-X4013+10GE, WS-X4014, WS-X4515, WS-X4516, WS-X4516-10GE, WS-X45-SUP6-E, and WS-X45-SUP6L-E supervisor engines)

The Reset button (recessed), which allows you to reset the system

The CompactFlash port and eject button (WS-X4013+, WS-X4013+ TS, WS-X4013+10GE, WS-4014, WS-X4515, WS-X4516, WS-X4516-10GE, WS-X45-SUP6-E, and WS-X45-SUP6L-E supervisor engines) (refer to Using the Compact Flash on the Catalyst 4000 Family Supervisor Engine III and IV.)

Table 1-1 describes the supervisor engine LEDs.

Table 1-1 Supervisor Engine LEDs

LED
Color/State
Description

STATUS



Indicates the results of a series of self-tests.



Green

All diagnostic tests passed.



Red

A test failed.



Orange

System boot or diagnostic test is in progress.



Off

Module is disabled.

UTILIZATION

Green 1-100%

If the switch is operational, this display indicates the current traffic load over the backplane (as an approximate percentage).

LINK



Indicates the status of the 10/100BASE-T Ethernet management port or uplink ports.



Green

The link is operational.



Orange

The link is disabled by user.



Flashing orange

The power-on self-test indicates a faulty port.



Off

No signal is detected or there is a link configuration failure.

ACTIVE



Indicates whether the uplink port is active or not.



Green

The port is active.



Off

The port is not active.


Ethernet Management Port

The WS-X4012 supervisor engine has a 10BASE-T Ethernet management port. The WS-X4516-10GE and WS-X4013+10GE supervisor engine modules have a 10/100/1000BASE-T Ethernet management port.The other supervisor engine modules have a 10/100BASE-T Ethernet management port. Supervisor engines use an RJ-45 connector on the front panel with a link status LED. For the location of the port, see Figure 1-1 (WS-X4012), Figure 1-2 (WS-X4013), Figure 1-3 (WS-X4013+), Figure 1-4 (WS-X4013+TS), Figure 1-5 (WS-X4013+10GE), Figure 1-6 (WS-X4014), Figure 1-7 (WS-X4515), Figure 1-8 (WS-X4516), or Figure 1-9 (WS-X4516-10GE).

TCP/IP-based management services available through inband access also are provided through this port (Telnet and SNMP). This management port also supports image download.


Note The 10BASE-T and 10/100BASE-T Ethernet management ports are for network management only. These ports do not support network switching.


Console Port

The console port allows you to perform the following functions:

Configure the switch from the CLI

Monitor network statistics and errors

Configure SNMP agent parameters

Download software updates to the switch or distribute software images residing in Flash memory to attached devices

The Catalyst 4003 console port is a DCE DB-25 receptacle, which supports a DCE EIA/TIA-232 interface. The console port is an RJ-45 receptacle on the Catalyst 4006, 4503, 4506, and 4507.


Note EIA/TIA-232 was known as recommended standard RS-232 before its acceptance as a standard by the Electronic Industries Association (EIA) and Telecommunications Industry Association (TIA).


Supervisor Memory

Table 1-2 lists the memory and processor specifications for the Supervisor engines.

Table 1-2 Supervisor Memory

Supervisor Engine


Supervisor Engine II+

256 MB SODIMM SDRAM
32 MB Flash memory

Supervisor Engine II+TS

256 MB SODIMM SDRAM
32 MB Flash memory

Supervisor Engine II+10GE

256 MB SODIMM SDRAM (upgradeable to 512 MB)
64 MB Flash memory

Supervisor Engine III

256 MB DIMM SDRAM
64 MB Flash memory
512 KB NVRAM

Supervisor Engine IV

512 MB SODIMM SDRAM
64 MB Flash memory
512 KB NVRAM

Supervisor Engine V

512 MB SODIMM SDRAM
64 MB Flash memory
512 KB NVRAM

Supervisor Engine V-10GE

512 MB SODIMM SDRAM
64 MB Flash memory
512 KB NVRAM

Supervisor Engine 6-E

512 GB SDRAM Upgradeable to 1GB
128 MB Flash memory
512 KB NVRAM

Supervisor Engine 6L-E

512 GB SDRAM Upgradeable to 1GB
128 MB Flash memory
512 KB NVRAM


Ethernet and Fast Ethernet Switching Modules

This section describes the Catalyst 4500 series Ethernet and Fast Ethernet switching modules and includes the following sections:

WS-X4124-RJ45

WS-X4124-FX-MT

WS-X4148-FX-MT

WS-X4148-RJ

WS-X4148-RJ21

WS-X4248-FE-SFP

WS-X4224-RJ45V

WS-X4248-RJ21V

WS-X4248-RJ45V

WS-X4232-GB-RJ

WS-X4232-L3

WS-X4124-RJ45

The WS-X4124-RJ45 24-port Fast Ethernet switching module (see Figure 1-12) has the following specifications:

Specification
Description

Module type

10/100BASE-TX Fast Ethernet switching module

Port duplex mode

Half or full duplex mode

Port speed

10 or 100 Mbps

Number of ports

24

Connector type

RJ-45 (See Figure 2-1 on page 2-2.)

Cable type

UTP1 or FTP

1 UTP = unshielded twisted-pair


Figure 1-12 WS-X4124-RJ45 24-Port 10/100BASE-TX Fast Ethernet Switching Module

WS-X4124-FX-MT

The WS-X4124-FX-MT 24-port Fast Ethernet switching module (see Figure 1-13) has the following specifications:

Specification
Description

Module type

100BASE-FX Fast Ethernet switching module

Port duplex mode

Half or full duplex mode

Port speed

100 Mbps

Number of ports

24

Connector type

MT-RJ fiber-optic (See Figure 2-2 on page 2-3.)

Cable type

MMF


Figure 1-13 WS-X4124-FX-MT 24-Port 100BASE-FX Fast Ethernet Switching Module


Note Catalyst 4000 WS-X4124-FX-MT modules with hardware revisions 1.5 and earlier are supported with the Supervisor Engines I (WS-X4012) and II (WS-X4013) only. Contact your technical support representative for a replacement if you need to use this module with another supervisor.


WS-X4148-FX-MT

The WS-X4148-FX-MT 48-port 100BASE-FX Fast Ethernet switching module (see Figure 1-14) has the following specifications:

Specification
Description

Module type

100BASE-FX Fast Ethernet switching module

Port duplex mode

Half or full duplex mode

Port speed

100 Mbps

Number of ports

48

Connector type

MT-RJ fiber-optic (See Figure 2-2 on page 2-3.)

Cable type

MMF


Figure 1-14 WS-X4148-FX-MT 48-Port 100BASE-FX Fast Ethernet Switching Module

WS-X4148-RJ

The WS-X4148-RJ 48-port Fast Ethernet switching module (see Figure 1-15) has the following specifications:

Specification
Description

Module type

10/100BASE-TX Fast Ethernet switching module

Port duplex mode

Half or full duplex mode

Port speed

10 or 100 Mbps

Number of ports

48

Connector type

RJ-45 (See Figure 2-1 on page 2-2.)

Cable type

UTP1 or FTP

1 UTP = unshielded twisted-pair


Figure 1-15 WS-X4148-RJ 48-Port 10/100BASE-TX Fast Ethernet Switching Module

WS-X4148-RJ21

The WS-X4148-RJ21 48-port Fast Ethernet switching module (see Figure 1-16) has the following specifications:

Specification
Description

Module type

10/100BASE-TX Fast Ethernet switching module

Port duplex mode

Half or full duplex mode

Port speed

10 or 100 Mbps

Number of ports

48

Connector type

RJ-21 (See Figure 2-3 on page 2-4 or Figure 2-4 on page 2-4.)

Cable type

Category 5 UTP


Figure 1-16 WS-X4148-RJ21 48-Port 10/100-Mbps Fast Ethernet Switching Module

WS-X4248-FE-SFP

The WS-X4248-FE-SFP 48-port 100BASE-X Fast Ethernet switching module (see Figure 1-17) has the following specifications:

Specification
Description

Module type

100BASE-X Fast Ethernet switching module

Port duplex mode

Half or full duplex mode

Port speed

100 Mbps

Number of ports

48

Connector type

LC type (See Figure 2-7 on page 2-5.)

Cable type

MMF or SMF

SFP type

FX, LX10, BX-D and BX-U


Figure 1-17 WS-X4248-FE-SFP 48-Port 100BASE-X Fast Ethernet Switching Module

WS-X4224-RJ45V

The WS-X4224-RJ45V 24-port IEEE 802.3af-compliant PoE 10/100BASE-TX switching module (see Figure 1-18) has the following specifications:

Specification
Description

Module type

10/100BASE-TX Fast Ethernet switching module with IEEE 802.3af PoE

Port duplex mode

Half or full duplex mode

Port speed

10 or 100 Mbps

Number of ports

24

Connector type

RJ-45 (See Figure 2-1 on page 2-2.)

Cable type

UTP

Power over Ethernet

Up to 15.4 W per powered device on all 24 ports
(to a 312 W total on the Catalyst 4006)

Power regulation

Internal on the switching module


Figure 1-18 WS-X4224-RJ45V 24-Port IEEE 802.3af-Compliant PoE 10/100BASE-TX Switching Module

To provide PoE with the 24-port PoE 10/100BASE-TX switching module in a Catalyst 4006 switch, you must have a power entry module (PEM) and a power shelf installed. The Catalyst 4006 switch can provide 312 W per PoE module to powered devices. If the powered devices are using the maximum 15.4 W per port, there is only enough power for 18 powered devices. If the powered devices are using less than 15.4 W per port, more powered devices can be powered, up to the 312 W maximum. For more information about installing the PEM or the external power shelf, refer to the Catalyst 4000 Series Installation Guide, Catalyst 4500 Series Installation Guide, Installation and Configuration Note for the Catalyst 4500 Series AC Power Shelf, or the Catalyst 4500 Series Power Entry Module and External Power Shelf Installation Note.

To provide PoE with the 24-port PoE 10/100BASE-TX switching module in a Catalyst 4500 series switch, you must have a PoE-enabled power supply. All power supplies support PoE except the 1000 W and 1400 W AC power supplies.


Note Auto MDIX is not supported on PoE enabled switching modules.


WS-X4248-RJ21V

The WS-X4248-RJ21V 48-port IEEE 802.3af-compliant PoE 10/100BASE-TX RJ-21 switching module (see Figure 1-19) has the following specifications:

Specification
Description

Module type

10/100BASE-TX Fast Ethernet switching module with IEEE 802.3af PoE

Port duplex mode

Half or full duplex mode

Port speed

10 or 100 Mbps

Number of ports

48

Connector type

RJ-21 (See Figure 2-3 on page 2-4 or Figure 2-4 on page 2-4.)

Cable type

Category 5 UTP

Power over Ethernet

Up to 15.4 W per powered device on all 48 ports
(to a 312 W total on the Catalyst 4006)

Power regulation

Internal on the switching module


Figure 1-19 WS-X4248-RJ21V IEEE 802.3af-Compliant PoE 48-Port 10/100-Mbps Switching Module

To provide PoE with the 48-port PoE 10/100BASE-TX switching module in a Catalyst 4006 switch, you must have a power entry module (PEM) and power shelf installed. The Catalyst 4006 switch can provide 312 W per PoE module to powered devices. If the powered devices are using the maximum 15.4 W per port, there is only enough power for 18 powered devices. If the powered devices are using less than 15.4 W per port, more powered devices can be powered, up to the 312 W maximum. For more information about installing the PEM or the external power shelf, refer to the Catalyst 4000 Series Installation Guide, Catalyst 4500 Series Installation Guide, Installation and Configuration Note for the Catalyst 4500 Series AC Power Shelf, or the Catalyst 4500 Series Power Entry Module and External Power Shelf Installation Note.

To provide PoE with the 48-port PoE 10/100BASE-TX switching module in a Catalyst 4500 series switch, you must have a PoE-enabled power supply. All power supplies support PoE except the 1000 W and 1400 W AC power supplies.


Note Auto MDIX is not supported on PoE enabled switching modules.


WS-X4248-RJ45V

The WS-X4248-RJ45V 48-port IEEE 802.3af-compliant PoE 10/100BASE-TX switching module (see Figure 1-20) has the following specifications:

Specification
Description

Module type

10/100BASE-TX Fast Ethernet switching module with IEEE 802.3af PoE

Port duplex mode

Half or full duplex mode

Port speed

10 or 100 Mbps

Number of ports

48

Connector type

RJ-45 (See Figure 2-1 on page 2-2.)

Cable type

UTP

Power over Ethernet

Up to 15.4 W per powered device on all 48 ports
(to a 312 W total on the Catalyst 4006)

Power regulation

Internal on the switching module


Figure 1-20 WS-X4248-RJ45V 48-Port IEEE 802.3af-Compliant PoE 10/100BASE-TX Switching Module

To provide PoE with the 48-port PoE 10/100BASE-TX switching module in a Catalyst 4006 switch, you must have a power entry module (PEM) and a power shelf installed. The Catalyst 4006 switch can provide 312 W per PoE module to powered devices. If the powered devices are using the maximum 15.4 W per port, there is only enough power for 18 powered devices. If the powered devices are using less than 15.4 W per port, more powered devices can be powered, up to the 312 Watt maximum. For more information about installing the PEM or the external power shelf, refer to the Catalyst 4000 Series Installation Guide, Catalyst 4500 Series Installation Guide, Installation and Configuration Note for the Catalyst 4500 Series AC Power Shelf, or the Catalyst 4500 Series Power Entry Module and External Power Shelf Installation Note.

To provide PoE with the 48-port PoE 10/100BASE-TX switching module in a Catalyst 4500 series switch, you must have a PoE-enabled power supply. All power supplies support PoE except the 1000 W and 1400 W AC power supplies.


Note Auto MDIX is not supported on PoE enabled switching modules.


WS-X4232-GB-RJ

The WS-X4232-GB-RJ 34-port Ethernet switching module (see Figure 1-21) has the following specifications:

Specification
Description

Module type

10/100BASE-TX Ethernet plus 1000BASE-X Gigabit Ethernet switching module

Port duplex mode

Half or full duplex mode on the 10/100BASE-TX ports
Full duplex mode on the 1000BASE-X ports

Port speed

10, 100, and 1000 Mbps

Number of ports

32 10/100BASE-TX ports
2 1000BASE-X1 ports

Connector type

RJ-45 10/100BASE-TX ports (See Figure 2-1 on page 2-2.)
SC-type 1000BASE-X ports1 (See Figure 2-8 on page 2-5.)

Cable type

Category 5 UTP (10/100BASE-TX)
MMF or SMF (1000BASE-X)

1 See the Cisco Gigabit Ethernet Transceiver Modules Compatibility Matrix for GBIC support information.


Figure 1-21 WS-X4232-GB-RJ 2-Port Gigabit and 32-Port 10/100BASE-T Ethernet Switching Module

WS-X4232-L3

The WS-X4232-L3 Layer 3 services module (see Figure 1-22) has the following specifications:

Specification
Description

Module type

Layer 3 services module

Port duplex mode

Half or full duplex mode on the 10/100BASE-TX ports
Full duplex mode on the 1000BASE-X Layer 3 ports

Port speed

10, 100, and 1000 Mbps

Number of ports

32 10/100BASE-TX ports
2 1000BASE-X ports
1 console port
1 10BASE-T uplink port

Connector type

RJ-45 10/100BASE-TX ports (See Figure 2-1 on page 2-2.)
SC-type 1000BASE-X ports1 (See Figure 2-8 on page 2-5.)
RJ-45 (console and 10BASE-T ports) (See Figure 2-1 on page 2-2.)

Cable type

Category 5 UTP (10/100BASE-TX)
MMF or SMF (1000BASE-X)
Category 3 or Category 5 UTP (console and 10BASE-T ports)

1 See the Cisco Gigabit Ethernet Transceiver Modules Compatibility Matrix for GBIC support information.


For more information, refer to the Installation and Configuration Note for the Catalyst 4000 Layer 3 Services Module.

Figure 1-22 WS-X4232-L3 Layer 3 Services Module

Gigabit Ethernet Switching Modules

This section describes the Catalyst 4500 series Gigabit Ethernet switching modules and includes the following sections:

WS-X4302-GB

WS-X4306-GB

WS-X4506-GB-T

WS-X4418-GB

WS-X4424-GB-RJ45

WS-X4524-GB-RJ45V

WS-X4548-GB-RJ45

WS-X4448-GB-SFP

WS-X4548-GB-RJ45V

WS-X4548-RJ45V+

WS-X4302-GB

The WS-X4302-GB 2-port Gigabit Ethernet switching module (see Figure 1-23) has the following specifications:

Specification
Description

Module type

1000BASE-X Gigabit Ethernet switching module

Port duplex mode

Full duplex mode

Port speed

1000 Mbps

Number of ports

2

Connector type

SC type1 (See Figure 2-8 on page 2-5.)

Cable type

MMF or SMF

1 See the Cisco Gigabit Ethernet Transceiver Modules Compatibility Matrix for GBIC support information.


Figure 1-23 WS-X4302-GB 2-Port Gigabit Ethernet Switching Module

WS-X4306-GB

The WS-X4306-GB 6-port Gigabit Ethernet switching module (see Figure 1-24) has the following specifications:

Specification
Description

Module type

1000BASE-X Gigabit Ethernet switching module

Port duplex mode

Full duplex mode

Port speed

1000 Mbps

Number of ports

6

Connector type

SC type1 (See Figure 2-8 on page 2-5.)

Cable type

MMF or SMF

1 See the Cisco Gigabit Ethernet Transceiver Modules Compatibility Matrix for GBIC support information.


Figure 1-24 WS-X4306-GB 6-Port Gigabit Ethernet Switching Module

WS-X4506-GB-T

The WS-X4506-GB-T 6-port Gigabit Ethernet switching module (see Figure 1-24) has the following specifications:

Specification
Description

Module type

10/100/1000BASE-T Fast Ethernet with IEEE802.3af PoE or 1000BASE-X SFP Gigabit Ethernet switching module

Port duplex mode

Half or full duplex mode

Port speed

10, 100, or 1000 Mbps

Number of ports

6 total

Connector type

RJ-45 (See Figure 2-1 on page 2-2.)

LC type (See Figure 2-7 on page 2-5.)

Cable type

Category 5 UTP (1000BASE-T)
MMF or SMF (1000BASE-X, LX fiber-optic cable only)

Power over Ethernet

Up to 15.4 W per powered device on all 6 ports



Note There are six10/100/1000BASE-T and six 1000BASE-X SFP Gigabit Ethernet connectors present. Use the select media SFPs | rj45 command to set whether a specific port number uses the SFP or RJ-45 connector. SFP is the default.


Figure 1-25 WS-X4506-GB-T 6-Port Gigabit Ethernet Switching Module

To provide PoE with the 6-port Gigabit Ethernet switching module in a Catalyst 4006 switch, you must have a power entry module (PEM) and power shelf installed. For more information about installing the PEM or the external power shelf, refer to the Catalyst 4000 Series Installation Guide, Catalyst 4500 Series Installation Guide, Installation and Configuration Note for the Catalyst 4500 Series AC Power Shelf, or the Catalyst 4500 Series Power Entry Module and External Power Shelf Installation Note.

To provide PoE with the 6-port Gigabit Ethernet switching module in a Catalyst 4500 series switch, you must have a PoE-enabled power supply.


Note Auto MDIX is not supported on PoE enabled switching modules.


WS-X4418-GB

The WS-X4418-GB 18-port Gigabit Ethernet switching module (see Figure 1-26) has the following specifications:

Specification
Description

Module type

1000BASE-X Gigabit Ethernet switching module

Port duplex mode

Full duplex mode

Port speed

1000 Mbps

Number of ports

18

Connector type

SC type1 (See Figure 2-8 on page 2-5.)

Cable type

MMF or SMF

1 See the Cisco Gigabit Ethernet Transceiver Modules Compatibility Matrix for GBIC support information.


Figure 1-26 WS-X4418-GB 18-Port Gigabit Ethernet Switching Module

Some ports on this switching module are oversubscribed. For further information on these ports, see the "Configuring Gigabit Ethernet Ports" section on page 3-11.


Note WS-X4418-GB does not support WS-G5483, which is the 1000BASE-T GBIC.


The ports on this switching module can be configured with any combination of shortwave (SX), longwave/long-haul (LX/LH), and long-range (ZX) GBICs. For a description of GBICs, see the Gigabit Interface Converter Installation Note.

WS-X4424-GB-RJ45

The WS-X4424-GB-RJ45 24-port 10/100/1000BASE-T Gigabit Ethernet switching module (see Figure 1-27) has the following specifications:

Specification
Description

Module type

10/100/1000 Fast or Gigabit Ethernet switching module

Port duplex mode

Half or full duplex mode at 10 and 100 Mbps; full duplex mode only at 1000 Mbps

Port speed

10, 100, or 1000 Mbps

Number of ports

24

Connector type

RJ-45 (See Figure 2-1 on page 2-2.)

Cable type

UTP



Note You must use Category 5 cables when connecting to the 1000BASE-T ports on this switching module.


Figure 1-27 WS-X4424-GB-RJ45 24-Port 10/100/1000BASE-T Gigabit Ethernet Switching Module

Ports on this switching module may be oversubscribed, depending on utilization. For further information on these ports, see the "Configuring Gigabit Ethernet Ports" section on page 3-11.

WS-X4524-GB-RJ45V

The WS-X4524-GB-RJ45V 24-port IEEE 802.3af-compliant PoE 10/100/1000BASE-T RJ-45 switching module (see Figure 1-28) has the following specifications:

Specification
Description

Module type

10/100/1000BASE-T Fast Ethernet switching module with IEEE802.3af PoE

Port duplex mode

Half or full duplex mode

Port speed

10, 100, or 1000 Mbps

Number of ports

24

Connector type

RJ-45 (See Figure 2-1 on page 2-2.)

Cable type

UTP

Power over Ethernet

Up to 15.4 W per powered device on all 24 ports
(to a 312 W total on the Catalyst 4006)


Figure 1-28 WS-X4524-GB-RJ45V 24-Port IEEE-Compliant PoE 10/100/1000BASE-T Switching Module

To provide PoE with the 24-port PoE 10/100BASE-TX switching module in a Catalyst 4006 switch, you must have a power entry module (PEM) and a power shelf installed. The Catalyst 4006 switch can provide 312 W per PoE module to powered devices. If the powered devices are using the maximum 15.4 W per port, there is only enough power for 18 powered devices. If the powered devices are using less than 15.4 W per port, more powered devices can be powered, up to the 312 Watt maximum. For more information about installing the PEM or the external power shelf, refer to the Catalyst 4000 Series Installation Guide, Catalyst 4500 Series Installation Guide, Installation and Configuration Note for the Catalyst 4500 Series AC Power Shelf, or the Catalyst 4500 Series Power Entry Module and External Power Shelf Installation Note.

To provide PoE with the 24-port PoE 10/100/1000BASE-T switching module in a Catalyst 4500 series switch, you must have an PoE-enabled power supply. All power supplies support PoE except the 1000 W and 1400 W AC power supplies.


Note Auto MDIX is not supported on PoE enabled switching modules.


WS-X4548-GB-RJ45

The WS-X4548-GB-RJ45 48-port 10/100/1000BASE-T Gigabit Ethernet switching module (see Figure 1-29) has the following specifications:

Specification
Description

Module type

10/100/1000 Fast or Gigabit Ethernet switching module

Port duplex mode

Half or full duplex mode at 10 and 100 Mbps; full duplex mode only at 1000 Mbps

Port speed

10, 100, or 1000 Mbps

Number of ports

48

Connector type

RJ-45 (See Figure 2-1 on page 2-2.)

Cable type

UTP



Note You must use Category 5 cables when connecting to the 1000BASE-T ports on this switching module.


Figure 1-29 WS-X4548-GB-RJ45 48-Port 10/100/1000BASE-T Gigabit Ethernet Switching Module

Ports on this switching module may be oversubscribed, depending on utilization. For further information on these ports, see the "Configuring Gigabit Ethernet Ports" section on page 3-11.

WS-X4448-GB-SFP

The WS-X4448-GB-SFP 48-port Gigabit Ethernet switching module (see Figure 1-30) has the following specifications:

Specification
Description

Module type

1000BASE-X Gigabit Ethernet switching module

Port duplex mode

Full duplex mode

Port speed

1000 Mbps

Number of ports

48

Connector type

LC type (See Figure 2-7 on page 2-5.)

Cable type

MMF or SMF

SFP type

SX, LX, Copper 1000BASE-T, BX10-D and BX10-U


Figure 1-30 WS-X4448-GB-SFP 48-Port Gigabit Ethernet Switching Module

Ports on this switching module may be oversubscribed, depending on utilization. For further information on these ports, see the "Configuring Gigabit Ethernet Ports" section on page 3-11.

For a description of SFP modules, see the Cisco SFP and SFP+ Transceiver Module Installation Notes.

Problem   Insertion of unsupported SFPs (small form-factor pluggable optics) into a WS-X4448-GB-SFP module can cause undetected communication failures between the supervisor engine and the corresponding module. Subsequent insertion or removal of SFPs from the module is not recognized by the system. This activity can be observed on a Catalyst 4500 series switch using Release 12.1(12c)EW1 or later releases.

Solution   Reset the module with the hw-module module reset command. (CSCee05078)

WS-X4548-GB-RJ45V

The WS-X4548-GB-RJ45V 48-port IEEE 802.3af-compliant PoE 10/100/1000BASE-T RJ-45 switching module (see Figure 1-31) has the following specifications:

Specification
Description

Module type

10/100/1000BASE-T Fast Ethernet switching module with IEEE802.3af PoE

Port duplex mode

Half or full duplex mode

Port speed

10, 100, or 1000 Mbps

Number of ports

48

Connector type

RJ-45 (See Figure 2-1 on page 2-2.)

Cable type

UTP

Power over Ethernet

Up to 15.4 W per powered device on all 48 ports
(to a 312 W total on the Catalyst 4006)


Figure 1-31 WS-X4548-GB-RJ45V 48-Port IEEE-Compliant PoE 10/100/1000BASE-T Switching Module

To provide PoE with the 48-port PoE 10/100BASE-TX switching module in a Catalyst 4006 switch, you must have a power entry module (PEM) and a power shelf installed. The Catalyst 4006 switch can provide 312 W per PoE module to powered devices. If the powered devices are using the maximum 15.4 W per port, there is only enough power for 18 powered devices. If the powered devices are using less than 15.4 W per port, more powered devices can be powered, up to the 312 W maximum. For more information about installing the PEM or the external power shelf, refer to the Catalyst 4000 Series Installation Guide, Catalyst 4500 Series Installation Guide, Installation and Configuration Note for the Catalyst 4500 Series AC Power Shelf, or the Catalyst 4500 Series Power Entry Module and External Power Shelf Installation Note.

To provide PoE with the 48-port PoE 10/100/1000BASE-T switching module in a Catalyst 4500 series switch, you must have an PoE-enabled power supply. All power supplies support PoE except the 1000 W and 1400 W AC power supplies.


Note Auto MDIX is not supported on PoE enabled switching modules.


WS-X4548-RJ45V+

General information about Enhanced PoE features are available at:

http://www.cisco.com/en/US/prod/switches/epoe.html

The WS-X4548-RJ45V+ 48-port 10/100/1000BASE-T enhanced PoE switching module (see Figure 1-32) has the following specifications:

Specification
Description

Module type

10/100/1000BASE-T Fast Ethernet switching module with IEEE802.3af PoE and Cisco Enhanced PoE

Port duplex mode

Half- or full-duplex mode

Port speed

10, 100, or 1000 Mbps

Number of ports

48

Connector type

RJ-45 (See Figure 2-1 on page 2-2.)

Cable type

UTP

Power over Ethernet

1050 W of maximum total power to the front panel, for up to 35 ports providing 30 W per port. If some ports provide less than the maximum wattage, more PoE ports are possible up to the supported wattage.

Note On a 4510R-E 10 slot chassis, the 1050 W per slot maximum only applies to slots 1 and 2; slots 3, 4,7, 8, 9, and 10 can supply up to 750 W, providing up to 25 ports of 30 W PoE.


Figure 1-32 WS-X4548-RJ45V+ 48-port 10/100/1000BASE-T Enhanced Power over Ethernet Switching Module

Ports on this switching module may be oversubscribed, depending on utilization. For further information on these ports, see the "Configuring Gigabit Ethernet Ports" section on page 3-11.

This module is not supported on Catalyst 4000 Series Switches or the Supervisor Engine I, II or III. It is compatible with all Supervisor Engines that use Cisco IOS software. Refer to the release notes for supported Cisco IOS releases.

To provide PoE with the 48-port PoE 10/100/1000BASE-T switching module in a Catalyst 4500 series switch, you must have an PoE-enabled power supply. All power supplies support PoE except the 1000 W and 1400 W AC power supplies. Choose a power supply with adequate capacity for your PoE requirements. If you have several of these PoE modules in a switch, all available PoE in the smaller power supplies will be quickly utilized.


Note Auto MDIX is not supported on PoE-enabled switching modules.


E-Series Switching Modules

This section describes the Catalyst 4500 E-series Gigabit Ethernet switching modules. These modules require the 24 Gbps per slot connection in Catalyst 4500 E-series switches with E-series supervisor engines running a supporting version of Cisco IOS. This section includes the following sections:

WS-X4606-X2-E

WS-X4624-SFP-E

WS-X4648-RJ45V-E

WS-X4648-RJ45V+E

WS-X4606-X2-E

The WS-X4606-X2-E 6-Port 10GbE (X2) switching module (see Figure 1-24) has the following specifications:

Specification
Description

Module type

10Gig X2 or TwinGig fiber Ethernet switching module

Port duplex mode

Full duplex mode

Port speed

10 Gbps or 2 Gbps when using a Cisco TwinGig converter and 2 SFPs

Number of ports

6

Connector type

SC type

Cable type

MMF or SMF


Figure 1-33 WS-X4606-GB 6-Port Gigabit Ethernet Switching Module


Note When using both TwinGig and X2 transceivers on this module, keep them grouped with ports 1-3 in one group and ports 4-6 in another. Inserting a TwinGig or X2 transceiver in any port will affect the capabilities of its partner ports, and all three will be set to handle the same type automatically. Mixing within a port group will not work. As an example, you would not be able to have an X2 in port 1 and a TwinGig in port 2 and expect both of them to function.


WS-X4624-SFP-E

The WS-X4624-SFP-E 24-Port fiber switching module (see Figure 1-24) has the following specifications:

Specification
Description

Module type

1000BASE-X Gigabit Ethernet switching module

Port duplex mode

Full duplex mode

Port speed

1 Gbps at line rate (no oversubscription)

Number of ports

24

Connector type

LC type (See Figure 2-7 on page 2-5.)

Cable type

MMF or SMF

SFP type

SX, LX, LH, ZX, Copper 1000BASE-T, BX10-D, BX10-U, CWDM and DWDM


Figure 1-34 WS-X4624-SFP-E 24-Port Optical SFP Switching Module

For a description of SFP modules, see the Cisco SFP and SFP+ Transceiver Module Installation Notes.

Problem   Insertion of unsupported SFPs (small form-factor pluggable optics) into an SFP based switching module can cause undetected communication failures between the supervisor engine and the corresponding module. Subsequent insertion or removal of SFPs from the module is not recognized by the system. This activity can be observed on a Catalyst 4500 series switch using Cisco IOS.

Solution   Reset the module with the hw-module module reset command. (CSCee05078)

WS-X4648-RJ45V-E

The WS-X4648-RJ45V-E 48-Port PoE 802.3af 10/100/1000(RJ45) switching module (see Figure 1-31) has the following specifications:

Specification
Description

Module type

10/100/1000BASE-T Fast Ethernet switching module with IEEE802.3af PoE

Port duplex mode

Half or full duplex mode

Jumbo frame support

No

Port speed

10, 100, or 1000 Mbps

Number of ports

Yes

Connector type

RJ-45

Cable type

Category 5

Power over Ethernet

15.4 W per powered device on all 48 ports


Figure 1-35 WS-X4548-GB-RJ45V-E 48-Port IEEE-Compliant PoE 10/100/1000BASE-T Switching Module

To provide PoE with the 48-port PoE 10/100/1000BASE-T switching module in a Catalyst 4500 E-series switch, you must have an PoE-enabled power supply. All power supplies support PoE except the 1000 W and 1400 W AC power supplies.


Note Auto MDIX is supported on this PoE enabled switching module.


WS-X4648-RJ45V+E

The WS-X4648-RJ45V+E 48-Port Premium PoE 10/100/1000(RJ45) switching module (see Figure 1-36) has the following specifications:

Specification
Description

Module type

10/100/1000BASE-T Fast Ethernet switching module with IEEE802.3af PoE

Port duplex mode

Half or full duplex mode

Jumbo frame support

Yes

Port speed

10, 100, or 1000 Mbps

Number of ports

48

Connector type

RJ-45

Cable type

Category 5

Power over Ethernet

15.4 W per powered device on all 48 ports,
software upgradeable to 30W per port


Figure 1-36 WS-X4548-GB-RJ45V+E 48-Port Premium PoE 10/100/1000BASE-T Switching Module

To provide PoE with the 48-port PoE 10/100/1000BASE-T switching module in a Catalyst 4500 E-series switch, you must have an PoE-enabled power supply. All power supplies support PoE except the 1000 W and 1400 W AC power supplies.


Note Auto MDIX is supported on this PoE enabled switching module.


End of Sale Switching Modules

This section describes Catalyst 4500 series switching modules that are no longer available and includes the following sections:

WS-X4019

WS-X4148-RJ45V

WS-X4148-FE-BD-LC

WS-X4148-FE-LX-MT

Access Gateway Module (WS-X4604-GWY)

WS-X4232-RJ-XX

WS-X4412-2GB-T

WS-X4448-GB-LX

WS-X4448-GB-RJ45

WS-X4019

The WS-X4019 backplane channel module (see Figure 1-37) has the following specifications:

Specification
Description

Module type

Backplane channel module

Port duplex mode

-

Port speed

-

Number of ports

0

Connector type

-

Cable type

-


Figure 1-37 WS-X4019 Backplane Channel Module


Note The backplane channel module is supported by only the WS-X4013 supervisor engine in the Catalyst 4006, 4503, or 4506 switches using the Catalyst Operating System. Both Catalyst OS and the WS-X4013 supervisor engine are no longer supported. There is no suggested replacement.


WS-X4148-RJ45V

This switching module is no longer sold and support is limited, it can be replaced by the WS-X4248-RJ45V or WS-X4548-GB-RJ45V switching module. The WS-X4148-RJ45V 48-port Cisco pre-standard Power over Ethernet (PoE) 10/100BASE-TX switching module (see Figure 1-38) has the following specifications:

Specification
Description

Module type

10/100BASE-TX Fast Ethernet switching module with Cisco pre-standard PoE

Port duplex mode

Half or full duplex mode

Port speed

10 or 100 Mbps

Number of ports

48

Connector type

RJ-45 (See Figure 2-1 on page 2-2.)

Cable type

UTP

Power over Ethernet

6.3 W per-powered device on a port, on all 48 ports


Figure 1-38 WS-X4148-RJ45V 48-Port PoE 10/100BASE-TX Switching Module

To provide PoE with the 48-port PoE 10/100BASE-TX switching module in a Catalyst 4006 switch, you must have a power entry module (PEM) and a power shelf installed. For more information about installing the PEM or the external power shelf, refer to the Catalyst 4000 Series Installation Guide, Catalyst 4500 Series Installation Guide, Installation and Configuration Note for the Catalyst 4500 Series AC Power Shelf, or the Catalyst 4500 Series Power Entry Module and External Power Shelf Installation Note.

To provide PoE with the 48-port PoE 10/100BASE-TX switching module in a Catalyst 4500 series switch, you must have a PoE-enabled power supply. All power supplies support PoE except the 1000 W and 1400 W AC power supplies.


Note Auto MDIX is not supported on PoE enabled switching modules.


WS-X4148-FE-BD-LC

This switching module is no longer sold and support is limited, it can be replaced by the WS-X4248-FE-SFP switching module with 48 GLC-FE-100BX SFP modules. The WS-X4148-FE-BD-LC 48-port 100BASE-BX10-D Fast Ethernet switching module (see Figure 1-39) has the following specifications:

Specification
Description

Module type

100BASE-BX10-D Fast Ethernet switching module

Port duplex mode

Full duplex mode

Port speed

100 Mbps

Number of ports

48

Connector type

Single LC (See Figure 1-40.)

Cable type

SMF


Figure 1-39 WS-X4148-FE-BD-LC 48-Port Fast Ethernet Switching Module

Figure 1-40 Single LC Connector

WS-X4148-FE-LX-MT

This switching module is no longer sold and support is limited, it can be replaced by the WS-X4248-FE-SFP switching module and 48 GLC-FE-100LX optical transceivers. The WS-X4148-FE-LX-MT 48-port 100BASE-LX10 Fast Ethernet switching module (see Figure 1-41) has the following specifications:

Specification
Description

Module type

100BASE-LX10 Fast Ethernet switching module

Port duplex mode

Half or full duplex mode

Port speed

100 Mbps

Number of ports

48

Connector type

MT-RJ fiber-optic (See Figure 2-2 on page 2-3.)

Cable type

SMF


Figure 1-41 WS-X4148-FE-LX-MT 48-Port 100BASE-LX-MT Fast Ethernet Switching Module

Access Gateway Module (WS-X4604-GWY)

The Access Gateway Module is described in the Catalyst 4000 Access Gateway Module Installation and Configuration Note (DOC-7810818). The recommended replacement for an integrated switch/router/voice gateway is the Cisco 6500 Series Switch (i.e.,Catalyst 4500 Switch + AGM—Catalyst 6500 Switch + FlexWAN Module + Communications Media Module).

WS-X4232-RJ-XX

This switching module is no longer sold and support is limited, it can be replaced by the WS-X4232-GB-RJ switching module. The WS-X4232-RJ-XX 32-port Ethernet switching module (see Figure 1-42) has the following specifications:

Specification
Description

Module type

10/100BASE-TX plus 100BASE-FX Ethernet switching module

Port duplex mode

Half or full duplex mode on both the 10/100BASE-TX and the 100BASE-FX ports

Port speed

10 and 100 Mbps

Number of ports

32 10/100BASE-TX ports
4 optional 100BASE-FX ports on an optional uplink module (WS-U4504-FX-MT)

Connector type

RJ-45 32 10/100BASE-TX ports (See Figure 2-1 on page 2-2.)
MT-RJ for the 4 optional ports 100BASE-FX (See Figure 2-2 on page 2-3.)

Cable type

Category 5 UTP (10/100BASE-TX)
MMF or SMF (100BASE-FX)


Figure 1-42 WS-X4232-RJ-XX 32-port Ethernet Switching Module


Note The WS-X4232-RJ-XX Ethernet switching module can operate with or without the WS-U4504-FX-MT uplink module installed.


WS-U4504-FX-MT Uplink Module

The WS-U4504-FX-MT uplink module (see Figure 1-43) has the following specifications:

Specification
Description

Module type

100BASE-FX uplink module

Port duplex mode

Half or full duplex mode

Port speed

100 Mbps

Number of ports

4

Connector type

MT-RJ (See Figure 2-2 on page 2-3.)

Cable type

MMF cable


Figure 1-43 WS-U4504-FX-MT Uplink Module

The WS-U4504-FX-MT uplink module is installed onto a switching module to provide optional port configurations.

Each port has a port link status LED below it, which is labeled N+x. The N indicates the last number of the port that is used on the Ethernet switching module (WS-X4232-RJ-XX).

For the far left port on the WS-U4504-FX-MT uplink module, add 1 to that number; for the second port, add 2; for the third port, add 3; for the last port, add 4.

WS-X4412-2GB-T

This switching module is no longer supported, it can be replaced by the WS-X4424-GB-RJ45 or WS-X4448-GB-RJ45 switching module. The WS-X4412-2GB-T 14-port Gigabit Ethernet switching module (see Figure 1-44) has the following specifications:

Specification
Description

Module type

1000BASE-T plus 1000BASE-X Gigabit Ethernet switching module

Port duplex mode

Full duplex mode

Port speed

1000 Mbps

Number of ports

12 1000BASE-T ports
2 optional 1000BASE-X1 uplink ports

Connector type

RJ-45 for the 12 1000BASE-T ports (See Figure 2-1 on page 2-2.)
SC-type for the 2 1000BASE-X ports1 (See Figure 2-8 on page 2-5.)

Cable type

Category 5 UTP (1000BASE-T)
MMF or SMF (1000BASE-X)

1 See the Gigabit Interface Converter Installation Note for GBIC support information.


Figure 1-44 WS-X4412-2GB-T 14-Port Gigabit Ethernet Switching Module

Some Gigabit Ethernet ports on the WS-X4412-2GB-T switching module are oversubscribed. For additional information on these ports, see the "Configuring Gigabit Ethernet Ports" section on page 3-11.


Note You must use Category 5 cables when connecting to the 1000BASE-T ports on this switching module.


The two Gigabit Ethernet ports can be configured with any combination of shortwave (SX), longwave/long-haul (LX/LH), and long-range (ZX) GBICs. For a description of GBICs, see the Gigabit Interface Converter Installation Note.

WS-X4448-GB-LX

This switching module is no longer sold and has limited support, it was replaced by the WS-X4448-GB-SFP switching module. The WS-X4448-GB-LX 48-port Gigabit Ethernet switching module (see Figure 1-45) has the following specifications:

Specification
Description

Module type

1000BASE-X Gigabit Ethernet switching module

Port duplex mode

Full duplex mode

Port speed

1000 Mbps

Number of ports

48

Connector type

LC type (See Figure 2-7 on page 2-5.)

Cable type

MMF or SMF (LX fiber-optic cable only)


Figure 1-45 WS-X4448-GB-LX 48-Port Gigabit Ethernet Switching Module

Ports on this switching module may be oversubscribed, depending on utilization. For further information on these ports, see the "Configuring Gigabit Ethernet Ports" section on page 3-11.

The 48 ports can be configured with any combination of small, form-factor pluggable (SFP) modules. For a description of SFP modules, see the Cisco SFP and SFP+ Transceiver Module Installation Notes.

Problem   Insertion of unsupported SFPs (small form-factor pluggable optics) into a WS-X4448-GB-LX module can cause undetected communication failures between the supervisor engine and the corresponding module. Subsequent insertion or removal of SFPs from the module is not recognized by the system. This activity can be observed on a Catalyst 4500 series switch using Release 12.1(12c)EW1 or later releases.

Solution   Reset the module with the hw-module module reset command. (CSCee05078)

WS-X4448-GB-RJ45

The WS-X4448-GB-RJ45 48-port 10/100/1000BASE-T Gigabit Ethernet switching module (see Figure 1-46) has the following specifications:

Specification
Description

Module type

10/100/1000 Fast or Gigabit Ethernet switching module

Port duplex mode

Half or full duplex mode at 10 and 100 Mbps; full duplex mode only at 1000 Mbps

Port speed

10, 100, or 1000 Mbps

Number of ports

48

Connector type

RJ-45 (See Figure 2-1 on page 2-2.)

Cable type

UTP



Note You must use Category 5 cables when connecting to the 1000BASE-T ports on this switching module.


Figure 1-46 WS-X4448-GB-RJ45 48-Port 10/100/1000BASE-T Gigabit Ethernet Switching Module

Ports on this switching module may be oversubscribed, depending on utilization. For further information on these ports, see the "Configuring Gigabit Ethernet Ports" section on page 3-11.

Switching Module LEDs

Each switching module has one LED labeled STATUS that provides information about the module and one numbered LED labeled LINK for each port on the module. Figure 1-47 shows the Gigabit Ethernet port and status LEDs. Figure 1-48 shows the 10/100BASE-T port LEDs. Table 1-3 describes the switching module LEDs.

Figure 1-47 Gigabit Ethernet Port and Status LEDs

Figure 1-48 10/100BASE-T Port LEDs

Table 1-3 Switching Module LEDs

LED
Color/State
Description

STATUS



Indicates the results of a series of self-tests and diagnostic tests performed by the switch.



Green

All the tests pass.



Red

A test other than an individual port test failed.



Orange

System boot, self-test diagnostics running, or the module is disabled.

LINK1



Indicates the status of the 10BASE-T port.



Green

The port is operational (a signal is detected).



Orange

The link has been disabled by software.



Flashing orange

The link has been disabled due to a hardware failure.



Off

No signal is detected.

Port Status2



Indicates individual port status.



Green

The port is operational (a signal is detected).



Orange

The link has been disabled by software.



Flashing orange

The link has been disabled due to a hardware failure.



Off

No signal is detected.

1 Used on the WS-X4232-L3 Ethernet routing module.

2 LEDs labeled 1 through the number of ports on the switching module are the individual port link LEDs.


Hot-Swapping Feature

Catalyst 4500 series switches allow you to remove and replace switching modules without powering down the switch. This feature is known as hot swapping.

When you remove or insert a switching module while the switch is operating, the system does the following:

1. Scans the backplane for configuration changes.

2. Initializes all newly inserted switching modules, notes any removed modules, and places them in the administratively shutdown state.

3. Places any previously configured interfaces on the switching module back to the state they were in when they were removed. Any newly inserted interfaces are put in the administratively shutdown state, as if they were present (but unconfigured) at boot time. If you insert a similar switching-module type into a slot, its ports are configured and brought online up to the port count of the original switching module.

The system runs diagnostic tests on any new interfaces. If the test passes, the system is operating normally. If the new switching module is faulty, the system resumes normal operation but places the new module in the "faulty" state.

If the diagnostic test fails, the system crashes, which usually indicates that the new switching module has a problem and should be removed.


Caution To avoid erroneous failure messages, allow at least 15 seconds for the system to reinitialize, and note the current configuration of all interfaces before you remove or insert another switching module.

When you hot swap switching modules, the system displays status messages on the console screen. The following sample display shows the messages logged by the system when a switching module is removed from slot 2:

Console> (enable)
2001 Sep 09 12:23:26 %SYS-5-MOD_REMOVE:Module 3 has been removed
Console> (enable)
2001 Sep 09 12:23:44 %SYS-5-MOD_INSERT:Module 3 has been inserted
Console> (enable)
2001 Sep 09 12:23:47 %SYS-5-MOD_OK:Module 3 is online
Console> (enable)

If you use the show port command to query the module before reinstalling a module to replace the removed one, the system responds, "Module 3 is not installed." When the module is reinserted, the system recognizes the module as ready again.
