Catalyst 4000 Family Power Entry Module and External Power Shelf Installation Note
Product Numbers:
WS-X4095-PEM Power entry module
WS-P4603= External power shelf
WS-X4608= External power supply
This installation note describes how to install the Catalyst 4000 family power entry module (PEM) and external power shelf.
Contents
This document contains these sections:
•
Installing the Power Entry Module
•Installing the External Power Shelf and Power Supplies
•Obtaining Documentation
•Obtaining Technical Assistance
Warning Definition
|
Warning This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. To see translations of the warnings that appear in this publication, refer to the "Translated Safety Warnings" section in this document.
|
Warning
|
This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. To see translations of the warnings that appear in this publication, refer to the "Translated Safety Warnings" section in this document.
|
Waarschuwing
|
Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van standaard maatregelen om ongelukken te voorkomen. Voor vertalingen van de waarschuwingen die in deze publicatie verschijnen, kunt u het gedeelte "Translated Safety Warnings" (Vertalingen van veiligheidsvoorschriften) raadplegen in dit document.
|
Varoitus
|
Tämä varoitusmerkki merkitsee vaaraa. Olet tilanteessa, joka voi johtaa ruumiinvammaan. Ennen kuin työskentelet minkään laitteiston parissa, ota selvää sähkökytkentöihin liittyvistä vaaroista ja tavanomaisista onnettomuuksien ehkäisykeinoista. Tässä julkaisussa esiintyvien varoitusten käännökset löydät tämän asiakirjan "Translated Safety Warnings" (käännetyt turvallisuutta koskevat varoitukset).
|
Attention
|
Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant causer des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez conscient des dangers posés par les circuits électriques et familiarisez-vous avec les procédures couramment utilisées pour éviter les accidents. Pour prendre connaissance des traductions d'avertissements figurant dans cette publication, consultez la section « Translated Safety Warnings » (Traduction des avis de sécurité) de ce document.
|
Warnung
|
Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu einer Körperverletzung führen könnte. Bevor Sie mit der Arbeit an irgendeinem Gerät beginnen, seien Sie sich der mit elektrischen Stromkreisen verbundenen Gefahren und der Standardpraktiken zur Vermeidung von Unfällen bewußt. Übersetzungen der in dieser Veröffentlichung enthaltenen Warnhinweise finden Sie im Abschnitt "Translated Safety Warnings" (Übersetzung der Warnhinweise) in diesem Dokument.
|
Avvertenza
|
Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle persone. Prima di lavorare su qualsiasi apparecchiatura, occorre conoscere i pericoli relativi ai circuiti elettrici ed essere al corrente delle pratiche standard per la prevenzione di incidenti. La traduzione delle avvertenze riportate in questa pubblicazione si trova nella documento "Translated Safety Warnings" (Traduzione delle avvertenze di sicurezza) nel presente documento.
|
Advarsel
|
Dette varselsymbolet betyr fare. Du befinner deg i en situasjon som kan føre til personskade. Før du utfører arbeid på utstyr, må du vare oppmerksom på de faremomentene som elektriske kretser innebærer, samt gjøre deg kjent med vanlig praksis når det gjelder å unngå ulykker. Hvis du vil se oversettelser av de advarslene som finnes i denne publikasjonen, kan du se i avsnittet "Translated Safety Warnings" [Oversatte sikkerhetsadvarsler] i dette dokumentet.
|
Aviso
|
Este símbolo de aviso indica perigo. Encontra-se numa situação que lhe poderá causar danos físicos. Antes de começar a trabalhar com qualquer equipamento, familiarize-se com os perigos relacionados com circuitos eléctricos, e com quaisquer práticas comuns que possam prevenir possíveis acidentes. Para ver as traduções dos avisos que constam desta publicação, consulte a secção "Translated Safety Warnings" - "Traduções dos Avisos de Segurança" neste documento.
|
¡Advertencia!
|
Este símbolo de aviso significa peligro. Existe riesgo para su integridad física. Antes de manipular cualquier equipo, considerar los riesgos que entraña la corriente eléctrica y familiarizarse con los procedimientos estándar de prevención de accidentes. Para ver una traducción de las advertencias que aparecen en esta publicación, consultar la sección titulada "Translated Safety Warnings" que aparece en este documento.
|
Varning!
|
Denna varningssymbol signalerar fara. Du befinner dig i en situation som kan leda till personskada. Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och känna till vanligt förfarande för att förebygga skador. Om du vill se översättningar av de varningar som visas i denna publikation, se avsnittet "Translated Safety Warnings" [Översatta säkerhetsvarningar] i detta dokument.
|
Warning Before you install, operate, or service the system, read the Site Preparation and Safety Guide. This guide contains important safety information you should know before working with the system.
Installing the Power Entry Module
The Power Entry Module (PEM) (see Figure 1) allows you to connect the Catalyst 4006 switch to an external power supply. The PEM is installed on the front panel of the Catalyst 4006 switch chassis.
Figure 1 PEM
Warning Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place.
Caution Ensure that the external power supply is disconnected from the power source before you install and connect it to the PEM.
Follow these steps to install a PEM in your Catalyst 4006 switch chassis:
Step 1 Using a screw driver, unscrew the two captive screws on the PEM panel.
Note Keep the PEM panel in the event you need to remove the PEM later.
Step 2 Carefully insert the PEM into the slot. Be careful that you align it properly so that the 14-pin connector on the rear of the PEM seats properly into the chassis. (See Figure 2.)

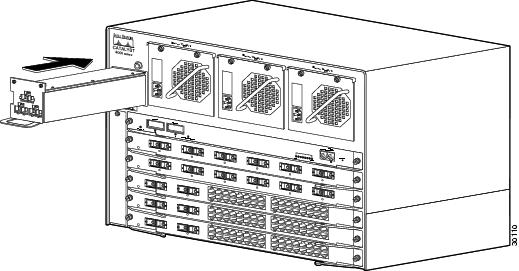

Figure 2 Inserting the PEM into the Slot
Step 3 Tighten the two captive installation screws on the PEM front panel, securing it to the Catalyst 4006 switch front panel.
Installing the External Power Shelf and Power Supplies
The external power supply (see Figure 3) allows you to operate voice-power enabled switching modules in the Catalyst 4006 switch chassis. The external power supply is a single-phase, AC-DC, 1050 watt, -52V output power supply. The external power supply is installed in an external power shelf (see Figure 4) that fits into a standard equipment rack. Up to three external power supplies can be installed in the external power shelf.
Figure 3 External Power Supply
Figure 4 External Power Shelf
Note To use an external power supply, you must first install a PEM. If you have not installed a PEM, see the "Installing the Power Entry Module" section for more information.
Rack-Mounting the External Power Shelf
Note Ensure that you install the external power shelf close enough to your Catalyst 4006 switch so that you can connect all power cords to the PEM and to the power outlet. We recommend that you install the external power shelf directly above your Catalyst 4006 switch or in a directly adjacent rack.
The external power supply is installed in the external power shelf. Follow these steps to install the external power shelf in an equipment rack:
Step 1 Align the mounting holes in the L brackets with the mounting holes in the equipment rack.
Step 2 Secure the external power shelf using four (two per side) 12-24 x 3/4-inch screws through the elongated holes in the L bracket and into the threaded holes in the mounting post. (See Figure 5.)
Figure 5 Installing the External Power Shelf in the Rack
Step 3 Use a tape measure and level to ensure that the external power shelf is installed straight and level.
Installing the External Power Supply
After you have installed an external power shelf in the equipment rack, you can install the external power supplies in the chassis. If you have not installed the external power shelf, see the "Rack-Mounting the External Power Shelf" section.
Follow these steps to install an external power supply:
Step 1 Ensure that the external power supply you are installing is not plugged in to a power outlet or the PEM.
Step 2 Loosen the screws on the attachment plates on the upper left and right corners of the external power supply so you can slide the attachment plates down. (See Figure 6.)
Figure 6 External Power Supply Attachment Plates
Step 3 Grasp the external power supply handle with one hand. Place your other hand underneath to support the bottom of the external power supply, as shown in Figure 7.
Figure 7 Handling an External Power Supply
Caution Use both hands to install and remove external power supplies.
Step 4 Slide the external power supply all the way into the external power shelf bay, aligning the attachment plates with the slots on the top of the external power shelf.
Step 5 Slide each attachment plate up so that the upper edge is wedged into the external power shelf slot and use a screwdriver to tighten the two screws on each attachment plate. (See Figure 8.)
Figure 8 Tightening the Attachment Plates
Step 6 Before you connect the external power supply to a power source, ensure that all site power and grounding requirements described in the Site Preparation and Safety Guide have been met.
Step 7 Plug the 2-pin Molex cord into the external power supply. (See Figure 9.)
Figure 9 Connecting the External Power Supply to the PEM
Step 8 Connect the other end of the 2-pin Molex cord to the PEM.
Note Up to three external power supplies can be connected to one PEM.
Step 9 Plug the IEC power cord into the external power supply. (See Figure 10.)
Figure 10 Connecting the Power Cord
Step 10 Connect the other end of the power cord to an AC-power input source.
Caution In a system with multiple external power supplies, connect each external power supply to a separate AC power source. In case of a power source failure, the second source will probably still be available and can maintain maximum overcurrent protection for each power connection.
Step 11 Verify external power supply operation by checking the power supply front panel LEDs:
•The LED labeled INPUT OK is lit.
•The LED labeled OUTPUT OK is lit.
Step 12 Check the external power supply and system status from the system console by entering the show system command. For more information on commands, refer to the Command Reference for your switch.
Step 13 If the LEDs or the show system command output indicate a power problem or other system problem, refer to the Catalyst 4003 and 4006 Switch Installation Guide for more information.
