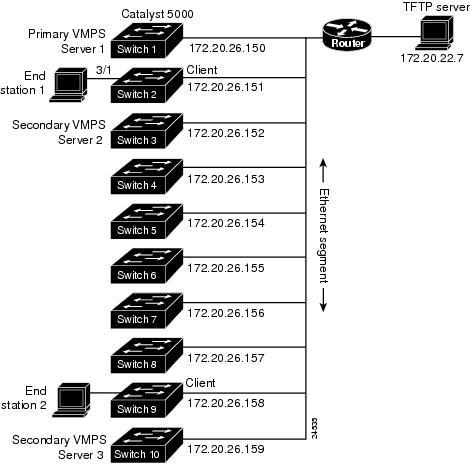

Dynamic Port VLAN Membership Configuration Example

Configuring Dynamic VLAN Membership

---

This chapter describes how to configure dynamic port VLAN membership by using the VLAN Membership Policy Server (VMPS).

This chapter includes the following major sections:

•Understanding VMPS

•Configuring Dynamic VLAN Membership

•VMPS Database Configuration File Example

---

Note For complete syntax and usage information for the commands used in this chapter, refer to the Catalyst 4500 Series Switch Cisco IOS Command Reference and related publications at
http://www.cisco.com/univercd/cc/td/doc/product/software/ios121/121cgcr/index.htm

---

Understanding VMPS

With the VMPS, you can dynamically assign switch ports to VLANs based on the source Media Access Control (MAC) address of the device connected to the port. When you move a host from a port on one switch in the network to a port on another switch in the network, that switch dynamically assigns the new port to the proper VLAN for that host.

A Catalyst 4500 series switch can be a member switch or a command switch in a cluster of switches managed as a single entity. The communication between VMPS and a member switch is managed by the command switch. In this description, the VMPS client is always the command switch.

A Catalyst 4500 series switch acts as a client to the VMPS and communicates with it by using the VLAN Query Protocol (VQP ). When the VMPS receives a VQP request from a client switch, the VMPS searches its database for a MAC address-to-VLAN mapping. The server response is based on this mapping. If the server is in secure mode, the server shuts down the port when a VLAN is not allowed on it, or the server simply denies the port access to the VLAN.

In response to a request, the VMPS takes one of the following actions:

•If the assigned VLAN is restricted to a group of ports, the VMPS verifies the requesting port against this group and responds as follows:

–If the VLAN is allowed on the port, the VMPS sends the VLAN name to the client in response.

–If the VLAN is not allowed on the port, and the VMPS is not in secure mode, the VMPS sends an access-denied response.

–If the VLAN is not allowed on the port, and the VMPS is in secure mode, the VMPS sends a port-shutdown response.

•If the VLAN in the database does not match the current VLAN on the port, and there are active hosts on the port, the VMPS sends an access-denied or a port-shutdown response, depending on the secure mode of the VMPS.

If the switch receives an access-denied response from the VMPS, the switch continues to block traffic from the MAC address to or from the port. The switch continues to monitor the packets directed to the port and sends a query to the VMPS when it identifies a new address. If the switch receives a port-shutdown response from the VMPS, the switch disables the port. The port must be manually reenabled by using the CLI, Cisco Visual Switch Manager (CVSM), or SNMP.

You can also use an explicit entry in the configuration table to deny access to specific MAC addresses for security reasons. If you enter the none keyword for the VLAN name, the VMPS sends an access-denied or port-shutdown response.

Entering Port Names in the VMPS

A VMPS database configuration file must use the Catalyst 4500 series convention for naming ports. For example, Fa0/5 is fixed-port number 5.

If the switch is a cluster member, the command switch adds the name of the switch before the "Fa" in the port name. For example, es3%Fa02 refers to fixed 10/100 port 2 on member switch 3. These naming conventions must be used in the VMPS database configuration file when the VMPS is configured to support a cluster.

You can configure a fallback VLAN name. If you connect a device with a MAC address that is not in the database, the VMPS sends the fallback VLAN name to the client. If you do not configure a fallback VLAN name and the MAC address does not exist in the database, the VMPS sends an access-denied response. If the VMPS is in secure mode, it sends a port-shutdown response.

Dynamic Port VLAN Membership

A dynamic (nontrunking) port can belong to only one VLAN. When the link comes up, the switch does not forward traffic to or from this port until the port is assigned to a VLAN. The source MAC address from the first packet of a new host on the dynamic port is sent to the VMPS, which attempts to match the MAC address to a VLAN in the VMPS database. If there is a match, the VMPS sends the VLAN number for that port. If there is no match, the VMPS either denies the request or shuts down the port (depending on the VMPS secure mode setting). See the "Understanding VMPS" section for a complete description of possible VMPS responses.

Multiple hosts (MAC addresses) can be active on a dynamic port if they are all in the same VLAN. If the link goes down on a dynamic port, the port returns to an isolated state and does not belong to a VLAN. Any hosts that come online through the port are checked again with the VMPS before the port is assigned to a VLAN.

---

Note The VMPS shuts down a dynamic port if more than 20 hosts are active on that port.

---

VMPS Configuration Guidelines

The following guidelines and restrictions apply to dynamic port VLAN membership:

•You must configure the VMPS before you configure ports as dynamic.

•The communication between a cluster of switches and the VMPS is managed by the command switch and includes port-naming conventions that are different from standard port names. See "Entering Port Names in the VMPS" section for the cluster-based port-naming conventions.

•When you configure a port as dynamic, the spanning-tree PortFast feature is automatically enabled for that port. The PortFast mode accelerates the process of bringing the port into the forwarding state. You can disable PortFast mode on a dynamic port.

•Secure ports cannot be dynamic ports. You must disable port security on the port before it becomes dynamic.

•Trunk ports cannot be dynamic ports, but it is possible to enter the switchport access VLAN dynamic command for a trunk port. In this case, the switch retains the setting and applies it if the port is later configured as an access port.

You must turn off trunking on the port before the dynamic access setting takes effect.

•Dynamic ports cannot be network ports or monitor ports.

---

Note The VTP management domain of the VMPS client and the VMPS server must match.

---

Default VMPS Configuration

Table 9-1 shows the default VMPS and dynamic port configuration on client switches.

Table 9-1 Default VMPS Client and Dynamic Port Configuration

Feature	Default Configuration
VMPS domain server	None
VMPS reconfirm interval	60 minutes
VMPS server retry count	3
Dynamic ports	None configured

Configuring Dynamic VLAN Membership

These subsections describe how to configure a switch as a VMPS client and configure its ports for dynamic VLAN membership.

The following topics are included:

•Entering the IP Address of the VMPS

•Configuring Dynamic Ports on VMPS Clients

•Administering and Monitoring the VMPS

•Configuring the Reconfirmation Interval

•Reconfirming VLAN Memberships

•Troubleshooting Dynamic Port VLAN Membership

Entering the IP Address of the VMPS

To configure the switch as a client, you must enter the IP address of the Catalyst 4500 series switch or the other device acting as the VMPS.

If the VMPS is being defined for a cluster of switches, perform this task:

	Command	Purpose
Step 1	Switch# configure terminal	Enters global configuration mode.
Step 2	Switch(config)# vmps server ipaddress primary	Enters the IP address of the switch acting as the primary VMPS server.
Step 3	Switch(config)# vmps server ipaddress	Enters the IP address for the switch acting as a secondary VMPS server.
Step 4	Switch(config)# end	Returns to privileged EXEC mode.
Step 5	Switch# show vmps	Verifies the VMPS server entry.

This example shows how to enter the primary and backup VMPS devices:

Switch# configure terminal

Enter configuration commands, one per line.  End with CNTL/Z.

Switch(config)# vmps server 172.20.128.179 primary

Switch(config)# vmps server 172.20.128.178

Switch(config)# end

Switch# show vmps

VQP Client Status:

--------------------

VMPS VQP Version:   1

Reconfirm Interval: 60 min

Server Retry Count: 3

VMPS domain server: 172.20.128.179 (primary, current)

                    172.20.128.178

Reconfirmation status

---------------------

VMPS Action:         No Dynamic Port

Configuring Dynamic Ports on VMPS Clients

If you are configuring a port on a member switch as a dynamic port, first log in to the member switch by using the privileged EXEC rcommand command. See the Catalyst 4500 Series Switch Cisco IOS Command Reference for more information on how to use this command.

To configure dynamic ports on the VMPS client switches, perform this task:

	Command	Purpose
Step 1	Switch# configure terminal	Enters global configuration mode.
Step 2	Switch(config)# interface interface	Enters interface configuration mode and the port to be configured.
Step 3	Switch(config)# switchport mode access	Sets the port to access mode.
Step 4	Switch(config)# switchport access vlan dynamic	Configures the port as eligible for dynamic VLAN access.
Step 5	Switch(config-if)# end	Returns to privileged EXEC mode.
Step 6	Switch# show interface interface switchport	Verifies the entry.

This example shows how to configure a port as a dynamic access port and then verify the entry:

Switch# configure terminal

Enter configuration commands, one per line.  End with CNTL/Z.

Switch(config)# interface fa0/1

Switch(config-if)# switchport mode access

Switch(config-if)# switchport access vlan dynamic

Switch(config-if)# end

Switch# show interface fa0/1 switchport

Name: Fa0/1

Switchport: Enabled

Administrative mode: dynamic access

Operational Mode: dynamic access

Administrative Trunking Encapsulation: isl

Operational Trunking Encapsulation: isl

Negotiation of Trunking: Disabled

Access Mode VLAN: 0 ((Inactive))

Trunking Native Mode VLAN: 1 (default)

Trunking VLANs Enabled: NONE

Pruning VLANs Enabled: NONE

Configuring Dynamic Port VLAN Membership with Auxiliary VLANs

You can configure VMPS on either dynamic access ports or voice ports.

Configuring an interface as a dynamic access port, allows a switch to send VMPS queries for all untagged traffic. Because the untagged traffic is assumed to be from the workstation, VLAN IDs are obtained from the VMPS server for all untagged source MACs.

To configure a port as a dynamic port, perform this task:

switch(config)# int fa6/1

switch(config-if)# switchport access vlan dynamic

To configure an interface as a voice port, you must assign a voice VLAN ID.

---

Note All the packets from phone are assumed to be tagged and arrive with voice VLAN ID; these packets are not subjected to the VMPS server query process.

---

To configure a port as a voice port, perform this task:

switch(config)# int fa6/1

switch(config-if)# switchport voice vlan 10

To display dynamic VLAN and voice VLAN port information, perform the following task:

switch# show interfaces fa6/1 switchport

Name: Fa6/1

Switchport: Enabled

Administrative Mode: dynamic auto

Operational Mode: dynamic access             <========

Administrative Trunking Encapsulation: negotiate

Operational Trunking Encapsulation: native

Negotiation of Trunking: On

Access Mode VLAN: Null

Trunking Native Mode VLAN: 1 (default)

Voice VLAN: 10 (VLAN0010)                     <========

Administrative private-vlan host-association: none

Administrative private-vlan mapping: none

Administrative private-vlan trunk native VLAN: none

Administrative private-vlan trunk encapsulation: dot1q

Administrative private-vlan trunk normal VLANs: none

Administrative private-vlan trunk private VLANs: none

Operational private-vlan: none

Trunking VLANs Enabled: ALL

Pruning VLANs Enabled: 2-1001

Capture Mode Disabled

Capture VLANs Allowed: ALL

Unknown unicast blocked: disabled

Unknown multicast blocked: disabled

Voice VLAN: 10 (VLAN0010)

Appliance trust: none

Administering and Monitoring the VMPS

You can display information about the VMPS by using the show vmps command in mode privileged EXEC.

The switch displays the following information about the VMPS:

VMPS VQP Version	The version of VQP used to communicate with the VMPS. The switch queries the VMPS using version 1 of VQP.
Reconfirm Interval	The number of minutes the switch waits before reconfirming the VLAN-to-MAC-address assignments.
Server Retry Count	The number of times VQP resends a query to the VMPS. If no response is received after this many tries, the switch starts to query the secondary VMPS.
VMPS domain server	The IP address of the configured VLAN membership policy servers. The switch currently sends queries to the one marked current. The one marked primary is the primary server.
VMPS Action	The result of the most-recent reconfirmation attempt. This can happen automatically when the reconfirmation interval expired, or you can force it by entering the privileged EXEC vmps reconfirm command or its CVSM or SNMP equivalent.

The following example shows how to display VMPS information. You can enter this information on a command or member switch:

Switch# show vmps

VQP Client Status:

--------------------

VMPS VQP Version:   1

Reconfirm Interval: 60 min

Server Retry Count: 3

VMPS domain server:

Reconfirmation status

---------------------

VMPS Action:         other

The following example shows how to display VMPS statistics:

Switch# show vmps statistics

VMPS Client Statistics

----------------------

VQP  Queries:               0

VQP  Responses:             0

VMPS Changes:               0

VQP  Shutdowns:             0

VQP  Denied:                0

VQP  Wrong Domain:          0

VQP  Wrong Version:         0

VQP  Insufficient Resource: 0

---

Note Refer to the Catalyst 4500 Series Switch Cisco IOS Command Reference for details on the VMPS statistics.

---

Configuring the Reconfirmation Interval

VMPS clients periodically reconfirm the VLAN membership information received from the VMPS. You can set the interval at which the reconfirmation will occur.

If you are configuring a member switch in a cluster, the parameter must be equal to or greater than the reconfirmation setting on the command switch. In addition, you must first log in to the member switch by using the rcommand command in privileged EXEC mode. See the Catalyst 4500 Series Switch Cisco IOS Command Reference for more information on how to use this command.

To configure the reconfirmation interval, perform this task:

	Command	Purpose
Step 1	Switch# configure terminal	Enters global configuration mode.
Step 2	Switch(config)# vmps reconfirm minutes	Enters the number of minutes between reconfirmations of the dynamic VLAN membership.
Step 3	Switch(config)# end	Returns to privileged EXEC mode.
Step 4	Switch# show vmps	Verifies the dynamic VLAN reconfirmation status.

This example shows how to change the reconfirmation interval to 60 minutes and verify the change by displaying the VMPS information:

Switch# configure terminal

Enter configuration commands, one per line.  End with CNTL/Z.

Switch(config)# vmps reconfirm 60

Switch(config)# end

Switch# show vmps

VQP Client Status:

--------------------

VMPS VQP Version:   1

Reconfirm Interval: 60 min

Server Retry Count: 10

VMPS domain server: 172.20.130.50 (primary, current)

Reconfirmation status

---------------------

VMPS Action:         No Host

Reconfirming VLAN Memberships

To confirm the dynamic port VLAN membership assignments that the switch has received from the VMPS, perform this task:

	Command	Purpose
Step 1	Switch(config)# vmps reconfirm	Reconfirms dynamic port VLAN membership.
Step 2	Switch# show vmps	Verifies the dynamic VLAN reconfirmation status.

Troubleshooting Dynamic Port VLAN Membership

The VMPS shuts down a dynamic port under these conditions:

•The VMPS is in secure mode, and it will not allow the host to connect to the port. The VMPS shuts down the port to prevent the host from connecting to the network.

•More than 20 active hosts reside on a dynamic port.

To reenable a shut-down dynamic port, enter the no shutdown command in interface configuration mode.

VMPS Database Configuration File Example

This example shows a sample VMPS database configuration file as it appears on a
Catalyst 4500 series switch. A VMPS database configuration file is an ASCII text file that is stored on a TFTP server accessible to the switch that functions as the VMPS server.

!vmps domain <domain-name>

! The VMPS domain must be defined.

!vmps mode { open | secure }

! The default mode is open.

!vmps fallback <vlan-name>

!vmps no-domain-req { allow | deny }

!

! The default value is allow.

vmps domain WBU

vmps mode open

vmps fallback default

vmps no-domain-req deny

!

!

!MAC Addresses

!

vmps-mac-addrs

!

! address <addr> vlan-name <vlan_name>

!

address 0012.2233.4455 vlan-name hardware

address 0000.6509.a080 vlan-name hardware

address aabb.ccdd.eeff vlan-name Green

address 1223.5678.9abc vlan-name ExecStaff

address fedc.ba98.7654 vlan-name --NONE--

address fedc.ba23.1245 vlan-name Purple

!

!Port Groups

!

!vmps-port-group <group-name>

! device <device-id> { port <port-name> | all-ports }

!

vmps-port-group WiringCloset1

 device 198.92.30.32 port Fa1/3

 device 172.20.26.141 port Fa1/4

vmps-port-group "Executive Row"

 device 198.4.254.222 port es5%Fa0/1

 device 198.4.254.222 port es5%Fa0/2

 device 198.4.254.223 all-ports

!

!VLAN groups

!

!vmps-vlan-group <group-name>

! vlan-name <vlan-name>

!

vmps-vlan-group Engineering

vlan-name hardware

vlan-name software

!

!VLAN port Policies

!

!vmps-port-policies {vlan-name <vlan_name> | vlan-group <group-name> }

! { port-group <group-name> | device <device-id> port <port-name> }

!

vmps-port-policies vlan-group Engineering

 port-group WiringCloset1

vmps-port-policies vlan-name Green

 device 198.92.30.32 port Fa0/9

vmps-port-policies vlan-name Purple

 device 198.4.254.22 port Fa0/10

 port-group "Executive Row"

Dynamic Port VLAN Membership Configuration Example

Figure 9-1 shows a network with a VMPS server switch and VMPS client switches with dynamic ports. In this example, these assumptions apply:

•The VMPS server and the VMPS client are separate switches.

•The Catalyst 4500 series Switch 1 is the primary VMPS server.

•The Catalyst 4500 series Switch 3 and Switch 10 are secondary VMPS servers.

•End stations are connected to these clients:

–Catalyst 2900 series XL Switch 2

–Catalyst 2900 series XL Switch 9

•The database configuration file is called Bldg-G.db and is stored on the TFTP server with the IP address 172.20.22.7.

Figure 9-1 Dynamic Port VLAN Membership Configuration

In the following procedure, the Catalyst 4500 series switches are the VMPS servers. Use this procedure to configure the Catalyst 4500 series and Catalyst 2900 XL series clients in the network:

---

Step 1 Configure the VMPS server addresses on Switch 2, the client switch.

a. Starting from privileged EXEC mode, enter global configuration mode:

switch# configuration terminal

b. Enter the primary VMPS server IP address:

switch(config)# vmps server 172.20.26.150 primary

c. Enter the secondary VMPS server IP addresses:

switch(config)# vmps server 172.20.26.152

d. To verify your entry of the VMPS IP addresses, return to privileged EXEC mode:

switch#(config) exit

e. Display VMPS information configured for the switch:

switch# show vmps

VQP Client Status:

--------------------

VMPS VQP Version:   1

Reconfirm Interval: 60 min

Server Retry Count: 3

VMPS domain server: 172.20.26.152

                    172.20.26.150 (primary, current

Step 2 Configure port Fa0/1 on Switch 2 as a dynamic port.

a. Return to global configuration mode:

switch# configure terminal

b. Enter interface configuration mode:

switch(config)# interface fa0/1

c. Configure the VLAN membership mode for static-access ports:

switch(config-if)# switchport mode access

d. Assign the port dynamic VLAN membership:

switch(config-if)# switchport access vlan dynamic

e. Return to privileged EXEC mode:

switch(config-if)# exit

switch#

Step 3 Connect End Station 2 on port Fa0/1. When End Station 2 sends a packet, Switch 2 sends a query to the primary VMPS server, Switch 1. Switch 1 responds with the VLAN ID for port Fa0/1. Because spanning-tree PortFast mode is enabled by default on dynamic ports, port Fa0/1 connects immediately and begins forwarding.

Step 4 Set the VMPS reconfirmation period to 60 minutes. The reconfirmation period is the number of minutes the switch waits before reconfirming the VLAN to MAC address assignments.

switch# config terminal

switch(config)# vmps reconfirm 60

Step 5 Confirm the entry from privileged EXEC mode:

switch# show vmps

VQP Client Status:

--------------------

VMPS VQP Version:   1

Reconfirm Interval: 60 min

Server Retry Count: 3

VMPS domain server:

Reconfirmation status

---------------------

VMPS Action:         No Dynamic Port

Step 6 Repeat Steps 1 and 2 to configure the VMPS server addresses, and assign dynamic ports on each VMPS client switch.

---
