Installing the Fan
This chapter describes how to install a fan module.
•
Overview
•Fan Module Installation
•Finding the Fan Module Serial Number
Overview
The switch has three fan modules. Fan modules are hot-swappable. A powered switch should always have more than one operational fan. The switch can operate with two operational fans and one nonfunctional fan, but the failed fan should be replaced as soon as possible to avoid a service interruption due to a second fan fault.
Note Three fans are required for proper cooling.

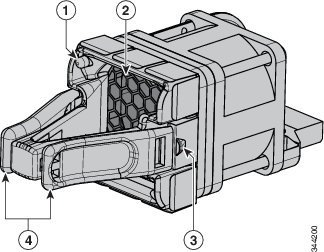

Figure 5-1 Fan Module
1
|
Fan LED
|
3
|
Retainer clip
|
2
|
Exhaust vent
|
4
|
Extraction handles
|
Fan Module Installation
Installation Guidelines
Observe these guidelines when removing or installing a fan module:
•Do not force the fan module into the slot. This can damage the pins on the switch if they are not aligned with the module.
•A fan module that is only partially connected can disrupt the system operation.
•The switch supports hot swapping of the fan module. You can remove and replace the module without interrupting normal switch operation.
 |
Warning Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
|
Installing a Fan Module
Step 1 Pinch the fan module release handle, and slide the module out.
Caution You should replace the fan module within 5 minutes to avoid overheating the switch.
Step 2 Install the fan module in the fan slot, and firmly push it into the slot, applying pressure to the end of the module, not the extraction handles. When correctly inserted, the fan module is flush with the switch rear panel. When the fan is operating, a green LED is on in the top left corner of the fan. See Figure 5-2.
|
Warning Do not reach into a vacant slot when installing or removing a module. Exposed circuitry is an energy hazard. Statement 206
|

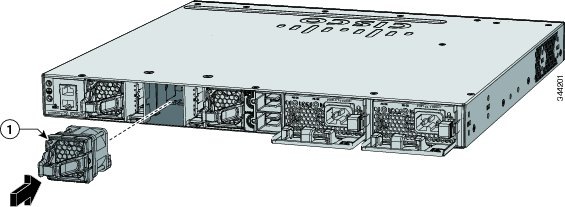

Figure 5-2 Installing the Fan Module
Finding the Fan Module Serial Number
If you contact Cisco Technical Assistance regarding a fan module, you need to know the fan module serial number. See Figure 5-3 for the serial number location.

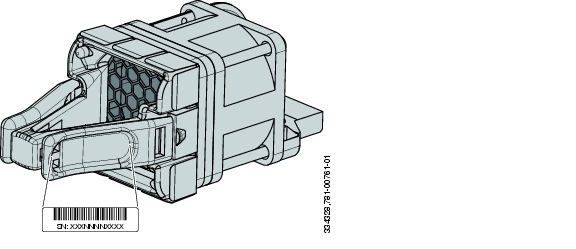

Figure 5-3 Fan Module Serial Number
